SERVICE PROCEDURES
2025-2026 Transfer 25 Hour Simple Grease Service
Step 1

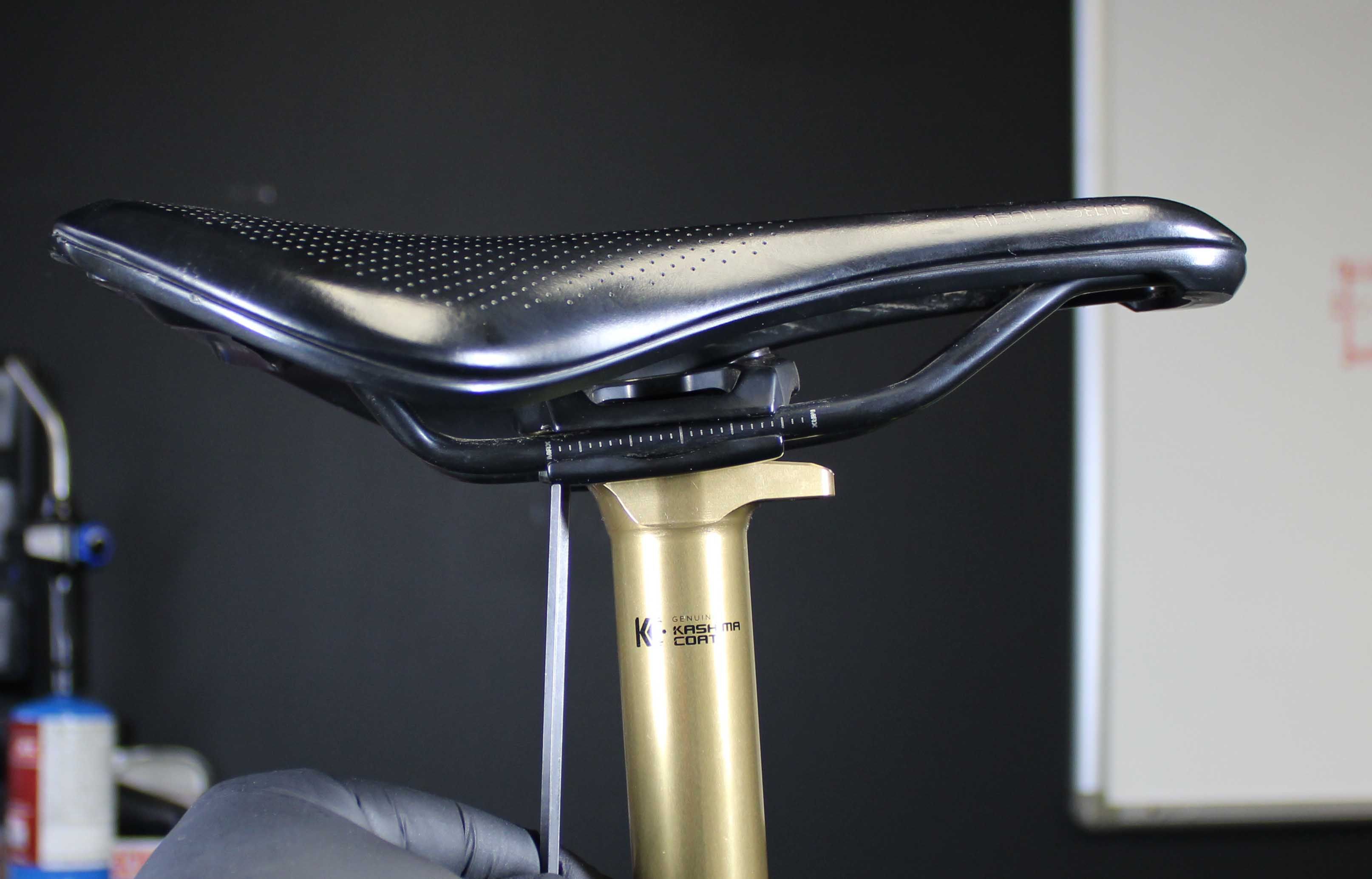

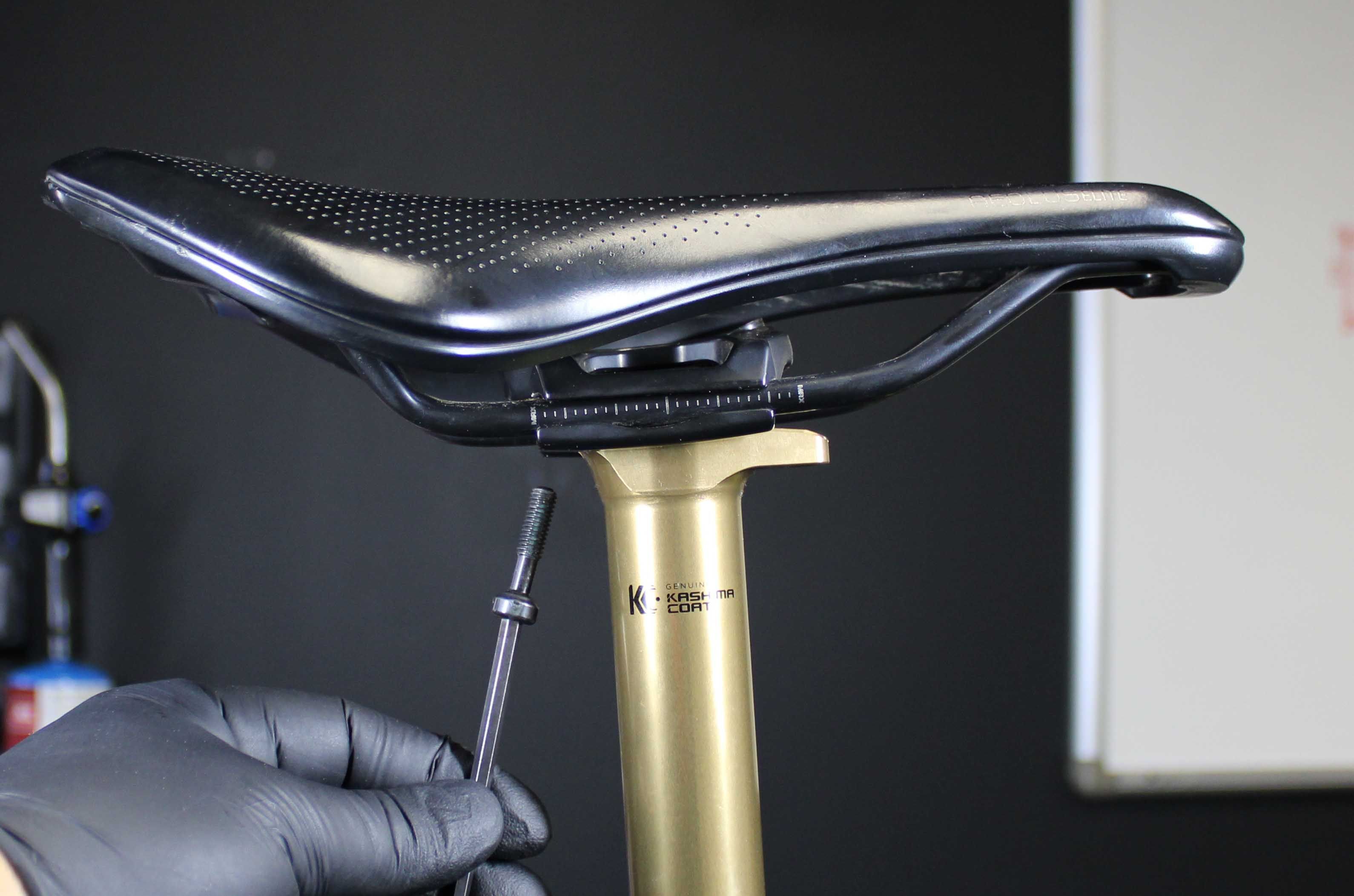

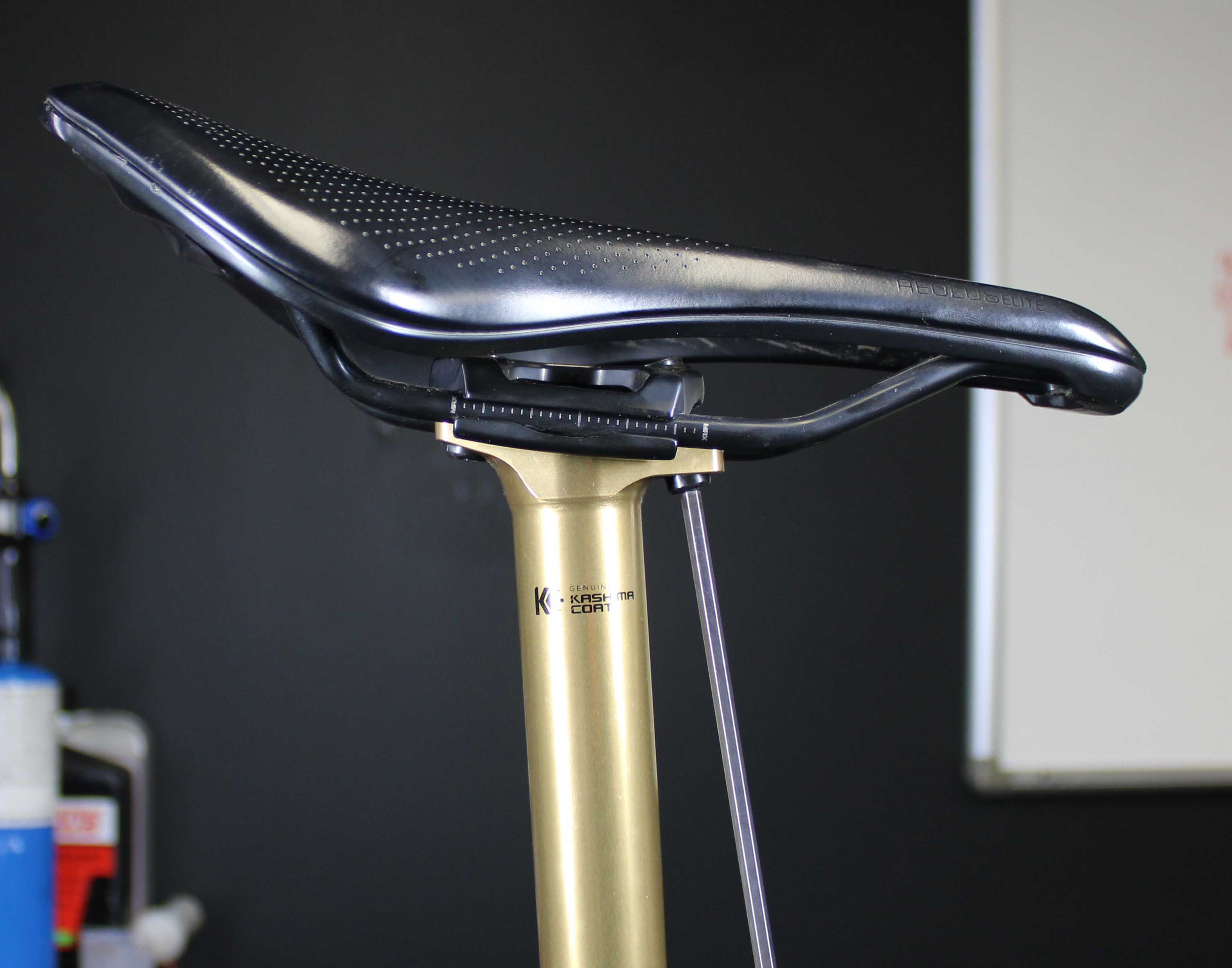

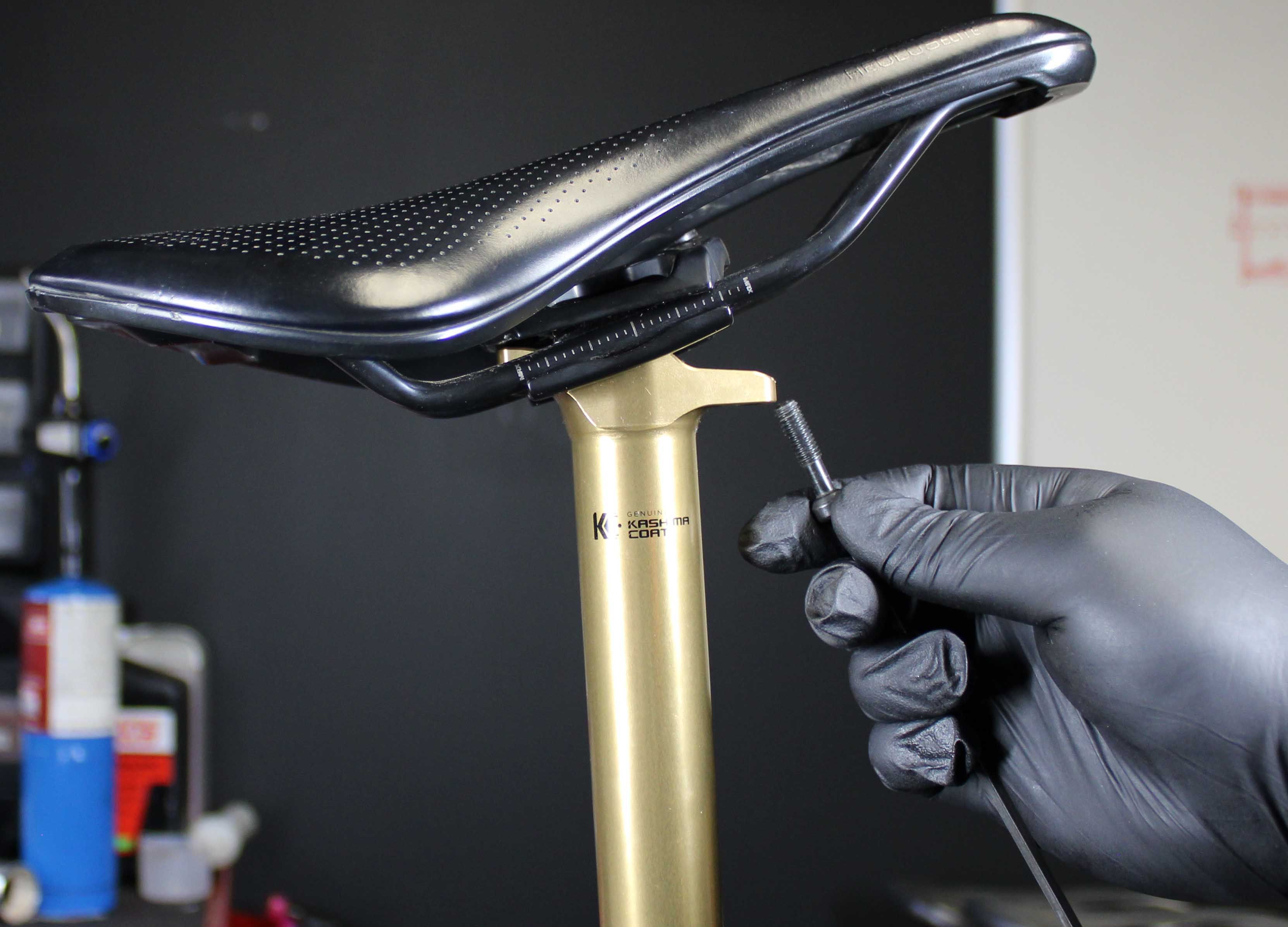

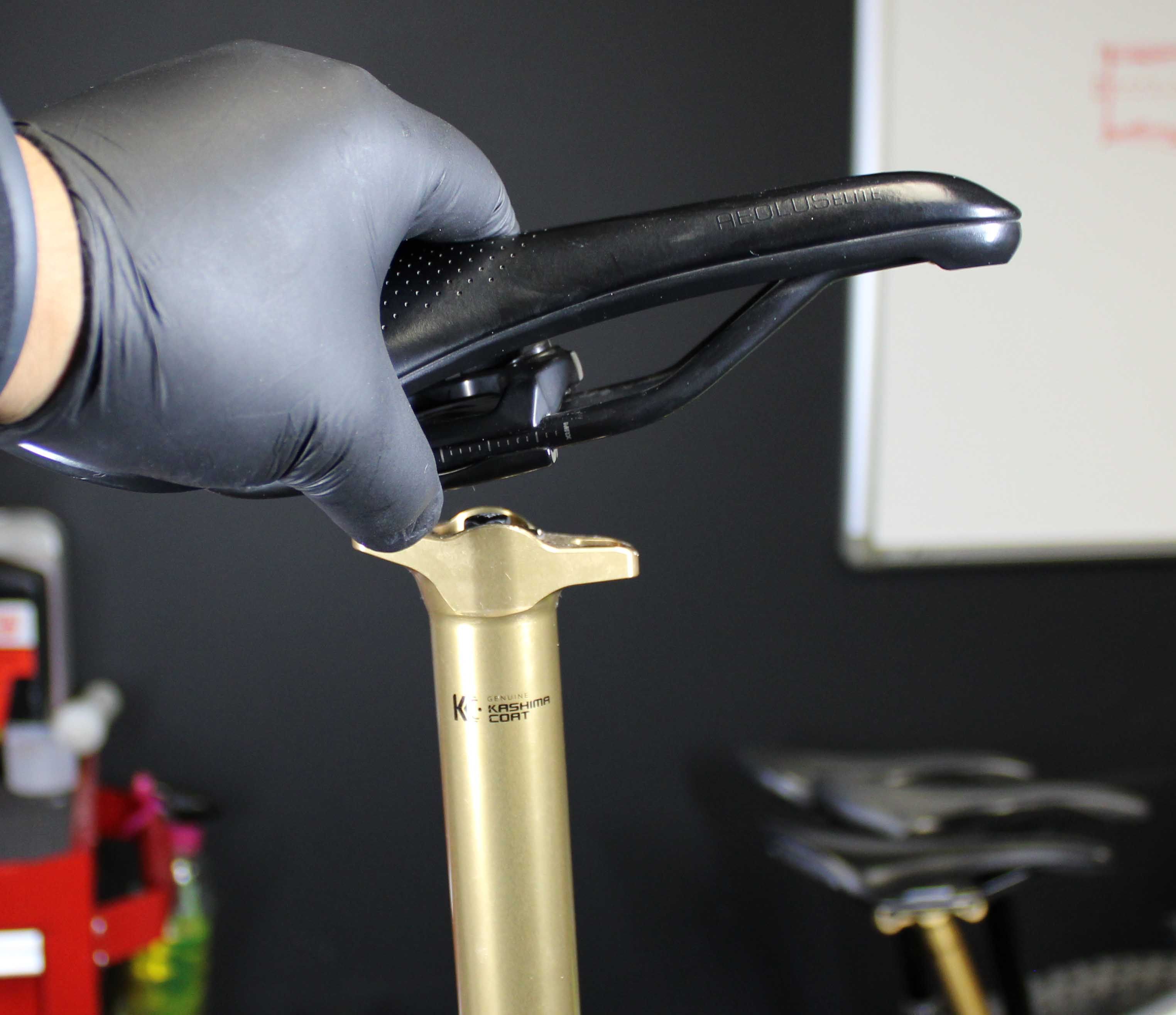

Remove the Saddle Clamps and hardware. Turn the 4mm hex bolts counter-clockwise to remove them from the Saddle Clamp Nuts. Set all clamps and hardware aside.
Step 2

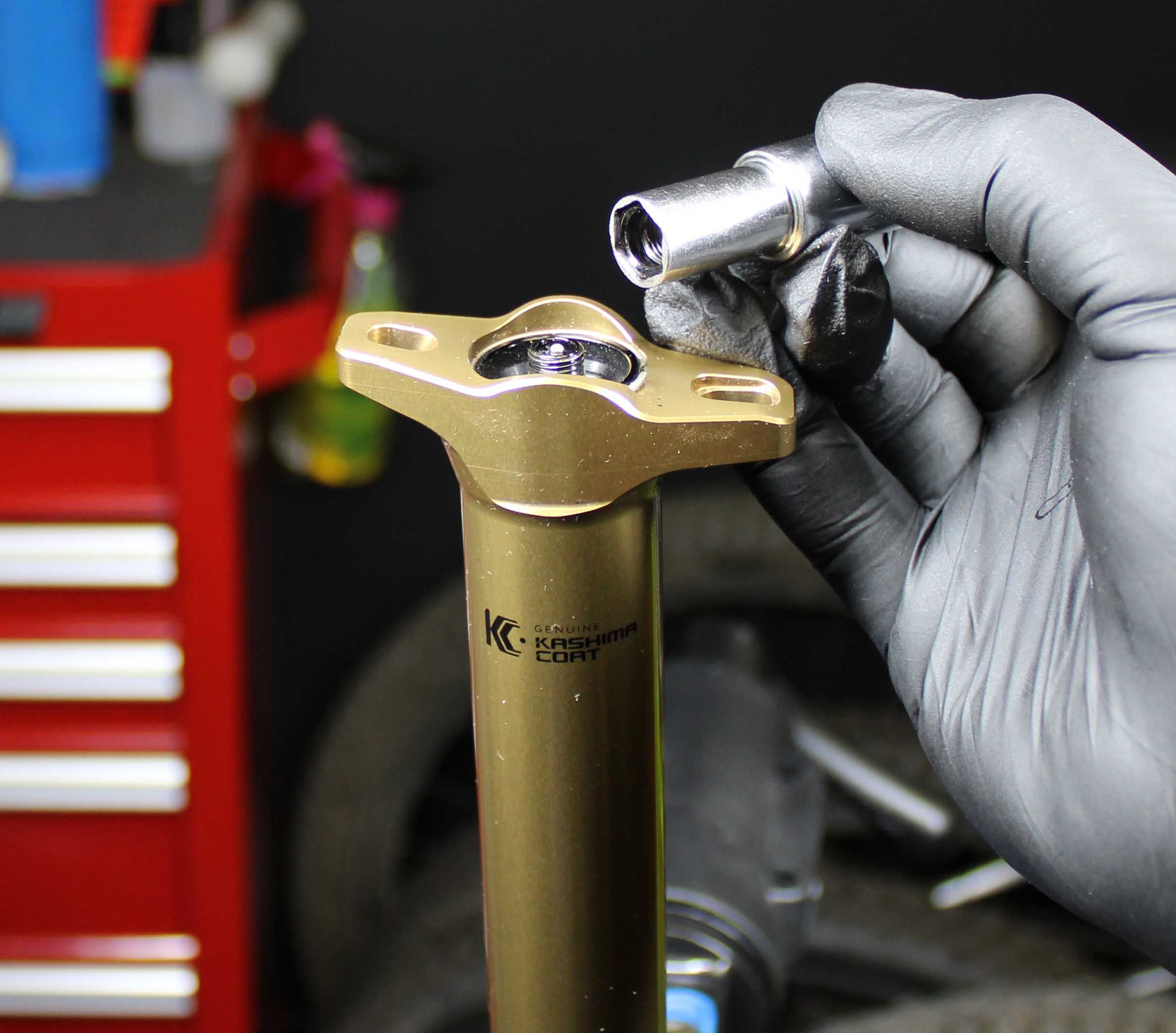

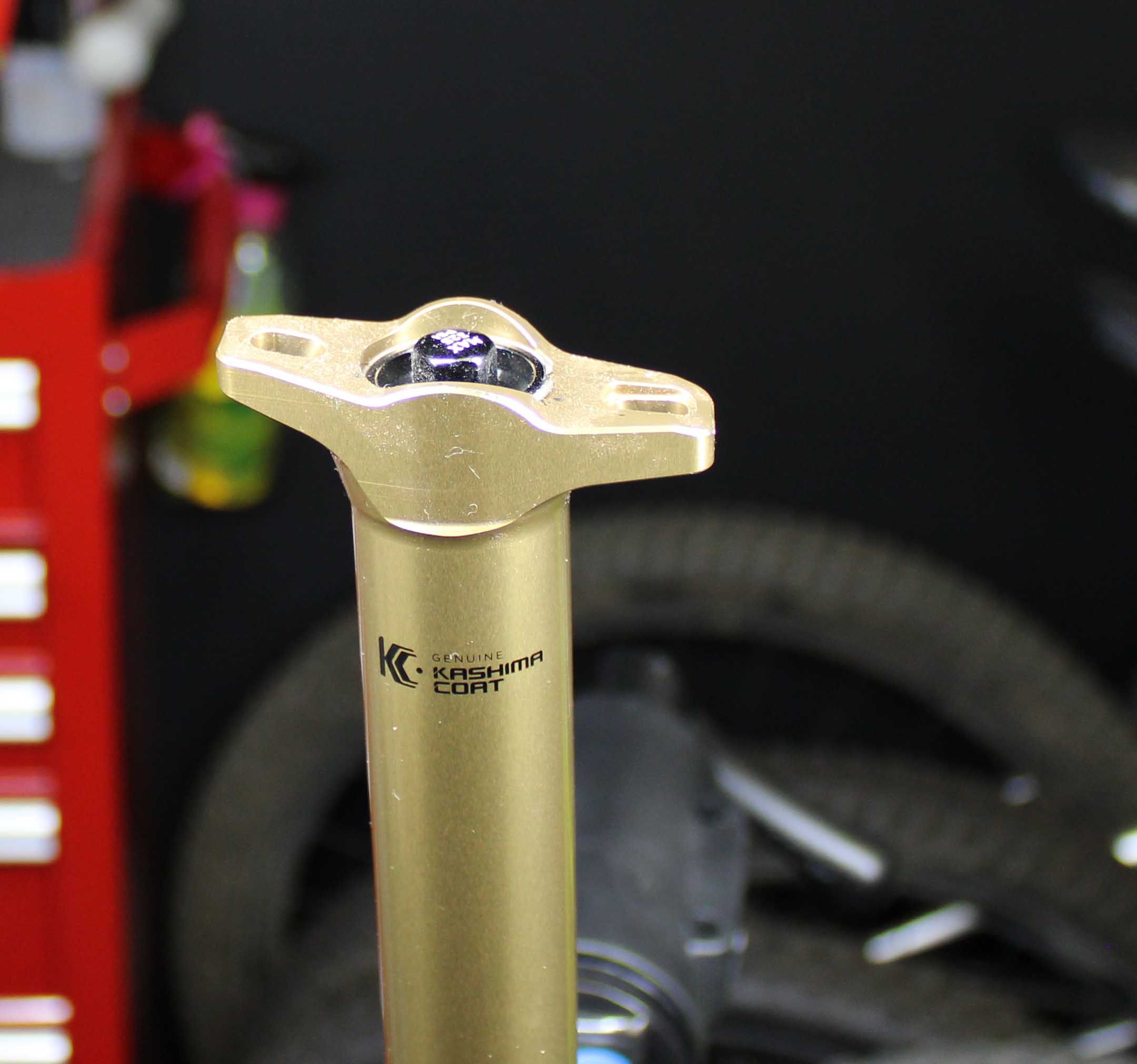

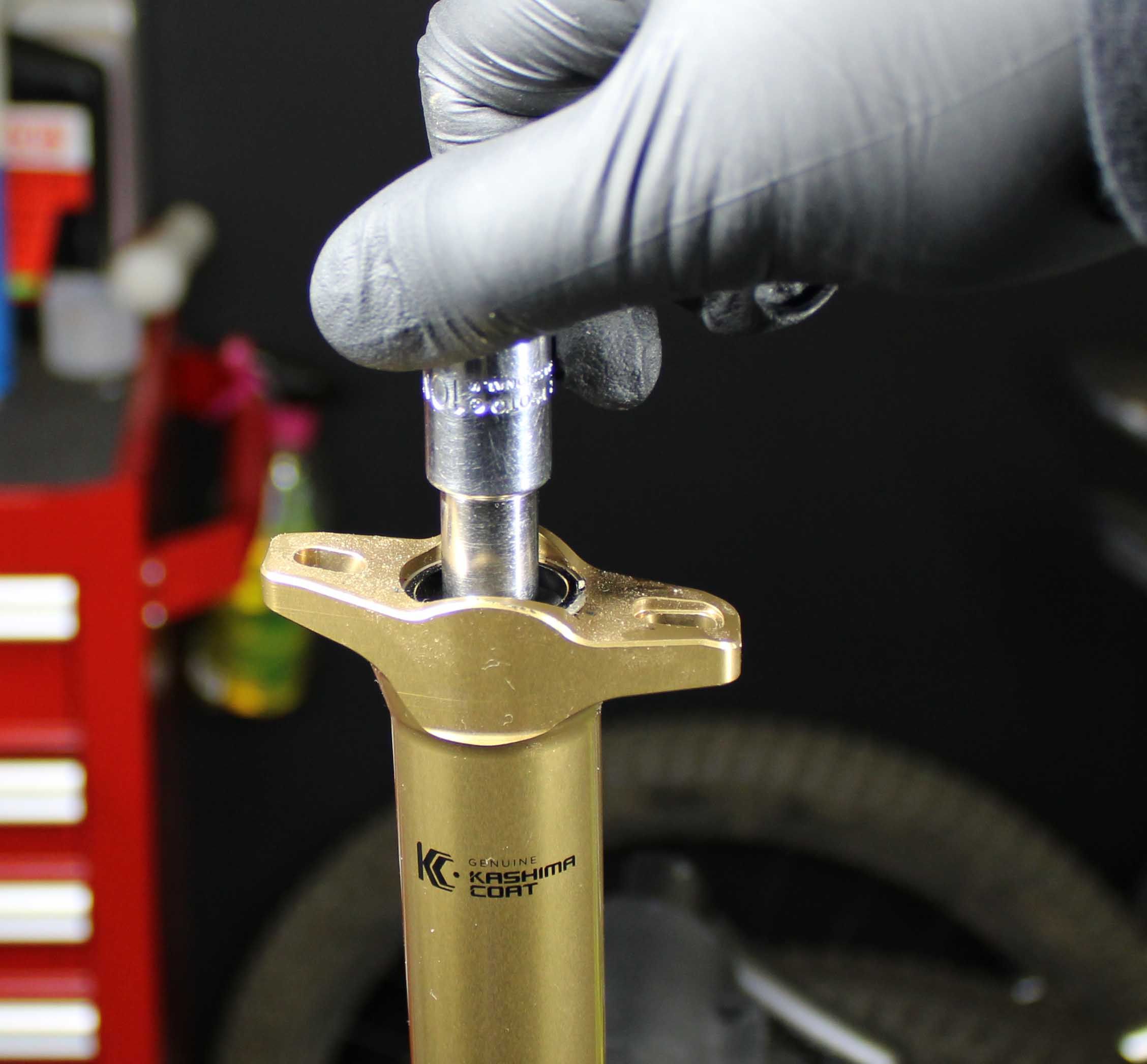

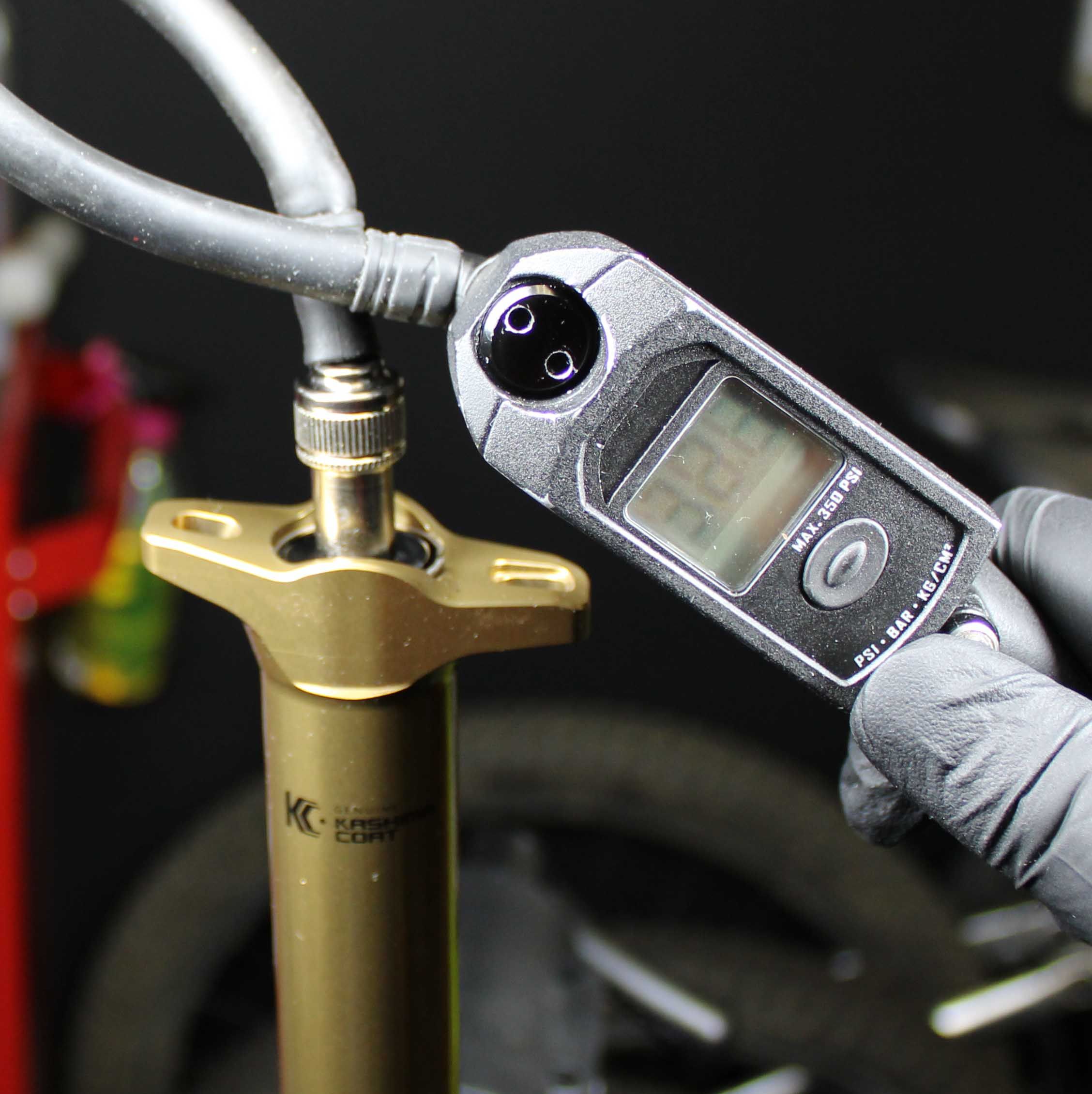

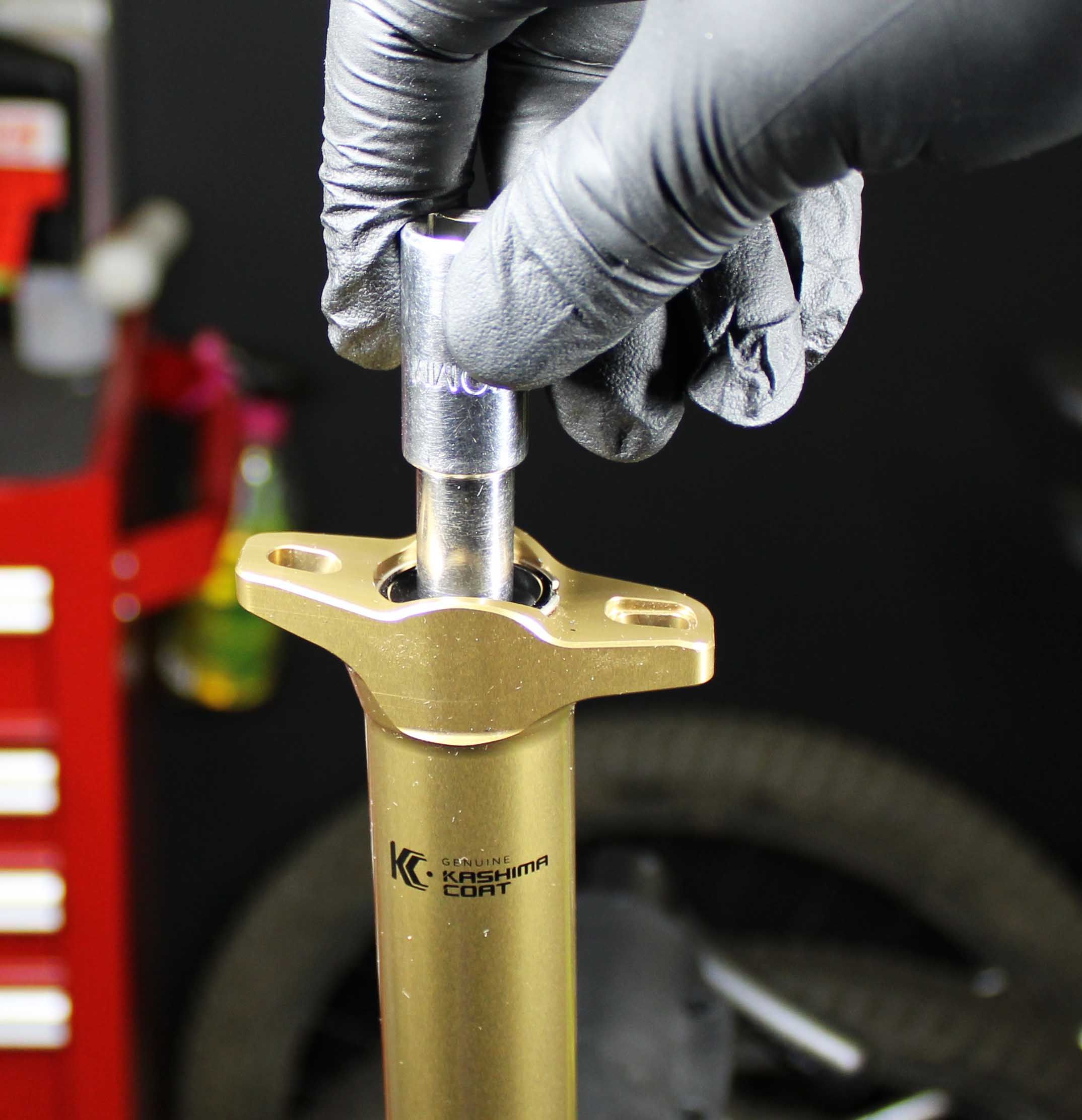

Remove the black air cap at the top of the post by turning it counter-clockwise with a 10mm socket. Charge the post to 275-325psi. Reinstall the Air Valve Cap finger tight with a 10mm socket.
Step 3

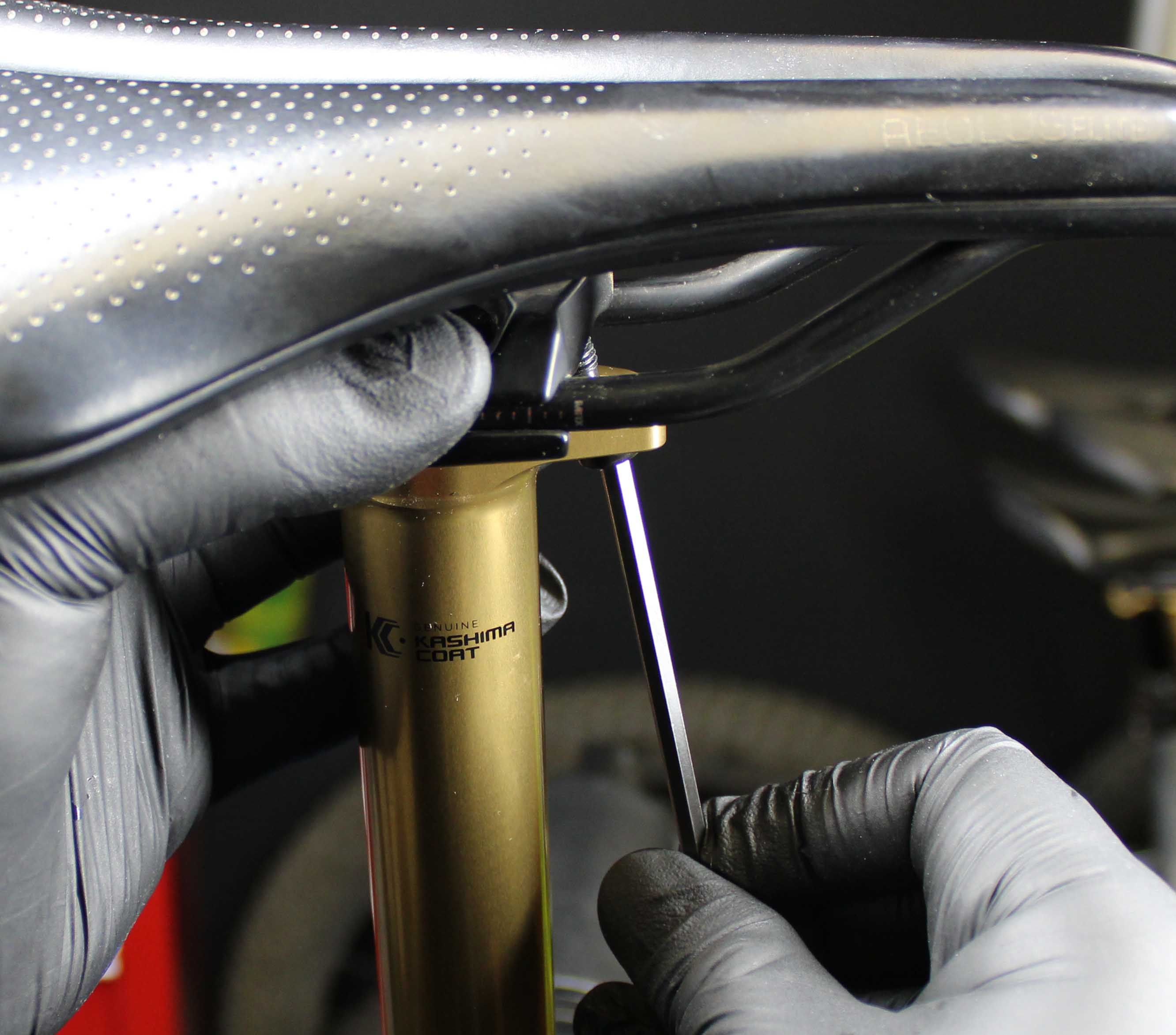

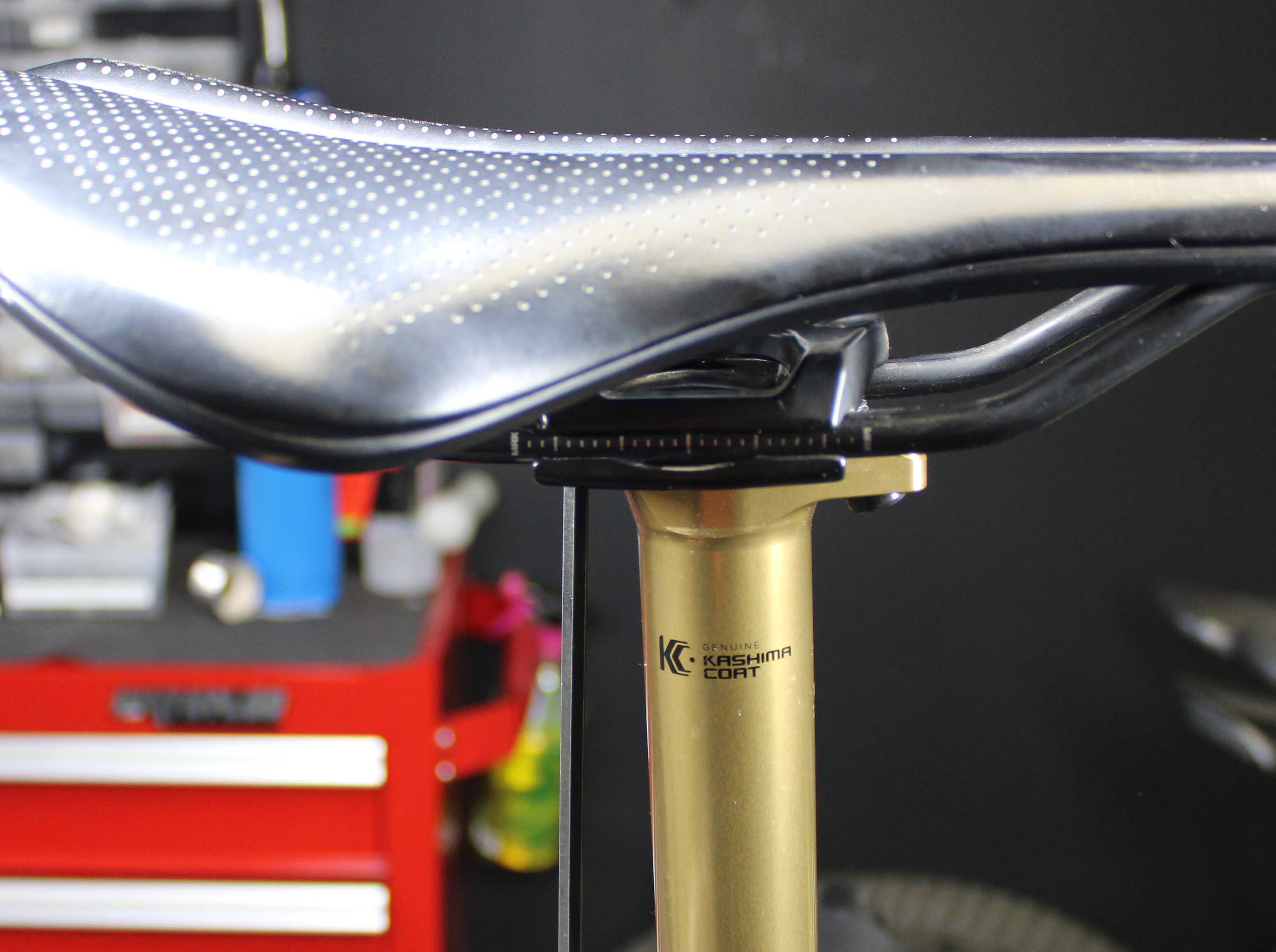

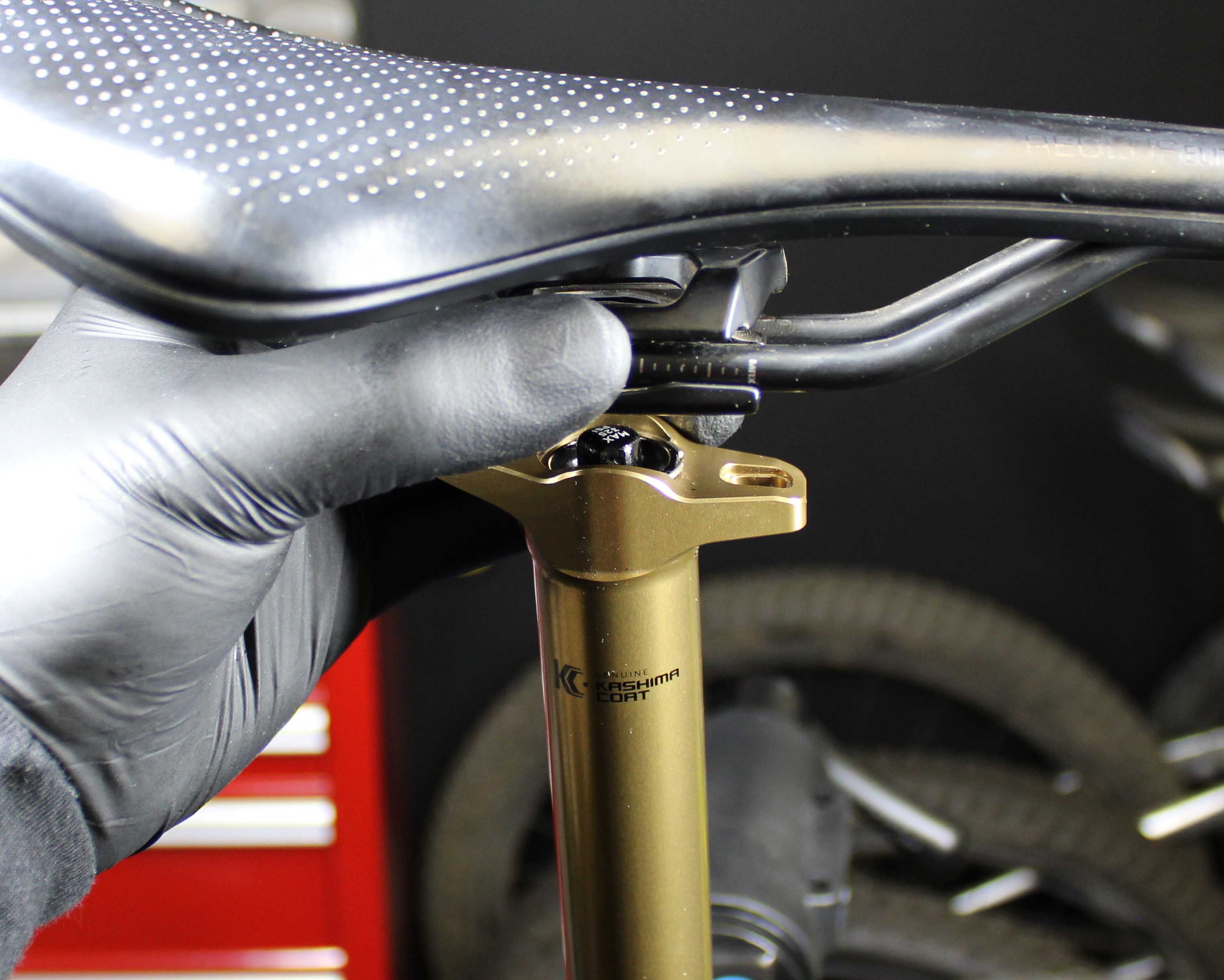

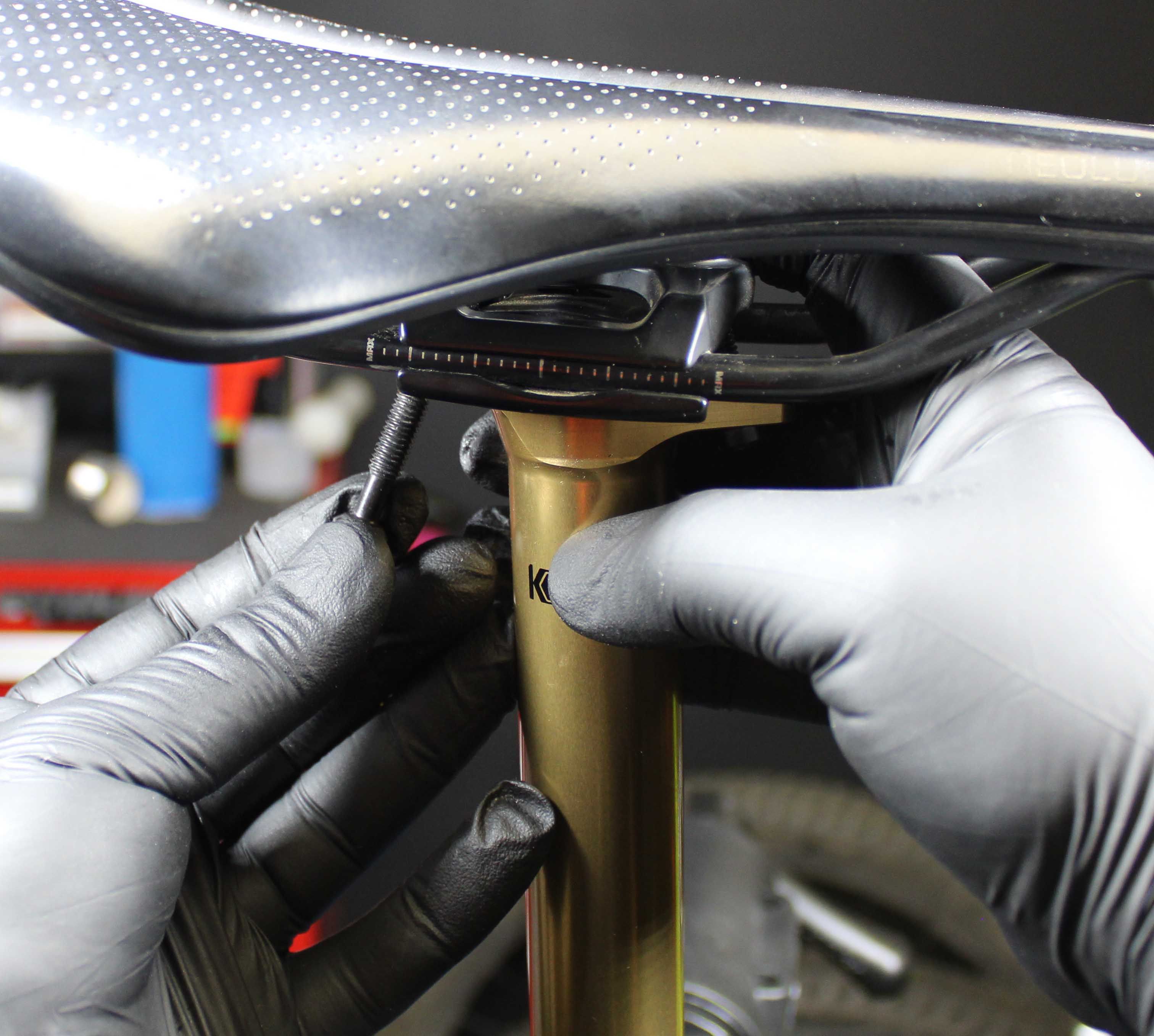

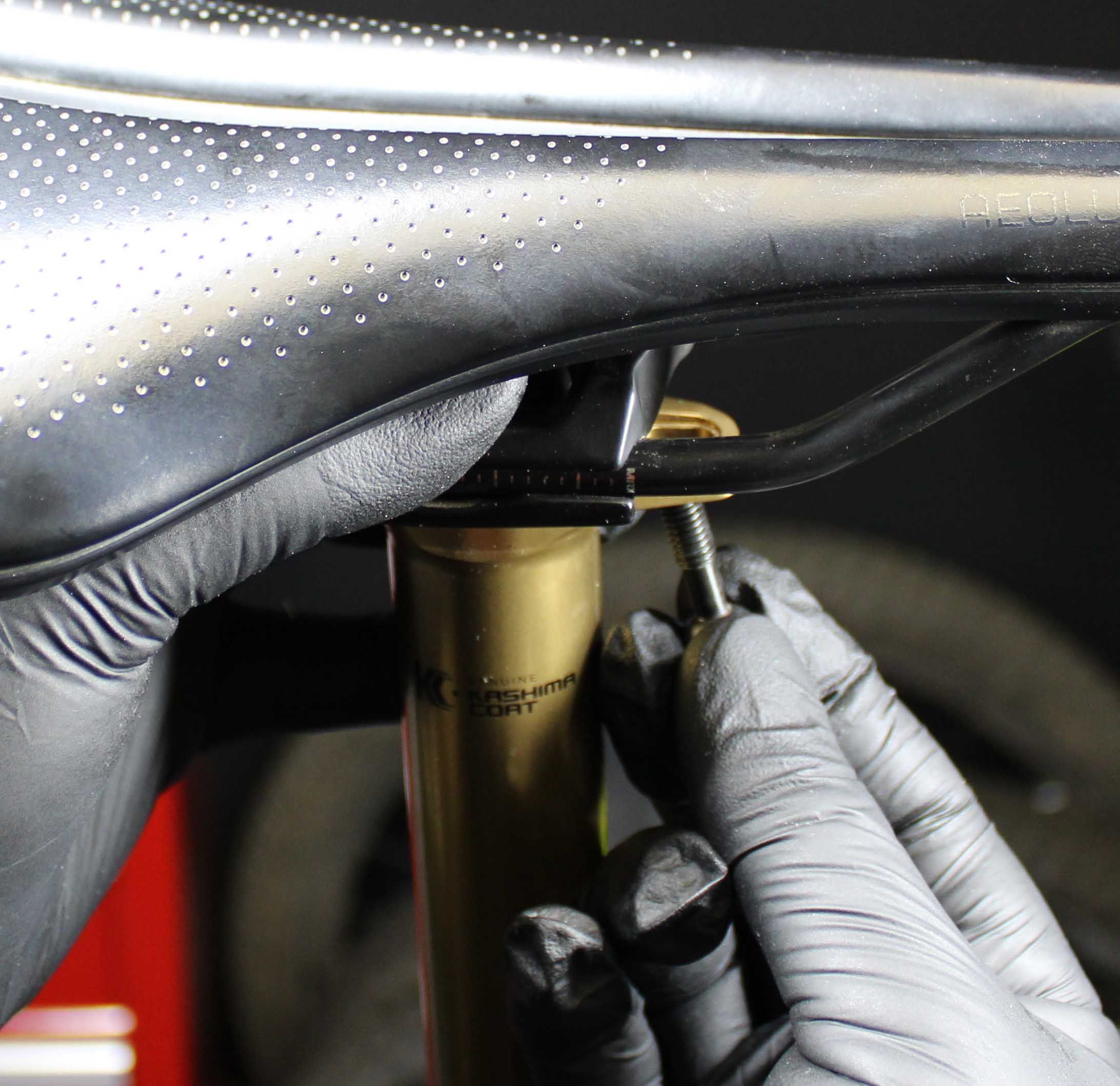

Reinstall the Saddle Clamps making sure all arrows face the front of the post.
Step 4
Clean any debris from the upper post and collar area. Loosen the collar at the junction between the upper and lower post by turning it counter-clockwise (when viewed from above). If it is too difficult to loosen by hand, use a strap wrench to turn it counter-clockwise.
Step 5
Slide the collar up to expose the upper post. Coat the upper post under the collar with a thick film of Slick Honey.
Step 6
Slide the collar back down and thread it back onto the lower post by turning it clockwise (when viewed from above) until hand tight. Reinstall the collar retention o-ring into the underside of the collar by hand or using a screwdriver.
Step 7
Cycle the seatpost 2-3 times through its travel, then wipe off any excess Slick Honey from the exterior of the seatpost.
WARNING: Always wear safety glasses and protective gloves during service to prevent potential injury. Failure to wear protective equipment during service may lead to SERIOUS INJURY OR DEATH.
WARNING: FOX products should be serviced by a qualified bicycle service technician, in accordance with FOX specifications. If you have any doubt whether or not you can properly service your FOX product, then DO NOT attempt it. Improperly serviced products can fail, causing the rider to lose control resulting in SERIOUS INJURY OR DEATH.
WARNING: Modification, improper service, or use of aftermarket replacement parts with FOX forks, shocks, and seatposts may cause the product to malfunction, resulting in SERIOUS INJURY OR DEATH. DO NOT modify any part of a fork, shock, or seatpost including the fork brace (lower leg cross brace), crown, steerer, upper and lower leg tubes, or internal parts, except as instructed herein. Any unauthorized modification may void the warranty, and may cause failure or the fork or shock, resulting in SERIOUS INJURY OR DEATH.
WARNING: FOX products contain pressurized nitrogen, air, oil, or all 3. Misuse can cause property damage, SERIOUS INJURY OR DEATH. DO NOT puncture, incinerate or crush any portion of a FOX product. DO NOT attempt to disassemble any portion of a FOX product, unless expressly instructed to do so by the applicable FOX technical documentation, and then ONLY while strictly adhering to all FOX insturctions and warnings in that instance.
