SERVICE PROCEDURES

2026 Podium Dust Wiper Replacement

Required Parts

  • 025-03-010 Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold
  • 025-03-063 Oil: Suspension Fluid, 4 WT, 1.0 Liter Bottle
  • 803-04-659 Kit: Dust Wiper, Forx, Podium, Low Friction, No Flange

Required Tools

  • 398-00-682 34-36-38-40 Damper-side Removal Tool
  • 398-00-772 Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 36

Supplies Needed

  • 15mm Socket
  • 2mm Hex Wrench
  • Mallet
  • Ratchet
  • Shock pump
  • Torque Wrench
  • Wooden or Plastic Dowel 1" (25.4mm)

The following procedure guides you through dust wiper replacement for 2026 Podium Fork

WARNING: Always wear safety glasses and protective gloves during service to prevent potential injury. Failure to wear protective equipment during service may lead to SERIOUS INJURY OR DEATH.

WARNING: FOX products should be serviced by a trained bicycle service technician, in accordance with FOX specifications. If you have any doubt whether or not you can properly service your FOX product, then DO NOT attempt it. Improperly serviced products can fail, causing the rider to lose control resulting in SERIOUS INJURY OR DEATH.

WARNING: FOX suspension products contain pressurized nitrogen, air, oil, or all 3. Suspension misuse can cause property damage, SERIOUS INJURY OR DEATH. DO NOT puncture, incinerate or crush any portion of a FOX suspension product. DO NOT attempt to disassemble any portion of a FOX suspension product, unless expressly instructed to do so by the applicable FOX technical documentation, and then ONLY while strictly adhering to all FOX instructions and warnings in that instance.

WARNING: Modification, improper service, or use of aftermarket replacement parts with FOX forks and shocks may cause the product to malfunction, resulting in SERIOUS INJURY OR DEATH. DO NOT modify any part of a fork or shock, including the fork brace (lower leg cross brace), crown, steerer, upper and lower leg tubes, or internal parts, except as instructed herein. Any unauthorized modification may void the warranty, and may cause failure or the fork or shock, resulting in SERIOUS INJURY OR DEATH.

img/help/page3125-MNK9/IMG_0892 copy-m.jpg

Step 1

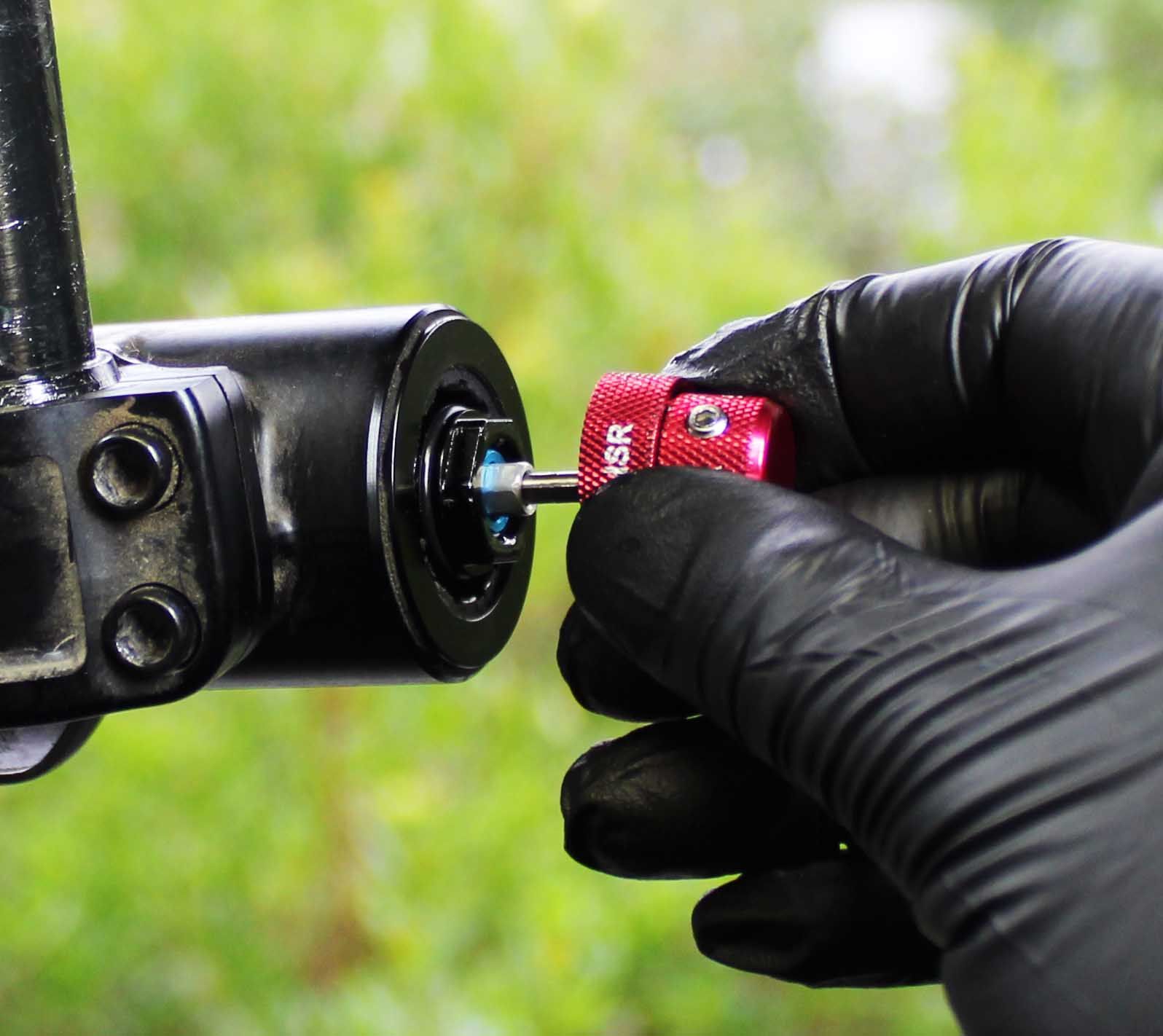

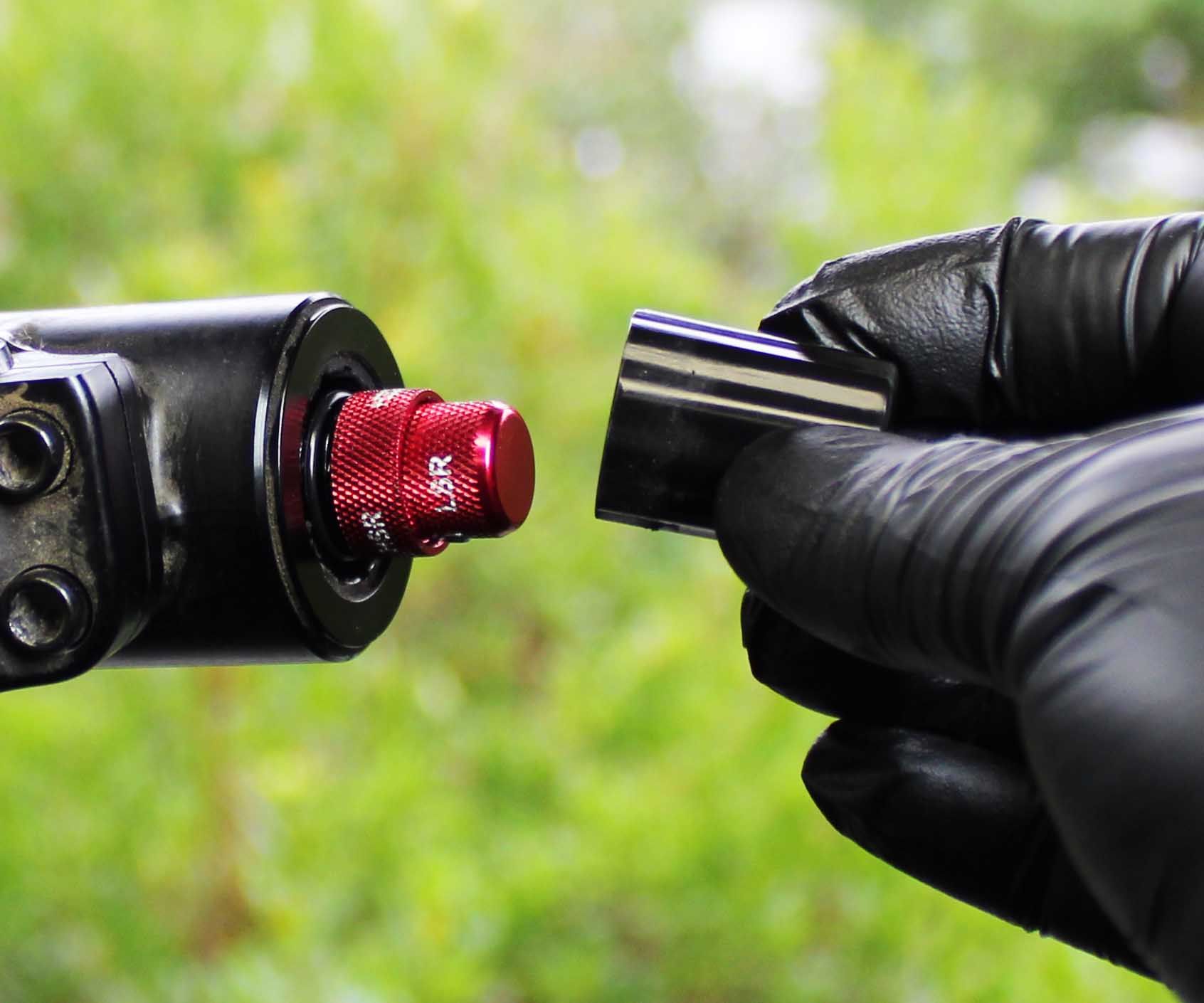

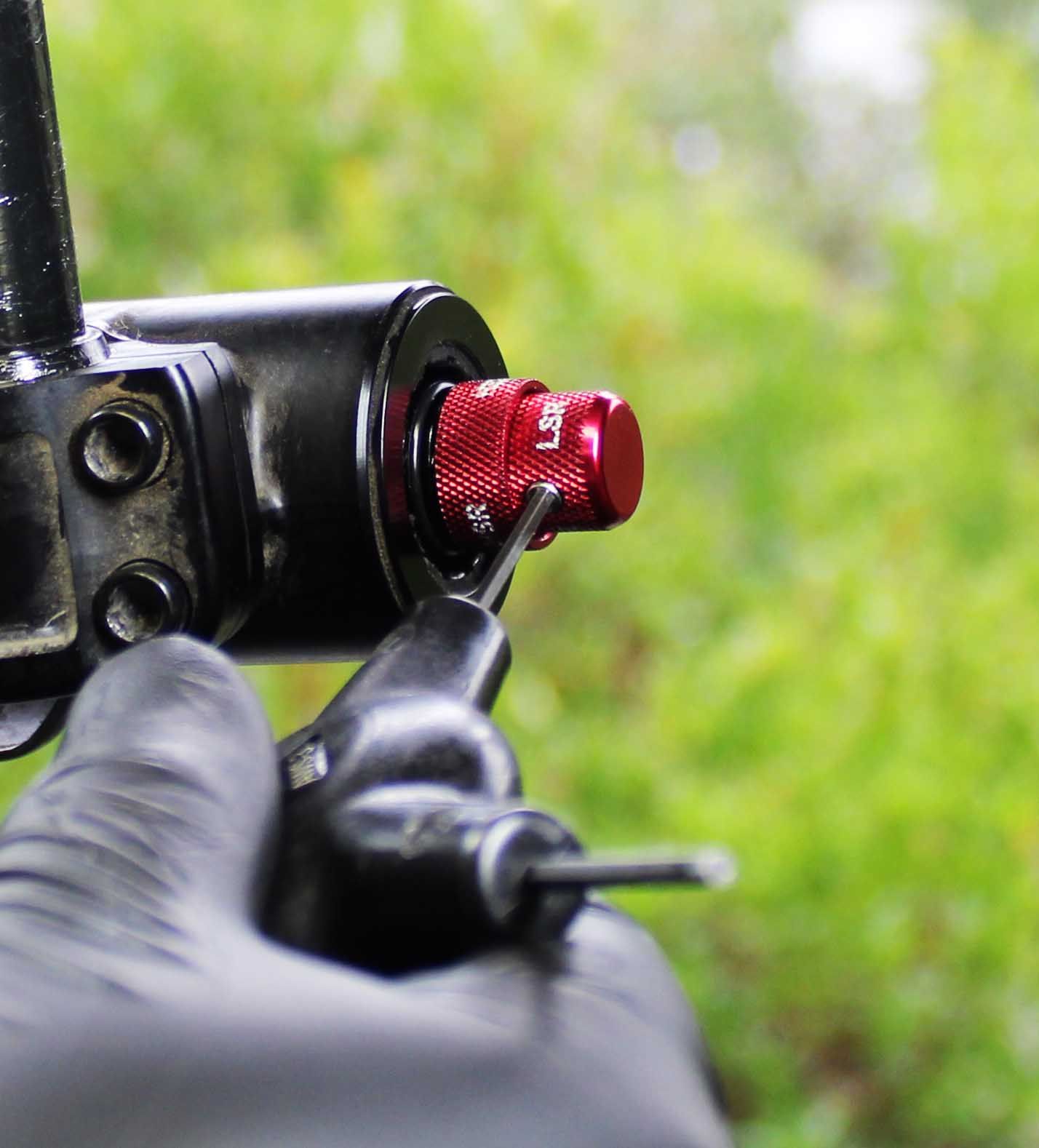

Remove the rebound knob cover (where present). Use a 2mm hex wrench to unthread the set screw in the red rebound knob, remove the knob and set it aside.

img/help/page3125-MNK9/IMG_0892 copy.jpg
img/help/page3125-MNK9/IMG_0893 copy.jpg
img/help/page3125-MNK9/IMG_0894 copy.jpg


img/help/page3125-MNK9/IMG_0895 copy-m.jpg

Step 2

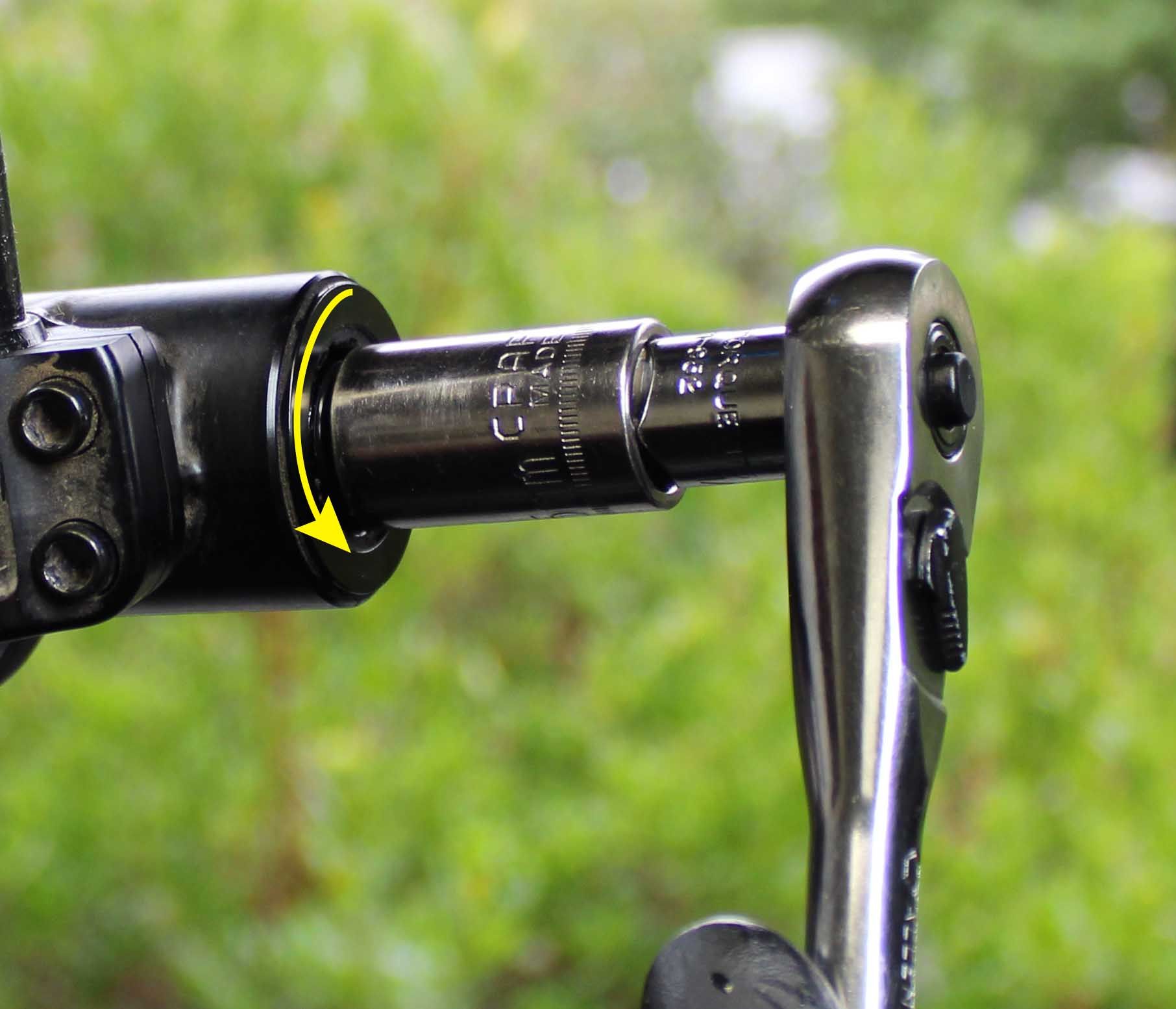

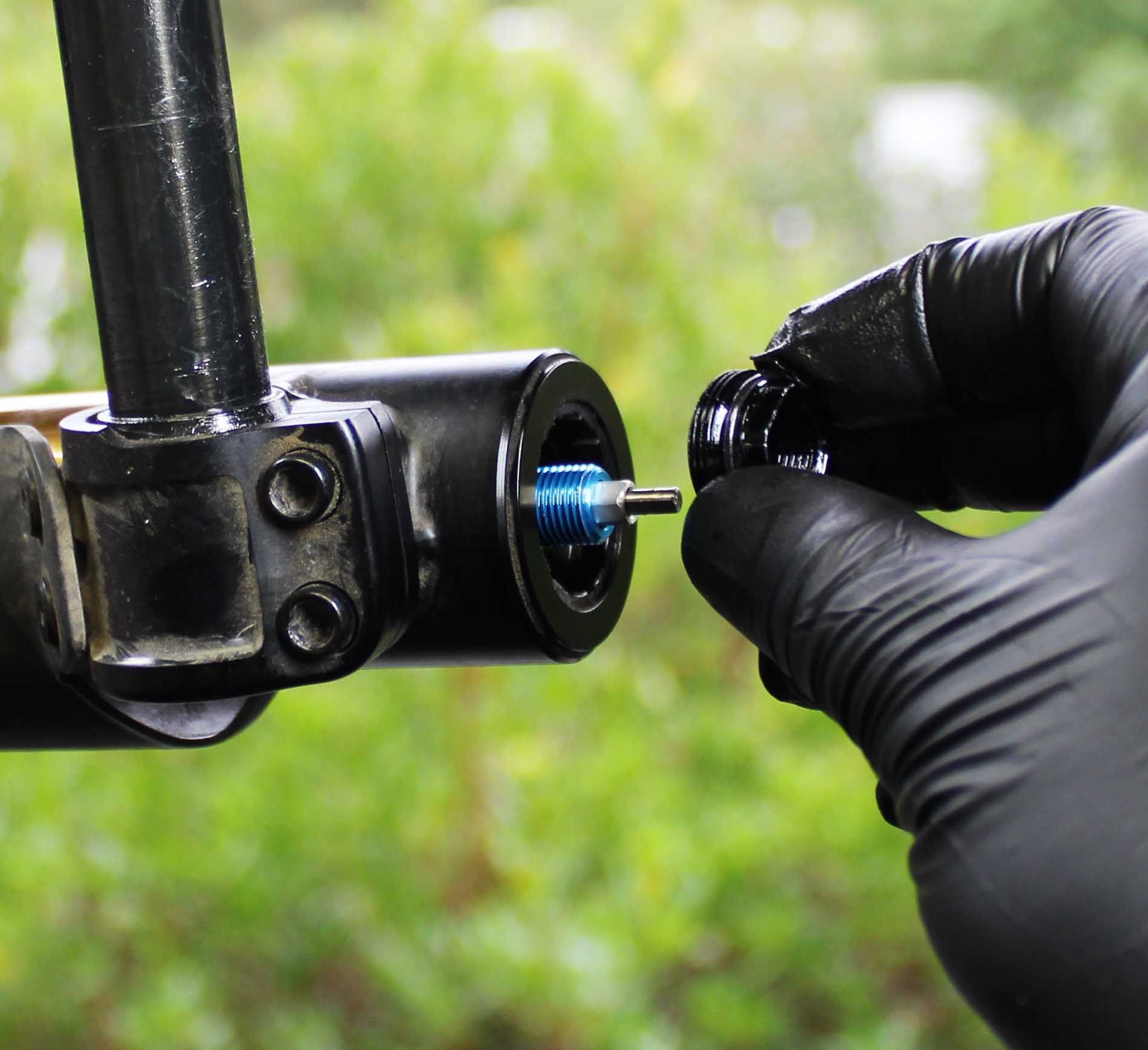

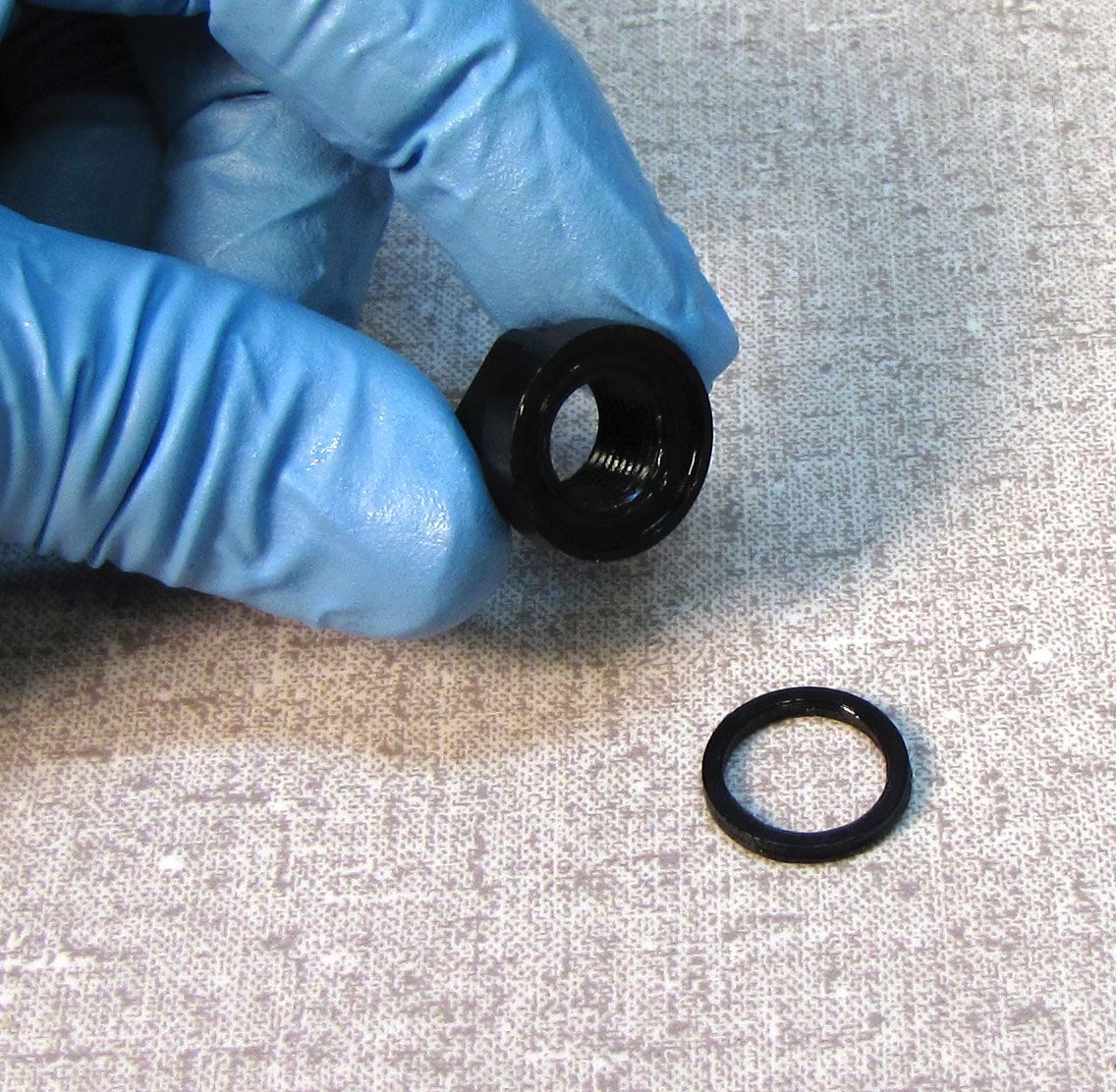

Use a 15mm socket to remove the damper side bottom nut. Make sure to remove and discard the orginal crushwasher which may be stuck to the bottom nut.

img/help/page3125-MNK9/IMG_0895 copy.jpg
img/help/page3125-MNK9/IMG_0896 copy.jpg
img/help/page3125-MNK9/IMG_8737.jpg
img/help/page3125-MNK9/IMG_8738.jpg


img/help/page3125-MNK9/IMG_0886 copy-m.jpg

Step 3

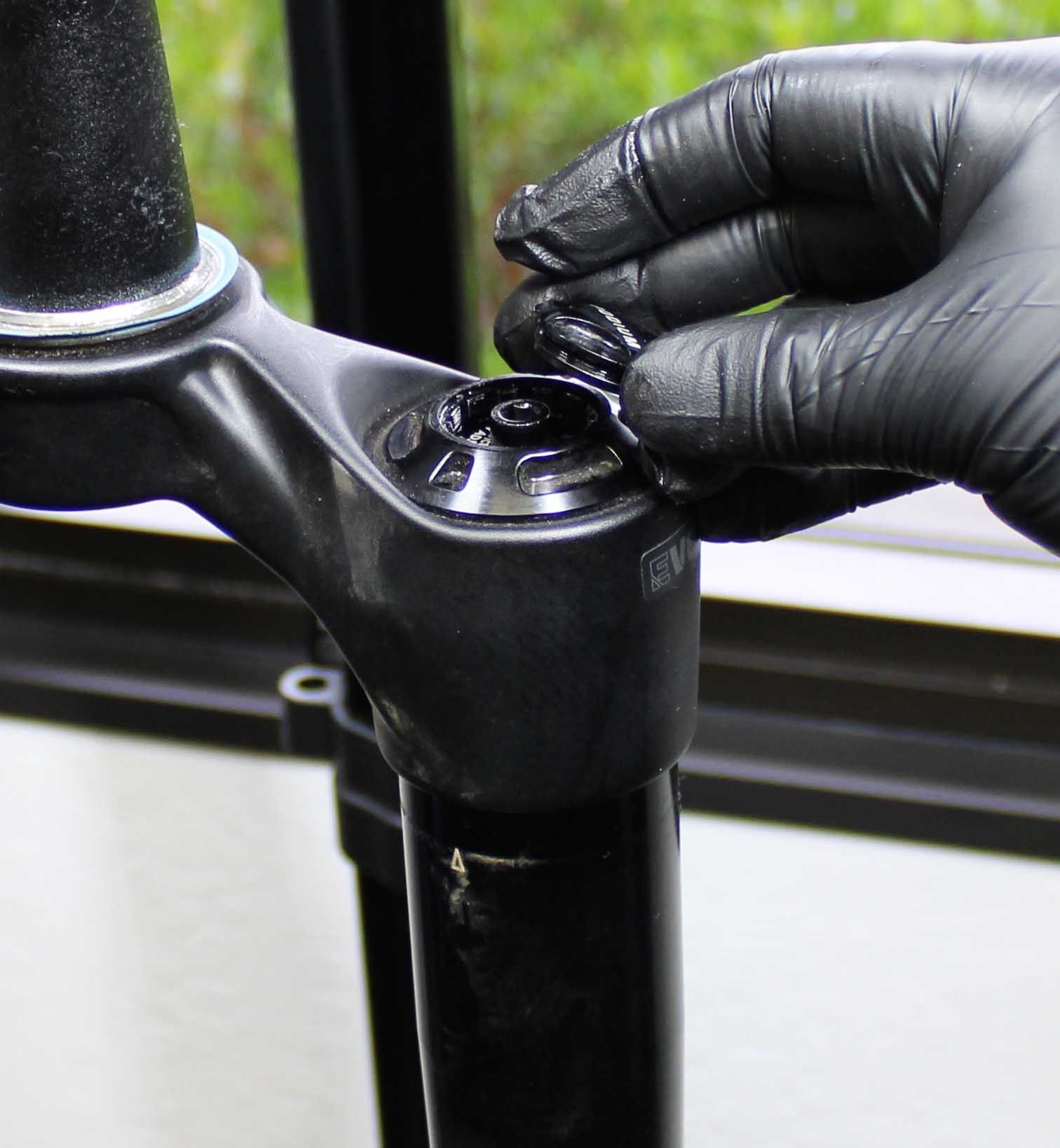

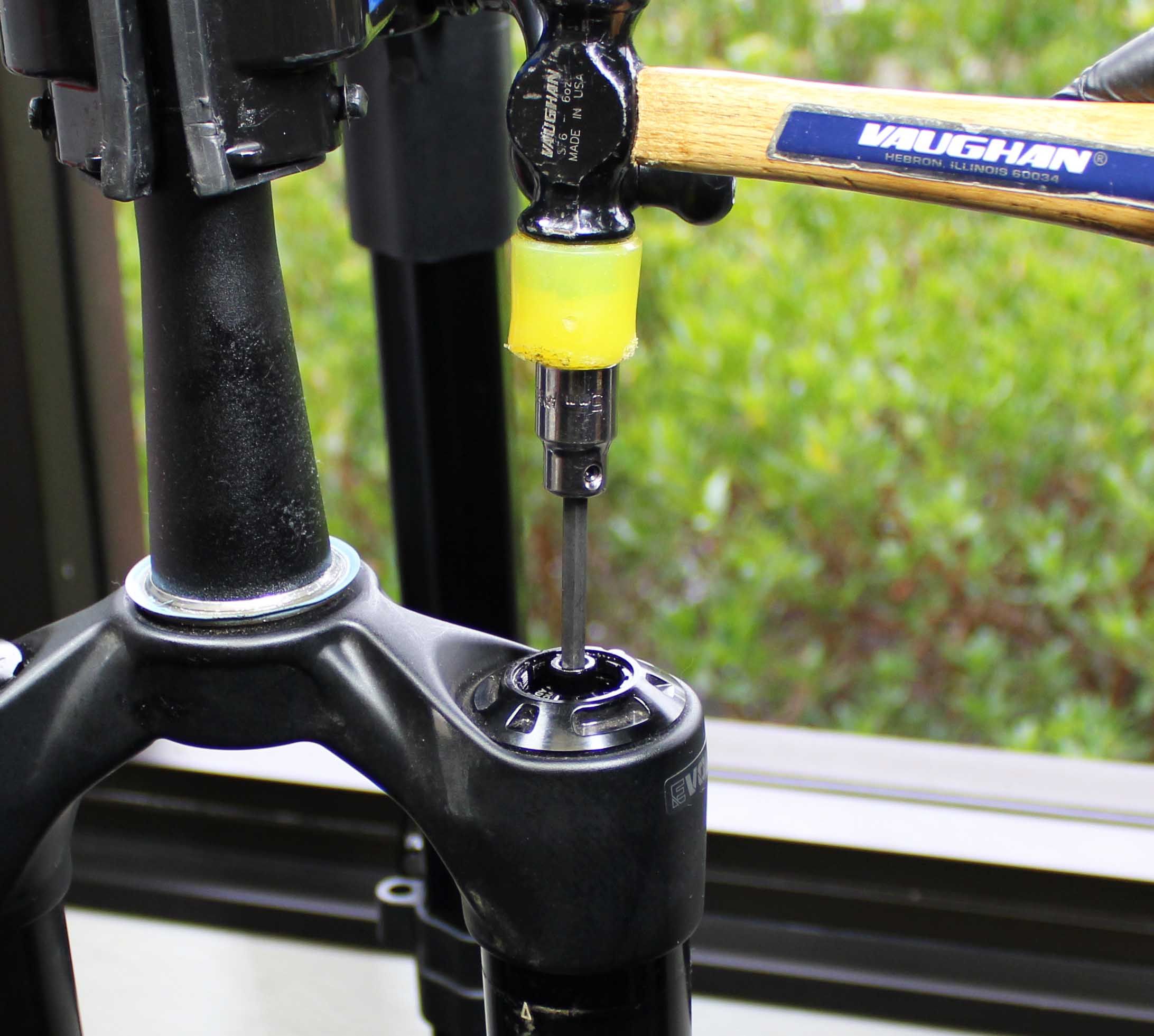

Remove the top cap cover. Using a 5mm hex wrench, loosen the top cap bolt. Ensure that approximately half of the available threads remain engaged before striking the bolt with a mallet.



img/help/page3125-MNK9/IMG_0886 copy.jpg
img/help/page3125-MNK9/IMG_0887 copy.jpg
img/help/page3125-MNK9/IMG_0889 copy.jpg


img/help/page3125-MNK9/IMG_0890 copy-m.jpg

Step 4

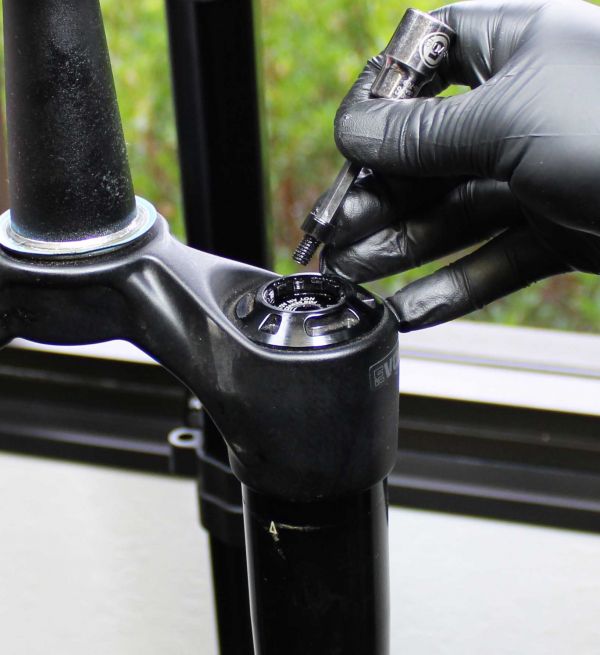

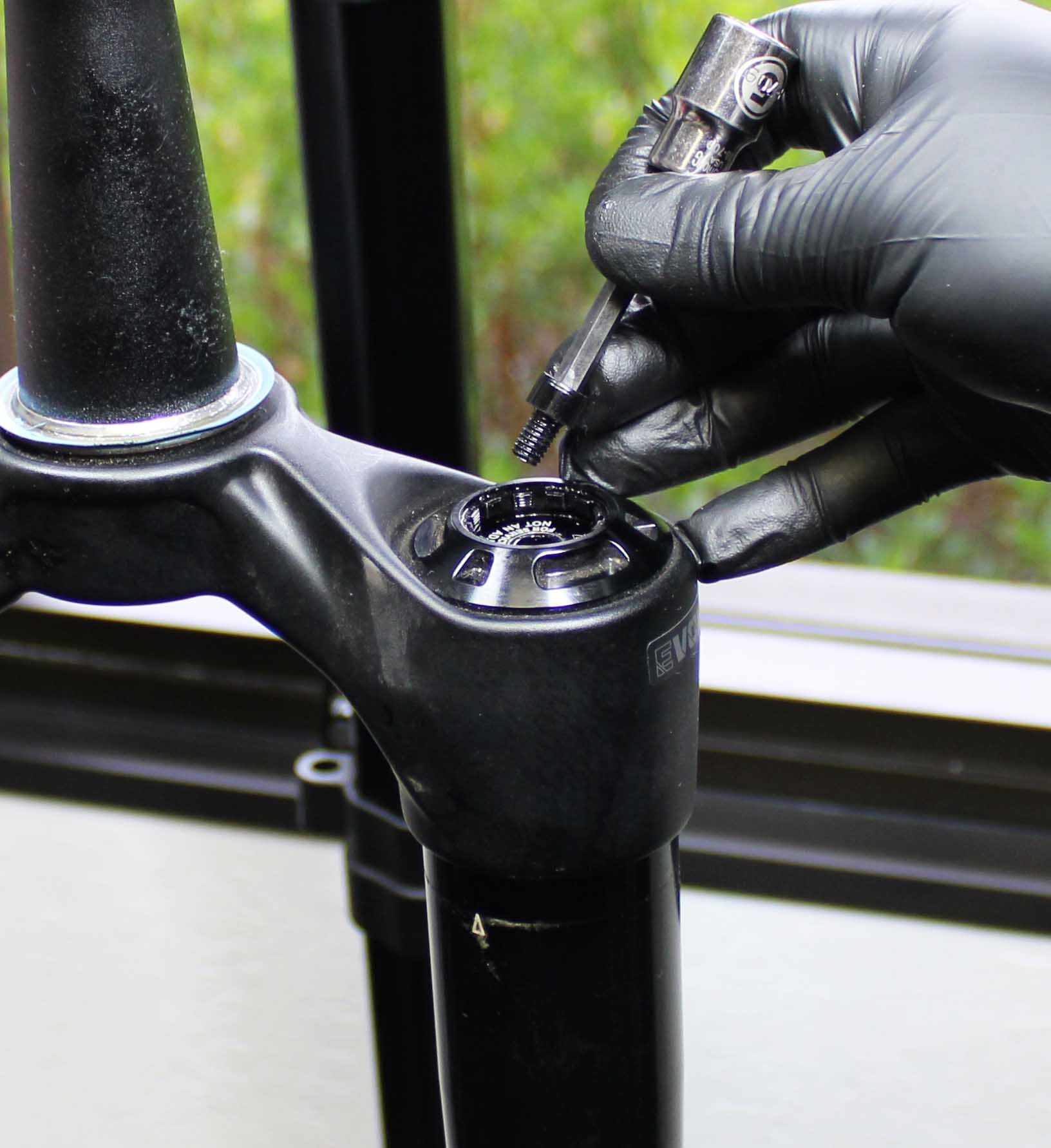

Remove the bolt. Pull the lower tube with air spring assembly out of the upper tube. Note: 40cc of oil will drip out quickly during this step.

img/help/page3125-MNK9/IMG_0890 copy.jpg


img/help/page3125-MNK9/IMG_0897 copy-m.jpg

Step 5

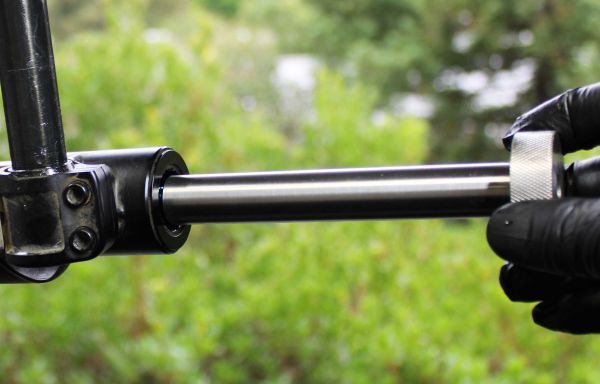

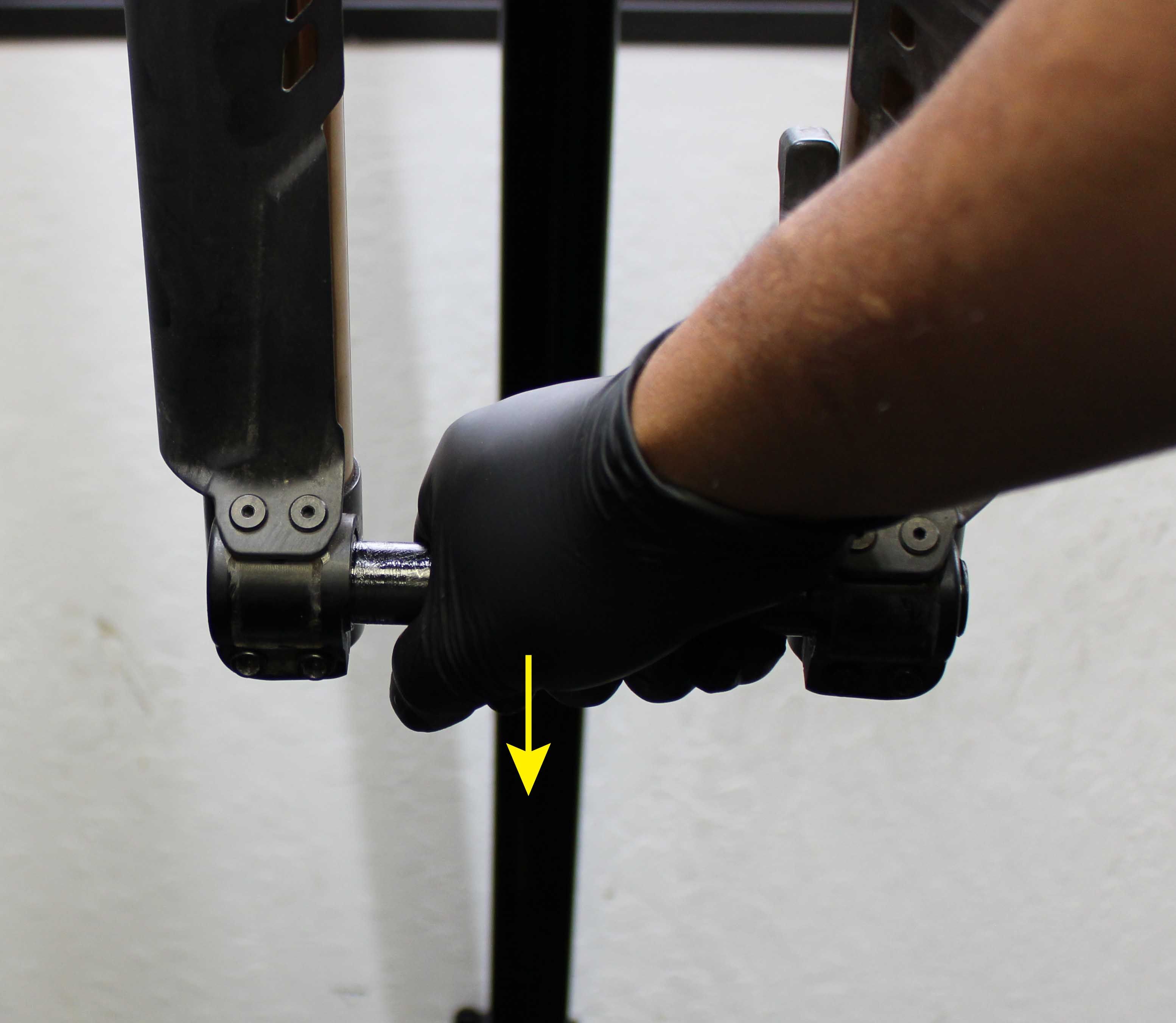

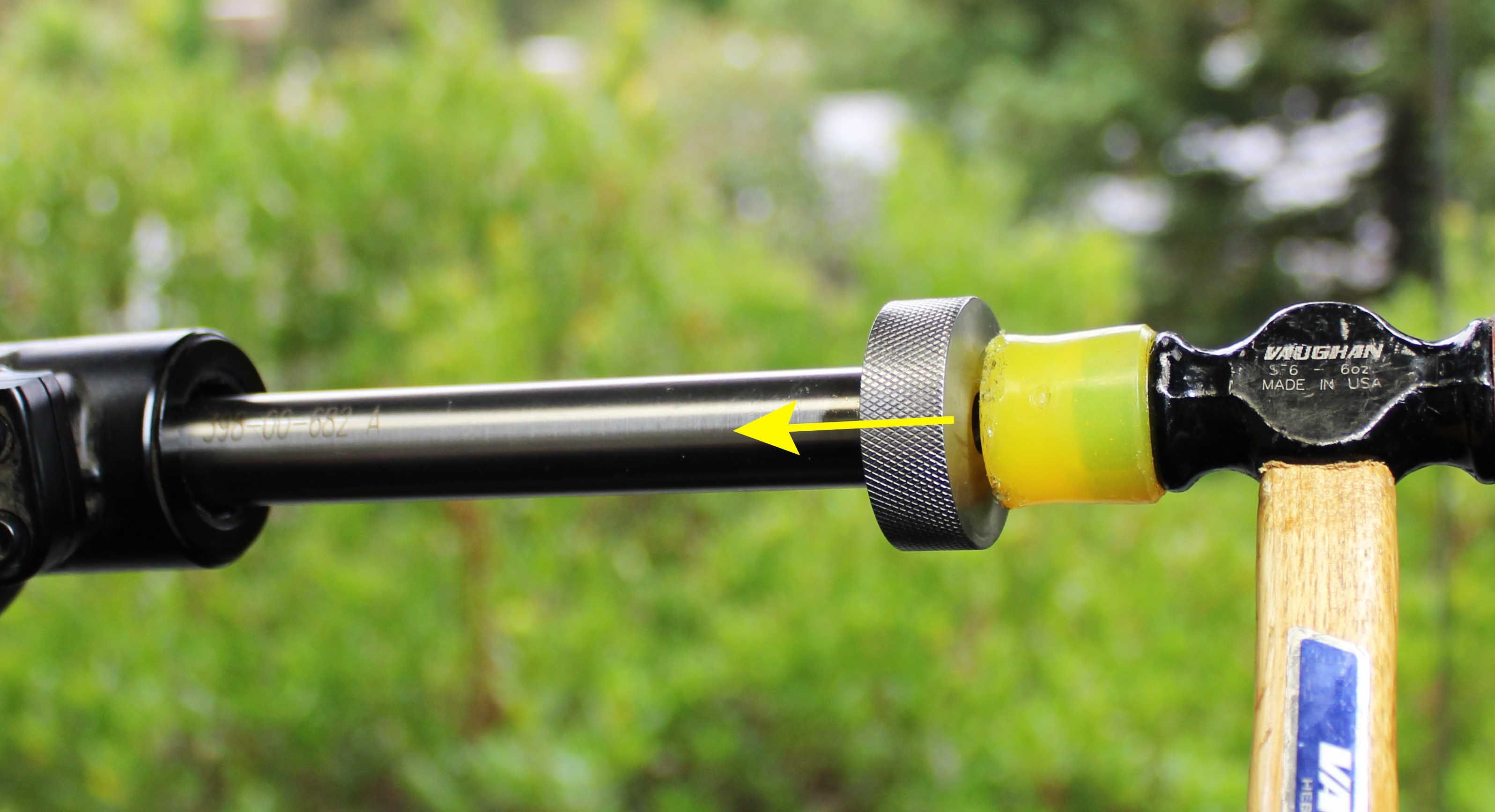

For Damper Side: Use Damper Removal Tool 398-00-682 to dislodge the shaft from the lowers. Make sure that you have approximately half of the available threads engaged with your tool before striking with your mallet. Remove the damper removal tools, then bring the fork upright over an oil basin to drain. After oil stops draining from the lowers, pull the lowers off of the upper tubes and set them aside.

img/help/page3125-MNK9/IMG_0897 copy.jpg
img/help/page3125-MNK9/IMG_0898 copy.jpg
img/help/page3125-MNK9/IMG_0901 copy.jpg


img/help/page3125-MNK9/IMG_0561 copy-m.jpg

Step 6

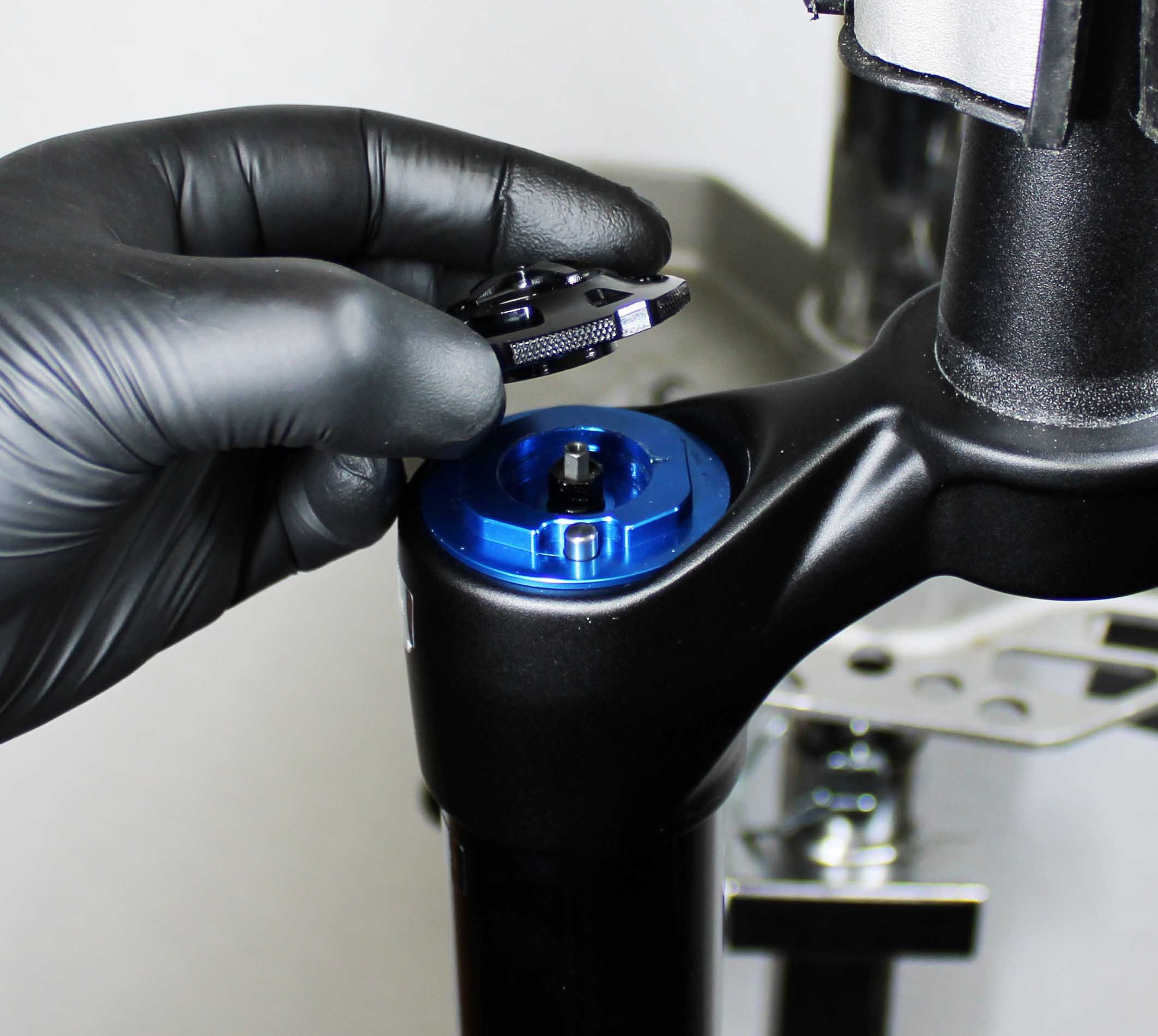

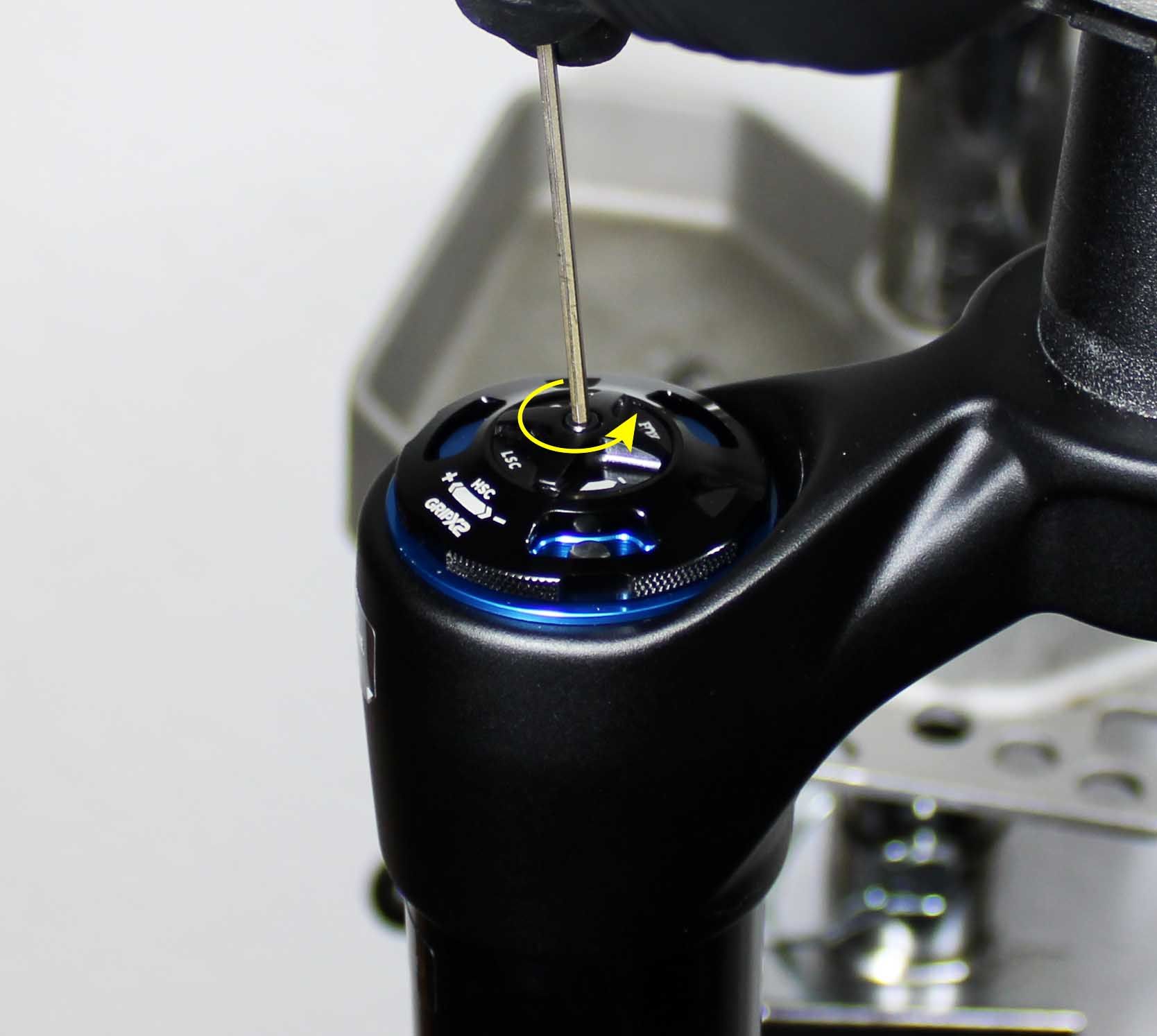

Hold the black Low-Speed Compression (LSC) knob from turning while you unthread the screw counter-clockwise with a 2mm hex wrench. Carefully lift off the knobs together, keeping track of the detent ball and spring for the High-Speed Compression (HSC) knob.

img/help/page3125-MNK9/IMG_0561 copy.jpg
img/help/page3125-MNK9/IMG_0564 copy.jpg


img/help/page3125-MNK9/IMG_0907 copy-m.jpg

Step 7

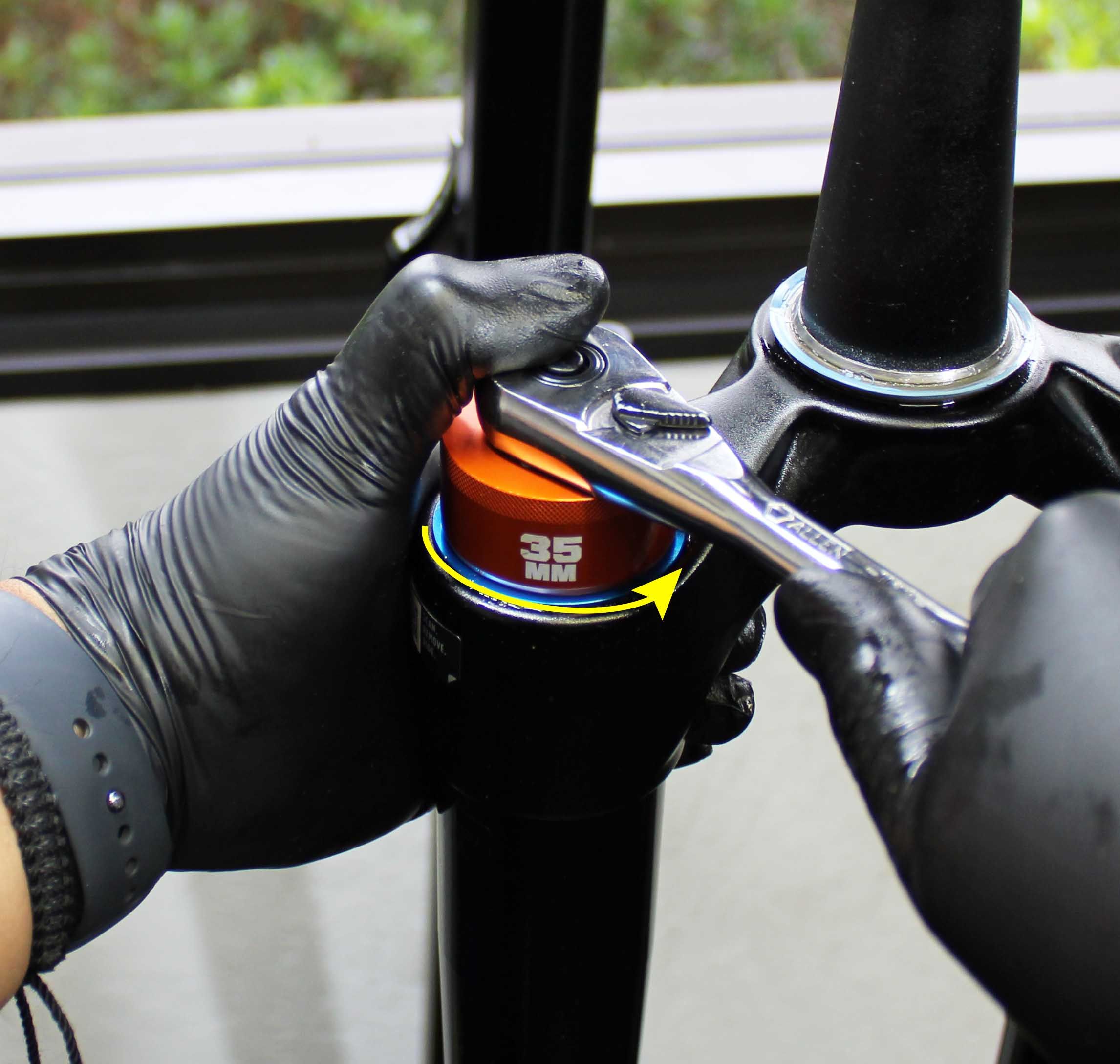

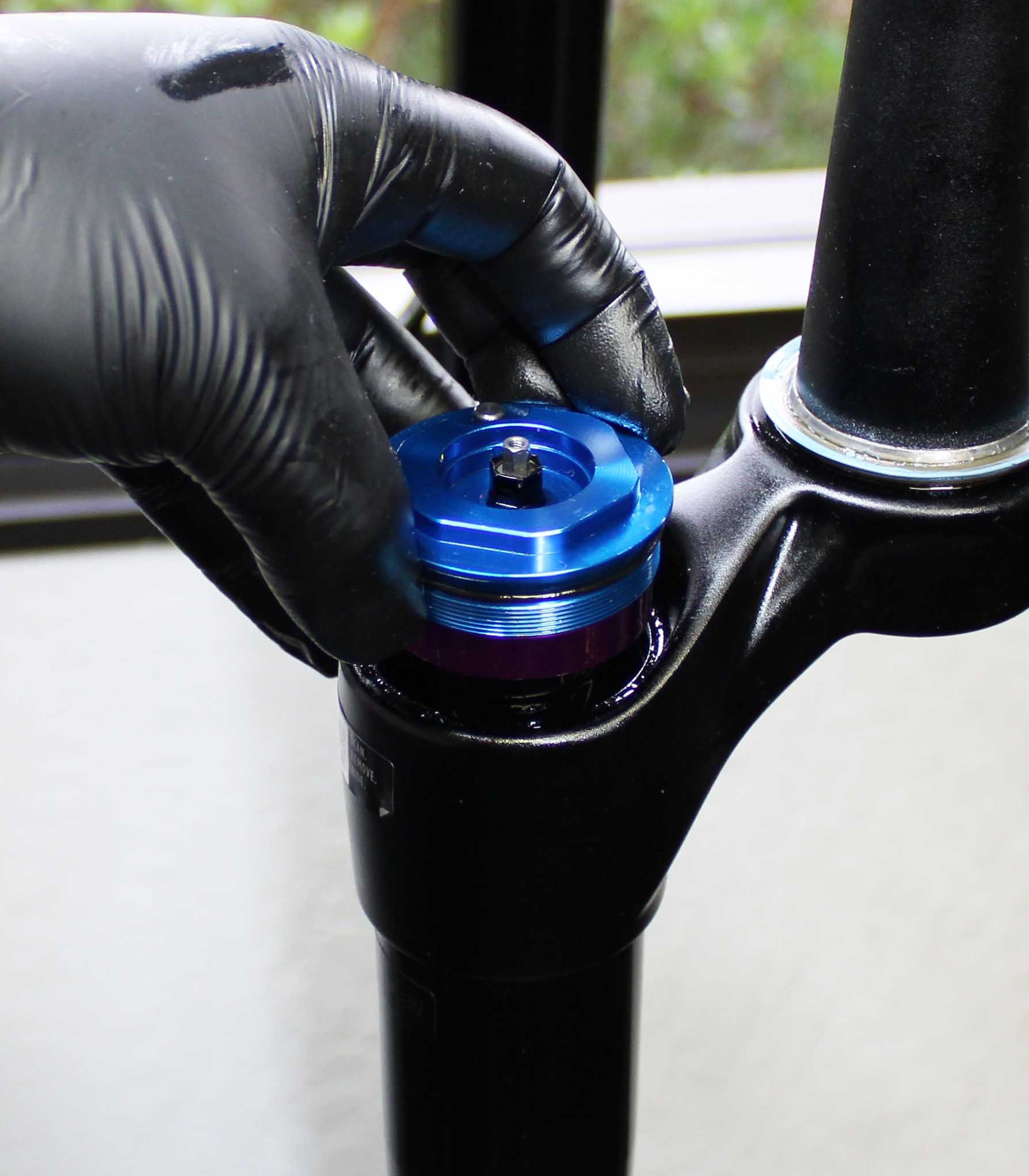

Unthread the damper topcap counter-clockwise with a 6-point chamfer-less 35mm socket (PN: 398-00-708). Lift up to remove the damper from the upper tube.

img/help/page3125-MNK9/IMG_0907 copy.jpg
img/help/page3125-MNK9/IMG_0908 copy.jpg


img/help/page3125-MNK9/IMG_9155-m.jpg

Step 8

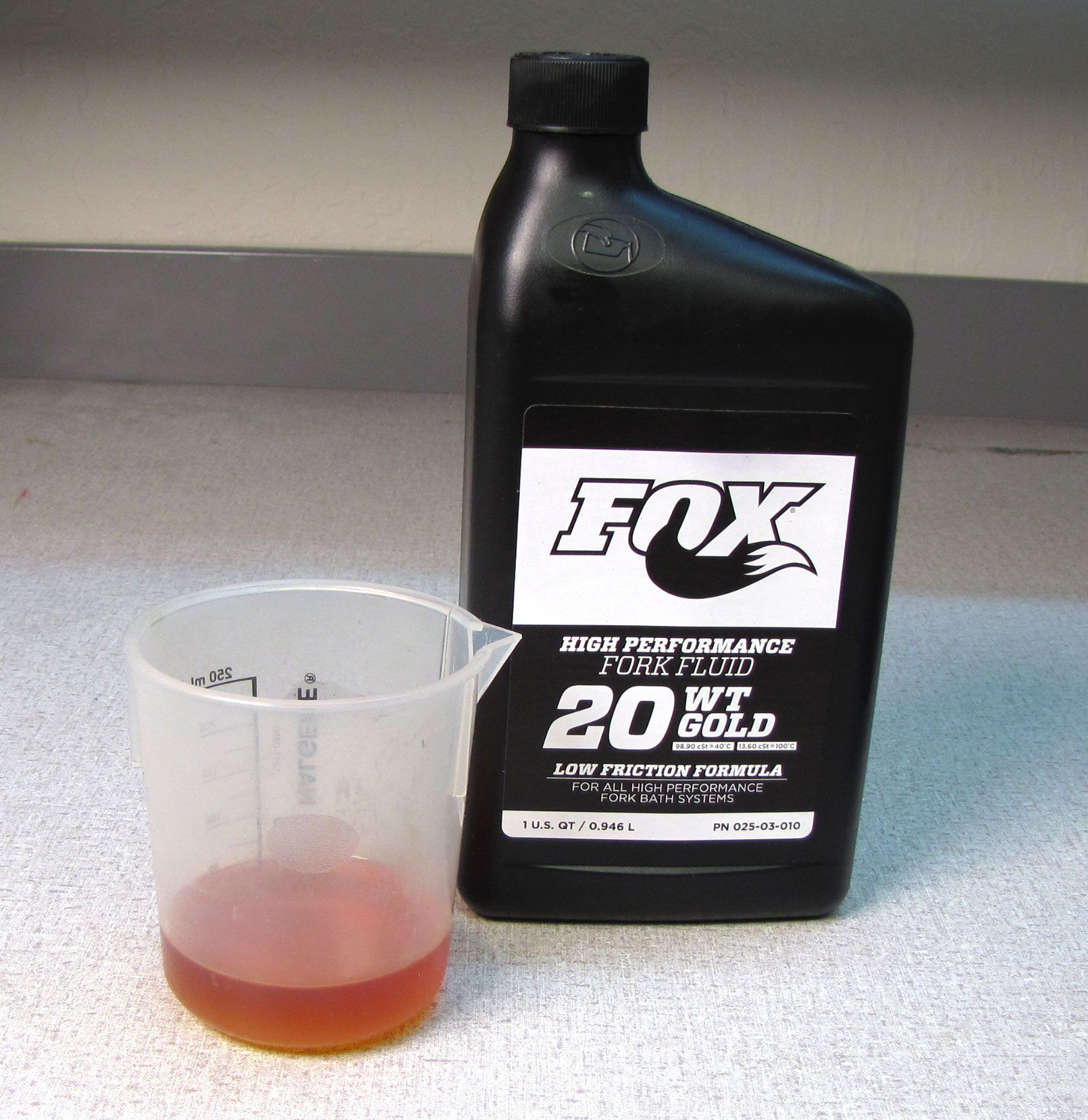

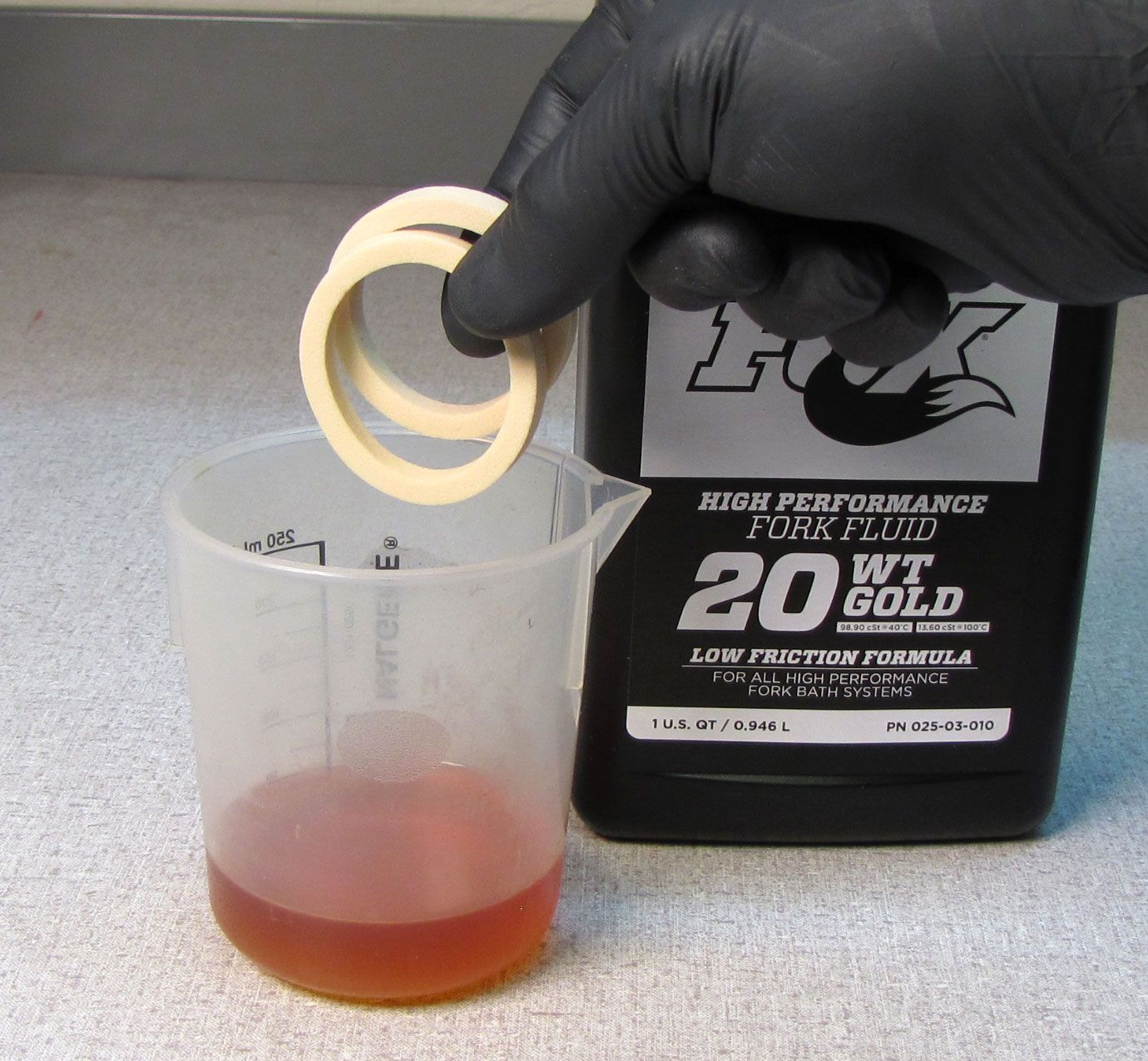

Soak the new foam rings from the Dust Wiper kit in a small cup of FOX 20wt. Gold bath oil.

img/help/page3125-MNK9/IMG_9155.jpg
img/help/page3125-MNK9/IMG_9156.jpg
img/help/page3125-MNK9/IMG_9157.jpg


img/help/page3125-MNK9/IMG_0909 copy-m.jpg

Step 9

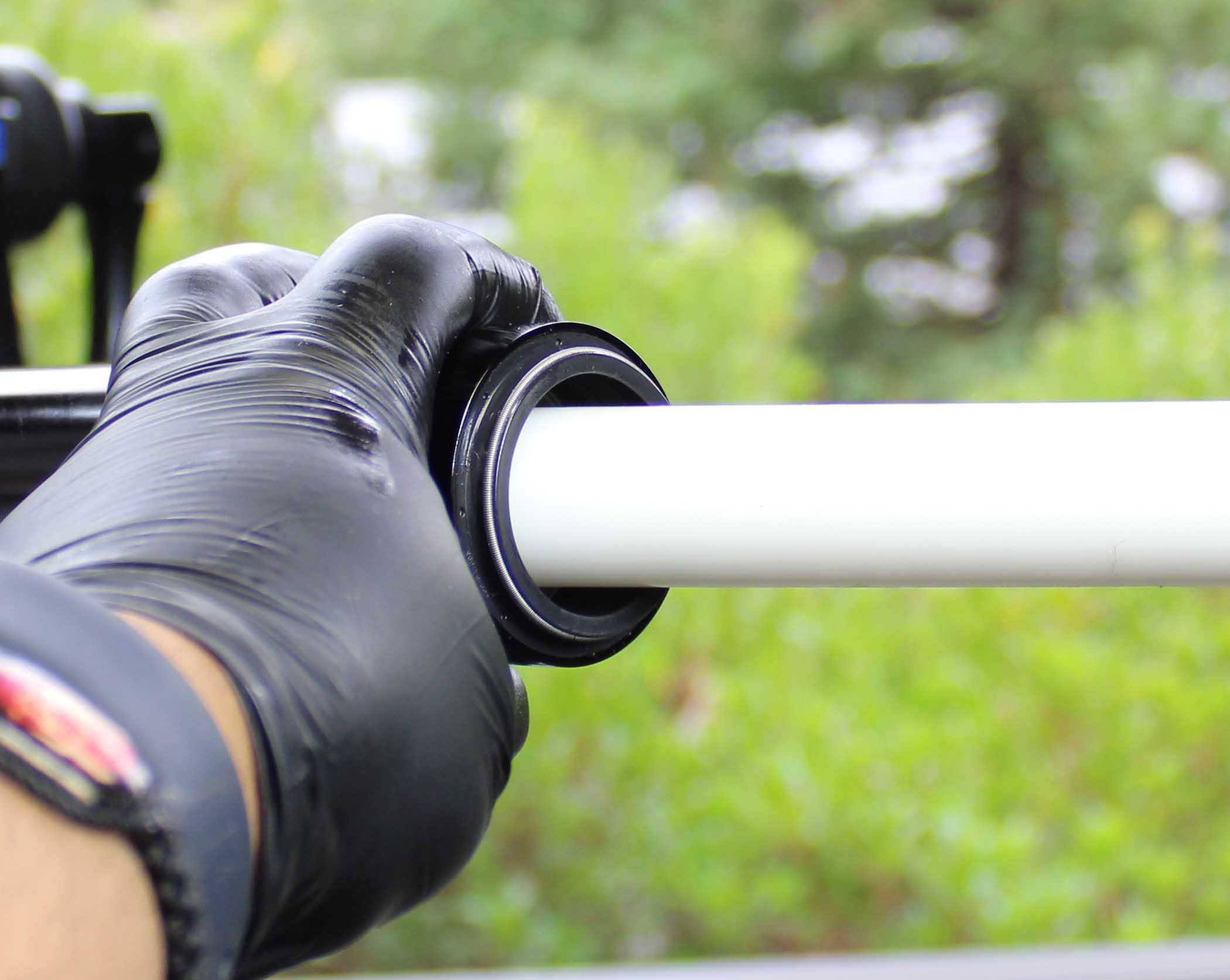

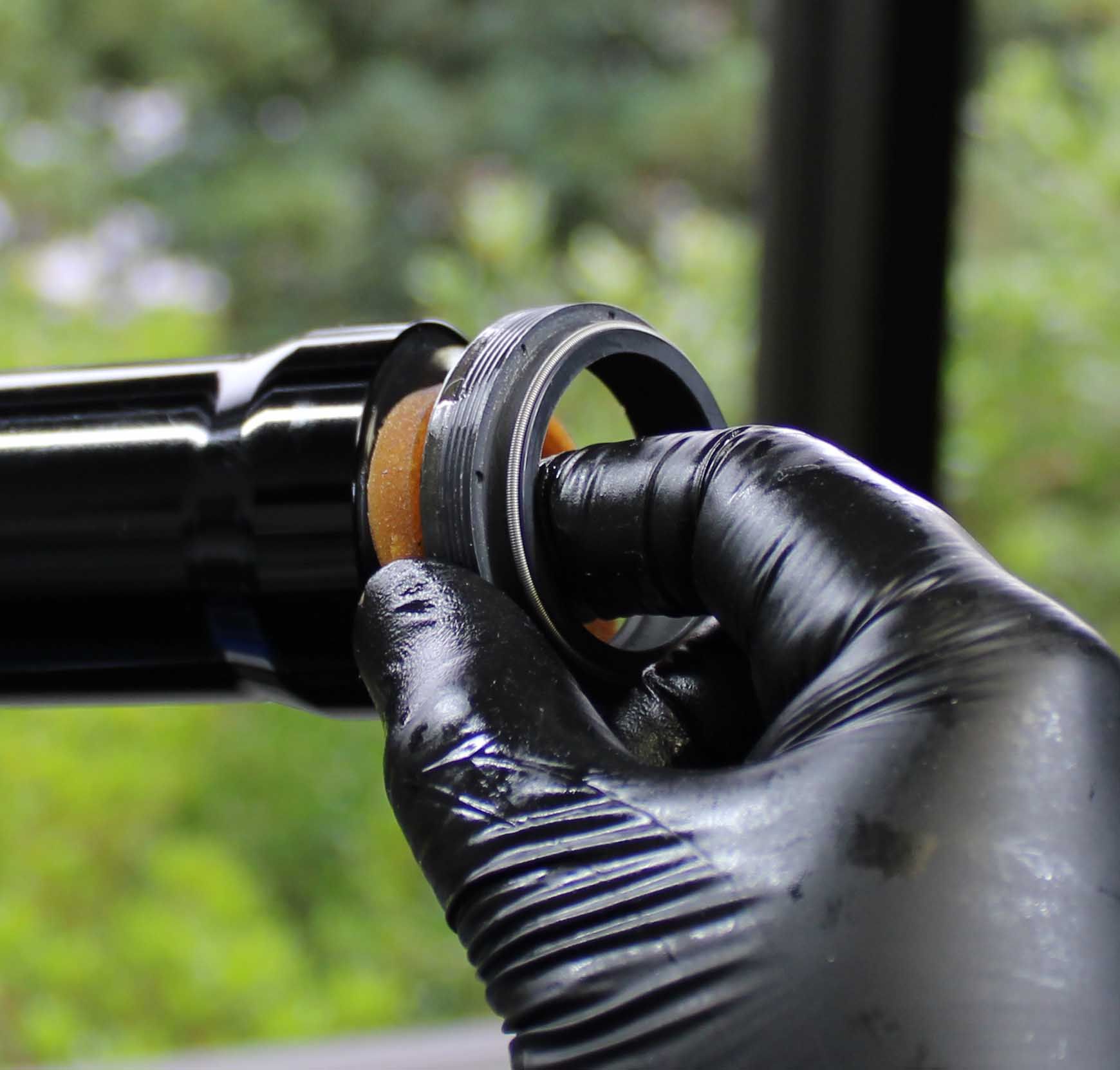

Using a wooden or plastic dowel is the recommended method for removing the dust wipers and foam rings. If you choose to use a wrench or other metallic tool, use extra caution not to scratch the inner wall of the magnesium lower leg, as you lever out the dust wiper. Do this by making sure the tip of your metallic tool is cushioned from the magnesium lower leg by the foam ring, just below the dust wiper.

img/help/page3125-MNK9/IMG_0909 copy.jpg
img/help/page3125-MNK9/IMG_0910 copy.jpg


img/help/page3125-MNK9/IMG_0911 copy-m.jpg

Step 10

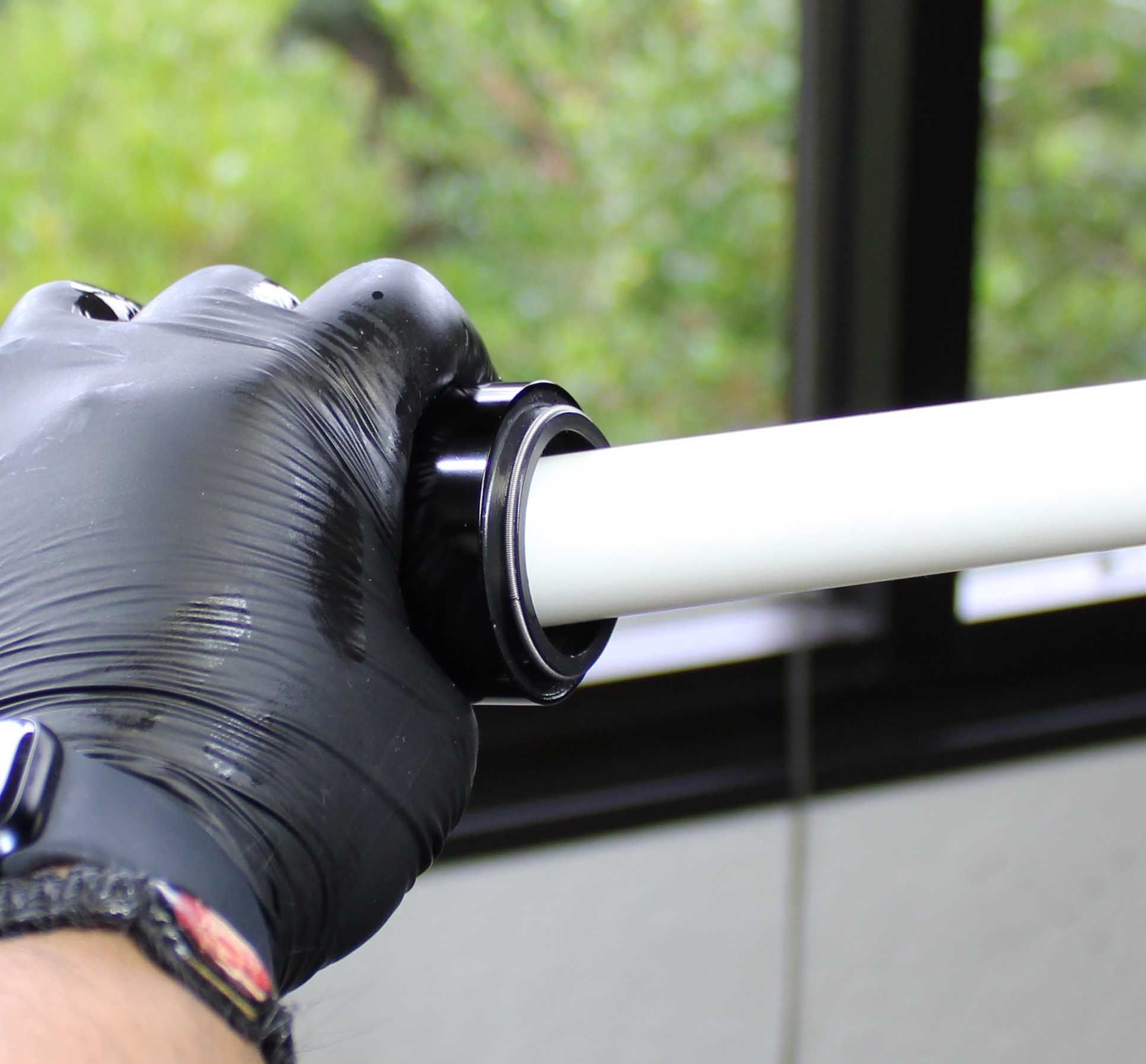

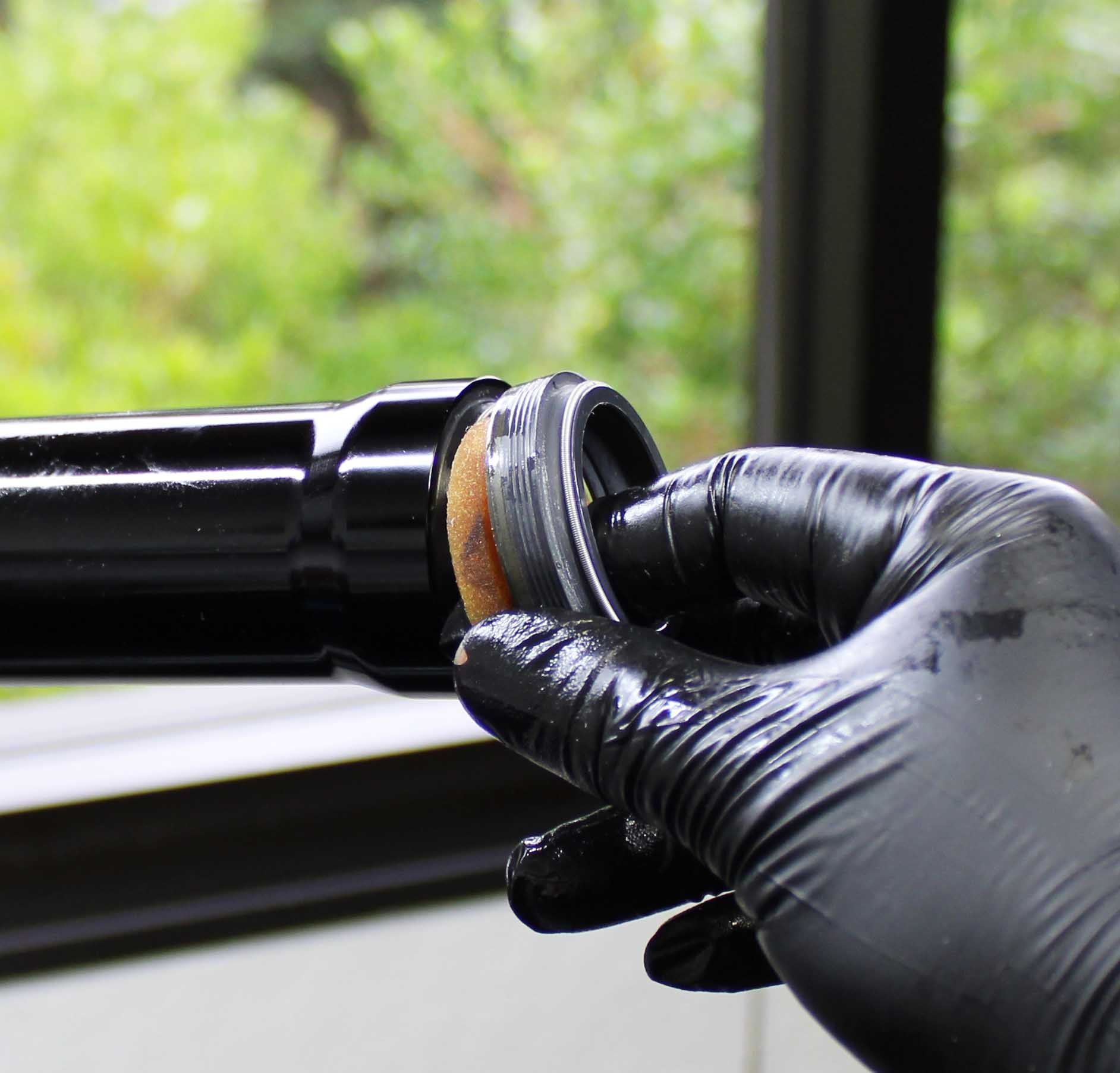

Repeat the process on the other side. Discard the original foam rings and dust wipers as they are not reusable once removed due to potential distortion.

img/help/page3125-MNK9/IMG_0911 copy.jpg
img/help/page3125-MNK9/IMG_0912 copy.jpg


img/help/page3125-MNK9/IMG_9490 copy-m.jpg

Step 11

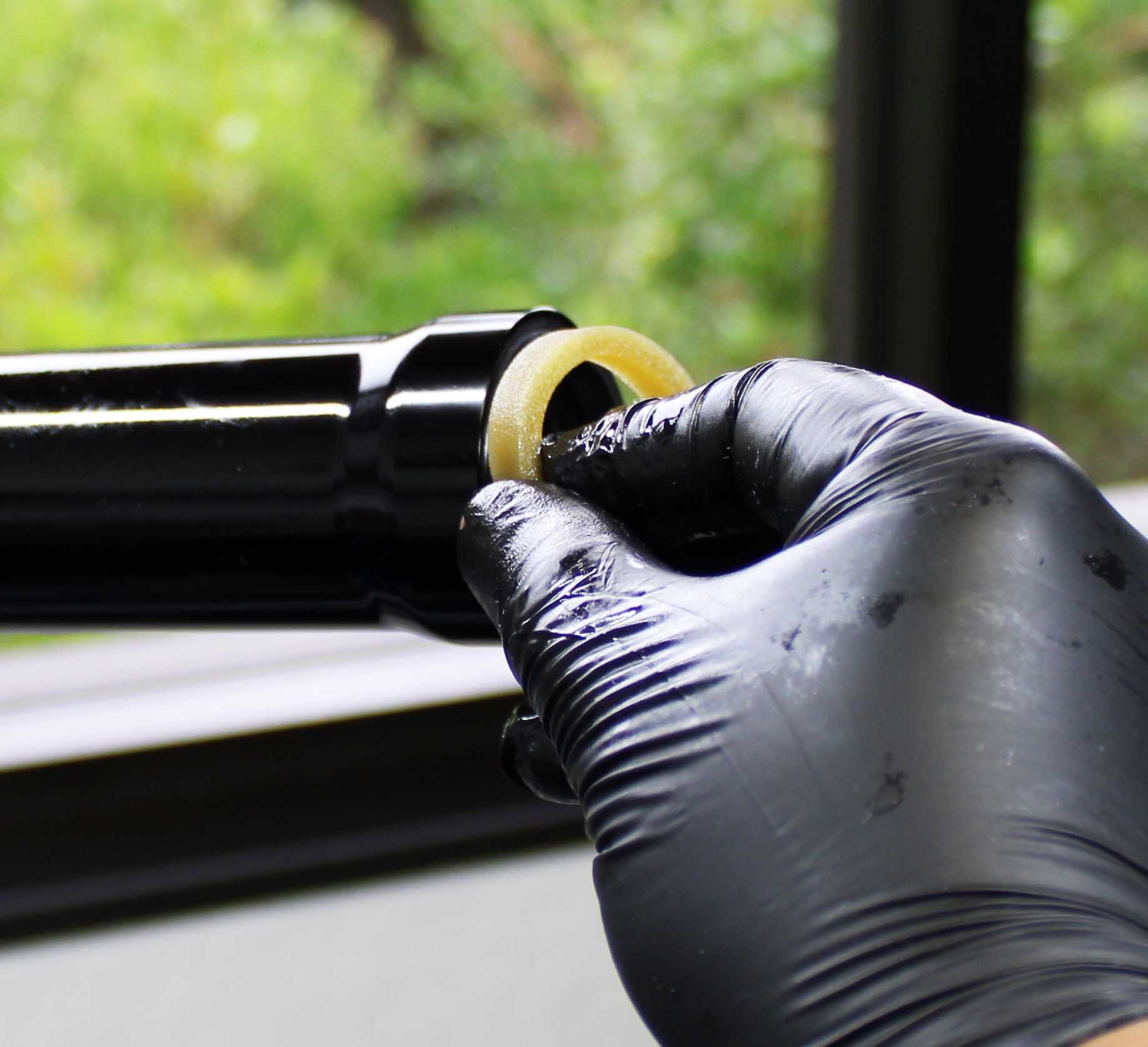

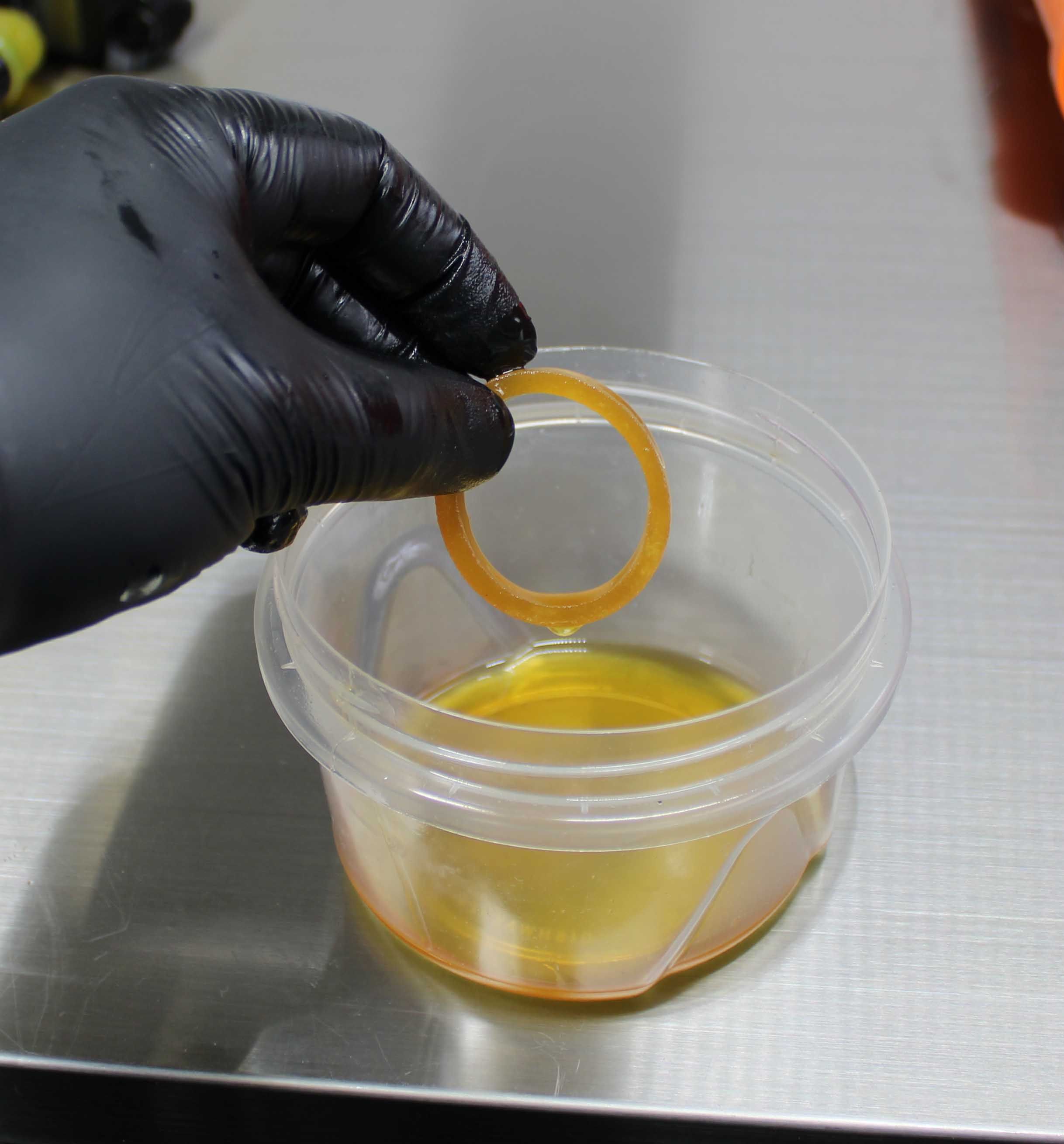

Thoroughly clean the seal bore and the inside of the lower legs with warm soapy water or Isopropyl alcohol. Blow the lowers dry with clean compressed air. Install new foam rings soaked in FOX 20wt. Gold Oil.

img/help/page3125-MNK9/IMG_9490 copy.jpg
img/help/page3125-MNK9/IMG_0913 copy.jpg


img/help/page3125-MNK9/IMG_9160 copy-m.jpg

Step 12

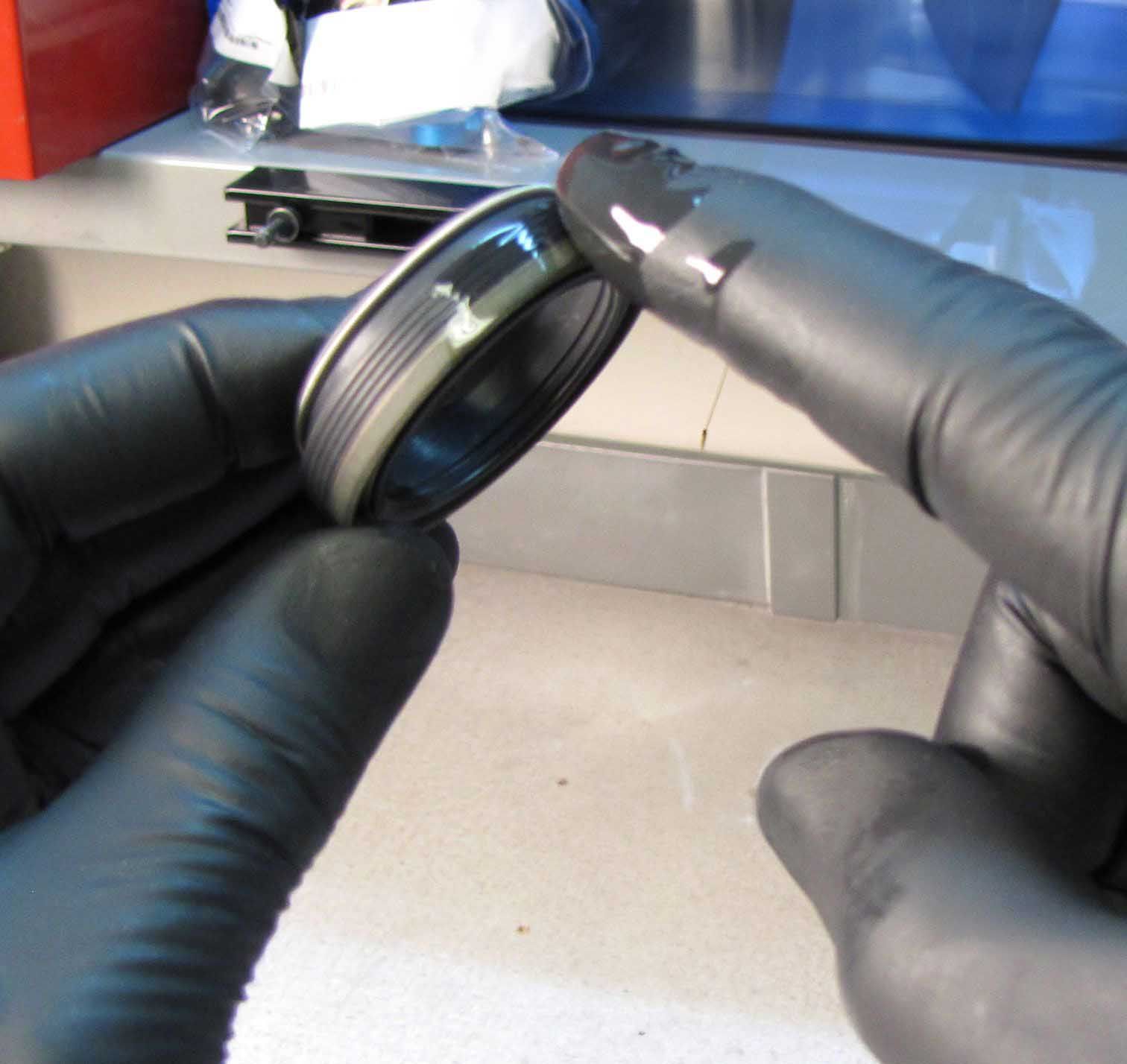

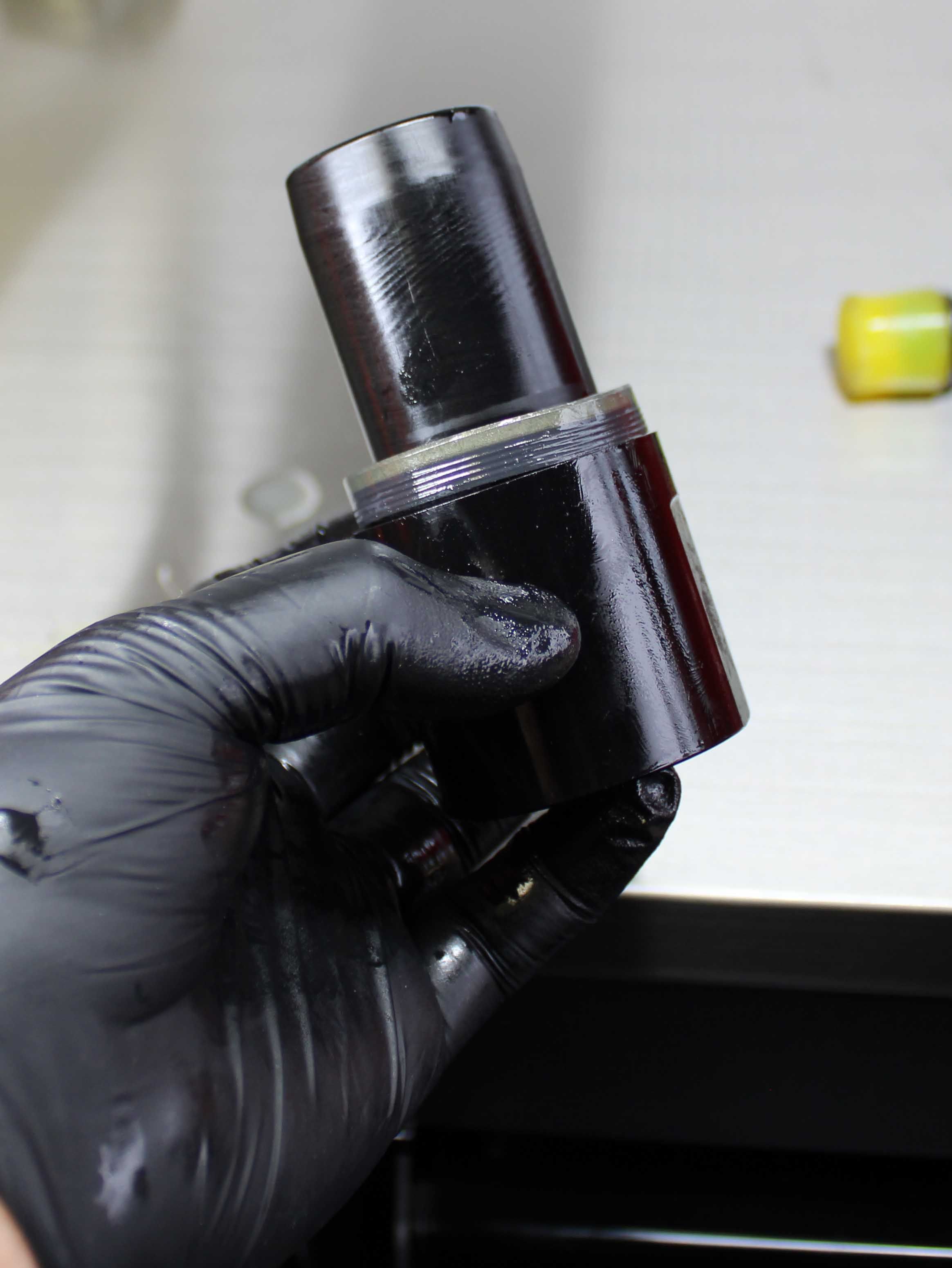

Use a small amount of FOX 20wt. Gold oil to coat the outside ribs and exposed metal base of the new dust wiper. Rest the oiled wiper onto the seal driver.

img/help/page3125-MNK9/IMG_9160 copy.jpg
img/help/page3125-MNK9/IMG_9501 copy.jpg


img/help/page3125-MNK9/IMG_0914 copy-m.jpg

Step 13

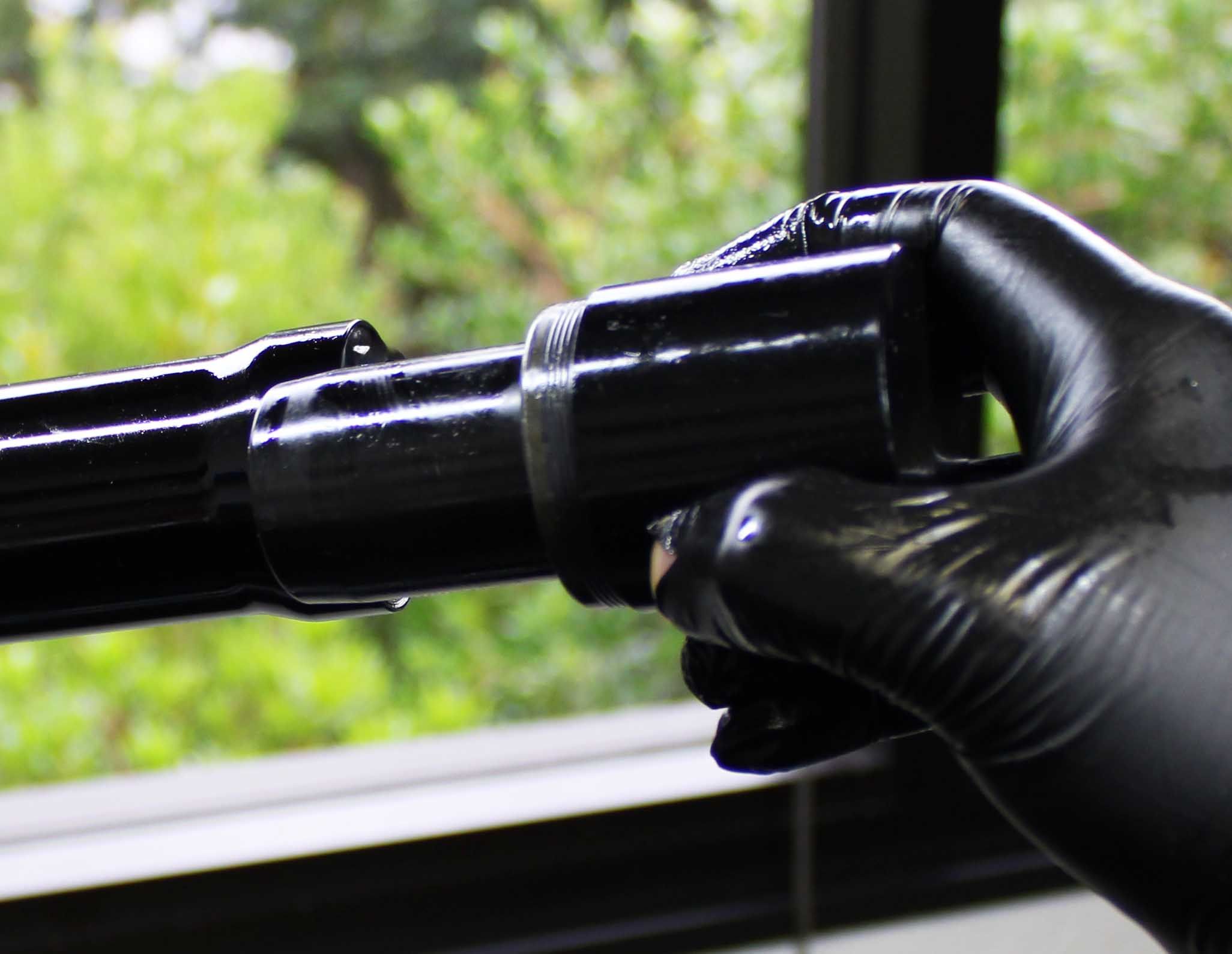

While holding the lower leg driver straight and level, tap the driver with a plastic faced mallet until the wiper is flush with the edges of the seal bore. Repeat on other side.

img/help/page3125-MNK9/IMG_0914 copy.jpg
img/help/page3125-MNK9/IMG_0916 copy.jpg


img/help/page3125-MNK9/IMG_0753 copy-m.jpg

Step 14

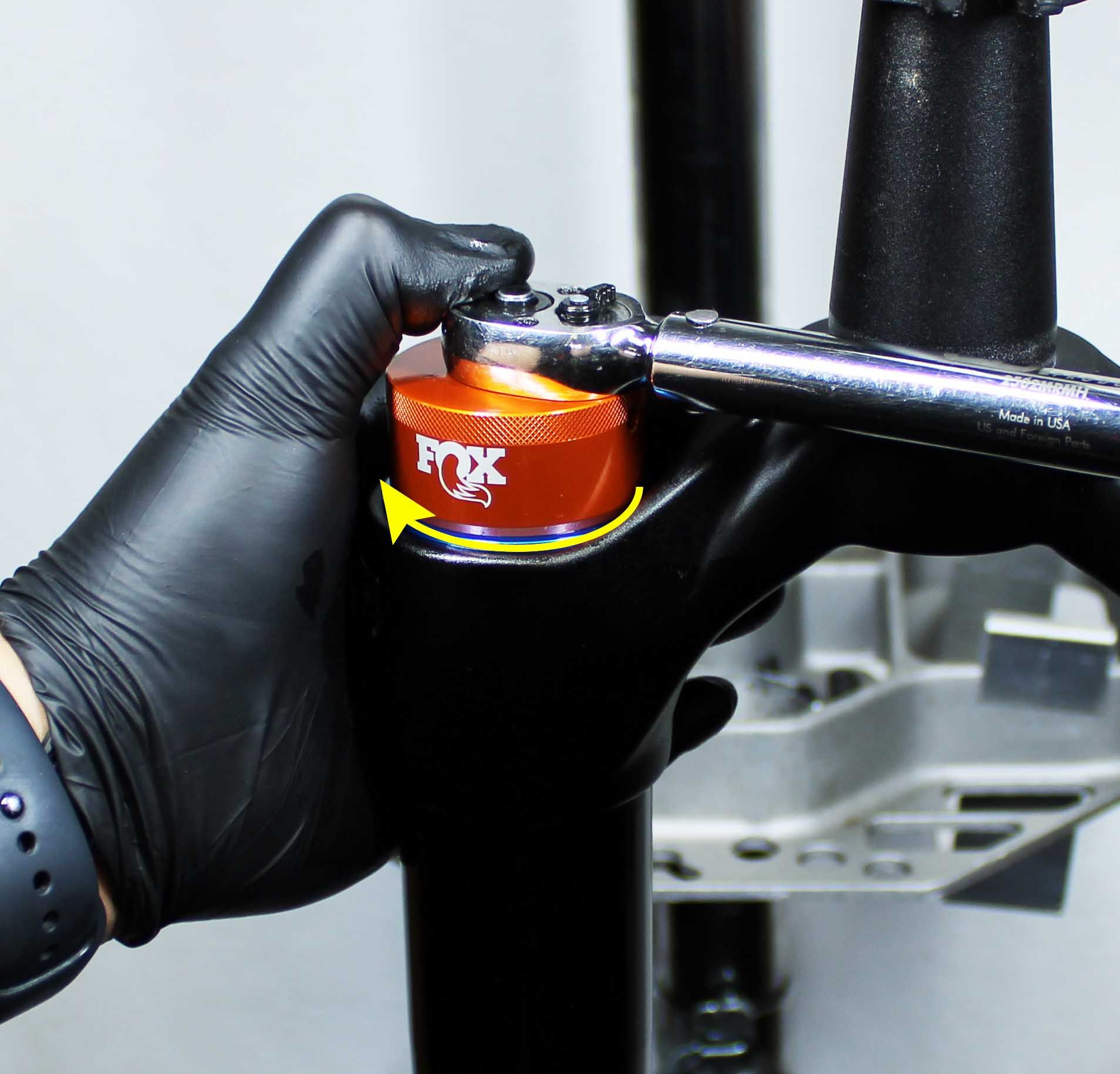

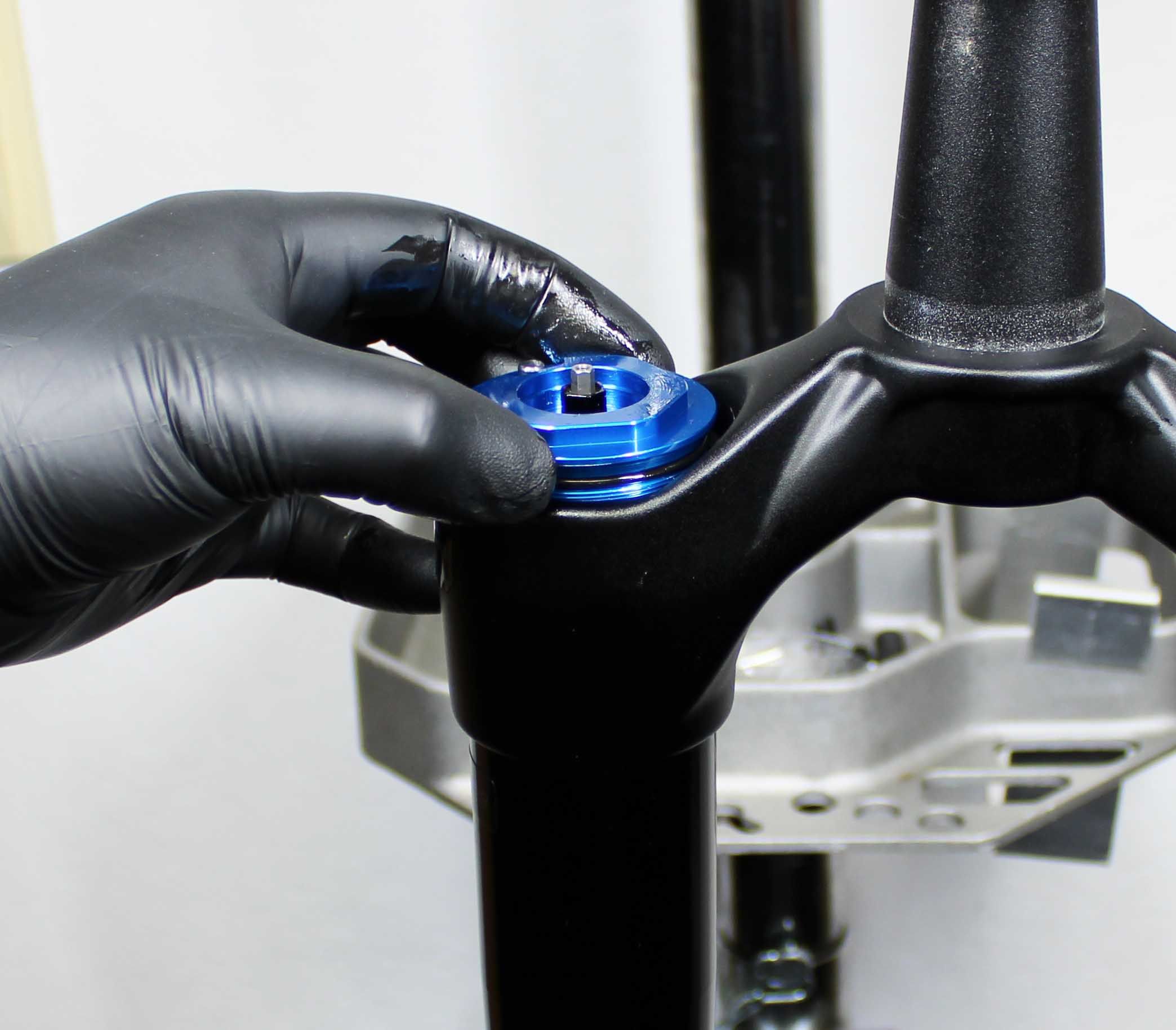

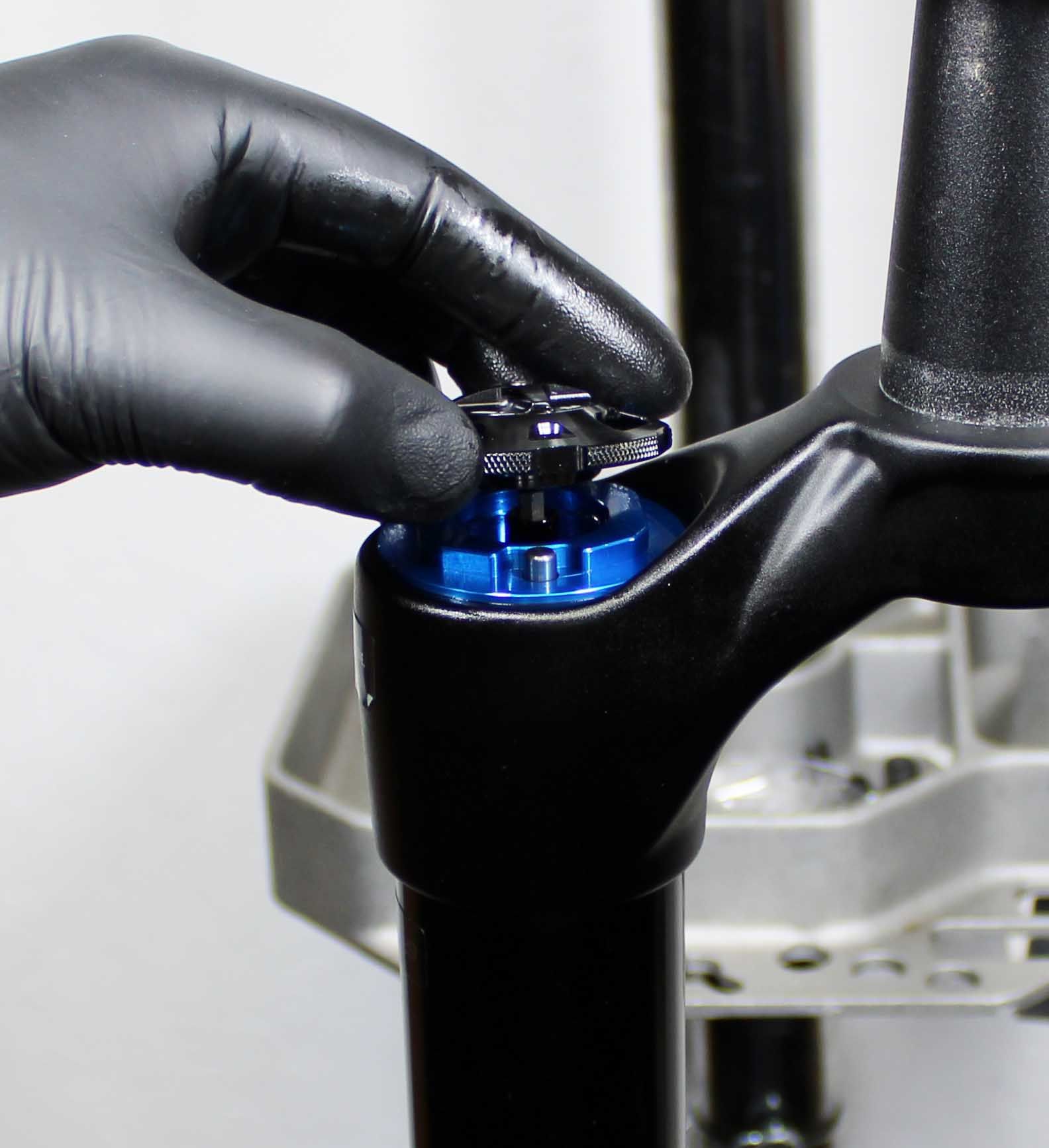

Reinstall the damper cartridge into the Damper-Side Upper Tube. Torque to 220in-lb(24.8Nm)

img/help/page3125-MNK9/IMG_0753 copy.jpg
img/help/page3125-MNK9/IMG_0755 copy.jpg
img/help/page3125-MNK9/IMG_0756 copy.jpg
img/help/page3125-MNK9/IMG_0758 copy.jpg


img/help/page3125-MNK9/IMG_0764 copy-m.jpg

Step 15



Bath oil volumes for products can be found under "Fork- Basic Maintenance" by clicking: All Service Procedures »

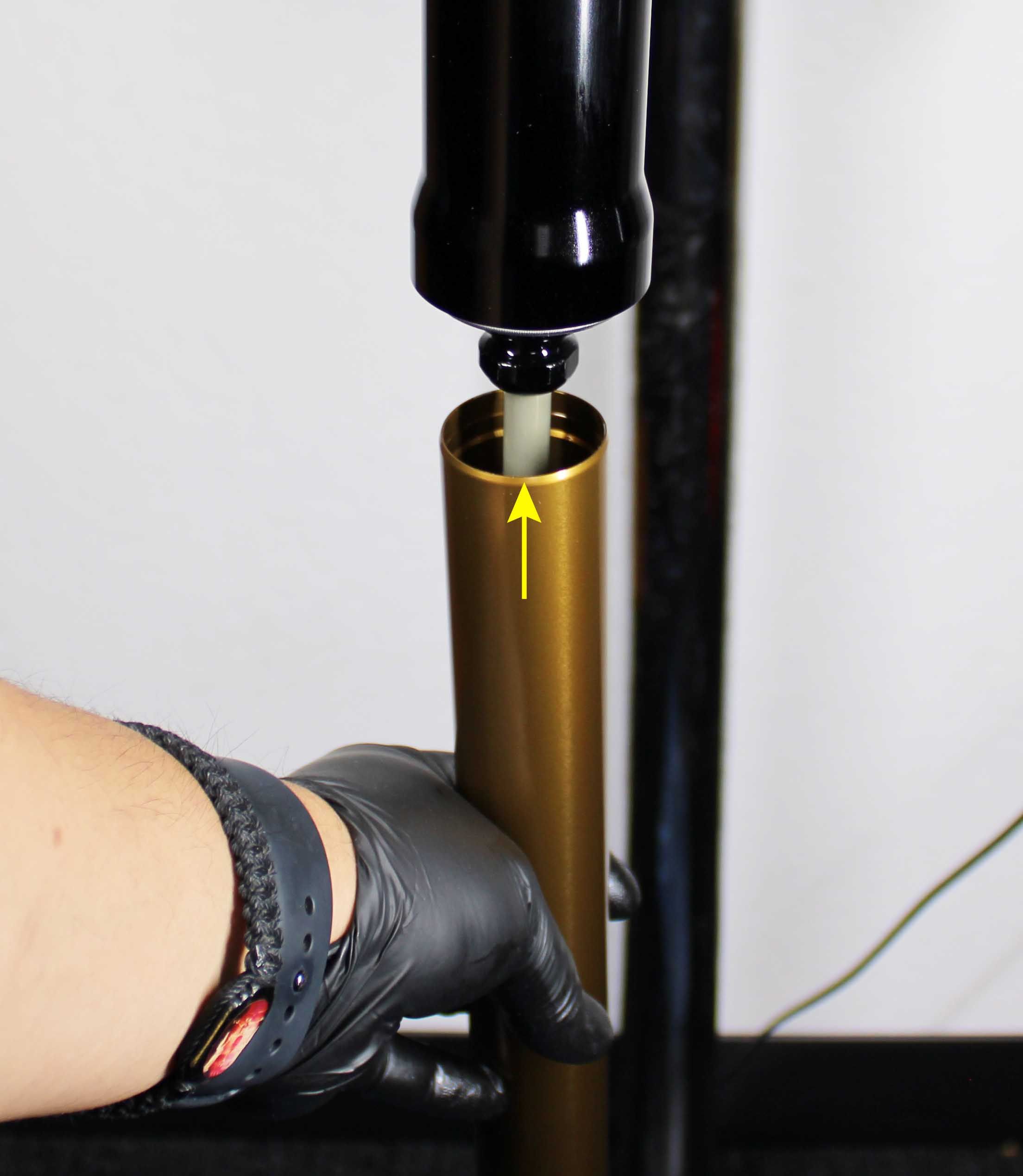

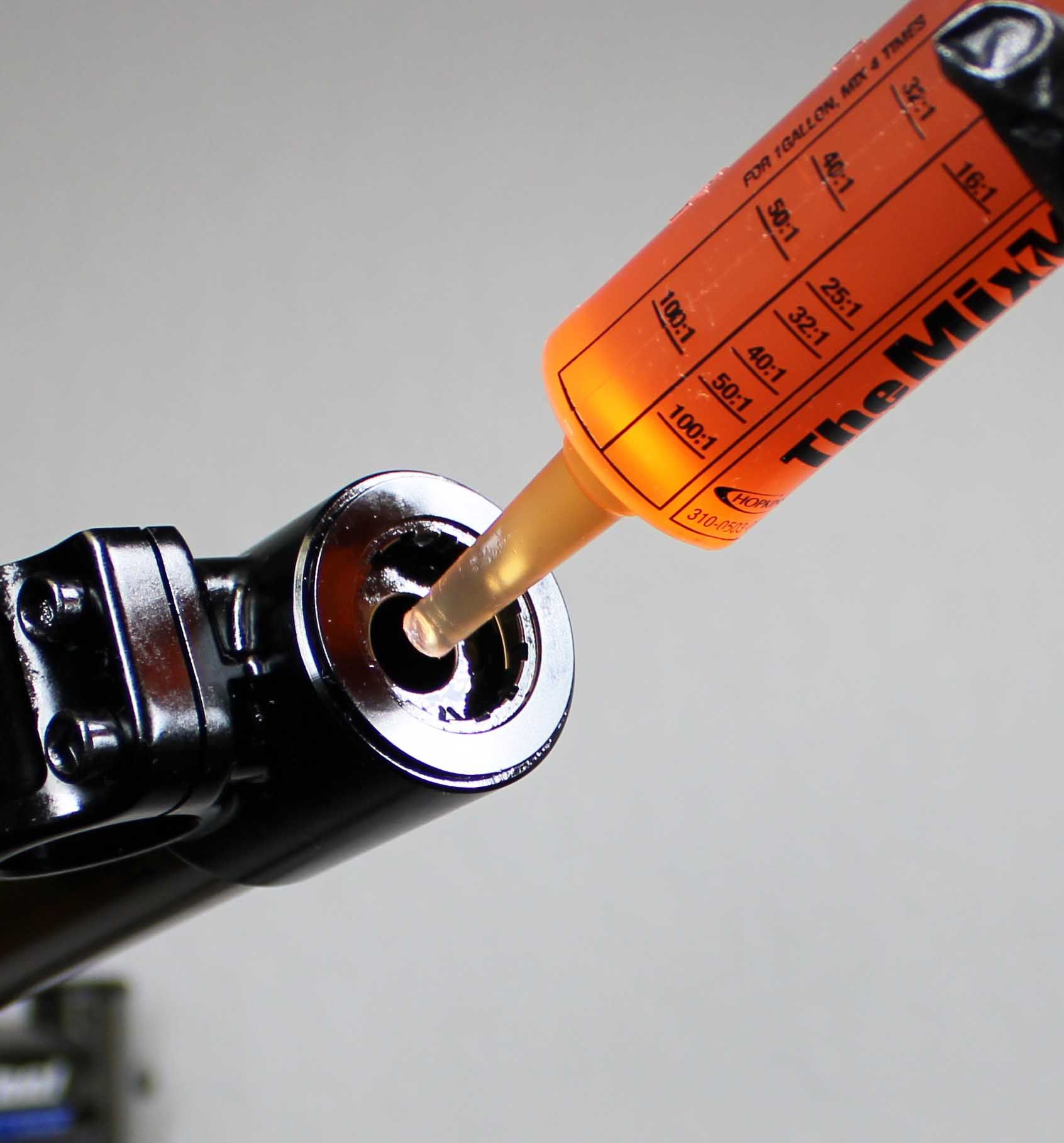

Install the Lower Tube Assembly onto the upper tubes. Inject 50CC of 4Wt. oil.

img/help/page3125-MNK9/IMG_0764 copy.jpg
img/help/page3125-MNK9/IMG_0767 copy.jpg


img/help/page3125-MNK9/IMG_8779-m.jpg

Step 16

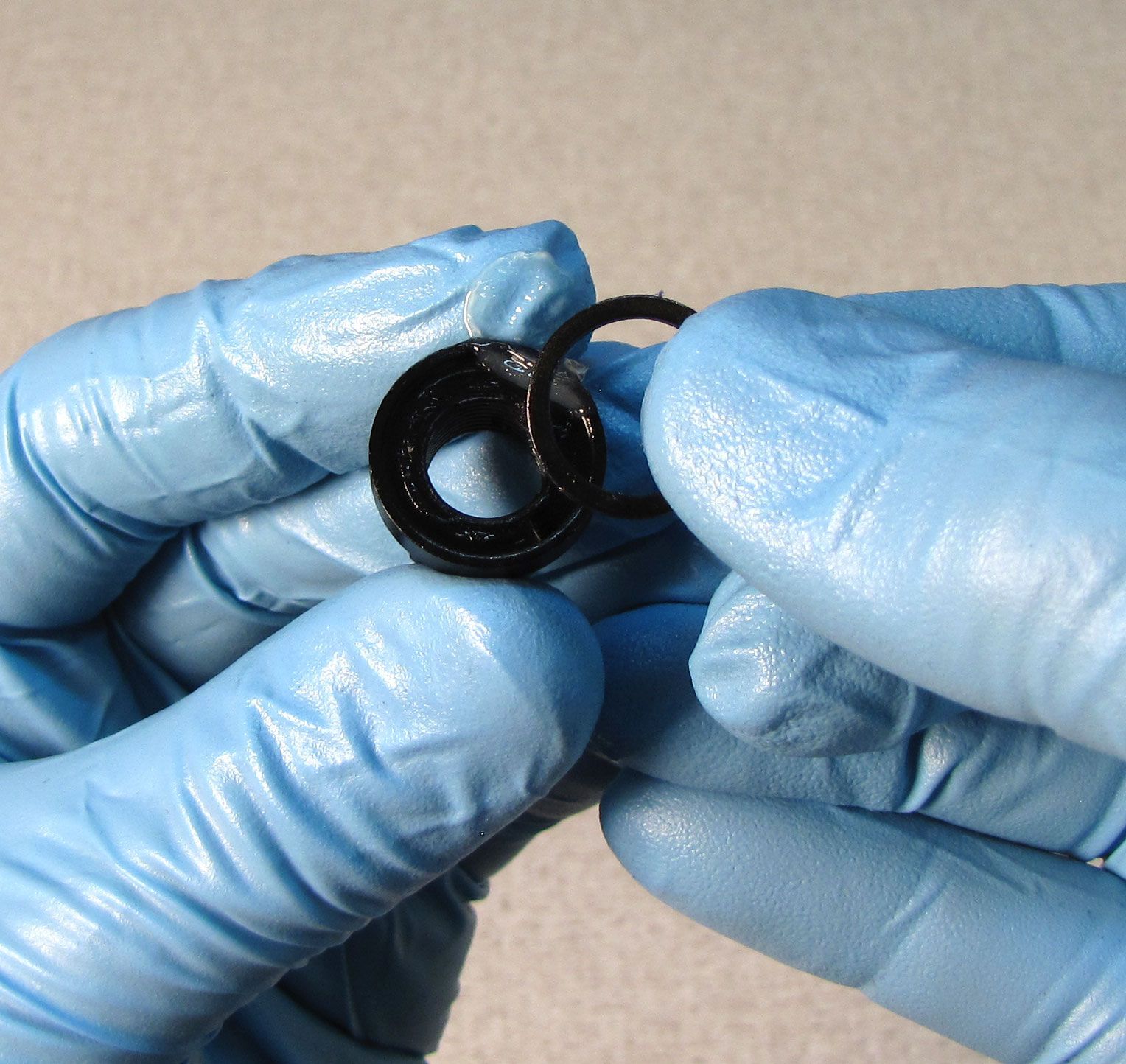

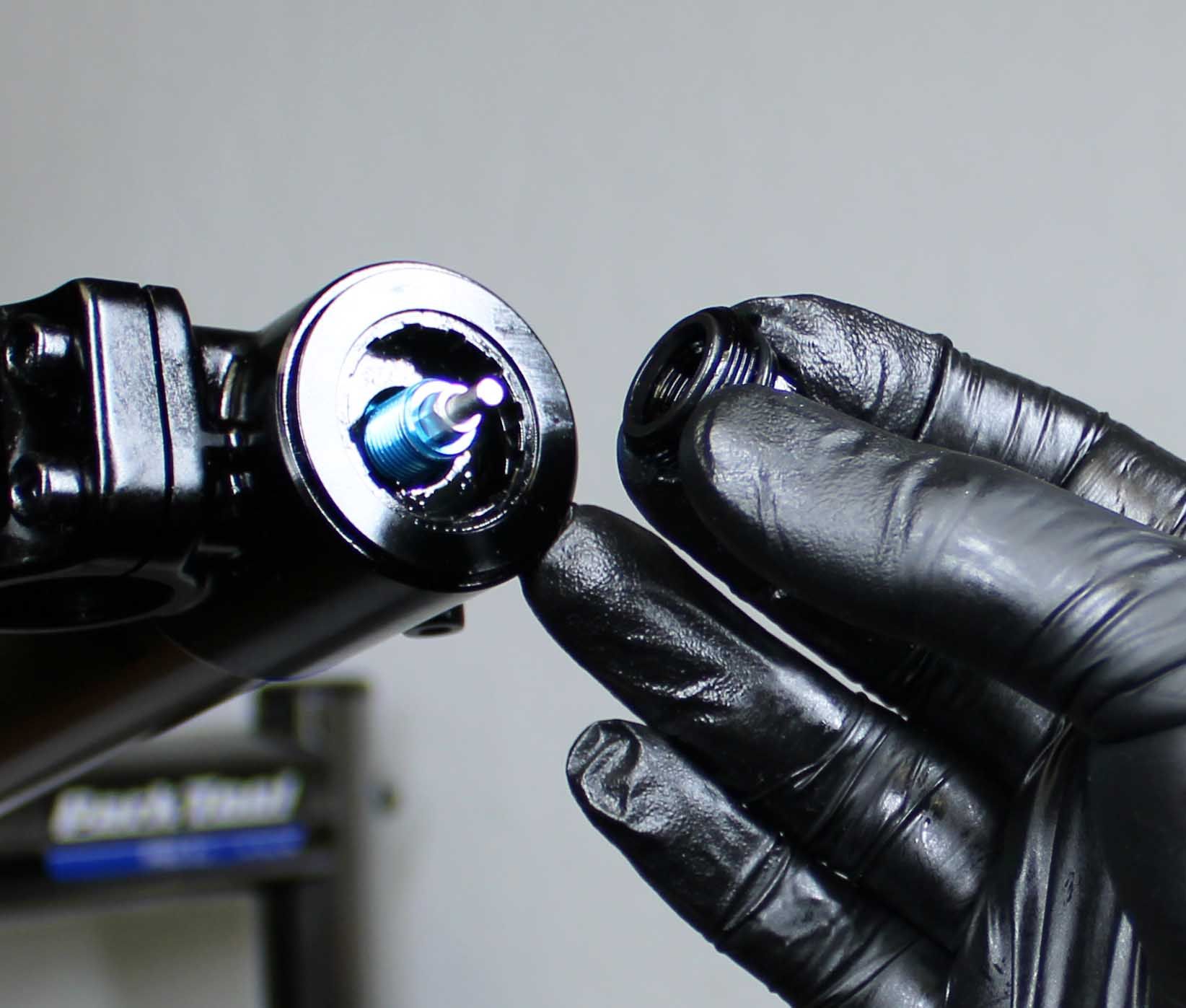

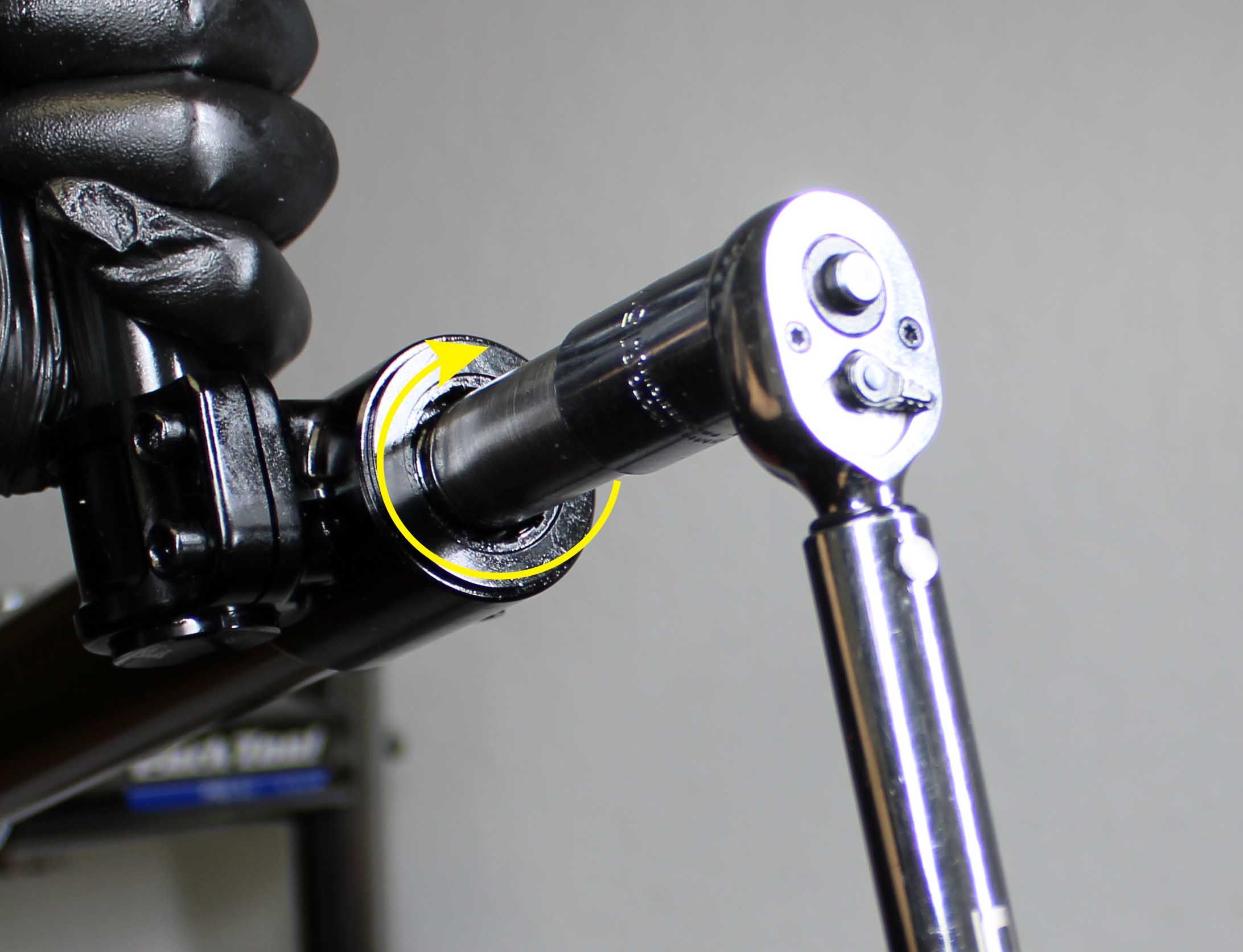

Install a new crushwasher followed by the bottom nut. Tighten the damper-side bottom nut to 110 in-lb(12.4 Nm).









img/help/page3125-MNK9/IMG_8779.jpg
img/help/page3125-MNK9/IMG_0769 copy.jpg
img/help/page3125-MNK9/IMG_0770 copy.jpg


img/help/page3125-MNK9/IMG_0771 copy-m.jpg

Step 17

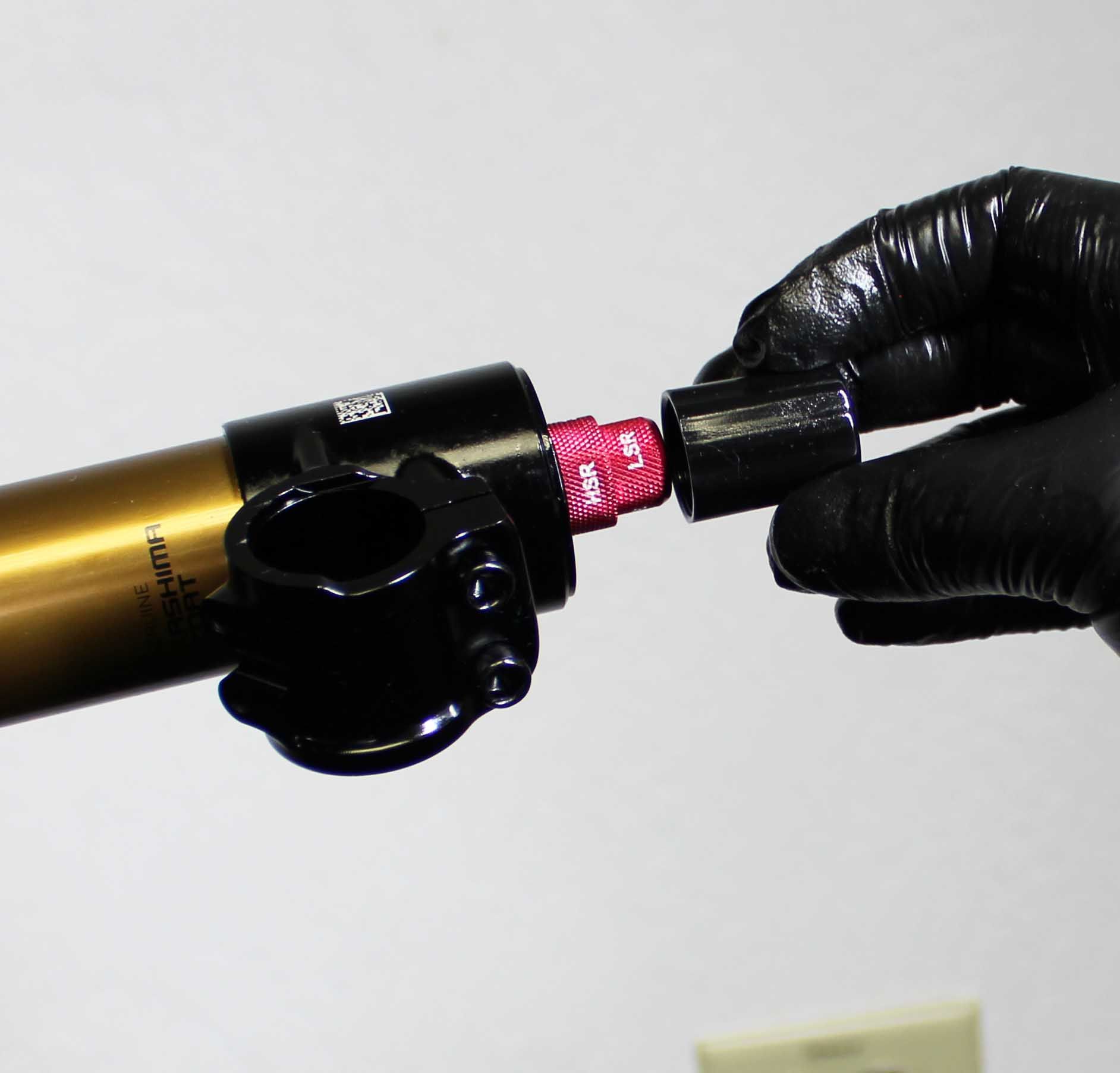

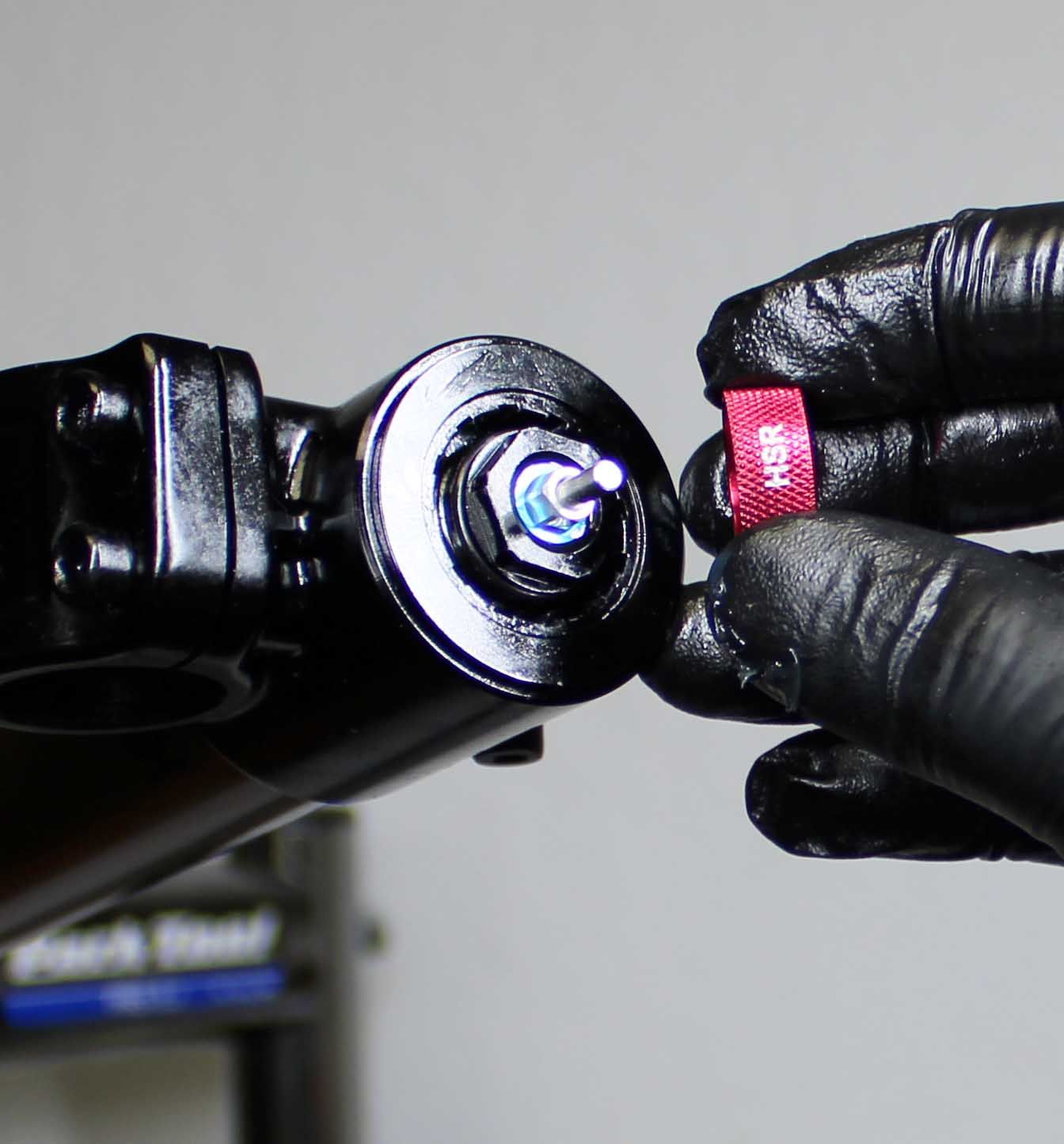

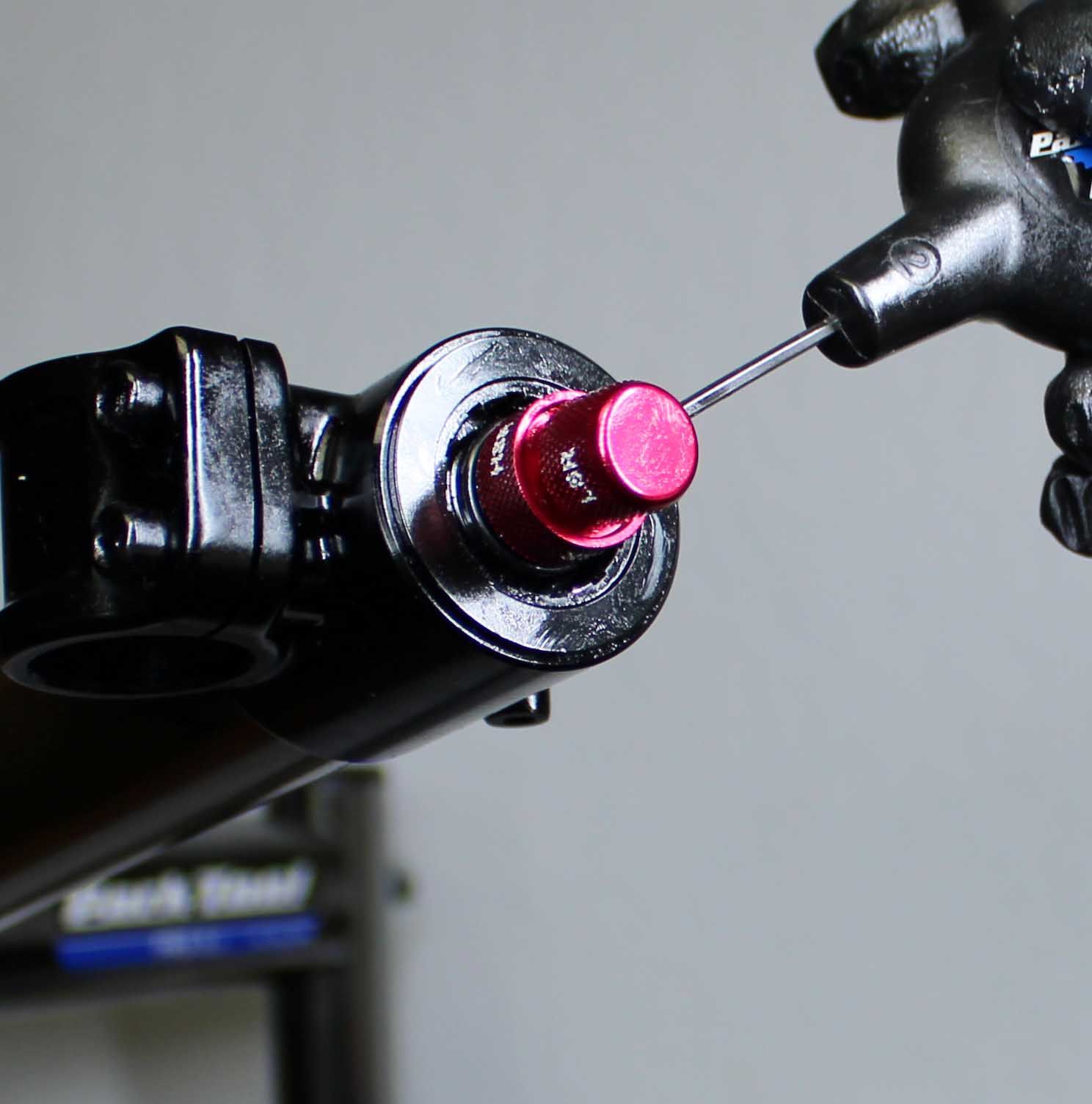

Use a 2mm hex wrench to install the red rebound knob  Make sure that the set screw lines up with the depression in the rebound adjuster shaft. Clean the exterior of your fork.

img/help/page3125-MNK9/IMG_0771 copy.jpg
img/help/page3125-MNK9/IMG_0772 copy.jpg
img/help/page3125-MNK9/IMG_0785 copy.jpg


img/help/page3125-MNK9/IMG_0776 copy-m.jpg

Step 18

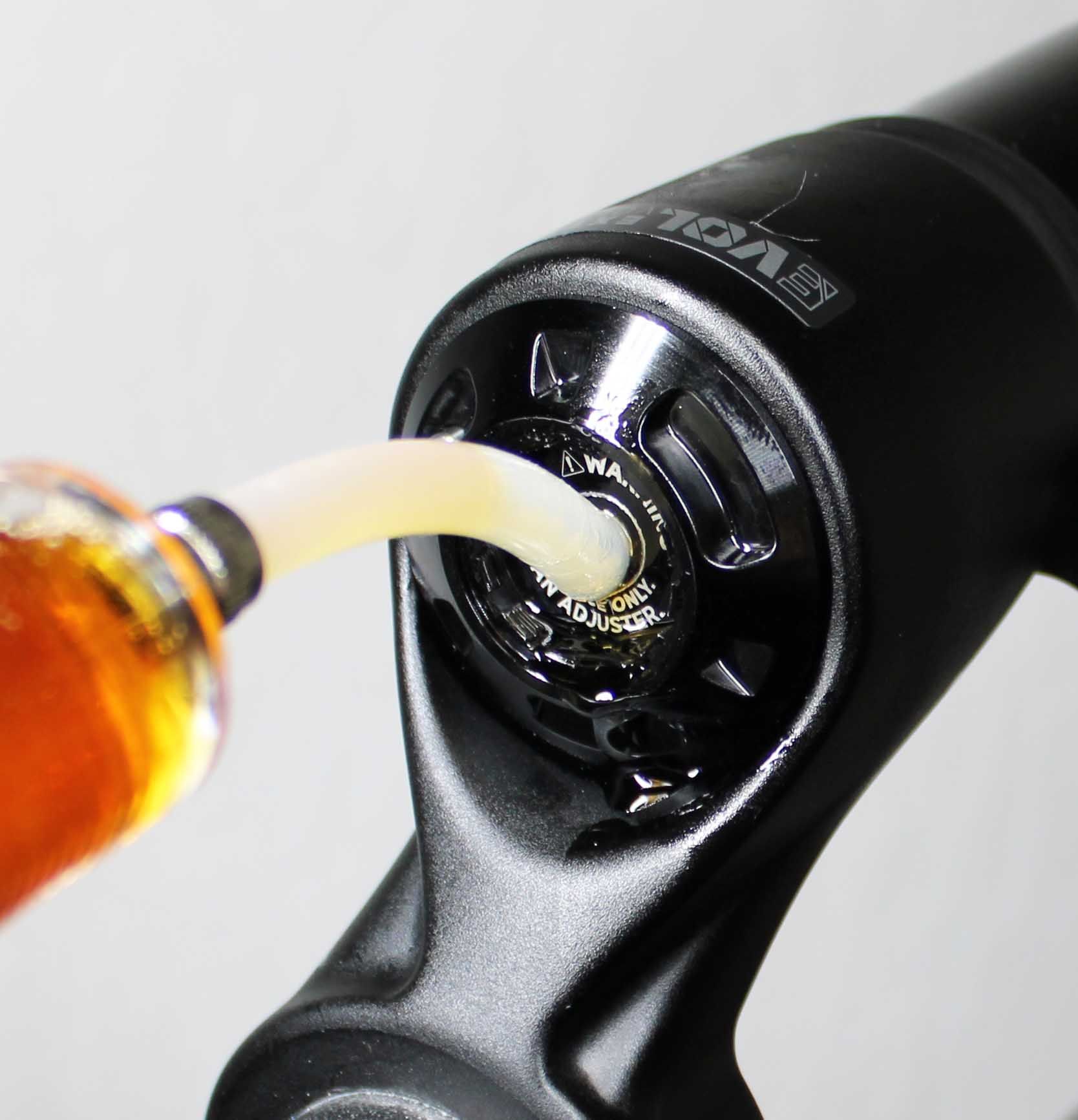

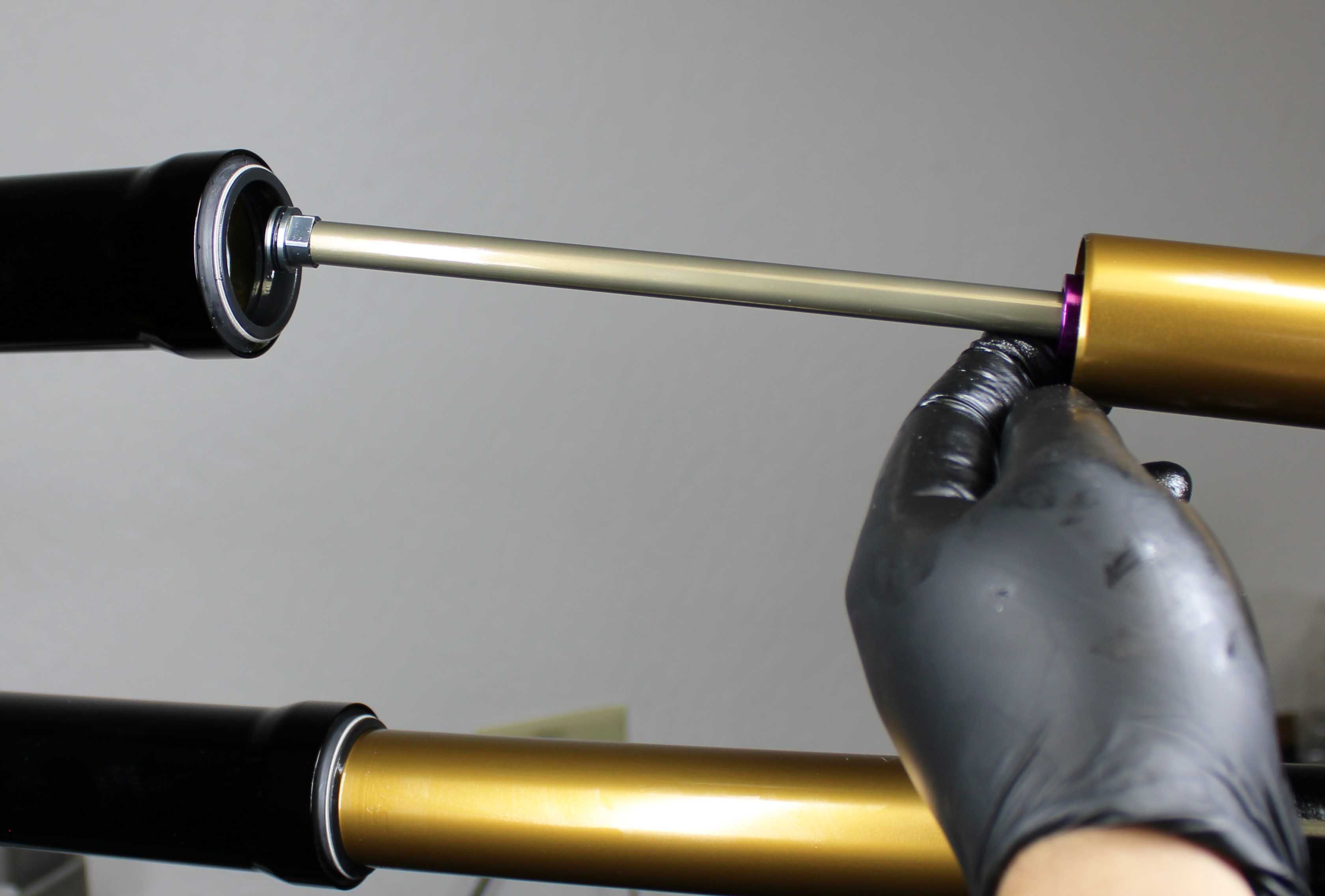

Install air side Lower Tube Assembly onto the upper tubes. Inject 40CC of 20WT. bath oil.

img/help/page3125-MNK9/IMG_0776 copy.jpg
img/help/page3125-MNK9/IMG_0778 copy.jpg


img/help/page3125-MNK9/IMG_0780 copy-m.jpg

Step 19

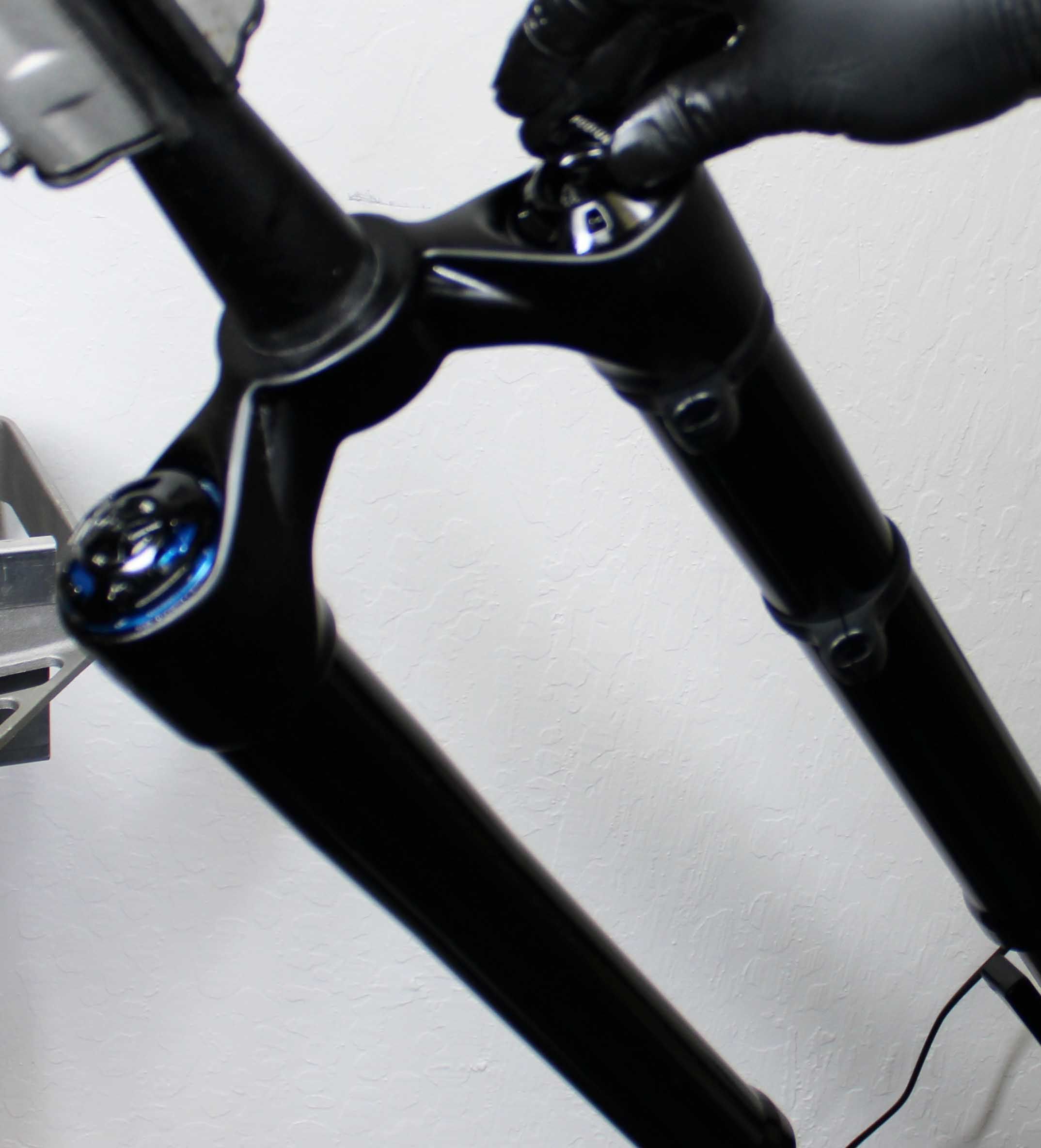

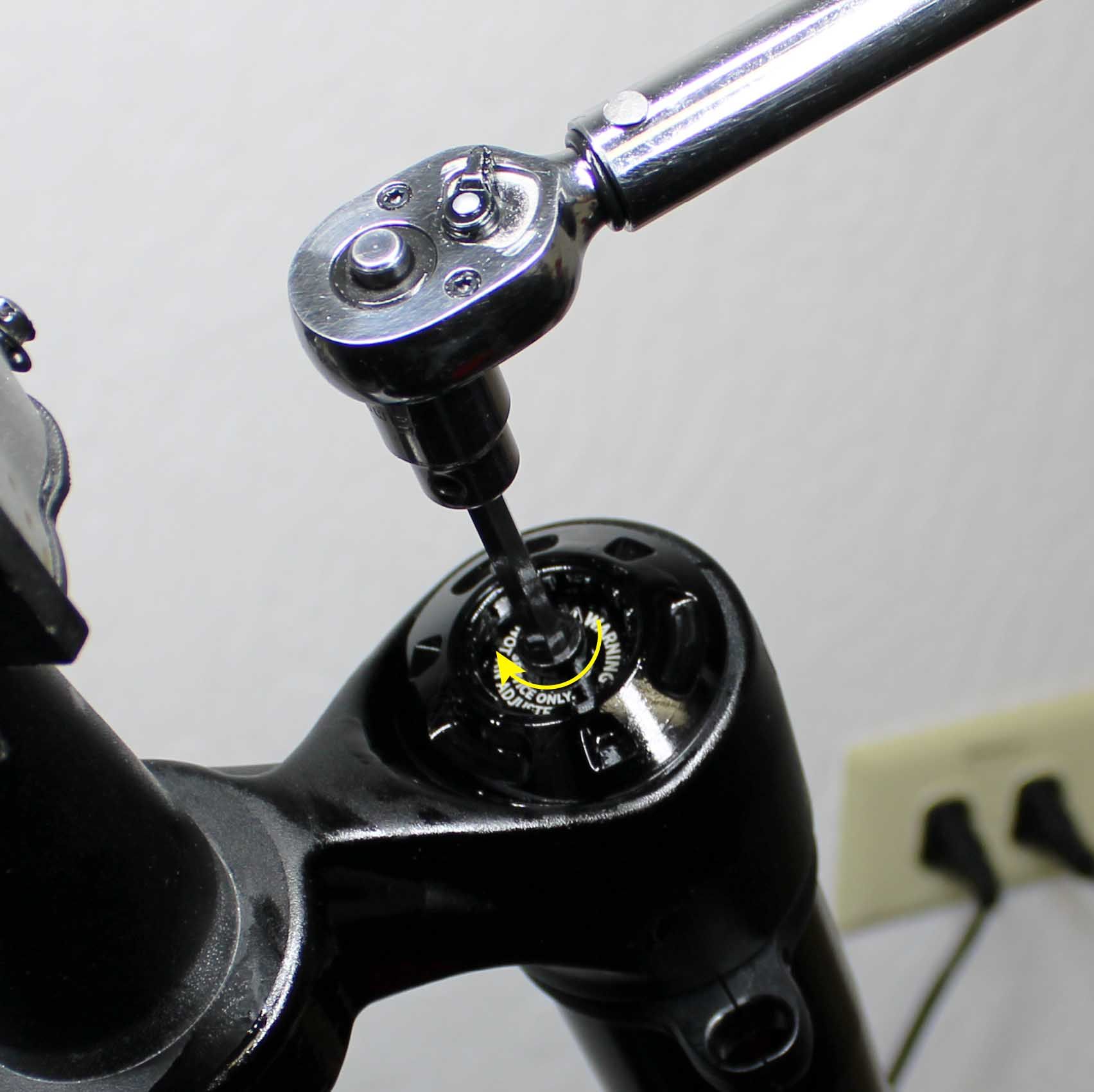

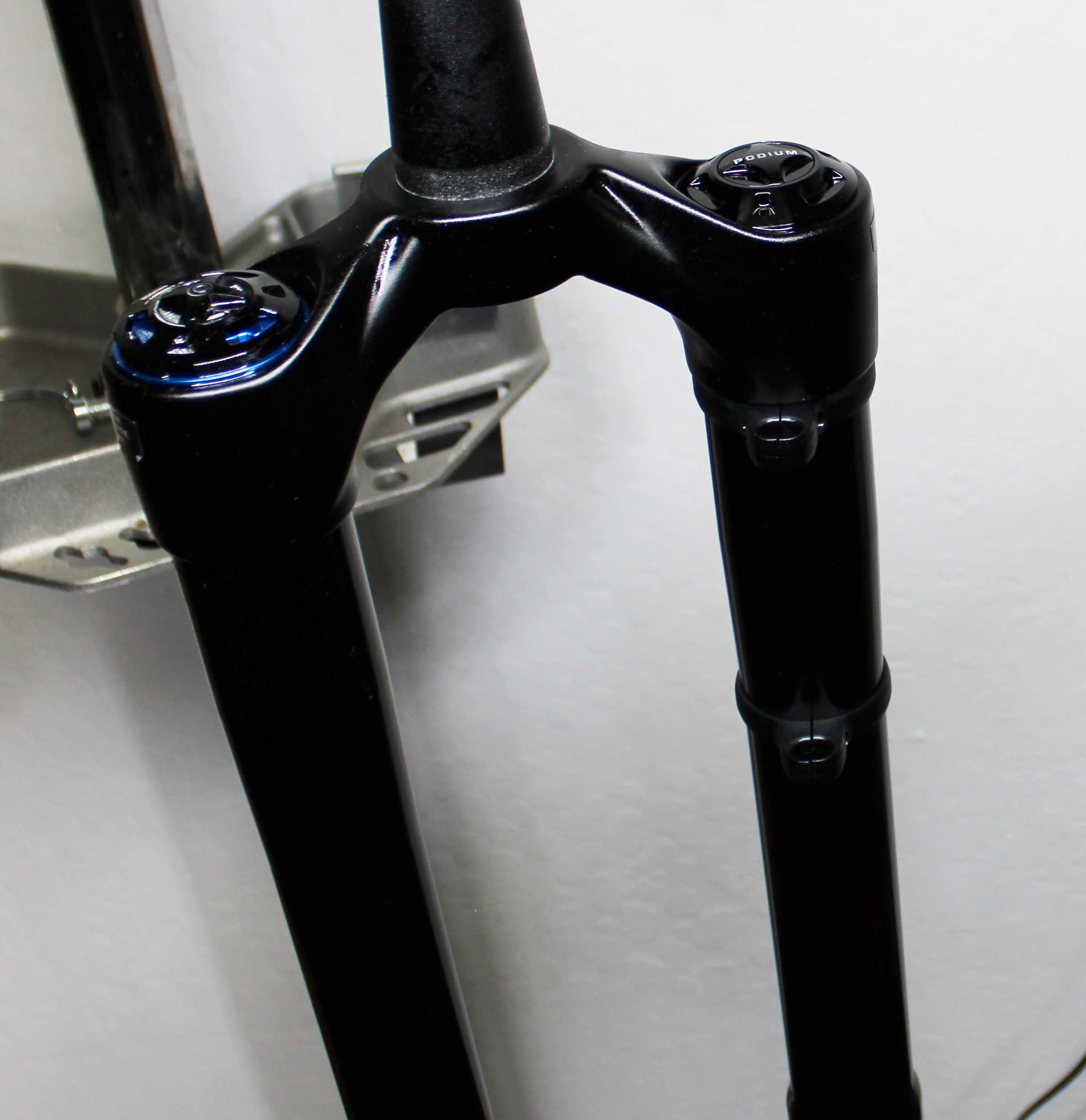

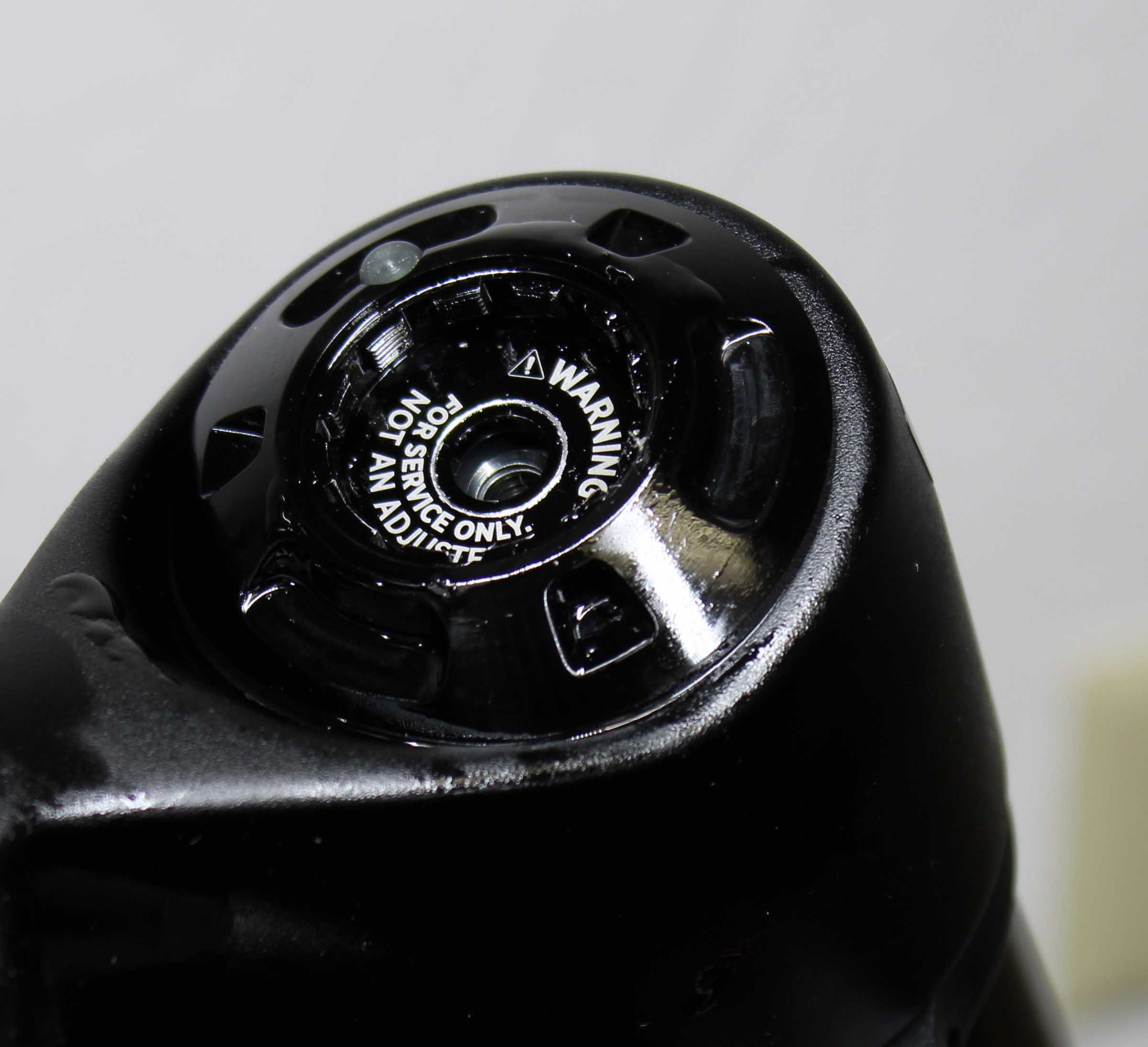

Reinstall the cap bolt using a 5mm hex wrench and torque to 80 in-lb (9Nm)

img/help/page3125-MNK9/IMG_0780 copy.jpg
img/help/page3125-MNK9/IMG_0782 copy.jpg
img/help/page3125-MNK9/IMG_0783 copy.jpg
img/help/page3125-MNK9/IMG_0784 copy.jpg
