SERVICE PROCEDURES

Float ReAktiv

Required Parts

  • 025-02-003 Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red
  • 803-00-142 Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring
  • 803-00-816 Seal Kit: CTD Boost Valve and Dish Shock Rebuild (Same for DPS shocks)

Required Tools

Supplies Needed

  • 1.5mm Hex Wrench
  • 3/4" Crows Foot
  • 3/4" Wrench
  • 5/64" Hex Wrench
  • 5mm Hex Wrench
  • 8mm socket
  • 8mm socket
  • Caliper
  • Propane Torch
  • Ratchet
  • Seal Pick
  • Shock pump
  • Snap Ring Pliers
  • Torque Wrench

WARNING: Always wear safety glasses and protective gloves during service to prevent potential injury. Failure to wear protective equipment during service may lead to SERIOUS INJURY OR DEATH.

WARNING: FOX products should be serviced by a qualified bicycle service technician, in accordance with FOX specifications. If you have any doubt whether or not you can properly service your FOX product, then DO NOT attempt it. Improperly serviced products can fail, causing the rider to lose control resulting in SERIOUS INJURY OR DEATH.

WARNING: Modification, improper service, or use of aftermarket replacement parts with FOX forks and shocks may cause the product to malfunction, resulting in SERIOUS INJURY OR DEATH. DO NOT modify any part of a fork or shock, including the fork brace (lower leg cross brace), crown, steerer, upper and lower leg tubes, or internal parts, except as instructed herein. Any unauthorized modification may void the warranty, and may cause failure or the fork or shock, resulting in SERIOUS INJURY OR DEATH.

WARNING: FOX suspension products contain pressurized nitrogen, air, oil, or all 3. Suspension misuse can cause property damage, SERIOUS INJURY OR DEATH. DO NOT puncture, incinerate or crush any portion of a FOX suspension product. DO NOT attempt to disassemble any portion of a FOX suspension product, unless expressly instructed to do so by the applicable FOX technical documentation, and then ONLY while strictly adhering to all FOX insturctions and warnings in that instance.

WARNING: Never attempt to pull apart, open, disassemble, or service a FOX shock that is in a "stuck down" condition. A "stuck down" condition results from a failure of the dynamic air seal (located between the positive and negative air chambers within the non-EVOL shock air sleeve), resulting with the negative chamber retaining a higher pressure than the positive chamber. To test whether the shock is in fact "stuck down":

  1. Remove the air cap and depress the Schrader valve, to completely release air pressure from the positive chamber of the shock.
  2. If the shock body retracts into the air sleeve near bottom-out after the air is released from the positive chamber, attach a FOX high pressure pump and pressurize the shock to 250psi (17 bar).
  3. If the shock does not fully extend, it is in a "stuck down" condition.

Any attempt to service FOX air shocks in the "stuck down" condition can lead to SERIOUS INJURY OR DEATH. Contact FOX or an Authorized Service Center for repair.

IFP Information:

Size IFP Height  IFP Pressure
6.5 x 1.5 2.31in/ 58.67mm 450psi
210 X 55 2.598in/ 65.989mm 350psi

Disassembly

Releasing the air pressure too quickly can induce a condition in which the negative chamber has more pressure than the positive chamber. In this condition the shock will compress into its travel and not fully extend. You can remedy this by adding air pressure until the shock extends, then slowly compressing the shock through 25% of its travel 10-20 times. Release air pressure slowly via the bleed button of your shock pump to prevent Stuckdown.

img/help/page2922-G2V1/IMG_1083 copy-m.jpg

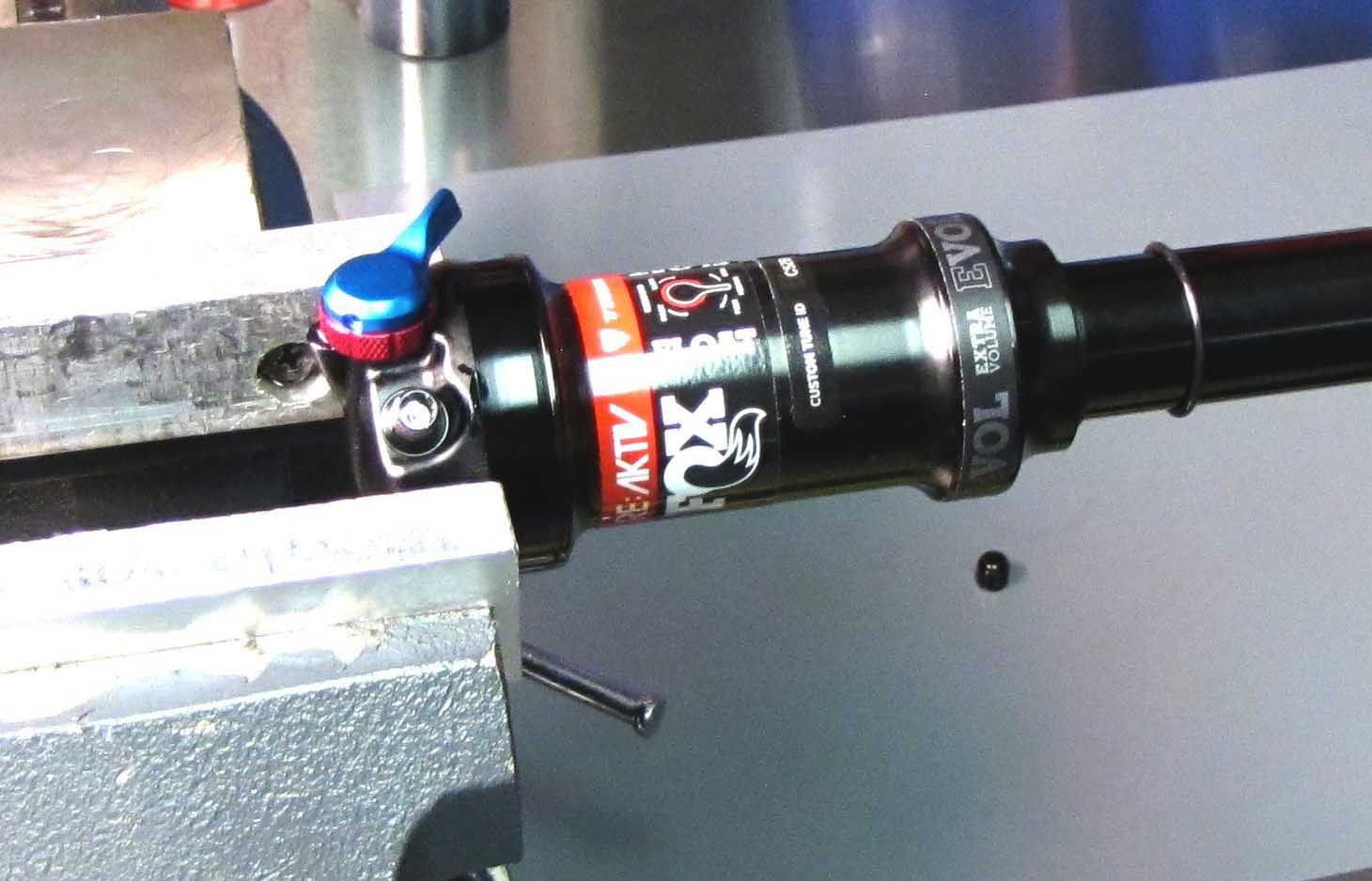

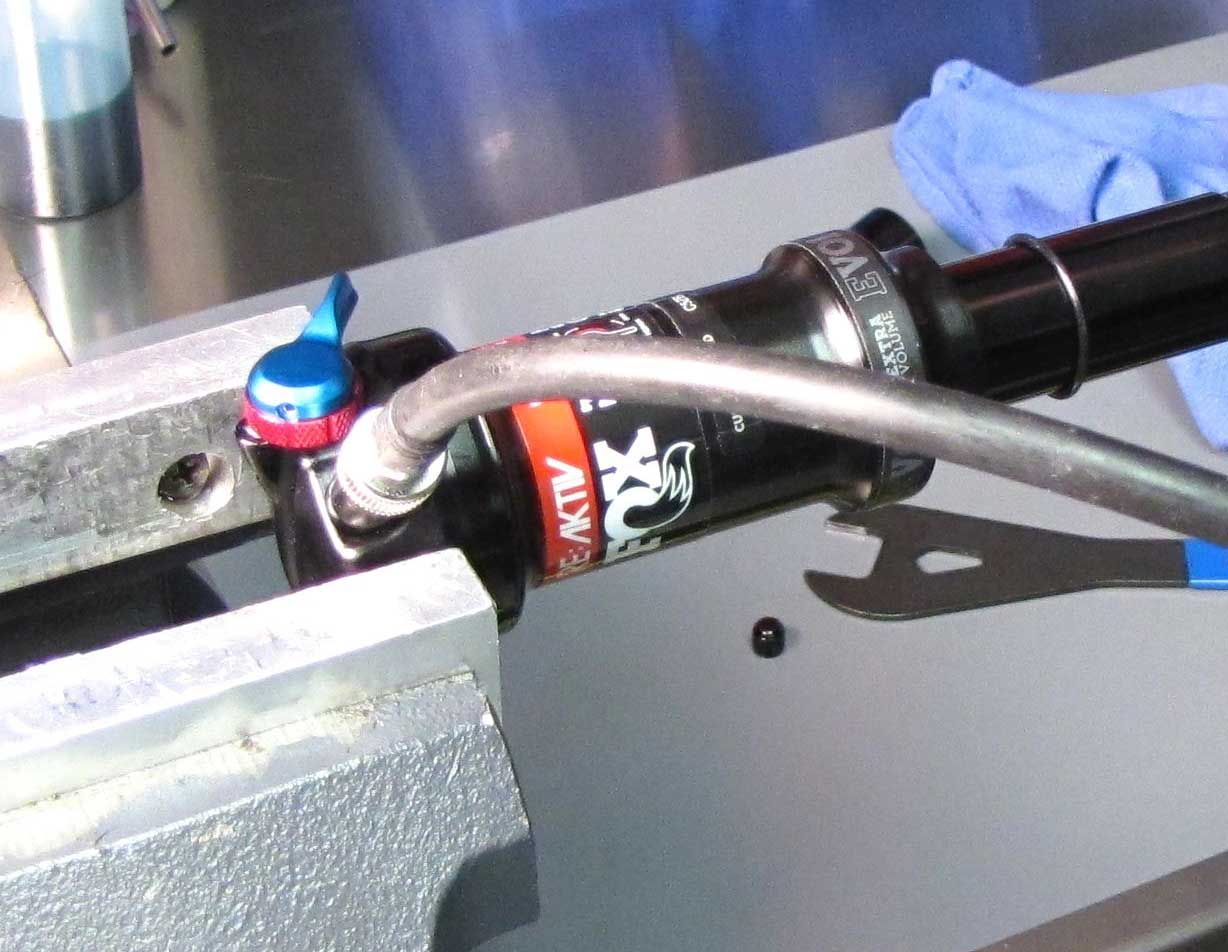

Step 1

Clamp your shock in a soft-jawed vice. Remove the black air cap and thread on your FOX shock pump. Slowly release all air from the main air chamber with your pump, then remove the pump.

img/help/page2922-G2V1/IMG_1083 copy.jpg
img/help/page2922-G2V1/IMG_1081 copy.jpg
img/help/page2922-G2V1/IMG_1084 copy 2 copy-m.jpg

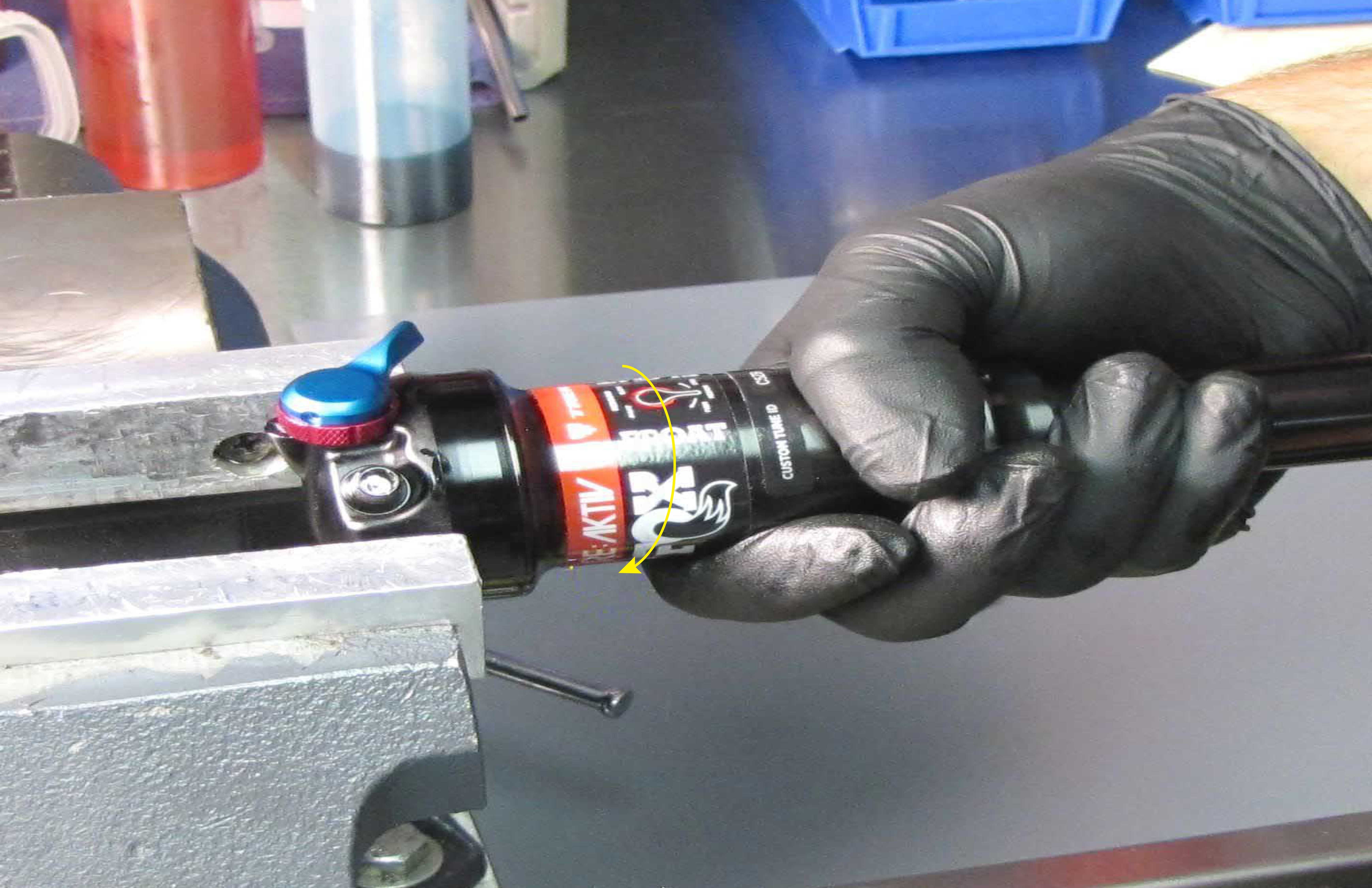

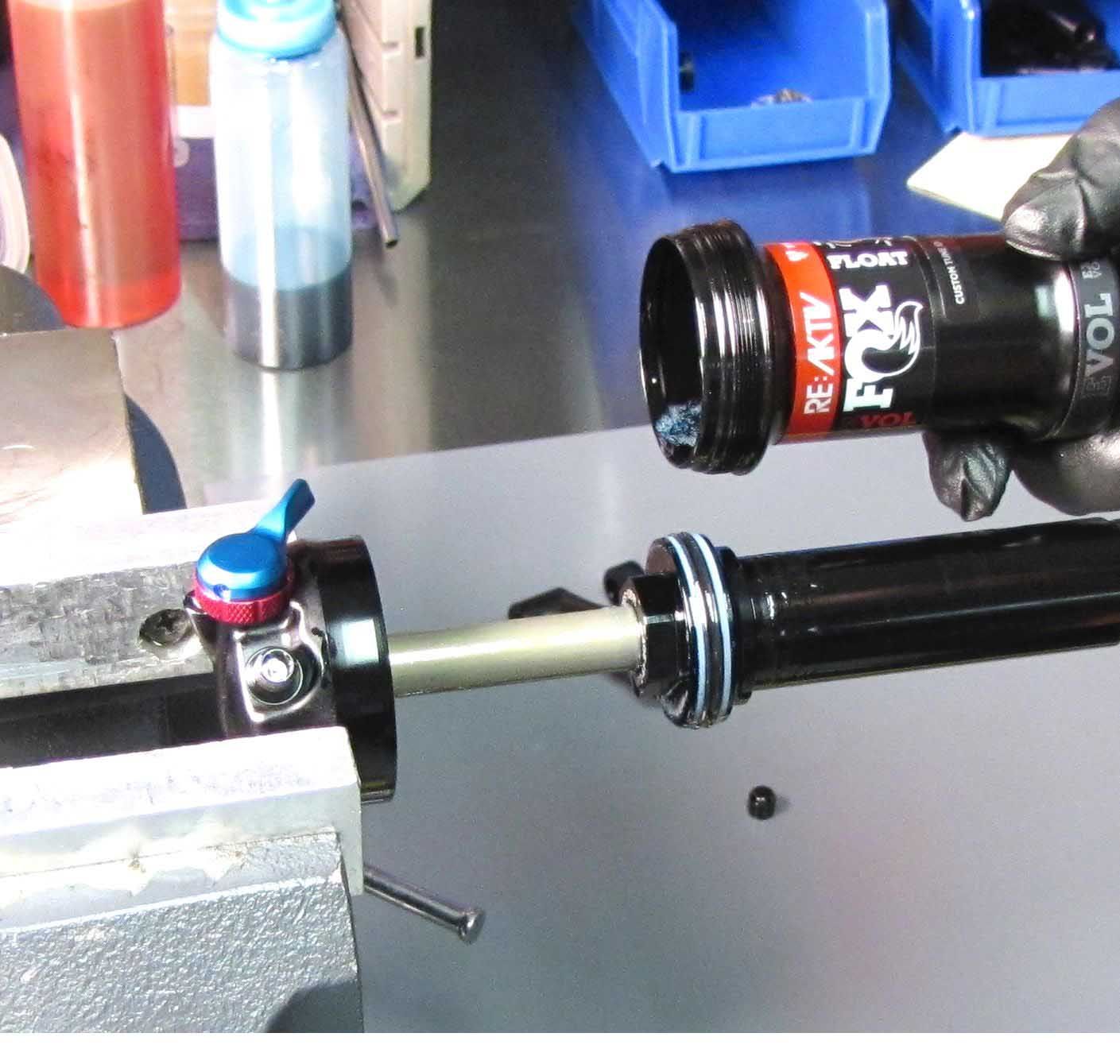

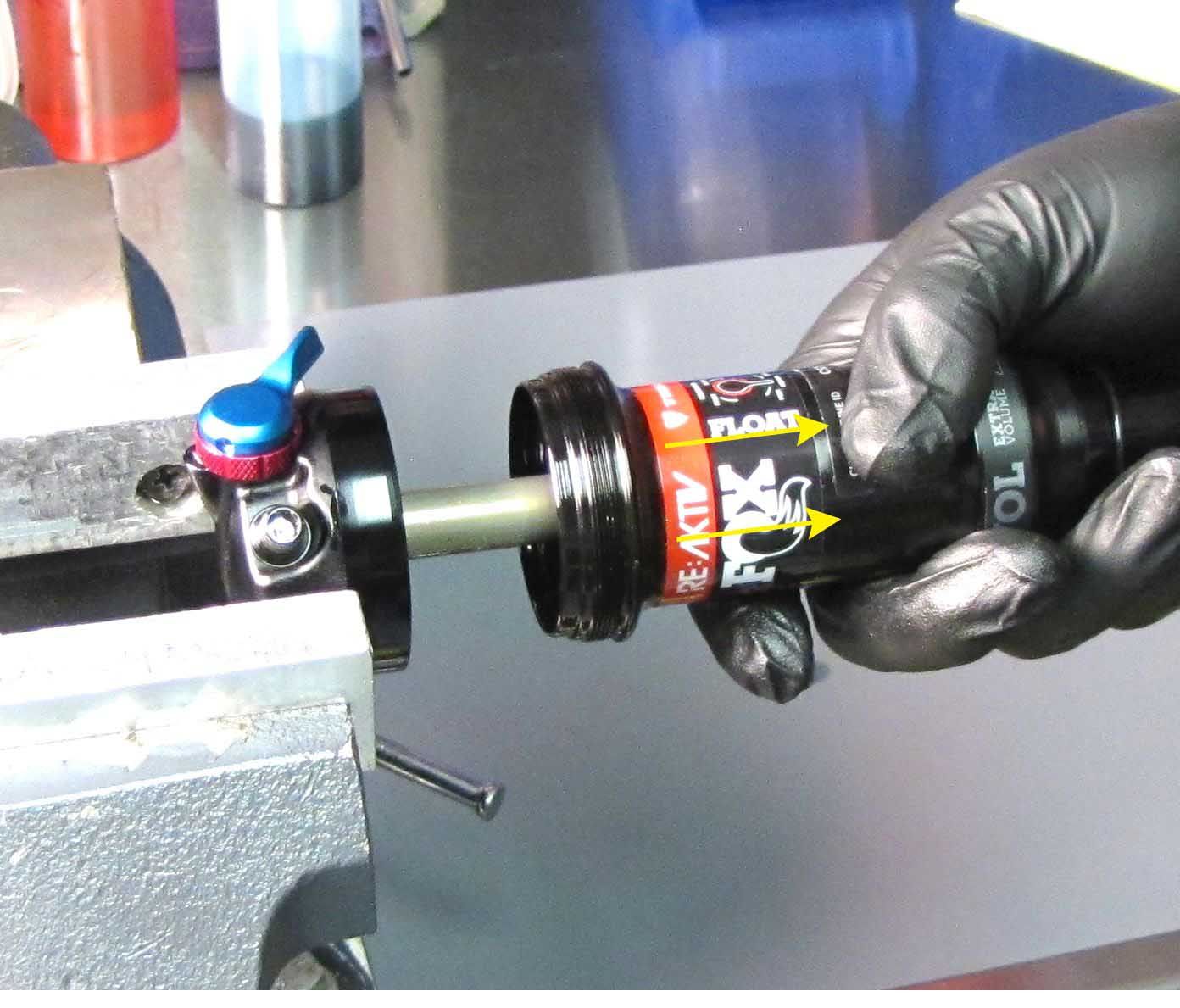

Step 2

Unthread the air sleeve from the eyelet by turning it counter-clockwise. Remove the air sleeve after unthreading by pulling it away from the shock.

img/help/page2922-G2V1/IMG_1084 copy 2 copy.jpg
img/help/page2922-G2V1/IMG_1086 copy.jpg
img/help/page2922-G2V1/IMG_1087 copy.jpg
img/help/page2922-G2V1/IMG_2467 copy-m.jpg

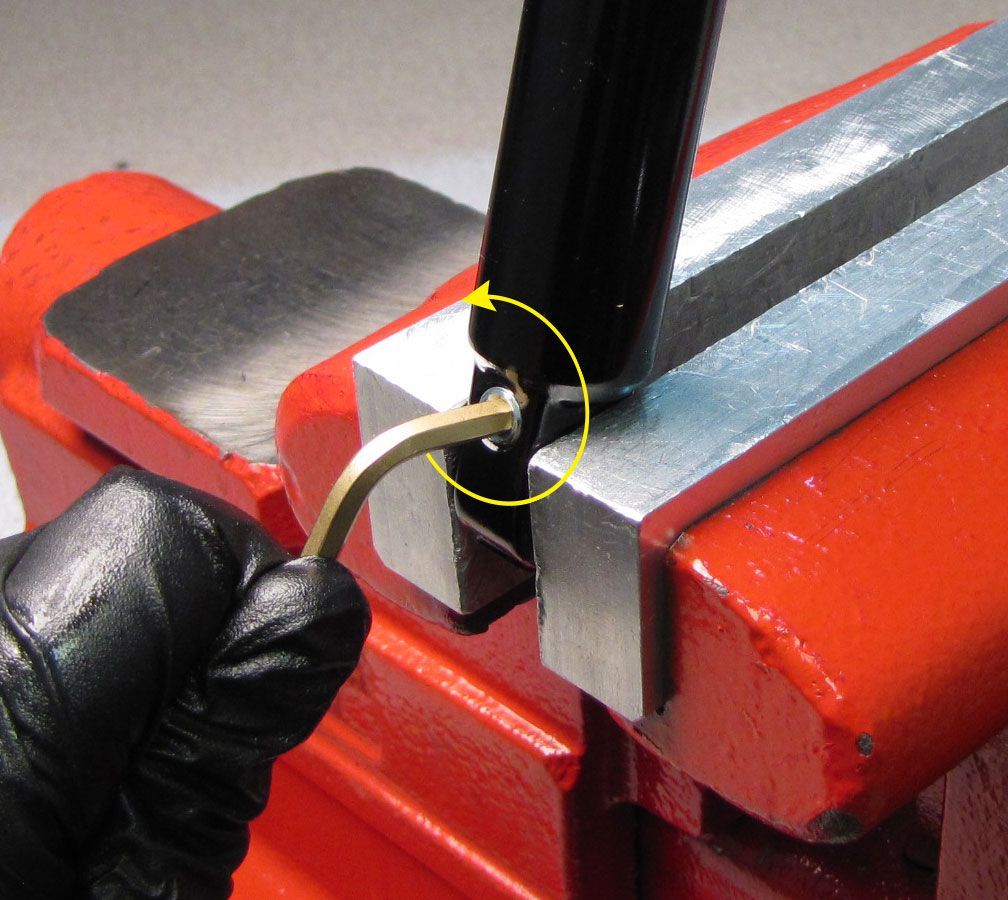

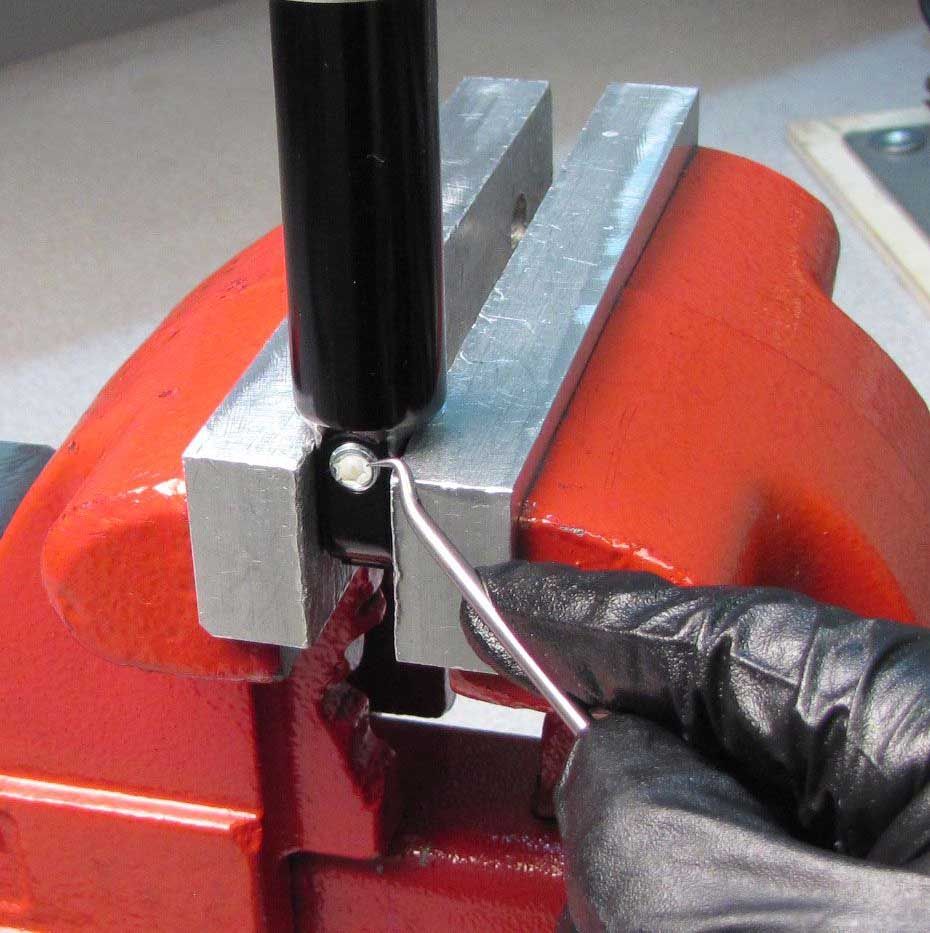

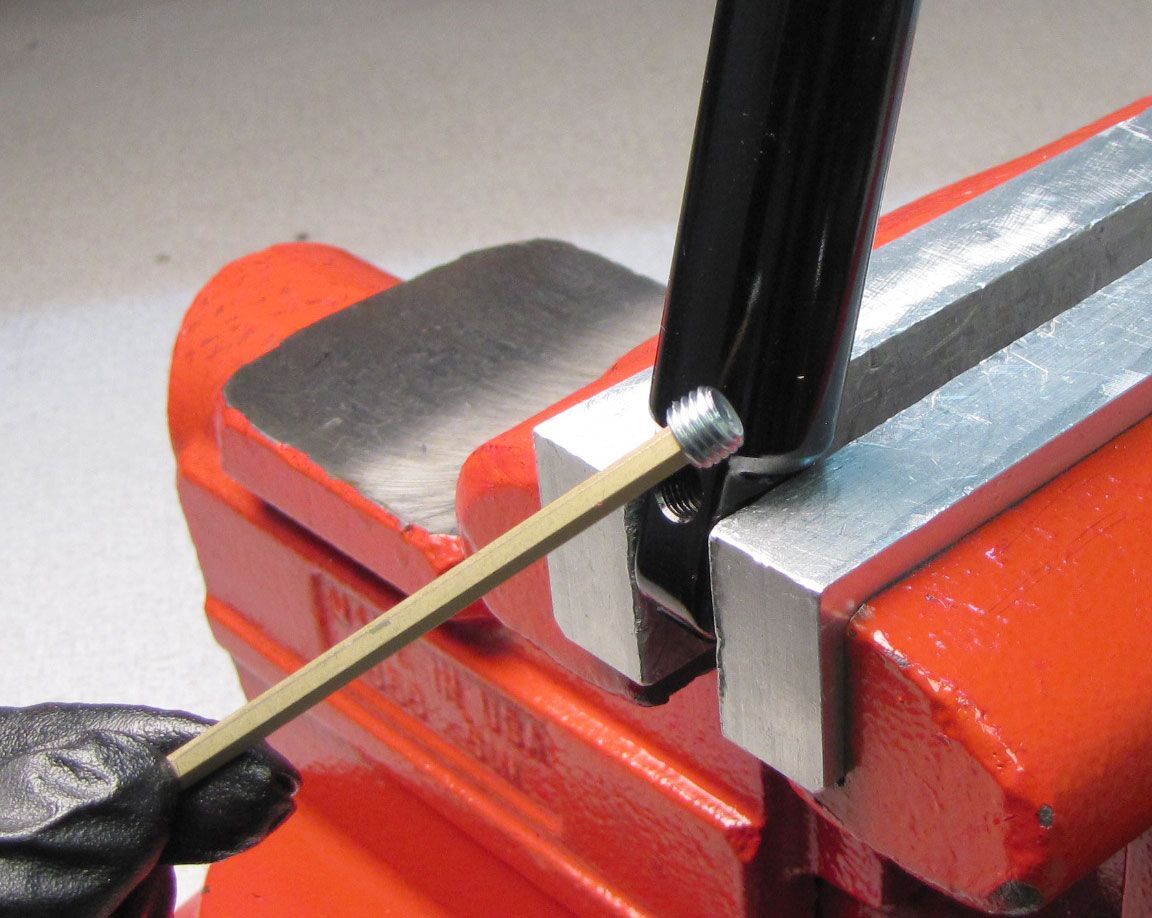

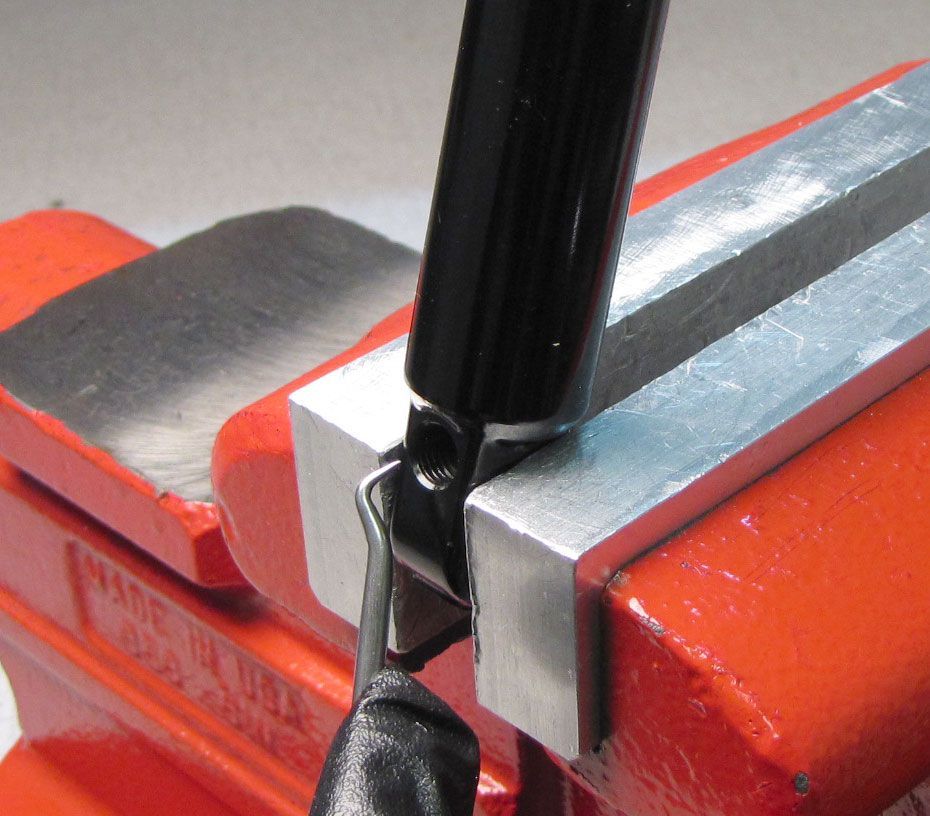

Step 3

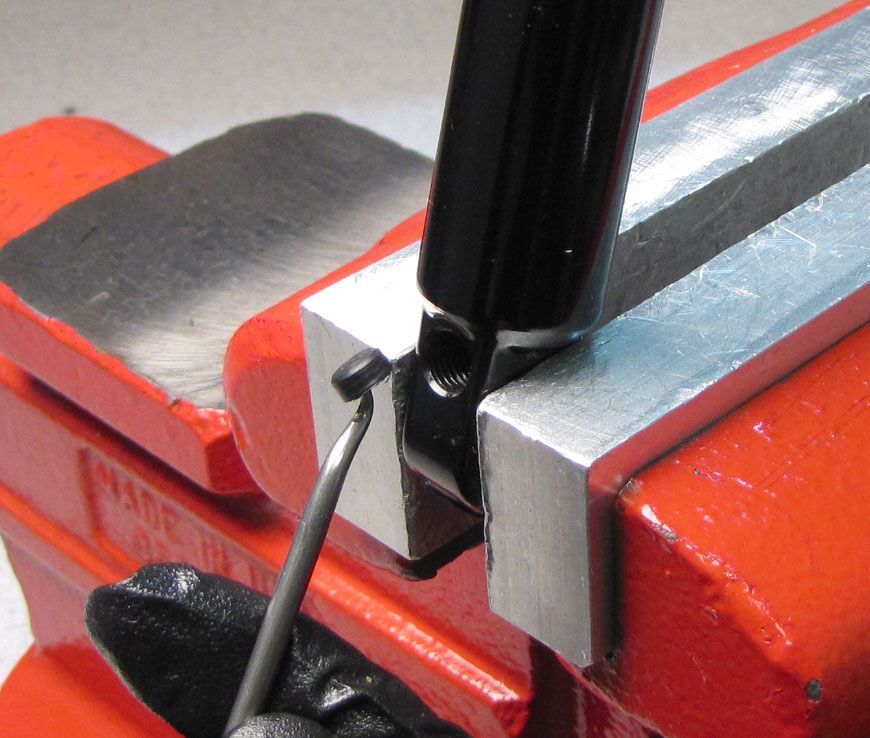

Using a pick tool, remove the nylon plug to access the pellet screw. Use a 5/32" hex to release the nitrogen pressure and remove the pellet retainer. Remove the pellet with the pick tool.

img/help/page2922-G2V1/IMG_2467 copy.jpg
img/help/page2922-G2V1/IMG_2469.jpg
img/help/page2922-G2V1/IMG_2471.jpg
img/help/page2922-G2V1/IMG_2473.jpg
img/help/page2922-G2V1/IMG_2474.jpg
img/help/page2922-G2V1/IMG_2475.jpg
img/help/page2922-G2V1/IMG_8471 copy-m.jpg

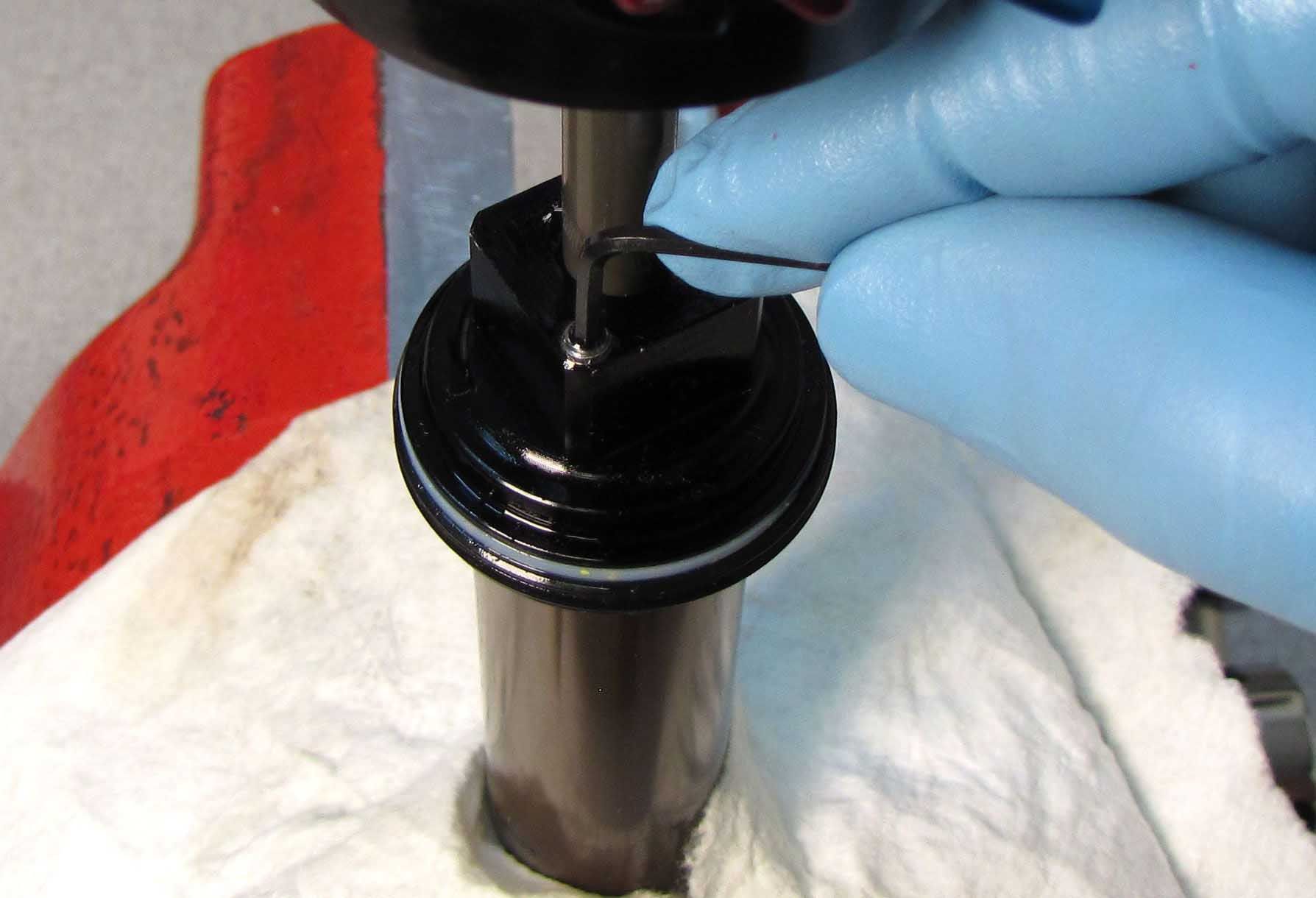

Step 4

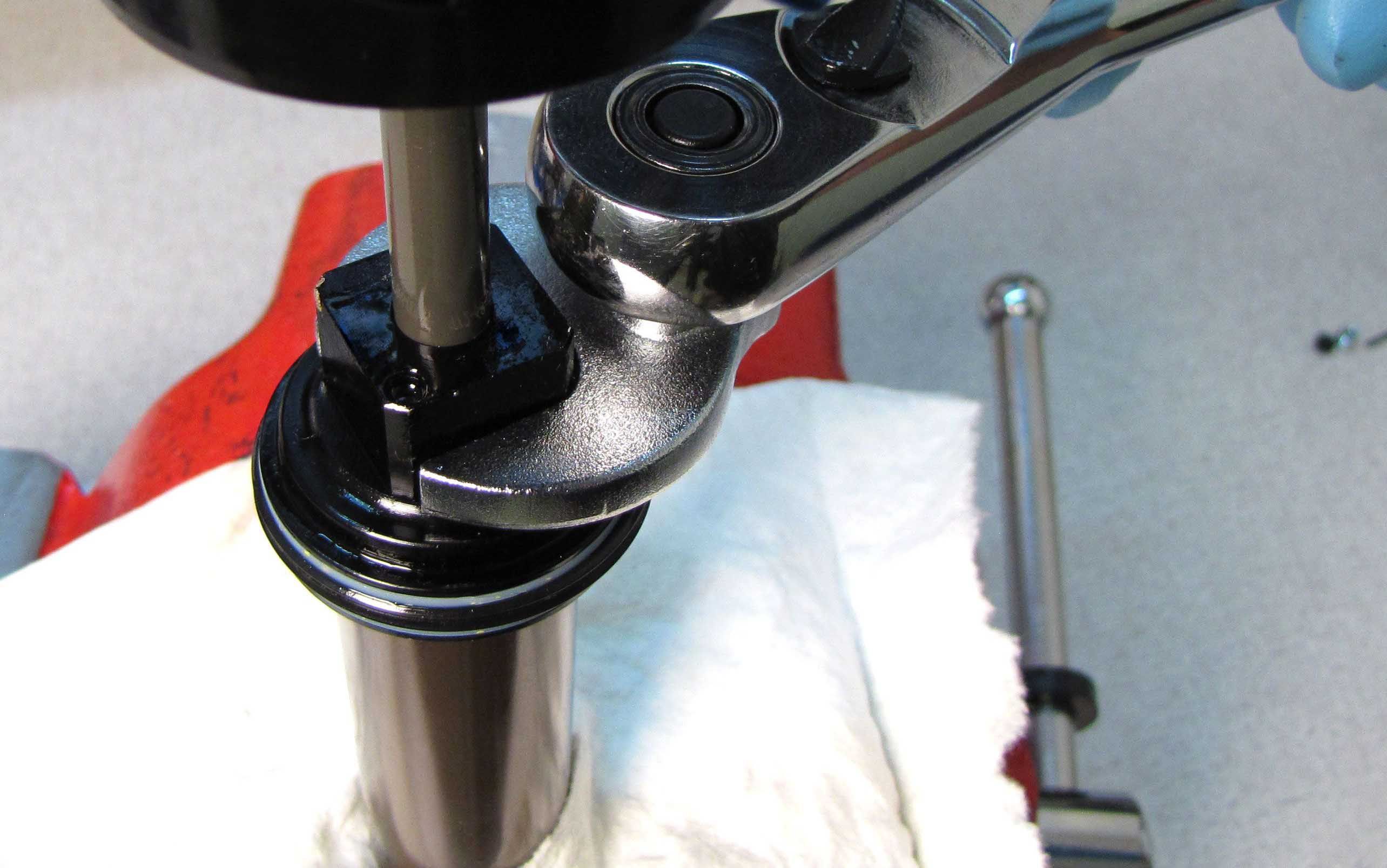

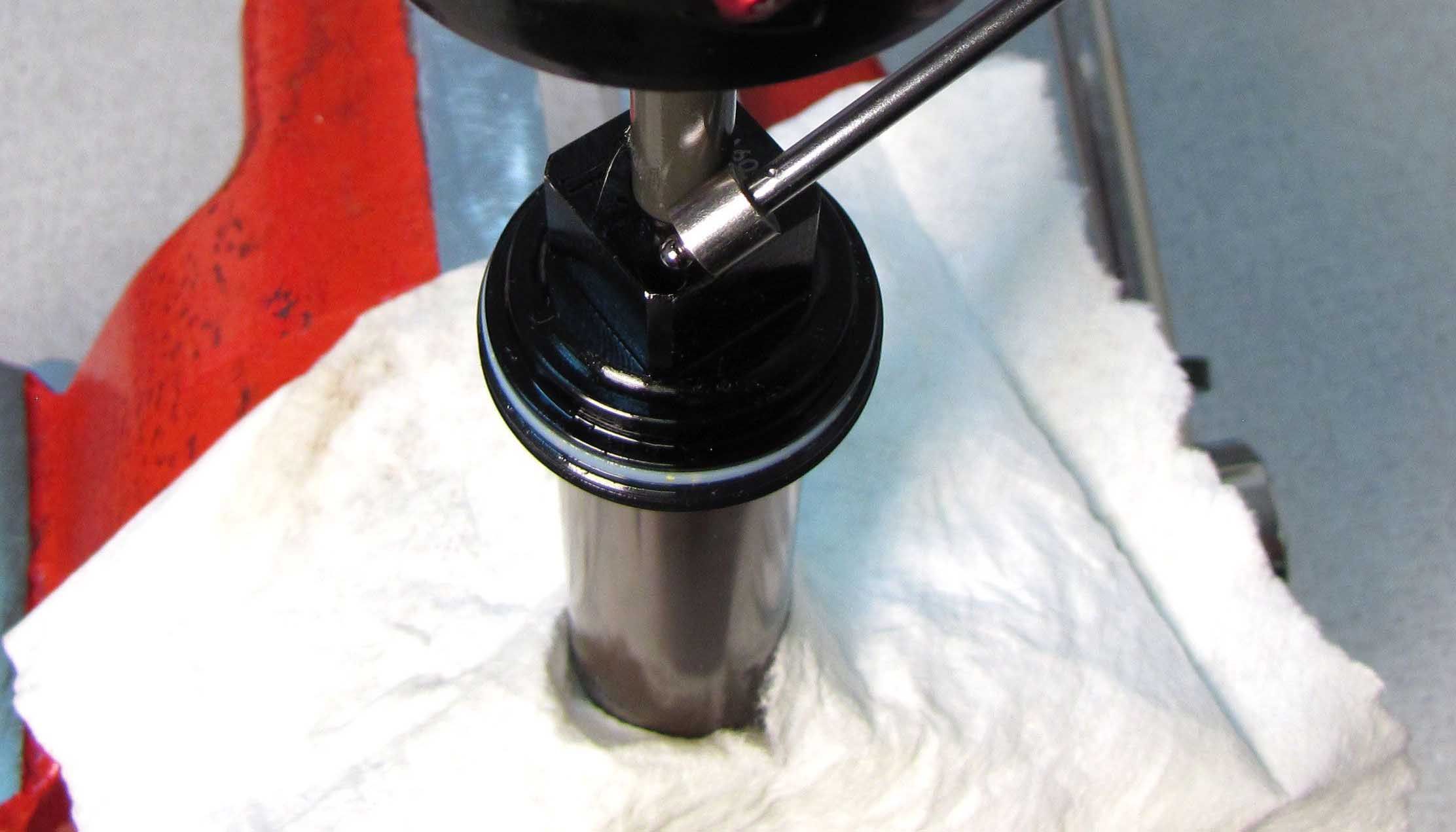

Clamp the shock vertically and use a 5/64" hex to slowly remove the bleed screw. Use a magnet to remove the ball from under the bleed screw. Unthread the bearing assembly from the shock body with a 3/4in wrench. Position your wrench so the wrench does not apply torque to the bleed hole.

img/help/page2922-G2V1/IMG_8471 copy.jpg
img/help/page2922-G2V1/IMG_8472 copy.jpg
img/help/page2922-G2V1/IMG_8473 copy.jpg
img/help/page2922-G2V1/IMG_7527 copy-m.jpg

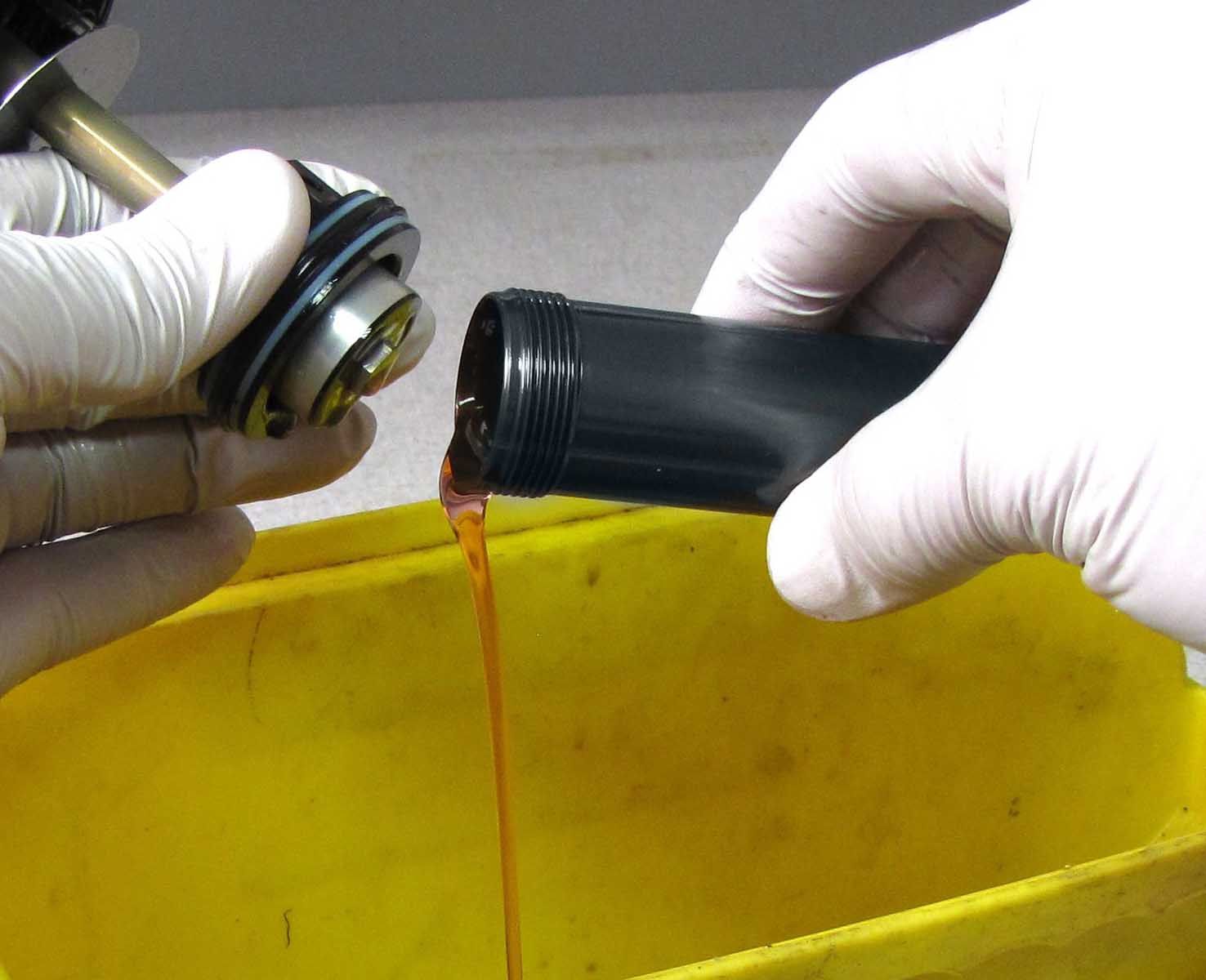

Step 5

Remove the shaft assembly from the body and pour out the damper oil. Remove the IFP using carefully applied air pressure. Inspect the body for damage or excessive wear.

img/help/page2922-G2V1/IMG_7527 copy.jpg
img/help/page2922-G2V1/IMG_8479 copy-m.jpg

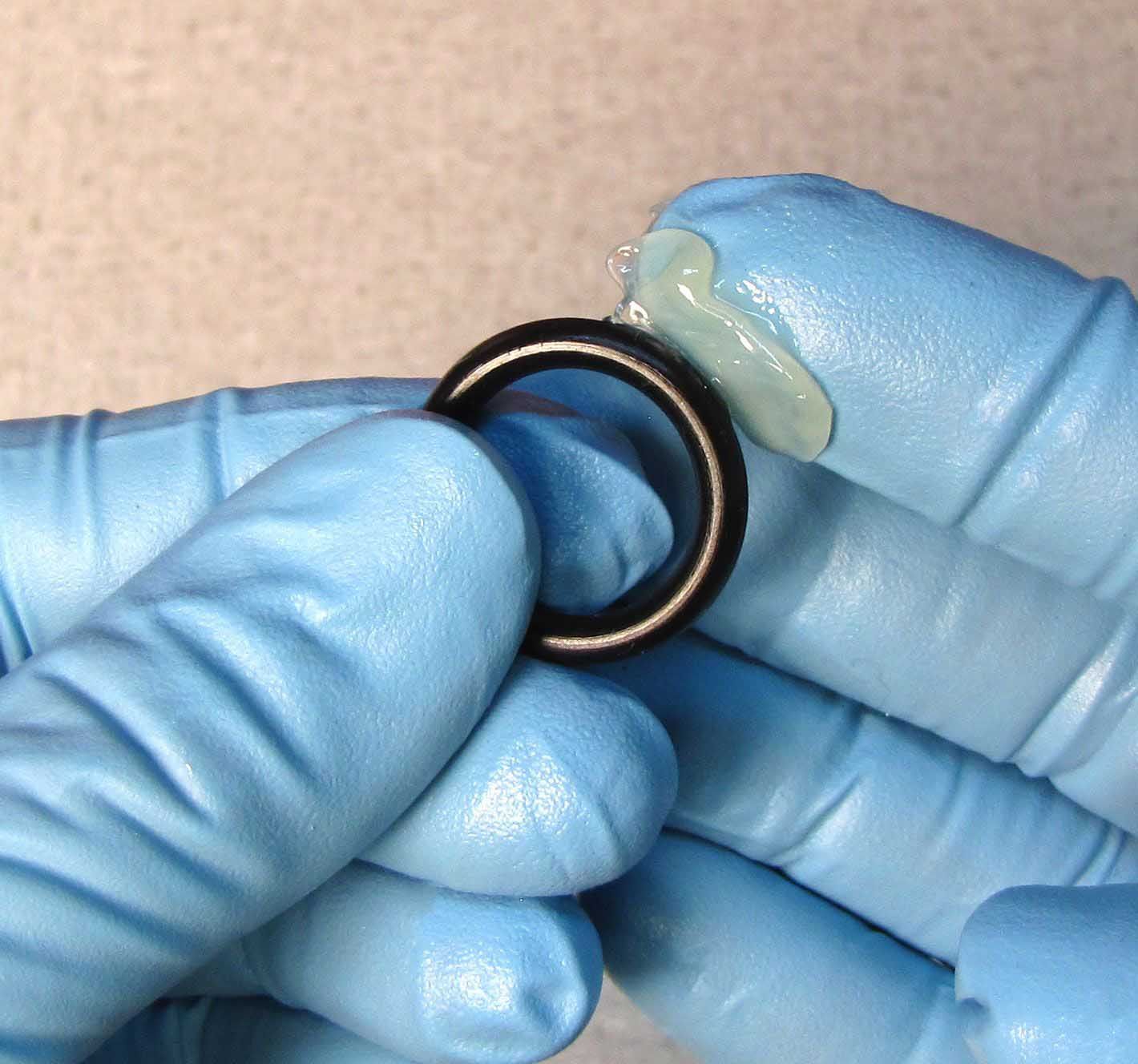

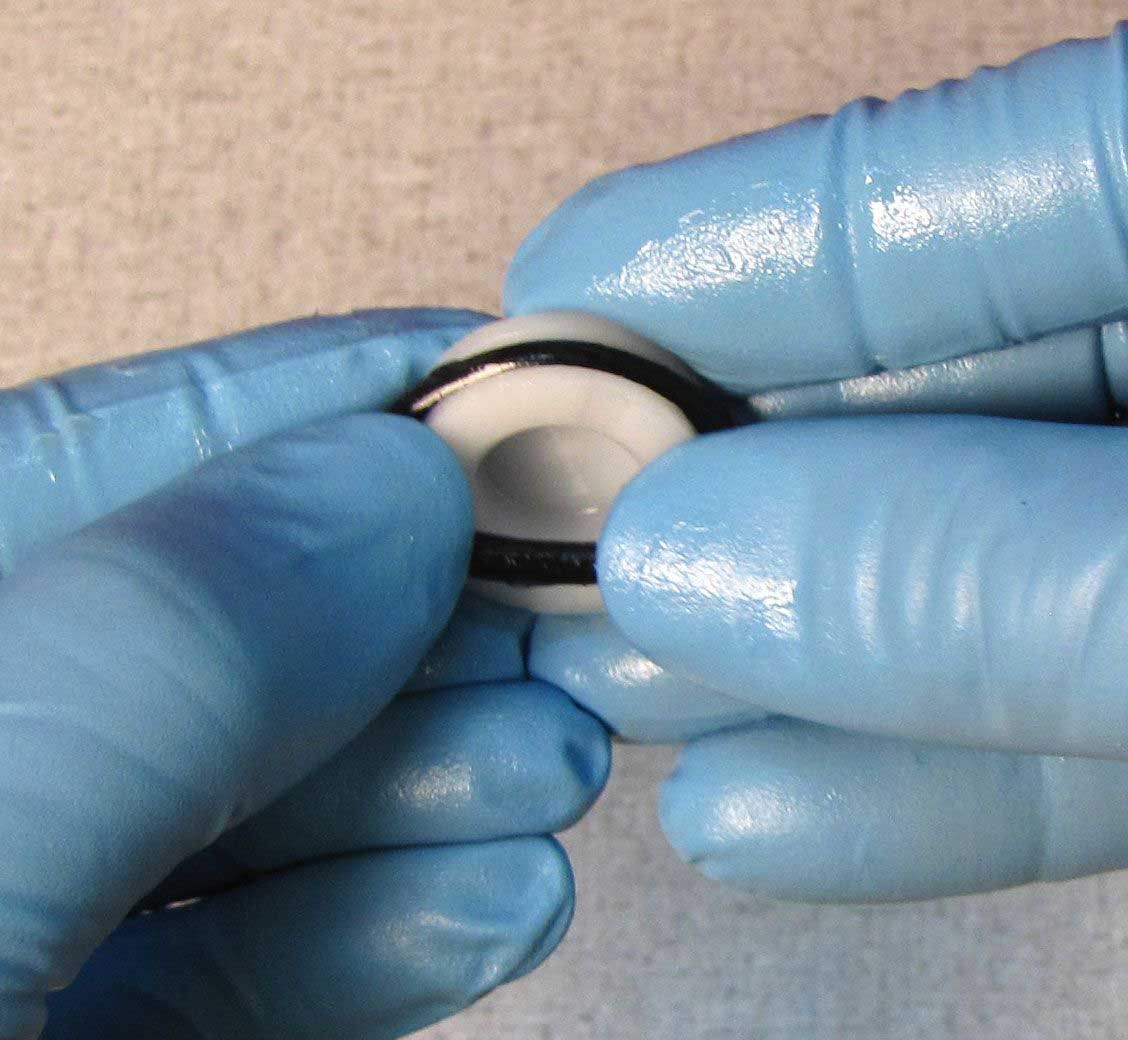

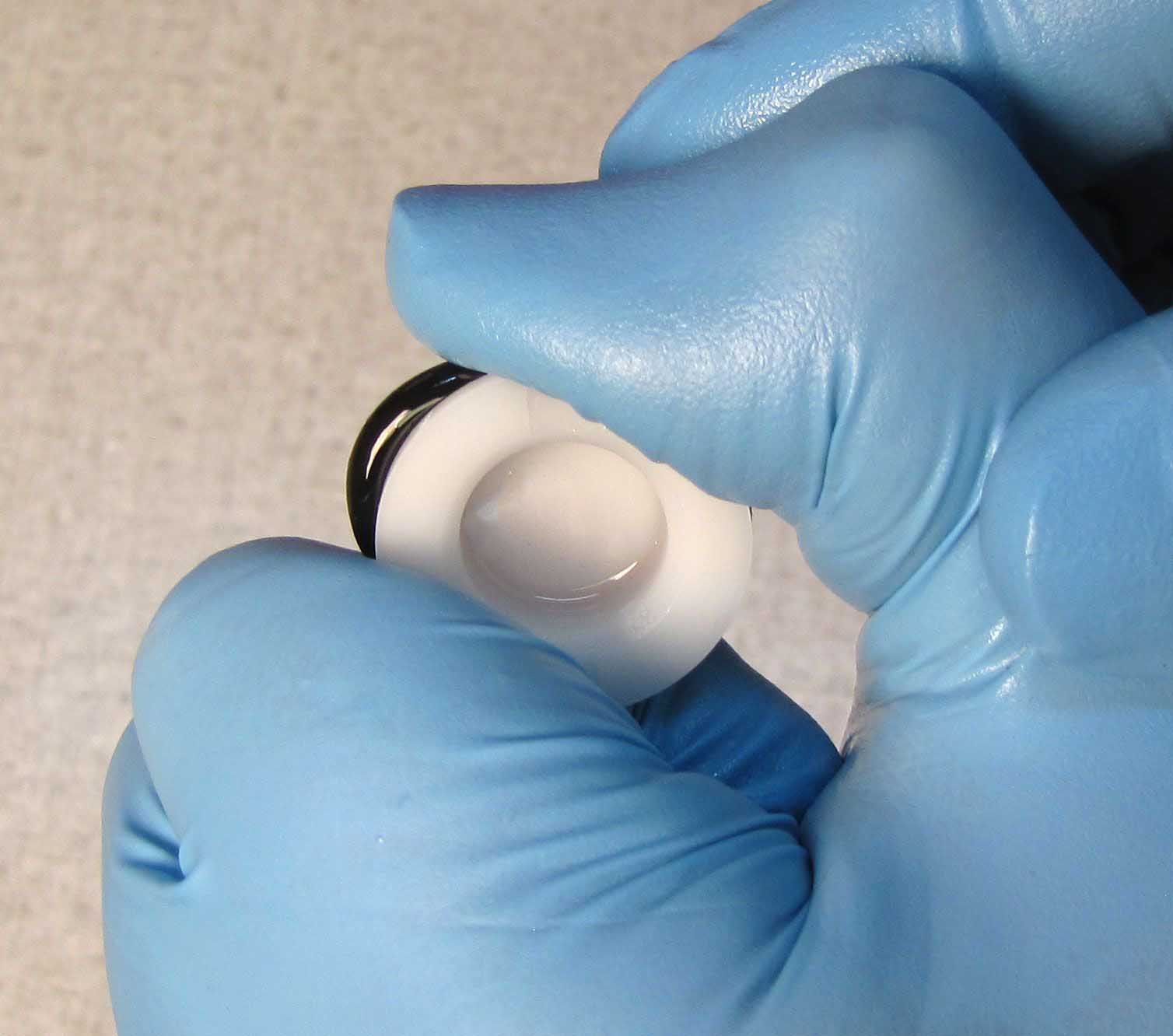

Step 6

Remove the IFP o-ring and inspect its gland on the piston itself for any damage or contamination. Apply Slick Honey grease to the new IFP o-ring from the replacement seal kit, and install it on the piston.

img/help/page2922-G2V1/IMG_8479 copy.jpg
img/help/page2922-G2V1/IMG_8480 copy.jpg
img/help/page2922-G2V1/IMG_8482 copy.jpg
img/help/page2922-G2V1/IMG_7610 copy3-m.jpg

Step 7

Support the eyelet assembly in your soft-jawed vice and use a 6-point chamfer-less 8mm socket to remove the RD Check Bolt. Remove the check shim and set aside.

img/help/page2922-G2V1/IMG_7610 copy3.jpg
img/help/page2922-G2V1/IMG_7609 copy2.jpg
img/help/page2922-G2V1/IMG_1141 copy-m.jpg

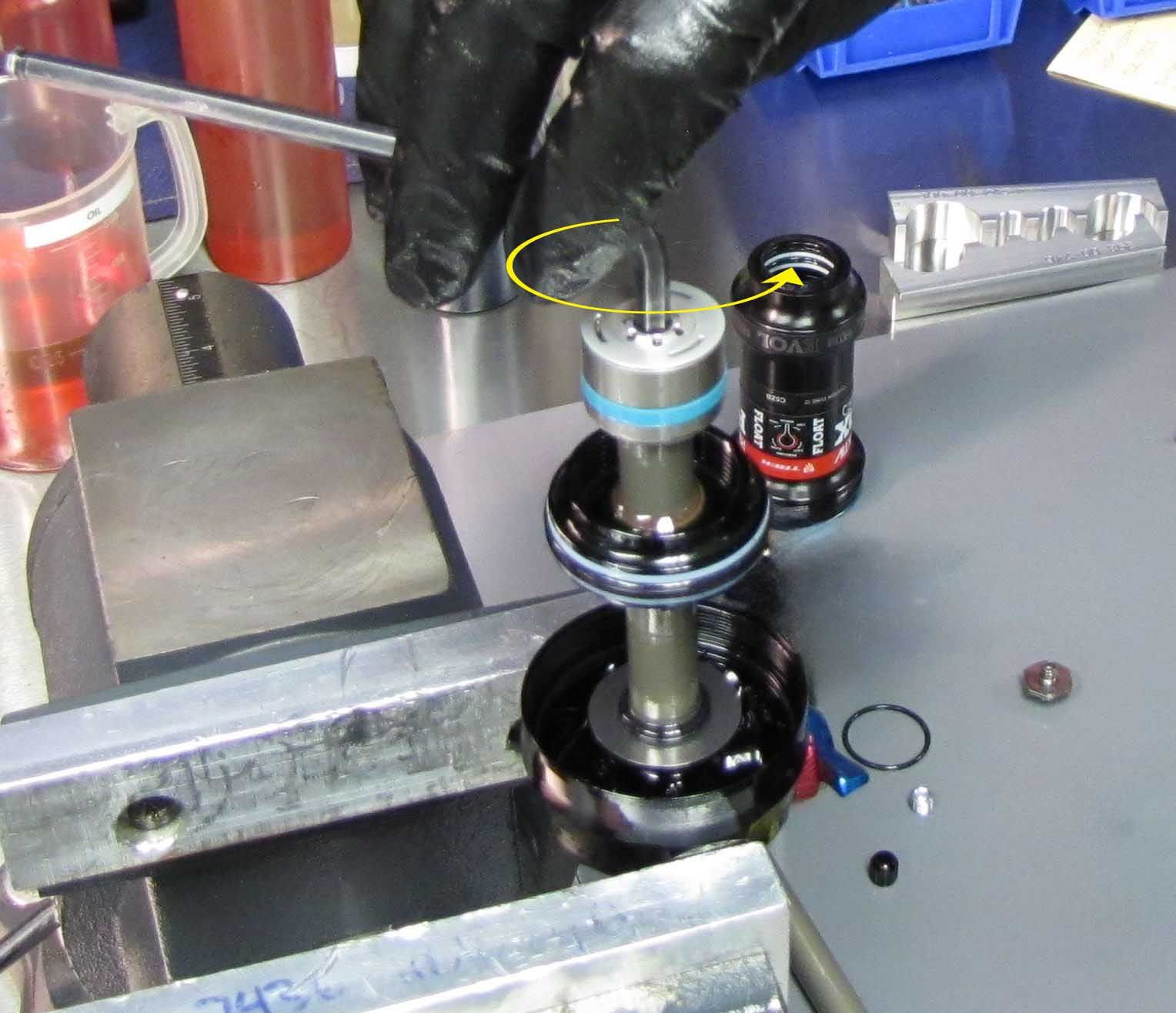

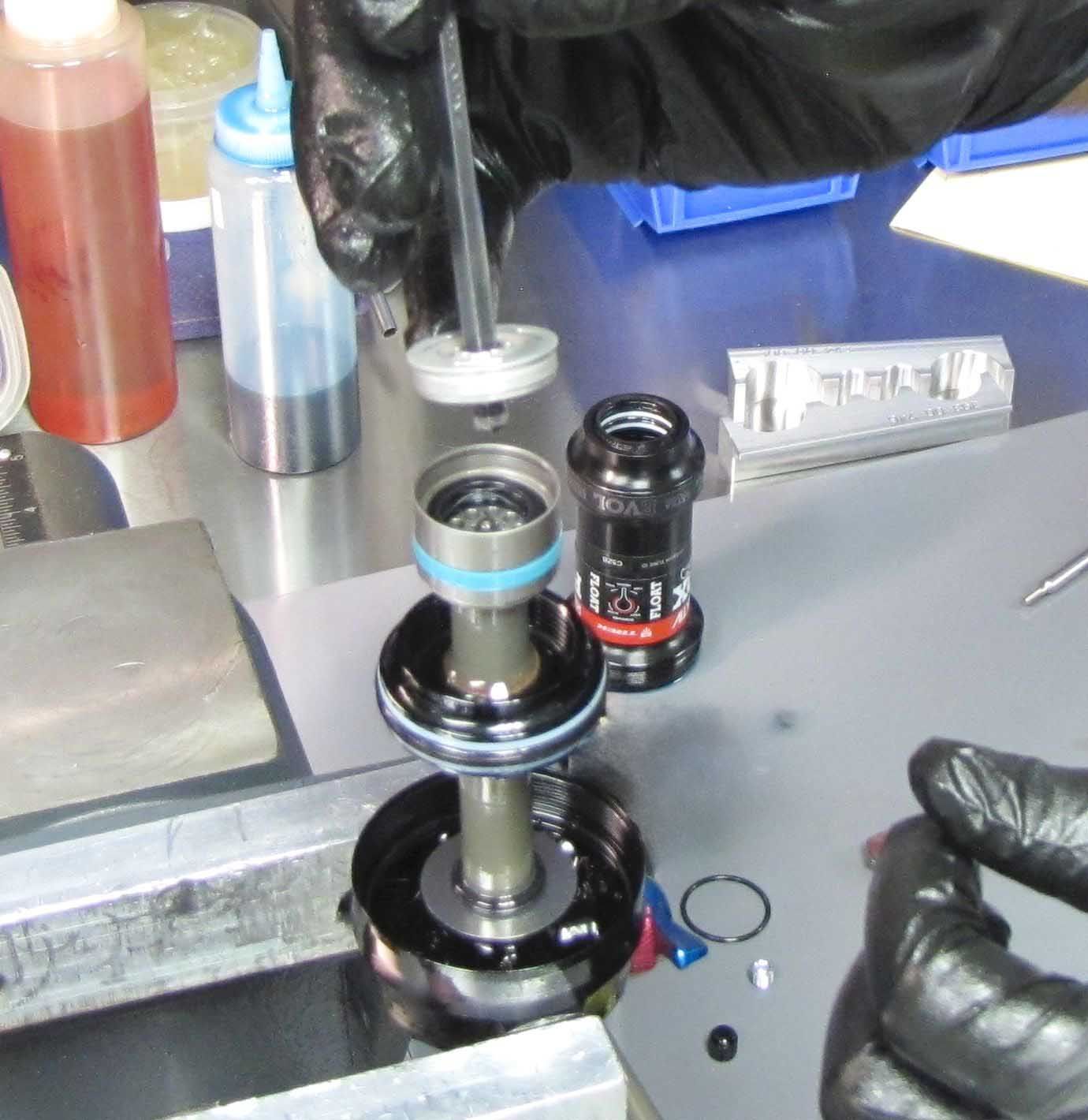

Step 8

Use a 5mm hex wrench to unthread (counter-clockwise) and remove the Valve Housing Cap.

img/help/page2922-G2V1/IMG_1141 copy.jpg
img/help/page2922-G2V1/IMG_1142 copy.jpg
img/help/page2922-G2V1/IMG_1197 copy-m.jpg

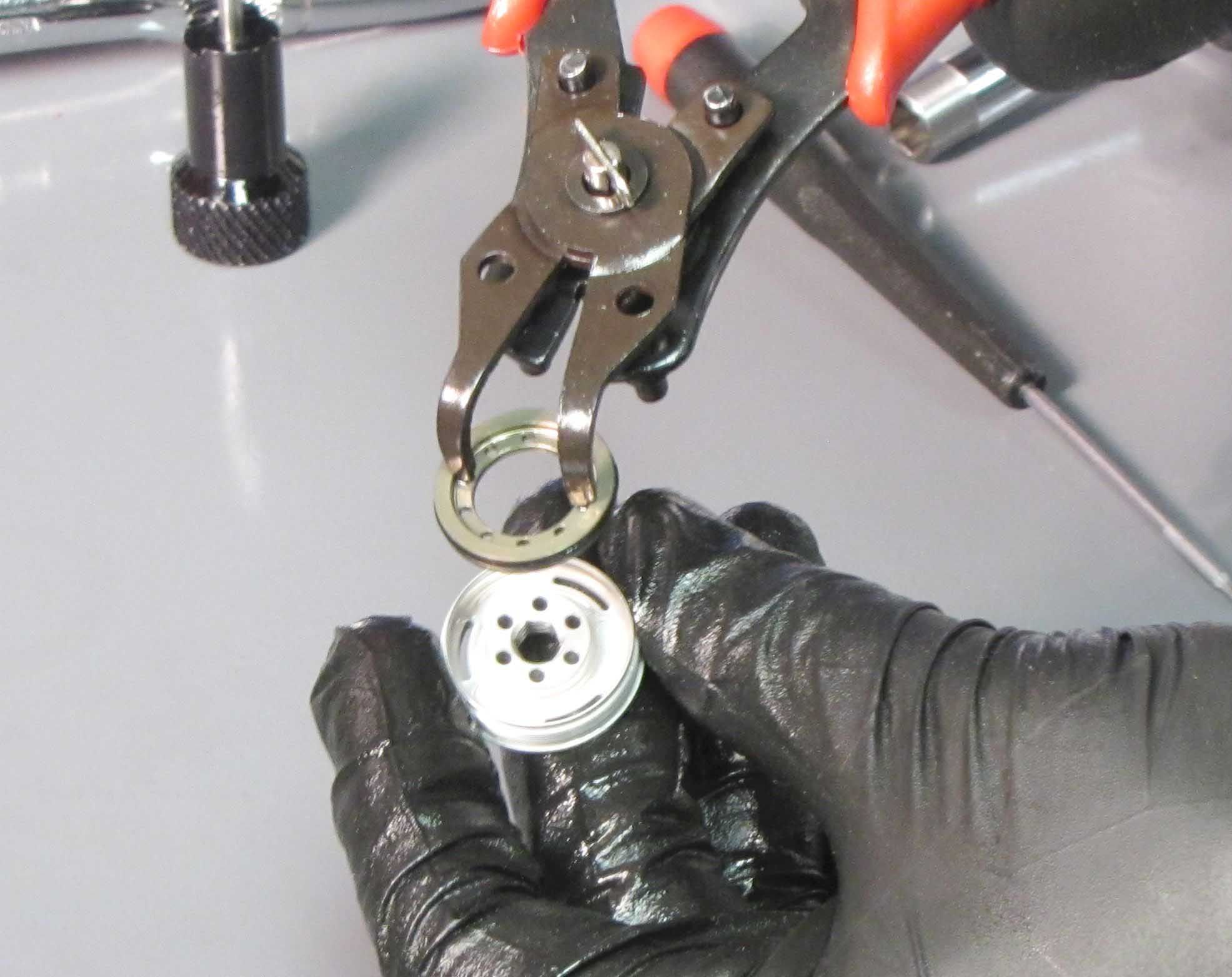

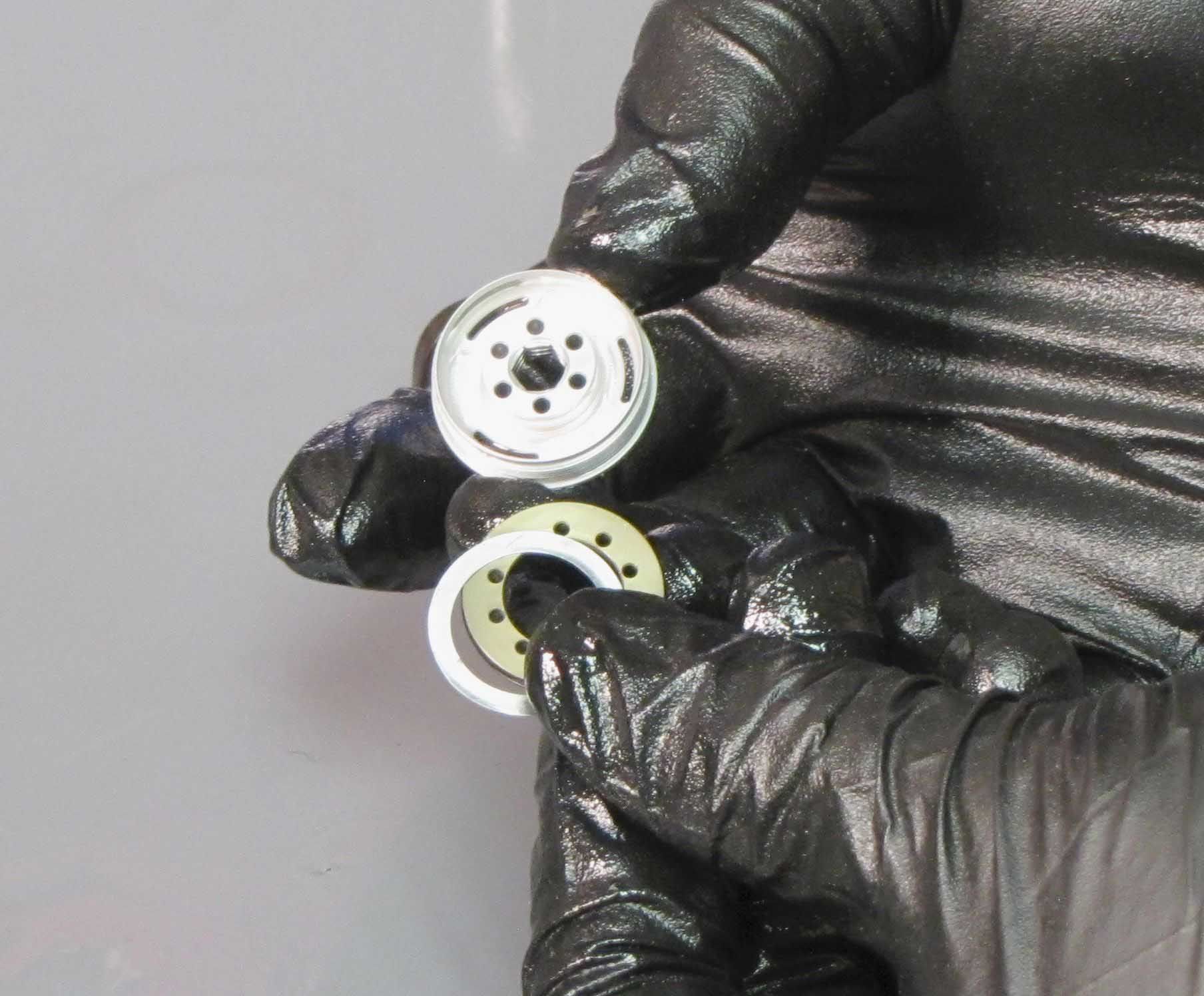

Step 9

Use fine snap-ring pliers to hold the inner Blowoff Piston Valve as you separate it from the outer Valving Housing Cap. Separate the ring shim from the Blowoff Piston Valve if necessary. Replace the o-ring on the Blowoff Piston Valve with a greased one from the rebuild kit.

img/help/page2922-G2V1/IMG_1197 copy.jpg
img/help/page2922-G2V1/IMG_1198 copy.jpg
img/help/page2922-G2V1/IMG_1199 copy.jpg
img/help/page2922-G2V1/IMG_1194 copy-m.jpg

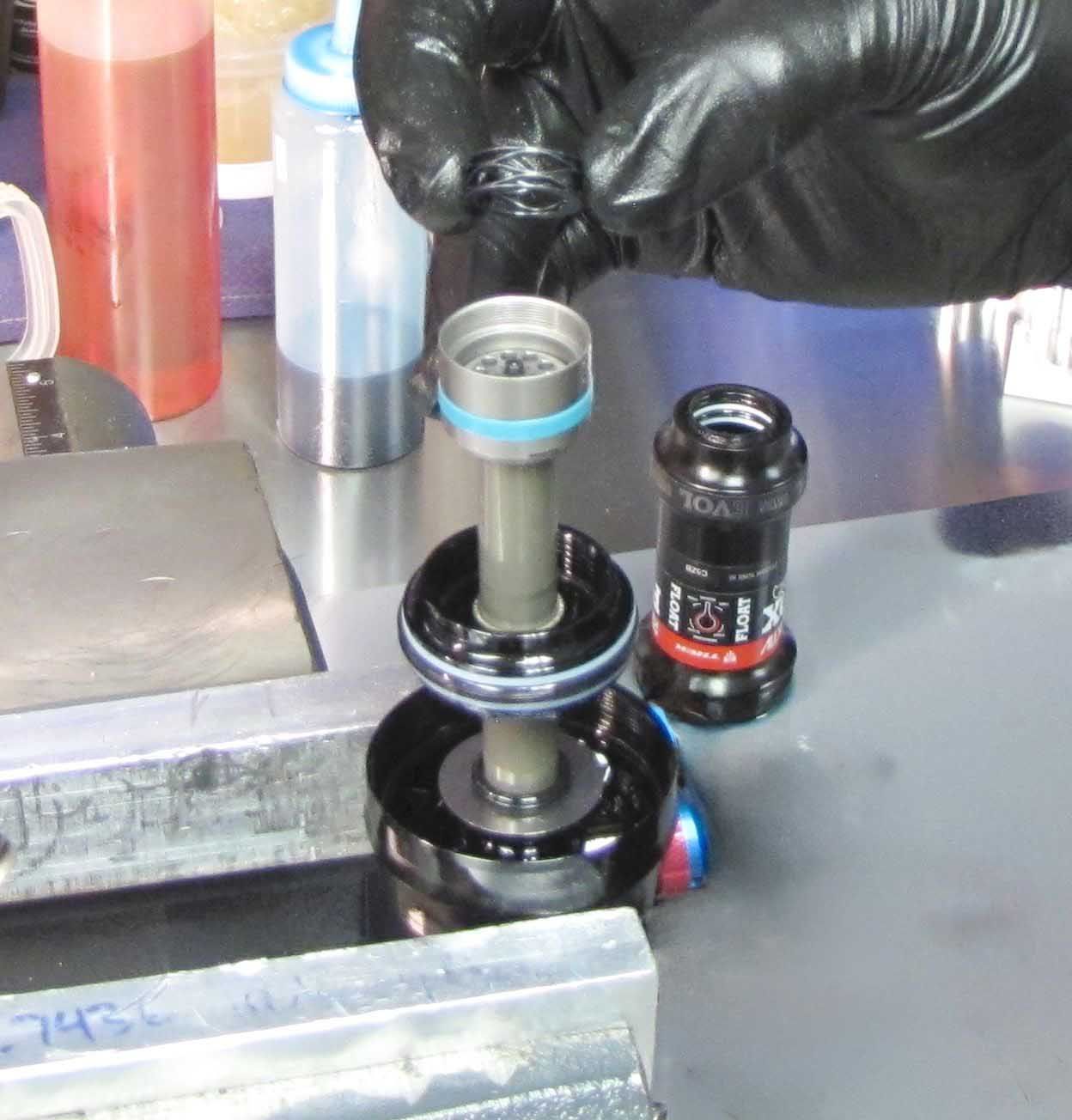

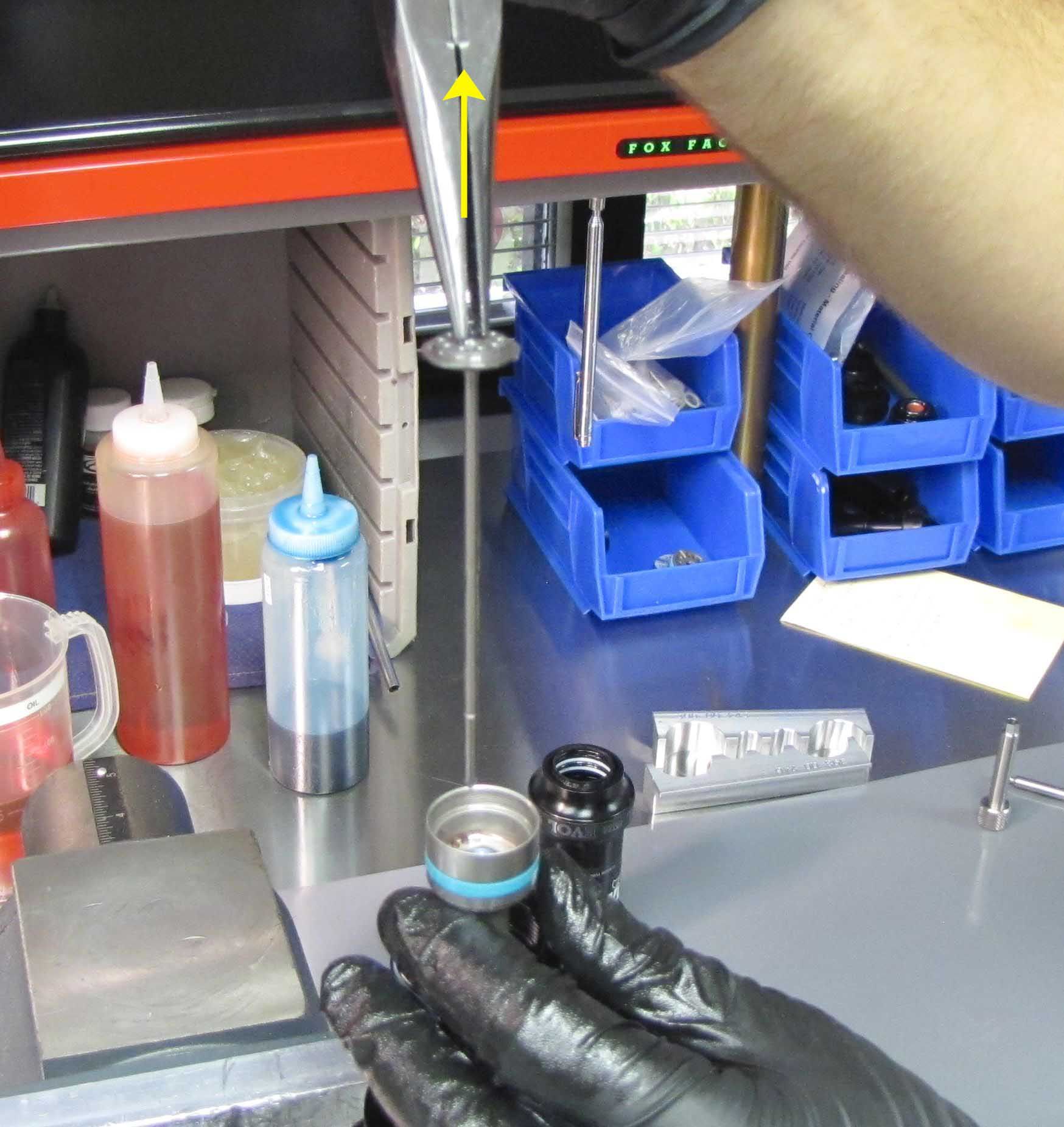

Step 10

Remove the wave spring from within the RG valve housing. Grab the screw in the center of the open RG valve housing and pull straight up to remove the adjuster rod and spring perch.

img/help/page2922-G2V1/IMG_1194 copy.jpg
img/help/page2922-G2V1/IMG_1144 copy.jpg
img/help/page2922-G2V1/IMG_1145 copy.jpg
img/help/page2922-G2V1/IMG_1146 copy-m.jpg

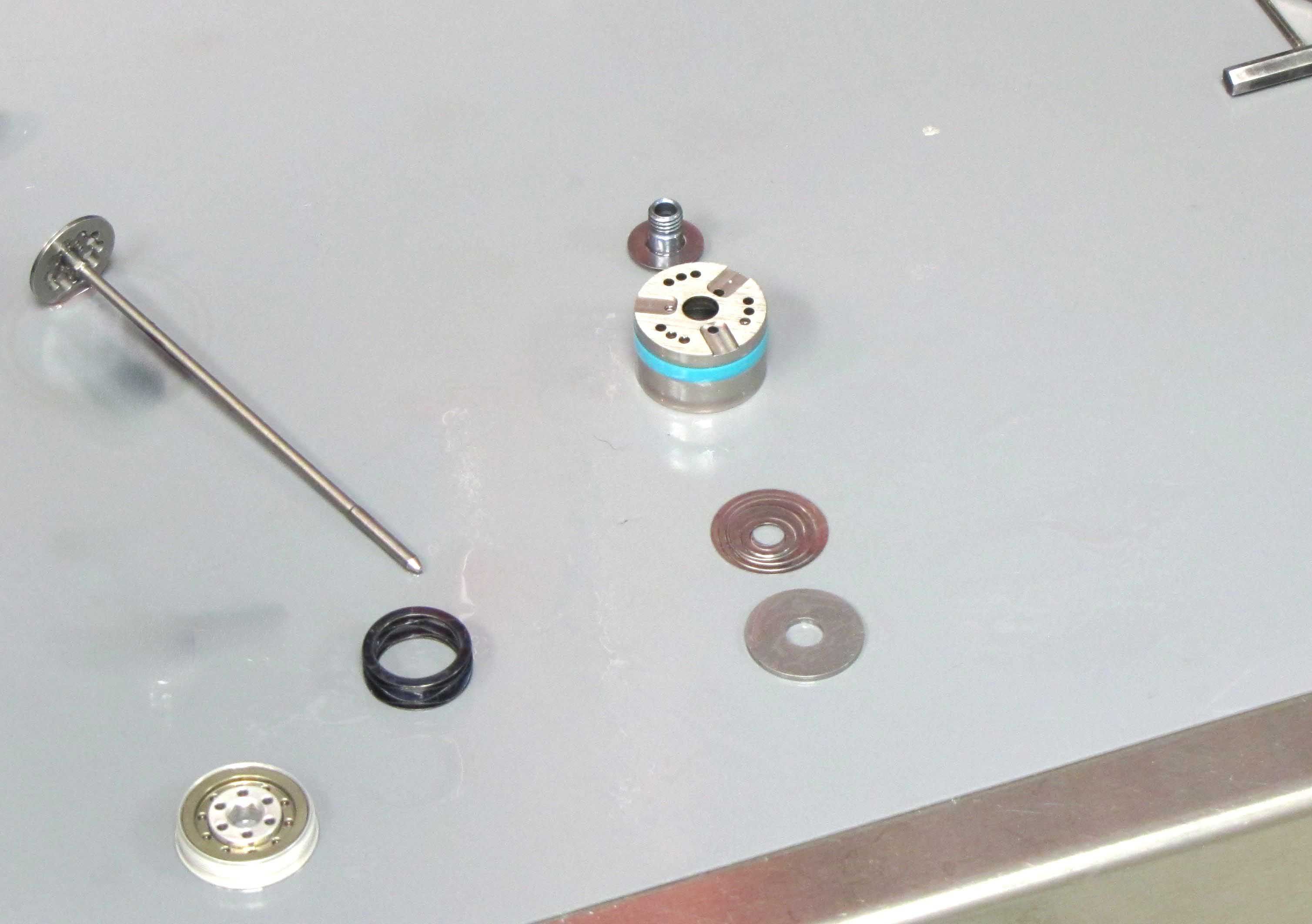

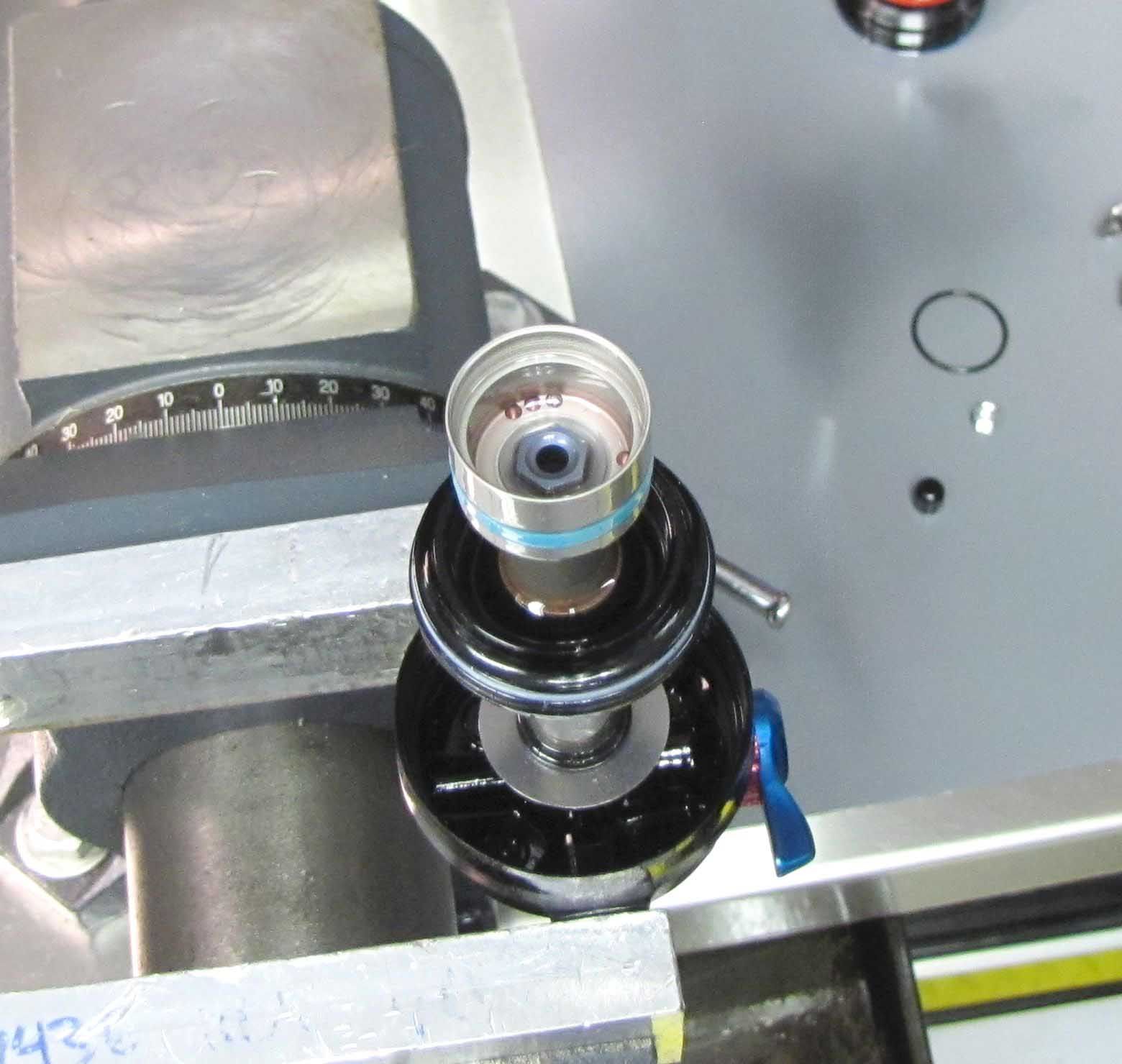

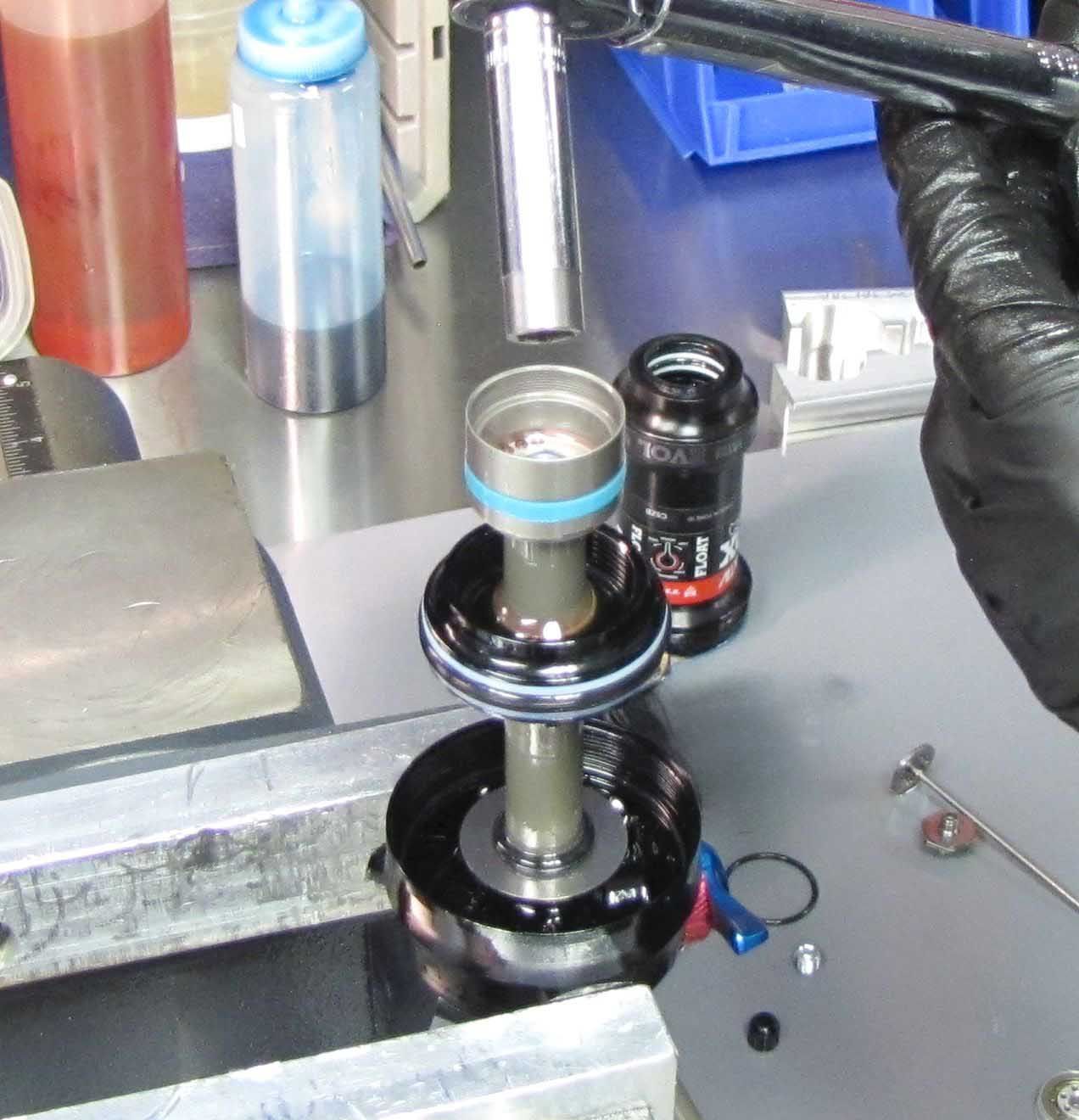

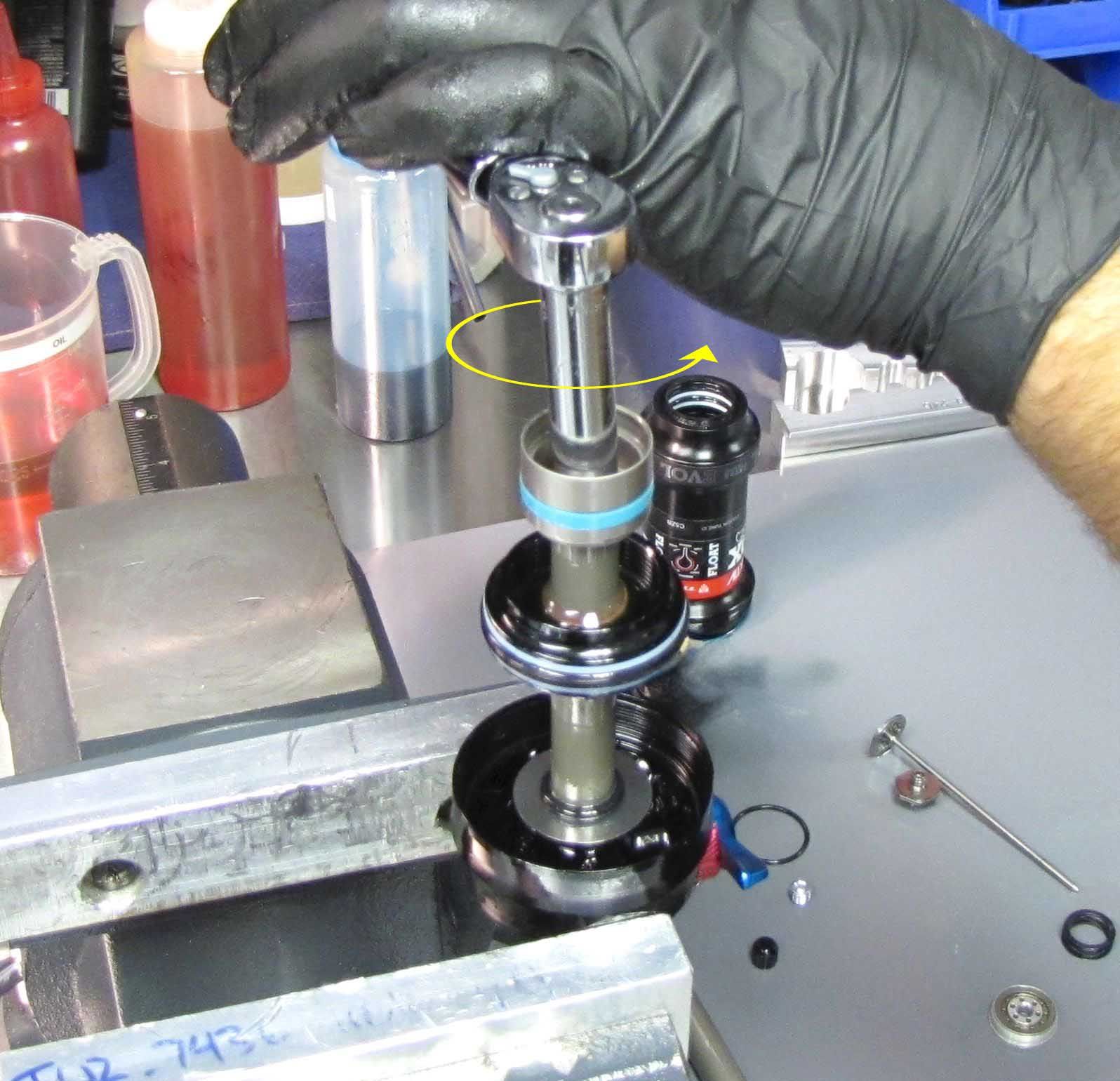

Step 11

Unthread the piston bolt counter-clockwise with an 8mm socket. Remove the piston bolt, valve housing, and any valves, keeping them in order. Replace the glide ring and o-ring on the valve housing with new ones from the kit.

img/help/page2922-G2V1/IMG_1146 copy.jpg
img/help/page2922-G2V1/IMG_1147 copy.jpg
img/help/page2922-G2V1/IMG_1148 copy.jpg
img/help/page2922-G2V1/IMG_1149 copy.jpg
img/help/page2922-G2V1/IMG_1151 copy-m.jpg

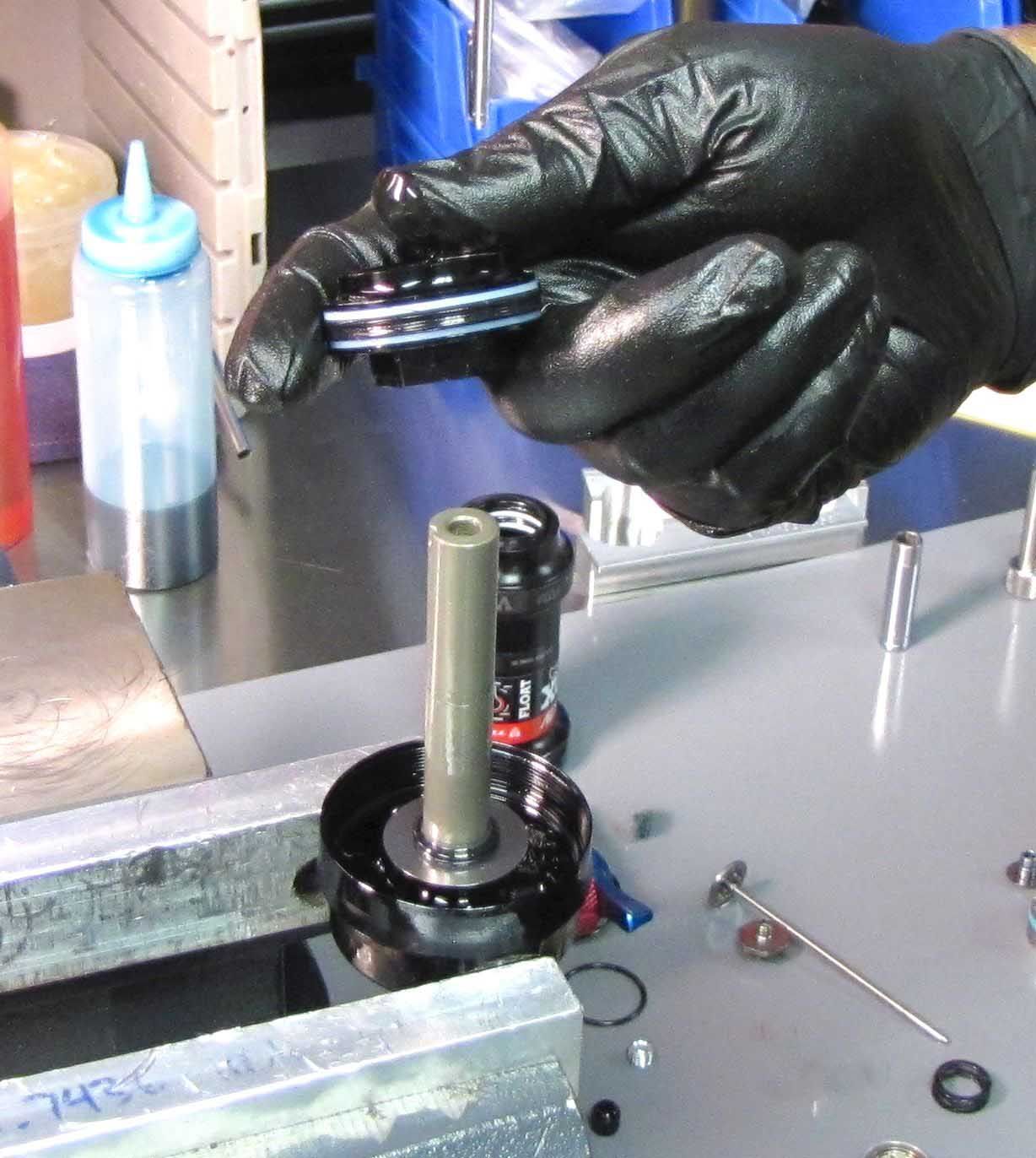

Step 12

Remove the bearing assembly by pulling it up off of the shaft. Replace all seals with new greased ones from the kit.

img/help/page2922-G2V1/IMG_1151 copy.jpg
img/help/page2922-G2V1/IMG_1150 copy.jpg
img/help/page2922-G2V1/IMG_1152 copy-m.jpg

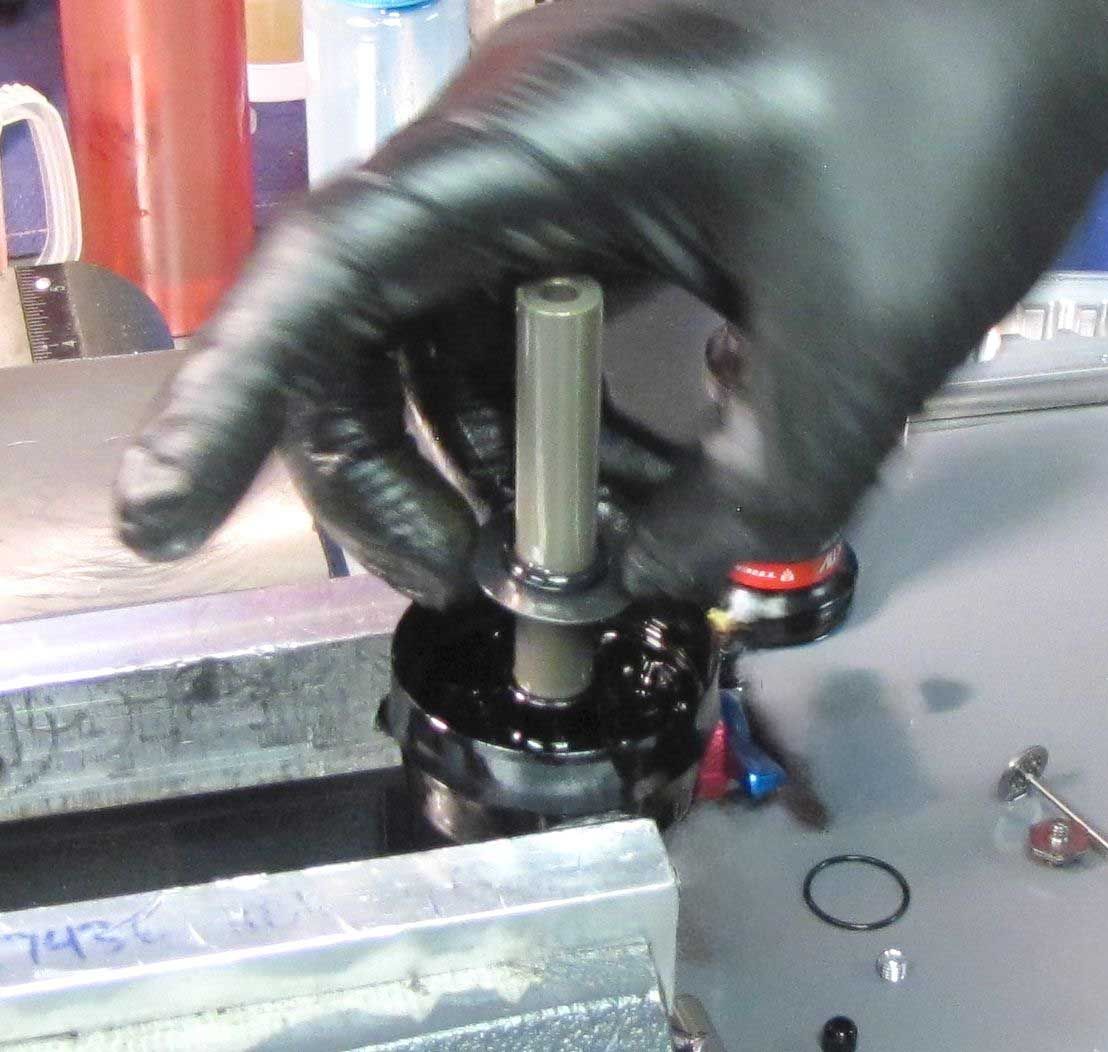

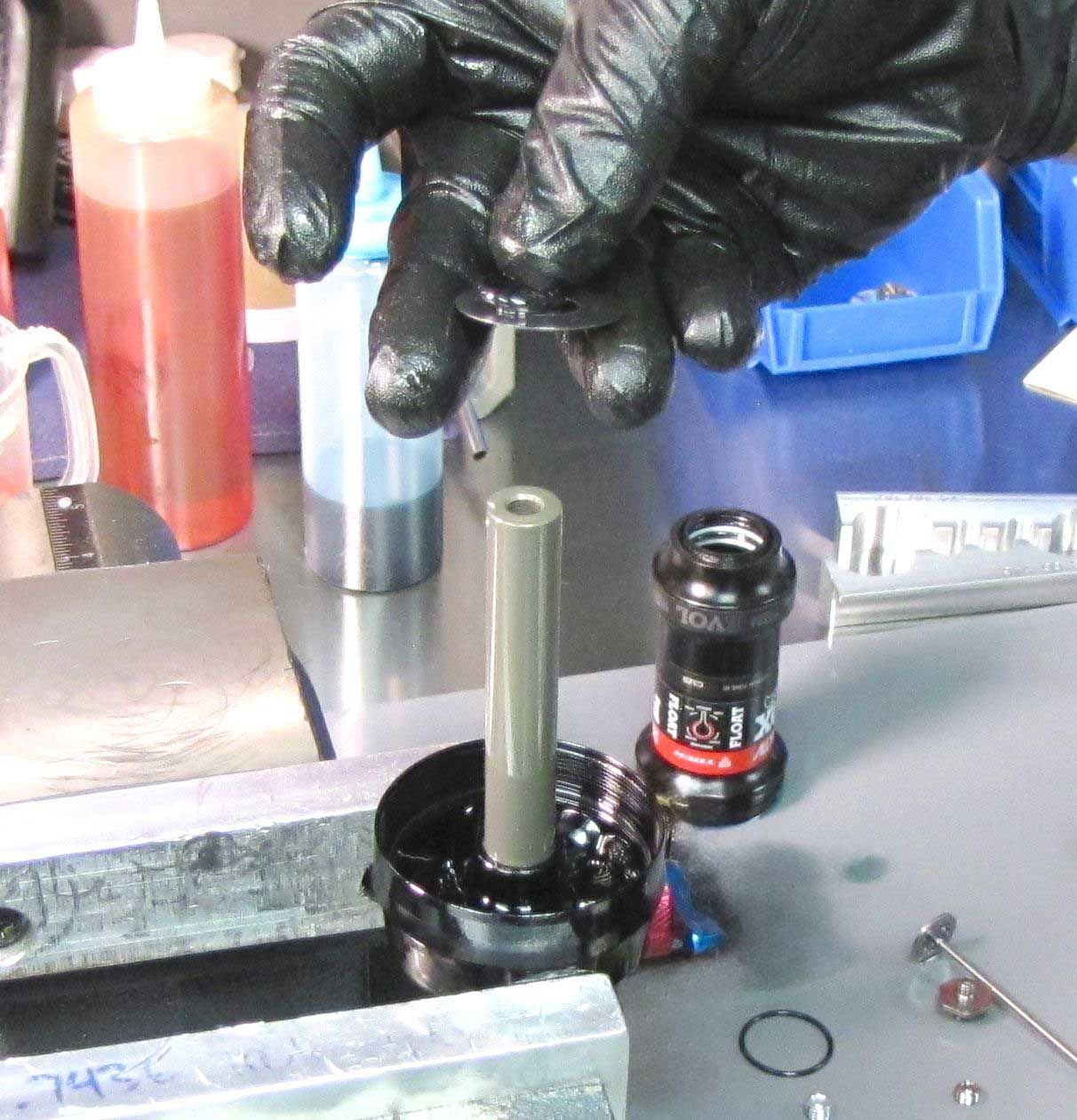

Step 13

Remove the bottom out plate and o-ring by pulling them up off of the shaft.

img/help/page2922-G2V1/IMG_1152 copy.jpg
img/help/page2922-G2V1/IMG_1153 copy.jpg
img/help/page2922-G2V1/IMG_1154 copy-m.jpg

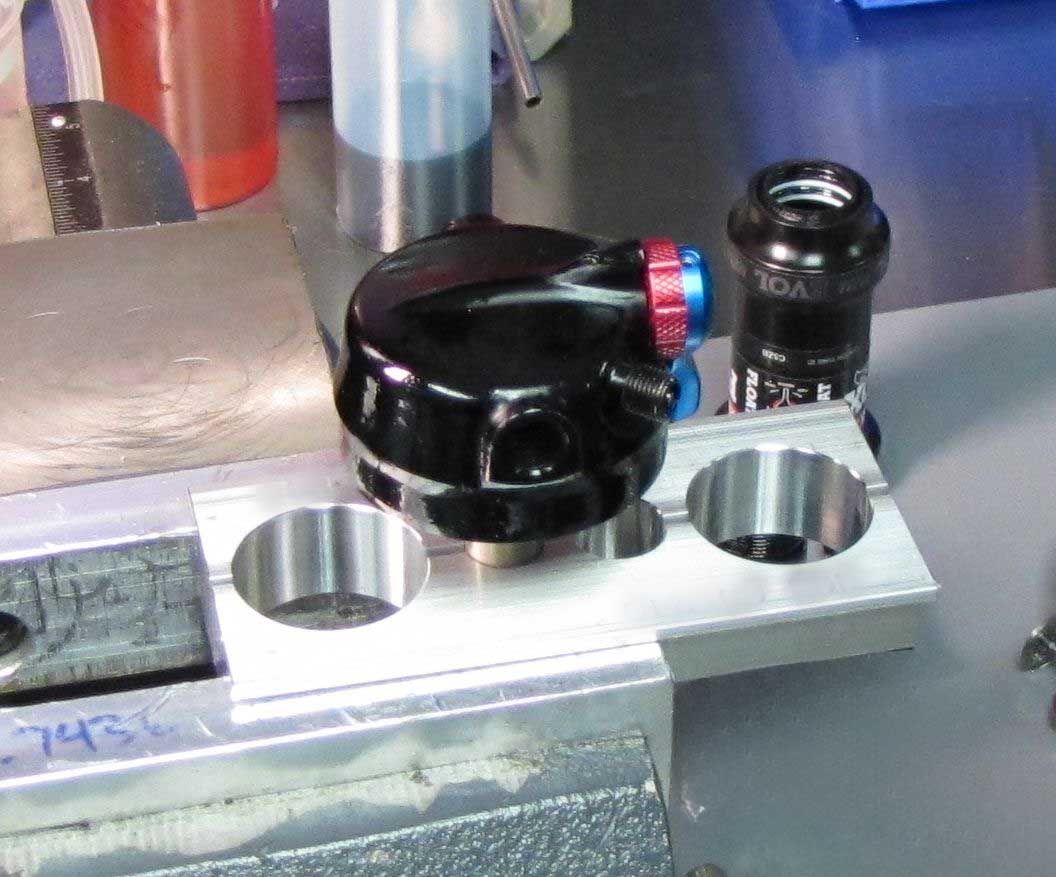

Step 14

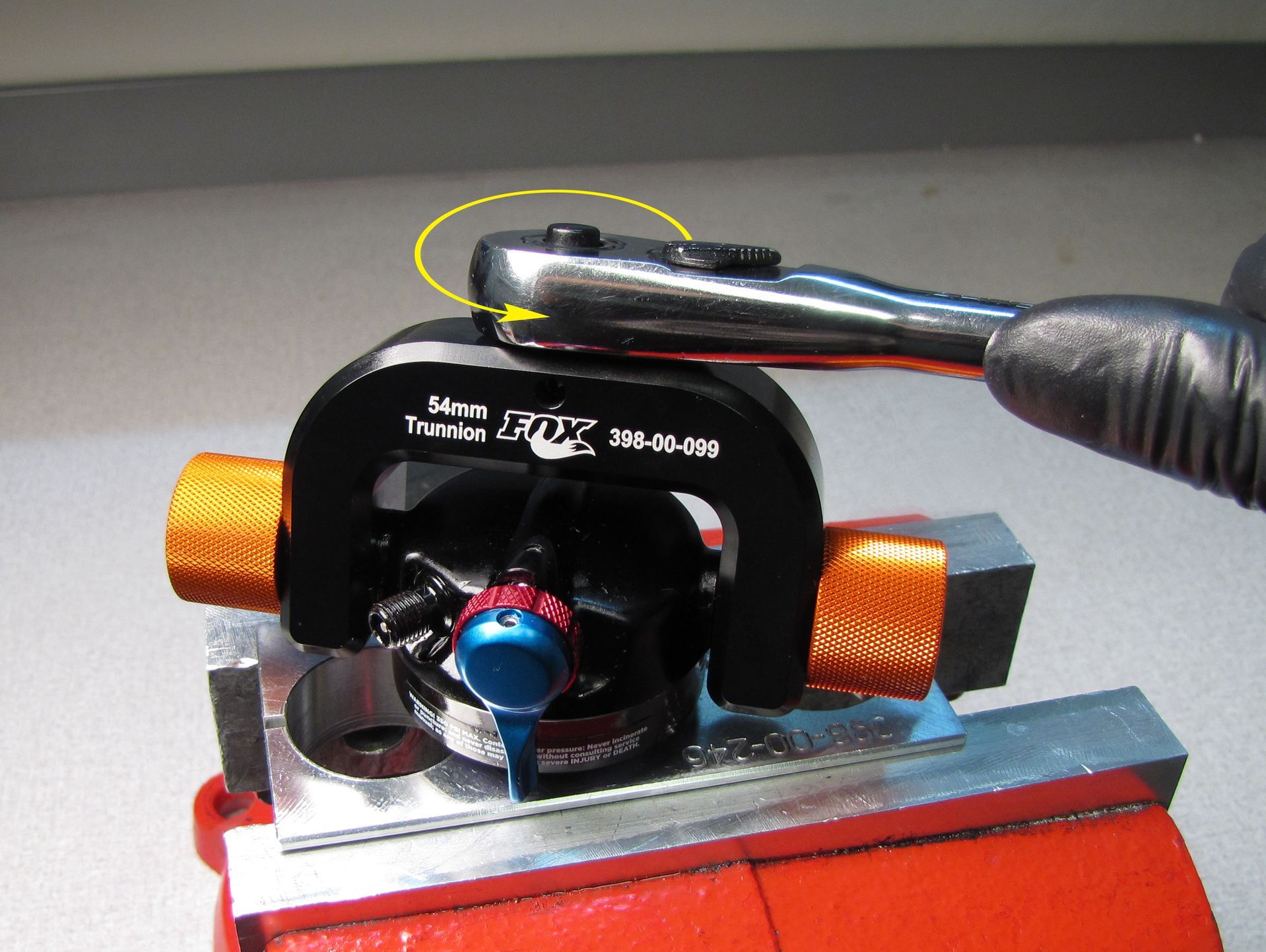

Clamp the shaft in your shaft clamps with the eyelet at the top. Unthread the eyelet from the shaft by turning it counter-clockwise

img/help/page2922-G2V1/IMG_1154 copy.jpg
img/help/page2922-G2V1/IMG_1578.jpg
img/help/page2922-G2V1/IMG_8518 copy-m.jpg

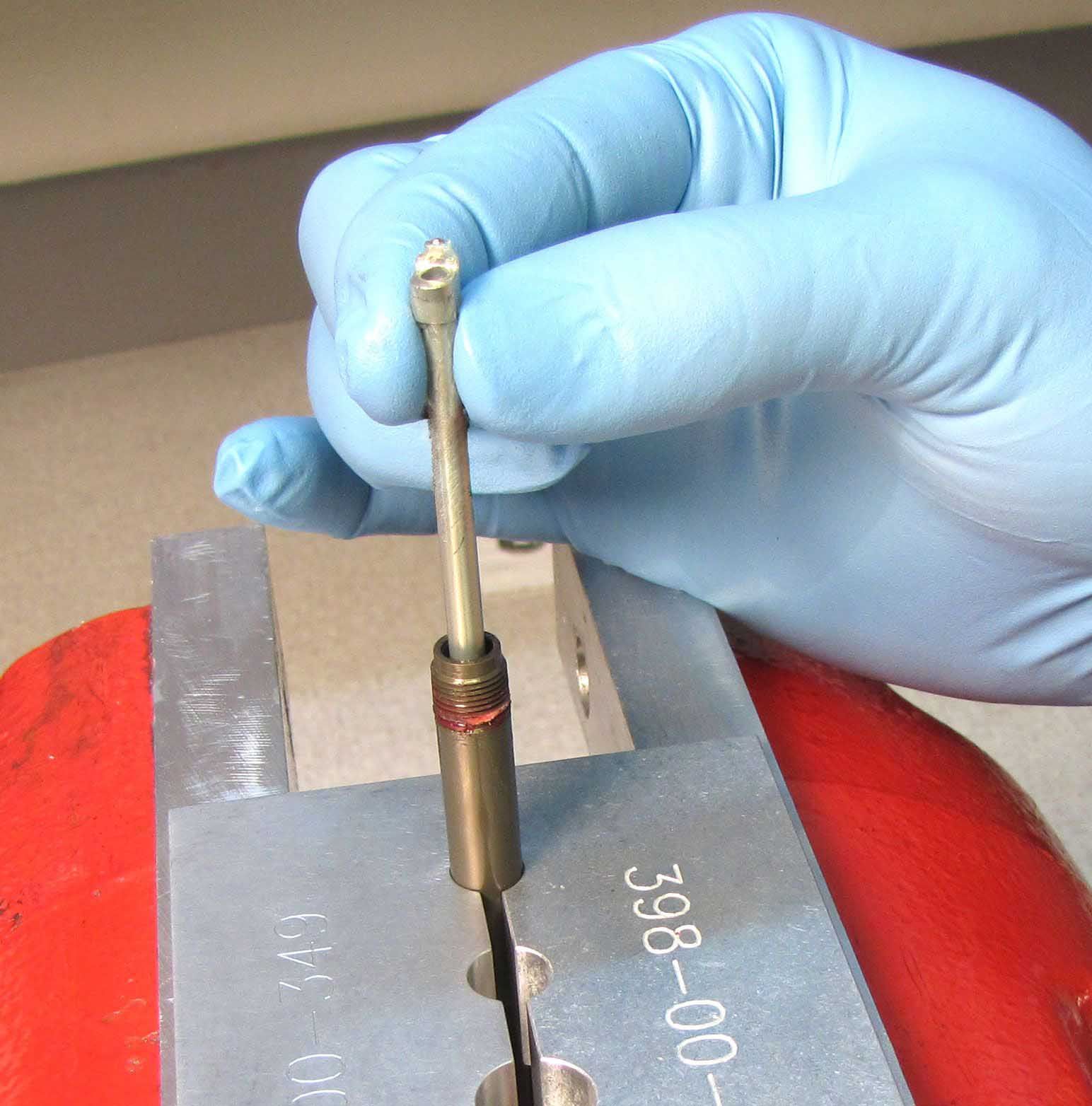

Step 15

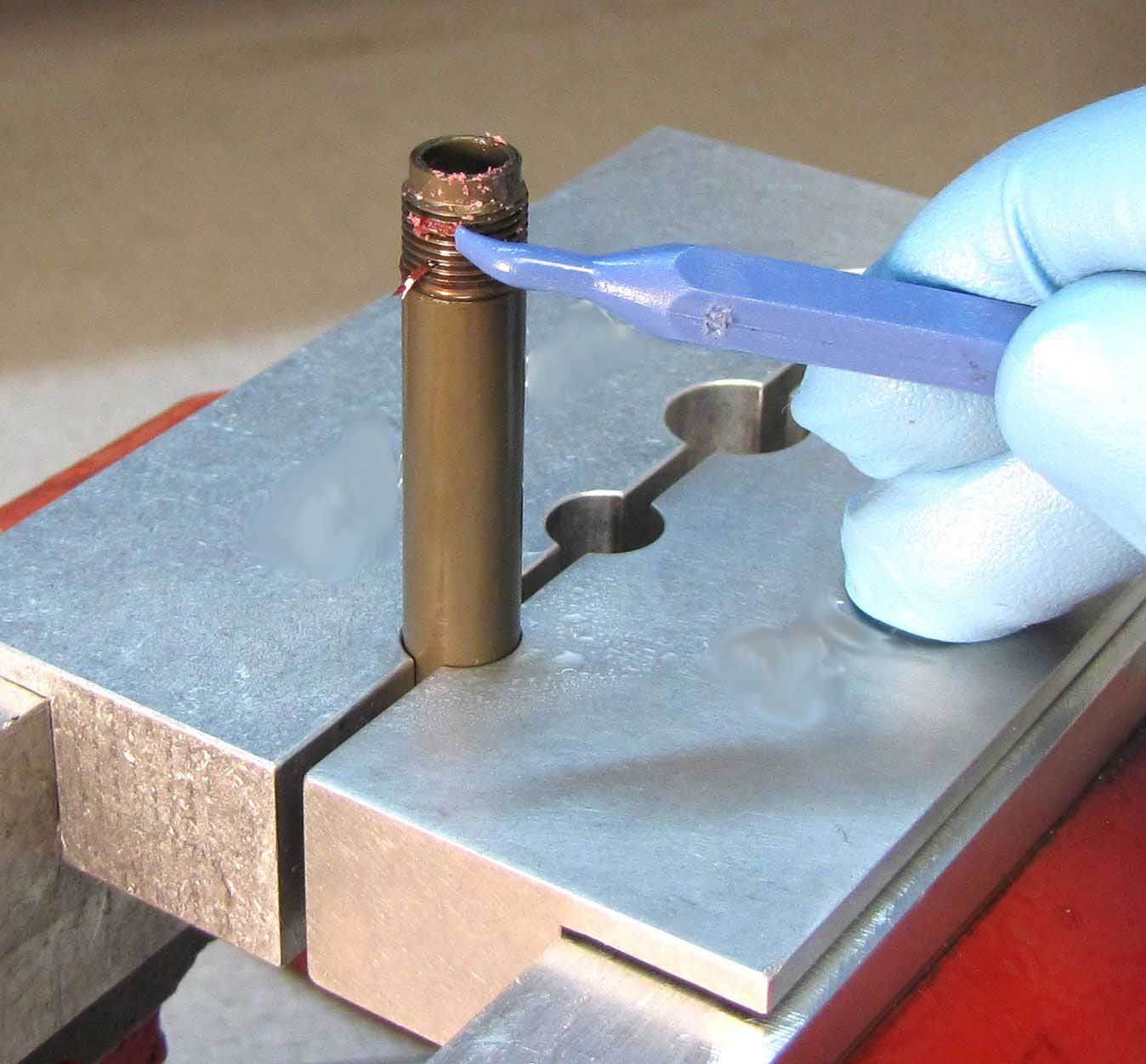

Lift out the rebound adjuster rod and replace both its outer o-ring and inner square-cut o-ring with new greased ones from the kit. Clean the Loctite residue off of the shaft threads.

img/help/page2922-G2V1/IMG_8518 copy.jpg
img/help/page2922-G2V1/IMG_8668 copy.jpg
img/help/page2922-G2V1/IMG_1162-m.jpg

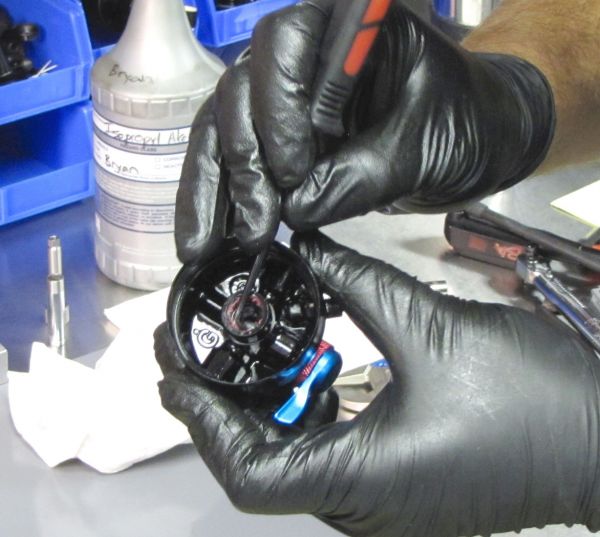

Step 16

Clean the Loctite residue from within the shaft boss on the inside of the eyelet. Replace the air sleeve o-ring within the eyelet with a new greased one from the kit.

img/help/page2922-G2V1/IMG_1162.jpg

Eyelet Rebuild

img/help/page2922-G2V1/IMG_8642-m.jpg

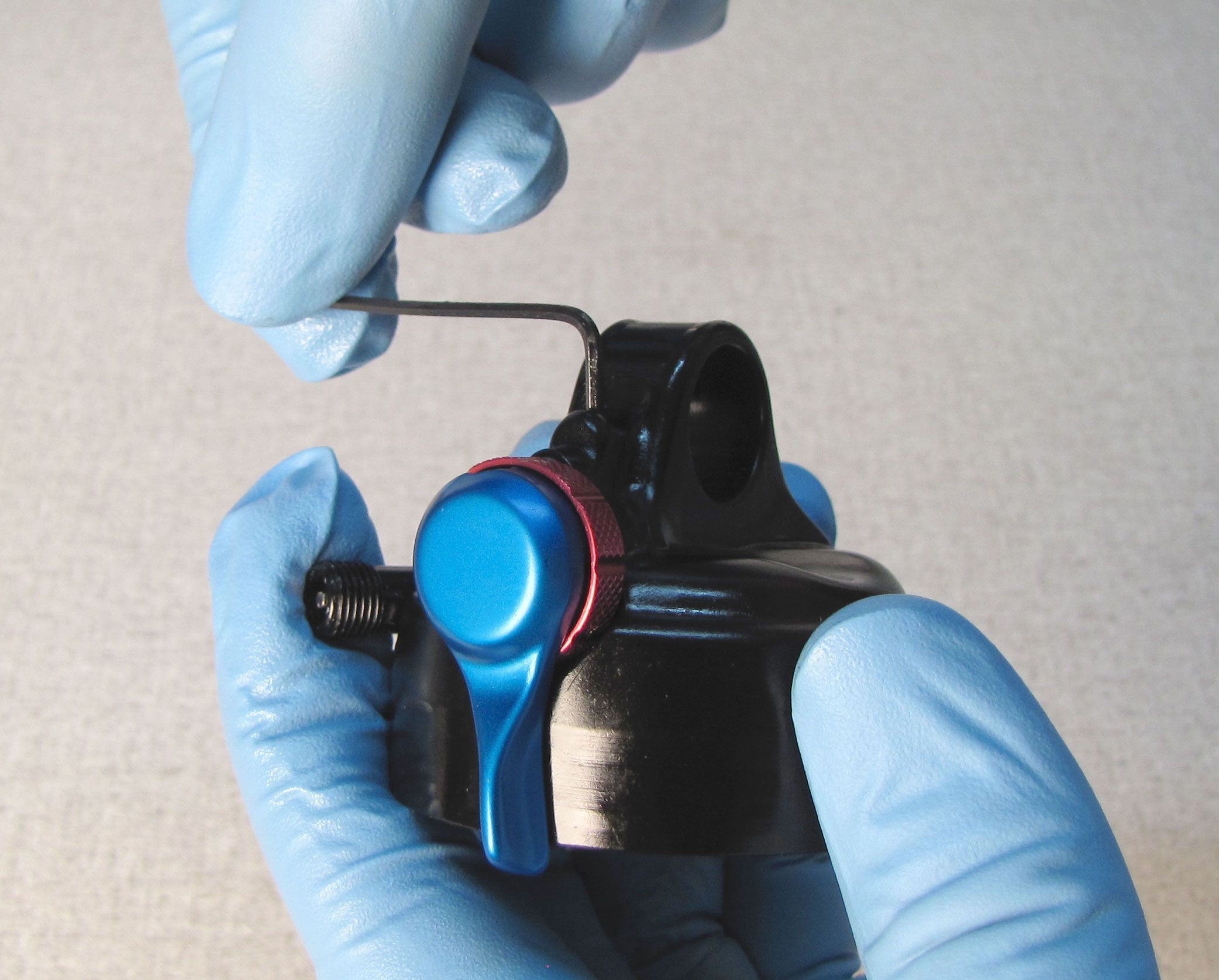

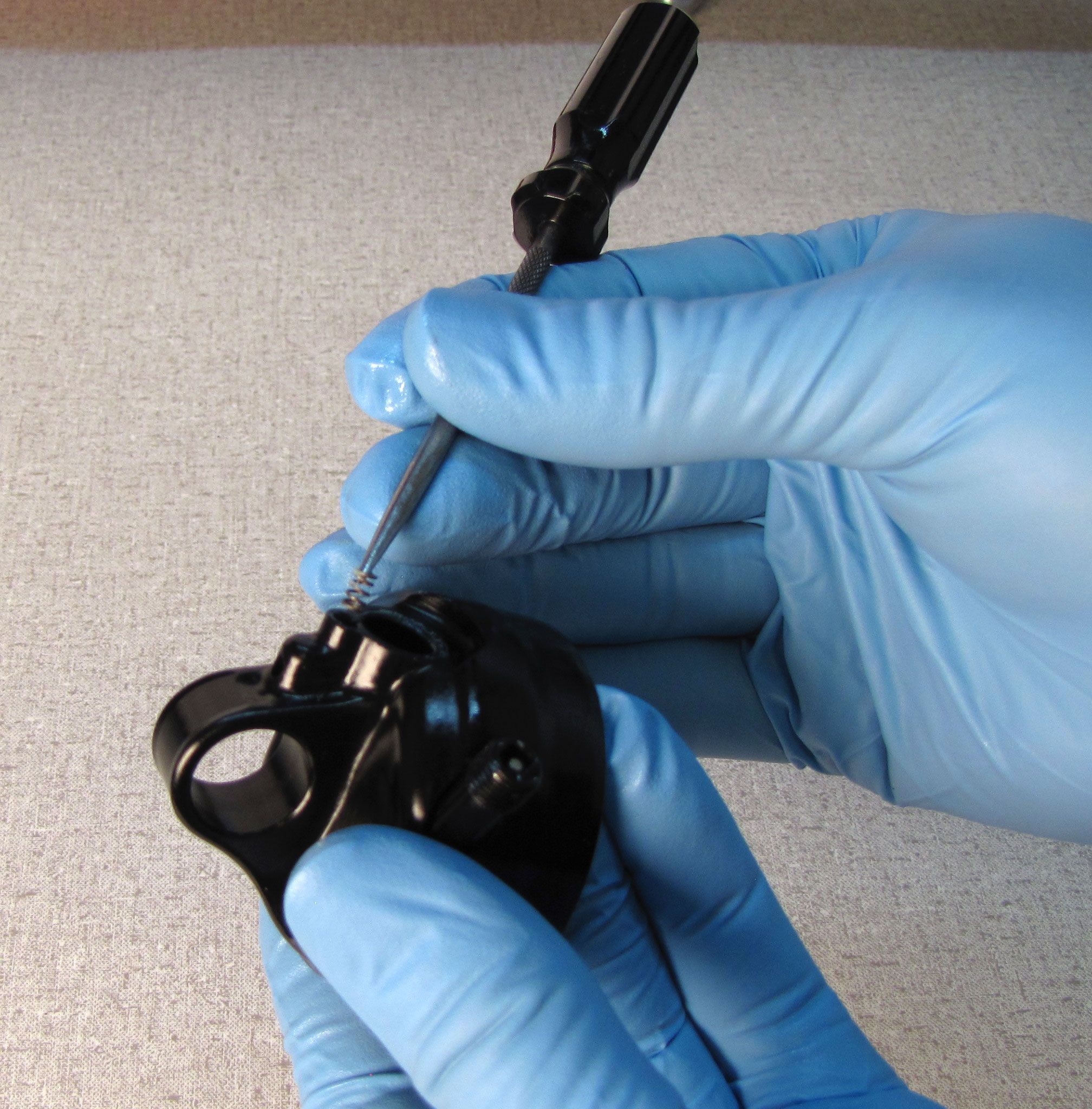

Step 1

Unthread counter-clockwise and remove the set screw from the top of the eyelet with a 1.5mm hex wrench. This will allow for the removal of the adjuster knobs and cam. Make sure not to lose the rebound detent ball and spring which may stick to the back of the rebound knob or remain in the small hole in the eyelet just above the bore for the adjusters and cam. Remove the detent spring with a pick. Clean bare eyelet and set aside.

img/help/page2922-G2V1/IMG_8642.jpg
img/help/page2922-G2V1/IMG_8644a.jpg
img/help/page2922-G2V1/IMG_8647a.jpg
img/help/page2922-G2V1/IMG_8648-m.jpg

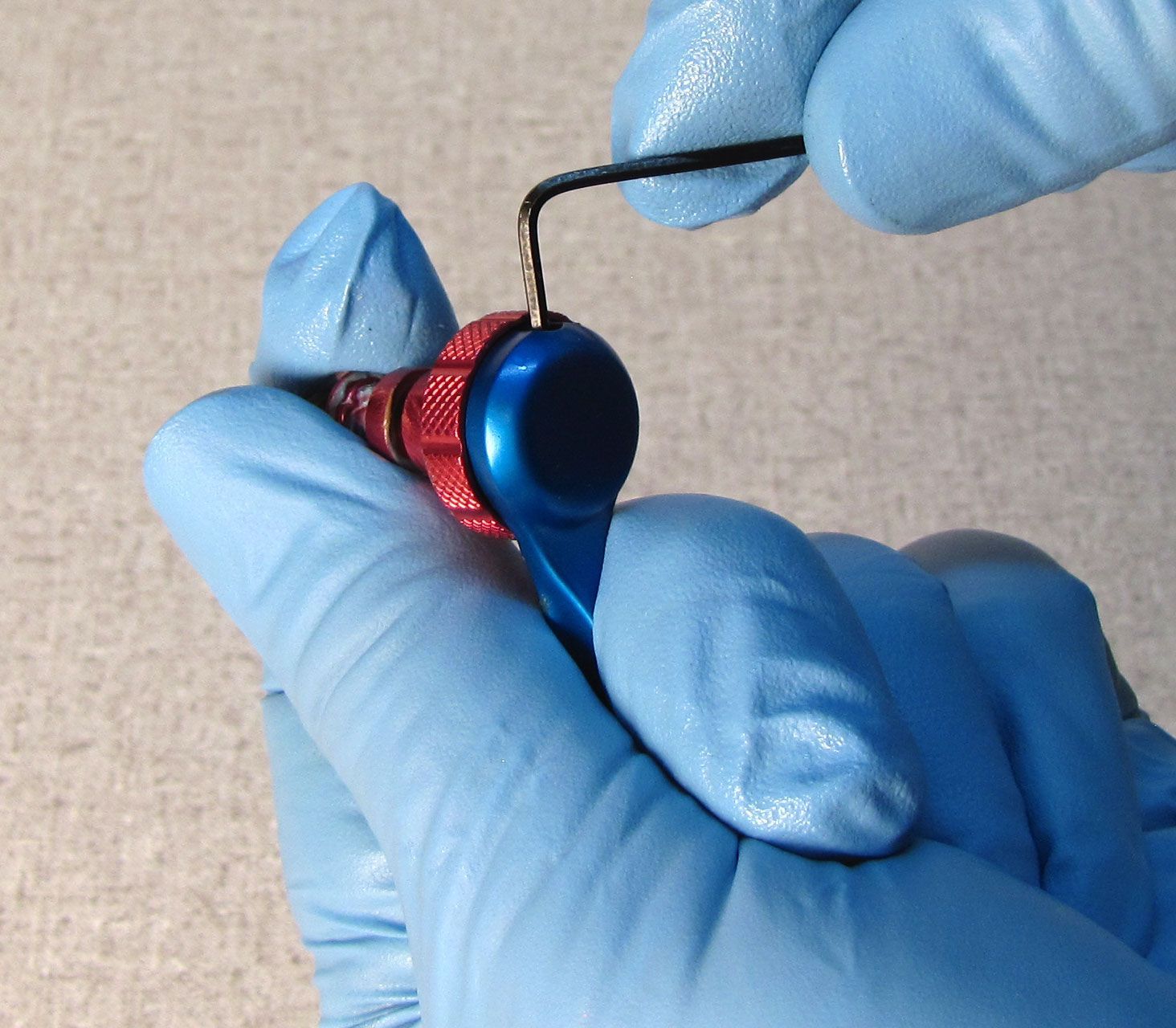

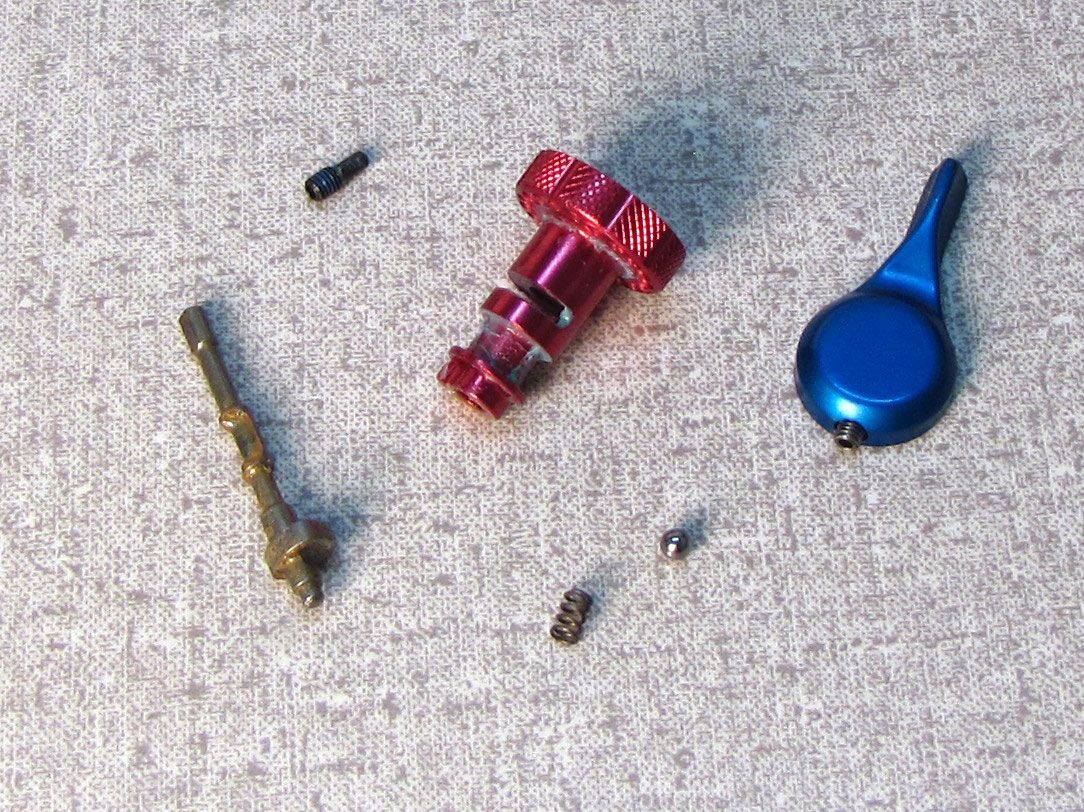

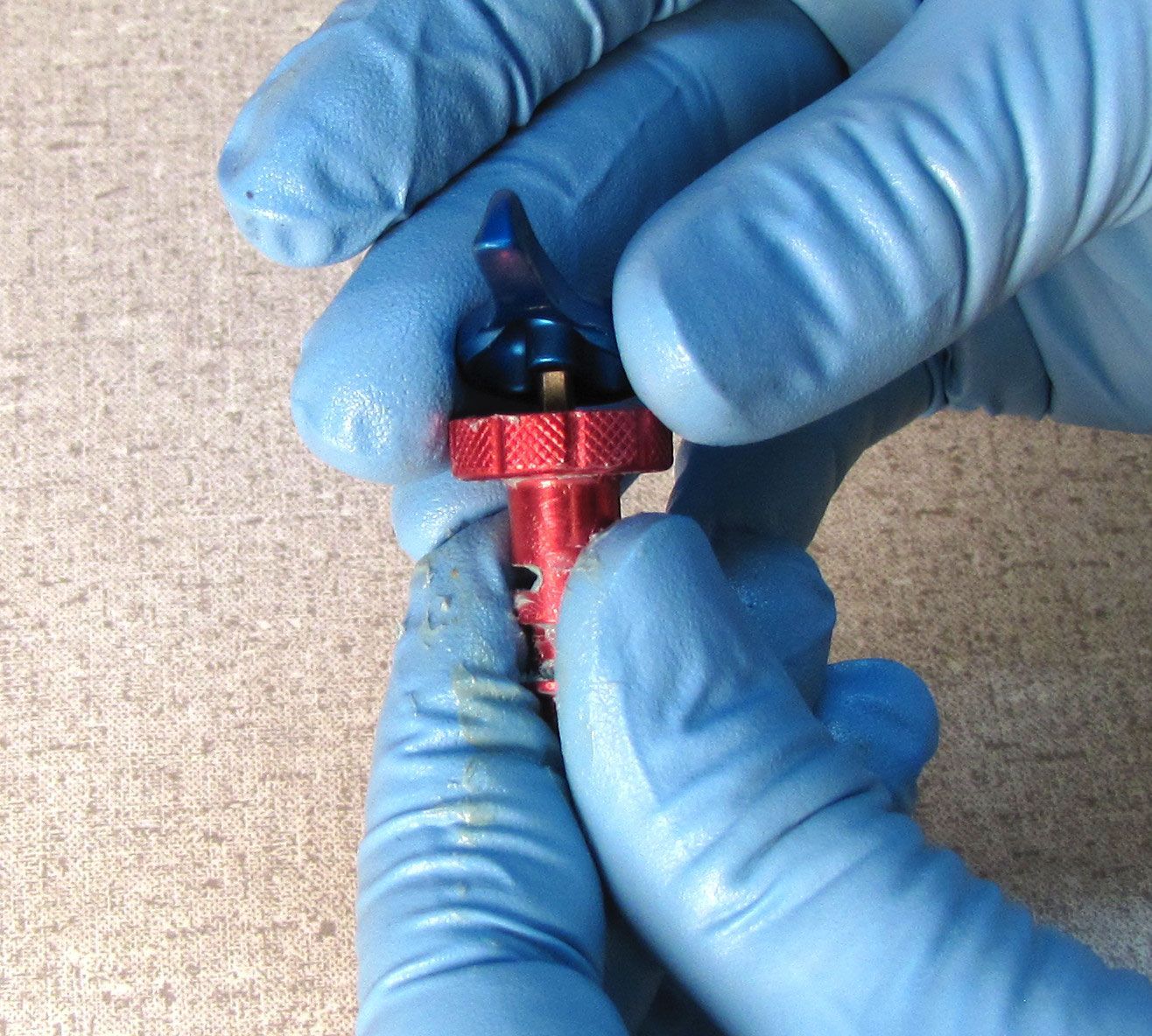

Step 2

Use a 1.5mm hex wrench to unthread the set screw in the blue compression selector lever. Separate the blue lever from the cam and the red rebound knob.

img/help/page2922-G2V1/IMG_8648.jpg
img/help/page2922-G2V1/IMG_8652.jpg
img/help/page2922-G2V1/IMG_8649.jpg
img/help/page2922-G2V1/IMG_8650-m.jpg

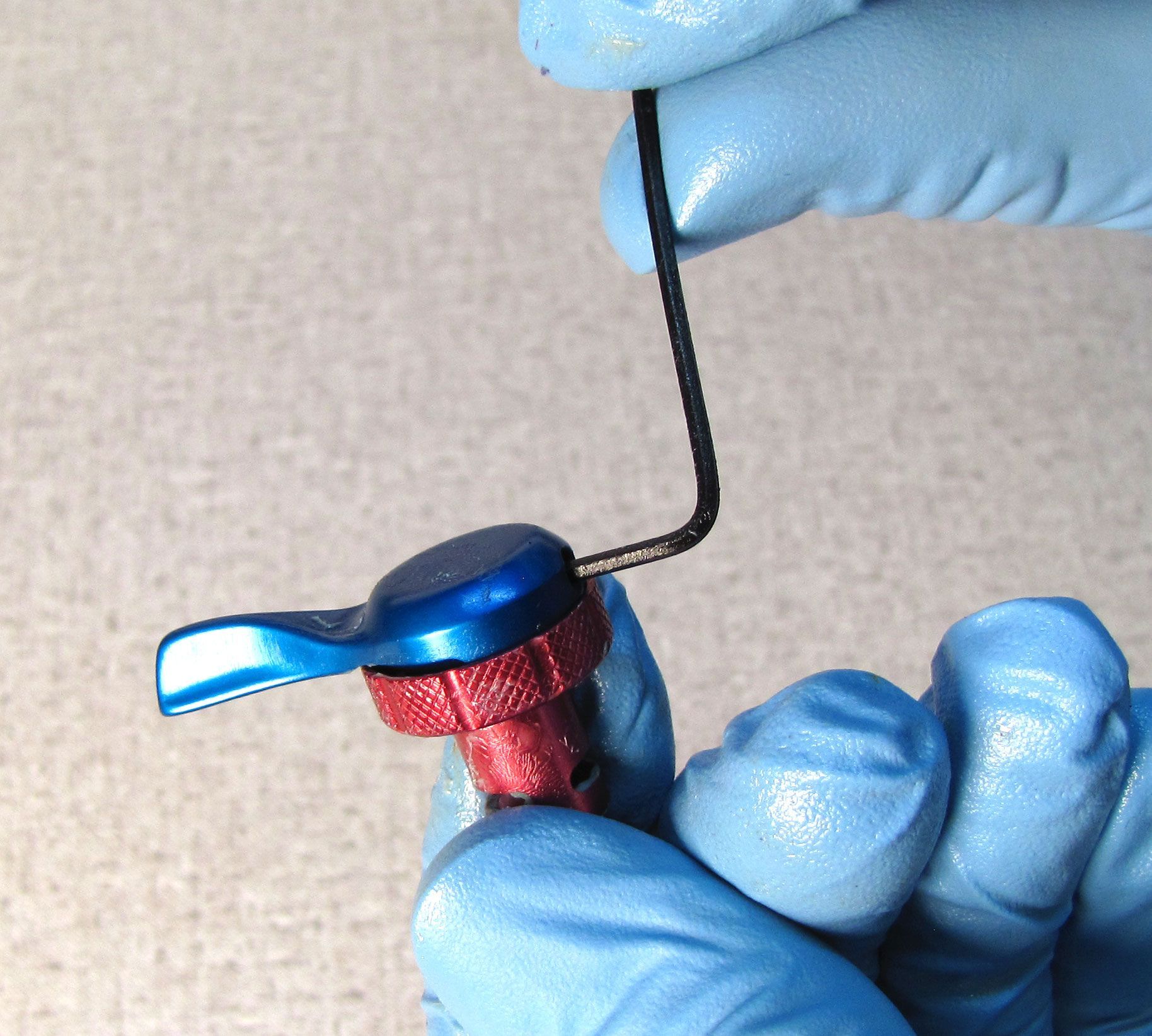

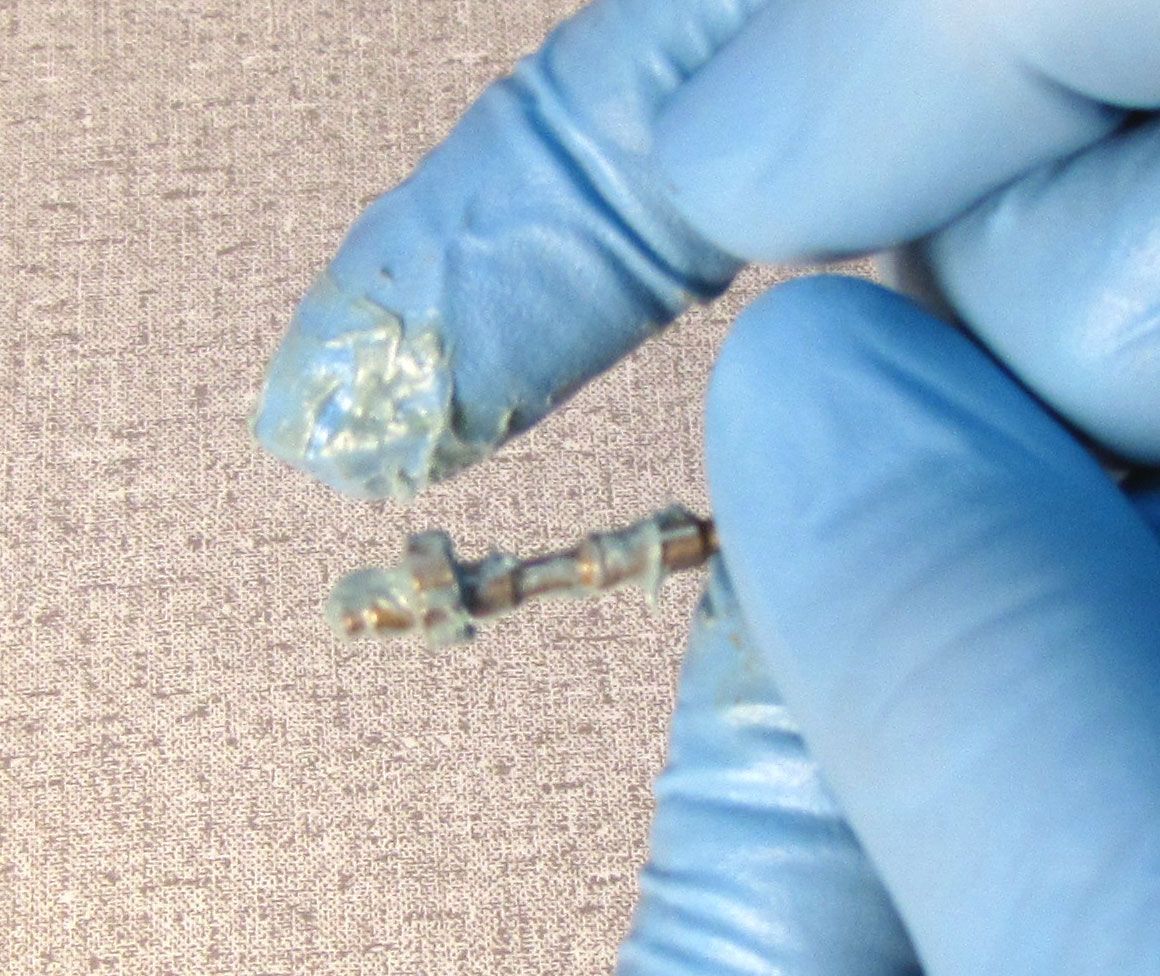

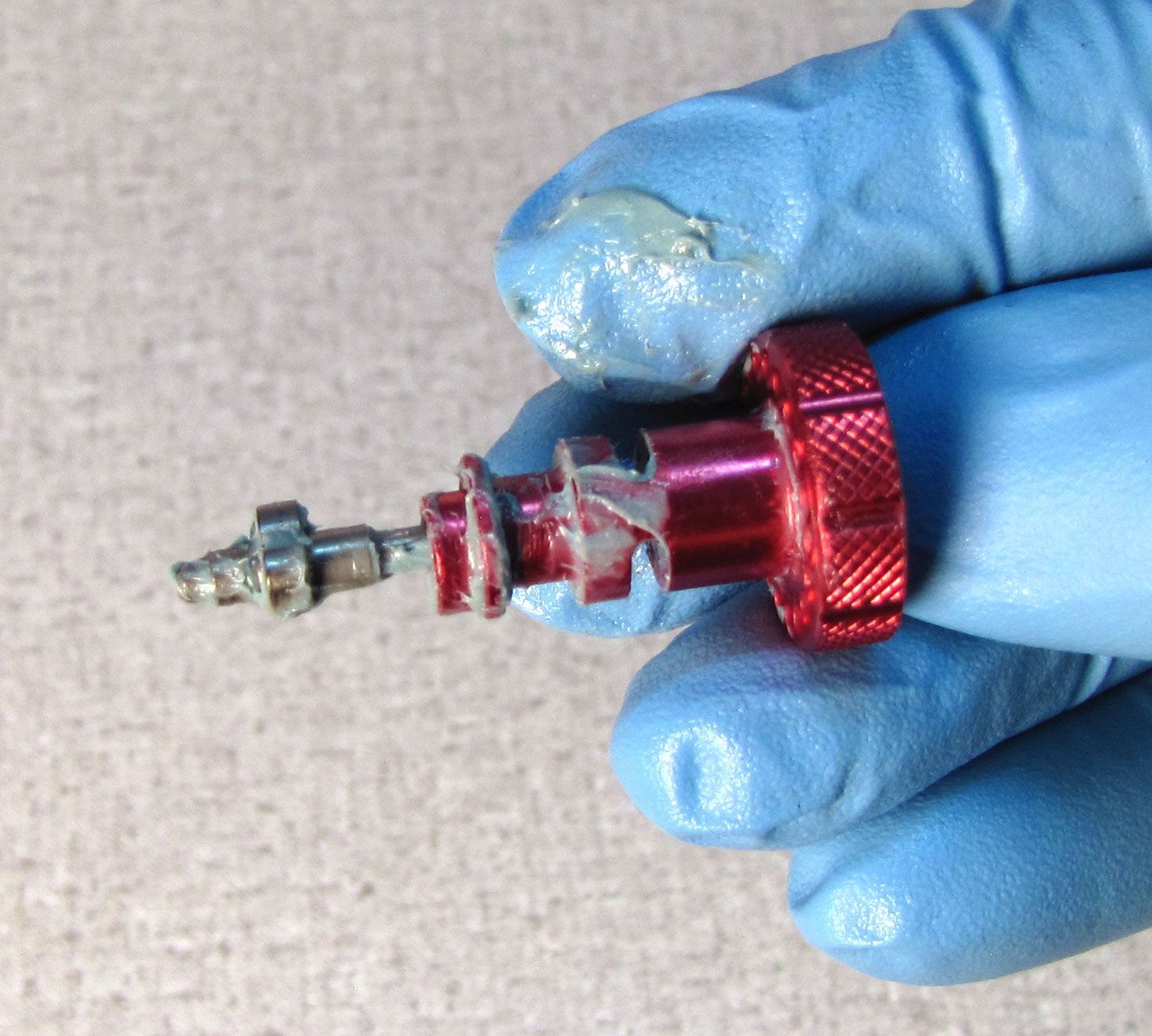

Step 3

Coat the cam in waterproof grease such as Sta-Lube SL3125 then insert it into the red rebound knob from the back. Coat the parts of the rebound knob that will be within the eyelet with waterproof grease. Reinstall the blue compression selector lever and tighten its set screw against the depression in the cam with a 1.5mm hex wrench to 5 in-lb (0.6 Nm).

img/help/page2922-G2V1/IMG_8650.jpg
img/help/page2922-G2V1/IMG_8651.jpg
img/help/page2922-G2V1/IMG_8653.jpg
img/help/page2922-G2V1/IMG_8646-m.jpg

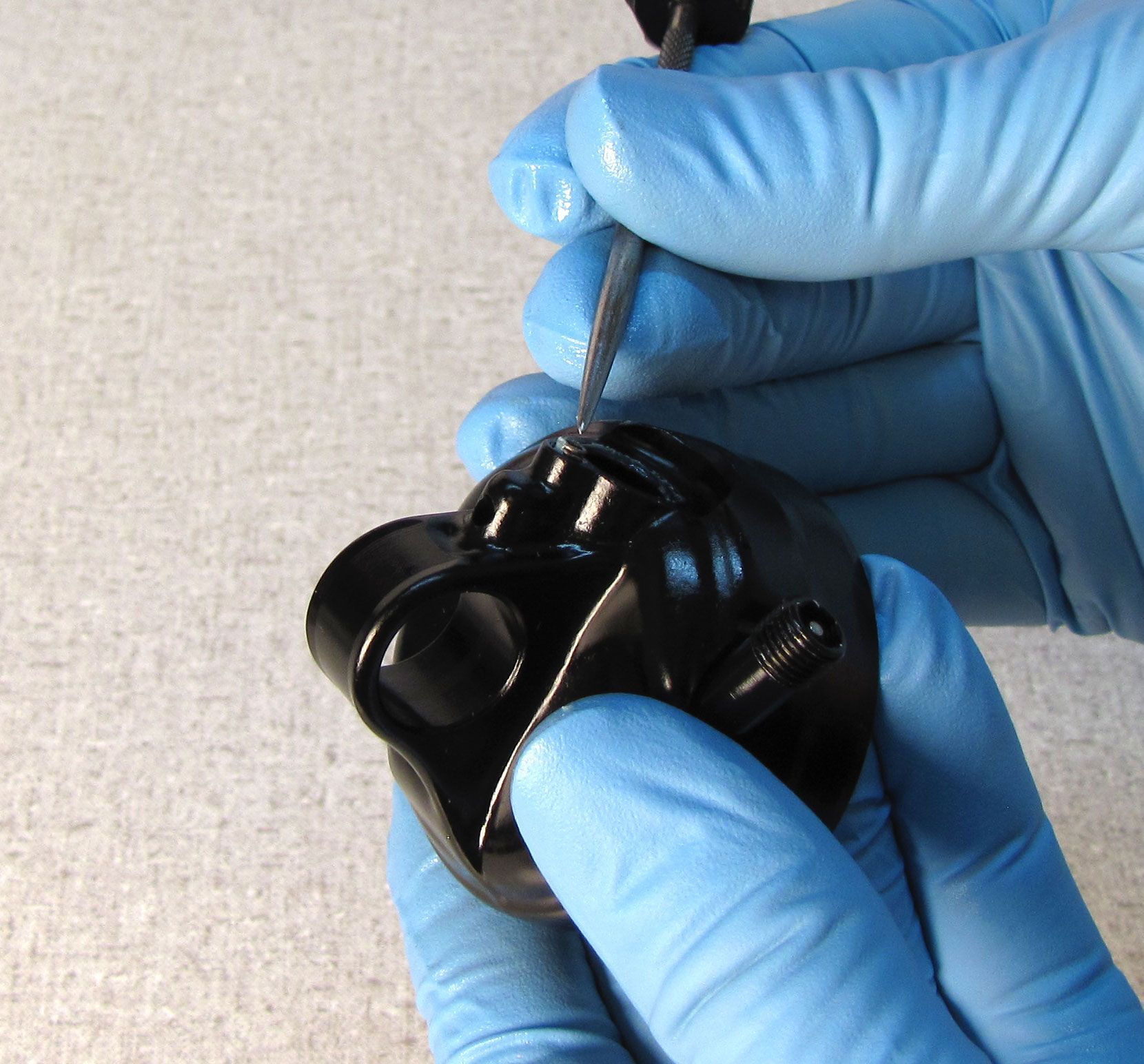

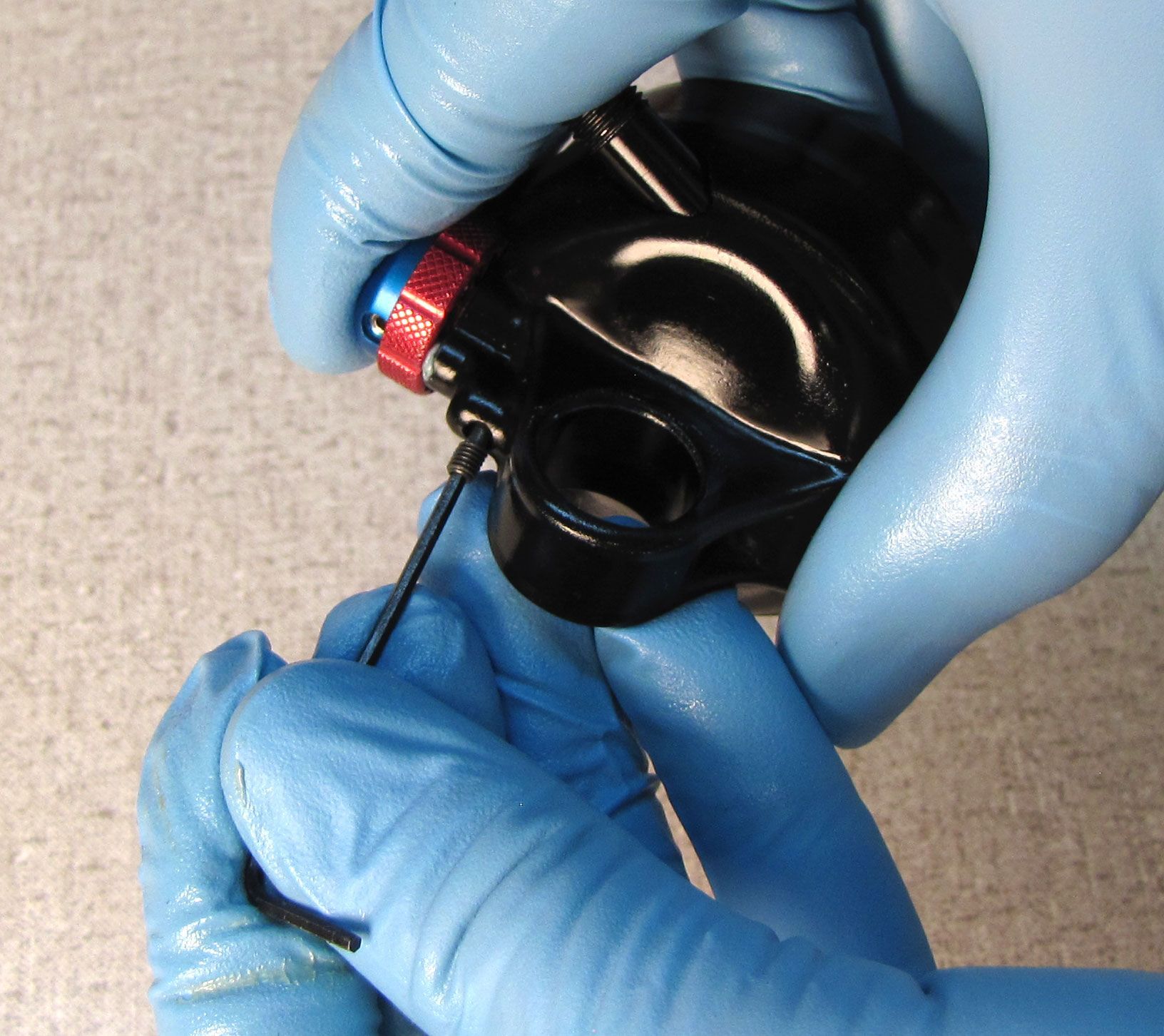

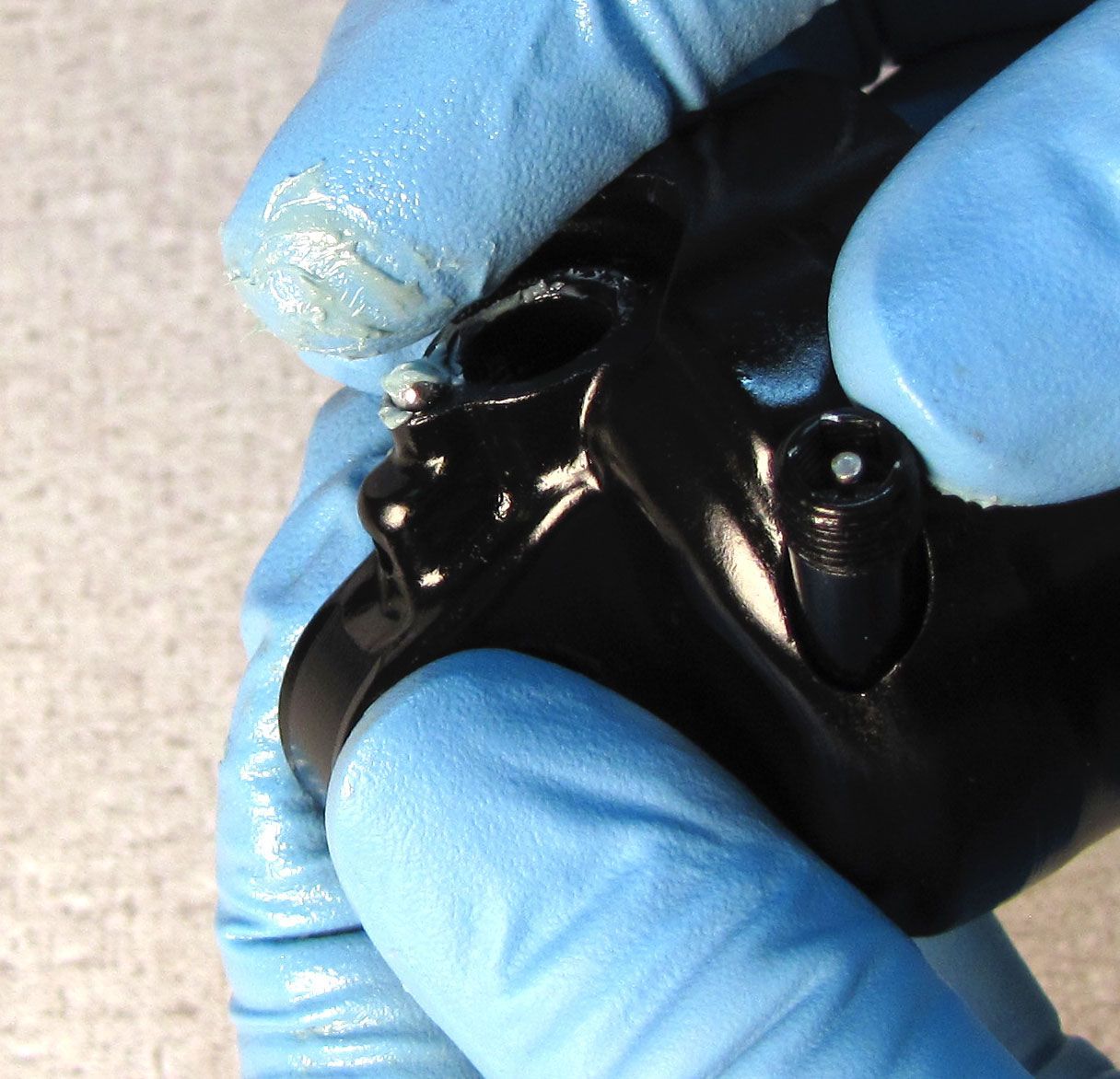

Step 4

Insert the greased detent spring into the small hole in the face of the eyelet, followed by the detent ball. Carefully insert the lever assembly into the eyelet without dislodging the detent ball and spring. Compress the detent spring by pushing the lever assembly into the eyelet, then install and gently tighten the set screw in the top of the eyelet fully, then back it out 1/4 turn.

img/help/page2922-G2V1/IMG_8646.jpg
img/help/page2922-G2V1/IMG_8654.jpg
img/help/page2922-G2V1/IMG_8655.jpg

Reassembly

img/help/page2922-G2V1/IMG_8539-m.jpg

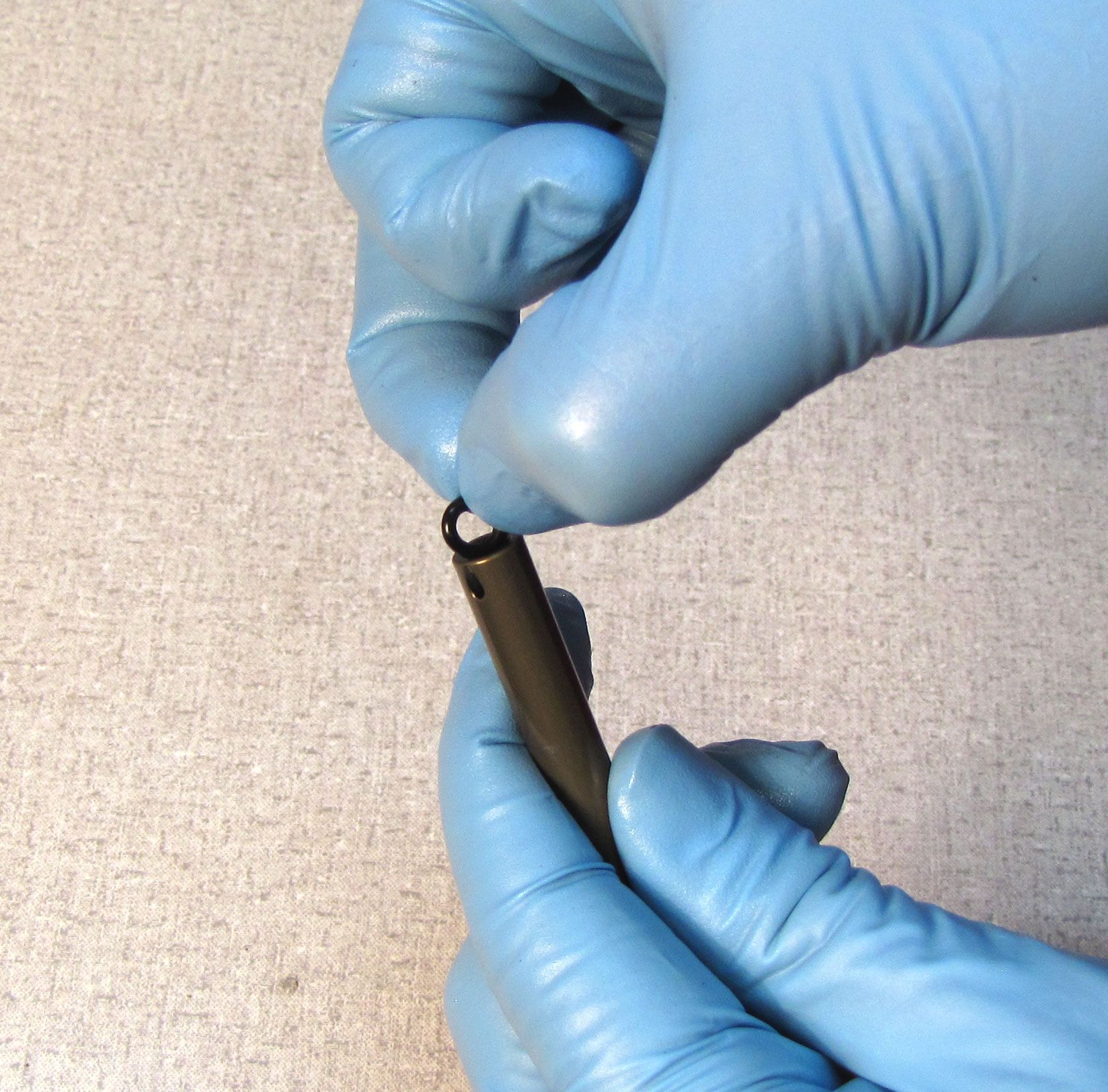

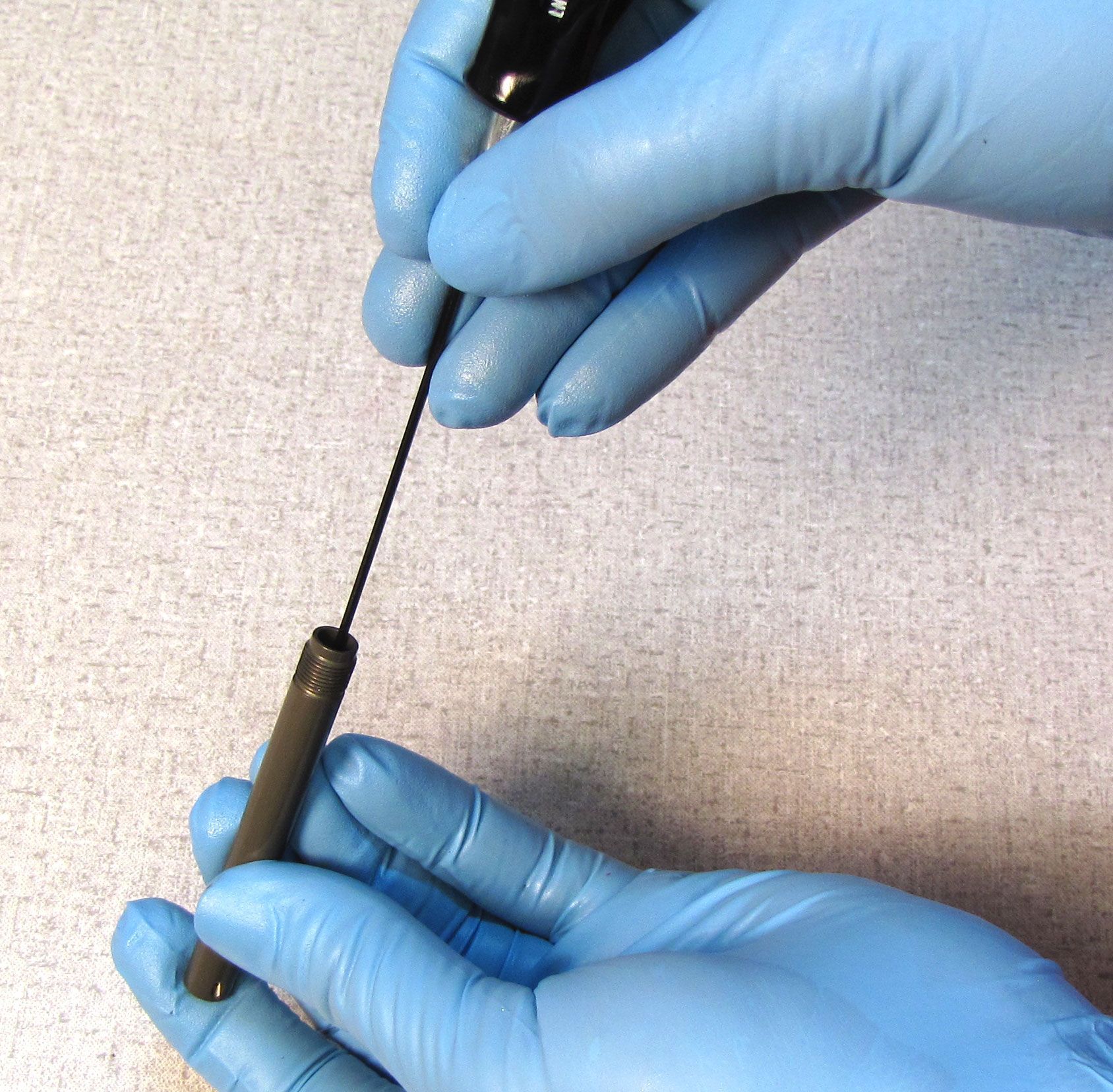

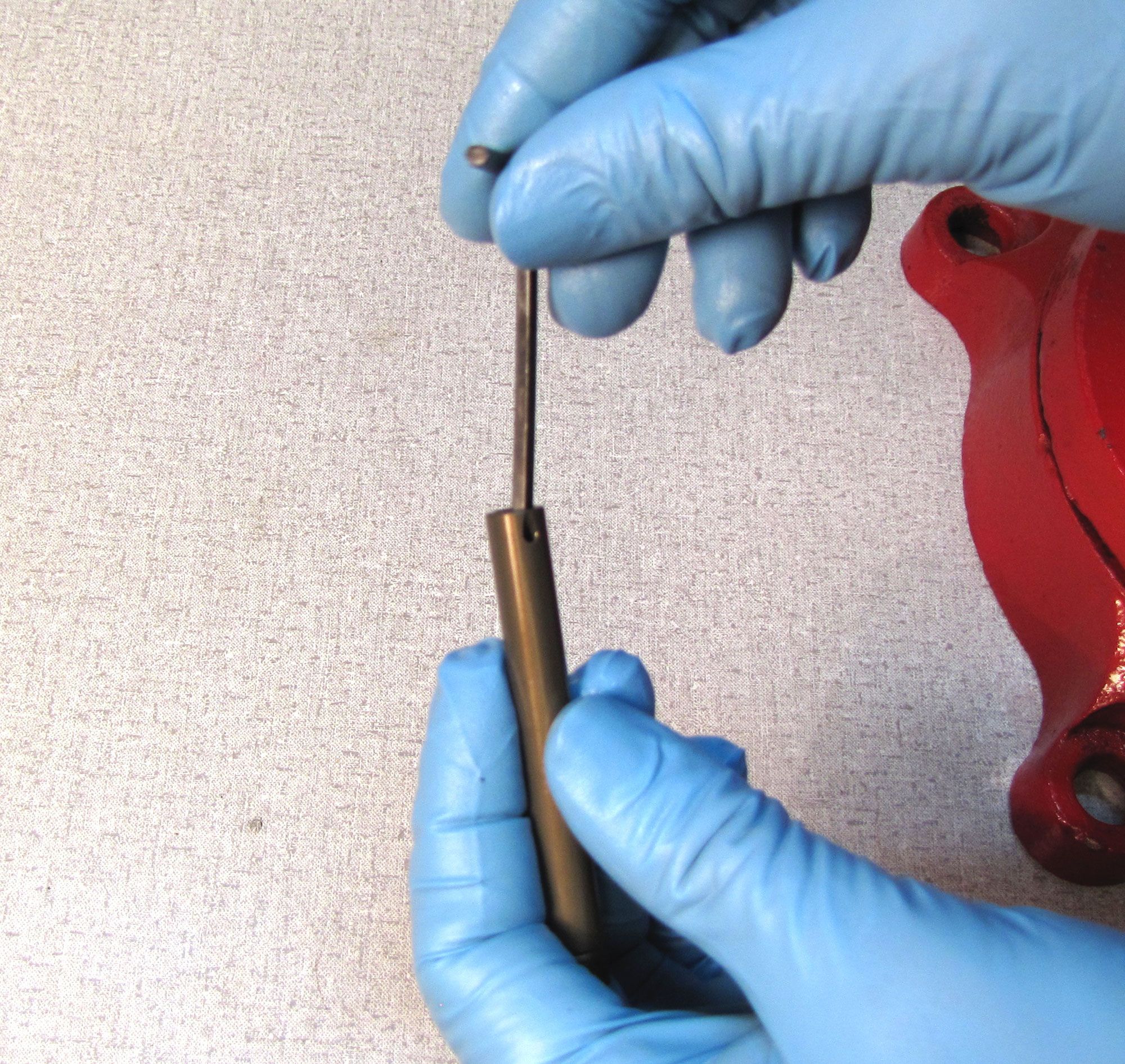

Step 1

Coat the new o-ring from the kit with Slick Honey and install it into the shaft using blunt tools such as hex wrenches to fit it into position within its seal groove.




img/help/page2922-G2V1/IMG_8539.jpg
img/help/page2922-G2V1/IMG_8540.jpg
img/help/page2922-G2V1/IMG_8542.jpg
img/help/page2922-G2V1/IMG_8544-m.jpg

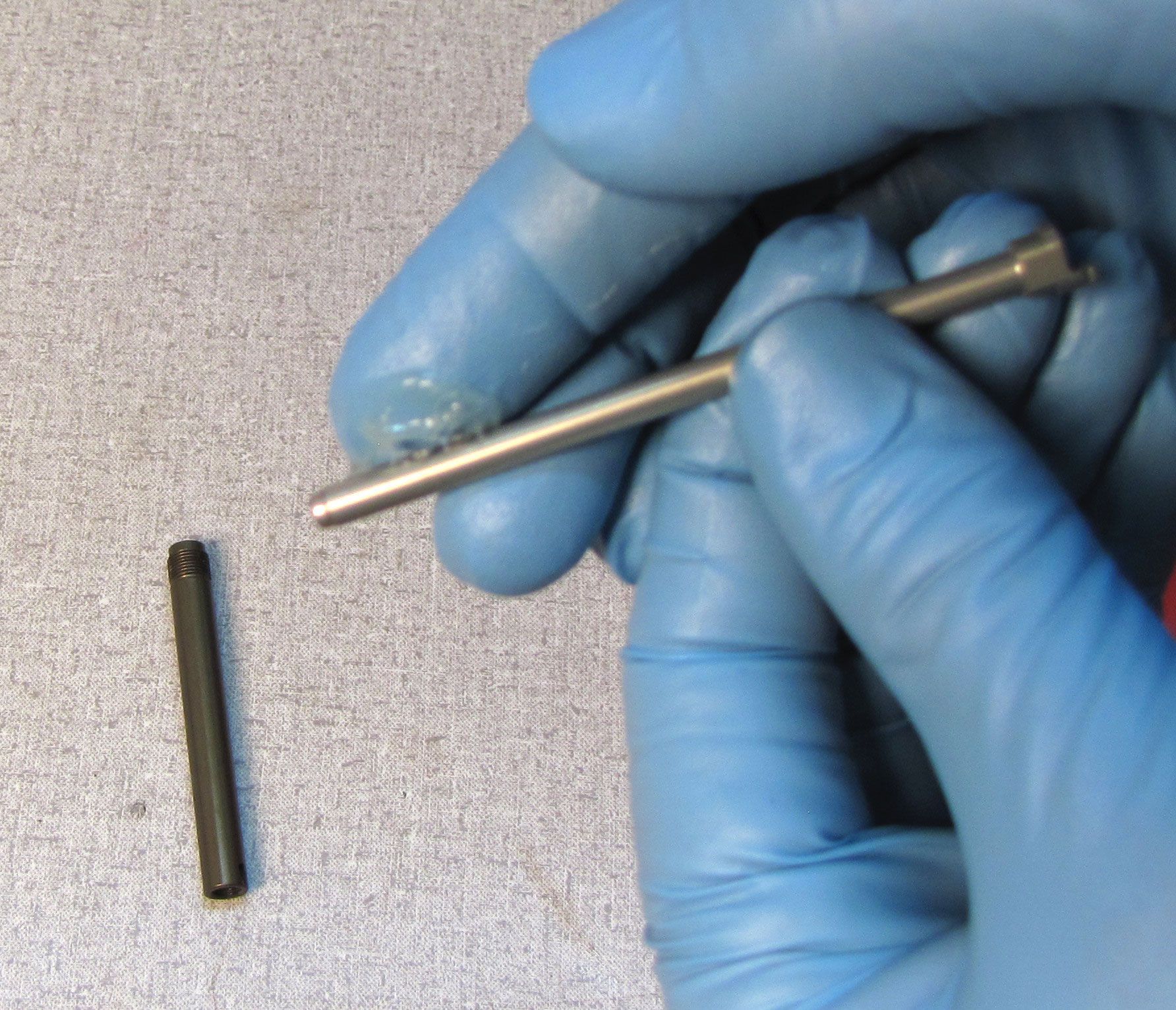

Step 2

Coat the narrow end of the rebound metering rod with a thin film of Slick Honey and carefully insert it into the internal shaft o-ring to seat it completely within its groove.

img/help/page2922-G2V1/IMG_8544.jpg
img/help/page2922-G2V1/IMG_8545.jpg
img/help/page2922-G2V1/IMG_8574 copy-m.jpg

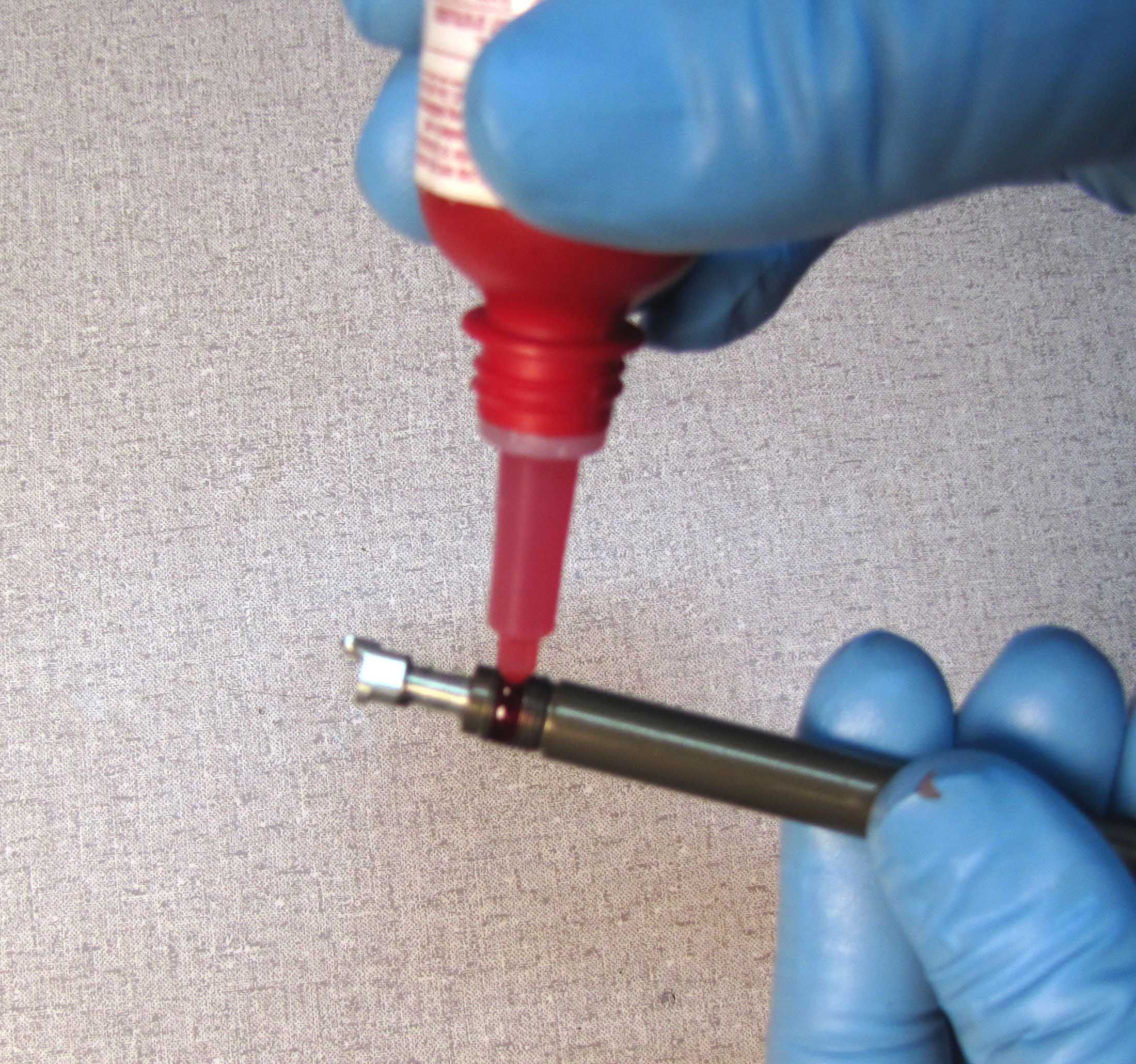

Step 3

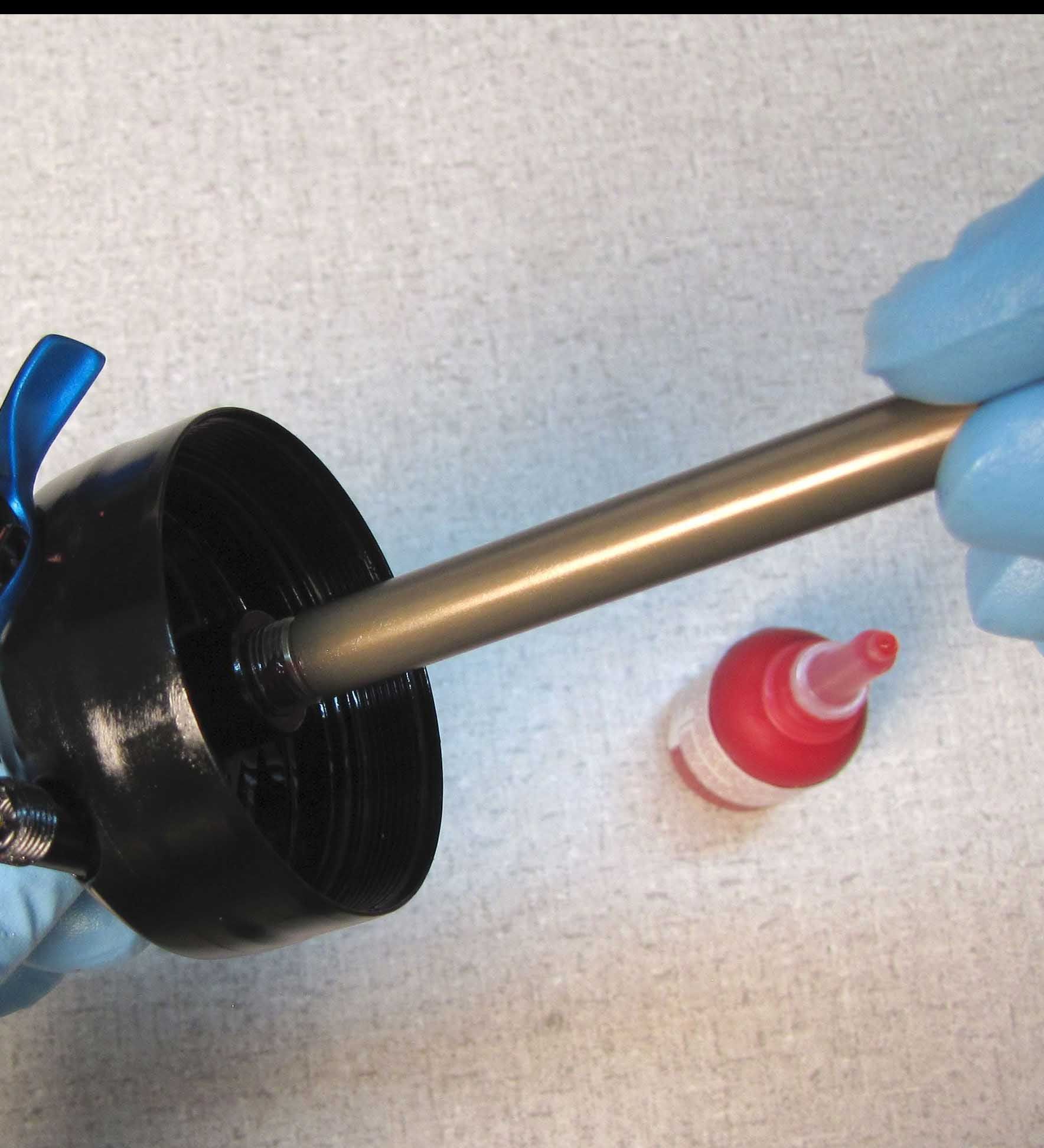

Apply a small drop of red Loctite 277 to the shaft threads.Install the shaft into the eyelet with the ball bearing on the metering rod oriented toward the front of the shock.

img/help/page2922-G2V1/IMG_8574 copy.jpg
img/help/page2922-G2V1/IMG_8575 copy.jpg
img/help/page2922-G2V1/IMG_1176-m.jpg

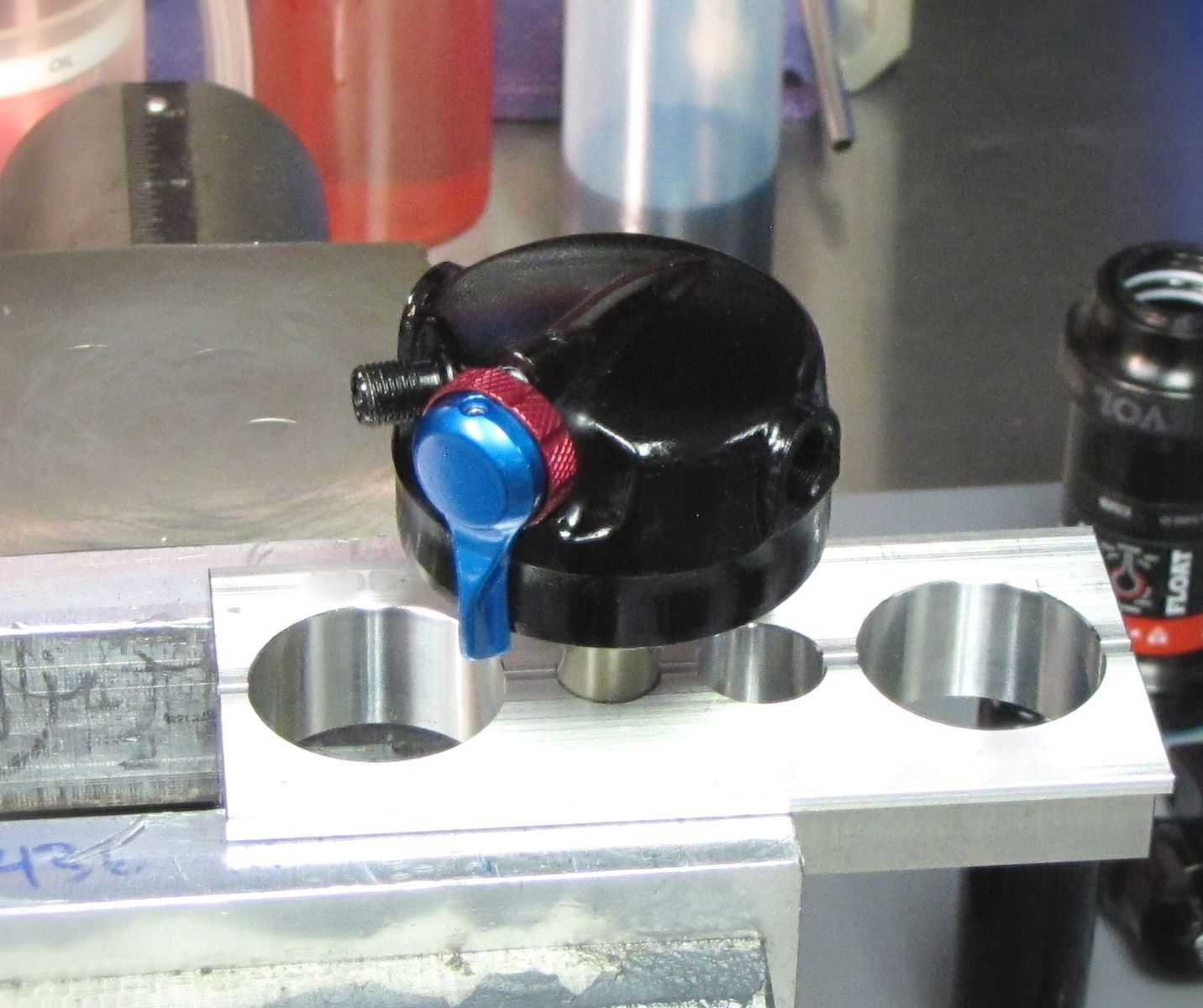

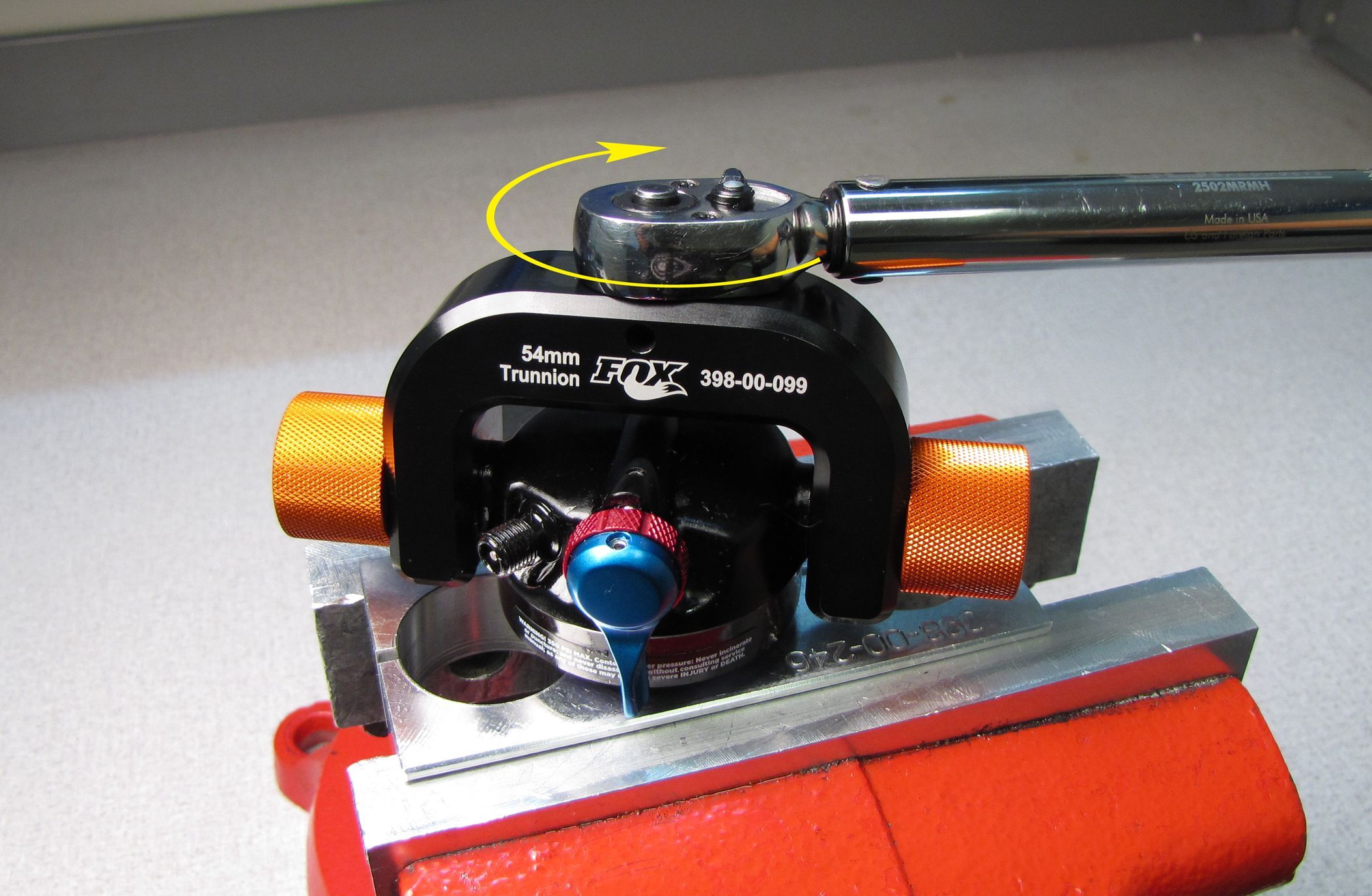

Step 4

Clamp the shaft in your shaft clamps then tighten the eyelet to the shaft clockwise tightening to 85 in-lb (9.6 Nm) with the Trunnion eyelet torque tool.

img/help/page2922-G2V1/IMG_1176.jpg
img/help/page2922-G2V1/IMG_1579.jpg
img/help/page2922-G2V1/IMG_1179-m.jpg

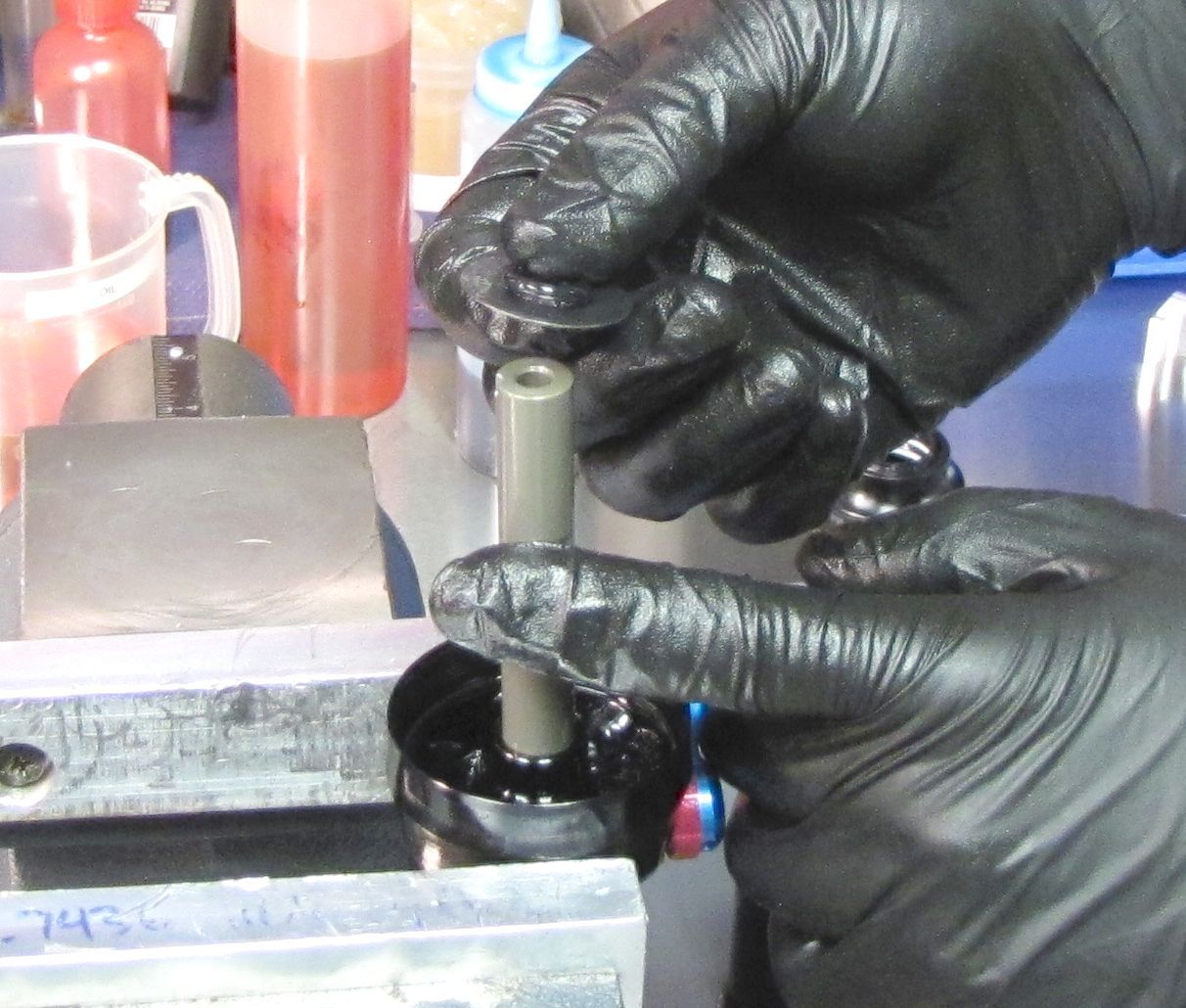

Step 5

Remove the shock from the clamps and gently clamp the eyelet in your soft-jawed vise so the mounting bolt areas are the only portions of the eyelet contacting the vise. Reinstall the bottom out plate followed by a new bottom out o-ring from the kit.

img/help/page2922-G2V1/IMG_1179.jpg
img/help/page2922-G2V1/IMG_1151 copy2-m.jpg

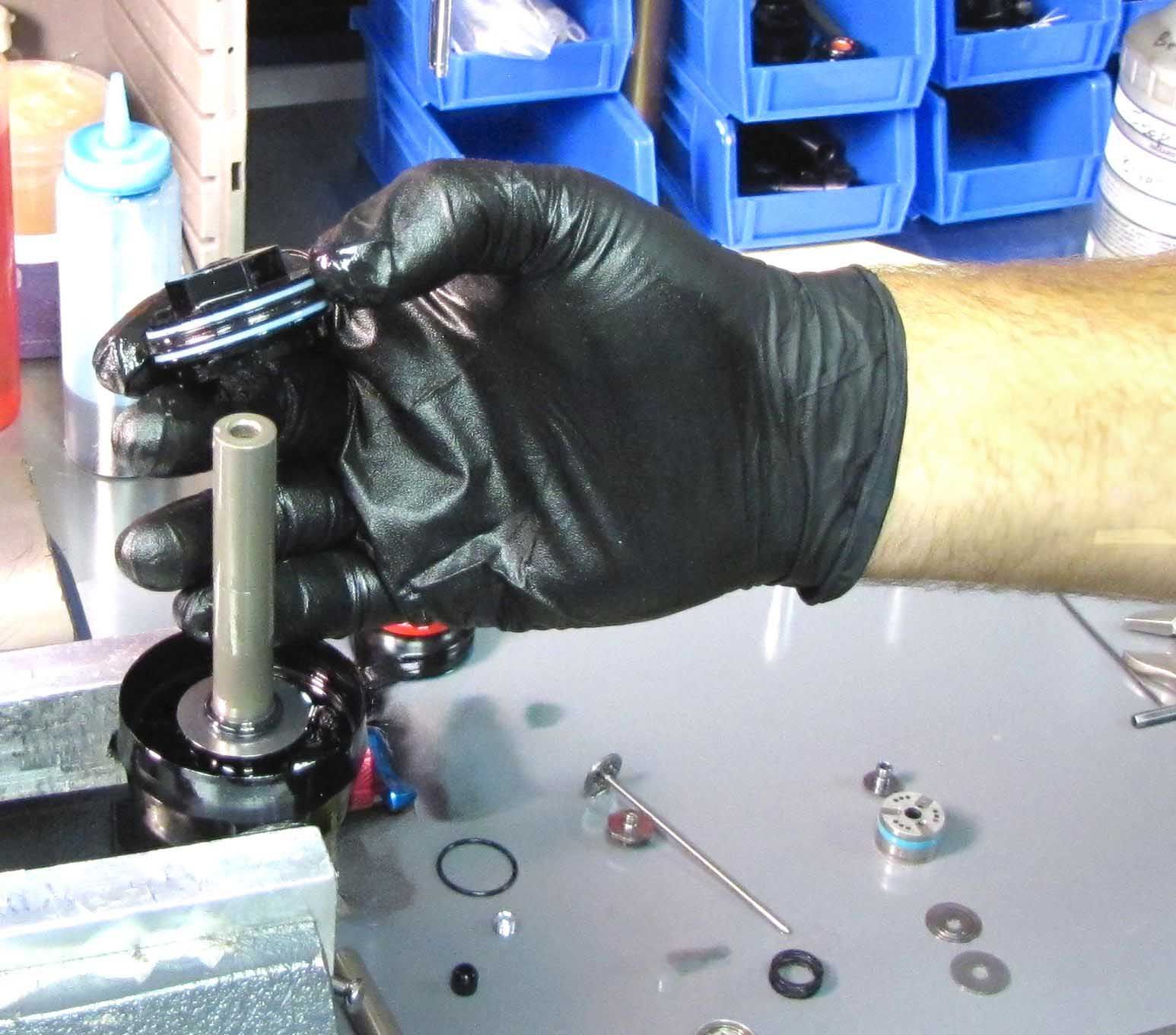

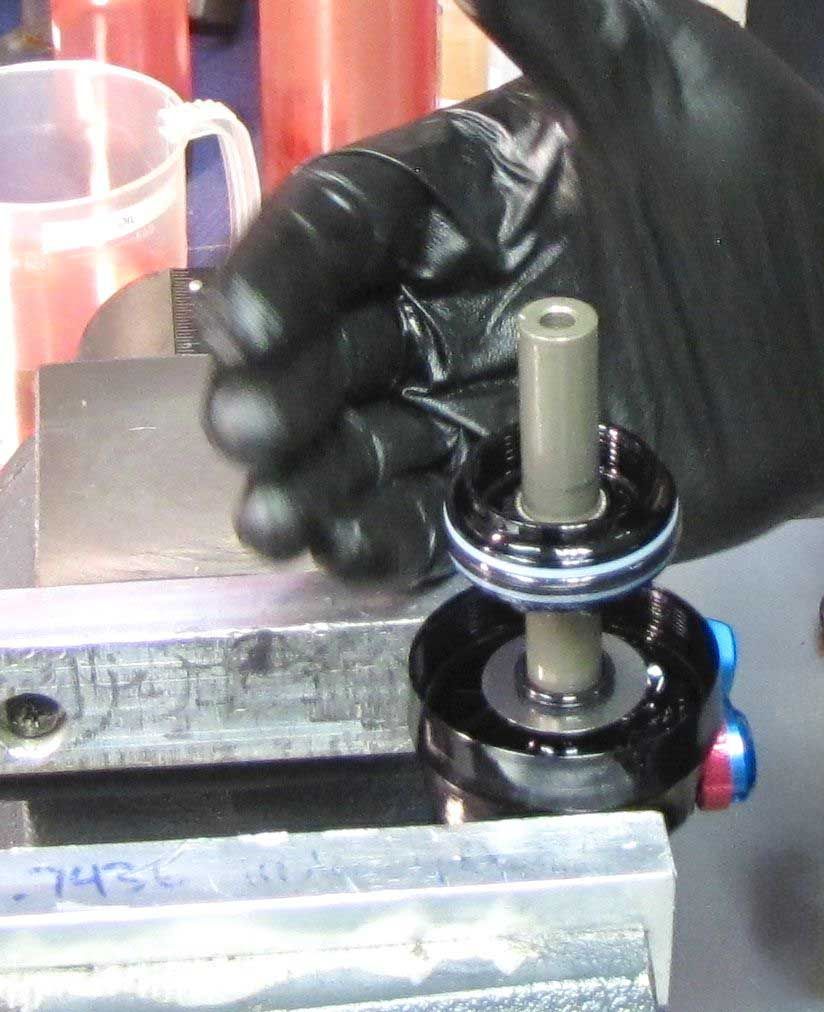

Step 6

Carefully reinstall the rebuilt bearing assembly onto the shaft taking care not to damage the u-cup seal.

img/help/page2922-G2V1/IMG_1151 copy2.jpg
img/help/page2922-G2V1/IMG_1182 copy.jpg
img/help/page2922-G2V1/IMG_1184 copy-m.jpg

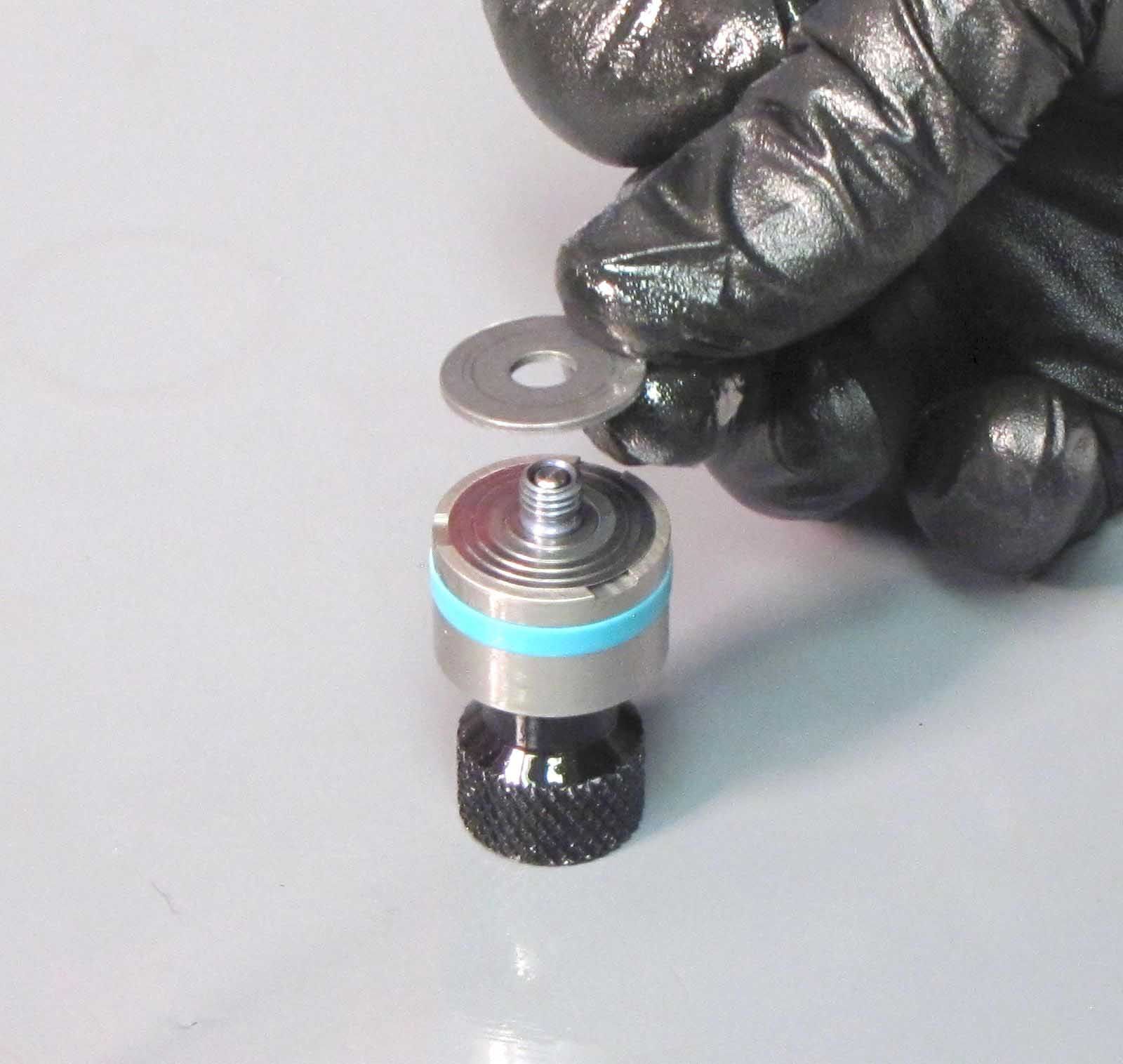

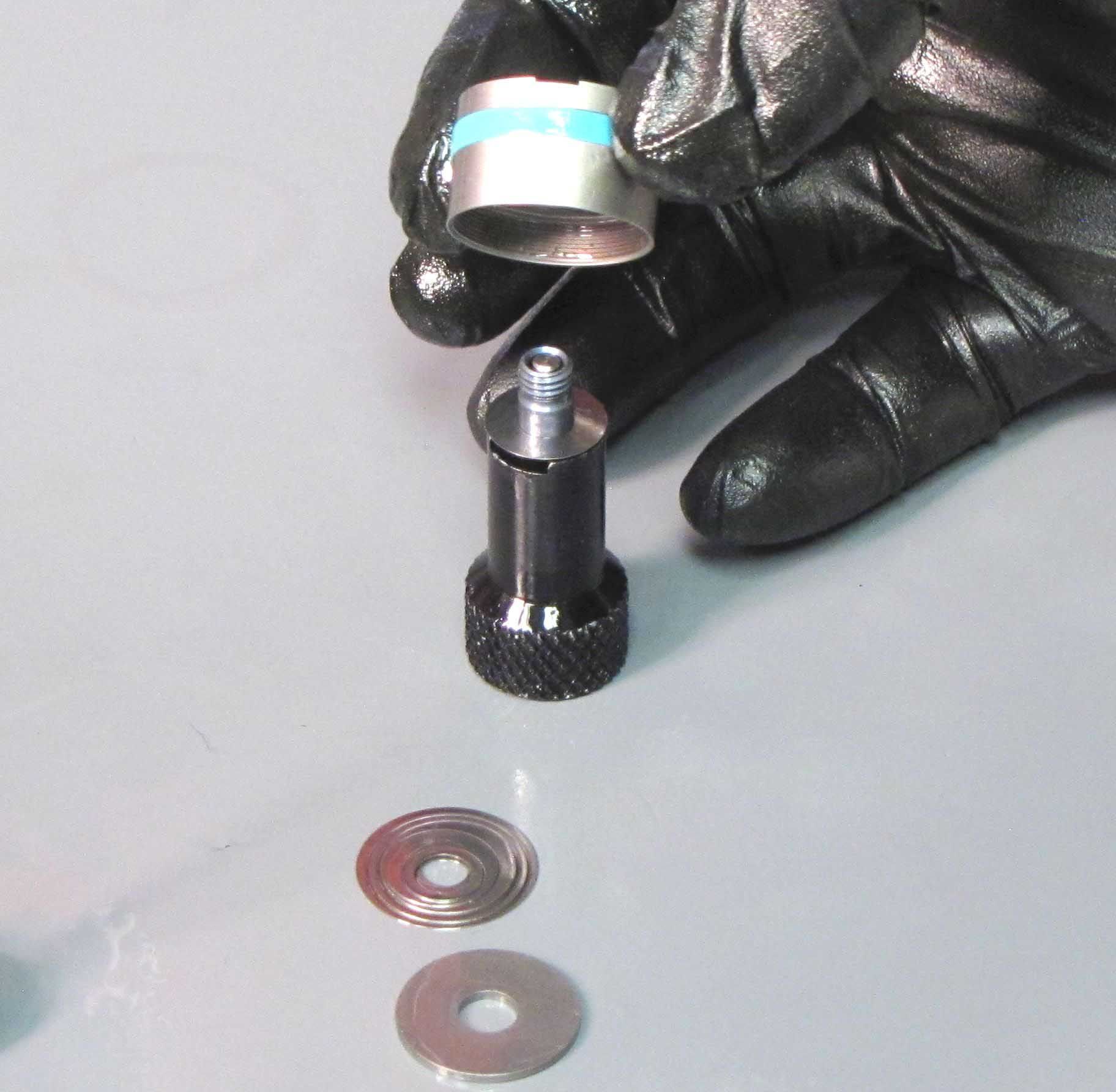

Step 7

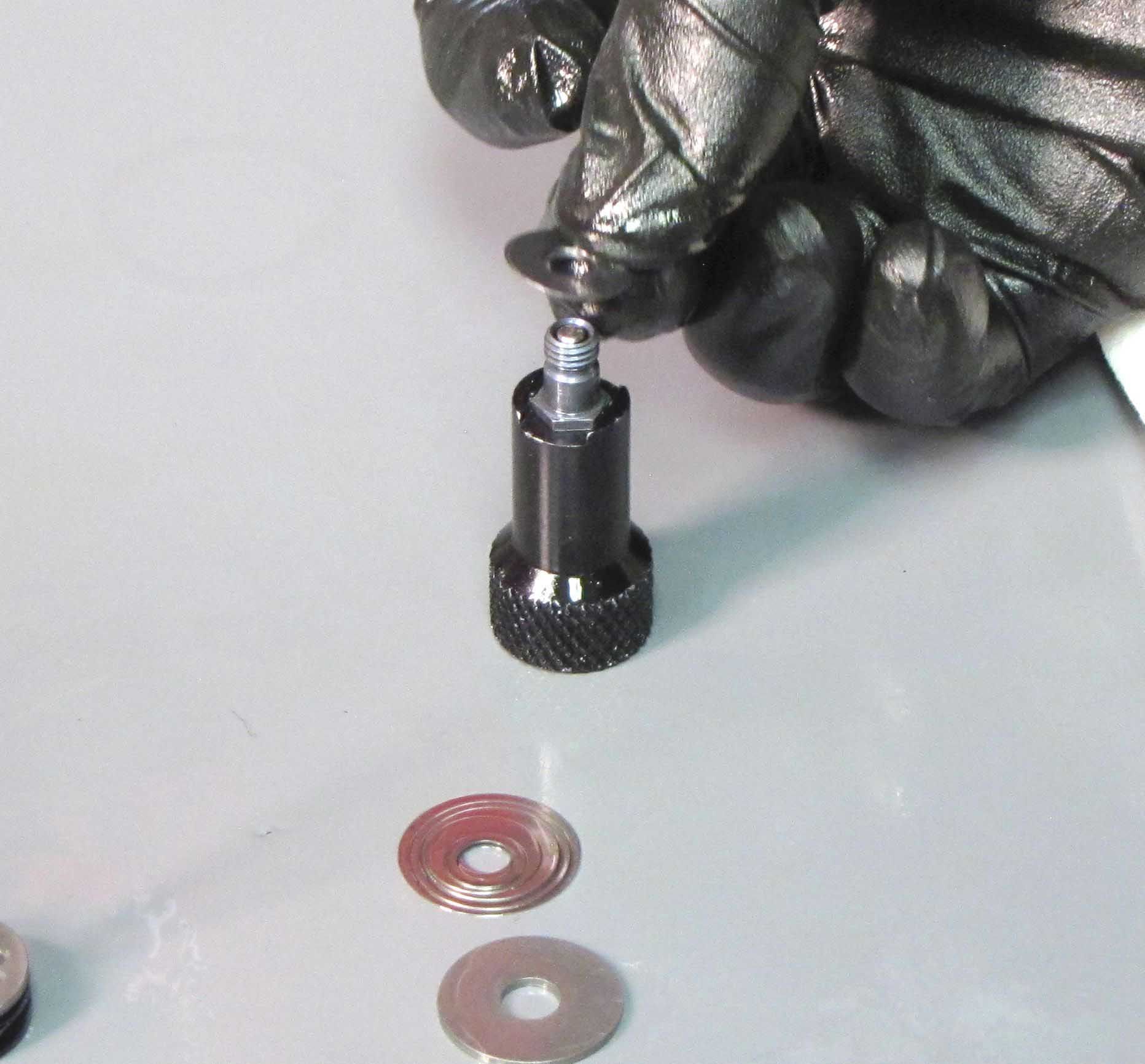

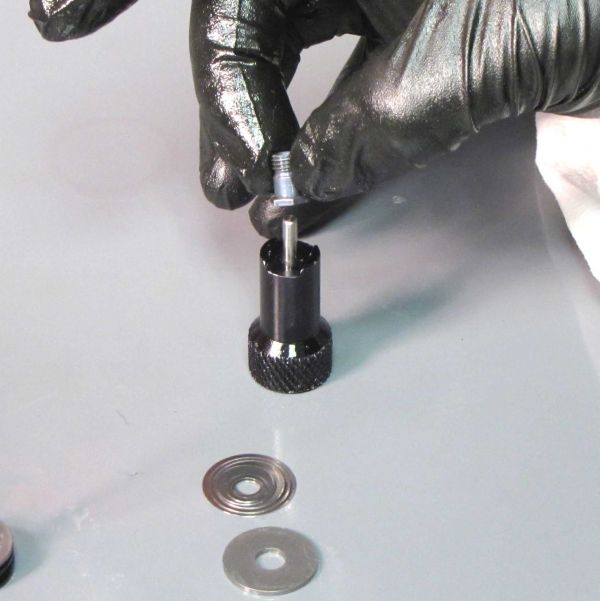

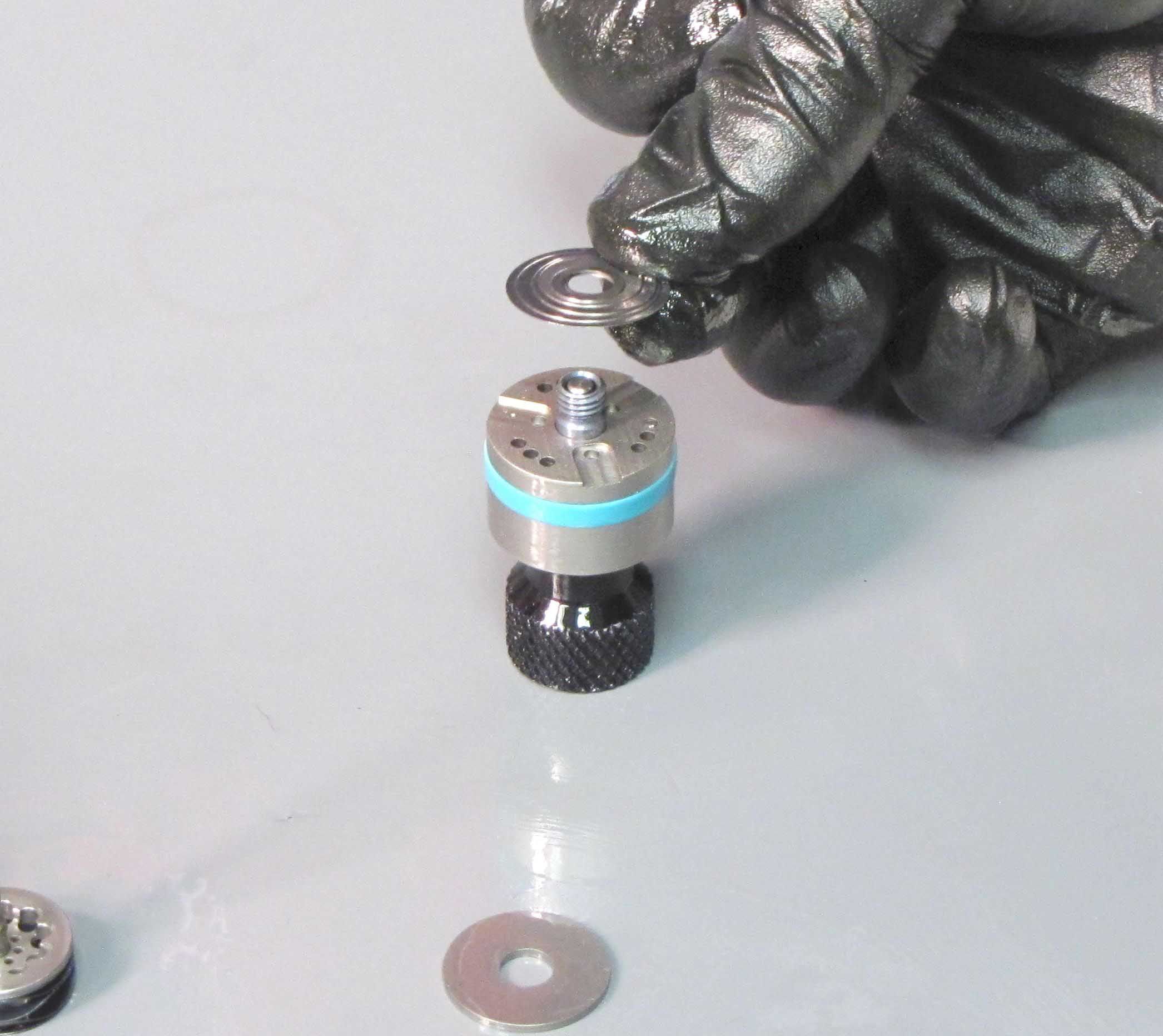

Set the Trek RG Valve Stack Transfer Tool (PN: 398-00-614) on your work bench. Install the piston bolt onto the tool followed by the rebound valves. Install the valve housing onto the tool next followed by the compression valves and topout plate.

img/help/page2922-G2V1/IMG_1184 copy.jpg
img/help/page2922-G2V1/IMG_1185 copy.jpg
img/help/page2922-G2V1/IMG_1186 copy.jpg
img/help/page2922-G2V1/IMG_1187 copy.jpg
img/help/page2922-G2V1/IMG_1188 copy.jpg
img/help/page2922-G2V1/IMG_1189 copy-m.jpg

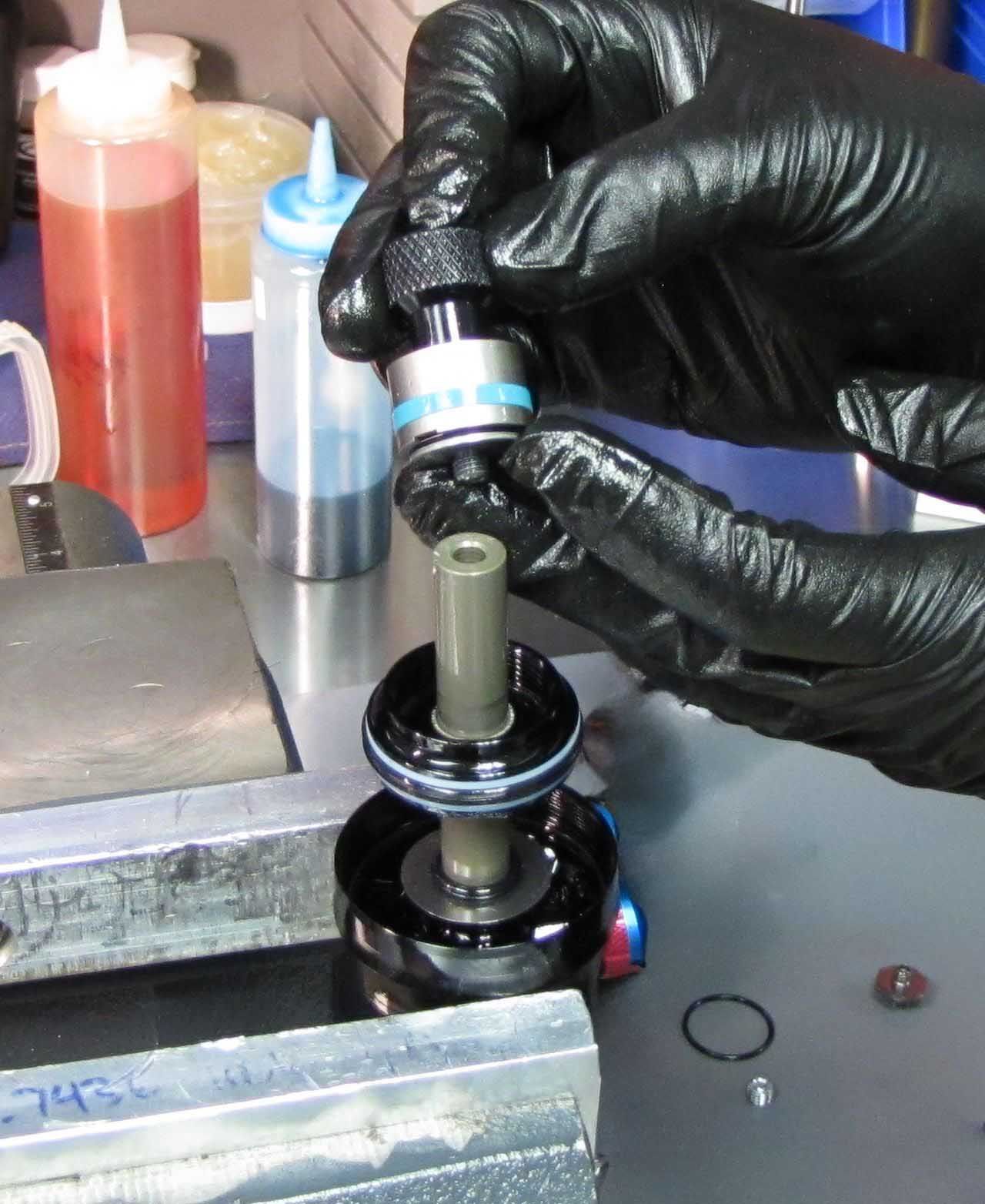

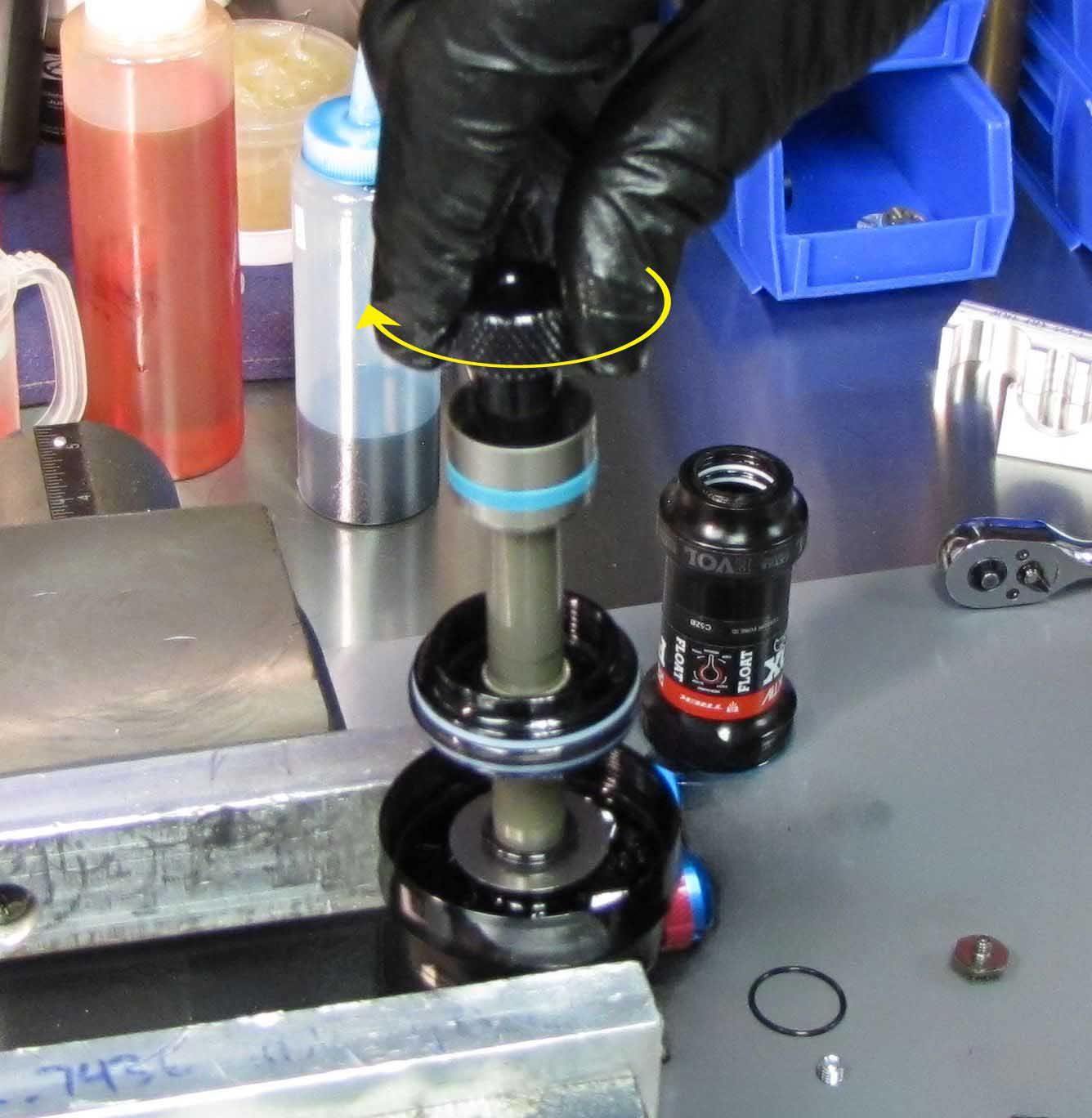

Step 8

Invert the loaded Trek RG Valve Stack Transfer Tool onto the shaft then turn the tool clockwise to begin threading the piston bolt into the shaft. Remove the tool then tighten the piston bolt clockwise with an 8mm socket tightening to 60 in-lb (6.8 Nm).

img/help/page2922-G2V1/IMG_1189 copy.jpg
img/help/page2922-G2V1/IMG_1190 copy.jpg
img/help/page2922-G2V1/IMG_1191 copy.jpg
img/help/page2922-G2V1/IMG_1192 copy-m.jpg

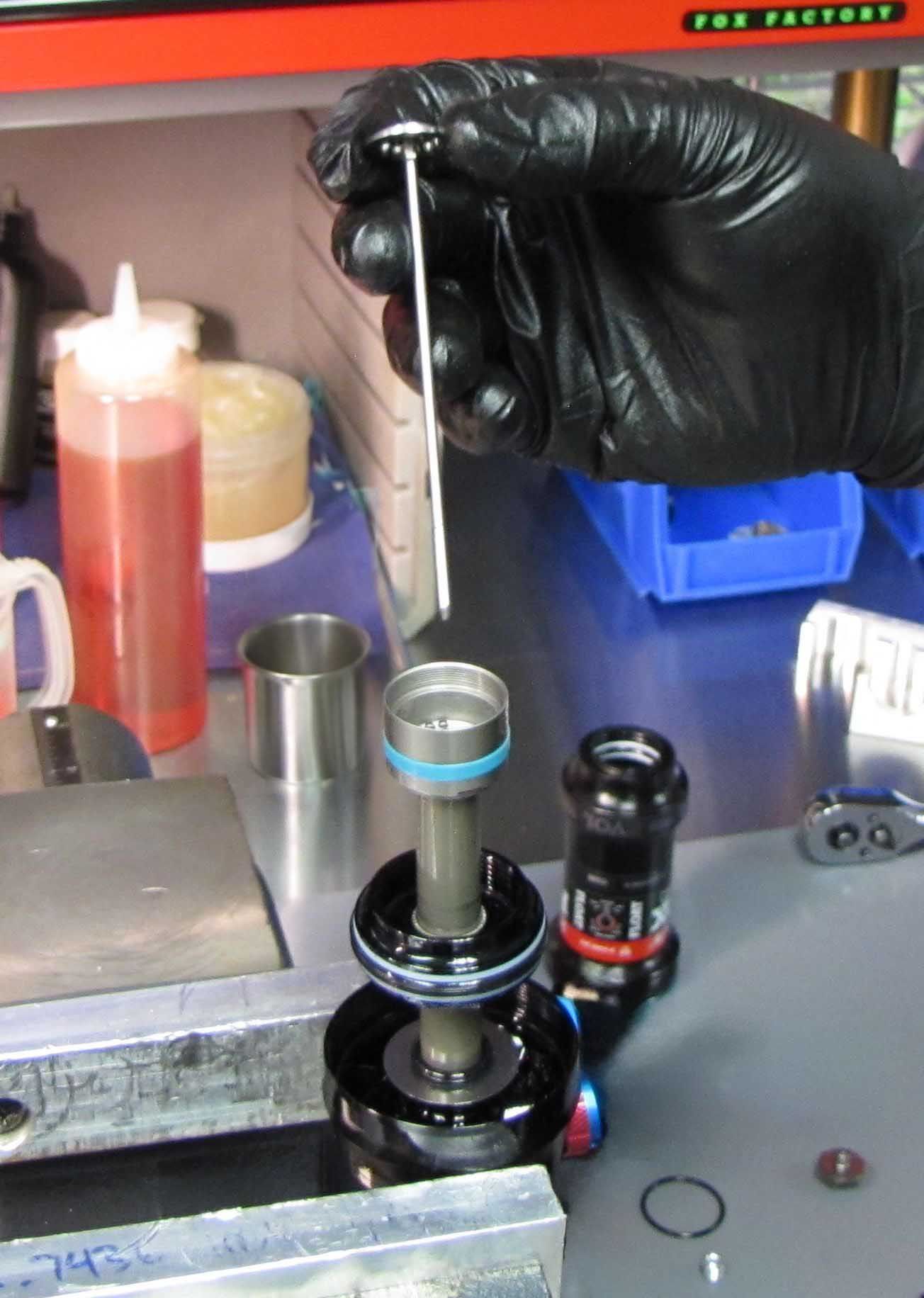

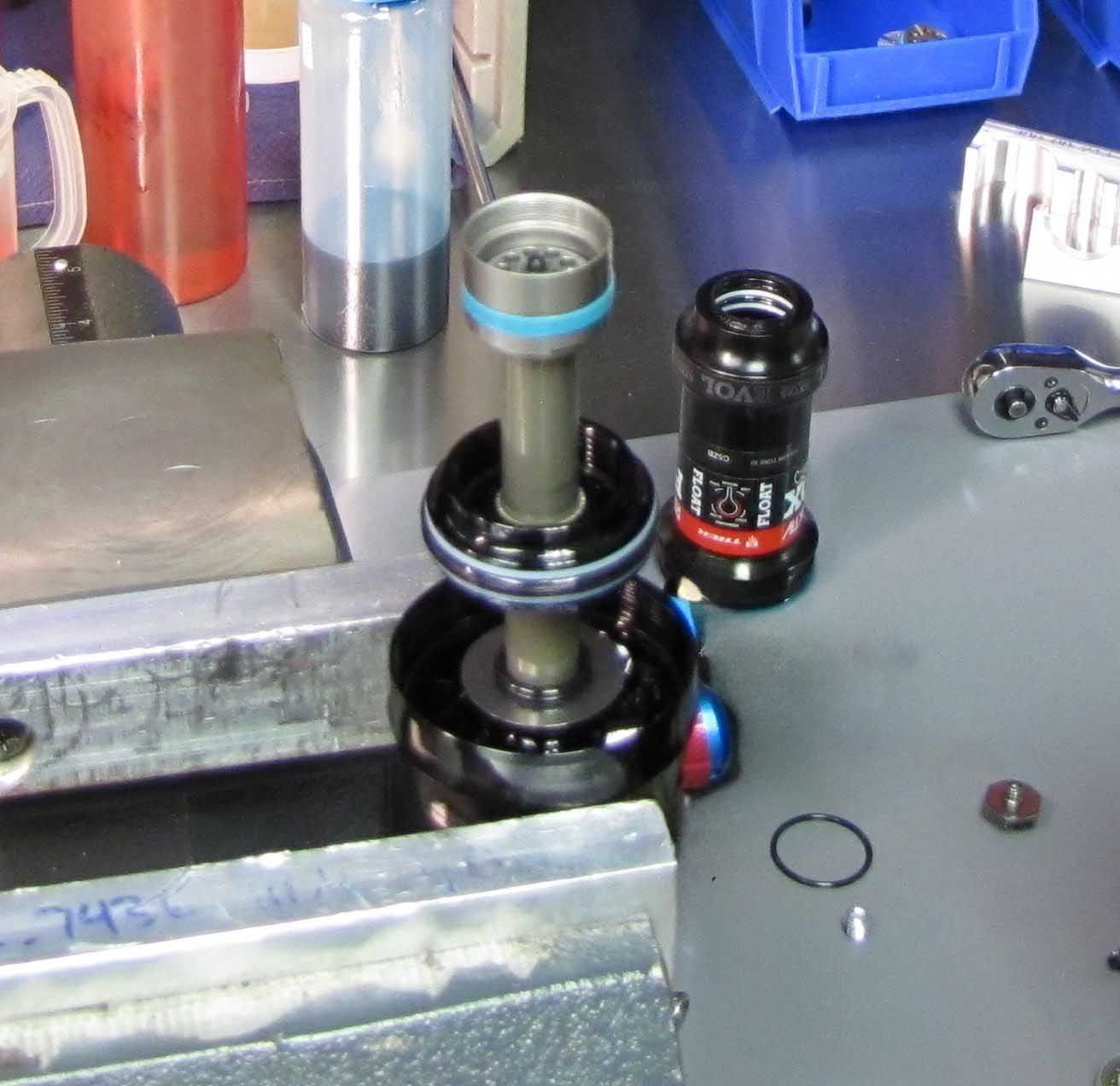

Step 9

Carefully install the adjuster rod assembly being careful not to damage the o-ring inside the shaft that the rod goes through. Set the blue lever to Open Mode (fully counter-clockwise) while gently pushing the rod assembly as far into the Valve Housing as possible.

img/help/page2922-G2V1/IMG_1192 copy.jpg
img/help/page2922-G2V1/IMG_1193 copy.jpg
img/help/page2922-G2V1/IMG_1194 copy2-m.jpg

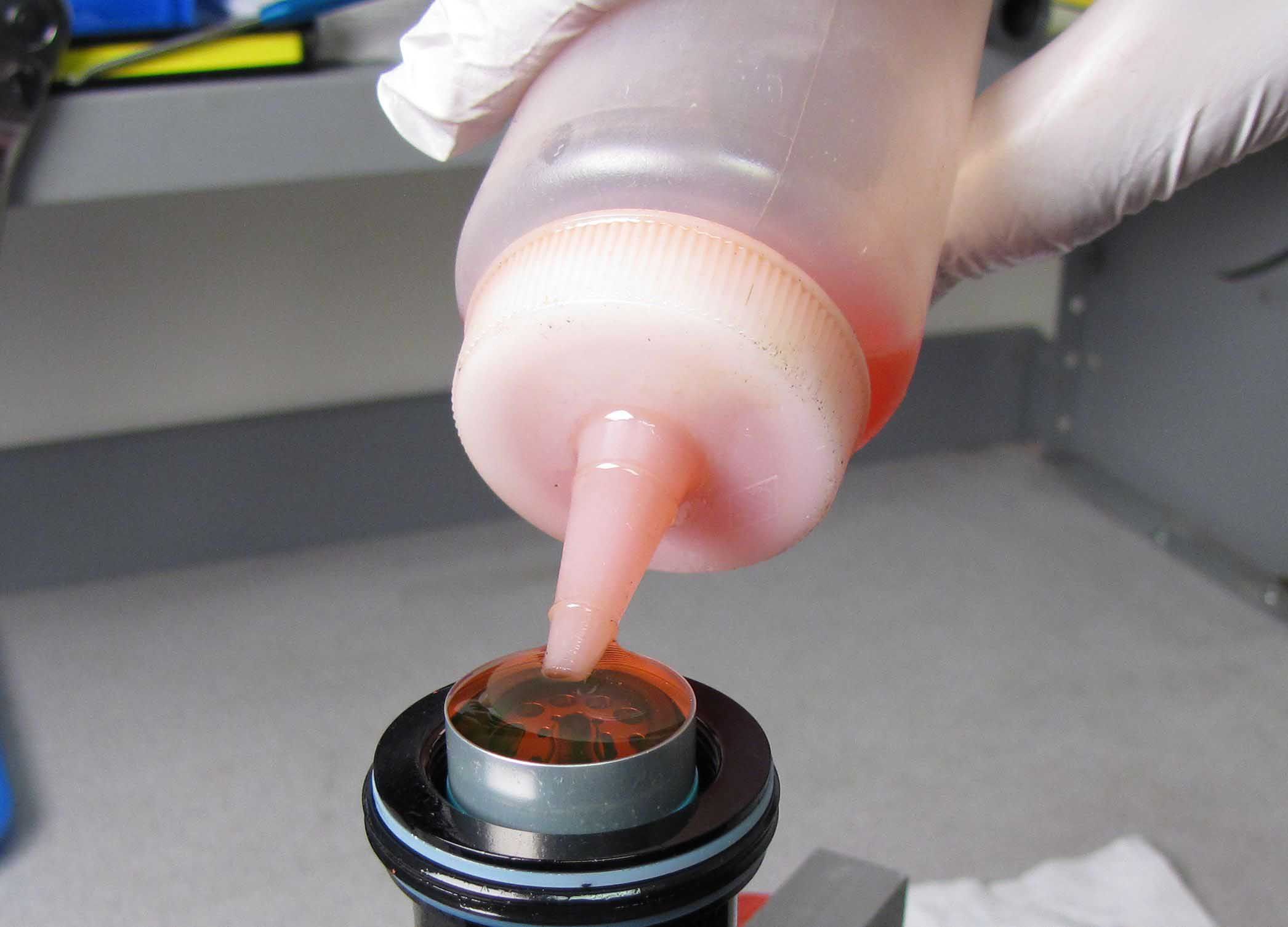

Step 10

Install the new wave spring from the kit into the valve housing, then fill the Valve Housing Piston with FOX 10wt. Red oil.




img/help/page2922-G2V1/IMG_1194 copy2.jpg
img/help/page2922-G2V1/IMG_7606 copy.jpg
img/help/page2922-G2V1/IMG_7607 copy-m.jpg

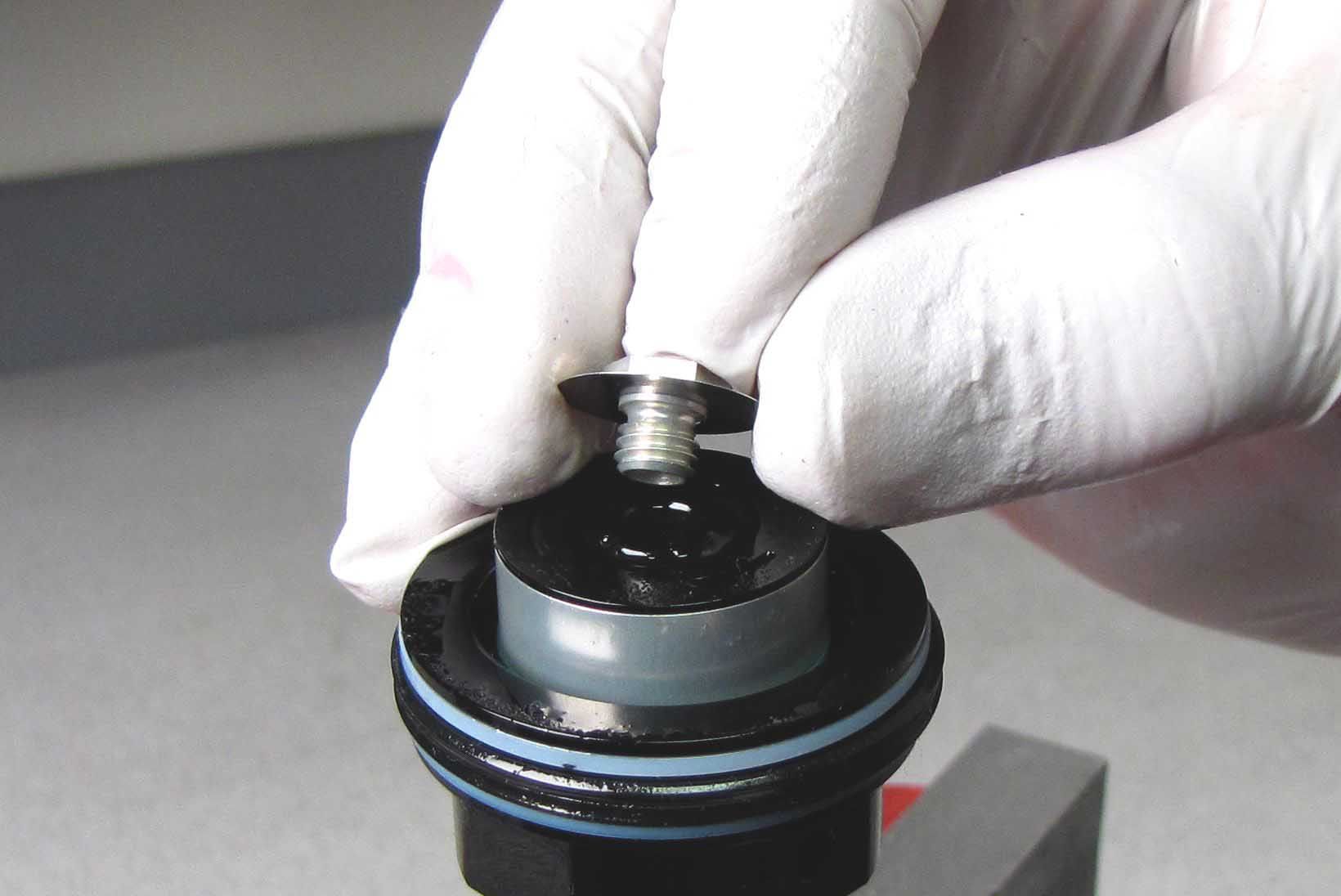

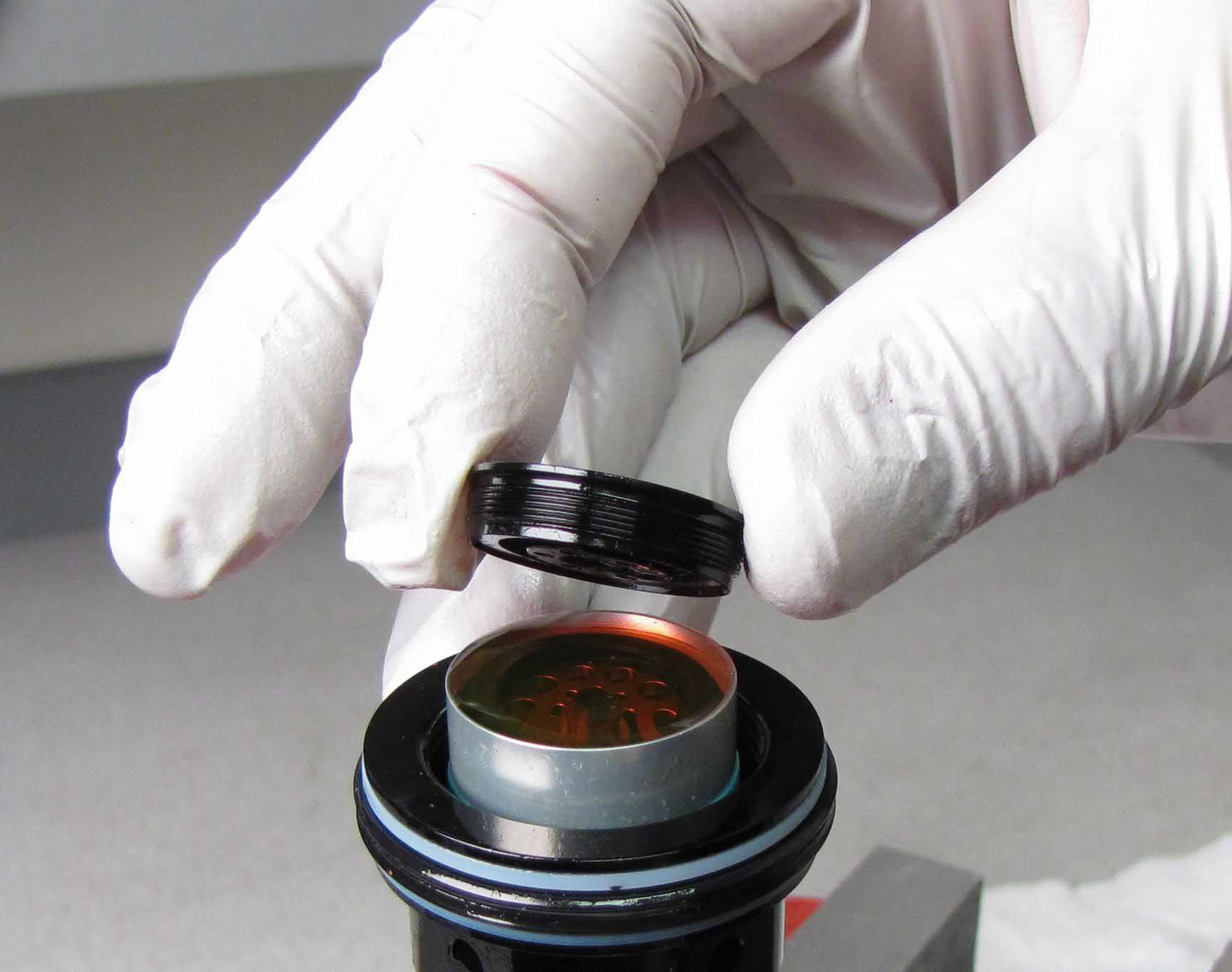

Step 11

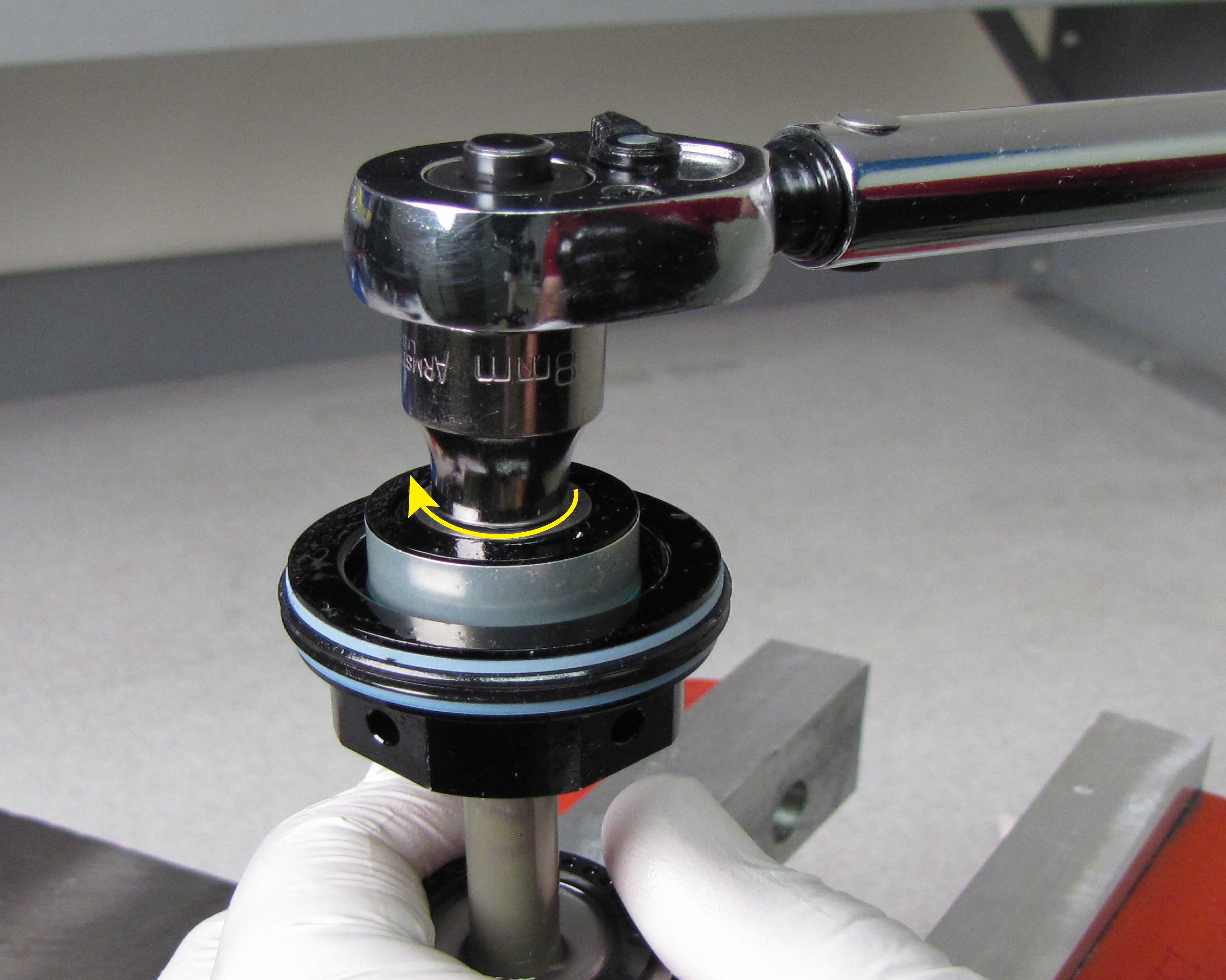

Thread the Valve Housing Cap into the Valve Housing Piston. Install the RD Check Valve and bolt and torque the entire assembly to 22 in-lb (2.5 Nm) using a 6-point chamfer-less six-point 8mm socket.

img/help/page2922-G2V1/IMG_7607 copy.jpg
img/help/page2922-G2V1/IMG_7609 copy.jpg
img/help/page2922-G2V1/IMG_7610 copy2.jpg
img/help/page2922-G2V1/IMG_8503 copy-m.jpg

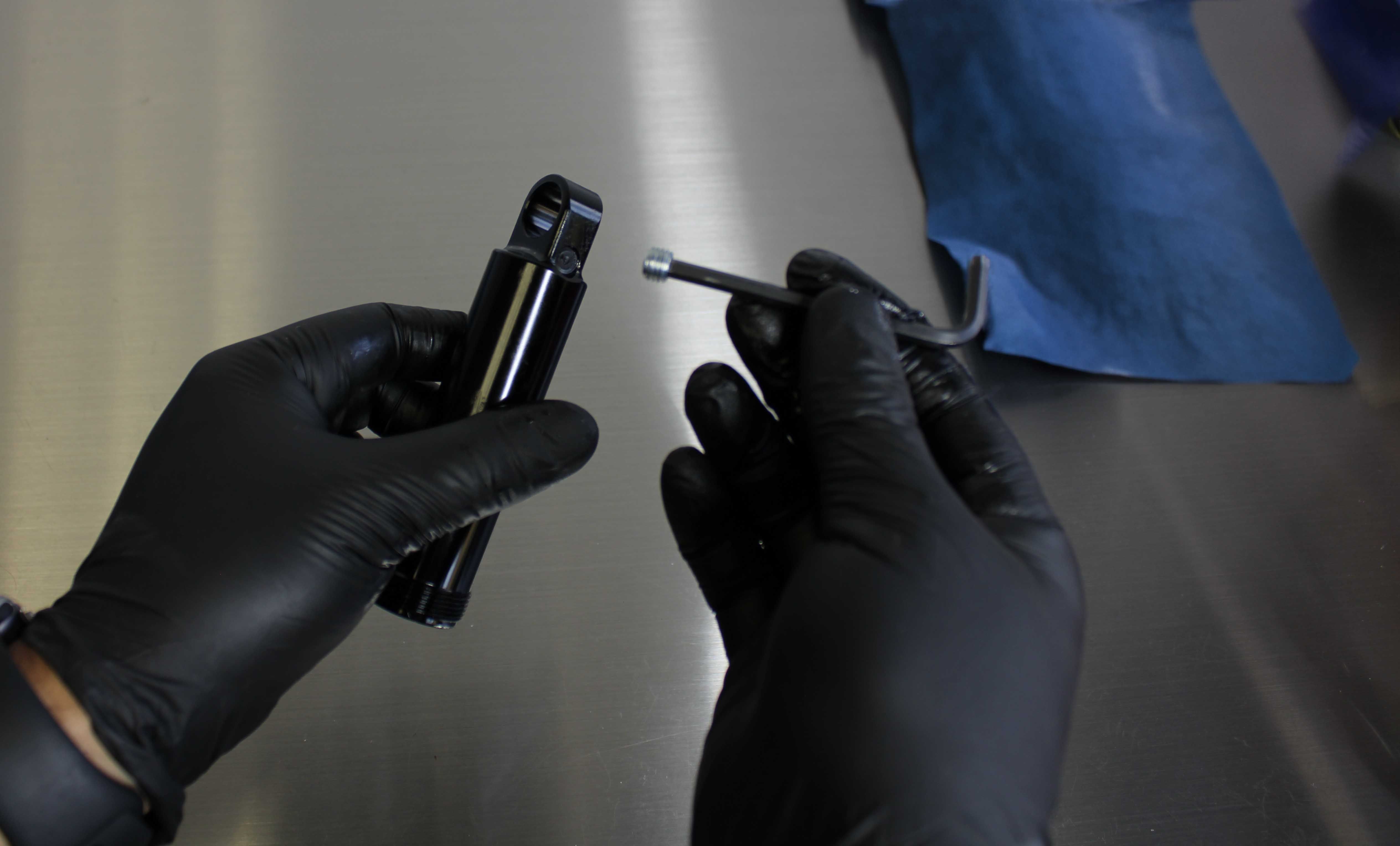

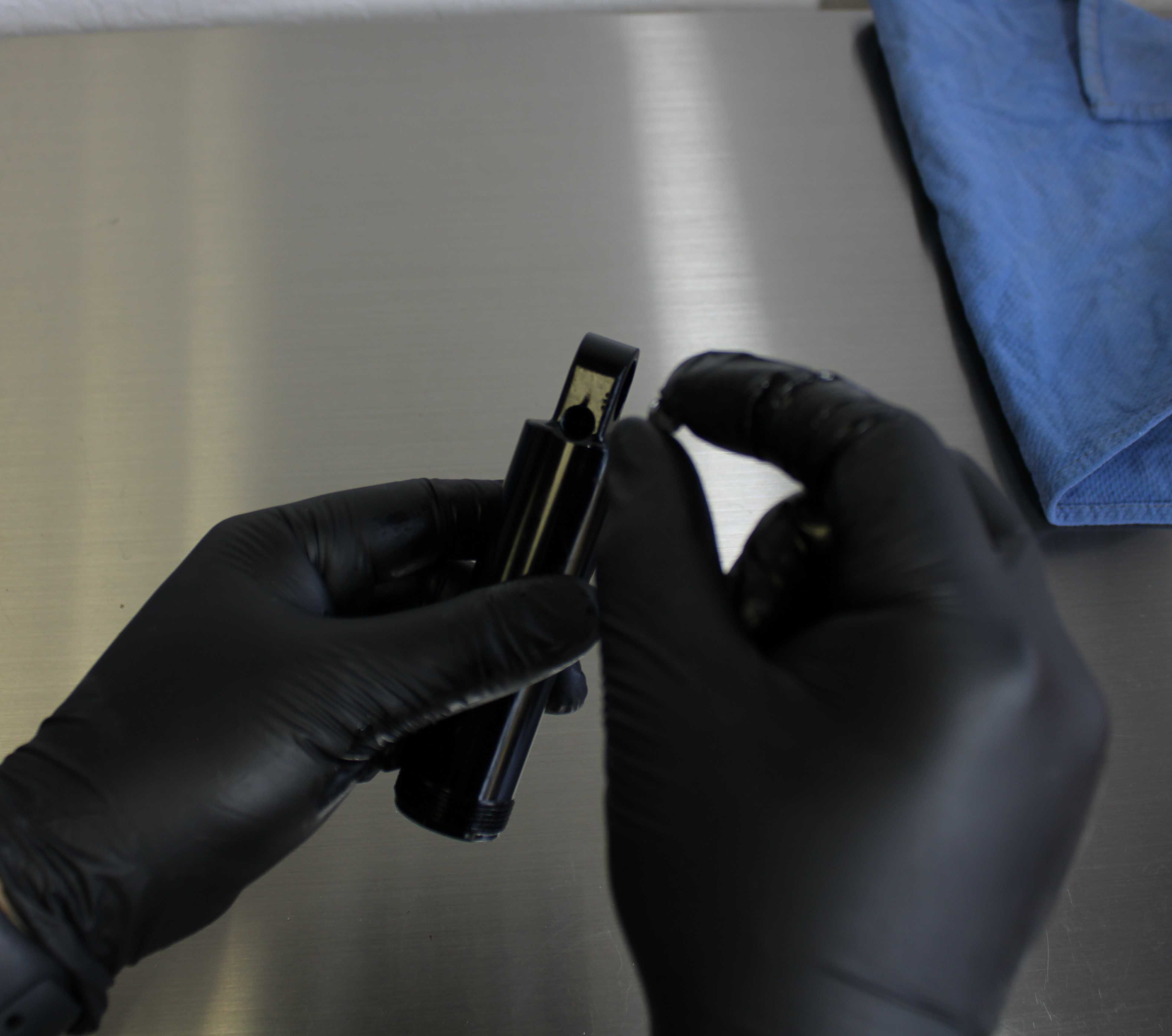

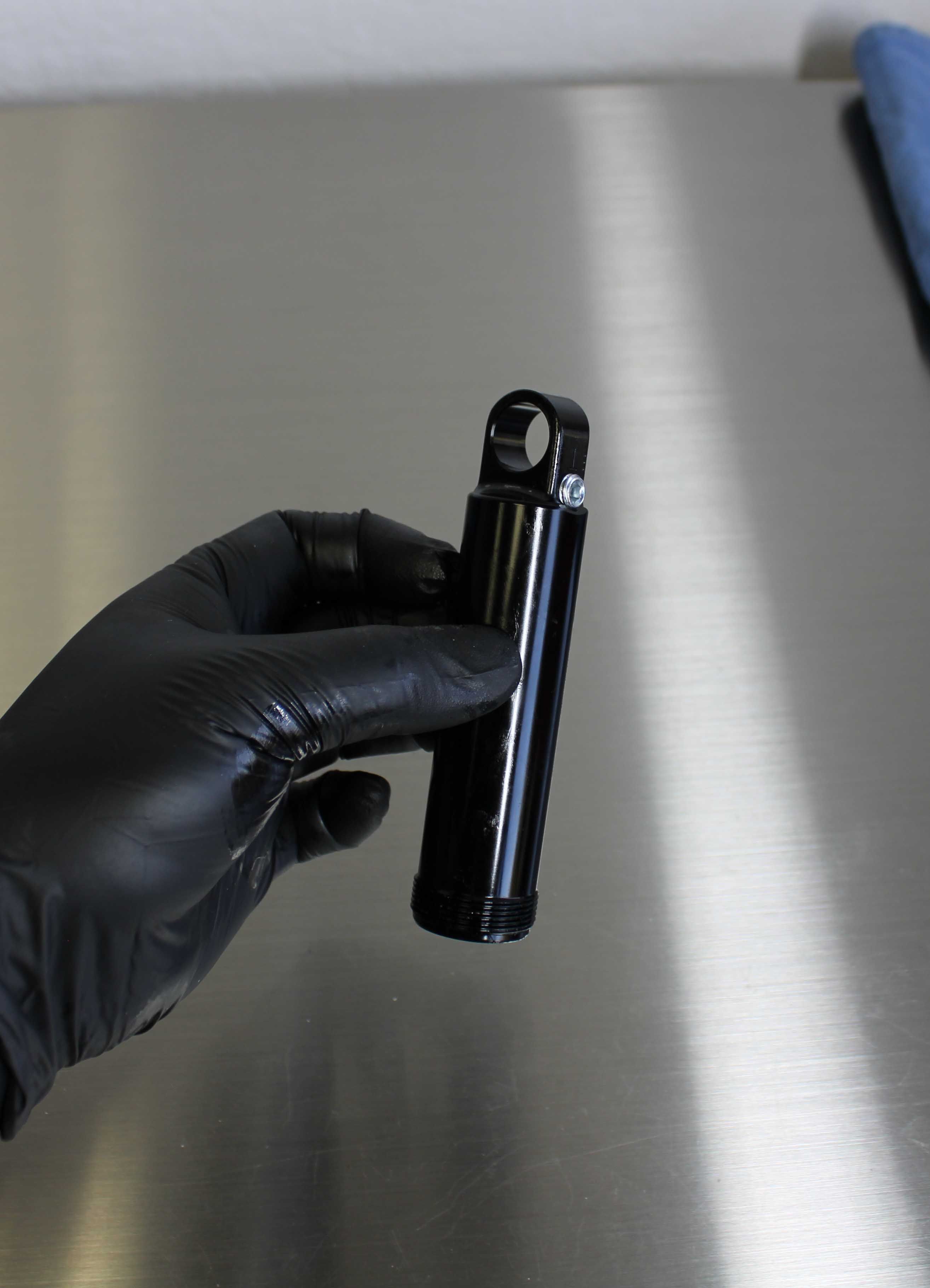

Step 12

Install a new pellet from the service kit with the flat side facing up, then lightly secure with the pellet retainer.

img/help/page2922-G2V1/IMG_8503 copy.jpg
img/help/page2922-G2V1/IMG_8505 copy.jpg
img/help/page2922-G2V1/IMG_8506 copy.jpg
img/help/page2922-G2V1/IMG_8497 copy-m.jpg

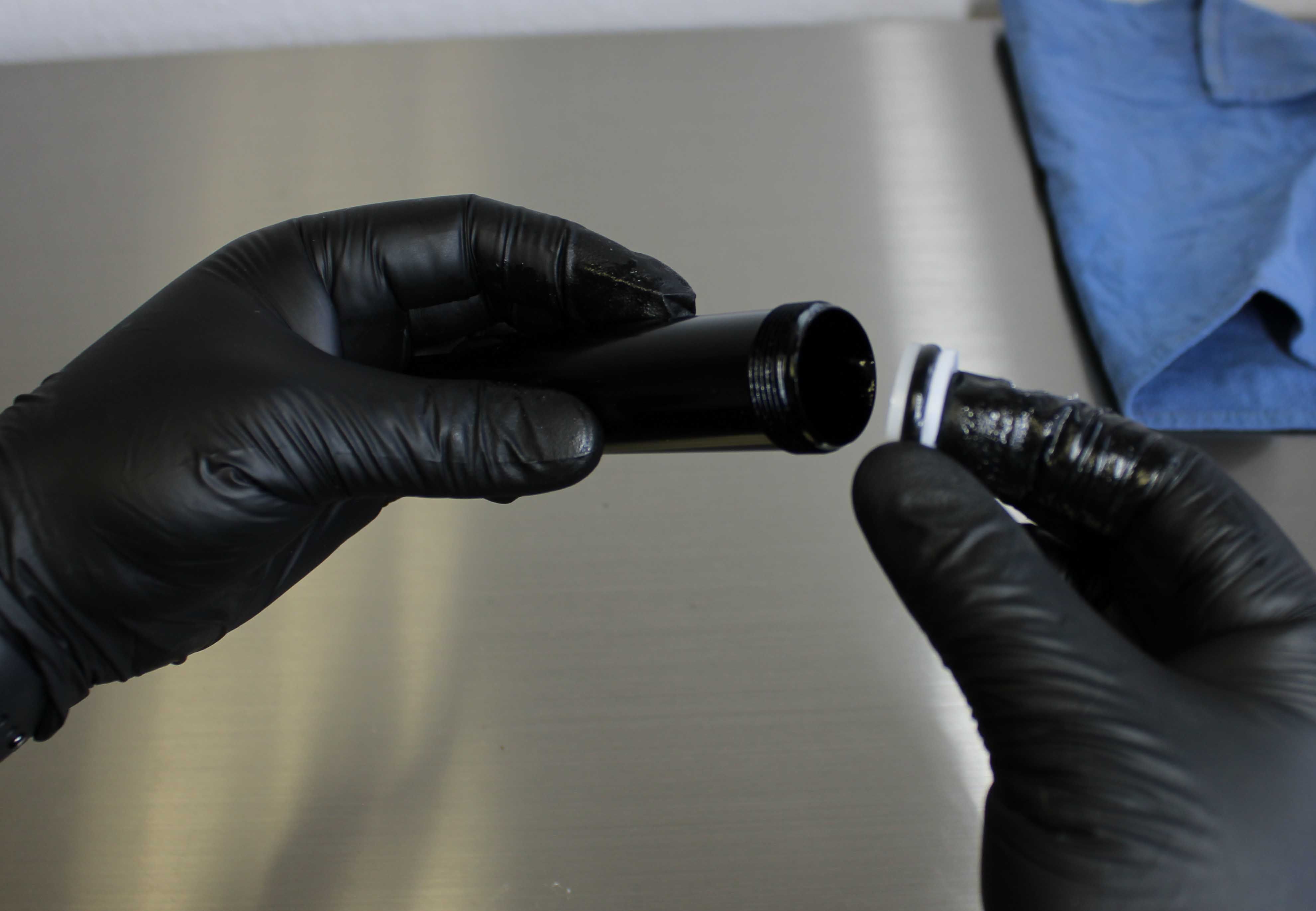

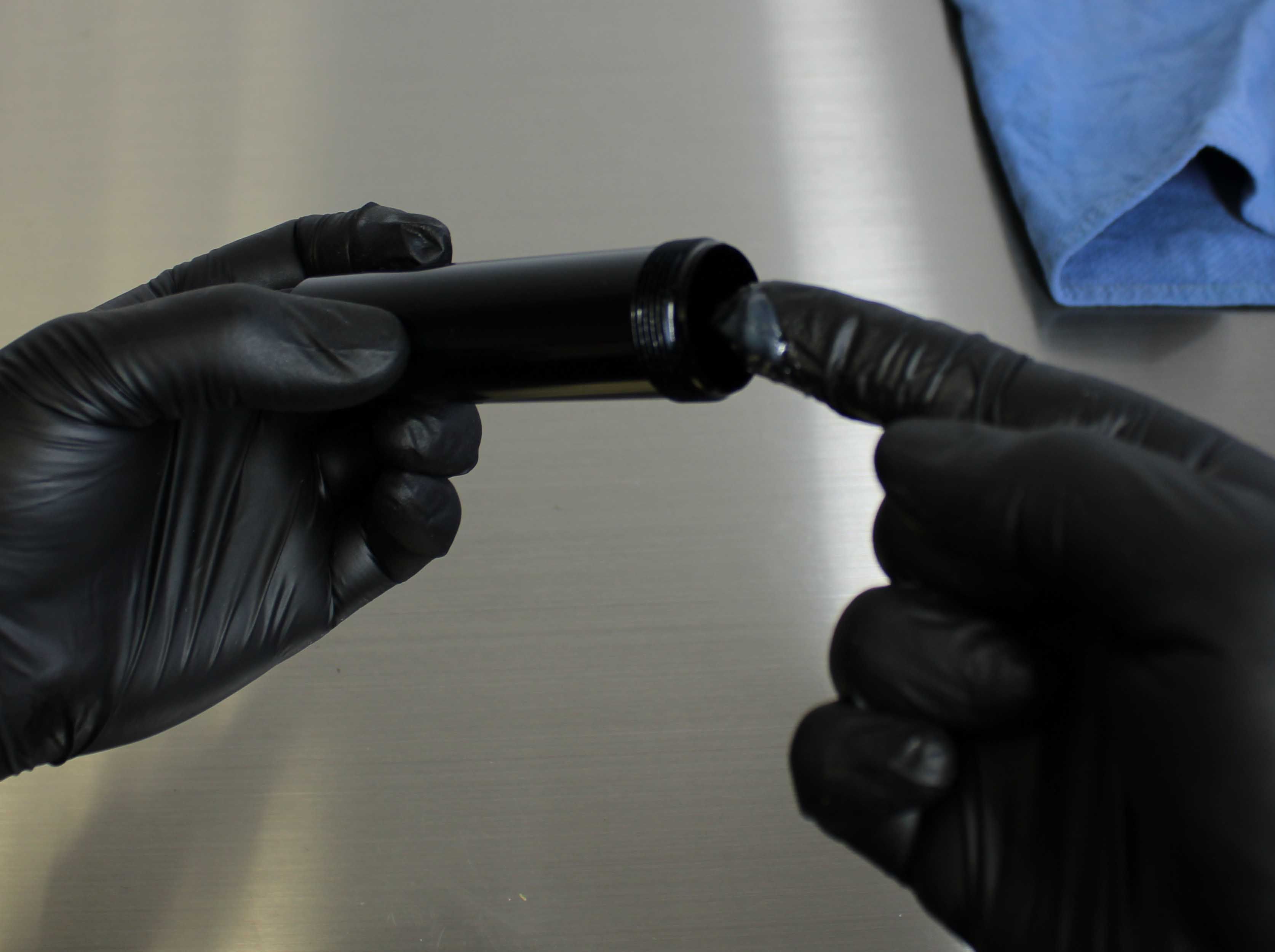

Step 13

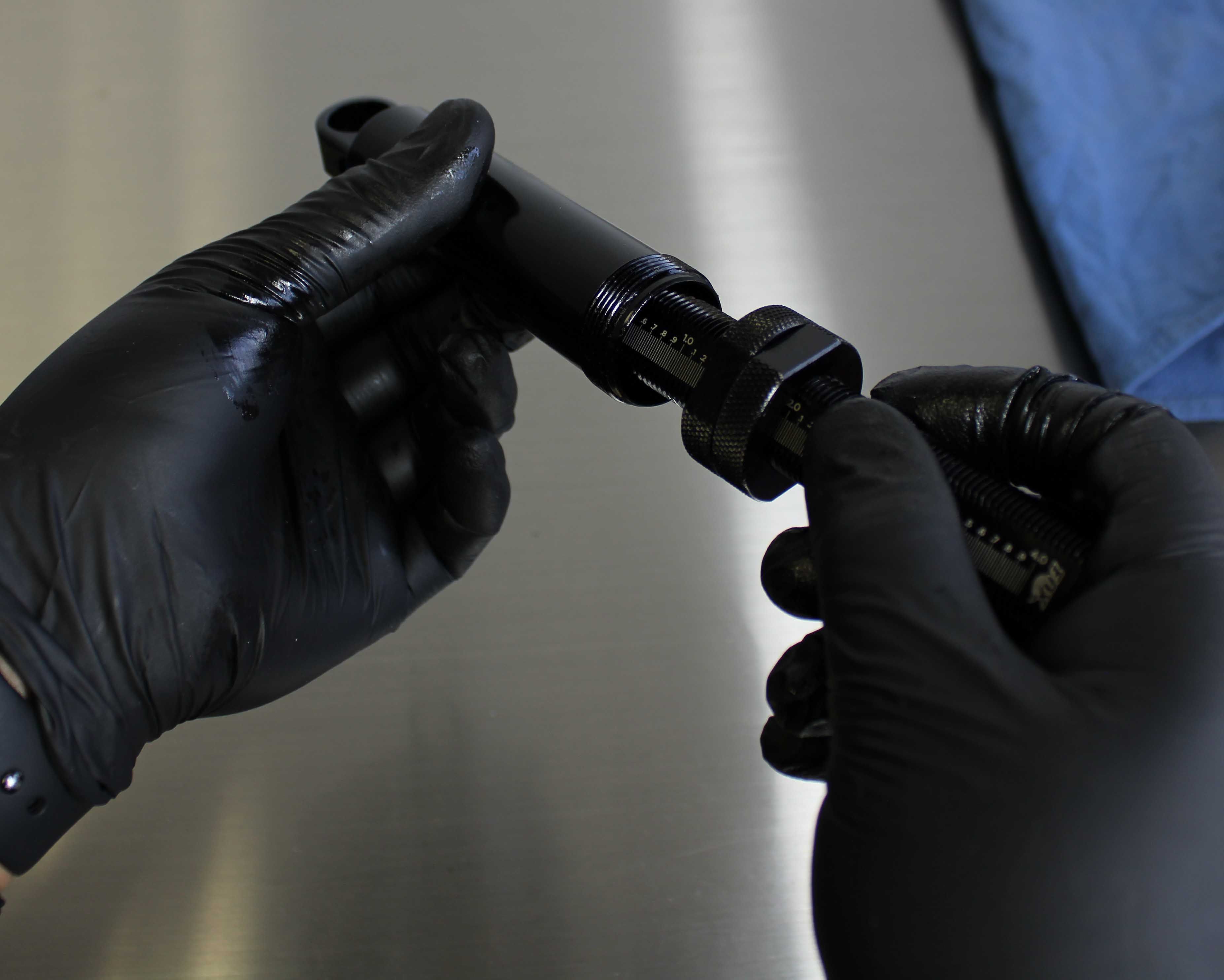

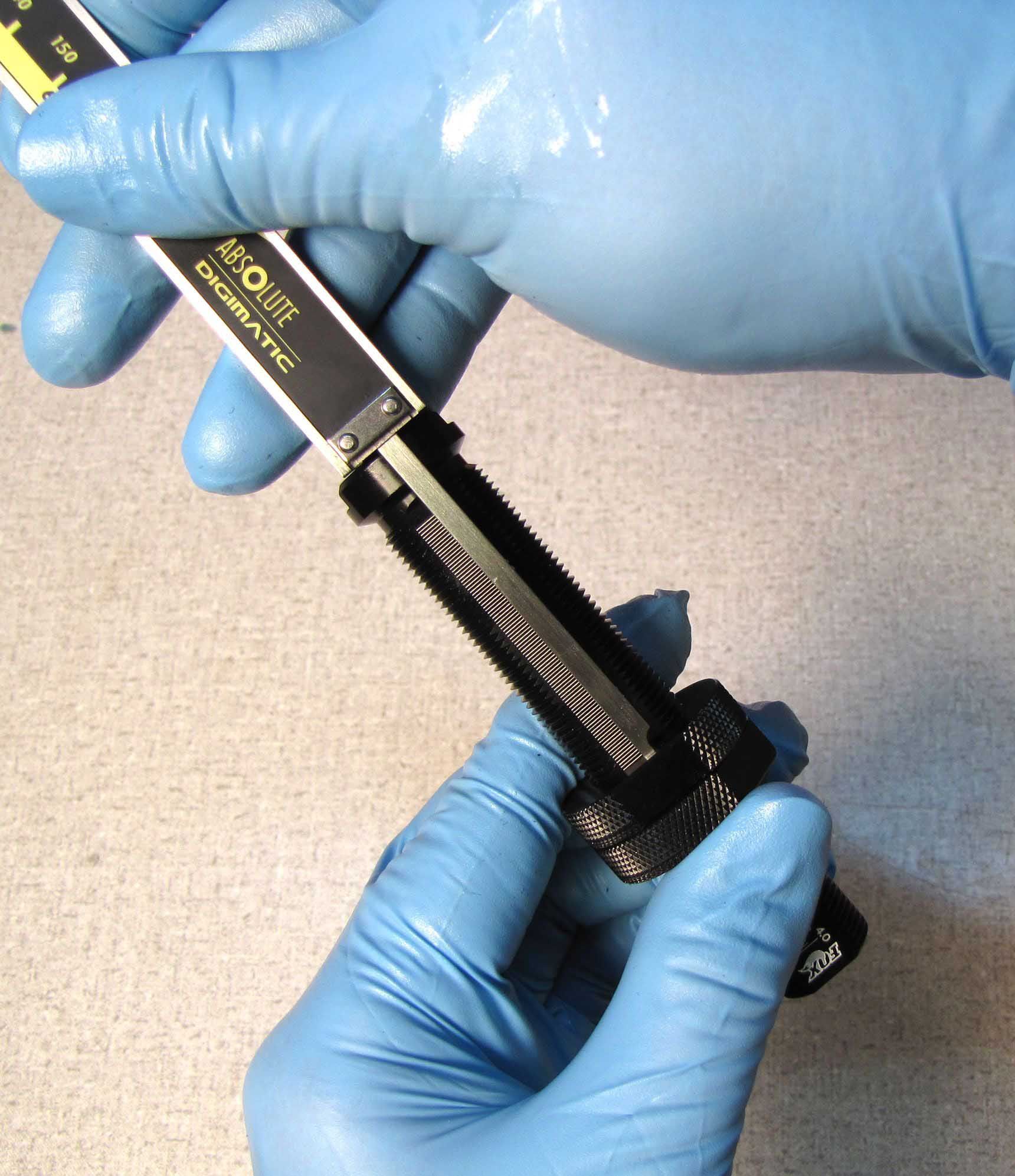

Apply a very thin film of Slick Honey to the inside of the shock body, then insert the IFP with it's slot facing up. Adjust your IFP depth setting tool (PN: 803-00-566) to the correct IFP depth for your shock. Use your IFP depth setting tool to push the IFP down to it's appropriate depth.

img/help/page2922-G2V1/IMG_8497 copy.jpg
img/help/page2922-G2V1/IMG_8499 copy.jpg
img/help/page2922-G2V1/IMG_8486 copy.jpg
img/help/page2922-G2V1/IMG_8501 copy.jpg
img/help/page2922-G2V1/IMG_8509 copy-m.jpg

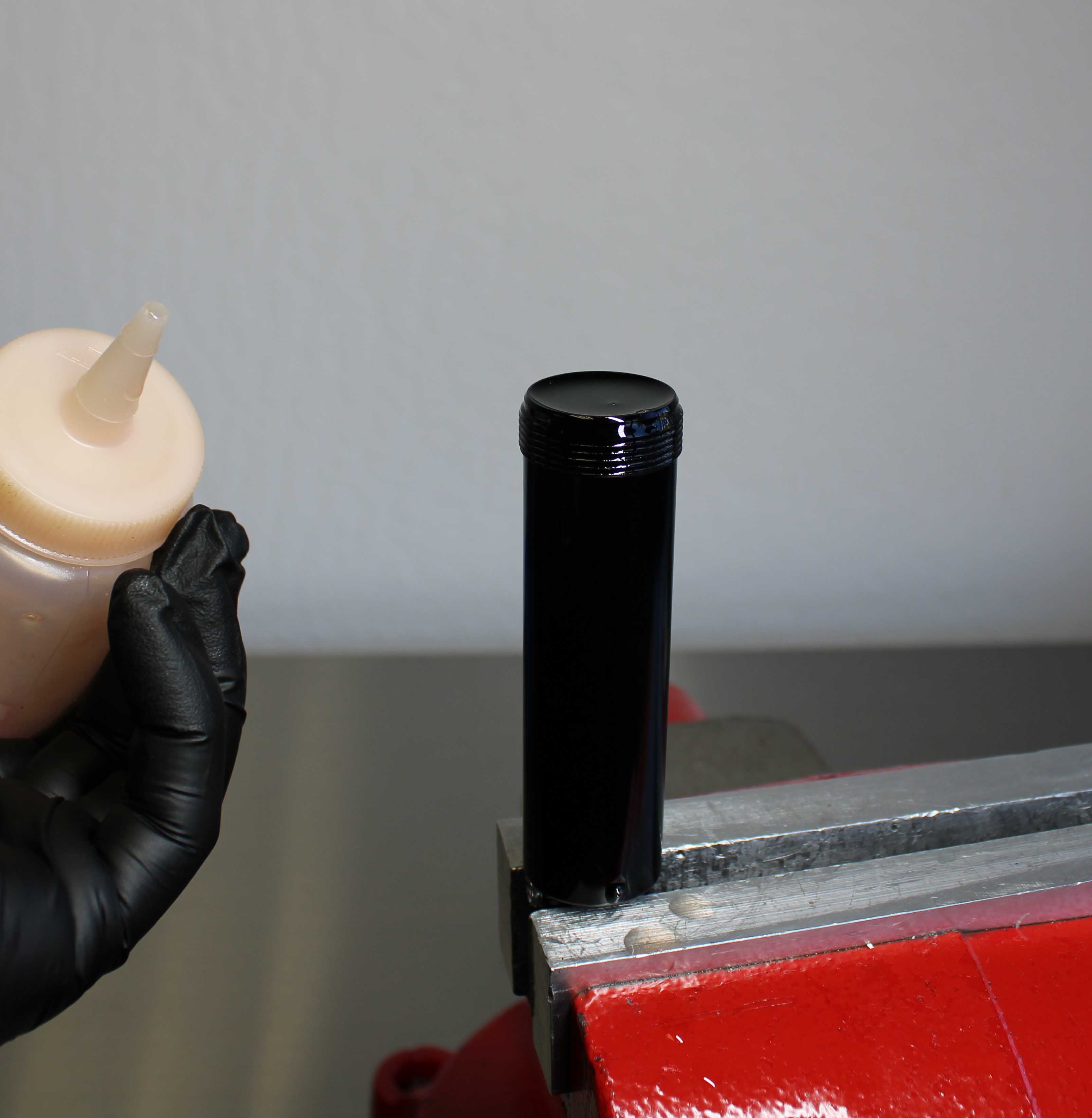

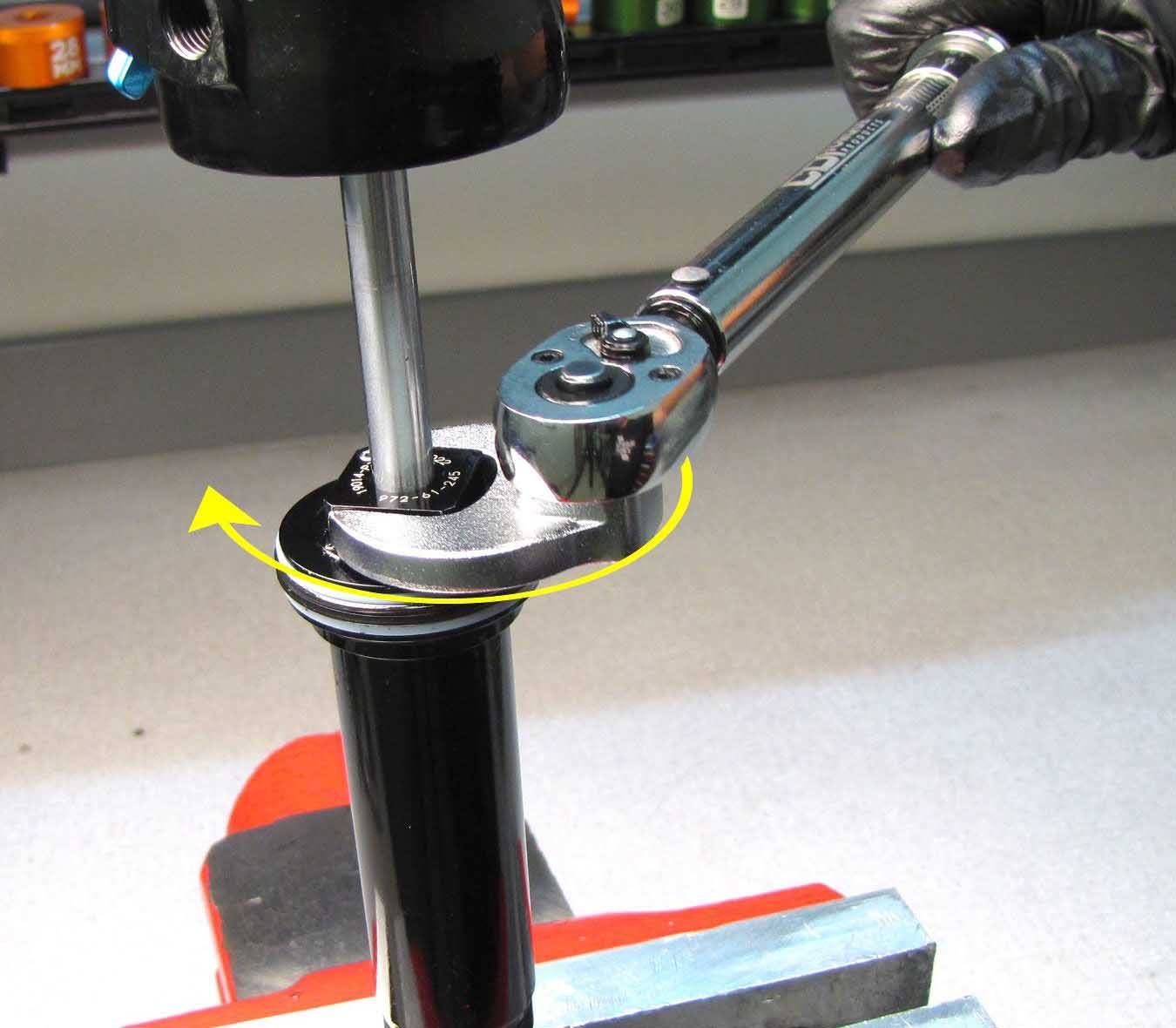

Step 14

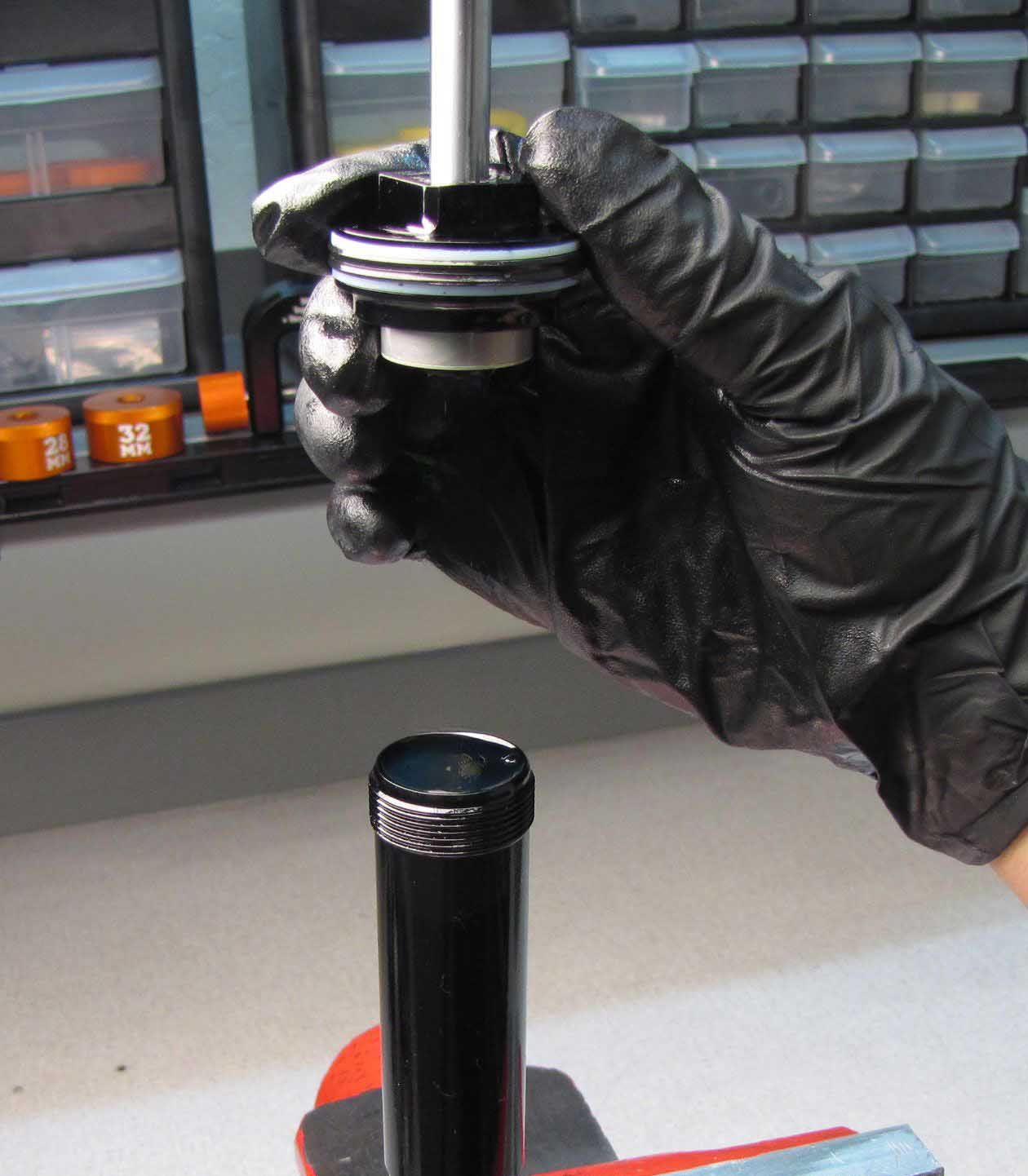

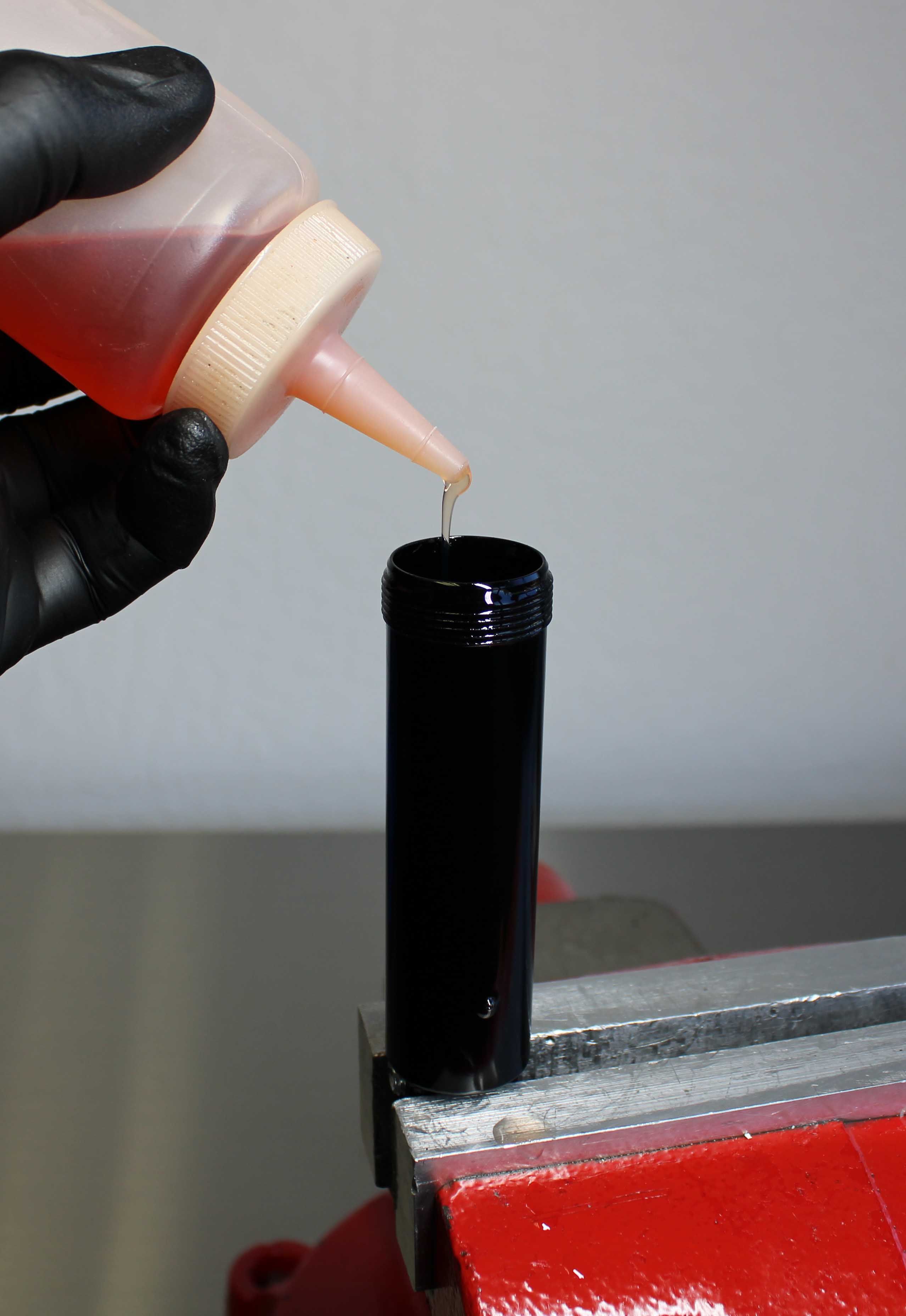

Completely fill the body with FOX 10wt. red shock oil. Slowly insert the Damper Assembly down into the oil-filled body, then thread the bearing assembly to the body while watching for clean bubble-free oil coming out of the bleed hole. Tighten to 240in-lb(27.1Nm) with your 3/4in crow's foot.

img/help/page2922-G2V1/IMG_8509 copy.jpg
img/help/page2922-G2V1/IMG_8510 copy.jpg
img/help/page2922-G2V1/IMG_1084 copy 2.jpg
img/help/page2922-G2V1/IMG_2424 copy.jpg
img/help/page2922-G2V1/IMG_2425 copy.jpg
img/help/page2922-G2V1/IMG_2355 (1)-m.jpg

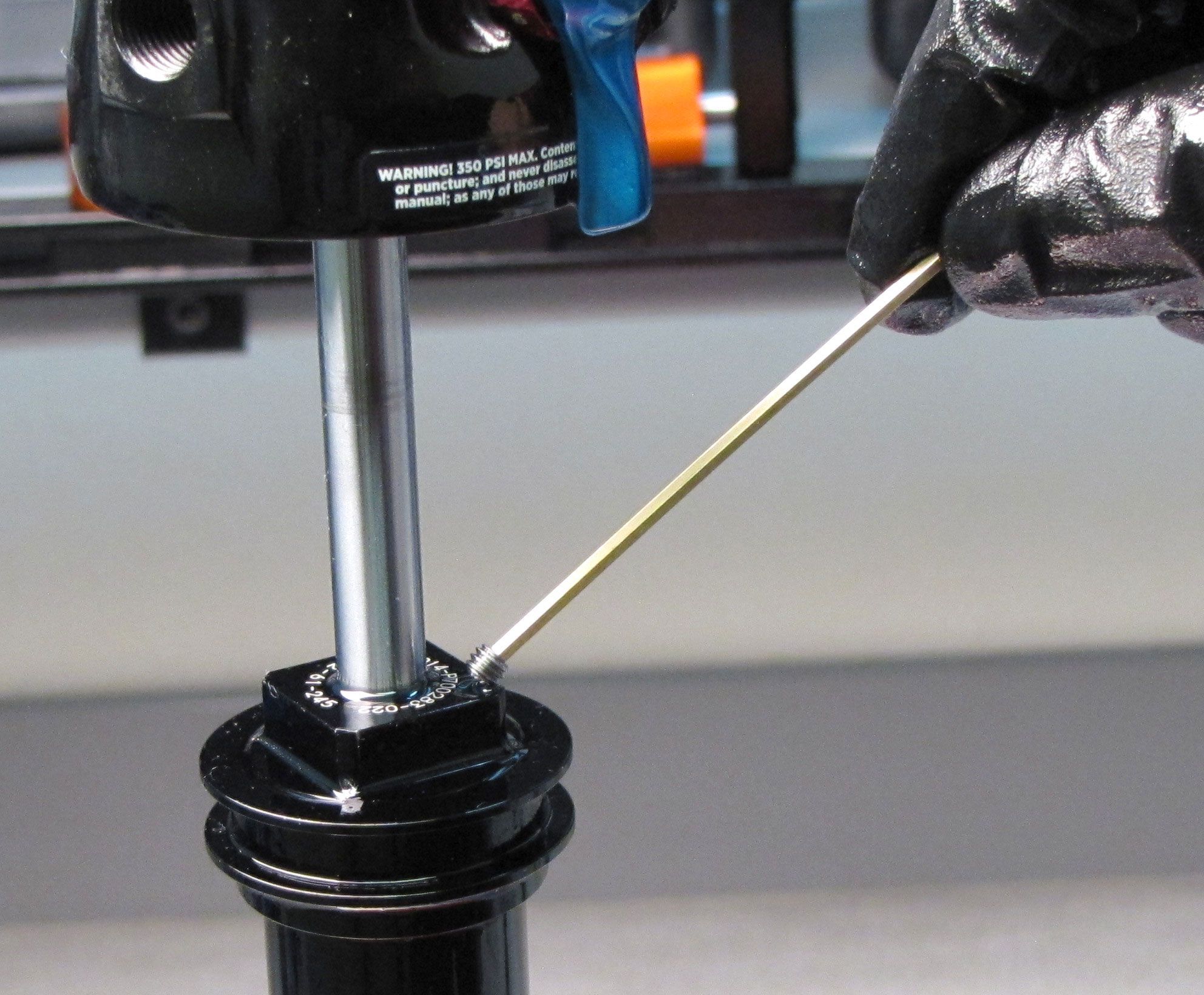

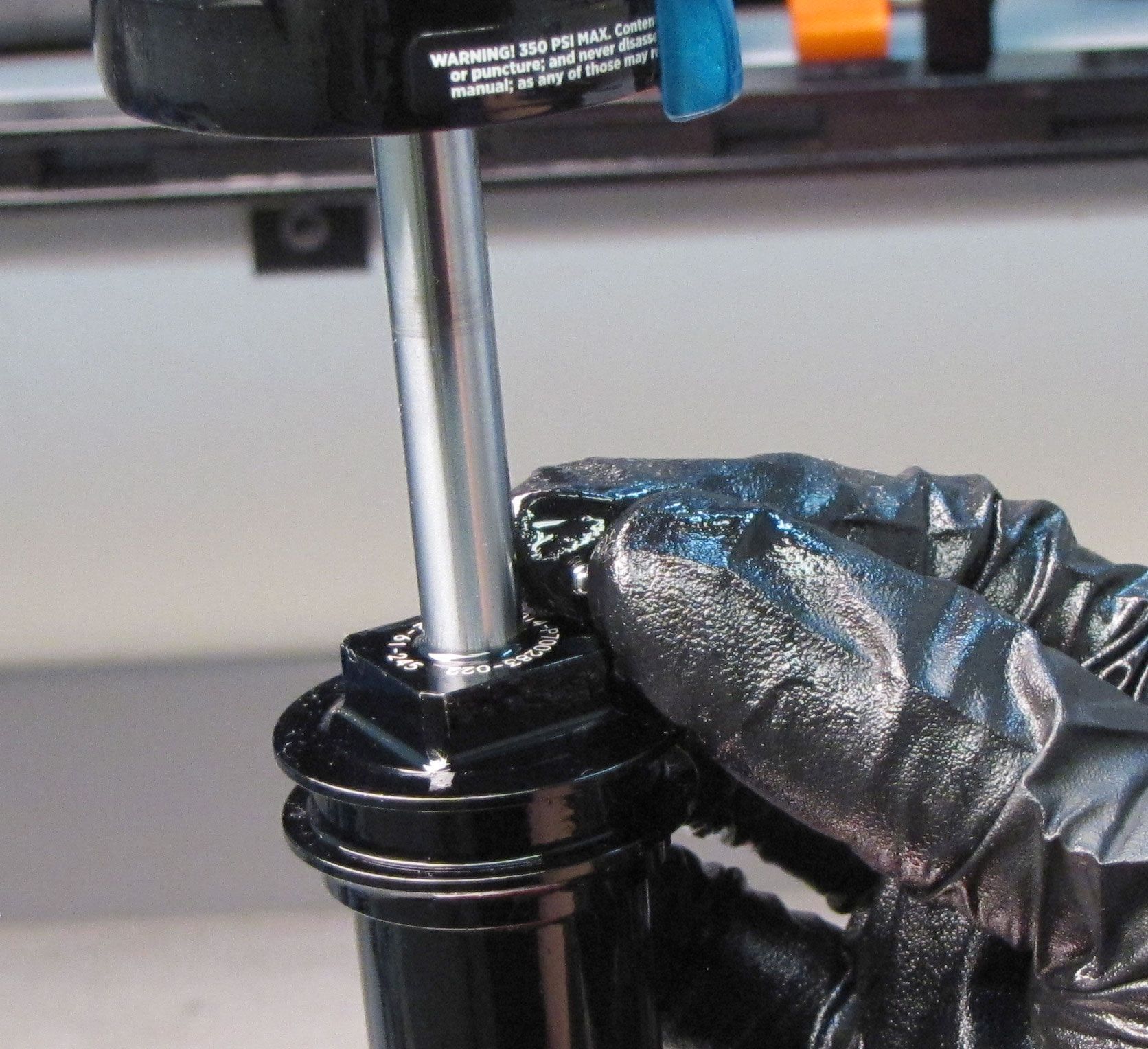

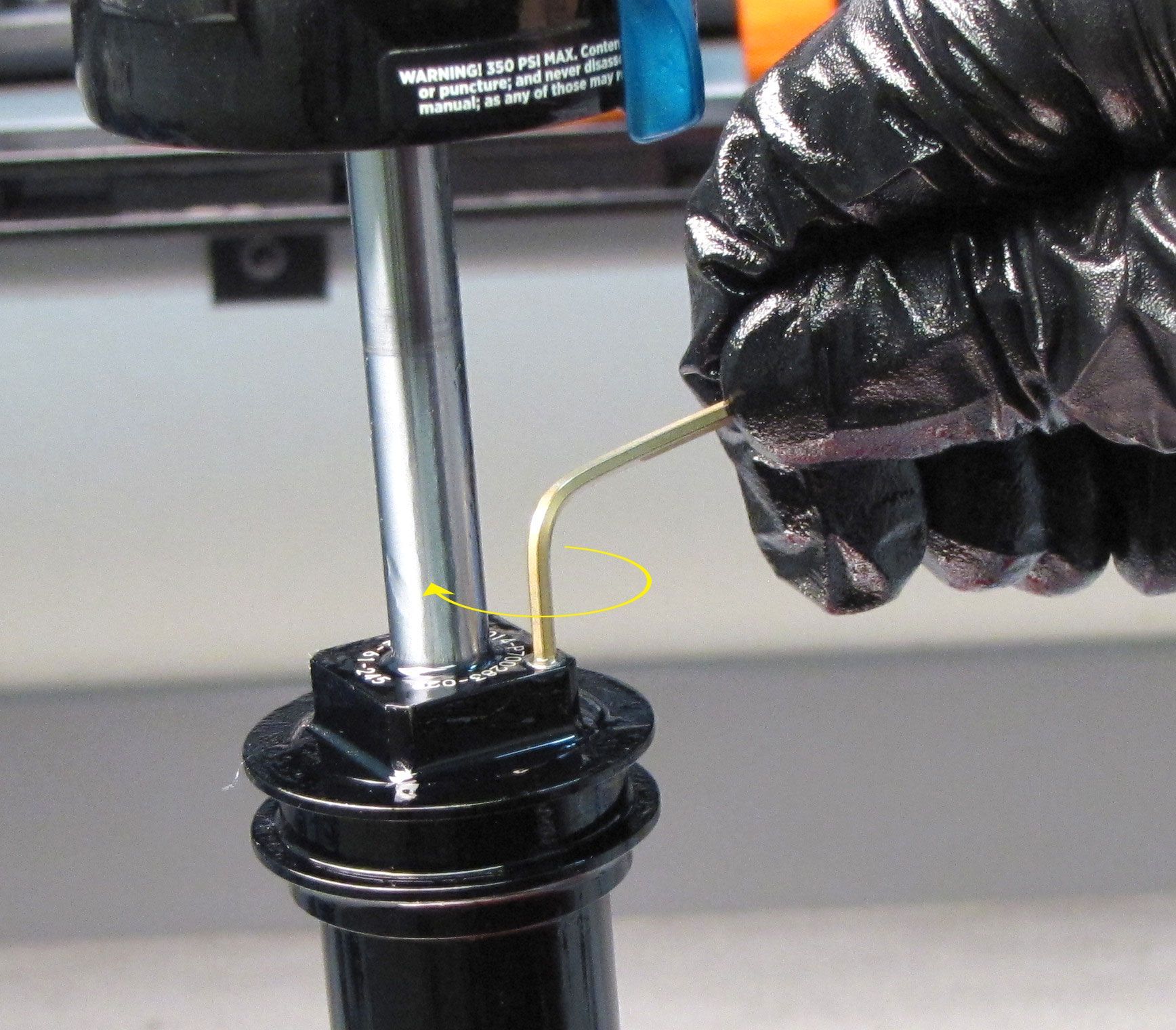

Step 15

Reinstall the ball bearing into the bleed hole of the Bearing Assembly. Reinstall the set screw tightening clockwise to 10-15 in-lb (1.1-1.7 Nm) torque with a 5/64" hex wrench.

img/help/page2922-G2V1/IMG_2355 (1).jpg
img/help/page2922-G2V1/IMG_2356 (1).jpg
img/help/page2922-G2V1/IMG_2357 (1).jpg
img/help/page2922-G2V1/IMG_4872 copy-m.jpg

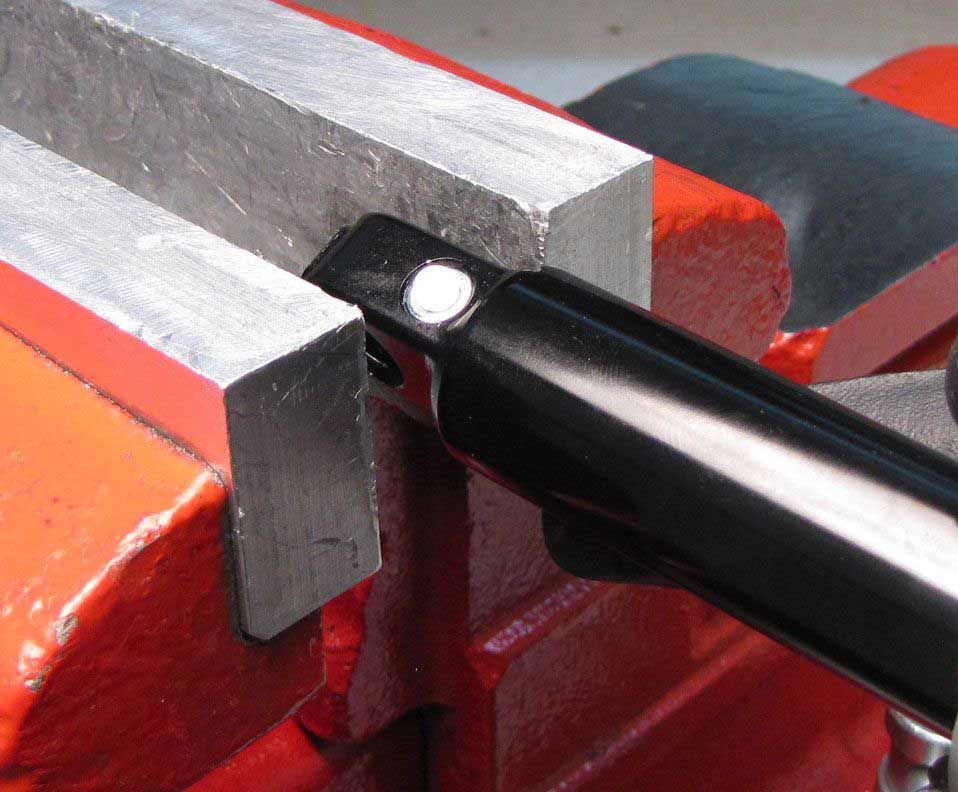

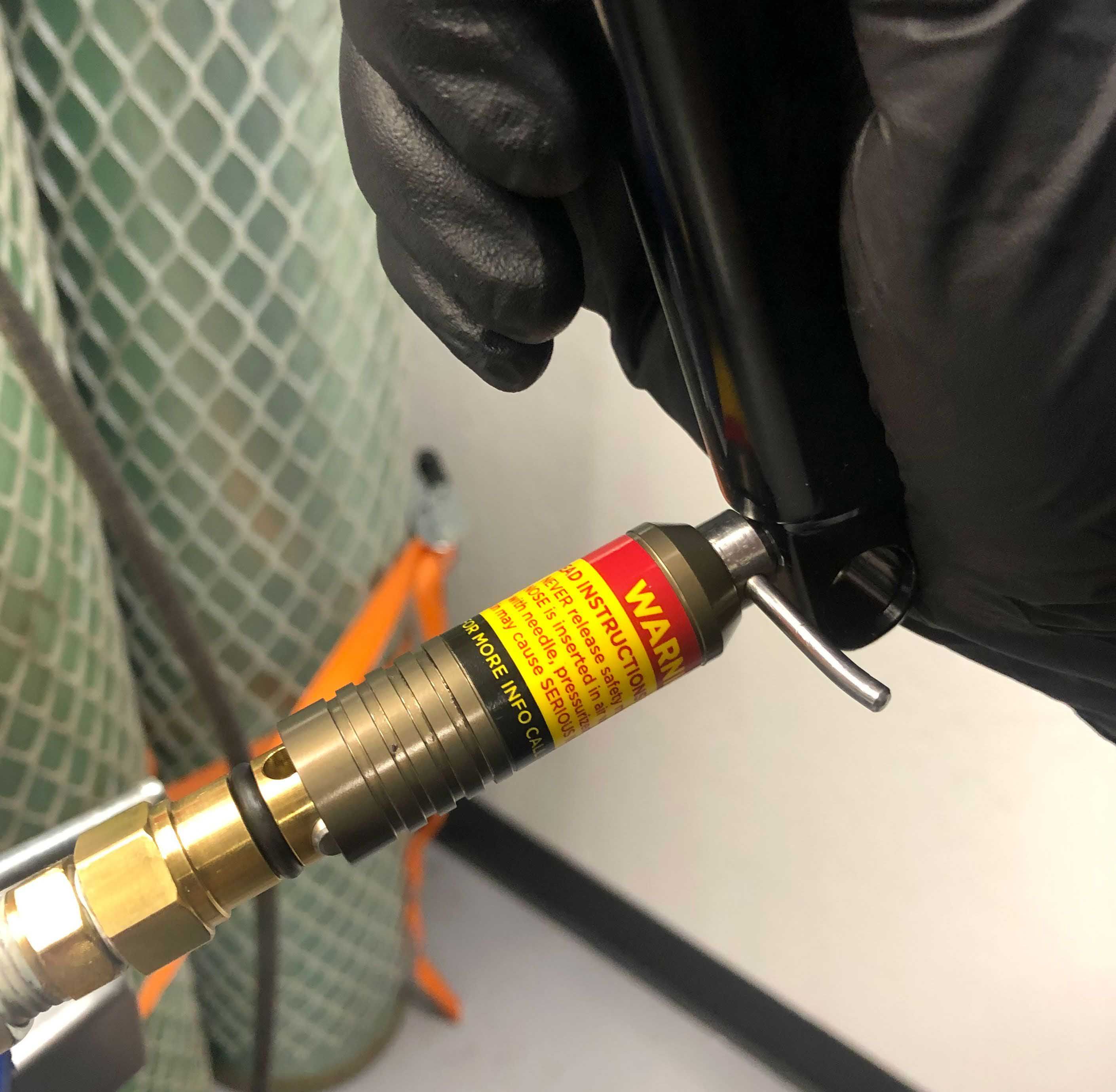

Step 16

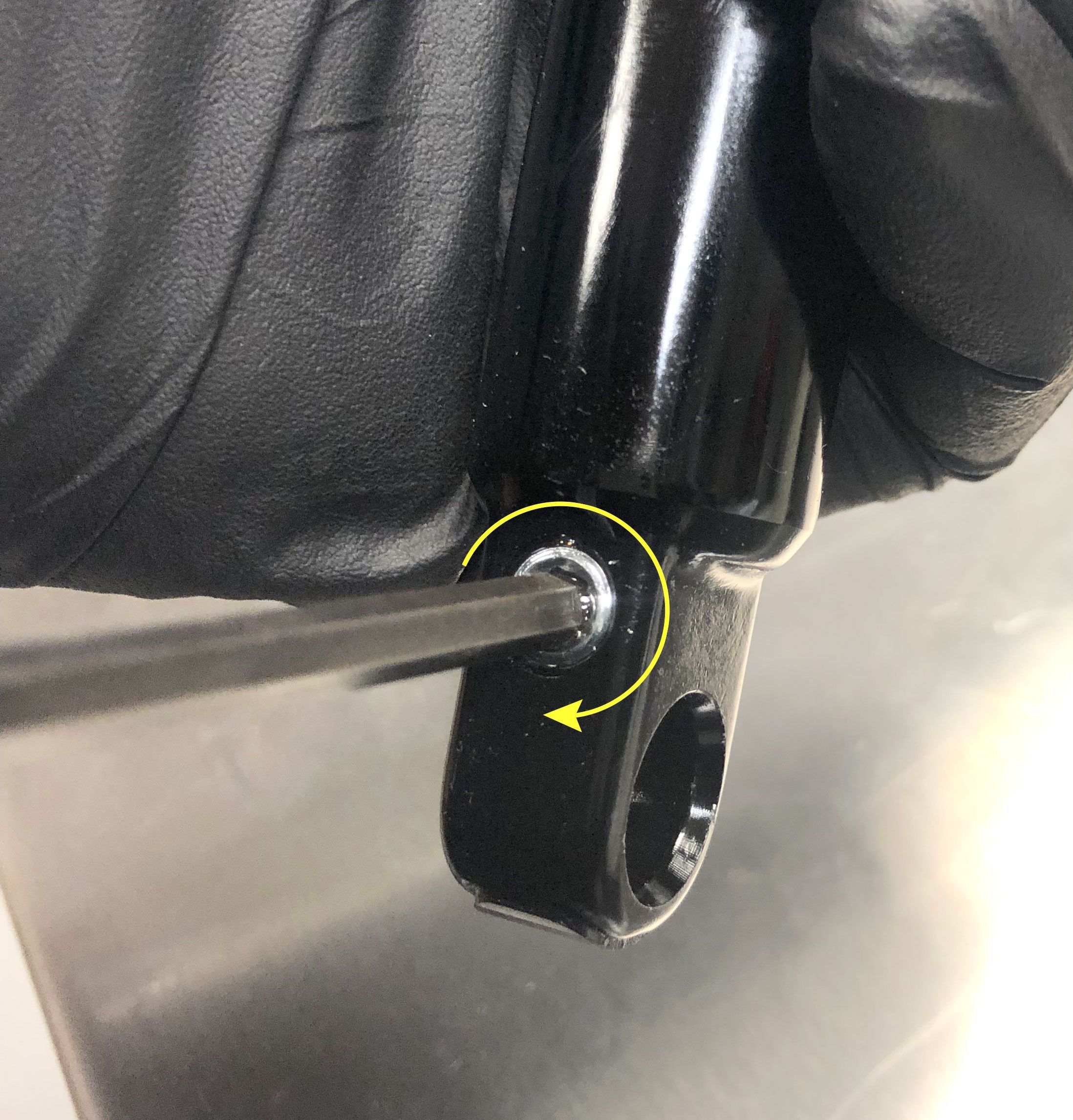

Insert the Nitrogen Fill Pellet Retainer tool (PN: 398-00-374) into the pellet retainer near the end of the body. Use the Pellet Retainer tool to unthread the pellet retainer 1/4 turn. Depress the safety button on the nitrogen fill needle (PN: 802-01-000-KIT), then slide the shock onto the needle by pressing toward the nitrogen fill needle. Charge the IFP chamber to 350 psi. Use the Pellet Retainer tool to gently tighten the pellet retainer by 1/4 turn. Quickly pull the shock straight away from the nitrogen fill needle. A loud pop will be heard. Use a 5/32" hex wrench to tighten the pellet retainer to 14 in-lb (1.6 Nm). Press the Delrin ball into the pellet retainer with your soft-jawed vice.

img/help/page2922-G2V1/IMG_4872 copy.jpg
img/help/page2922-G2V1/IMG_4882.jpg
img/help/page2922-G2V1/IMG_3259 copy.jpg
img/help/page2922-G2V1/IMG_2381 copy-m.jpg

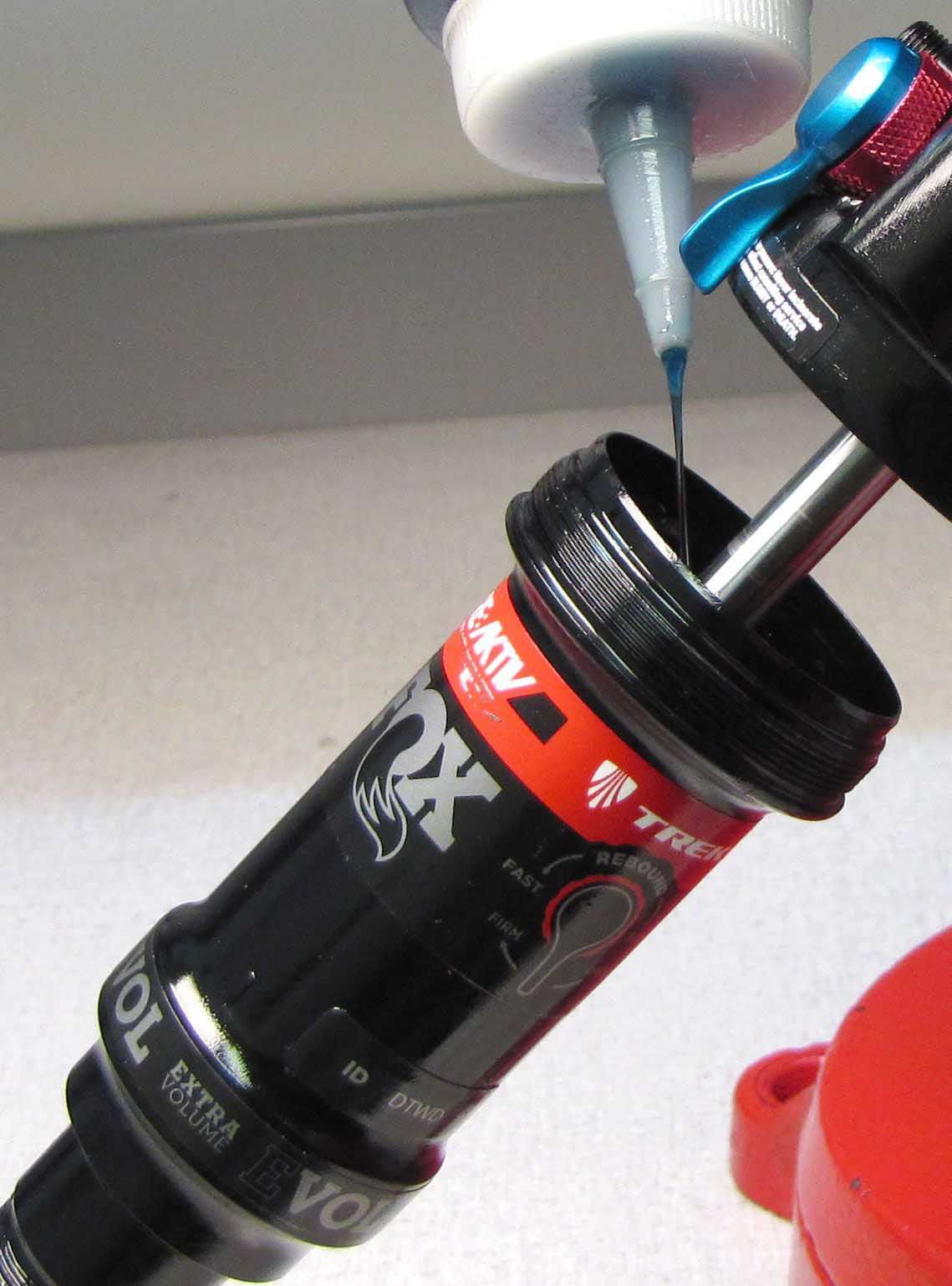

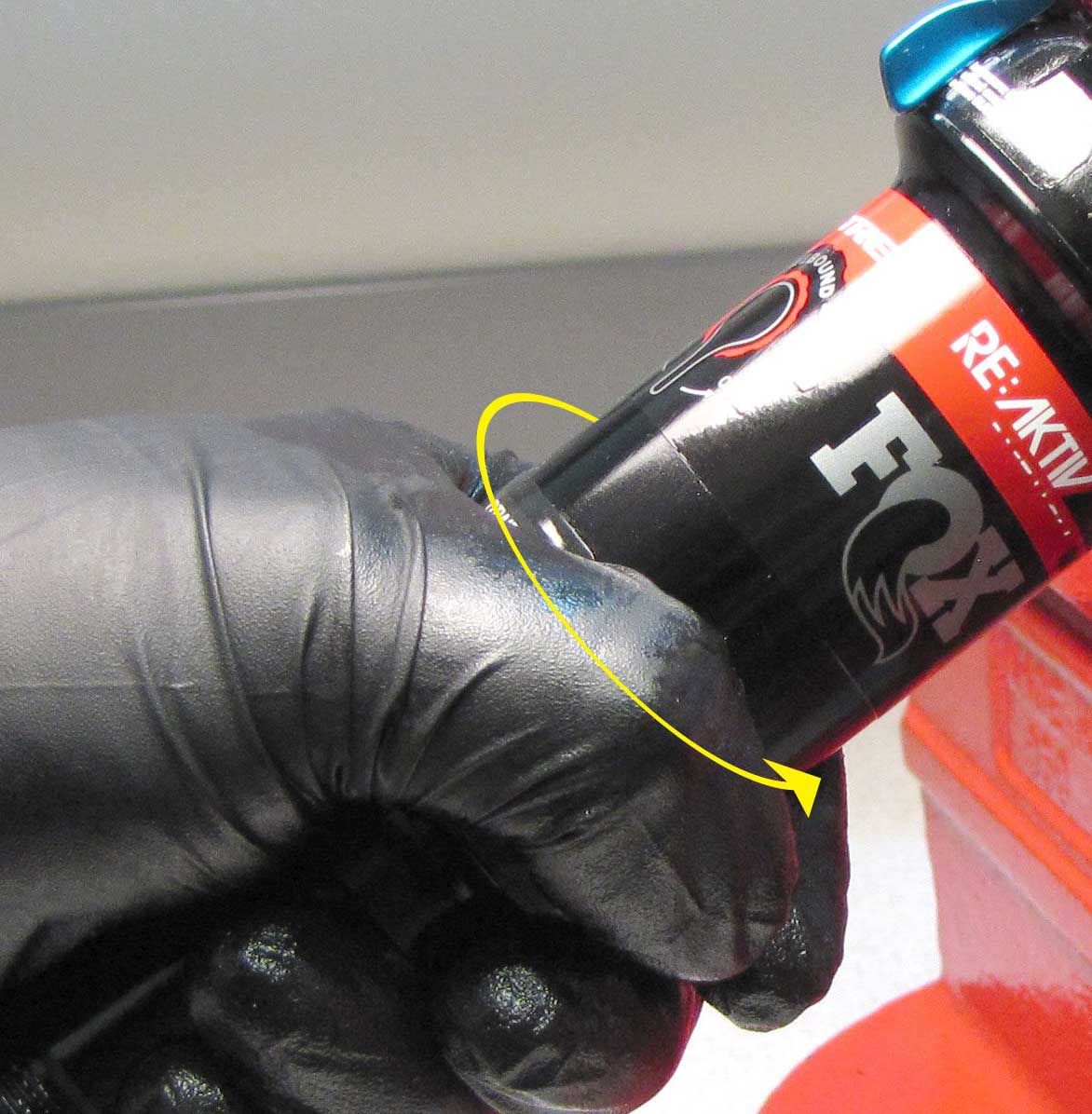

Step 17

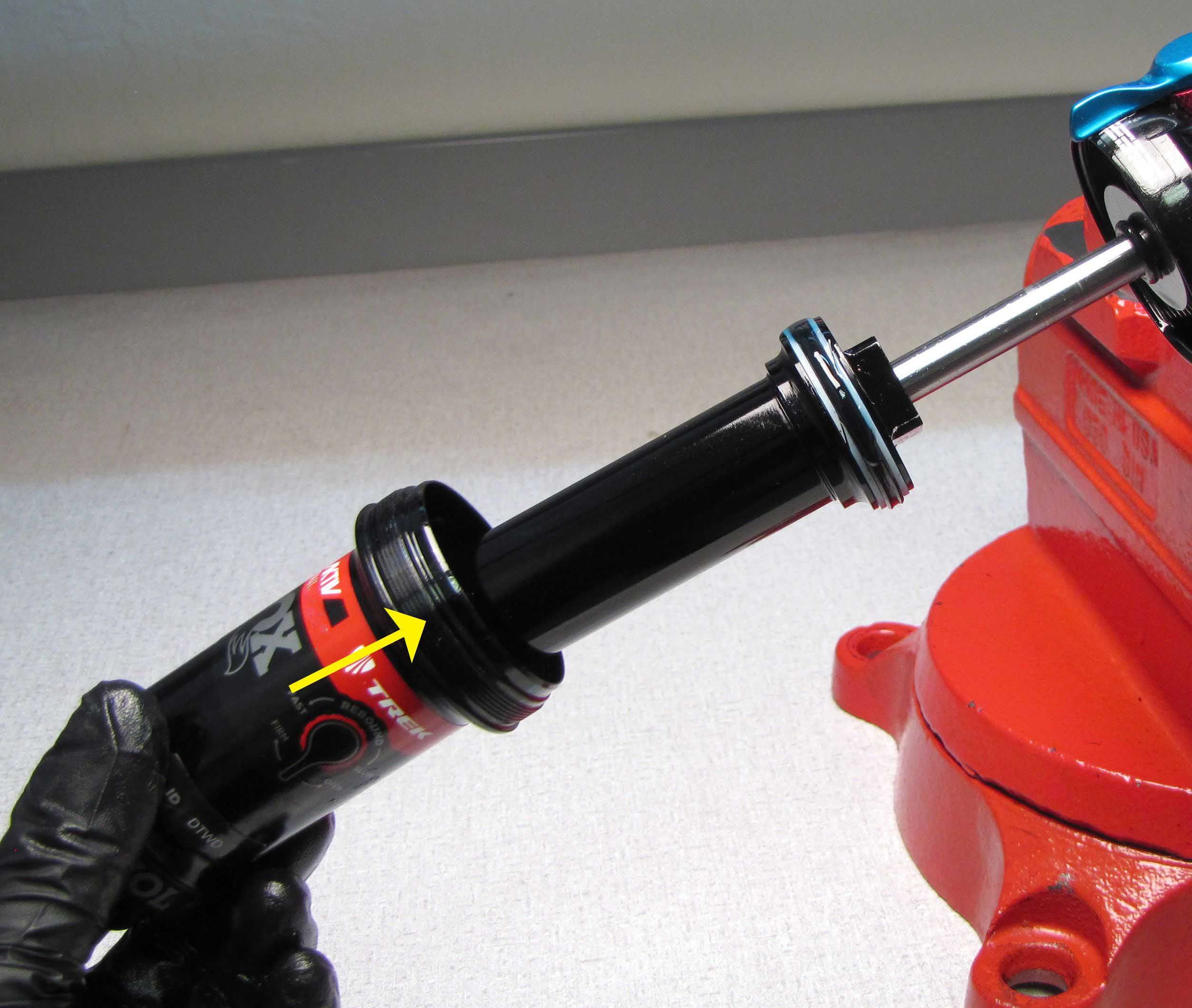

Apply a thin film of Float Fluid to the main air seals on the bearing assembly and the air sleeve. Add 2cc of Float Fluid to the main air chamber then slide the air sleeve onto the shock damper, then thread it to the eyelet clockwise until hand tight. Add ait to your desired pressure then reinstall the blac air cap and install a new sag-indicator from the kit onto the body. Clean the exterior of the shock then dYno test all functions.

img/help/page2922-G2V1/IMG_2381 copy.jpg
img/help/page2922-G2V1/IMG_2387 copy.jpg
img/help/page2922-G2V1/IMG_2389 copy.jpg
img/help/page2922-G2V1/IMG_1083 copy2.jpg
