2014-2015 40 FLOAT- Changing the Air Spring Compression Ratio
WARNING: Always wear safety glasses and protective gloves during service to prevent potential injury. Failure to wear protective equipment during service may lead to SERIOUS INJURY OR DEATH.
The 2014/2015 40 FLOAT uses a simple air chamber volume adjustment system as part of the air topcap assembly. By switching the position of internal spacers to change the location of the compression bulkhead on the shaft, nine different compression ratios are available. The stock position for the compression bulkhead is in the middle (3.04 compression ratio).
- Increasing your forks compression ratio will make your air spring curve more progressive.
- Decreasing your forks compression ratio will make your air spring curve more linear.
Use the following instructions to change your 2014/2015 40 FLOAT air spring compression ratio.
Keep the fork upright during this entire procedure to prevent the loss of any fluid from the air chamber.
Step 1
Remove the blue air cap and cover the air valve with a rag as you release the air pressure.
Step 2
Loosen the 5mm hex bolt on the rider's left side of the upper crown.
WARNING: Please verify that all air has been released from the air chamber by pushing down on the Schrader valve core. Failure to release all air pressure before further disassembly may cause parts to eject causing SEVERE INJURY OR DEATH.
Step 3

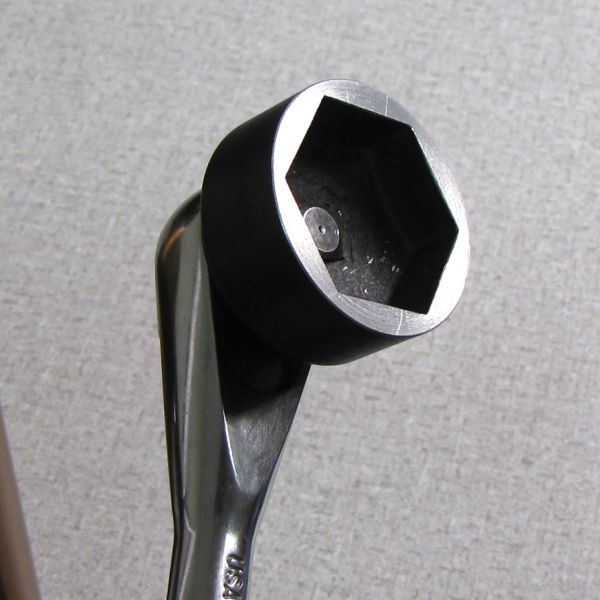

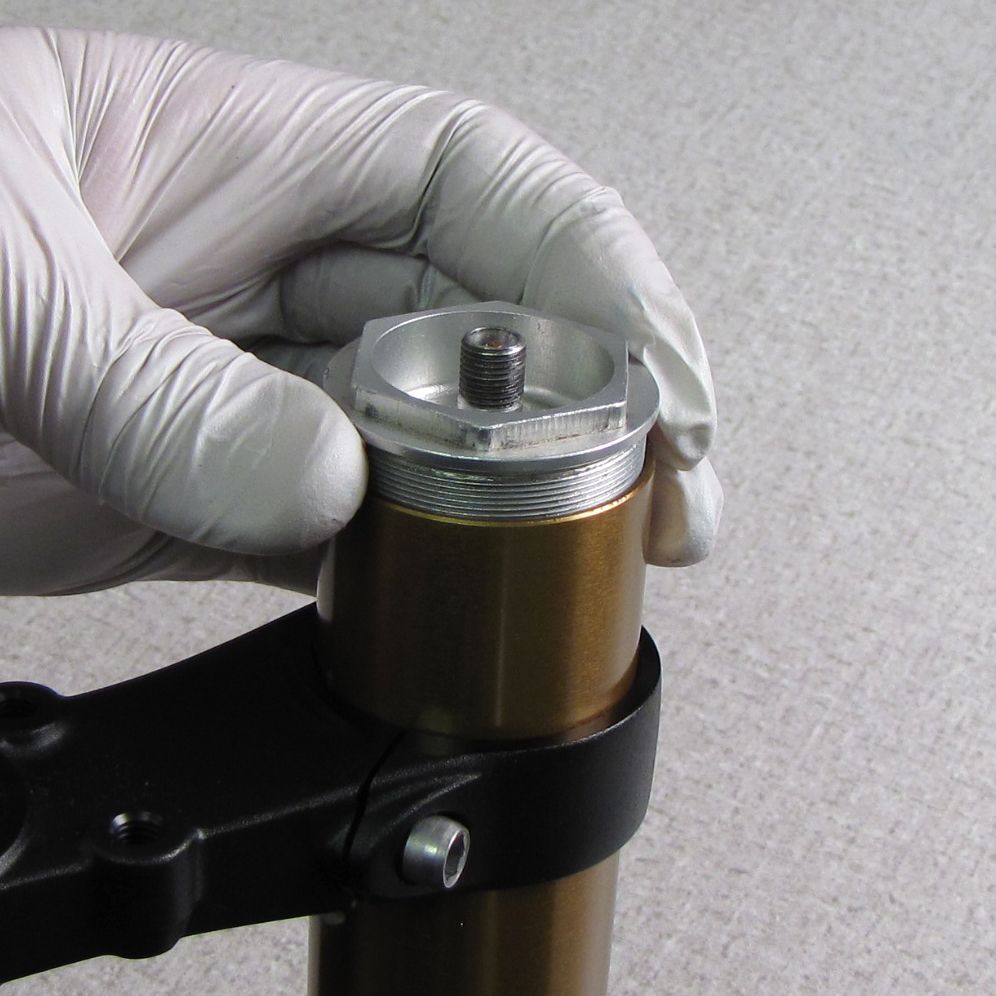

With a chamfer-less 6-point 32mm socket, unthread the topcap assembly completely. Pull straight up to remove the entire topcap assembly from the left side stanchion tube. Some upward force might be needed to overcome the friction of the o-ring on removal.
Step 4

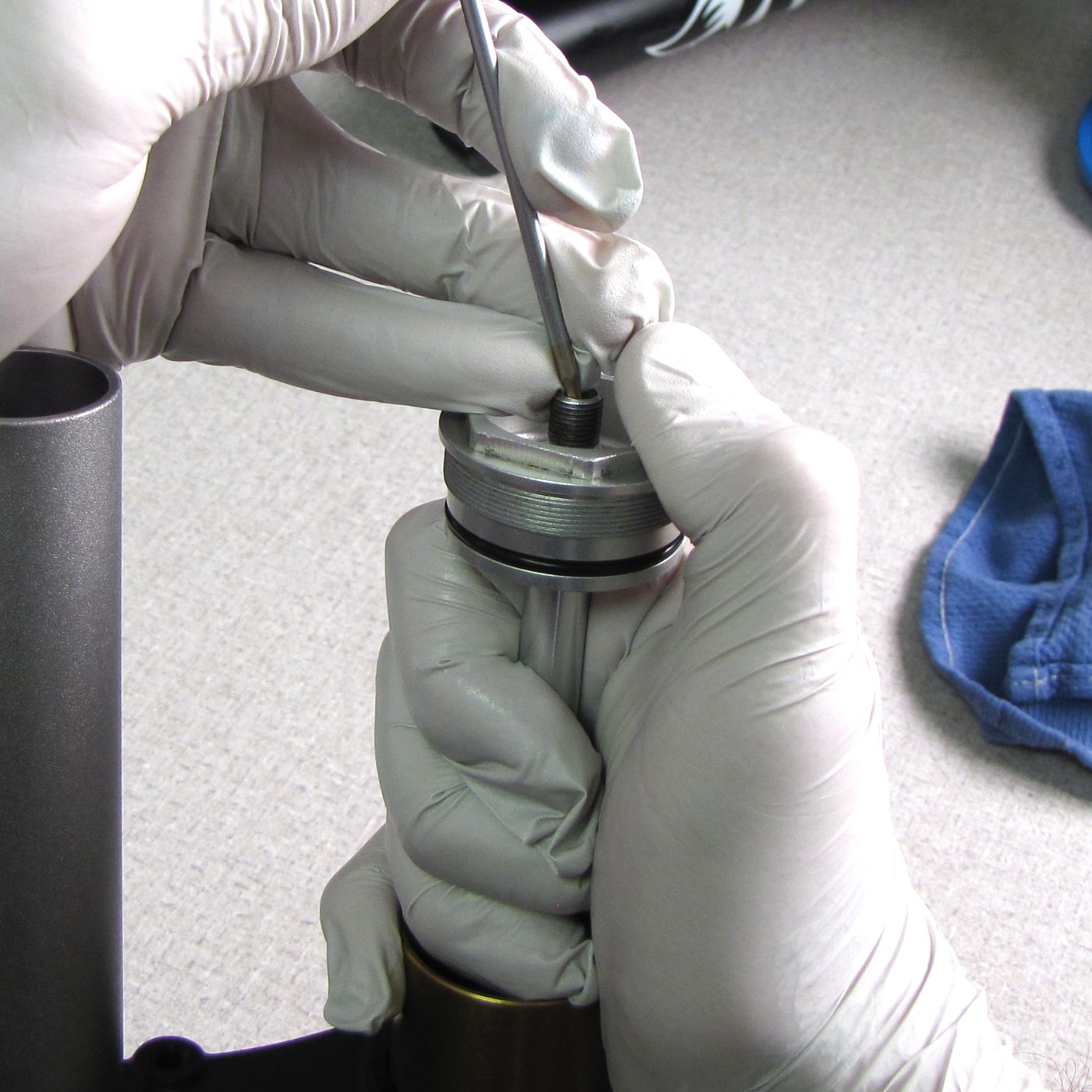

While holding the topcap with the 32mm socket, use a 6mm hex wrench to unthread the black anodized bolt from the end of the shaft. If the topcap unthreads from the shaft rather than the black anodized bolt, clamp the shaft in your 10mm shaft clamps and re-torque the topcap to 45 in-lb (5.1 Nm) after cleaning the threads and applying a drop of red Loctite 262.
Step 5

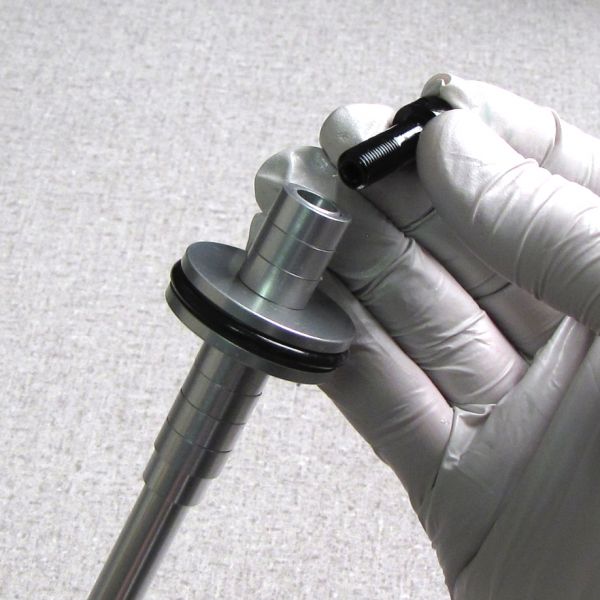

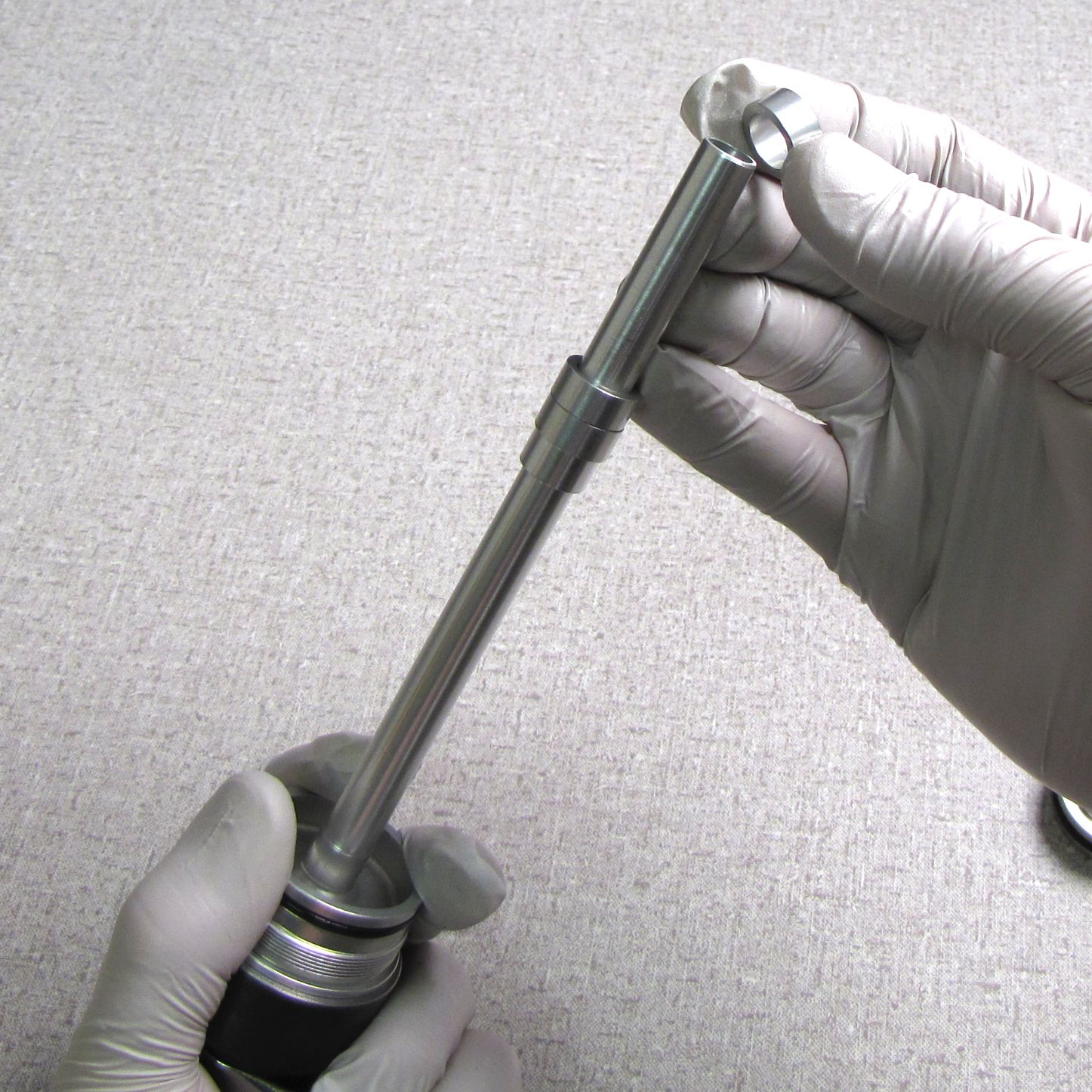

Remove the spacers and the compression bulkhead from the shaft assembly.
Step 6

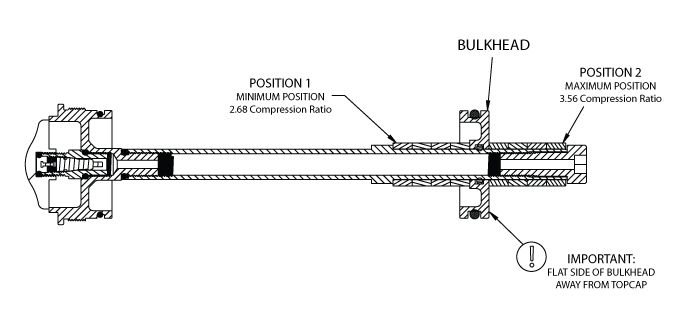

Position the spacers and the compression bulkhead (flat side of bulkhead facing away from topcap) in the desired order to acheive your desired compression ratio.
- Moving the compression bulkhead closer to the topcap will decrease your compression ratio.
- Moving the compression bulkhead farther from the topcap will increase your compression ratio.
Step 7

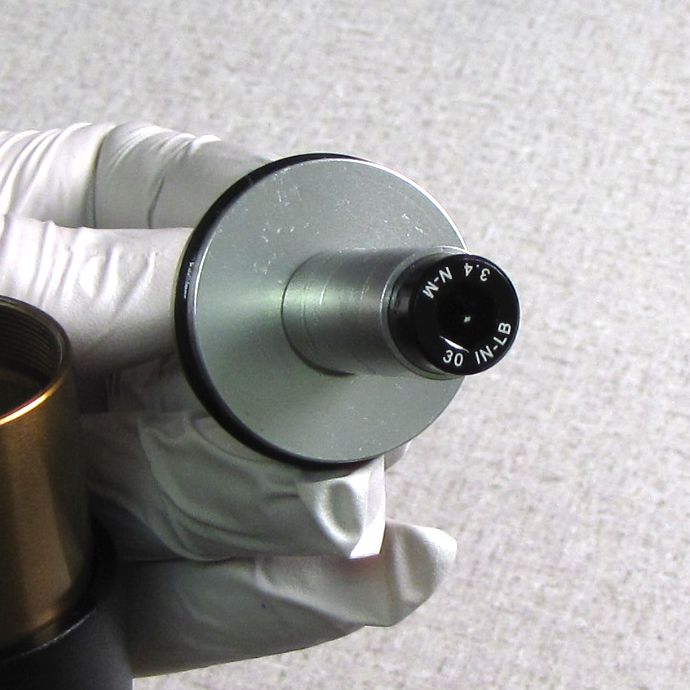

Reinstall the black 6mm hex bolt and torque to 30 in.-lb (3.4 Nm) while holding the topcap with your 32mm chamfer-less 6-point socket.
Step 8
Smear a thick coating of Float Fluid around on the inside of the first 2 inches of the upper tube.
Step 9
Coat the o-ring and the compression bulkhead with a film of Float Fluid and install into the stanchion tube. Push the topcap assembly into the stanchion tube while holding the air valve core down to release any trapped pressure.
40 FLOAT maximum air pressure is 100psi
Step 10
Torque the topcap to 220 in.-lb (24.8 Nm). Torque the upper crown bolt loosened in step 2 to 65 in.-lb (7.3 Nm). Add air pressure to your fork to your previous air pressure setting and replace the blue air cap.
