Air Volume Spacer Installation
Required Tools
- 027-00-018 Pump: Fox Digital HP w/ Bleed, Foldable, Replaceable Battery, 350 psi, Swivel Head
- Small Flat Screwdriver or Seal Pick .
WARNING: FOX products should be serviced by a trained bicycle service technician, in accordance with FOX specifications. If you have any doubt whether or not you can properly service your FOX product, then DO NOT attempt it. Improperly serviced products can fail, causing the rider to lose control resulting in SERIOUS INJURY OR DEATH.
WARNING: FOX suspension products contain pressurized nitrogen, air, oil, or all 3. Suspension misuse can cause property damage, SERIOUS INJURY OR DEATH. DO NOT puncture, incinerate or crush any portion of a FOX suspension product. DO NOT attempt to disassemble any portion of a FOX suspension product, unless expressly instructed to do so by the applicable FOX technical documentation, and then ONLY while strictly adhering to all FOX instructions and warnings in that instance.
WARNING: Modification, improper service, or use of aftermarket replacement parts with FOX forks and shocks may cause the product to malfunction, resulting in SERIOUS INJURY OR DEATH. DO NOT modify any part of a fork or shock, including the fork brace (lower leg cross brace), crown, steerer, upper and lower leg tubes, or internal parts, except as instructed herein. Any unauthorized modification may void the warranty, and may cause failure or the fork or shock, resulting in SERIOUS INJURY OR DEATH.
WARNING: Never attempt to modify air volume spacers, as this can damage your shock causing a loss of control of the bicycle leading to SERIOUS INJURY or DEATH.
Intrigue Advanced Pro 29 2
Step 1

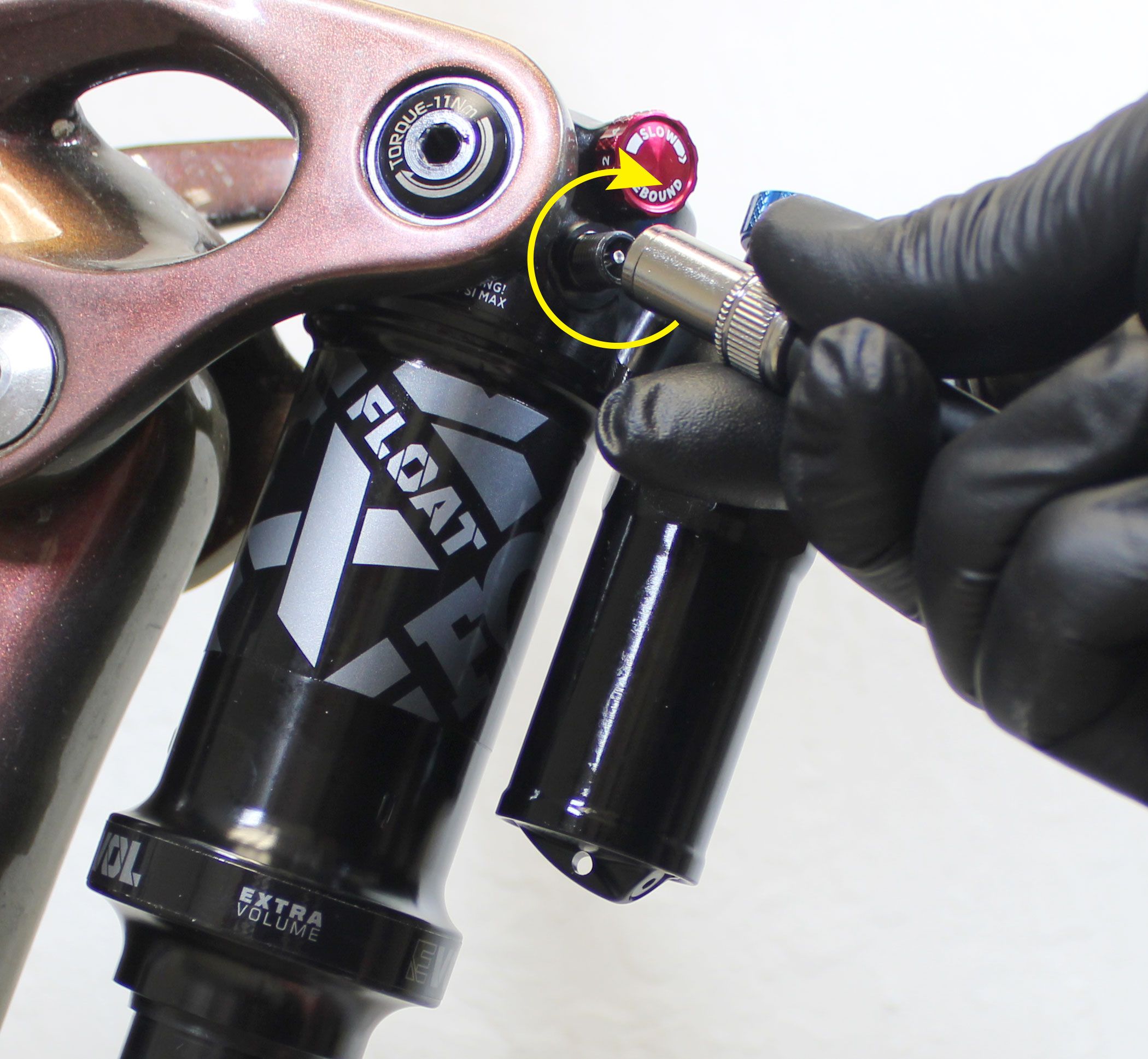

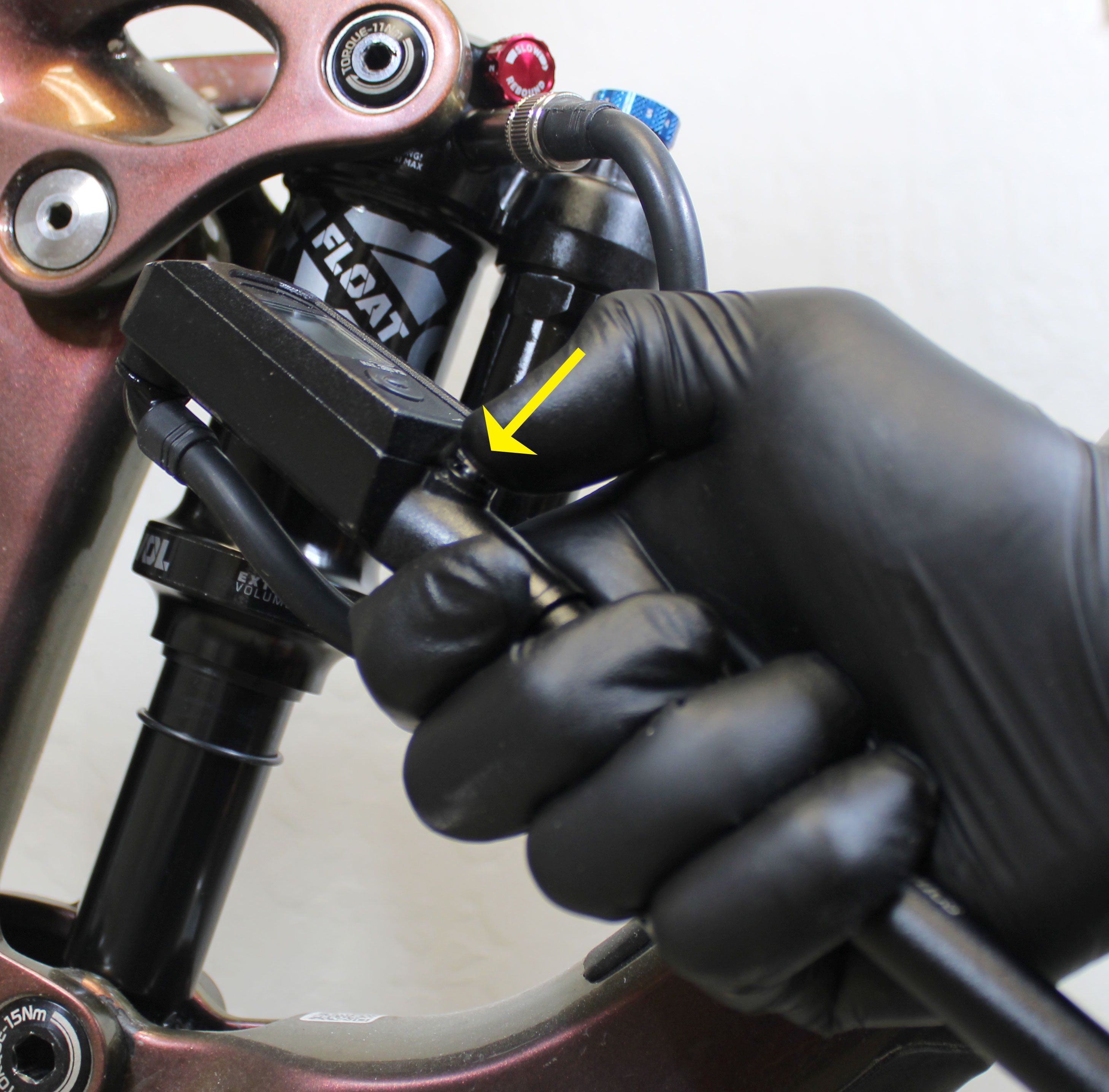

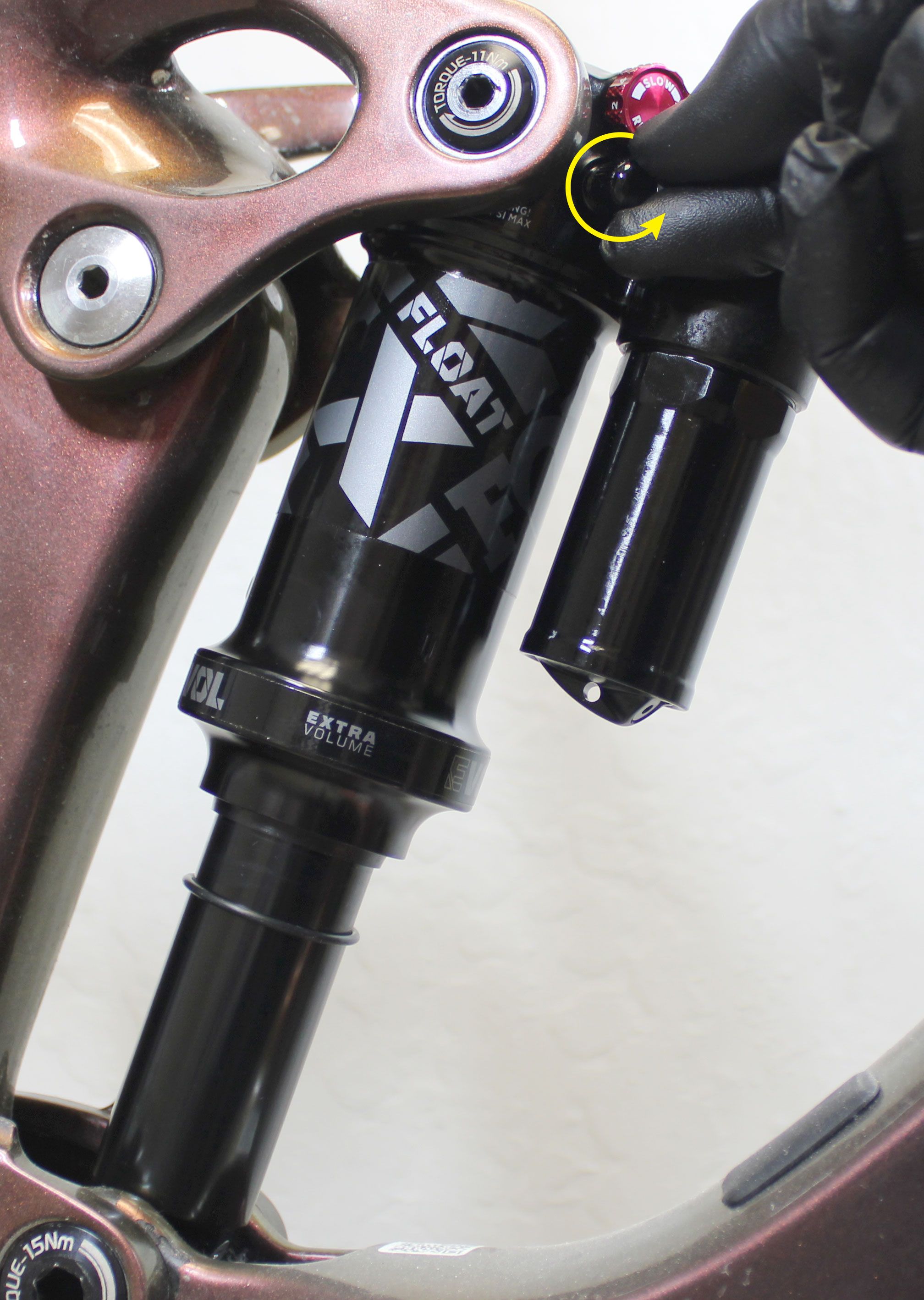

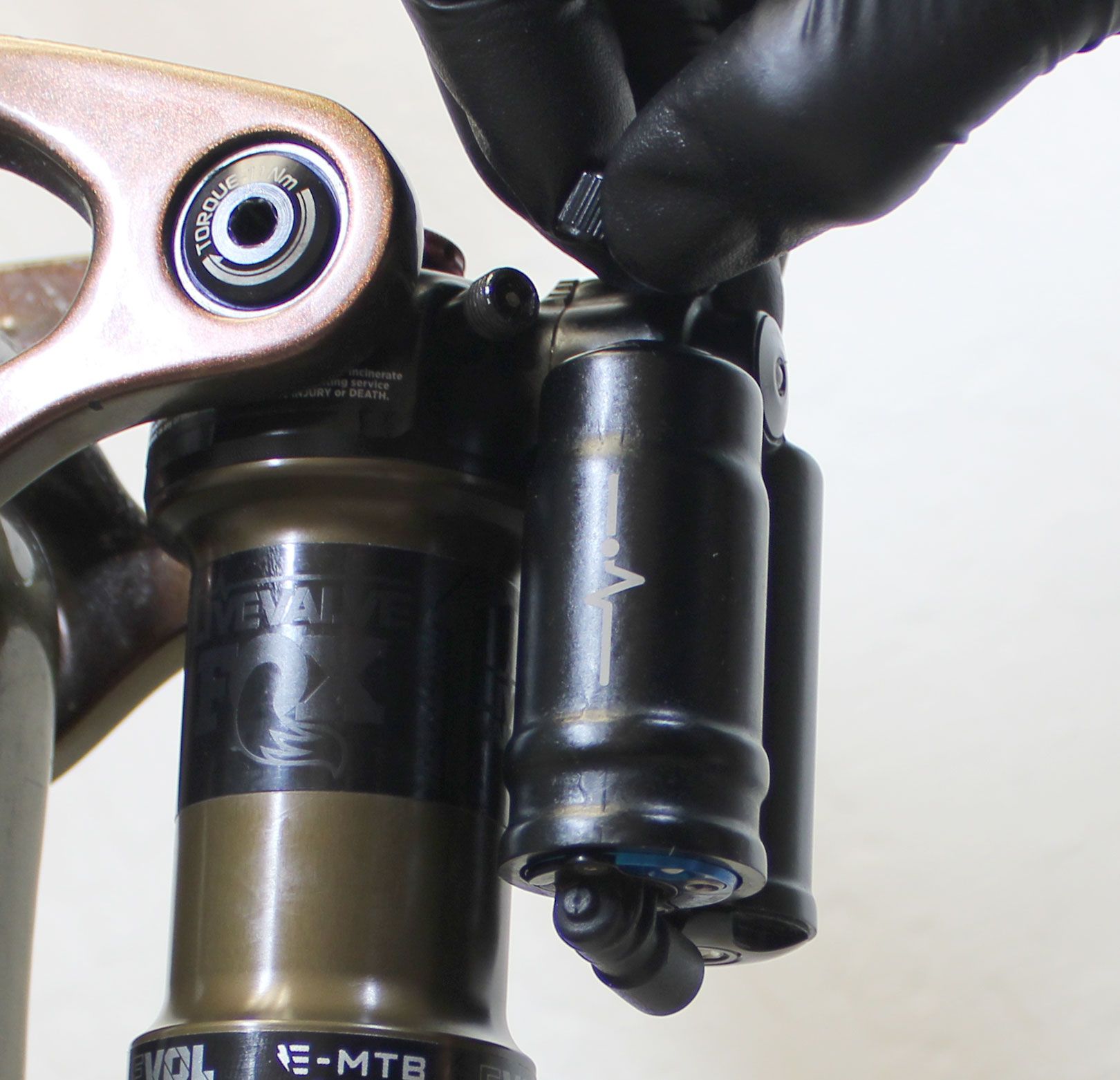

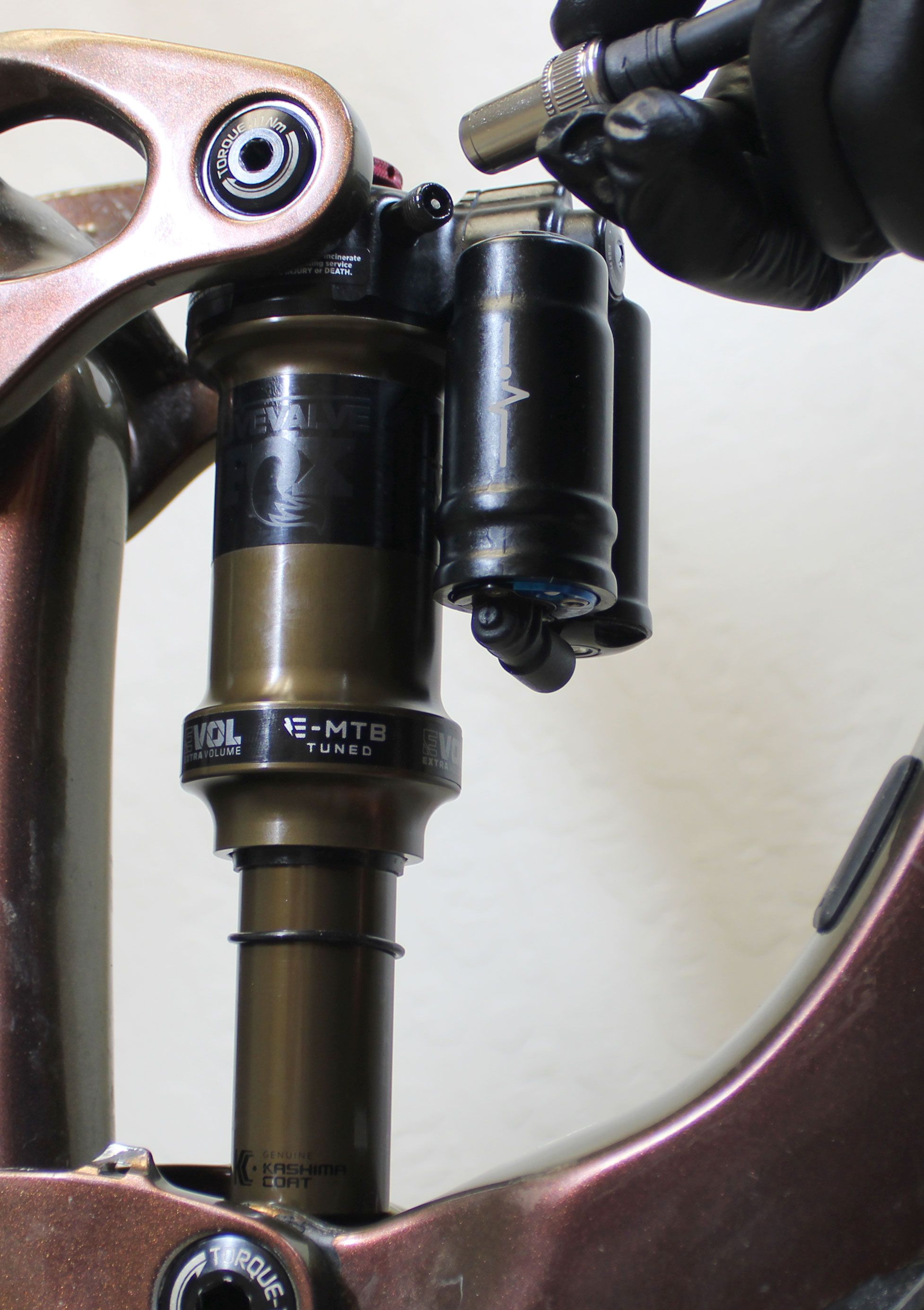

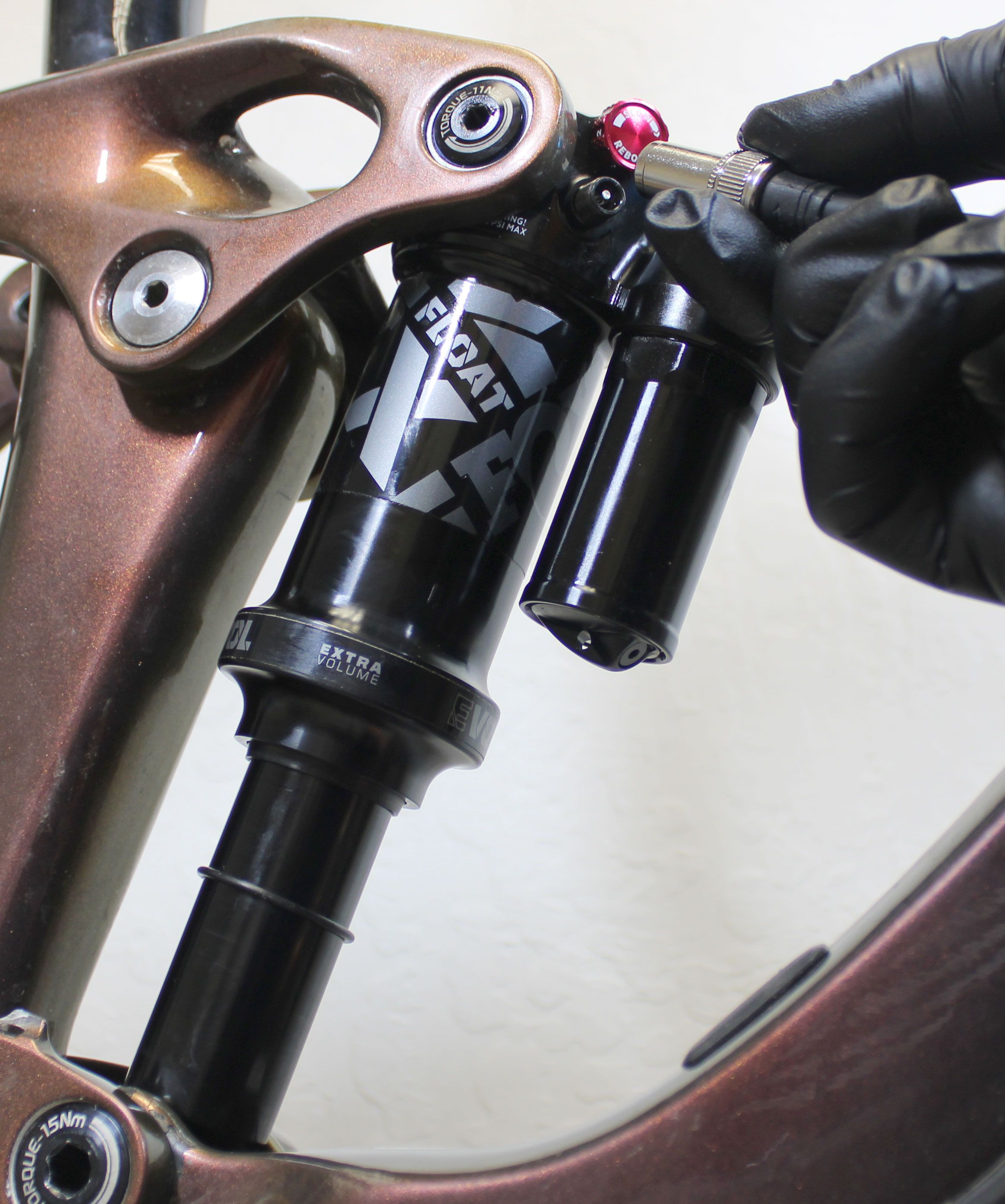

Remove the black air cap and thread on your FOX shock pump. Slowly release all air from the main air chamber with your pump, then remove the pump. Verify that all air has been released by depressing the Schrader valve.
Step 2

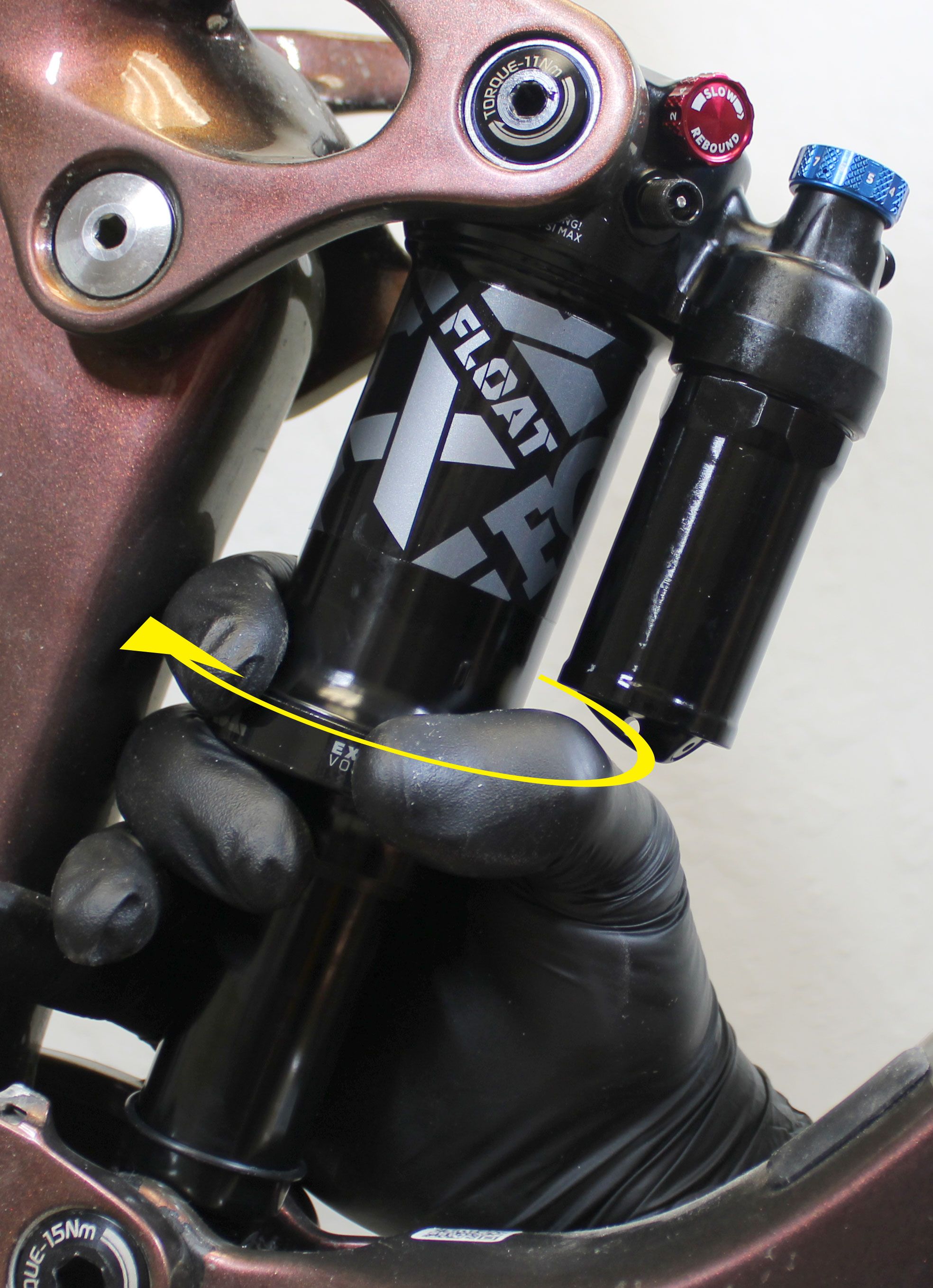

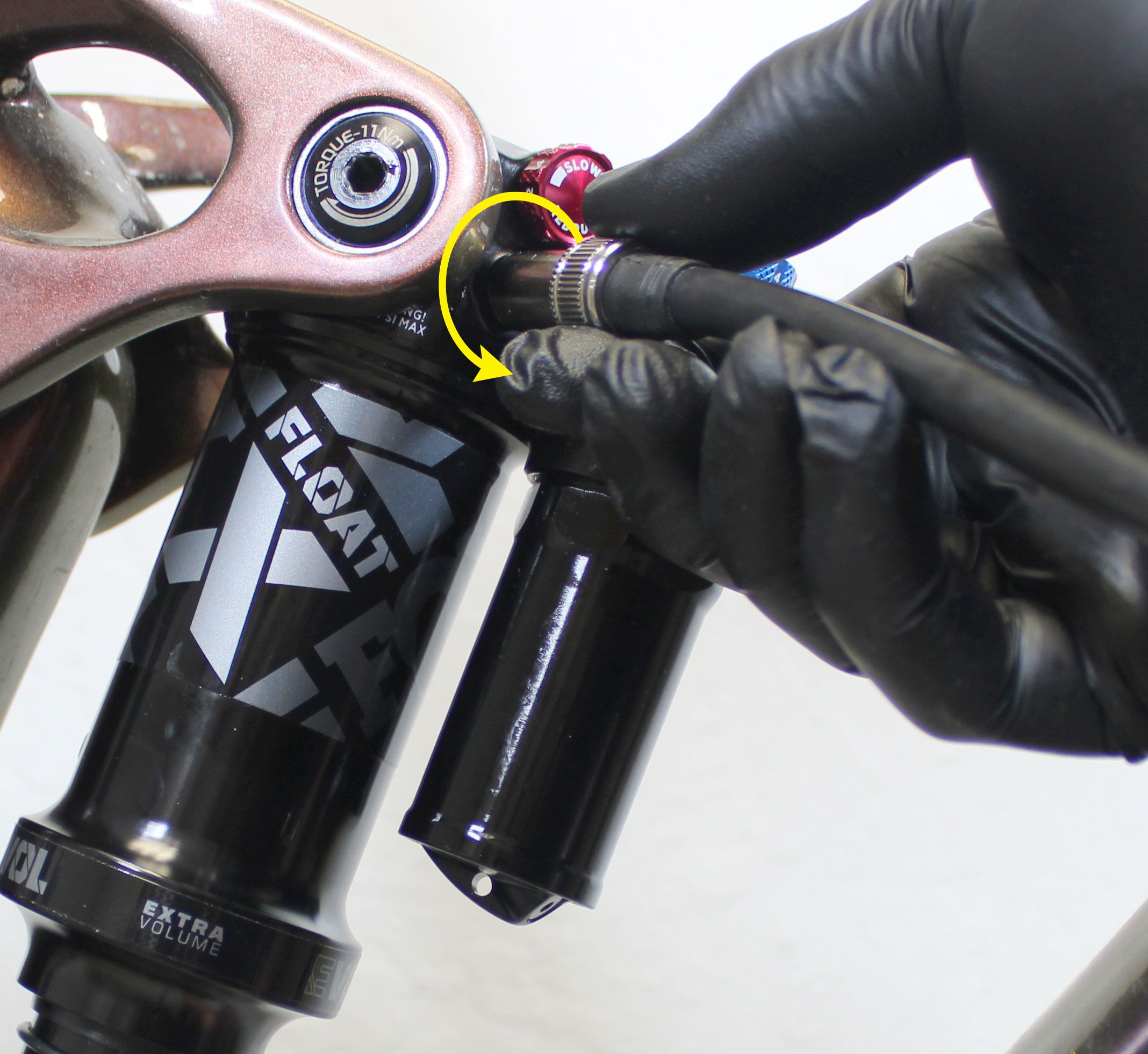

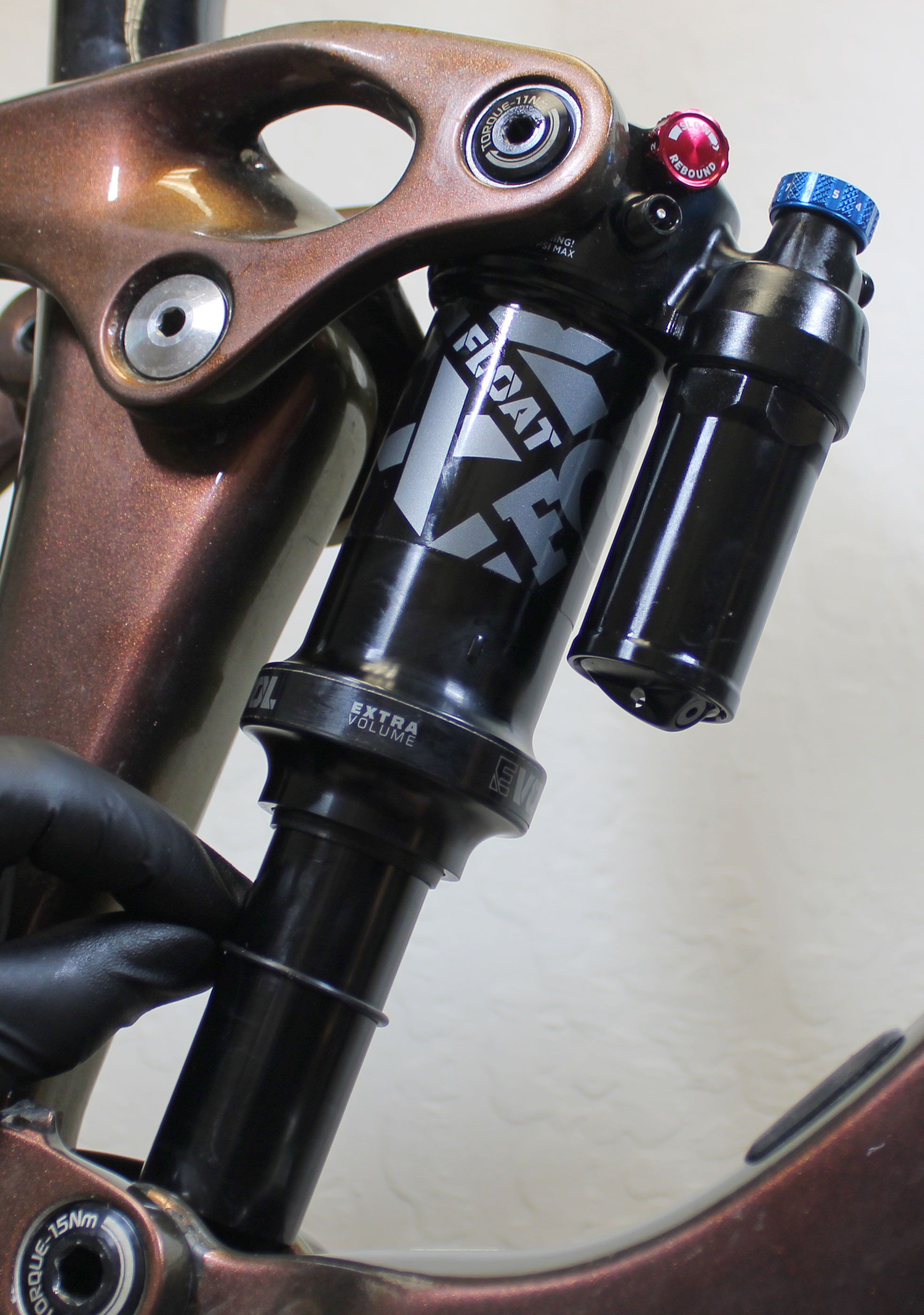

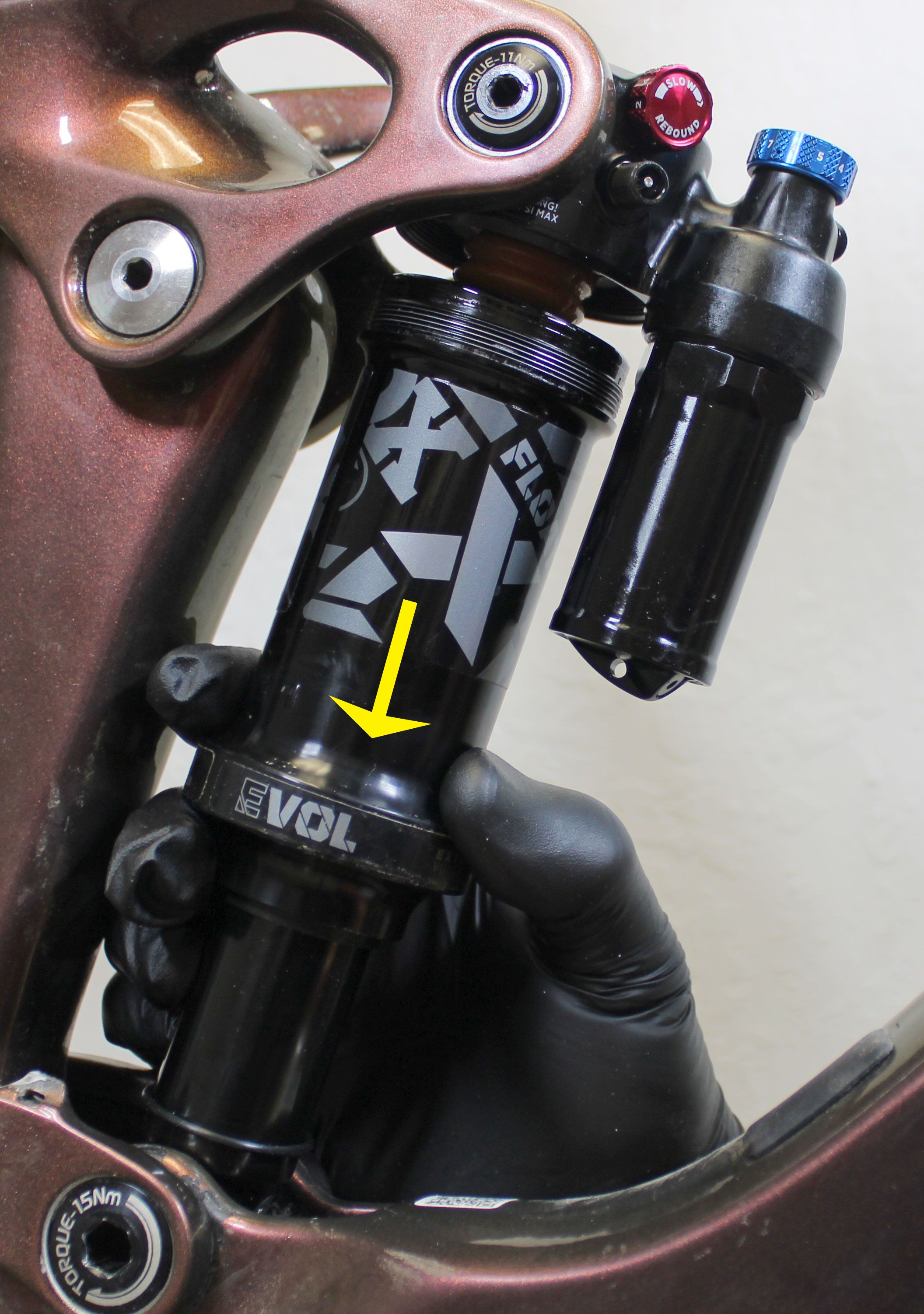

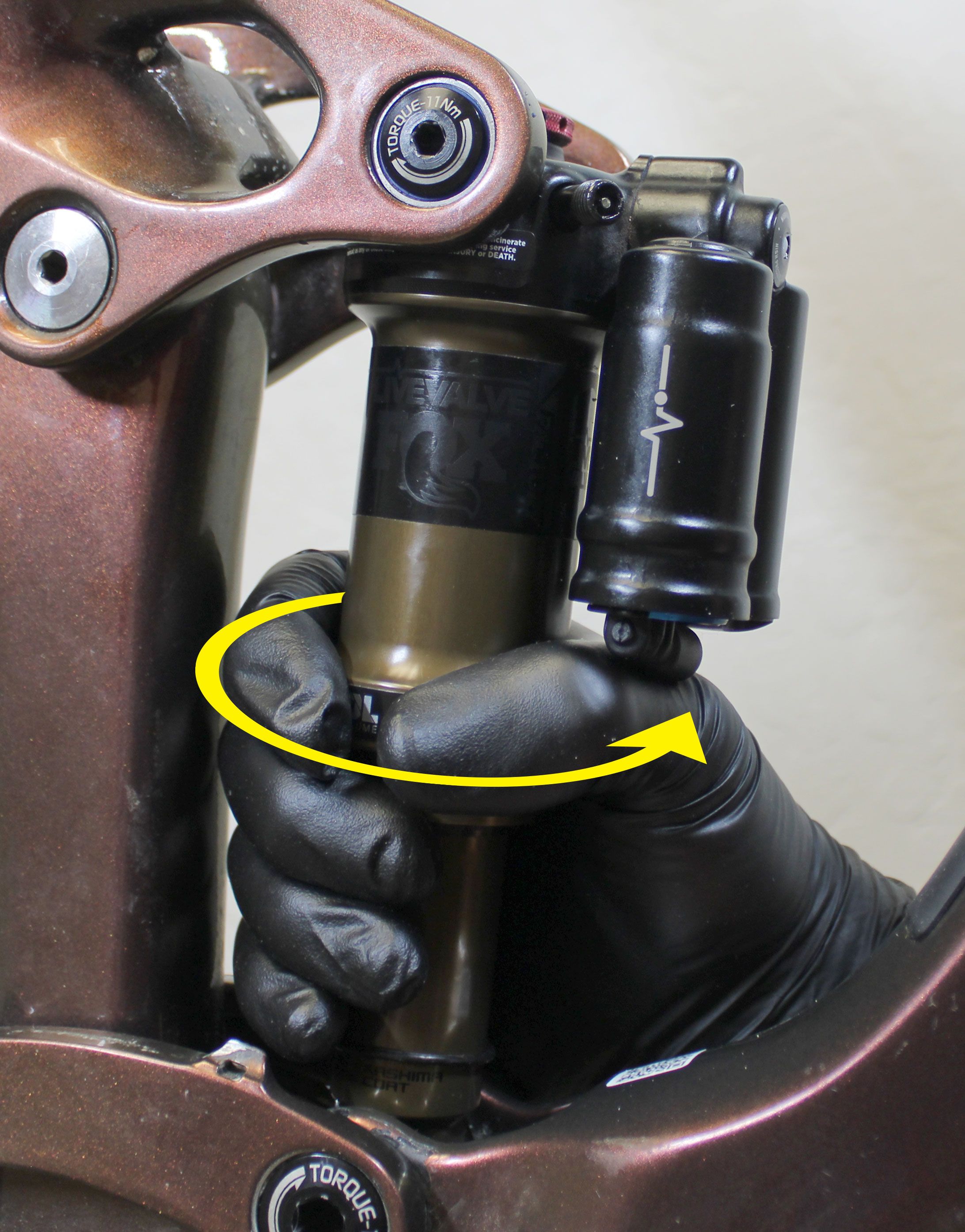

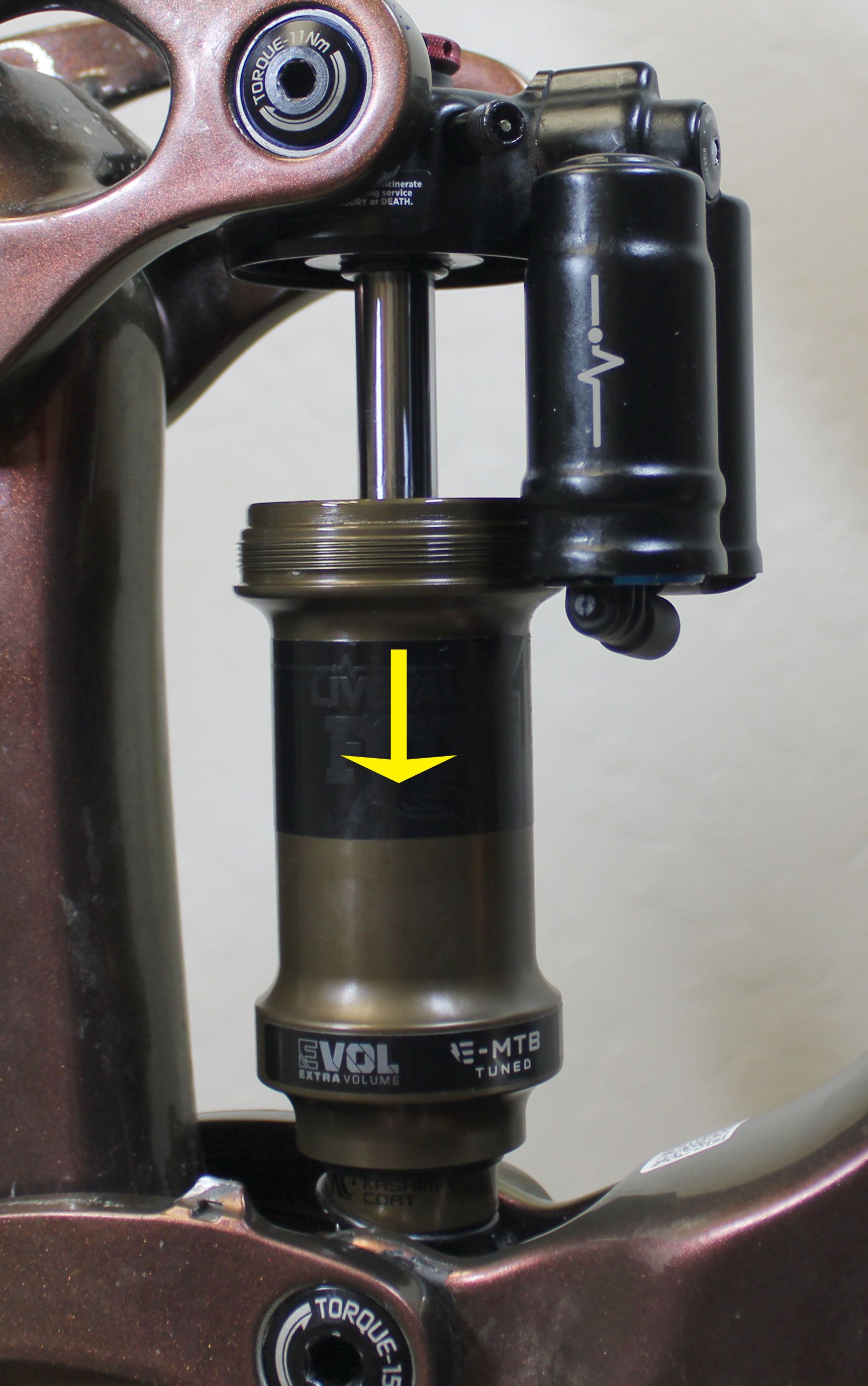

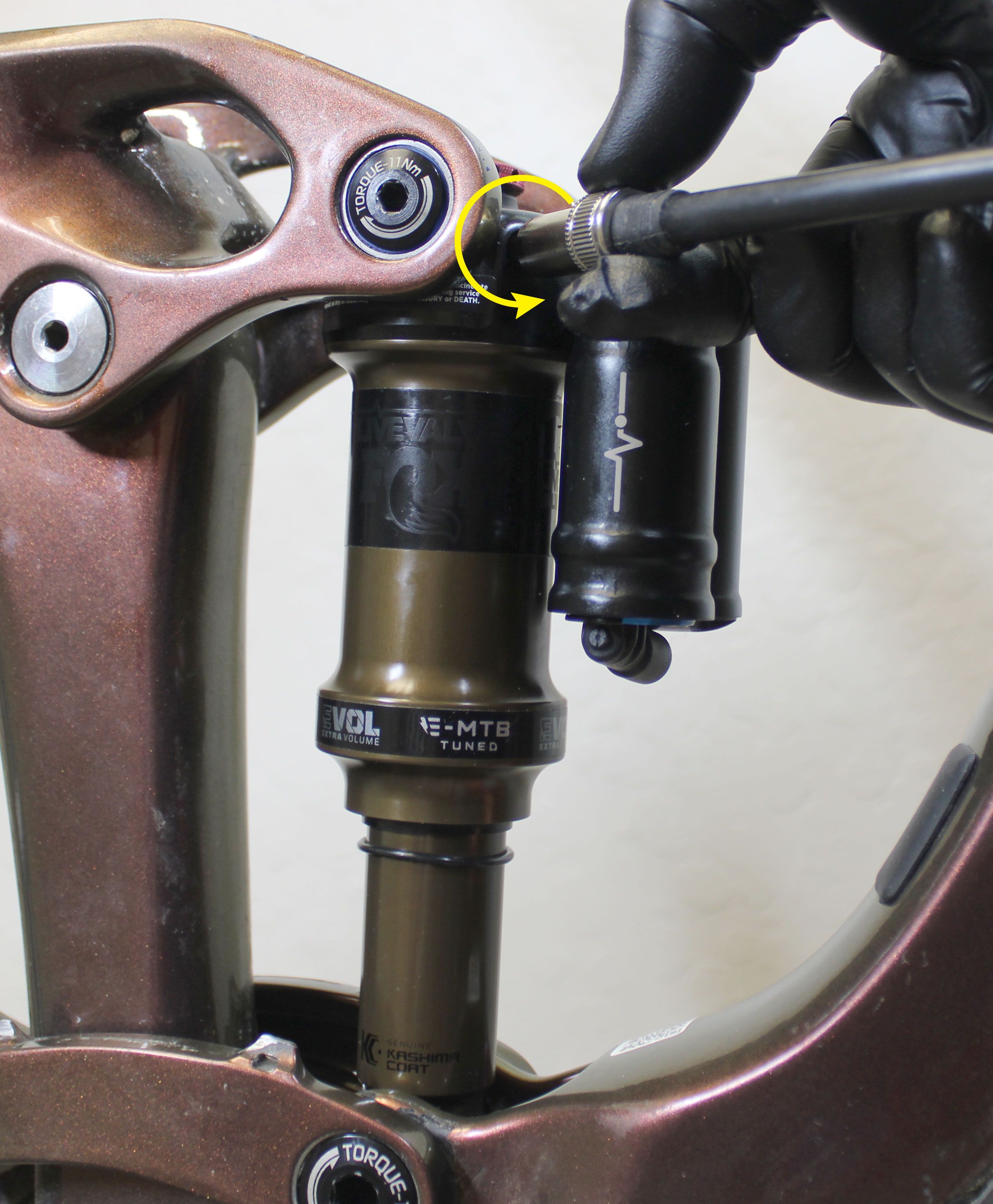

Unthread the air sleeve from the eyelet by turning it counter-clockwise. Slide the air sleeve down to access the air volume spacer.
Step 3

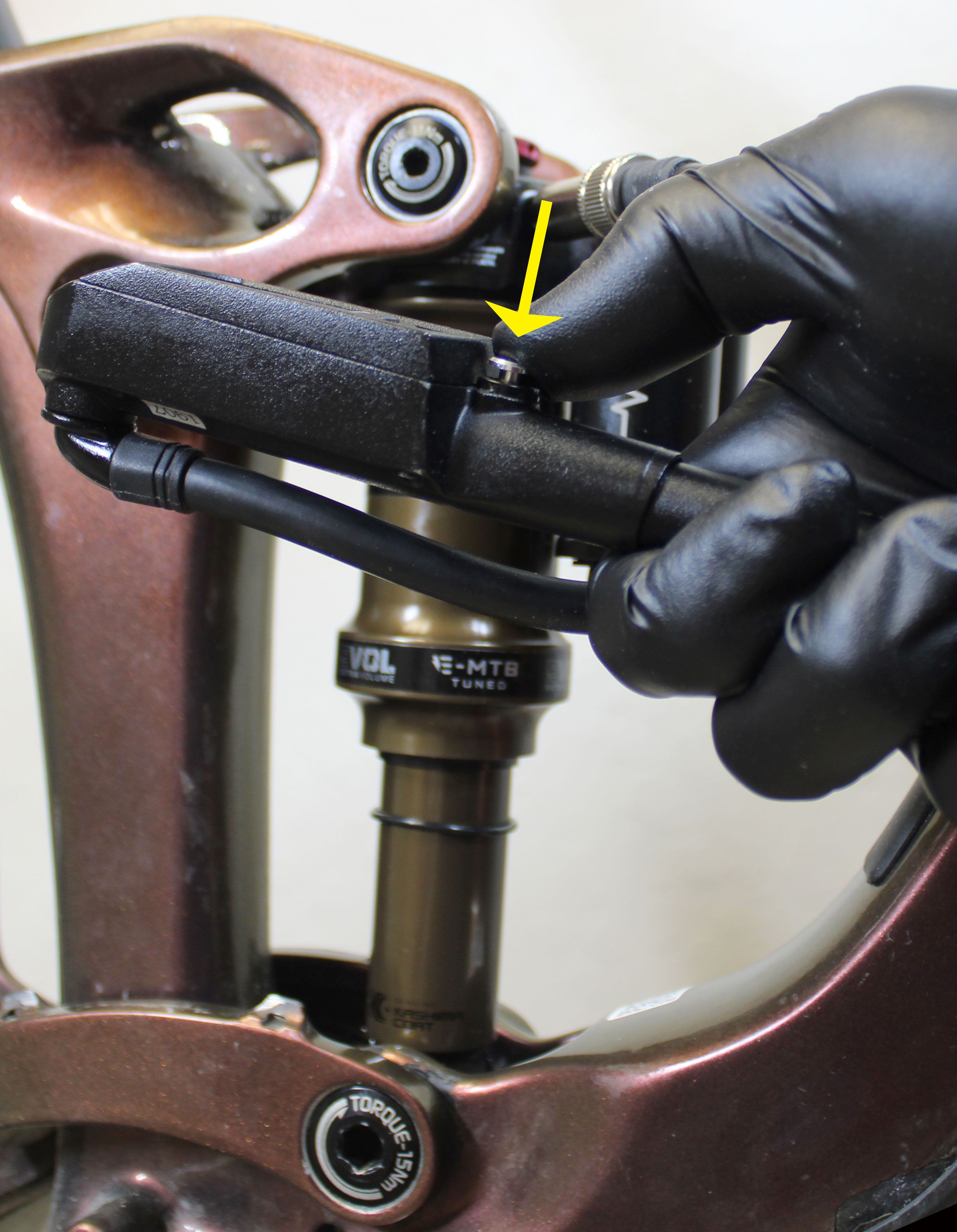

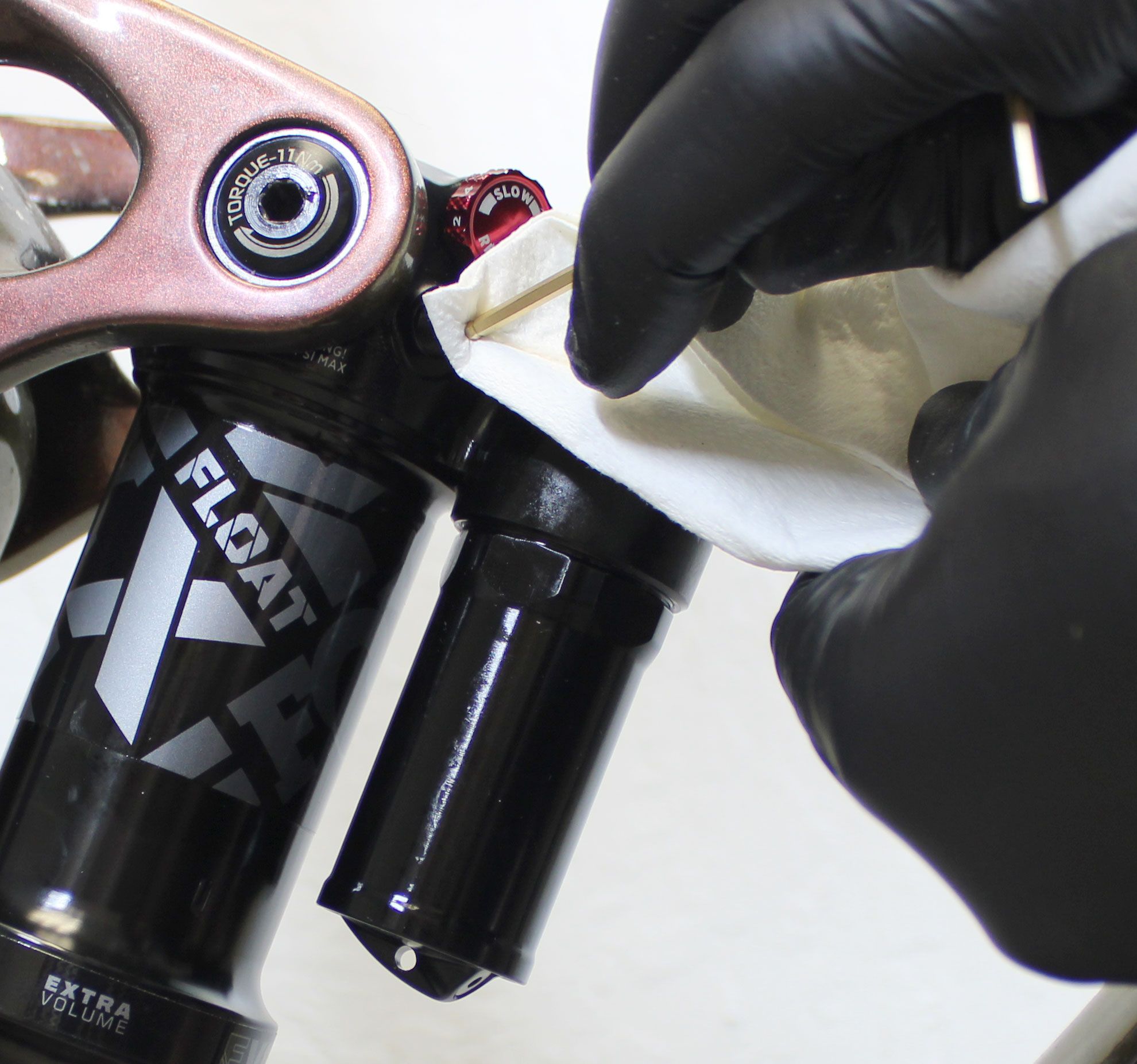

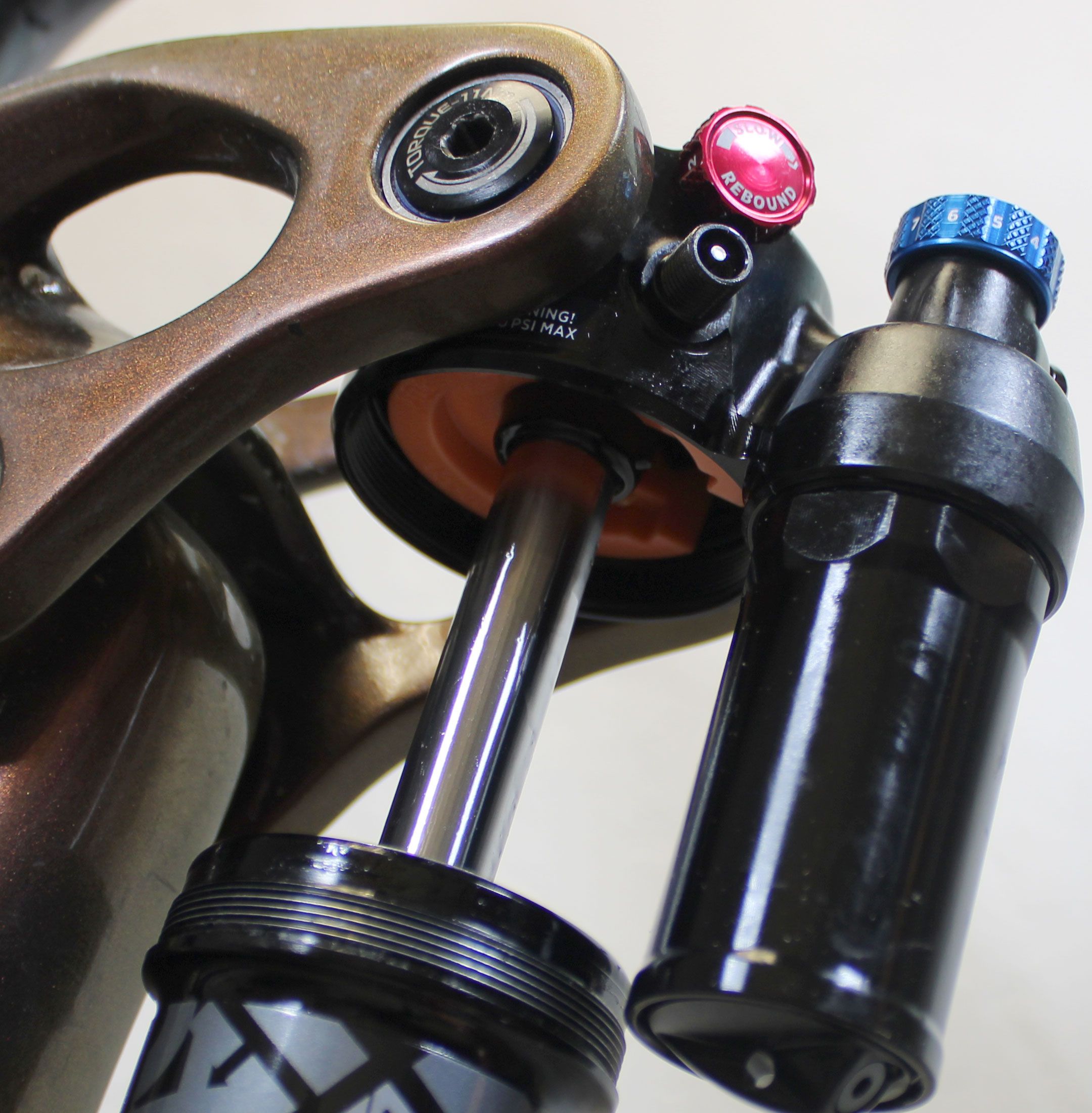

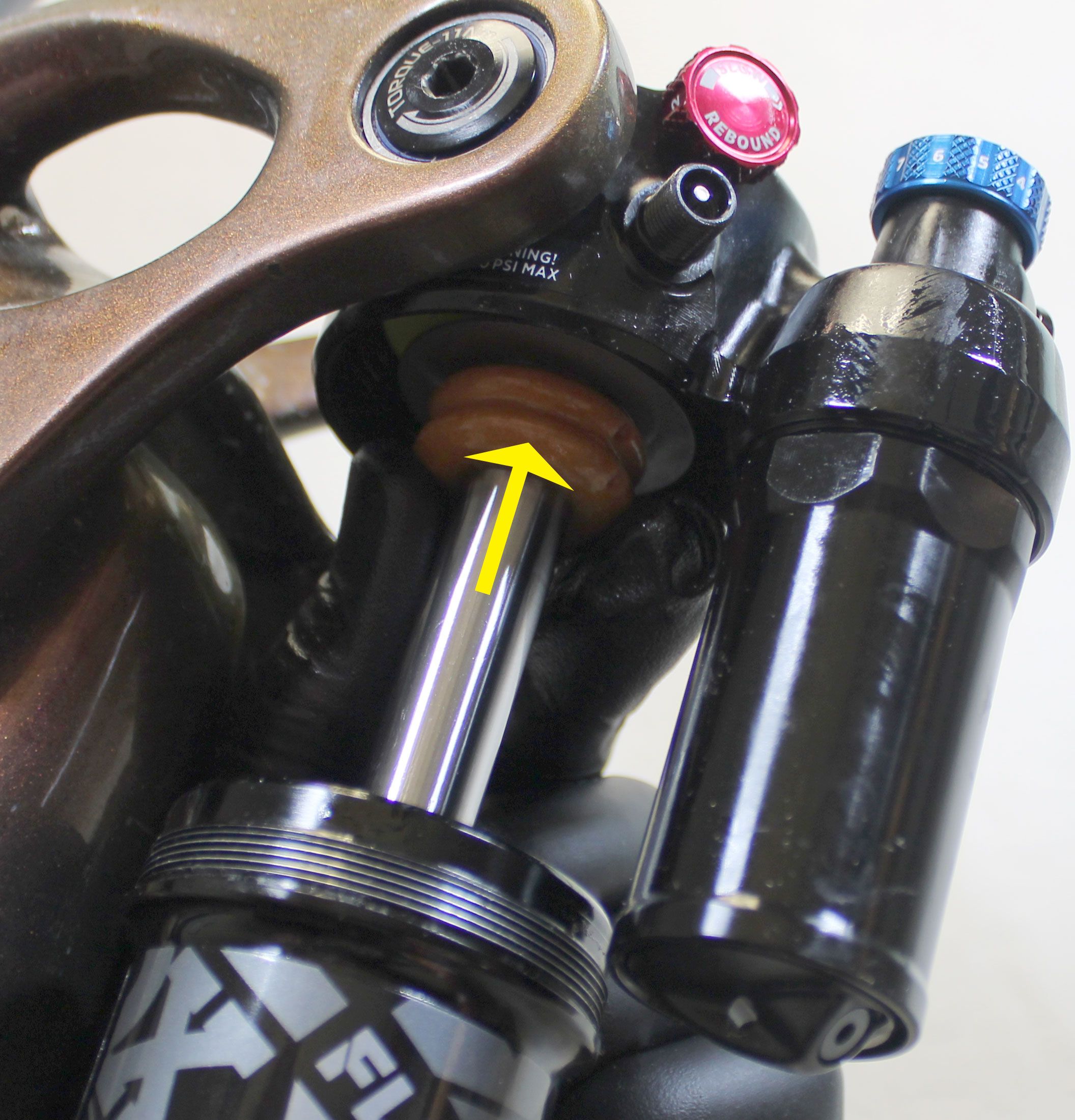

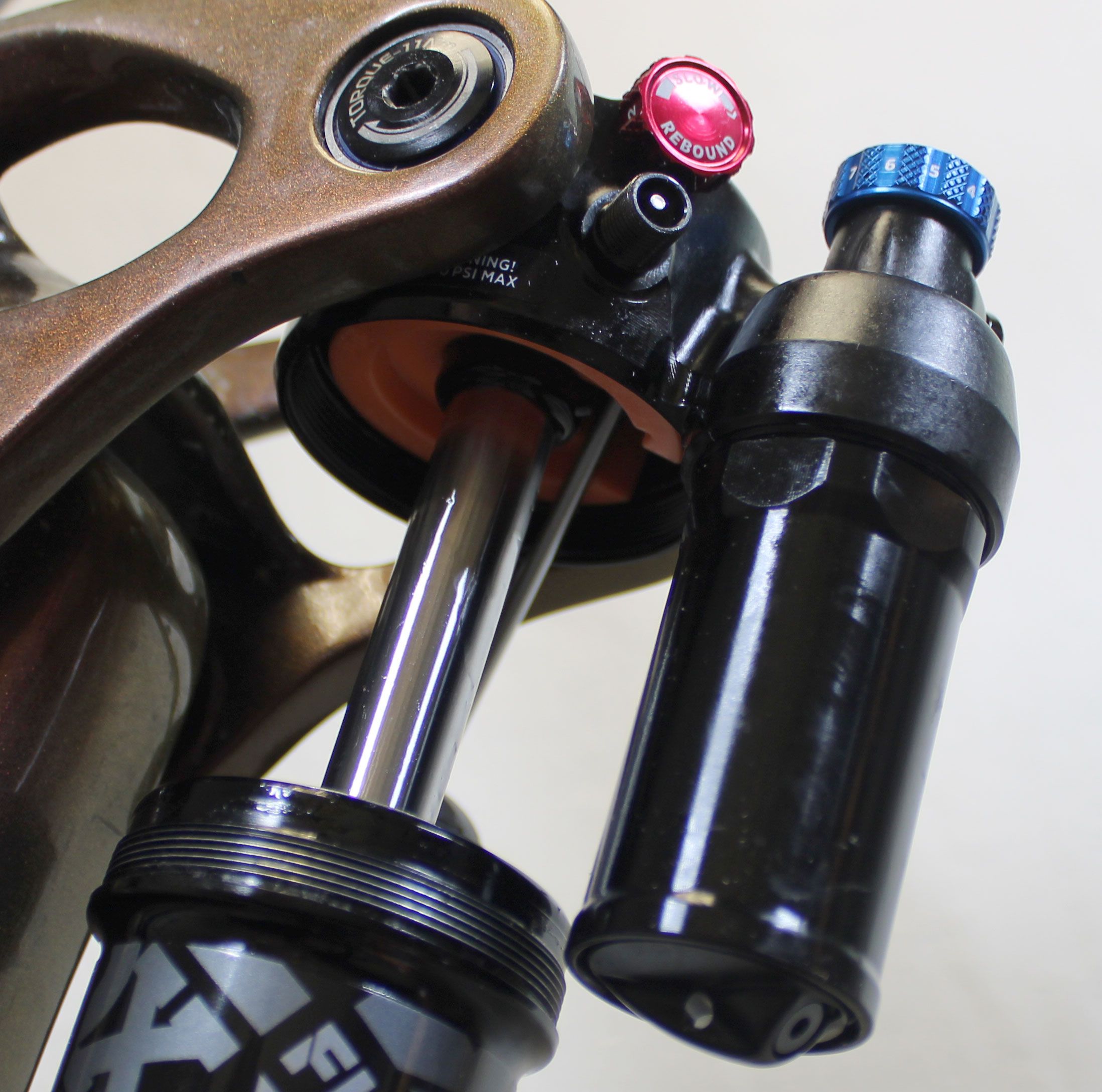

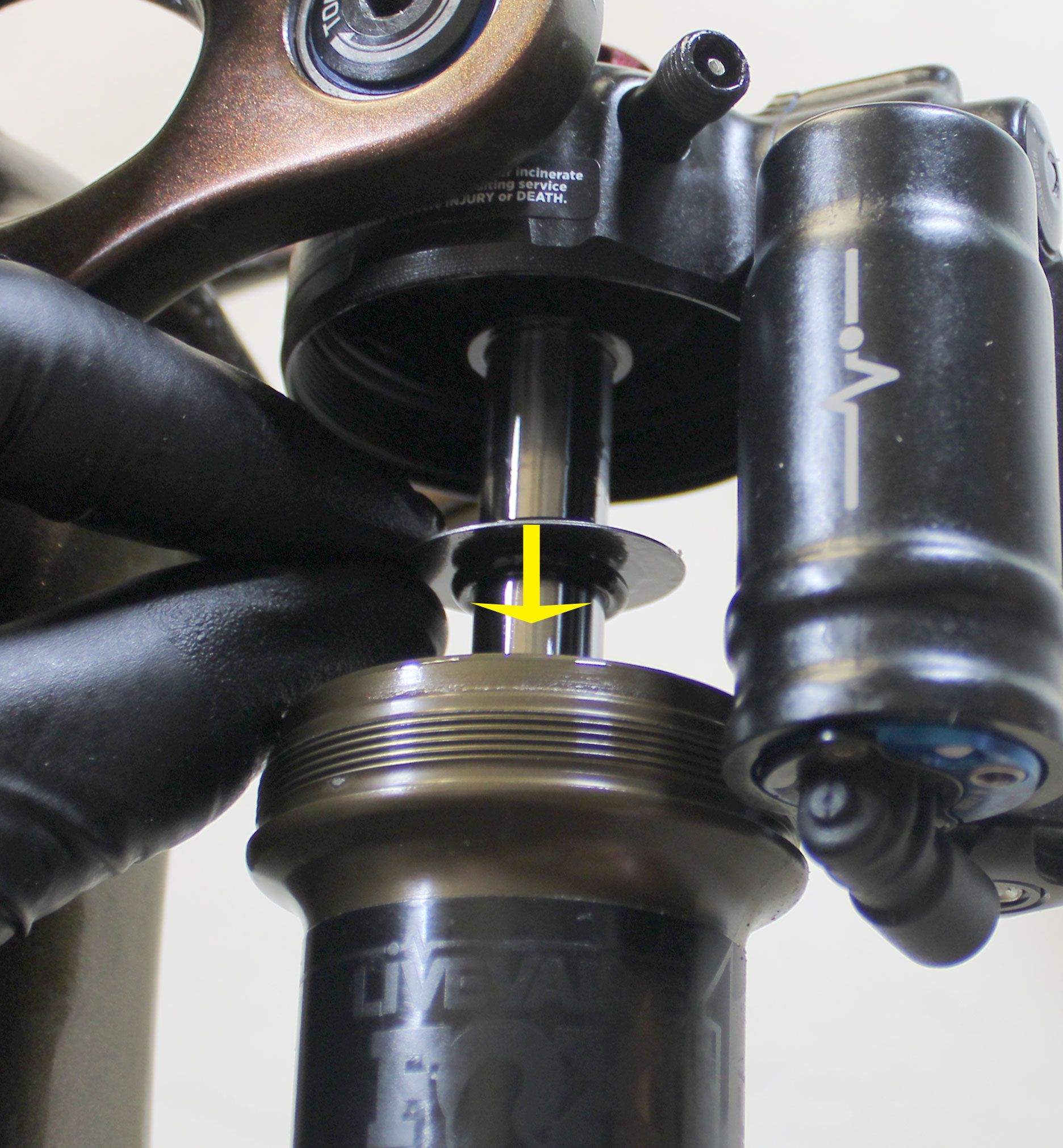

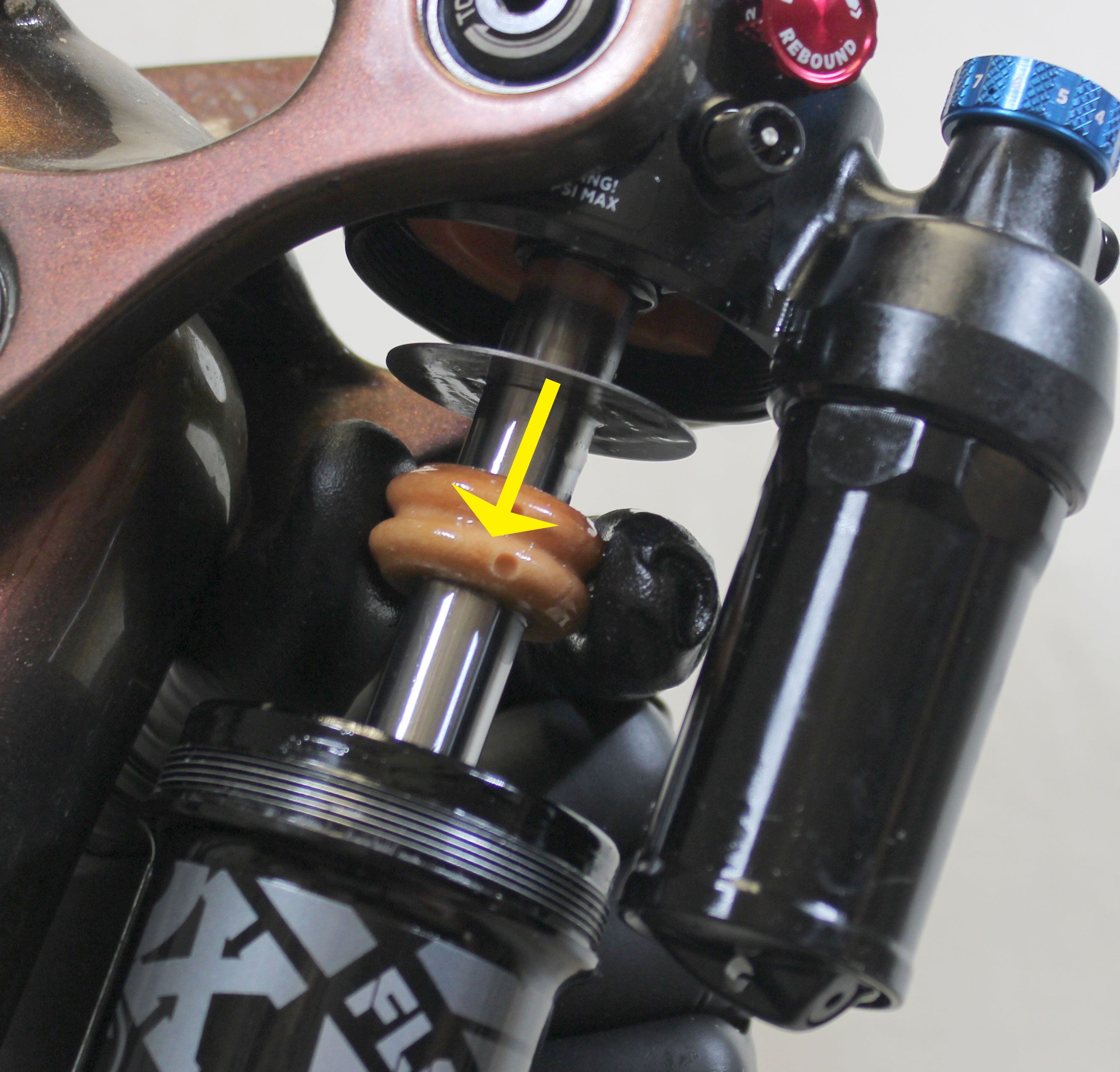

Slide the bottom out bumper and bottom out plate down the shaft to access the air volume spacer.
Step 4

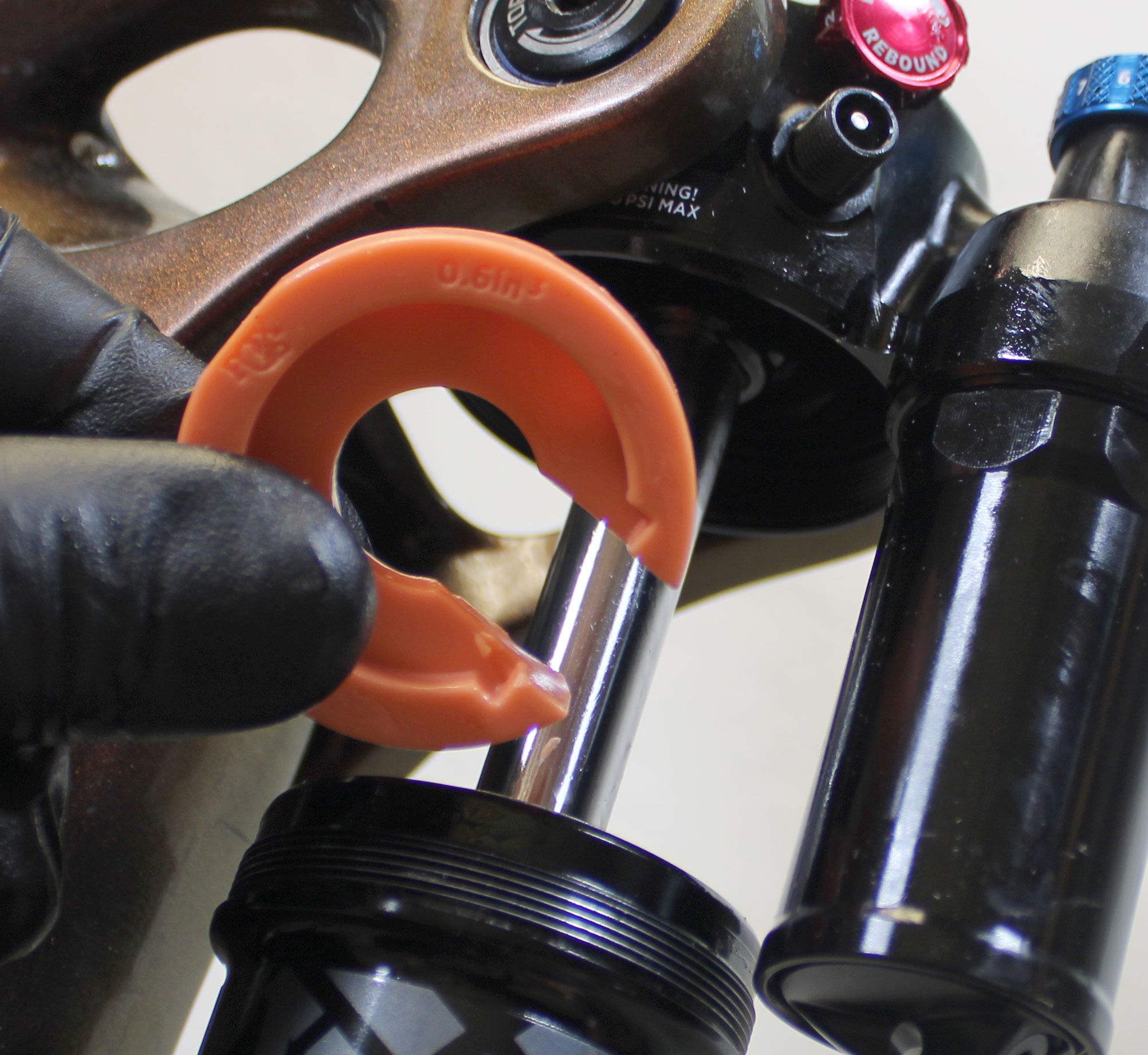

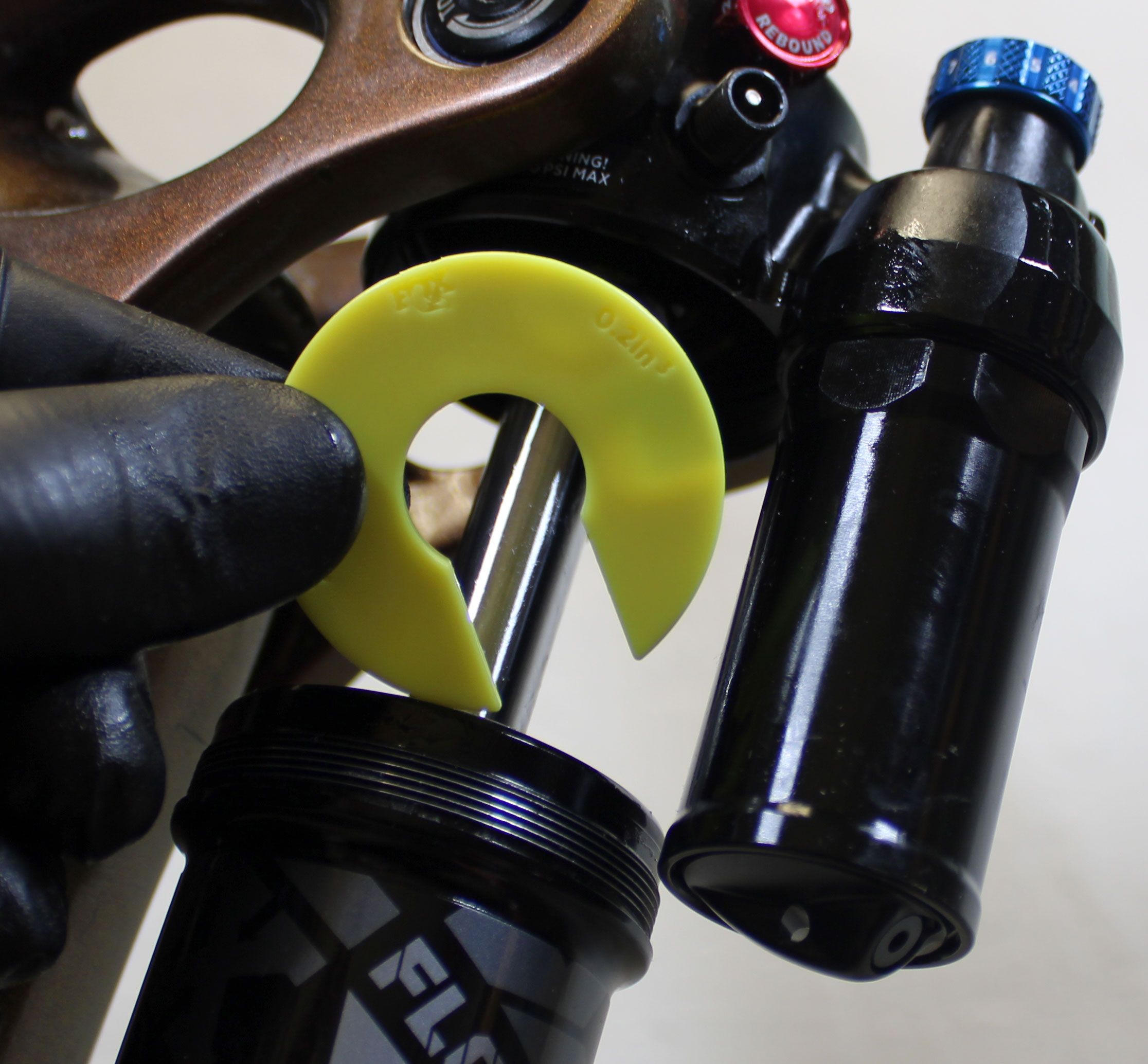

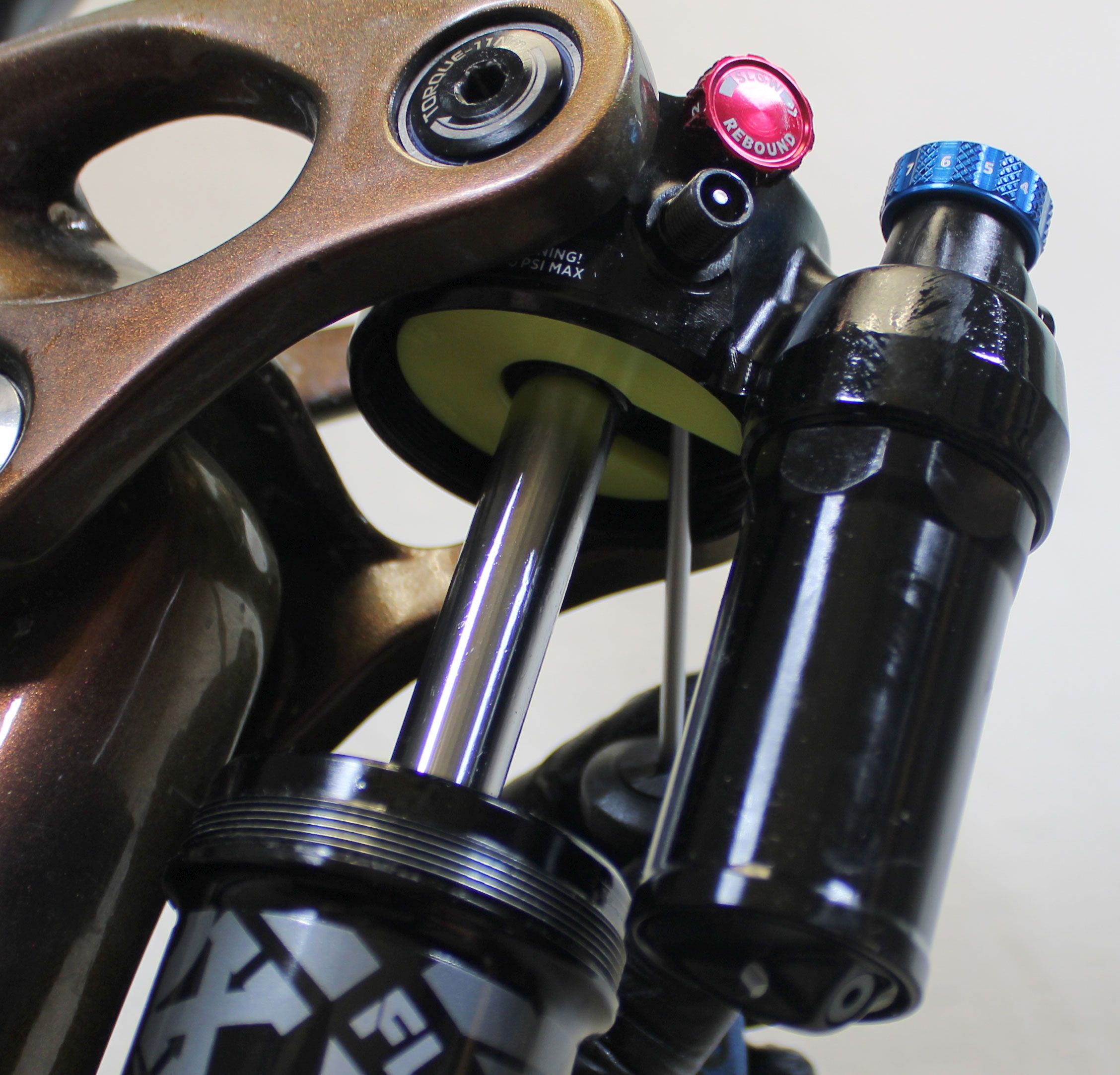

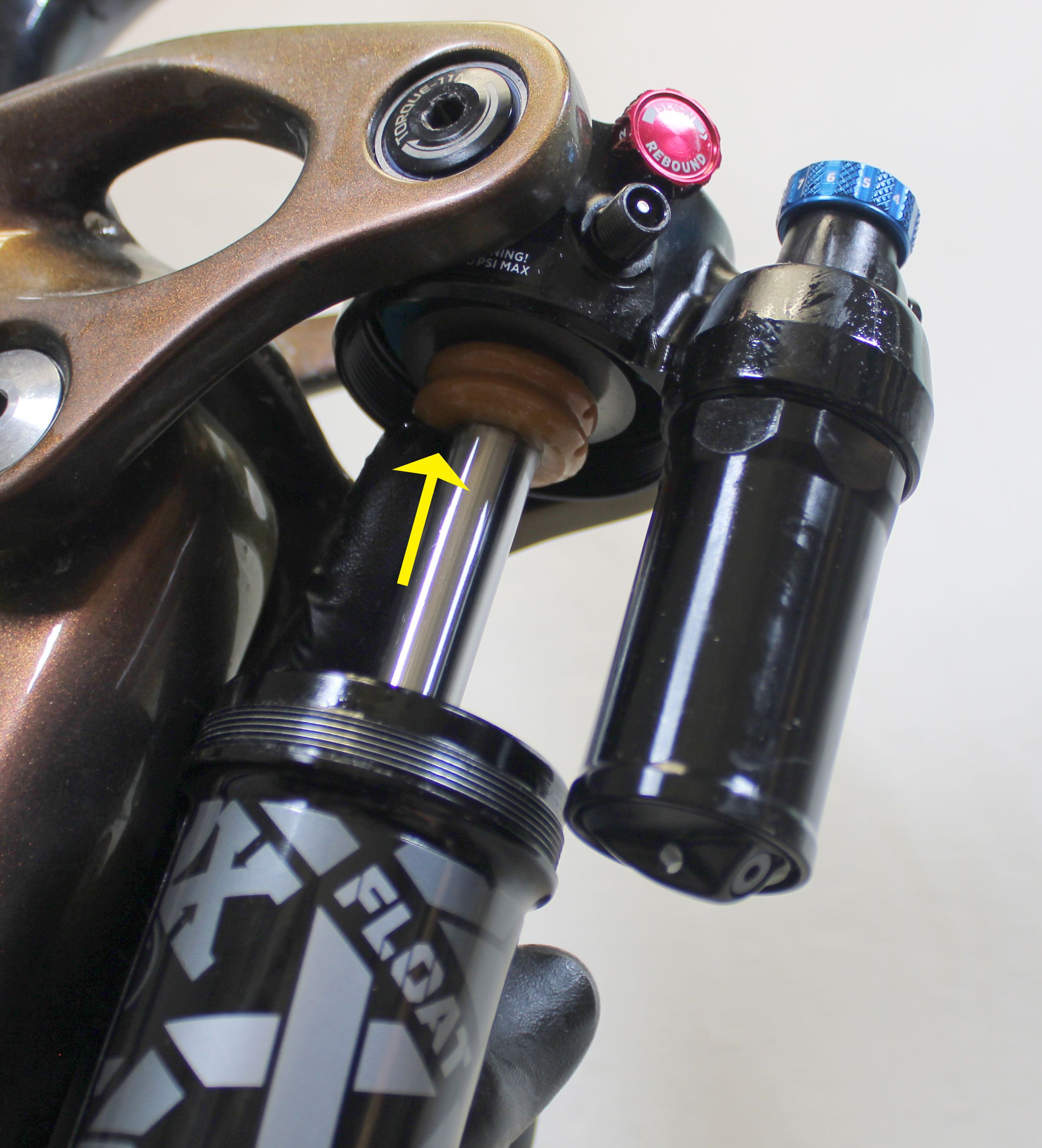

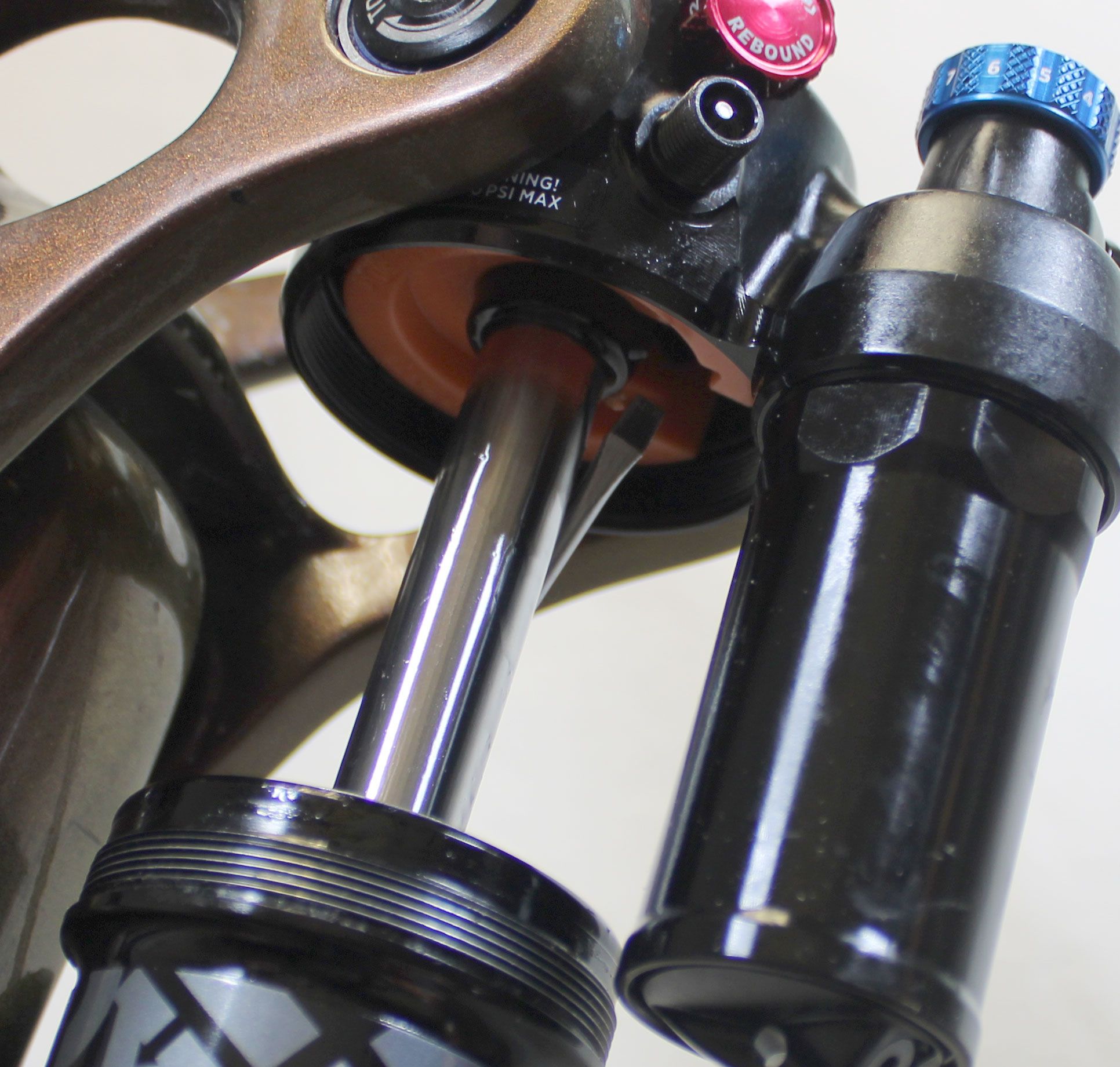

Use a small flat screwdriver in the split of the 0.6in^3 air volume spacer to carefully pull it down out of the eyelet.
Step 5

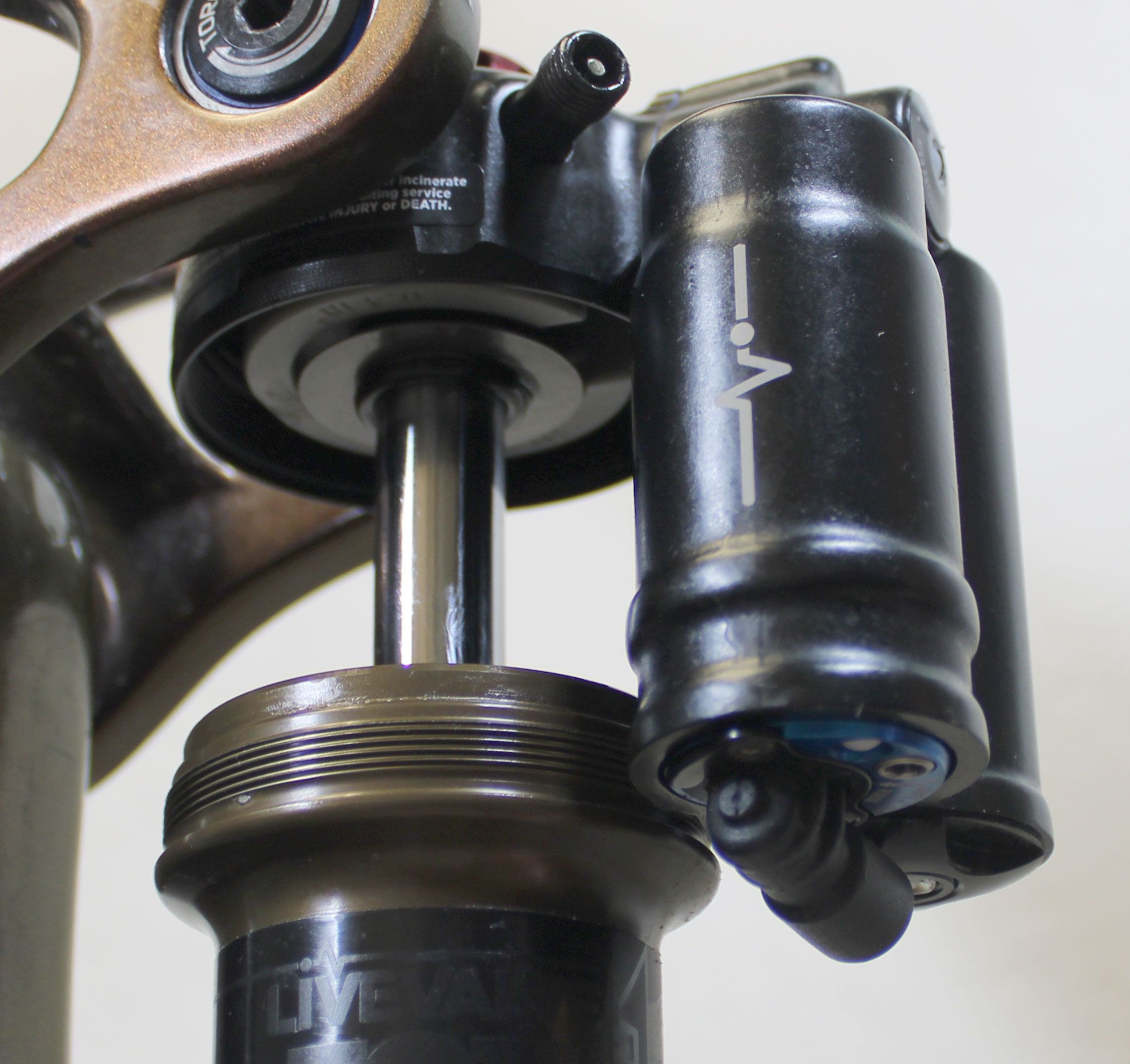

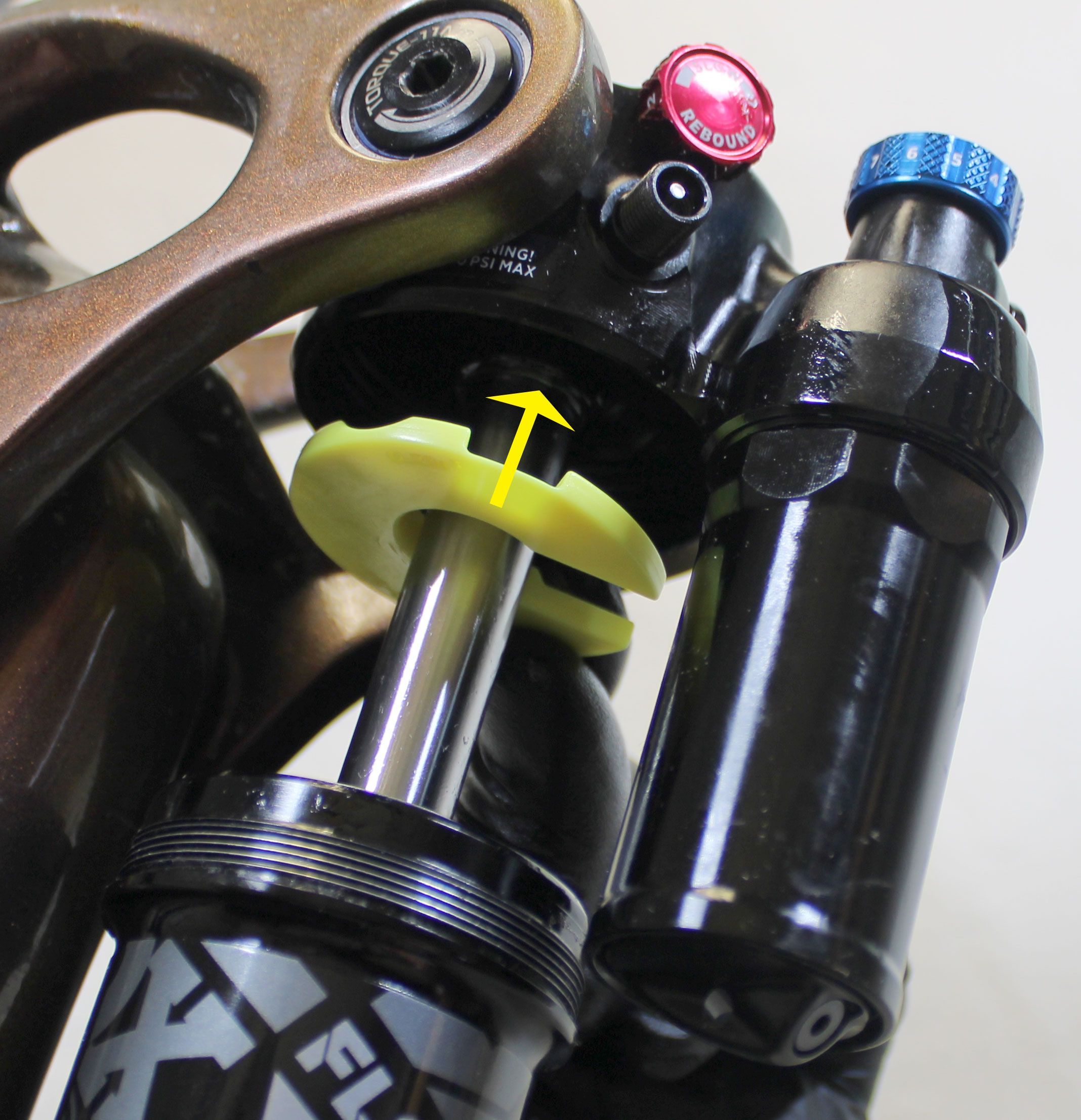

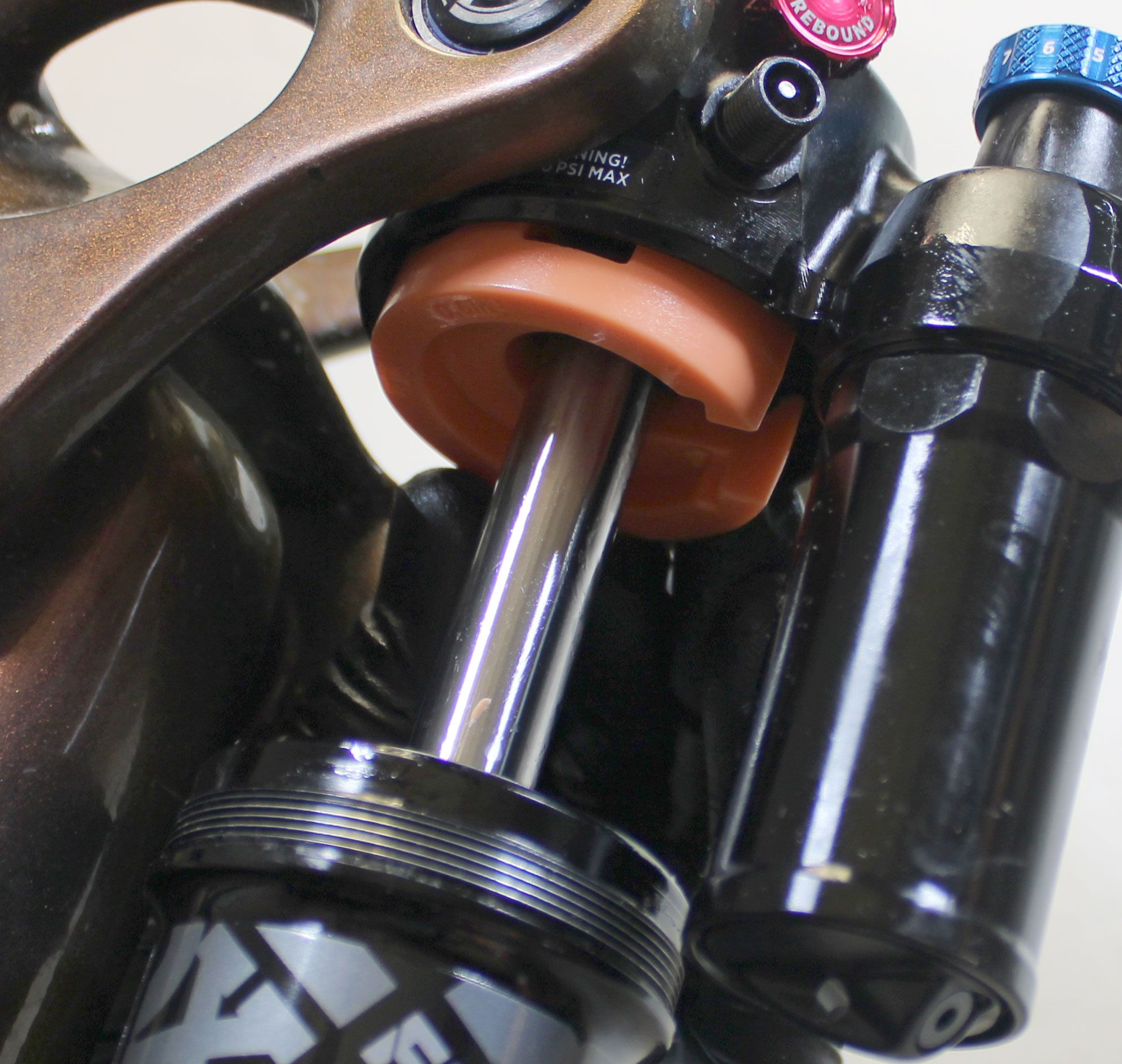

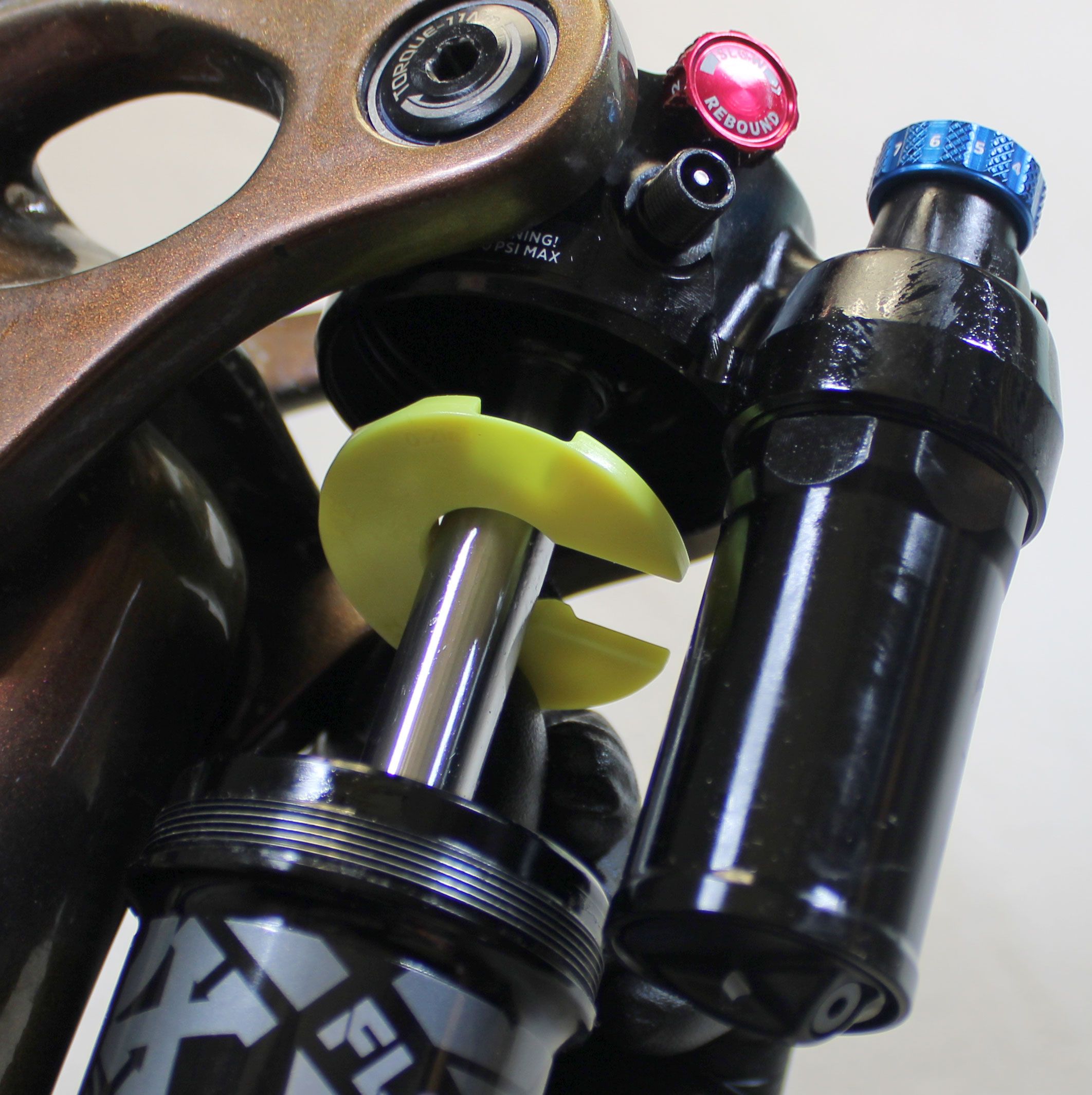

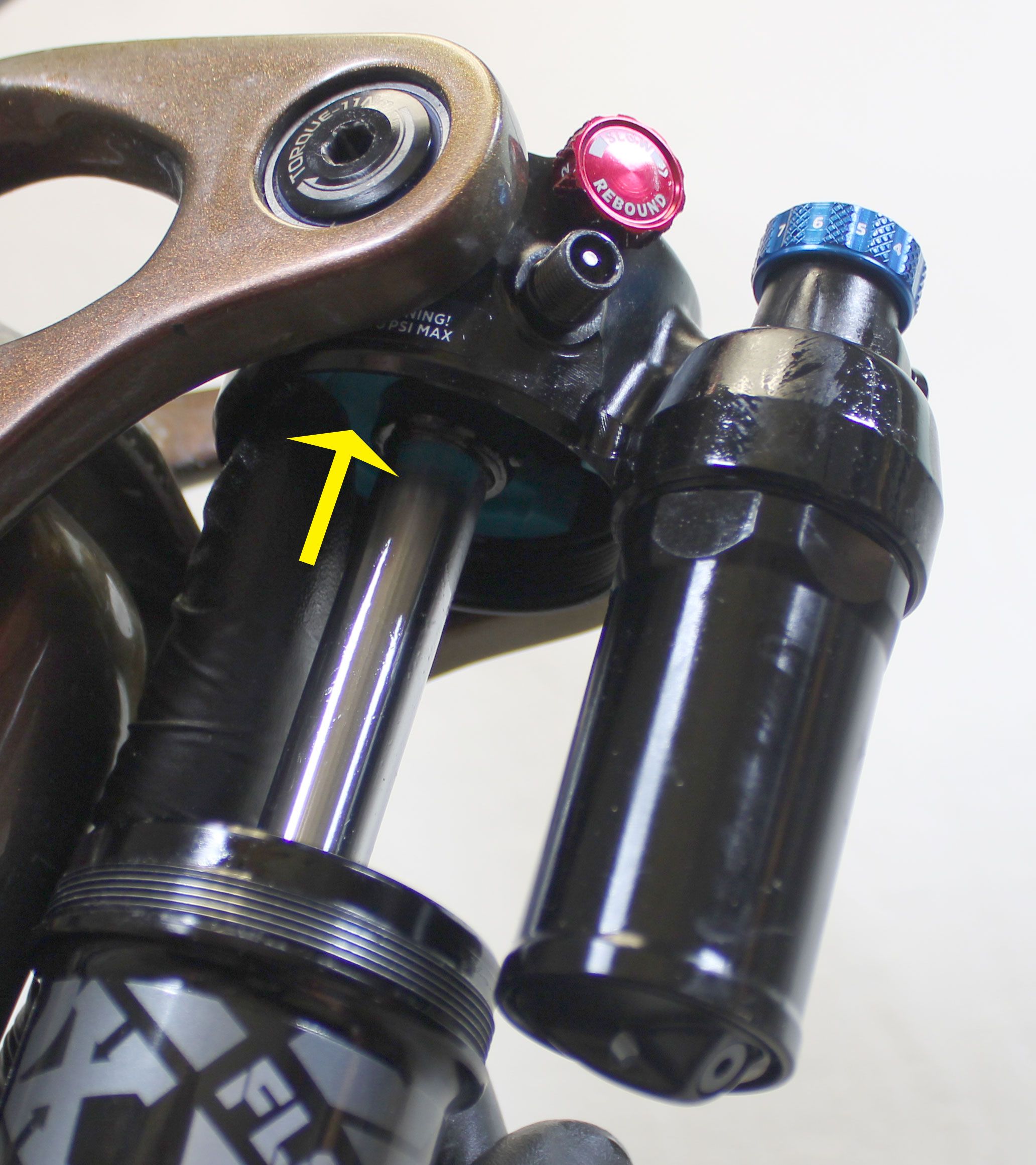

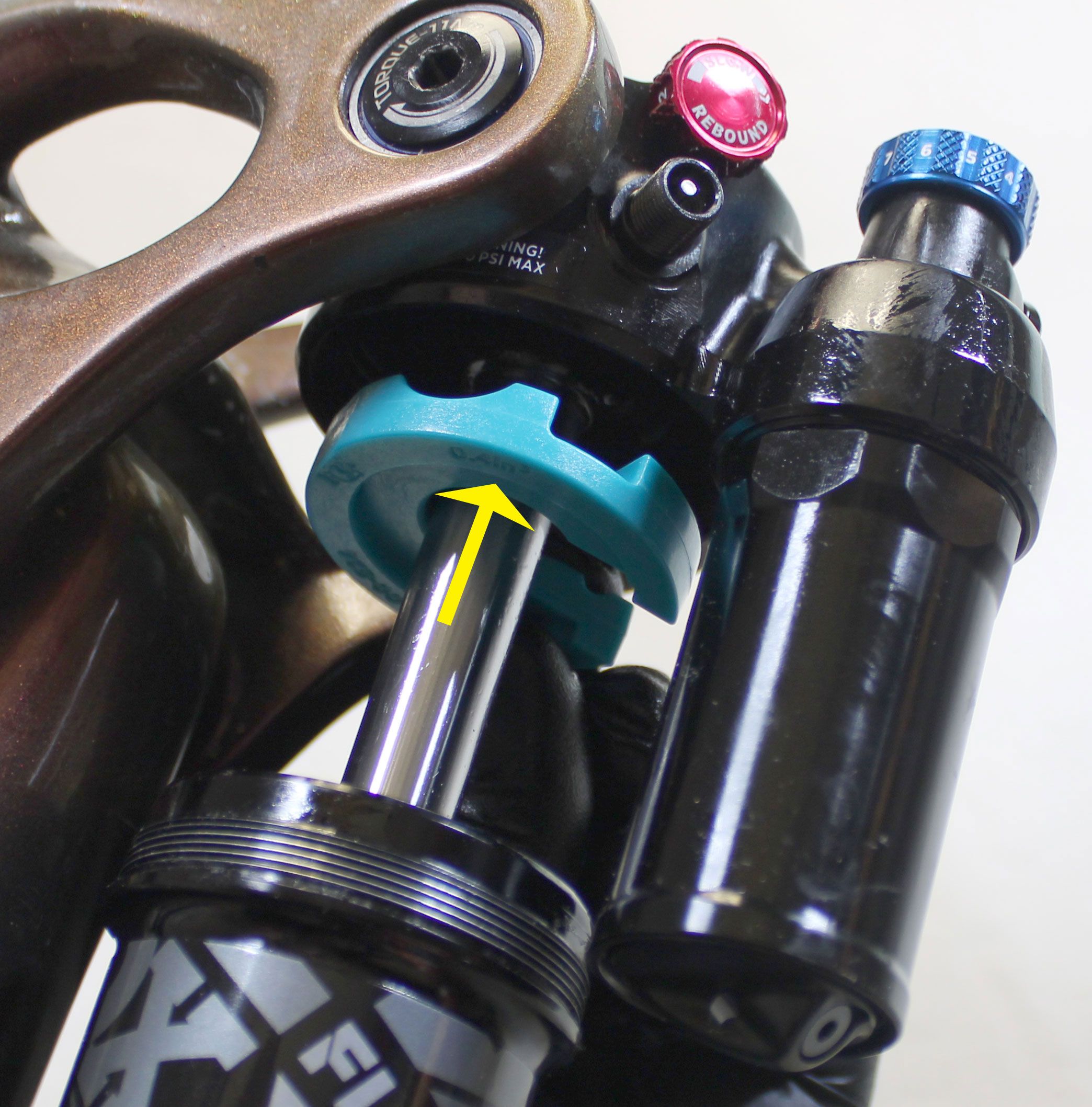

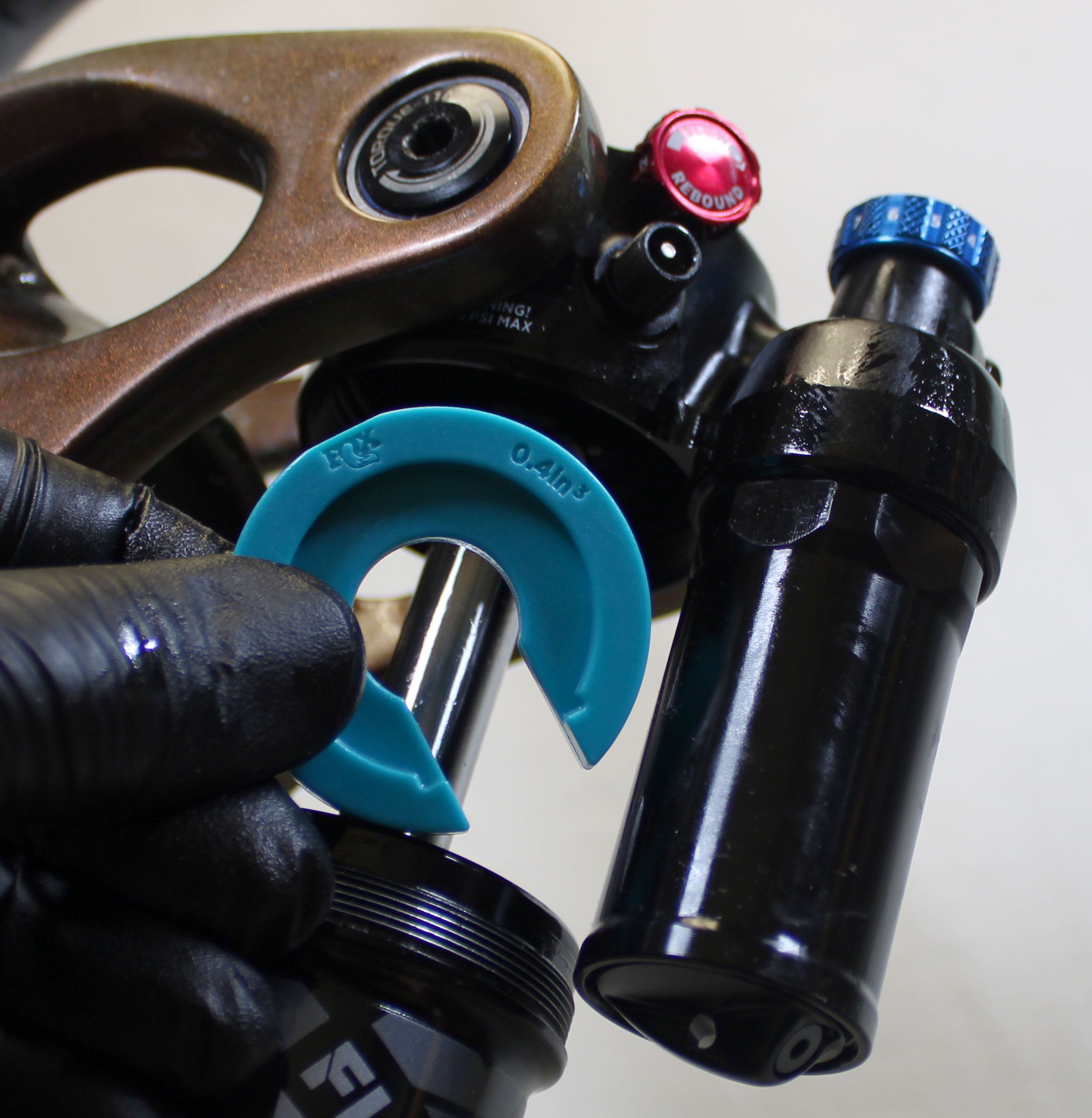

Install the new 0.2in^3 air volume spacer into the eyelet as shown. Orient the split in the air volume spacer so it it facing the piggyback reservoir. Make sure that the FOX logo is visible when installed in the eyelet and that the air volume spacer is fully seated.
Step 6

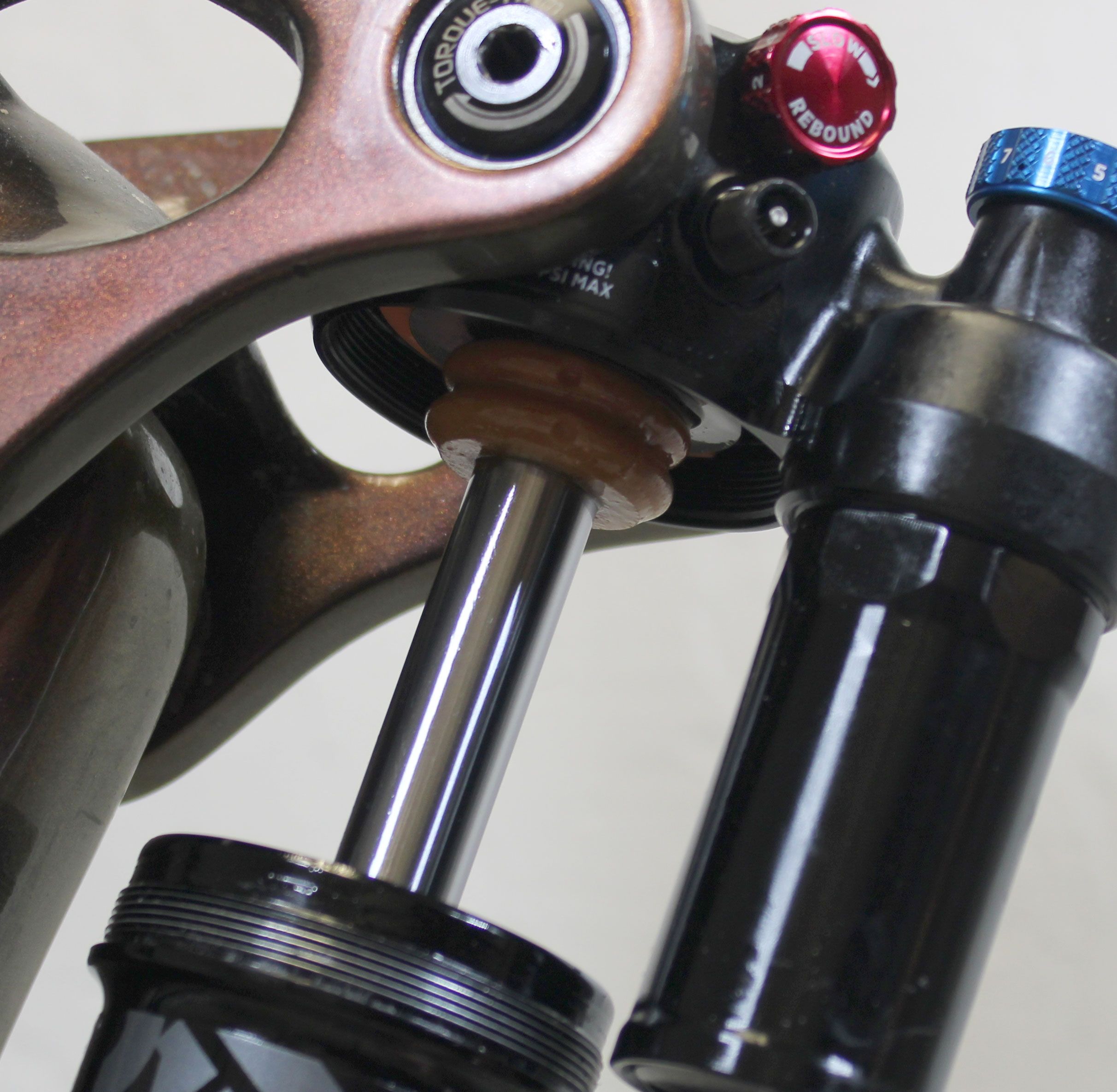

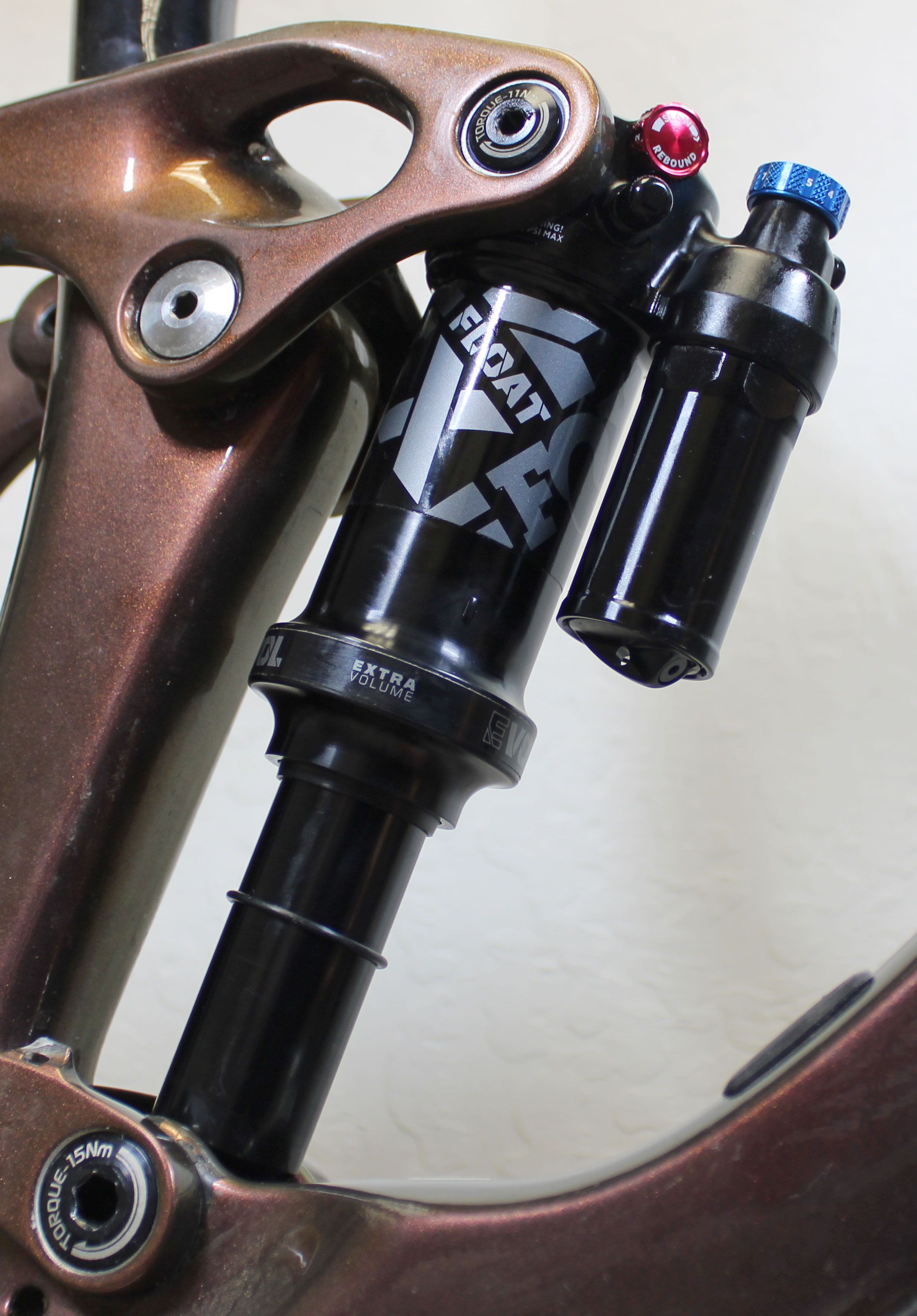

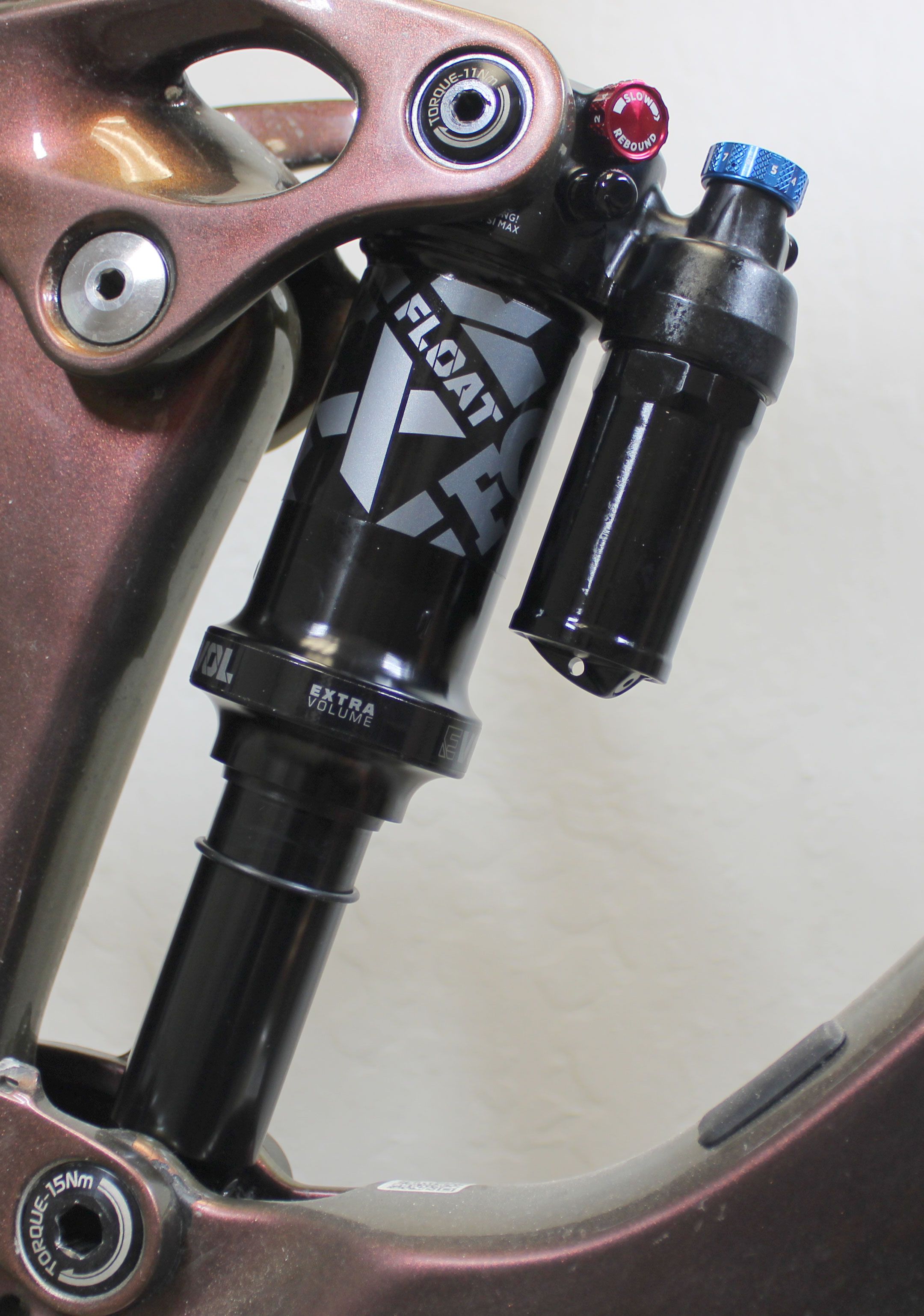

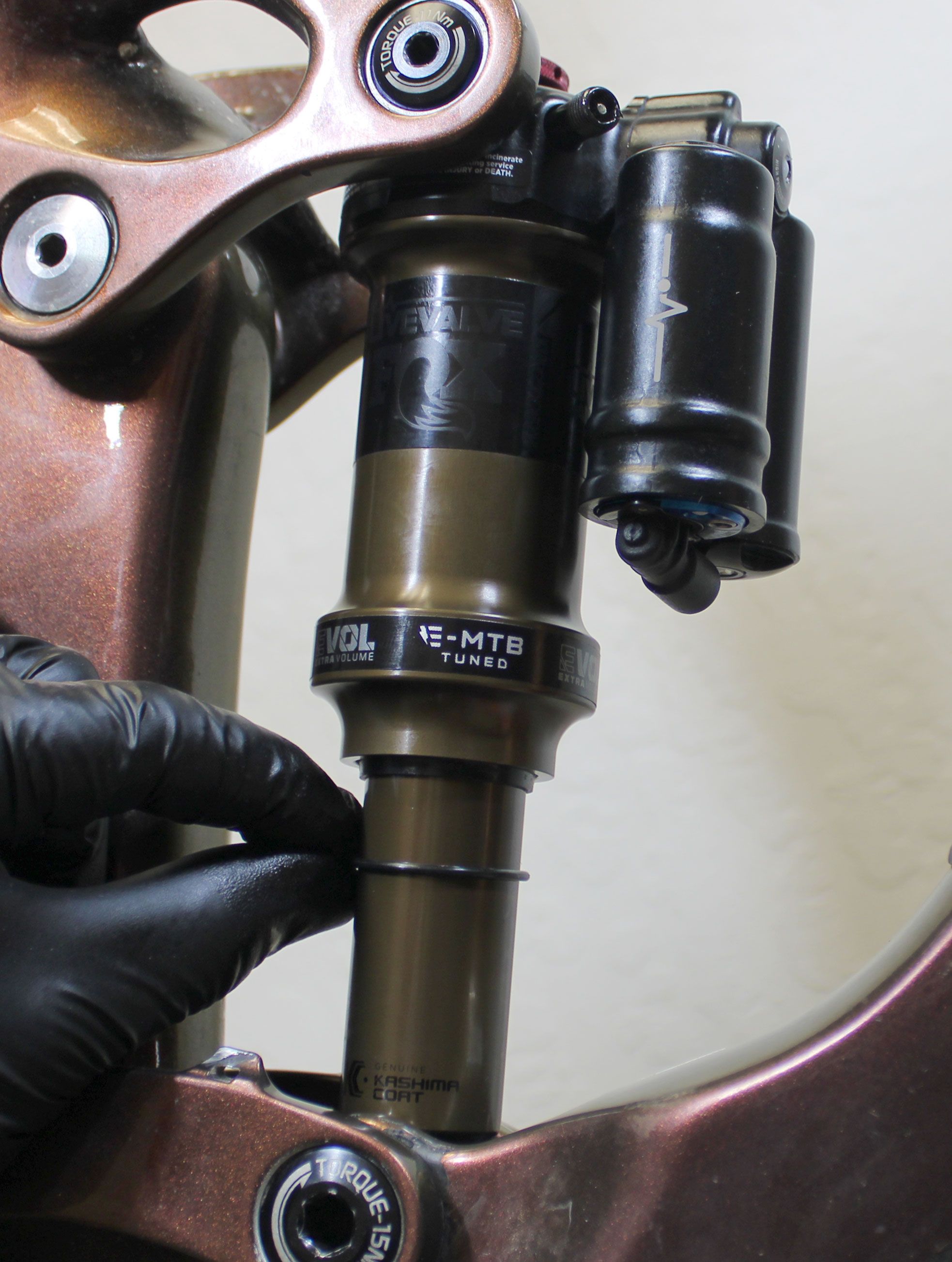

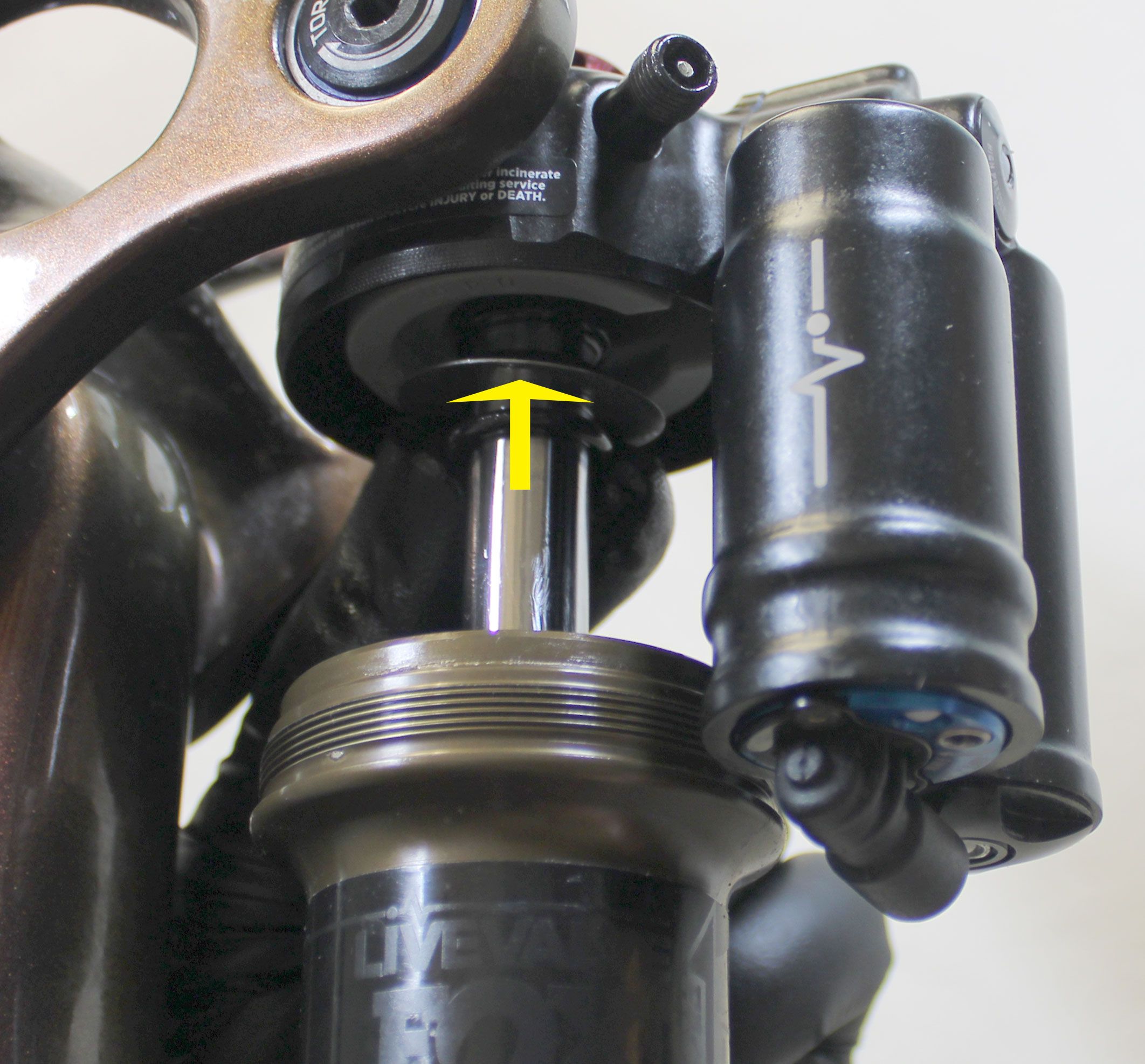

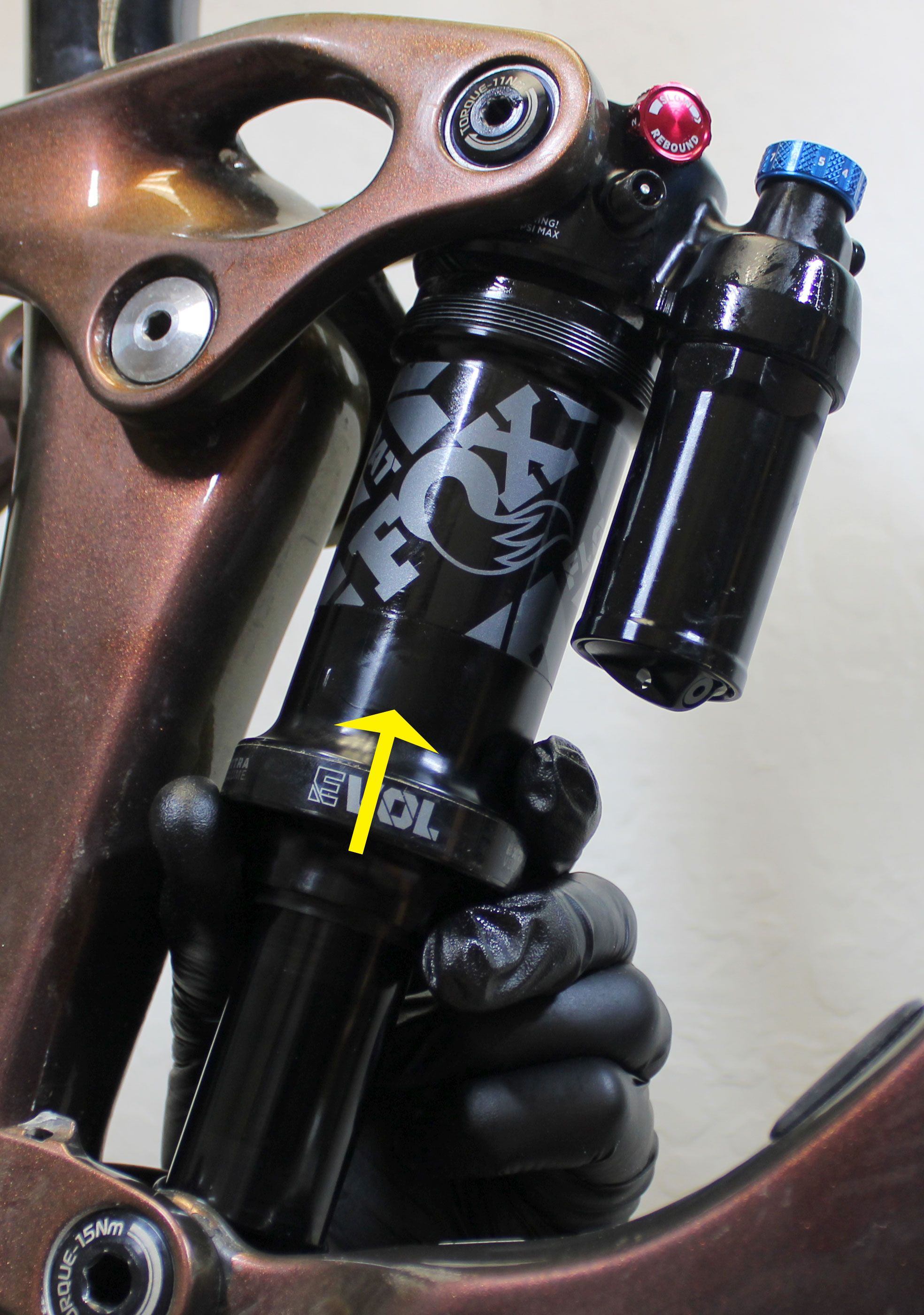

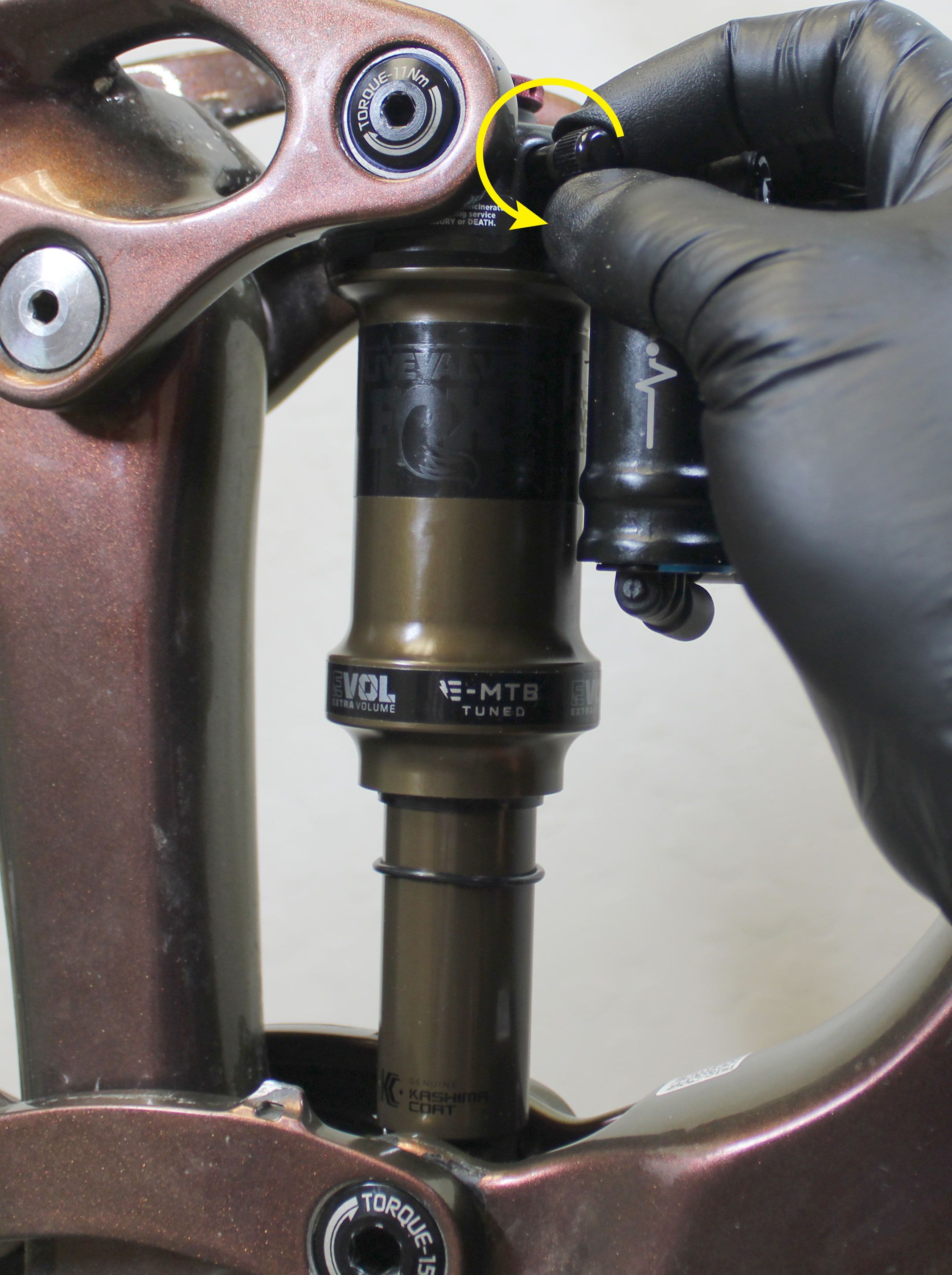

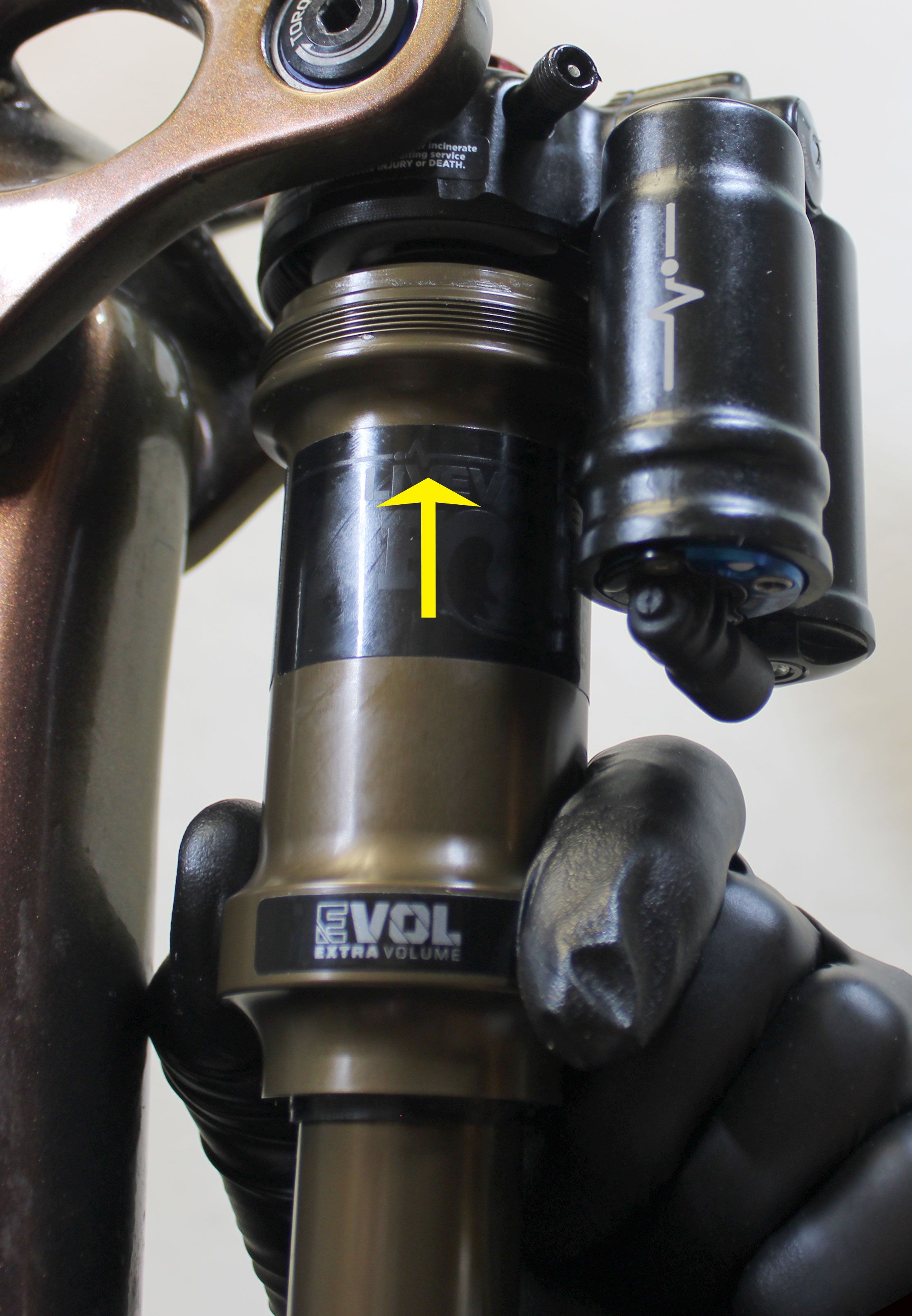

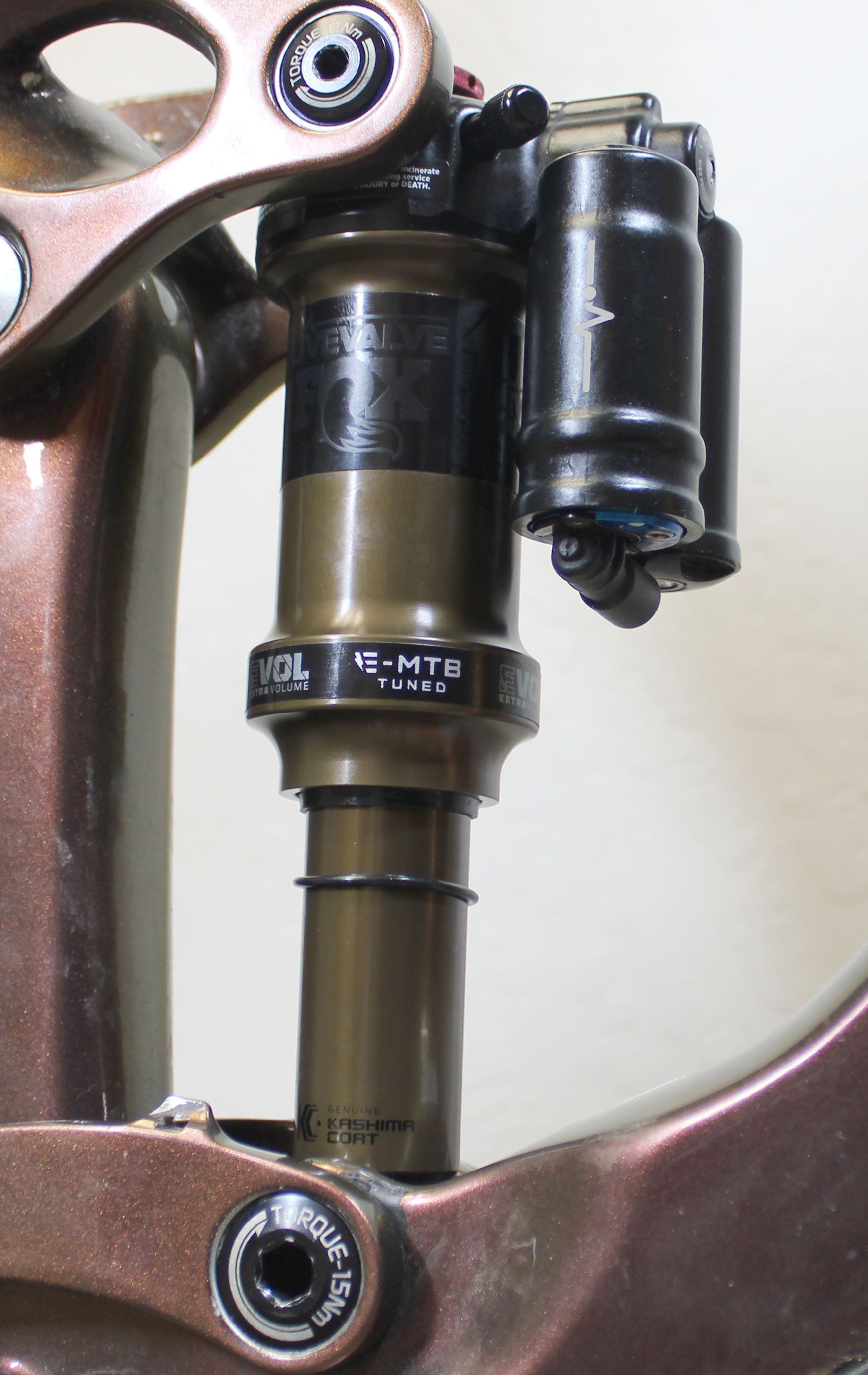

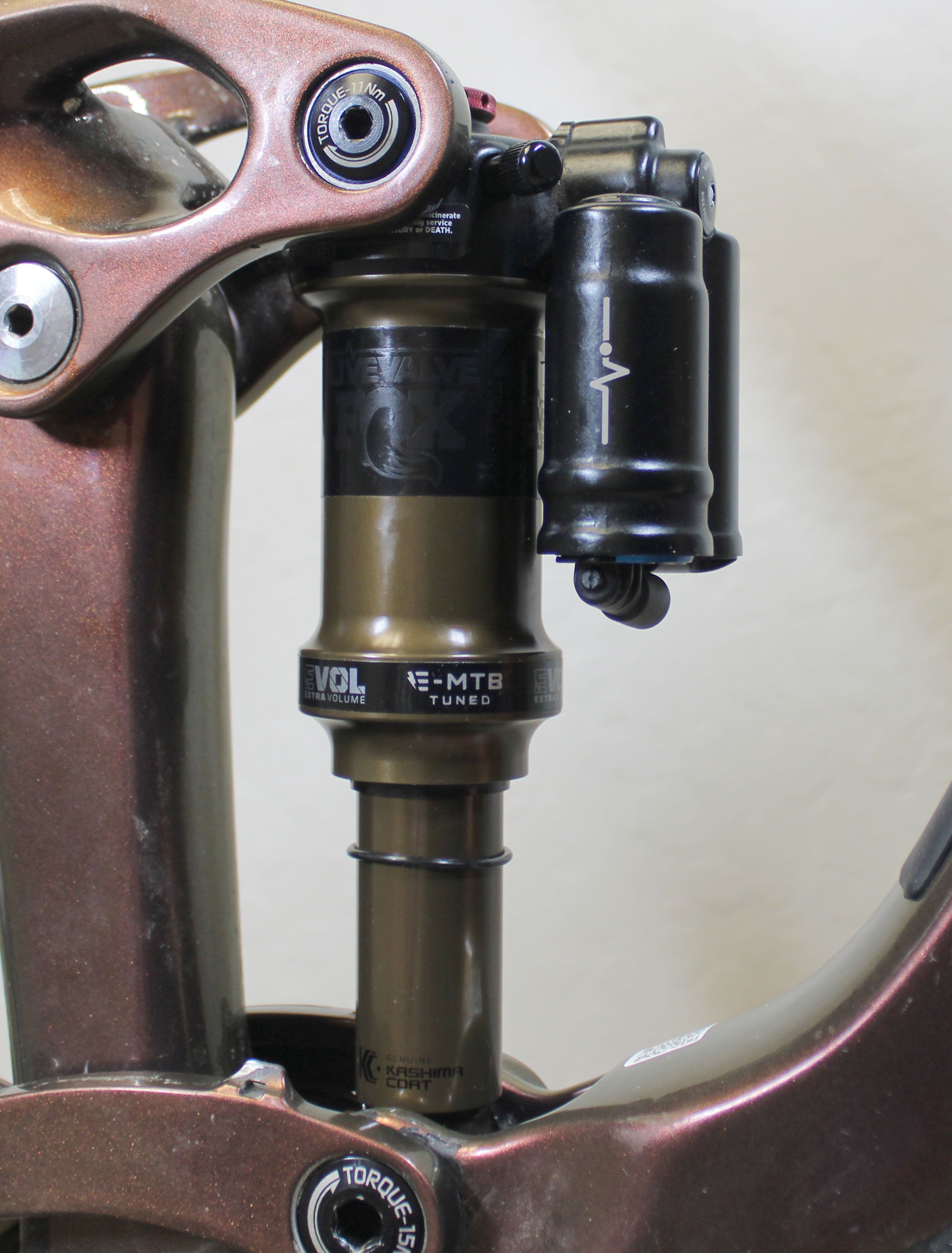

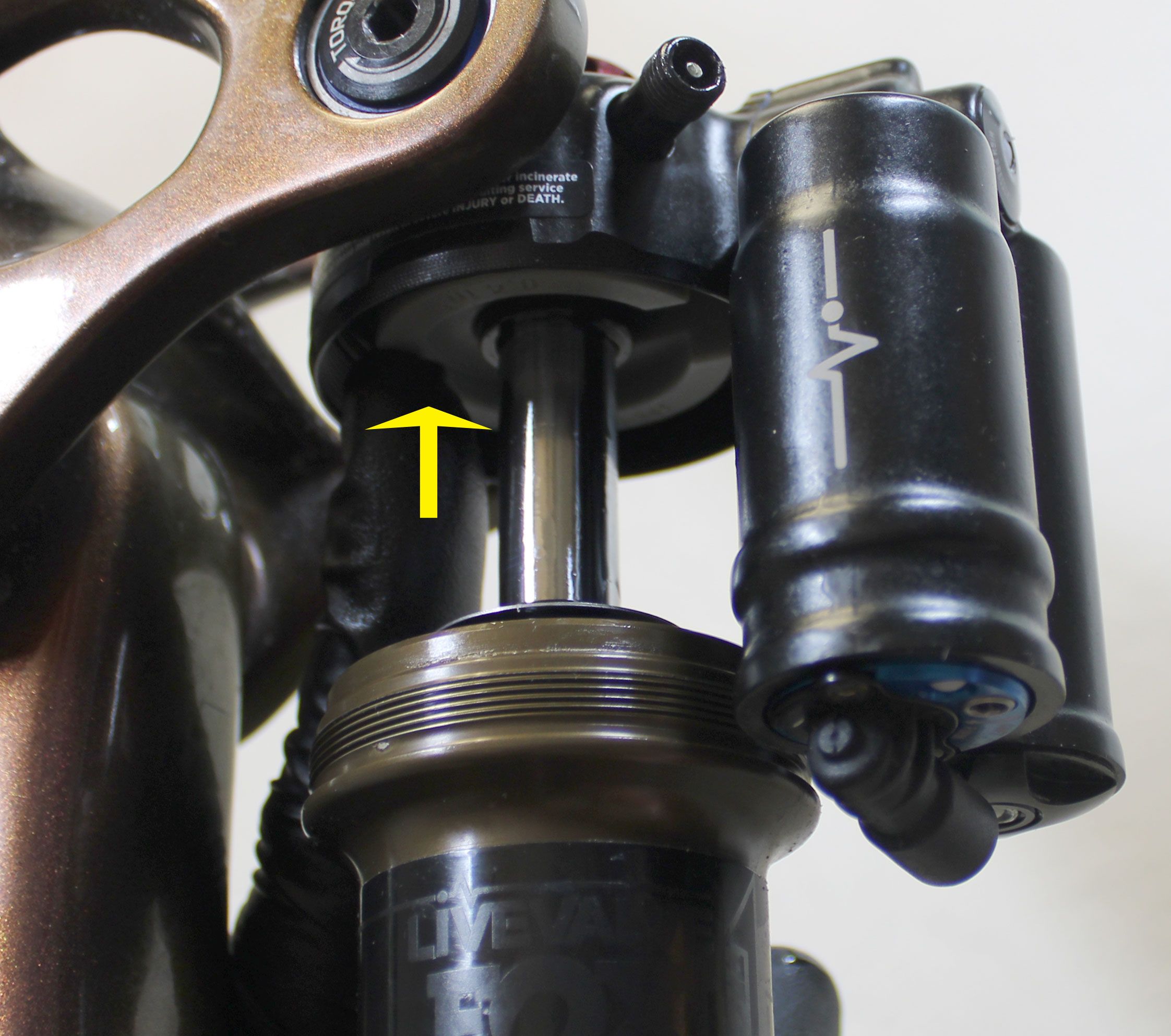

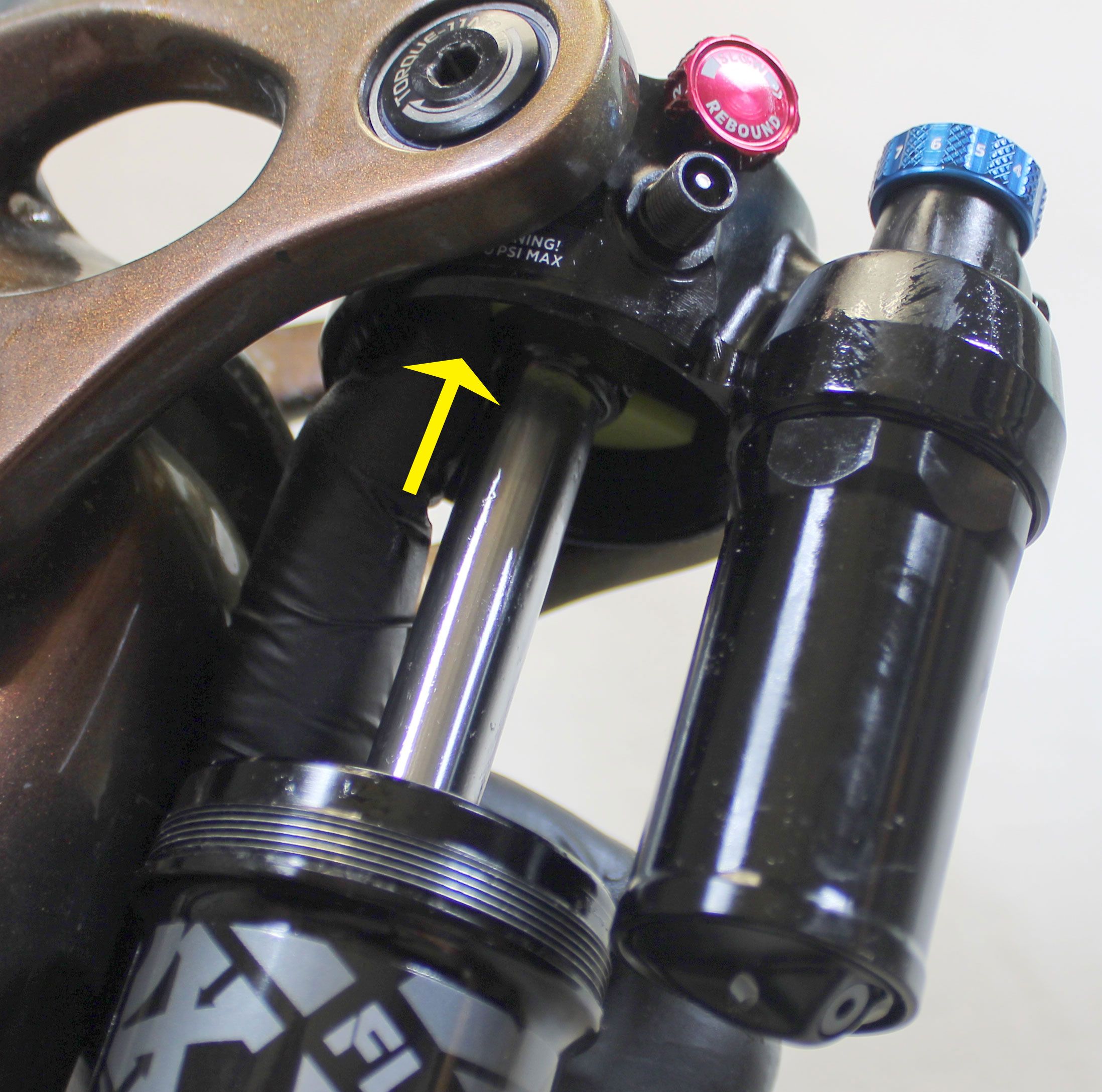

Slide the bottom out plate and bottom out bumper up the shaft against the new air volume spacer. Slide the air sleeve up against the eyelet then thread it clockwise until hand-tight. You may compress the bike's suspension if needed to help slide the air sleeve into the eyelet. Slide the sag indicator o-ring back onto the body.
Step 7

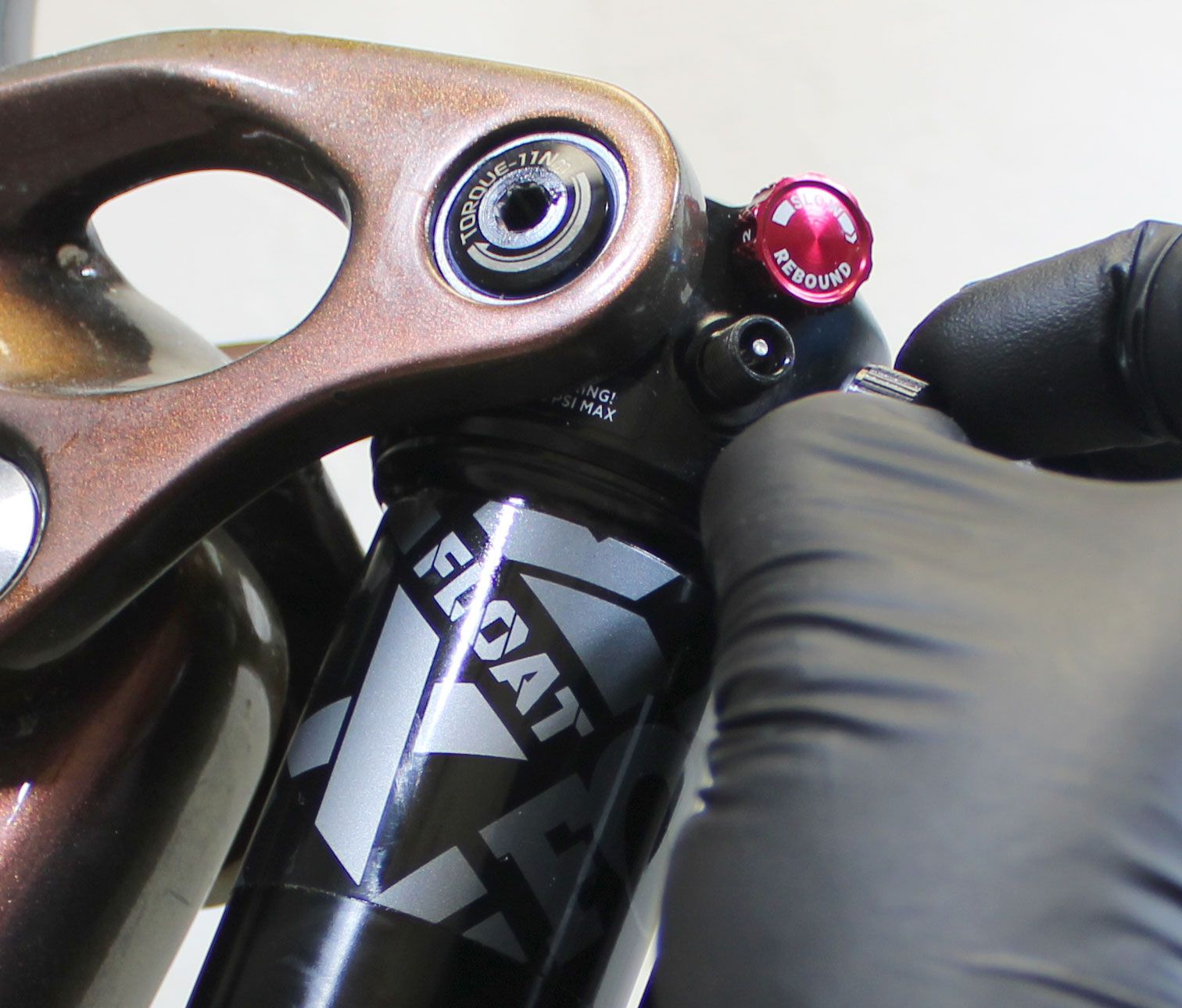

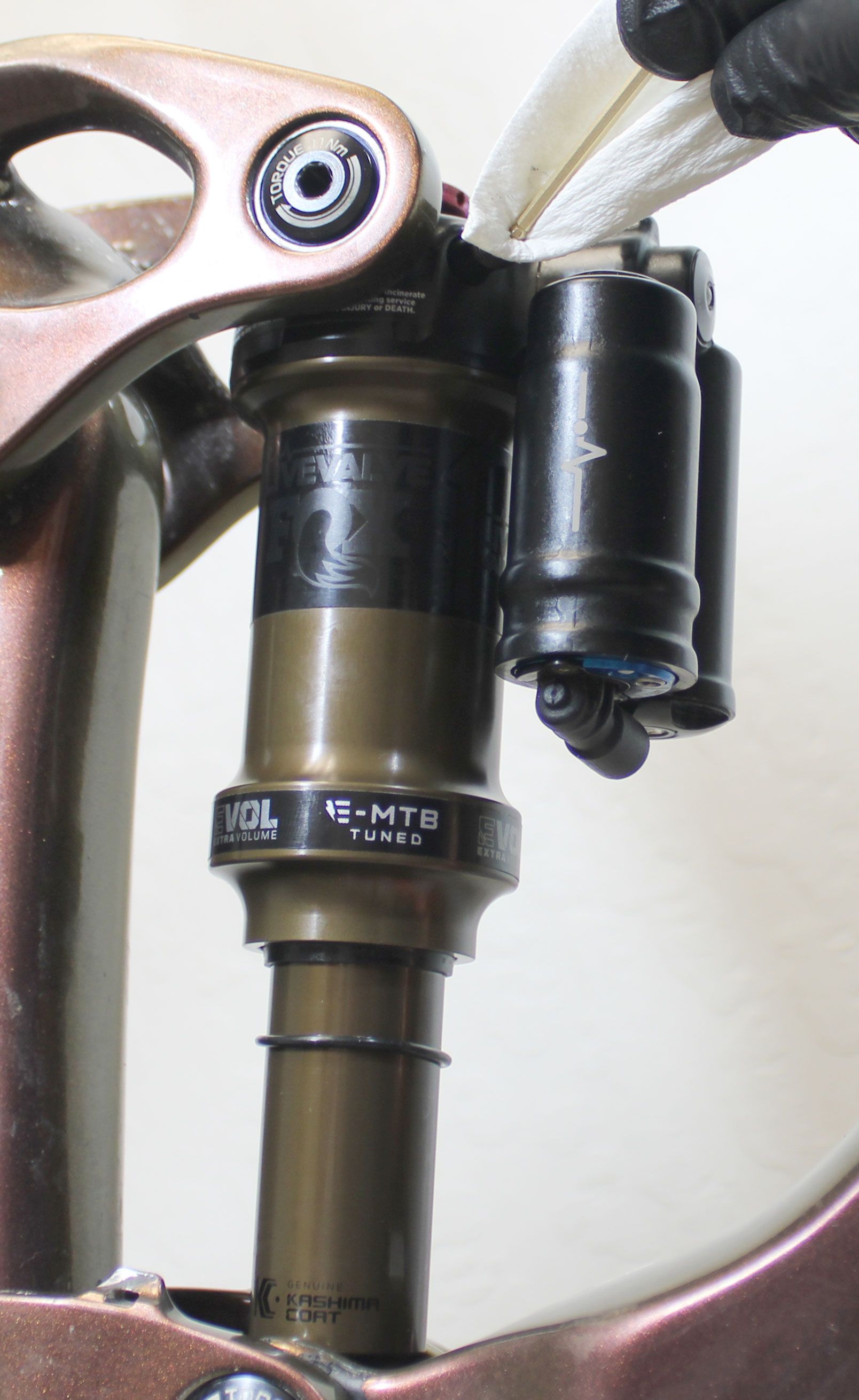

Add air to your desired pressure. When adding air to the air chamber, it is important to equalize the positive and negative air chambers by slowly compressing the shock through 25% of its travel 10-20 times after every 50psi addition. Reinstall the black air cap. Clean the exterior of the shock then go enjoy the ride!
Intrigue LT Advanced Pro 0
Step 1
Remove the black air cap and thread on your FOX shock pump. Slowly release all air from the main air chamber with your pump, then remove the pump. Verify that all air has been released by depressing the Schrader valve.
Step 2

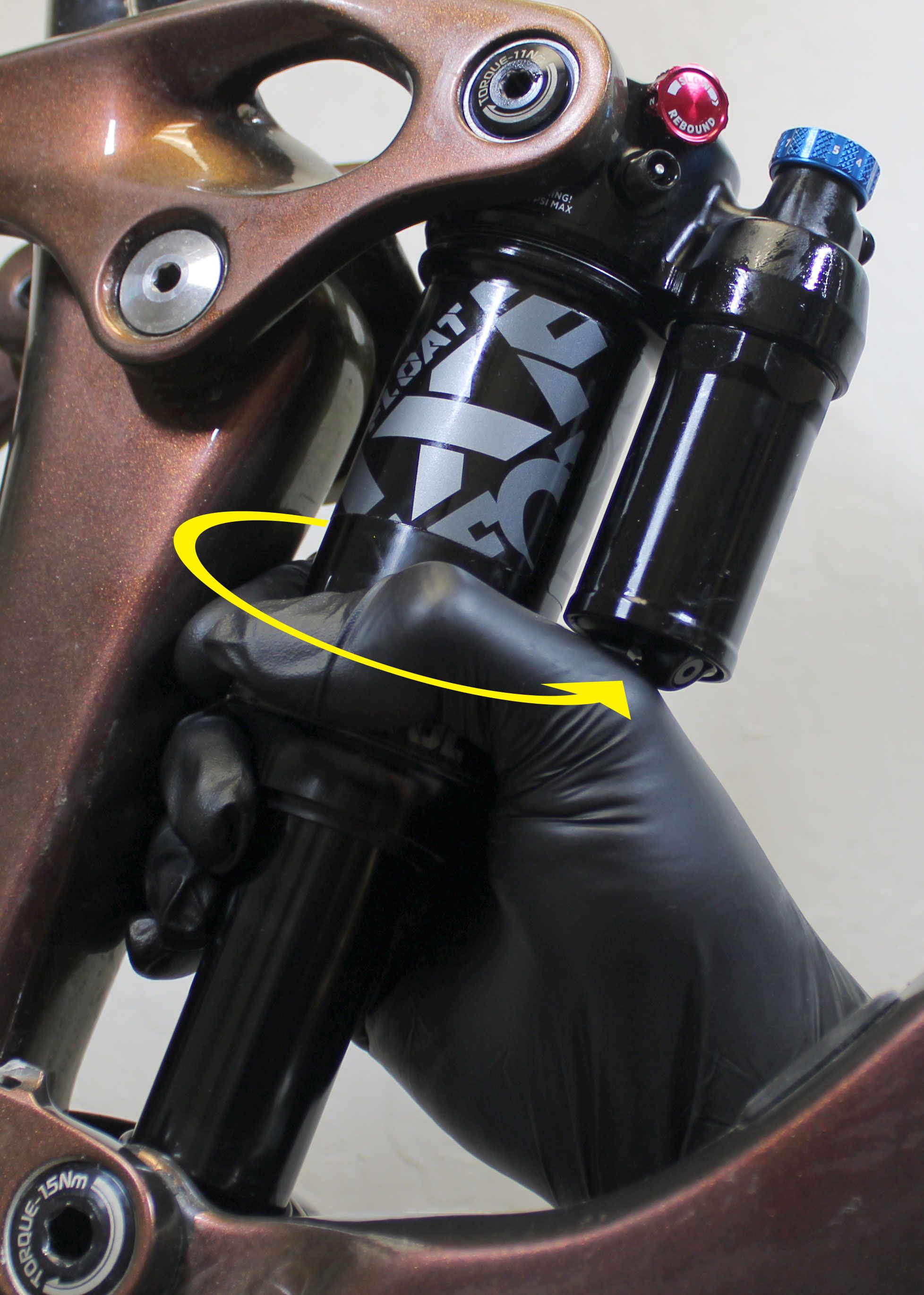

Unthread the air sleeve from the eyelet by turning it counter-clockwise. Slide the air sleeve down to access to install the new air volume spacer.
Step 3
Slide the bottom out bumper and bottom out plate down the shaft to allow access to the inside of the eyelet.
Step 4

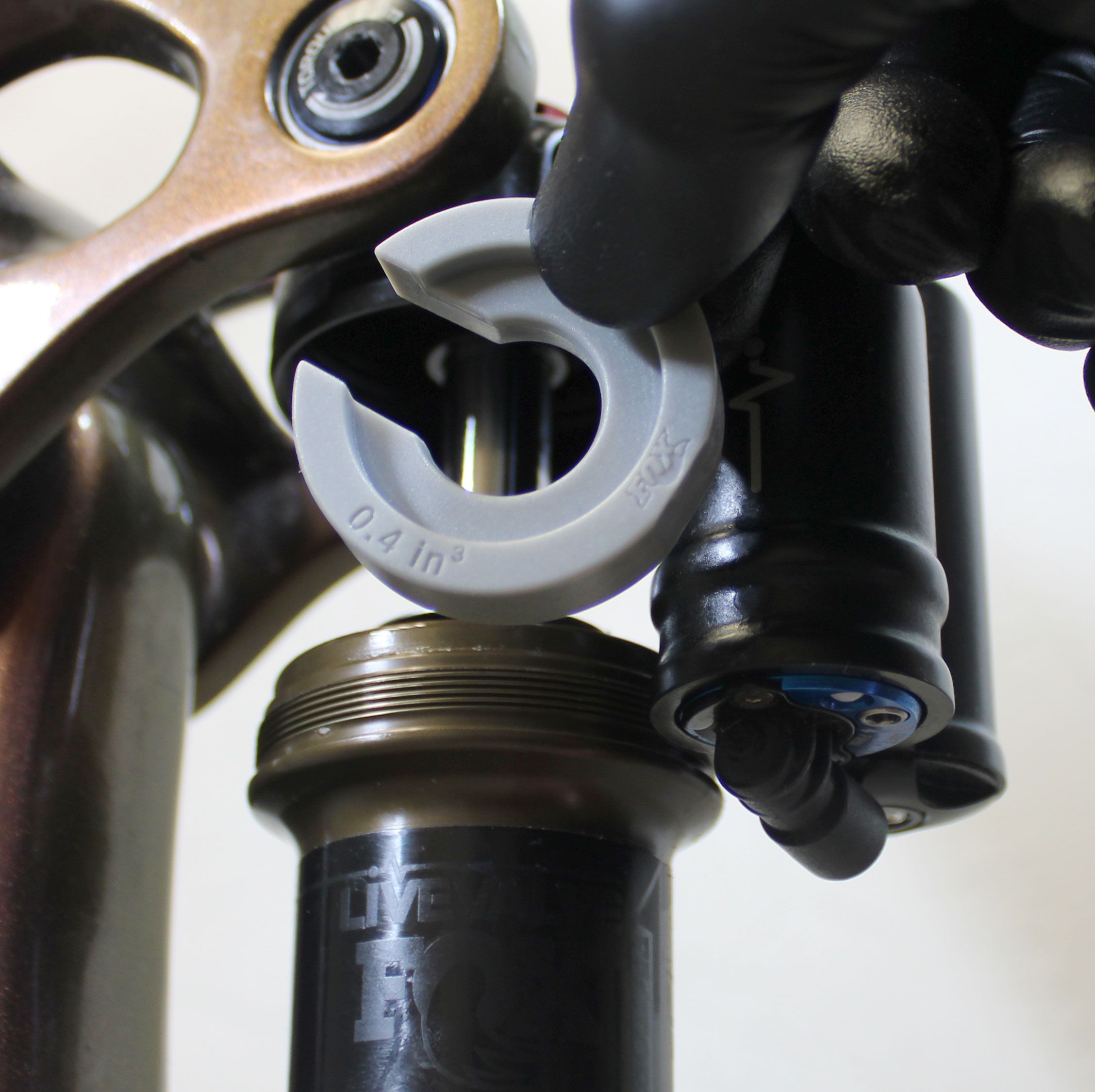

Install the new 0.4in^3 air volume spacer into the eyelet as shown. Orient the split in the air volume spacer so it it facing the piggyback reservoir. Make sure that the FOX logo is visible when installed in the eyelet and that the air volume spacer is fully seated.
Step 5
Slide the bottom out plate and bottom out bumper up the shaft against the new air volume spacer. Slide the air sleeve up against the eyelet then thread it clockwise until hand-tight. You may compress the bike's suspension if needed to help slide the air sleeve into the eyelet. Slide the sag indicator o-ring back onto the body.
Step 6
Add air to your desired pressure. When adding air to the air chamber, it is important to equalize the positive and negative air chambers by slowly compressing the shock through 25% of its travel 10-20 times after every 50psi addition. Reinstall the black air cap. Clean the exterior of the shock then go enjoy the ride!
Intrigue LT Advanced Pro 1
Step 1

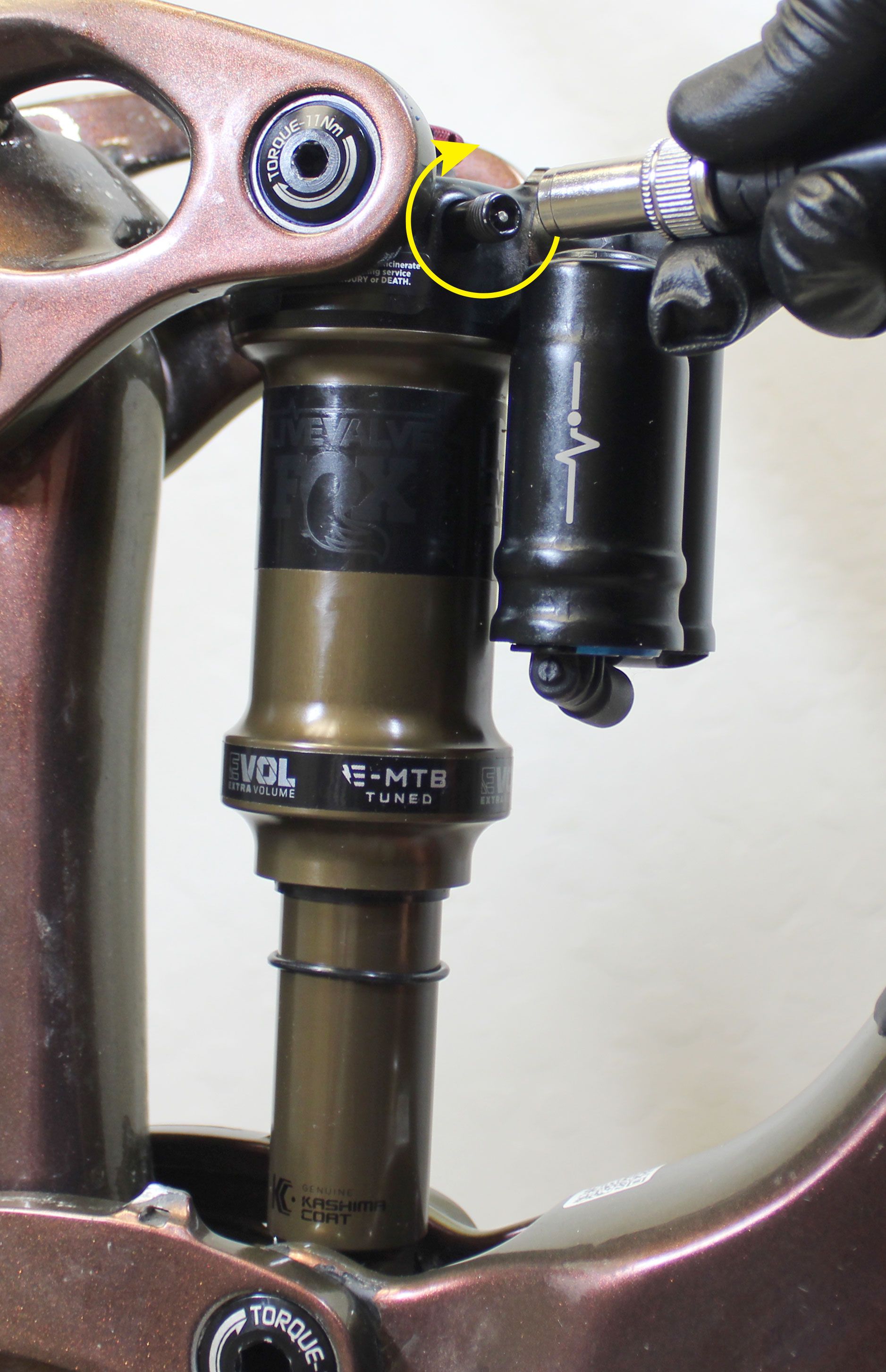

Remove the black air cap and thread on your FOX shock pump. Slowly release all air from the main air chamber with your pump, then remove the pump. Verify that all air has been released by depressing the Schrader valve.
Step 2

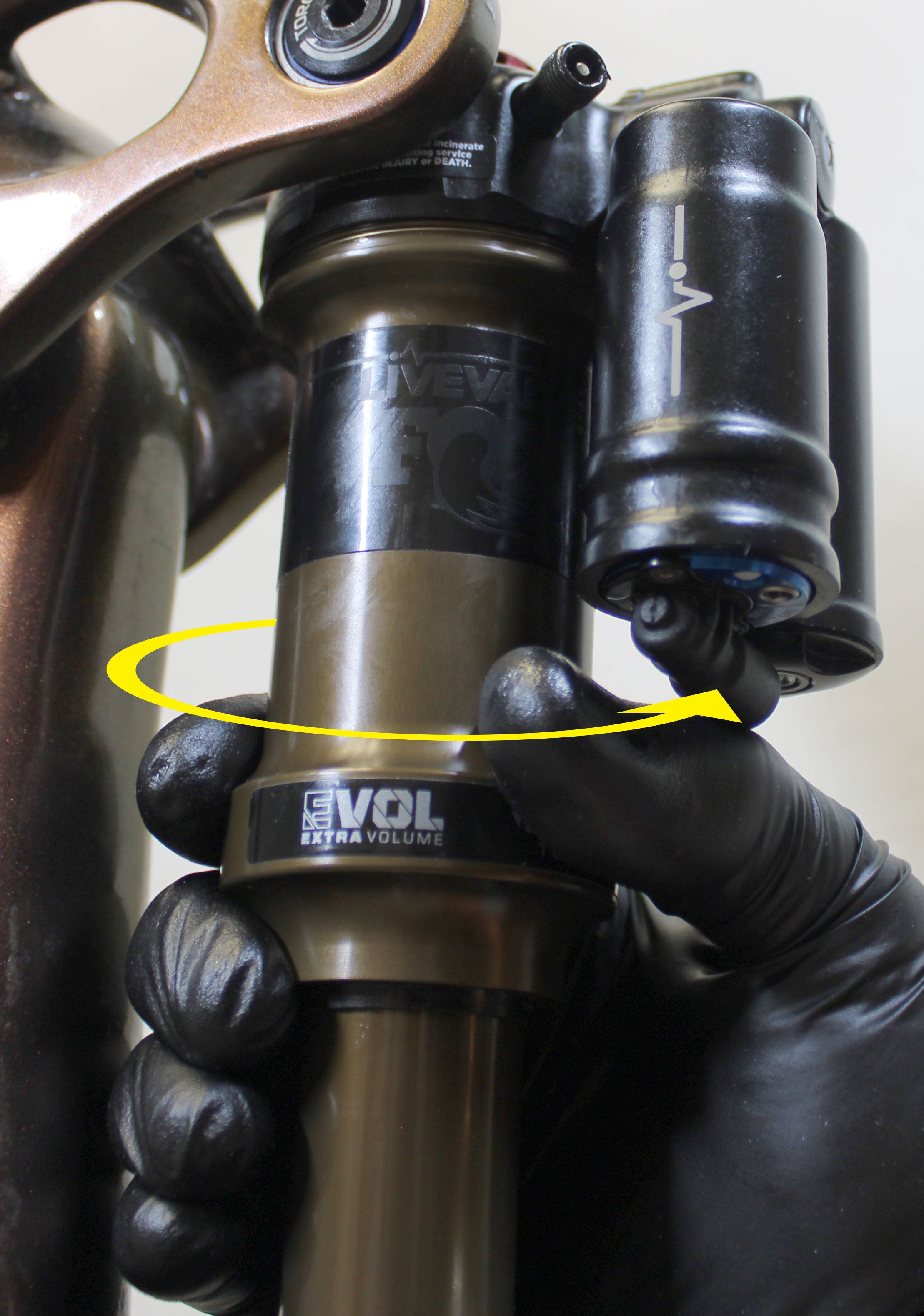

Unthread the air sleeve from the eyelet by turning it counter-clockwise. Slide the air sleeve down to access the air volume spacer.
Step 3

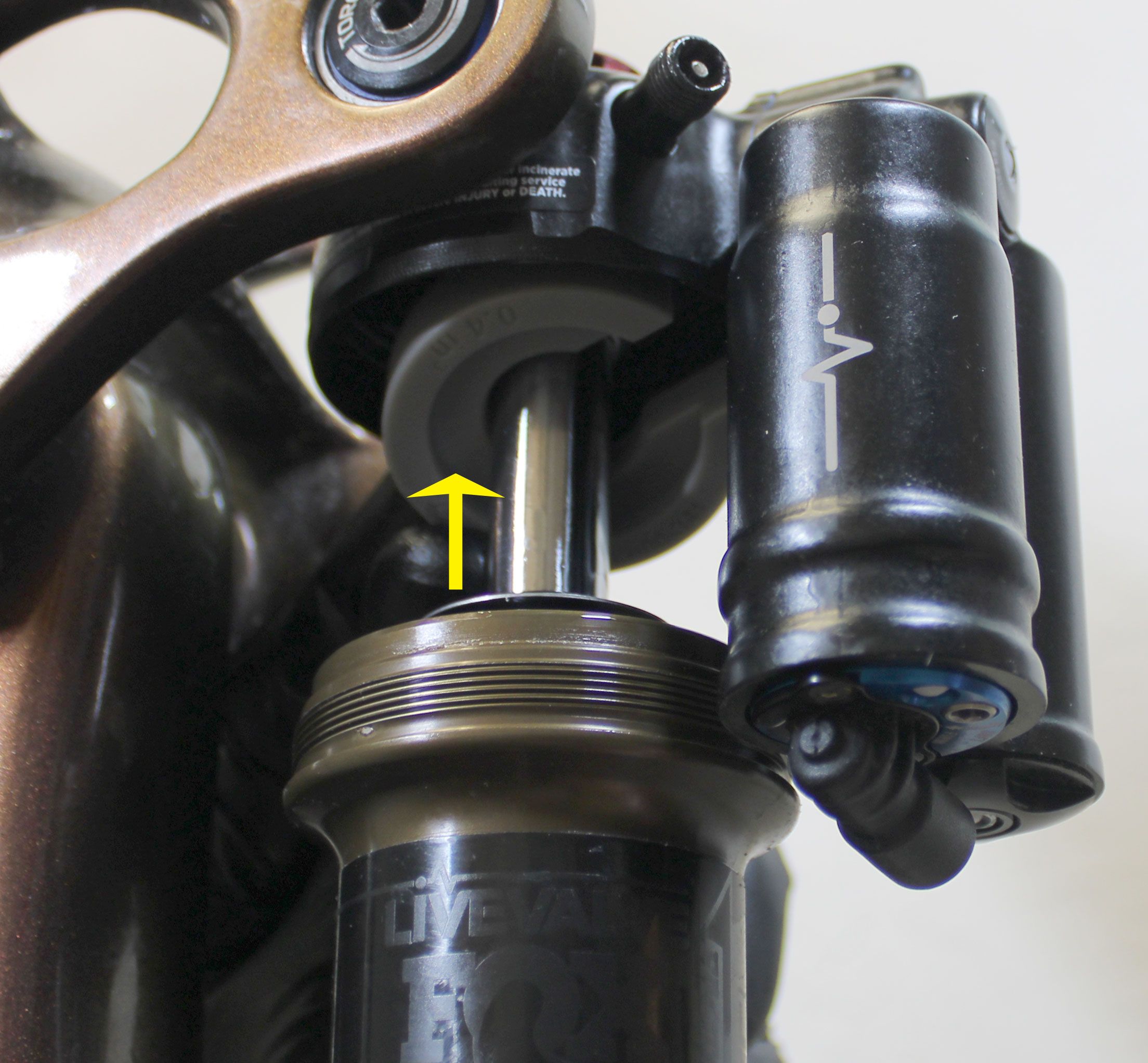

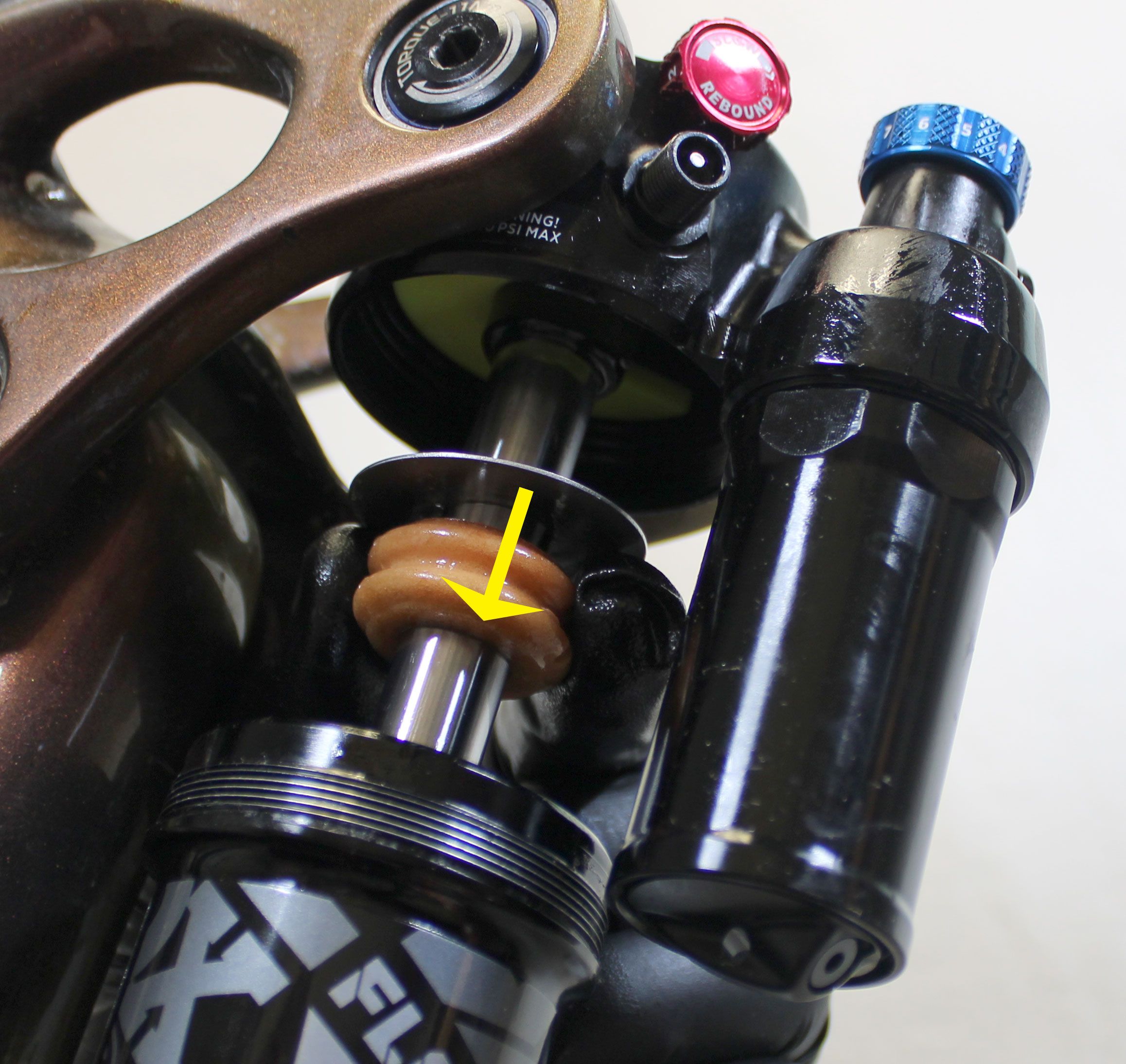

Slide the bottom out bumper and bottom out plate down the shaft to access the air volume spacer.
Step 4
Use a small flat screwdriver in the split of the 0.2in^3 air volume spacer to carefully pull it down out of the eyelet.
Step 5
Install the new 0.4in^3 air volume spacer into the eyelet as shown. Orient the split in the air volume spacer so it it facing the piggyback reservoir. Make sure that the FOX logo is visible when installed in the eyelet and that the air volume spacer is fully seated.
Step 6
Slide the bottom out plate and bottom out bumper up the shaft against the new air volume spacer. Slide the air sleeve up against the eyelet then thread it clockwise until hand-tight. You may compress the bike's suspension if needed to help slide the air sleeve into the eyelet. Slide the sag indicator o-ring back onto the body.
Step 7
Add air to your desired pressure. When adding air to the air chamber, it is important to equalize the positive and negative air chambers by slowly compressing the shock through 25% of its travel 10-20 times after every 50psi addition. Reinstall the black air cap. Clean the exterior of the shock then go enjoy the ride!
Reign Advanced Pro 1
Step 1

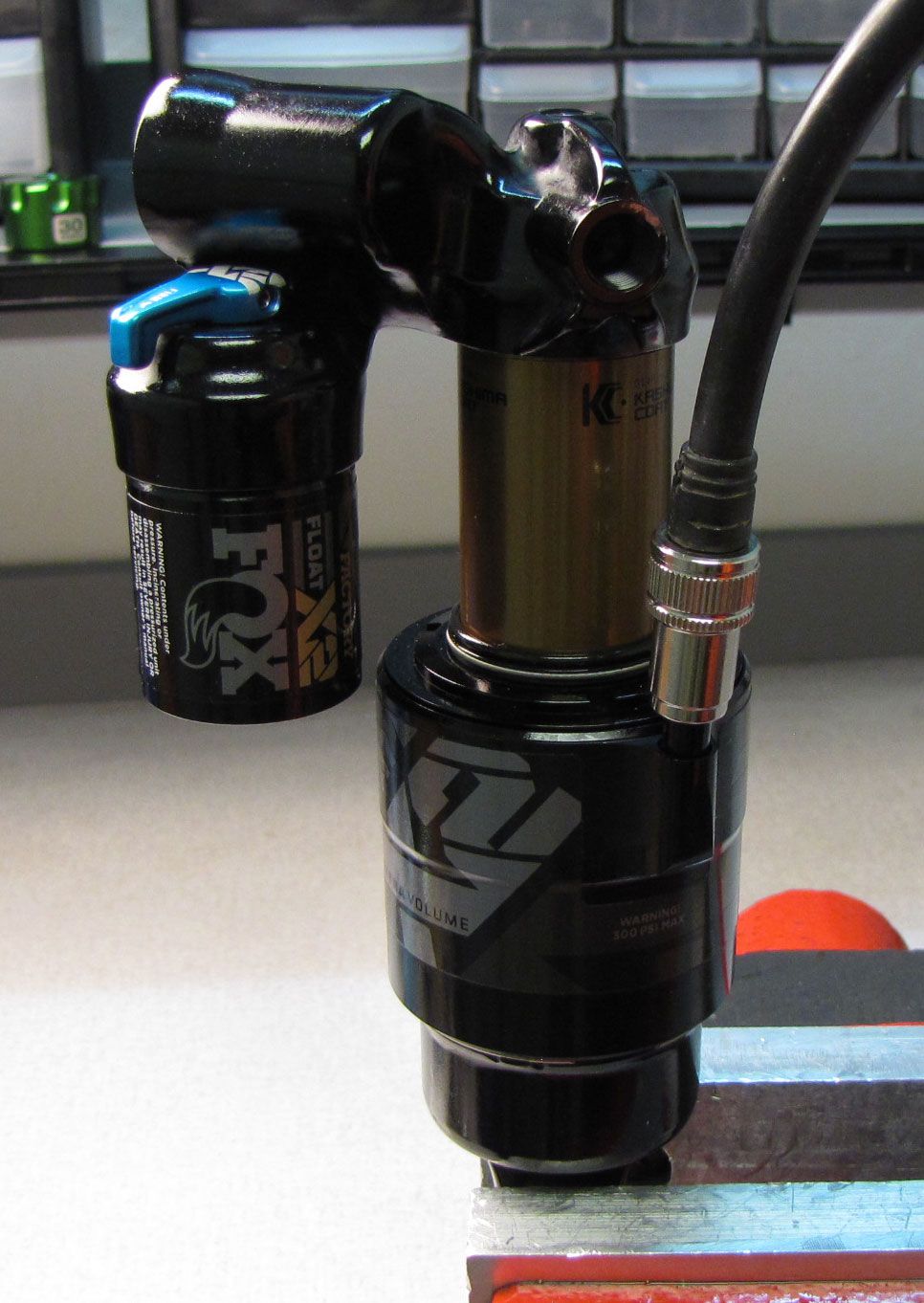

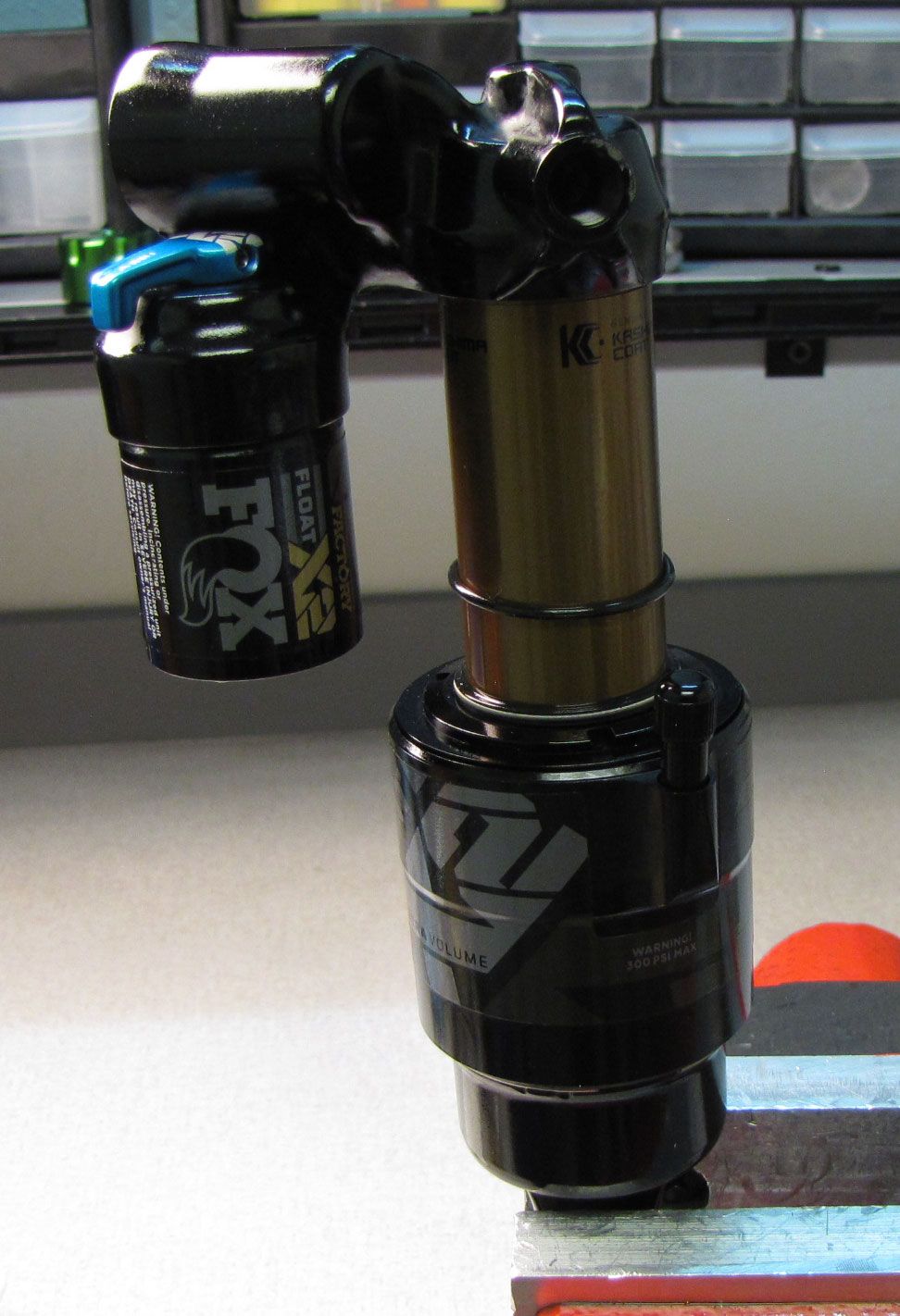

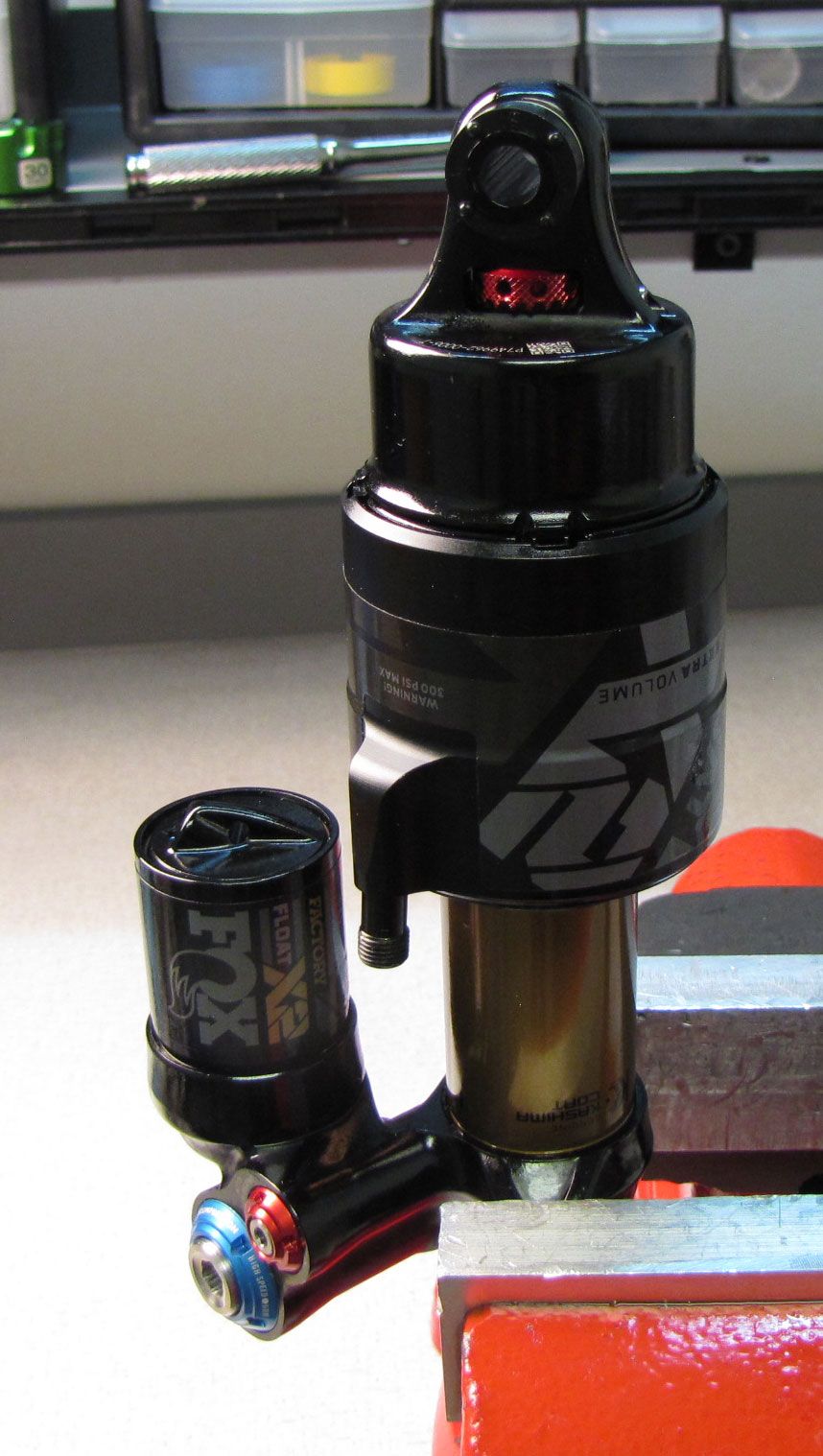

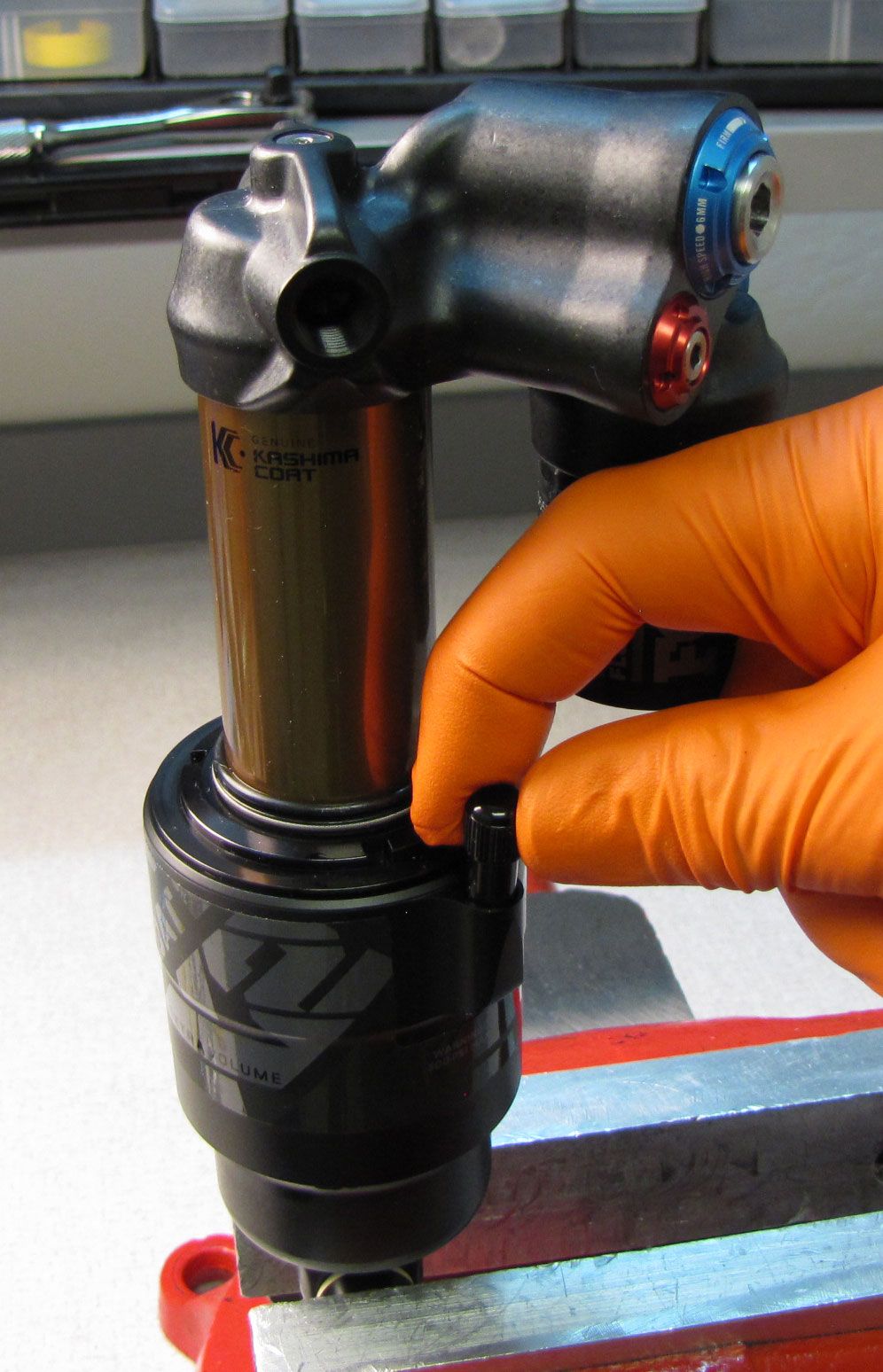

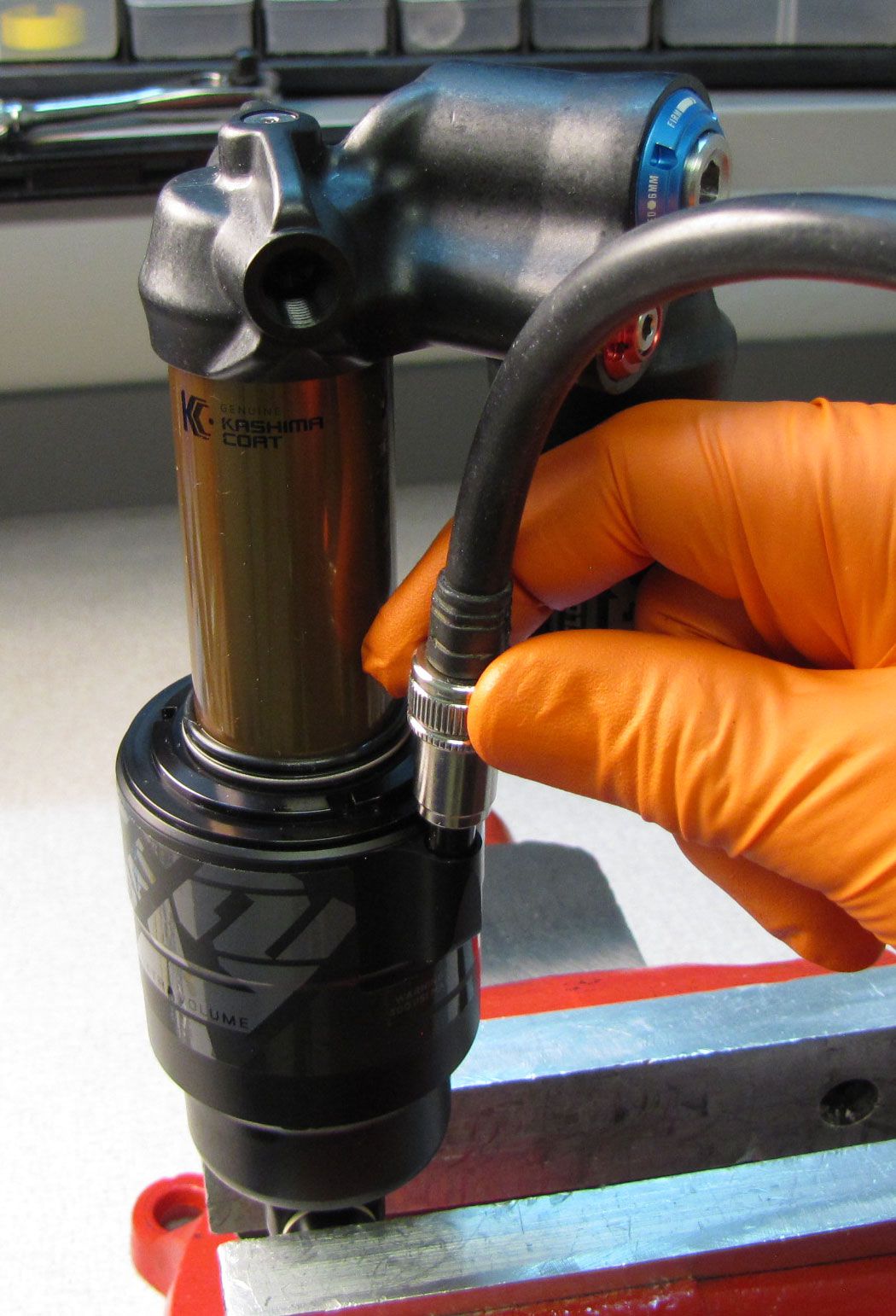

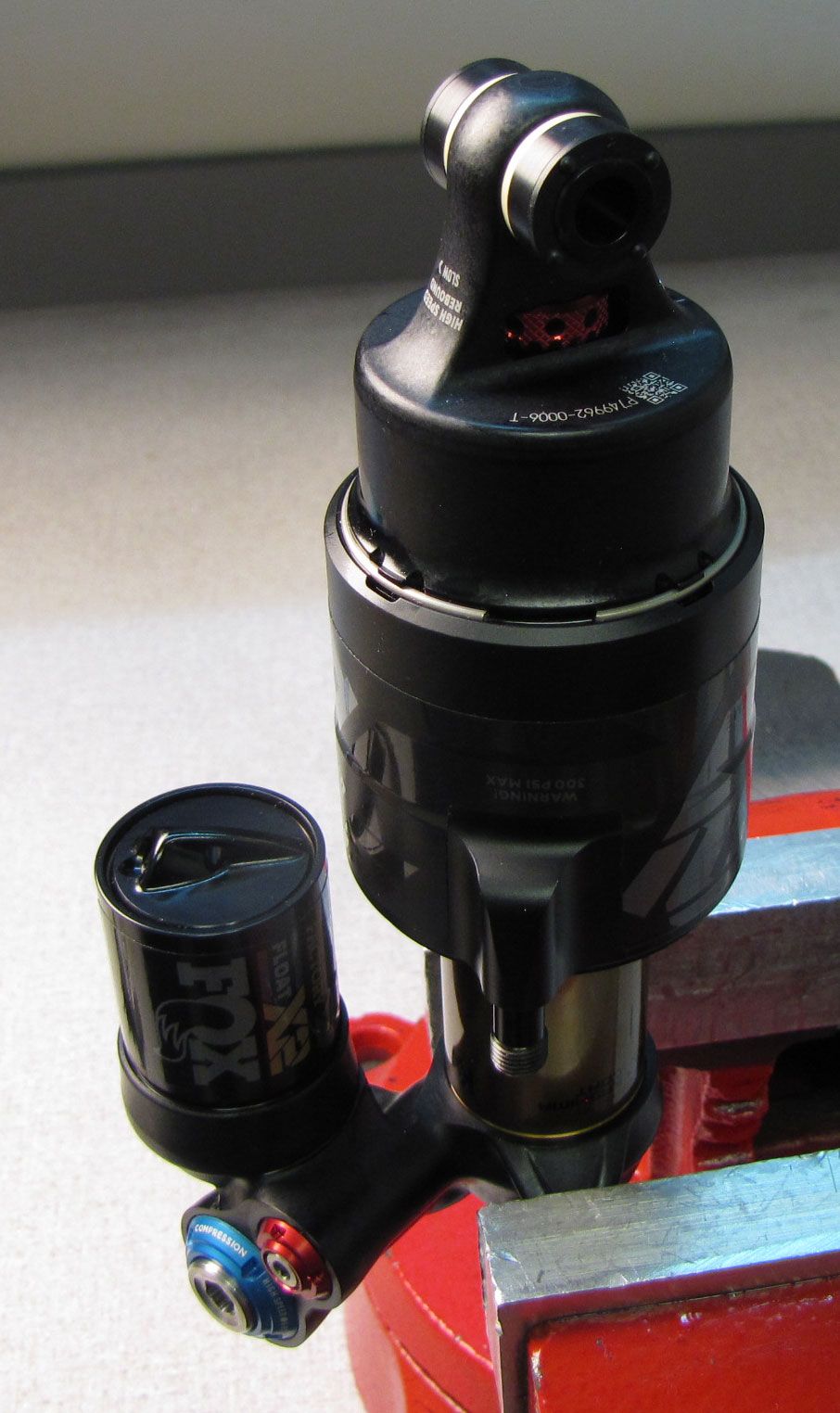

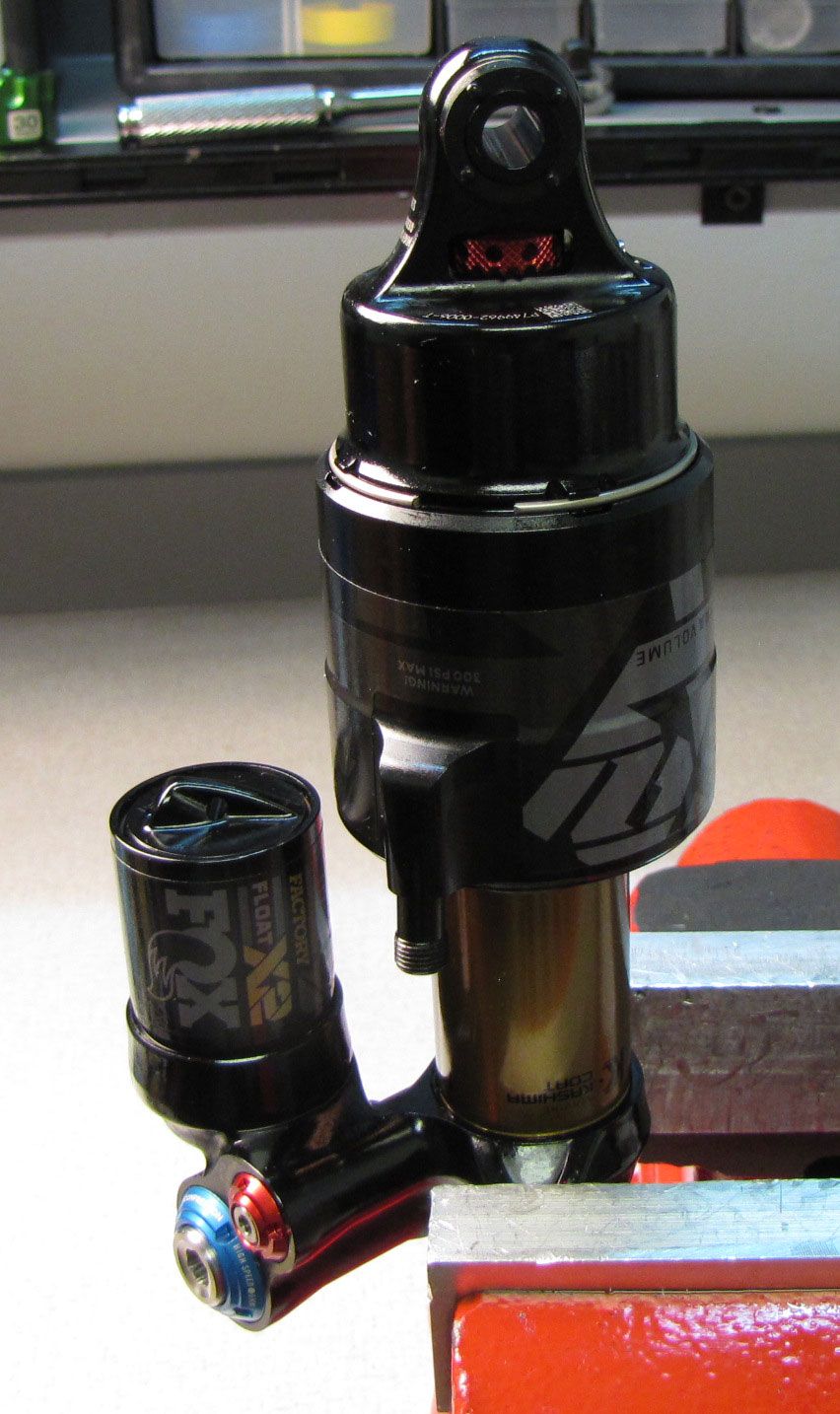

Remove your FLOAT X2 shock from the bike. Please follow your frame manufacturer's instructions for removing the shock from your frame. Carefully clamp your shock eyelet in a soft-jawed vise.
Remove the black air cap and thread on your FOX shock pump. Slowly release all air from the main air chamber with your pump, then remove the pump. Verify that all air has been released by depressing the Schrader valve.
Step 2

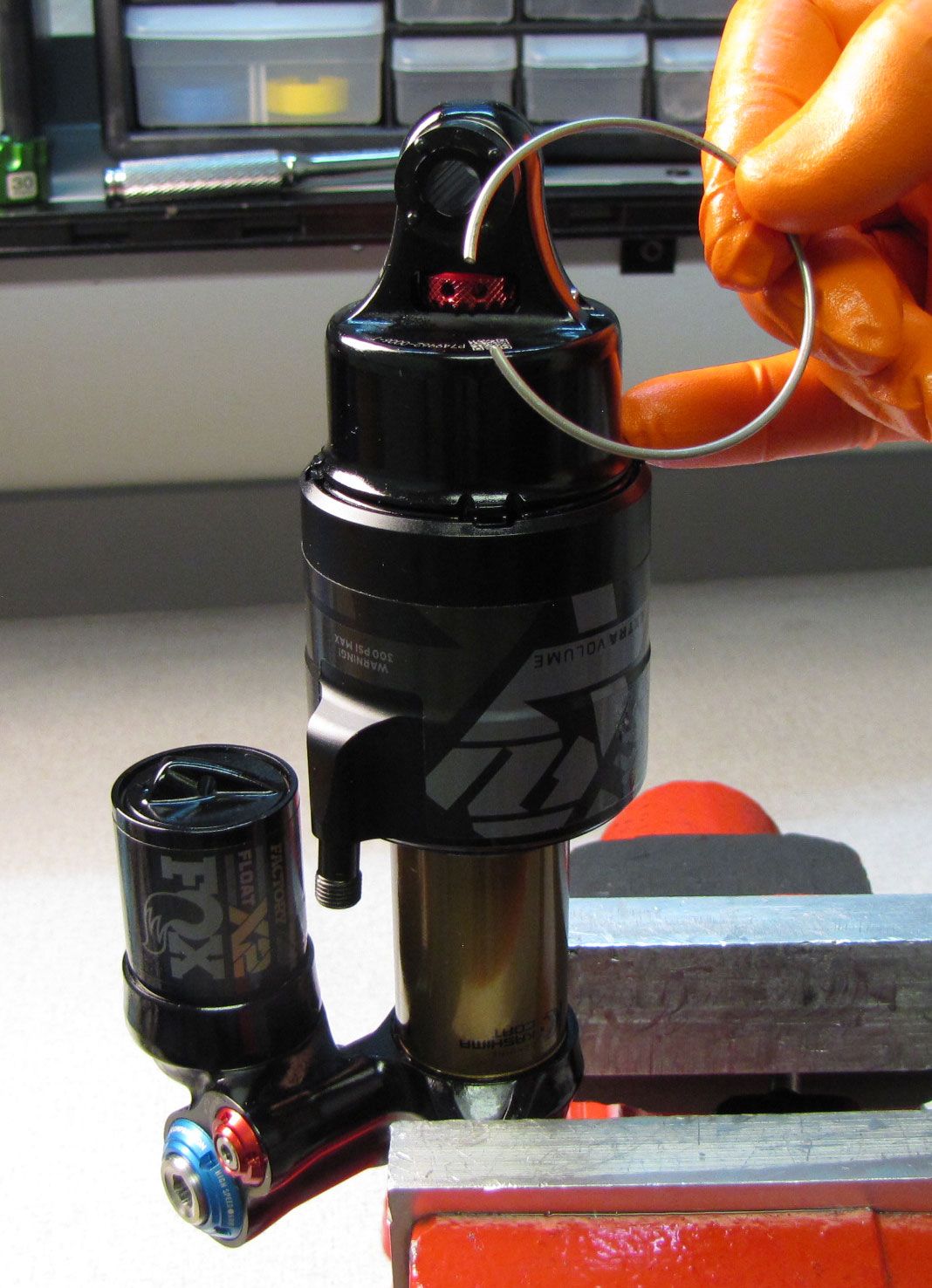

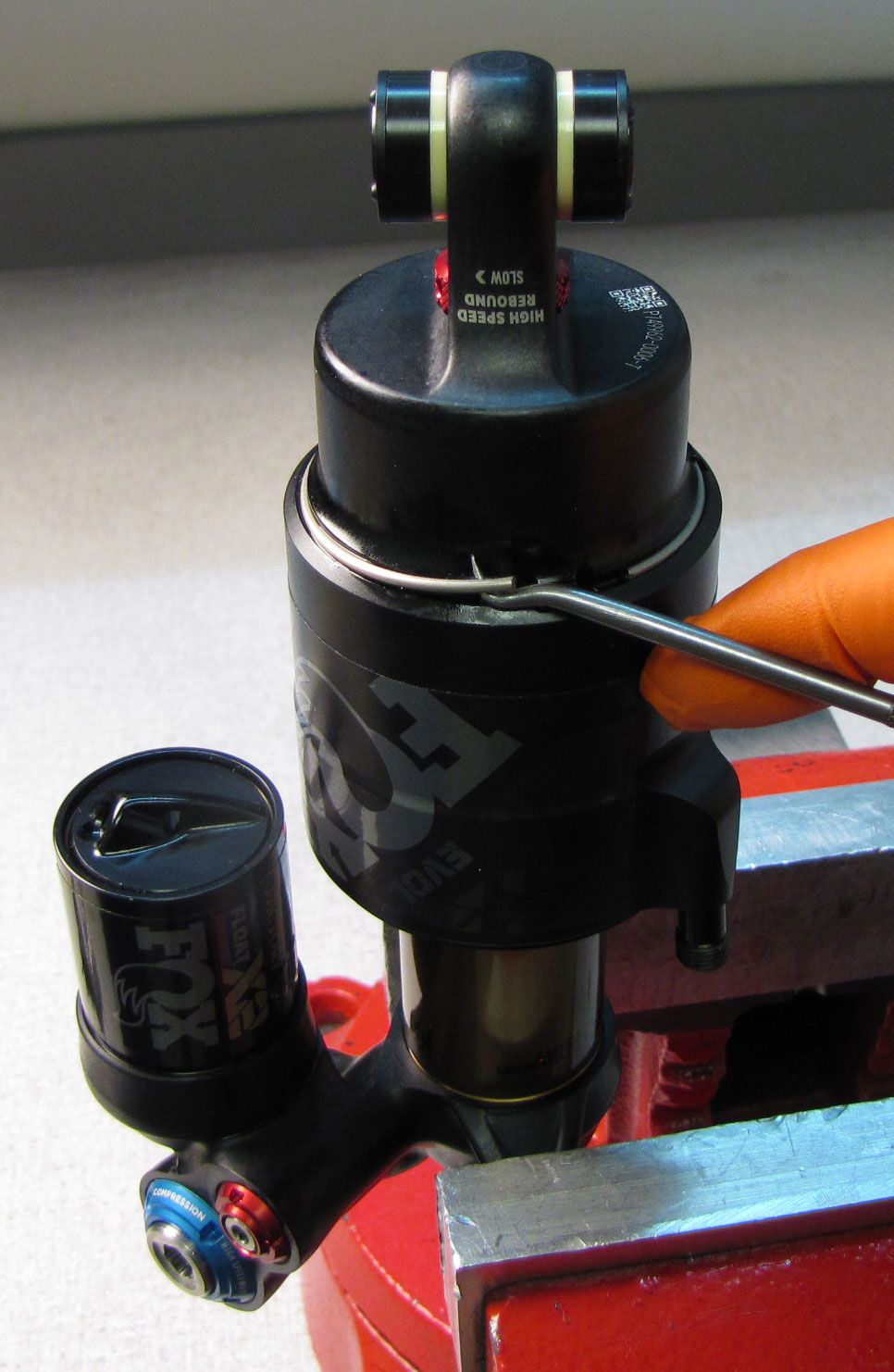

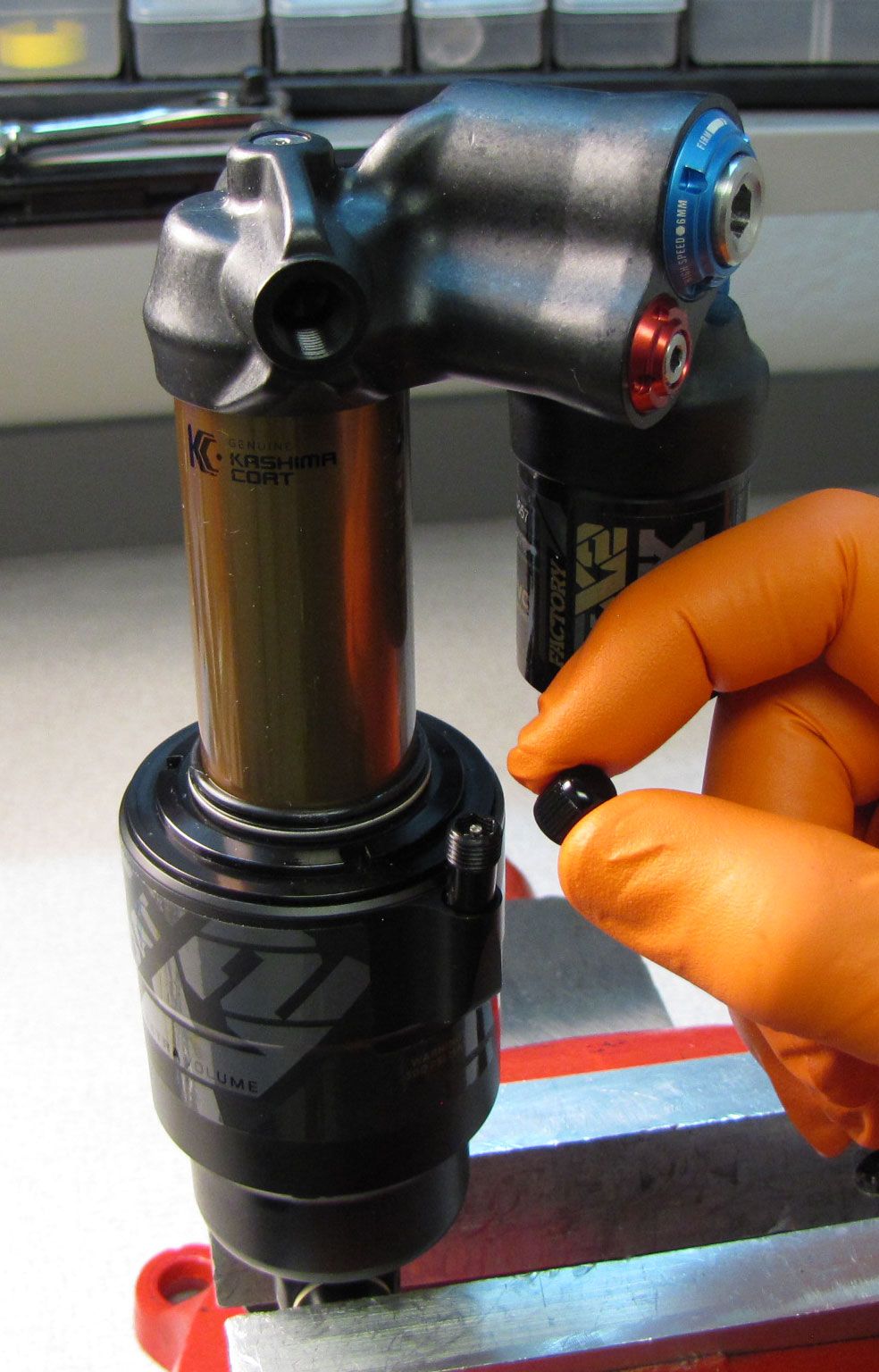

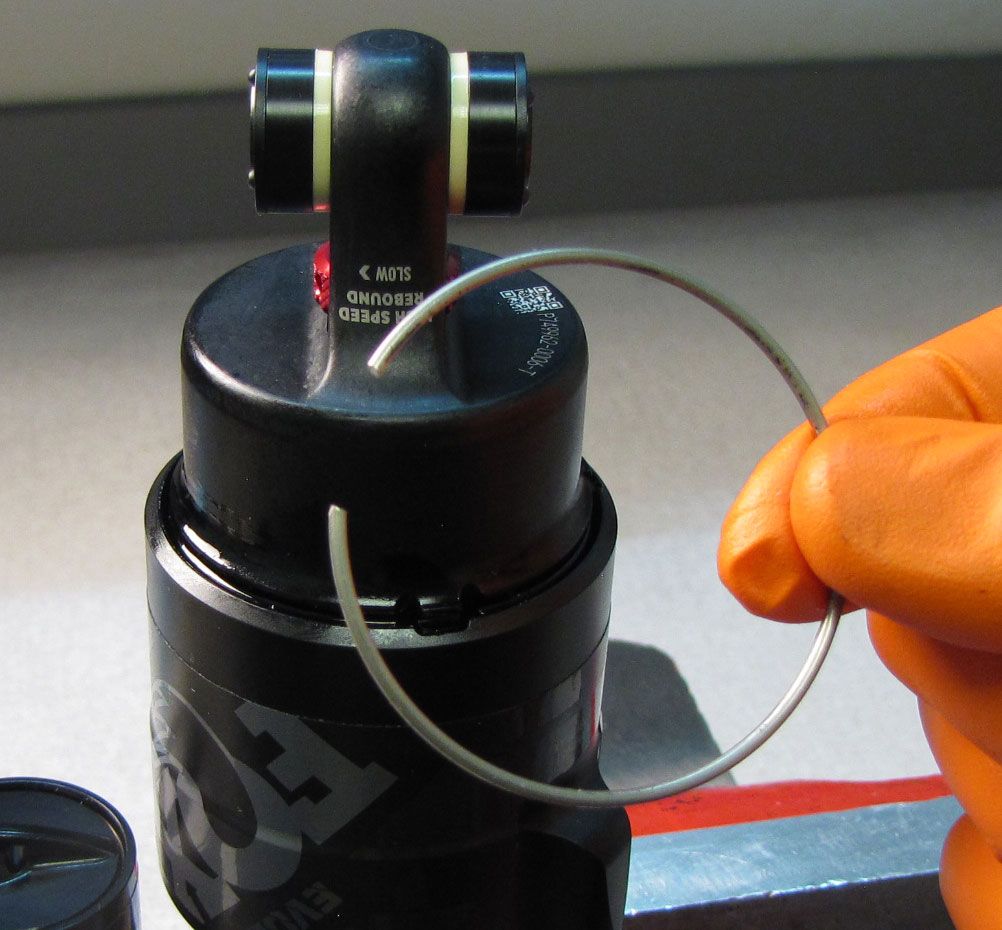

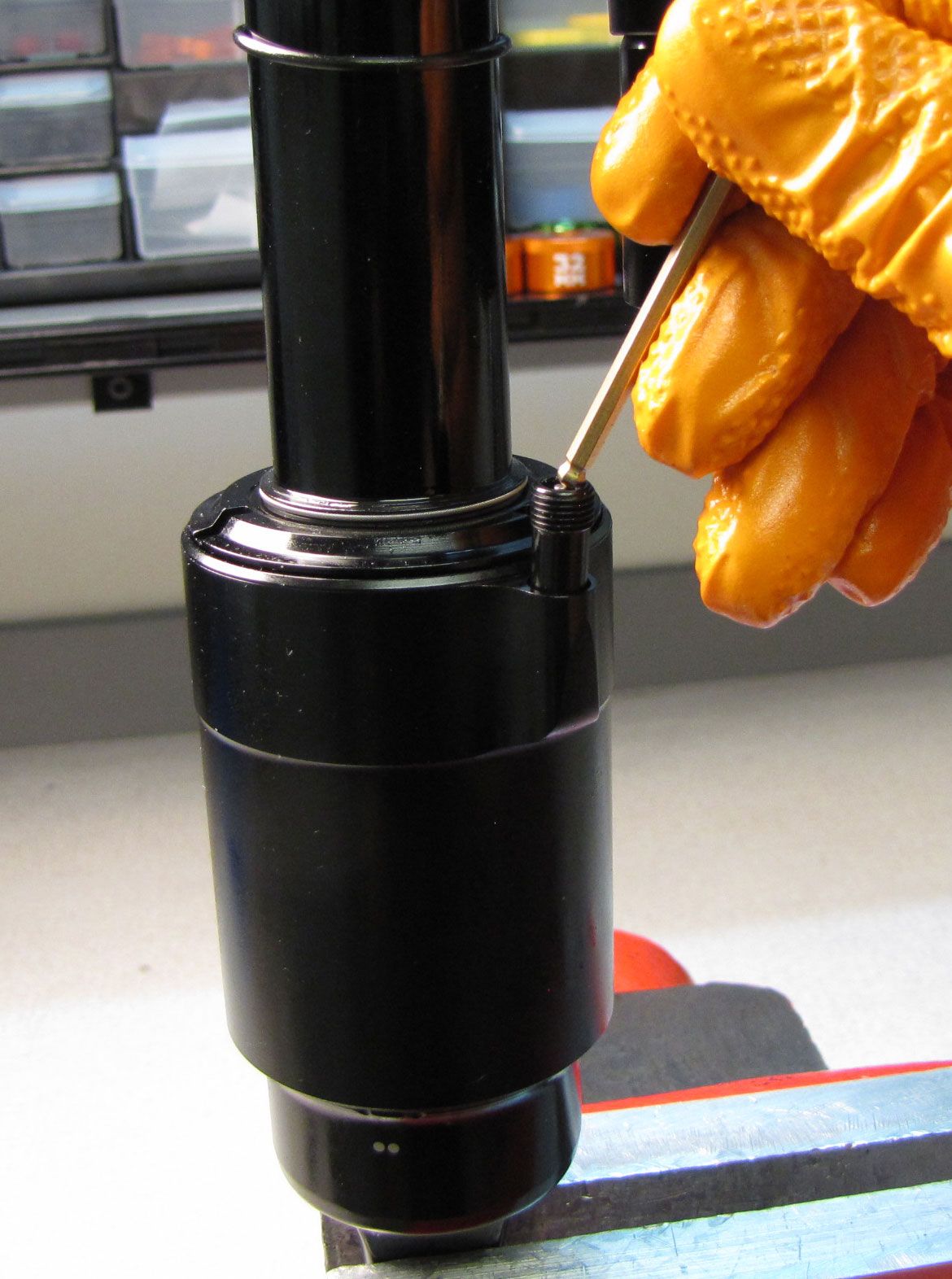

Rotate the wire retaining ring to align the opening in the ring with the tab on eyelet. Use a pick to remove the ring.
Step 3

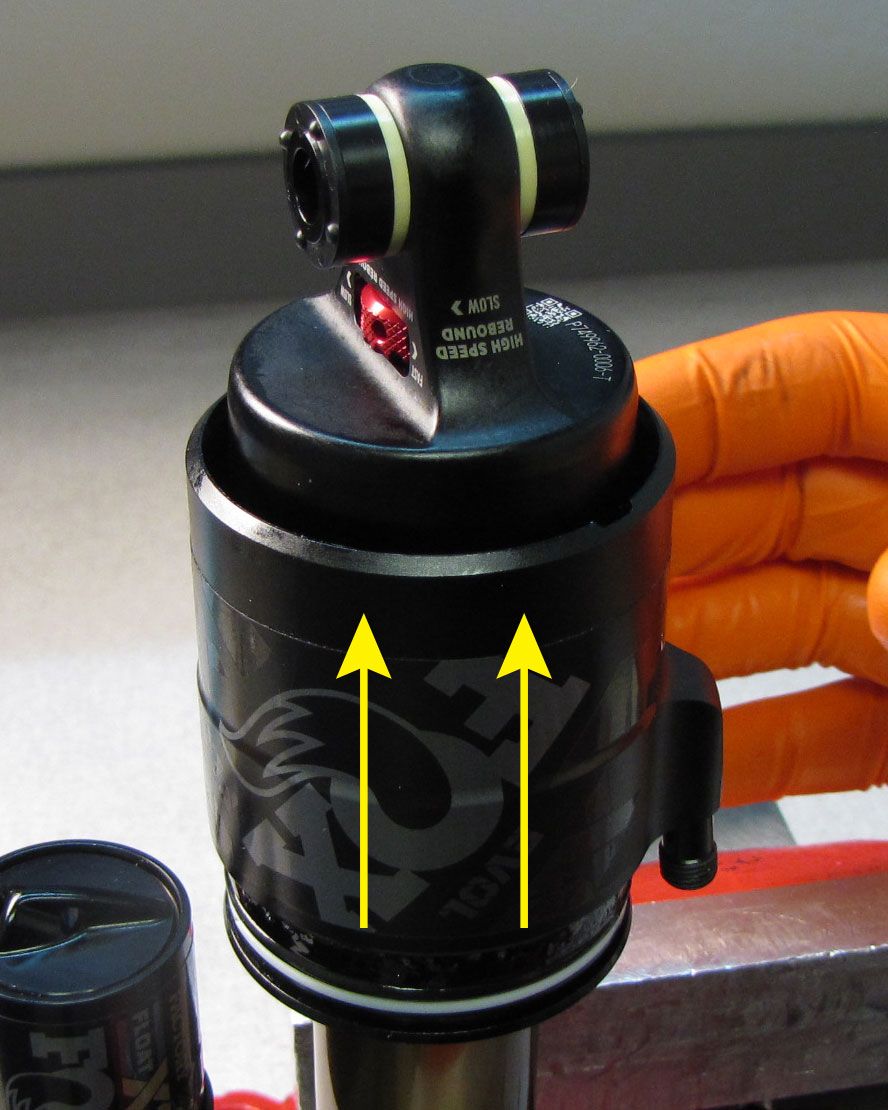

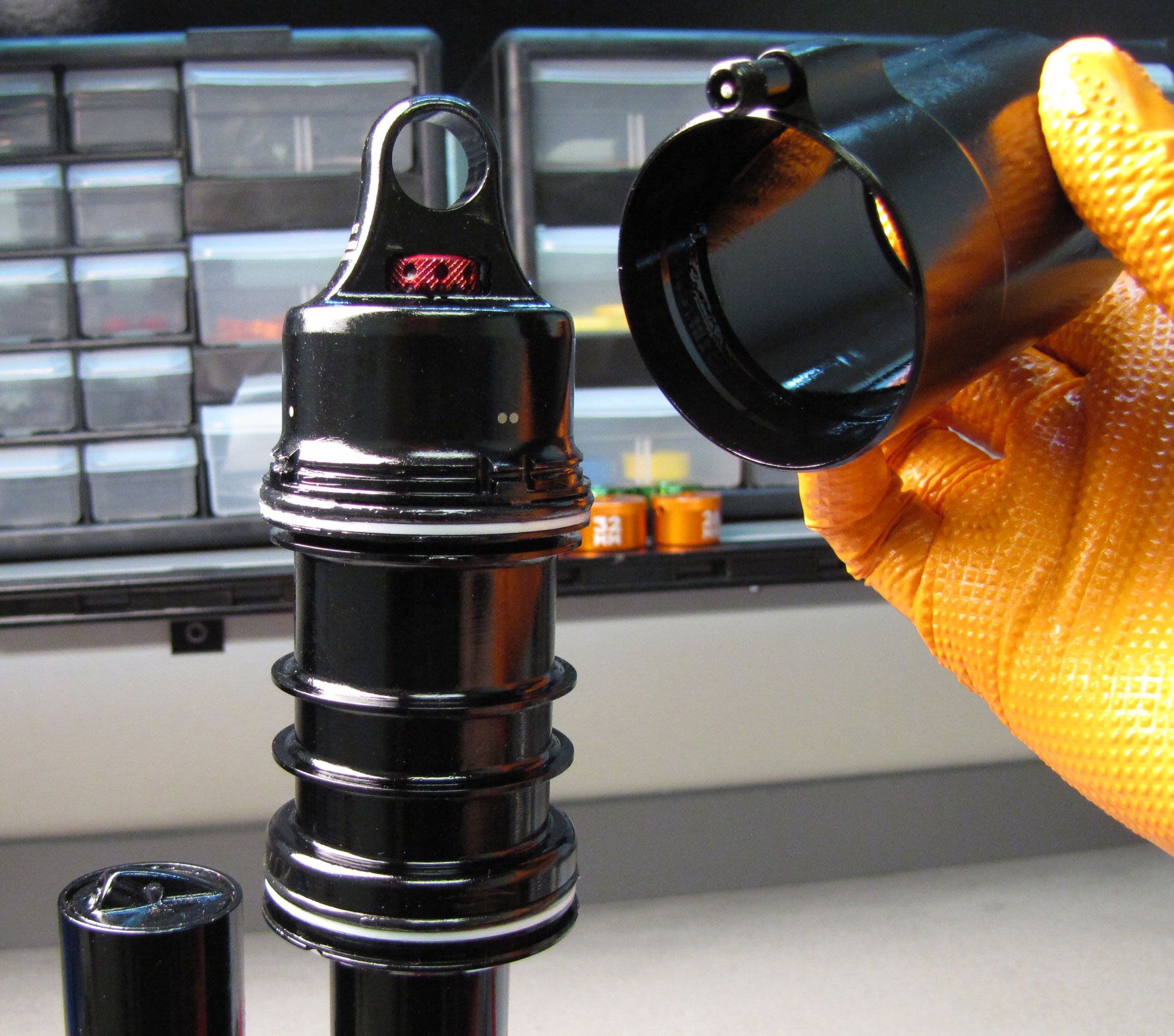

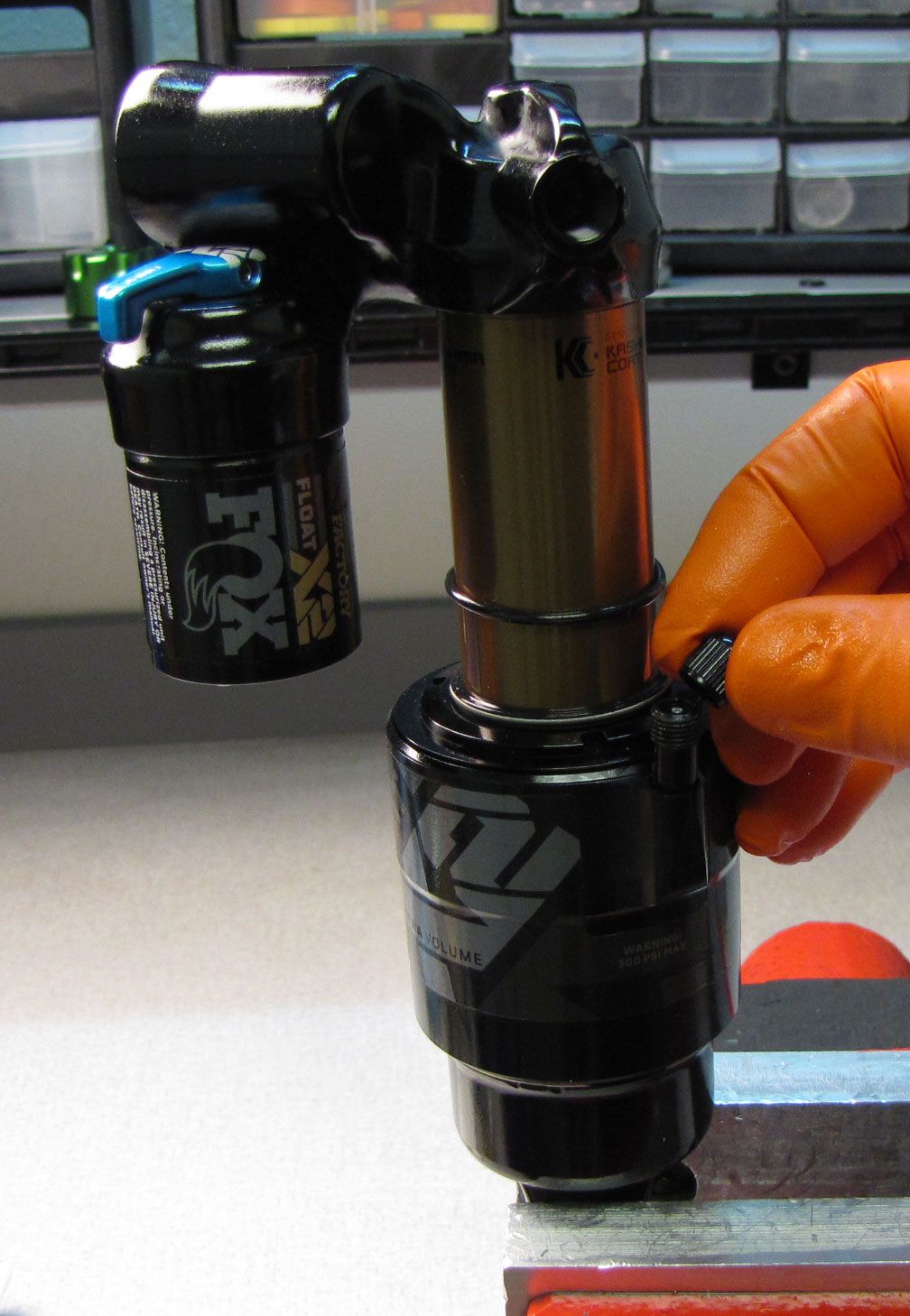

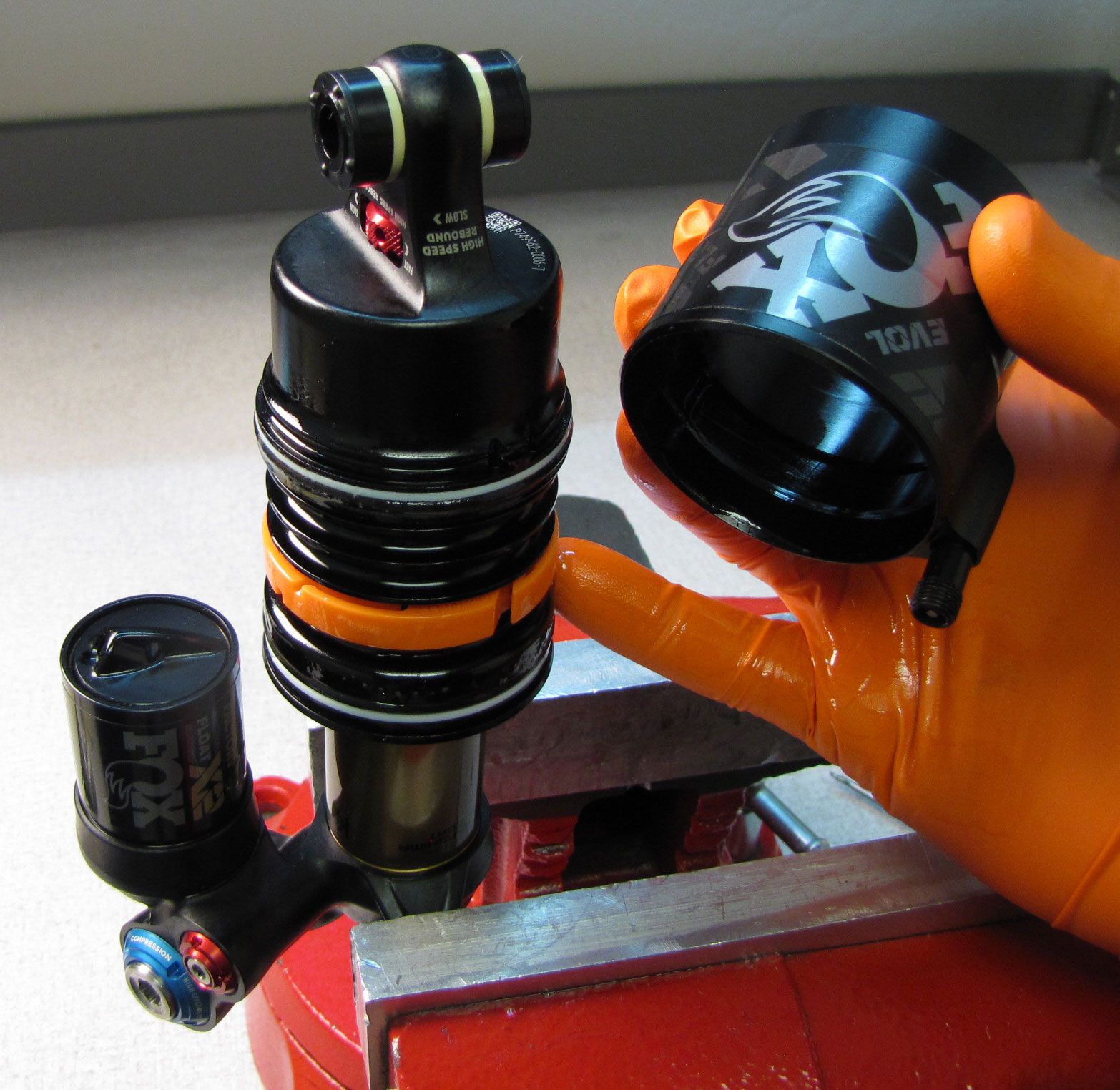

Slide the outer air sleeve away from the negative air sealhead to remove.
Step 4

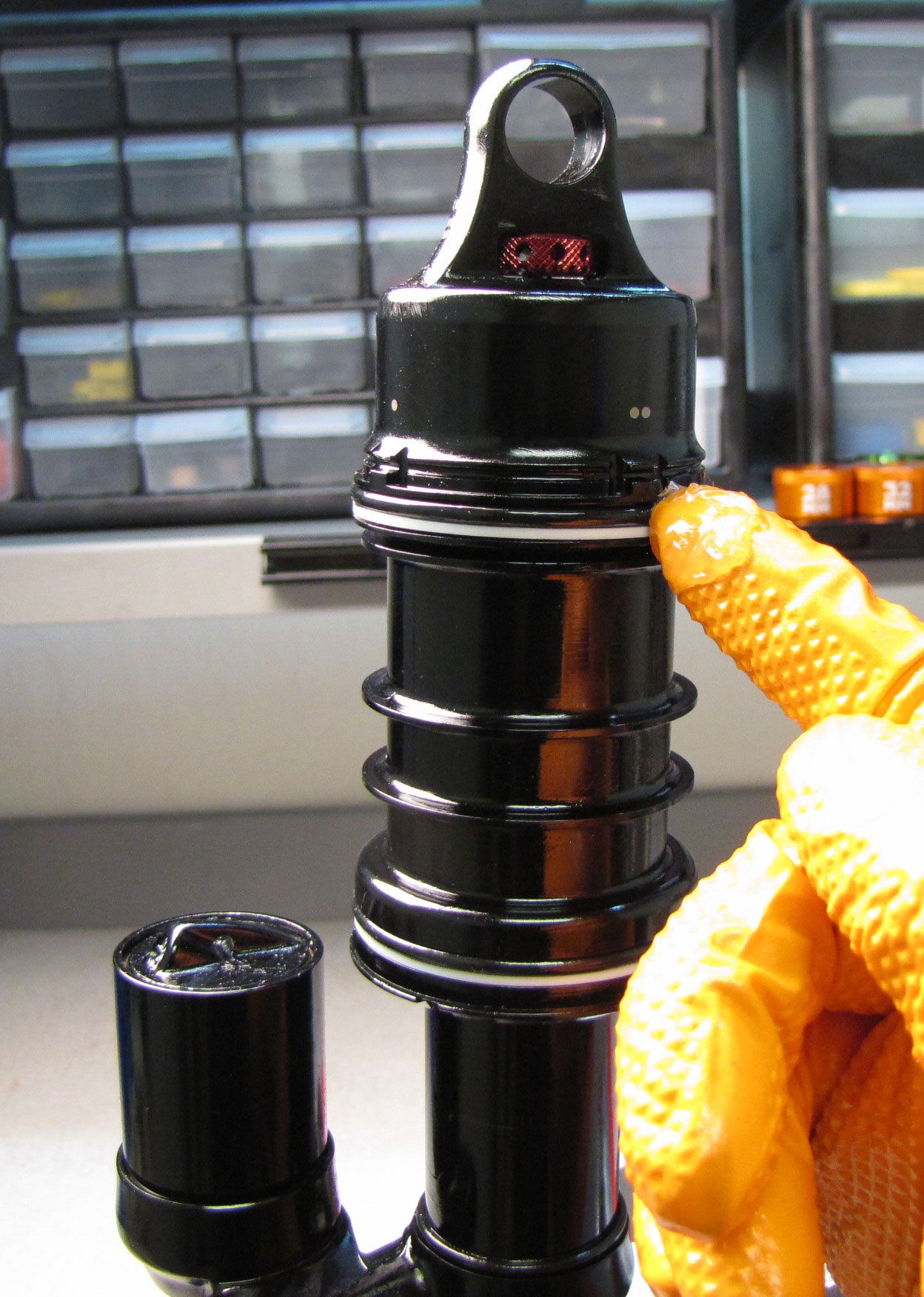

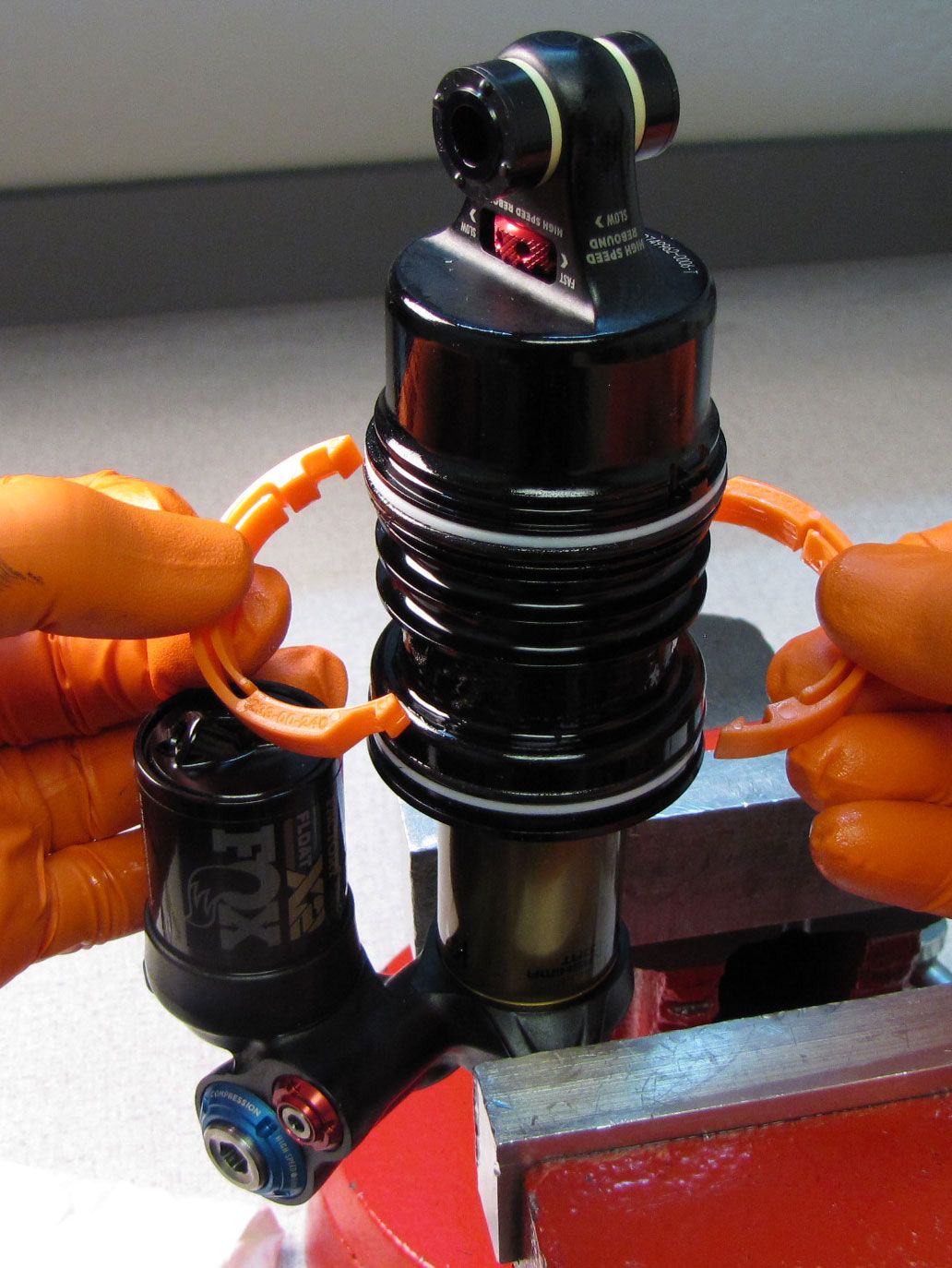

Remove the air volume spacer by unclipping the two halves from each other. Coat the air seals in a thin film of Slick Honey then reinstall the outer air sleeve with the air valve side first. Rotate the outer air sleeve until the tab on the eyelet aligns with the notch in the outer sleeve. Slide the outer air sleeve all the way to the negative air sealhead to engage the air seals. Reinstall the wire retaining ring making sure that it is fully seated in its groove.
Step 5
Attach your shock pump then add air while you slowly cycle your shock through 25% of its travel 10 times as you reach your desired pressure. Reinstall the black air cap. Clean the exterior of the shock then go enjoy the ride!
