PARTS & DRAWINGS
Orbea Oiz Shock Part Information
New for 2019:
| Eyelet | New Remote DPS PTU Eyelet Assembly has rebound opposite from the compression pulley (contains new cams) |
| 2 Sizes | Two shocks available with same eye-to-eye and different strokes due to travel spacer (40mm or 45mm) |
| Damper | Standard FLOAT DPS damper with new eyelet |
Maintenance Information:
| 398-00-280 | Tooling: Eyelet Torque Tool |
| 398-00-374 | Tooling: Pellet Retainer Tool, Nitrogen Fill |
| 398-00-574 | Tooling: Dial Indicator, 1" Measuring Range, 0.001" Graduation, 3/8" Stem Diameter |
| 398-00-637 | Tooling: Custom Socket, 5/8", 2016 Float DPS, Piston Bolt |
| 398-00-638 | Tooling: Custom Spanner Socket, 3 pin, Float DPS, Lockout Piston |
| 802-01-000-KIT | Service Set: Air Valve Assy, Nitrogen Safety Needle Assy w/Manual, Complete w/out Gauge |
| 803-00-566 | Kit:Bike IFP Depth Setting Tool Set |
| 803-00-805 | Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in |
| 803-00-806 | Kit: Tooling, iCD/CTD Dish Shock Dial Indicator Attachment for Plate Lift Measurement |
| 803-00-142 | Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring |
| 803-00-816 | Seal Kit: CTD Boost Valve and Dish Shock Rebuild |
Oil Information:
| PN | Description | Application |
| 025-02-003 | Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red | Rear Shock Damper |
| 025-03-003-A | Oil: AM, FOX FLOAT Fluid [8 oz.] | Rear Shock Air Chamber (2cc) |
IFP Information:
| IFP Pressure | 500 psi |
| IFP Depth | 2.150 +/- 0.020" |

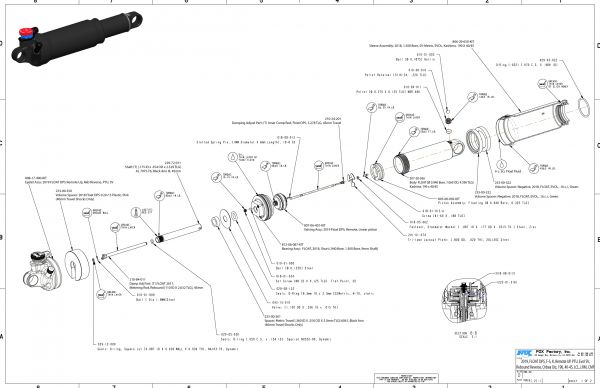

2019, FLOAT DPS, F-S, K, Remote UP, PTU, Evol SV, Rebound Reverse, Orbea Oiz, 190, 40-45, LCL, LRM, CMF
- 2019, FLOAT DPS, F-S, K, Remote UP, PTU, Evol SV, Rebound Reverse, Orbea Oiz, 190, 40-45, LCL, LRM, CMF .
- 808-17-400-KIT Eyelet Assembly: 2019 FLOAT DPS Remote UP, Rebound Reversed, PTU, SV
- Valving Assembly: 2019 FLOAT DPS, Remote, Linear Piston .
- 805-05-105-KIT Valve Stack Assy: 2018 FLOAT DPS, Linear Compression Light, LCL
- 805-05-201-KIT Valve Stack Assy: 2018 FLOAT DPS, Lockout Firm, CMF
- 805-05-304-KIT Valve Stack Assy: 2018 FLOAT DPS, Linear Rebound Medium, LRM
- 806-29-650-KIT Sleeve Assembly: 2018, 1.500 Bore, SV-Metric, EVOL, Kashima, 190 x 40/45

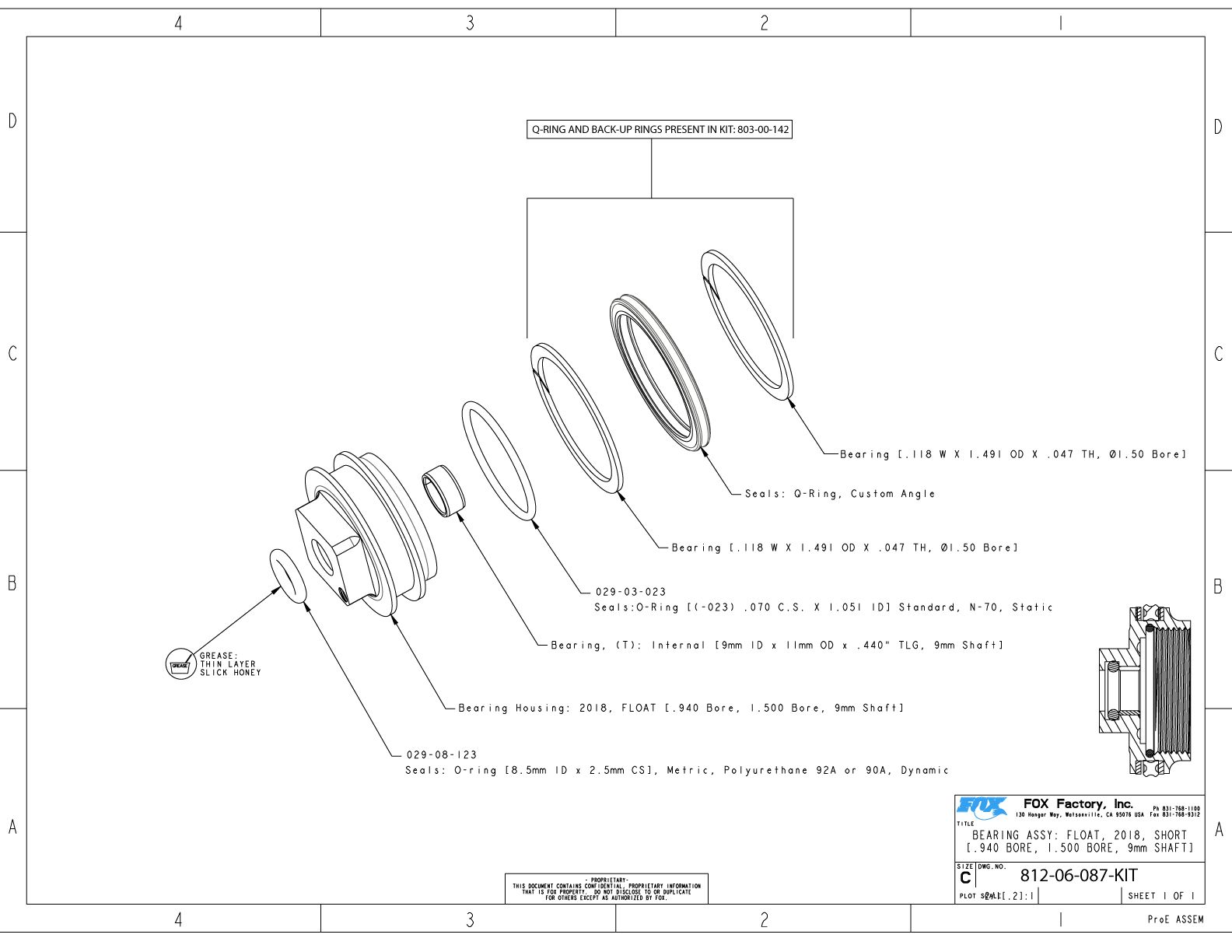

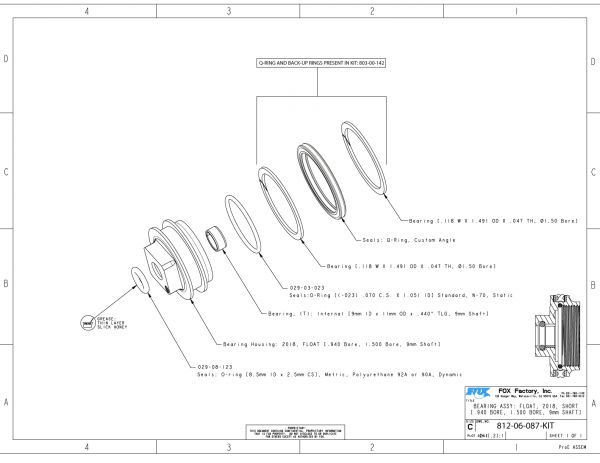

- 812-06-087-KIT Bearing Assy: FLOAT, 2018, Short [.940 Bore, 1.500 Bore, 9mm Shaft]
- 805-00-092-KIT Piston Assembly: Floating, Slotted [Ø 0.940 Bore, 0.325 TLG]
- 805-02-304-KIT Piston Assy: Damping, FLOAT DPS Anti-Clunk, Linear
2019, FLOAT DPS, F-S, K, Remote UP, PTU, Evol SV, Rebound Reverse, Orbea Oiz, 190, 40-45, LCL, LRM, CMF
