PARTS & DRAWINGS
36mm Part Information
New for 2019:
| New Damper | All New Fit Grip 2 Damper |
| New Shaft clamps | Tooling: 2019 Clamps, Grip Damper, Body and Shaft |
| Grip Changes , IFP, Seal head,wave spring removed | Updates to the top cap assembly, reference drawings |
| New Seals | New Grip2 Seal kit |
| Longer Travel | 180mm Grip Damper |
| Remote Conversions available for 2016+ Fit4 |
Non-remote FIT4 cartridges can be upgraded to remote via the installation of a complete FIT4 Remote U-Cup Topcap Assembly. This ensures the optimized topcap configuration with friction reducing features for the most reliable remote installation possible. FOX recommends PTU remote systems over PTL systems as they are optimized for reliability and reduced lever force. The FIT4 topcap "butterfly" valve must be matched to the appropriate lever/topcap interface parts. Installation of FIT4 Remote Topcap Interface Parts on a FIT4 3 Pos or 3 Pos Adj cartridge does not convert the cartridge to the optimized remote configuration even when used with a 3 position remote lever as the standard FIT4 3 Pos or 3 Pos Adj topcap does not contain the U-Cup that optimized remote topcap friction. |
Continuing Technologies:
| RC2 Dampers | Old RC2 Dampers still supported |
| Talas 5 | Talas 5 sytems still supported |
| FIT4 damper tunes | Old FIT4 tune still supported |
Maintenance Info:
| Service Interval | Full Service 125 hours |
| 398-00-371 | Tooling: Sealhead To Shaft Bullet, 10mm |
| 803-00-084 | Kit: Shaft Clamps, FORX, Set #1 (32mm Forx) |
| 803-00-147 | Kit: Shaft Clamps, FORX, Set #2 |
| 803-00-276 | Service Kit: Hand Bleed, Syringe and Tube, 2010 32 Fit RL-RLC Cartridge |
| 803-00-501 | Service Set: Seal Kit, 2011 36 & 40 Inverted RC2 Cartridge |
| 803-01-226 | Seal Kit: 36 FLOAT NA2 Rebuild |
| 803-00-830 | Service Set: Tooling: 2014 RC2, Shaft Clamps |
| 803-00-961 | Seal Kit: 36 & 40 FIT4 Cartridge Rebuild |
| 398-00-681 | 2002-017 32 Damper-side and ALL 32-34-36-40 Spring-side Removal Tool |
| 398-00-682 | 2005-017 34-36-40 Damper-side Removal Tool |
| 803-00-933 | Kit: Dust Wiper, Forx, 36mm, Low Friction, No Flange |
| 803-01-150 | Kit: Tooling: Clamps, Grip Damper, Body and Shaft |
| 803-01-141 | Seal Kit: 32, 34, 36 GRIP Cartridge Rebuild |
| 803-01-209 | Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set |
| 398-00-760 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
| 803-01-324 | *NEW*Tooling: 2019 Clamps, Grip Damper, Body and Shaft |
| 803-01-316 | *NEW*Seal Kit: F-S GRIP2 36 & 40 |
Oil Information:
| Application | Description | Part |
| All 36 FIT and GRIP Dampers | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart | 025-03-023 |
| All non-GRIP damper bath oil and FLOAT NA2 Air Chamber and bath | Oil: AM, FOX Bath Oil [250 ml.], 20 WT Gold | 025-03-015 |
| Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold | 025-03-010 |
| Bath Oil Application | Bath Oil Volume |
| All Air Side Bath | 10cc (FOX 20wt. Gold Oil) |
| FIT HSC/LSC Damper Side Bath | 30cc (FOX 20wt. Gold Oil) |
| FIT4 Damper Side Bath | 40cc (FOX 20wt. Gold Oil) |
| Grip/Grip2 Damper Side Bath | 40cc (5wt. FOX Teflon Infused Oil) |
Remote Info:
| 820-05-445-KIT | Service Set: 2018 Grip Remote, Topcap Interface Parts |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-473-KIT | Service Set: 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Unlock |
| 820-05-474-KIT | Service Set: 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Lock |
| 820-07-150-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Dual Pull |
| 820-07-151-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Single Pull |
36mm Part Information
CSU Assemblies
| Part Number | Description |
| 820-12-042-KIT | Service Set: 2018 36 26in 180, Kashima, Fox Matte Black, 37 Rake, 1.5T CSU Assy |
| 820-12-043-KIT | Service Set: 2018 36 26in 180, Kashima, Fox Matte Black, 37 Rake, 1-1/8 CSU Assy |
| 820-12-044-KIT | Service Set: 2018 36 27.5in 180 and 29in 160, Kashima, Fox Matte Black, 44 Rake, 1.5T CSU Assy |
| 820-12-045-KIT | Service Set: 2018 36 27.5in 180 and 29in 160, Black Ano, Fox Matte Black, 44 Rake, 1.5T CSU Assy |
| 820-12-048-KIT | Service Set: 2018 36 29in 170, Kashima, Fox Matte Black, 51 Rake, 1.5T CSU Assy |
| 820-12-049-KIT | Service Set: 2018 36 29in 170, Black Ano, Fox Matte Black, 51 Rake, 1.5T CSU Assy |
| 820-12-052-KIT | Service Set: 2018 36 29in 170 15x110QR, Kashima, Fox Matte Black, 51 Rake, 1.5T CSU Assy |
| 820-12-053-KIT | Service Set: 2018 36 29in 170 15x110QR, Black Ano, Fox Matte Black, 51 Rake, 1.5T CSU Assy |
| 820-12-058-KIT | Service Set: 2018 36 27.5in 180 and 29in 170 15x110QR Kashima Matte Black 44 Rake 1.5T CSU |
| 820-12-061-KIT | Service Set: 2018 36 27.5in 180 and 29in 160 15x110QR Black Ano Matte Black 44 Rake 1.5T CSU |
| 820-12-063-KIT | Service Set: 2018 36 27.5in 180 and 29in 160 15x110QR Black Ano Shiny Black 44 Rake 1.5T CSU |
| 820-12-089-KIT | Service Set: 2018 36 27.5in 180 and 29in 170 15x110QR Kashima Matte Black 37 Rake 1.5T CSU |
| 820-12-092-KIT | Service Set: 2018 36 27.5in 180 and 29in 170 15x110QR Black Ano Matte Black 37 Rake 1.5T CSU |
| 820-12-113-KIT | Service Set: 2019 36 Rhythm, 15x110QR, Black Ano UT, 4mm OS, Matte Black, CSU |
| 820-12-116-KIT | Service Set: 2019 36 Rhythm, 15x110QR, Black Ano UT, 11mm OS, Matte Black, CSU (44 Rake) |
| 820-12-119-KIT | Service Set: 2019 36 Rhythm, 15x110QR, Black Ano UT, 18mm OS, Matte Black, CSU (51 Rake) |
Lower Leg Assemblies
| Part Number | Description |
| 820-10-513-KIT | Service Set: 2017 36 26in 180 w/15mm Pinch Axle, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-505-KIT | Service Set: 2017 36 26in 180 w/20mm Pinch Axle, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-303-KIT | Service Set: 2017 36 27.5in 180 15QR Fox Matte Black Lower Leg Assy |
| 820-10-258-KIT | Service Set: 2017 36 27.5in 180 15x110 QR Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-903-KIT | Service Set: 2018 36 27.5in 180 15x110 QR Fox Shiny Orange, F-S PE-S, Lower Leg Assy |
| 820-10-683-KIT | Service Set: 2018 36 27.5in 180 15QR Fox Matte Black Lower Leg Assy, P-S |
| 820-10-809-KIT | Service Set: 2018 36 29in 170 15x110 QR, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-905-KIT | Service Set: 2018 36 29in 170 15x110 QR, Fox Shiny Orange, F-S PE-S, Lower Leg Assy |
| 820-10-815-KIT | Service Set: 2018 36 29in 170 w/15mm Pinch Axle, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-812-KIT | Service Set: 2018 36 29in 170 w/20mm Pinch Axle, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-521-KIT | Service Set: 2017 36 27.5in 180 w/20mm Pinch Axle, Fox Matte Black, F-S PE-S, Lower Leg Assy |
Axle Assemblies
| Part | Description |
| 820-09-004-KIT | 2015 36 20mm Axle Assembly |
| 820-09-005-KIT | 2015 36 15mm Axle Assembly |
| 820-09-019-KIT | Axle Assembly: 15 X 110mm Kabolt, Black Ano |
| 820-09-023-KIT | Axle Assembly: 15 X 110mm Kabolt, Orange Ano |
| 820-09-013-KIT | Axle Assembly, 2016 15x110 QR, Factory and Performance, Black Ano |
Lower Leg Small Parts Kits
| Part | Description |
| 820-09-029-KIT | 2017 36 15mm Pinch Axle Parts Group |
| 820-09-028-KIT | 2017 36 20mm Pinch Axle Parts Group |
| 803-00-370 | Service Set: 15QR Hardware (Contains: Axle nut, hold down, and set screw) |
Decal Kits
| Part | Description |
| 803-01-273 | Decal Kit: 2018, 36, F-S, Orange Logo, Matte Black Background |
| 803-01-284 | Decal Kit: 2018, 36, Factory, Blk/Ylw |
| 803-01-274 | Decal Kit: 2018, 36, P-Se, Gray Logo, Matte Black Background |
| 803-01-275 | Decal Kit: 2018, 36, P-S, Gray Logo, Matte Black Background |
Complete Cartrdiges
| Part | Description |
| 820-08-760-KIT | Service Set: 2018 36 26in and 27.5in and 29in 140-180 F-S FIT4 Cart Assy Complete, E18, Black Ano |
| 820-08-779-KIT | Service Set: 2018 36 26in and 27.5in and 29in 140-180 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-761-KIT | Service Set: 2018 36 26in and 27.5in and 29in 140-180 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-855-KIT | Service Set: 2018 36 26in and 27.5in and 29in 140-180 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 3 Position |
| 820-18-027-KIT | Service Set: 2019 36 Rhythm, 180 MAX, Grip Remote Cart Assy Complete |
| 820-18-028-KIT | Service Set: 2019 36 Rhythm, 180 MAX, Grip Cart Assy Complete |
| 820-18-090-KIT | Service Set: 2019 36 P-S 27.5 & 29 180 MAX, P-S Grip Remote Cart Assy Complete |
| 820-18-091-KIT | Service Set: 2019 36 27.5 & 29 180 MAX, P-S Grip Cart Assy Complete |
| 820-08-379-KIT | Service Set: 2019 36 180, Grip F-S HSR / LSR / HSC / LSC Cart Assy Complete |
| 820-18-138-KIT | Service Set: 2019 36 27.5 & 29 180 MAX, Grip E-Bike Cart Assy Complete |
| 820-18-139-KIT | Service Set: 2019 36 Rhythm, 180 MAX, Grip E-Bike Cart Assy Complete |
| 820-18-141-KIT | Service Set: 2019 36 180 MAX, Grip E-Bike Remote Cart Assy Complete |
| 820-18-149-KIT | Service Set: 2019 36 180 MAX E-Bike F-S FIT4 Cart Assy Complete, 3Pos-Adj |
| 820-18-150-KIT | Service Set: 2019 36 180 MAX E-Bike F-S FIT4 Remote Cart Assy Complete, U-Cup, 2Pos-Adj, Push to Lock |
| 820-18-151-KIT | Service Set: 2019 36 180 MAX E-Bike F-S FIT4 Remote Cart Assy Complete, U-Cup, 2Pos-Adj, Push to Unlock |
| 820-18-152-KIT | Service Set: 2019 36 180 MAX E-Bike F-S FIT4 Remote Cart Assy Complete, U-Cup, 3Pos-Adj, Push to Lock |
| 820-18-153-KIT | Service Set: 2019 36 180 MAX E-Bike P-S FIT4 Remote Cart Assy Complete, U-Cup, 2Pos, Push to Unlock |
Cartridge Topcap Assemblies
| Part | Description |
| 820-05-452-KIT | 2018 36 FIT4 F-S Topcap Assy, Remote, U-Cup, 2 Position, Push-Lock |
| 820-05-465-KIT | 2018 36 FIT4 F-S Topcap Assy, Remote, U-Cup, 3 Position |
| 820-05-499-KIT | 2018 36 FIT4 F-S Topcap Assy, E18, Black Ano |
| 820-05-525-KIT | Service Set: 2019 36, All, Grip Remote, Topcap Assy |
| 820-05-415-KIT | Service Set: 2019 36 Grip F-S Damper, Topcap Assy |
| 820-05-509-KIT | Service Set: 2019 36 180 MAX, Grip Damper, Topcap Assy |
Damper Topcap Interface Parts
| Part | Description |
| 820-05-330-KIT | 2016 FIT4 TopCap Interface Parts F-S |
| 820-05-456-KIT | 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-414-KIT | 2019 Grip2 HSC / LSC Topcap Interface Parts |
| 820-05-445-KIT | 2018 Grip Remote, Topcap Interface Parts |
| 820-05-454-KIT | Service Set: 2018 Grip P-S Topcap Interface Parts |
| 820-05-462-KIT | Service Set: 2018 Grip 34 Rhythm Topcap Interface Parts |
Damper Bottom Stud Interface Parts
| Part | Description |
| 820-05-377-KIT | 2016 FIT4 Bottom Stud Interface Parts 36 and 40 |
| 820-05-518-KIT | Service Set: 2019 36 Grip Bottom Stud Interface Parts |
| 820-05-501-KIT | Service Set: 2019 Grip2 HSR / LSR Bottom Stud Interface Parts |
FLOAT NA2 Air Shaft Assemblies
| Part | Description |
| 820-02-534-KIT | Service Set: Air Shaft Assy, 2019, 36, 180mm, FLOAT LC NA 2, 1.287 Bore, TO Hat |
| 820-02-535-KIT | Service Set: Air Shaft Assy, 2019, 36, 170mm, FLOAT LC NA 2, 1.287 Bore, TO Hat |
| 820-02-536-KIT | Service Set: Air Shaft Assy, 2019, 36, 160mm, FLOAT LC NA 2, 1.287 Bore, TO Hat |
| 820-02-537-KIT | Service Set: Air Shaft Assy, 2019, 36, 150mm, FLOAT LC NA 2, 1.287 Bore, TO Hat |
| 820-02-538-KIT | Service Set: Air Shaft Assy, 2019, 36, 140mm, FLOAT LC NA 2, 1.287 Bore, TO Hat |
| 820-02-539-KIT | Service Set: Air Shaft Assy, 2019, 36 831, 100mm, FLOAT LC NA 2, 1.287 Bore, TO Hat |
| 820-02-545-KIT | Service Set: Air Shaft Assy, 2019, 36 Rhythm, 180mm, 1.275" Bore, No Spacer |
| 820-02-546-KIT | Service Set: Air Shaft Assy, 2019, 36 Rhythm, 170mm, 1.275" Bore, No Spacer |
| 820-02-547-KIT | Service Set: Air Shaft Assy, 2019, 36 Rhythm, 160mm, 1.275" Bore, No Spacer |
| 820-02-548-KIT | Service Set: Air Shaft Assy, 2019, 36 Rhythm, 150mm, 1.275" Bore, No Spacer |
| 820-02-549-KIT | Service Set: Air Shaft Assy, 2019, 36 Rhythm, 140mm, 1.275" Bore, No Spacer |
| 820-02-550-KIT | Service Set: Air Shaft Assy, 2019, 36 Rhythm, 130mm, 1.275" Bore, No Spacer |
FLOAT NA2 Topcap Assemblies
| Part | Description |

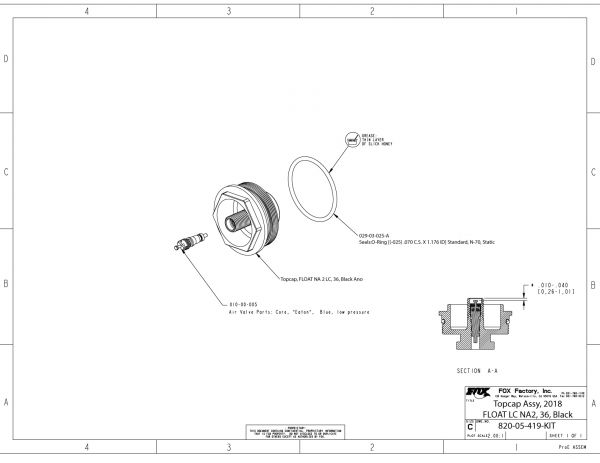

| 820-05-419-KIT | Service Set: Topcap Assy, 2018 FLOAT LC NA2, 36, Black |
FLOAT NA2 Neg Plate Subassemblies
| Part | Description |
| 820-02-448-KIT | Service Set: Neg Plate Subassembly, 2018 FLOAT NA 2, 36, All Travel, 1.287" Bore, Aluminum |

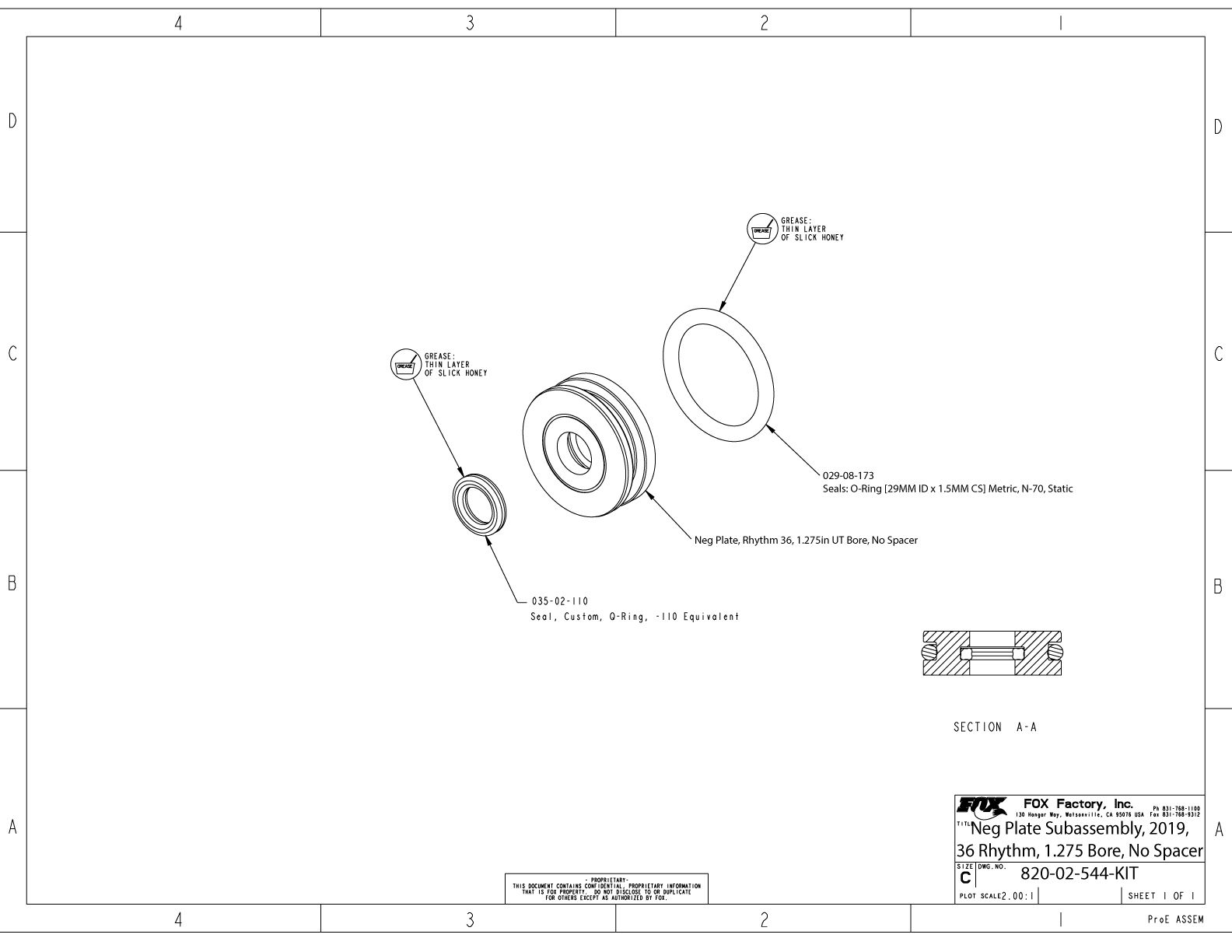

| 820-02-544-KIT | Service Set: Neg Plate Subassembly, 2019, 36 Rhythm, 1.275" Bore, No Spacer |
2019 36mm F-S Grip2 Cartridge Assemblies

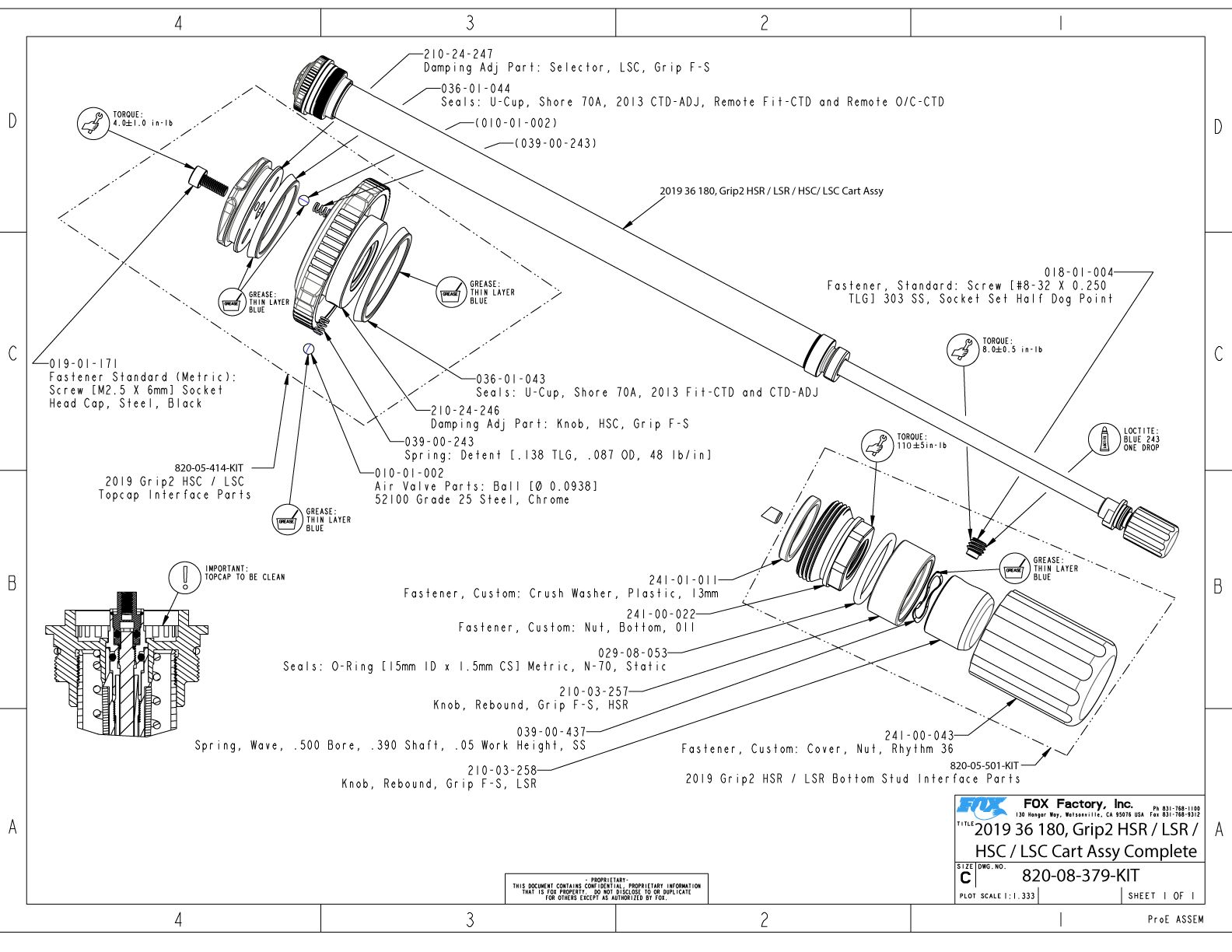

- 820-08-379-KIT 2019 36 180 Grip2 HSR/LSR HSC/LSC Cartridge Assembly Complete
- 2019 36 180 Grip2 HSR/LSR HSC/LSC Cartridge Assembly .

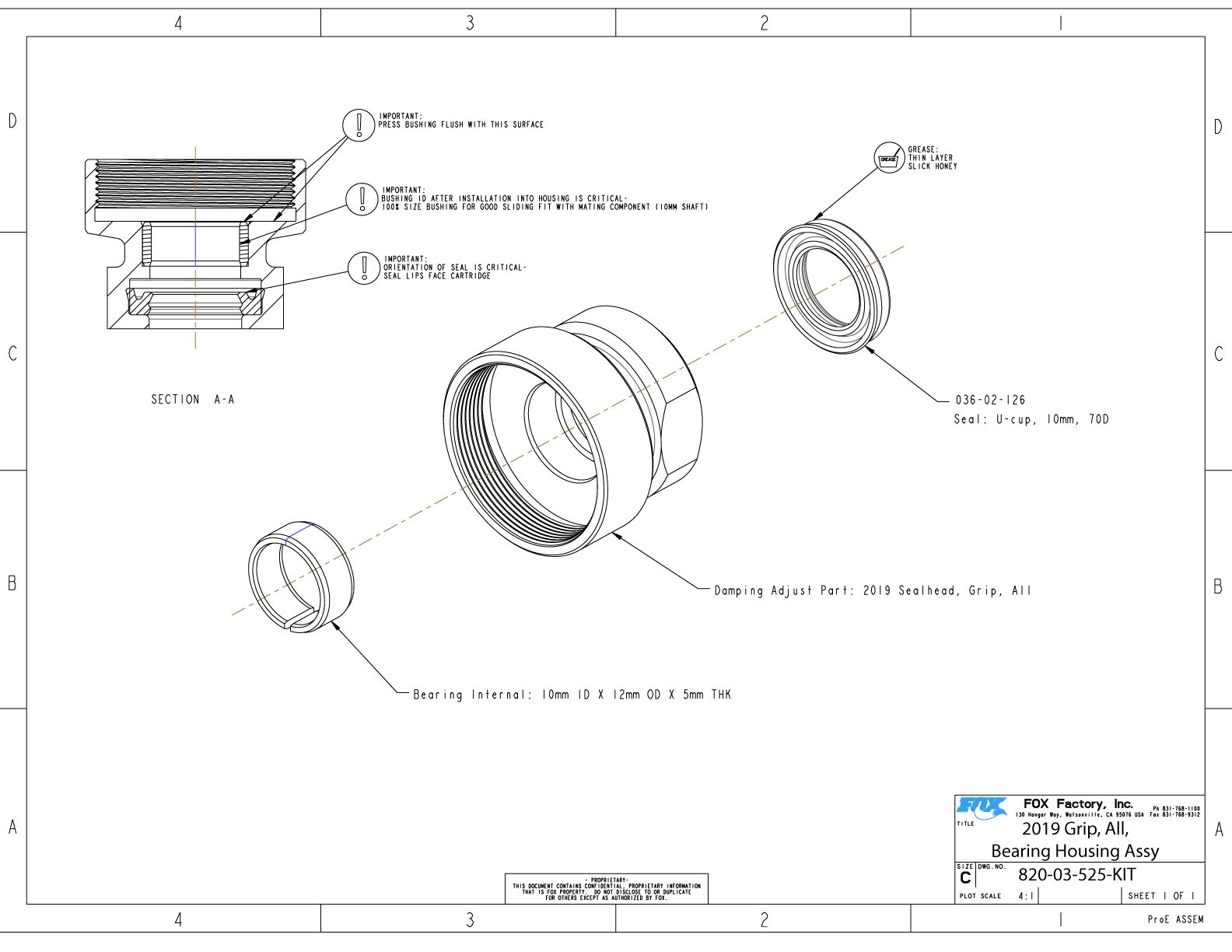

- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy

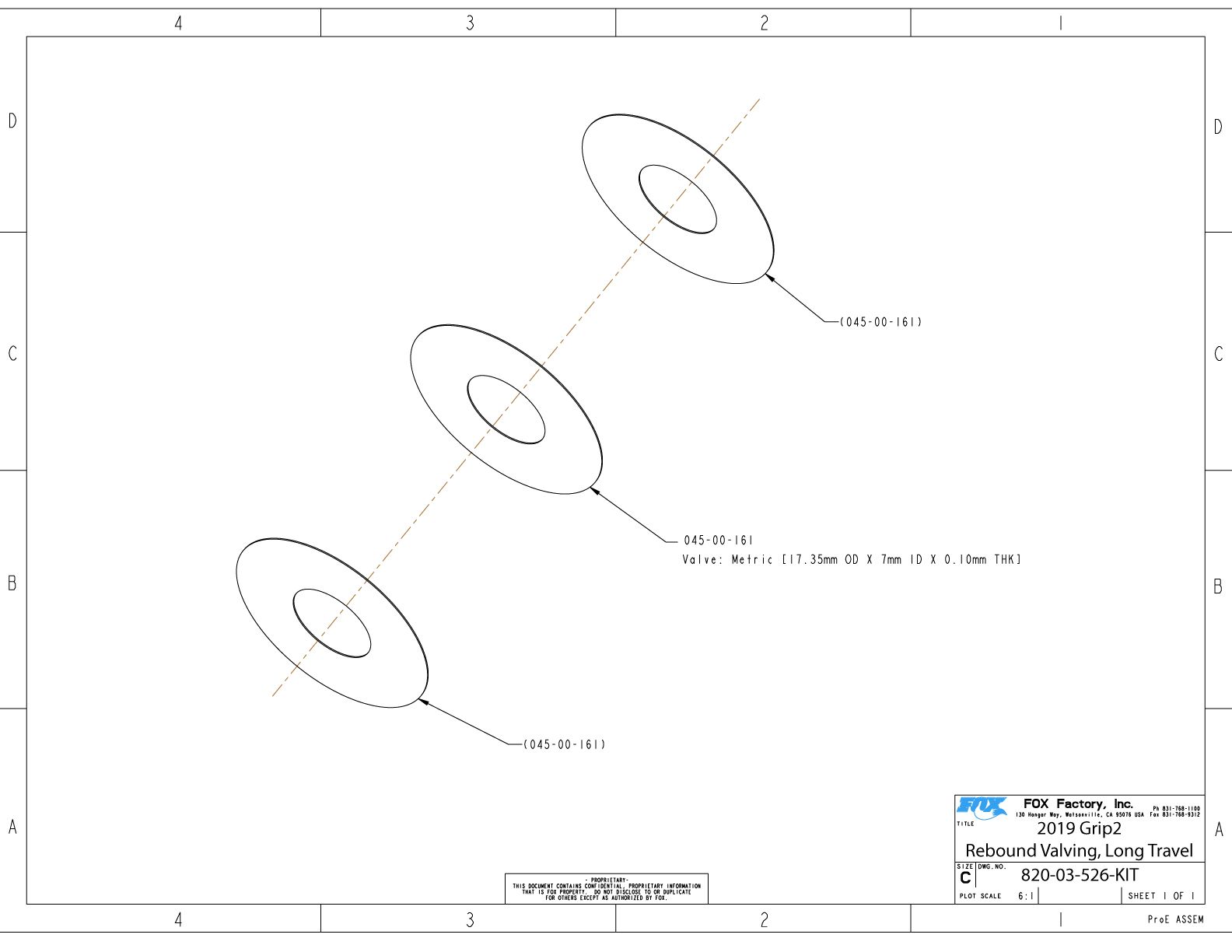

- 820-03-526-KIT 2019 Grip2 Rebound Valving, Long Travel

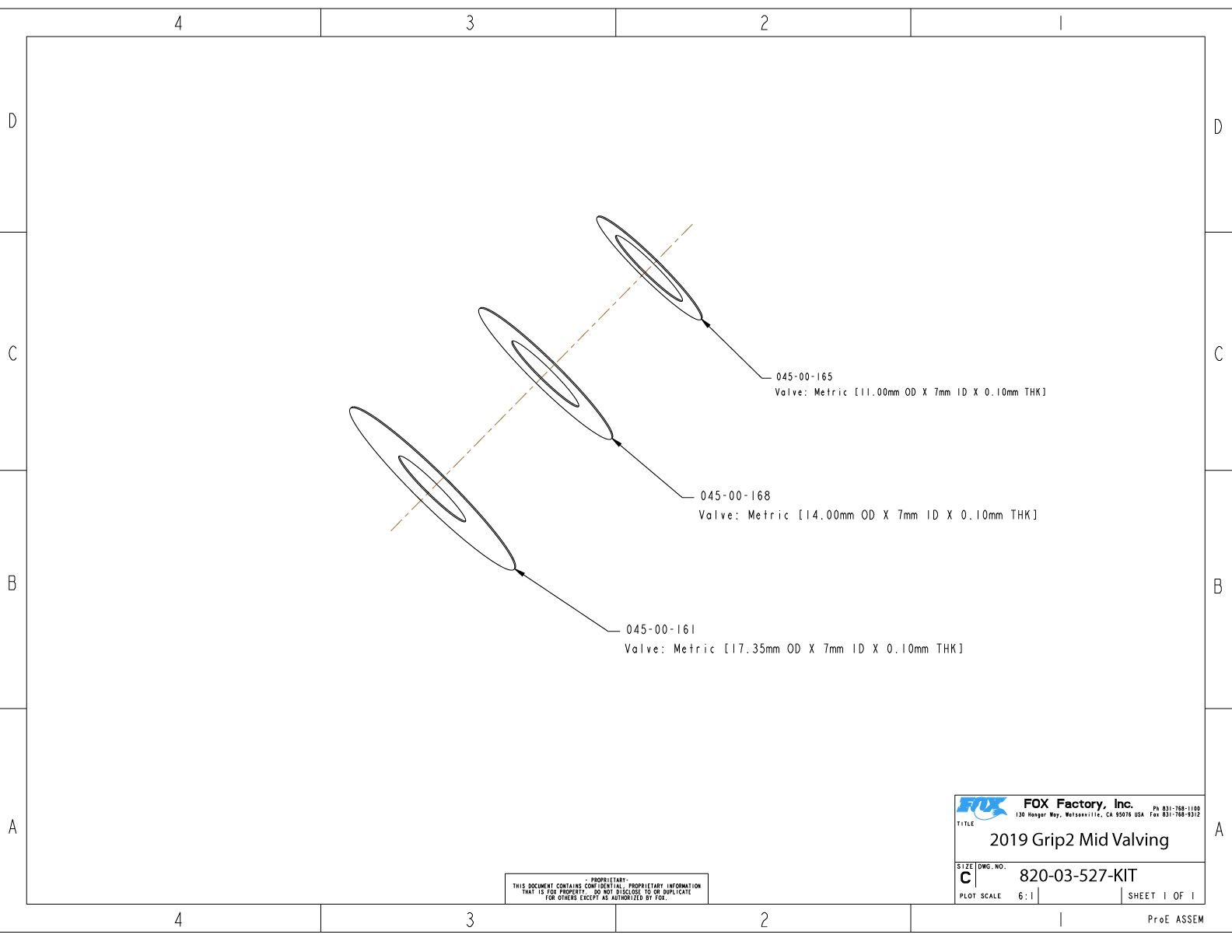

- 820-03-527-KIT 2019 Grip2 Mid Valving

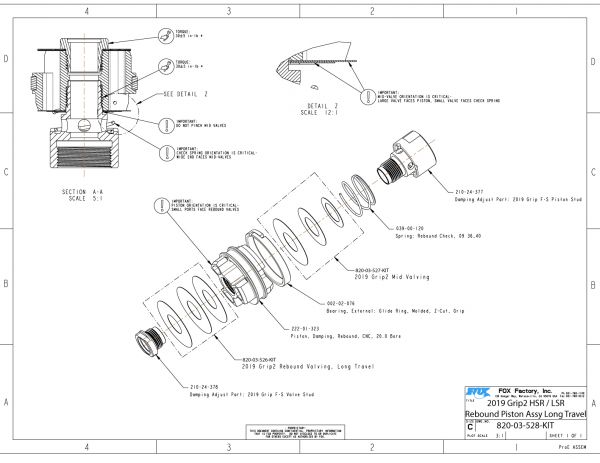

- 820-03-528-KIT 2019 Grip2 HSR/LSR Rebound Piston Assy Long Travel
- 820-03-529-KIT 2019 36 180 Grip2 HSR/LSR Damper Shaft Assy
- 820-05-415-KIT 2019 36 Grip2 Damper Topcap Assy
- 820-03-530-KIT 2019 Grip2 Compression Valving
2019 36mm F-S FIT4 Cartridge Assemblies

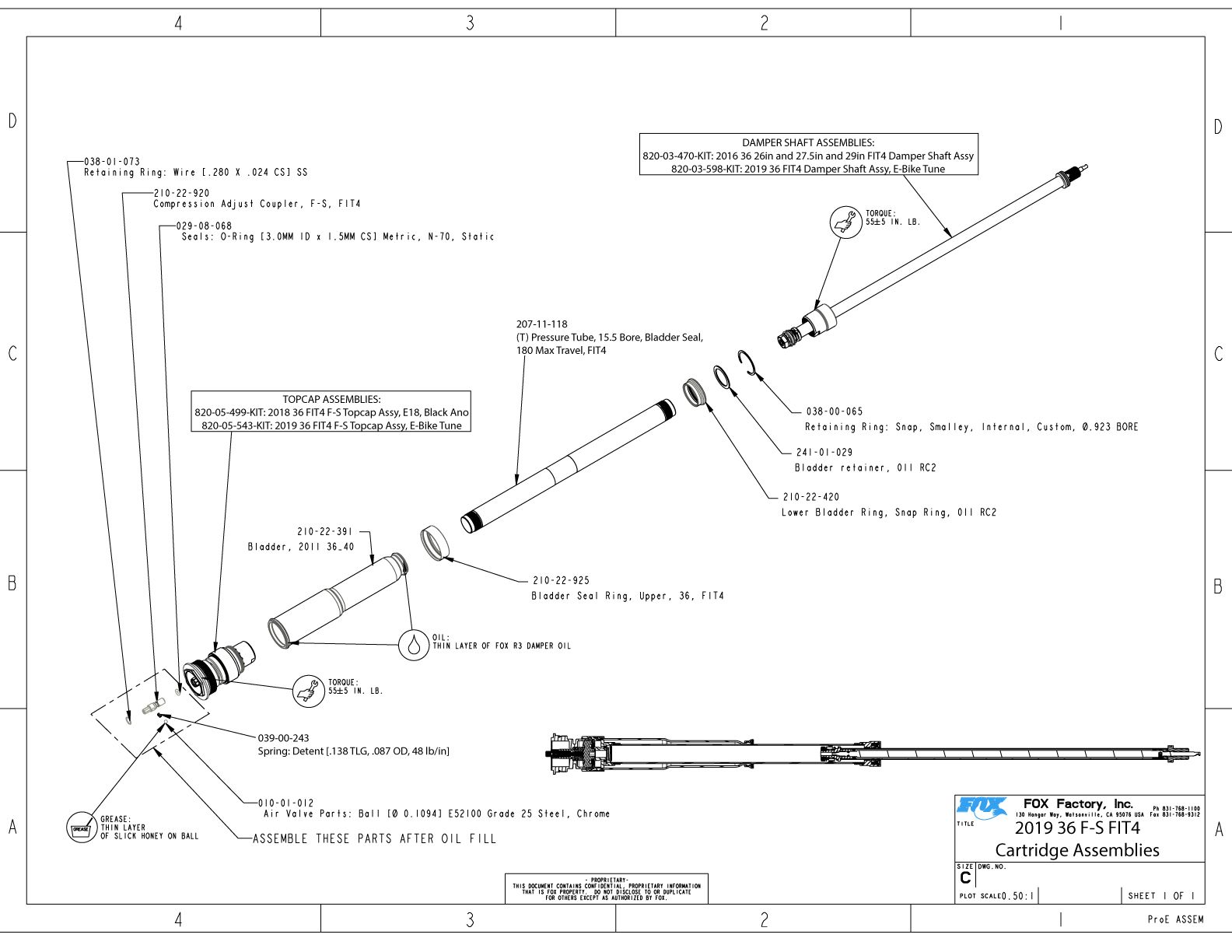

- 2019 36 F-S FIT4 Cartridge Assemblies Complete .
- 2019 36 F-S FIT4 Cartridge Assemblies .

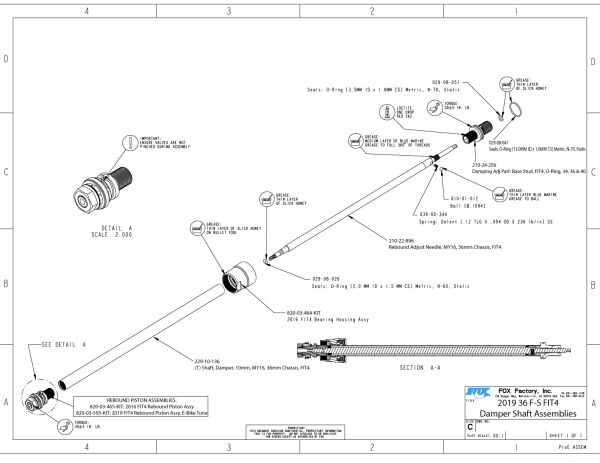

- 2019 36 F-S FIT4 Damper Shaft Assemblies .
- 2019 36 F-S FIT4 Topcap Assemblies .
- 820-03-462-KIT 2016 FIT4 F-S Topcap Parts
- 820-03-464-KIT Sealhead Assy 2016 FIT4

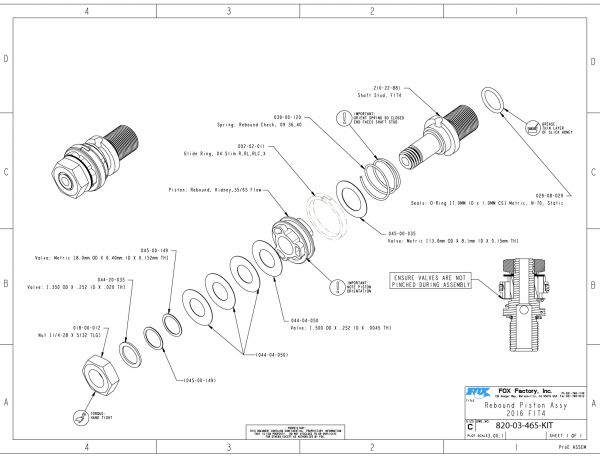

- 820-03-465-KIT Rebound Piston Assy 2016 FIT4
- 820-03-544-KIT 2018 FIT4 F-S Compression Valving Assy E18

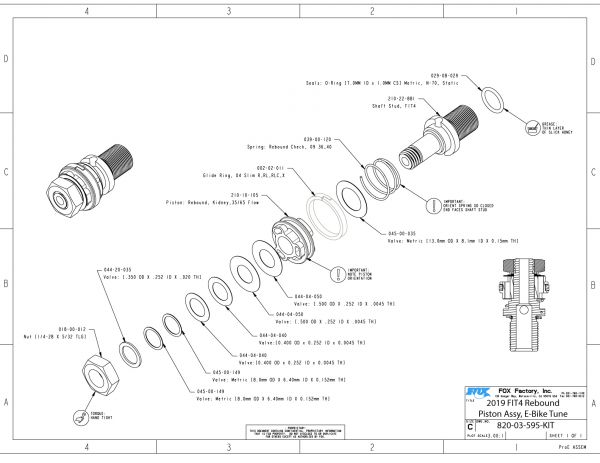

- 820-03-595-KIT 2019 FIT4 Rebound Piston Assy, E-Bike Tune

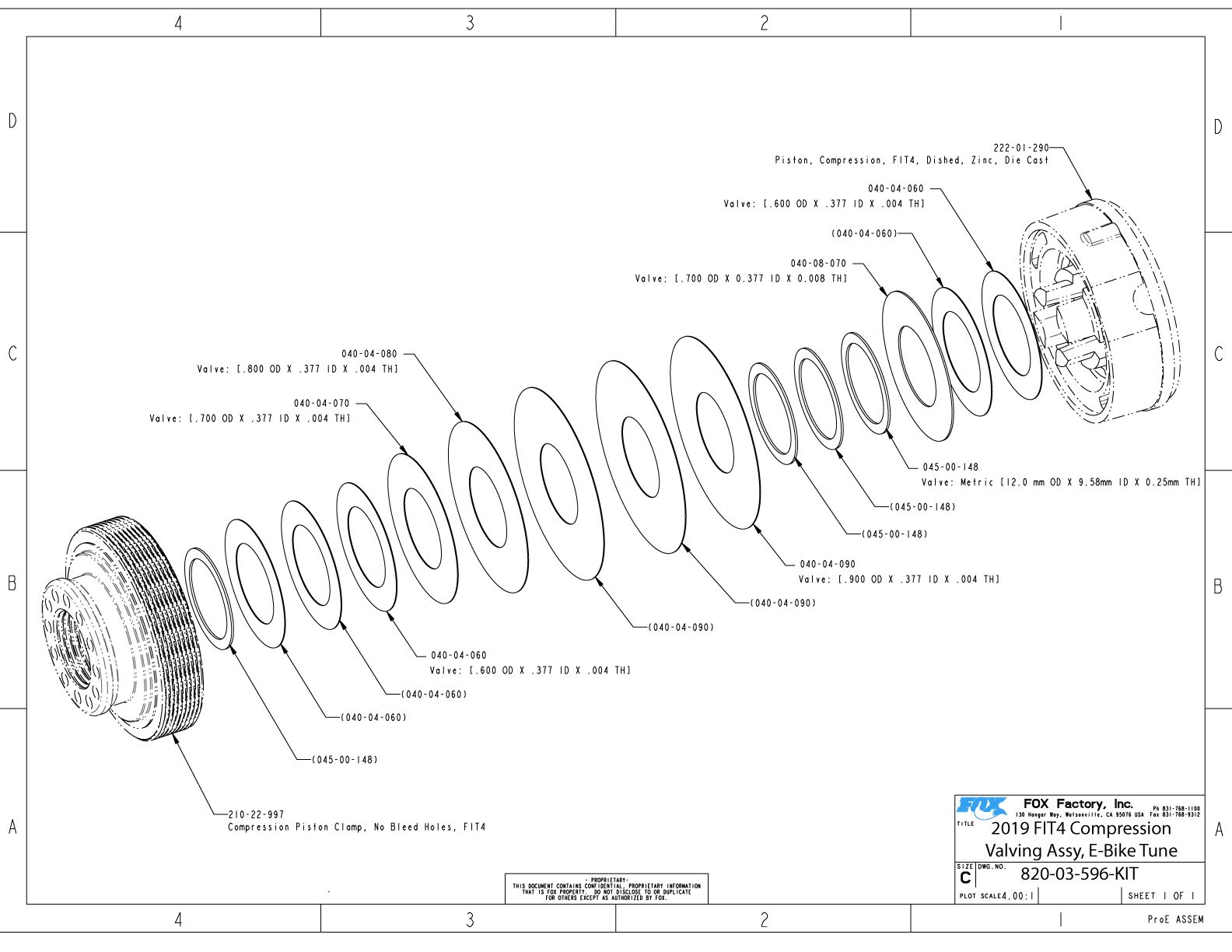

- 820-03-596-KIT 2019 FIT4 Compression Valving Assy, E-Bike Tune
2019 36mm F-S FIT4 Remote Cartridge Assemblies

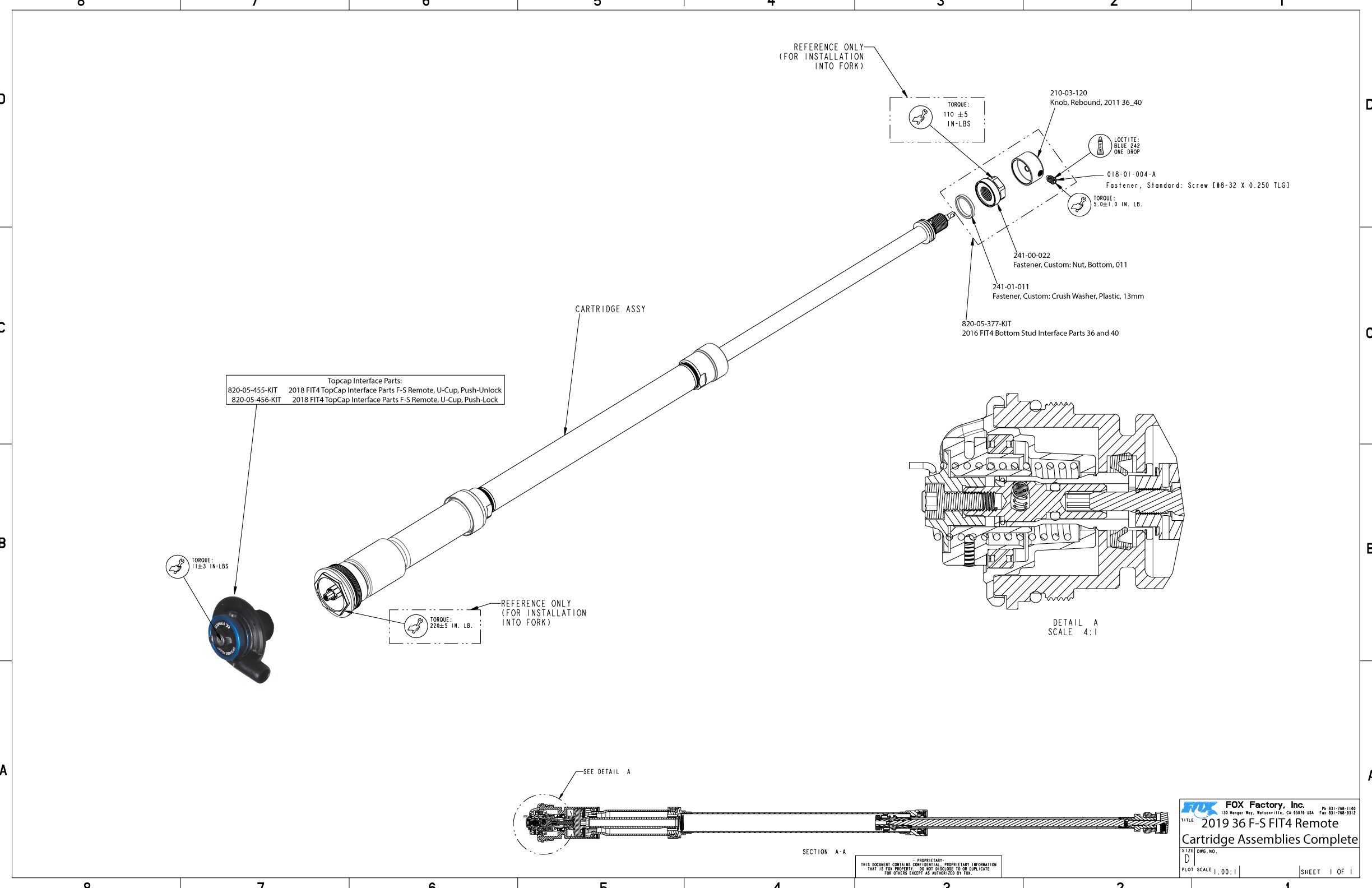

- 2019 36 F-S FIT4 Remote Cartridge Assemblies Complete .
- 2019 36 F-S FIT4 Remote Cartridge Assemblies .
- 2019 36 F-S FIT4 Remote Damper Shaft Assemblies .
- 2019 36 F-S FIT4 Remote Topcap Assemblies .
- 2019 36 F-S FIT4 Remote Topcap Parts .
- 820-03-464-KIT Sealhead Assy 2016 FIT4
- 820-03-465-KIT Rebound Piston Assy 2016 FIT4
- 820-03-544-KIT 2018 FIT4 F-S Compression Valving Assy E18
- 820-03-595-KIT 2019 FIT4 Rebound Piston Assy, E-Bike Tune
- 820-03-596-KIT 2019 FIT4 Compression Valving Assy, E-Bike Tune
2019 36mm P-S FIT4 Remote Cartridge Assembly

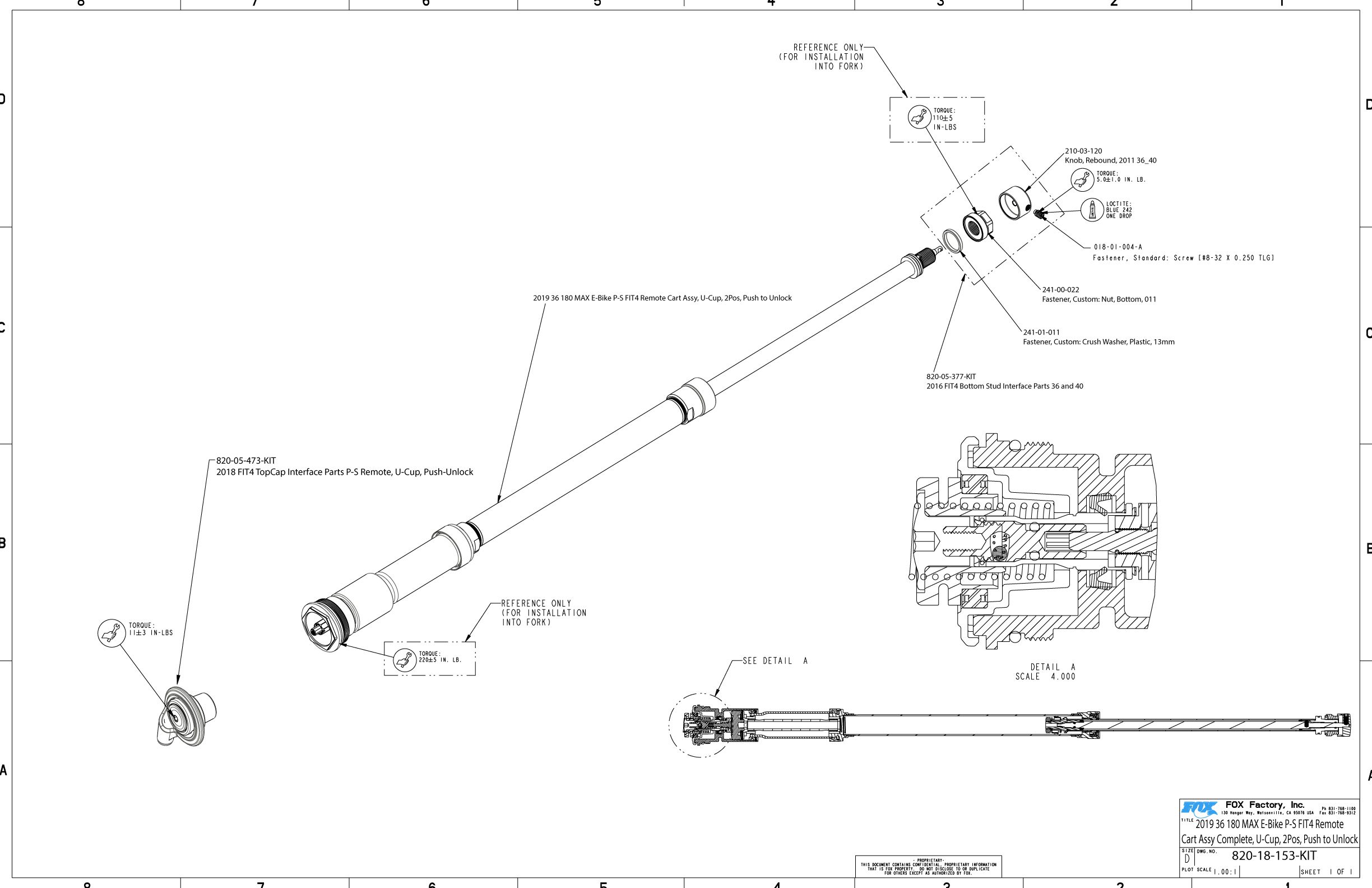

- 820-18-153-KIT 2019 36 180 MAX E-Bike P-S FIT4 Remote Cart Assy Complete, U-Cup, 2Pos, Push to Unlock

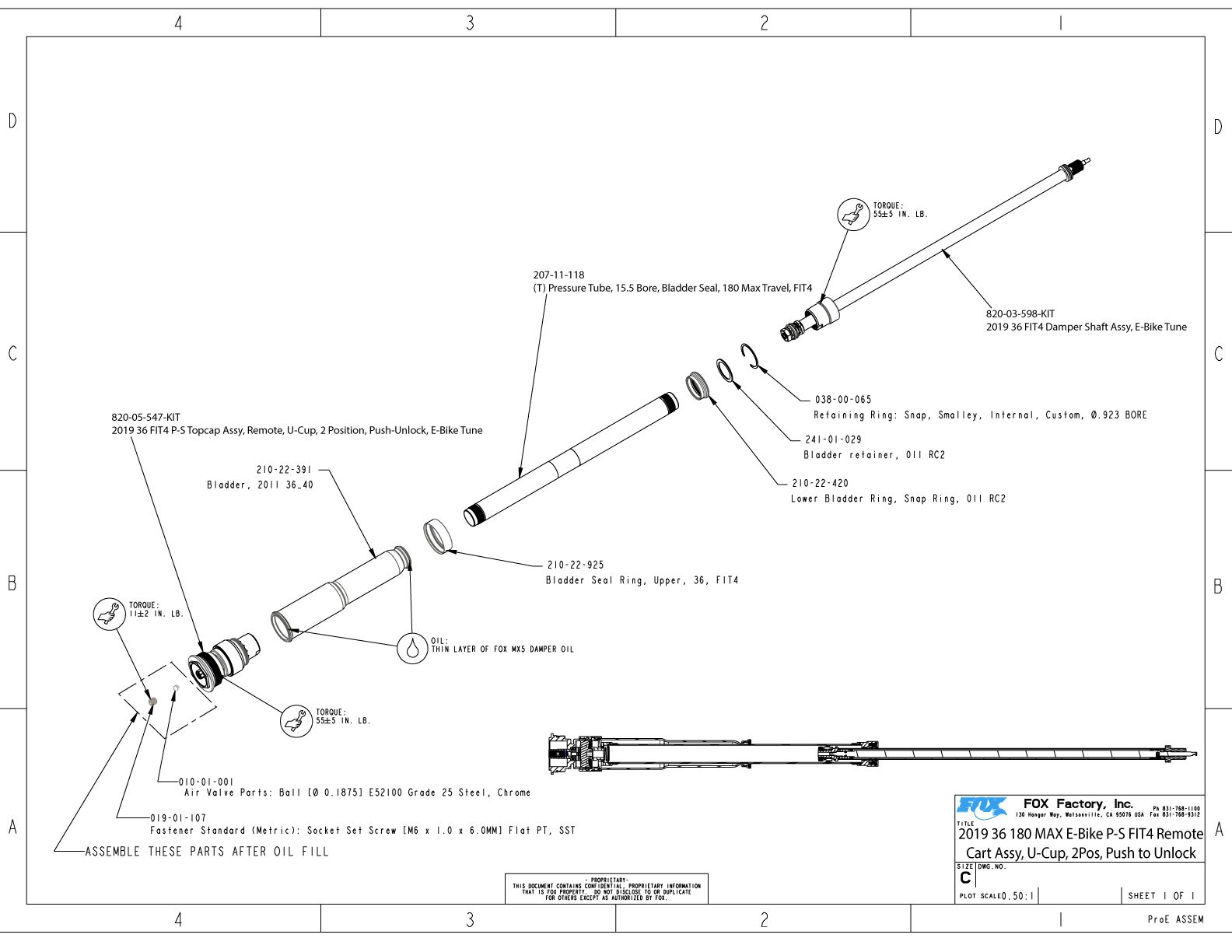

- 2019 36 180 MAX E-Bike P-S FIT4 Remote Cart Assy, U-Cup, 2Pos, Push to Unlock .
- 820-03-464-KIT Sealhead Assy 2016 FIT4
- 820-03-595-KIT 2019 FIT4 Rebound Piston Assy, E-Bike Tune

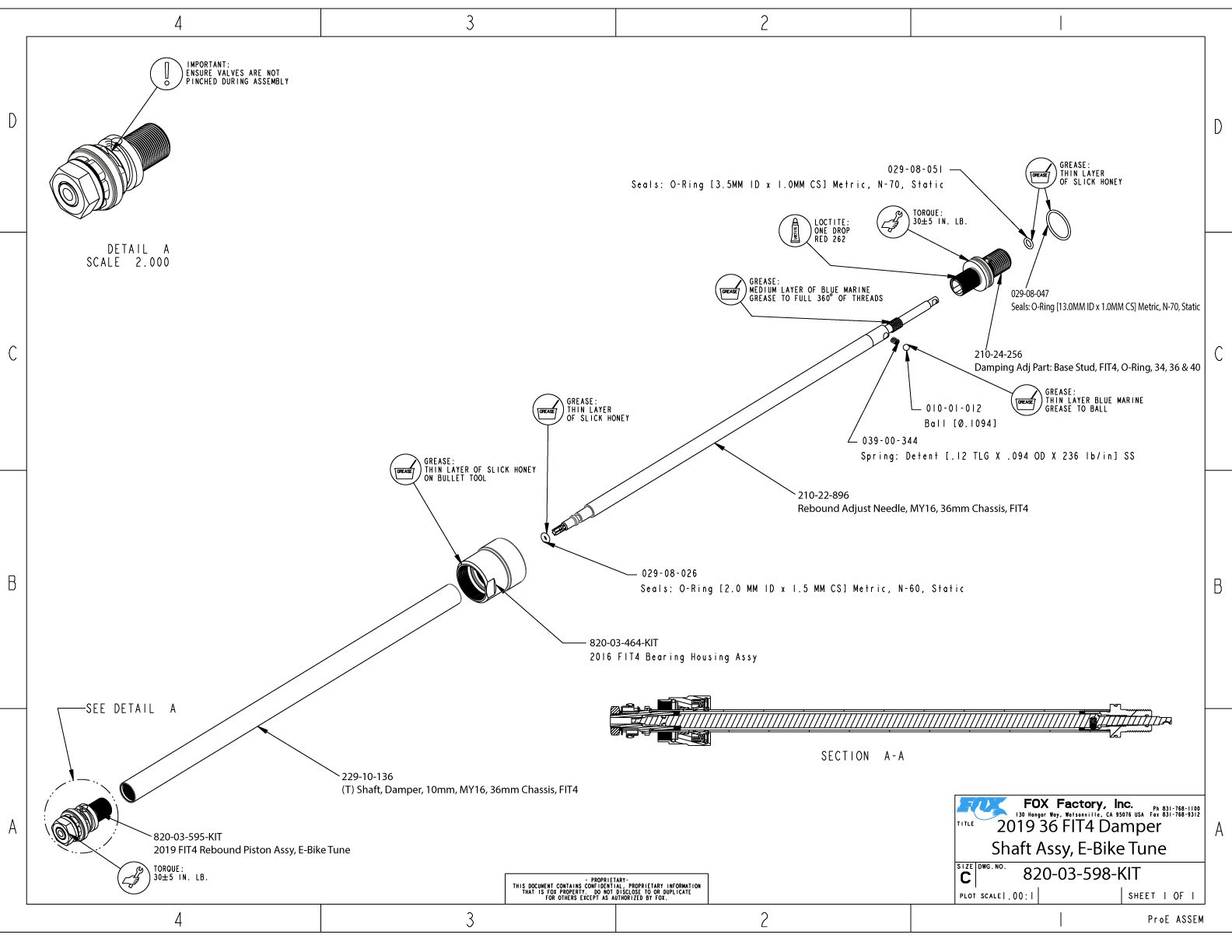

- 820-03-598-KIT 2019 36 FIT4 Damper Shaft Assy, E-Bike Tune
- 820-05-547-KIT 2019 36 FIT4 P-S Topcap Assy, Remote U-Cup, 2 Position, Push-Unlock, E-Bike Tune
- 820-03-541-KIT 2018 FIT4 P-S Topcap Parts, Remote, U-Cup, Push-to-Unlock
2019 36mm Grip Cartridge Assemblies
- 2019 36 P-S Grip Cartridge Assemblies Complete .
- 2019 36 P-S Grip Cartridge Assemblies .
- 2019 36 P-S Grip Damper Shaft Assemblies .
- 2019 36 P-S Grip Rebound Piston Assemblies .

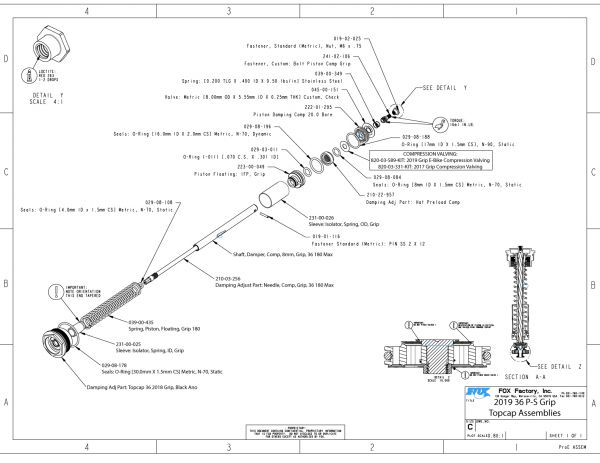

- 2019 36 P-S Grip Topcap Assemblies .

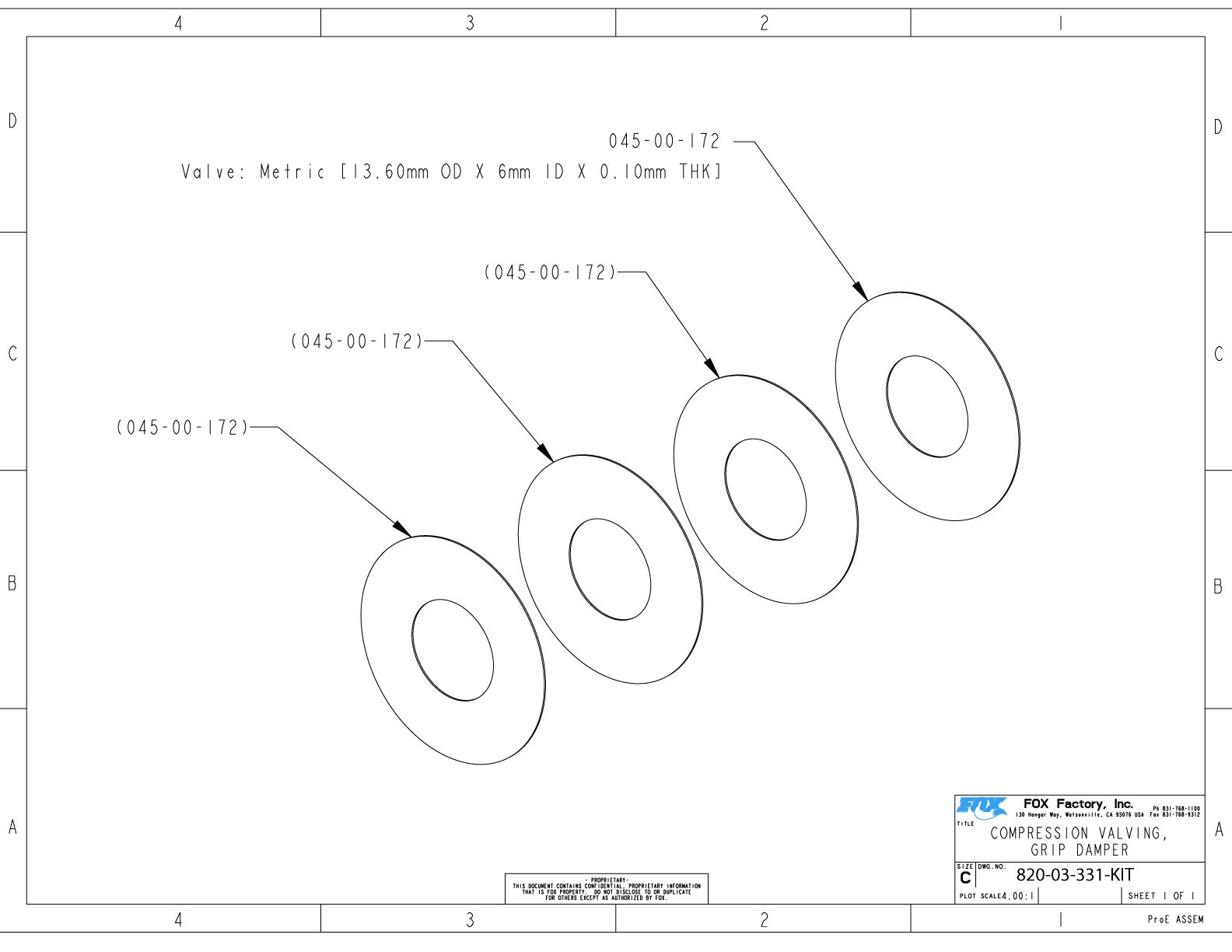

- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-457-KIT 2017 Grip Rebound Valving, Long Travel
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy

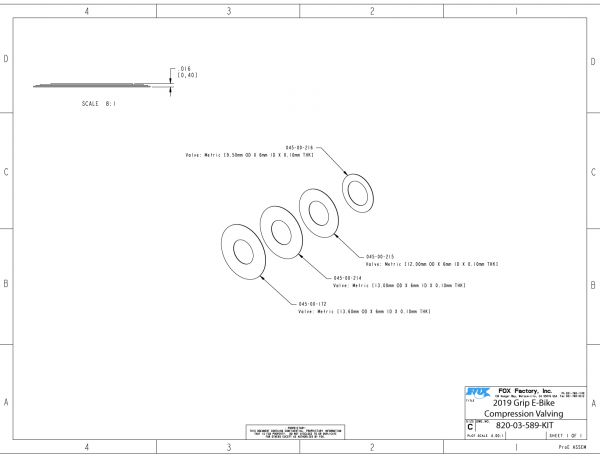

- 820-03-589-KIT 2019 Grip E-Bike Compression Valving
- 820-03-590-KIT 2019 Grip E-Bike Rebound Valving
2019 36mm Grip Remote Cartridge Assemblies
- 2019 36 P-S Grip Remote Cartridge Assemblies Complete .
- 2019 36 P-S Grip Remote Cartridge Assemblies .

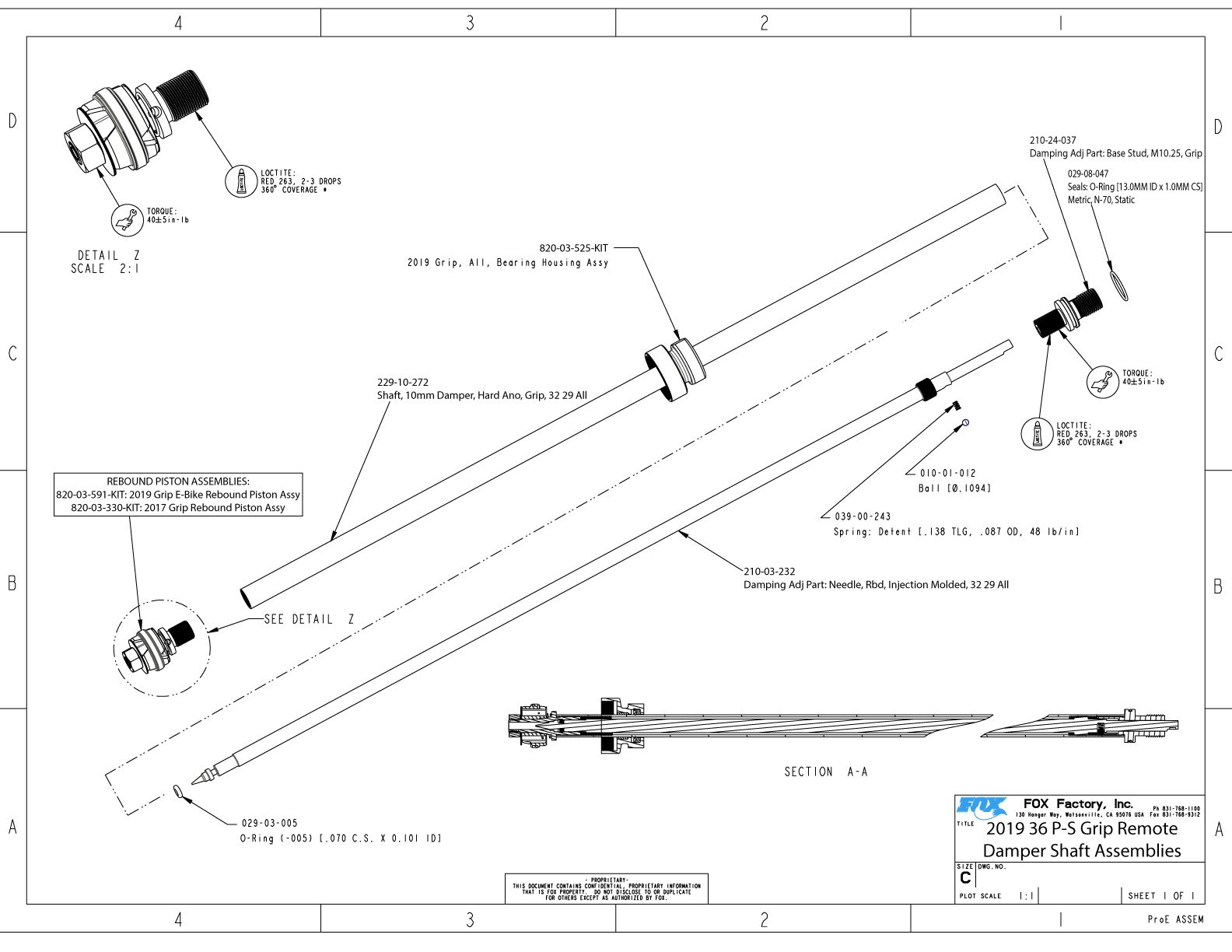

- 2019 36 P-S Grip Remote Damper Shaft Assemblies .

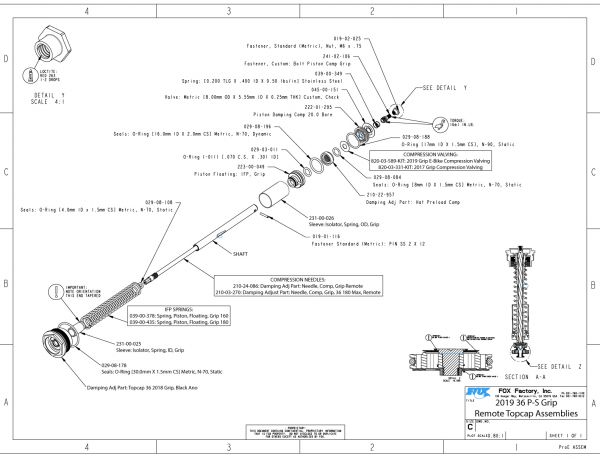

- 2019 36 P-S Grip Remote Topcap Assemblies .

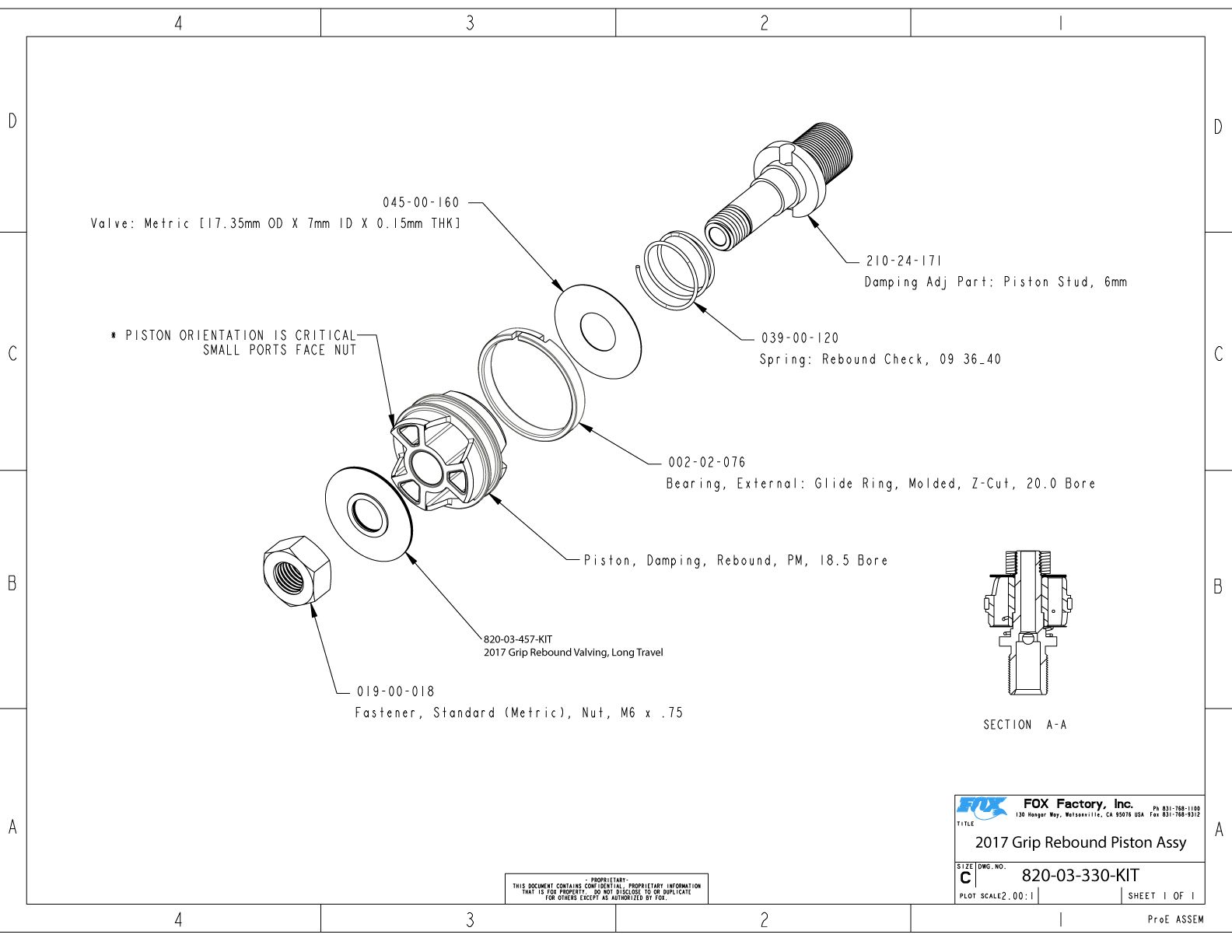

- 820-03-330-KIT 2017 Grip Rebound Piston Assy
- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-589-KIT 2019 Grip E-Bike Compression Valving
- 820-03-591-KIT 2019 Grip E-Bike Rebound Piston Assy
2019 36mm Rhythm Grip Cartridge Assemblies

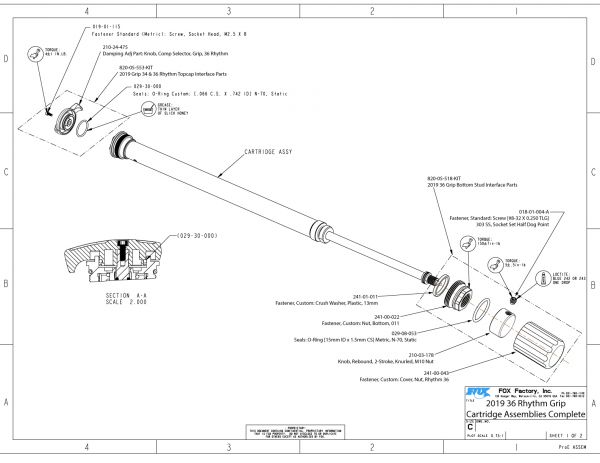

- 2019 36 Rhythm Grip Cartridge Assemblies Complete .
- 2019 36 Rhythm Grip Cartridge Assemblies .

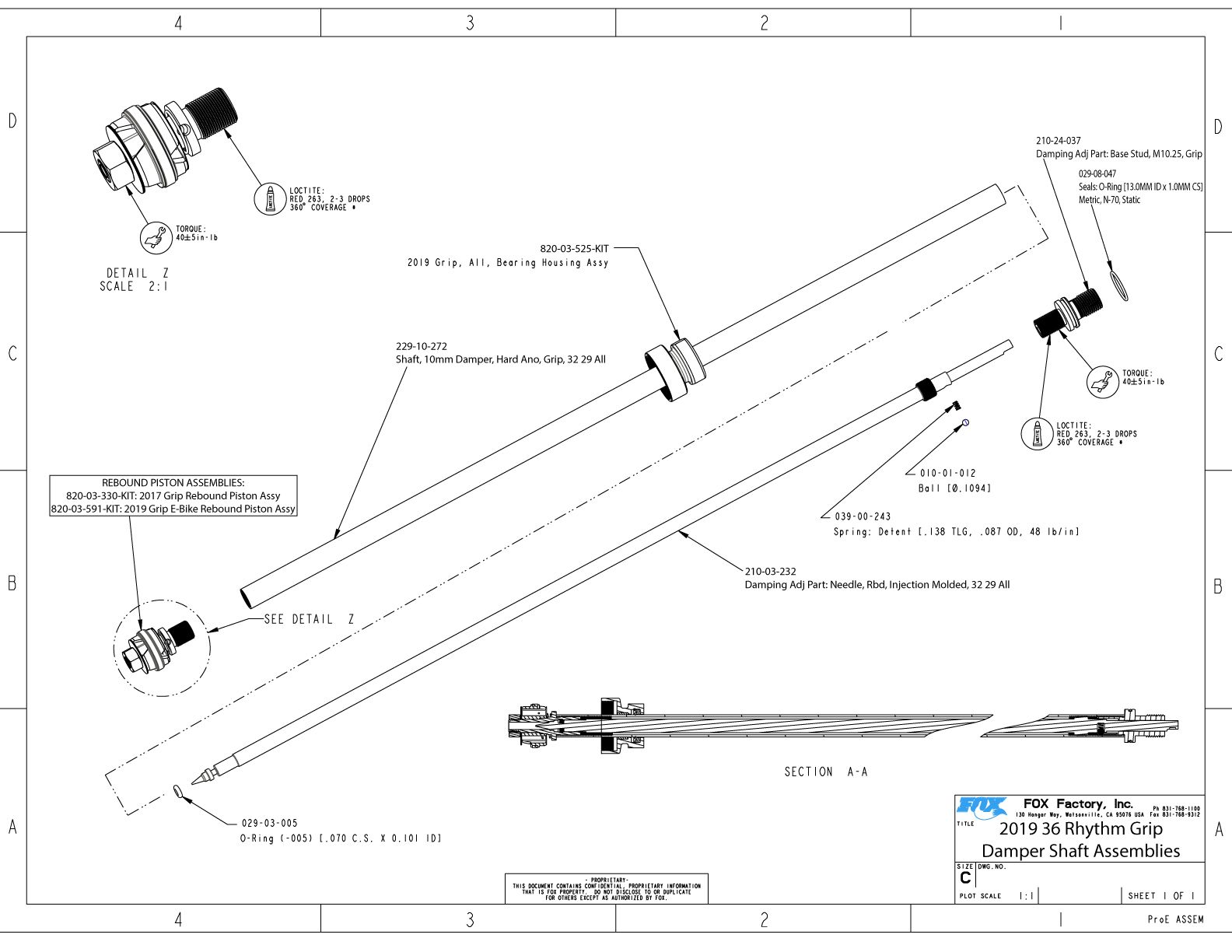

- 2019 36 Rhythm Grip Damper Shaft Assemblies .
- 2019 36 Rhythm Grip Topcap Assemblies .
- 820-03-330-KIT 2017 Grip Rebound Piston Assy
- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-589-KIT 2019 Grip E-Bike Compression Valving
- 820-03-591-KIT 2019 Grip E-Bike Rebound Piston Assy
2019 36mm Rhythm Grip Remote Cartridge Assemblies
- 820-18-027-KIT 2019 36 Rhythm, 180 MAX, Grip Remote Cart Assy Complete
- 2019 36 Rhythm 180 MAX Grip Remote Cart Assy .
- 820-03-330-KIT 2017 Grip Rebound Piston Assy
- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-568-KIT 2019 36 180 MAX Grip Damper Shaft Assy
- 820-05-508-KIT 2019 36 180 MAX Grip Remote Topcap Assy
2019 36mm FLOAT NA2 Air Spring Assemblies
- 2019 36 FLOAT NA2 Air Spring Assemblies .
- 2019 36 FLOAT NA2 Air Shaft Assemblies .
- 820-02-448-KIT Neg Plate Subassembly, 2018 FLOAT NA 2, 36, All Travel, 1.287" Bore, Aluminum
- 820-05-419-KIT Topcap Assy, 2018 FLOAT LC NA2, 36, Black
2019 36mm Rhythm Air Spring Assemblies
- 2019 36 Rhythm FLOAT NA2 Air Spring Assemblies .
- 2019 36 Rhythm FLOAT NA2 Air Shaft Assemblies .
- 820-02-544-KIT Neg Plate Subassembly, 2019, 36 Rhythm, 1.275 Bore, No Spacer
- 820-05-419-KIT Topcap Assy, 2018 FLOAT LC NA2, 36, Black
2019 36mm F-S Grip2 Cartridge Assemblies
2019 36mm F-S FIT4 Cartridge Assemblies
2019 36mm F-S FIT4 Remote Cartridge Assemblies
2019 36mm P-S FIT4 Remote Cartridge Assembly
820-18-153-KIT 2019 36 180 MAX E-Bike P-S FIT4 Remote Cart Assy Complete, U-Cup, 2Pos, Push to Unlock
820-05-547-KIT 2019 36 FIT4 P-S Topcap Assy, Remote U-Cup, 2 Position, Push-Unlock, E-Bike Tune
2019 36mm Grip Cartridge Assemblies
2019 36mm Grip Remote Cartridge Assemblies
2019 36mm Rhythm Grip Cartridge Assemblies
2019 36mm Rhythm Grip Remote Cartridge Assemblies
2019 36mm FLOAT NA2 Air Spring Assemblies
