34mm Step-Cast Part Information
New for 2019:
| All New Chassis | New Stepcast Lower Chassis |
| New 8mm Shaft | FIT4 Rebound Shaft Assembly |
| New Sealhead | 8mm Seal head |
| Optimized travel | 34 SC 120mm MAX optimized travel |
| New Valving | New Valving Commpression Stack tunes |
| Remote Conversions available for 2016+ Fit4 |
Non-remote FIT4 cartridges can be upgraded to remote via the installation of a complete FIT4 Remote U-Cup Topcap Assembly. This ensures the optimized topcap configuration with friction reducing features for the most reliable remote installation possible. FOX recommends PTU remote systems over PTL systems as they are optimized for reliability and reduced lever force. The FIT4 topcap "butterfly" valve must be matched to the appropriate lever/topcap interface parts. Installation of FIT4 Remote Topcap Interface Parts on a FIT4 3 Pos or 3 Pos Adj cartridge does not convert the cartridge to the optimized remote configuration even when used with a 3 position remote lever as the standard FIT4 3 Pos or 3 Pos Adj topcap does not contain the U-Cup that optimized remote topcap friction. |
Continuing Technologies:
| FIT4 damper tunes | Old FIT4 tune still supported |
| Remote Convesions | Available for 2016-2017 Fit4 Remote Updated Push-Unlock Versions |
Maintenance Info:
| Service Interval | Full Service 125 hours |
| 803-01-323 | *NEW* Seal Kit: MY19+ 32/34 SC 8mm shaft FIT4 Cartridge Rebuild |
| 803-00-963 | Seal Kit: 34 FLOAT NA2 Rebuild |
| 398-00-681 | 2002-017 32 Damper-side and ALL 32-34-36-40 Spring-side Removal Tool |
| 398-00-682 | 2005-017 34-36-40 Damper-side Removal Tool |
| 803-00-945 | Kit: Dust Wiper, Forx, 34mm, Low Friction, No Flange |
| 803-00-084 | Kit: Shaft Clamps, FORX, Set #1 (32mm Forx) |
| 803-00-147 | Kit: Shaft Clamps, 07 FORX, Set #2 (32 X Body, 36, 40 Forx) |
| 803-00-276 | Hand Bleeder |
| 398-00-320 | Tool: 8mm Shaft Bullet, 32 FIT Cartridge |
| 803-01-150 | Kit: Tooling: Clamps, Grip Damper, Body and Shaft |
| 803-01-141 | Seal Kit: 32, 34, 36 GRIP Cartridge Rebuild |
| 803-01-209 | Kit: Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set |
| 398-00-760 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
Oil Info:
| Application | Description | Part |
| All FIT4 and GRIP Dampers | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart | 025-03-023 |
| All non-GRIP damper bath oil and FLOAT NA2 Air Chamber and bath | Oil: AM, FOX Bath Oil [250 ml.], 20 WT Gold | 025-03-015 |
| Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold | 025-03-010 |
| Bath Oil Application | Bath Oil Volume |
| All 34mm FLOAT 100-120 Air-Side Bath | 25cc (FOX 20wt. Gold Oil) |
| All 34mm FLOAT 130-160 Air-Side Bath | 10cc (FOX 20wt. Gold Oil) |
| All 34mm RHYTHM 100-150 Air-Side Bath | 10cc (FOX 20wt. Gold Oil) |
| All FLOAT NA2 and RHYTHM Air Chamber | 3cc (FOX 20wt. Gold Oil) |
| All 34mm FIT4 Damper-Side Bath | 15cc (FOX 20wt. Gold Oil) |
| All 34mm GRIP Damper-Side Bath | 40cc (5wt. FOX Teflon Infused Oil) |
Remote Info:
| Part | Description |
| 820-05-445-KIT | Service Set: 2018 Grip Remote, Topcap Interface Parts |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-473-KIT | Service Set: 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Unlock |
| 820-05-474-KIT | Service Set: 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Lock |
| 820-07-150-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Dual Pull |
| 820-07-151-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Single Pull |
34mm Step-Cast Part Information
CSU Assemblies
| Part Number | Description |
| 820-12-101-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Matte Black, 51 Rake, 1.5 Taper, CSU |
| 820-12-104-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Matte Black, 51 Rake, 1.5 Taper, CSU |
| 820-12-107-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Matte Black, 44 Rake, 1.5 Taper, CSU |
| 820-12-110-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Matte Black, 44 Rake, 1.5 Taper, CSU |
| 820-12-103-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Shiny Black, 51 Rake, 1.5 Taper, CSU |
| 820-12-106-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Shiny Black, 51 Rake, 1.5 Taper, CSU |
| 820-12-109-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Shiny Black, 44 Rake, 1.5 Taper, CSU |
| 820-12-112-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Shiny Black, 44 Rake, 1.5 Taper, CSU |
Lower Leg Assemblies
| Part Number | Description |
| 820-10-871-KIT | Service Set: 2019 34 SC 29in 120 15x110 Kabolt, Blk, Fox Matte Black, F-S, Lower Leg Assy |
| 820-10-875-KIT | Service Set: 2019 34 SC 27.5in 120 15x110 Kabolt, Blk, Fox Matte Black, F-S, Lower Leg Assy |
| 820-10-873-KIT | Service Set: 2019 34 SC 29in 120 15x110 Kabolt, Blk, Fox Shiny Black, F-S, Lower Leg Assy |
| 820-10-874-KIT | Service Set: 2019 34 SC 29in 120 15x110 Kabolt, Blk, Fox Shiny Orange, F-S, Lower Leg Assy |
| 820-10-877-KIT | Service Set: 2019 34 SC 27.5in 120 15x110 Kabolt, Blk, Fox Shiny Black, F-S, Lower Leg Assy |
| 820-10-878-KIT | Service Set: 2019 34 SC 27.5in 120 15x110 Kabolt, Blk, Fox Shiny Orange, F-S, Lower Leg Assy |
| 820-10-872-KIT | Service Set: 2019 34 SC 29in 120 15x110 Kabolt, Blk, Fox Gloss White, F-S, Lower Leg Assy |
| 820-10-872-KIT | Service Set: 2019 34 SC 29in 120 15x110 Kabolt, Blk, Fox Gloss White, F-S, Lower Leg Assy |
| 820-10-876-KIT | Service Set: 2019 34 SC 27.5in 120 15x110 Kabolt, Blk, Fox Gloss White, F-S, Lower Leg Assy |
| 820-10-876-KIT | Service Set: 2019 34 SC 27.5in 120 15x110 Kabolt, Blk, Fox Gloss White, F-S, Lower Leg Assy |
Axle Assemblies
| Part | Description |
| 820-09-013-KIT | Axle Assembly, 2016 15x110 QR, Factory and Performance, Black Ano |
| 820-09-019-KIT | Axle Assembly: 15 X 110mm Kabolt, Black Ano |
| 820-09-023-KIT | Axle Assembly: 15 X 110mm Kabolt, Orange Ano |
Lower Leg Small Parts
| Part | Description |
| 803-00-370 | Service Set: 15QR Hardware (Contains: Axle nut, hold down, and set screw) |
| 019-02-008 | Fastener, Custom: 09 15QR Axle Nut, 8º Chamfer |
| 026-03-009 | Mounting Hardware, Axle Nut Hold-Down, 15QR |
| 241-02-040 | Fastener, Custom: Screw [M4 X 10] FHCS, Black Zinc, Patchlock |
Decal Kits
| Part | Description |
| 803-01-290 | Decal Kit: 2019, 34 SC, Factory 29/27.5 |
| 803-01-348 | Decal Kit: 2019, 34 SC, P-SE, 29/27.5, Matte Blk Bkgrnd |
| 803-01-353 | Decal Kit: 2019, 34 SC, P-S, 29/27.5, Matte Blk Bkgrnd |
| 803-01-383 | Decal Kit: 2019, 34 SC, Factory 29/27.5, Blk/Ylw |
Complete Cartridges
| Part Number | Description |
| 820-18-030-KIT | Service Set: 2019 34 SC 29in 120 Max FIT4, Complete, Black Ano, 3 Pos Adj, E18 |
| 820-18-031-KIT | Service Set: 2019 34 SC 27.5in 120 Max FIT4, Complete, Black Ano, 3 Pos Adj |
| 820-18-032-KIT | Service Set: 2019 34 SC 29in 120 Max FIT4, Remote, Complete, Black Ano, Push to Unlock, U-Cup, 2 Pos Adj |
| 820-18-033-KIT | Service Set: 2019 34 SC 27.5in 120 Max FIT4, Remote, Complete, Black Ano, Push to Unlock, U-Cup, 2 Pos Adj |
| 820-18-034-KIT | Service Set: 2019 34 SC 29in 120 Max FIT4, Remote, Complete, Black Ano, Push to Lock, U-Cup, 2 Pos Adj |
| 820-18-035-KIT | Service Set: 2019 34 SC 27.5in 120 Max FIT4, Remote, Complete, Black Ano, Push to Lock, U-Cup, 2 Pos Adj |
| 820-18-036-KIT | Service Set: 2019 34 SC 29in 120 Max FIT4, Remote, Complete, Black Ano, Push to Lock, U-Cup, 3 Pos Adj |
| 820-18-037-KIT | Service Set: 2019 34 SC 27.5in 120 Max FIT4, Remote, Complete, Black Ano, Push to Lock, U-Cup, 3 Pos Adj |
| 820-18-038-KIT | Service Set: 2019 34 SC 29 120 Max, Grip Cart Assy Complete |
| 820-18-039-KIT | Service Set: 2019 34 SC 27.5 120 Max, Grip Cart Assy Complete |
| 820-18-040-KIT | Service Set: 2019 34 SC 29 120 Max, Grip Remote Cart Assy Complete |
| 820-18-041-KIT | Service Set: 2019 34 SC 27.5 120 Max, Grip Remote Cart Assy Complete |
| 820-18-132-KIT | Service Set: 2019 34 SC 27.5in 120 MAX FIT4, Remote, Complete, P-S, Push to Unlock, U-Cup, 2 Position |
| 820-18-133-KIT | Service Set: 2019 34 SC 29in 120 MAX FIT4, Remote, Complete, P-S, Push to Unlock, U-Cup, 2 Position |
Cartridge Topcap Assemblies
| Part | Description |
| 820-05-502-KIT | Service Set: 2019 34 SC FIT4 Topcap Assy, 3 Pos Adj |
| 820-05-503-KIT | Service Set: 2019 34 SC FIT4 Topcap Assy, Remote U-Cup, 2 Pos Adj, Push-Unlock |
| 820-05-505-KIT | Service Set: 2019 34 SC FIT4 Topcap Assy, Remote U-Cup, 3 Pos Adj, Push-Lock |
| 820-05-519-KIT | Service Set: 2019 34 Grip Damper, Topcap Assy |
| 820-05-523-KIT | Service Set: 2019 34, All, Grip Remote, Topcap Assy |
Damper Topcap Interface Parts
| Part | Description |
| 820-05-330-KIT | Service Set: 2016 FIT4 TopCap Interface Parts F-S |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-445-KIT | Service Set: 2018 Grip Remote, Topcap Interface Parts |
| 820-05-454-KIT | Service Set: 2018 Grip P-S Topcap Interface Parts |
Damper Bottom Stud Interface Parts
| Part | Description |
| 820-05-507-KIT | Service Set: 2019 34 SC Bottom Stud Interface Parts, 27.5in Fork |
| 820-05-506-KIT | Service Set: 2019 34 SC Bottom Stud Interface Parts, 29in Fork |
FLOAT NA2 Air Shaft Assemblies
| Part | Description |
| 820-02-541-KIT | Service Set: Air Shaft Assy, 2019, 34 SC, 120mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-542-KIT | Service Set: Air Shaft Assy, 2019, 34 SC, 110mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-543-KIT | Service Set: Air Shaft Assy, 2019, 34 SC, 100mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
FLOAT NA2 Topcap Assemblies
| Part | Description |
| 820-05-500-KIT | Service Set: Topcap Assy, 2019, FLOAT LC NA 2, 34 SC, Black |
FLOAT NA2 Neg Plate Subassemblies
| Part | Description |
| 820-02-540-KIT | Service Set: Neg Plate Subassembly, 2019 FLOAT LC NA 2, 34 SC, 1.214 Bore, Aluminum |
2019 34mm SC F-S FIT4 Cartridge Assemblies
- 2019 34 SC F-S FIT4 Cartridge Assemblies Complete .
- 2019 34 SC F-S FIT4 Cartridge Assembly .
- 820-03-258-KIT 2017 FIT4 Lightweight Topcap Parts
- 820-03-562-KIT 2019 32/34 SC FIT4 Rebound Adjuster Assy 8mm Shaft
- 820-03-563-KIT 2019 SC FIT4 Rebound Piston Assy 8mm Shaft
- 820-03-564-KIT 2019 34 SC 27.5in and 29in 120 Max FIT4 Damper Shaft Assy, 8mm Shaft

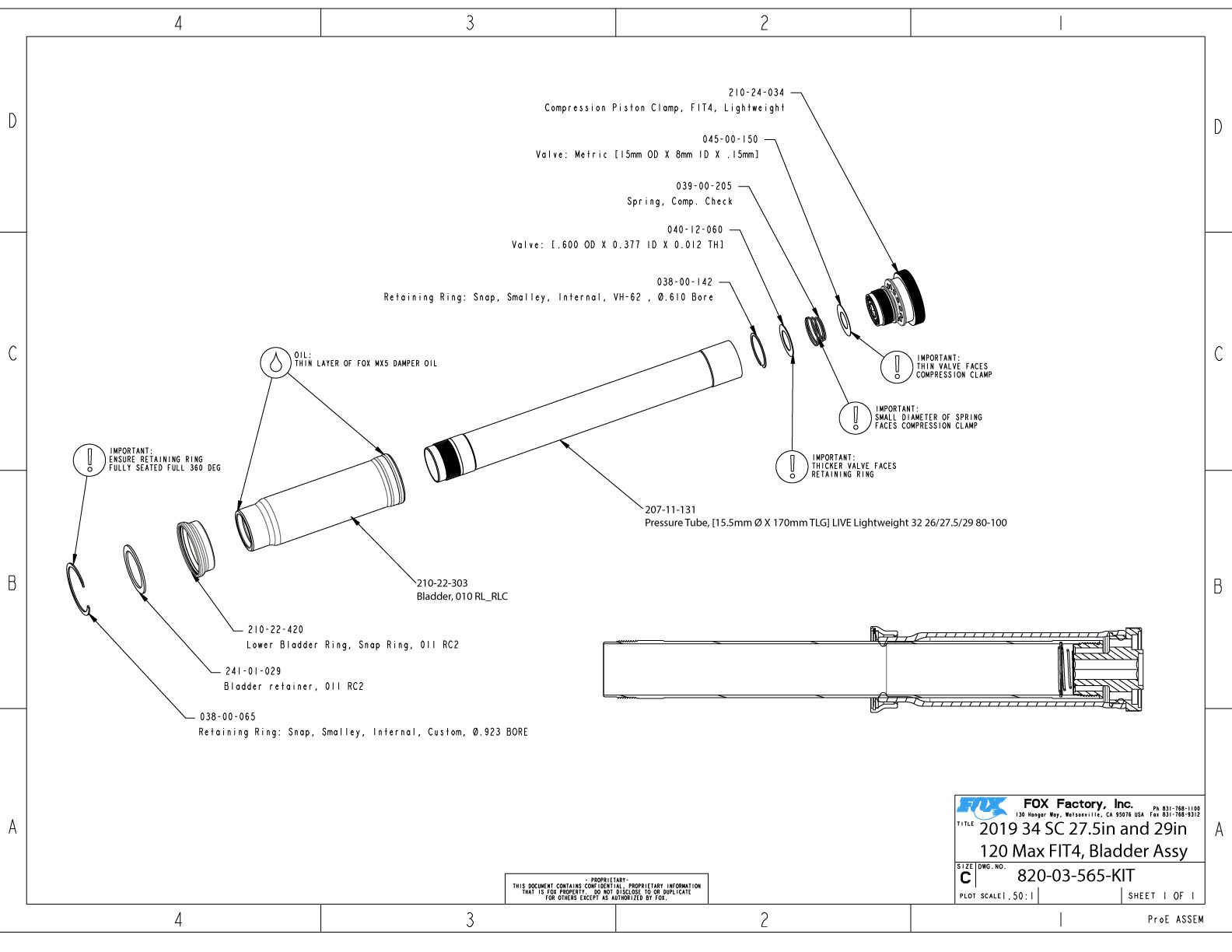

- 820-03-565-KIT 2019 34 SC 27.5in and 29in 120 Max FIT4, Bladder Assy

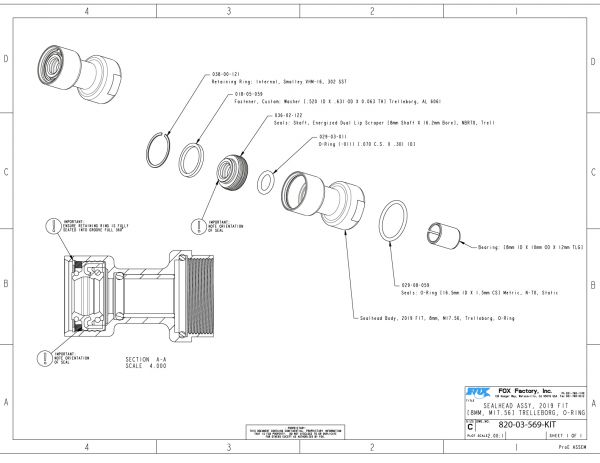

- 820-03-569-KIT Sealhead Assy 2019 FIT [8mm, M17.56] Trelleborg O-Ring

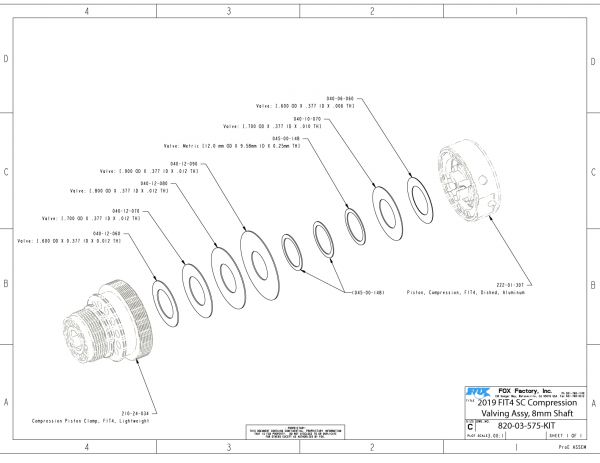

- 820-03-575-KIT 2019 FIT4 SC Compression Valving Assy 8mm Shaft
- 820-05-502-KIT 2019 34 SC FIT4 Topcap Assy, 3Pos-Adj

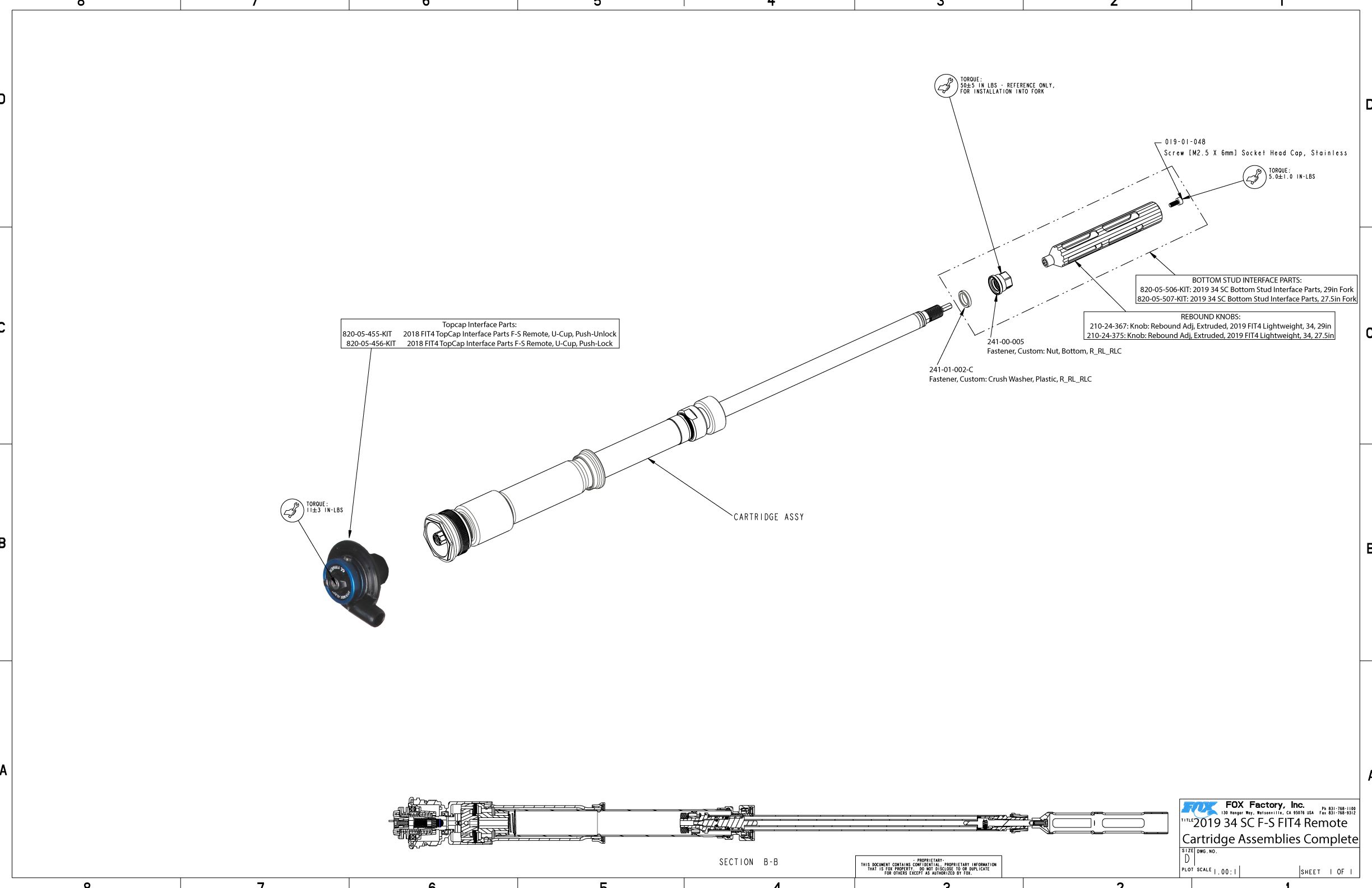

2019 34mm SC F-S FIT4 Remote Cartridge Assemblies
- 2019 34 SC F-S FIT4 Remote Cartridge Assemblies Complete .
- 2019 34 SC F-S FIT4 Remote Cartridge Assemblies .

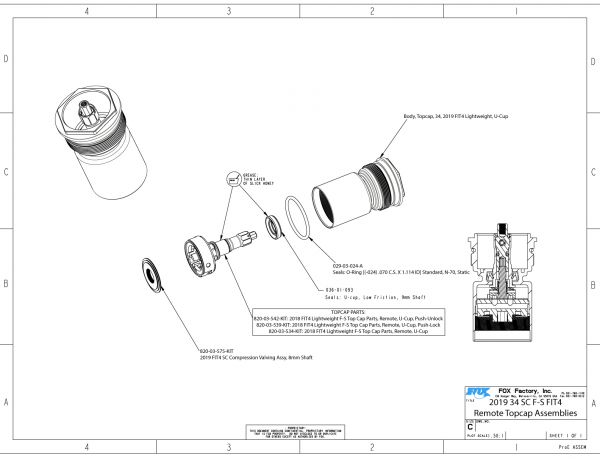

- 2019 34 SC F-S FIT4 Remote Topcap Assemblies .
- 2019 34 SC F-S FIT4 Remote Topcap Parts Assemblies .
- 820-03-562-KIT 2019 32/34 SC FIT4 Rebound Adjuster Assy 8mm Shaft
- 820-03-563-KIT 2019 SC FIT4 Rebound Piston Assy 8mm Shaft
- 820-03-564-KIT 2019 34 SC 27.5in and 29in 120 Max FIT4 Damper Shaft Assy, 8mm Shaft
- 820-03-565-KIT 2019 34 SC 27.5in and 29in 120 Max FIT4, Bladder Assy
- 820-03-569-KIT Sealhead Assy 2019 FIT [8mm, M17.56] Trelleborg O-Ring
- 820-03-575-KIT 2019 FIT4 SC Compression Valving Assy 8mm Shaft
2019 34mm SC P-S FIT4 Remote Cartridge Assemblies
- 2019 34 SC P-S FIT4 Remote Cartridge Assemblies Complete .
- 2019 34 SC P-S FIT4 Remote Cartridge Assembly .
- 820-03-543-KIT 2018 FIT4 Lightweight P-S Top Cap Parts, Remote, U-Cup, Push to Unlock
- 820-03-562-KIT 2019 32/34 SC FIT4 Rebound Adjuster Assy, 8mm Shaft
- 820-03-563-KIT 2019 SC FIT4 Rebound Piston Assy 8mm Shaft
- 820-03-564-KIT 2019 34 SC 27.5in and 29in 120 Max FIT4 Damper Shaft Assy, 8mm Shaft
- 820-03-565-KIT 2019 34 SC 27.5in and 29in 120 Max FIT4, Bladder Assy
- 820-03-569-KIT Sealhead Assy 2019 FIT [8mm, M17.56] Trelleborg O-Ring
- 820-03-575-KIT 2019 FIT4 SC Compression Valving Assy 8mm Shaft

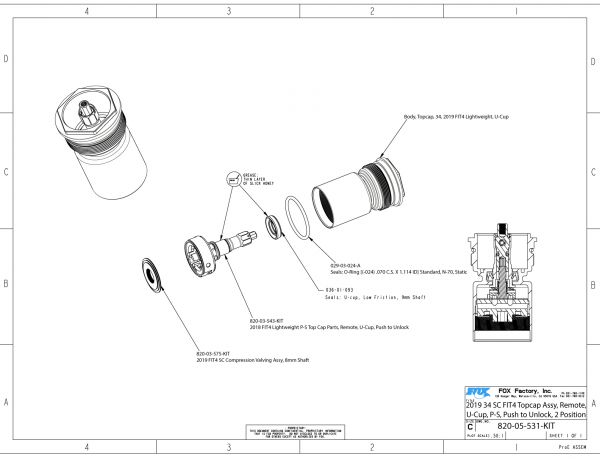

- 820-05-531-KIT 2019 34 SC FIT4 Topcap Assy, Remote U-Cup P-S Push to Unlock, 2 Position
2019 34mm SC Grip Cartridge Assemblies
- 2019 34 SC Grip Cartridge Assemblies Complete .
- 2019 34 SC Grip Cartridge Assembly .
- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-456-KIT 2017 Grip Rebound Valving, Short Travel

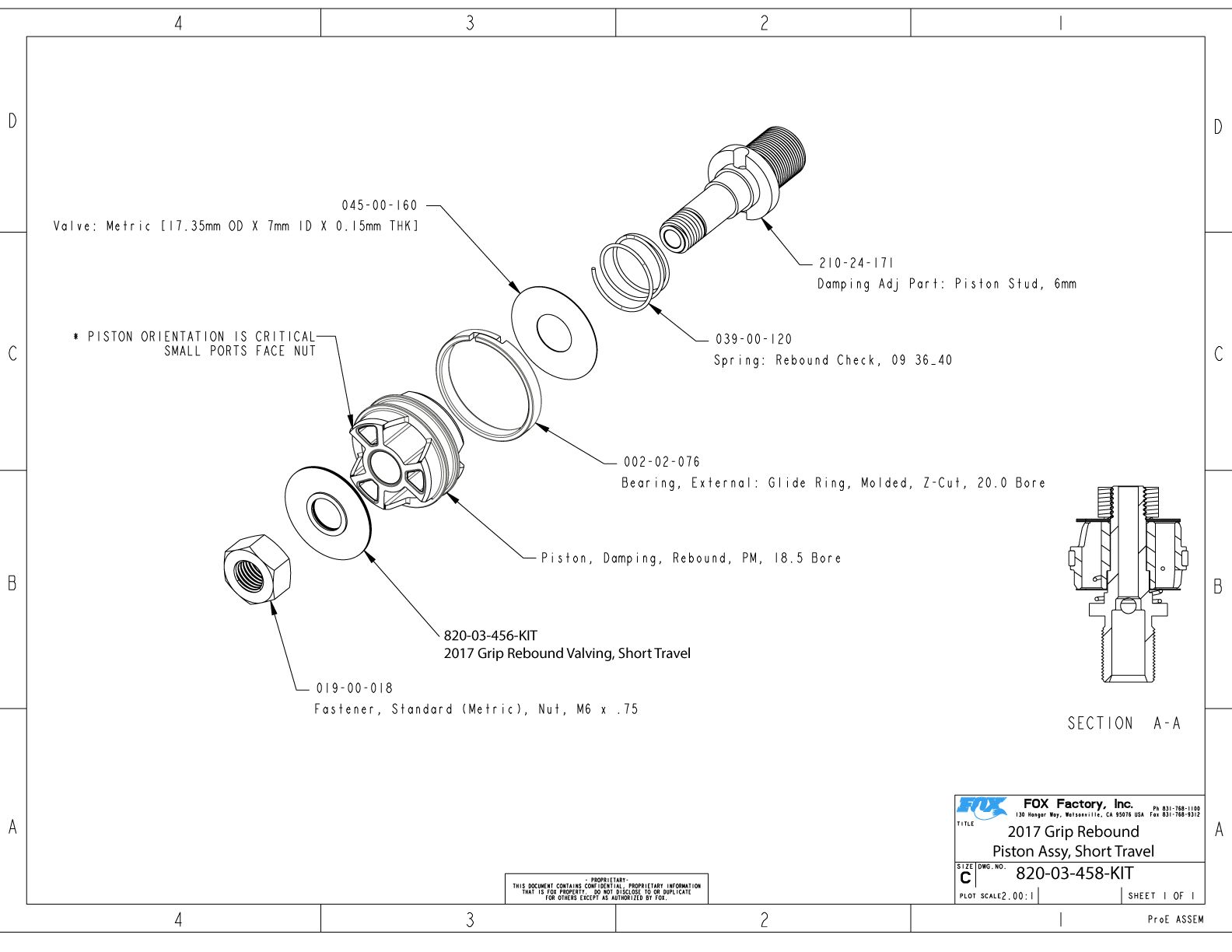

- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel

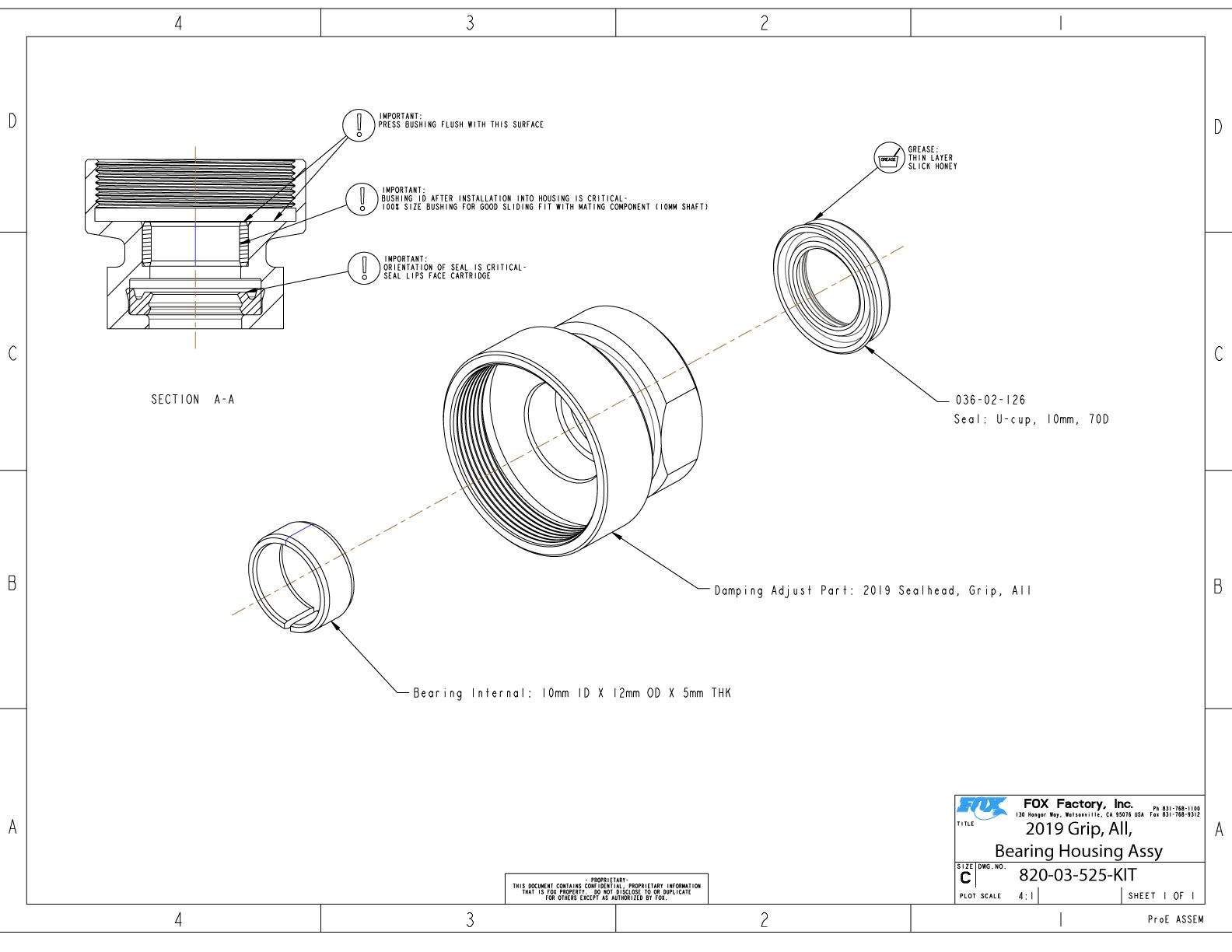

- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy

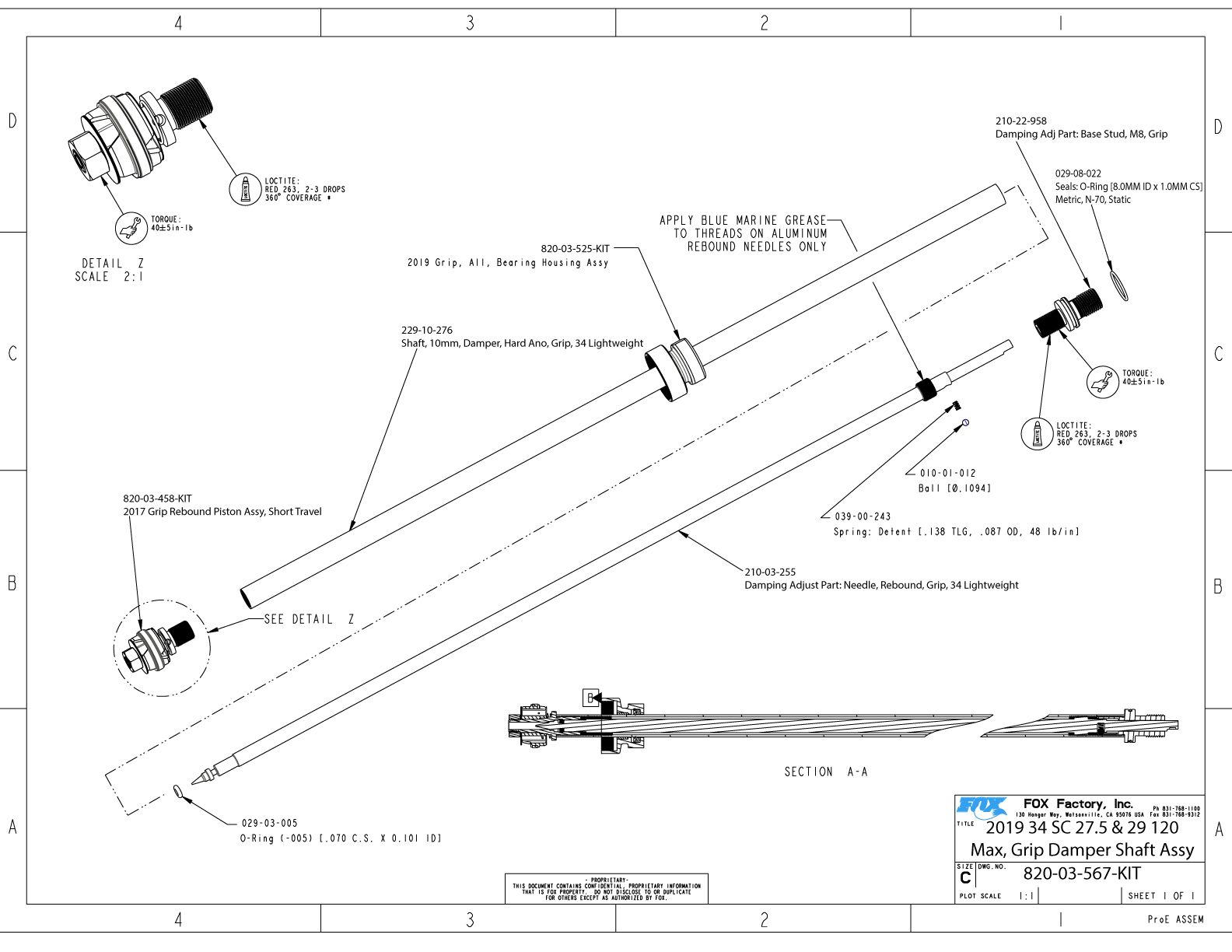

- 820-03-567-KIT 2019 34 SC 27.5 & 29 120 Max, Grip Damper Shaft Assy
- 820-05-519-KIT 2019 34 Grip Damper Topcap Assy
2019 34mm SC Grip Remote Cartridge Assemblies
- 2019 34 SC Grip Remote Cartridge Assemblies Compelte .
- 2019 34 SC Grip Remote Cartridge Assembly .
- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-456-KIT 2017 Grip Rebound Valving, Short Travel
- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-567-KIT 2019 34 SC 27.5 & 29 120 Max, Grip Damper Shaft Assy
- 820-05-523-KIT 2019 34 All Grip Remote Topcap Assy
2019 34mm SC FLOAT Air Spring Assemblies

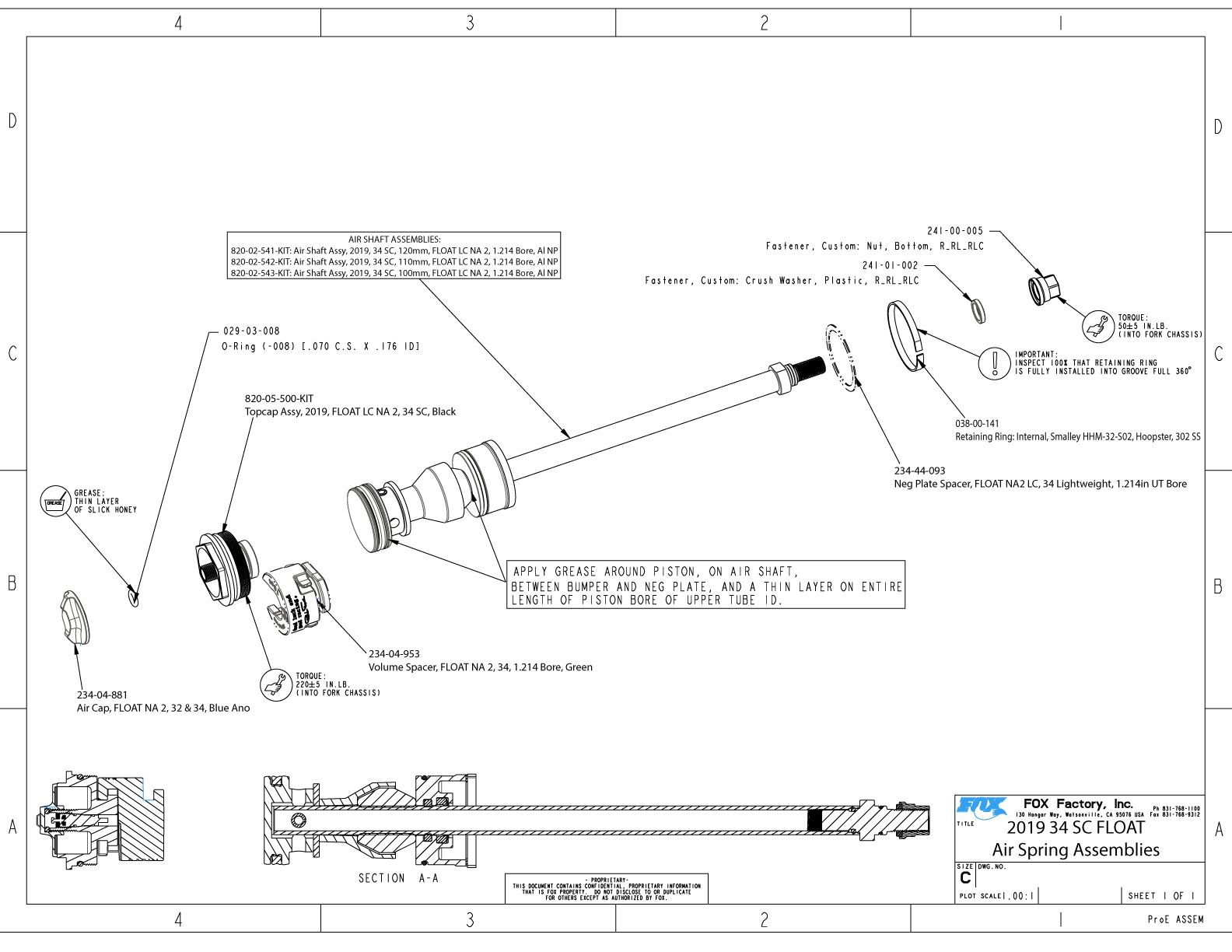

- 2019 34 SC FLOAT Air Spring Assemblies .
- 2019 34 SC FLOAT Air Shaft Assemblies .
- 820-02-540-KIT Neg Plate Subassembly, 2019 FLOAT LC NA 2, 34 SC, 1.214 Bore, Aluminum
- 820-05-500-KIT Topcap Assy, 2019 FLOAT LC NA2 34 SC Black
