PARTS & DRAWINGS
34mm Part Information
Continuing Technologies:
| FIT4 damper tune | Old FIT4 tune still supported |
| Talas 5 | Talas 5 sytems still supported |
| Remote Conversions available for 2016+ Fit4 |
Non-remote FIT4 cartridges can be upgraded to remote via the installation of a complete FIT4 Remote U-Cup Topcap Assembly. This ensures the optimized topcap configuration with friction reducing features for the most reliable remote installation possible. FOX recommends PTU remote systems over PTL systems as they are optimized for reliability and reduced lever force. The FIT4 topcap "butterfly" valve must be matched to the appropriate lever/topcap interface parts. Installation of FIT4 Remote Topcap Interface Parts on a FIT4 3 Pos or 3 Pos Adj cartridge does not convert the cartridge to the optimized remote configuration even when used with a 3 position remote lever as the standard FIT4 3 Pos or 3 Pos Adj topcap does not contain the U-Cup that optimized remote topcap friction. |
Maintenance Info:
| Service Interval | Full Service 125 hours |
| 803-00-960 | Seal Kit: 32 & 34 FIT4 Cartridge Rebuild |
| 803-00-963 | Seal Kit: 34 FLOAT NA2 Rebuild |
| 398-00-681 | 2002-017 32 Damper-side and ALL 32-34-36-40 Spring-side Removal Tool |
| 398-00-682 | 2005-017 34-36-40 Damper-side Removal Tool |
| 803-00-945 | Kit: Dust Wiper, Forx, 34mm, Low Friction, No Flange |
| 803-00-084 | Kit: Shaft Clamps, FORX, Set #1 (32mm Forx) |
| 803-00-147 | Kit: Shaft Clamps, 07 FORX, Set #2 (32 X Body, 36, 40 Forx) |
| 803-00-276 | Hand Bleeder |
| 803-01-150 | Kit: Tooling: Clamps, Grip Damper, Body and Shaft |
| 803-01-141 | Seal Kit: 32, 34, 36 GRIP Cartridge Rebuild |
| 803-01-209 | Kit: Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set |
| 398-00-760 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
Oil Info:
| Application | Description | Part |
| All FIT4 and GRIP Dampers | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart | 025-03-023 |
| All non-GRIP damper bath oil and FLOAT NA2 Air Chamber and bath | Oil: AM, FOX Bath Oil [250 ml.], 20 WT Gold | 025-03-015 |
| Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold | 025-03-010 |
| Bath Oil Application | Bath Oil Volume |
| All 34mm FLOAT 100-120 Air-Side Bath | 25cc (FOX 20wt. Gold Oil) |
| All 34mm FLOAT 130-160 Air-Side Bath | 10cc (FOX 20wt. Gold Oil) |
| All 34mm RHYTHM 100-150 Air-Side Bath | 10cc (FOX 20wt. Gold Oil) |
| All FLOAT NA2 and RHYTHM Air Chamber | 3cc (FOX 20wt. Gold Oil) |
| All 34mm FIT4 Damper-Side Bath | 15cc (FOX 20wt. Gold Oil) |
| All 34mm GRIP Damper-Side Bath | 40cc (5wt. FOX Teflon Infused Oil) |
Remote Info:
| Part | Description |
| 820-05-445-KIT | Service Set: 2018 Grip Remote, Topcap Interface Parts |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-473-KIT | Service Set: 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Unlock |
| 820-05-474-KIT | Service Set: 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Lock |
| 820-07-150-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Dual Pull |
| 820-07-151-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Single Pull |
34mm Part Information
CSU Assemblies
| Part Number | Description |
| 820-11-708-KIT | Service Set: 2016 34 27.5in 160 Kashima Matte Black 1.5 Short Taper CSU |
| 820-11-712-KIT | Service Set: 2016 34 29in 140 Kashima Matte Black 1.5 Short Taper CSU |
| 820-11-719-KIT | Service Set: 2016 34 27.5 PLUS 150 Kashima Matte Black 1.5 Short Taper CSU |
| 820-11-727-KIT | Service Set: 2016 34 29in 140 15x110QR Kashima Matte Black 20mm OS 1.5 Short Taper CSU |
| 820-11-777-KIT | Service Set: 2017 34 27.5in 160 and 29in 140 15x110QR Kashima Matte Black 44 Rake 1.5T CSU |
| 820-11-959-KIT | Service Set: 2017 34 27.5in 160 Black Ano Matte Black 1.5 Short Taper CSU |
| 820-11-960-KIT | Service Set: 2017 34 29in 140 Black Ano Matte Black 1.5 Short Taper CSU |
| 820-11-963-KIT | Service Set: 2017 34 27.5 PLUS 150 Black Ano Matte Black 1.5 Short Taper CSU |
| 820-11-966-KIT | Service Set: 2017 34 29in 140 15x110QR Black Ano Matte Black 51 Rake 1.5T CSU |
| 820-12-000-KIT | Service Set: 2017 34 27.5in 160 and 29in 140 15x110QR Black Ano Matte Black 44 Rake 1.5T CSU |
| 820-12-066-KIT | Service Set: 2018 34 44OS Rhythm Matte Black CSU |
| 820-12-070-KIT | Service Set: 2018 34 29in 150 15x110QR Kashima Matte Black 51 Rake (20mm OS) 1.5 Taper CSU |
| 820-12-073-KIT | Service Set: 2018 34 29in 150 15x110QR Black Ano Matte Black 51 Rake (20mm OS) 1.5 Taper CSU (Uses E-Bike+ UT) |
| 820-12-095-KIT | Service Set: 2018 34 27.5in 160 and 29in 140 15x110QR Kashima Matte Black 37 Rake 1.5T CSU |
| 820-12-098-KIT | Service Set: 2018 34 27.5in 160 and 29in 140 15x110QR Black Ano Matte Black 37 Rake 1.5T CSU |
| 820-12-152-KIT | Service Set: 2019 34 29in 150 15x110QR Kashima Matte Black 1.5T 20mm OS CSU |
| 820-12-155-KIT | Service Set: 2019 34 29in 150 15x110QR Black Ano Matte Black 1.5T 20mm OS CSU (Uses E-Bike+ UT) |
| 820-12-186-KIT | Service Set: 2019 34 27.5 150 and 29in 140 15x110QR Rhythm Matte Black 1.5T 13mm OS CSU |
| 820-12-189-KIT | Service Set: 2019 34 29in 140 15x110QR Rhythm Matte Black 1.5T 20mm OS CSU (Used in 29in 150mm for Spec SJ) |
| 820-12-130-KIT | Service Set: 2019 34 27.5in 160 and 29in 140 15x100QR Kashima Shiny Black 1.5T 13mm OS CSU |
| 820-12-136-KIT | Service Set: 2019 34 27.5in 160 and 29in 140 15x100QR Black Ano Shiny Black 1.5T 13mm OS CSU |
| 820-12-133-KIT | Service Set: 2019 34 29in 140 15x100QR Kashima Shiny Black 1.5T 20mm OS CSU |
| 820-12-145-KIT | Service Set: 2019 34 29in 140 15x110QR Kashima Shiny Black 1.5T 20mm OS CSU |
| 820-12-146-KIT | Service Set: 2019 34 27.5in 160 MAX and 29in 150 MAX 15x110QR Black Ano Matte Black 1.5T 13mm OS CSU |
| 820-12-151-KIT | Service Set: 2019 34 29in 140 15x110QR Black Ano Shiny Black 1.5T 20mm OS CSU |
| 820-12-142-KIT | Service Set: 2019 34 27.5in 160 and 29in 140 15x110QR Kashima Shiny Black 1.5T 13mm OS CSU |
| 820-12-148-KIT | Service Set: 2019 34 27.5in 160 and 29in 140 15x110QR Black Ano Shiny Black 1.5T 13mm OS CSU |
| 820-12-154-KIT | Service Set: 2019 34 29in 150 15x110QR Kashima Shiny Black 1.5T 20mm OS CSU |
| 820-12-157-KIT | Service Set: 2019 34 29in 150 15x110QR Black Ano Shiny Black 1.5T 20mm OS CSU (Uses E-Bike+ UT) |
| 820-12-160-KIT | Service Set: 2019 34 27.5in 160 15x110QR Kashima Shiny Black 1.5T 6mm OS CSU |
| 820-12-200-KIT | Service Set: 2019 34 29in 150 15x110QR Kashima Shiny Black 1.5T 13mm OS CSU |
| 820-12-203-KIT | Service Set: 2019 34 29in 150 15x110QR Black Ano Shiny Black 1.5T 13mm OS CSU (Uses E-Bike+ UT) |
Lower Leg Assemblies
| Part Number | Description |
| 820-10-254-KIT | Service Set: 2017 34 27.5in 160 15x110 QR, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-318-KIT | Service Set: 2017 34 27.5in 160 15QR Matte Black Lower Leg Assy |
| 820-10-319-KIT | Service Set: 2017 34 29in 140 15QR Matte Black Lower Leg Assy |
| 820-10-669-KIT | Service Set: 2018 Rhythm 34 27.5in 15x110QR Met. Black Lower Leg Assy |
| 820-10-671-KIT | Service Set: 2018 Rhythm 34 27.5in 15x110QR Matte Black Lower Leg Assy |
| 820-10-673-KIT | Service Set: 2018 Rhythm 34 29in 15x110QR Met. Black Lower Leg Assy |
| 820-10-676-KIT | Service Set: 2018 Rhythm 34 29in 15x110QR Matte Black Lower Leg Assy |
| 820-10-733-KIT | Service Set: 2018 34 27.5in 160 15x110 QR, Fox Matte Black, P-S, Lower Leg Assy |
| 820-10-793-KIT | Service Set: 2018 34 29in 150 15x110, QR, Fox Matte Black, F-S P-SE, Lower Leg Assy |
Axle Assemblies
| Part | Description |
| 820-09-013-KIT | Axle Assembly, 2016 15x110 QR, Factory and Performance, Black Ano |
| 820-09-014-KIT | Axle Assembly, 2016 15 x 100 QR, Factory and Performance, Black Ano |
| 820-09-018-KIT | Axle Assembly: 15 X 100mm Kabolt, Black Ano |
| 820-09-019-KIT | Axle Assembly: 15 X 110mm Kabolt, Black Ano |
| 820-09-022-KIT | Axle Assembly: 15 X 100mm Kabolt, Orange Ano |
| 820-09-023-KIT | Axle Assembly: 15 X 110mm Kabolt, Orange Ano |
Lower Leg Small Parts
| Part | Description |
| 803-00-370 | Service Set: 15QR Hardware (Contains: Axle nut, hold down, and set screw) |
| 019-02-008 | Fastener, Custom: 09 15QR Axle Nut, 8º Chamfer |
| 026-03-009 | Mounting Hardware, Axle Nut Hold-Down, 15QR |
| 241-02-040 | Fastener, Custom: Screw [M4 X 10] FHCS, Black Zinc, Patchlock |
Decal Kits
| Part | Description |
| 803-01-269 | Decal Kit: 2018, 34, F-S, Orange Logo, Matte Black Background |
| 803-01-270 | Decal Kit: 2018, 34, P-Se, Gray Logo, Matte Black Background |
| 803-01-271 | Decal Kit: 2018, 34, P-S, Gray Logo, Matte Black Background |
| 803-01-272 | Decal Kit: 2018, 34, Rhythm, Gray Logo, Matte Black Background |
| 803-01-289 | Decal Kit: 2019, 34 SC, Factory 29/27.5 |
Complete Cartridges
| Part Number | Description |
| 820-08-758-KIT | Service Set: 2018 34 26in and 27.5in and 29in 130-160 F-S FIT4 Cart Assy Complete, E18, Black Ano |
| 820-08-759-KIT | Service Set: 2018 34 26in and 27.5in and 29in 130-160 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-764-KIT | Service Set: 2018 34 26in and 27.5in and 29in 120 Max Travel F-S FIT4 Cart Assy Complete, E18, Black Ano |
| 820-08-765-KIT | Service Set: 2018 34 26in and 27.5in and 29in 120 Max Travel F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-778-KIT | Service Set: 2018 34 26in and 27.5in and 29in 130-160 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-854-KIT | Service Set: 2018 34 26in and 27.5in and 29in 130-160 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 3 Position |
| 820-08-857-KIT | Service Set: 2018 34 26in and 27.5in and 29in 120 Max Travel F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 3 Position |
| 820-08-863-KIT | Service Set: 2018 34 26in and 27.5in and 29in 130-160 P-S FIT4 Remote Cart Assy Complete, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-866-KIT | Service Set: 2018 34 26in and 27.5in and 29in 120 Max Travel P-S FIT4 Remote Cart Assy Complete, Black Ano, Push to Unlock, U-Cup, 2 Position |

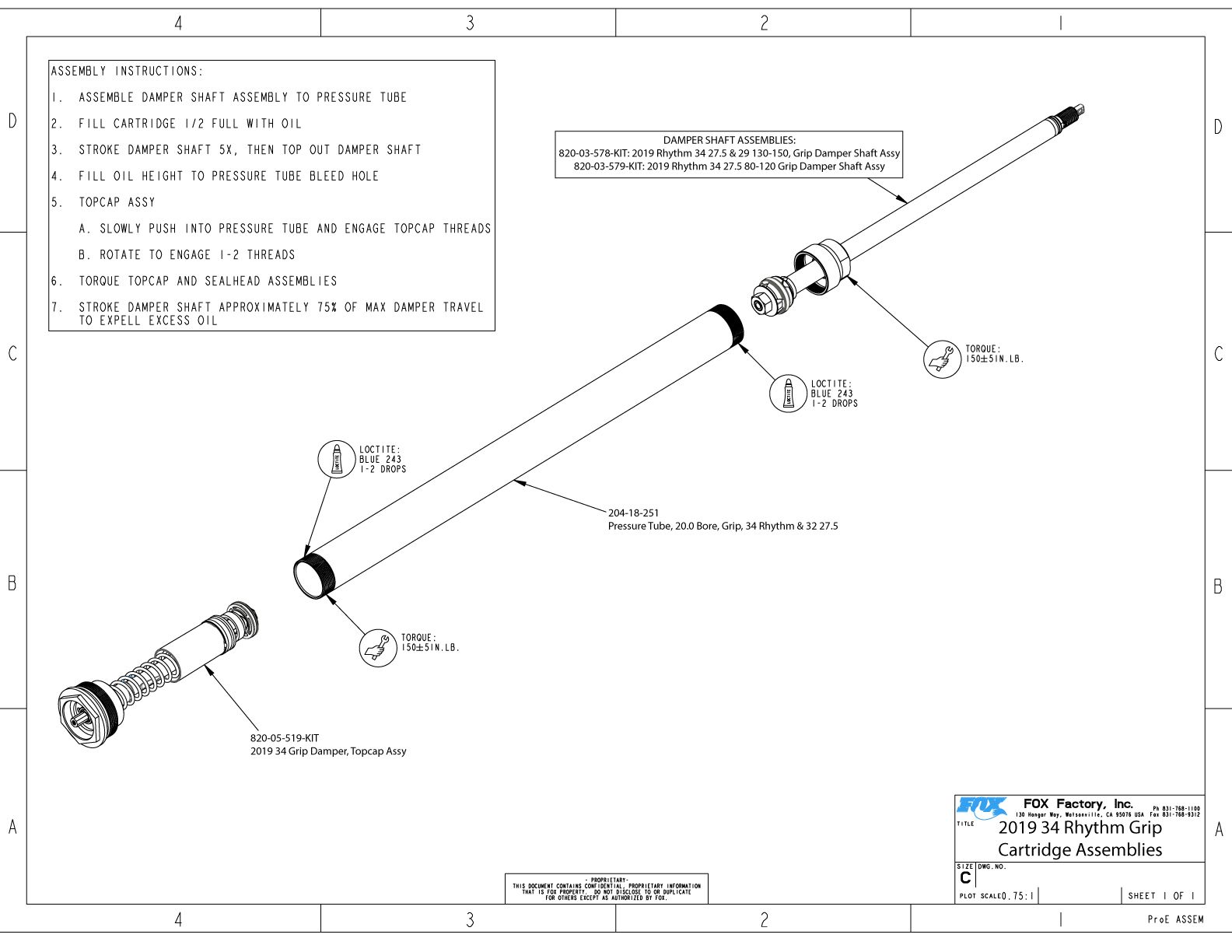

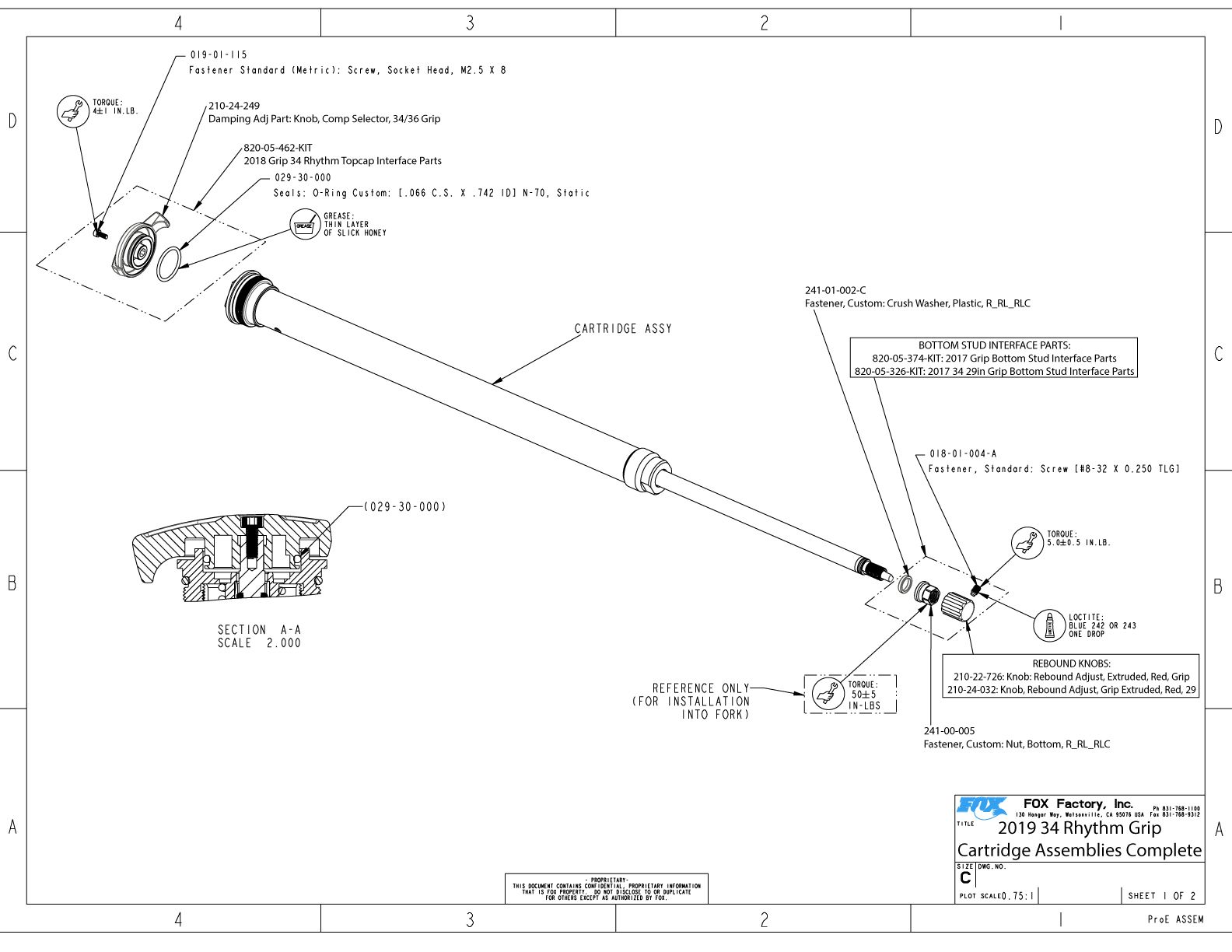

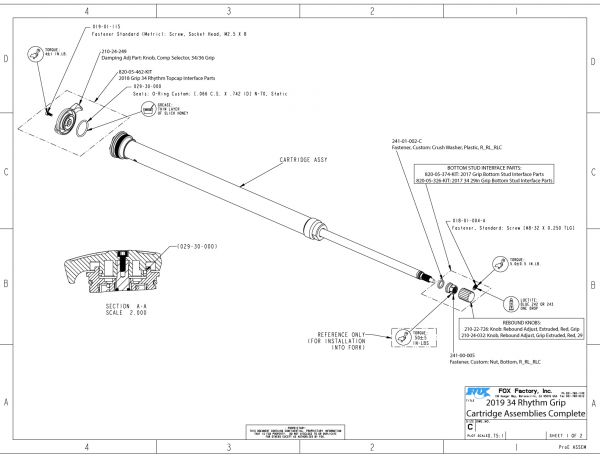

| 820-18-092-KIT | Service Set: 2019 34 Rhythm 27.5 130-150, Grip Cart Assy Complete |
| 820-18-093-KIT | Service Set: 2019 34 Rhythm 27.5 80-120, Grip Cart Assy Complete |
| 820-18-094-KIT | Service Set: 2019 34 Rhythm 29 130-150, Grip Cart Assy Complete |
| 820-18-095-KIT | Service Set: 2019 34 Rhythm 29 80-120, Grip Cart Assy Complete |

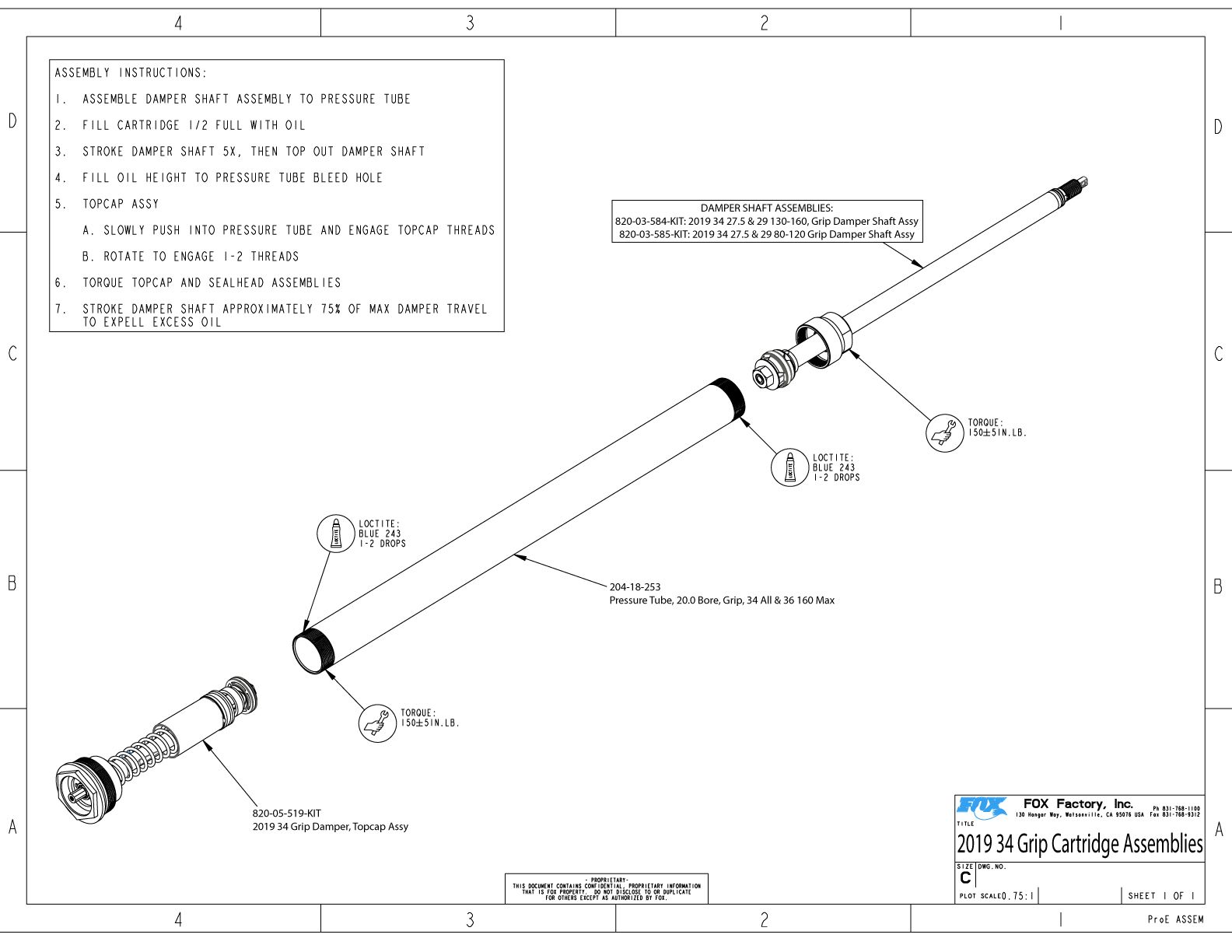

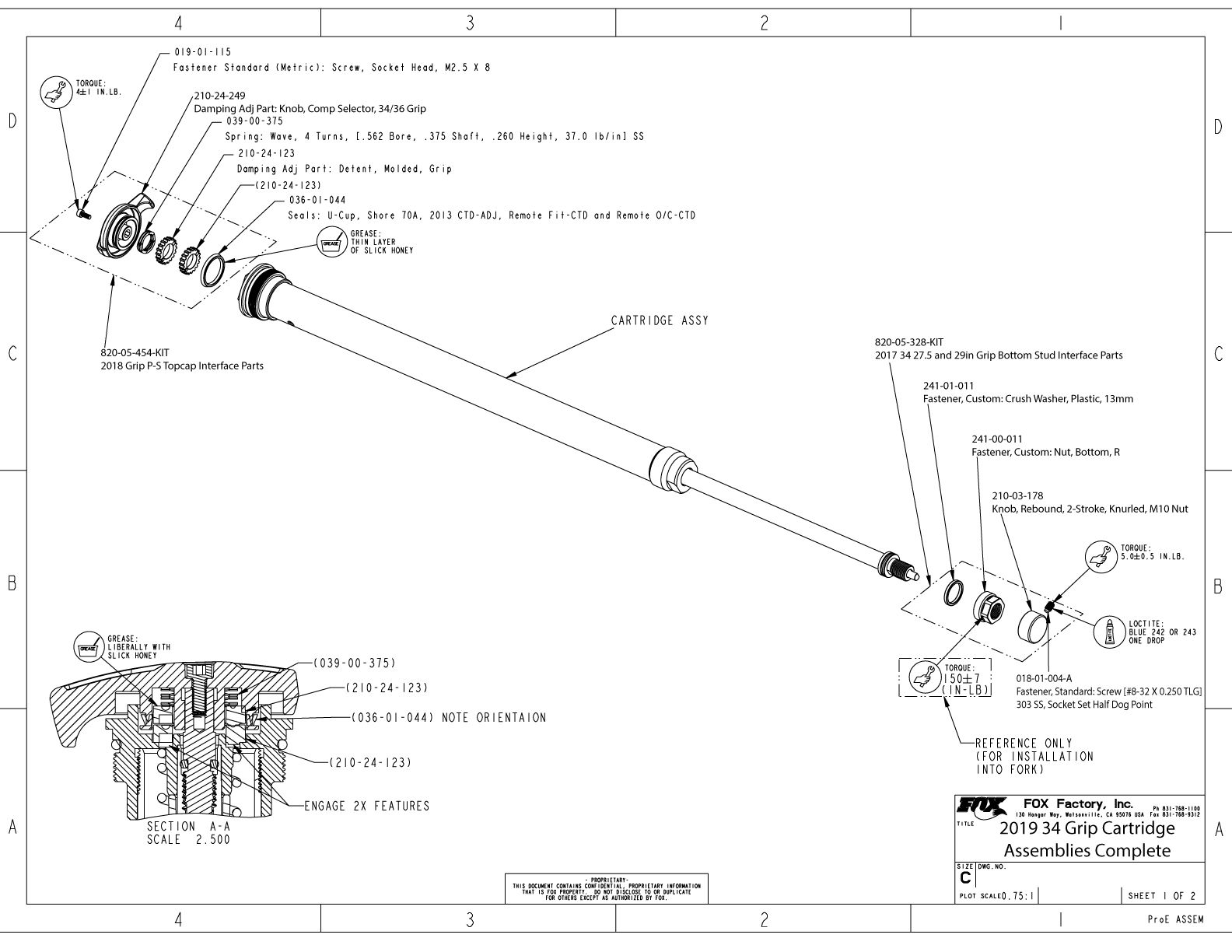

| 820-18-102-KIT | Service Set: 2019 34 27.5 & 29 130-160, Grip Cart Assy Complete |

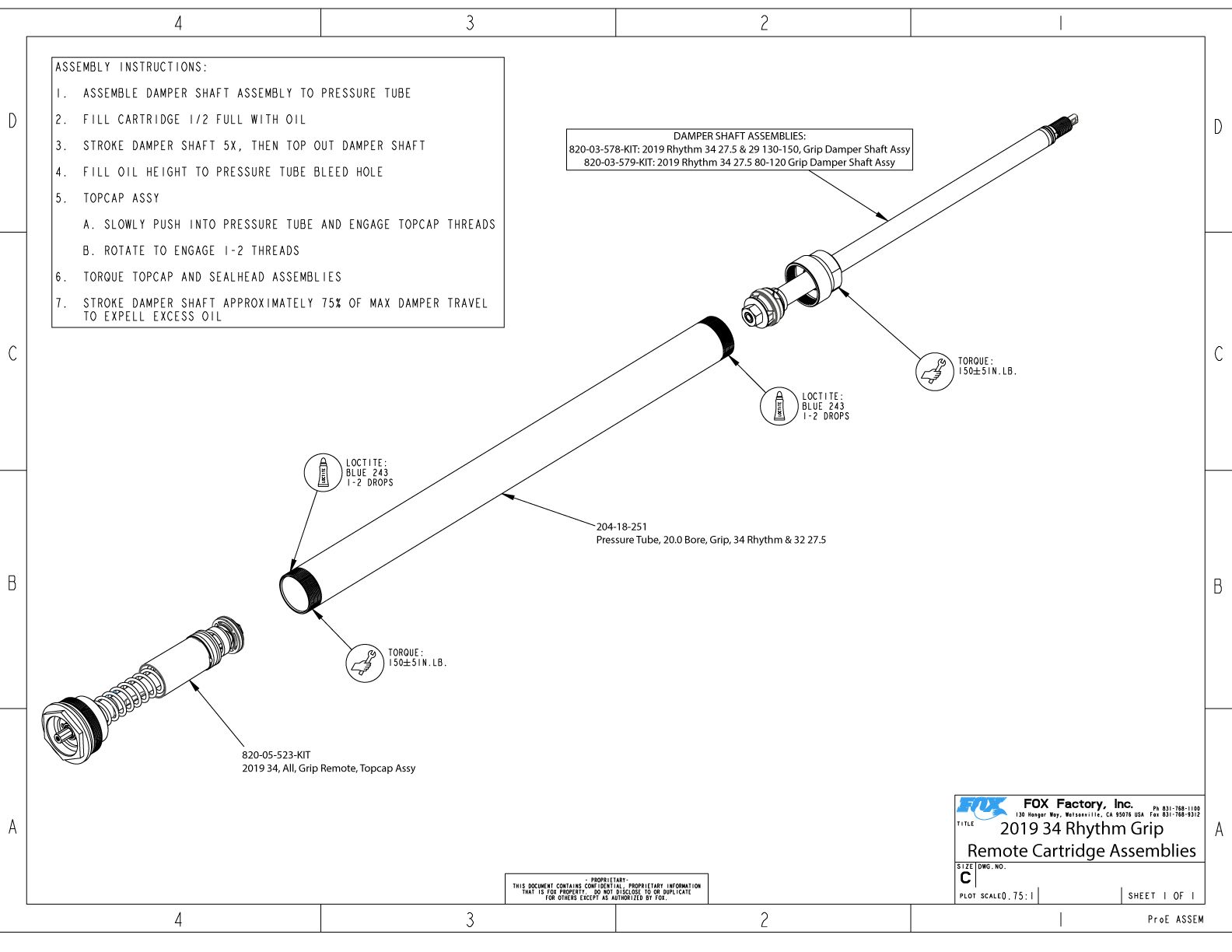

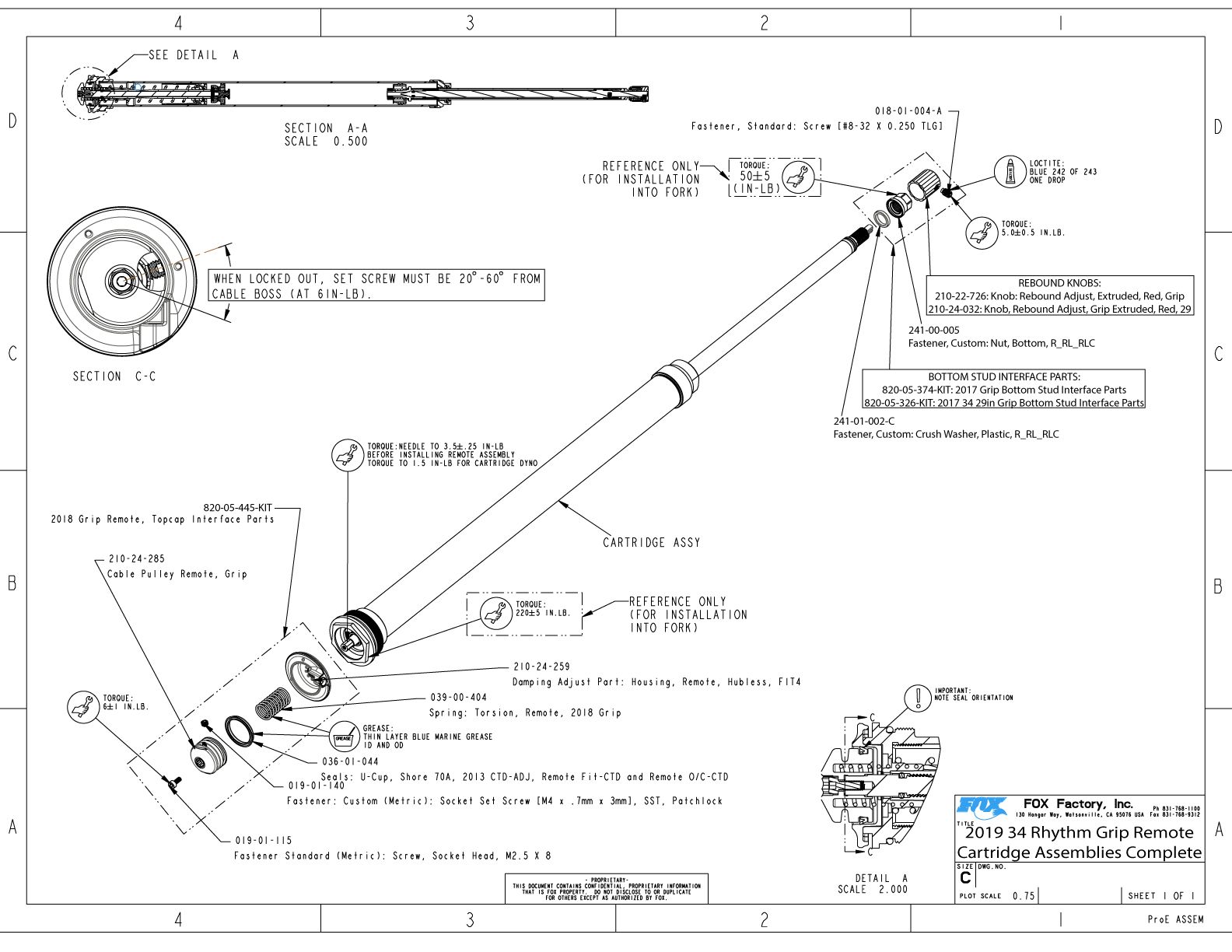

| 820-18-110-KIT | Service Set: 2019 34 Rhythm 27.5 130-150, Grip Remote Cart Assy Complete |
| 820-18-111-KIT | Service Set: 2019 34 Rhythm 27.5 80-120, Grip Remote Cart Assy Complete |
| 820-18-112-KIT | Service Set: 2019 34 Rhythm 29 130-150, Grip Remote Cart Assy Complete |
| 820-18-113-KIT | Service Set: 2019 34 Rhythm 29 80-120, Grip Remote Cart Assy Complete |

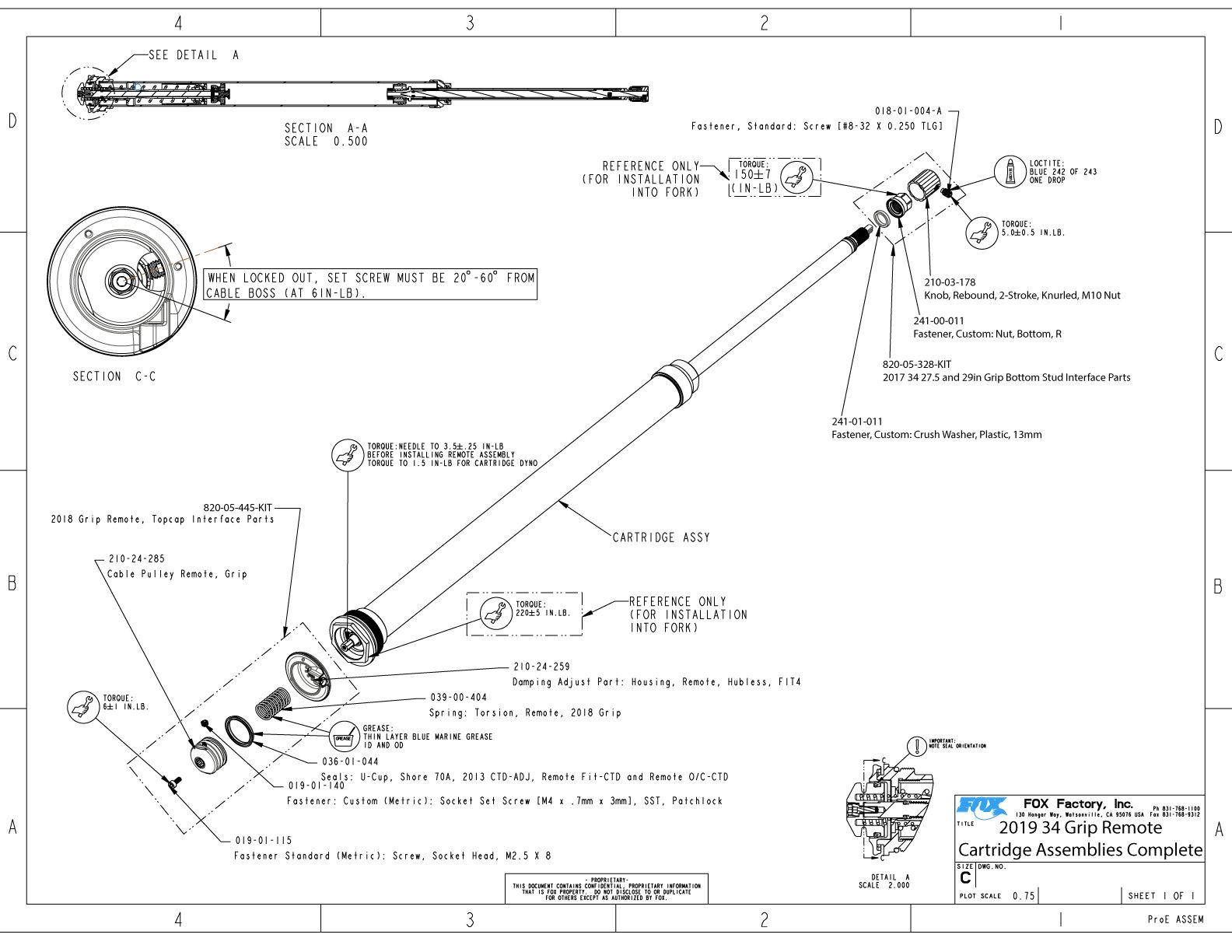

| 820-18-120-KIT | Service Set: 2019 34 27.5 & 29 130-160, Grip Remote Cart Assy Complete |
Cartridge Topcap Assemblies
| Part | Description |
| 820-05-498-KIT | Service Set: 2018 34 FIT4 F-S Topcap Assy, E18, Black Ano |
| 820-05-451-KIT | Service Set: 2018 34 FIT4 F-S Topcap Assy, Remote, U-Cup, 2 Position, Push-Lock |
| 820-05-487-KIT | Service Set: 2018 34 FIT4 F-S Topcap Assy, Remote, U-Cup, 2 Position, Push-Unlock |
| 820-05-464-KIT | Service Set: 2018 34 FIT4 F-S Topcap Assy, Remote, U-Cup, 3 Position |

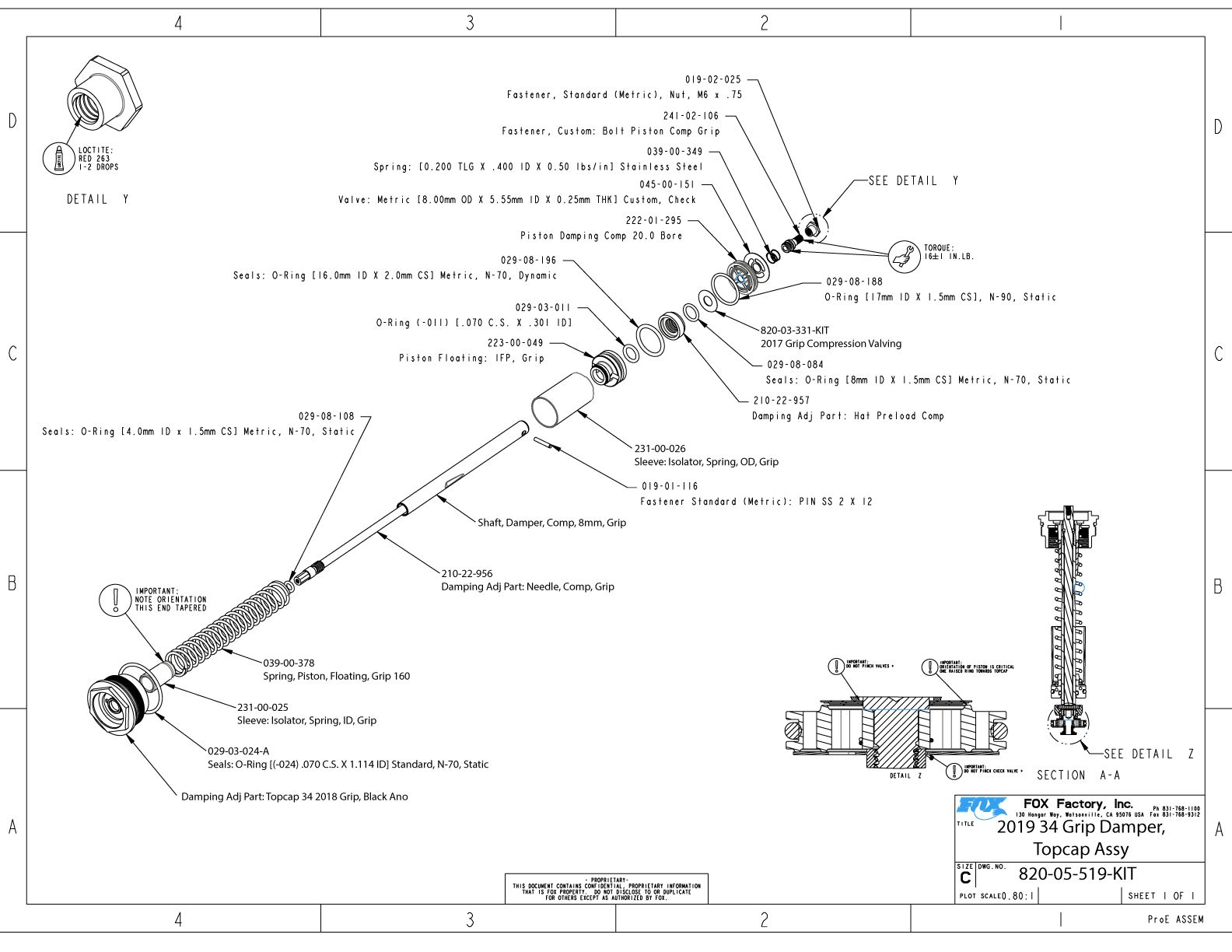

| 820-05-519-KIT | Service Set: 2019 34 Grip Damper, Topcap Assy |
| 820-05-523-KIT | Service Set: 2019 34, All, Grip Remote, Topcap Assy |
Damper Topcap Interface Parts
| Part | Description |
| 820-05-330-KIT | Service Set: 2016 FIT4 TopCap Interface Parts F-S |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-445-KIT | Service Set: 2018 Grip Remote, Topcap Interface Parts |
| 820-05-462-KIT | Service Set: 2018 Grip 34 Rhythm Topcap Interface Parts |
| 820-05-454-KIT | Service Set: 2018 Grip P-S Topcap Interface Parts |
Damper Bottom Stud Interface Parts
| Part | Description |
| 820-05-335-KIT | Service Set: 2016 FIT4 Bottom Stud Interface Parts 34 |
| 820-05-328-KIT | Service Set: 2017 34 27.5 and 29in Grip Bottom Stud Interface Parts |
| 820-05-326-KIT | Service Set: 2017 34 29in Grip Bottom Stud Interface Parts |
| 820-05-374-KIT | Service Set: 2017 Grip Bottom Stud Interface Parts |

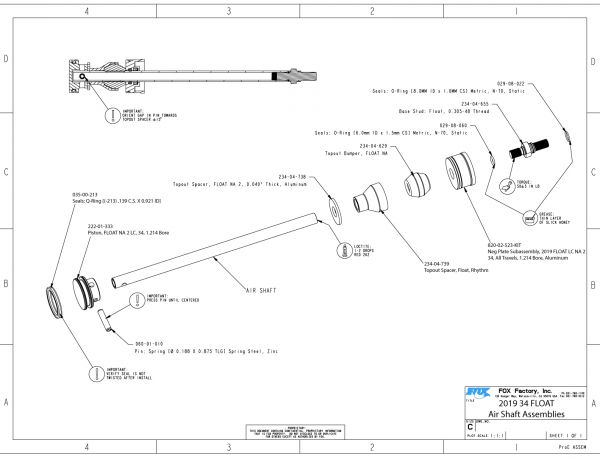

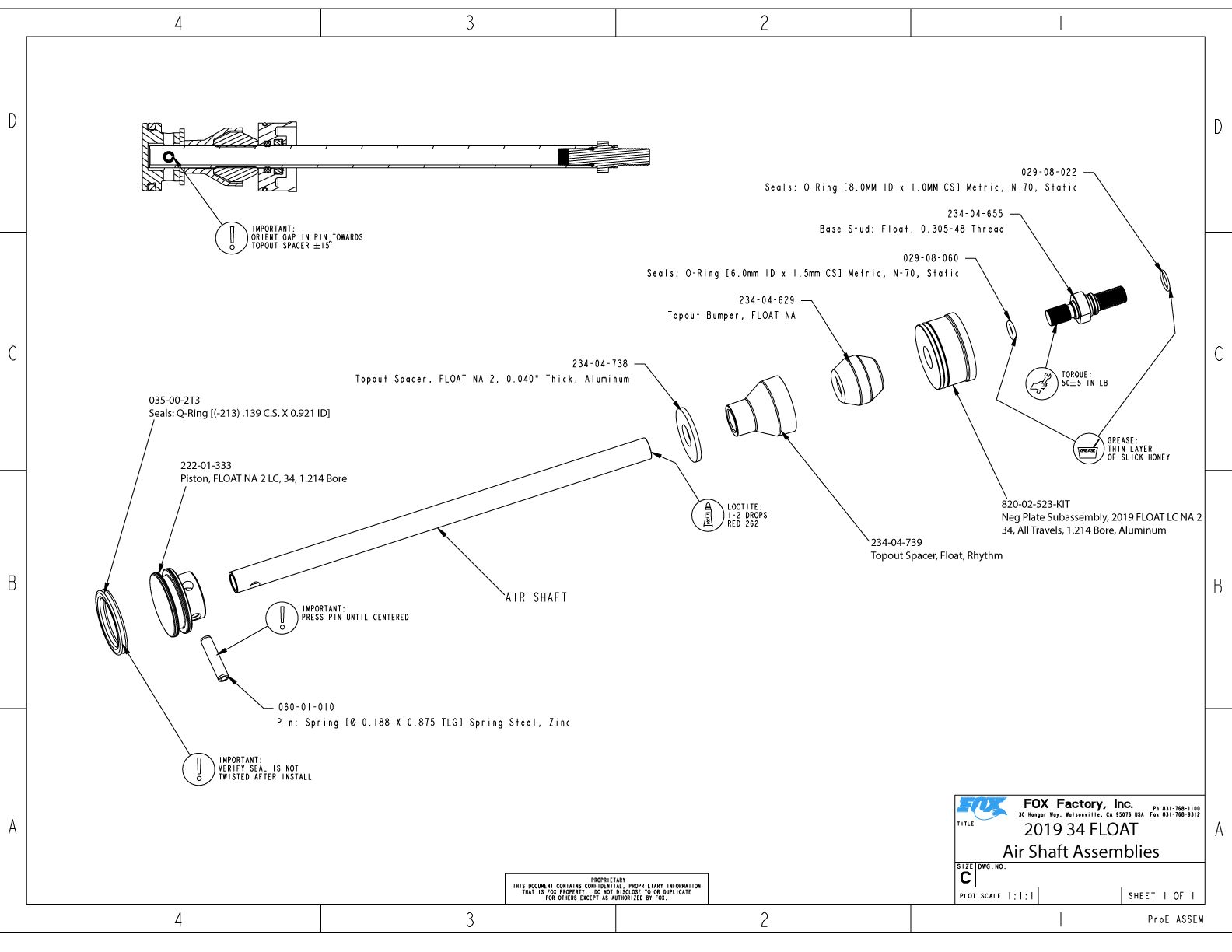

FLOAT NA2 Air Shaft Assemblies
| Part | Description |

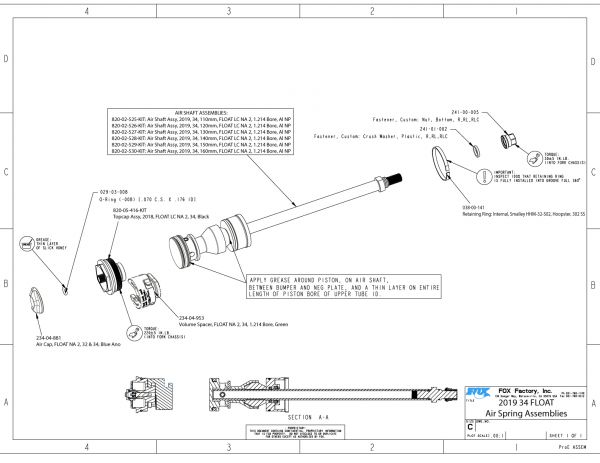

| 820-02-525-KIT | Service Set: Air Shaft Assy, 2019, 34, 110mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-526-KIT | Service Set: Air Shaft Assy, 2019, 34, 120mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-527-KIT | Service Set: Air Shaft Assy, 2019, 34, 130mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-528-KIT | Service Set: Air Shaft Assy, 2019, 34, 140mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-529-KIT | Service Set: Air Shaft Assy, 2019, 34, 150mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-530-KIT | Service Set: Air Shaft Assy, 2019, 34, 160mm, FLOAT LC NA 2, 1.214 Bore, Al NP |

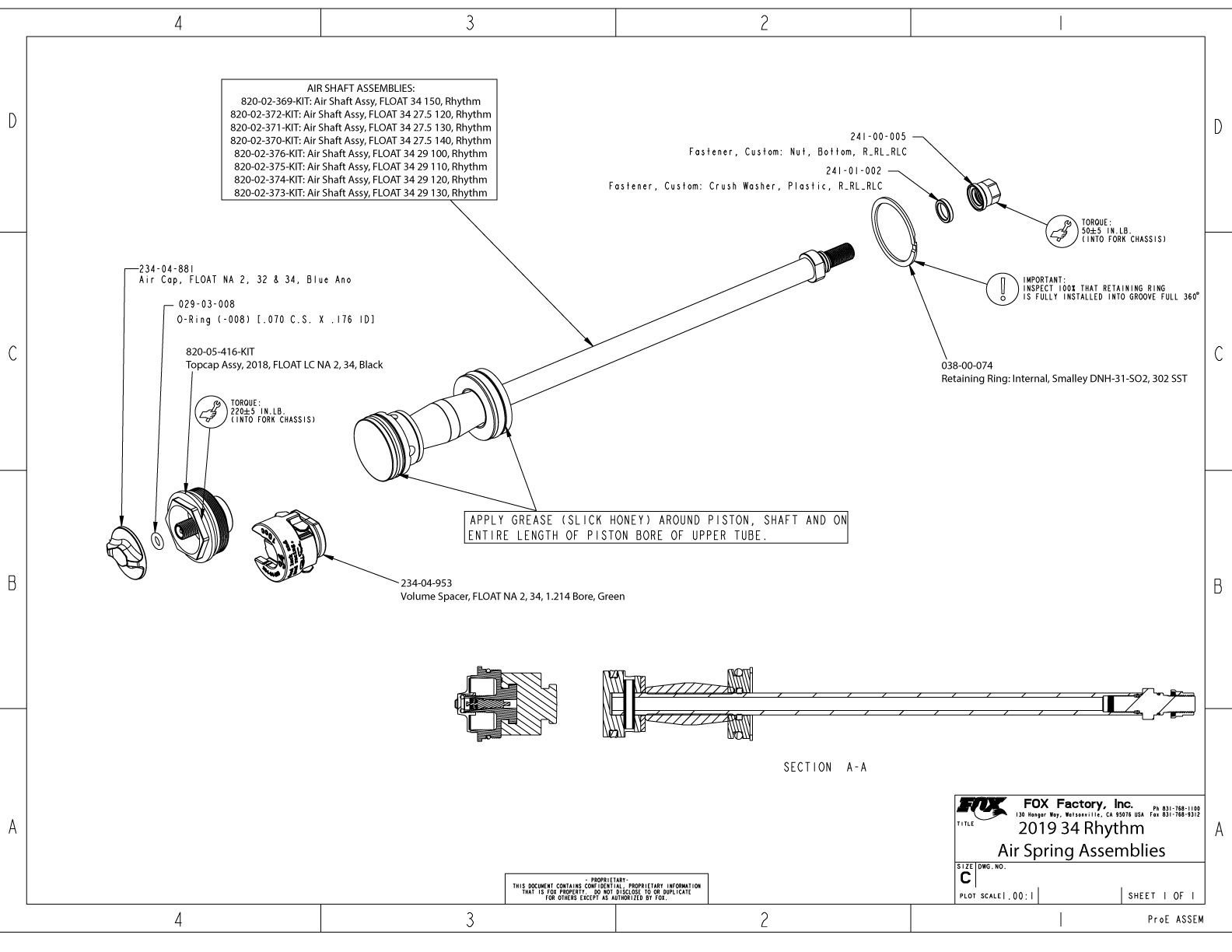

| 820-02-369-KIT | Service Set: Air Shaft Assy, FLOAT 34 27.5/29, 150, Rhythm |
| 820-02-372-KIT | Service Set: Air Shaft Assy, FLOAT 34 27.5 120, Rhythm |
| 820-02-371-KIT | Service Set: Air Shaft Assy, FLOAT 34 27.5 130, Rhythm |
| 820-02-370-KIT | Service Set: Air Shaft Assy, FLOAT 34 27.5/29, 140, Rhythm |
| 820-02-376-KIT | Service Set: Air Shaft Assy, FLOAT 34 29 100, Rhythm |
| 820-02-375-KIT | Service Set: Air Shaft Assy, FLOAT 34 29 110, Rhythm |
| 820-02-374-KIT | Service Set: Air Shaft Assy, FLOAT 34 29 120, Rhythm |
| 820-02-373-KIT | Service Set: Air Shaft Assy, FLOAT 34 29 130, Rhythm |
FLOAT NA2 Topcap Assemblies
| Part | Description |

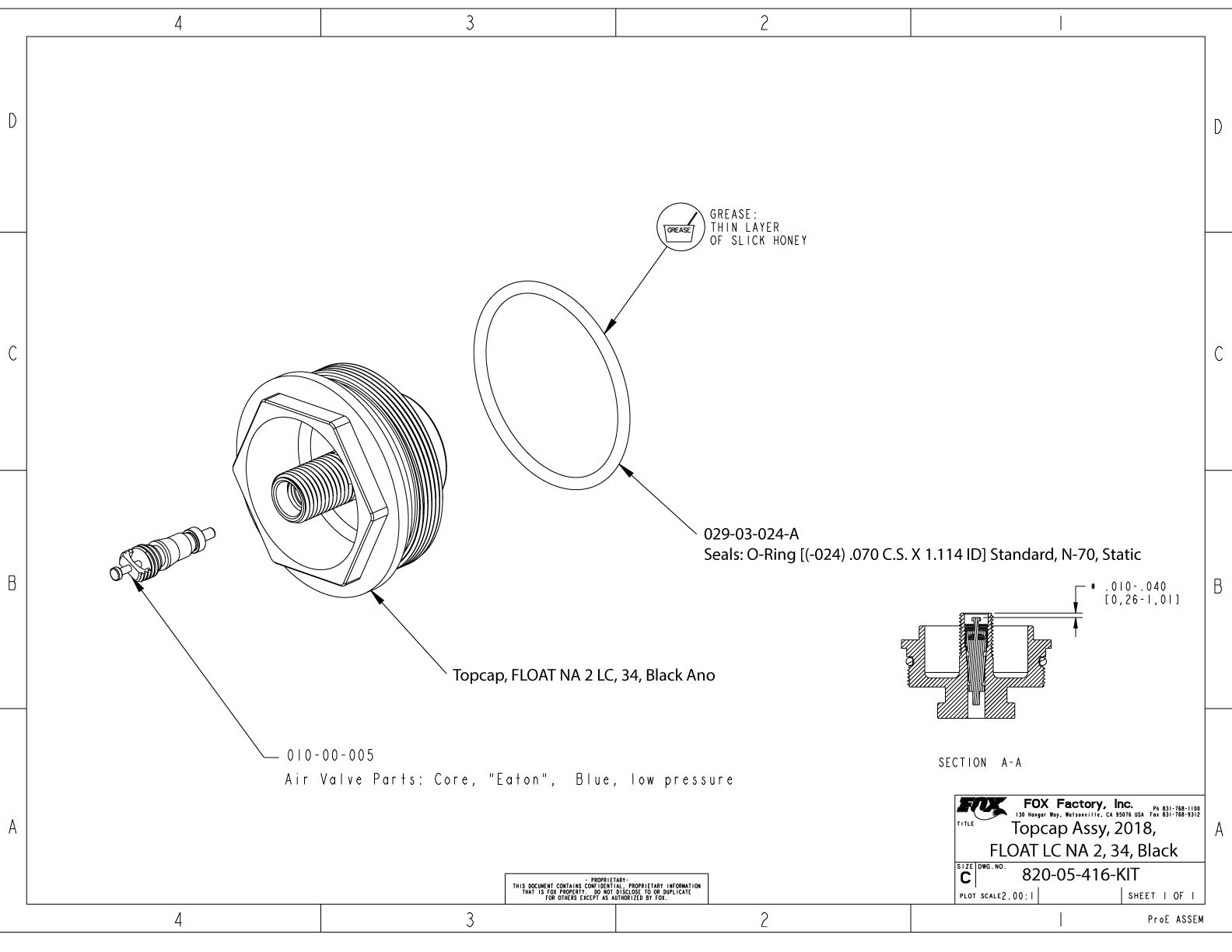

| 820-05-416-KIT | Service Set: Topcap Assy, 2018, FLOAT LC NA 2, 34, Black |
| 820-05-500-KIT | Service Set: Topcap Assy, 2019, FLOAT LC NA 2, 34 SC, Black |
FLOAT NA2 Neg Plate Subassemblies
| Part | Description |
| 820-02-368-KIT | Service Set: Neg Plate Subassembly, FLOAT 34, Rhythm |

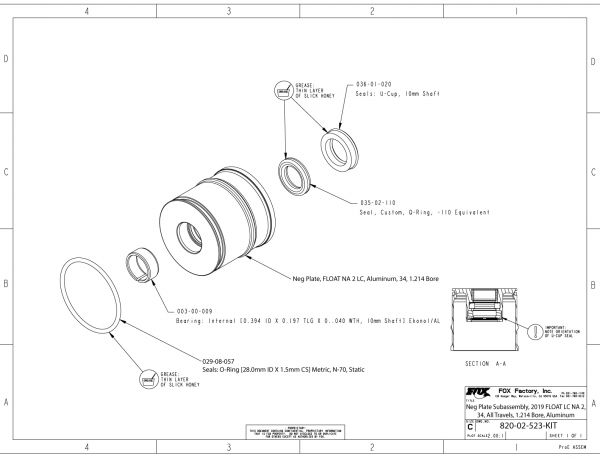

| 820-02-523-KIT | Service Set: Neg Plate Subassembly, 2019 FLOAT LC NA 2, 34, All Travels, 1.214 Bore, Aluminum |
2019 34mm F-S FIT4 Cartridge Assemblies

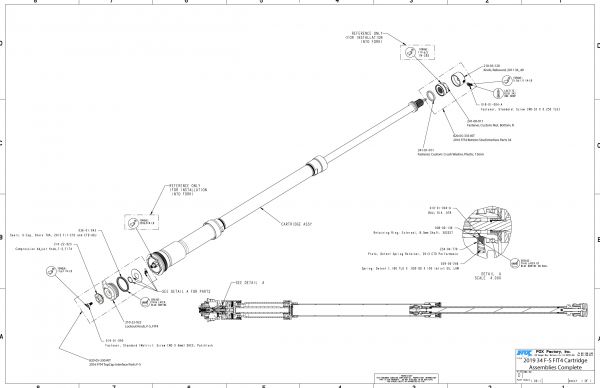

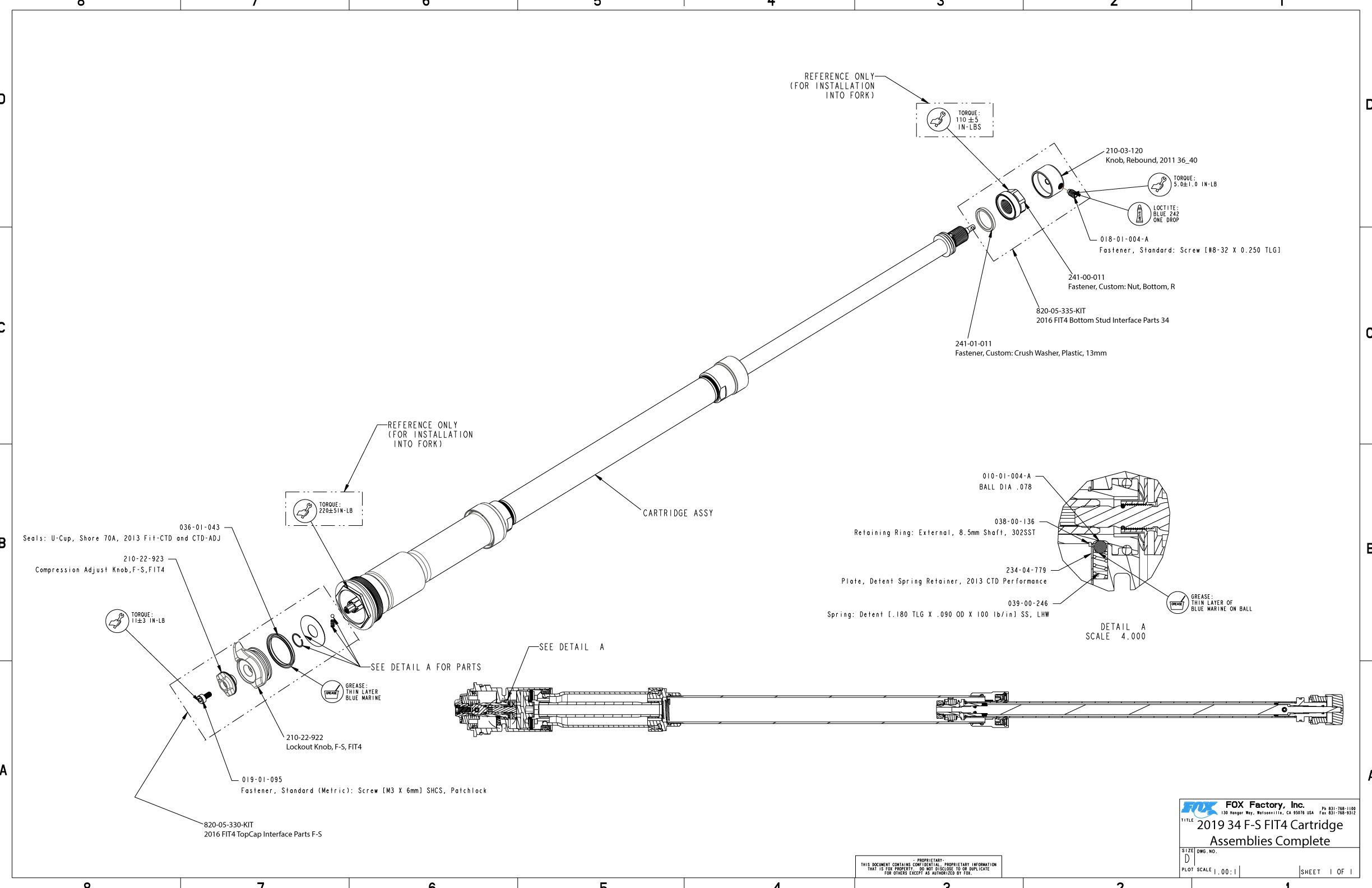

- 2019 34 F-S FIT4 Cartridge Assemblies Complete .

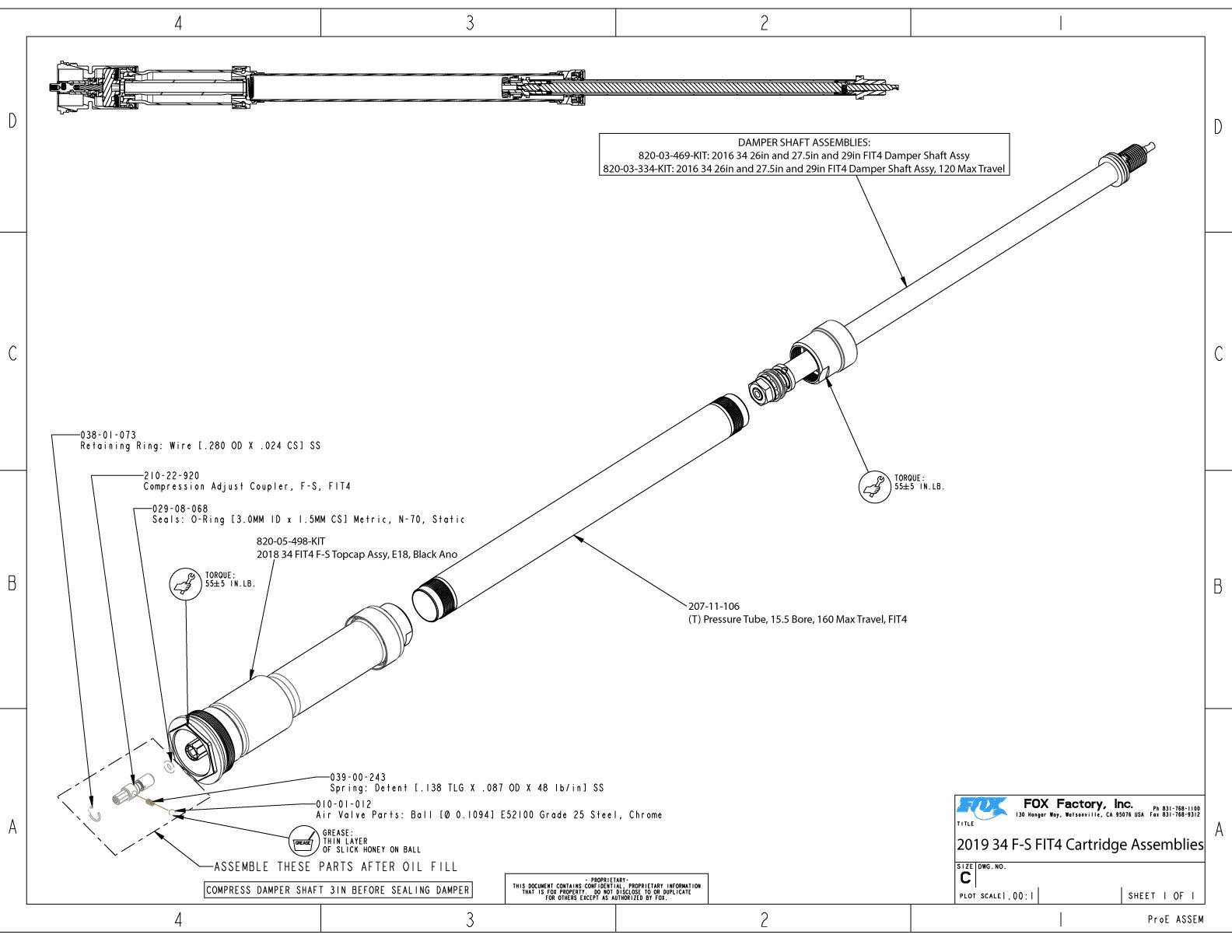

- 2019 34 F-S FIT4 Cartridge Assemblies .

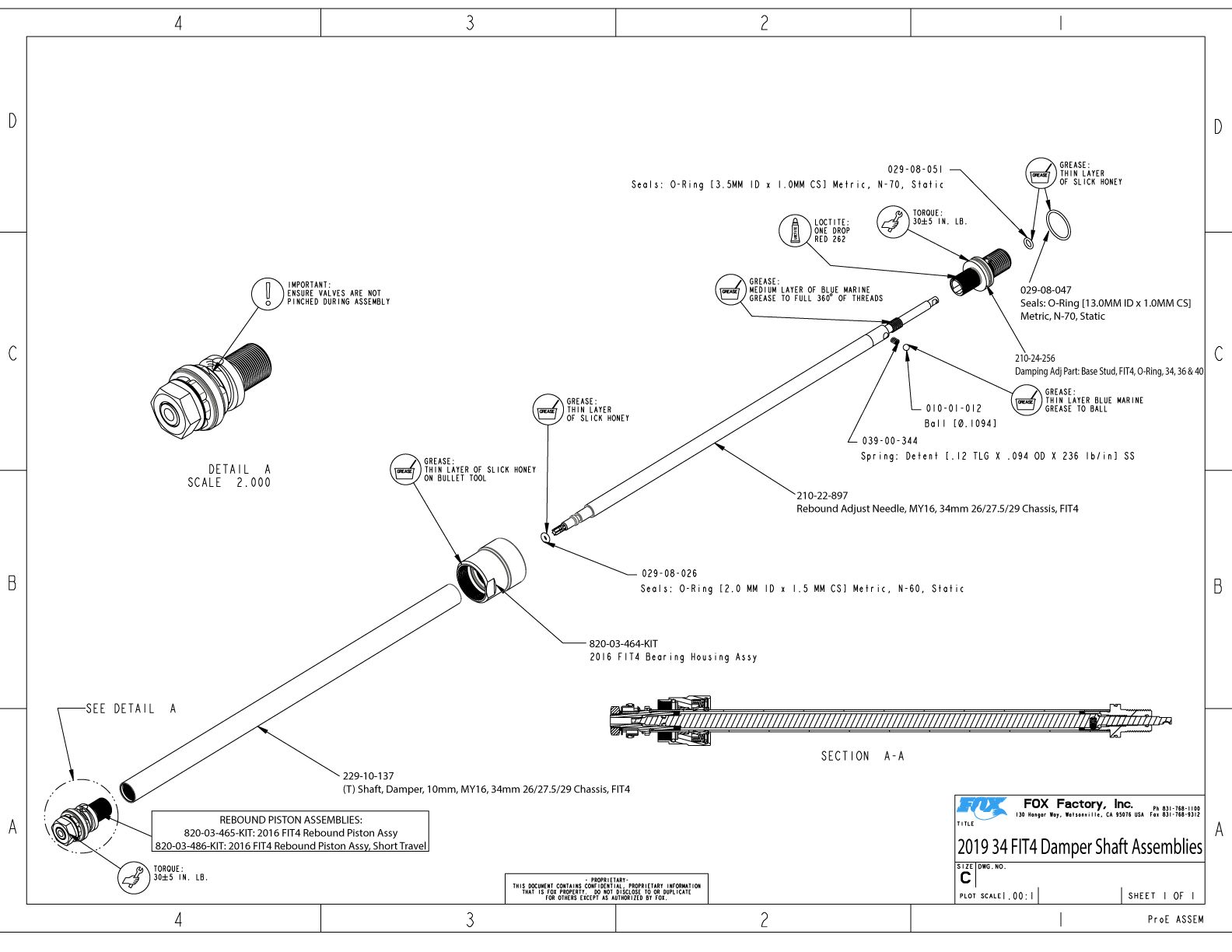

- 2019 34 FIT4 Damper Shaft Assemblies .

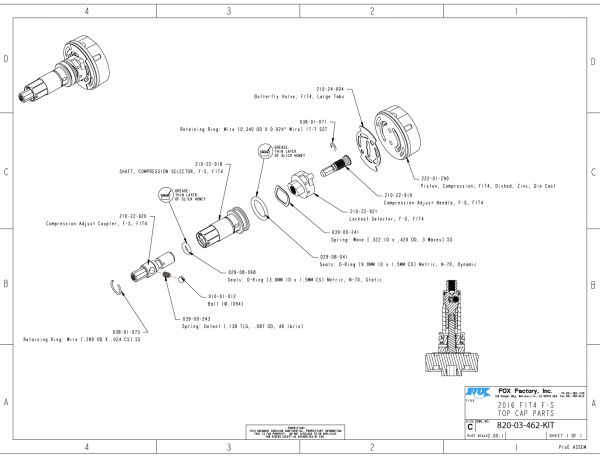

- 820-03-462-KIT 2016 FIT4 F-S Topcap Parts

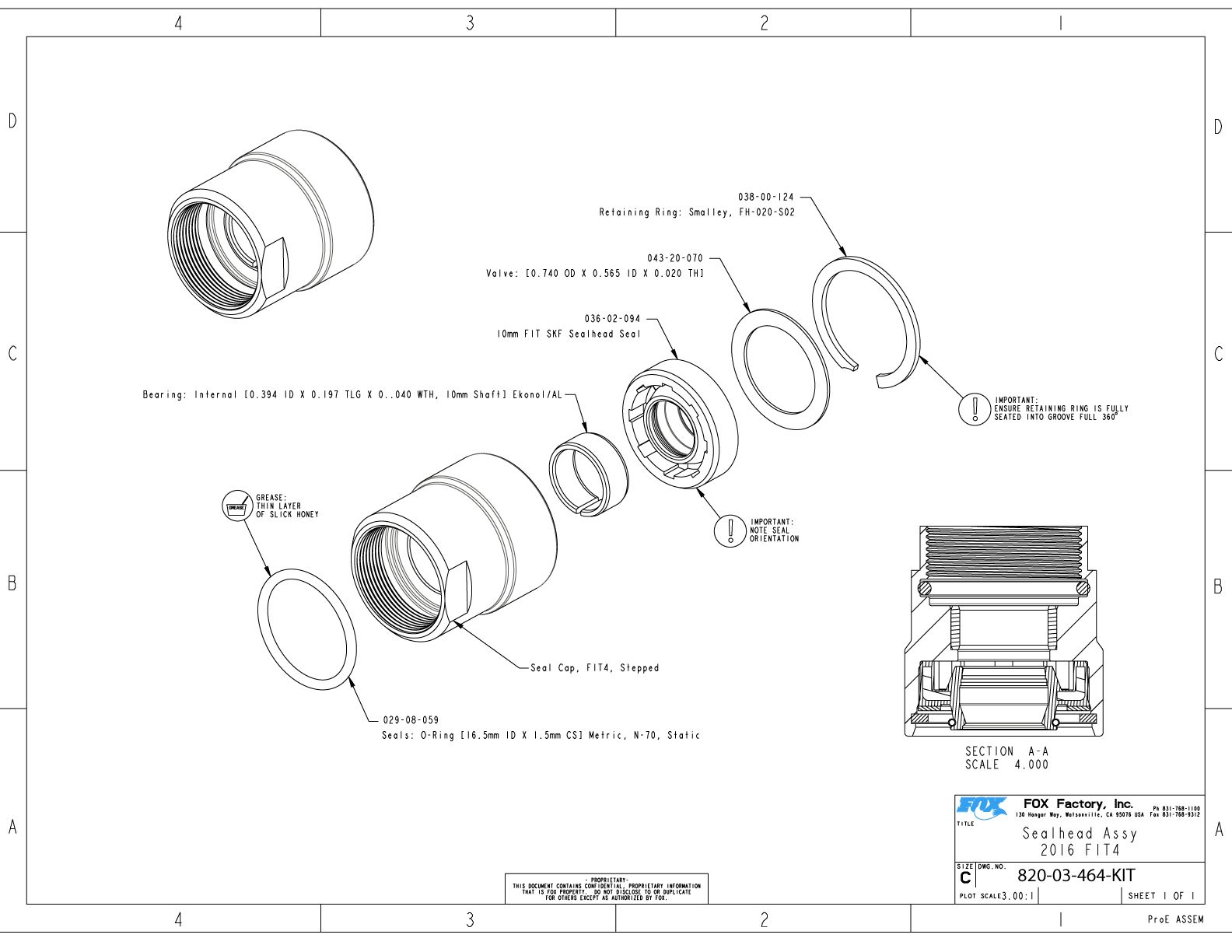

- 820-03-464-KIT Sealhead Assy 2016 FIT4

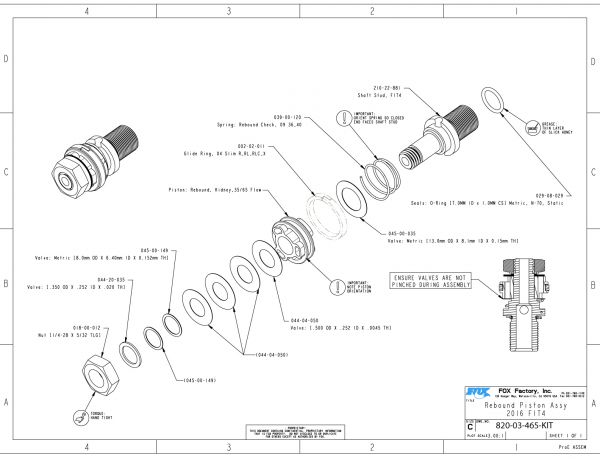

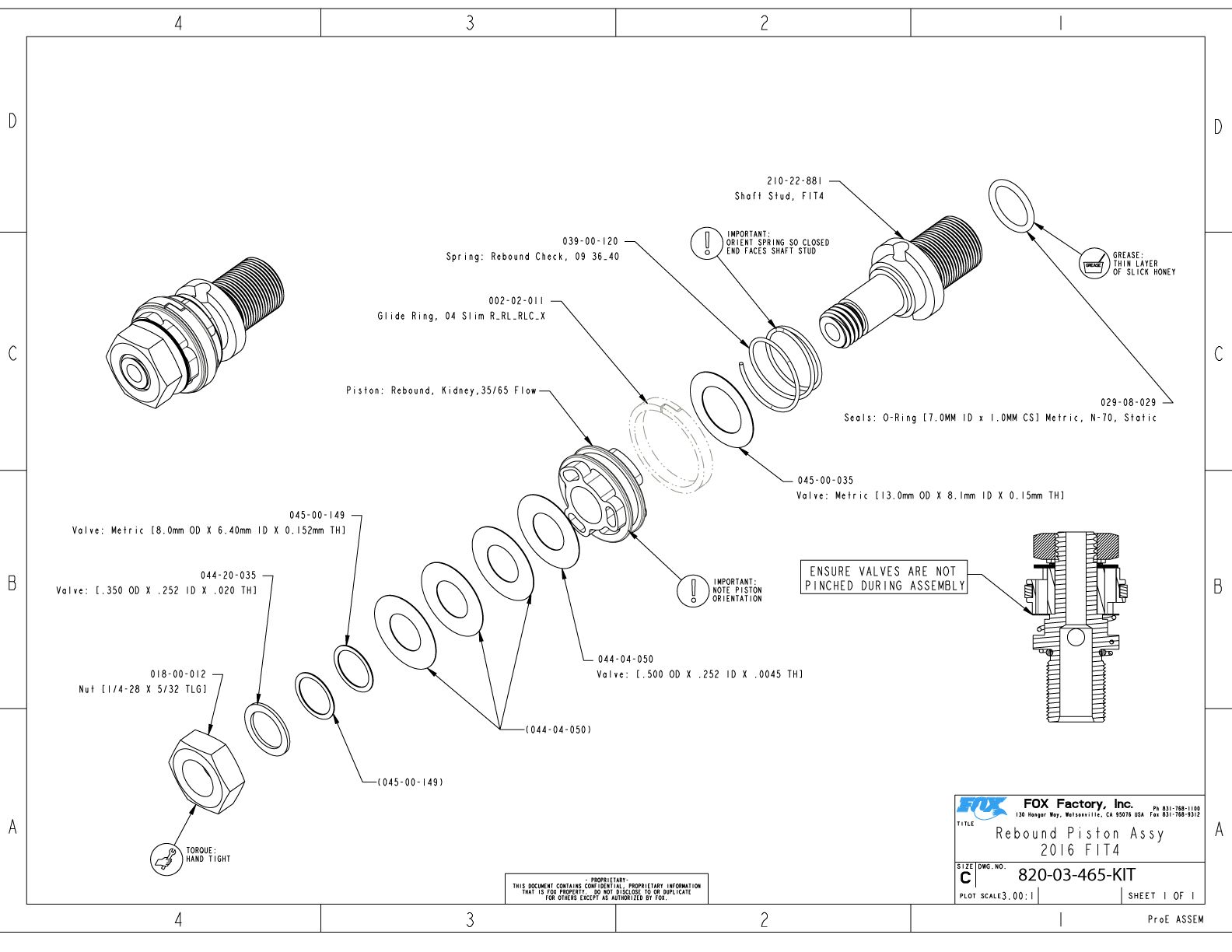

- 820-03-465-KIT Rebound Piston Assy 2016 FIT4
- 820-03-486-KIT Rebound Piston Assy 2016 FIT4, Short Travel

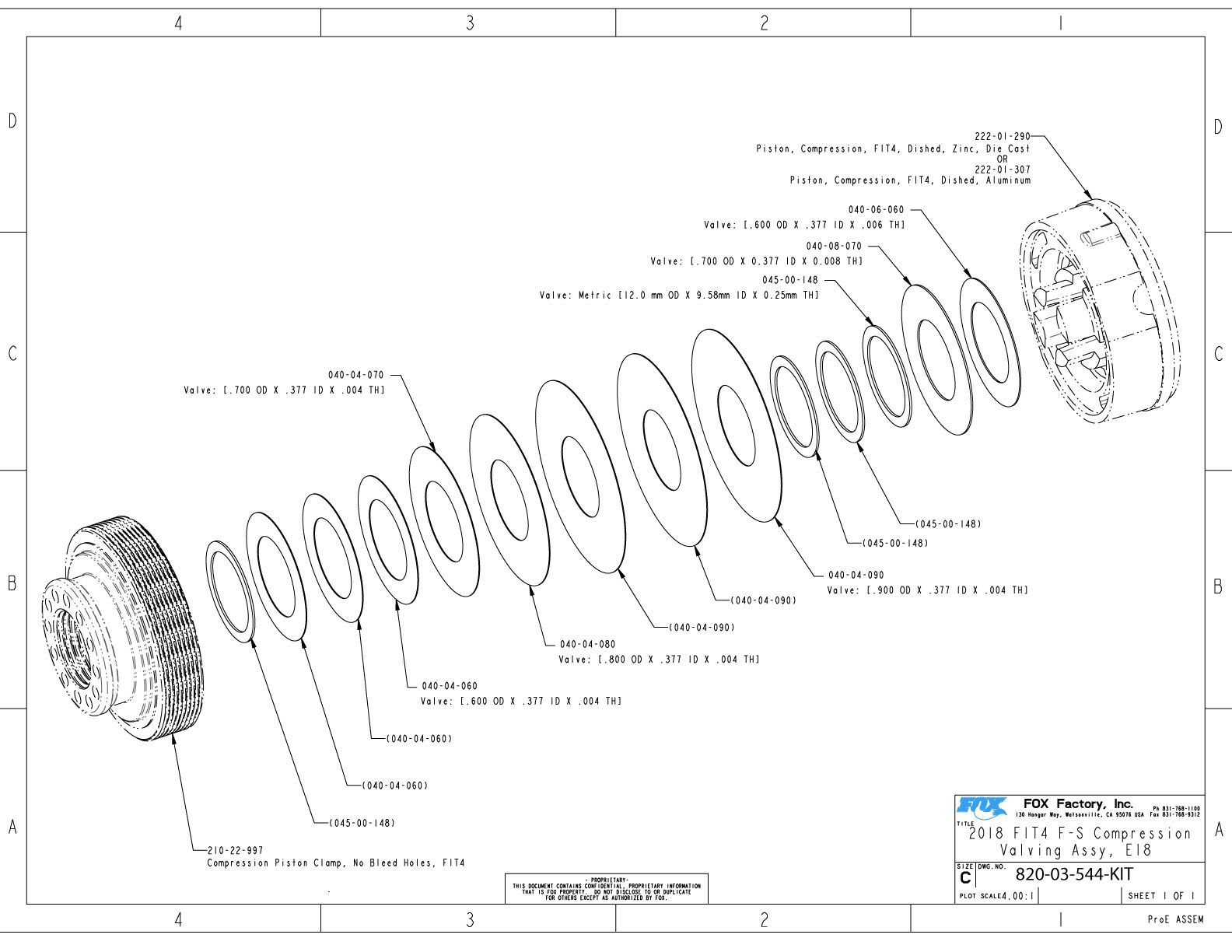

- 820-03-544-KIT 2018 FIT4 F-S Compression Valving Assy E18

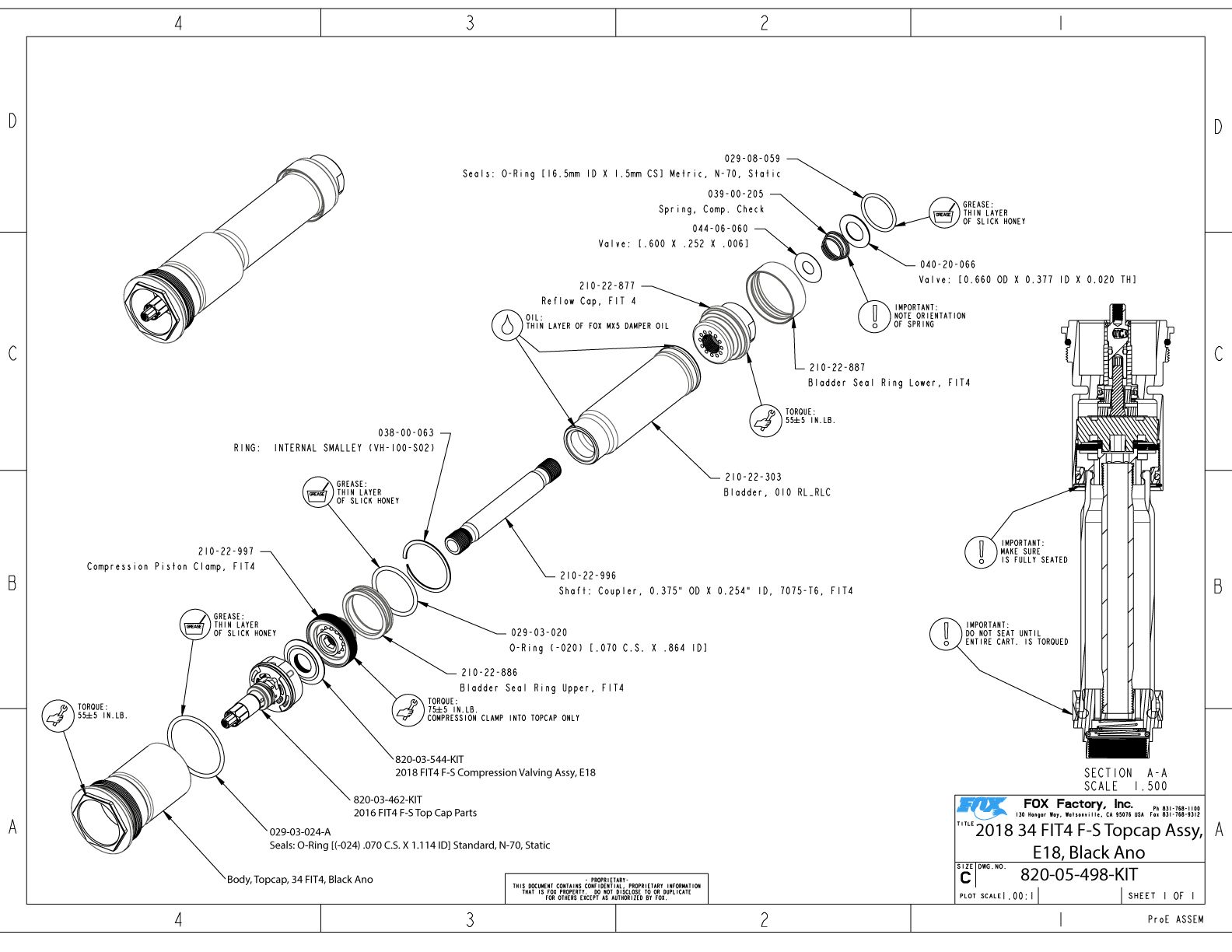

- 820-05-498-KIT 2018 34 FIT4 F-S Topcap Assy E18 Black Ano

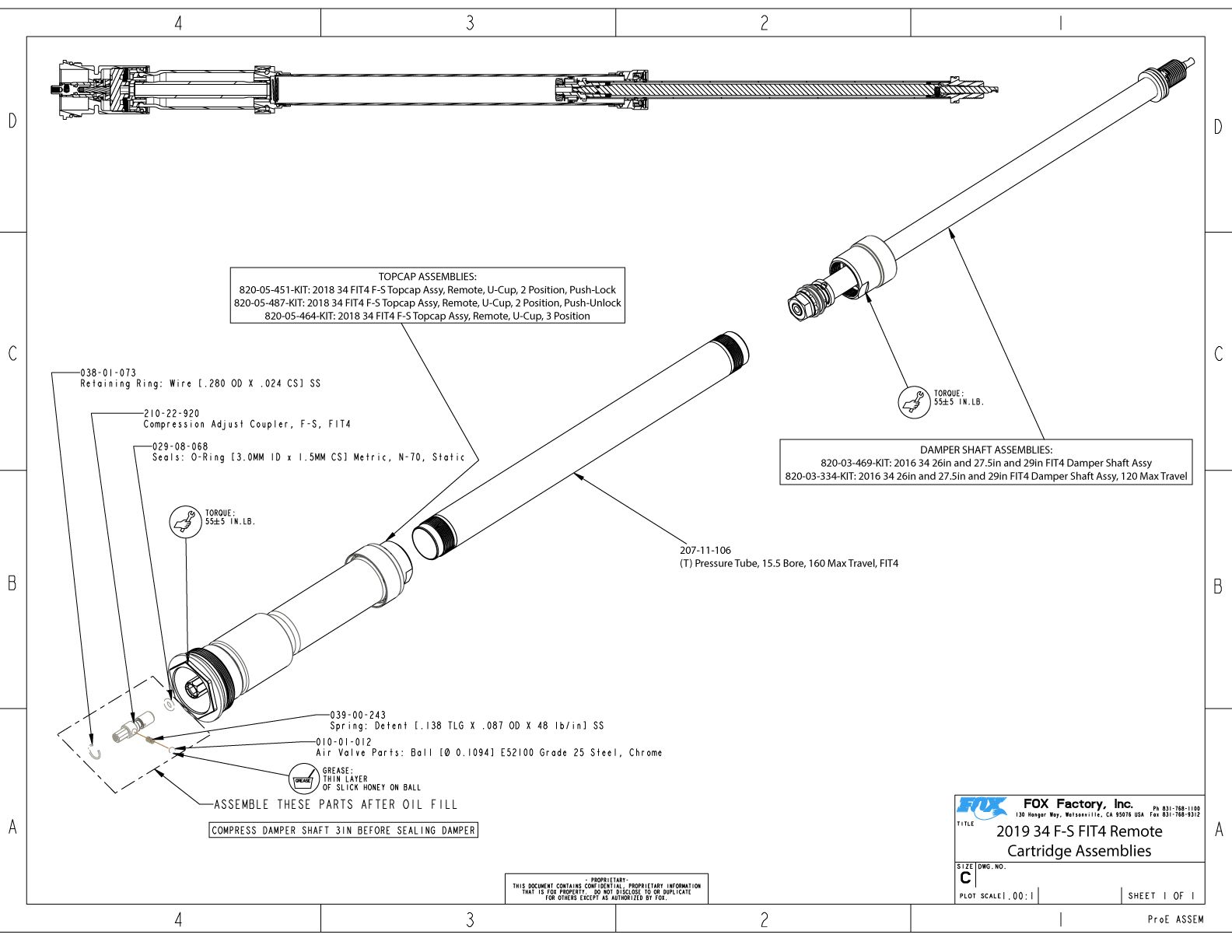

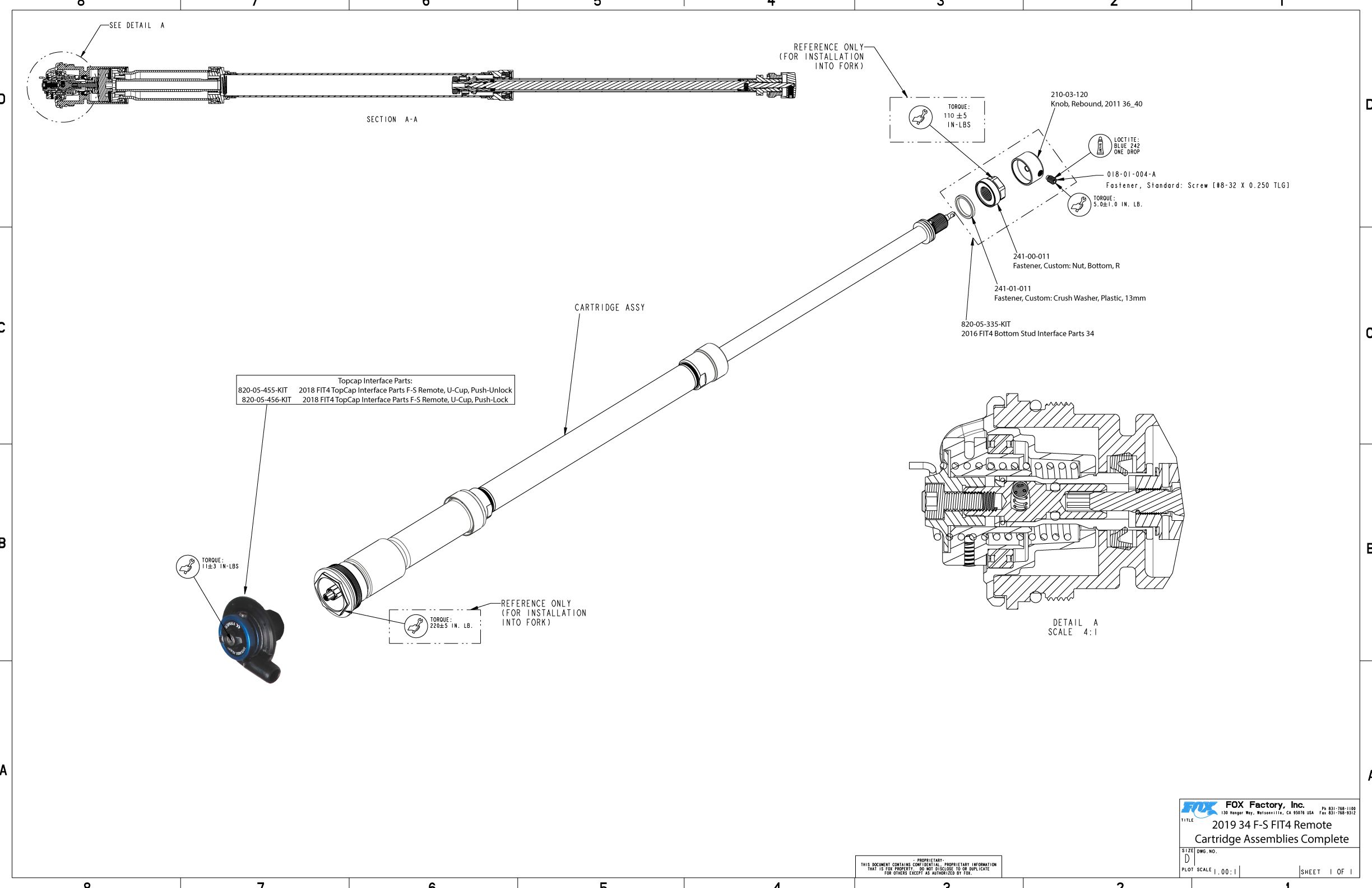

2019 34mm F-S FIT4 Remote Cartridge Assemblies
- 2019 34 F-S FIT4 Remote Cartridge Assemblies Complete .
- 2019 34 F-S FIT4 Remote Cartridge Assemblies .
- 2019 34 F-S FIT4 Remote Topcap Assemblies .

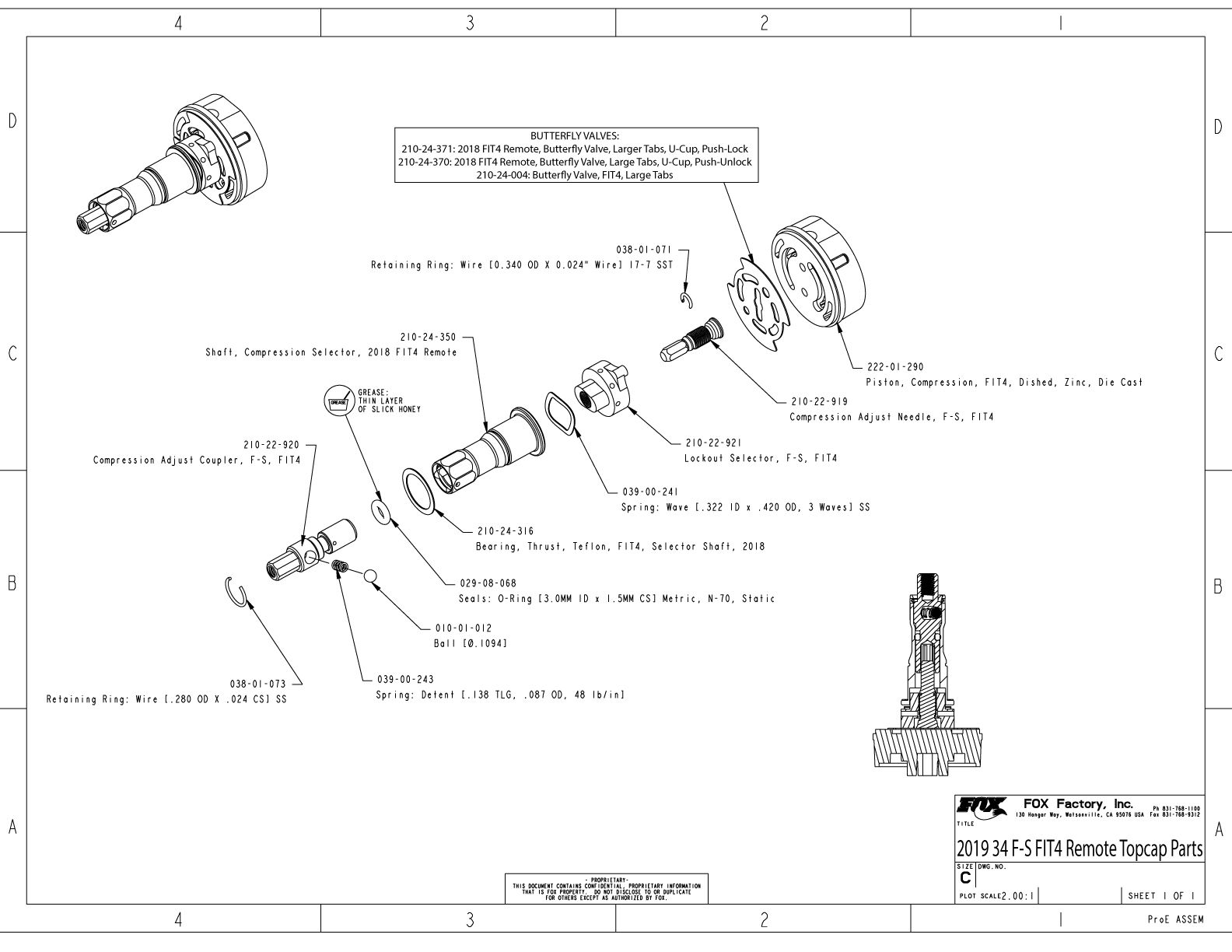

- 2019 34 F-S FIT4 Remote Topcap Parts .
- 2019 34 FIT4 Damper Shaft Assemblies .
- 820-03-464-KIT Sealhead Assy 2016 FIT4
- 820-03-465-KIT Rebound Piston Assy 2016 FIT4
- 820-03-486-KIT Rebound Piston Assy 2016 FIT4, Short Travel
- 820-03-544-KIT 2018 FIT4 F-S Compression Valving Assy E18

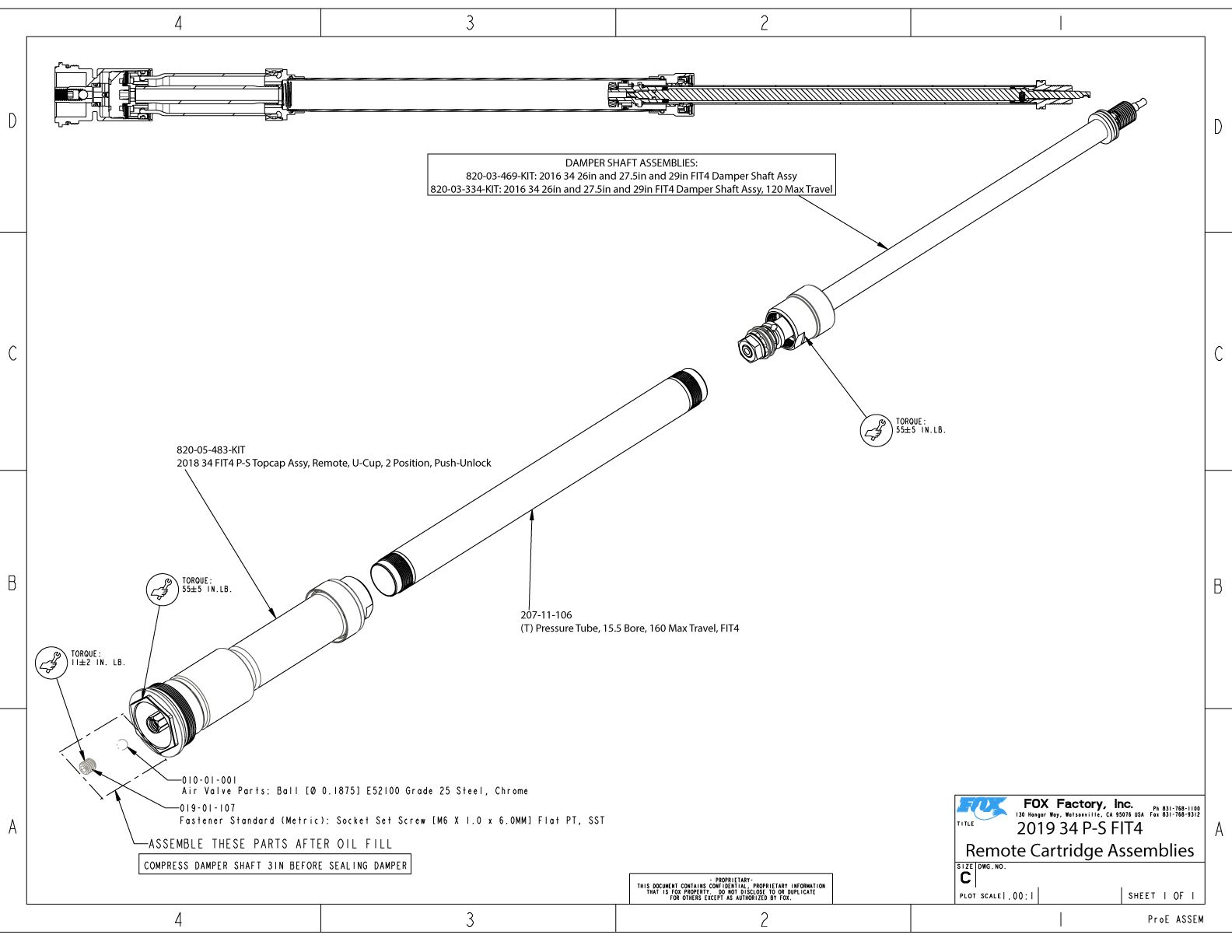

2019 34mm P-S FIT4 Remote Cartridge Assemblies

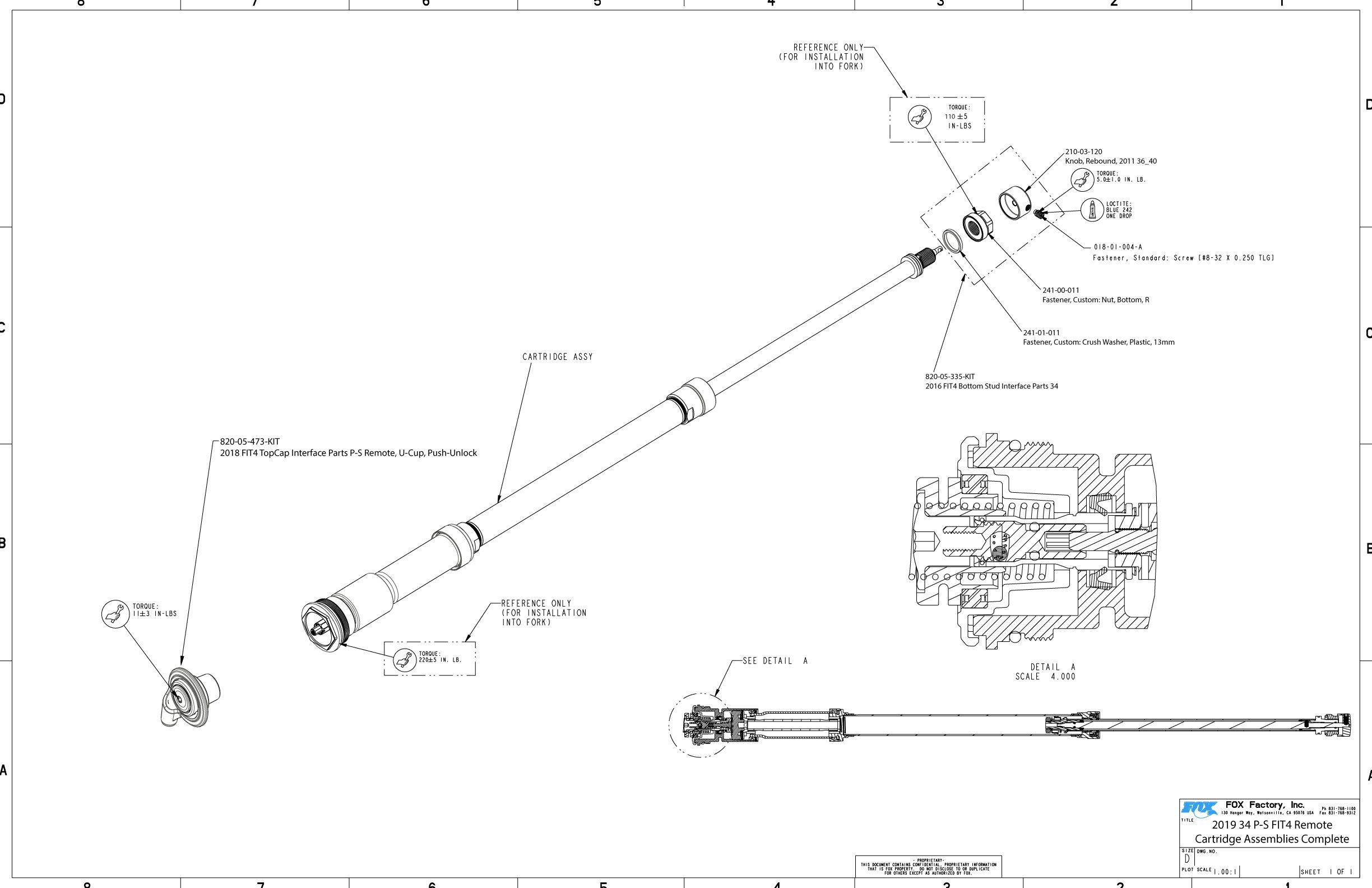

- 2019 34 P-S FIT4 Remote Cartridge Assemblies Complete .
- 2019 34 P-S FIT4 Remote Cartridge Assemblies .
- 2019 34 FIT4 Damper Shaft Assemblies .

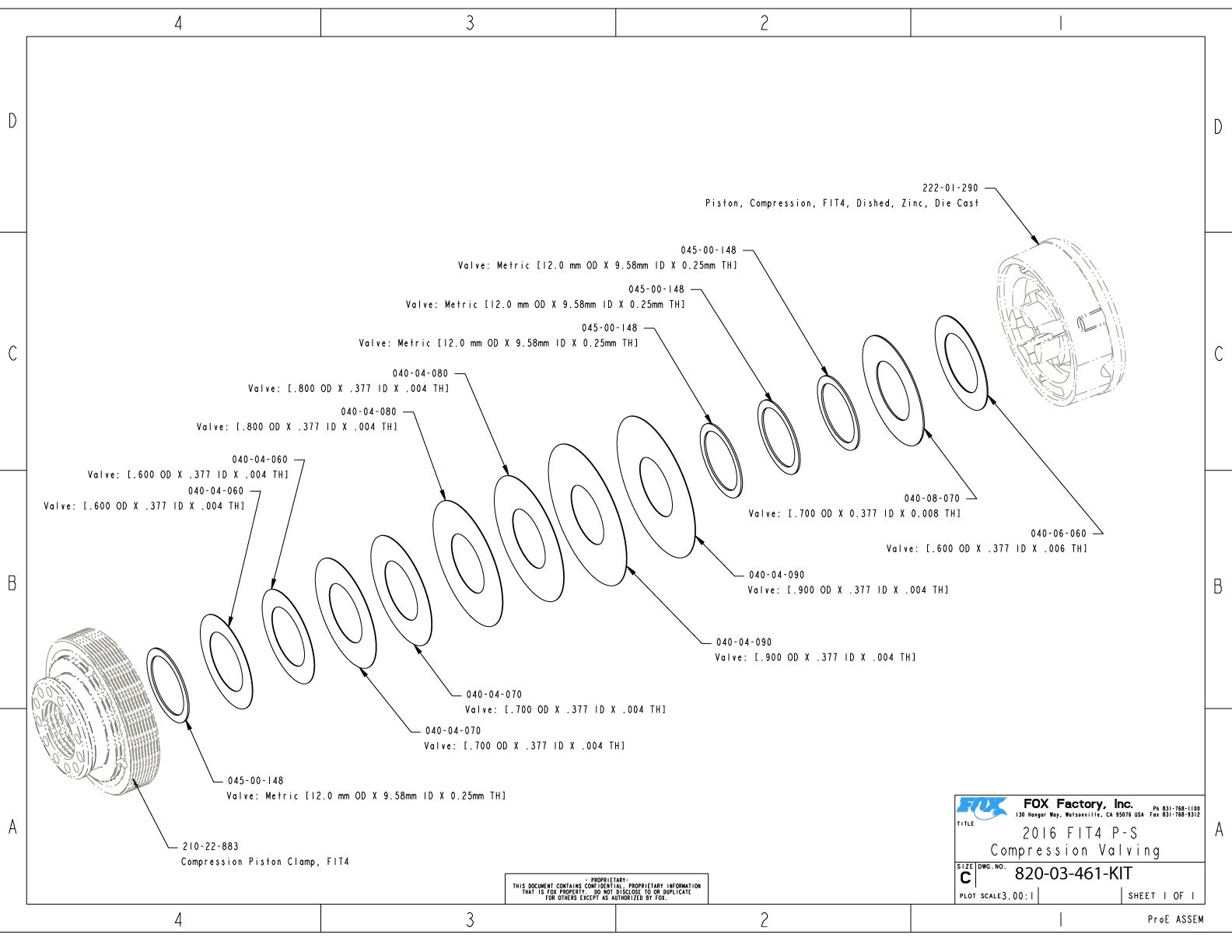

- 820-03-461-KIT 2016 FIT4 P-S Compression Valving
- 820-03-464-KIT Sealhead Assy 2016 FIT4

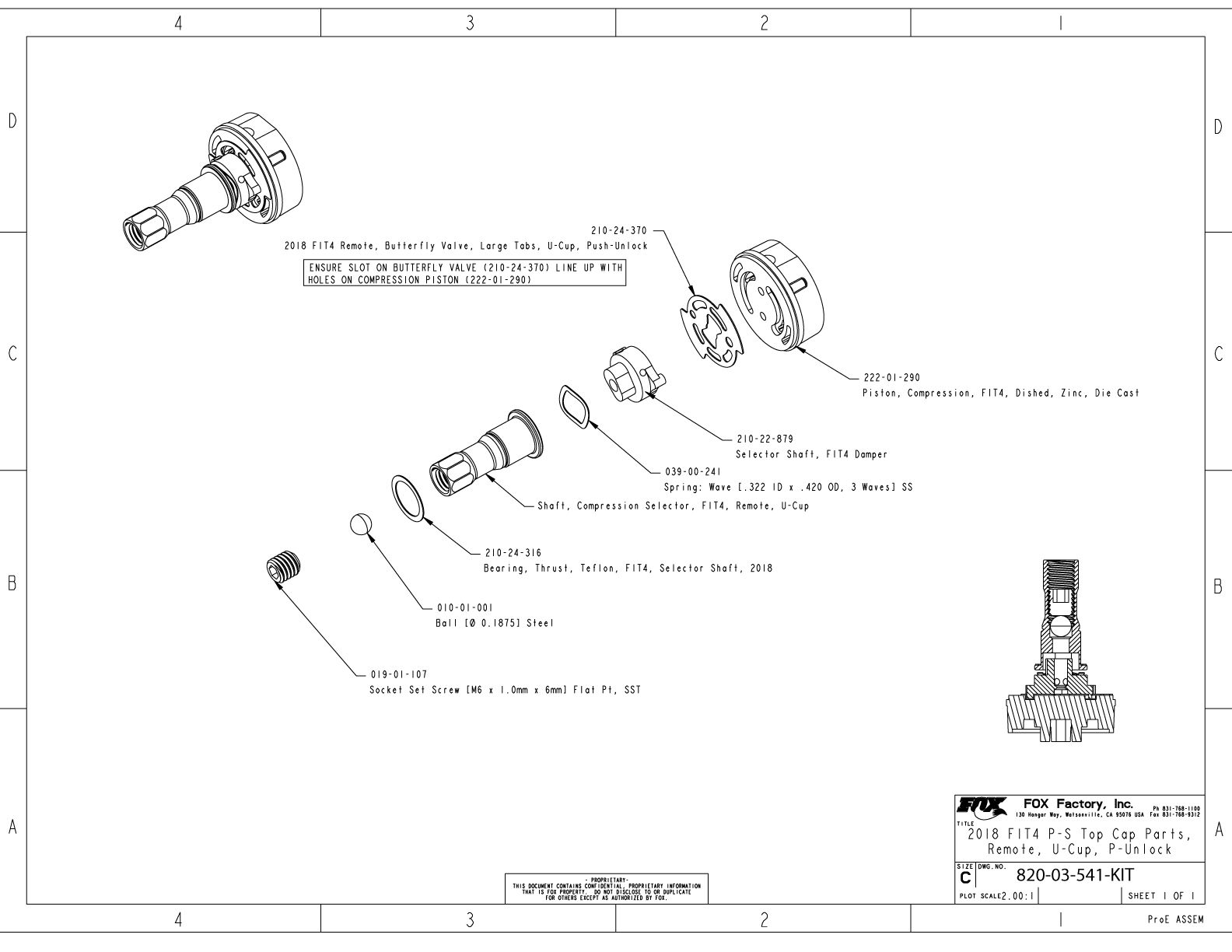

- 820-03-541-KIT 2018 FIT4 P-S Topcap Parts, Remote, U-Cup, Push-to-Unlock

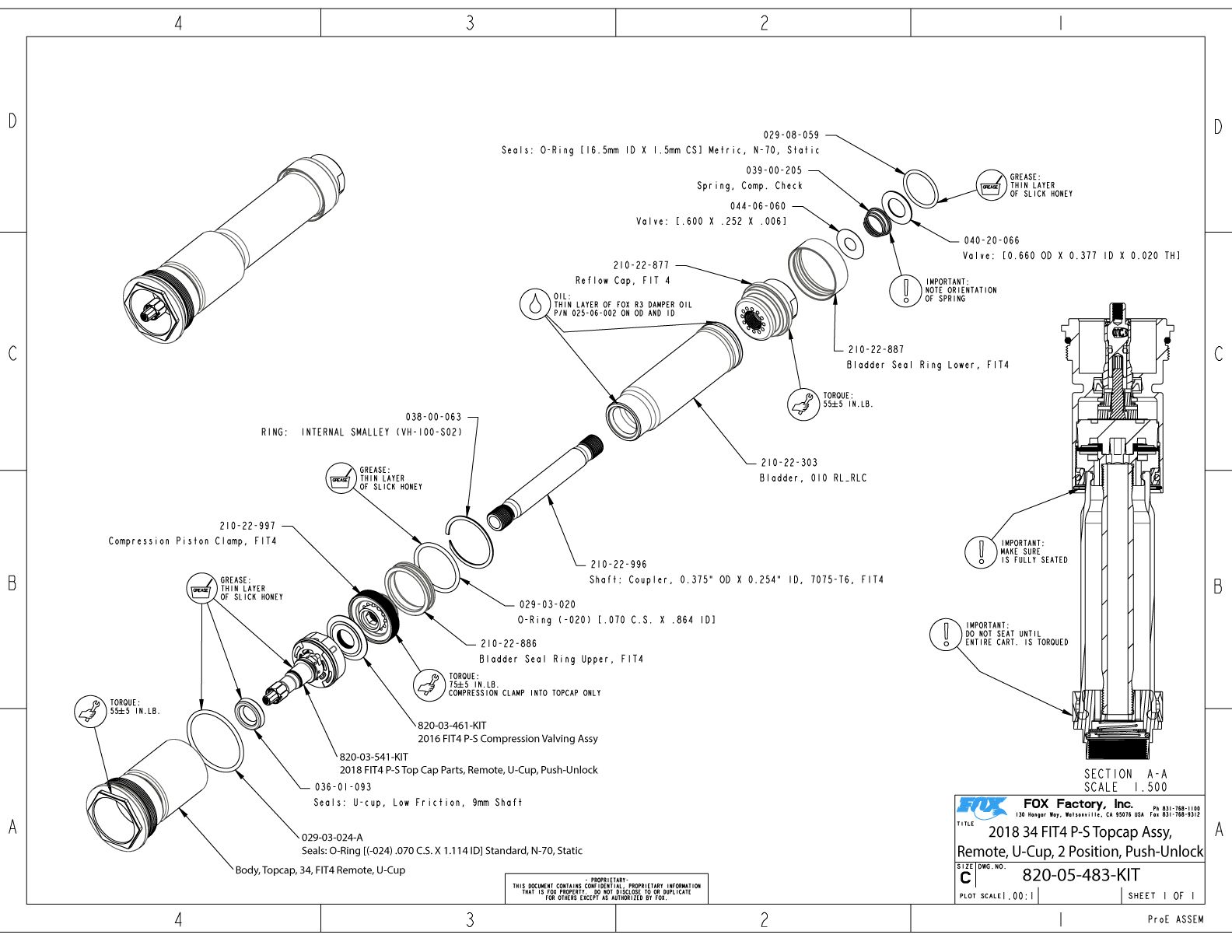

- 820-05-483-KIT 2018 34 FIT4 P-S Topcap Assy, Remote, U-Cup, 2 Position, Push-Unlock
- 820-03-465-KIT Rebound Piston Assy 2016 FIT4
- 820-03-486-KIT Rebound Piston Assy 2016 FIT4, Short Travel
2019 34mm Grip Cartridge Assemblies

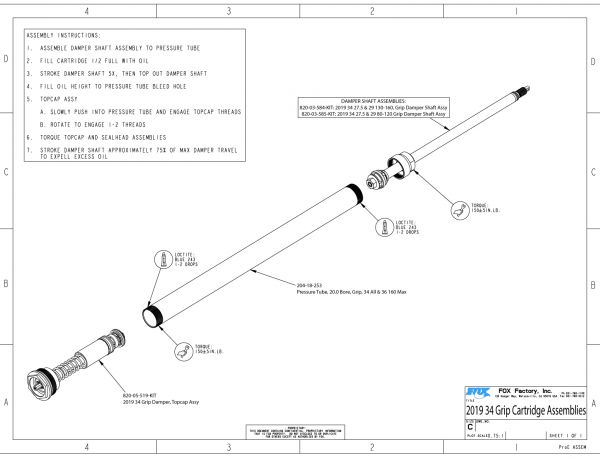

- 2019 34 Grip Cartridge Assemblies Complete .
- 2019 34 Grip Cartridge Assemblies .

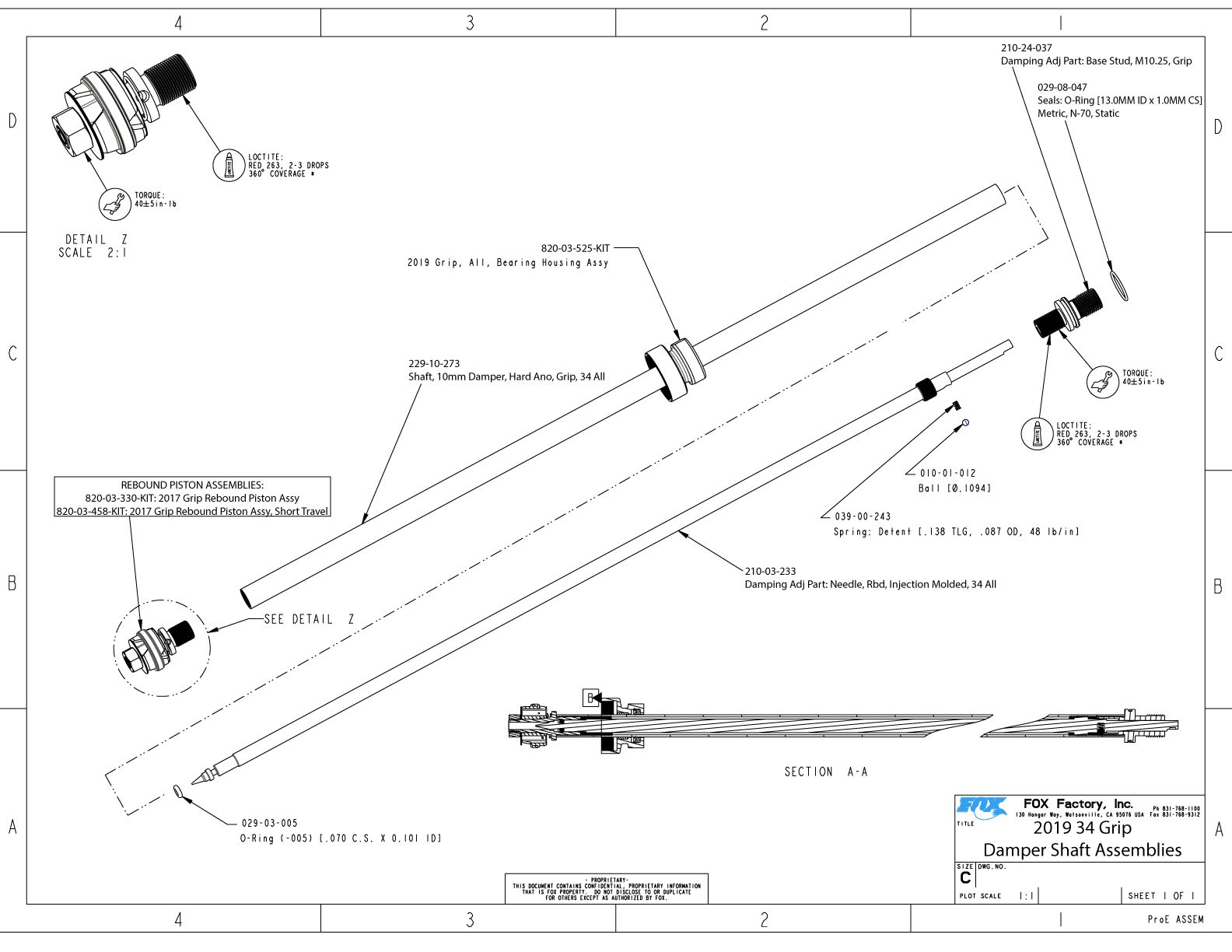

- 2019 34 Grip Damper Shaft Assemblies .

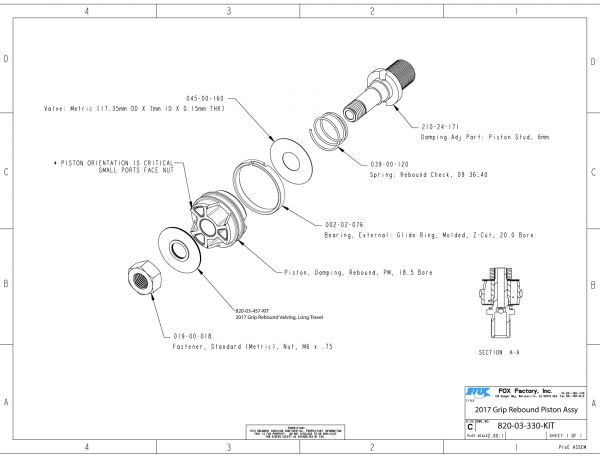

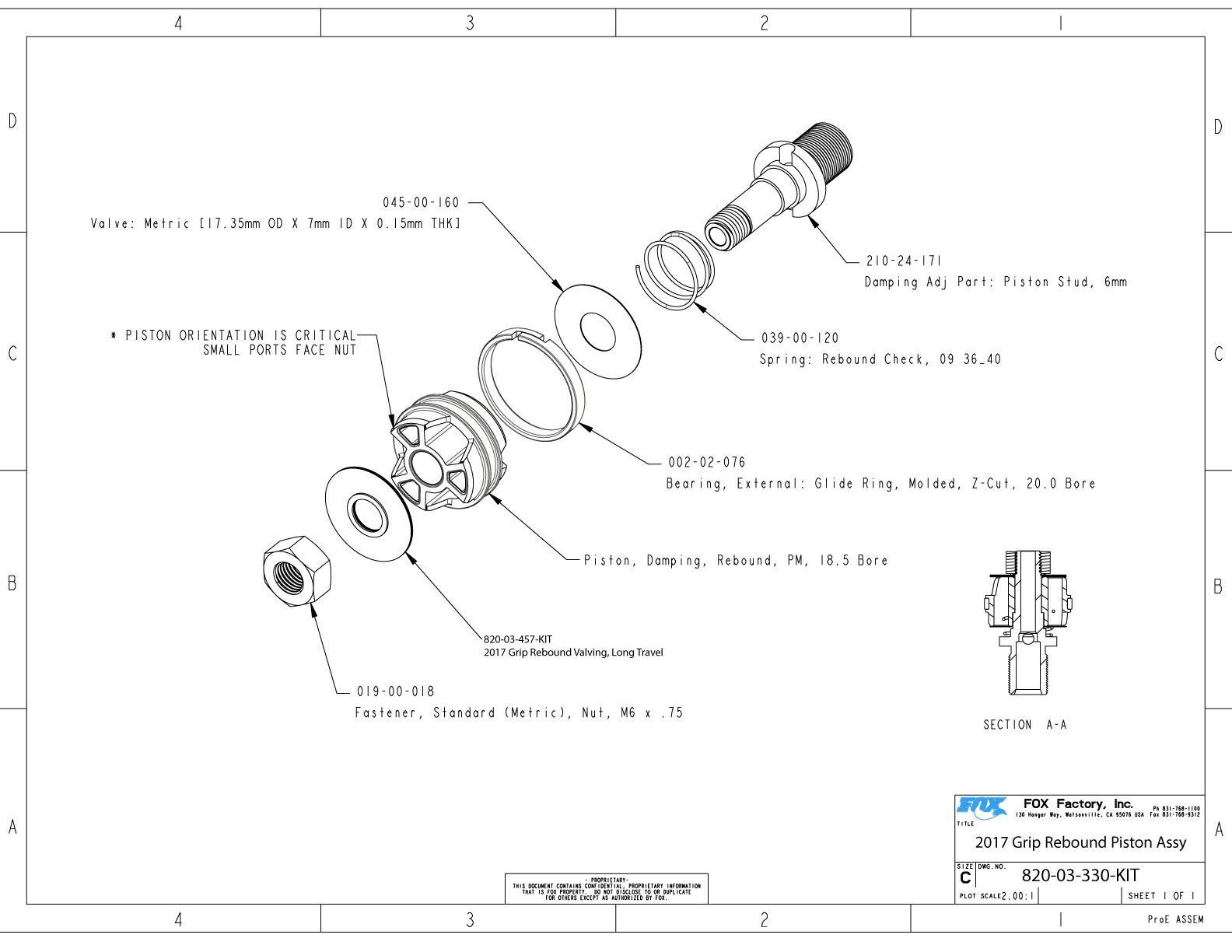

- 820-03-330-KIT 2017 Grip Rebound Piston Assy

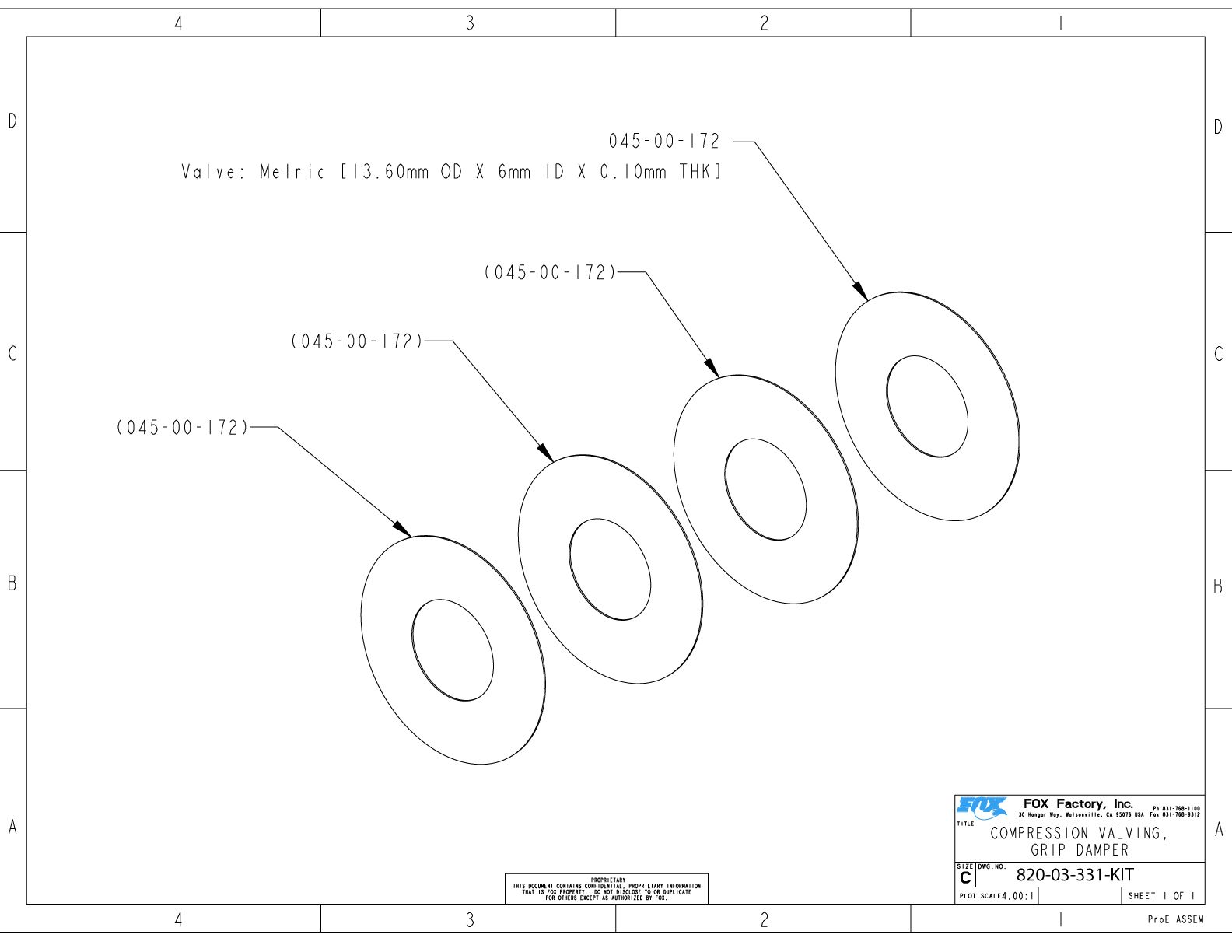

- 820-03-331-KIT Compression Valving, Grip Damper

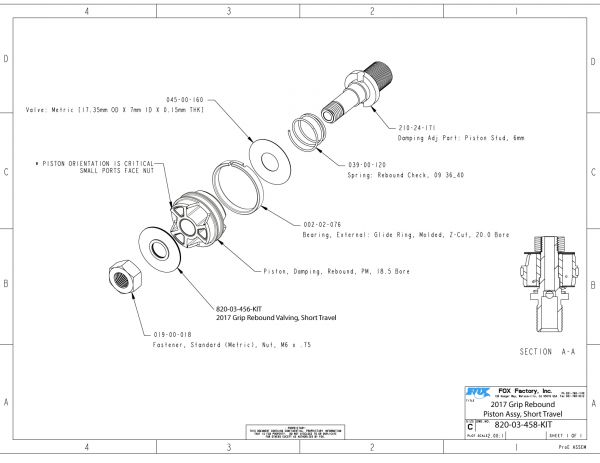

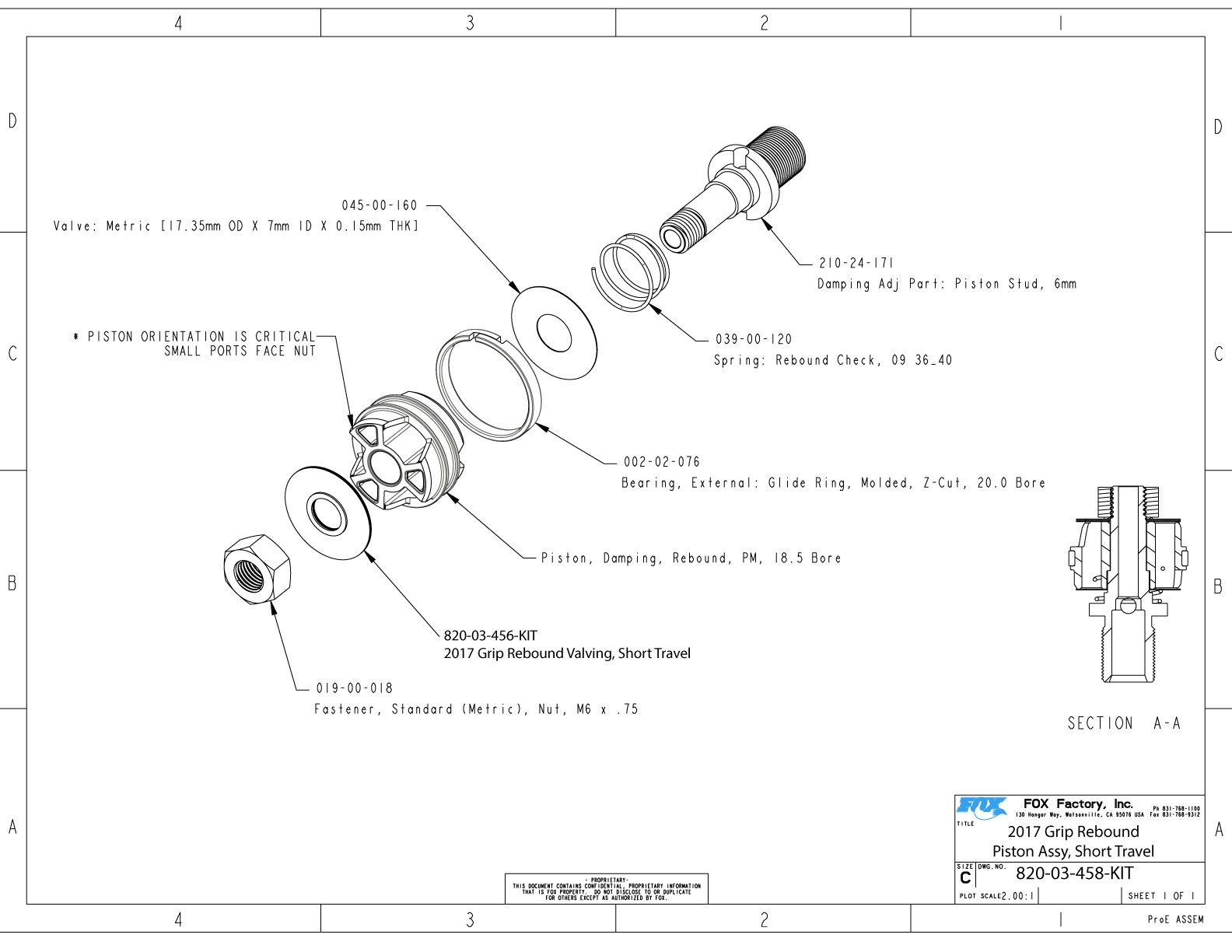

- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel

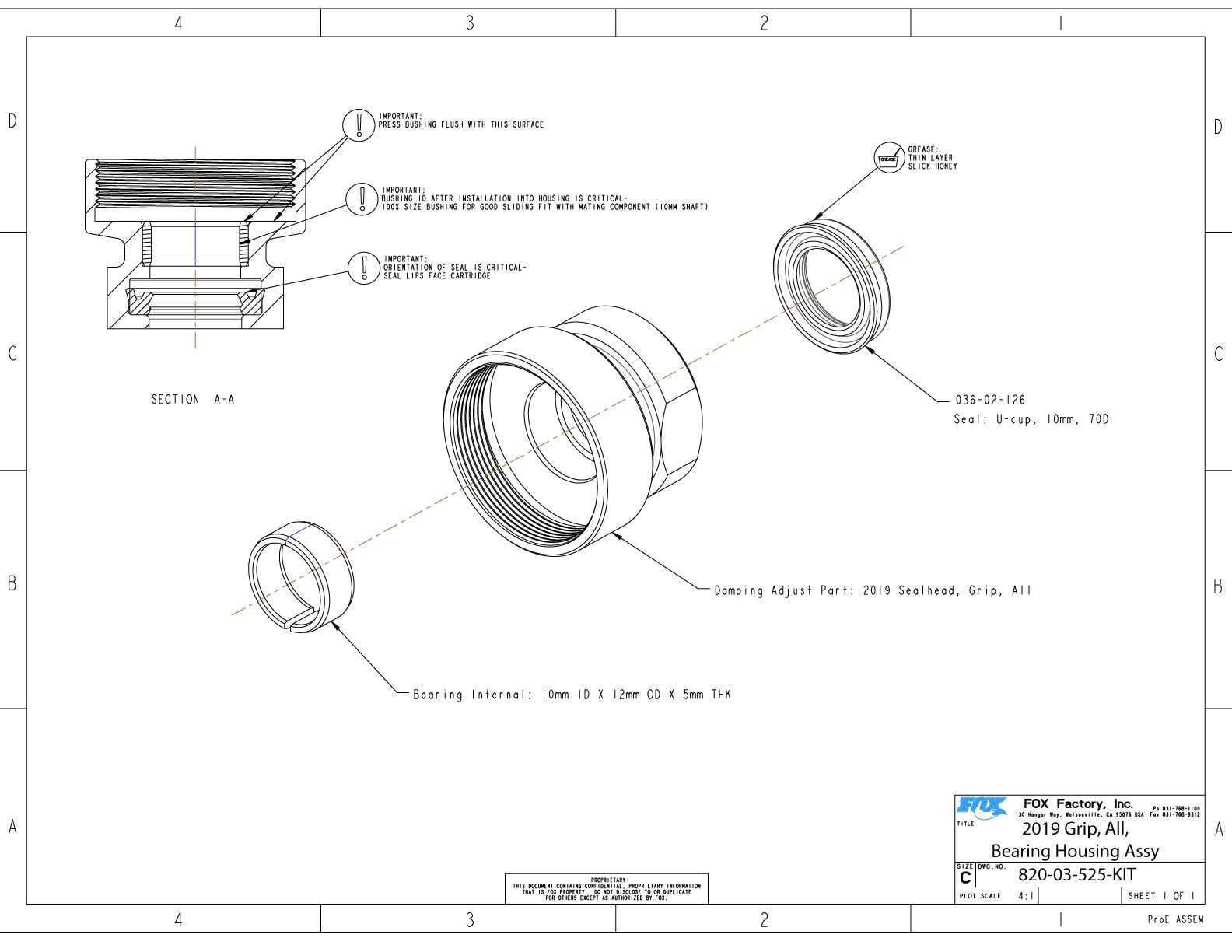

- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-05-519-KIT 2019 34 Grip Damper Topcap Assy

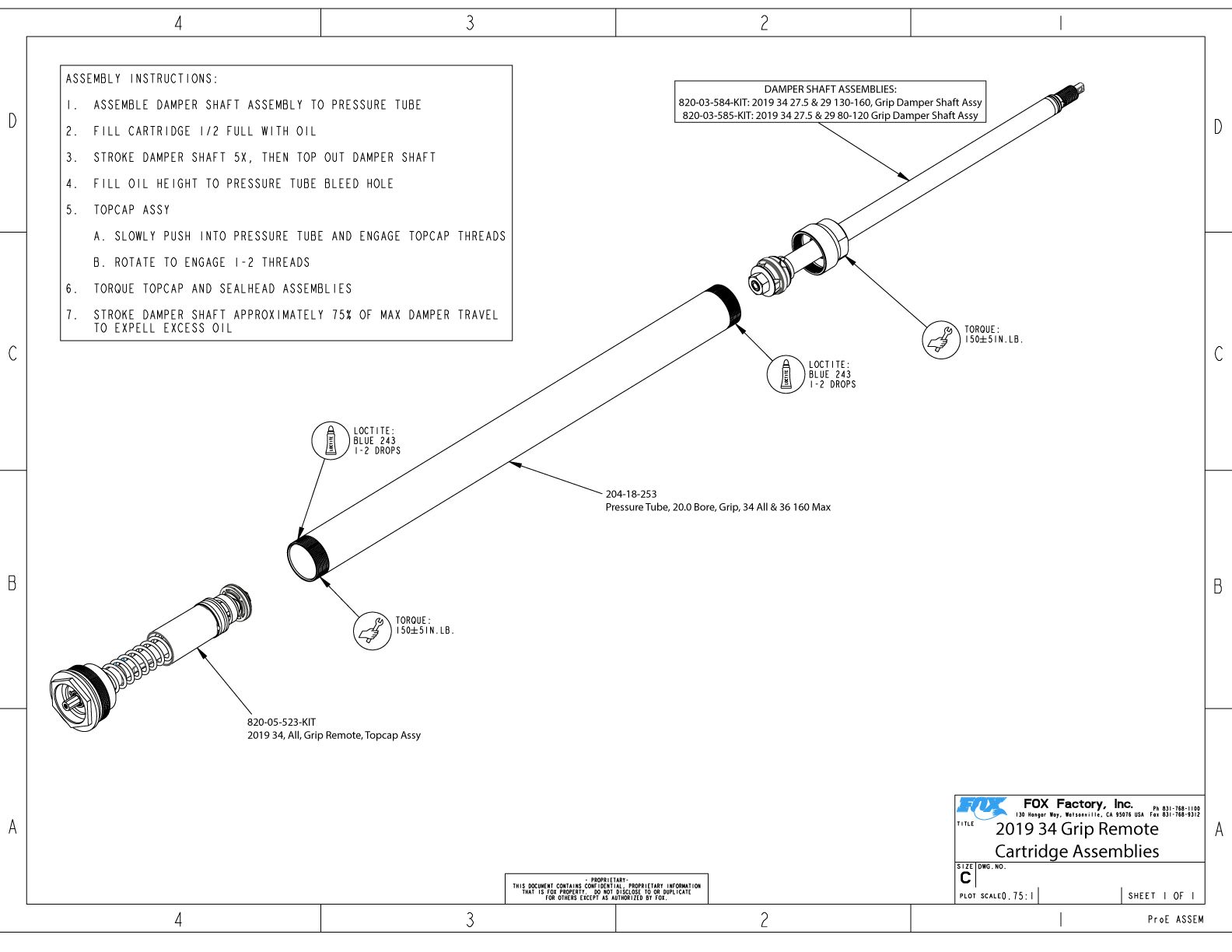

2019 34mm Grip Remote Cartridge Assemblies
- 2019 34 Grip Remote Cartridge Assemblies Complete .
- 2019 34 Grip Remote Cartridge Assemblies .
- 2019 34 Grip Damper Shaft Assemblies .
- 820-03-330-KIT 2017 Grip Rebound Piston Assy
- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-05-523-KIT 2019 34 All Grip Remote Topcap Assy
2019 34mm Rhythm Grip Cartridge Assemblies
- 2019 34 Rhythm Grip Cartridge Assemblies Complete .
- 2019 34 Rhythm Grip Cartridge Assemblies .

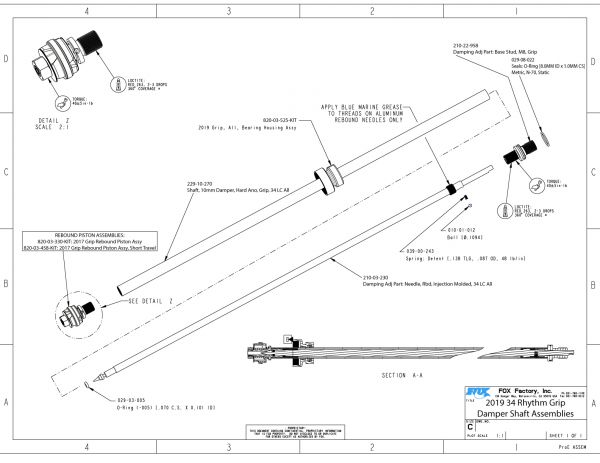

- 2019 34 Rhythm Grip Damper Shaft Assemblies .
- 820-03-330-KIT 2017 Grip Rebound Piston Assy
- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-05-519-KIT 2019 34 Grip Damper Topcap Assy
2019 34mm Rhythm Grip Remote Cartridge Assemblies
- 2019 34 Rhythm Grip Remote Cartridge Assemblies Complete .
- 2019 34 Rhythm Grip Remote Cartridge Assemblies Complete .

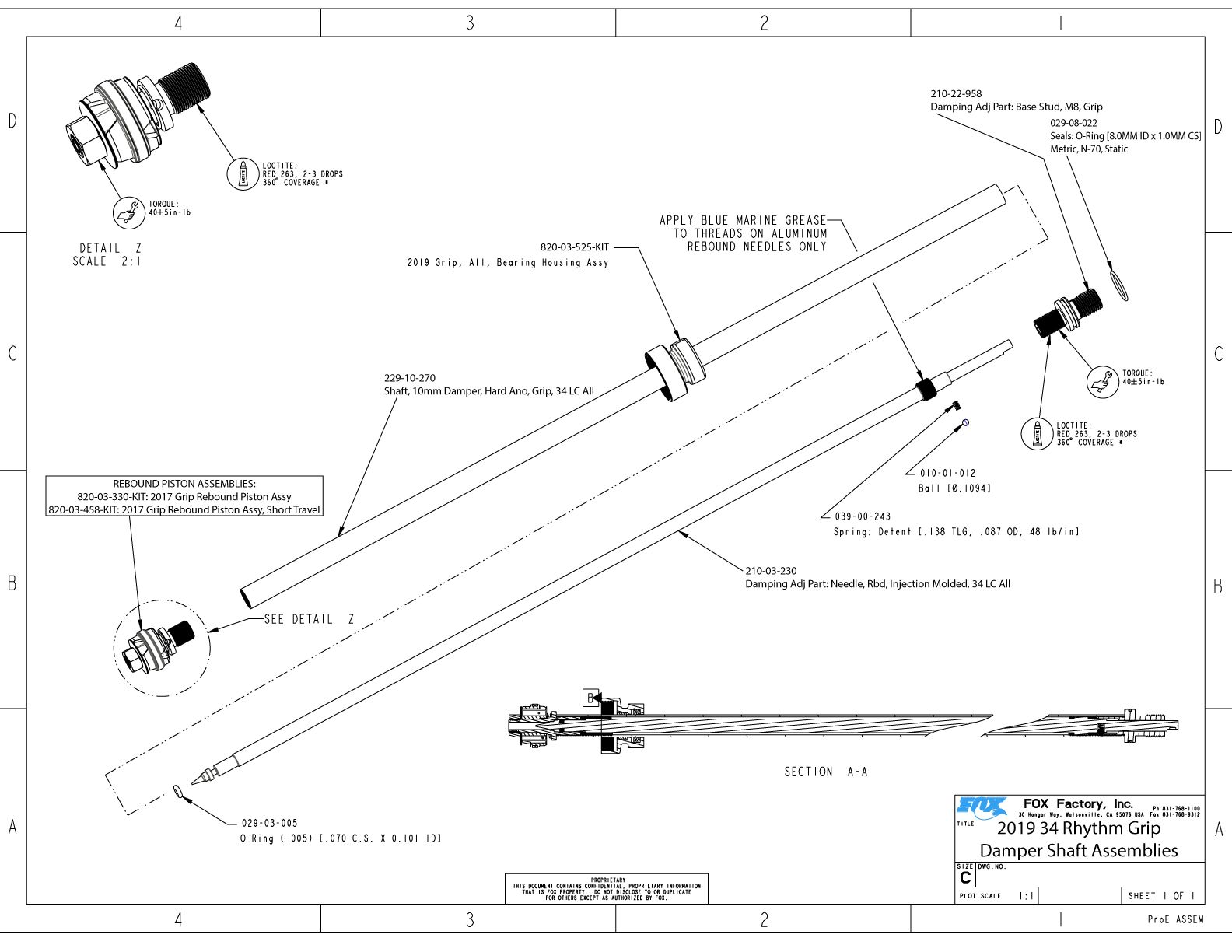

- 2019 34 Rhythm Grip Damper Shaft Assemblies .
- 820-03-330-KIT 2017 Grip Rebound Piston Assy
- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-05-523-KIT 2019 34 All Grip Remote Topcap Assy
2019 34mm FLOAT Air Spring Assemblies
- 2019 34 FLOAT Air Spring Assemblies .
- 2019 34 FLOAT Air Shaft Assemblies .
- 820-02-523-KIT Neg Plate Subassembly 2019 FLOAT LC NA2 34 All Travels 1.214 Bore Aluminum
- 820-05-416-KIT Topcap Assy 2018 FLOAT LC NA2 34 Black
2019 34mm Rhythm FLOAT Air Spring Assemblies
- 2019 34 Rhythm Air Spring Assemblies .
- 2019 34 Rhythm Air Shaft Assemblies .
- 820-02-368-KIT Neg Plate Subassembly FLOAT 34 Rhythm
- 820-05-416-KIT Topcap Assy 2018 FLOAT LC NA2 34 Black
2019 34mm F-S FIT4 Cartridge Assemblies
2019 34mm F-S FIT4 Remote Cartridge Assemblies
2019 34mm P-S FIT4 Remote Cartridge Assemblies
2019 34mm Grip Cartridge Assemblies
2019 34mm Grip Remote Cartridge Assemblies
2019 34mm Rhythm Grip Cartridge Assemblies
2019 34mm Rhythm Grip Remote Cartridge Assemblies
2019 34mm FLOAT Air Spring Assemblies
