PARTS & DRAWINGS
32mm Part Information
Continuing Technologies:
| FIT4 damper tunes | Old FIT4 tune still supported |
| Talas 5 | Talas 5 sytems still supported |
| Remote Conversions available for 2016+ Fit4 |
Non-remote FIT4 cartridges can be upgraded to remote via the installation of a complete FIT4 Remote U-Cup Topcap Assembly. This ensures the optimized topcap configuration with friction reducing features for the most reliable remote installation possible. FOX recommends PTU remote systems over PTL systems as they are optimized for reliability and reduced lever force. The FIT4 topcap "butterfly" valve must be matched to the appropriate lever/topcap interface parts. Installation of FIT4 Remote Topcap Interface Parts on a FIT4 3 Pos or 3 Pos Adj cartridge does not convert the cartridge to the optimized remote configuration even when used with a 3 position remote lever as the standard FIT4 3 Pos or 3 Pos Adj topcap does not contain the U-Cup that optimized remote topcap friction. |
Maintenance Info:
| Service Interval | Full Service 125 Hours |
| 803-00-960 | Seal Kit: 32 & 34 FIT4 Cartridge Rebuild |
| 803-00-962 | Seal Kit: 32 FLOAT NA2 Rebuild |
| 803-00-944 | Kit: Dust Wiper, Forx, 32mm, Low Friction, No Flange |
| 398-00-681 | 2002-017 32 Damper-side and ALL 32-34-36-40 Spring-side Removal Tool |
| 398-00-682 | 2005-017 34-36-40 Damper-side Removal Tool |
| 803-00-147 | Kit: Shaft Clamps, 07 FORX, Set #2 (32 X Body, 36, 40 Forx) |
| 803-00-084 | Kit: Shaft Clamps, FORX, Set #1 (32mm Forx) |
| 803-00-276 | Hand Bleeder |
| 803-01-150 | Kit: Tooling: Clamps, Grip Damper, Body and Shaft |
| 803-01-141 | Seal Kit: 32, 34, 36 GRIP Cartridge Rebuild |
| 803-01-209 | Kit: Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set |
| 398-00-760 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
Oil Info:
| Application | Description | Part # |
| All Dampers Grip & FIT 2019 | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart | 025-03-023 |
| All non-GRIP bath oil and FLOAT NA2 Air Chamber | Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold | 025-03-010 |
| Oil: AM, FOX Bath Oil [250 ml.], 20 WT Gold | 025-03-015 |
| Bath Oil Application | Bath Oil Volume |
| All GRIP dampers Bath oil | 40cc (5wt FOX Teflon Infused Oil) |
| 32 Float 80-120 Air Side | 25cc (FOX 20wt Gold Oil) |
| 32 Float 130-150 Air Side | 10cc (FOX 20wt Gold Oil) |
| 32 FIT4 Damper Side | 15cc (FOX 20wt Gold Oil) |
| All FLOAT NA2 and RHYTHM Air Chamber | 3cc (FOX 20wt Gold Oil) |
Remote Info:
| Part | Description |
| 820-05-445-KIT | Service Set: 2018 Grip Remote, Topcap Interface Parts |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-473-KIT | Service Set: 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Unlock |
| 820-05-474-KIT | Service Set: 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Lock |
| 820-07-150-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Dual Pull |
| 820-07-151-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Single Pull |
32mm Part Information
CSU Assemblies
| Part Number | Description |
| 820-11-912-KIT | Service Set: 2017 32 26in 130-150, 27.5in 110-150, and 29in 110-130 Kashima, Fox Matte Black 1.5T, Std OS CSU Assy |
| 820-11-914-KIT | Service Set: 2017 32 29in 110-130, Kashima, Fox Matte Black, 1.5T, 51 Rake, 1.5T CSU Assy |
| 820-11-917-KIT | Service Set: 2017 32 26in 130-150, 27.5in 110-140, and 29in 110-130, Black Ano, Fox Matte Black, 1.5T, Std OS CSU Assy |
| 820-11-922-KIT | Service Set: 2017 32 29in 80-100, Black Ano 1.110 Bore, Fox Matte Black, 1.5T, 51 Rake CSU Assy |
| 820-11-928-KIT | Service Set: 2017 32 26in 80-120 and 27.5 80-100 Kashima Matte Black 1-1/8 CSU |
| 820-11-929-KIT | Service Set: 2017 32 29in 80-100 Kashima 1.117 Bore Matte Black 1-1/8 CSU |
| 820-11-931-KIT | Service Set: 2017 32 26in 130-150, 27.5in 110-150, and 29in 110-130 Black Ano Matte Black 1-1/8 CSU |
| 820-11-934-KIT | Service Set: 2017 32 26in 80-120 and 27.5in 80-100 Black Ano 1.110 Bore Matte Black 1-1/8 CSU |
| 820-11-937-KIT | Service Set: 2017 32 29in 80-100 Black Ano 1.110 Bore Matte Black 1-1/8 CSU |
| 820-11-945-KIT | Service Set: 2017 32 29in 80-100 Black Ano 1.117 Bore Matte Black 27mm 1.5 Short Taper CSU |
| 820-11-954-KIT | Service Set: 2017 32 29in 80-100 Black Ano 1.117 Bore Matte Black 1-1/8 CSU |
| 820-11-957-KIT | Service Set: 2017 32 29in 80-100 Black Ano 1.117 Bore Matte Black 27mm 1-1/8 CSU |
| 820-11-967-KIT | Service Set: 2017 32 29in 110-130 15x110QR Kashima Matte Black 14mm OS 1.5 Short Taper CSU |
| 820-11-968-KIT | Service Set: 2017 32 29in 110-130 15x110QR Black Ano Matte Black 14mm OS 1.5 Short Taper CSU |
| 820-11-971-KIT | Service Set: 2017 32 29in 110-130 15x110QR Kashima Matte Black 21mm OS 1.5 Short Taper CSU |
| 820-11-972-KIT | Service Set: 2017 32 29in 110-130 15x110QR Black Ano Matte Black 21mm OS 1.5 Short Taper CSU |
| 820-12-014-KIT | Service Set: 2018 32 Rhythm 27.5 & 29in 15x110QR 44 OS CSU Matte Black |
| 820-12-017-KIT | Service Set: 2018 32 Rhythm 27.5in QR9 and 44 OS CSU Matte Black |
| 820-12-020-KIT | Service Set: 2018 32 Rhythm 29in QR9 44 OS CSU Matte Black |
| 820-12-023-KIT | Service Set: 2018 32 Rhythm 29in QR9 51 OS CSU Matte Black |
| 820-12-026-KIT | Service Set: 2018 32 Rhythm 29in 15x110QR 51 OS CSU Matte Black |
| 820-12-164-KIT | Service Set: 2019 32 29in 130 15x110QR Kashima Matte Black 1.5T 14mm OS CSU |
| 820-12-167-KIT | Service Set: 2019 32 29in 130 15x110QR Kashima Matte Black 1.5T 21mm OS CSU |
| 820-12-170-KIT | Service Set: 2019 32 29in 130 15x110QR Black Ano Matte Black 1.5T 14mm OS CSU |
| 820-12-173-KIT | Service Set: 2019 32 29in 130 15x110QR Black Ano Matte Black 1.5T 21mm OS CSU |
| 820-12-176-KIT | Service Set: 2019 32 26/27.5in 150 and 29in 130 15x100QR Kashima Matte Black 1.5T 20mm OS CSU |
| 820-12-179-KIT | Service Set: 2019 32 29in 130 15x100QR Kashima Matte Black 1.5T 27mm OS CSU |
| 820-12-181-KIT | Service Set: 2019 32 26/27.5in 150 and 29in 130 15x100QR Black Ano Matte Black 1.5T 20mm OS CSU |
| 820-12-184-KIT | Service Set: 2019 32 29in 130 15x100QR Black Ano Matte Black 1.5T 27mm OS CSU |
| 820-12-192-KIT | Service Set: 2019 32 26/27.5 150 and 29 130 15x100QR Kashima Matte Black 1-1/8 20mm OS CSU |
| 820-12-195-KIT | Service Set: 2019 32 29 100 15x100QR Kashima Matte Black 1-1/8 27mm OS CSU |
| 820-12-178-KIT | Service Set: 2019 32 26/27.5in 150 and 29in 130 15x100QR Kashima Shiny Black 1.5T 20mm OS CSU |
| 820-12-183-KIT | Service Set: 2019 32 26/27.5in 150 and 29in 130 15x100QR Black Ano Shiny Black 1.5T 20mm OS CSU |
| 820-12-166-KIT | Service Set: 2019 32 29in 130 15x110QR Kashima Shiny Black 1.5T 14mm OS CSU |
| 820-12-172-KIT | Service Set: 2019 32 29in 130 15x110QR Black Ano Shiny Black 1.5T 14mm OS CSU |
| 820-12-169-KIT | Service Set: 2019 32 29in 130 15x110QR Kashima Shiny Black 1.5T 21mm OS CSU |
| 820-12-175-KIT | Service Set: 2019 32 29in 130 15x110QR Black Ano Shiny Black 1.5T 21mm OS CSU |
| 820-12-197-KIT | Service Set: 2019 32 29 100 15x100QR Kashima Shiny Black 1-1/8 27mm OS CSU |
Lower Leg Assemblies
| Part Number | Description |
| 820-10-359-KIT | Service Set: 2017 32 27.5in 80-150 Matte Black 15QR Lower Assy |
| 820-10-362-KIT | Service Set: 2017 32 27.5in 80-150 Matte Blk 9mm Lower Assy |
| 820-10-584-KIT | Service Set: 2018 Rhythm 32 27.5in 80-120 Matte Black 15x110QR Lower Assy |
| 820-10-498-KIT | Service Set: 2017 32 29in 120-130 Matte Black 15QR With Spacer Lower Assy |
| 820-10-398-KIT | Service Set: 2017 32 29in 80-130 15x110 QR Fox Matte Blk Lower Leg Assy |
| 820-10-449-KIT | Service Set: 2017 32 29in 120-130 Matte Black 15QR With Spacer Lower Assy |
| 820-10-450-KIT | Service Set: 2017 32 29in 110-130 Matte Black 9mm With Spacer Lower Assy |
| 820-10-590-KIT | Service Set: 2018 Rhythm 32 29in 80-120 Matte Black 9mm Lower Assy |
Axle Assemblies
| Part | Description |
| 820-09-013-KIT | Axle Assembly, 2016 15x110 QR, Factory and Performance, Black Ano |
| 820-09-014-KIT | Axle Assembly, 2016 15 x 100 QR, Factory and Performance, Black Ano |
| 820-09-018-KIT | Axle Assembly: 15 X 100mm Kabolt, Black Ano |
| 820-09-019-KIT | Axle Assembly: 15 X 110mm Kabolt, Black Ano |
| 820-09-022-KIT | Axle Assembly: 15 X 100mm Kabolt, Orange Ano |
| 820-09-023-KIT | Axle Assembly: 15 X 110mm Kabolt, Orange Ano |
Lower Leg Small Parts
| Part | Description |
| 803-00-370 | Service Set: 15QR Hardware (Contains: Axle nut, hold down, and set screw) |
| 019-02-008 | Fastener, Custom: 09 15QR Axle Nut, 8º Chamfer |
| 026-03-009 | Mounting Hardware, Axle Nut Hold-Down, 15QR |
| 241-02-040 | Fastener, Custom: Screw [M4 X 10] FHCS, Black Zinc, Patchlock |
Decal Kits
| Part | Description |
| 803-01-265 | Decal Kit: 2018, 32, F-S, Orange Logo, Matte Black Background |
| 803-01-266 | Decal Kit: 2018, 32, P-Se, Gray Logo, Matte Black background |
| 803-01-267 | Decal Kit: 2018, 32, P-S, Gray Logo, Matte Black Background |
| 803-01-268 | Decal Kit: 2018, 32, Rhythm, Gray Logo, Matte Black Background |
Complete Cartridges
| Part Number | Description |
| 820-08-748-KIT | Service Set: 2018 32 29in 80-100 F-S FIT4 Cart Assy Complete, VC45, Black Ano |

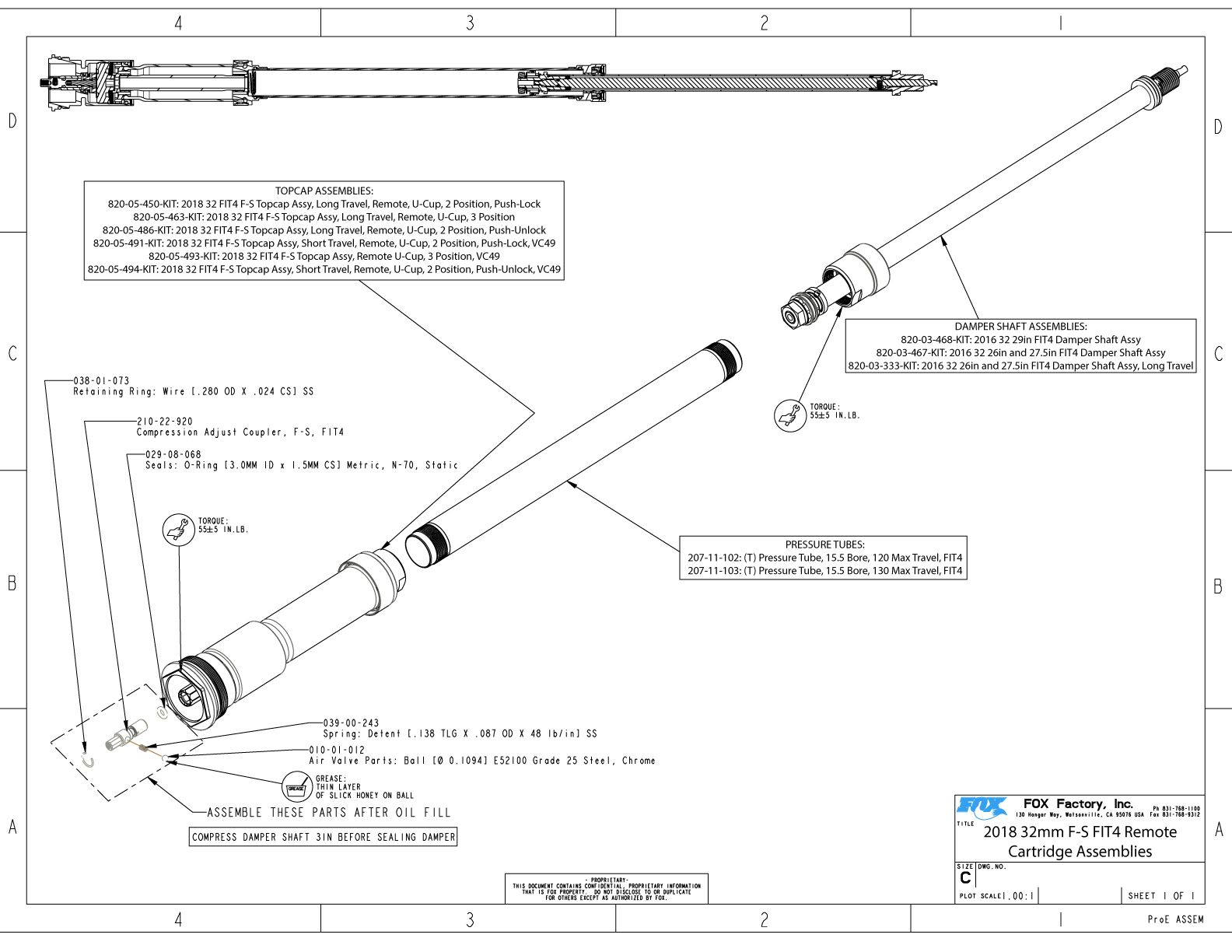

| 820-08-749-KIT | Service Set: 2018 32 29in 80-100 F-S FIT4 Remote Cart Assy Complete, VC49, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-750-KIT | Service Set: 2018 32 29in 110-130 F-S FIT4 Cart Assy Complete, E18, Black Ano |
| 820-08-751-KIT | Service Set: 2018 32 29in 110-130 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-752-KIT | Service Set: 2018 32 26in and 27.5in 80-100 F-S FIT4 Cart Assy Complete, VC45, Black Ano |
| 820-08-753-KIT | Service Set: 2018 32 26in and 27.5in 80-100 F-S FIT4 Remote Cart Assy Complete, VC49, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-754-KIT | Service Set: 2018 32 26in and 27.5in 110-120 F-S FIT4 Cart Assy Complete, E18, Black Ano |
| 820-08-755-KIT | Service Set: 2018 32 26in and 27.5in 110-120 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-756-KIT | Service Set: 2018 32 26in and 27.5in 130-150 F-S FIT4 Cart Assy Complete, E18, Black Ano |
| 820-08-757-KIT | Service Set: 2018 32 26in and 27.5in 130-150 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-762-KIT | Service Set: 2018 32 29in 110-120 110X15QR F-S FIT4 Cart Assy Complete, E18, Black Ano |
| 820-08-763-KIT | Service Set: 2018 32 29in 110-120 110X15QR F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 2 Position |
| 820-08-773-KIT | Service Set: 2018 32 29in 80-100 F-S FIT4 Remote Cart Assy Complete, VC49, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-774-KIT | Service Set: 2018 32 29in 110-130 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-775-KIT | Service Set: 2018 32 26in and 27.5in 80-100 F-S FIT4 Remote Cart Assy Complete, VC49, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-776-KIT | Service Set: 2018 32 26in and 27.5in 110-120 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-777-KIT | Service Set: 2018 32 26in and 27.5in 130-150 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Unlock |
| 820-08-780-KIT | Service Set: 2018 32 29in 110-120 110X15QR F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-851-KIT | Service Set: 2018 32 29in 110-130 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 3 Position |
| 820-08-852-KIT | Service Set: 2018 32 26in and 27.5in 110-120 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 3 Position |
| 820-08-853-KIT | Service Set: 2018 32 26in and 27.5in 130-150 F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 3 Position |
| 820-08-856-KIT | Service Set: 2018 32 29in 110-120 110X15QR F-S FIT4 Remote Cart Assy Complete, E18, Black Ano, Push to Lock, U-Cup, 3 Position |

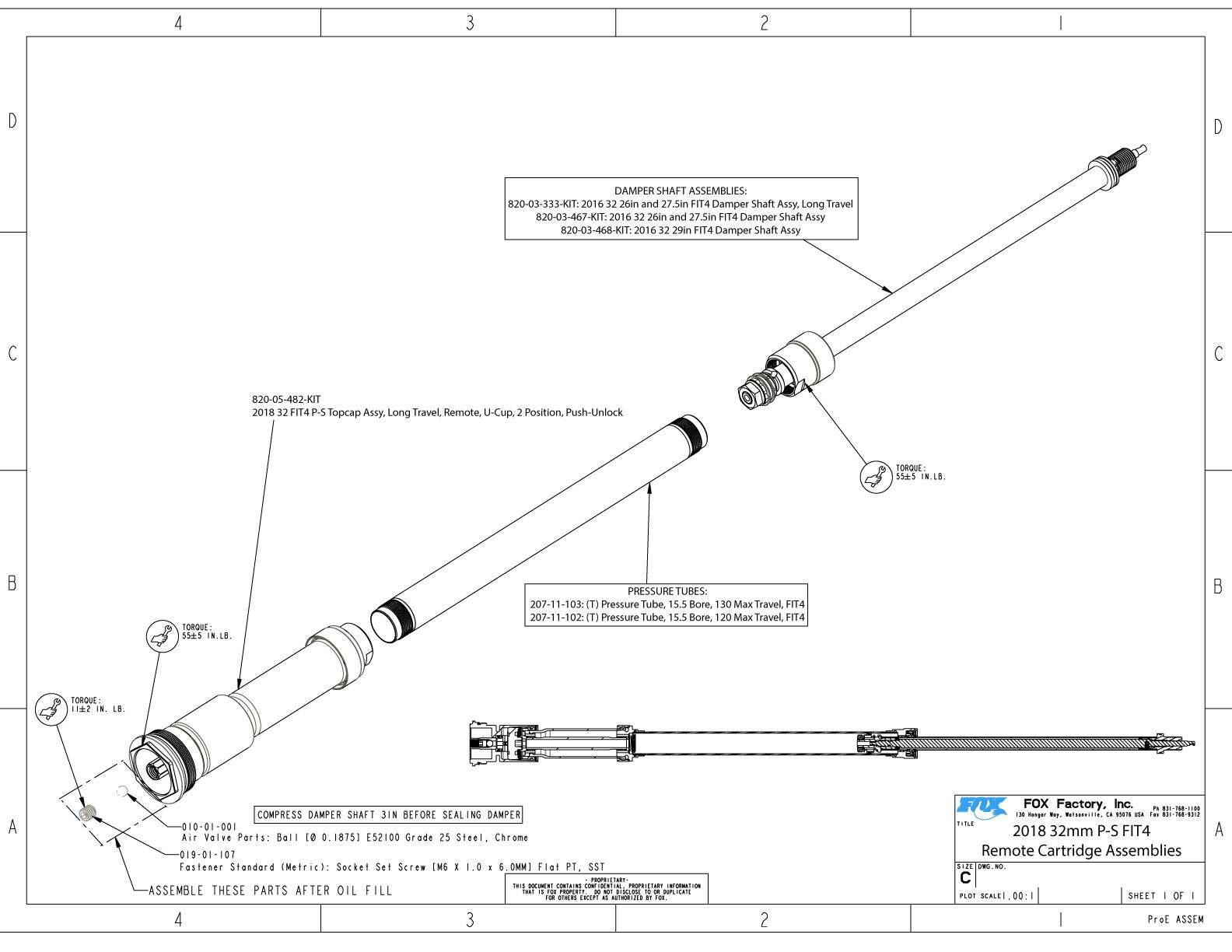

| 820-08-860-KIT | Service Set: 2018 32 29in 110-130 P-S FIT4 Remote Cart Assy Complete, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-861-KIT | Service Set: 2018 32 26in and 27.5in 110-120 P-S FIT4 Remote Cart Assy Complete, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-862-KIT | Service Set: 2018 32 26in and 27.5in 130-150 P-S FIT4 Remote Cart Assy Complete, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-865-KIT | Service Set: 2018 32 29in 110-120 110X15QR P-S FIT4 Remote Cart Assy Complete, Black Ano, Push to Unlock, U-Cup, 2 Position |
| 820-08-888-KIT | Service Set: 2018 32 29in 80-100 F-S FIT4 Remote Cart Assy Complete, VC49, Black Ano, Push to Lock, U-Cup, 3 Position |
| 820-08-889-KIT | Service Set: 2018 32 26in and 27.5in 80-100 F-S FIT4 Remote Cart Assy Complete, VC49, Black Ano, Push to Lock, U-Cup, 3 Position |

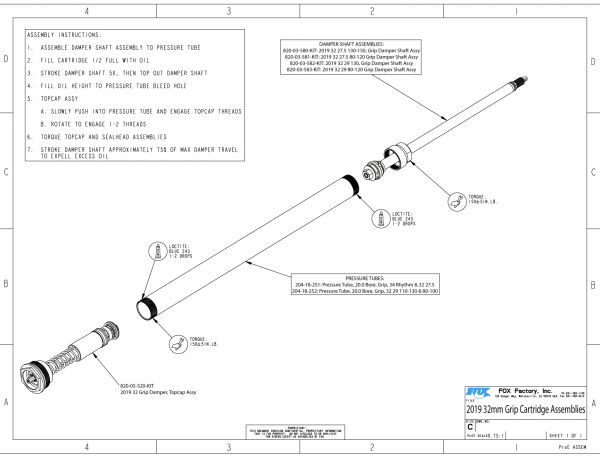

| 820-18-096-KIT | Service Set: 2019 32 27.5 130-150, Grip Cart Assy Complete |
| 820-18-097-KIT | Service Set: 2019 32 27.5 80-120, Grip Cart Assy Complete |
| 820-18-098-KIT | Service Set: 2019 32 29 130, Grip Cart Assy Complete |
| 820-18-099-KIT | Service Set: 2019 32 29 80-120, Grip Cart Assy Complete |
| 820-18-100-KIT | Service Set: 2019 32 29 130-150, 15X110, Grip Cart Assy Complete |
| 820-18-101-KIT | Service Set: 2019 32 29 80-120, 15X110 Grip Cart Assy Complete |
| 820-18-107-KIT | Service Set: 2019 32 Rhythm 29 80-120, QR9 & QR15X100, Grip Cart Assy Complete |
| 820-18-108-KIT | Service Set: 2019 32 Rhythm 27.5 80-120, QR9, Grip Cart Assy Complete |
| 820-18-109-KIT | Service Set: 2019 32 Rhythm 29 80-120, QR9, Grip Cart Assy Complete |

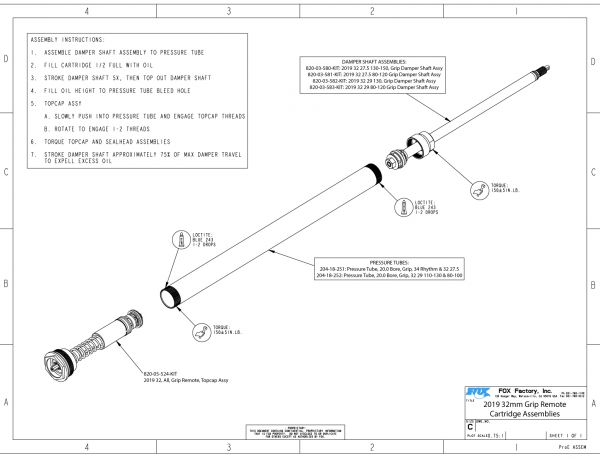

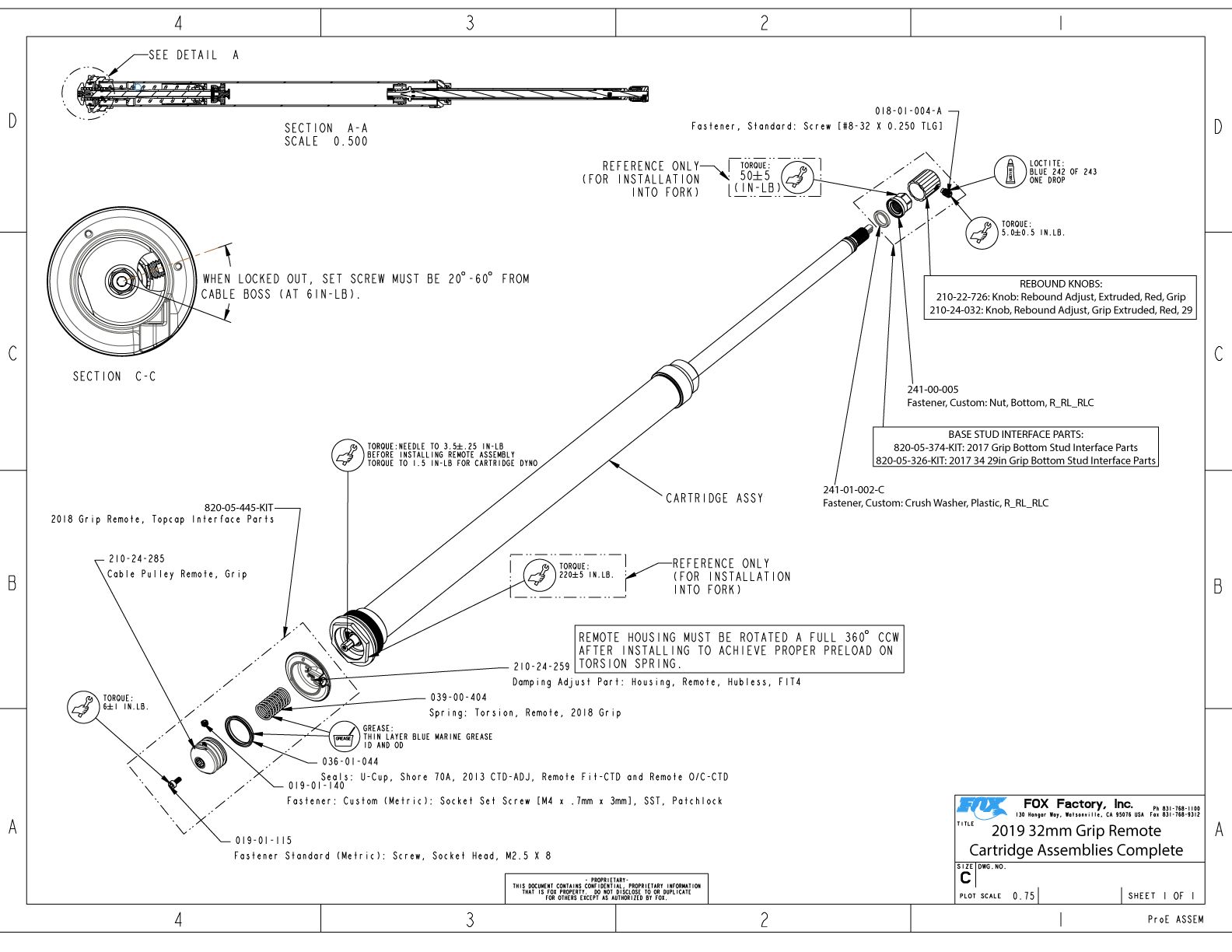

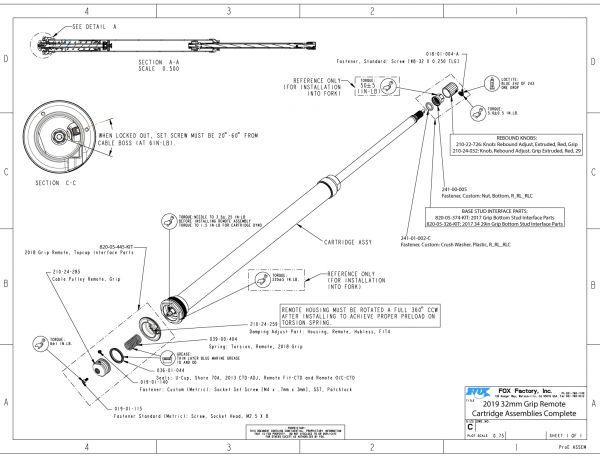

| 820-18-114-KIT | Service Set: 2019 32 27.5 130-150, Grip Remote Cart Assy Complete |
| 820-18-115-KIT | Service Set: 2019 32 27.5 80-120, Grip Remote Cart Assy Complete |
| 820-18-116-KIT | Service Set: 2019 32 29 130, Grip Remote Cart Assy Complete |
| 820-18-117-KIT | Service Set: 2019 32 29 80-120, Grip Remote Cart Assy Complete |
| 820-18-118-KIT | Service Set: 2019 32 29 130-150, 15X110 Grip Remote Cart Assy Complete |
| 820-18-119-KIT | Service Set: 2019 32 29 80-120, 15X110 Grip Remote Cart Assy Complete |
| 820-18-125-KIT | Service Set: 2019 32 Rhythm 27.5 & 29 80-120, QR15X110, Grip Remote Cart Assy Complete |
| 820-18-126-KIT | Service Set: 2019 32 Rhythm 27.5 80-120, QR9, Grip Remote Cart Assy Complete |
| 820-18-127-KIT | Service Set: 2019 32 Rhythm 29 80-120, QR9, Grip Remote Cart Assy Complete |

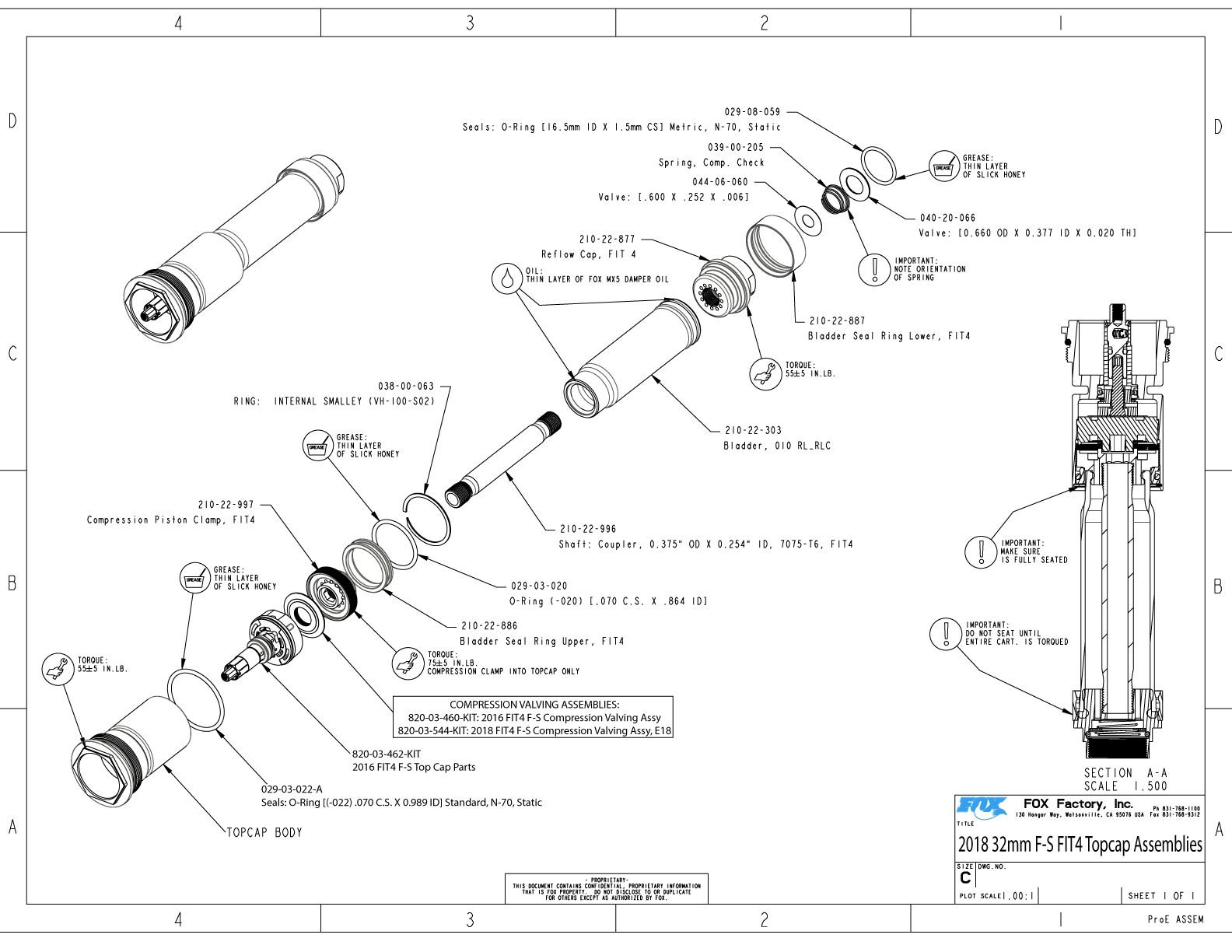

Cartridge Topcap Assemblies
| Part | Description |
| 820-05-463-KIT | 2018 32 FIT4 F-S Topcap Assy, Long Travel, Remote, U-Cup, 3 Position |
| 820-05-486-KIT | 2018 32 FIT4 F-S Topcap Assy, Long Travel, Remote, U-Cup, 2 Position, Push-Unlock |
| 820-05-450-KIT | 2018 32 FIT4 F-S Topcap Assy, Long Travel, Remote, U-Cup, 2 Position, Push-Lock |
| 820-05-424-KIT | 2018 32 FIT4 F-S Topcap Assy, Long Travel, E18, Black Ano |
| 820-05-524-KIT | Service Set: 2019 32, All, Grip Remote, Topcap Assy |
Damper Topcap Interface Parts
| Part | Description |
| 820-05-330-KIT | 2016 FIT4 TopCap Interface Parts F-S |
| 820-05-460-KIT | Service Set: 2018 Grip P-S 32 Topcap Interface Parts |
| 820-05-461-KIT | Service Set: 2018 Grip 32 Rhythm Topcap Interface Parts |
| 820-05-456-KIT | 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-455-KIT | 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |

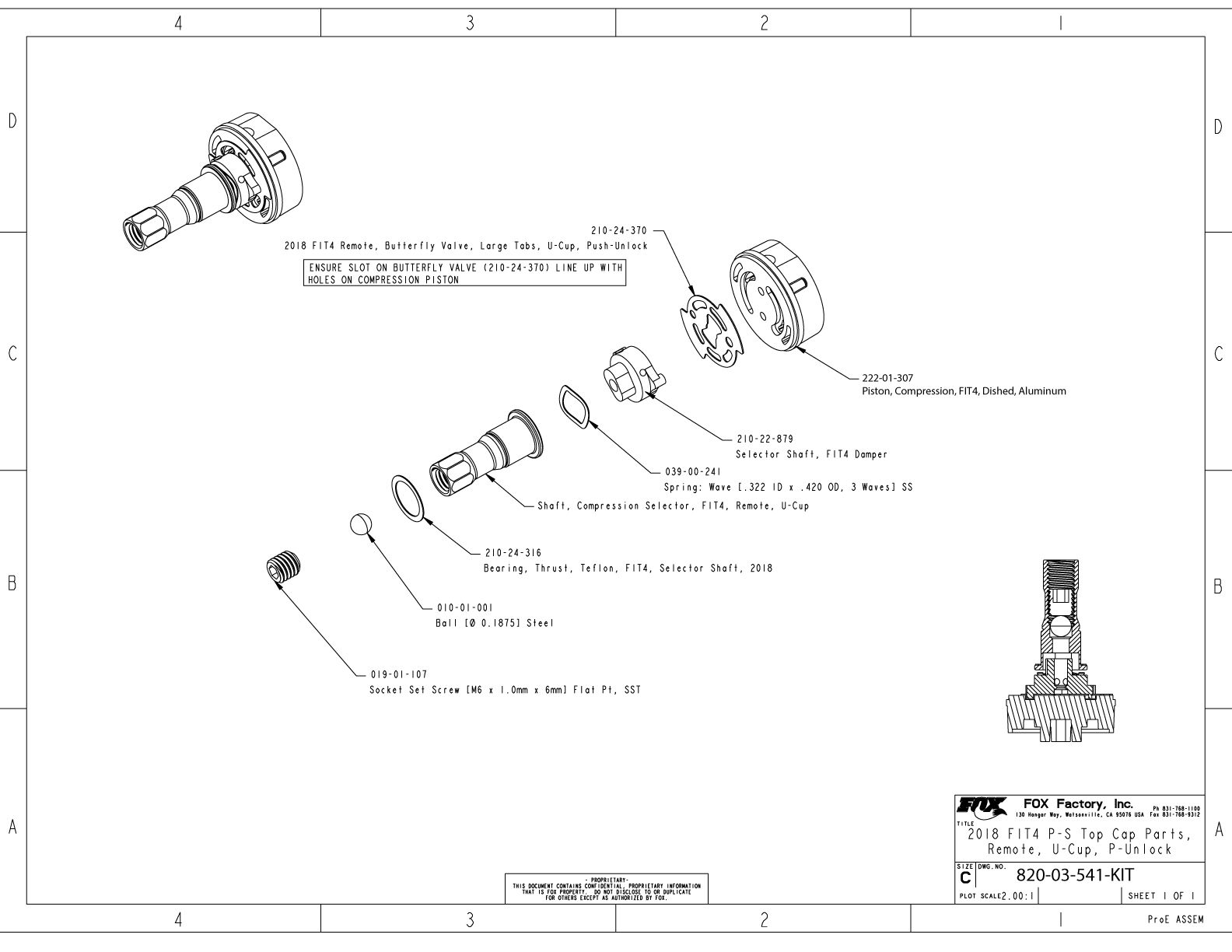

| 820-05-473-KIT | 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Unlock |
| 820-05-474-KIT | 2018 FIT4 TopCap Interface Parts P-S Remote, U-Cup, Push-Lock |
| 820-05-445-KIT | 2018 Grip Remote, Topcap Interface Parts |
Remote Levers
| Part | Desciption |
| 820-07-150 | 2018 Remote Lockout 2 Position Dual Pull |
| 820-07-151 | 2018 Remote Lockout 2 Position Single Pull |
Damper Bottom Stud Interface Parts
| Part | Description |
| 820-05-334-KIT | 2016 FIT4 Bottom Stud Interface Parts 32 |
| 820-05-381-KIT | 2016 FIT4 Bottom Stud Interface Parts 32 29in 15x110QR |
| 820-05-326-KIT | 2017 34 29in Grip Bottom Stud Interface Parts |
| 820-05-374-KIT | 2017 Grip Bottom Stud Interface Parts |
FLOAT NA2 Air Shaft Assemblies
| Part | Description |
| 820-02-416-KIT | Air Shaft Assy, 2018, 32, 26in & 27.5 130mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-417-KIT | Air Shaft Assy, 2018, 32, 26in & 27.5 140mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-418-KIT | Air Shaft Assy, 2018, 32, 26in & 27.5 150mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-422-KIT | Air Shaft Assy, 2018, 32, 26in & 27.5in 100mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-423-KIT | Air Shaft Assy, 2018, 32, 26in & 27.5in 110mm, 29in 80mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-424-KIT | Air Shaft Assy, 2018, 32, 26in & 27.5in 120mm, 29in 90mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-425-KIT | Air Shaft Assy, 2018, 32, 29in 100mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-427-KIT | Air Shaft Assy, 2018, 32, 29in 120mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-407-KIT | Air Shaft Assy, FLOAT, 2018 32 Rhythm 100 |
| 820-02-406-KIT | Air Shaft Assy, FLOAT, 2018 32 Rhythm 110 |
| 820-02-404-KIT | Air Shaft Assy, FLOAT, 2018 32 Rhythm 120 |
FLOAT NA2 Topcap Assemblies
| Part | Description |

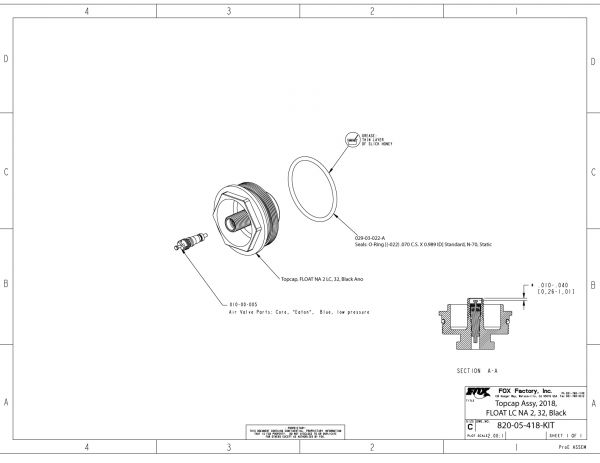

| 820-05-418-KIT | Topcap Assy, 2018, FLOAT LC NA 2, 32, Black |
| 820-05-430-KIT | Topcap Assy, FLOAT LC NA 2, 32, Black Ano, Hollow Volume Spacer, 22cc |
| 820-05-431-KIT | Topcap Assy, FLOAT LC NA 2, 32, Black Ano, Hollow Volume Spacer, 33cc |
| 820-05-432-KIT | Topcap Assy, FLOAT LC NA 2, 32, Black Ano, Hollow Volume Spacer, 48cc |
FLOAT NA2 Neg Plate Subassemblies
| Part | Description |
| 820-02-411-KIT | Neg Plate Subassembly, 2018 FLOAT LC NA 2, 32, Long Travel, 1.110 Bore |
| 820-02-409-KIT | Neg Plate Subassembly, 2018 FLOAT LC NA 2, 32, Short Travel, 1.110 Bore |
| 820-02-405-KIT | Neg Plate Subassembly, FLOAT, 2018 32 Rhythm |
2019 32mm F-S FIT4 Cartridge Assemblies
- 2018 32mm F-S FIT4 Cartridge Assemblies Complete .
- 2018 32mm F-S FIT4 Cartridge Assemblies .
- 2018 32mm F-S FIT4 Topcap Assemblies .
- 2018 32mm F-S FIT4 Damper Shaft Assemblies .
- 820-03-460-KIT 2016 FIT4 F-S Compression Valving
- 820-03-462-KIT 2016 FIT4 F-S Topcap Parts
- 820-03-464-KIT Sealhead Assy 2016 FIT4
- 820-03-465-KIT Rebound Piston Assy 2016 FIT4
- 820-03-486-KIT Rebound Piston Assy 2016 FIT4, Short Travel
- 820-03-544-KIT 2018 FIT4 F-S Compression Valving Assy E18
2019 32mm F-S FIT4 Remote Cartridge Assemblies
- 2018 32mm F-S FIT4 Remote Cartridge Assemblies Complete .
- 2018 32mm F-S FIT4 Remote Cartridge Assemblies .
- 2018 32mm F-S FIT4 Remote Topcap Assemblies .
- 2018 32mm F-S FIT4 Remote Topcap Parts .
- 2018 32mm F-S FIT4 Remote Damper Shaft Assemblies .
- 820-03-464-KIT Sealhead Assy 2016 FIT4
- 820-03-465-KIT Rebound Piston Assy 2016 FIT4
- 820-03-486-KIT Rebound Piston Assy 2016 FIT4, Short Travel
- 820-03-522-KIT 2017 FIT4 SC Compression Valving Assy, VC49
- 820-03-544-KIT 2018 FIT4 F-S Compression Valving Assy E18
2019 32mm P-S FIT4 Remote Cartridge Assemblies
- 2018 32mm P-S FIT4 Remote Cartridge Assemblies Complete .
- 2018 32mm P-S FIT4 Remote Cartridge Assemblies .

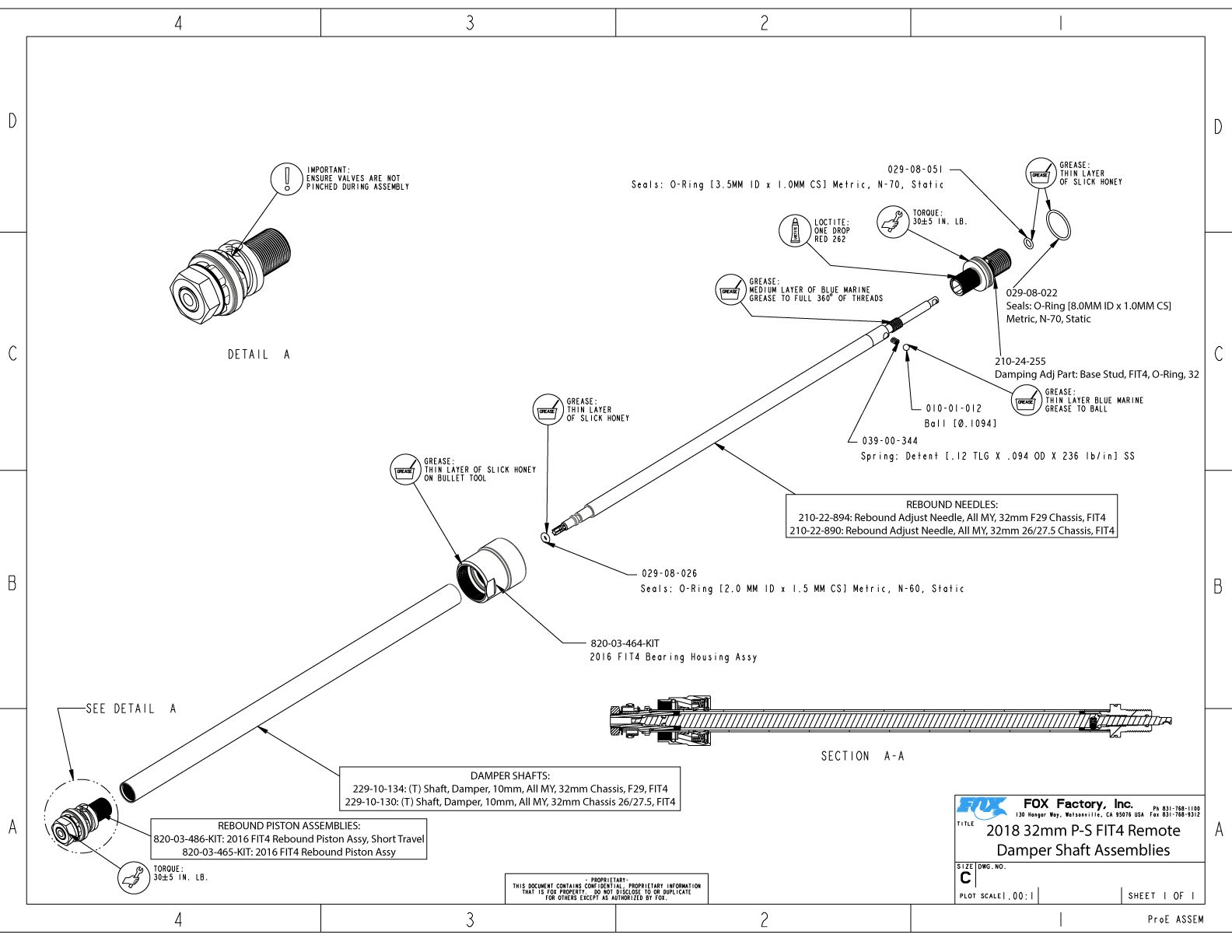

- 2018 32mm P-S FIT4 Remote Damper Shaft Assemblies .

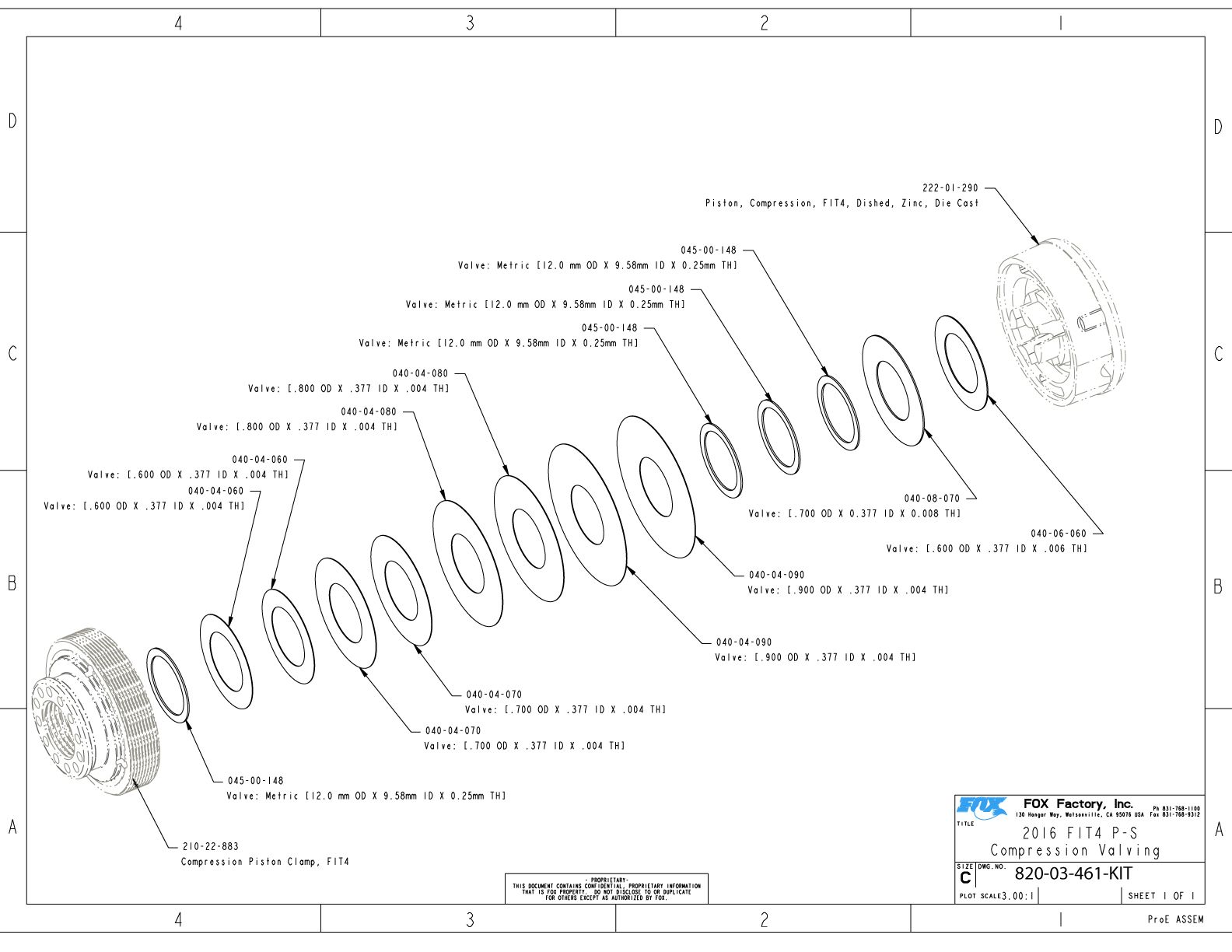

- 820-03-461-KIT 2016 FIT4 P-S Compression Valving
- 820-03-464-KIT Sealhead Assy 2016 FIT4
- 820-03-465-KIT Rebound Piston Assy 2016 FIT4

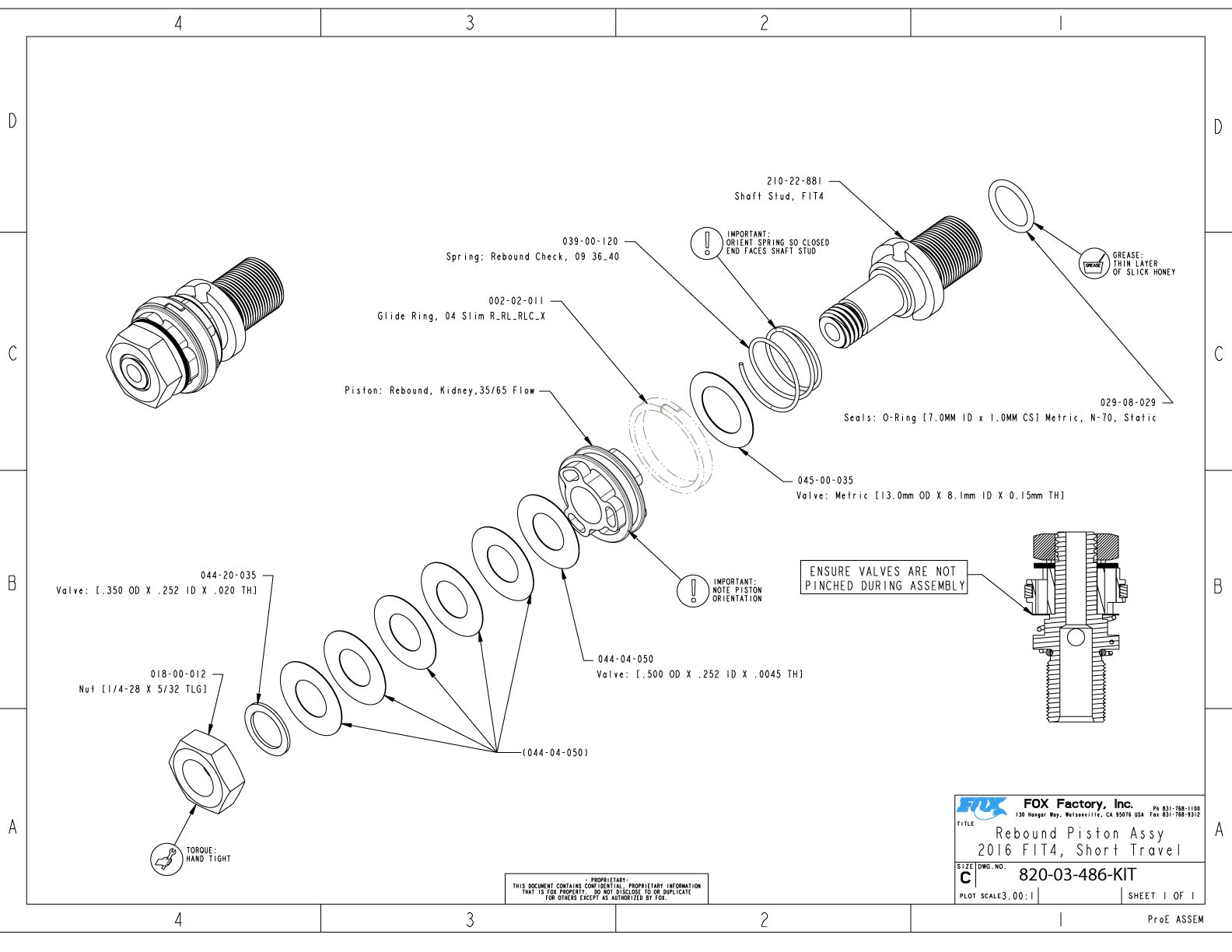

- 820-03-486-KIT Rebound Piston Assy 2016 FIT4, Short Travel
- 820-03-541-KIT 2018 FIT4 P-S Topcap Parts, Remote, U-Cup, Push-to-Unlock
- 820-05-482-KIT 2018 32 FIT4 P-S Topcap Assy, Long Travel, Remote, U-Cup, 2 Position, Push-Unlock
2019 32mm Grip Cartridge Assemblies
- 2019 32mm Grip Cartridge Assemblies Complete .
- 2019 32mm Grip Cartridge Assemblies .

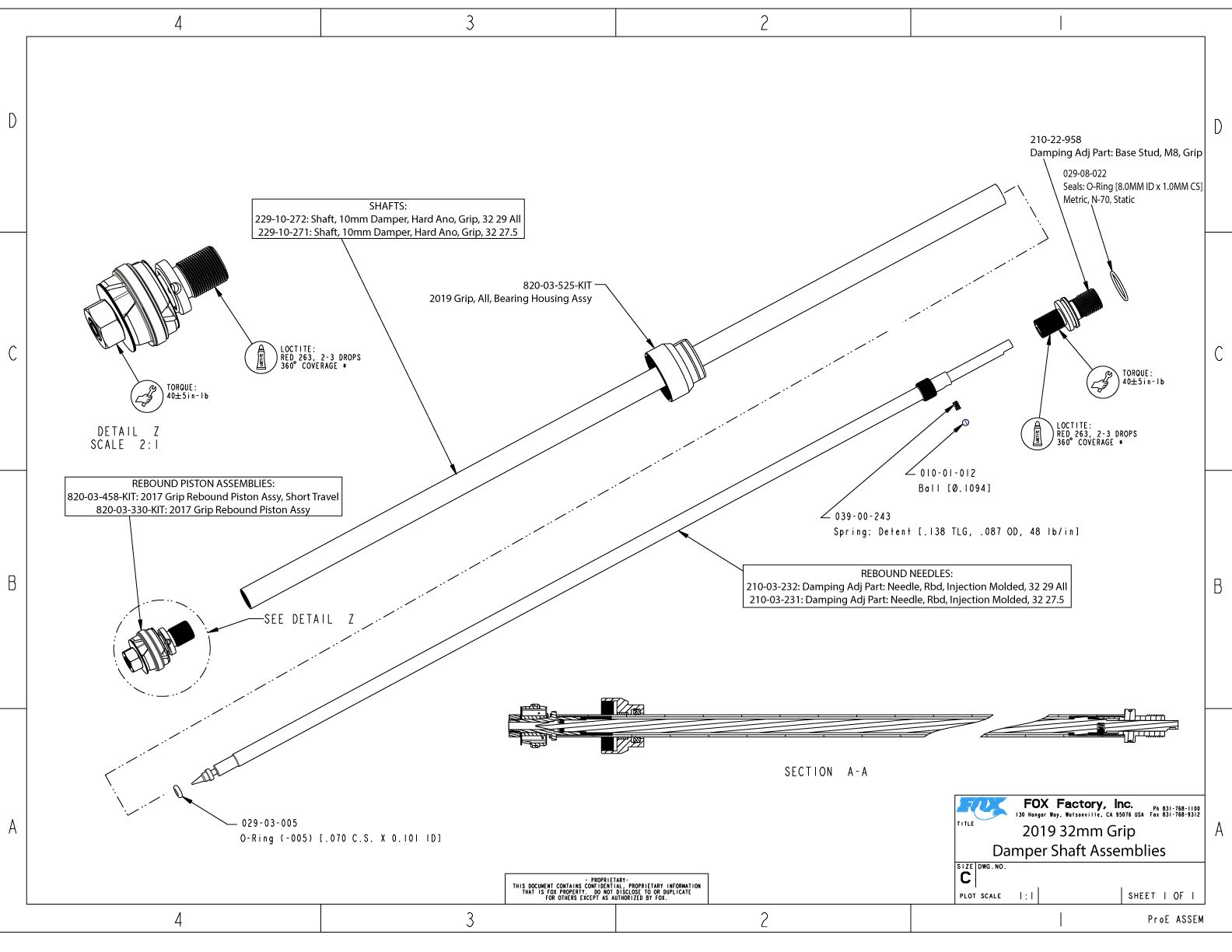

- 2019 32mm Grip Damper Shaft Assemblies .
- 820-03-330-KIT 2017 Grip Rebound Piston Assy
- 820-03-331-KIT Compression Valving, Grip Damper

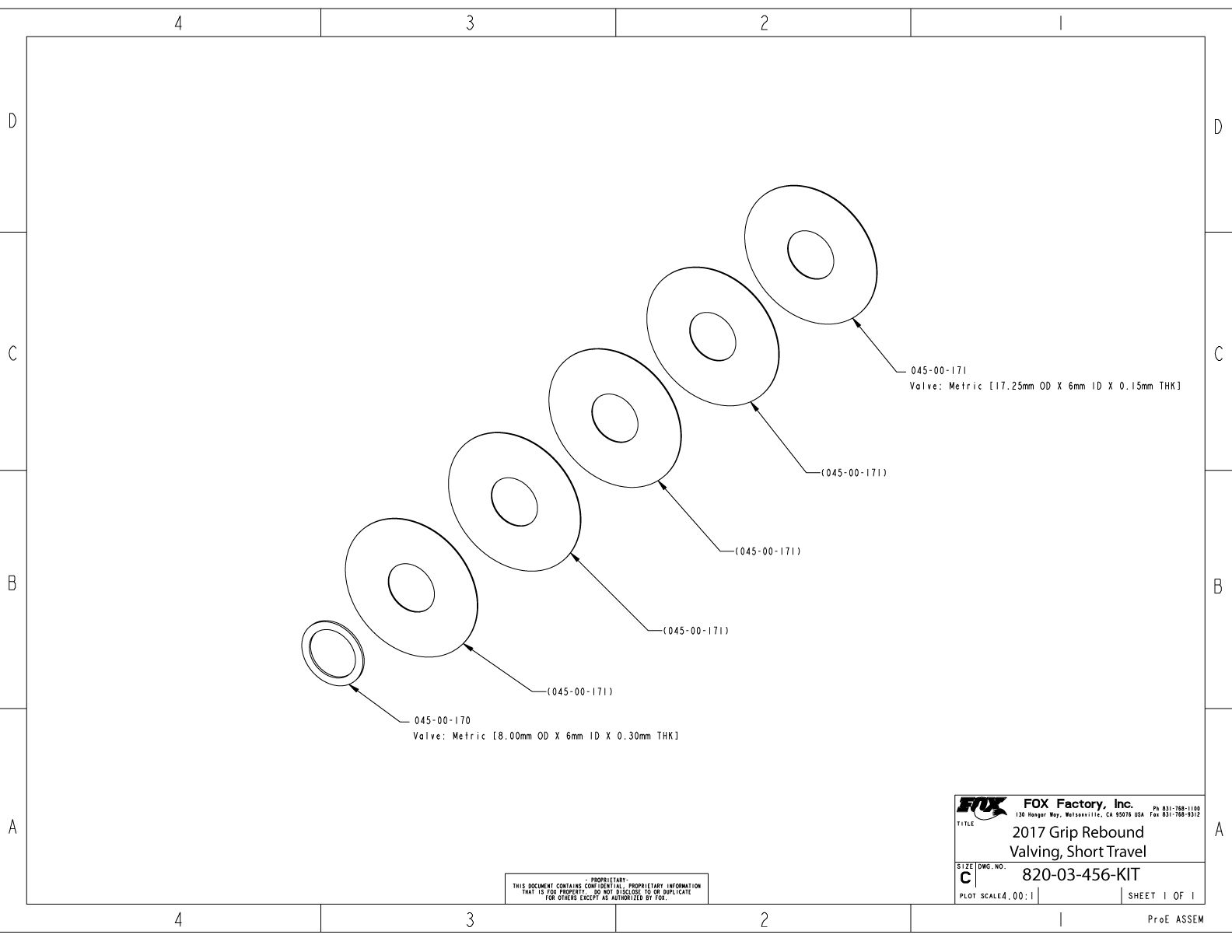

- 820-03-456-KIT 2017 Grip Rebound Valving, Short Travel
- 820-03-457-KIT 2017 Grip Rebound Valving, Long Travel

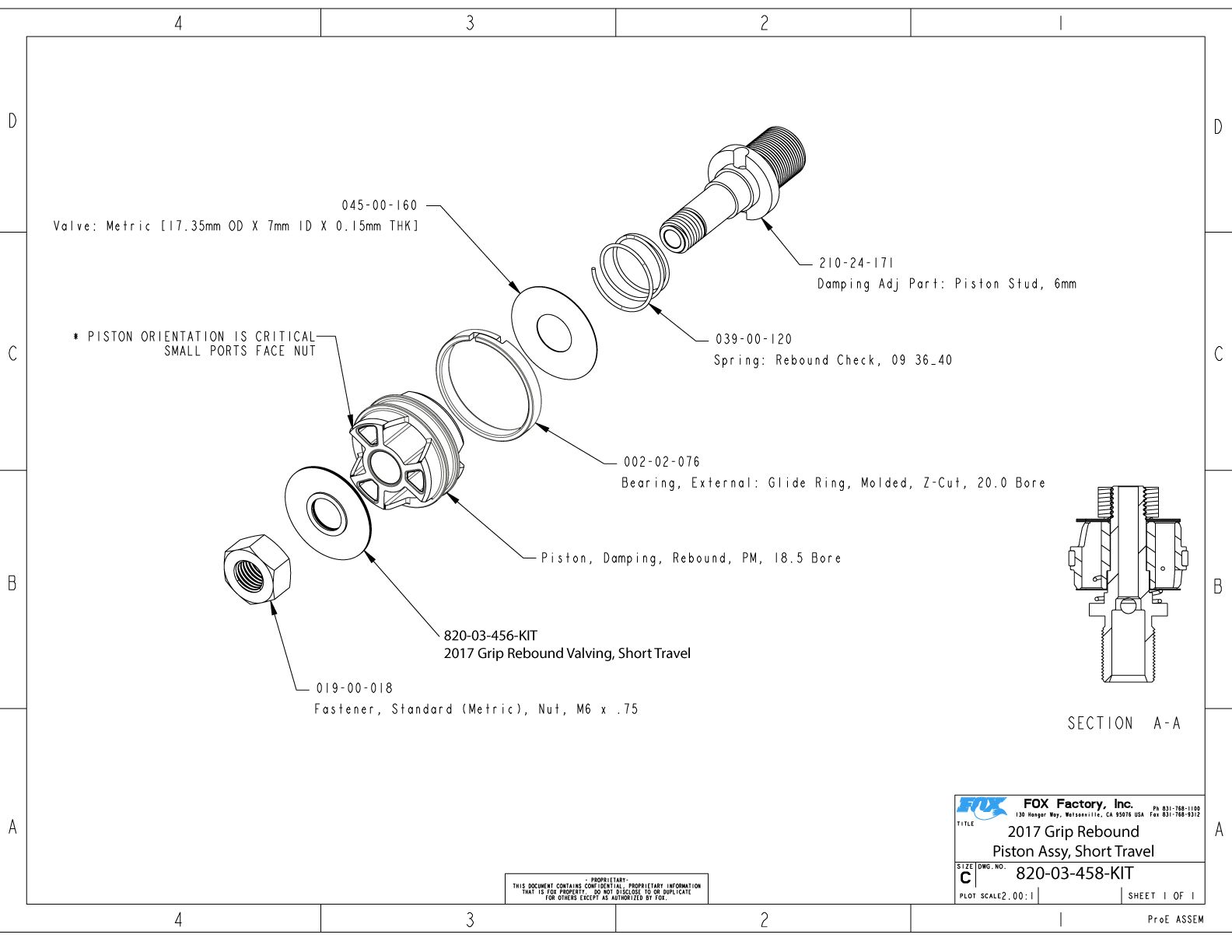

- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy

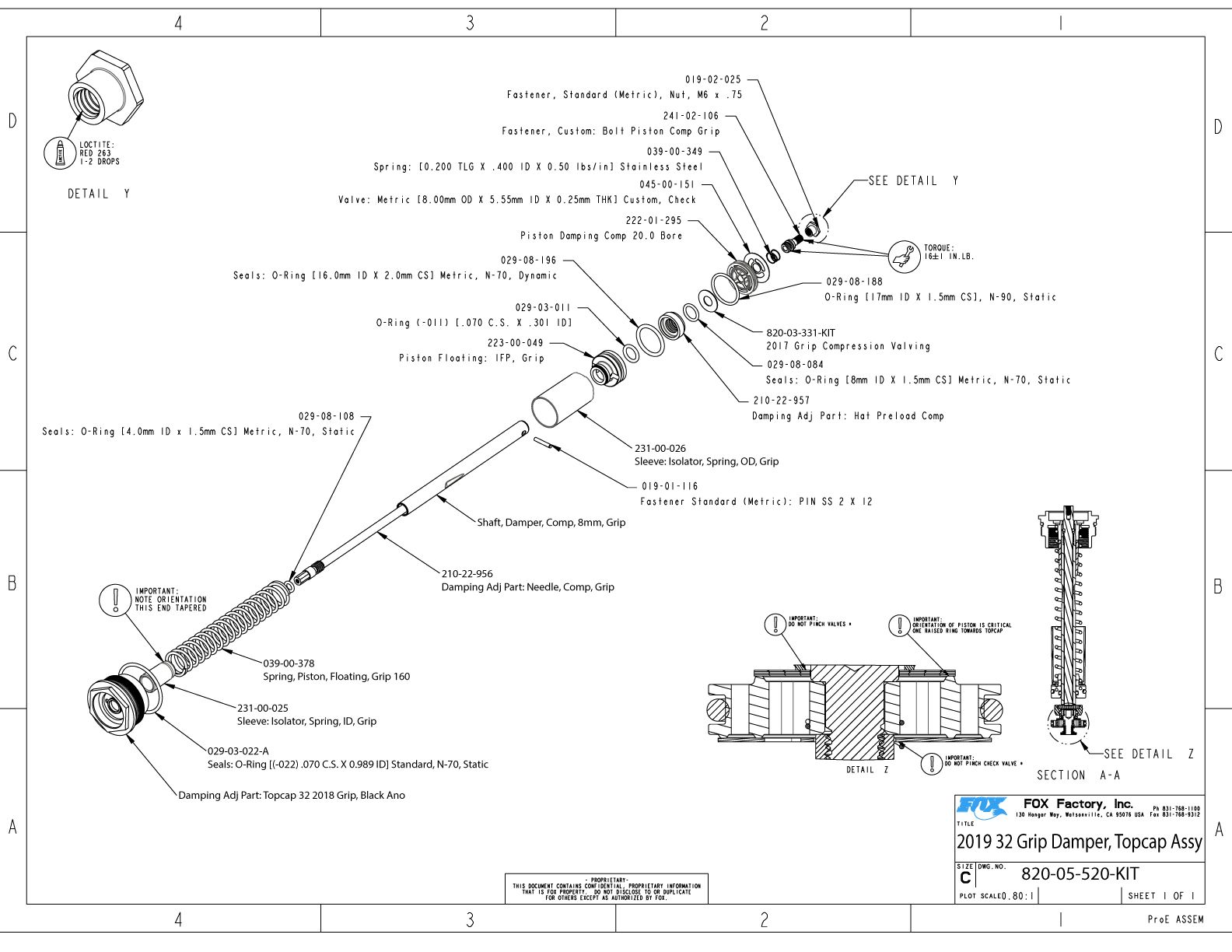

- 820-05-520-KIT 2019 32 Grip Damper, Topcap Assy
2019 32mm Grip Remote Cartridge Assemblies
- 2019 32mm Grip Remote Cartridge Assemblies Complete .
- 2019 32mm Grip Remote Cartridge Assemblies .

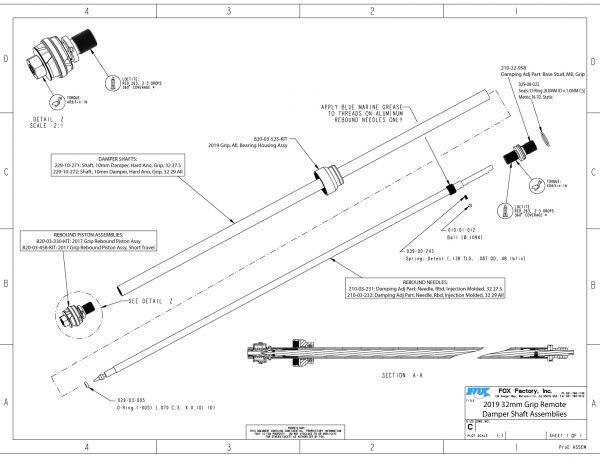

- 2019 32mm Grip Remote Damper Shaft Assemblies .
- 820-03-330-KIT 2017 Grip Rebound Piston Assy

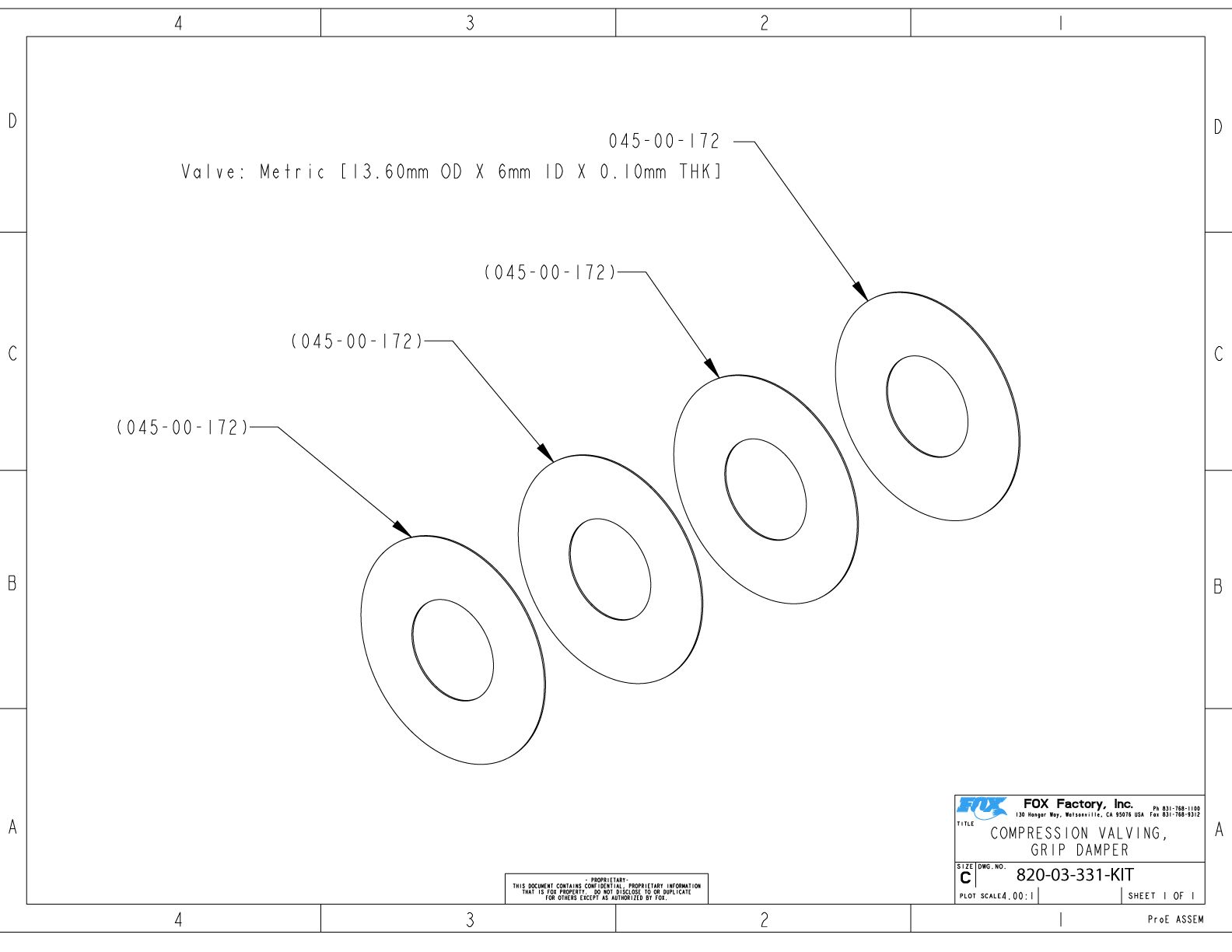

- 820-03-331-KIT Compression Valving, Grip Damper
- 820-03-456-KIT 2017 Grip Rebound Valving, Short Travel

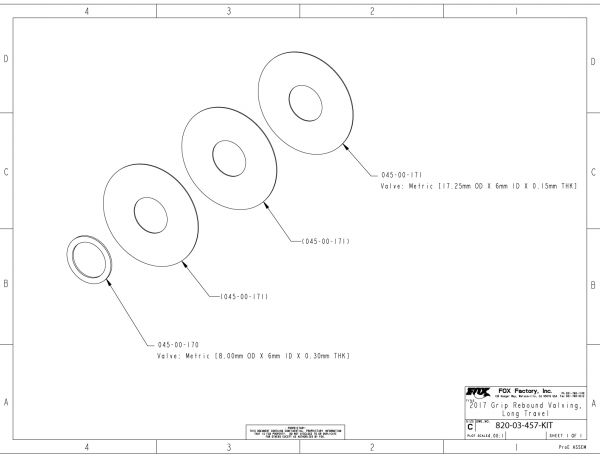

- 820-03-457-KIT 2017 Grip Rebound Valving, Long Travel

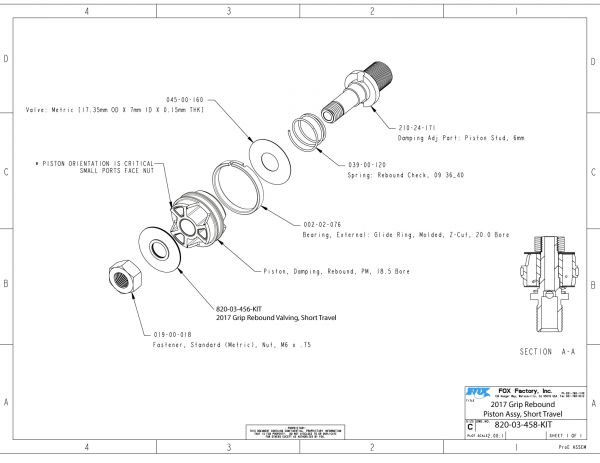

- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel

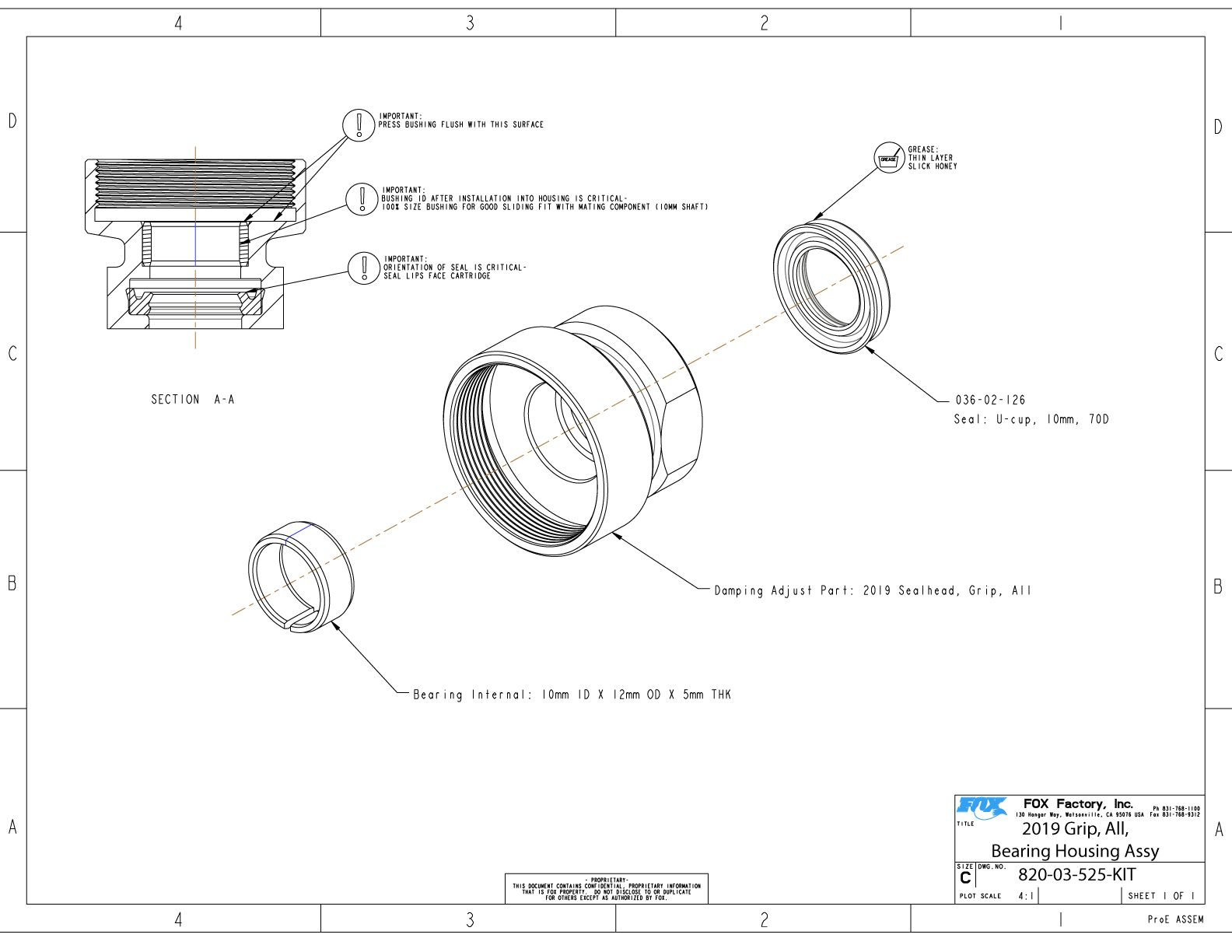

- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-05-524-KIT 2019 32, All, Grip Remote, Topcap Assy
2019 32mm Rhythm Grip Cartridge Assemblies
- 2019 32mm Rhythm Grip Cartridge Assemblies Complete .
- 2019 32mm Rhythm Grip Cartridge Assemblies .
- 2019 32mm Rhythm Grip Damper Shaft Assemblies .
- 820-03-330-KIT 2017 Grip Rebound Piston Assy
- 820-03-456-KIT 2017 Grip Rebound Valving, Short Travel
- 820-03-457-KIT 2017 Grip Rebound Valving, Long Travel
- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-05-520-KIT 2019 32 Grip Damper, Topcap Assy
2019 32mm FLOAT Air Spring Assemblies
- 2019 32mm FLOAT Air Spring Assemblies .
- 2019 32mm FLOAT Air Shaft Assemblies .
- Neg Plate Subassemblies, 2018 FLOAT LC NA2 32, 1.110 Bore .
- 820-05-418-KIT Topcap Assy, 2018, FLOAT LC NA2, 32, Black
2019 32mm Rhythm FLOAT Air Spring Assemblies

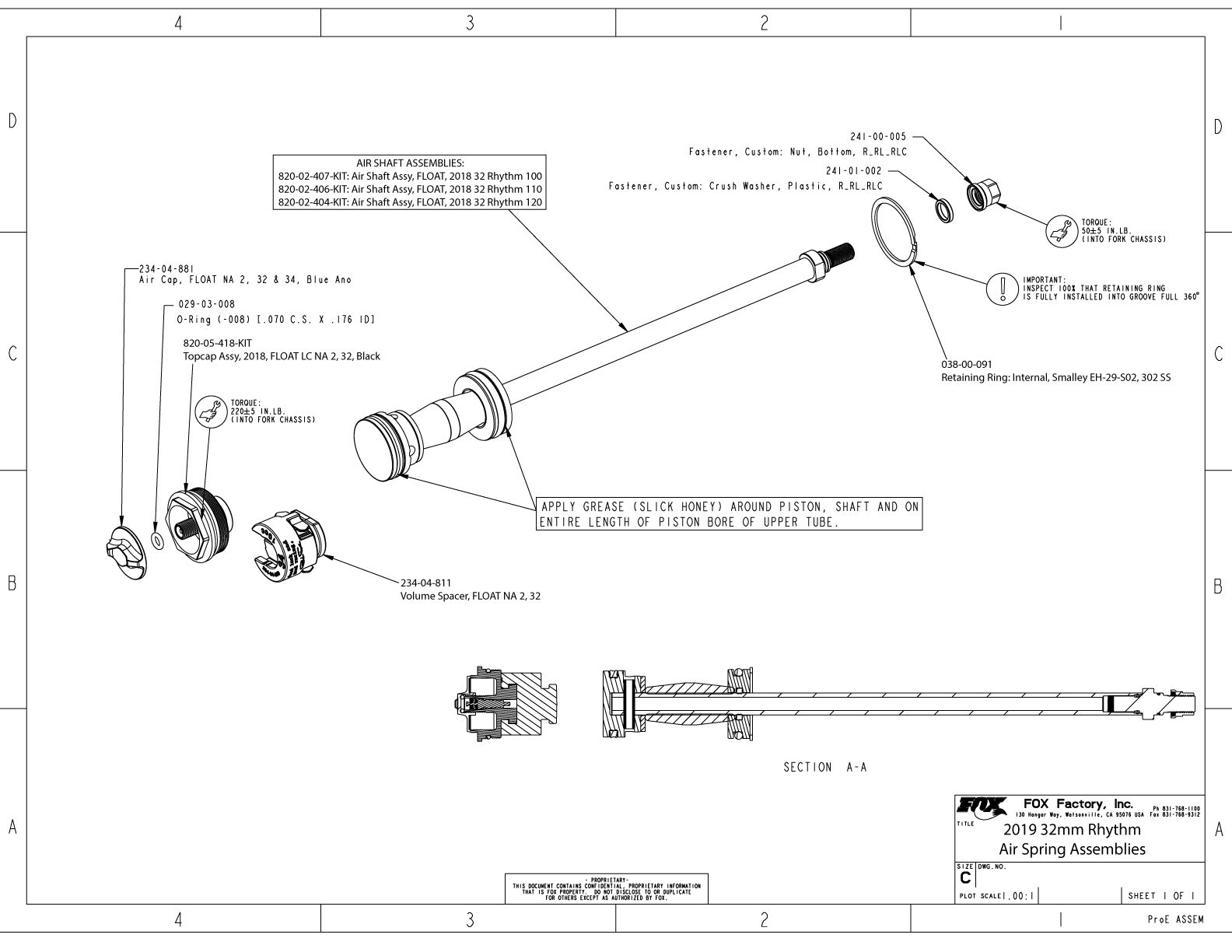

- 2019 32mm Rhythm Air Spring Assemblies .
- 2019 32mm Rhythm Air Shaft Assemblies .

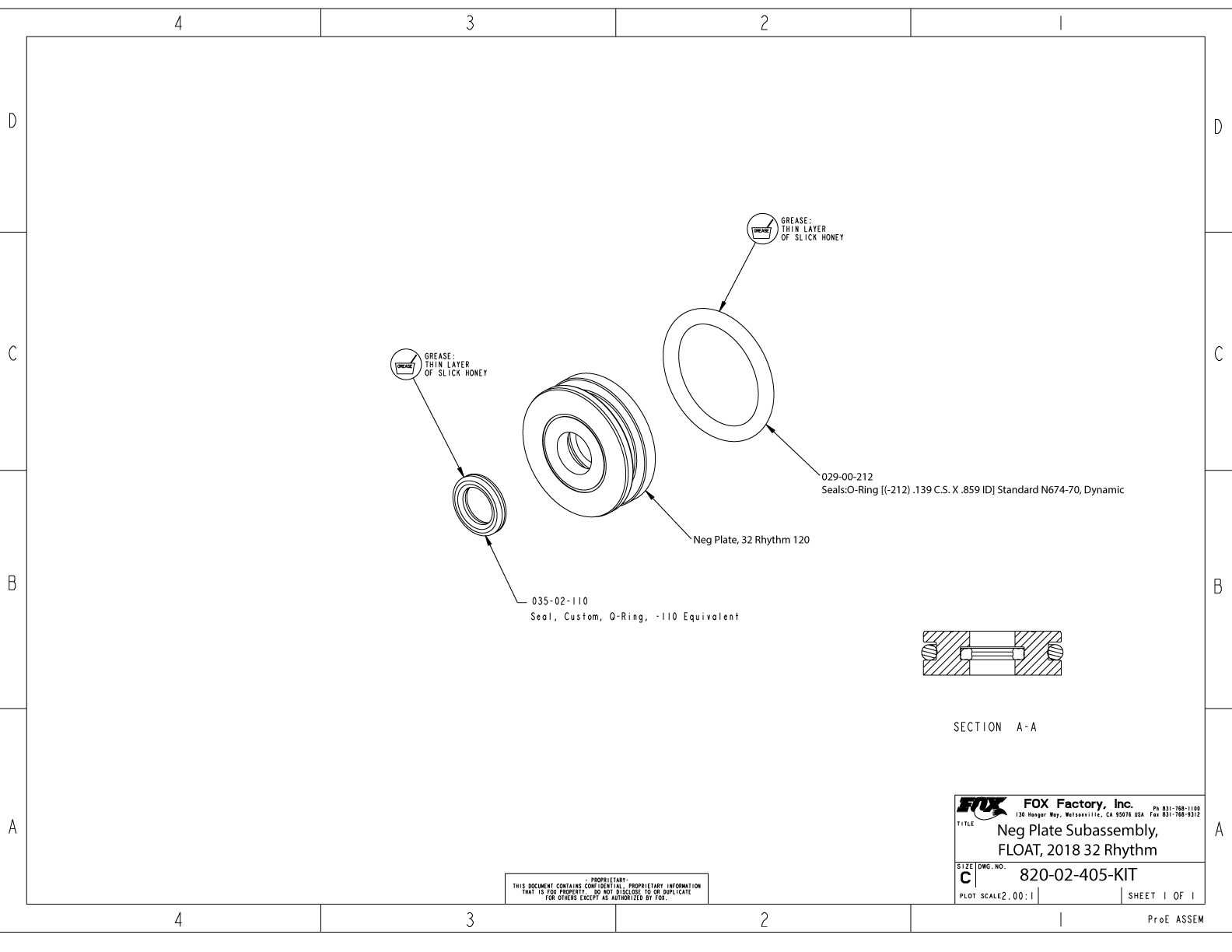

- 820-02-405-KIT Neg Plate Subassembly, FLOAT, 2018 32 Rhythm
- 820-05-418-KIT Topcap Assy, 2018, FLOAT LC NA2, 32, Black
2019 32mm F-S FIT4 Cartridge Assemblies
2019 32mm F-S FIT4 Remote Cartridge Assemblies
2019 32mm P-S FIT4 Remote Cartridge Assemblies
