PARTS & DRAWINGS

FLOAT DPX2 Part Information



New for 2018:

All new shock for MY18 All new oil recuirculating rear shock that replaced FLOAT X shocks
Remote version Coming for MY19
Trunnion Eyelets with Short Air Valve Option F-S and P-S Trunnion eyelet assemblies available with short tank valves for increased frame clearance.



Maintenance Information:

Service Interval Full Service 125 Hours
803-00-142 Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring
398-00-761 Tooling: DPX2, REB Cap Driver
398-00-763 Tooling: DPX2, Base Valve Driver
398-00-764 Tooling: DPX2, Bullet Tool
803-01-351 Kit: Tooling: Clamps, DPS, DPX2, Piston Band Sizer
803-04-011 Seal Kit: FLOAT DPX2 Rebuild, Gen2



Air Spring Tuning Information:

803-01-251 Kit: FLOAT FLOAT X/DPX2 (1/2" Shaft) Air Volume Tuning Kit



Oil Information:

Damper Oil* 025-06-006 Oil: Suspension Fluid [250 ml. ] R3, 5WT, ISO 15
025-06-007 Oil: Suspension Fluid [1.00 Quart] R3, 5WT, ISO 15
Air Chamber 025-03-002-A Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack
025-03-003-A Oil: AM, FOX FLOAT Fluid [8 oz.]

*YT Bikes utilize FOX 10wt. Green oil (PN: 025-03-008) as the damper oil for DPX2 shocks.



IFP Information:

IFP Height (1.75"/40mm to 2.50"/65mm in Travel) 1.500in +/- 0.050in
IFP Pressure 150psi +/- 10psi

DPX2 Part Information:



Size Specific Parts:

Shock Size Inner Shaft Outer Shaft Ano Sleeve Ano Body Kashima Sleeve Kashima Body
7.25 x 1.75 in 210-24-300 229-10-620     806-29-597-KIT 207-50-009
7.5 x 2.0 in 210-24-300 229-10-620 806-29-585-KIT 204-54-211 806-29-595-KIT 207-50-011
7.875 x 2.0 in 210-24-301 229-10-621 806-29-589-KIT 204-54-206 806-29-599-KIT 207-50-006
7.875 x 2.25 in 210-24-301 229-10-621 806-29-589-KIT 204-54-206 806-29-599-KIT 207-50-006
8.5 x 2.5 in 210-24-302 229-10-622 806-29-583-KIT 204-54-213 806-29-593-KIT 207-50-013
185 x 52.5 mm 210-24-304 229-10-624 806-29-581-KIT 204-54-232
205 x 62.5 mm 210-24-305 229-10-625 806-29-582-KIT 204-54-233
210 x 55 mm 210-24-304 229-10-624 806-29-601-KIT 204-54-237 806-29-611-KIT 207-50-037
230 x 65 mm 210-24-305 229-10-625 806-29-602-KIT 204-54-214 806-29-612-KIT 207-50-014



Eyelet Assemblies:

Part Number  Description
808-17-350-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj
808-17-377-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj, Trunnion
808-17-340-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos
808-17-376-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos, Trunnion
808-17-375-KIT Service Set: Eyelet Assy: FLOAT DPX2, Remote
808-17-393-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, Remote, Trunnion

 ***NOTE: FLOAT DPX2 Eyelet Assemblies come without Base Valve Assemblies so you can choose the Base Valve Tune. Base Valve Assemblies must be ordered separately to assemble a complete eyelet***



Damping Adjust Assemblies:

815-02-069-KIT Damping Adj Assy: DPX2, Base Valve, F-S, AFF
815-02-071-KIT Damping Adj Assy: DPX2, Base Valve, P-S, MFM
815-02-084-KIT Damping Adj Assy: DPX2, Base Valve, F-S, AFM
815-02-085-KIT Damping Adj Assy: DPX2, Base Valve, P-S, MFF
815-02-170-KIT Damping Adj Assy: DPX2, Base Valve, F-S, AFM+
815-02-171-KIT Damping Adj Assy: DPX2, Base Valve, P-S, LFF

***NOTE: DPX2 Base Valve Assemblies should be considered non-servicable and should be replaced if needed.***



Positive Volume Spacer Kit:

803-01-251 Kit: FLOAT FLOAT X/DPX2 (1/2" Shaft) Air Volume Tuning Kit



Negative Volume Spacers:

233-00-321 Volume Spacer: Negative, 2018, FLOAT, EVOL, .12 c.i., Light Red



Bearing Assemblies:

812-06-089-KIT Bearing Assy:  FLOAT, 2018, Short [.940 Bore, 1.500 Bore, .500in Shaft]
812-06-090-KIT Bearing Assy:  FLOAT, 2018, Tall [.940 Bore, 1.500 Bore, .500in Shaft]



Rebound Valve Stack Assemblies:

805-05-350-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Light, DRL
805-05-351-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Medium, DRM
805-05-352-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Xtra-Light, DRXL
805-05-353-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Firm, DRF

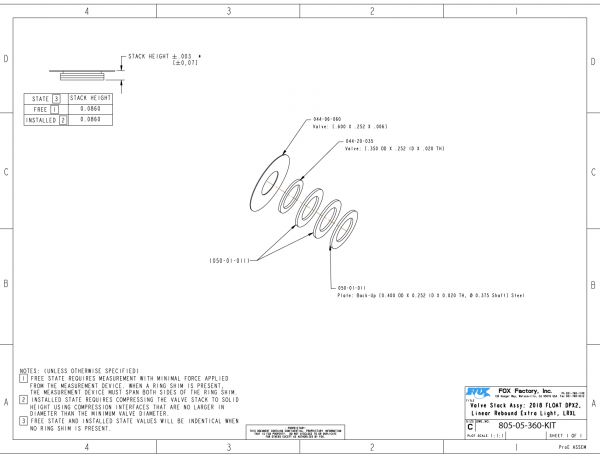

805-05-360-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Xtra-Light, LRXL
805-05-361-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Light, LRL

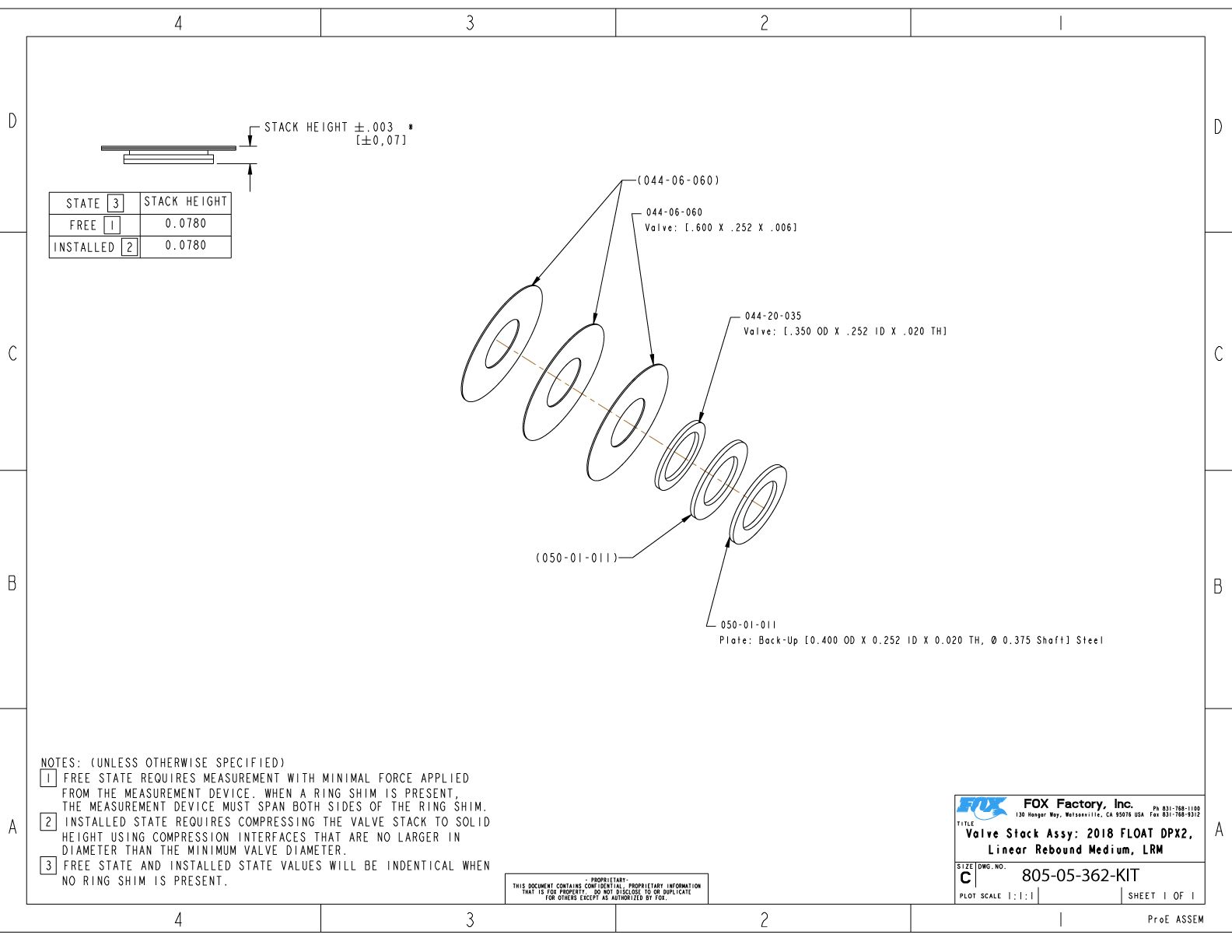

805-05-362-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Medium, LRM
805-05-363-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Firm, LRF
805-05-364-KIT Valve Stack Assy: 2018 Float DPX2, Rebound Light, RL

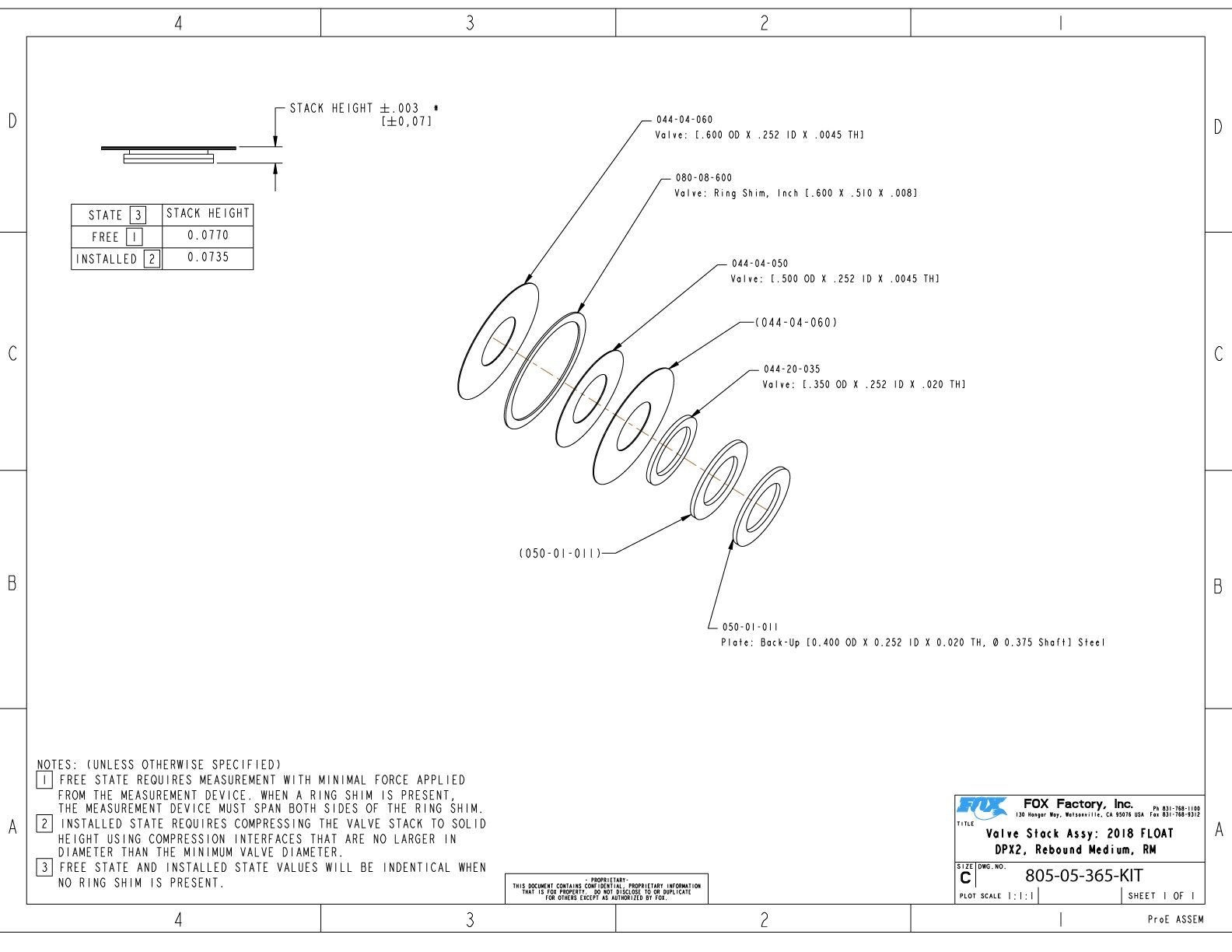

805-05-365-KIT Valve Stack Assy: 2018 Float DPX2, Rebound Medium, RM
805-05-366-KIT Valve Stack Assy: 2018 Float DPX2, Rebound Firm, RF
805-05-367-KIT Valve Stack Assy: 2018 Float DPX2, RLA014

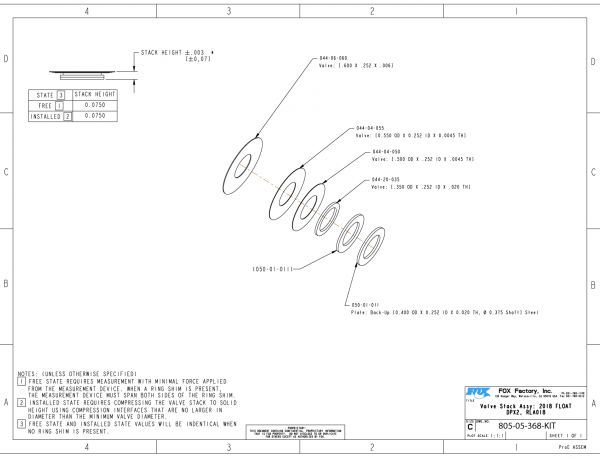

805-05-368-KIT Valve Stack Assy: 2018 Float DPX2, RLA018

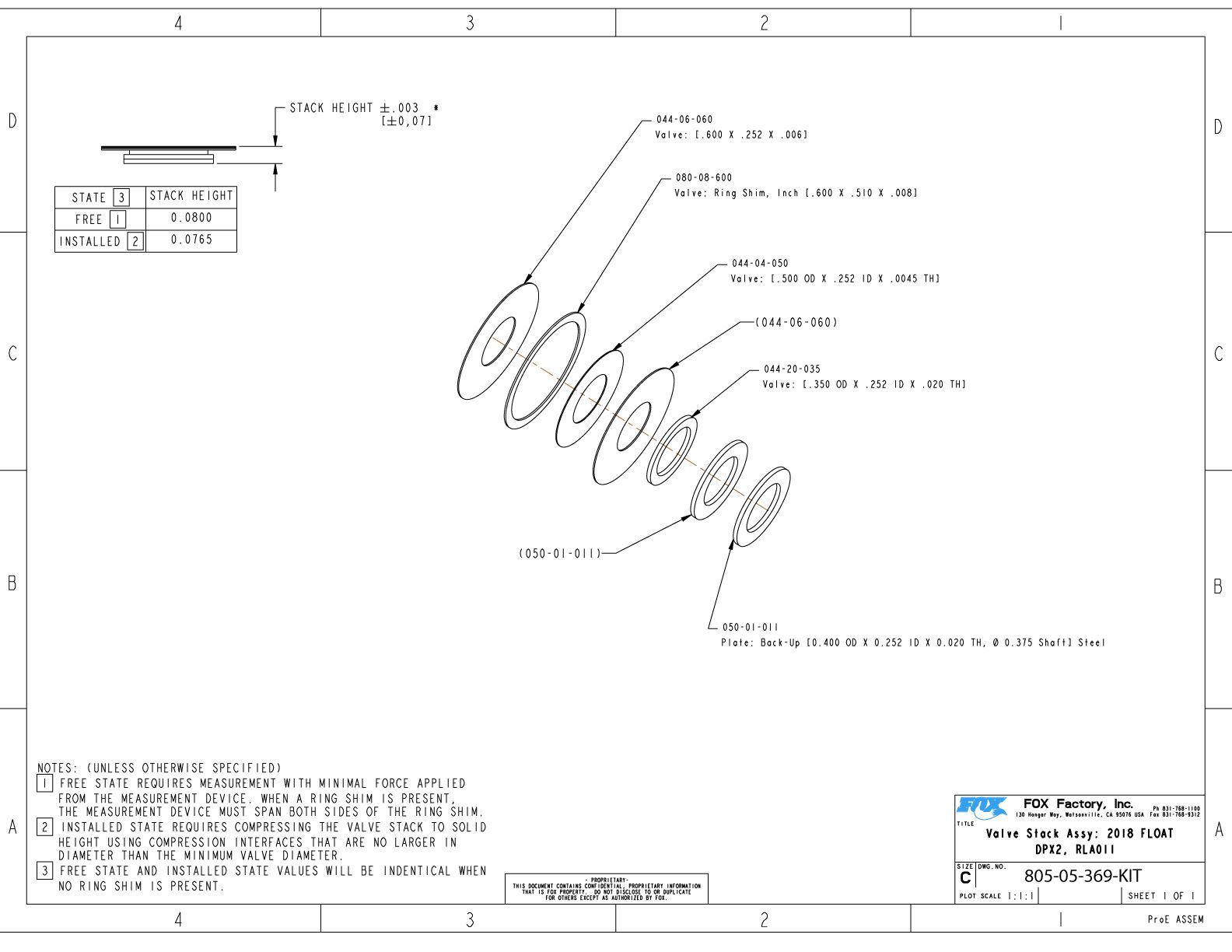

805-05-369-KIT Valve Stack Assy: 2018 Float DPX2, RLA011



Compression Valve Stack Assemblies:

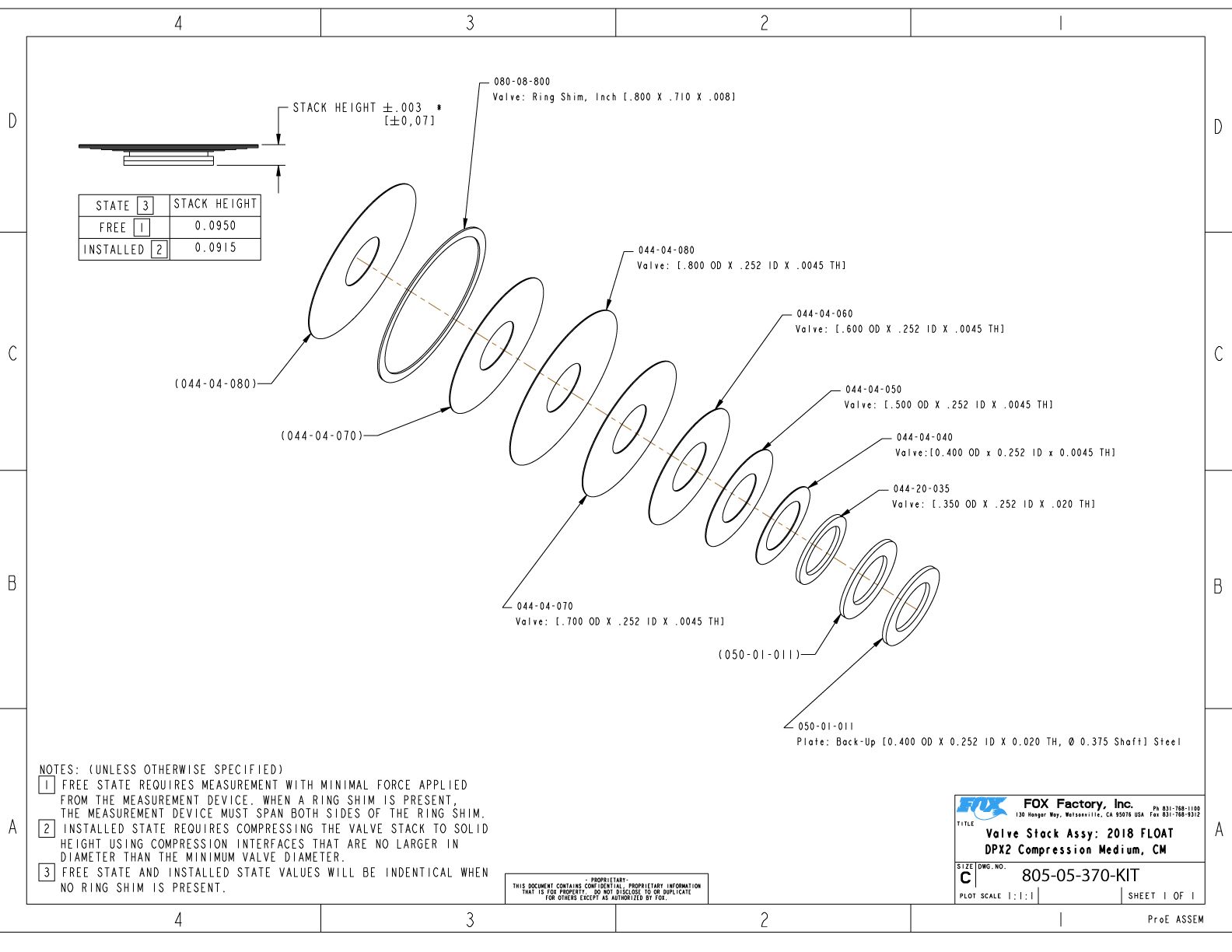

805-05-370-KIT Valve Stack Assy: 2018 Float DPX2, Compression Medium, CM

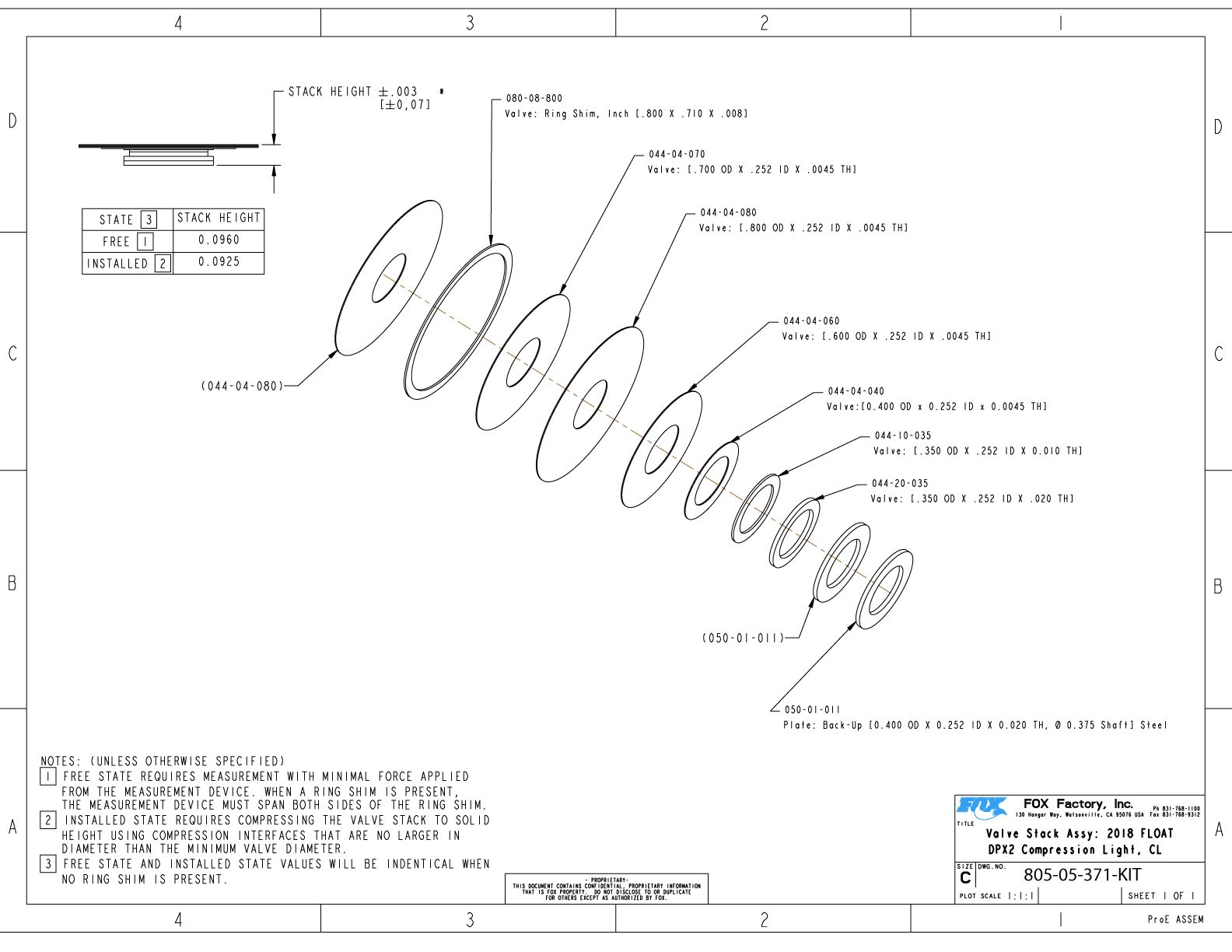

805-05-371-KIT Valve Stack Assy: 2018 Float DPX2, Compression Light, CL
805-05-372-KIT Valve Stack Assy: 2018 Float DPX2, CLA001
805-05-373-KIT Valve Stack Assy: 2018 Float DPX2, CEC001



Inner Shafts:

210-24-300 Damper Shaft, Inner,  DPX2, 7.5/7.25 X 2.0/1.75  [3.093 TLG]
210-24-301 Damper Shaft, Inner,  DPX2, 7.875 X 2.25/2.0 [3.343 TLG]
210-24-302 Damper Shaft, Inner,  DPX2, 8.5 X 2.5  [3.593 TLG]
210-24-304 Damper Shaft, Inner,  DPX2, 210/185(T) X 55/50 [3.258 TLG]
210-24-305 Damper Shaft, Inner,  DPX2, 230/205(T) X 65/60 [3.652 TLG]



Outer Shafts:

229-10-620 Shaft: (T) Outer Damper Shaft, Steel, DPX2, 2pc, [0.360 ID, 0.498 OD, 2.905 TLG] 7.50/7.25 X 2.00/1.75
229-10-621 Shaft: (T) Outer Damper Shaft, Steel, DPX2, 2pc, [0.360 ID, 0.498 OD, 3.155 TLG] 7.875 X 2.25/2.00
229-10-622 Shaft: (T) Outer Damper Shaft, Steel, DPX2, 2pc, [0.360 ID, 0.498 OD, 3.405 TLG] 8.50 X 2.50
229-10-624 Shaft: (T) Outer Damper Shaft, Steel, DPX2, 2pc, [0.360 ID, 0.498 OD, 3.070 TLG] 210/185(T) X 55/50
229-10-625 Shaft: (T) Outer Damper Shaft, Steel, DPX2, 2pc, [0.360 ID, 0.498 OD, 3.464 TLG] 230/205(T) X 65/60



Air Sleeve Assemblies:

806-29-581-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Black Ano, 185 X 50/55
806-29-582-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Black Ano, 205 X 60/65
806-29-583-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Black Ano, 8.50 X 2.50
806-29-585-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Black Ano, 7.50 X 2.00
806-29-589-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Black Ano, 7.875 X 2.25/2.00, 0.5" Shaft
806-29-593-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Kashima, 8.50 X 2.50
806-29-595-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Kashima, 7.50 X 2.00
806-29-597-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Kashima, 7.25 X 1.75
806-29-599-KIT Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Kashima, 7.875 X 2.25/2.00, 0.5" Shaft
806-29-601-KIT Sleeve Assembly: 2018, 1.500 Bore, LV-Metric, EVOL, Black Ano, 210 X 50/55
806-29-602-KIT Sleeve Assembly: 2018, 1.500 Bore, LV-Metric, EVOL, Black Ano, 230 X 60/65
806-29-611-KIT Sleeve Assembly: 2018, 1.500 Bore, LV-Metric, EVOL, Kashima, 210 X 50/55
806-29-612-KIT Sleeve Assembly: 2018, 1.500 Bore, LV-Metric, EVOL, Kashima, 230 X 60/65



Bodies:

204-54-206 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 4.312 TLG] Black Ano III,7.875 x 2.0/2.25
204-54-211 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 4.187 TLG] Black Ano III, 7.5x2.0
204-54-213 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 4.687 TLG] Black Ano III, 8.5x2.5
204-54-214 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 5.187 TLG] Black Ano III, 9.5x3.0, 230 x 60/65
204-54-232 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 4.352 TLG] Black Ano III, 185(T) x 50/55
204-54-233 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 4.746 TLG] Black Ano III, 205(T) x 60/65
204-54-237 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 4.789 TLG] Black Ano III, 210 x 50/55
207-50-006 Body: (T) [Ø 0.940 Bore, 1.060 OD, 4.312 TLG, 1.125-20 UN-2A] Impact Extrusion Al 6061, Kashima, 7.875 x 2.0/2.25
207-50-009 Body: (T) [Ø 0.940 Bore, 1.060 OD, 3.937 TLG, 1.125-20 UN-2A] Impact Extrusion Al 6061, Kashima, 7.25 x 1.75
207-50-011 Body: (T) [Ø 0.940 Bore, 1.060 OD, 4.187 TLG, 1.125-20 UN-2A] Impact Extrusion Al 6061, Kashima, 7.5 x 2.0
207-50-013 Body: (T) [Ø 0.940 Bore, 1.060 OD, 4.687 TLG, 1.125-20 UN-2A] Impact Extrusion Al 6061, Kashima, 8.5 x 2.5
207-50-014 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 5.187 TLG], Kashima, 9.5 x 3.0, 230 x 60/65
207-50-037 Body: FLOAT [Ø 0.940 Bore, 1.060 OD, 4.789 TLG] Kashima, 210 x 50/55



Decals:

PN Description
024-12-233 Decal: 2018 F-S, FLOAT DPX2 NW, Airsleeve, Orange, Long, (Non-Evol=6.5+/30mm+, Evol=7.25+/40mm+)
024-12-315 Decal: 2018 FLOAT DPX2 Resy
024-12-202 Decal: 350 PSI Max Eyelet Decal, with Warning
024-12-320 Decal: 2018 EVOL, Shock Band

2018 FLOAT DPX2 Assembly Drawing

Eyelet Assemblies

  • 808-17-350-KIT Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj
  • 808-17-377-KIT Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj, Trunnion
  • 808-17-340-KIT Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos
  • 808-17-376-KIT Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos, Trunnion
  • 808-17-391-KIT Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos, Trunnion, Short Tank Valve
  • 808-17-392-KIT Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj, Trunnion, Short Tank Valve

Eyelet Subassemblies

Damper Subassemblies

2018 FLOAT DPX2 Assembly Drawing

img/help/page854-5RQ1/Assy-Dwg-2018-FLOAT-DPX2b-m.jpg
img/help/page854-5RQ1/Assy-Dwg-2018-FLOAT-DPX2b.jpg
back to top

Eyelet Assemblies

img/help/page854-5RQ1/808-17-350-KITa-m.jpg

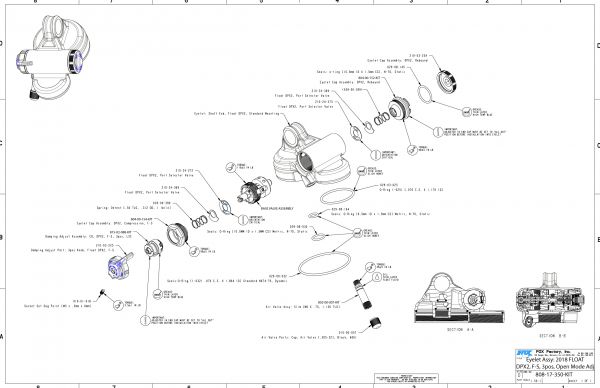

808-17-350-KIT Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj

img/help/page854-5RQ1/808-17-350-KITa.jpg
back to top

img/help/page854-5RQ1/808-17-377-KITa-m.jpg

808-17-377-KIT Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj, Trunnion

img/help/page854-5RQ1/808-17-377-KITa.jpg
back to top

img/help/page854-5RQ1/808-17-340-KIT-m.jpg

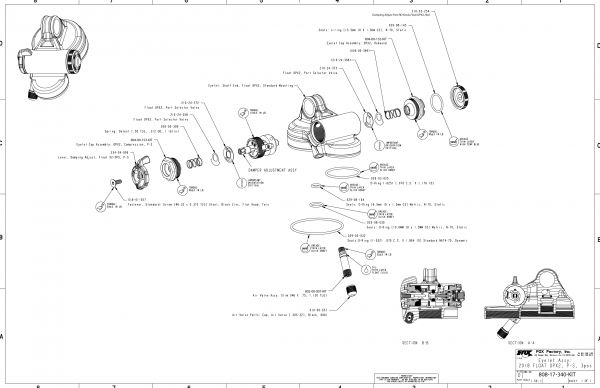

808-17-340-KIT Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos

img/help/page854-5RQ1/808-17-340-KIT.jpg
back to top

img/help/page854-5RQ1/808-17-376-KIT-m.jpg

808-17-376-KIT Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos, Trunnion

img/help/page854-5RQ1/808-17-376-KIT.jpg
back to top

img/help/page854-5RQ1/808-17-391-KIT-m.jpg

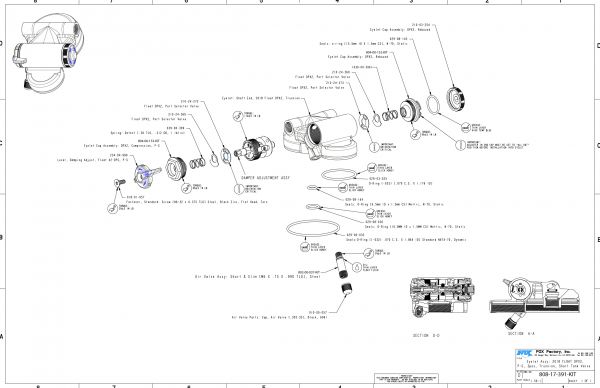

808-17-391-KIT Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos, Trunnion, Short Tank Valve

img/help/page854-5RQ1/808-17-391-KIT.jpg
back to top

img/help/page854-5RQ1/808-17-392-KIT-m.jpg

808-17-392-KIT Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj, Trunnion, Short Tank Valve

img/help/page854-5RQ1/808-17-392-KIT.jpg
back to top

Eyelet Subassemblies

img/help/page854-5RQ1/802-00-007-KIT-m.jpg

802-00-007-KIT Air Valve Assy: Slim [M6 x .75, 1.150 TLG]

img/help/page854-5RQ1/802-00-007-KIT.jpg
back to top

img/help/page854-5RQ1/802-00-037-KIT-m.jpg

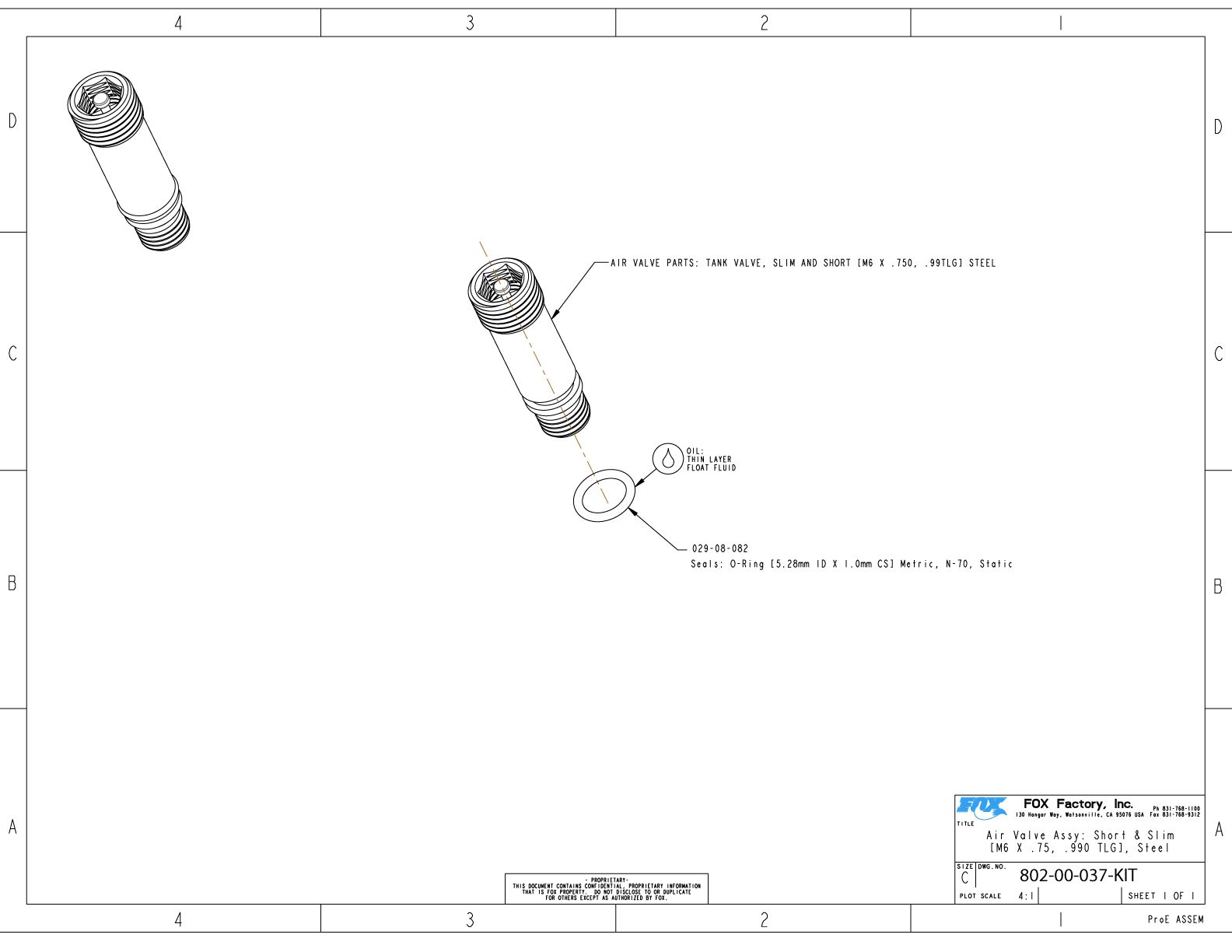

802-00-037-KIT Air Valve Assy: Short & Slim[M6 X .75, 1.150 TLG], Steel

img/help/page854-5RQ1/802-00-037-KIT.jpg
back to top

img/help/page854-5RQ1/804-00-152-KIT-m.jpg

804-00-152-KIT Eyelet Cap Assembly: DPX2, Rebound

img/help/page854-5RQ1/804-00-152-KIT.jpg
back to top

img/help/page854-5RQ1/804-00-153-KIT-m.jpg

804-00-153-KIT Eyelet Cap Assembly: DPX2, Compression, P-S

img/help/page854-5RQ1/804-00-153-KIT.jpg
back to top

img/help/page854-5RQ1/804-00-154-KIT-m.jpg

804-00-154-KIT Eyelet Cap Assembly: DPX2, Compression, F-S

img/help/page854-5RQ1/804-00-154-KIT.jpg
back to top

img/help/page854-5RQ1/815-02-088-KIT-m.jpg

815-02-088-KIT Damping Adjust Assembly; CD, DPX2, F-S, Open Mode Adj

img/help/page854-5RQ1/815-02-088-KIT.jpg
back to top

Damper Subassemblies

img/help/page854-5RQ1/Assembly-Drawing-FLOAT-DPX2-Valving-m.jpg

Assembly Drawing: FLOAT DPX2 Valving .

img/help/page854-5RQ1/Assembly-Drawing-FLOAT-DPX2-Valving.jpg
back to top

img/help/page854-5RQ1/805-00-078-KIT-m.jpg

805-00-078-KIT Piston Assembly: MY14 Floating w/ Bleed

img/help/page854-5RQ1/805-00-078-KIT.jpg
back to top

img/help/page854-5RQ1/812-06-089-KITa-m.jpg

812-06-089-KIT Bearing Assy: FLOAT, 2018, Short

img/help/page854-5RQ1/812-06-089-KITa.jpg
back to top

img/help/page854-5RQ1/812-06-090-KITa-m.jpg

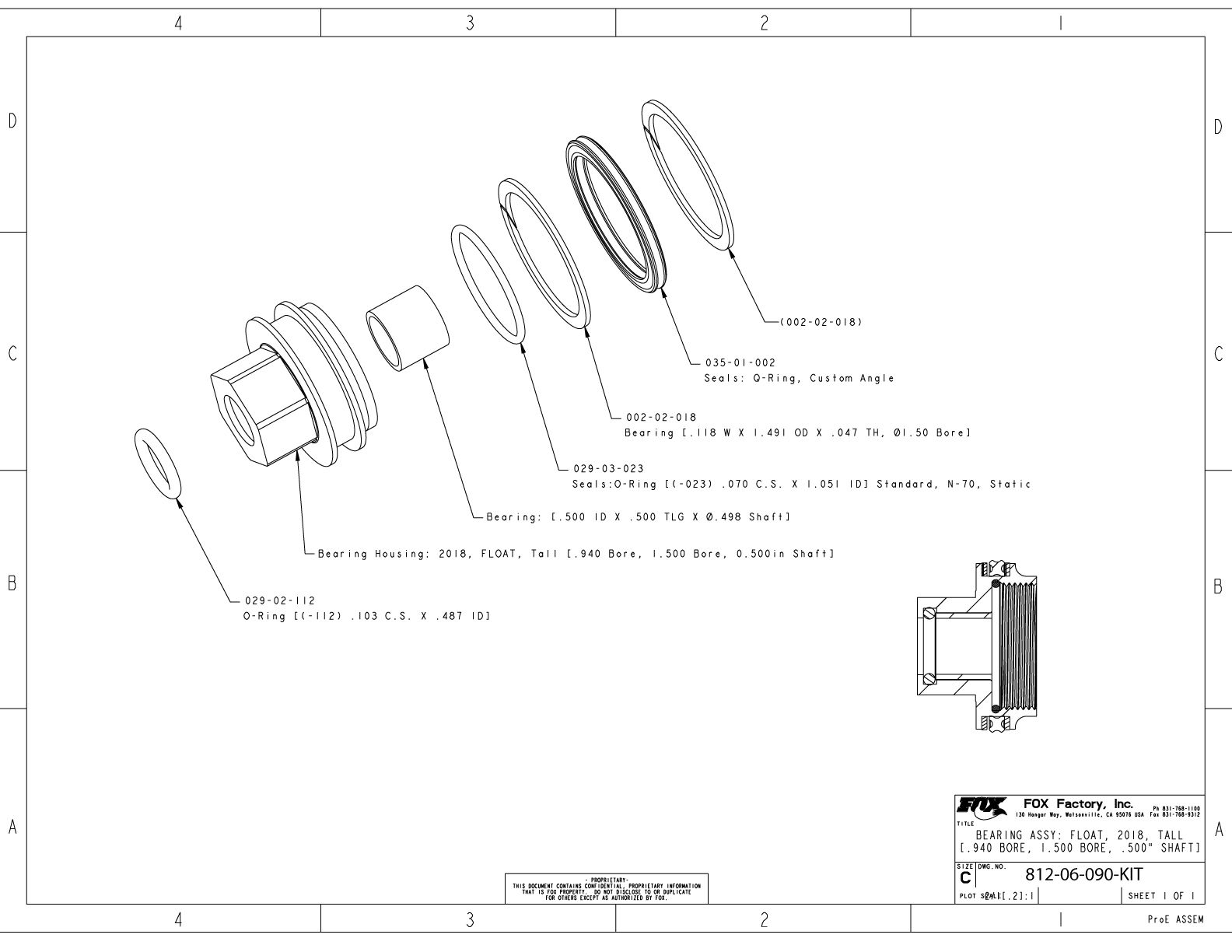

812-06-090-KIT Bearing Assy: FLOAT, 2018, Tall

img/help/page854-5RQ1/812-06-090-KITa.jpg
back to top

img/help/page854-5RQ1/813-00-082-KIT-m.jpg

813-00-082-KIT Rezi End Cap Assy: FLOAT X

img/help/page854-5RQ1/813-00-082-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-350-KIT-m.jpg

805-05-350-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Light, DRL

img/help/page854-5RQ1/805-05-350-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-351-KIT-m.jpg

805-05-351-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Medium, DRM

img/help/page854-5RQ1/805-05-351-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-352-KIT-m.jpg

805-05-352-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Xtra-Light, DRXL

img/help/page854-5RQ1/805-05-352-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-353-KIT-m.jpg

805-05-353-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Firm, DRF

img/help/page854-5RQ1/805-05-353-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-360-KIT-m.jpg

805-05-360-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Xtra-Light, LRXL

img/help/page854-5RQ1/805-05-360-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-361-KIT-m.jpg

805-05-361-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Light, LRL

img/help/page854-5RQ1/805-05-361-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-362-KIT-m.jpg

805-05-362-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Medium, LRM

img/help/page854-5RQ1/805-05-362-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-363-KIT-m.jpg

805-05-363-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Firm, LRF

img/help/page854-5RQ1/805-05-363-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-364-KIT-m.jpg

805-05-364-KIT Valve Stack Assy: 2018 Float DPX2, Rebound Light, RL

img/help/page854-5RQ1/805-05-364-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-365-KIT-m.jpg

805-05-365-KIT Valve Stack Assy: 2018 Float DPX2, Rebound Medium, RM

img/help/page854-5RQ1/805-05-365-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-366-KIT-m.jpg

805-05-366-KIT Valve Stack Assy: 2018 Float DPX2, Rebound Firm, RF

img/help/page854-5RQ1/805-05-366-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-367-KIT-m.jpg

805-05-367-KIT Valve Stack Assy: 2018 Float DPX2, RLA014

img/help/page854-5RQ1/805-05-367-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-368-KIT-m.jpg

805-05-368-KIT Valve Stack Assy: 2018 Float DPX2, RLA018

img/help/page854-5RQ1/805-05-368-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-369-KIT-m.jpg

805-05-369-KIT Valve Stack Assy: 2018 Float DPX2, RLA011

img/help/page854-5RQ1/805-05-369-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-370-KIT-m.jpg

805-05-370-KIT Valve Stack Assy: 2018 Float DPX2, Compression Medium, CM

img/help/page854-5RQ1/805-05-370-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-371-KIT-m.jpg

805-05-371-KIT Valve Stack Assy: 2018 Float DPX2, Compression Light, CL

img/help/page854-5RQ1/805-05-371-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-372-KIT-m.jpg

805-05-372-KIT Valve Stack Assy: 2018 Float DPX2, CLA001

img/help/page854-5RQ1/805-05-372-KIT.jpg
back to top

img/help/page854-5RQ1/805-05-373-KIT-m.jpg

805-05-373-KIT Valve Stack Assy: 2018 Float DPX2, CEC001

img/help/page854-5RQ1/805-05-373-KIT.jpg
back to top
