PARTS & DRAWINGS

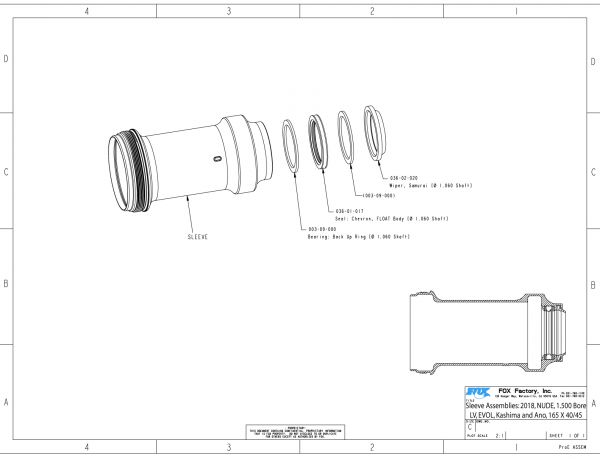

Scott Shocks

New for 2018:

Trunnion Eyelet	New for Nude 4
New Remote DPS part	Revised pulley, cable hanger, rebound knob, cam, piston, tri-lobe plate
Metric Sizing	Metric eye-to-eye option
New Ano Body	New Black anodized finish for non-factory shocks

Maintenance Info:

Service Interval	Full Service 125 hours
803-00-867	Seal Kit: SCOTT Nude 3 Boost Valve and Dish Shock Rebuild
803-00-806	Kit: Tooling, iCD/CTD Dish Shock Dial Indicator Attachment for Plate Lift Measurement
803-00-805	Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in
398-00-628	Tooling: Shock Cam Tensioner
802-01-000-KIT	Air Valve Assembly: Nitrogen Safety Needle Assembly w/Manual, Complete w/out Gauge
803-00-142	Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring

Oil Info:

Damper Oil	025-02-003	Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red
Air Chamber	025-03-002-A	Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack
Air Chamber	025-03-003-A	Oil: AM, FOX FLOAT Fluid [8 oz.]

Decals:

PN	Description
024-12-450	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), YS-728_Matt/YS-728_Matt
024-12-451	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), YS-7445/YS-7445
024-12-071	Decal: 2017 Scott Nude, Long, (6.5+/30mm+, Evol=7.875+/50mm+), YS-715/YS-715
024-12-456	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), PMS-3262C/PMS-3262C
024-12-455	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), PMS-3265C/PMS-3265C
024-12-460	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), YS-7450/PMS-5615C
024-12-454	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), YS-7449/PMS-431C
024-12-457	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), PMS-214C/PMS-214C
024-12-459	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), PMS-1635C/PMS-1635C
024-12-078	Decal: 2017 Scott Nude, Short, (5.5-6.0, Evol=7.25-7.5/30mm-49mm), PMS-3265C/PMS-3265C
024-12-453	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), YS-7421/YS-7421
024-12-452	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), YS-715/YS-715
024-12-480	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), PMS-431C/PMS-431C
024-12-458	Decal: 2018 Scott Nude DPS, Long, (6.5+/30mm+, Evol=7.875+/50mm+), YS-2459/YS-2459
024-12-085	Decal: 2017 Scott Nude, Short, (5.5-6.0, Evol=7.25-7.5/30mm-49mm), YS-2260/YS-2260
024-02-544	Decal: 2016 EVOL Neg Can
024-12-320	Decal: 2018 EVOL, Shock Band

IFP Information:

Model	IFP Height +/- 0.020in	N2 Pressure +/- 10psi
Spark/Spark RC/Spark Contessa/Spark RC Contessa	2.150in	500psi
Genius/Genius Contessa	2.500in	500psi

808-17-242-KIT Eyelet Assy: 2017 FLOAT DPS, Nude 4, Trunnion, with Eyelet Vol Spacer

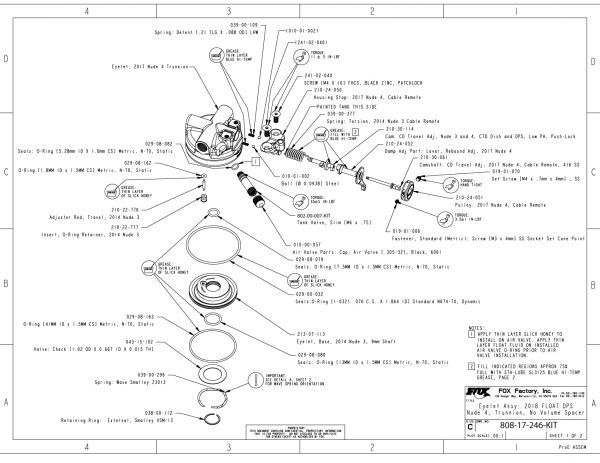

808-17-246-KIT Eyelet Assy: 2018 FLOAT DPS, Nude 4, Trunnion, no Volume Spacer

805-00-092-KIT Piston Assembly: Floating, Slotted [Ã˜ 0.940 Bore, 0.325 TLG]
805-02-220-KIT Piston Assembly: Float DPS, Zero Dish [Ã˜ 0.940 Bore] w/ Glyde Ring
805-05-105-KIT Valve Stack Assy: 2018 Float DPS, Linear Compression Light, LCL
805-05-106-KIT Valve Stack Assy: 2018 Float DPS, Linear Compression Medium, LCM
805-05-201-KIT Valve Stack Assy: 2018 Float DPS, Lockout Firm, CMF
805-05-304-KIT Valve Stack Assy: 2018 Float DPS, Linear Rebound Medium, LRM
807-06-221-KIT Valving Assy: 2018 Float DPS, R/C, LCM, LRM, CMF [.940 Bore]
807-06-227-KIT Valving Assy: 2018 Float DPS, R/C, LCL, LRM, CMF [.940 Bore]
807-06-261-KIT Valving Assy: 2018 Float DPS, N/R, LCM, LRM, CMF [.940 Bore]
812-06-060-KIT Bearing Assy: FLOAT 2013, Black [.940 Bore, 1.500 Bore, 9mm Shaft, .815 TLG]
812-06-064-KIT Bearing Assy: 2017 Nude 4, Red, 5mm Travel Reducer
812-06-087-KIT Bearing Assy: FLOAT, 2018, Short [.940 Bore, 1.500 Bore, 9mm Shaft]
