PARTS & DRAWINGS

Trek Shocks

New for 2018:

Trunnion Eyelet	New TSS eyelet for 2018
Trek TSS EVOL Air Sleeve	New one-piece EVOL air sleeve for Trek TSS shocks

Maintenance Info:

Service Interval	Full Service 125 Hours
803-01-157	Seal Kit: Trek Thru Shaft (TSS), Spring and Damper Rebuild
803-00-142	Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring
398-00-637	Tooling: Custom Socket, 5/8", 2016 Float DPS, Piston Bolt
398-00-638	Tooling: Custom Spanner Socket, 3 pin, Float DPS, Lockout Piston
398-00-748	Service tooling: Trek Thru Shaft IFP Bleed Screw Torque tool
398-00-749	Service tooling: Trek Thru Shaft IFP removal tool
803-00-806	Kit: Tooling, iCD/CTD Dish Shock Dial Indicator Attachment for Plate Lift Measurement
803-00-805	Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in

Oil Info:

Damper Oil	025-03-008	Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Green
Air Chamber	025-03-002-A	Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack
Air Chamber	025-03-003-A	Oil: AM, FOX FLOAT Fluid [8 oz.]

IFP Info:

Model	IFP Depth
EX130	1.050 +/- 0.050in

Volume Spacer Information:

PN	Desription
803-01-251	Kit: FLOAT FLOAT X/DPX2 (1/2" Shaft) Air Volume Tuning Kit

*TREK Thru-Shaft Shocks can fit up to the 0.8in^3 DPX2 volume spacer

Decals:

PN	Description
024-12-331	Decal: 2018 Thru-Shaft
024-12-202	Decal: 350 PSI Max Eyelet Decal, with Warning
024-12-320	Decal: 2018 EVOL, Shock Band

806-29-427-KIT Sleeve Assembly: 2018 Float Evol LV [3.764 TLG] Kashima, 210 x 52.5, Trek TSS

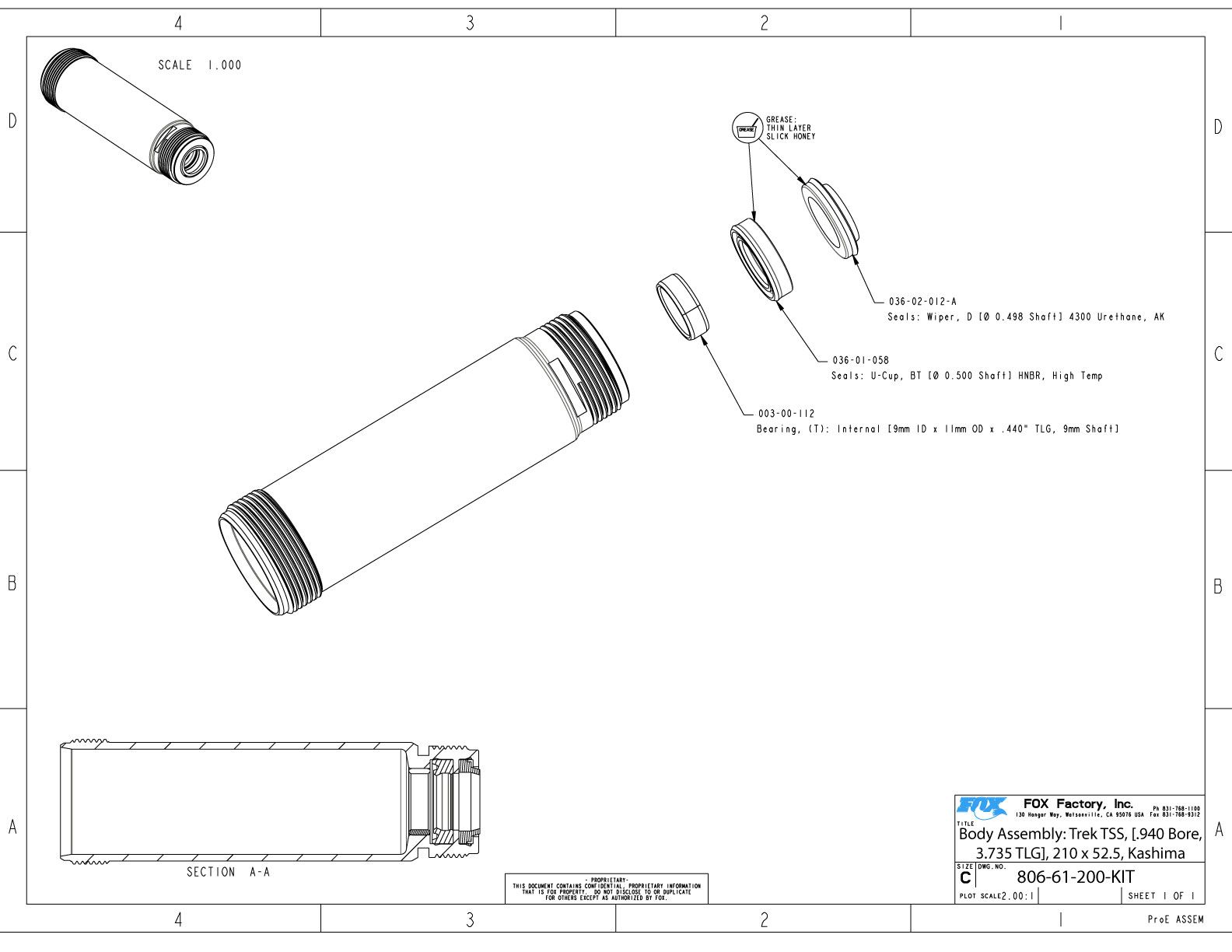

806-61-200-KIT Body Assembly: Trek TSS, [.940 Bore, 3.735 TLG], 210 x 52.5, Kashima
805-00-102-KIT Piston Assembly: Floating, with Bleed, Trek TSS
808-17-327-KIT Eyelet Assy: 2017, Trek TSS, Reaktiv, LV, Trunnion
812-06-084-KIT Bearing Assy: Trek TSS
TREK TSS Valving Assemblies CM, RM, RaM .
815-72-005-KIT Valving Sub Assy: Trek TSS, Reaktiv Valve Housing, CM, RM

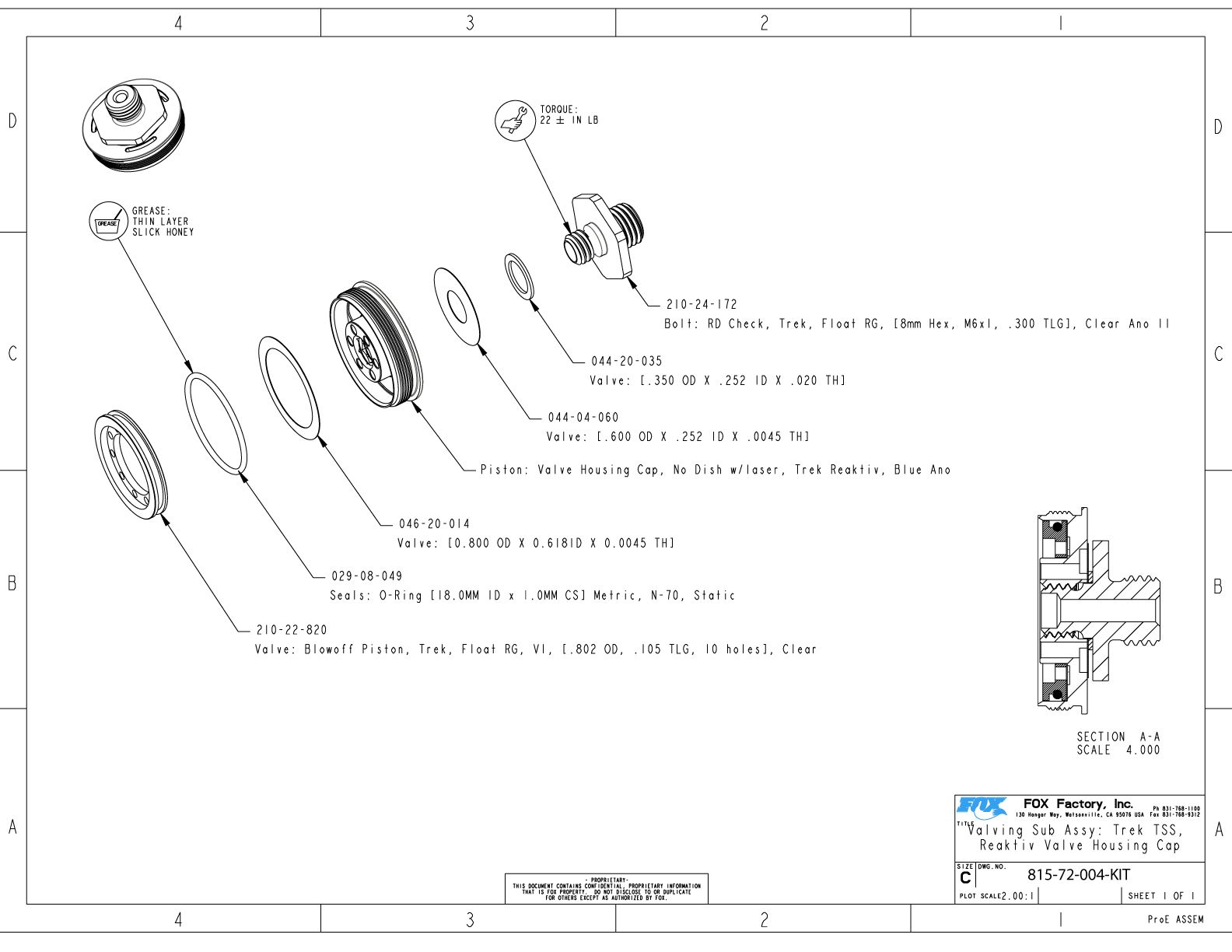

815-72-004-KIT Valving Sub Assy: Trek TSS, Reaktiv Valve Housing Cap

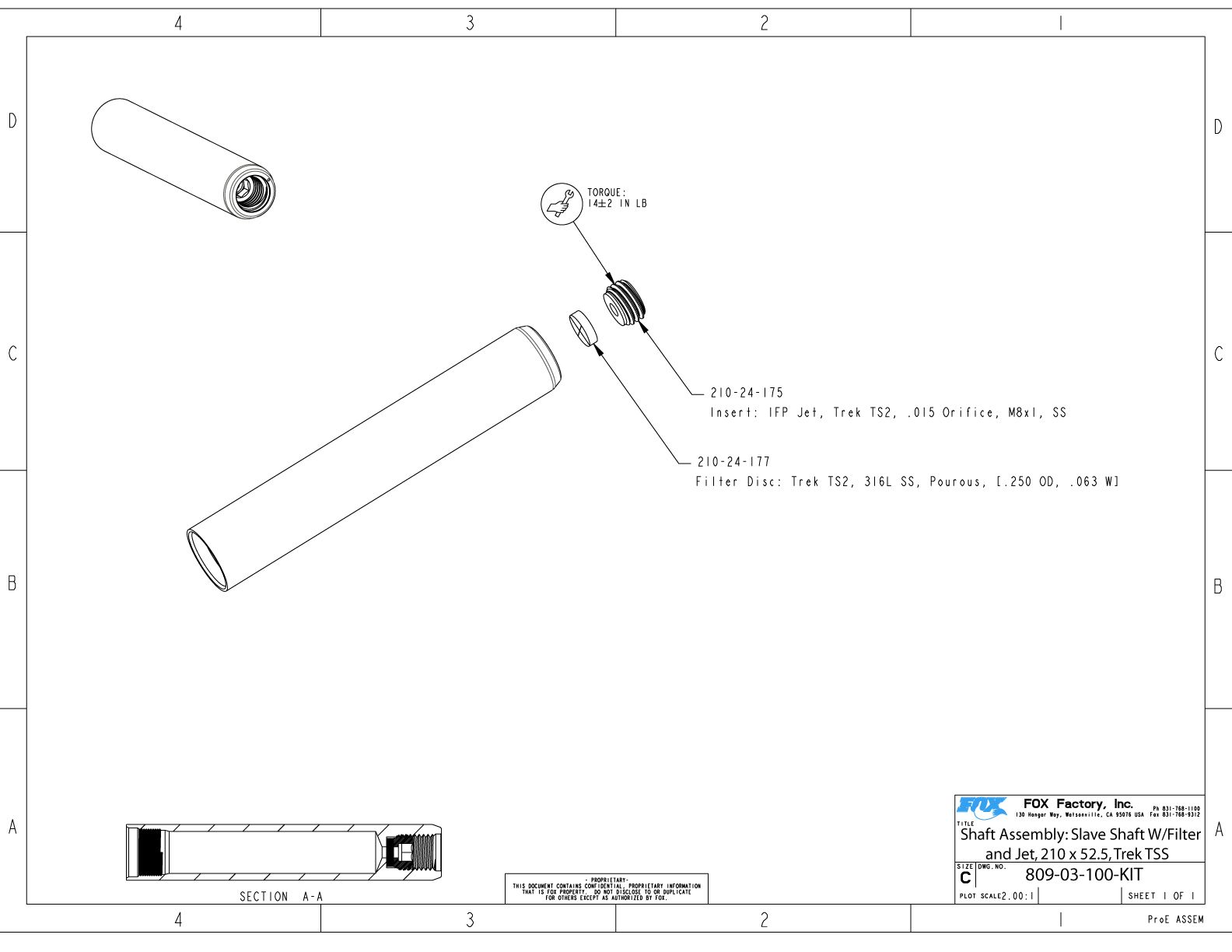

Slave Shaft Assemblies, TREK TSS .
