PARTS & DRAWINGS
2017 Scott Shocks
New for 2017:
| Trunnion Eyelet | New for Nude 4 |
| New Remote DPS part | Revised pulley, cable hanger, rebound knob, cam, piston, tri-lobe plate |
| Metric Sizing | Metric eye-to-eye option |
| New Ano Body | New Black anodized finish for non-factory shocks |
Maintenance Info:
| Service Interval | Full Service 125 hours |
| 803-00-867 | Seal Kit: SCOTT Nude 3 Boost Valve and Dish Shock Rebuild |
| 803-00-806 | Kit: Tooling, iCD/CTD Dish Shock Dial Indicator Attachment for Plate Lift Measurement |
| 803-00-805 | Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in |
| 398-00-628 | Tooling: Shock Cam Tensioner |
| 802-01-000-KIT | Air Valve Assembly: Nitrogen Safety Needle Assembly w/Manual, Complete w/out Gauge |
| 803-00-142 | Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring |
Oil Info:
| Damper Oil | 025-02-003 | Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red |
| Air Chamber | 025-03-002-A | Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack |
| 025-03-003-A | Oil: AM, FOX FLOAT Fluid [8 oz.] |
Eyelet Hardware:
| Part | Description | Where used |
| 803-03-166 | Kit: Mounting Hardware: 5 Piece, AL [8mm, Mounting Width 0.874] ref 214-09-007 | All Genius Models (both eyelets) |
| 803-03-232 | Kit: Mountin Hardware: 5 Piece, SS [10mm, Mounting Width 20mm], ref 214-11-007 | All Spark Models |
IFP Info:
| Model | IFP Pressure | IFP Depth |
| e- Contessa Spark Plus | 500psi | 2.150 +/- 0.020in |
| e- Spark Plus | 500psi | 2.150 +/- 0.020in |
| Spark Plus | 500psi | 2.150 +/- 0.020in |
| Spark | 500psi | 2.150 +/- 0.020in |
| Contessa Spark | 500psi | 2.150 +/- 0.020in |
| Spark RC | 500psi | 2.150 +/- 0.020in |
| Contessa Spark RC | 500psi | 2.150 +/- 0.020in |
| (e-) Genius 700 Plus Tuned | 500psi | 2.360 +/- 0.020in |
| (e-) Genius 710 Plus | 500psi | 2.360 +/- .020 in. |
| Genius 920 | 500psi | 2.360 +/- .020 in. |
| e- Contessa Genius 720 Plus | 500psi | 2.360 +/- .020 in. |
| Genius 710 | 500psi | 2.580 +/- .020 in. |
| Genius 700 Premium | 500psi | 2.580 +/- .020 in. |
| Genius 720 | 500psi | 2.580 +/- .020 in. |
| Genius 730 | 500psi | 2.580 +/- .020 in. |
| Contessa Genius 700 | 500psi | 2.580 +/- .020 in. |
| Contessa Genius 710 | 500psi | 2.580 +/- .020 in. |
| Genius LT 710 Plus | 500psi | 2.790 +/- .020 in. |
| Genius LT 700 Plus Tuned | 500psi | 2.790 +/- .020 in. |
| Genius LT | 500psi | 2.790 +/- .020 in. |
Assembly Drawings

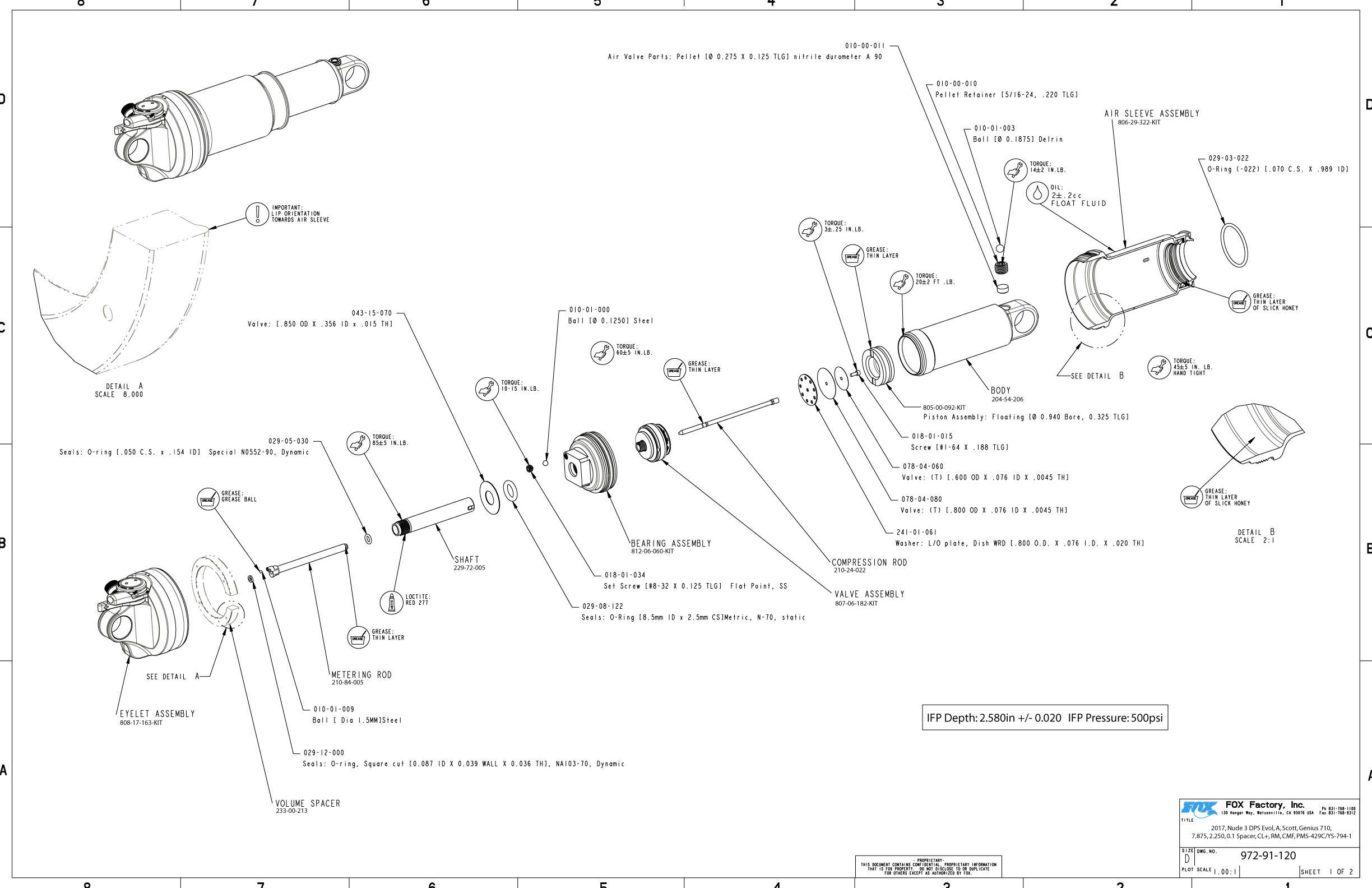

- 972-91-120 Genius 710
- 972-91-122 (e-) Genius 700 Plus Tuned
- 972-91-123 Genius 700 Premium
- 972-91-126 Genius LT 710 Plus
- 972-91-127 Genius LT 700 Plus Tuned
- 972-91-136 Genius 720
- 972-91-137 Genius 730
- 972-91-138 Contessa Genius 700
- 972-91-139 Contessa Genius 710
- 972-91-140 e-Contessa Spark Plus
- 972-91-141 e-Spark Plus
- 972-91-142 e-Spark Plus
- 972-91-143 Spark Plus
- 972-91-144 Spark Plus
- 972-91-146 Spark Plus
- 972-91-147 Spark
- 972-91-148 Spark
- 972-91-149 Spark
- 972-91-150 Spark
- 972-91-151 Spark
- 972-91-152 Spark
- 972-91-153 Spark RC
- 972-91-154 Spark RC
- 972-91-155 Spark
- 972-91-156 Spark
- 972-91-157 Spark RC
- 972-91-158 Spark RC
- 972-91-159 (e-) Genius 710 Plus, Genius 920
- 972-91-162 Genius LT
- 972-91-163 Contessa Spark RC
- 972-91-165 Contessa Spark

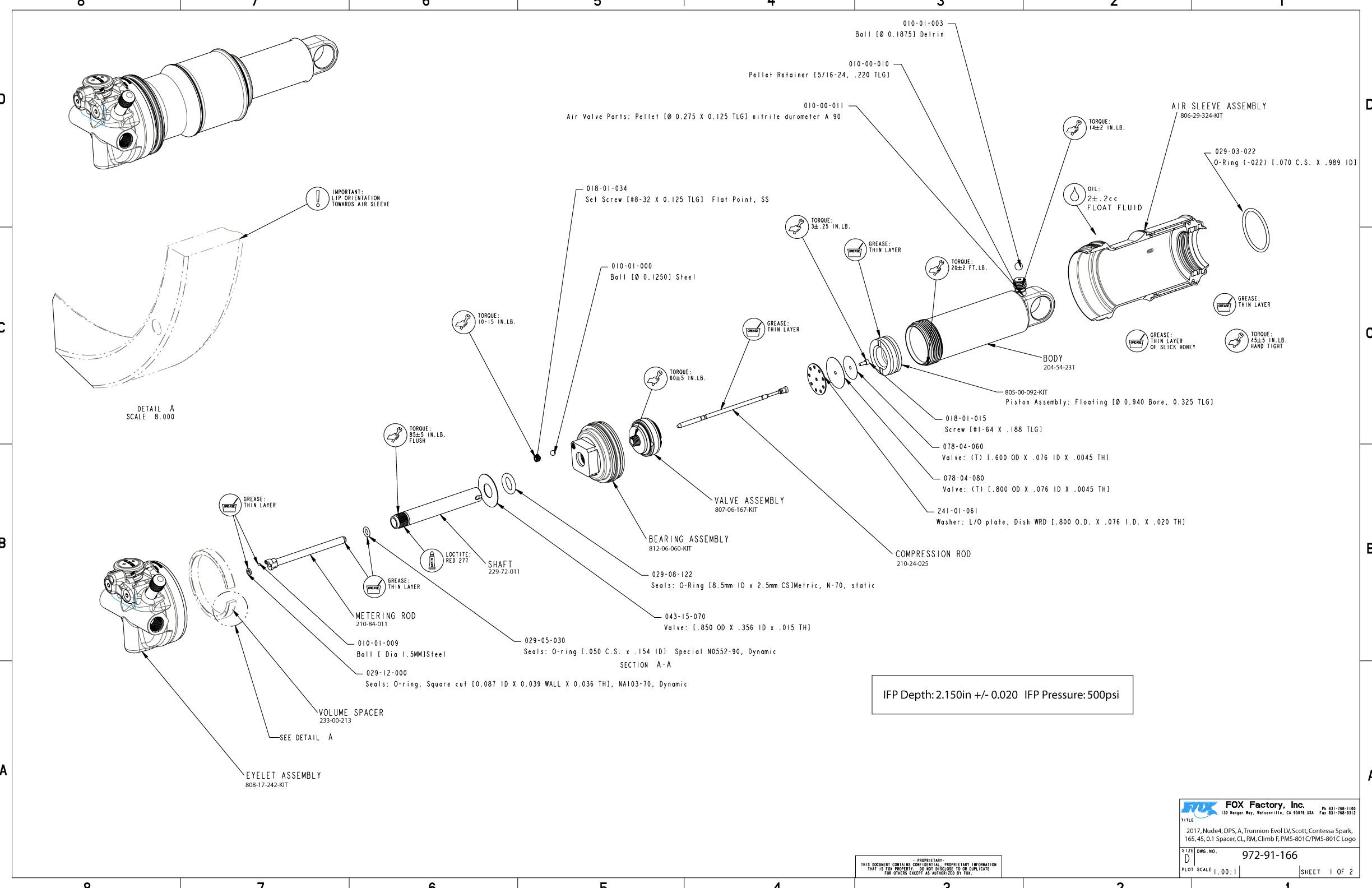

- 972-91-166 Contessa Spark
- 972-91-167 Contessa Spark
- 972-91-169 Contessa Spark

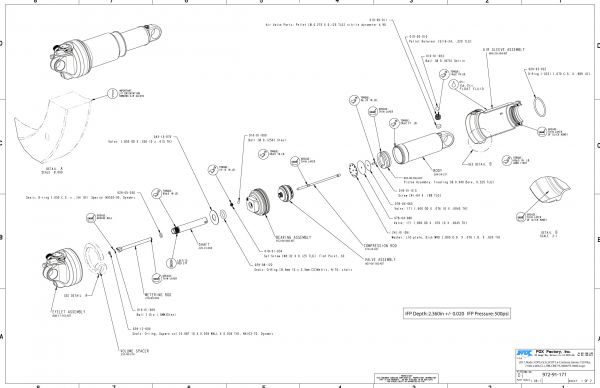

- 972-91-171 e-Contessa Genius 720 Plus
Common Sub-Assemblies
- 805-00-092-KIT Piston Assembly: Floating, Slotted

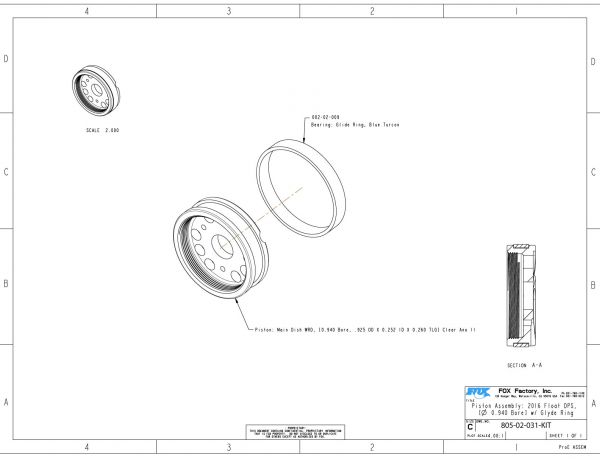

- 805-02-031-KIT Piston Assembly: 2016 FLOAT DPS w/ Glyde Ring
- 807-06-161-KIT Valving Assy: 2016 FLOAT DPS, CM, RM, CMF

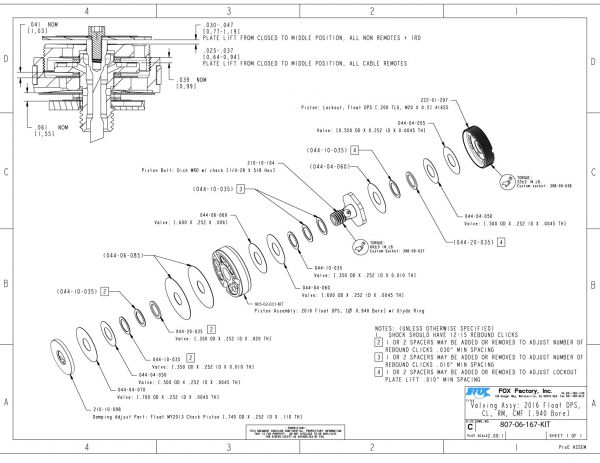

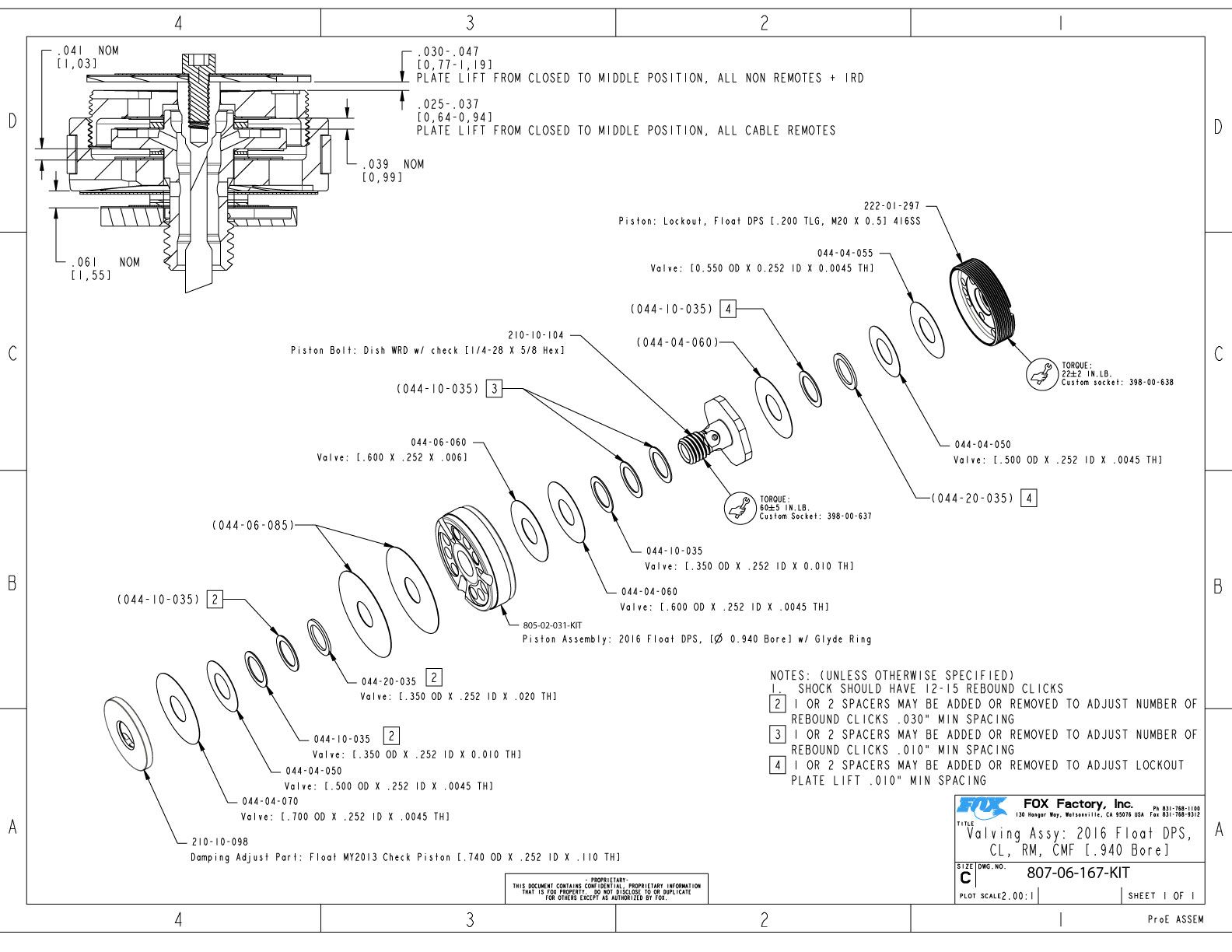

- 807-06-167-KIT Valving Assy: 2016 FLOAT DPS, CL, RM, CMF

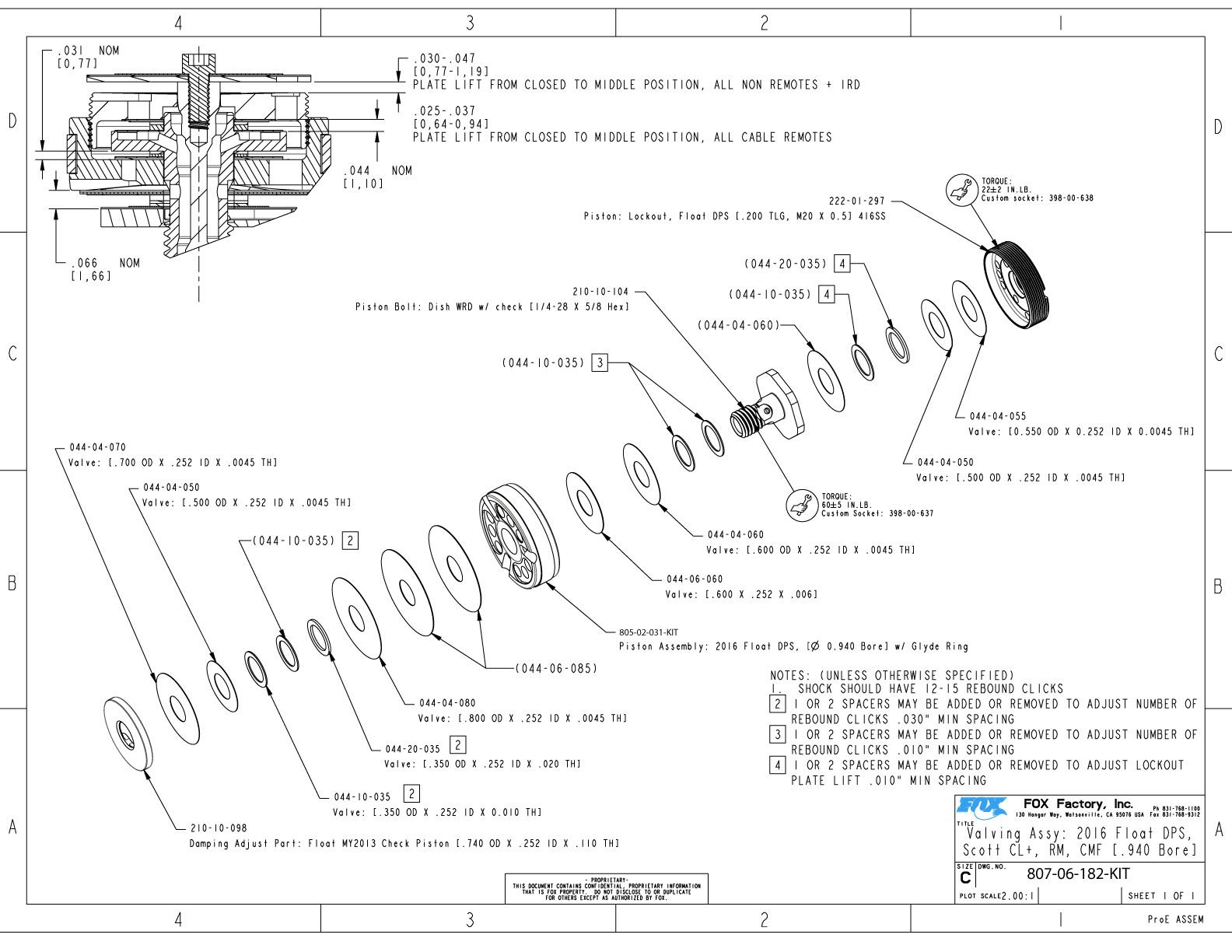

- 807-06-182-KIT Valving Assy: 2016 FLOAT DPS, Scott CL+, RM, CMF
- 807-06-187-KIT Valving Assy: 2017 FLOAT DPS, R/C, CM, RM, CMF

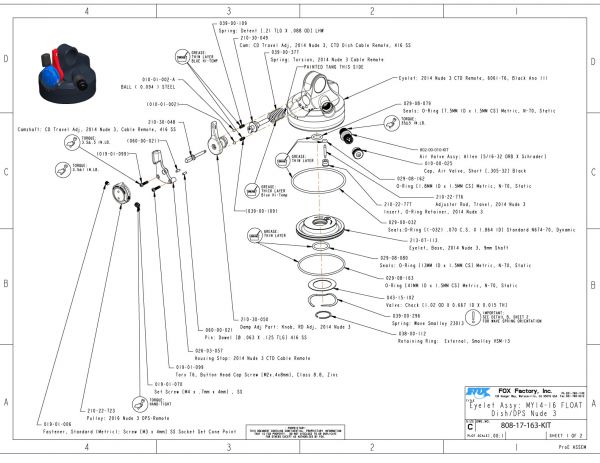

- 808-17-163-KIT Eyelet Assy: MY14-16 FLOAT Dish/DPS Nude 3
- 808-17-242-KIT Eyelet Assy: 2017 FLOAT DPS, Nude 4, Trunnion, with Eyelet Vol Spacer
- 808-17-312-KIT Eyelet Assy: 2017 FLOAT DPS Remote Up, SV

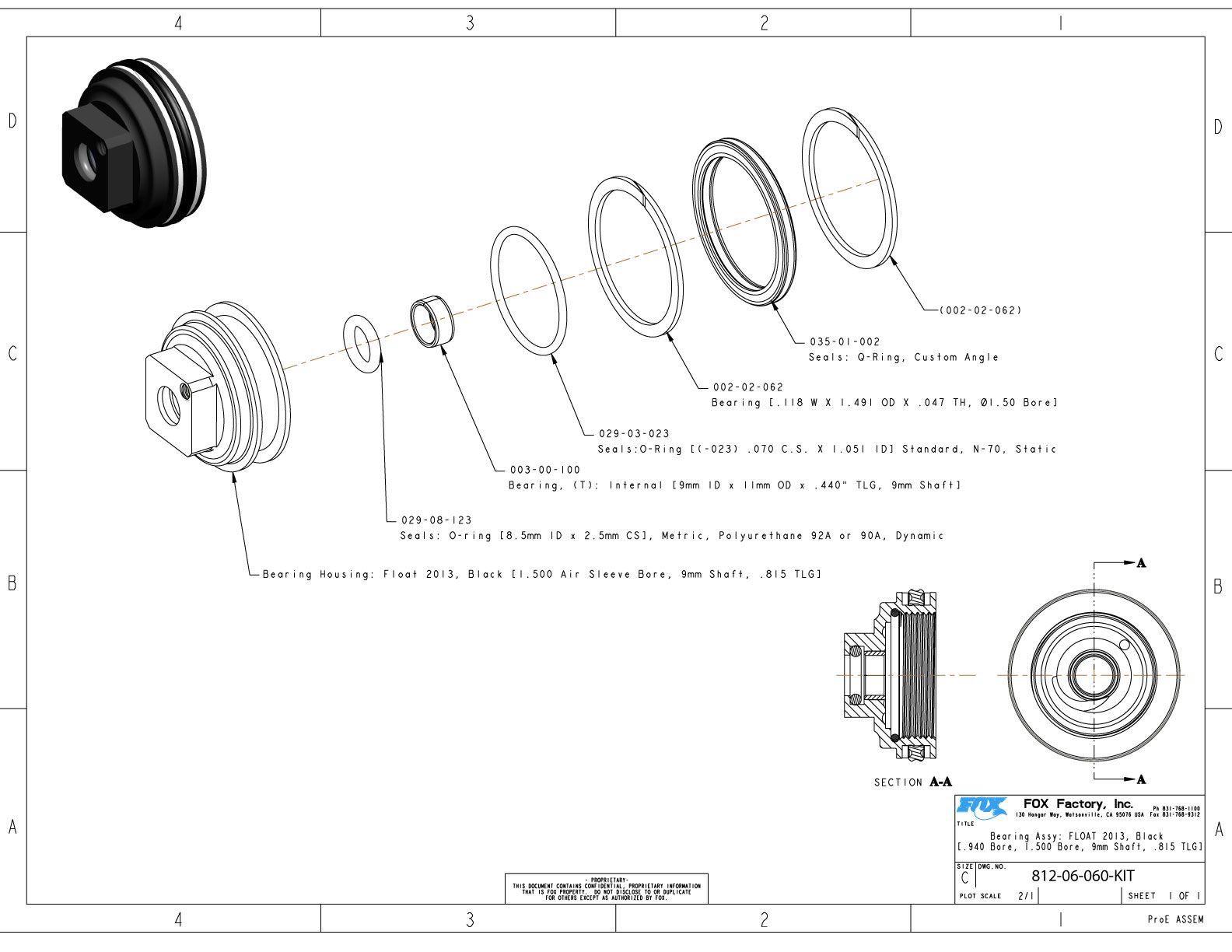

- 812-06-060-KIT Bearing Assy: FLOAT 2013, Black [.940 Bore, 1.500 Bore, 9mm Shaft, .815 TLG]
- 812-06-064-KIT Bearing Assy: 2017 Nude 4, Red, 5mm Travel Reducer
