PARTS & DRAWINGS

FLOAT CTD BV

Size Specific Parts

Size	Shaft	Compression Rod	Metering Rod	Ano Body	Kashima Body	Bearing Assm.	IFP Depth	IFP Pressure
5.500 x 1.000	229-72-000	210-77-000	210-84-000	204-54-007	207-50-007	812-06-060-KIT	1.450	150-300 psi
6.000 x 1.250	229-72-001	210-77-001	210-84-001	204-54-008	207-50-008	812-06-060-KIT	1.670	150-300 psi
6.500 x 1.500	229-72-002	210-77-002	210-84-002	204-54-005	207-50-005	812-06-060-KIT	1.880	150-300 psi
7.250 x 1.750	229-72-004	210-77-004	210-84-004	204-54-009	207-50-009	812-06-061-KIT	2.100	150-300 psi
7.500 x 2.000	229-72-004	210-77-004	210-84-004	204-54-011	207-50-011	812-06-060-KIT	2.310	150-300 psi
7.875 x 2.000	229-72-005	210-77-005	210-84-005	204-54-006	207-50-006	812-06-061-KIT	2.310	150-300 psi
7.875 x 2.250	229-72-005	210-77-005	210-84-005	204-54-006	207-50-006	812-06-060-KIT	2.500	150-300 psi
8.500 x 2.500	229-72-006	210-77-006	210-84-006	204-54-013	207-50-013	812-06-060-KIT	2.740	150-300 psi

Air Sleeves

SV Anodized
Size	Standard Volume		XV1		XV2
5.500 x 1.000	806-29-100-KIT	[2.698 TLG]
6.000 x 1.250	806-29-042-KIT	[2.948 TLG]
6.500 x 1.500	806-29-040-KIT	[3.198 TLG]
7.250 x 1.750	806-29-041-KIT	[3.698 TLG]
7.500 x 2.000	806-29-041-KIT	[3.698 TLG]	806-29-071-KIT	[1.875 OD, 3.698 TLG]
7.875 x 2.000	820-29-043-KIT	[3.948 TLG]	806-29-070-KIT	[1.875 OD, 3.948 TLG]
7.875 x 2.250			806-29-070-KIT	[1.875 OD, 3.948 TLG]	806-29-076-KIT	[2.025 OD, 3.948 TLG]
8.500 x 2.500			806-29-074-KIT	[1.950 OD, 4.350 TLG]	806-29-075-KIT	[1.875 OD, 4.350 TLG]

SV Kashima
Size	Standard Volume		XV1		XV2
5.500 x 1.000	806-29-039-KIT	[2.698 TLG]
6.000 x 1.250	806-29-101-KIT	[2.948 TLG]
6.500 x 1.500	806-29-102-KIT	[3.198 TLG]
7.250 x 1.750	806-29-103-KIT	[3.698 TLG]
7.500 x 2.000	806-29-103-KIT	[3.698 TLG]	806-29-111-KIT	[1.875 OD, 3.698 TLG]
7.875 x 2.000	806-29-104-KIT	[3.948 TLG]	806-29-113-KIT	[1.875 OD, 3.948 TLG]
7.875 x 2.250			806-29-113-KIT	[1.875 OD, 3.948 TLG]	806-29-114-KIT	[2.025 OD, 3.948 TLG]
8.500 x 2.500			806-29-115-KIT	[1.875 OD, 4.350 TLG]	806-29-116-KIT	[1.950 OD, 4.350 TLG]

LV Anodized
Size	Large Volume
6.500 x 1.500	806-29-202-KIT	[3.198 TLG]
7.500 x 2.000	806-29-204-KIT	[3.698 TLG]
7.875 x 2.000	806-29-205-KIT	[3.948 TLG]
7.875 x 2.250	806-29-205-KIT	[3.948 TLG]
8.500 x 2.500	806-29-206-KIT	[4.350 TLG]

LV Kashima
Size	Large Volume
6.500 x 1.500	806-29-172-KIT	[3.198 TLG]
7.500 x 2.000	806-29-174-KIT	[3.698 TLG]
7.875 x 2.000	806-29-175-KIT	[3.948 TLG]
7.875 x 2.250	806-29-175-KIT	[3.948 TLG]
8.500 x 2.500	806-29-176-KIT	[4.350 TLG]

Tools & Tuning
803-00-802	Kit: FLOAT CTD 9mm Shaft, Air Spring Volume Tuning Kit
803-00-805	KIT: Shaft clamps, shocks, CTD 9mm, 3/8", 1/2", 5/8"
803-00-816	Seal Kit: CTD Boost Valve and Dish Shock Rebuild
233-00-140	Volume Spacer: 2013 FLOAT 0.92in^3 [Ø 1.720 OD X Ø 0.517 ID X 0.752 TLG] Polypropylene
233-00-141	Volume Spacer: 2013 FLOAT 0.8in^3 [Ø 1.720 OD X Ø 0.517 ID X 0.532 TLG] Polypropylene
233-00-142	Volume Spacer: 2013 FLOAT 0.6in^3 [Ø 1.495 OD X Ø 0.517 ID X 0.670 TLG] Polypropylene
233-00-143	Volume Spacer: 2013 FLOAT 0.4in^3 [Ø 1.495 OD X Ø 0.517 ID X 0.345 TLG] Polypropylene
233-00-144	Volume Spacer: 2013 FLOAT 0.2in^3 [Ø 1.285 OD X Ø 0.517 ID X 0.212 TLG] Polypropylene

ProPedal Springs
039-00-160	Spring: Compression [0.376 TLG x 0.0800 ID x 16 lb/in]
039-00-052	Spring: Compression [0.376 TLG x 0.0800 ID x 28 lb/in]
039-00-070	Spring: Compression [0.376 TLG x 0.0760 ID x 41 lb/in]
039-00-068	Spring: Compression [0.376 TLG x 0.0723 ID x 65 lb/in] (MUST INCREASE IFP PRESSUE WHEN USING THIS)

Valving Assemblies

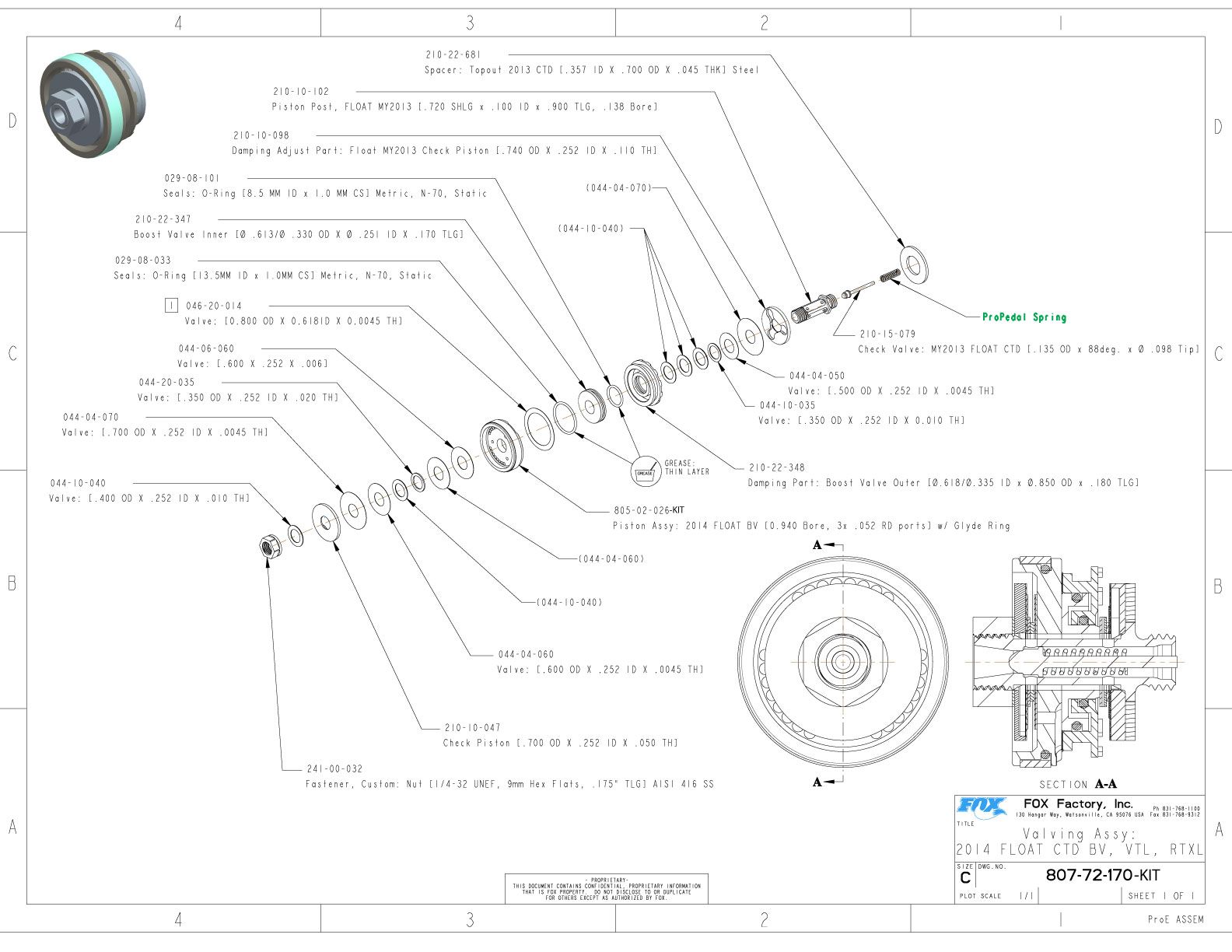

807-72-170-KIT	Valving Assy: 2014 FLOAT CTD BV, VTL, RTXL
807-72-171-KIT	Valving Assy: 2014 FLOAT CTD BV, VTL, RTL
807-72-172-KIT	Valving Assy: 2014 FLOAT CTD BV, VTL, RTM

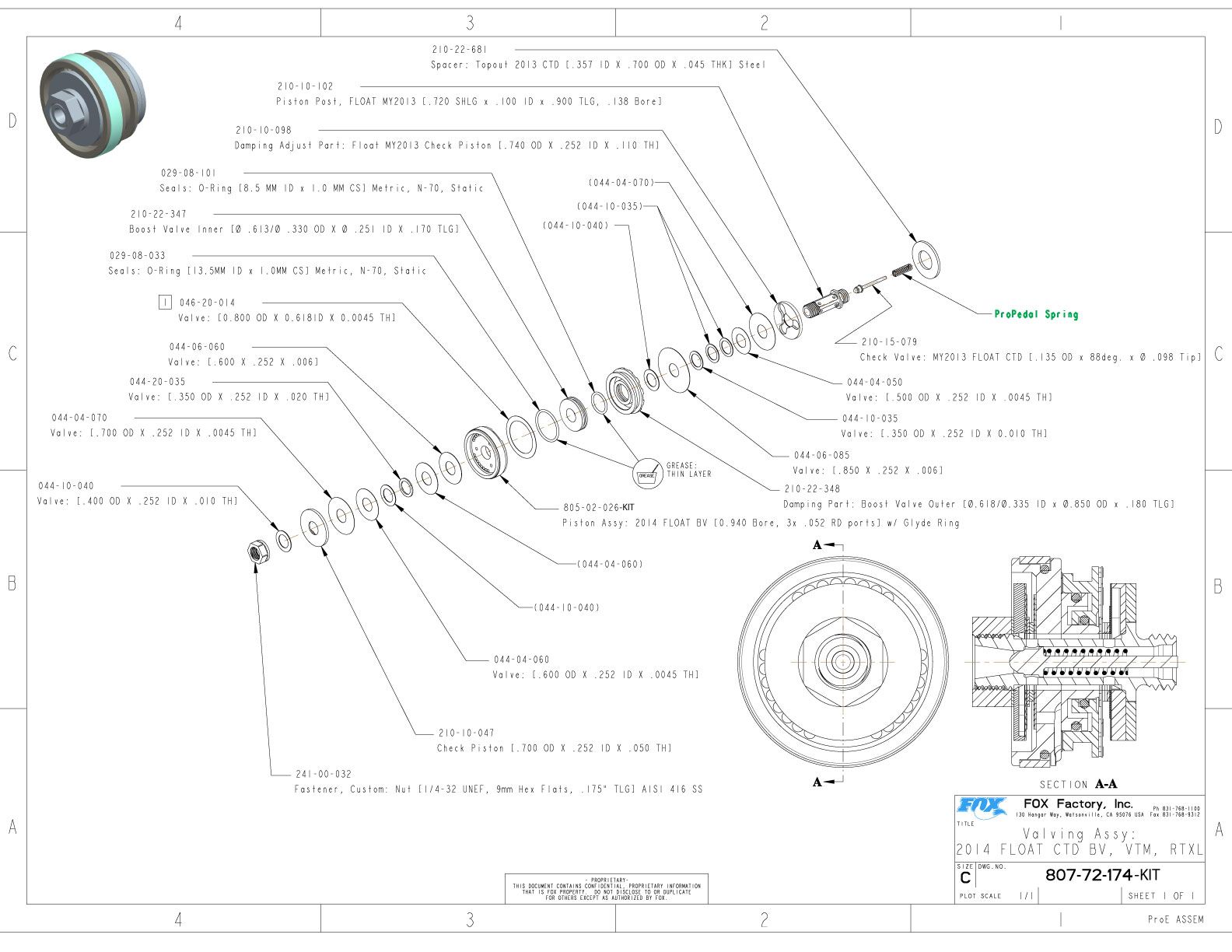

807-72-174-KIT	Valving Assy: 2014 FLOAT CTD BV, VTM, RTXL

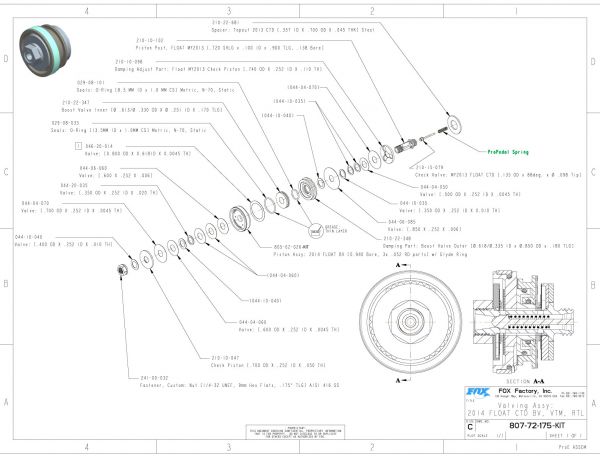

807-72-175-KIT	Valving Assy: 2014 FLOAT CTD BV, VTM, RTL

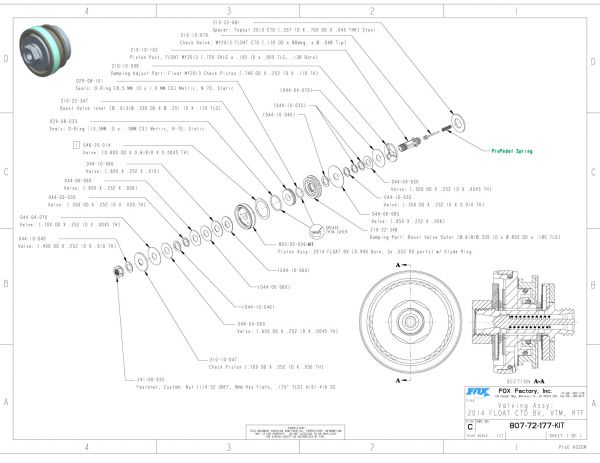

807-72-177-KIT	Valving Assy: 2014 FLOAT CTD BV, VTM, RTF
807-72-178-KIT	Valving Assy: 2014 FLOAT CTD BV, VTM, RTM
807-72-180-KIT	Valving Assy: 2014 FLOAT CTD BV, VTF, RTL

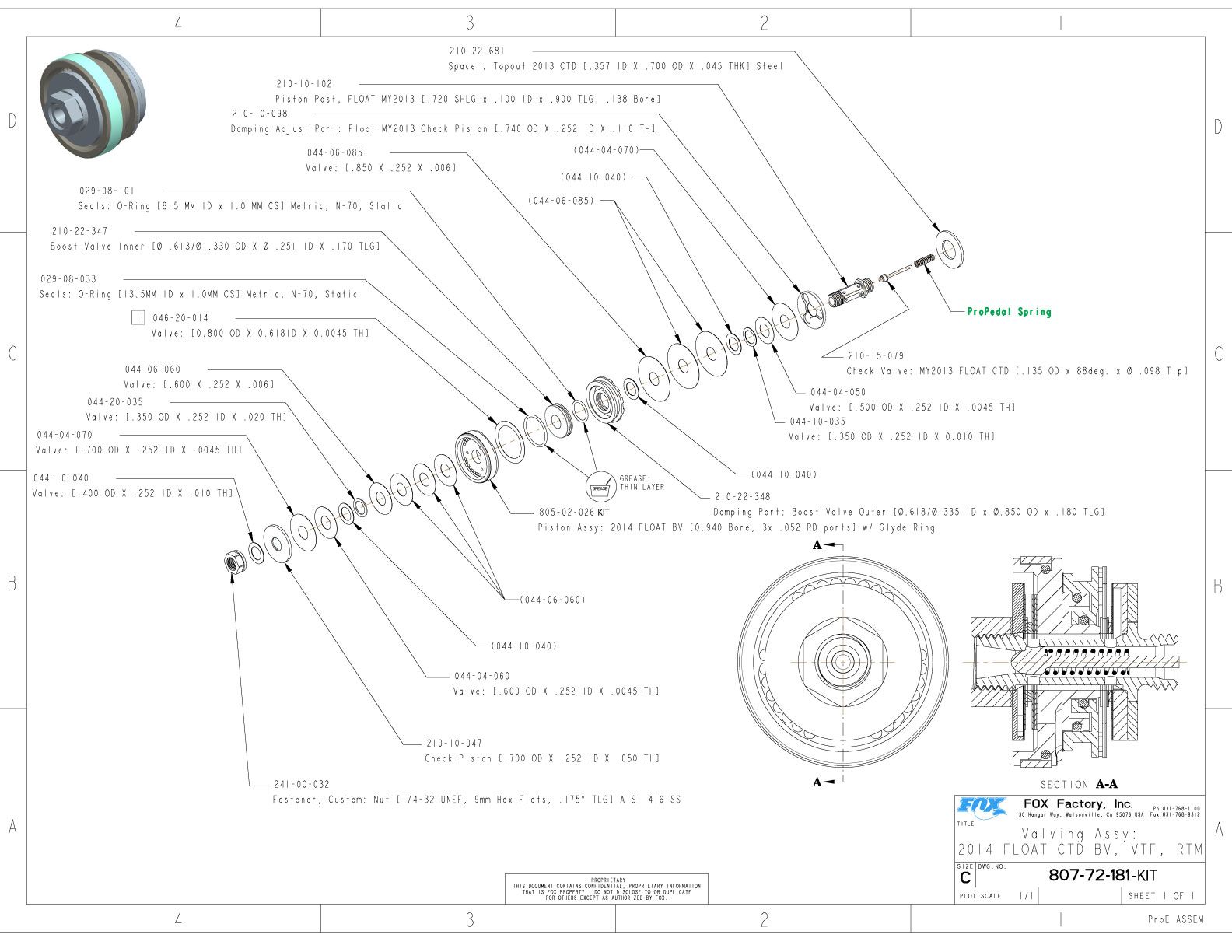

807-72-181-KIT	Valving Assy: 2014 FLOAT CTD BV, VTF, RTM

Eyelet Assemblies
808-17-120-KIT	Eyelet Assy: 2013 FLOAT F-S CTD-Adj SV

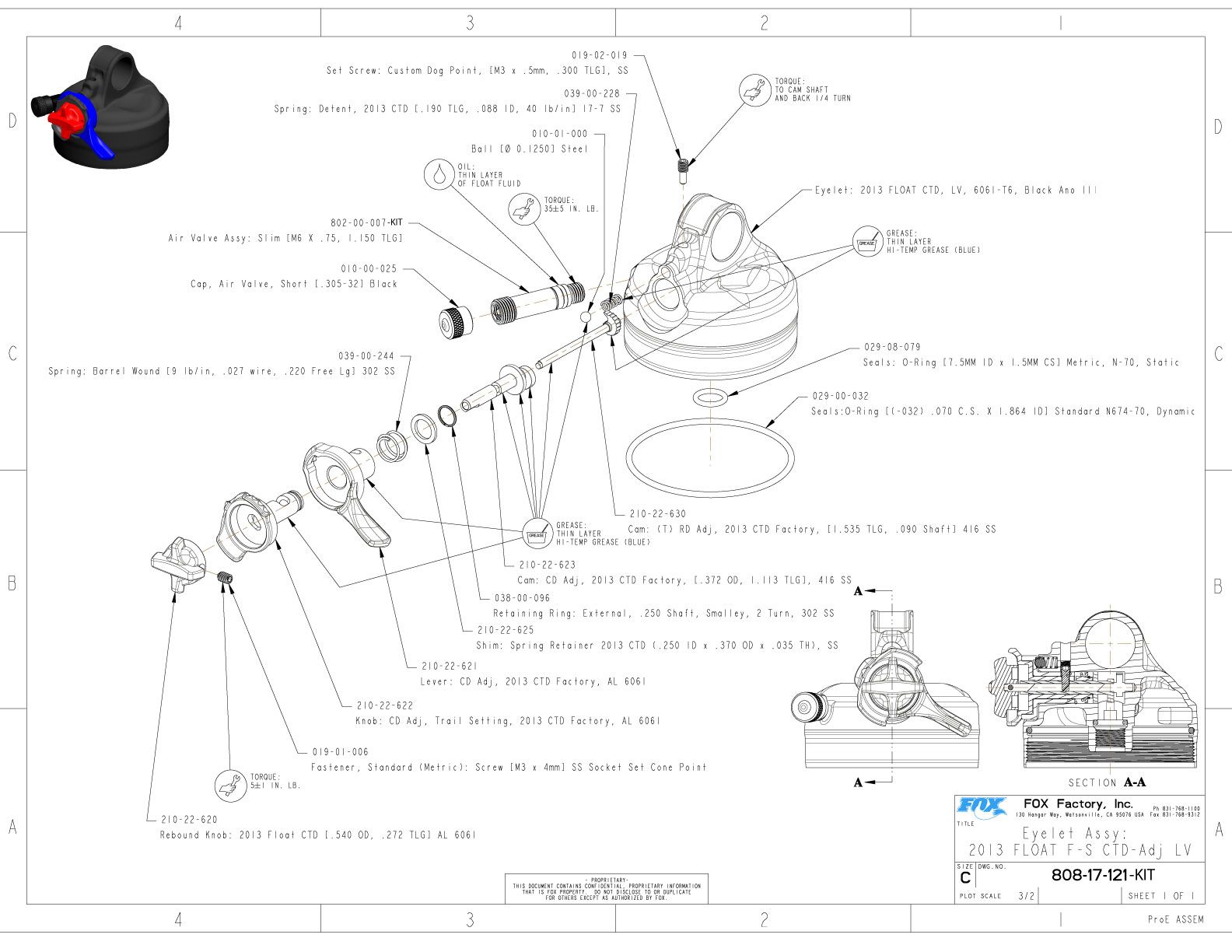

808-17-121-KIT	Eyelet Assy: 2013 FLOAT F-S CTD-Adj LV

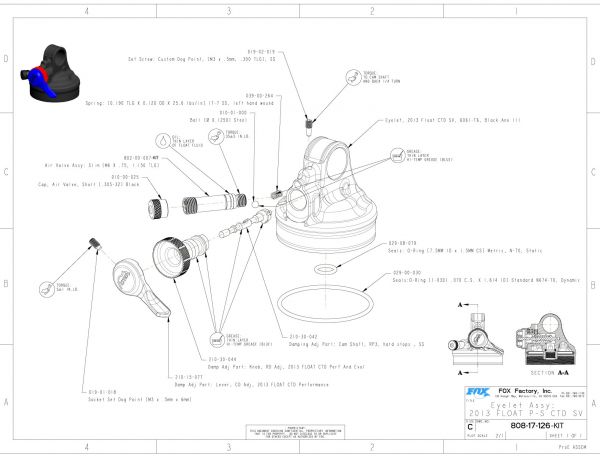

808-17-126-KIT	Eyelet Assy: 2013 FLOAT P-S CTD SV
808-17-127-KIT	Eyelet Assy: 2013 FLOAT P-S CTD LV
808-17-170-KIT	Eyelet Assy: 2014 FLOAT CTD BV Remote SV

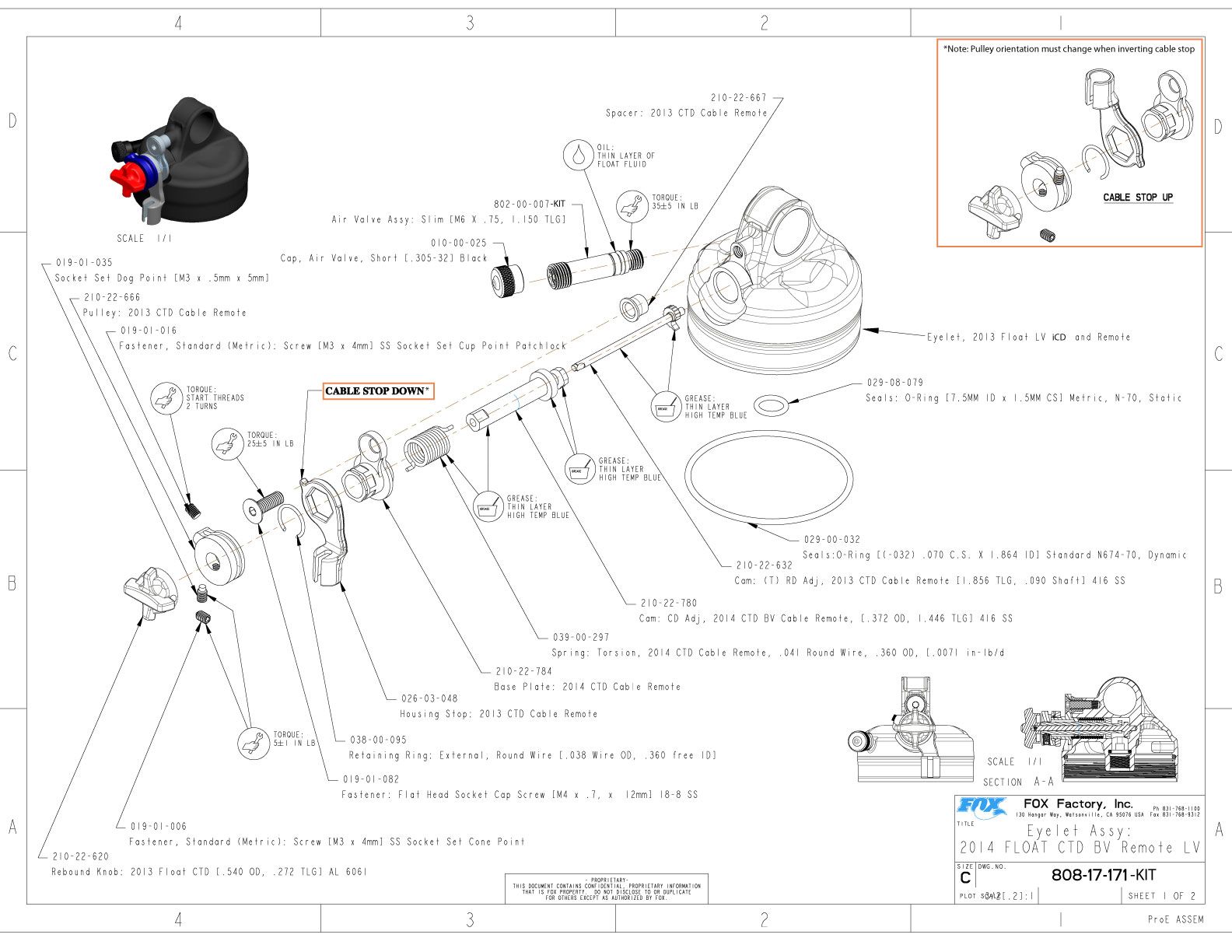

808-17-171-KIT	Eyelet Assy: 2014 FLOAT CTD BV Remote LV

Bearing Assemblies
812-06-060-KIT	Bearing Assy: FLOAT 2013, Black [.940 Bore, 1.500 Bore, 9mm Shaft, .815 TLG]
812-06-061-KIT	Bearing Assy: FLOAT 2013, Black [.940 Bore, 1.500 Bore, 9mm Shaft, 1.065 TLG]

Decals
024-02-408	Decal: 2013 Factory FLOAT CTD w/ Adj, BV, Gold XV
024-02-409	Decal: 2013 Factory FLOAT CTD w/ Adj, BV, No Gold XV
024-02-410	Decal: 2013 Factory FLOAT CTD w/ Adj, BV, Gold [5.5, 6.0]
024-02-411	Decal: 2013 Factory FLOAT CTD w/ Adj, BV, Gold [6.5+]
024-02-413	Decal: 2013 Factory FLOAT CTD w/ Adj, BV, No Gold [6.5+]
024-02-415	Decal: 2013 Performance FLOAT CTD, BV [6.5+]
024-02-418	Decal: 2013 Performance FLOAT CTD, BV XV
024-02-456	Decal: 2013 FLOAT Factory Series CTD Remote BV Gold [6.5+]
024-02-457	Decal: 2013 FLOAT Factory Series CTD Remote BV Gold [XV]
024-02-459	Decal: 2013 FLOAT Factory Series CTD Remote BV, No Gold [6.5+]

IFP Pressure	ProPedal Spring
150-250 psi	039-00-160
275-325 psi	039-00-052
