PARTS & DRAWINGS
FLOAT X Part Information
New for 2017:
| New Ano Body | New black anodized finish on non-factory series |
| Remote Lever | New single and dual two position lever |
| Air Cap | Redesigned black air cap |
Maintenance Info:
| Service Interval | Full Service 125 hours |
| 803-00-142 | Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring |
| 803-00-826 | Seal Kit: Float X Shock Rebuild |
| 803-00-805 | Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in |
| 803-00-823 | Tooling: Shaft Clamps Float X Adj. Cartridge |
| 802-01-000-KIT | Service Set: Air Valve Assy, Nitrogen Safety Needle Assy w/Manual, Complete w/out Gauge |
Air Spring Tuning:
| 803-00-827 | KIT: Float X, Air Spring Volume Tuning Kit |
Oil Info:
| Damper Oil | 025-02-003 | Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red |
| Air Chamber | 025-03-002-A | Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack |
| 025-03-003-A | Oil: AM, FOX FLOAT Fluid [8 oz.] |
IFP Info:
| IFP Pressure (All Sizes) | 150psi/ 10.3 bar |
| IFP Height (+/- .050in) | 1.350in/ 34.29mm |
Remote Upgrade Info:
| 820-07-124 | 2017 Remote Lever, Suspension, Two Position, Dual - Cable, Bottom Left |
| 820-07-125 | 2017 Remote Lever, Suspension, Two-Position, Single-Cable, Bottom Left |
| 820-07-122-KIT | Service Set: Lever Housing Assy: 2016 Float X CTD Remote |
| 820-07-033 | 2014-016 3Pos Remote Lever, Single Cable, AM, Preconfigure: Right |
| 803-00-817 | Service Set: 2014 CTD Remote Lever, AM Splitter, Kit |
2017 FLOAT X Part Listings
Ano LV Air Sleeves
| Shock Size | Air Sleeve Total Length | LV Ano | LV Ano EVOL |
| 7.250 x 1.750 | 3.698in/ 93.93mm | 806-29-204-KIT | |
| 7.500 x 2.000 | 3.698in/ 93.93mm | 806-29-204-KIT | |
| 7.875 x 2.000 | 3.948in/ 100.28mm | 806-29-205-KIT | 806-29-501-KIT |
| 7.875 x 2.250 | 3.948in/ 100.28mm | 806-29-205-KIT | 806-29-501-KIT |
| 8.500 x 2.250 | 4.350in/ 110.49mm | 806-29-206-KIT | 806-29-502-KIT |
| 8.500 x 2.500 | 4.350in/ 110.49mm | 806-29-206-KIT | 806-29-502-KIT |
| 8.750 x 2.500 | 4.350in/ 110.49mm | 806-29-206-KIT | 806-29-502-KIT |
| 9.500 x 3.000 | 4.850in/ 123.19mm | 806-29-207-KIT |
Kashima LV Air Sleeves
| Shock Size | Air Sleeve Total Length | LV Kashima | LV Kashima EVOL |
| 7.250 x 1.750 | 3.698in/ 93.93mm | 806-29-174-KIT | 806-29-520-KIT |
| 7.500 x 2.000 | 3.698in/ 93.93mm | 806-29-174-KIT | 806-29-520-KIT |
| 7.875 x 2.000 | 3.948in/ 100.28mm | 806-29-175-KIT | 806-29-521-KIT |
| 7.875 x 2.250 | 3.948in/ 100.28mm | 806-29-175-KIT | 806-29-521-KIT |
| 8.500 x 2.250 | 4.350in/ 110.49mm | 806-29-176-KIT | 806-29-522-KIT |
| 8.500 x 2.500 | 4.350in/ 110.49mm | 806-29-176-KIT | 806-29-522-KIT |
| 8.750 x 2.500 | 4.350in/ 110.49mm | 806-29-176-KIT | 806-29-522-KIT |
| 9.500 x 3.000 | 4.850in/ 123.19mm | 806-29-177-KIT |
Bodies
| Shock Size | Body Total Length | Ano | Kashima |
| 7.500 x 2.000 | 4.187in/ 106.35mm | 204-54-011 | 207-50-011 |
| 7.875 x 2.000 | 4.312in/ 109.52mm | 204-54-006 | 207-50-006 |
| 7.875 x 2.250 | 4.312in/ 109.52mm | 204-54-006 | 207-50-006 |
| 8.500 x 2.500 | 4.687in/ 119.05mm | 204-54-013 | 207-50-013 |
| 8.750 x 2.500 | 4.935in/ 125.35mm | 204-54-012 | 207-50-012 |
| 9.500 x 3.000 | 5.187in/ 131.75mm | 204-54-014 | 207-50-014 |
Eyelet Assemblies
| 808-17-166-KIT | Service Set: Eyelet Assy: 2016 Float X Remote |
| 808-17-167-KIT | Service Set: Eyelet Assy: 2016 Float X D-Adj |
| 808-17-204-KIT | Service Set: Eyelet Assy: 2016 Float X, 3pos |
Lever Housing Assemblies
| 820-07-120-KIT | Service Set: Lever Housing Assy: 2016 Float X 3pos |
| 820-07-121-KIT | Service Set: Lever Housing Assy: 2016 Float X D-Adj |
| 820-07-122-KIT | Service Set: Lever Housing Assy: 2016 Float X CTD Remote |
Shafts
| Shock Size | Shaft |
| 7.500 x 2.000 | 229-44-000 |
| 7.875 x 2.000 | 229-44-001 |
| 7.875 x 2.250 | 229-44-001 |
| 8.500 x 2.500 | 229-44-002 |
| 8.750 x 2.500 | 229-44-002 |
| 9.500 x 3.000 | 229-44-004 |
Rebound Rods
| Shock Size | Rebound Rod |
| 7.500 x 2.000 | 210-90-000 |
| 7.875 x 2.000 | 210-90-001 |
| 7.875 x 2.250 | 210-90-001 |
| 8.500 x 2.500 | 210-90-002 |
| 8.750 x 2.500 | 210-90-002 |
| 9.500 x 3.000 | 210-90-004 |
Bearing Assemblies
| 812-06-046-KIT | Service Set: Bearing Assembly: Black [.940 Bore, 1.500 Bore, .500 Shaft, .815 TLG] |
| 812-06-047-KIT | Service Set: Bearing Assembly: Black [.940 Bore, 1.500 Bore, .500 Shaft, 1.065 TLG] |
Valving Assemblies
| 807-72-150-KIT | Service Set: Valving Assy: 2014 Float X CTD, CM, RTM |
| 807-72-151-KIT | Service Set: Valving Assy: 2014 Float X CTD, CM, RTL |
| 807-72-200-KIT | Service Set: Valving Assy: 2014 Float X CTD, ECFXCF, RTM |
| 807-72-210-KIT | Service Set: Valving Assy: 2016 FLOAT X, CXF, RM |
| 807-72-216-KIT | Service Set: Valving Assy: 2017 FLOAT X, CXF, RL+ |
2017 FLOAT X
- 2014 FLOAT X .

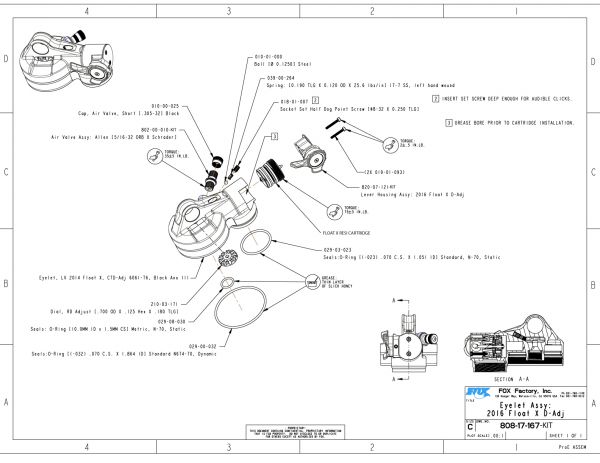

- 808-17-167-KIT Eyelet Assy: 2016 FLOAT X D-Adj
- 808-17-166-KIT Eyelet Assy 2016 FLOAT X Remote
- 808-17-204-KIT Eyelet Assy 2016 FLOAT X 3pos
- 820-07-120-KIT Lever Housing Assy: 2016 FLOAT X 3pos
- 820-07-122-KIT Lever Housing Assy: 2016 FLOAT X Remote
- 820-07-121-KIT Lever Housing Assy: 2016 FLOAT X D-Adj

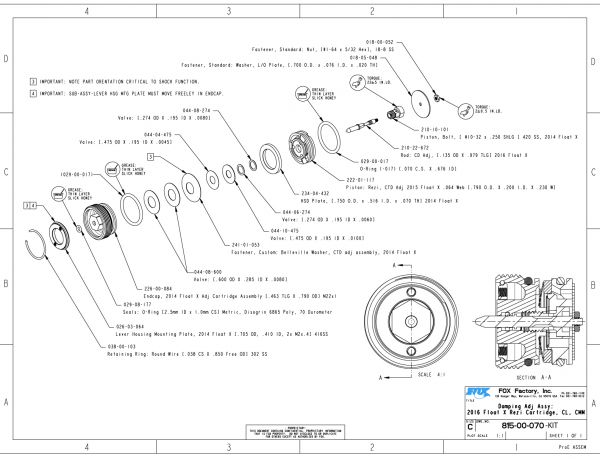

- 815-00-070-KIT Damping Adj Assy: 2016 FLOAT X Rezi Cartridge, CL, CMN

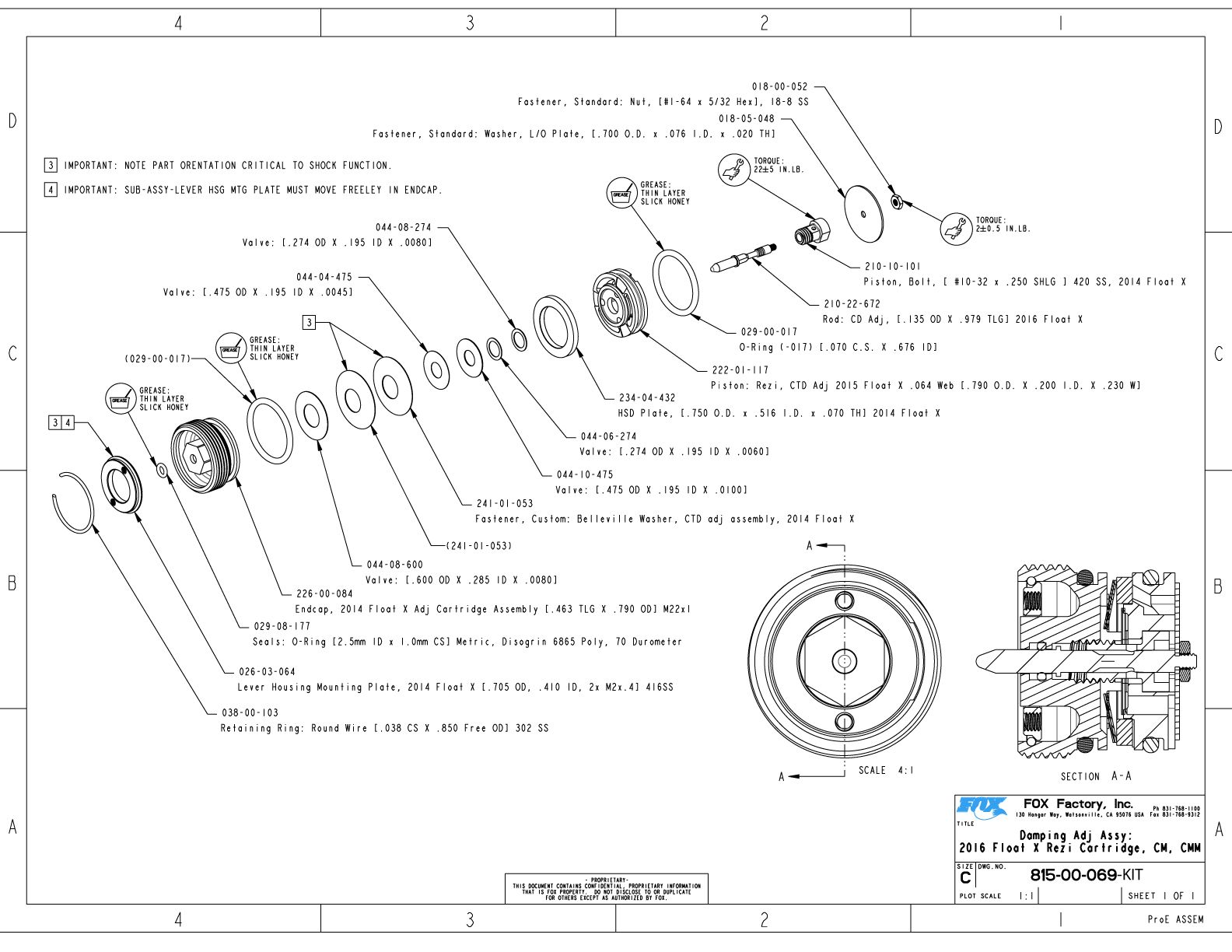

- 815-00-069-KIT Damping Adj Assy: 2016 FLOAT X Rezi Cartridge, CM, CMN

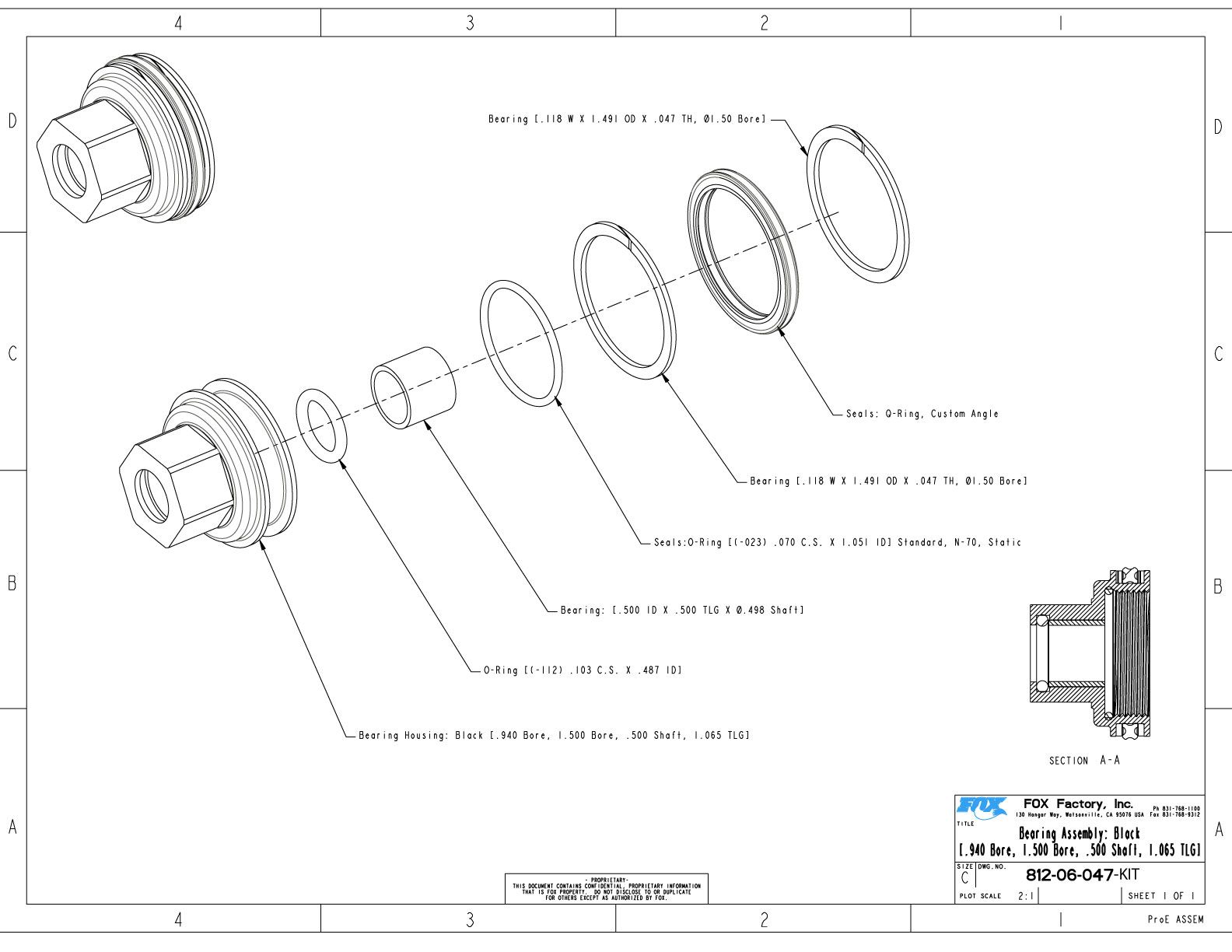

- 812-06-047-KIT Bearing Assembly, 0.500 Shaft, 1.065 TLG
- 812-06-046-KIT Bearing Assembly, 0.500 Shaft, 0.815 TLG

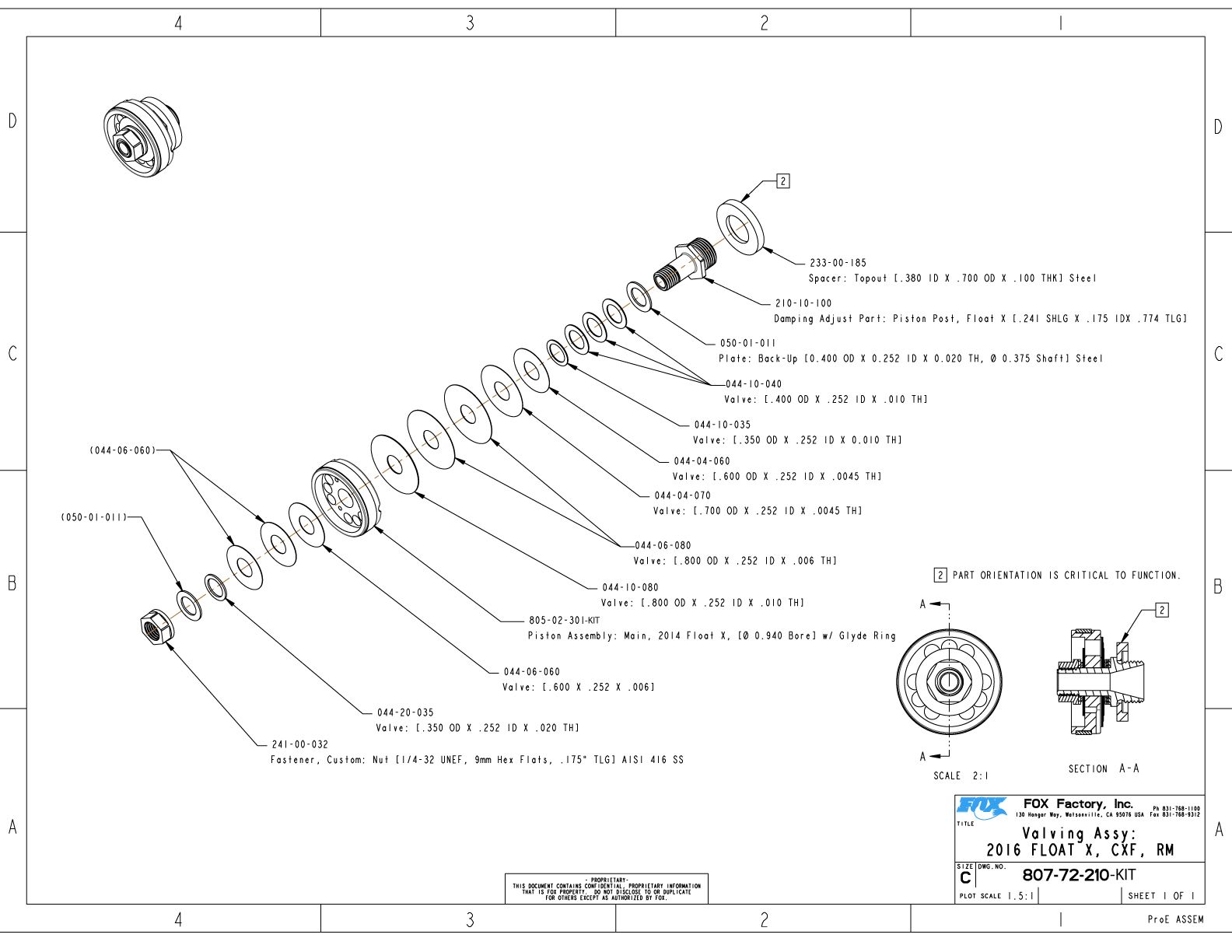

- 807-72-210-KIT Valving Assy: 2016 FLOAT X, CXF, RM
- 807-72-200-KIT Valving Assy: 2014 FLOAT X CTD, ECFXCF, RTM
- 807-72-151-KIT Valving Assy: 2014 FLOAT X CTD, CM, RTL
- 807-72-150-KIT Valving Assy: 2014 FLOAT X CTD, CM, RTM

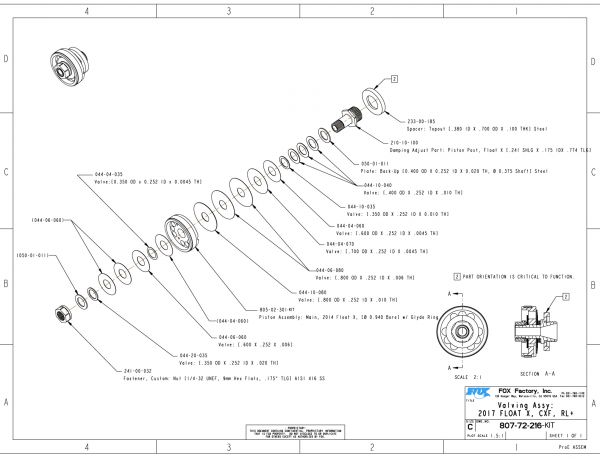

- 807-72-216-KIT Valving Assy: 2017 FLOAT X, CXF, RL+
