PARTS & DRAWINGS

FLOAT DPS Part Information

New for 2017:

New Eyelet New SV and LV eyelet, all remote capable
New Remote Parts Revised pulley, cable hanger, rebound knob,  cam, piston, tri-lobe plate (2016 update kit coming soon)
Trunnion Eyelet New trunnion eyelet mounting option
Metric Sizing Metric eye-to-eye options
New Ano Body New black anodized finish on non-factory series
Lighter Compression Valving  New aftermarket tune in some sizes
Remote lever 2 position lever, single and dual cable capable
Air Cap Redesigned black air cap



Maintenance Info:

Service Interval Full Service 125 hours
803-00-816 Seal Kit: DPS, CTD Boost Valve and Dish Shock Rebuild
803-00-142 Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring
398-00-637 Tooling: Custom Socket, 5/8", 2016 Float DPS, Piston Bolt
398-00-638 Rev B Tooling: Custom Spanner Socket, 3 pin, Float DPS, Lockout Piston (Rev B is drilled to clear new pin on remote pistons)
398-00-730 Tooling: Roll pin press guide for DPS remote (new for 2017)
803-00-806 Kit: Tooling, iCD/CTD Dish Shock Dial Indicator Attachment for Plate Lift Measurement
803-00-805 Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in
802-01-000-KIT Air Valve Assembly: Nitrogen Safety Needle Assembly w/Manual, Complete w/out Gauge



Air Volume Tuning info:

803-00-802 Kit: FLOAT CTD 9mm Shaft, Air Spring Volume Tuning Kit



Oil info:

Damper Oil 025-02-003 Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red
Air Chamber 025-03-002-A Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack
025-03-003-A Oil: AM, FOX FLOAT Fluid [8 oz.]



IFP Info:

IFP Pressure (All sizes) 500 psi



Standard Size IFP Height (all measurements +/- 0.020in)
5.50 x 1.00 1.510in/ 38.35mm
6.00 x 1.25 1.720in/ 43.69mm
6.50 x 1.50 1.940in/ 49.28mm
7.25 x 1.75 2.150in/ 54.61mm
7.50 x 2.00 2.360in/ 59.94mm
7.875 x 2.00 2.360in/ 59.94mm
7.875 x 2.25 2.580in/ 65.53mm
8.50 x 2.50 2.790in/ 70.87mm
Metric/Trunnion Sizing IFP Height (all measurements +/- .020in)
145, 30 1.83in/ 46.48mm
145, 35 1.83in/ 46.48mm
165, 40 2.15in/ 54.61mm
165, 42.5 2.15in/ 54.61mm
165, 45 2.15in/ 54.61mm
170, 30 1.83in/ 46.48mm
170, 35 1.83in/ 46.48mm
185, 50 2.50in/ 63.50mm
185, 52.5 2.50in/ 63.50mm
185, 55 2.50in/ 63.50mm
190, 40 2.15in/ 54.61mm
190, 45 2.15in/ 54.61mm
205, 60 2.83in/ 71.88mm
205, 65 2.83in/ 71.88mm
210, 50 2.50in/ 63.50mm
210, 52.5 2.50in/ 63.50mm
210, 55 2.50in/ 63.50mm
230, 60 2.83in/ 71.88mm
230, 65 2.83in/ 71.88mm



Remote Upgrades:

820-07-124 2017 Remote Lever, Suspension, Two Position, Dual - Cable, Bottom Left
820-07-125 2017 Remote Lever, Suspension, Two-Position, Single-Cable, Bottom Left
803-01-134 Service Kit: 2016 DPS Remote Update Parts (Piston, cam, tri-lobe plate)
803-01-158 2017 FLOAT DPS Remote Interface Parts Kit: SV Down
803-01-159 2017 FLOAT DPS Remote Interface Parts Kit: SV/LV Up
803-01-160 2017 FLOAT DPS Remote Interface Parts Kit: LV Down
820-07-033 2014-016 3Pos Remote Lever, Single Cable, AM, Preconfigure: Right
803-00-817 Service Set: 2014 CTD Remote Lever, AM Splitter, Kit

2017 FLOAT DPS Part Listings





Air Sleeve Assemblies

Black Ano SV/XV Air Sleeves
Shock Size Air Sleeve Total Length SV Black Ano SV Black Ano EVOL XV Black Ano
5.500 x 1.000 2.698in/ 68.53mm 806-29-039-KIT
6.000 x 1.250 2.948in/ 74.88mm 806-29-042-KIT
6.500 x 1.500 3.198in/ 81.23mm 806-29-040-KIT
7.250 x 1.750 3.698in/ 93.93mm 806-29-041-KIT 806-29-410-KIT 806-29-071-KIT
7.500 x 2.000 3.698in/ 93.93mm 806-29-041-KIT 806-29-410-KIT 806-29-071-KIT
7.875 x 2.000 3.948in/ 100.28mm 806-29-043-KIT 806-29-411-KIT 806-29-070-KIT
7.875 x 2.250 3.948in/ 100.28mm 806-29-043-KIT 806-29-411-KIT 806-29-070-KIT

Kashima SV/XV Air Sleeves
Shock Size Air Sleeve Total Length SV Kashima SV Kashima EVOL XV Kashima
5.500 x 1.000 2.698in/ 68.53mm 806-29-100-KIT
6.000 x 1.250 2.948in/ 74.88mm 806-29-101-KIT
6.500 x 1.500 3.198in/ 81.23mm 806-29-102-KIT
7.250 x 1.750 3.698in/ 93.93mm 806-29-103-KIT 806-29-430-KIT 806-29-111-KIT
7.500 x 2.000 3.698in/ 93.93mm 806-29-103-KIT 806-29-430-KIT 806-29-111-KIT
7.875 x 2.000 3.948in/ 100.28mm 806-29-104-KIT 806-29-431-KIT 806-29-113-KIT
7.875 x 2.250 3.948in/ 100.28mm 806-29-104-KIT 806-29-431-KIT 806-29-113-KIT

Black Ano LV Air Sleeves
Shock Size Air Sleeve Total Length LV Black Ano LV Black Ano EVOL
7.250 x 1.750 3.698in/ 93.93mm 806-29-204-KIT 806-29-400-KIT
7.500 x 2.000 3.698in/ 93.93mm 806-29-204-KIT 806-29-400-KIT
7.875 x 2.000 3.948in/ 100.28mm 806-29-205-KIT 806-29-401-KIT
7.875 x 2.250 3.948in/ 100.28mm 806-29-205-KIT 806-29-401-KIT
8.500 x 2.250 4.350in/ 110.49mm 806-29-206-KIT 806-29-402-KIT
8.500 x 2.500 4.350in/ 110.49mm 806-29-206-KIT 806-29-402-KIT

Kashima LV Air Sleeves
Shock Size Air Sleeve Total Length LV Kashima LV Kashima EVOL
6.500 x 1.500 3.198in/ 81.23mm 806-29-172-KIT
7.250 x 1.750 3.698in/ 93.93mm 806-29-174-KIT 806-29-420-KIT
7.500 x 2.000 3.698in/ 93.93mm 806-29-174-KIT 806-29-420-KIT
7.875 x 2.000 3.948in/ 100.28mm 806-29-175-KIT 806-29-421-KIT
7.875 x 2.250 3.948in/ 100.28mm 806-29-175-KIT 806-29-421-KIT
8.500 x 2.250 4.350in/ 110.49mm 806-29-176-KIT 806-29-422-KIT
8.500 x 2.500 4.350in/ 110.49mm 806-29-176-KIT 806-29-422-KIT

Metric EVOL Air Sleeves
Shock Size Air Sleeve Total Length LV Kashima EVOL  LV Ano EVOL
165, 45 3.622in/ 91.99mm   806-29-403-KIT
210, 50 4.015in/ 101.98mm 806-29-424-KIT
210, 55 4.015in/ 101.98mm 806-29-424-KIT





Bodies

Shock Size Body Total Length Black Ano Kashima
5.500 x 1.000 3.187in/ 80.95mm 204-54-207 207-50-007
6.000 x 1.250 3.437in/ 87.30mm 204-54-208 207-50-008
6.500 x 1.500 3.687in/ 93.65mm 204-54-205 207-50-005
7.250 x 1.750 3.937in/ 100.00mm 204-54-209 207-50-009
7.500 x 2.000 4.187in/ 106.35mm 204-54-211 207-50-011
7.875 x 2.000 4.312in/ 109.52mm 204-54-206 207-50-006
7.875 x 2.250 4.312in/ 109.52mm 204-54-206 207-50-006
8.500 x 2.500 4.687in/ 119.05mm 204-54-213 207-50-013

Metric Size Body Total Length Black Ano Kashima
210, 50 4.789in/ 121.64mm 204-54-237 207-50-037
210, 55 4.789in/ 121.64mm   207-50-037





Eyelet Assemblies

Part Description
808-17-207-KIT Service Set: Eyelet Assy: 2016 FLOAT iCTD, DPS, SV
808-17-208-KIT Service Set: Eyelet Assy: 2016 FLOAT iCTD, DPS, LV
808-17-300-KIT Service Set: Eyelet Assy: 2017, FLOAT DPS, 3pos-adj, SV

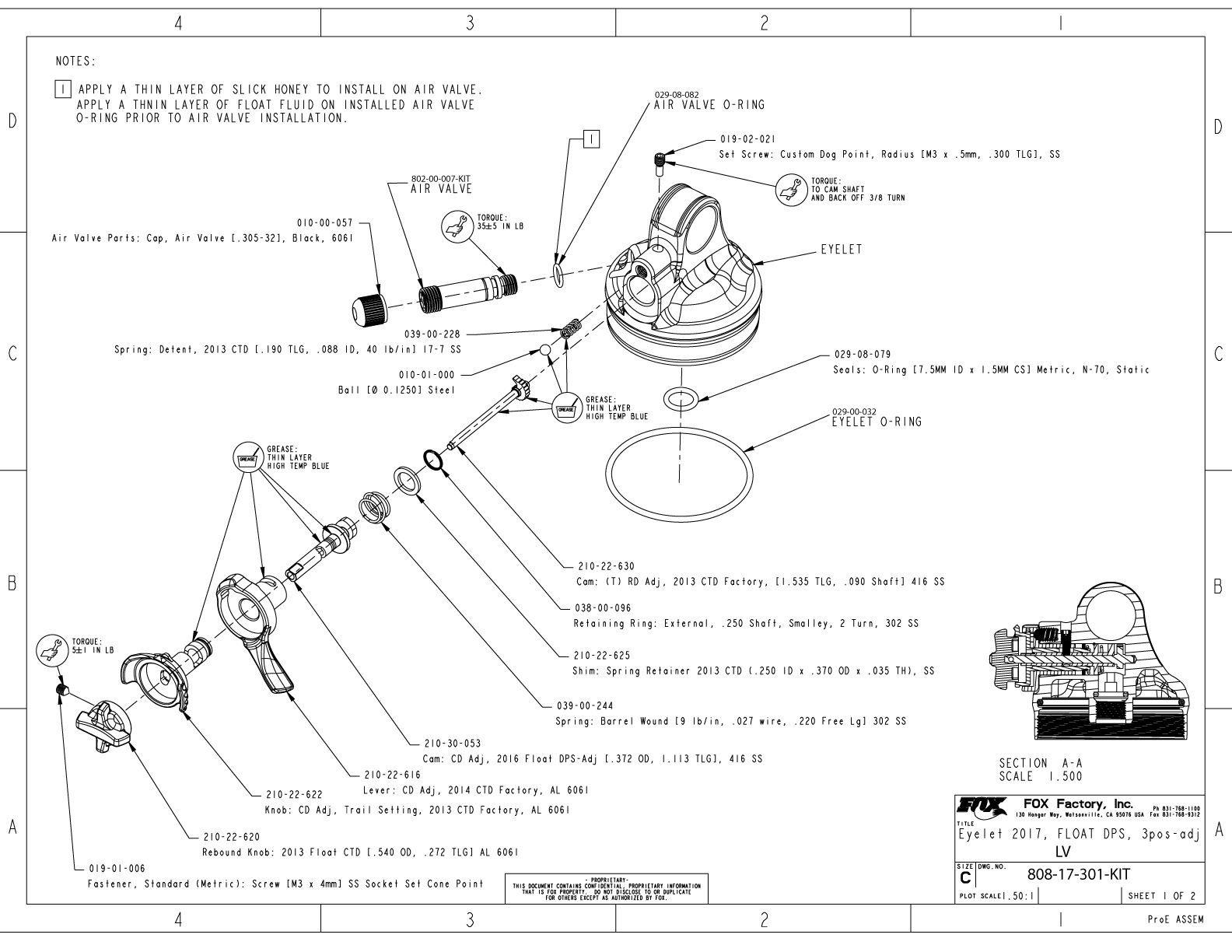

808-17-301-KIT Service Set: Eyelet Assy: 2017, FLOAT DPS, 3pos-adj, LV
808-17-302-KIT Service Set: Eyelet Assy: 2017, FLOAT DPS, 3pos, SV
808-17-303-KIT Service Set: Eyelet Assy: 2017, FLOAT DPS, 3pos, LV
808-17-312-KIT Service Set: Eyelet Assy: 2017 FLOAT DPS Remote Up, SV
808-17-313-KIT Service Set: Eyelet Assy: 2017 FLOAT DPS Remote down, SV

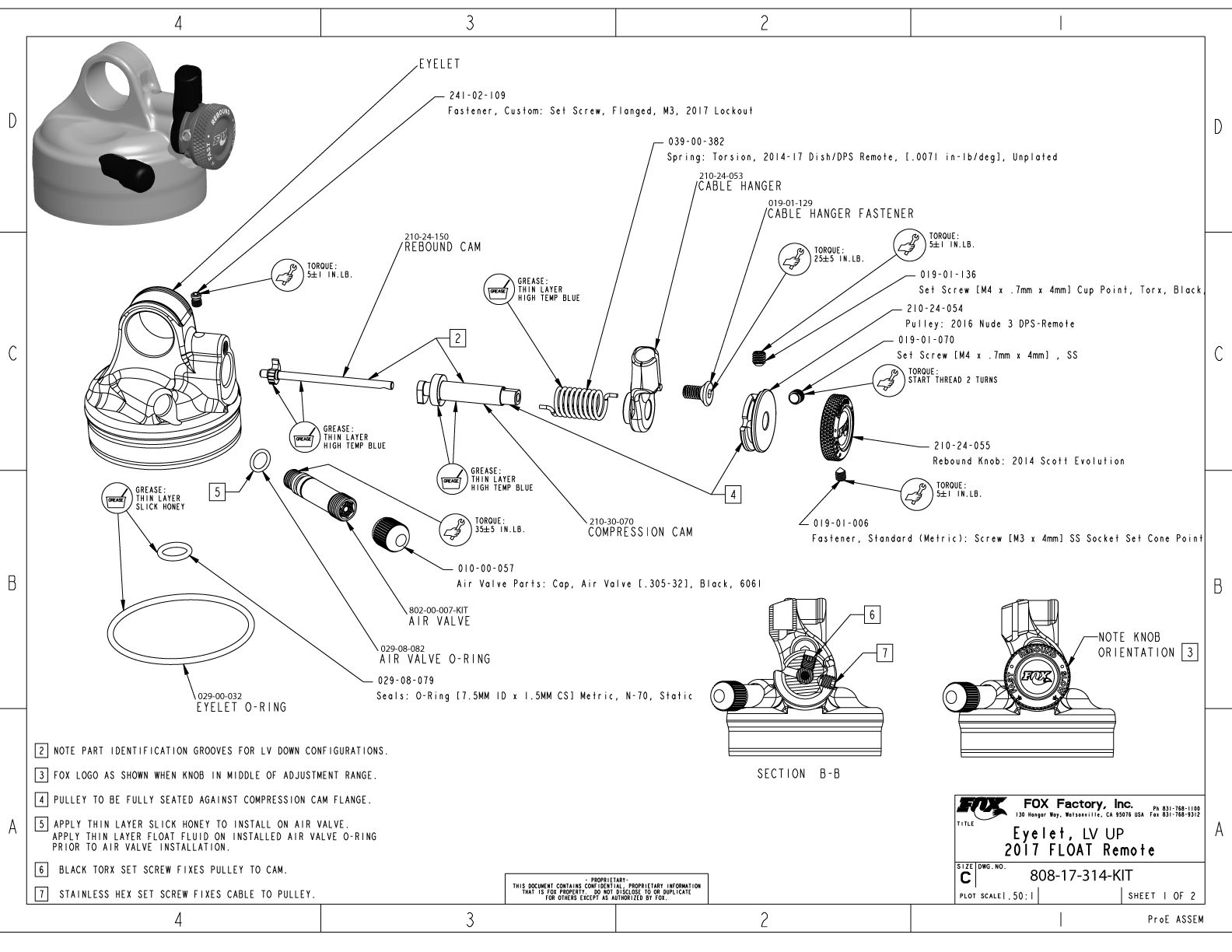

808-17-314-KIT Service Set: Eyelet Assy: 2017 FLOAT DPS Remote Up, LV

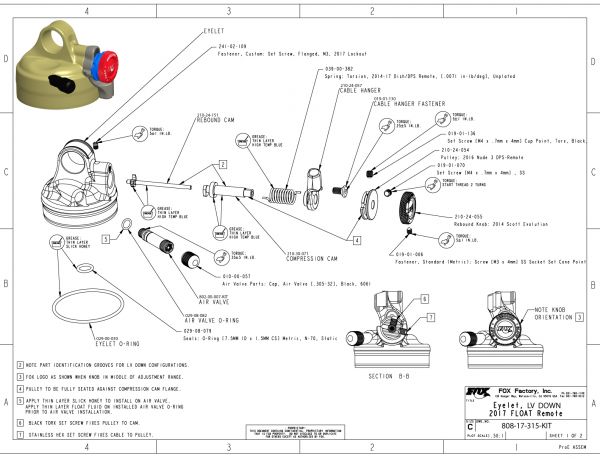

808-17-315-KIT Service Set: Eyelet Assy: 2017 FLOAT DPS Remote down, LV
808-17-304-KIT Service Set: Eyelet Assy: 2017, FLOAT DPS, 3pos-adj, SV, Trunnion
808-17-305-KIT Service Set: Eyelet Assy: 2017, FLOAT DPS, 3pos-adj, LV, Trunnion
808-17-306-KIT Service Set: Eyelet Assy: 2017, FLOAT DPS, 3pos, SV, Trunnion
808-17-307-KIT Service Set: Eyelet Assy: 2017, FLOAT DPS, 3pos, LV, Trunnion
808-17-316-KIT Service Set: Eyelet Assy: 2017 FLOAT DPS Remote up, Trunnion SV
808-17-317-KIT Service Set: Eyelet Assy: 2017 FLOAT DPS Remote down, Trunnion SV
808-17-318-KIT Service Set: Eyelet Assy: 2017 FLOAT DPS Remote up, Trunnion LV
808-17-319-KIT Service Set: Eyelet Assy: 2017 FLOAT DPS Remote down, Trunnion LV





Shafts

Shock Size Shaft Total Length Part
5.500 x 1.000 1.757in/ 44.63mm 229-72-000
6.000 x 1.250 2.007in/ 50.98mm 229-72-001
6.500 x 1.500 2.257in/ 57.33mm 229-72-002
7.250 x 1.750 2.757in/ 70.03mm 229-72-004
7.500 x 2.000 2.757in/ 70.03mm 229-72-004
7.875 x 2.000 3.007in/ 76.38mm 229-72-005
7.875 x 2.250 3.007in/ 76.38mm 229-72-005
8.500 x 2.500 3.257in/ 82.73mm 229-72-006

Metric Size Shaft Total Length Part
210, 50 2.922in/ 74.22mm 229-72-012
210, 55 2.922in/ 74.22mm 229-72-012





Rebound Metering Rods

Shock Size Rod Total Length Part
5.500 x 1.000 1.860in/ 47.24mm 210-84-000
6.000 x 1.250 2.110in/ 53.59mm 210-84-001
6.500 x 1.500 2.360in/ 59.94mm 210-84-002
7.250 x 1.750 2.860in/ 72.64mm 210-84-004
7.500 x 2.000 2.860in/ 72.64mm 210-84-004
7.875 x 2.000 3.110in/ 78.99mm 210-84-005
7.875 x 2.250 3.110in/ 78.99mm 210-84-005
8.500 x 2.500 3.360in/ 85.34mm 210-84-006

Metric Size Rod Total Length Part
210, 50 3.025in/ 76.83mm 210-84-012
210, 55 3.025in/ 76.83mm 210-84-012





Compression Rods

Shock Size Rod Total Length Part
5.500 x 1.000 2.506in/ 63.65mm 210-22-935
6.000 x 1.250 2.756in/ 70.00mm 210-22-934
6.500 x 1.500 3.006in/ 76.35mm 210-22-930
7.250 x 1.750 3.506in/ 89.05mm 210-22-931
7.500 x 2.000 3.506in/ 89.05mm 210-22-931
7.875 x 2.000 3.756in/ 95.40mm 210-22-932
7.875 x 2.250 3.756in/ 95.40mm 210-22-932
8.500 x 2.500 4.006in/ 101.75mm 210-22-933

Metric Size Rod Total Length Part
210, 50 3.671in/ 93.24mm 210-24-202
210, 55 3.671in/ 93.24mm 210-24-202





Valving Assemblies

Part Description

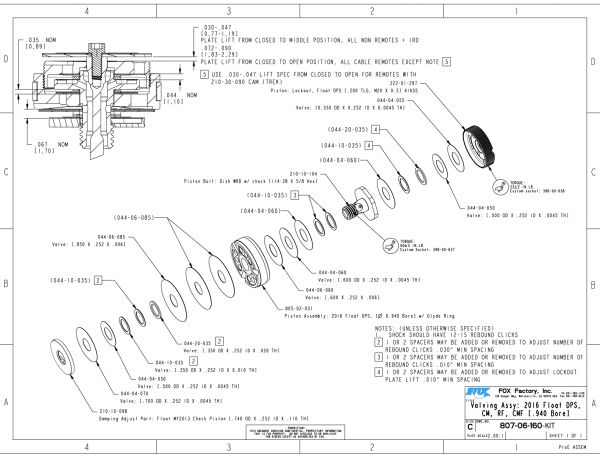

807-06-160-KIT Service Set: Valving Assy: 2016 Float DPS, CM, RF, CMF [.940 Bore]
807-06-161-KIT Service Set: Valving Assy: 2016 Float DPS, CM, RM, CMF [.940 Bore]
807-06-162-KIT Service Set: Valving Assy: 2016 Float DPS, CF, RF, CMF [.940 Bore]
807-06-163-KIT Service Set: Valving Assy: 2016 Float DPS, CM, RM, CML [.940 Bore]

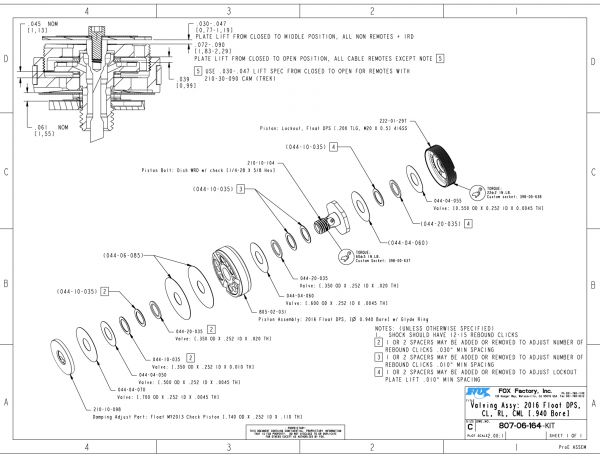

807-06-164-KIT Service Set: Valving Assy: 2016 Float DPS, CL, RL, CML [.940 Bore]

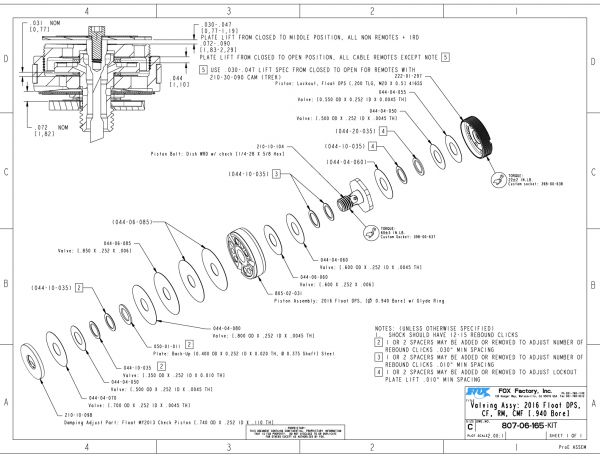

807-06-165-KIT Service Set: Valving Assy: 2016 Float DPS, CF, RM, CMF [.940 Bore]

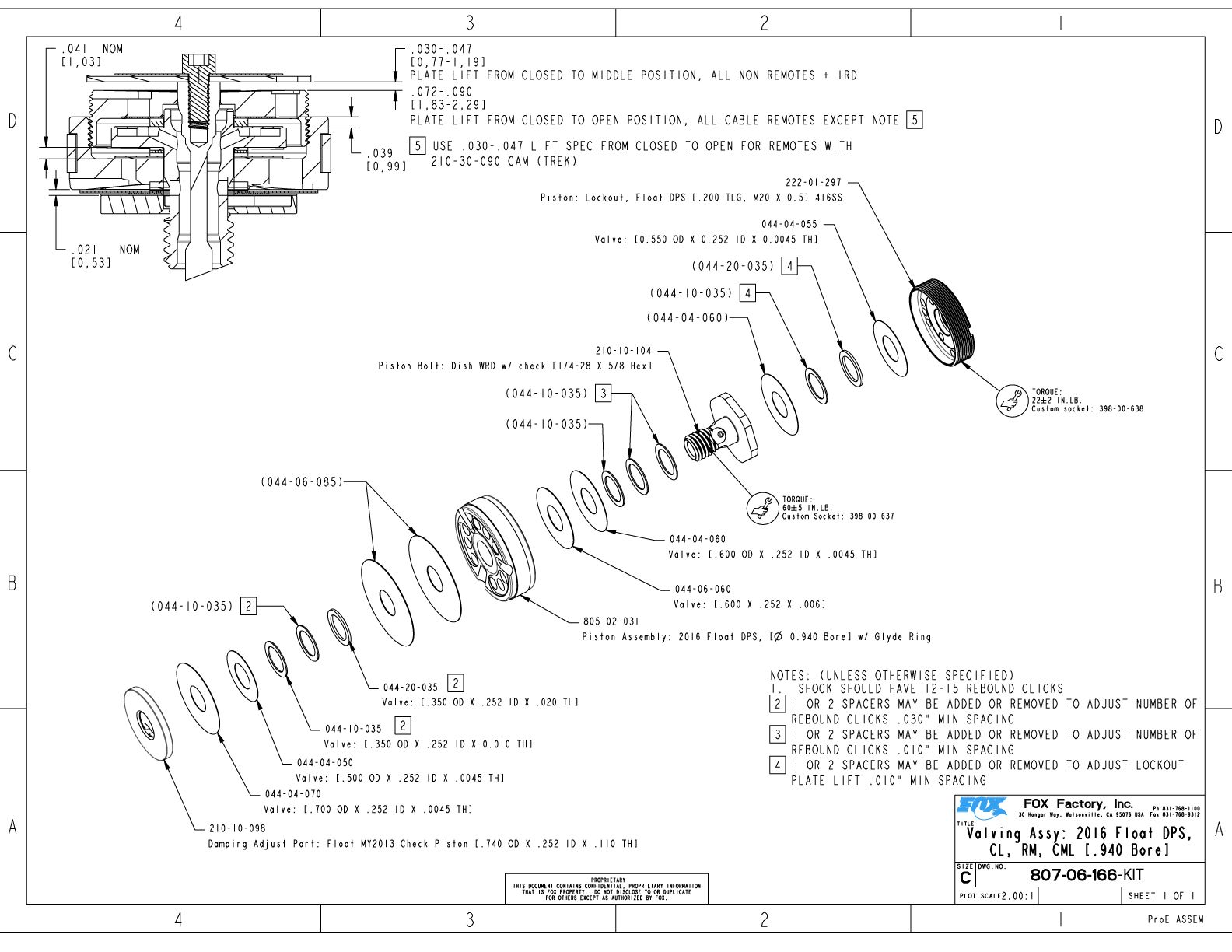

807-06-166-KIT Service Set: Valving Assy: 2016 Float DPS, CL, RM, CML [.940 Bore]
807-06-167-KIT Service Set: Valving Assy: 2016 Float DPS, CL, RM, CMF [.940 Bore]

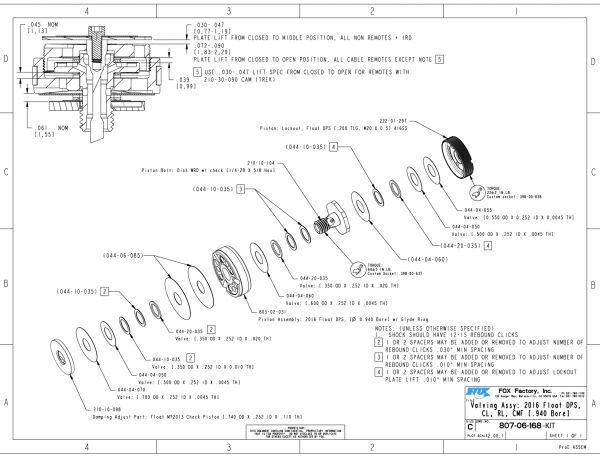

807-06-168-KIT Service Set: Valving Assy: 2016 Float DPS, CL, RL, CMF [.940 Bore]
807-06-169-KIT Service Set: Valving Assy: 2016 Float DPS, CM, RL, CMF [.940 Bore]
807-06-170-KIT Service Set: Valving Assy: 2016 Float DPS, CXL, RL, CML [.940 Bore]
807-06-174-KIT Service Set: Valving Assy: 2016 Float DPS, CM, RL, CML [.940 Bore]
807-06-184-KIT Service Set: Valving Assy: 2016 Float DPS, CL+, RM, CML [.940 Bore]
807-06-187-KIT Service Set: Valving Assy: 2017 Float DPS, R/C, CM, RM, CMF [.940 Bore]
807-06-189-KIT Service Set: Valving Assy: 2017 Float DPS, R/C, CM, RM, CML [.940 Bore]

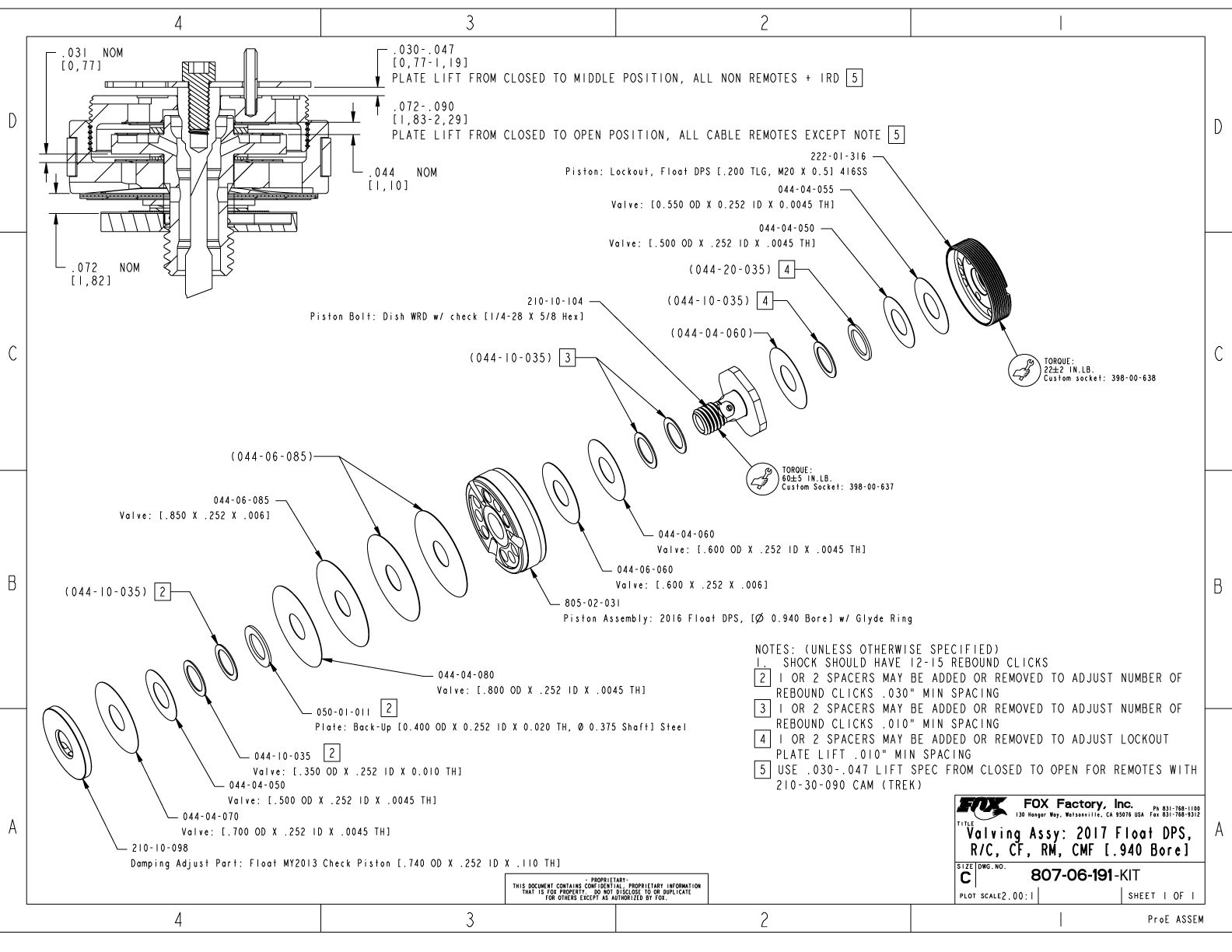

807-06-191-KIT Service Set: Valving Assy: 2017 Float DPS, R/C, CF, RM, CMF [.940 Bore]
807-06-193-KIT Service Set: Valving Assy: 2017 Float DPS, R/C, CL, RM, CMF [.940 Bore]
807-06-194-KIT Service Set: Valving Assy: 2017 Float DPS, R/C, CL, RL, CMF [.940 Bore]
807-06-195-KIT Service Set: Valving Assy: 2017 Float DPS, R/C, CM, RL, CMF [.940 Bore]

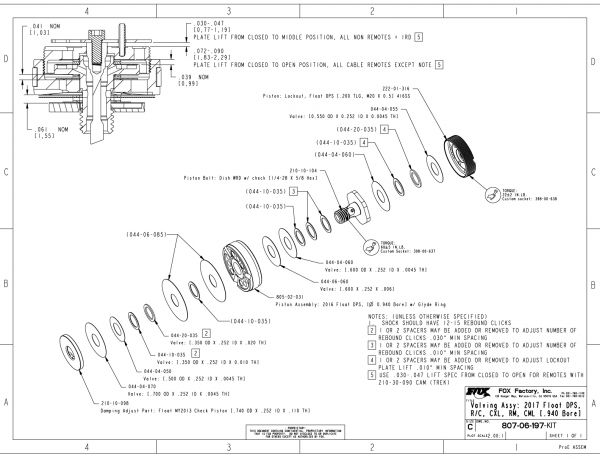

807-06-197-KIT Service Set: Valving Assy: 2017 Float DPS, R/C, CXL, RM, CML [.940 Bore]

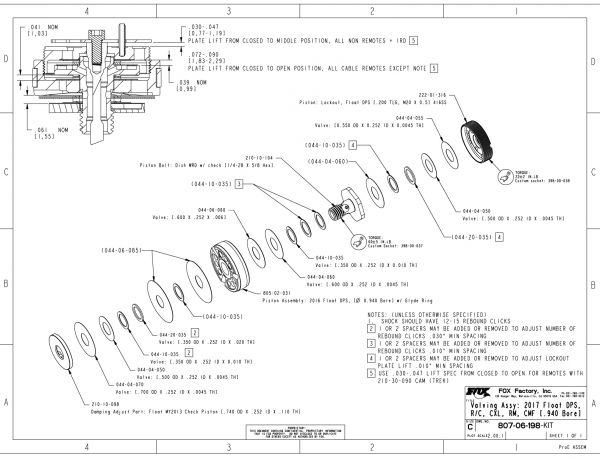

807-06-198-KIT Service Set: Valving Assy: 2017 Float DPS, R/C, CXL, RM, CMF [.940 Bore]

2017 FLOAT DPS Eyelet Assemblies

2017 FLOAT DPS Bearing Assemblies

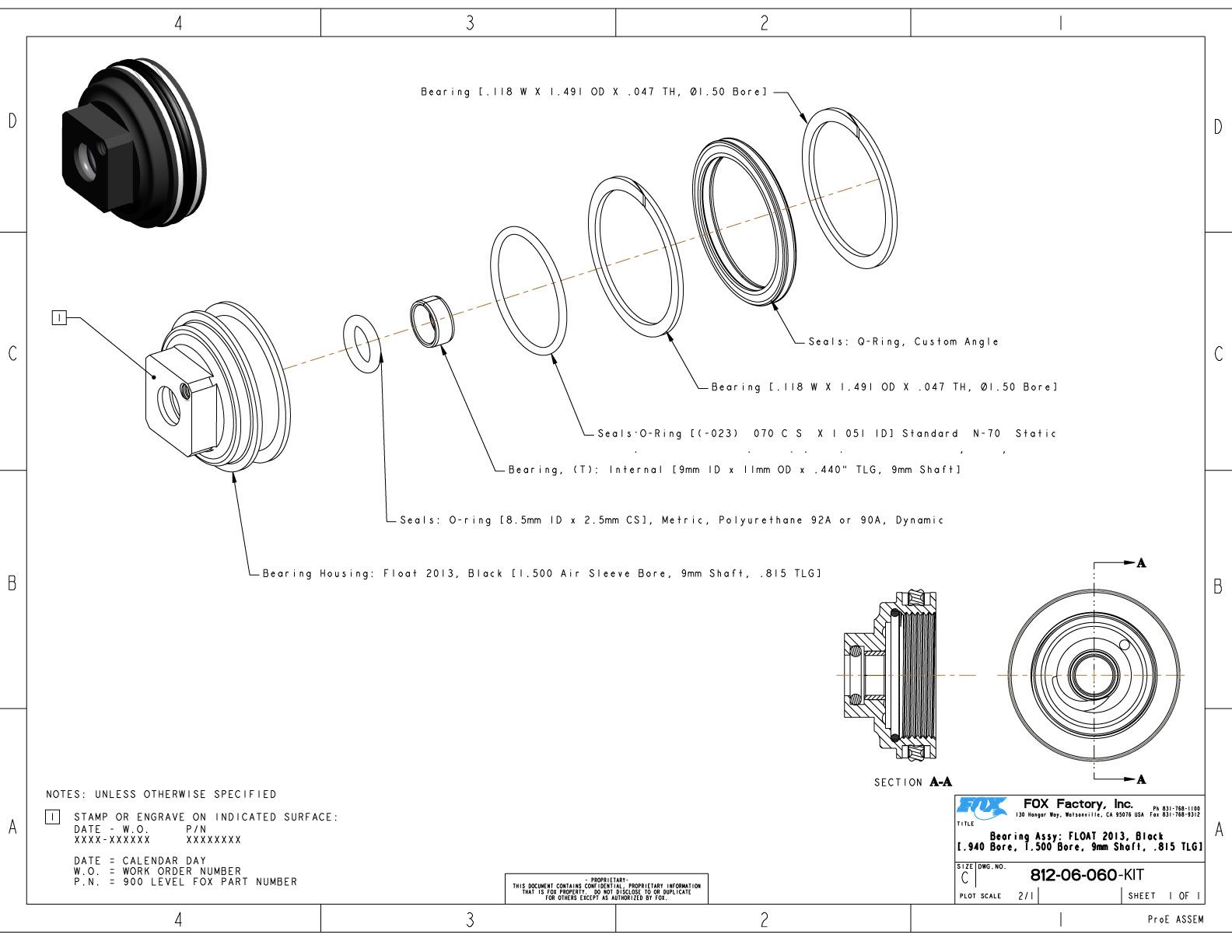

  • 812-06-060-KIT Bearing Assy: FLOAT 2013, Black [.940 Bore, 1.500 Bore, 9mm Shaft, .815 TLG]

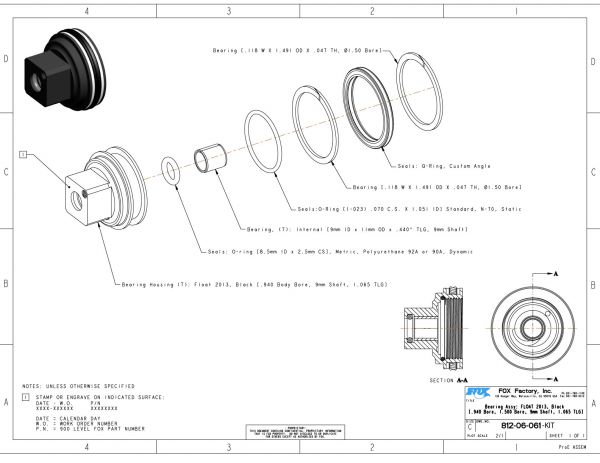

  • 812-06-061-KIT Bearing Assy: FLOAT 2013, Black [.940 Bore, 9mm shaft, 1.065 TLG]

2017 FLOAT DPS Valving Assemblies

2017 FLOAT DPS Assembly Drawings

img/help/page755-VYDW/2016-FLOAT-DPS-m.jpg

2016 FLOAT DPS .

img/help/page755-VYDW/2016-FLOAT-DPS.jpg
back to top

img/help/page755-VYDW/2017-FLOAT-DPS-FS-and-PSe-m.jpg

2017 FLOAT DPS F-S and P-Se .

img/help/page755-VYDW/2017-FLOAT-DPS-FS-and-PSe.jpg
back to top

img/help/page755-VYDW/2017-FLOAT-DPS-PS-m.jpg

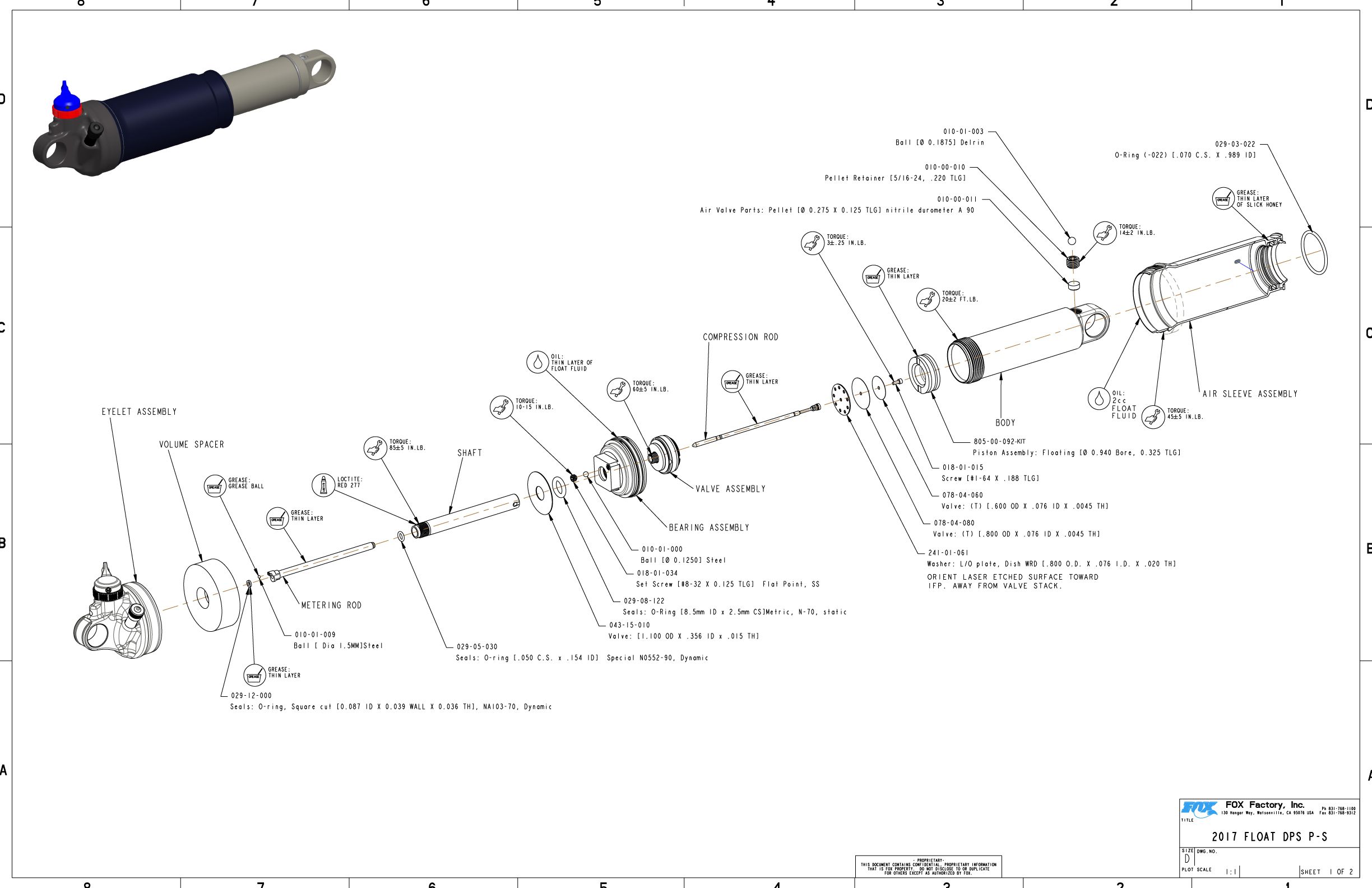

2017 FLOAT DPS P-S .

img/help/page755-VYDW/2017-FLOAT-DPS-PS.jpg
back to top

img/help/page755-VYDW/2017-FLOAT-DPS-Remote-FS-and-PSe-m.jpg

2017 FLOAT DPS Remote F-S and P-Se .

img/help/page755-VYDW/2017-FLOAT-DPS-Remote-FS-and-PSe.jpg
back to top

2017 FLOAT DPS Eyelet Assemblies

img/help/page755-VYDW/808-17-208-KITa-m.jpg

808-17-208-KIT Eyelet Assy: 2016 FLOAT iRD, DPS, LV

img/help/page755-VYDW/808-17-208-KITa.jpg
back to top

img/help/page755-VYDW/808-17-207-KIT-m.jpg

808-17-207-KIT Eyelet Assy: 2016 FLOAT iRD, DPS, SV

img/help/page755-VYDW/808-17-207-KIT.jpg
back to top

img/help/page755-VYDW/808-17-312-KIT-m.jpg

808-17-312-KIT Eyelet 2017 FLOAT Remote Up SV

img/help/page755-VYDW/808-17-312-KIT.jpg
back to top

img/help/page755-VYDW/808-17-314-KIT-m.jpg

808-17-314-KIT Eyelet 2017 FLOAT Remote Up LV

img/help/page755-VYDW/808-17-314-KIT.jpg
back to top

img/help/page755-VYDW/808-17-313-KIT-m.jpg

808-17-313-KIT Eyelet 2017 FLOAT Remote Down SV

img/help/page755-VYDW/808-17-313-KIT.jpg
back to top

img/help/page755-VYDW/808-17-315-KITa-m.jpg

808-17-315-KIT Eyelet 2017 FLOAT Remote Down LV

img/help/page755-VYDW/808-17-315-KITa.jpg
back to top

img/help/page755-VYDW/808-17-300-KIT-m.jpg

808-17-300-KIT Eyelet 2017 FLOAT DPS 3pos-Adj SV

img/help/page755-VYDW/808-17-300-KIT.jpg
back to top

img/help/page755-VYDW/808-17-301-KIT-m.jpg

808-17-301-KIT Eyelet 2017 FLOAT DPS 3pos-Adj LV

img/help/page755-VYDW/808-17-301-KIT.jpg
back to top

img/help/page755-VYDW/808-17-304-KIT-m.jpg

808-17-304-KIT Eyelet 2017 FLOAT DPS 3pos-Adj SV Trunnion

img/help/page755-VYDW/808-17-304-KIT.jpg
back to top

img/help/page755-VYDW/808-17-305-KIT-m.jpg

808-17-305-KIT Eyelet 2017 FLOAT DPS 3pos-Adj LV Trunnion

img/help/page755-VYDW/808-17-305-KIT.jpg
back to top

img/help/page755-VYDW/808-17-302-KIT-m.jpg

808-17-302-KIT Eyelet 2017 FLOAT DPS 3pos SV

img/help/page755-VYDW/808-17-302-KIT.jpg
back to top

img/help/page755-VYDW/808-17-303-KIT-m.jpg

808-17-303-KIT Eyelet 2017 FLOAT DPS 3pos LV

img/help/page755-VYDW/808-17-303-KIT.jpg
back to top

img/help/page755-VYDW/808-17-306-KIT-m.jpg

808-17-306-KIT Eyelet 2017 FLOAT DPS 3pos SV Trunnion

img/help/page755-VYDW/808-17-306-KIT.jpg
back to top

img/help/page755-VYDW/808-17-307-KIT-m.jpg

808-17-307-KIT Eyelet 2017 FLOAT DPS 3pos LV Trunnion

img/help/page755-VYDW/808-17-307-KIT.jpg
back to top

2017 FLOAT DPS Bearing Assemblies

img/help/page755-VYDW/812-06-060-KITa-m.jpg

812-06-060-KIT Bearing Assy: FLOAT 2013, Black [.940 Bore, 1.500 Bore, 9mm Shaft, .815 TLG]

img/help/page755-VYDW/812-06-060-KITa.jpg
back to top

img/help/page755-VYDW/812-06-061-KITa-m.jpg

812-06-061-KIT Bearing Assy: FLOAT 2013, Black [.940 Bore, 9mm shaft, 1.065 TLG]

img/help/page755-VYDW/812-06-061-KITa.jpg
back to top

2017 FLOAT DPS Valving Assemblies

img/help/page755-VYDW/807-06-160-KIT-m.jpg

807-06-160-KIT Valving Assy: 2016 FLOAT DPS CM, RF, CMF

img/help/page755-VYDW/807-06-160-KIT.jpg
back to top

img/help/page755-VYDW/807-06-161-KIT-m.jpg

807-06-161-KIT Valving Assy: 2016 FLOAT DPS CM, RM, CMF

img/help/page755-VYDW/807-06-161-KIT.jpg
back to top

img/help/page755-VYDW/807-06-163-KIT-m.jpg

807-06-163-KIT Valving Assy: 2016 FLOAT DPS CM, RM, CML

img/help/page755-VYDW/807-06-163-KIT.jpg
back to top

img/help/page755-VYDW/807-06-164-KIT-m.jpg

807-06-164-KIT Valving Assy: 2016 FLOAT DPS CL, RL, CML

img/help/page755-VYDW/807-06-164-KIT.jpg
back to top

img/help/page755-VYDW/807-06-165-KIT-m.jpg

807-06-165-KIT Valving Assy: 2016 FLOAT DPS CF, RM, CMF

img/help/page755-VYDW/807-06-165-KIT.jpg
back to top

img/help/page755-VYDW/807-06-166-KIT-m.jpg

807-06-166-KIT Valving Assy: 2016 FLOAT DPS CL, RM, CML

img/help/page755-VYDW/807-06-166-KIT.jpg
back to top

img/help/page755-VYDW/807-06-167-KIT-m.jpg

807-06-167-KIT Valving Assy: 2016 FLOAT DPS CL, RM, CMF

img/help/page755-VYDW/807-06-167-KIT.jpg
back to top

img/help/page755-VYDW/807-06-168-KIT-m.jpg

807-06-168-KIT Valving Assy: 2016 FLOAT DPS CL, RL, CMF

img/help/page755-VYDW/807-06-168-KIT.jpg
back to top

img/help/page755-VYDW/807-06-169-KIT-m.jpg

807-06-169-KIT Valving Assy: 2016 FLOAT DPS CM, RL, CMF

img/help/page755-VYDW/807-06-169-KIT.jpg
back to top

img/help/page755-VYDW/807-06-170-KIT-m.jpg

807-06-170-KIT Valving Assy: 2016 FLOAT DPS CXL, RL, CML

img/help/page755-VYDW/807-06-170-KIT.jpg
back to top

img/help/page755-VYDW/807-06-174-KIT-m.jpg

807-06-174-KIT Valving Assy: 2016 FLOAT DPS CM, RL, CML

img/help/page755-VYDW/807-06-174-KIT.jpg
back to top

img/help/page755-VYDW/807-06-184-KIT-m.jpg

807-06-184-KIT Valving Assy: 2016 FLOAT DPS Scott CL+, RM, CML

img/help/page755-VYDW/807-06-184-KIT.jpg
back to top

img/help/page755-VYDW/807-06-187-KIT-m.jpg

807-06-187-KIT Valving Assy: 2017 FLOAT DPS R/C, CM, RM, CMF

img/help/page755-VYDW/807-06-187-KIT.jpg
back to top

img/help/page755-VYDW/807-06-189-KIT-m.jpg

807-06-189-KIT Valving Assy: 2017 FLOAT DPS R/C, CM, RM, CML

img/help/page755-VYDW/807-06-189-KIT.jpg
back to top

img/help/page755-VYDW/807-06-191-KIT-m.jpg

807-06-191-KIT Valving Assy: 2017 FLOAT DPS R/C, CF, RM, CMF

img/help/page755-VYDW/807-06-191-KIT.jpg
back to top

img/help/page755-VYDW/807-06-193-KIT-m.jpg

807-06-193-KIT Valving Assy: 2017 FLOAT DPS R/C, CL, RM, CMF

img/help/page755-VYDW/807-06-193-KIT.jpg
back to top

img/help/page755-VYDW/807-06-194-KIT-m.jpg

807-06-194-KIT Valving Assy: 2017 FLOAT DPS R/C, CL, RL, CMF

img/help/page755-VYDW/807-06-194-KIT.jpg
back to top

img/help/page755-VYDW/807-06-195-KIT-m.jpg

807-06-195-KIT Valving Assy: 2017 FLOAT DPS R/C, CM, RL, CMF

img/help/page755-VYDW/807-06-195-KIT.jpg
back to top

img/help/page755-VYDW/807-06-197-KIT-m.jpg

807-06-197-KIT Valving Assy: 2017 FLOAT DPS R/C, CXL, RM, CML

img/help/page755-VYDW/807-06-197-KIT.jpg
back to top

img/help/page755-VYDW/807-06-198-KIT-m.jpg

807-06-198-KIT Valving Assy: 2017 FLOAT DPS R/C, CXL, RM, CMF

img/help/page755-VYDW/807-06-198-KIT.jpg
back to top
