PARTS & DRAWINGS
DHX2 Part Information
New for 2017:
| New Compression Lever Option | Two postion lever compression adjustment |
| New Metric Sizes | Only available in standard eye-to-eye |
| Trunnion Eyelet | New trunnion eyelet mounting option |
Maintenance Information:
| Service Interval | Full Service 125 Hours |
| 398-00-418 | Tooling: 2016 Float X2, Bullet Tool |
| 803-00-805 | Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in |
| 803-00-463 | Kit: Fill Machine Adapter, 04-07 Epic IV, DHX Air, RC2_RC4 Shocks |
| 803-00-566 | Kit: Bike IFP Depth Setting Tool Set |
| 803-00-950 | Seal Kit: DHX2 Damper Rebuild |
| 398-00-662 | Service torque tool for X2 two position lever |
Oil Info:
| 025-02-003 | Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red |
IFP Info:
| IFP Pressure | 125 psi |
| Shock Size | IFP Heights (All measurements +/- .050in) |
| 7.875 x 2.250 | 1.243in/ 31.57mm |
| 8.500 x 2.500 | 1.293in/ 32.84mm |
| 8.750 x 2.750 | 1.343in/ 34.11mm |
| 9.500 x 3.000 | 1.393in/ 35.38mm |
| 10.500 x 3.500 | 1.443in/ 36.65mm |
Upgrade Info:
| 803-01-131 | Kit: Upgrade, X2 F-S 2-Position Lever CD Cartridge Assembly, and Valve Seat |
2017 DHX2 Part Information
Inner Tubes
| Shock Size | Part | Description |
| 7.875 x 2.250 | 204-18-094 | Body: (T) DHX2, Inner Tube, [.940 Bore, 3.382 TLG] 7.875 X 2.25 |
| 8.500 x 2.500 | 204-18-091 | Body: (T) DHX2, Inner Tube, [.940 Bore, 3.757 TLG] 8.50 X 2.50 / 8.75 X 2.75 |
| 8.750 x 2.750 | 204-18-091 | Body: (T) DHX2, Inner Tube, [.940 Bore, 3.757 TLG] 8.50 X 2.50 / 8.75 X 2.75 |
| 9.500 x 3.000 | 204-18-092 | Body: (T) DHX2, Inner Tube, [.940 Bore, 4.257 TLG] 9.50 X 3.00 |
| 10.500 x 3.500 | 204-18-093 | Body: (T) DHX2, Inner Tube, [.940 Bore, 4.757 TLG] 10.50 X 3.50 |
Outer Tubes
| Shock Size | Part | Description |
| 7.875 x 2.250 | 204-18-104 | Body: (T) DHX2, Outer [3.425 TLG] Black Ano Type III, 7.875 X 2.25 |
| 8.500 x 2.500 | 204-18-101 | Body: (T) DHX2, Outer [3.797 TLG] Black Ano Type III, 8.50 x 2.50, 8.75 X 2.75 |
| 8.750 x 2.750 | 204-18-101 | Body: (T) DHX2, Outer [3.797 TLG] Black Ano Type III, 8.50 x 2.50, 8.75 X 2.75 |
| 9.500 x 3.000 | 204-18-102 | Body: (T) DHX2, Outer [4.297 TLG] Black Ano Type III, 9.50 X 3.00 |
| 10.500 x 3.500 | 204-18-103 | Body: (T) DHX2, Outer [4.795 TLG] Black Ano Type III, 10.50 X 3.50 |
Shafts
| Shock Size | Part | Description |
| 7.875 x 2.250 | 229-19-220 | Shaft (T), 9mm, [0.25 Piston], DHX2, CLNG, 7.875 X 2.25 |
| 8.500 x 2.500 | 229-19-221 | Shaft (T), 9mm, [0.25 Piston], DHX2, CLNG, 8.50 X 2.50 |
| 8.750 x 2.750 | 229-19-222 | Shaft (T), 9mm, [0.25 Piston], DHX2, CLNG, 8.75 X 2.75 |
| 9.500 x 3.000 | 229-19-223 | Shaft (T), 9mm, [0.25 Piston], DHX2, CLNG, 9.50 X 3.00 |
| 10.500 x 3.500 | 229-19-224 | Shaft (T), 9mm, [0.25 Piston], DHX2, CLNG, 10.50 X 3.50 |
Eyelet Assemblies (w/shaft)
| Shock Size | Part | Description |
| 7.875 x 2.250 | 808-17-196 | Eyelet Assy: (T) Shaft, 9mm, [0.25 Piston], DHX2, 7.875 X 2.25 |
| 8.500 x 2.500 | 808-17-192 | Eyelet Assy: (T) Shaft, 9mm, [0.25 Piston], DHX2, 8.50 X 2.50 |
| 8.750 x 2.750 | 808-17-193 | Eyelet Assy: (T) Shaft, 9mm, [0.25 Piston], DHX2, 8.75 X 2.75 |
| 9.500 x 3.000 | 808-17-194 | Eyelet Assy: (T) Shaft, 9mm, [0.25 Piston], DHX2, 9.50 X 3.00 |
| 10.500 x 3.500 | 808-17-195 | Eyelet Assy: (T) Shaft, 9mm, [0.25 Piston], DHX2, 10.50 X 3.50 |
Eyelet Assemblies
| Part | Description |
| 808-17-235-KIT | Eyelet Assy: 2017, DHX2, F-S, 2pos-Adj |
| 808-17-183-KIT | Service Set: Eyelet Assy: F-S/P-Se 2016 DHX2 |
| 808-17-185-KIT | Service Set: Eyelet Assy: P-S 2016 DHX2 |
Adjuster Assemblies
| Part | Description |
| 815-02-042-KIT | Damping Adj Assy: 2016 DHX2, FloatX2 Cartridge, F-S CD |
| 815-02-043-KIT | Damping Adj Assy: 2016 DHX2, FloatX2 Cartridge, F-S RD |
| 815-00-067-KIT | Damping Adj Assy: 2016 DHX2 FLOATX2 Cartridge P-Se RC CD |
| 815-00-066-KIT | Damping Adj Assy: 2016 DHX2 FLOATX2 Cartridge P-Se RC RD |
| 815-02-057-KIT | Service Set: Damping Adj Assy: 2017, DHX2, Float X2, Cartridge, CD, F-S, 2pos-Adj |
Spring Guard
| Part | Description |
| 204-18-072 | Body: DHX2, Spring Guard |
2017 DHX2

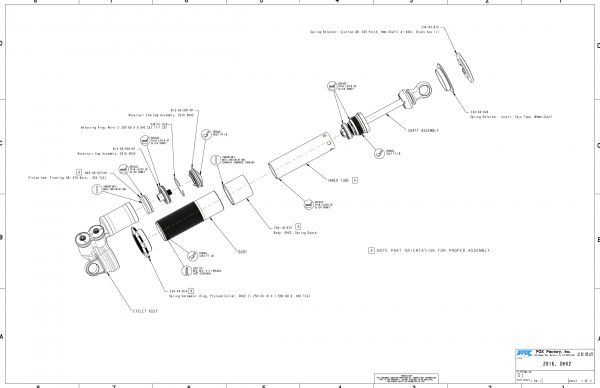

- 2016 DHX2 .
- 808-17-183-KIT Eyelet Assy 2016 DHX2
- 808-17-185-KIT Eyelet Assy P-Se 2016 DHX2
- 808-17-235-KIT Eyelet 2017 DHX2 FLOAT X2 2pos-Adj
- 815-02-046-KIT Valve Seat Assy: DHX2, FLOAT X2

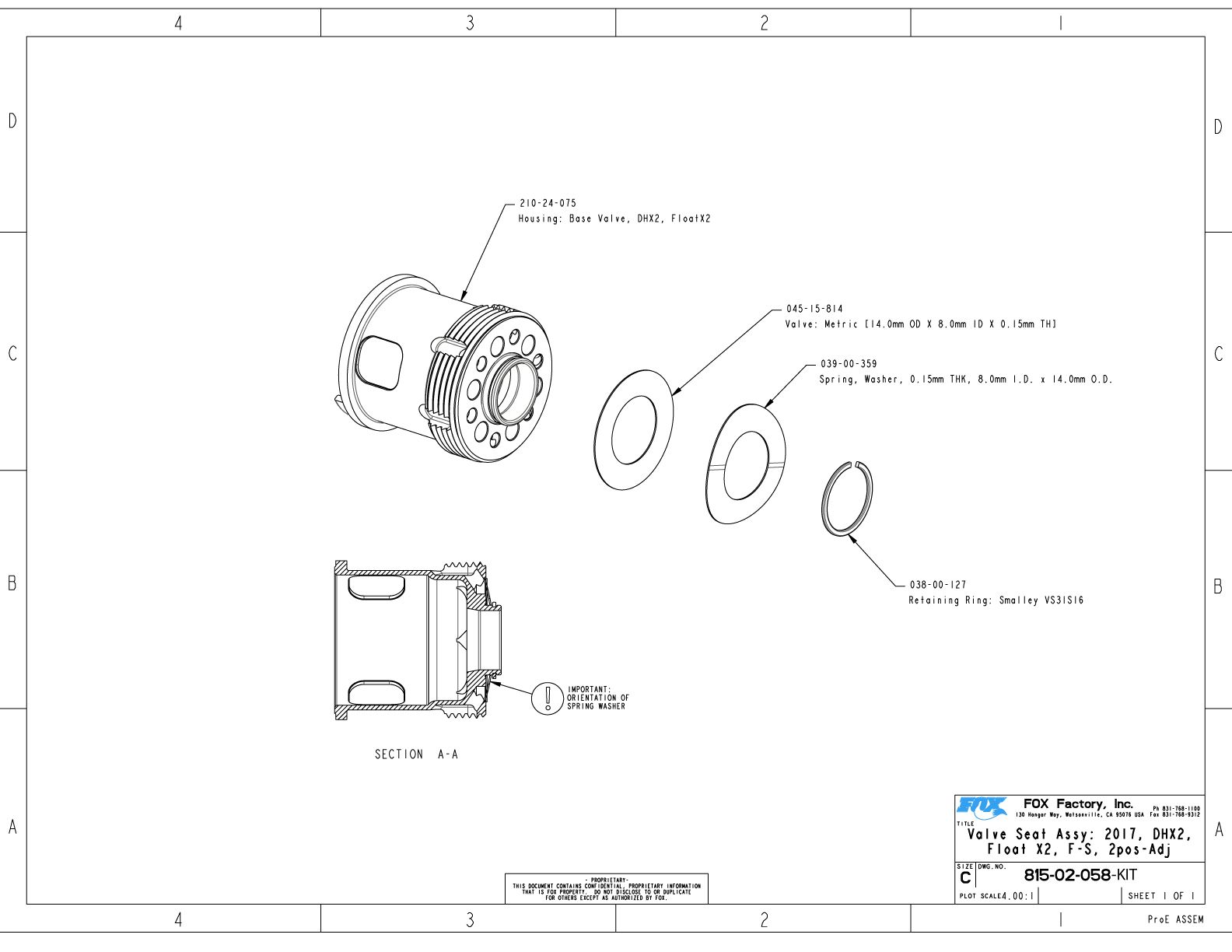

- 815-02-058-KIT Valve Seat Assy: 2017 DHX2 FLOAT X2 F-S 2pos-Adj
- 815-00-067-KIT Damping Adj Assy: 2016 DHX2 Cartridge RC CD
- 815-02-042-KIT Damping Adj Assy: 2016 DHX2 FLOAT X2 Cartridge CD

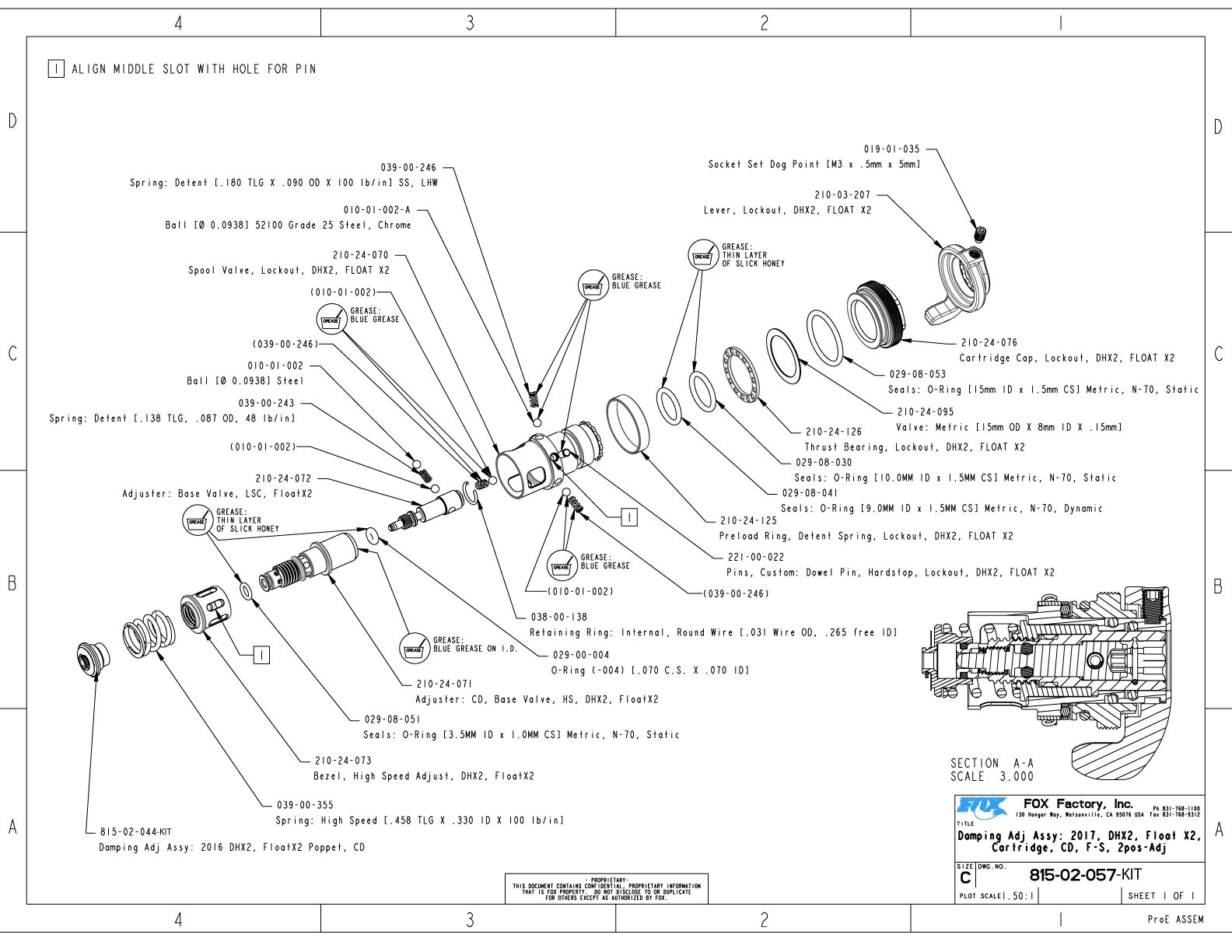

- 815-02-057-KIT Damping Adj Assy: 2017 DHX2 FLOAT X2 Cartridge CD F-S 2pos-Adj
- 815-00-066-KIT Damping Adj Assy: 2016 DHX2 FLOAT X2 Cartridge RC RD

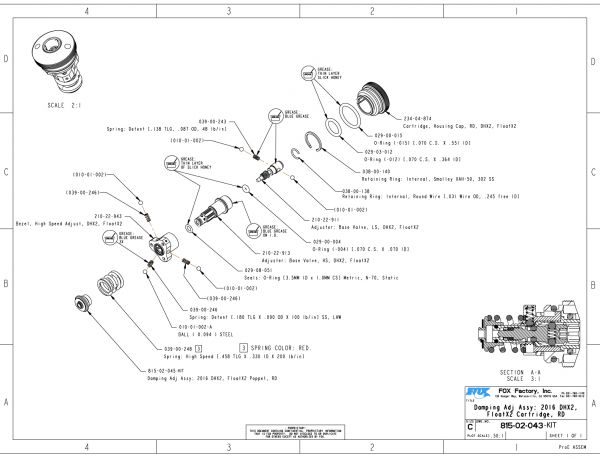

- 815-02-043-KIT Damping Adj Assy: 2016 DHX2 FLOAT X2 Cartridge RD

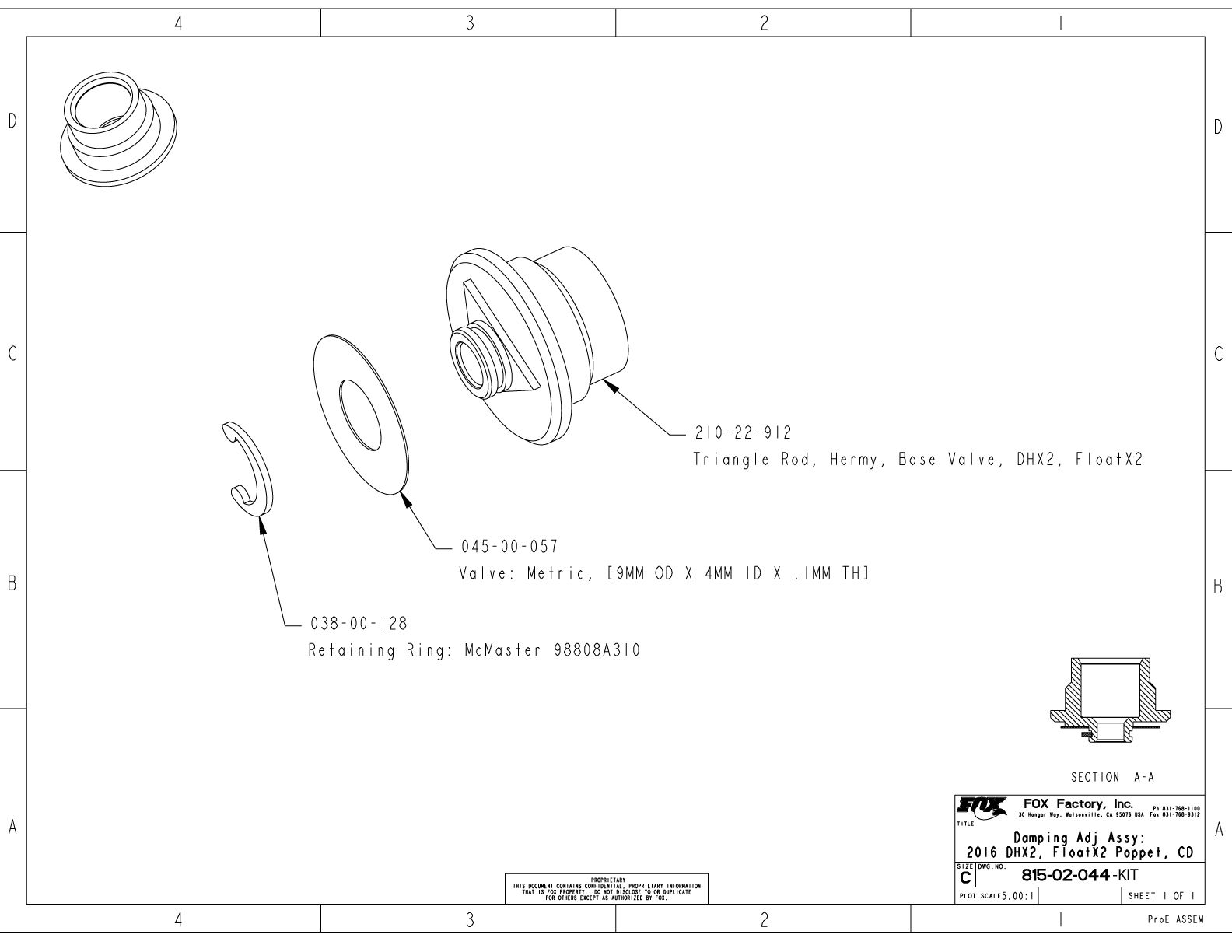

- 815-02-044-KIT Damping Adj Assy: 2016 DHX2 FLOAT X2 Poppet CD

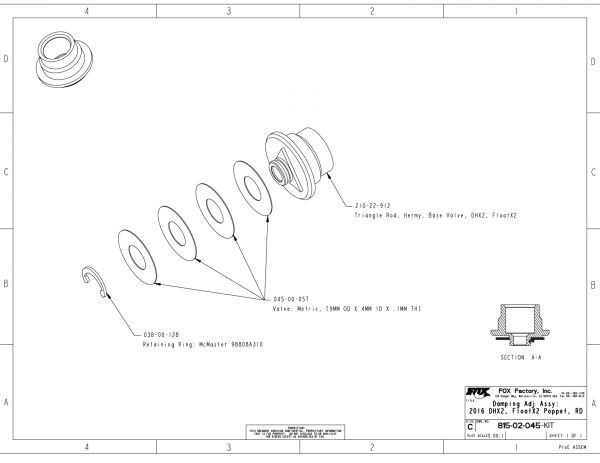

- 815-02-045-KIT Damping Adj Assy: 2016 DHX2 FLOAT X2 Poppet RD
- Eyelet Assy Shaft 9mm DHX2 .
- 805-02-030-KIT Piston Assy: 2016 X2 CF/CM .250 Post
- 805-00-090-KIT Piston Assembly: 2016 X2, CM/CL, 250 Post

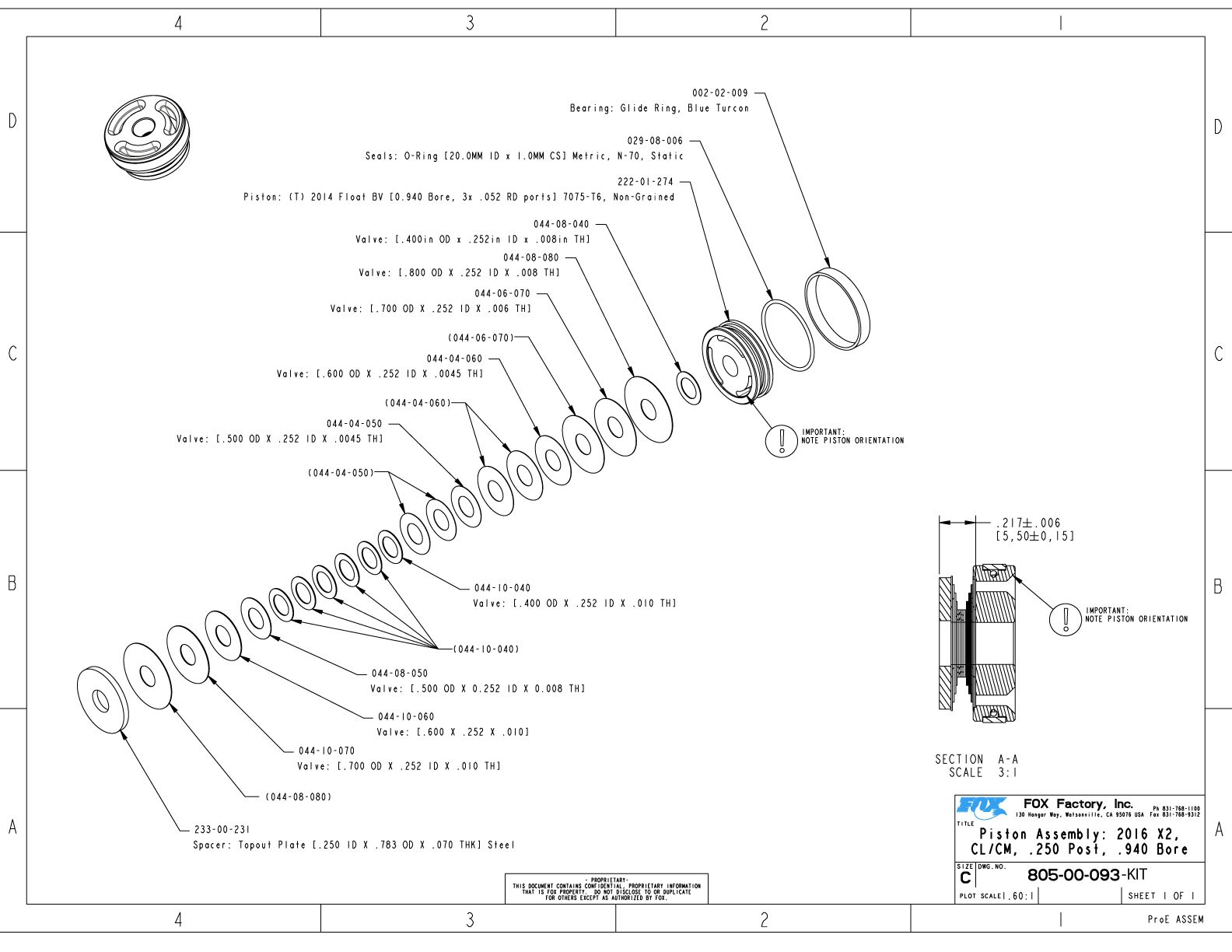

- 805-00-093-KIT Piston Assembly: 2016 X2, CL/CM, .250 Post
