34mm Part Information
New for 2017:
| Updated FIT4 Damper Tune | New E16 tune, backwards compatible |
| New Upper Bushings | New no groove upper bushings in lowers on F-S/P-SE series |
| New Upper and Lower Bushings | New "Grey" bushings in P-S and Rhythm lowers |
| New 15x110QR Options | Available for 27.5 and 29. Not backwards compatible |
| New Ano Stanchions | New black anodized finish P-S and P-SE stanchions |
| New Grip Damper | Non-remote and remote options |
| New E-bike Specific "Speed-Ped" Fork | New CSU, air spring and damper, Boost 15QRx110 |
| New Rhythm Model Line | New specific CSU, lower, air shaft, damper, new dust wiper |
| Remote Lever | 2 position lever, single and dual cable capable |
2016 Continuing Technology:
| 2016 FIT4 damper tune | Old FIT4 tune still supported |
| 2016 FIT4 Performance Series damper | Still supported |
Maintenance Information:
| Service Interval | Full Service 125 hours |
| 803-00-930 | Seal Kit: 32 & 34 FIT4 Cartridge Rebuild |
| 803-00-963 | Seal Kit: 34 FLOAT NA2 Rebuild |
| 398-00-681 | 2002-017 32 Damper-side and ALL 32-34-36-40 Spring-side Removal Tool |
| 398-00-682 | 2005-017 34-36-40 Damper-side Removal Tool |
| 803-00-945 | Kit: Dust Wiper, Forx, 34mm, Low Friction, No Flange |
| 803-00-084 | Kit: Shaft Clamps, FORX, Set #1 (32mm Forx) |
| 803-00-147 | Kit: Shaft Clamps, 07 FORX, Set #2 (32 X Body, 36, 40 Forx) |
| 398-00-297 | Hand Bleeder |
| 803-01-150 | Kit: Tooling: Clamps, Grip Damper, Body and Shaft |
| 803-01-141 | Seal Kit: 32, 34, 36 GRIP Cartridge Rebuild |
Oil Info:
| Application | Part | Description |
| All FIT4 Dampers | 025-06-006 | Oil: Suspension Fluid [250 ml. ] R3, 5WT, ISO 15 |
| 025-06-007 | Oil: Suspension Fluid [1.00 Quart] R3, 5WT, ISO 15 | |
| All TALAS 5 Topcap Assemblies | 025-02-003 | Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red |
| All non-GRIP damper bath oil and FLOAT NA2 Air Chamber and bath | 025-03-015 | Oil: AM, FOX Bath Oil [250 ml.], 20 WT Gold |
| 025-03-010 | Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold | |
| All 34 Grip Damper and Bath Oil | 025-03-023 | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart |
| Application | Bath Oil Volumes |
| Float 34 110-120 Air Side | 25 ml (20wt. Gold) |
| Float 34 130-160 Air Side | 10 ml (20wt. Gold) |
| Talas 34 All Travels Air Side | 30 ml (20wt. Gold) |
| 34 iRD Damper Side | 20 ml (20wt. Gold) |
| 34 FIT4 Damper Side | 15 ml (20wt. Gold) |
| All 34 Grip Damper Bath Oil | 40 ml (5wt. Teflon) |
Remote upgrade info:
| 820-07-124 | 2017 Remote Lever, Suspension, Two Position, Dual - Cable, Bottom Left, AM |
| 820-07-126 | 2017 Remote Lever, Suspension, Two-Position, Dual-Cable, Top-Right, AM |
| 820-05-332-KIT | Service Set: 2016 FIT4 TopCap Interface Parts F-S Remote |
| 820-07-033 | 2014-016 3Pos Remote Lever, Single Cable, AM, Preconfigure: Right |
| 803-00-817 | Service Set: 2014 CTD Remote Lever, AM Splitter, Kit |
| 820-08-697-KIT | Service Set: 2017 34 26in and 27.5in and 29in 130-160 F-S FIT4 Remote Cart Assy Complete, E16 |
| 820-08-366-KIT | Service Set: 2017 34 27.5 & 29 130-160, Grip Remote Cart Assy Complete |
| 820-08-680-KIT | Service Set: 2017 34 27.5 & 29 80-120 Grip Remote Cart Assy Complete |
| 820-05-234-KIT | Service Set: 2017 34, All, Grip Remote, Topcap Assy |
| 820-05-237-KIT | 2017 Grip Remote, Topcap Interface Parts |
| 820-08-676-KIT | Service Set: 2017 Rhythm 34 27.5 80-120, Grip Remote Cart Assy Complete |
| 820-08-362-KIT | Service Set: 2017 Rhythm 34 27.5 130-150, Grip Remote Cart Assy Complete |
| 820-08-677-KIT | Service Set: 2017 Rhythm 34 29 80-120, Grip Remote Cart Assy Complete |
| 820-08-363-KIT | Service Set: 2017 Rhythm 34 29 130-150, Grip Remote Cart Assy Complete |
FLOAT NA2/CSU info (See Part Listings for UT bore and Piston Diameter by part):
| Upper Tube Bore | Piston Diameter OD |
| 1.214 in bore | 1.208 in |
FLOAT NA2 Volume spacer info:
| Travel | Factory installed Spacer QTY (Maximum) |
| 110 | 6 (7) |
| 120 | 5 (6) |
| 130 | 3 (6) |
| 140 | 2 (5) |
| 150 | 2 (5) |
| 160 | 1 (4) |
2017 34mm Part Listings
CSUs
| Part | Description |
| 820-11-076-KIT | Service Set: 2017 34 27.5in Rhythm Gloss White CSU |
| 820-11-077-KIT | Service Set: 2017 34 27.5in Rhythm Shiny Black CSU |
| 820-11-081-KIT | Service Set: 2017 34 51OS Rhythm Gloss White CSU |
| 820-11-082-KIT | Service Set: 2017 34 51OS Rhythm Shiny Black CSU |
| 820-11-083-KIT | Service Set: 2017 34 51OS Rhythm Matte Black CSU |
| 820-11-777-KIT | Service Set: 2017 34 27.5in 160 and 29in 140 15QRx110 Kashima Matte Black 44 Rake 1.5T CSU |
| 820-11-851-KIT | Service Set: 2017 34 27.5 160 & 29in 140 SPD-PED-ELEC Kashima Matte Black 44 Rake 1.5 Taper CSU |
| 820-11-854-KIT | Service Set: 2017 34 27.5 160 & 29in 140 15QRx110 SPD-PED-ELEC Black Ano Matte Black 44 Rake 1.5 Taper CSU |
| 820-11-857-KIT | Service Set: 2017 34 27.5 160 & 29in 140 15QRx110 SPD-PED-ELEC Kashima Matte Black 44 Rake 1.5 Taper CSU |
| 820-11-860-KIT | Service Set: 2017 34 29in 140 SPD-PED-ELEC Black Ano Matte Black 51 Rake 1.5 Taper CSU |
| 820-11-866-KIT | Service Set: 2017 34 29in 140 15QRx110 SPD-PED-ELEC Black Ano Matte Black 51 Rake 1.5 Taper CSU |
| 820-11-869-KIT | Service Set: 2017 34 29in 140 15QRx110 SPD-PED-ELEC Kashima Matte Black 51 Rake 1.5 Taper CSU |
| 820-11-907-KIT | Service Set: 2017 34 27.5in 160 & 29in 140 Float, Black Ano, Fox Shiny Black, 1.5T, 44 Rake CSU Assy |
| 820-11-959-KIT | Service Set: 2017 34 27.5in 160 Black Ano Matte Black 1.5 Short Taper CSU |
| 820-11-960-KIT | Service Set: 2017 34 29in 140 Black Ano Matte Black 1.5 Short Taper CSU |
| 820-11-963-KIT | Service Set: 2017 34 27.5 PLUS 150 Black Ano Matte Black 1.5 Short Taper CSU |
| 820-11-965-KIT | Service Set: 2017 34 29in 140 15QRx110 Black Ano Shiny Black 51 Rake 1.5T CSU |
| 820-11-966-KIT | Service Set: 2017 34 29in 140 15QRx110 Black Ano Matte Black 51 Rake 1.5T CSU |
| 820-12-000-KIT | Service Set: 2017 34 27.5in 160 and 29in 140 15QRx110 Black Ano Matte Black 44 Rake 1.5T CSU |
| 820-12-001-KIT | Service Set: 2017 34 27.5in 160 and 29in 140 15QRx110 Black Ano Gloss White 44 Rake 1.5T CSU |
Lower Legs
| Part | Description |
| 820-10-053-KIT | Service Set: 2017 Rhythm 34 27.5in 15QRx110 Gloss White Lower Leg Assy |
| 820-10-054-KIT | Service Set: 2017 Rhythm 34 27.5in 15QRx110 Shiny Black Lower Leg Assy |
| 820-10-055-KIT | Service Set: 2017 Rhythm 34 27.5in 15x110QR Matte Black Lower Leg Assy |
| 820-10-058-KIT | Service Set: 2017 Rhythm 34 29in 15QRx110 Gloss White Lower Leg Assy |
| 820-10-059-KIT | Service Set: 2017 Rhythm 34 29in 15QRx110 Shiny Black Lower Leg Assy |
| 820-10-060-KIT | Service Set: 2017 Rhythm 34 29in 15QRx110 Matte Black Lower Leg Assy |
| 820-10-254-KIT | Service Set: 2017 34 27.5in 160 15QRx110, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-257-KIT | Service Set: 2017 34 27.5in 160 15QRx110, Fox Matte Silver, F-S PE-S, Lower Leg Assy |
| 820-10-312-KIT | Service Set: 2017 34 27.5in PLUS 150 15QRx110 Fox Gloss White Lower Leg Assy |
| 820-10-313-KIT | Service Set: 2017 34 27.5in PLUS 150 15QRx110 Fox Shiny Black Lower Leg Assy |
| 820-10-314-KIT | Service Set: 2017 34 27.5in PLUS 150 15QRx110 Fox Matte Black Lower Leg Assy |
| 820-10-317-KIT | Service Set: 2017 34 29in 140 15QRx110 Fox Matte Black Lower Leg Assy |
| 820-10-318-KIT | Service Set: 2017 34 27.5in 160 15QR Matte Black Lower Leg Assy |
| 820-10-319-KIT | Service Set: 2017 34 29in 140 15QR Matte Black Lower Leg Assy |
| 820-10-320-KIT | Service Set: 2017 34 27.5in 160 15QR Matte Silver Lower Leg Assy |
| 820-10-323-KIT | Service Set: 2017 34 29in 140 15QRx110 Fox Matte Silver Lower Leg Assy |
| 820-10-551-KIT | Service Set: 2017 34 27.5in 160 15x110 Kabolt, Blk, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-568-KIT | Service Set: 2017 34 27.5in PLUS 150 15x110 Kabolt, Blk, Fox Matte Black Lower Leg Assy |
Complete Cartridges
| Part | Description |
| 820-08-362-KIT | Service Set: 2017 Rhythm 34 27.5 130-150, Grip Remote Cart Assy Complete |
| 820-08-363-KIT | Service Set: 2017 Rhythm 34 29 130-150, Grip Remote Cart Assy Complete |
| 820-08-366-KIT | Service Set: 2017 34 27.5 & 29 130-160, Grip Remote Cart Assy Complete |
| 820-08-372-KIT | Service Set: 2017 Rhythm 34 29 130-150, Grip Cart Assy Complete |
| 820-08-375-KIT | Service Set: 2017 34 27.5 & 29 130-160, Grip Cart Assy Complete |
| 820-08-657-KIT | Service Set: 2017 Rhythm 34 27.5 130-150, Grip Cart Assy Complete |
| 820-08-676-KIT | Service Set: 2017 Rhythm 34 27.5 80-120, Grip Remote Cart Assy Complete |
| 820-08-677-KIT | Service Set: 2017 Rhythm 34 29 80-120, Grip Remote Cart Assy Complete |
| 820-08-680-KIT | Service Set: 2017 34 27.5 & 29 80-120 Grip Remote Cart Assy Complete |
| 820-08-681-KIT | Service Set: 2017 Rhythm 34 29 80-120 Grip Cart Assy Complete |
| 820-08-684-KIT | Service Set: 2017 34 27.5 & 29 80-120 Grip Cart Assy Complete |
| 820-08-685-KIT | Service Set: 2017 Rhythm 34 27.5 80-120, Grip Cart Assy Complete |
| 820-08-696-KIT | Service Set: 2017 34 26in and 27.5in and 29in 130-160 F-S FIT4 Cart Assy Complete, E16 |
| 820-08-697-KIT | Service Set: 2017 34 26in and 27.5in and 29in 130-160 F-S FIT4 Remote Cart Assy Complete, E16 |
Damper Topcap Assemblies
| Part | Description |
| 820-05-234-KIT | Service Set: 2017 34, All, Grip Remote, Topcap Assy |
| 820-05-375-KIT | Service Set: 2017 34 Grip Damper, Topcap Assy |
| 820-05-399-KIT | Service Set: 2017 34 FIT4 F-S Topcap Assy, E16 |
Size Specific Damper Cartridge Parts
| Part | Description |
| 204-18-151 | Pressure Tube, 20.0 Bore, Grip, 34 Rhythm & 32 27.5 |
| 204-18-153 | Pressure Tube, 20.0 Bore, Grip, 34 All & 36 160 Max |
| 207-11-106 | (T) Pressure Tube, 15.5 Bore, 160 Max Travel, FIT4 |
| 210-22-897 | Rebound Adjust Needle, MY16, 34mm 26/27.5/29 Chassis, FIT4 |
| 210-22-956 | Damping Adj Part: Needle, Comp, Grip |
| 210-24-086 | Damping Adj Part: Needle, Comp, Grip Remote |
| 229-10-092 | Shaft, Damper, Comp, 8mm, Grip |
| 229-10-093 | Shaft, Damper, Comp, 8mm, Grip Remote |
| 229-10-137 | (T) Shaft, Damper, 10mm, MY16, 34mm 26/27.5/29 Chassis, FIT4 |
| 229-10-273 | Shaft, 10mm Damper, Hard Ano, Grip, 34 All |
2017 FIT4
- 820-08-696-KIT 2017 34 Factory Series FIT4 Cart Assy Complete

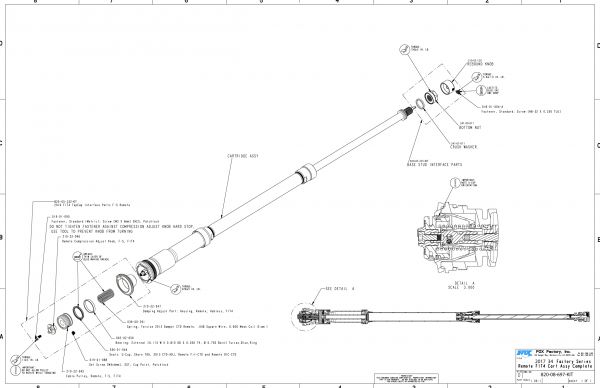

- 820-08-697-KIT 2017 34 Factory Series Remote FIT4 Cart Assy Complete

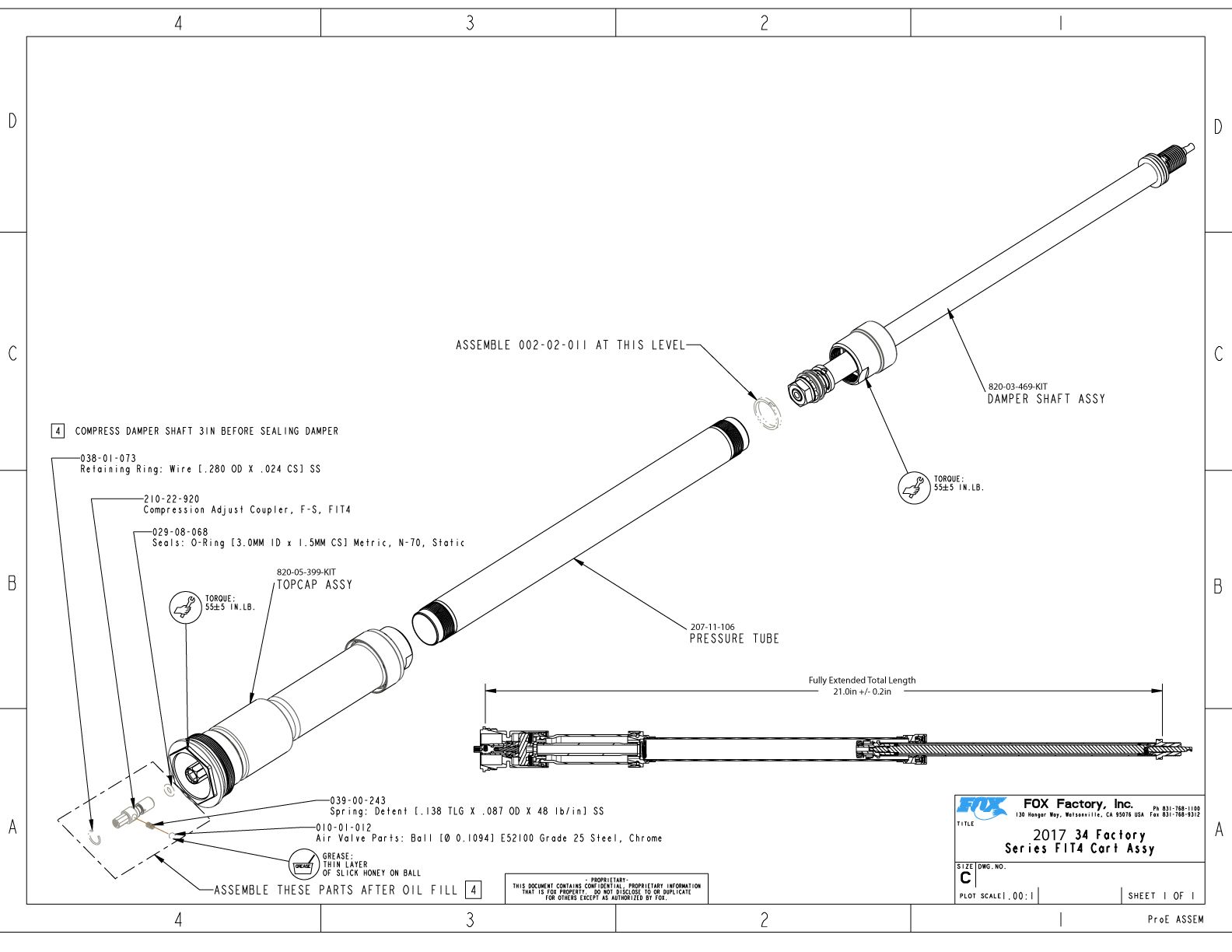

- 2017 34 Factory Series FIT4 Cart Assy .
- 820-05-399-KIT 2017 34 FIT4 Topcap
- 820-03-462-KIT 2016 FIT4 F-S Top Cap Parts
- 820-03-510-KIT 2017 FIT4 F-S Compression Valving Assy E16
- 820-03-465-KIT Rebound Piston Assy 2016 FIT4
- 820-03-469-KIT 2016 FIT4 Damper Shaft Assy
2017 P-S GRIP
- Cartridge Assy Complete 34 GRIP Performance Series .

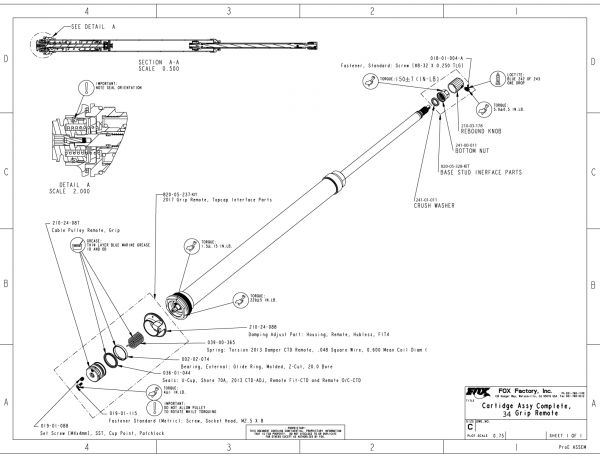

- Cartridge Assy Complete 34 GRIP Remote .
- Cartridge 34 2017 GRIP .
- Topcap 34 GRIP .
- 820-03-458-KIT Rebound Piston 34 2017 GRIP

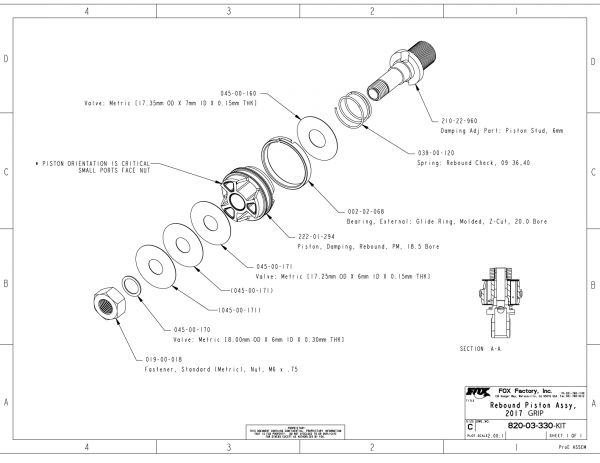

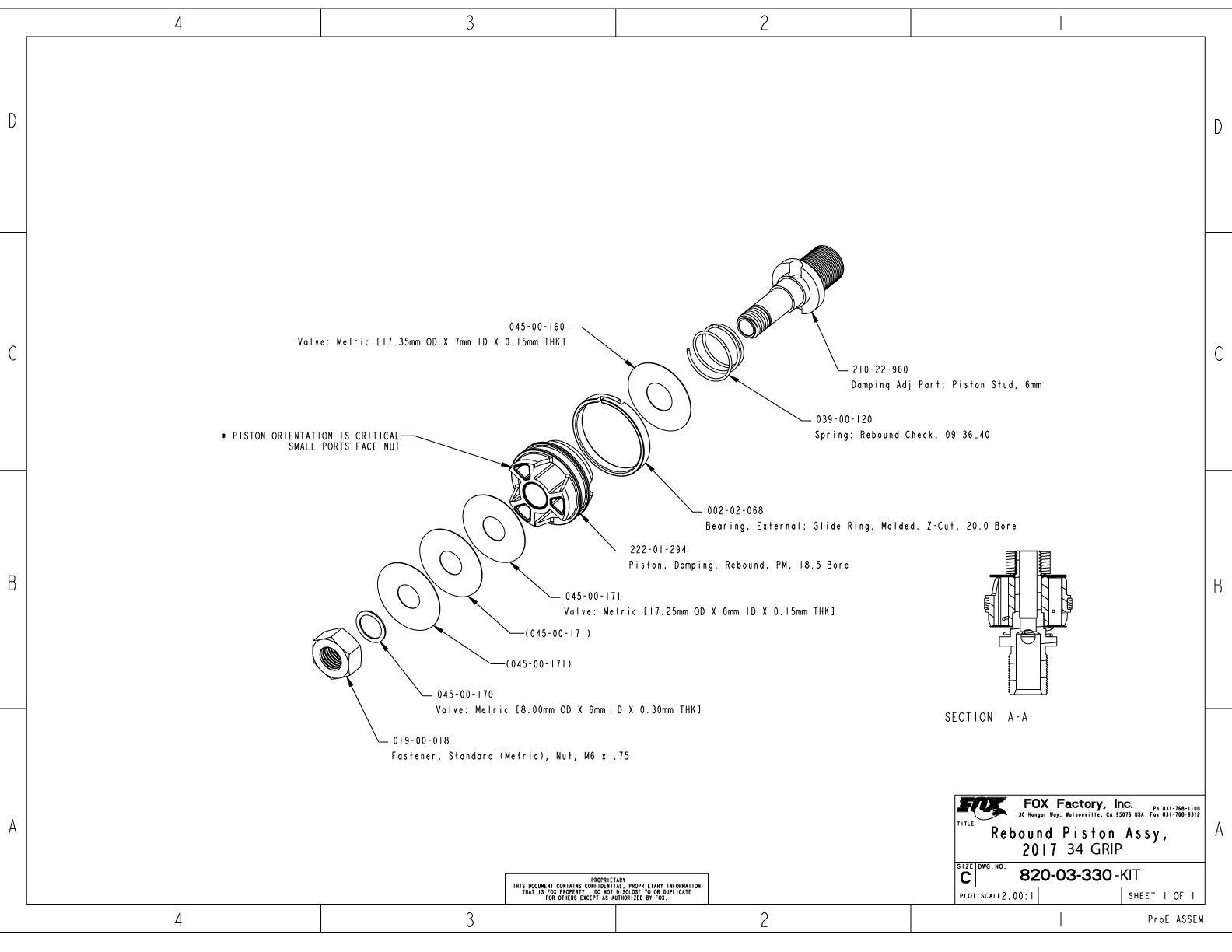

- 820-03-330-KIT Rebound Piston Assy 2017 GRIP
- Damper Shaft Assy GRIP .
2017 RHYTHM GRIP
- Cartridge Assy Complete 34 GRIP RHYTHM .
- Cartridge Assy Complete 34 RHYTHM GRIP Remote .

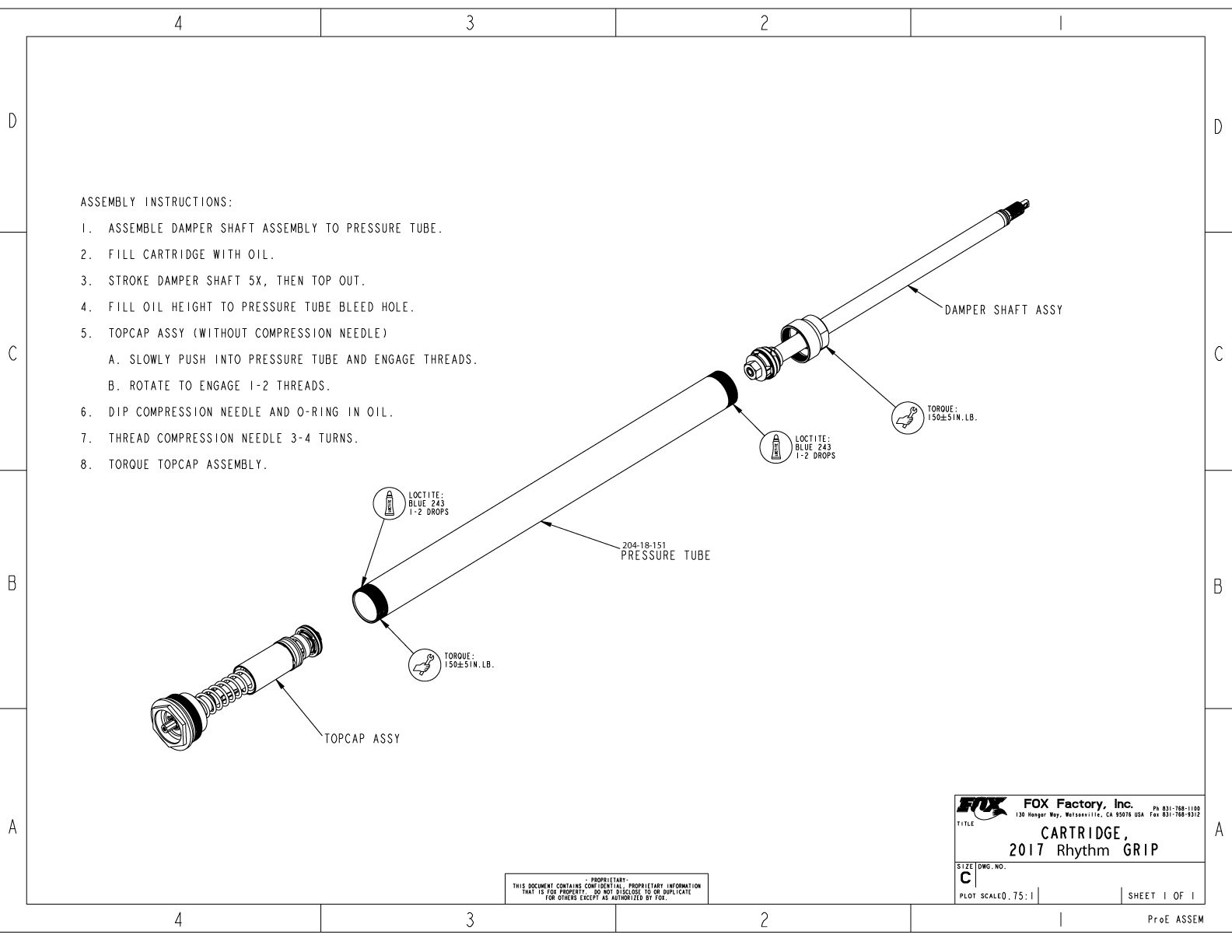

- Cartridge 2017 RHYTHM GRIP .
- Topcap 34 RHYTHM GRIP .
- 820-03-458-KIT Rebound Piston 34 2017 GRIP
- 820-03-330-KIT Rebound Piston Assy 2017 GRIP
- Damper Shaft Assy GRIP .
2017 FIT iRD
- 2015 34 26-27.5-29in iCTD Cartridge Assy Complete .
- 2015 34 26-27.5-29in iCTD Cartridge Assy .
- 820-05-287-KIT 2015 34 iCTD Topcap Assy
- 2015 34 FIT iCTD Damper Shaft Assy .

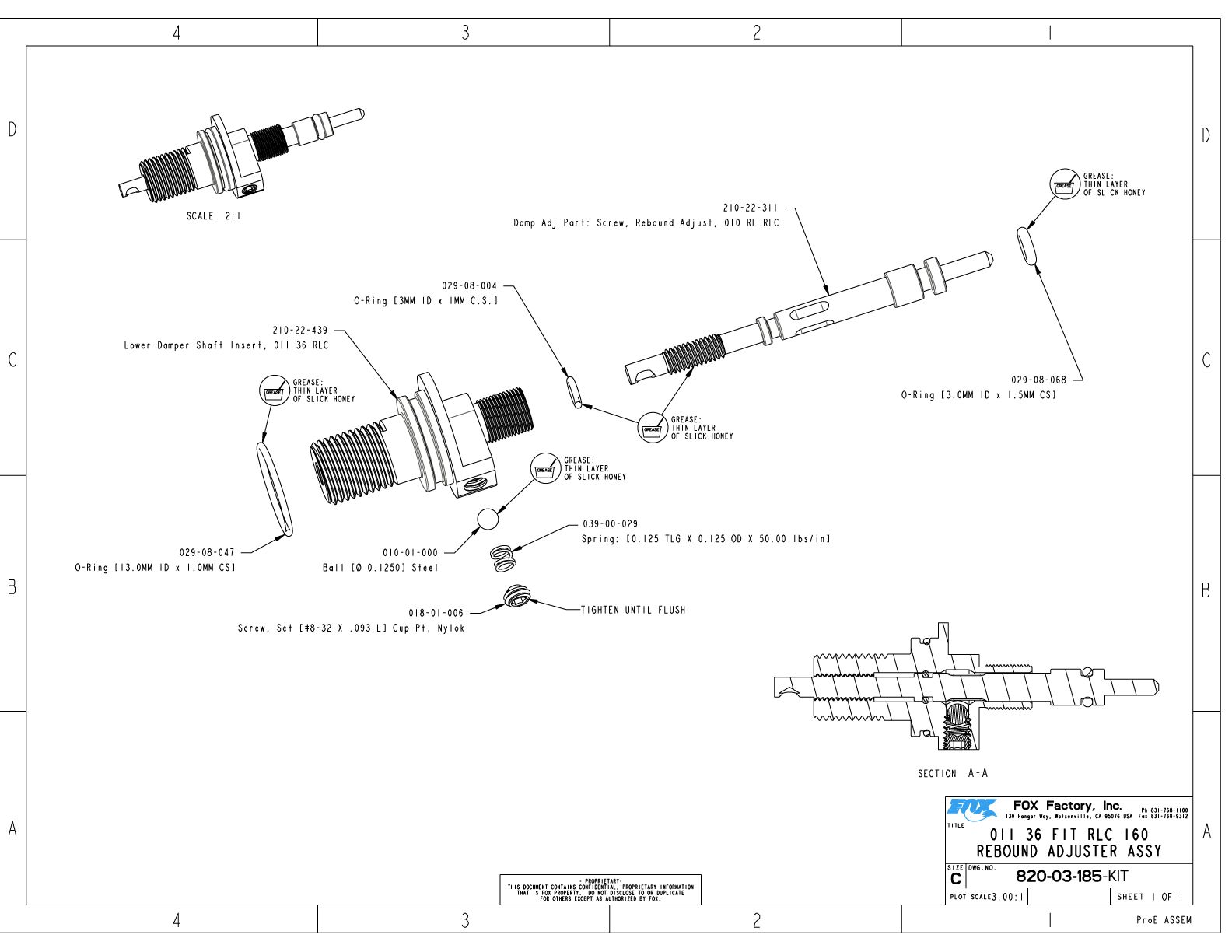

- 820-03-185-KIT 011 36 FIT RLC 160 Rebound Adjuster Assy
- 820-03-451-KIT 2015 FIT Main Piston Assy
