PARTS & DRAWINGS

32mm Part Information

New for 2017:

All New SC (Step Cast) Chassis

100mm travel max, common upper tubes allow shared components
(not backwards compatible) super light! 1.5, and 15QR only
All New SC colors Matte Black and Shiny Orange
New Ano Upper Tubes New black anodized finish on P-S and P-SE
2016 32 Chassis Options All 32 over 100mm travel, 1.125 steerer, or 9mm QR all run 2016 style chassis
New Upper Bushings New no groove upper bushings in lowers on F-S/P-SE series
New Upper and Lower Bushings  New "Grey" bushings in P-S  lowers
New Dust Wipers P-S series only, not SKF (F-S and P-SE get SKF seals)
New 15x110QR lowers 110 "Boost" spacing, available for 27.5 and 29. Not backwards compatible with
15x100 CSUs

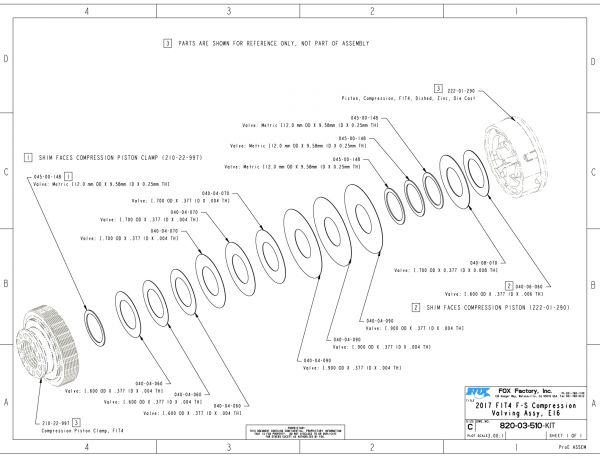

Updated FIT4 Damper Tune, 110-150mm Travel New E16 tune, all wheel sizes (backwards compatible)
Updated FIT4 Damper Tune, 80-100mm Travel, Non-Step Cast Forks New VC45 tune, all wheel sizes, backwards compatible

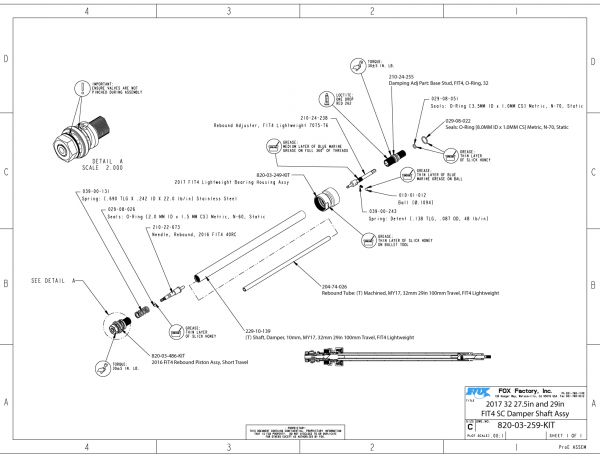

New SC Lightweight FIT4 damper cartridge All new cartridge for SC forks
New Grip Damper Non-remote and remote options
Remote Lever 2 position lever, single and dual cable capable



2016 continuing technology:

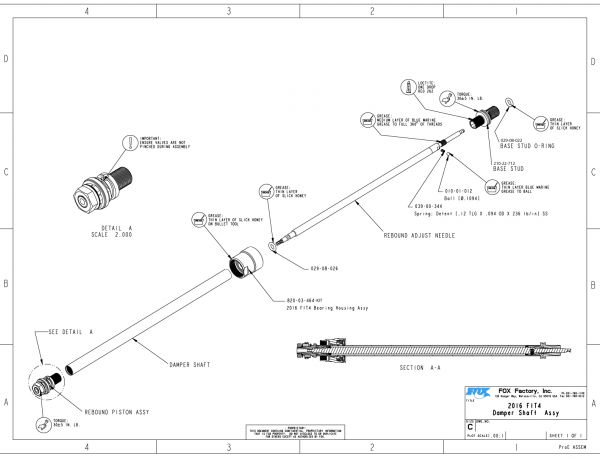

2016 FIT4 damper tune Old FIT4 tune still supported



Maintenance Info:

Service Interval Full Service 125 hours
803-00-960 Seal Kit: 32 & 34 FIT4 Cartridge Rebuild
803-00-962 Seal Kit: 32 FLOAT NA2 Rebuild
803-00-944 Kit: Dust Wiper, Forx, 32mm, Low Friction, No Flange
398-00-681 2002-017 32 Damper-side and ALL 32-34-36-40 Spring-side Removal Tool
803-00-147 Kit: Shaft Clamps, 07 FORX, Set #2 (32 X Body, 36, 40 Forx)
803-00-084 Kit: Shaft Clamps, FORX, Set #1 (32mm Forx)
803-00-276 Hand Bleeder
803-01-150 Kit: Tooling: Clamps, Grip Damper, Body and Shaft
803-01-141 Seal Kit: 32, 34, 36 GRIP Cartridge Rebuild



Oil Info:

Application Part Description
All FIT4 Dampers 025-06-006 Oil: Suspension Fluid [250 ml. ] R3, 5WT, ISO 15
025-06-007 Oil: Suspension Fluid [1.00 Quart] R3, 5WT, ISO 15
All TALAS 5 Topcap Assemblies 025-02-003 Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red
All non-GRIP bath oil and FLOAT NA2 Air Chamber 025-03-015 Oil: AM, FOX Bath Oil [250 ml.], 20 WT Gold
025-03-010 Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold
All GRIP damper and bath oil 025-03-023 Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart
Bath Oil Application Volume
32 Float 80-120 Air Side (FOX 20wt Gold Oil) 25 ML
32 Float 130-150 Air Side (FOX 20wt Gold Oil) 10 ML
32 Float 80-120 iRD Damper Side (FOX 20wt Gold Oil) 20 ML
32 Float/Talas FIT4 Damper Side (FOX 20wt Gold Oil) 15 ML
All Grip Damper Bath Oil (FOX Teflon Infused Oil) 40 ML



Remote Upgrade Info:

820-07-124 2017 Remote Lever, Suspension, Two Position, Dual - Cable, Bottom Left, AM
820-07-126 2017 Remote Lever, Suspension, Two-Position, Dual-Cable, Top-Right, AM
820-07-033 2014-016 3Pos Remote Lever, Single Cable, AM, Preconfigure: Right
803-00-817 Service Set: 2014 CTD Remote Lever, AM Splitter, Kit

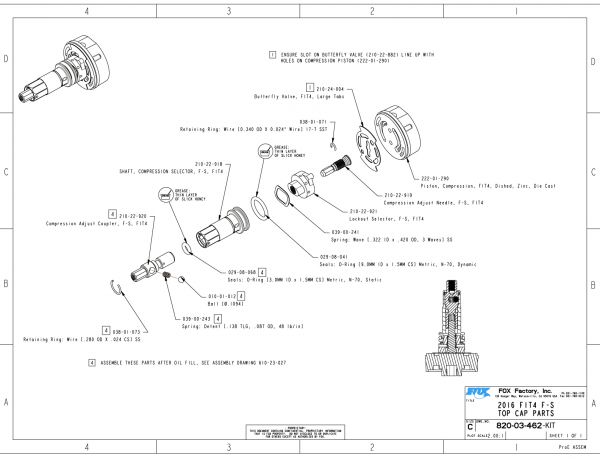

820-05-332-KIT Service Set: 2016 FIT4 TopCap Interface Parts F-S Remote

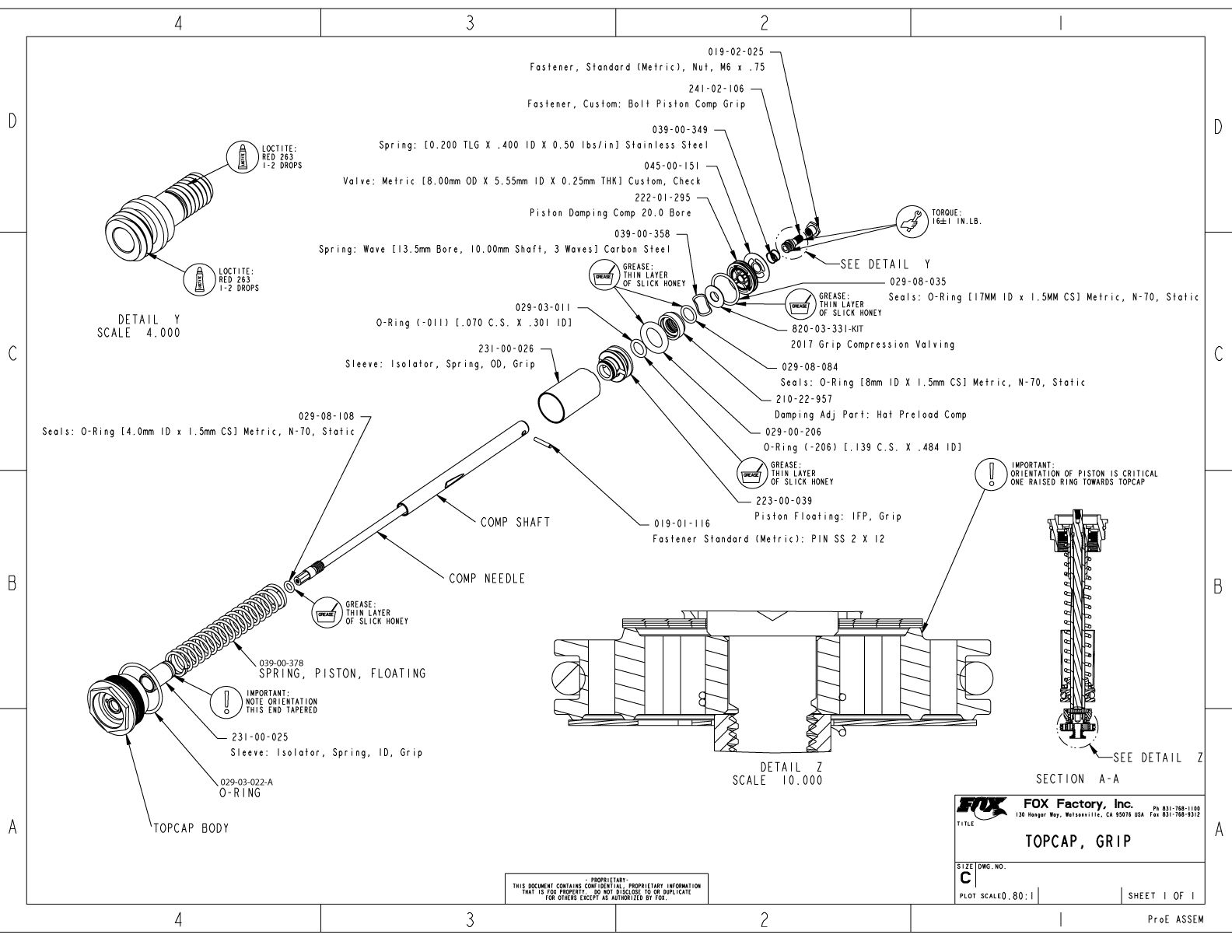

820-05-235-KIT 2017 32, All, Grip Remote, Topcap Assy
820-05-237-KIT 2017 Grip Remote, Topcap Interface Parts

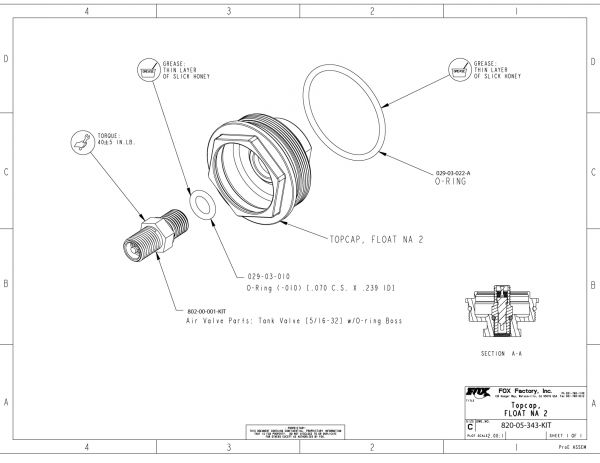

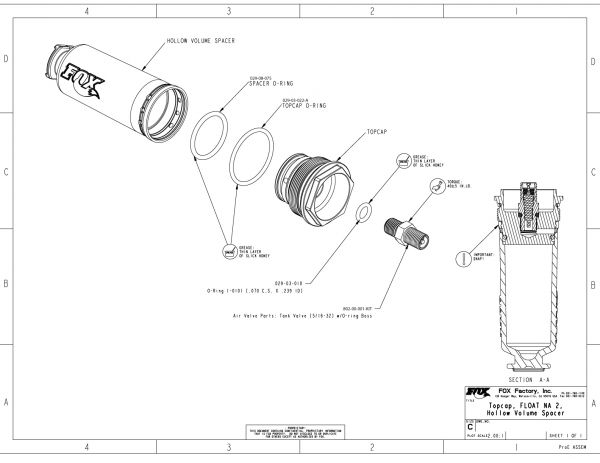

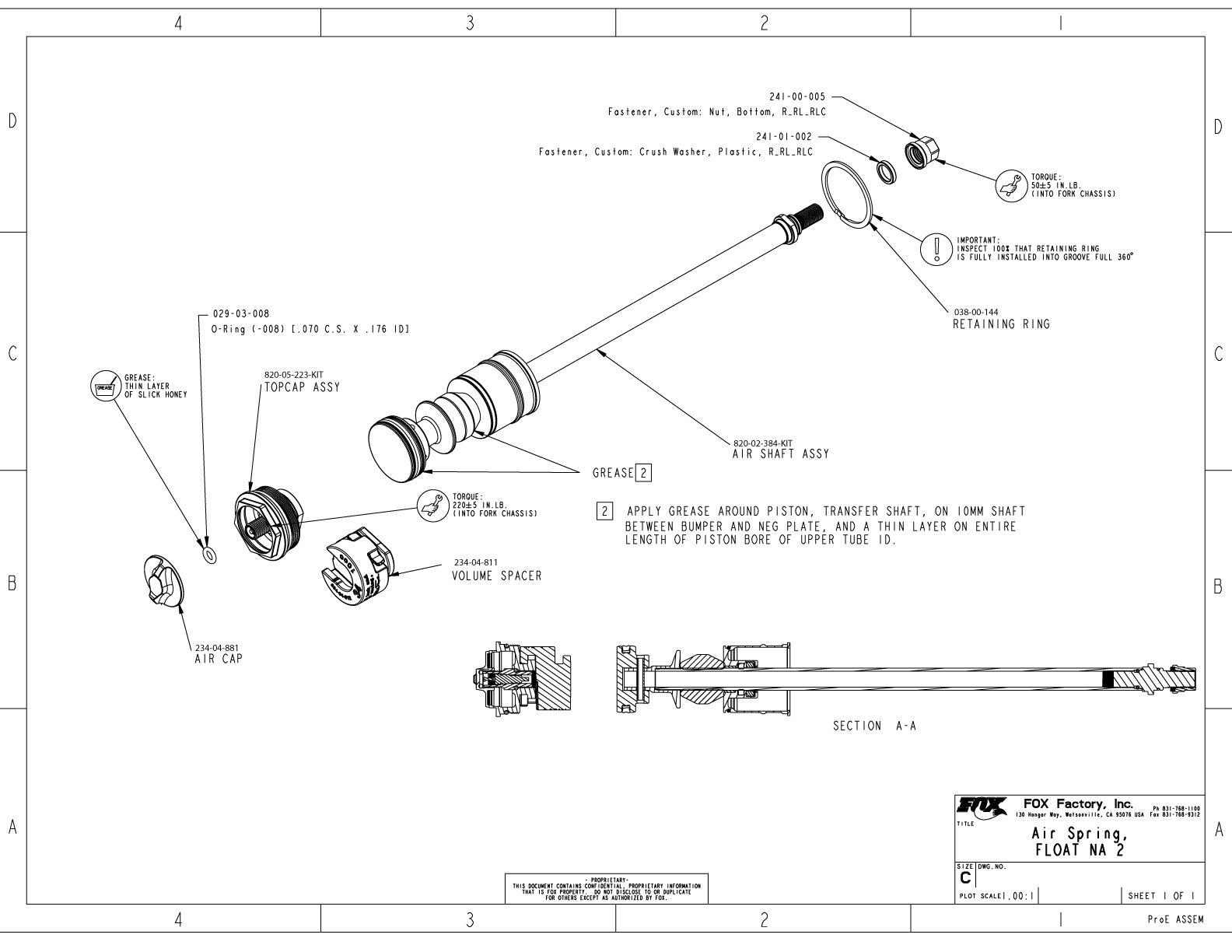

FLOAT NA2/CSU info (See part listings for UT bore and Piston Diameter by part):

Upper Tube bore Piston Diameter OD
For 1.110 bore 1.104"
For 1.117 bore 1.112"
StepCast TBD TBD

2017 32mm Part Listings



CSU Assemblies:

Part Description UT Bore Diameter UT Length
820-12-010-KIT Service Set: 2017 32 26in 130-150, 27.5in 110-150, and 29in 110-130, Black Ano, Fox Met Black 1-1/8 CSU 1.110in 12.940in
820-12-009-KIT Service Set: 2017 32 26in 130-150, 27.5in 110-140, and 29in 110-130, Black Ano, Fox Met Black, 1.5T, Std OS CSU Assy 1.110in 12.940in
820-11-983-KIT Service Set: 2017 32 27.5in 80-100 Black Ano 1.110 Bore Scott Matte Cool Gray 1.5 Short Taper CSU 1.110in 12.940in
820-11-982-KIT Service Set: 2017 32 29in 80-100 Black Ano 1.110 Bore Scott Matte Cool Gray 27mm 1.5 Short Taper CSU 1.110in 12.940in
820-11-972-KIT Service Set: 2017 32 29in 110-130 15x110QR Black Ano Matte Black 21mm OS 1.5 Short Taper CSU 1.110in 12.940in
820-11-971-KIT Service Set: 2017 32 29in 110-130 15x110QR Kashima Matte Black 21mm OS 1.5 Short Taper CSU 1.110in 12.940in
820-11-970-KIT Service Set: 2017 32 29in 110-130 15x110QR Black Ano Shiny Black 14mm OS 1.5 Short Taper CSU 1.110in 12.940in
820-11-968-KIT Service Set: 2017 32 29in 110-130 15x110QR Black Ano Matte Black 14mm OS 1.5 Short Taper CSU 1.110in 12.940in
820-11-967-KIT Service Set: 2017 32 29in 110-130 15x110QR Kashima Matte Black 14mm OS 1.5 Short Taper CSU 1.110in 12.940in
820-11-934-KIT Service Set: 2017 32 26in 80-120 and 27.5in 80-100 Black Ano 1.110 Bore Matte Black 1-1/8 CSU 1.110in 12.940in
820-11-929-KIT Service Set: 2017 32 29in 80-100 Kashima 1.117 Bore Matte Black 1-1/8 CSU 1.117in 14.111in
820-11-928-KIT Service Set: 2017 32 26in 80-120 and 27.5 80-100 Kashima Matte Black 1-1/8 CSU 1.117in 12.940in
820-11-927-KIT Service Set: 2017 32 26in 80-120, 27.5in 80-100 and 29in 80-100 Black Ano 1.110 Bore Shiny Black 1.5 Short Taper CSU 1.110in 12.940in
820-11-926-KIT Service Set: 2017 32 26in 80-120, 27.5in 80-100 and 29in 80-100 Black Ano 1.110 Bore Gloss White 1.5 Short Taper CSU 1.110in 12.940in
820-11-925-KIT Service Set: 2017 32 26in 80-120, 27.5in 80-100 and 29in 80-100 Black Ano 1.110 Bore Matte Black 1.5 Short Taper CSU 1.110in 12.940in
820-11-924-KIT Service Set: 2017 32 29in 80-100, Black Ano 1.110 Bore, Fox Shiny Black, 1.5T, 51 Rake CSU Assy 1.110in 12.940in
820-11-922-KIT Service Set: 2017 32 29in 80-100, Black Ano 1.110 Bore, Fox Matte Black, 1.5T, 51 Rake CSU Assy 1.110in 12.940in
820-11-920-KIT Service Set: 2017 32 29in 110-130, Black Ano, Fox Matte Black, 1.5T, 51 Rake CSU Assy 1.110in 12.940in
820-11-919-KIT Service Set: 2017 32 26in 130-150, 27.5in 110-140, and 29in 110-130, Black Ano, Fox Shiny Black, 1.5T, Std OS CSU Assy 1.110in 12.940in
820-11-917-KIT Service Set: 2017 32 26in 130-150, 27.5in 110-140, and 29in 110-130, Black Ano, Fox Matte Black, 1.5T, Std OS CSU Assy 1.110in 12.940in
820-11-916-KIT Service Set: 2017 32 29in 80-100, Kashima 1.117 Bore, Fox Matte Black, 1.5T 44 Rake CSU Assy 1.117in 14.111in
820-11-914-KIT Service Set: 2017 32 29in 110-130, Kashima, Fox Matte Black, 1.5T, 51 Rake, 1.5T CSU Assy 1.110in 12.940in
820-11-913-KIT Service Set: 2017 32 26in 80-120, 27.5in 80-100, Kashima, Fox Matte Black, 1.5T CSU Assy 1.117in 12.940in
820-11-912-KIT Service Set: 2017 32 26in 130-150, 27.5in 110-150, and 29in 110-130 Kashima, Fox Matte Black 1.5T, Std OS CSU Assy 1.110in 12.940in
820-11-847-KIT Service Set: 2017 32 29in 80-100 SC Black Ano Fox Shiny Black Alum 21mm OS (51 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-846-KIT Service Set: 2017 32 29in SC 80-100 Black Ano Fox Gloss White Alum 21mm OS (51 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-845-KIT Service Set: 2017 32 29in SC 80-100 Black Ano Fox Matte Black Alum 21mm OS (51 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-844-KIT Service Set: 2017 32 29in 80-100 SC Kashima Fox Shiny Black Alum 21mm OS (51 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-843-KIT Service Set: 2017 32 29in 80-100 SC Kashima Fox Gloss White Alum 21mm OS (51 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-842-KIT Service Set: 2017 32 29in 80-100 SC Kashima Fox Matte Black Alum 21mm OS (51 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-841-KIT Service Set: 2017 32 27.5 & 29in SC 80-100 Black Ano Fox Shiny Black Alum 14mm OS (44 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-840-KIT Service Set: 2017 32 27.5 & 29in SC 80-100 Black Ano Fox Gloss White Alum 14mm OS (44 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-839-KIT Service Set: 2017 32 27.5 & 29in SC 80-100 Black Ano Fox Matte Black Alum 14mm OS (44 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-838-KIT Service Set: 2017 32 27.5 & 29in 80-100 SC Kashima Fox Shiny Black Alum 14mm OS (44 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-837-KIT Service Set: 2017 32 27.5 & 29in 80-100 SC Kashima Fox Gloss White Alum 14mm OS (44 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-836-KIT Service Set: 2017 32 27.5 & 29in 80-100 SC Kashima Fox Matte Black Alum 14mm OS (44 Rake) 1.5 Taper CSU 1.132in 10.442in
820-11-648-KIT Service Set: 2016 32 26in 80-120, 27.5in 80-100 Kashima NA 2, 1.117 Bore Gloss White 1.5 Short Taper CSU 1.117in 12.940in
820-11-645-KIT Service Set: 2016 32 26in 130-150, 27.5in 110-150, and 29in 110-130 Kashima NA 2, 1.110 Bore Gloss White 1.5 Taper CSU 1.110in 12.940in



Lower Leg Assemblies
Part Description Use with UT TLG
820-10-662-KIT Service Set: 2017 32 27.5in 80-100 SC 15x100 Black Kabolt CL, Shiny Orange Lower Leg Assy 10.442in
820-10-660-KIT Service Set: 2017 32 27.5in 80-100 SC 15x100 Black Kabolt CL, Gloss White SC Lower Leg Assy 10.442in
820-10-659-KIT Service Set: 2017 32 27.5in 80-100 SC 15x100 Black Kabolt CL, Matte Black SC Lower Leg Assy 10.442in
820-10-652-KIT Service Set: 2017 32 27.5in 80-100 SC 15X100QR CL Fox Matte Black Lower Leg Assy 10.442in
820-10-645-KIT Service Set: 2017 32 29in 80-100 15x100 Black Kabolt CL, Shiny Orange SC Lower Leg Assy 10.442in
820-10-643-KIT Service Set: 2017 32 29in 80-100 15x100 Black Kabolt CL, Gloss White SC Lower Leg Assy 10.442in
820-10-642-KIT Service Set: 2017 32 29in 80-100 15x100 Black Kabolt CL, Matte Black SC Lower Leg Assy 10.442in
820-10-636-KIT Service Set: 2017 32 29in 80-100 15x100QR CL Fox Gloss White SC Lower Leg Assy 10.442in
820-10-635-KIT Service Set: 2017 32 29in 80-100 15x100QR CL Fox Matte Black SC Lower Leg Assy 10.442in
820-10-628-KIT Service Set: 2017 32 27.5in 80-100 SC 15x110 Black Kabolt CL, Shiny Orange Lower Leg Assy 10.442in
820-10-627-KIT Service Set: 2017 32 27.5in 80-100 SC 15x110 Black Kabolt CL, Shiny Black Lower Leg Assy 10.442in
820-10-625-KIT Service Set: 2017 32 27.5in 80-100 SC 15x110 Black Kabolt CL, Matte Black Lower Leg Assy 10.442in
820-10-618-KIT Service Set: 2017 32 27.5in 80-100 SC 15X110QR CL Fox Matte Black Lower Leg Assy 10.442in
820-10-611-KIT Service Set: 2017 32 29in 80-100 SC 15x110 Black Kabolt CL, Shiny Orange Lower Leg Assy 10.442in
820-10-610-KIT Service Set: 2017 32 29in 80-100 SC 15x110 Black Kabolt CL, Shiny Black Lower Leg Assy 10.442in
820-10-609-KIT Service Set: 2017 32 29in 80-100 SC 15x110 Black Kabolt CL, Gloss White Lower Leg Assy 10.442in
820-10-608-KIT Service Set: 2017 32 29in 80-100 SC 15x110 Black Kabolt CL, Matte Black Lower Leg Assy 10.442in
820-10-607-KIT Service Set: 2017 32 29in 80-100 SC 15X110QR CL Fox Shiny Orange Lower Leg Assy 10.442in
820-10-602-KIT Service Set: 2017 32 29in 80-100 SC 15X110QR CL Fox Gloss White Lower Leg Assy 10.442in
820-10-601-KIT Service Set: 2017 32 29in 80-100 SC 15X110QR CL Fox Matte Black Lower Leg Assy 10.442in
820-10-560-KIT Service Set: 2017 32 29in 80-130 15x110 Kabolt, Blk, Fox Matte Blk Lower Leg Assy 14.111in
820-10-547-KIT Service Set: 2017 32 27.5in 80-150 15x100 Black Kabolt, Matte Black Lower Assy 12.940in
820-10-498-KIT Service Set: 2017 32 29in 120-130 Matte Black 15QR With Spacer Lower Assy 12.940in
820-10-398-KIT Service Set: 2017 32 29in 80-130 15x110 QR Fox Matte Blk Lower Leg Assy 14.111in
820-10-390-KIT Service Set: 2017 32 29in 80-100 Matte Blk 9mm No Spacer Lower Assy 14.111in
820-10-386-KIT Service Set: 2017 32 29in 80-100 Matte Blk 15QR No Spacer Lower Assy 14.111in
820-10-382-KIT Service Set: 2017 32 29in 120-130 Gloss White 15QR With Spacer Lower Assy 12.940in
820-10-378-KIT Service Set: 2017 32 27.5in 80-150 Shiny Black 15QR Lower Assy, P-S 12.940in
820-10-362-KIT Service Set: 2017 32 27.5in 80-150 Matte Blk 9mm Lower Assy 12.940in
820-10-360-KIT Service Set: 2017 32 27.5in 80-150 Gloss White 15QR Lower Assy 12.940in
820-10-359-KIT Service Set: 2017 32 27.5in 80-150 Matte Black 15QR Lower Assy 12.940in
820-10-354-KIT Service Set: 2017 32 26in 80-130 Gloss White 15QR Lower Assy 12.940in
820-10-353-KIT Service Set: 2017 32 26in 80-130 Matte Blk 15QR Lower Assy 12.940in
820-10-348-KIT Service Set: 2017 32 26in 80-120 Matte Blk 9mm Lower Assy 12.940in
820-10-179-KIT Service Set: 2016 32 26in 130-150 Met. Black 15QR Lower Assy 12.940in
820-10-173-KIT Service Set: 2016 32 26in 130-150 Met. Black 9mm Lower Assy 12.940in



Lower Leg Small Parts
Lower leg parts groups Part Description
  803-00-370 Service Set: 15QR Hardware (Contains: Axle nut, hold down, and set screw)
Lower leg small parts Part Description
  019-02-008 Fastener, Custom: 09 15QR Axle Nut, 8º Chamfer
  026-03-009 Mounting Hardware, Axle Nut Hold-Down, 15QR
  241-02-040 Fastener, Custom: Screw [M4 X 10] FHCS, Black Zinc, Patchlock
Axle Assemblies Part Description
  820-09-013-KIT Service Set: Axle Assembly, 2016 15QRx110, Factory and Performance, Black Ano
  820-09-014-KIT Service Set: Axle Assembly, 2016 15 x 100 QR, Factory and Performance, Black Ano
  820-09-018-KIT Service Set: Axle Assembly: 15 X 100mm Kabolt, Black Ano
  820-09-019-KIT Service Set: Axle Assembly: 15 X 110mm Kabolt, Black Ano
  820-09-022-KIT Service Set: Axle Assembly: 15 X 100mm Kabolt, Orange Ano
  820-09-023-KIT Service Set: Axle Assembly: 15 X 110mm Kabolt, Orange Ano





****NOTE: 32mm 29in Damper cartridges with "15x110" or "110x15QR" in the description are specific to the 32mm 29in 110wide chassis which have a recessed floor. These dampers have a different total length than those used in the 100mm wide 32mm 29in chassis.

Damper Cartridge Assemblies
Part Description
820-08-740-KIT Service Set: 2017 32 27.5in 80-100 FIT4 SC, Remote, Complete, P-S
820-08-739-KIT Service Set: 2017 32 29in 80-100 FIT4 SC, Remote, Complete, P-S
820-08-738-KIT Service Set: 2017 32 29 80-120, 15X110 Grip Remote Cart Assy Complete
820-08-736-KIT Service Set: 2017 32 29 80-120, 15X110 Grip Cart Assy Complete
820-08-735-KIT Service Set: 2017 32 29 130-150, 15X110, Grip Cart Assy Complete
820-08-729-KIT Service Set: 2017 32 29in SC 80-100, Grip Cart Assy Remote Complete
820-08-728-KIT Service Set: 2017 32 29in SC 80-100, Grip Cart Assy Complete
820-08-722-KIT Service Set: 2017 32 27.5in 80-100 F-S FIT4 SC, Remote, Complete, E16
820-08-720-KIT Service Set: 2017 32 29in 80-100 F-S FIT4 SC, Remote, Complete, E16
820-08-705-KIT Service Set: 2017 32 29in 110-120 110X15QR F-S FIT4 Remote Cart Assy Complete, E16
820-08-704-KIT Service Set: 2017 32 29in 110-120 110X15QR F-S FIT4 Cart Assy Complete, E16
820-08-693-KIT Service Set: 2017 32 26in and 27.5in 110-120 F-S FIT4 Remote Cart Assy Complete, E16
820-08-692-KIT Service Set: 2017 32 26in and 27.5in 110-120 F-S FIT4 Cart Assy Complete, E16
820-08-691-KIT Service Set: 2017 32 26in and 27.5in 80-100 F-S FIT4 Remote Cart Assy Complete, VC45
820-08-690-KIT Service Set: 2017 32 26in and 27.5in 80-100 F-S FIT4 Cart Assy Complete, VC45
820-08-689-KIT Service Set: 2017 32 29in 110-130 F-S FIT4 Remote Cart Assy Complete, E16
820-08-688-KIT Service Set: 2017 32 29in 110-130 F-S FIT4 Cart Assy Complete, E16
820-08-686-KIT Service Set: 2017 32 29in 80-100 F-S FIT4 Cart Assy Complete, VC45

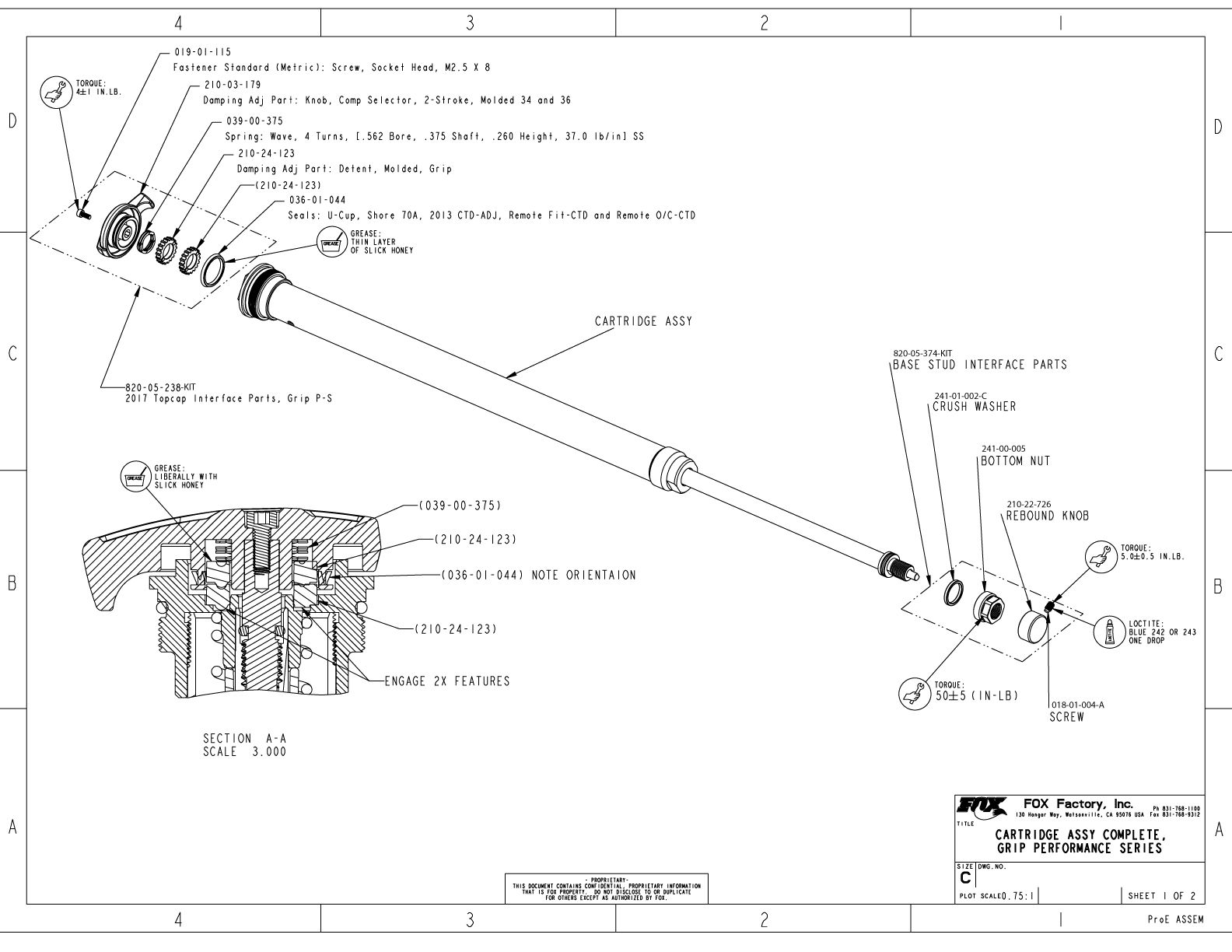

820-08-683-KIT Service Set: 2017 32 29 80-120, Grip Cart Assy Complete
820-08-682-KIT Service Set: 2017 32 27.5 80-120, Grip Cart Assy Complete
820-08-679-KIT Service Set: 2017 32 29 80-120, Grip Remote Cart Assy Complete
820-08-678-KIT Service Set: 2017 32 27.5 80-120, Grip Remote Cart Assy Complete
820-08-668-KIT Service Set: 2016 32 29in 80-120 110X15QR P-S FIT4 Remote Cart Assy Complete
820-08-631-KIT Service Set: 2016 32 29in 120-130 P-S FIT4 Remote Cart Assy Complete
820-08-629-KIT Service Set: 2016 32 29in 80-100 P-S FIT4 Remote Cart Assy Complete
820-08-624-KIT Service Set: 2016 32 26in and 27.5in 130-150 P-S FIT4 Remote Cart Assy Complete
820-08-622-KIT Service Set: 2016 32 26in and 27.5in 80-120 P-S FIT4 Remote Cart Assy Complete
820-08-395-KIT Service Set: 2017 32 27.5in SC 80-100, Grip Cart Assy Remote Complete
820-08-394-KIT Service Set: 2017 32 27.5in 80-100 iCTD Cartridge Assy Complete, SC
820-08-389-KIT Service Set: 2017 32 27.5in SC 80-100, Grip Cart Assy Complete
820-08-373-KIT Service Set: 2017 32 27.5 130-150, Grip Cart Assy Complete
820-08-369-KIT Service Set: 2017 32 29in 80-100 F-S FIT4 SC, Remote, Complete
820-08-368-KIT Service Set: 2017 32 29in 80-100 F-S FIT4 SC, Complete
820-08-328-KIT Service Set: 2017 32 29in 80-100 iCTD Cartridge Assy Complete, SC
820-08-327-KIT Service Set: 2017 32 27.5in 80-100 FIT4 SC, Remote, Complete
820-08-326-KIT Service Set: 2017 32 27.5in 80-100 FIT4 SC, Complete



Damper Topcap Assemblies
Part Description
820-05-413-KIT Service Set: 2017 32 FIT4 SC Topcap Assy, P-S
820-05-408-KIT Service Set: 2017 32 FIT4 SC Topcap Assy, E16
820-05-398-KIT Service Set: 2017 32 FIT4 F-S Topcap Assy, Long Travel, E16
820-05-395-KIT Service Set: 2017 32 SC, Grip Remote, Topcap Assy
820-05-394-KIT Service Set: 2017 32 SC, Grip, Topcap Assy
820-05-382-KIT Service Set: 2017 32 Grip Damper, Topcap Assy
820-05-336-KIT Service Set: 2016 32 FIT4 F-S Topcap Assy
820-05-256-KIT Service Set: 2017 32 iCTD Topcap Assy, Lightweight
820-05-235-KIT Service Set: 2017 32, All, Grip Remote, Topcap Assy
820-05-229-KIT Service Set: 2017 32 FIT4 SC Topcap Assy



Size Specific Cartridge Parts
Part Description
207-11-130 Pressure Tube, 15.5 Bore, FIT4 Lightweight, 100mm Max Travel
207-11-103 (T) Pressure Tube, 15.5 Bore, 130 Max Travel, FIT4
207-11-102 (T) Pressure Tube, 15.5 Bore, 120 Max Travel, FIT4
207-11-100 (T) Pressure Tube, 15.5 Bore, 100 Max Travel, FIT4
204-77-208 Body: (T) Cartridge, Machined, 80-100, 2017 iRD Lightweight
204-18-154 Pressure Tube, 20.0 Bore, Grip, 32 SC
204-18-152 Pressure Tube, 20.0 Bore, Grip, 32 29 110-130 & 80-100
204-18-151 Pressure Tube, 20.0 Bore, Grip, 34 Rhythm & 32 27.5
207-22-011 Damper Tube:  (T) Machined, 8mm OD x 0.2195 in ID, 017 32 27.5/29in 80-100 iRD Lightweight



Air Shaft Assemblies
Part Description For use with UT bore diameter Exposed Shaft Length +/- 2mm
820-02-402-KIT Service Set: Air Shaft Assy, 32, 80mm, FLOAT NA 2, 1.132" Bore, SC 1.132in 80
820-02-384-KIT Service Set: Air Shaft Assy, 32, 100mm, FLOAT NA 2, 1.132" Bore, SC 1.132in 100
820-02-390-KIT Service Set: Air Shaft Assy, 32, 26in & 27.5in 120mm, 29in 90mm, FLOAT NA 2, 1.110" Bore, Topout Spacer 1.110in 120
820-02-389-KIT Service Set: Air Shaft Assy, 32, 26in & 27.5in 110mm, 29in 80mm, FLOAT NA 2, 1.110" Bore, Topout Spacer 1.110in 110
820-02-388-KIT Service Set: Air Shaft Assy, 32, 26in & 27.5in 100mm, FLOAT NA 2, 1.110" Bore, Topout Spacer 1.110in 100
820-02-386-KIT Service Set: Air Shaft Assy, 32, 26in & 27.5in 80mm, FLOAT NA 2, 1.110" Bore, Topout Spacer 1.110in 80
820-02-391-KIT Service Set: Air Shaft Assy, 32, 29in 100mm, FLOAT NA 2, 1.110" Bore, Topout Spacer (For 29in CSU with 12.94in UT) [Subtract 30mm from exposed shaft length for travel due to spacer in lowers] 1.110in 130
820-02-393-KIT Service Set: Air Shaft Assy, 32, 29in 120mm, FLOAT NA 2, 1.110" Bore, Topout Spacer (For 29in CSU with 12.94in UT) [Subtract 30mm from exposed shaft length for travel due to spacer in lowers] 1.110in 150
820-02-342-KIT Service Set: Air Shaft Assy, 32, 29in 130mm, FLOAT NA 2, 1.110" Bore, Topout Spacer (For 29in CSU with 12.94in UT) [Subtract 30mm from exposed shaft length for travel due to spacer in lowers] 1.110in 160
820-02-341-KIT Service Set: Air Shaft Assy, 32, 26in & 27.5 150mm, FLOAT NA 2, 1.110" Bore 1.110in 150
820-02-340-KIT Service Set: Air Shaft Assy, 32, 26in & 27.5 140mm, FLOAT NA 2, 1.110" Bore 1.110in 140
820-02-339-KIT Service Set: Air Shaft Assy, 32, 26in & 27.5 130mm, FLOAT NA 2, 1.110" Bore 1.110in 130
820-02-398-KIT Service Set: Air Shaft Assy, 32, 26in 120mm, FLOAT NA 2, 1.117" Bore, Topout Spacer 1.117in 120
820-02-396-KIT Service Set: Air Shaft Assy, 32, 100mm, FLOAT NA 2, 1.117" Bore, Topout Spacer 1.117in 100



Air Spring Topcap Assemblies
Part Description
820-05-363-KIT Service Set: Topcap Assy, FLOAT NA 2, 32, Clear Ano, Hollow Volume Spacer, 48cc
820-05-361-KIT Service Set: Topcap Assy, FLOAT NA 2, 32, Clear Ano, Hollow Volume Spacer, 33cc
820-05-359-KIT Service Set: Topcap Assy, FLOAT NA 2, 32, Clear Ano, Hollow Volume Spacer, 22cc
820-05-343-KIT Service Set: Topcap Assy, FLOAT NA 2, 32, Silver
820-05-223-KIT Service Set: Topcap Assy, FLOAT NA 2, 32, Hard Ano, SC



Neg Plate Assemblies
Part Description
820-02-327-KIT Service Set: Neg Plate Subassembly, FLOAT NA 2, 32, Long Travel, 1.110" Bore
820-02-326-KIT Service Set: Neg Plate Subassembly, FLOAT NA 2, 32, Short Travel, 1.117" Bore
820-02-325-KIT Service Set: Neg Plate Subassembly, FLOAT NA 2, 32, Short Travel, 1.110" Bore

2017 SC FIT4

2017 FIT4 (Non-SC)

2017 GRIP SC

2017 GRIP (Non-SC)

2017 FIT iRD

2017 FLOAT NA2 SC

2017 SC FIT4

img/help/page745-BDFJ/2017-Lightweight-FIT4-Cart-Assy-Complete-m.jpg

2017 Lightweight FIT4 Cart Assy Complete .

img/help/page745-BDFJ/2017-Lightweight-FIT4-Cart-Assy-Complete.jpg
back to top

img/help/page745-BDFJ/2017-Lightweight-Remote-FIT4-Cart-Assy-Completea-m.jpg

2017 Lightweight Remote FIT4 Cart Assy Complete .

img/help/page745-BDFJ/2017-Lightweight-Remote-FIT4-Cart-Assy-Completea.jpg
back to top

img/help/page745-BDFJ/2017-Lightweight-FIT4-Cart-Assy-m.jpg

2017 Lightweight FIT4 Cart Assy .

img/help/page745-BDFJ/2017-Lightweight-FIT4-Cart-Assy.jpg
back to top

img/help/page745-BDFJ/2017-Lightweight-FIT4-Topcap-Assy-m.jpg

2017 Lightweight FIT4 Topcap Assy .

img/help/page745-BDFJ/2017-Lightweight-FIT4-Topcap-Assy.jpg
back to top

img/help/page745-BDFJ/820-03-258-KIT-m.jpg

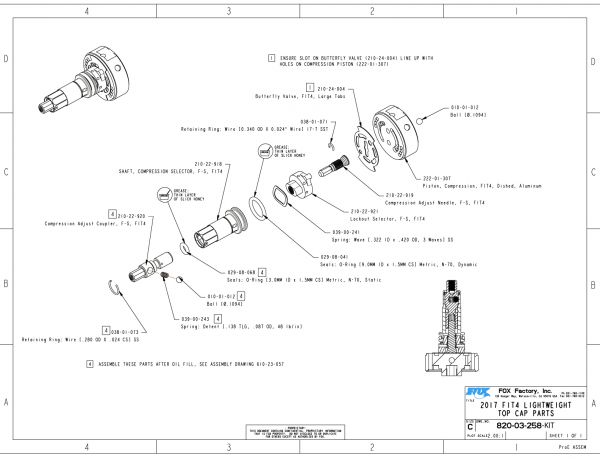

820-03-258-KIT 2017 FIT4 Lightweight Top Cap Parts

img/help/page745-BDFJ/820-03-258-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-522-KIT-m.jpg

820-03-522-KIT 2017 FIT4 SC Compression Valving Assy VC49

img/help/page745-BDFJ/820-03-522-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-510-KIT-m.jpg

820-03-510-KIT 2017 FIT4 F-S Compression Valving Assy E16

img/help/page745-BDFJ/820-03-510-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-281-KIT-m.jpg

820-03-281-KIT 2017 Lightweight FIT4 Bladder Assy

img/help/page745-BDFJ/820-03-281-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-259-KITa-m.jpg

820-03-259-KIT 2017 Lightweight FIT4 Damper Shaft Assy

img/help/page745-BDFJ/820-03-259-KITa.jpg
back to top

img/help/page745-BDFJ/820-03-486-KIT-m.jpg

820-03-486-KIT Rebound Piston Assy 2016 FIT4 Short Travel

img/help/page745-BDFJ/820-03-486-KIT.jpg
back to top

2017 FIT4 (Non-SC)

img/help/page745-BDFJ/2016-Factory-Series-FIT4-Cart-Assy-Complete-m.jpg

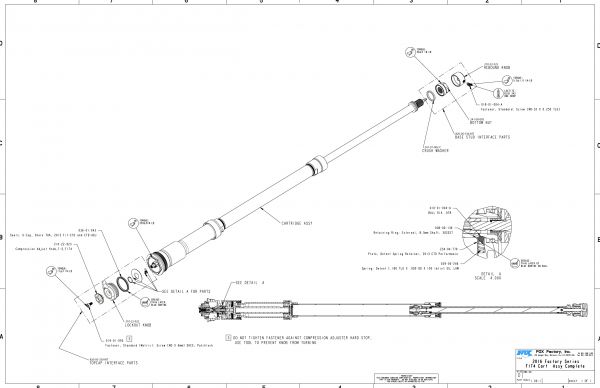

2016 Factory Series FIT4 Cart Assy Complete .

img/help/page745-BDFJ/2016-Factory-Series-FIT4-Cart-Assy-Complete.jpg
back to top

img/help/page745-BDFJ/2016-Factory-Series-Remote-FIT4-Cart-Assy-Complete-m.jpg

2016 Factory Series Remote FIT4 Cart Assy Complete .

img/help/page745-BDFJ/2016-Factory-Series-Remote-FIT4-Cart-Assy-Complete.jpg
back to top

img/help/page745-BDFJ/2016-32-Factory-Series-FIT4-Cart-Assy-m.jpg

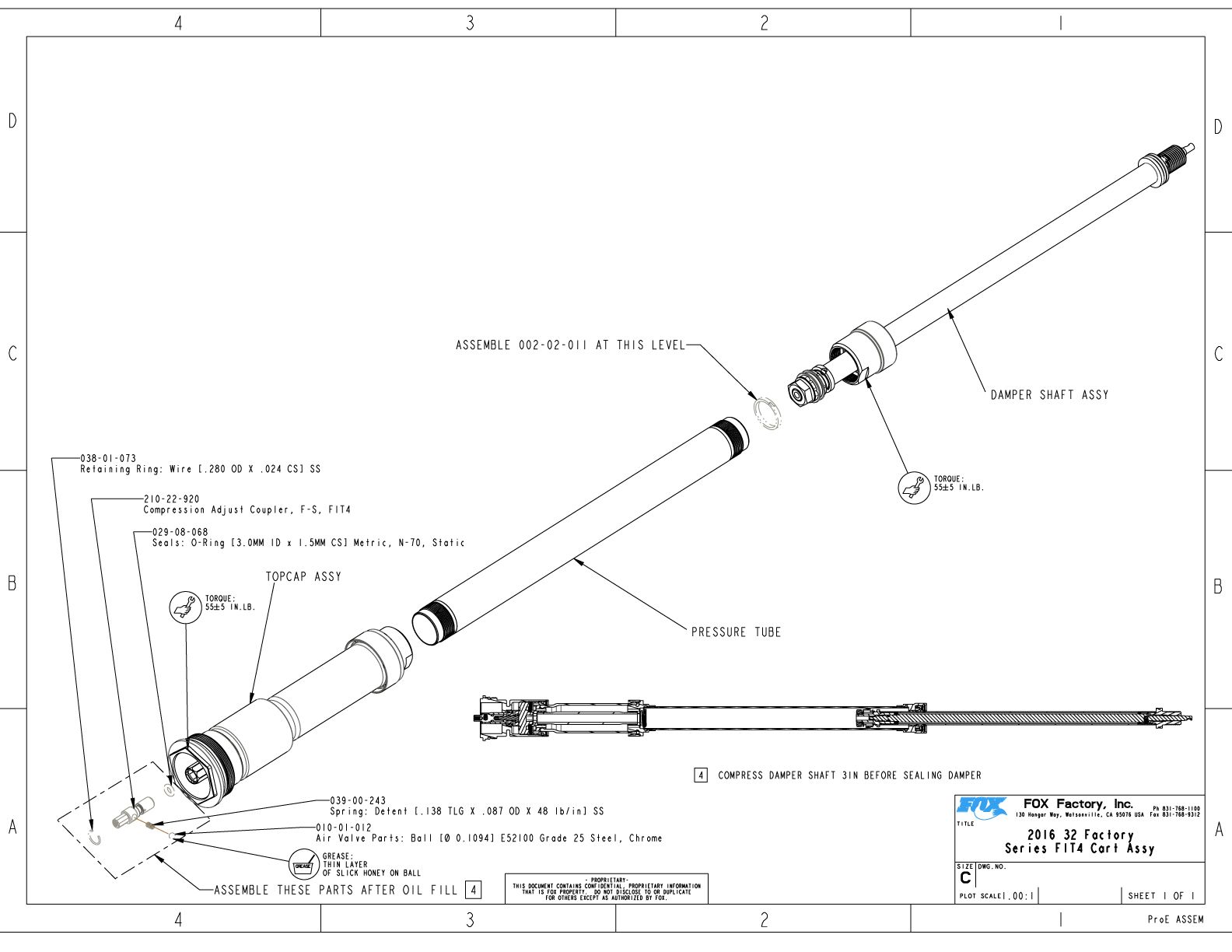

2016 32 Factory Series FIT4 Cart Assy .

img/help/page745-BDFJ/2016-32-Factory-Series-FIT4-Cart-Assy.jpg
back to top

img/help/page745-BDFJ/2016-32-FIT4-Topcap-m.jpg

2016 32 FIT$ Topcap .

img/help/page745-BDFJ/2016-32-FIT4-Topcap.jpg
back to top

img/help/page745-BDFJ/820-03-462-KIT-m.jpg

820-03-462-KIT 2016 FIT4 F-S Top Cap Parts

img/help/page745-BDFJ/820-03-462-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-510-KITa-m.jpg

820-03-510-KIT 2017 FIT4 F-S Compression Valving Assy E16

img/help/page745-BDFJ/820-03-510-KITa.jpg
back to top

img/help/page745-BDFJ/820-03-460-KITa-m.jpg

820-03-460-KIT 2016 FIT4 F-S Compression Valving

img/help/page745-BDFJ/820-03-460-KITa.jpg
back to top

img/help/page745-BDFJ/2016-FIT4-Damper-Shaft-Assy-m.jpg

2016 FIT4 Damper Shaft Assy .

img/help/page745-BDFJ/2016-FIT4-Damper-Shaft-Assy.jpg
back to top

img/help/page745-BDFJ/820-03-486-KITa-m.jpg

820-03-486-KIT Rebound Piston Assy 2016 FIT4 Short Travel

img/help/page745-BDFJ/820-03-486-KITa.jpg
back to top

img/help/page745-BDFJ/820-03-465-KITa-m.jpg

820-03-465-KIT Rebound Piston Assy 2016 FIT4

img/help/page745-BDFJ/820-03-465-KITa.jpg
back to top

2017 GRIP SC

img/help/page745-BDFJ/Cartridge-Assy-Complete,-GRIP-Performance-Series-m.jpg

Cartridge Assy Complete GRIP Performance Series .

img/help/page745-BDFJ/Cartridge-Assy-Complete,-GRIP-Performance-Series.jpg
back to top

img/help/page745-BDFJ/Cartridge-Assy-Complete,-GRIP-Remote-m.jpg

Cartridge Assy Complete GRIP Remote .

img/help/page745-BDFJ/Cartridge-Assy-Complete,-GRIP-Remote.jpg
back to top

img/help/page745-BDFJ/Cartridge,-2017-GRIP-m.jpg

Cartridge 2017 GRIP .

img/help/page745-BDFJ/Cartridge,-2017-GRIP.jpg
back to top

img/help/page745-BDFJ/Topcap,-GRIP-m.jpg

Topcap GRIP .

img/help/page745-BDFJ/Topcap,-GRIP.jpg
back to top

img/help/page745-BDFJ/820-03-331-KIT-m.jpg

820-03-331-KIT Compression Valving 2017 GRIP

img/help/page745-BDFJ/820-03-331-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-490-KIT-m.jpg

820-03-490-KIT Damper Shaft Assy GRIP

img/help/page745-BDFJ/820-03-490-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-458-KIT-m.jpg

820-03-458-KIT Rebound Piston 2017 GRIP

img/help/page745-BDFJ/820-03-458-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-456-KIT-m.jpg

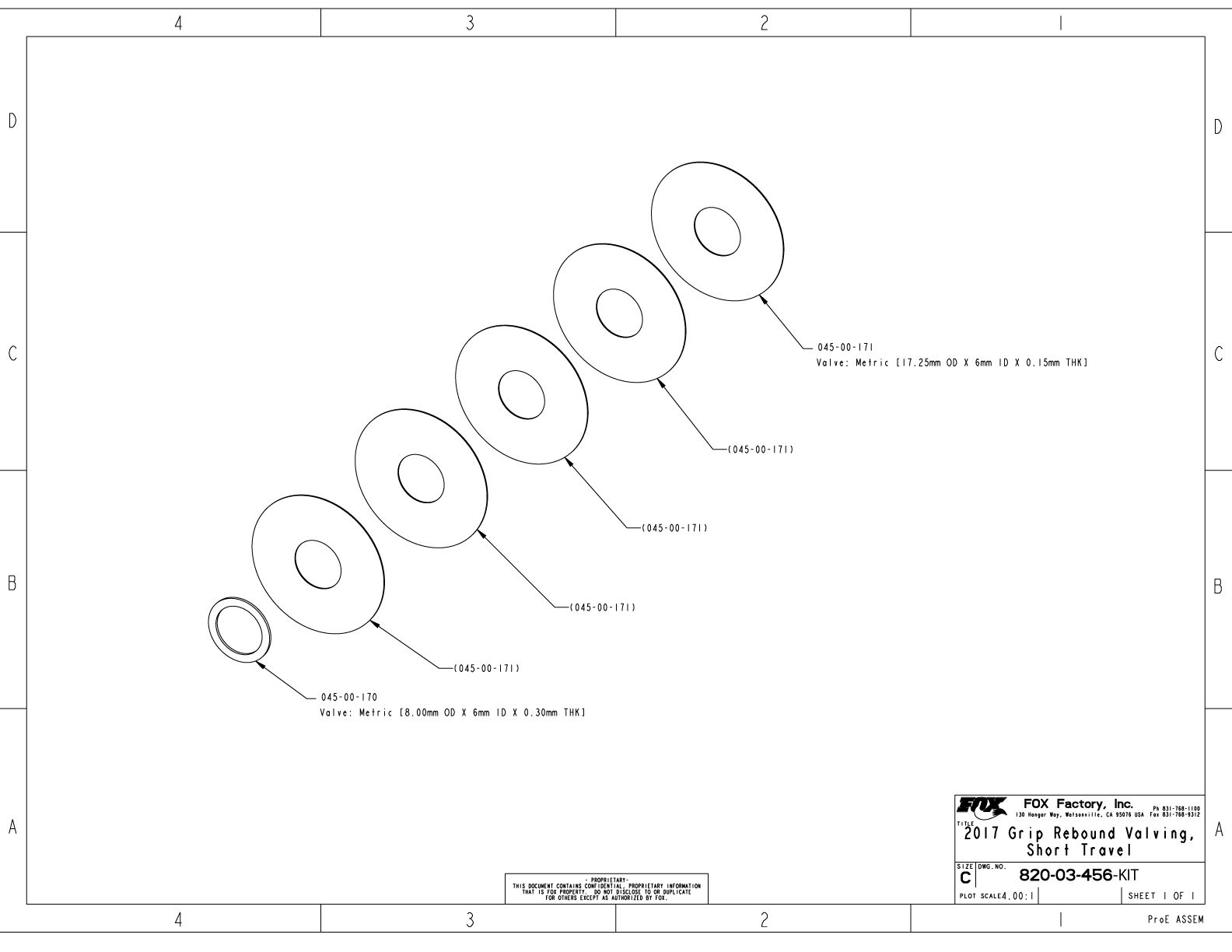

820-03-456-KIT 2017 GRIP Rebound Valving Short Travel

img/help/page745-BDFJ/820-03-456-KIT.jpg
back to top

2017 GRIP (Non-SC)

img/help/page745-BDFJ/Cartridge-Assy-Complete,-GRIP-Performance-Seriesa-m.jpg

Cartridge Assy Complete GRIP Performance Series .

img/help/page745-BDFJ/Cartridge-Assy-Complete,-GRIP-Performance-Seriesa.jpg
back to top

img/help/page745-BDFJ/Cartridge-Assy-Complete,-GRIP-Remotea-m.jpg

Cartridge Assy Complete GRIP Remote .

img/help/page745-BDFJ/Cartridge-Assy-Complete,-GRIP-Remotea.jpg
back to top

img/help/page745-BDFJ/Cartridge,-2017-GRIPa-m.jpg

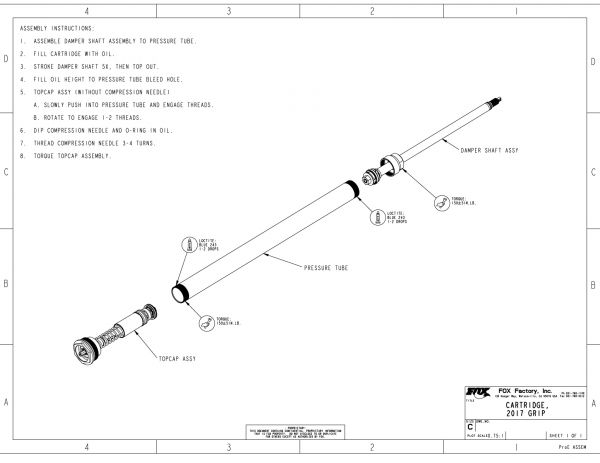

Cartridge 2017 GRIP .

img/help/page745-BDFJ/Cartridge,-2017-GRIPa.jpg
back to top

img/help/page745-BDFJ/Topcap,-GRIPa-m.jpg

Topcap GRIP .

img/help/page745-BDFJ/Topcap,-GRIPa.jpg
back to top

img/help/page745-BDFJ/820-03-457-KIT-m.jpg

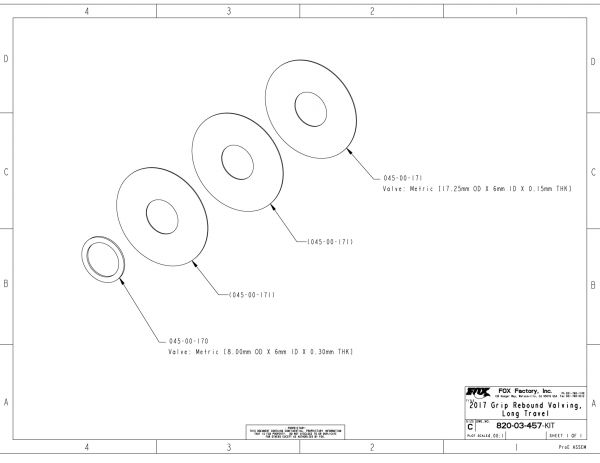

820-03-457-KIT 2017 GRIP Rebound Valving Long Travel

img/help/page745-BDFJ/820-03-457-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-456-KITa-m.jpg

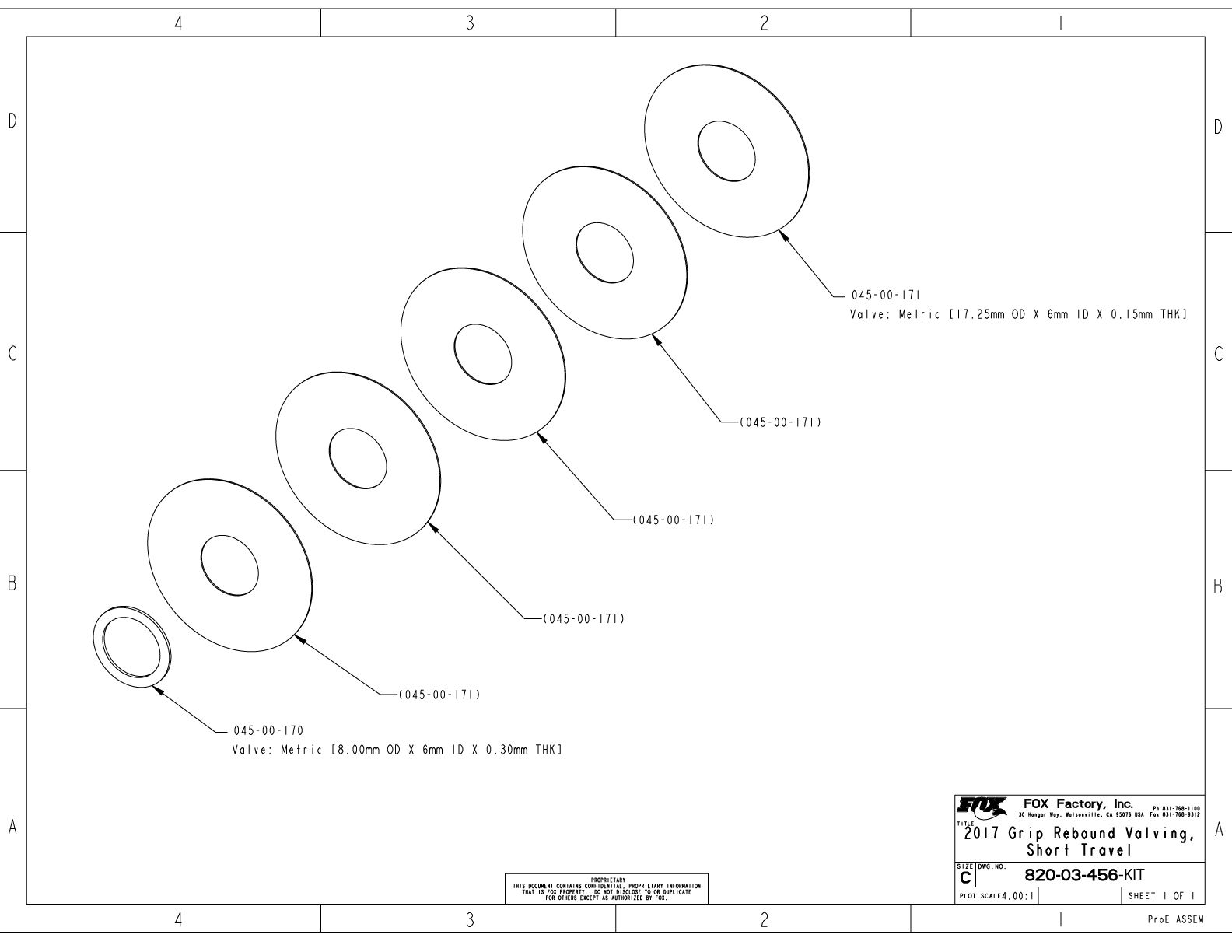

820-03-456-KIT 2017 GRIP Rebound Valving Short Travel

img/help/page745-BDFJ/820-03-456-KITa.jpg
back to top

img/help/page745-BDFJ/820-03-331-KITa-m.jpg

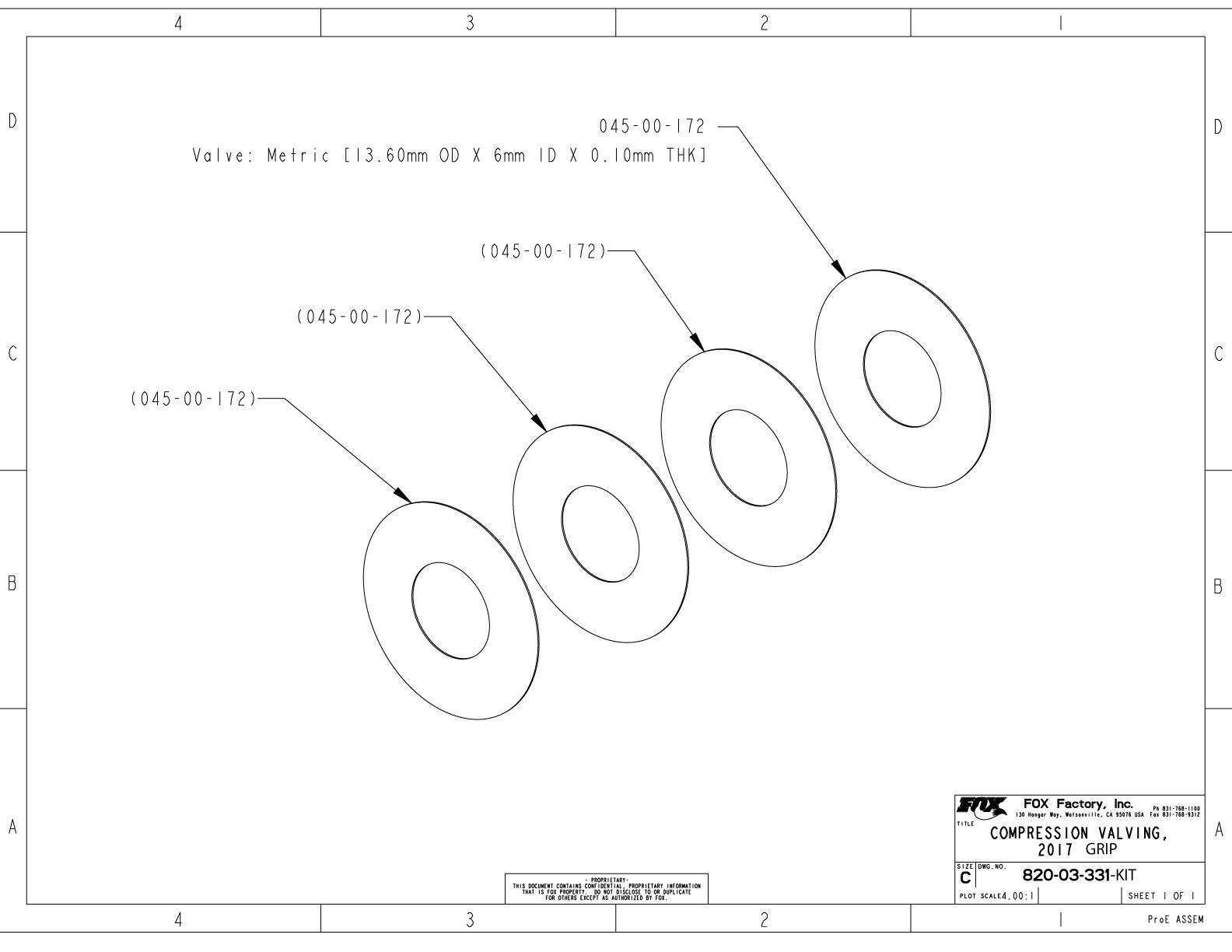

820-03-331-KIT Compression Valving 2017 GRIP

img/help/page745-BDFJ/820-03-331-KITa.jpg
back to top

img/help/page745-BDFJ/Damper-Shaft,-GRIPa-m.jpg

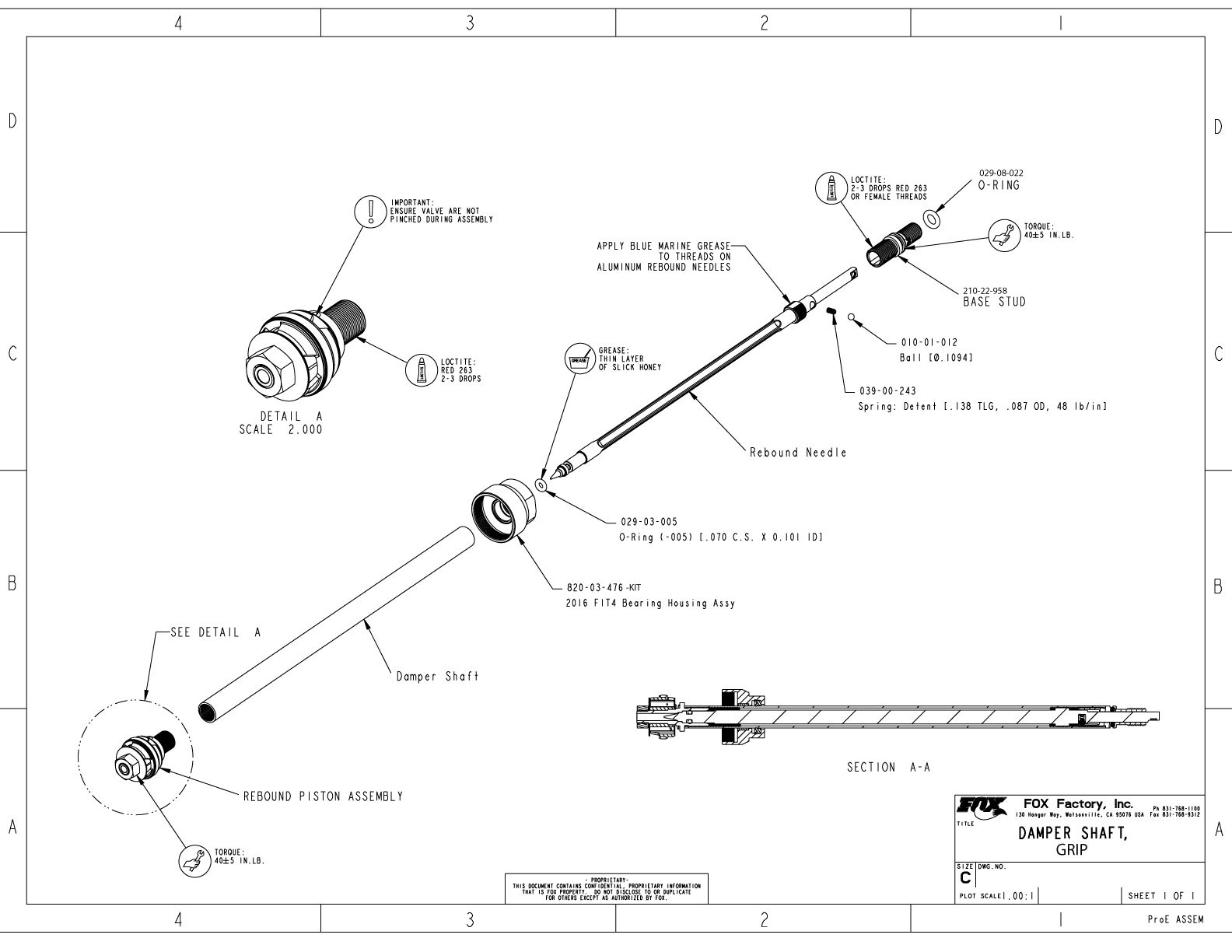

Damper Shaft Assy GRIP .

img/help/page745-BDFJ/Damper-Shaft,-GRIPa.jpg
back to top

img/help/page745-BDFJ/Rebound-Piston,-2017-GRIP-m.jpg

Rebound Piston Assy 2017 GRIP .

img/help/page745-BDFJ/Rebound-Piston,-2017-GRIP.jpg
back to top

2017 FIT iRD

img/help/page745-BDFJ/2015-32-27.5-29-iRD-Cartridge-Assy-Complete-m.jpg

2015 32 27.5-29in Cartridge Assy Complete .

img/help/page745-BDFJ/2015-32-27.5-29-iRD-Cartridge-Assy-Complete.jpg
back to top

img/help/page745-BDFJ/2015-32-27.5-29in-iRD-Cartridge-Assy-m.jpg

2015 32 27.5-29in Cartridge Assy .

img/help/page745-BDFJ/2015-32-27.5-29in-iRD-Cartridge-Assy.jpg
back to top

img/help/page745-BDFJ/2015-32-iRD-Topcap-Assy-m.jpg

2015 32 iRD Topcap Assy .

img/help/page745-BDFJ/2015-32-iRD-Topcap-Assy.jpg
back to top

img/help/page745-BDFJ/2015-32-FIT-iRD-Damper-Shaft-Assy-m.jpg

2015 32 FIT iRD Damper Shaft Assy .

img/help/page745-BDFJ/2015-32-FIT-iRD-Damper-Shaft-Assy.jpg
back to top

img/help/page745-BDFJ/820-03-282-KIT-m.jpg

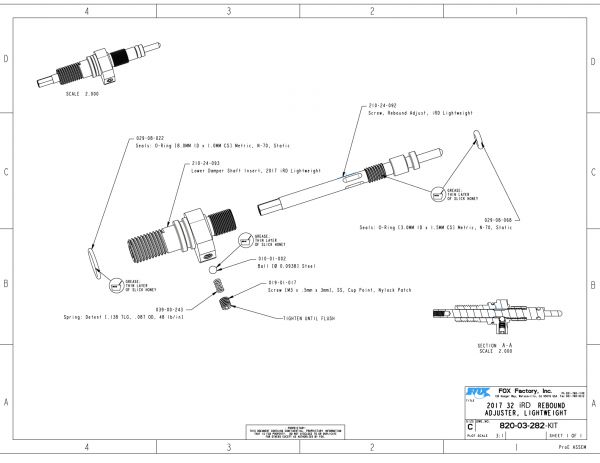

820-03-282-KIT 2017 32 iRD Rebound Adjuster Lightweight

img/help/page745-BDFJ/820-03-282-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-135-KIT-m.jpg

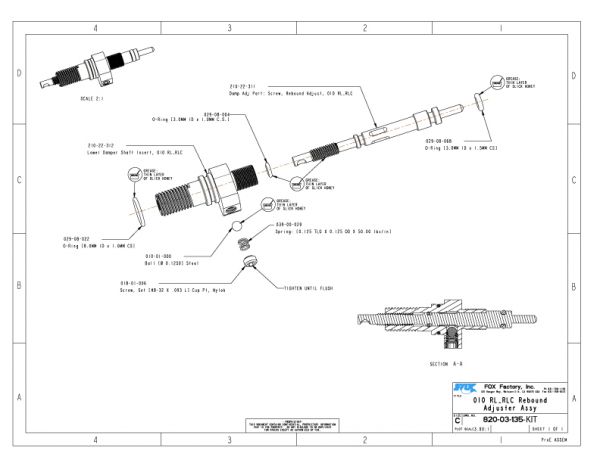

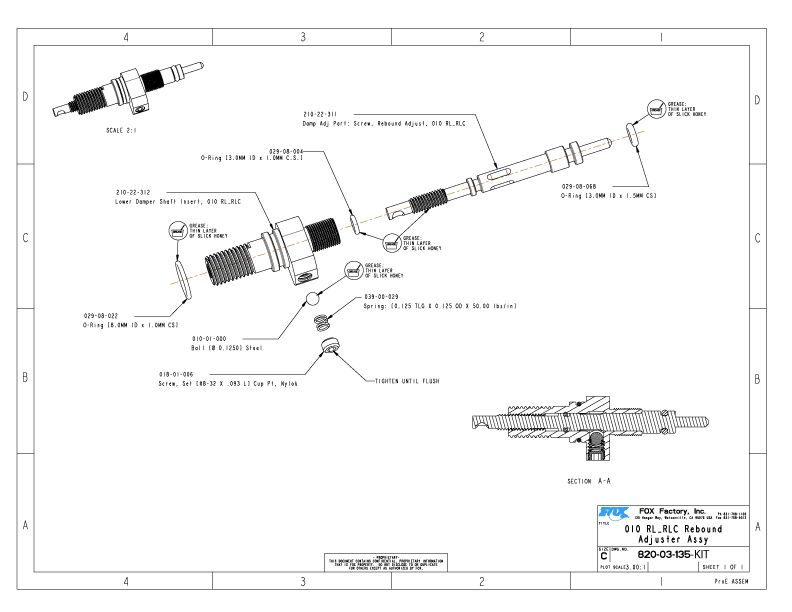

820-03-135-KIT Rebound Adjuster Assy

img/help/page745-BDFJ/820-03-135-KIT.jpg
back to top

img/help/page745-BDFJ/820-03-451-KIT-m.jpg

820-03-451-KIT 2015 FIT Main Piston Assy

img/help/page745-BDFJ/820-03-451-KIT.jpg
back to top

2017 FLOAT NA2 SC

img/help/page745-BDFJ/Air-Spring-FLOAT-NA2-m.jpg

Air Spring FLOAT NA2 .

img/help/page745-BDFJ/Air-Spring-FLOAT-NA2.jpg
back to top

img/help/page745-BDFJ/820-05-223-KIT-m.jpg

820-05-223-KIT Topcap FLOAT NA2

img/help/page745-BDFJ/820-05-223-KIT.jpg
back to top

img/help/page745-BDFJ/820-02-384-KIT-m.jpg

820-02-384-KIT Air Shaft Assy Short Travel FLOAT NA2

img/help/page745-BDFJ/820-02-384-KIT.jpg
back to top

img/help/page745-BDFJ/820-02-385-KIT-m.jpg

820-02-385-KIT Neg Plate FLOAT NA2

img/help/page745-BDFJ/820-02-385-KIT.jpg
back to top

2017 FLOAT NA2 (Non-SC)

img/help/page745-BDFJ/Air-Spring-FLOAT-NA2a-m.jpg

Air Spring FLOAT NA2 .

img/help/page745-BDFJ/Air-Spring-FLOAT-NA2a.jpg
back to top

img/help/page745-BDFJ/820-05-343-KIT-m.jpg

820-05-343-KIT Topcap FLOAT NA2

img/help/page745-BDFJ/820-05-343-KIT.jpg
back to top

img/help/page745-BDFJ/Topcap-FLOAT-NA2-Hollow-Volume-Spacer-m.jpg

Topcap FLOAT NA2 Hollow Volume Spacer .

img/help/page745-BDFJ/Topcap-FLOAT-NA2-Hollow-Volume-Spacer.jpg
back to top

img/help/page745-BDFJ/Air-Shaft-Long-Travel-FLOAT-NA2-m.jpg

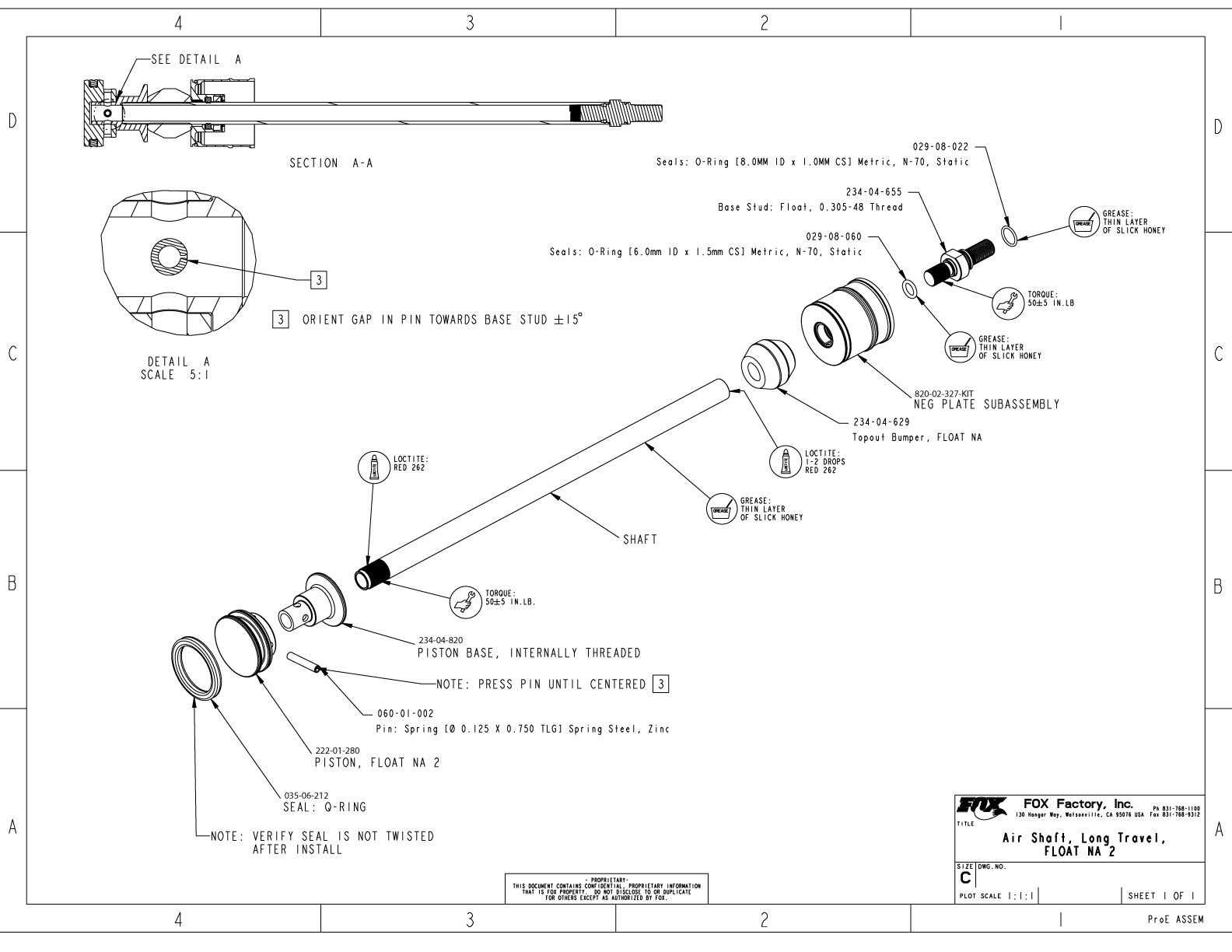

Air Shaft Assy Long Travel FLOAT NA2 .

img/help/page745-BDFJ/Air-Shaft-Long-Travel-FLOAT-NA2.jpg
back to top

img/help/page745-BDFJ/Air-Shaft-Assy,-Short-Travel-FLOAT-NA2-Topout-Spacer-m.jpg

Air Shaft Assy Short Travel FLOAT NA2 Topout Spacer .

img/help/page745-BDFJ/Air-Shaft-Assy,-Short-Travel-FLOAT-NA2-Topout-Spacer.jpg
back to top

img/help/page745-BDFJ/Neg-Plate-FLOAT-NA2-m.jpg

Neg Plate FLOAT NA2 .

img/help/page745-BDFJ/Neg-Plate-FLOAT-NA2.jpg
back to top
