PARTS & DRAWINGS

VAN R/RC

Size Specific Parts

Size Shaft Rebound Rod Body IFP Height IFP Pressure
9.500 x 3.000 229-38-001 210-19-020-A 204-68-001 1.38in 300psi
8.750 x 2.750 229-38-000 210-19-018-A 204-68-000 1.38in 300psi
8.750 x 2.500 229-38-002 210-19-017-A 204-68-000 1.38in 300psi
8.500 x 2.500 229-38-002 210-19-017-A 204-68-000 1.38in 300psi
7.875 x 2.250 229-38-003 210-19-016-A 204-68-003 1.38in 300psi
7.875 x 2.000 229-38-004 210-19-015-A 204-68-002 1.38in 300psi
7.500 x 2.000 229-38-004 210-19-015-A 204-68-004 1.38in 300psi



Valving Assm.
807-64-018-KIT Valving Assy, 2011 VAN R_RC, CM, RM
807-64-020-KIT Valving Assy: 2011 VAN R_RC, CL, RM
807-64-023-KIT Valving Assy: 2011 VAN R_RC, CL, RL

Eyelet Assm.
804-12-008-KIT Body Cap Assy, Piggyback, 2011 VAN RC [1.070 Bore, Ø .500 Shaft]
804-12-009-KIT Body Cap Assy: Piggyback, 2011 VAN R [1.070 Bore, Ø .500 Shaft]

Eyelet Assm. (Shaft)
808-14-067-KIT Eyelet Assy: Shaft, RD Adj, [Ø .500 Shaft, .825 OD X 1.463 TLG] Black Ano   III
808-14-069-KIT Eyelet Assy: Shaft, RD Adj, Long [0.500 Shaft, .825 OD X 1.463 TLG] Black   Ano III
808-14-071-KIT Eyelet Assy: Shaft, RD Adj, Strut [Ø .500 Shaft X 1.3 TLG] Black Ano III

Decals
024-02-153 Decal: 2005-2013 VAN R, Eyelet Decal, Dome
024-02-498 Decal: 2014 VAN R
024-02-499 Decal: 2014 VAN RC
024-02-603 Decal: 2016 Performance Van, Resy

Assembly Drawings: 2014 VAN R/RC

Body Cap Assy: 2014 VAN RC

Eyelet Assy (Shaft): 2014 VAN R/RC

Damping Adj Assy: 2014 VAN RC

Valving Assy: 2014 VAN R/RC

Assembly Drawings: 2014 VAN R/RC

img/help/page63-vLrlcy/2012-VAN-R-m.jpg

2014 VAN R Assembly Drawing

img/help/page63-vLrlcy/2012-VAN-R.jpg
back to top

img/help/page63-vLrlcy/2012-VAN-RC-m.jpg

2014 VAN RC Assembly Drawing

img/help/page63-vLrlcy/2012-VAN-RC.jpg
back to top

Body Cap Assy: 2014 VAN RC

img/help/page63-vLrlcy/Body-Cap-Assy,-Piggyback-2011-VAN-RC-m.jpg

804-12-008-KIT Body Cap Assy: Piggyback, 2011 VAN RC

img/help/page63-vLrlcy/Body-Cap-Assy,-Piggyback-2011-VAN-RC.jpg
back to top

Eyelet Assy (Shaft): 2014 VAN R/RC

img/help/page63-vLrlcy/Eyelet--Assy,-Shaft-RC-Adj-[0.500-Shaft]-m.jpg

808-14-067-KIT Eyelet Assy: Shaft, RC Adj [0.500 Shaft]

img/help/page63-vLrlcy/Eyelet--Assy,-Shaft-RC-Adj-[0.500-Shaft].jpg
back to top

img/help/page63-vLrlcy/Eyelet--Assy,-Shaft-RC-Adj-Long-[0.500-Shaft]-m.jpg

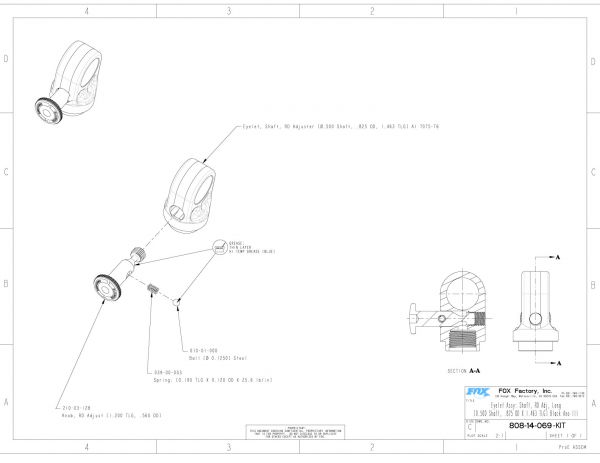

808-14-069-KIT Eyelet Assy: Shaft, RD Adj, Long [0.500 Shaft]

img/help/page63-vLrlcy/Eyelet--Assy,-Shaft-RC-Adj-Long-[0.500-Shaft].jpg
back to top

img/help/page63-vLrlcy/Eyelet--Assy,-Shaft-RC-Adj-Strut-[0.500-Shaft]-m.jpg

808-14-071-KIT Eyelet Assy: Shaft, RD Adj, Strut [0.500 Shaft]

img/help/page63-vLrlcy/Eyelet--Assy,-Shaft-RC-Adj-Strut-[0.500-Shaft].jpg
back to top

Damping Adj Assy: 2014 VAN RC

img/help/page63-vLrlcy/Damping-Adj-Assy-2011-VAN-RCA-m.jpg

815-02-015-KIT Damping Adj Assy: 2011 VAN RC

img/help/page63-vLrlcy/Damping-Adj-Assy-2011-VAN-RCA.jpg
back to top

Valving Assy: 2014 VAN R/RC

img/help/page63-vLrlcy/Valving-Assy-2011-VAN-R-RC-CM-RM-m.jpg

807-64-018-KIT Valving Assy: 2011 VAN R/RC CM RM

img/help/page63-vLrlcy/Valving-Assy-2011-VAN-R-RC-CM-RM.jpg
back to top

img/help/page63-vLrlcy/Valving-Assy-2011-VAN-R-RC-CL-RM-m.jpg

807-64-020-KIT Valving Assy: 2011 VAN R/RC CL RM

img/help/page63-vLrlcy/Valving-Assy-2011-VAN-R-RC-CL-RM.jpg
back to top

img/help/page63-vLrlcy/Valving-Assy-2011-VAN-R-RC-CL-RL-m.jpg

807-64-023-KIT Valving Assy: 2011 VAN R/RC CL RL

img/help/page63-vLrlcy/Valving-Assy-2011-VAN-R-RC-CL-RL.jpg
