PARTS & DRAWINGS
DHX RC2/RC4
Size Specific Parts
| Size | Hard Ano Shaft | Kashima Shaft | Reservoir Body | Rebound Rod | Body | IFP Height | IFP Pressure |
| 10.500 x 3.500 | 229-38-006 | 229-90-006 | 227-09-021 | 210-19-021 | 204-68-006 | 1.100in | 150psi |
| 9.500 x 3.000 | 229-38-001 | 229-90-001 | 227-09-021 | 210-19-020-A | 204-68-001 | 1.020in | 150psi |
| 8.750 x 2.750 | 229-38-000 | 229-90-000 | 227-09-021 | 210-19-018-A | 204-68-000 | 0.980in | 150psi |
| 8.500 x 2.500 | 229-38-002 | 229-90-002 | 227-09-022 | 210-19-017-A | 204-68-000 | 0.940in | 150psi |
| 7.875 x 2.250 | 229-38-003 | 229-90-003 | 227-09-022 | 210-19-016-A | 204-68-003 | 0.900in | 150psi |
| 7.875 x 2.000 | 229-38-004 | 229-90-004 | 227-09-022 | 210-19-015-A | 204-68-002 | 0.860in | 150psi |
| 7.500 x 2.000 | 229-38-004 | 229-90-004 | 227-09-022 | 210-19-015-A | 204-68-004 | 0.860in | 150psi |
| Tools & Tuning | |
| 803-00-208 | KIT: Clamp, shaft and body, 2005 DHX |
| 803-00-378 | KIT: DHX RC2_RC4 Shaft/Resi Clamp set |
| 803-00-463 | KIT: Fill Machine Adapter, 04-07 Epic IV, DHX Air, RC2_RC4 shocks |
| 803-00-828 | Seal Kit: DHX RC2_RC4 damper rebuild, 0.5" Shaft |
| Valving Assm. | |
| 807-64-041-KIT | Valving Assy: 2014 DHX RC4/RC2, CM, RM |
| 807-64-042-KIT | Valving Assy: 2014 DHX RC4/RC2, CF, RM |
| 807-64-043-KIT | Valving Assy: 2014 DHX RC4/RC2, CL, RL |
| Eyelet Assm. | |
| 808-17-080-KIT | Eyelet Assy: 2011 DHX RC4 |
| 808-17-082-KIT | Eyelet Assy: 2011 DHX RC2 |
| Eyelet Assm. (Shaft) | |
| 808-14-067-KIT | Eyelet Assy: Shaft, RC Adj [Ø .500 Shaft, .825 OD X 1.463 TLG] Black Ano III |
| 808-14-069-KIT | Eyelet Assy: Shaft, RD Adj, Long [0.500 Shaft, .825 OD X 1.463 TLG] Black Ano III |
| Reservoir Cap Assm. | |
| 813-00-068-KIT | Reservoir End Cap Assembly: 2010 DHX RC2 |
| 813-00-083-KIT | Reservoir End Cap Assembly: 2014 DHX RC4 |
| Bearing Assm. | |
| 812-06-034-KIT | Bearing Assembly: Buna-N O-Ring, [Ø 1.070 Bore, 1.125-18 UNEF-2B, 0.975 TLG] |
| Decals | |
| 024-02-490 | Decal: 2014 DHX RC4 Reservoir, Gold |
| 024-02-491 | Decal: 2014 Factory DHX RC4 Reservoir, (No Gold) |
| 024-02-492 | Decal: 2014 DHX RC2 Reservoir |
| 024-02-248 | Decal: DHX RC4 HSC Adj. |
Assembly Drawing: 2014 DHX RC2/RC4
Eyelet Assy: 2014 DHX RC2/RC4
- 808-17-080-KIT Eyelet Assy: 2011 DHX RC4
- 808-17-082-KIT Eyelet Assy: 2011 DHX RC2
Eyelet Assy (Shaft): 2014 DHX RC2/RC4
- 808-14-067-KIT Eyelet Assy: Shaft RD Adj [0.500 Shaft]

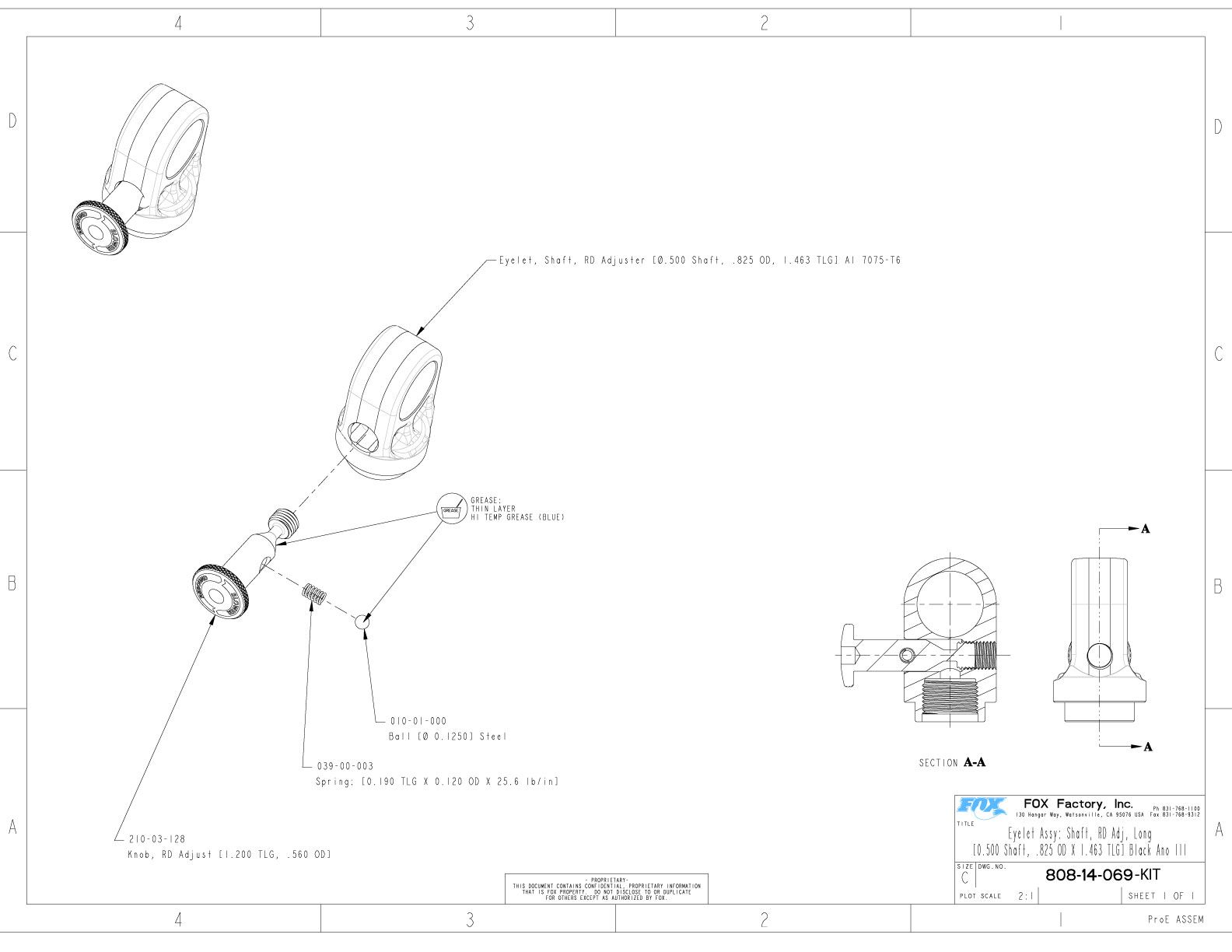

- 808-14-069-KIT Eyelet Assy: Shaft RD Adj, LONG [0.500 Shaft]
Damping Adj Assy: 2014 DHX RC2/RC4

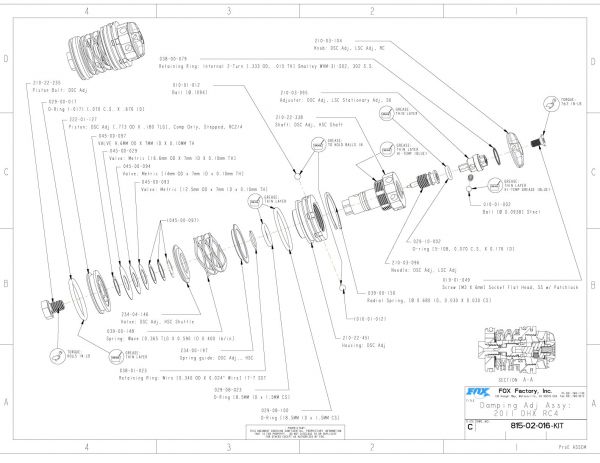

- 815-02-016-KIT Damping Adj Assy: 2011 DHX RC4

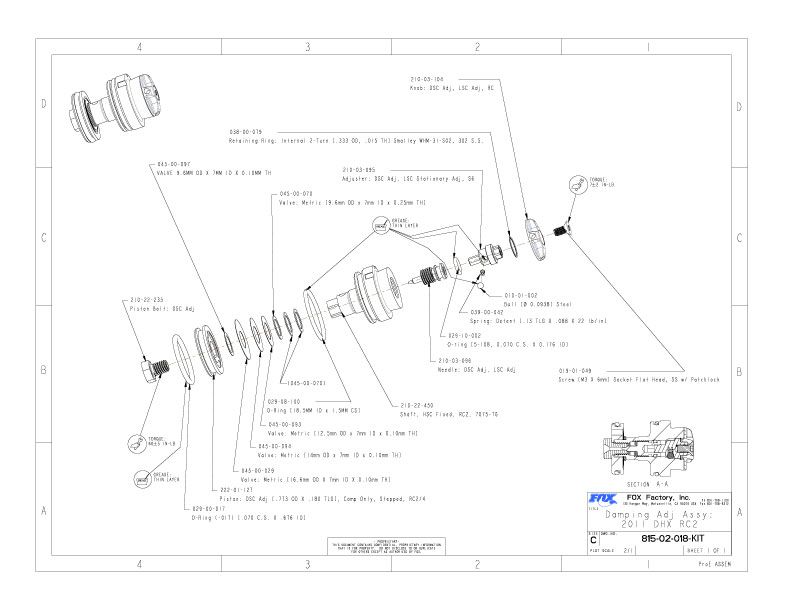

- 815-02-018-KIT Damping Adj Assy: 2011 DHX RC2
Valving Assy: 2014 DHX RC2/RC4
- 807-64-041-KIT Valving Assy: 2014 DHX RC2/RC4 CM RM
- 807-64-042-KIT Valving Assy: 2014 DHX RC2/RC4 CF RM
- 807-64-043-KIT Valving Assy: 2014 DHX RC2/RC4 CL RL
