PARTS & DRAWINGS

FLOAT X Part Information

New for 2016:

Updated Valving in eyelet and main piston Backwards compatible
New D-Adj Lever Housing Assembly Backwards compatible
Evol Air Sleeve Backwards compatible, Float X Specific EVOL sleeves only



Obsolete Technologies:

Trail adjust Lever Housing Still supported
2015 valving Still supported



Maintenance Info:

Service Interval Full Service 125 hours
803-00-142 Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring
803-00-826 Seal Kit: Float X Shock Rebuild
803-00-805 Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in
803-00-823 Tooling: Shaft Clamps Float X Adj. Cartridge
802-01-000-KIT Service Set: Air Valve Assy, Nitrogen Safety Needle Assy w/Manual, Complete w/out Gauge



Air Spring Tuning:

803-00-827 KIT: Float X, Air Spring Volume Tuning Kit



Oil Info:

Damper Oil 025-02-003 Oil: AM, FOX Suspension Fluid [32 oz.], 10 WT Red
Air Chamber 025-03-002-A Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack
025-03-003-A Oil: AM, FOX FLOAT Fluid [8 oz.]



IFP Info:

IFP Pressure (All Sizes) 150psi/ 10.3 bar
IFP Height (+/- .050in) 1.350in/ 34.29mm



Remote Upgrades:

820-07-122-KIT Service Set: Lever Housing Assy: 2016 Float X CTD Remote
820-07-033 2014-016 3Pos Remote Lever, Single Cable, AM, Preconfigure: Right
803-00-817 Service Set: 2014 CTD Remote Lever, AM Splitter, Kit

FLOAT X EVOL air sleeves are tuned to work with a 150psi IFP charge. Use FLOAT DPS EVOL sleeves as upgrades for older Dish LV shocks as the FLOAT DPS EVOL air sleeve is tuned to work with a 500psi IFP charge.

2016 FLOAT X Part Listings



Ano LV Air Sleeves
Shock Size Air Sleeve Total Length LV Ano LV Ano EVOL
7.250 x 1.750 3.698in/ 93.93mm 806-29-204-KIT
7.500 x 2.000 3.698in/ 93.93mm 806-29-204-KIT
7.875 x 2.000 3.948in/ 100.28mm 806-29-205-KIT 806-29-501-KIT
7.875 x 2.250 3.948in/ 100.28mm 806-29-205-KIT 806-29-501-KIT
8.500 x 2.250 4.350in/ 110.49mm 806-29-206-KIT 806-29-502-KIT
8.500 x 2.500 4.350in/ 110.49mm 806-29-206-KIT 806-29-502-KIT
8.750 x 2.500 4.350in/ 110.49mm 806-29-206-KIT 806-29-502-KIT
9.500 x 3.000 4.850in/ 123.19mm 806-29-207-KIT

Kashima LV Air Sleeves
Shock Size Air Sleeve Total Length LV Kashima LV Kashima EVOL
7.250 x 1.750 3.698in/ 93.93mm 806-29-174-KIT 806-29-520-KIT
7.500 x 2.000 3.698in/ 93.93mm 806-29-174-KIT 806-29-520-KIT
7.875 x 2.000 3.948in/ 100.28mm 806-29-175-KIT 806-29-521-KIT
7.875 x 2.250 3.948in/ 100.28mm 806-29-175-KIT 806-29-521-KIT
8.500 x 2.250 4.350in/ 110.49mm 806-29-176-KIT 806-29-522-KIT
8.500 x 2.500 4.350in/ 110.49mm 806-29-176-KIT 806-29-522-KIT
8.750 x 2.500 4.350in/ 110.49mm 806-29-176-KIT 806-29-522-KIT
9.500 x 3.000 4.850in/ 123.19mm 806-29-177-KIT

Bodies
Shock Size Body Total Length Ano  Kashima
7.500 x 2.000 4.187in/ 106.35mm 204-54-011 207-50-011
7.875 x 2.000 4.312in/ 109.52mm 204-54-006 207-50-006
7.875 x 2.250 4.312in/ 109.52mm 204-54-006 207-50-006
8.500 x 2.500 4.687in/ 119.05mm 204-54-013 207-50-013
8.750 x 2.500 4.935in/ 125.35mm 204-54-012 207-50-012
9.500 x 3.000 5.187in/ 131.75mm 204-54-014 207-50-014

Eyelet Assemblies
808-17-166-KIT Service Set: Eyelet Assy: 2016 Float X Remote
808-17-167-KIT Service Set: Eyelet Assy: 2016 Float X D-Adj
808-17-168-KIT Service Set: Eyelet Assy: 2016 Float X D-Adj, Short Lever
808-17-204-KIT Service Set: Eyelet Assy: 2016 Float X, 3pos

Lever Housing Assemblies
820-07-120-KIT Service Set: Lever Housing Assy: 2016 Float X 3pos
820-07-121-KIT Service Set: Lever Housing Assy: 2016 Float X D-Adj
820-07-122-KIT Service Set: Lever Housing Assy: 2016 Float X CTD Remote
820-07-123-KIT Service Set: Lever Housing Assy: 2016 Float X D-Adj, Short Lever

Shafts
Shock Size Shaft
7.500 x 2.000 229-44-000
7.875 x 2.000 229-44-001
7.875 x 2.250 229-44-001
8.500 x 2.500 229-44-002
8.750 x 2.500 229-44-002
9.500 x 3.000 229-44-004

Rebound Rods
Shock Size Rebound Rod
7.500 x 2.000 210-90-000
7.875 x 2.000 210-90-001
7.875 x 2.250 210-90-001
8.500 x 2.500 210-90-002
8.750 x 2.500 210-90-002
9.500 x 3.000 210-90-004

Bearing Assemblies
812-06-046-KIT Service Set: Bearing Assembly: Black [.940 Bore, 1.500 Bore, .500 Shaft, .815 TLG]
812-06-047-KIT Service Set: Bearing Assembly: Black [.940 Bore, 1.500 Bore, .500 Shaft, 1.065 TLG]

Valving Assemblies
807-72-150-KIT Service Set: Valving Assy: 2014 Float X CTD, CM, RTM
807-72-151-KIT Service Set: Valving Assy: 2014 Float X CTD, CM, RTL
807-72-200-KIT Service Set: Valving Assy: 2014 Float X CTD, ECFXCF, RTM
807-72-210-KIT Service Set: Valving Assy: 2016 FLOAT X, CXF, RM
Decals
024-02-578 Decal: 2016 Factory FLOAT X, Airsleeve, Orange
024-02-579 Decal: 2016 Factory/Performance Elite FLOAT X, Resy
024-02-580 Decal: 2016 Factory/Performance Elite FLOAT X, Remote, Resy
024-02-581 Decal: 2016 Factory FLOAT X, Airsleeve, Gold
024-02-601 Decal: 2016 Performance, FLOAT X, Airsleeve
024-02-602 Decal: 2016 Performance, FLOAT X, Resy
024-02-608 Decal: 2016 Factory FLOAT X, Airsleeve, Orange, 7.25/7.5 Evol

FLOAT X Assembly Drawing

FLOAT X Eyelet Assemblies

FLOAT X Lever Housing Assemblies

FLOAT X Sub-Assemblies

FLOAT X Valving Assemblies

FLOAT X Assembly Drawing

img/help/page565-afwqWm/Assy-DWG-2016-FLOAT-X-m.jpg

Assembly Drawing: 2016 FLOAT X .

img/help/page565-afwqWm/Assy-DWG-2016-FLOAT-X.jpg
back to top

FLOAT X Eyelet Assemblies

img/help/page565-afwqWm/808-17-204-KIT-m.jpg

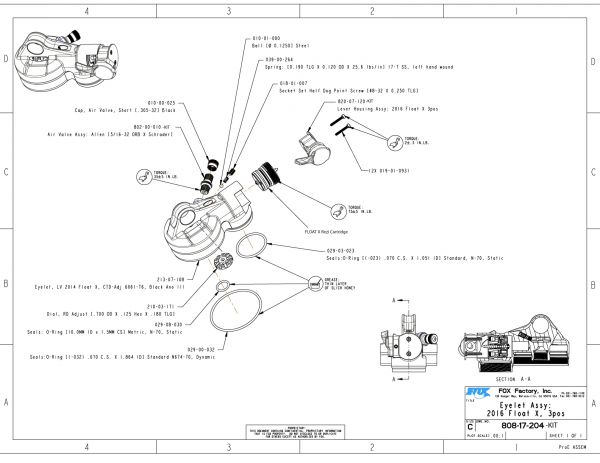

808-17-204-KIT Eyelet Assembly: 2016 FLOAT X 3pos

img/help/page565-afwqWm/808-17-204-KIT.jpg
back to top

img/help/page565-afwqWm/808-17-166-KIT-m.jpg

808-17-166-KIT Eyelet Assembly: 2016 FLOAT X Remote

img/help/page565-afwqWm/808-17-166-KIT.jpg
back to top

img/help/page565-afwqWm/808-17-167-KIT-m.jpg

808-17-167-KIT Eyelet Assembly: 2016 FLOAT X D-Adj

img/help/page565-afwqWm/808-17-167-KIT.jpg
back to top

img/help/page565-afwqWm/808-17-168-KIT-m.jpg

808-17-168-KIT Eyelet Assembly: 2016 FLOAT X D-Adj Short Lever

img/help/page565-afwqWm/808-17-168-KIT.jpg
back to top

FLOAT X Lever Housing Assemblies

img/help/page565-afwqWm/820-07-123-KIT-m.jpg

820-07-123-KIT Lever Housing Assy: 2016 FLOAT X D-Adj Short Lever

img/help/page565-afwqWm/820-07-123-KIT.jpg
back to top

img/help/page565-afwqWm/820-07-121-KIT-m.jpg

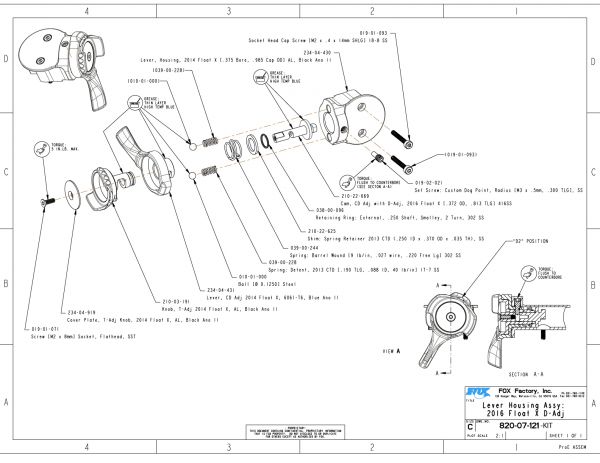

820-07-121-KIT Lever Housing Assy: 2016 FLOAT X D-Adj

img/help/page565-afwqWm/820-07-121-KIT.jpg
back to top

img/help/page565-afwqWm/820-07-122-KIT-m.jpg

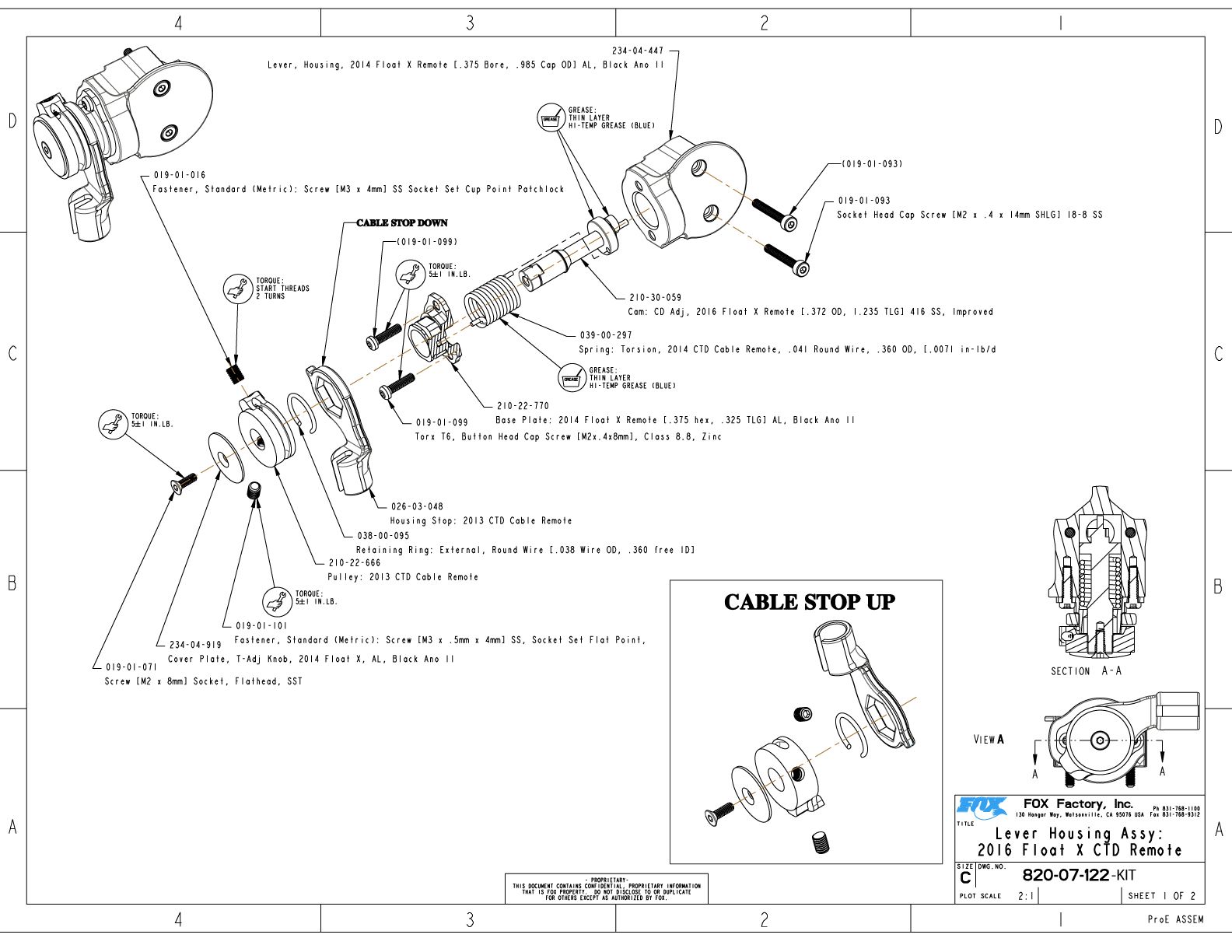

820-07-122-KIT Lever Housing Assy: 2016 FLOAT X Remote

img/help/page565-afwqWm/820-07-122-KIT.jpg
back to top

img/help/page565-afwqWm/820-07-120-KIT-m.jpg

820-07-120-KIT Lever Housing Assy: 2016 FLOAT X 3pos

img/help/page565-afwqWm/820-07-120-KIT.jpg
back to top

FLOAT X Sub-Assemblies

img/help/page565-afwqWm/815-00-069-KIT-m.jpg

815-00-069-KIT Damping Adj Assy: 2016 FLOAT X Rezi Cartridge, CM, CMM

img/help/page565-afwqWm/815-00-069-KIT.jpg
back to top

img/help/page565-afwqWm/815-00-070-KIT-m.jpg

815-00-070-KIT Damping Adj Assy: 2016 FLOAT X Rezi Cartridge, CL, CMM

img/help/page565-afwqWm/815-00-070-KIT.jpg
back to top

img/help/page565-afwqWm/805-00-078-KIT-m.jpg

805-00-078-KIT Piston Assembly: MY14 Floating w/ Bleed

img/help/page565-afwqWm/805-00-078-KIT.jpg
back to top

img/help/page565-afwqWm/813-00-082-KIT-m.jpg

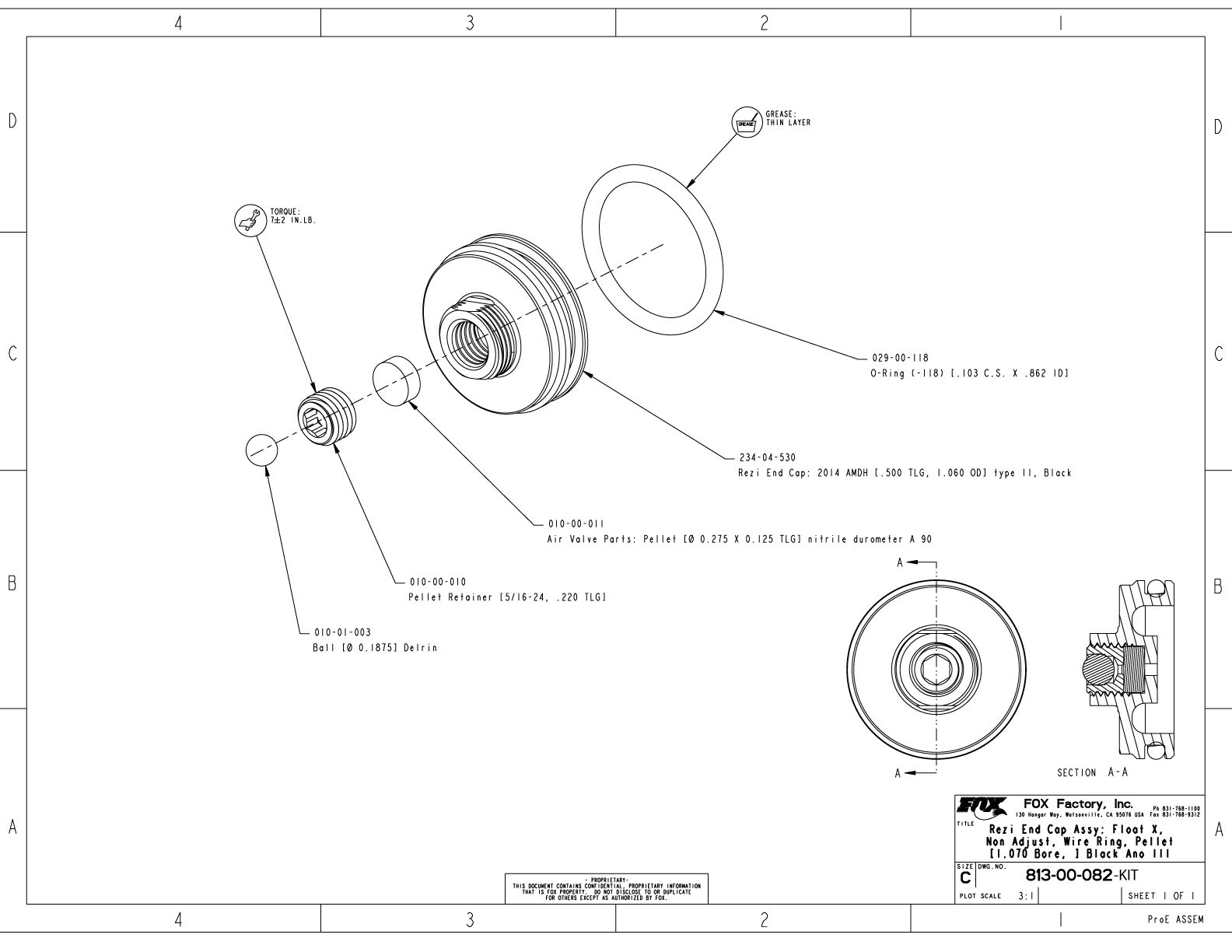

813-00-082-KIT Rezi End Cap Assy: FLOAT X

img/help/page565-afwqWm/813-00-082-KIT.jpg
back to top

img/help/page565-afwqWm/812-06-047-KIT-m.jpg

812-06-047-KIT Bearing Assembly, 0.500 Shaft, 1.065 TLG

img/help/page565-afwqWm/812-06-047-KIT.jpg
back to top

img/help/page565-afwqWm/812-06-046-KIT-m.jpg

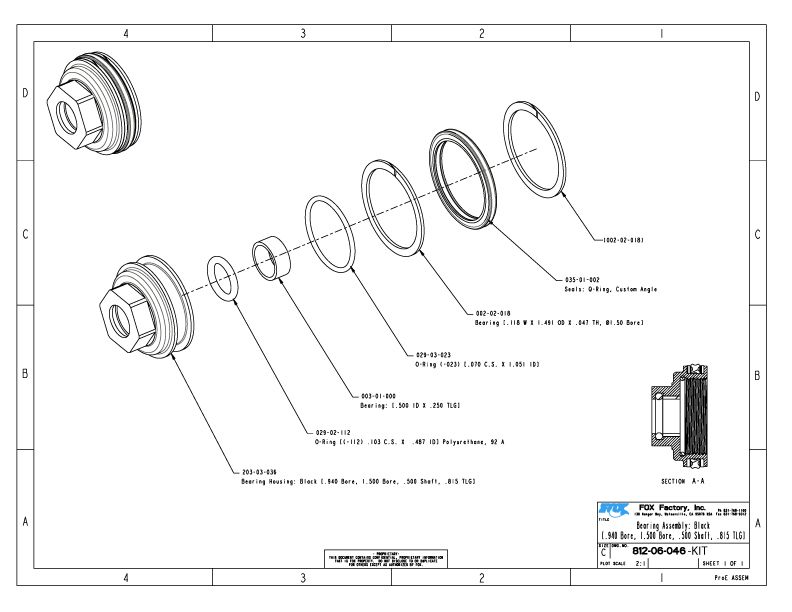

812-06-046-KIT Bearing Assembly, 0.500 Shaft, 0.815 TLG

img/help/page565-afwqWm/812-06-046-KIT.jpg
back to top

FLOAT X Valving Assemblies

img/help/page565-afwqWm/807-72-151-KIT-m.jpg

807-72-151-KIT Valving Assy: 2014 FLOAT X, CM, RTL

img/help/page565-afwqWm/807-72-151-KIT.jpg
back to top

img/help/page565-afwqWm/807-72-150-KIT-m.jpg

807-72-150-KIT Valving Assy: 2014 FLOAT X, CM, RTM

img/help/page565-afwqWm/807-72-150-KIT.jpg
back to top

img/help/page565-afwqWm/807-72-200-KIT-m.jpg

807-72-200-KIT Valving Assy: 2014 FLOAT X, ECFXCF, RTM

img/help/page565-afwqWm/807-72-200-KIT.jpg
back to top

img/help/page565-afwqWm/807-72-210-KIT-m.jpg

807-72-210-KIT Valving Assy: 2016 FLOAT X, CXF, RM

img/help/page565-afwqWm/807-72-210-KIT.jpg
