PARTS & DRAWINGS
36mm Part Information
| Dust Wiper Kit | |
| Part | Description |
| 803-00-933 | Kit: Dust Wiper, Forx, 36mm, Low Friction, No Flange |
| 36mm CSU | ||
| Part | Description | |
| 820-11-533-KIT | Service Set: 2015 36 26in 180 Float, 1.5T, Fox Met. Black, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-534-KIT | Service Set: 2015 36 26in 180 Float, 1.5T, Fox Gloss White, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-536-KIT | Service Set: 2015 36 26in 180 Float, 1.5T, Fox Met. Black, Hard Ano CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-537-KIT | Service Set: 2015 36 26in 180 Float, 1.5T, Fox Gloss White, Hard Ano CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-539-KIT | Service Set: 2015 36 26in 180 Float, 1-1/8, Fox Met. Black, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-540-KIT | Service Set: 2015 36 26in 180 Float, 1-1/8, Fox Gloss White, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-542-KIT | Service Set: 2015 36 27.5in 170 Float, 1.5T, Fox Met. Black, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-543-KIT | Service Set: 2015 36 27.5in 170 Float, 1.5T, Fox Gloss White, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-545-KIT | Service Set: 2015 36 27.5in 170 Float, 1.5T, Fox Met. Black, Hard Ano CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-546-KIT | Service Set: 2015 36 27.5in 170 Float, 1.5T, Fox Gloss White, Hard Ano CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-548-KIT | Service Set: 2015 36 29in 160 Float, 1.5T, Fox Met. Black, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-549-KIT | Service Set: 2015 36 29in 160 Float, 1.5T, Fox Gloss White, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-551-KIT | Service Set: 2015 36 29in 160 Float, 1.5T, Fox Met. Black, Hard Ano CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-552-KIT | Service Set: 2015 36 29in 160 Float, 1.5T, Fox Gloss White, Hard Ano CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-563-KIT | Service Set: 2015 36 26in 170-180 Coil and TALAS 1.5 Short Taper Black Ano CSU | For 1.281"/32.54mm Ø piston |
| 820-11-564-KIT | Service Set: 2015 36 26in 170-180 Coil and TALAS 1.5 Short Taper White Ano CSU | For 1.281"/32.54mm Ø piston |
| 820-11-566-KIT | Service Set: 2015 36 26in 170-180 Coil and TALAS 1-1/8 Black Ano CSU | For 1.281"/32.54mm Ø piston |
| 820-11-567-KIT | Service Set: 2015 36 26in 170-180 Coil and TALAS 1-1/8 White Ano CSU | For 1.281"/32.54mm Ø piston |
| 820-11-571-KIT | Service Set: 2015 36 26in 170-180 Coil and TALAS 1.5 Short Taper Black Ano CSU | For 1.281"/32.54mm Ø piston |
| 820-11-602-KIT | Service Set: 2015 36 26in 180, Retro, 1.5T, Fox Met. Black, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-603-KIT | Service Set: 2015 36 26in 180, Retro, 1-1/8, Fox Met. Black, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-604-KIT | Service Set: 2015 36 26in 180, Retro, 1.5T, White, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 820-11-605-KIT | Service Set: 2015 36 26in 180, Retro, 1-1/8, White, Kashima CSU Assy | For 1.281"/32.54mm Ø piston |
| 36mm Lower | ||
| Part | Description | |
| 820-00-834-KIT | Service Set: 2012 36 26" 170-180 Black F/P/E 20QR Lower "Low Friction" Assy | |
| 820-00-835-KIT | Service Set: 2012 36 26" 170-180 White F/P/E 20QR Lower "Low Friction" Assy | |
| 820-10-136-KIT | Service Set: 2015 36 26in 180 w/20mm Pinch Axle, Fox Met. Black, Lower Leg Assy | |
| 820-10-137-KIT | Service Set: 2015 36 26in 180 w/20mm Pinch Axle, Fox Gloss White, Lower Leg Assy | |
| 820-10-139-KIT | Service Set: 2015 36 27.5in 180 w/20mm Pinch Axle, Fox Met. Black, Lower Leg Assy | |
| 820-10-140-KIT | Service Set: 2015 36 27.5in 180 w/20mm Pinch Axle, Fox Gloss White, Lower Leg Assy | |
| 820-10-142-KIT | Service Set: 2015 36 29in 160 w/20mm Pinch Axle, Fox Met. Black, Lower Leg Assy | |
| 820-10-143-KIT | Service Set: 2015 36 29in 160 w/20mm Pinch Axle, Fox Gloss White, Lower Leg Assy | |
| 820-10-145-KIT | Service Set: 2015 36 26in 180 w/15mm Pinch Axle, Fox Met. Black, Lower Leg Assy | |
| 820-10-146-KIT | Service Set: 2015 36 26in 180 w/15mm Pinch Axle, Fox Gloss White, Lower Leg Assy | |
| 820-10-148-KIT | Service Set: 2015 36 27.5in 180 w/15mm Pinch Axle, Fox Met. Black, Lower Leg Assy | |
| 820-10-149-KIT | Service Set: 2015 36 27.5in 180 w/15mm Pinch Axle, Fox Gloss White, Lower Leg Assy | |
| 820-10-151-KIT | Service Set: 2015 36 29in 160 w/15mm Pinch Axle, Fox Met. Black, Lower Leg Assy | |
| 820-10-152-KIT | Service Set: 2015 36 29in 160 w/15mm Pinch Axle, Fox Gloss White, Lower Leg Assy | |
| FLOAT NA Topcap Assemblies | ||
| Part | Description | |
| 820-05-304-KIT | Service Set: Topcap Assy, FLOAT NA, 36, 1st Transfer Hole | |
| 820-05-305-KIT | Service Set: Topcap Assy, FLOAT NA, 36, 2nd Transfer Hole | |
| 820-05-306-KIT | Service Set: Topcap Assy, FLOAT NA, 36, 3rd Transfer Hole | |
| FLOAT NA Air Shaft Assemblies | ||
| Part | Description | Piston Diameter |
| 820-02-323-KIT | Service Set: Air Shaft Assy, 36 140, FLOAT NA | 1.281"/32.54mm Ø |
| 820-02-322-KIT | Service Set: Air Shaft Assy, 36 150, FLOAT NA | 1.281"/32.54mm Ø |
| 820-02-321-KIT | Service Set: Air Shaft Assy, 36 160, FLOAT NA | 1.281"/32.54mm Ø |
| 820-02-324-KIT | Service Set: Air Shaft Assy, 36 170, FLOAT NA | 1.281"/32.54mm Ø |
| 820-02-319-KIT | Service Set: Air Shaft Assy, 36 180, FLOAT NA | 1.281"/32.54mm Ø |
| 36mm TALAS 5 | ||
| Complete TALAS 5 Assemblies | ||
| Part | Description | |
| 820-01-340-KIT | Service Set: TALAS 5, 36, 26, 180, Cartridge Assembly Complete | |
| 820-01-341-KIT | Service Set: TALAS 5, 36, 26, 170, Cartridge Assembly Complete | |
| 820-01-361-KIT | Service Set: TALAS 5, 36, 160, 2011-2014 Cartridge Assembly Complete | |
| 820-01-363-KIT | Service Set: Retrofit, TALAS 5, 36, 160, 2005-2010, Cartridge Assembly Complete | |
| 820-01-367-KIT | Service Set: TALAS 5, 36, 160-120, 2015, Cartridge Assembly Complete | |
| TALAS 5 Topcap Assemblies | ||
| Part | Description | |
| 820-05-262-KIT | Service Set: Topcap Assy, TALAS 5, 36 180 | |
| 820-05-263-KIT | Service Set: Topcap Assy, TALAS 5, 36 160 | |
| 820-05-264-KIT | Service Set: Topcap Assy, TALAS 5, 36 160, 2015 | |
| TALAS 5 Air Shaft Assemblies | ||
| Part | Description | |
| 820-02-255-KIT | Service Set: Air Shaft Assy, TALAS 5, 34, 26/27.5 & 2015 36, 160 | |
| 820-02-256-KIT | Service Set: Air Shaft Assy, TALAS 5, 34, 26/27.5 & 2015 36, 150 | |
| 820-02-260-KIT | Service Set: Air Shaft Assy, TALAS 5, 36, 26, 180 | |
| 820-02-261-KIT | Service Set: Air Shaft Assy, TALAS 5, 36, 26, 170 | |
| Complete Cartridges | ||
| Part | Description | |
| 820-08-093-KIT | Service Set: 2011 36 170-180 HBO RC2 Cartridge Assy Complete | |
| 820-08-096-KIT | Service Set: 2011 36 170-180 RC2 NBO Cartridge Assy Complete | |
| 820-08-103-KIT | Service Set: 2011 36 R O/B 170-180 NBO FLOAT/TALAS Cartridge Assy Complete | |
| 820-08-590-KIT | Service Set: 2015 Cartridge Assy Complete, 36 160 RC2 | |
| 820-08-591-KIT | Service Set: 2015 Cartridge Assy Complete, 36 180 RC2 | |
| 820-08-592-KIT | Service Set: 2015 36 170 FIT F-S CTD Med Climb Mode Remote Cartridge Assy Complete | |
| 820-08-593-KIT | Service Set: 2015 36 170 FIT F-S CTD Firm Climb Mode Remote Cartridge Assy Complete | |
| Cartridge Topcap | ||
| Part | Description | |
| 210-22-412 | Topcap, 011 36 180 RC2 | |
| 210-22-867 | Topcap, 015 36 160-180 RC2 | |
| 820-05-074-KIT | Service Set: 010 36 R Topcap Assy | |
| 820-05-312-KIT | Service Set: 2015 36 FIT CTD Med Climb Mode Remote Topcap Assy | |
| 820-05-322-KIT | Service Set: 2015 36 FIT CTD Firm Climb Mode Remote Topcap Assy | |
| Bladder And Cart Body Assy | ||
| Part | Description | |
| 820-03-445-KIT | Service Set: 2015 34 26in and 27.5in 170 FIT CTD Bladder And Cart Body Assy | |
| Cartridge Body | ||
| Part | Description | Where Used |
| 204-77-008 | Body: (T) Cartridge, Machined [9.000 TLG] 180, NBO 011 36 R | 2011 O/B R 170-180 |
| 204-77-206 | Body: (T) Cartridge, Machined, 170, 2014 iRD CD/FIT CTD | 2015 36 Rem CTD 170 |
| 207-11-004 | Body: (T) Cartridge, Mach, 011 36 180 NBO RC2 | 2011 170-180 FIT NBO |
| 207-11-001 | Body: (T) Cartridge, Mach, 011 36 180 HBO RC2 | 2011 170-180 FIT HBO |
| 207-80-001 | Cart, Mach, 015 36 160 NBO RC2 LW | 2015 FIT 160 |
| 207-80-002 | Cart, Mach, 015 36 170-180 NBO RC2 LW | 2015 FIT 180 |
| Damper Bladder | ||
| Part | Description | Where Used |
| 210-22-303 | Bladder, 010 RL_RLC | FIT CTD |
| 210-22-391 | Bladder, 2011 36_40 | FIT RC2 |
| Rebound Tube | ||
| Part | Description | Where Used |
| 204-74-008 | Rebound Tube: Machined, 011 36 180 HBO RC2 [8.949 TLG] | 2011 170-180 FIT HBO |
| 204-74-009 | Rebound Tube: Machined, 011 36 180 NBO RC2 [11.130 TLG] | 2011 170-180 FIT NBO |
| 204-74-013 | Rebound Tube: (T) Machined, 8mm, NB0 011 36 R O/B 180 [12.604 TLG] | 2011 O/B R 170-180 |
| 204-74-023 | Rebound Tube: (T) Machined, 015 36 160-180 NBO RC2 | 2015 FIT 160-180 |
| 204-74-019 | Rebound Tube: (T) Machined, 2013 34 29in CTD, F/P | 2015 36 Rem CTD 170 |
| Rebound Shaft | ||
| Part | Description | Where Used |
| 229-10-021 | Shaft, (T) 011 36 180, HBO RC2, 10mm | 2011 170-180 FIT HBO |
| 229-10-023 | Shaft, (T) 011 36 180 RC2 NBO, 10mm | 2011 170-180 FIT NBO |
| 207-28-001 | Damper Tube: (T) Machined, 8mm OD x 0.2195 in ID, 011 36 R O/B 180 | 2011 O/B R 170-180 |
| 229-10-046 | Shaft, 015 36 160-180 NBO RC2, 10MM, Polished | 2015 FIT 160-180 |
| 207-22-008 | Damper Tube: (T) Machined, 8mm OD x 0.2195 in ID, 2013 34 29in CTD F/P | 2015 36 Rem CTD 170 |
| Decal Kits | ||
| Part | Description | |
|
803-00-965 |
Decal Kit: 2015, 36, Gold Logo, Factory Series | |
| 803-00-966 | Decal Kit: 2015, 36, Orange Logo, Factory Series | |
| Service Kits | ||
| Part | Description | |
| 803-00-933 | Kit: Dust Wiper, Forx, 36mm, Low Friction, No Flange | |
| 803-00-588 | Seal Kit: 36 FLOAT NA Rebuild | |
| 803-00-501 | Service Set: Seal Kit, 2011 36 & 40 Inverted RC2 Cartridge | |
| 820-03-450-KIT | Service Set: Sealhead Assembly, 2015 10mm Shaft, SKF | |
2015 36 FLOAT NA Air Spring Assemblies
2015 36mm F-S FIT RC2
- 2015 36 RC2 Cartridge Complete .

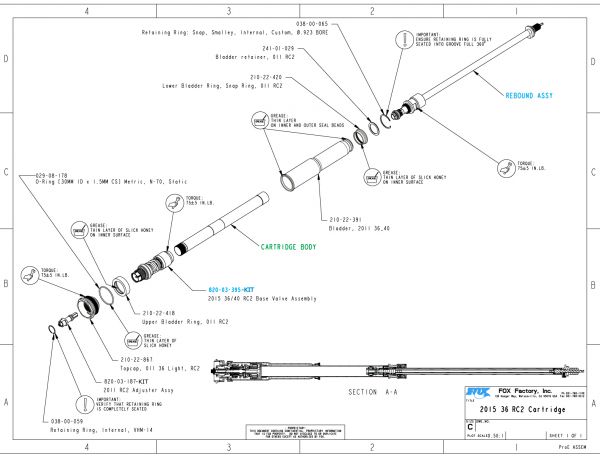

- 2015 36 RC2 Cartridge .
- 820-03-395-KIT 2015 36 RC2 Base Valve Assembly
- 2015 36 RC2 Rebound Assy .

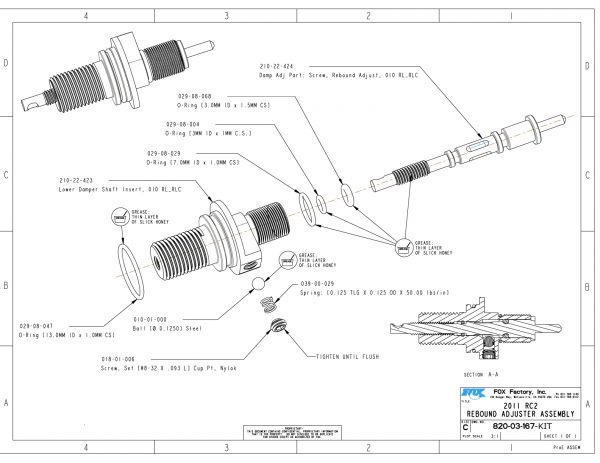

- 820-03-167-KIT 2011 RC2 Rebound Adjuster Assembly
The 2015 RC2 Base Valve Assembly has been updated with new compression damping valving. For additional information please click here: TSB - FORK- 2015 36 RC2 Valving Update »
2011 36mm F-S FIT RC2 NBO (For 2015 36 TALAS 170-180 and 36 VAN 170-180)
- 820-08-096-KIT 2011 36 170-180 NBO RC2 Complete Cartridge Assembly

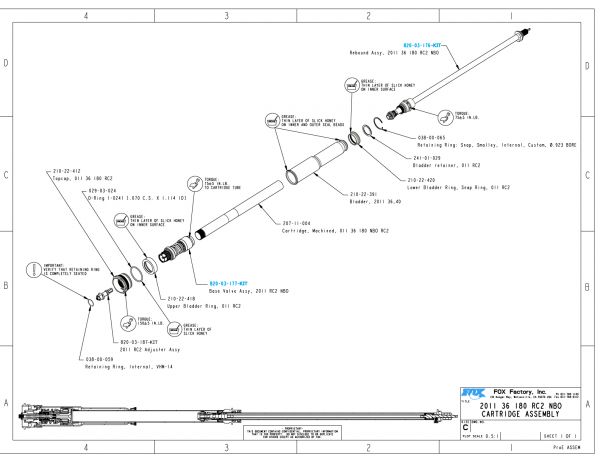

- 2011 36 180 RC2 NBO Cartridge Assembly .
- 820-03-177-KIT Base Valve Assy 2011 RC2 NBO
- 820-03-176-KIT 2011 36 180 RC2 NBO Rebound Assembly
- 820-03-167-KIT 2011 RC2 Rebound Adjuster Assembly
2015 36mm F-S FIT REM CTD

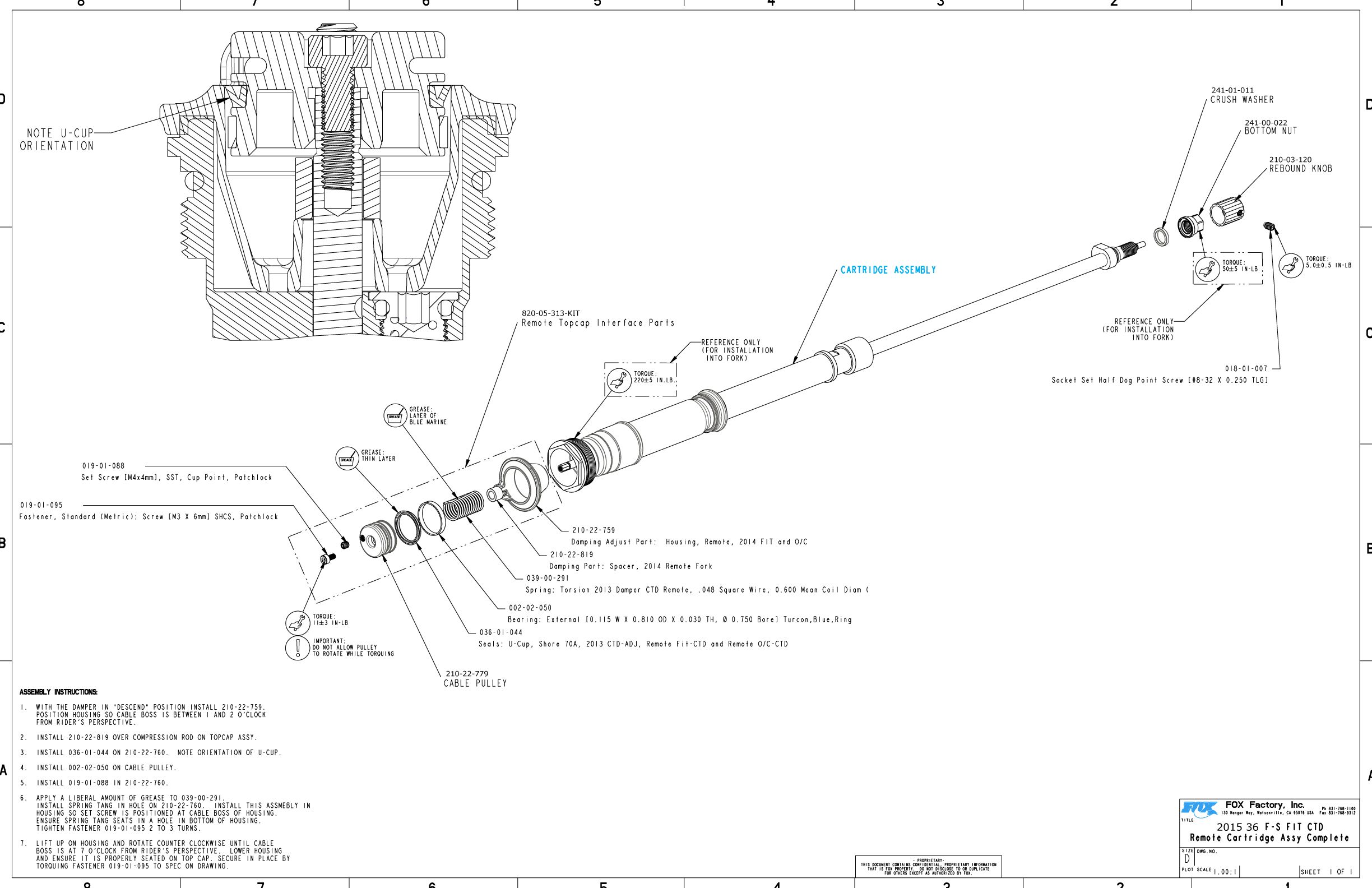

- 2015 36 F-S FIT CTD Remote Cartridge Assy Complete .
- 2015 36 FIT CTD Cartridge Assy .
- 2015 36 Remote FIT CTD Topcap Assy .
- 820-03-341-KIT 2015 34 and 32 Compression Valve Stack CTD F/P .008" Preload
- 2015 32/34 FIT CTD Bladder and Cart Body Assy .
- 2015 36 FIT CTD Damper Shaft Assy .
- 820-03-451-KIT 2015 FIT Main Piston Assy
- 820-03-185-KIT 011 36 FIT RLC 160 Rebound Adjuster Assy
