PARTS & DRAWINGS

34mm 831 26

Dust Wiper Kit
Part Description
803-00-614 Kit: Dust Wiper, Forx, 34mm, Low Friction



CSU Assemblies
Part Description
820-11-100-KIT Service Set: 2014 34 26in 160 Kashima 1.5 Short Taper Black CSU For 1.177"/29.90mm Ø piston

Lower Leg Assemblies
Part Description
820-10-030-KIT Service Set: 2013 34 26in 160 15QR Black Lower Assy

Cartridge Assemblies
Part Description
820-08-520-KIT Service Set: 2014 34 831 "Med Climb Mode" CTD-Adj Cartridge Assy Complete

Bladder and Cartridge Body Assemblies
Part Description
820-03-247-KIT Service Set: 2013 831 120 FIT CTD-Adj Bladder And Cart Body Assy

Cartridge Topcap Assemblies
Part Description
820-05-285-KIT Service Set: 2014 34 F-S, Med Climb Mode, Fit CTD-Adj Topcap Assy

Air Side Topcap Assemblies
Part Description
820-05-197-KIT Service Set: 2012 34 29in & 2014 34 831 FLOAT Air Topcap Assembly

Air Shaft Assemblies
Part Description Piston Diameter
820-02-282-KIT Service Set: 2014 34 26in FLOAT 831 100mm Air Shaft Assy 1.177"/29.90mm Ø

2014 34 831

2014 34 831

img/help/page448-C31tOg/2014-34-831-med-climb-mode-ctd-adj-cartridge-assy-completea-m.jpg

820-08-520-KIT 2014 34 831 Med Climb Mode CTD-ADJ Cartridge Assembly Complete

img/help/page448-C31tOg/2014-34-831-med-climb-mode-ctd-adj-cartridge-assy-completea.jpg
back to top

img/help/page448-C31tOg/2014-34-831-Factory-med-climb-mode-fit-ctd-adj-cartridge-assy-m.jpg
img/help/page448-C31tOg/2014-34-831-Factory-med-climb-mode-fit-ctd-adj-cartridge-assy.jpg
back to top

img/help/page448-C31tOg/2014-34-f-s-med-climb-mode-ctd-adj-topcap-assy-m.jpg

820-05-285-KIT 2014 34 F-S Med Climb Mode CTD-ADJ Topcap Assy

img/help/page448-C31tOg/2014-34-f-s-med-climb-mode-ctd-adj-topcap-assy.jpg
back to top

img/help/page448-C31tOg/bladder-and-cart-body-assy-2013-831-120-fit-ctd-adj-m.jpg

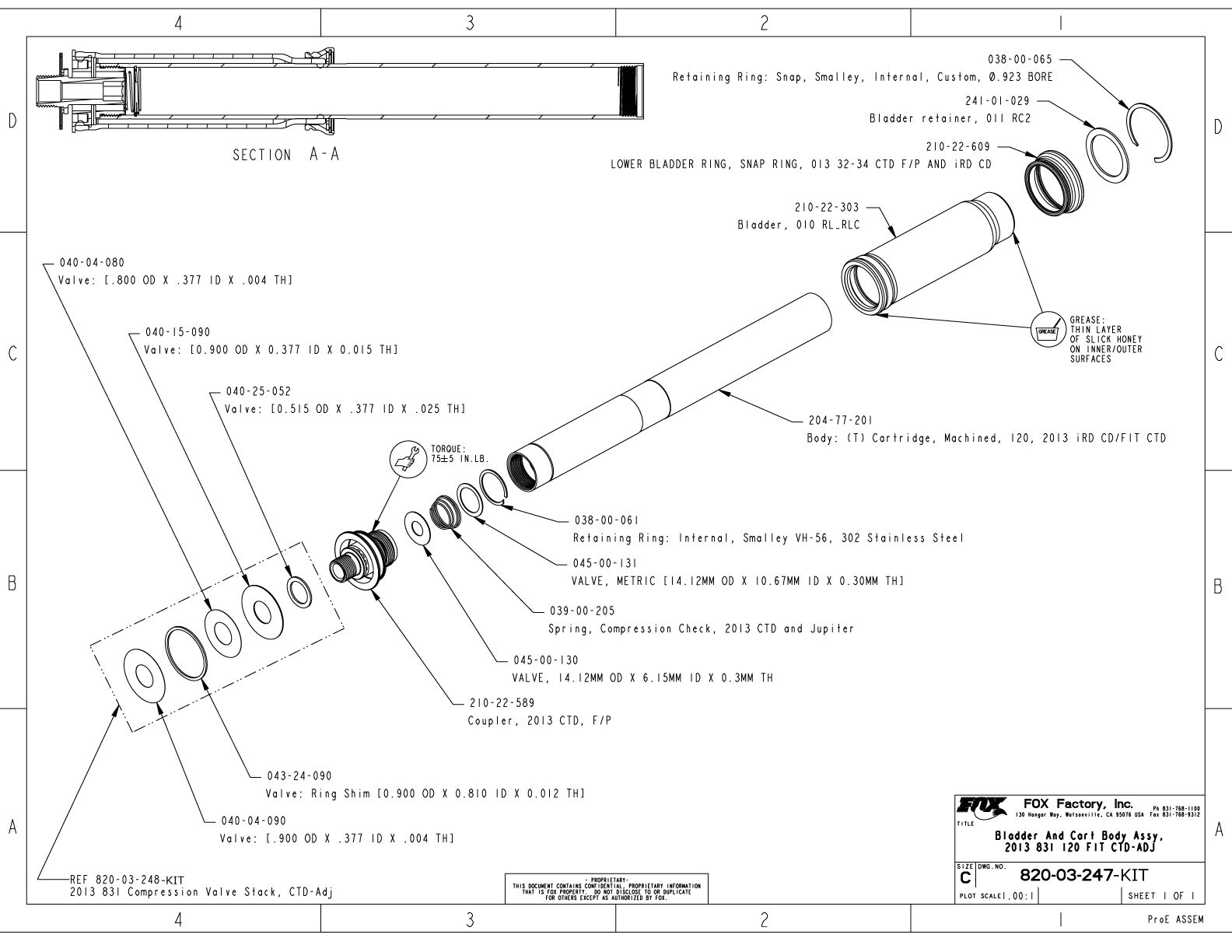

820-03-247-KIT Bladder and Cart Body Assy, 2013 831 120 FIT CTD-ADJ

img/help/page448-C31tOg/bladder-and-cart-body-assy-2013-831-120-fit-ctd-adj.jpg
back to top

img/help/page448-C31tOg/2014-34-831-fit-ctd-damper-shaft-assy-m.jpg

820-03-430-KIT 2014 34 831 FIT CTD Damper Shaft Assy

img/help/page448-C31tOg/2014-34-831-fit-ctd-damper-shaft-assy.jpg
back to top

img/help/page448-C31tOg/2014-fit-831-main-piston-assy-m.jpg

820-03-429-KIT 2014 FIT 831 Main Piston Assy

img/help/page448-C31tOg/2014-fit-831-main-piston-assy.jpg
back to top

img/help/page448-C31tOg/2014-34-26in-float-831-100mm-top-level-air-spring-m.jpg
img/help/page448-C31tOg/2014-34-26in-float-831-100mm-top-level-air-spring.jpg
back to top

img/help/page448-C31tOg/2012-34-float-air-topcap-assembly-m.jpg

820-05-197-KIT 2012 34 FLOAT Air Topcap Assembly

img/help/page448-C31tOg/2012-34-float-air-topcap-assembly.jpg
back to top
