PARTS & DRAWINGS
Specialized FLOAT X Genie
While FOX recommends using the Specialized FLOAT X Genie specific damper and air spring rebuild kit (PN: 803-04-022) when servicing the FLOAT X Genie shock, the standard FLOAT X rebuild kit (PN: 803-04-251) may be used to perform a complete damper service. The standard FLOAT X air sleeve kit (PN: 803-01-727) may be used to service the air spring, but it will not contain all of the FLOAT X Genie specific bearing housing assembly and air sleeve seals needed to perform a full factory level service.
New for 2025:
| New Shock | Utilizing the Float X chassis and using an external air sleeve to add bottom out support. |
Maintenance Info:
| Service Interval | Full Service 125 hours |
| 803-04-021 | Seal Kit: FLOAT GENIE and FLOAT X GENIE, Air Spring Rebuild Kit |
| 803-04-022 | Seal Kit: FLOAT X GENIE, Damper and Air Spring Rebuild Kit |
| 398-01-114 | Tooling: Custom Spanner, 2-Pin, Specialized GENIE, Bearing Housing |
| 803-00-806 | Kit: Tooling, iCD/CTD Dish Shock Dial Indicator Attachment for Plate Lift Measurement |
| 803-00-805 | Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in |
| 398-00-280 | Tooling: Eyelet Torque Tool |
| 398-00-949 | Tooling: Custom Spanner Socket, 3 pin, 2024 Float LV, Lockout Piston |
| 398-00-950 | Tooling: Custom Socket, 5/8", 2024 Float LV, Piston Bolt |
| 803-01-985 | Kit: Tooling: Rear Shock, Air Fill Adaptor, 2022 Float X/DHX, 2024 Float |
| 803-01-697 | Kit: Tooling, 2022 FLOAT X & DHX, Piston Band Sizer |
Volume and Travel Spacer Info:
| 803-04-015 | Kit: Tuning, Volume and Travel Spacers, 2025 FLOAT X GENIE |
| 233-00-661 | Volume Spacer: 2025 FLOAT X, GENIE, Eyelet, 0.2 in^3, Tennis Ball |
| 233-00-662 | Volume Spacer: 2025 FLOAT X, GENIE, Eyelet, 0.4 in^3, Teal |
| 233-00-654 | Volume Spacer: 2024 FLOAT, GENIE, XV Chamber, 0.2 in^3, Red (clip in spacer, like a Float X2 volume spacer) |
| 233-00-663 | Spacer: Travel, 2.5mm, 2025 FLOAT X GENIE |
Oil Info:
| Damper Oil | 025-03-063 | Oil: Suspension Fluid, 4 WT, 1.0 Liter Bottle |
| 025-03-064 | Oil: Suspension Fluid, 4 WT, 23L | |
| Air Chamber | 025-03-072 | Oil: AM, FOX 20 WT Gold, T22238, 32 oz |
| 025-03-073 | Oil: AM, FOX 20 WT Gold, T22238, 23L |
IFP Info:
| IFP Height: | 210 x 52.5/55 | 2.530in +/- .020 in |
| IFP Pressure: | 450psi |
Size Specific Parts:
| Shock Size | Shaft | Rebound Rod | Black Ano Air Sleeve | Kashima Air Sleeve | Black Ano Body | Kashima Body |
| 210 X 55 | 230-45-402 | 210-84-402 | 806-29-830-KIT | 806-29-831-KIT | 209-95-002 | 209-95-102 |
Eyelet Assemblies:
| 808-17-677-KIT | Service Set: Eyelet Assy: 2026 FLOAT X GENIE, No Base Valve, Standard, LSC, 2-pos Lever |
Eyelet Subassemblies:

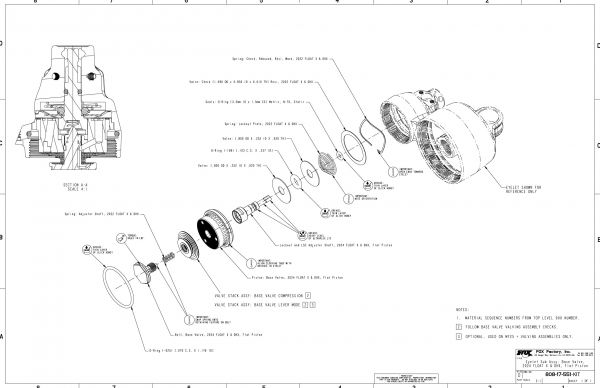

| 808-17-470-KIT | Service Set: Eyelet Sub Assy: LSC, 2022 FLOAT X & DHX |
| 808-17-472-KIT | Service Set: Eyelet Sub Assy: Lever, 2pos, 2022 FLOAT X & DHX |
| 808-17-475-KIT | Service Set: Eyelet Sub Assy: Base Valve, 2022 FLOAT X & DHX |
Valving Assemblies:
| 807-06-317-KIT | Service Set: Valving Assy: 2022 FLOAT X, Main Piston Parts |
Valve Stack Assemblies:

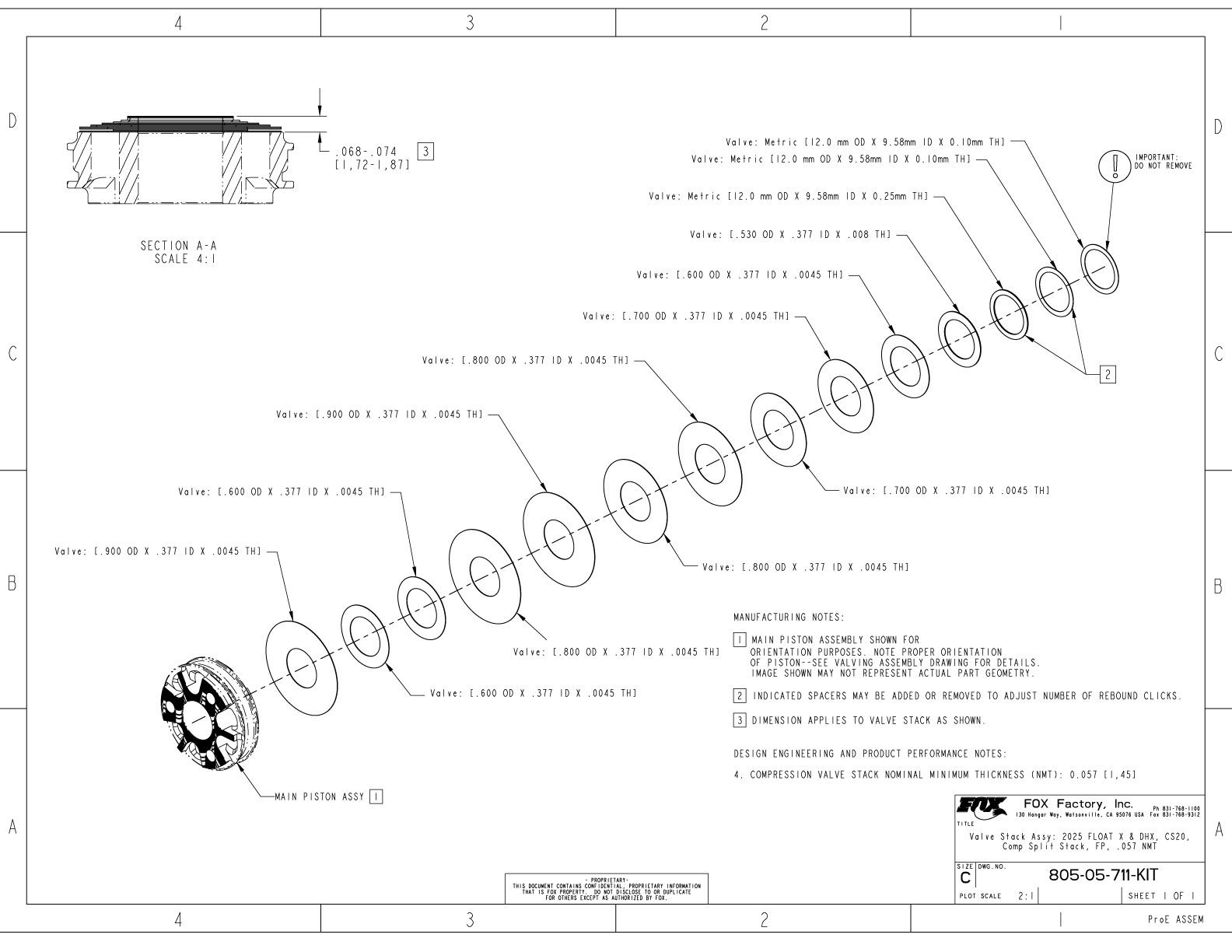

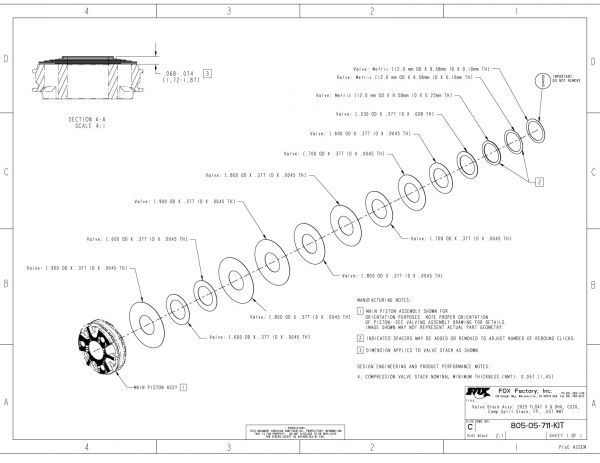

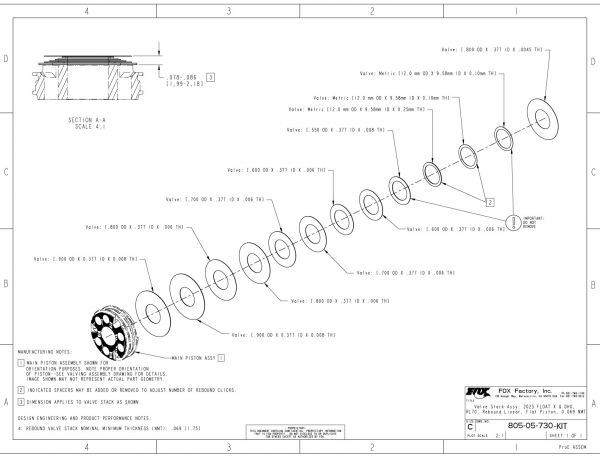

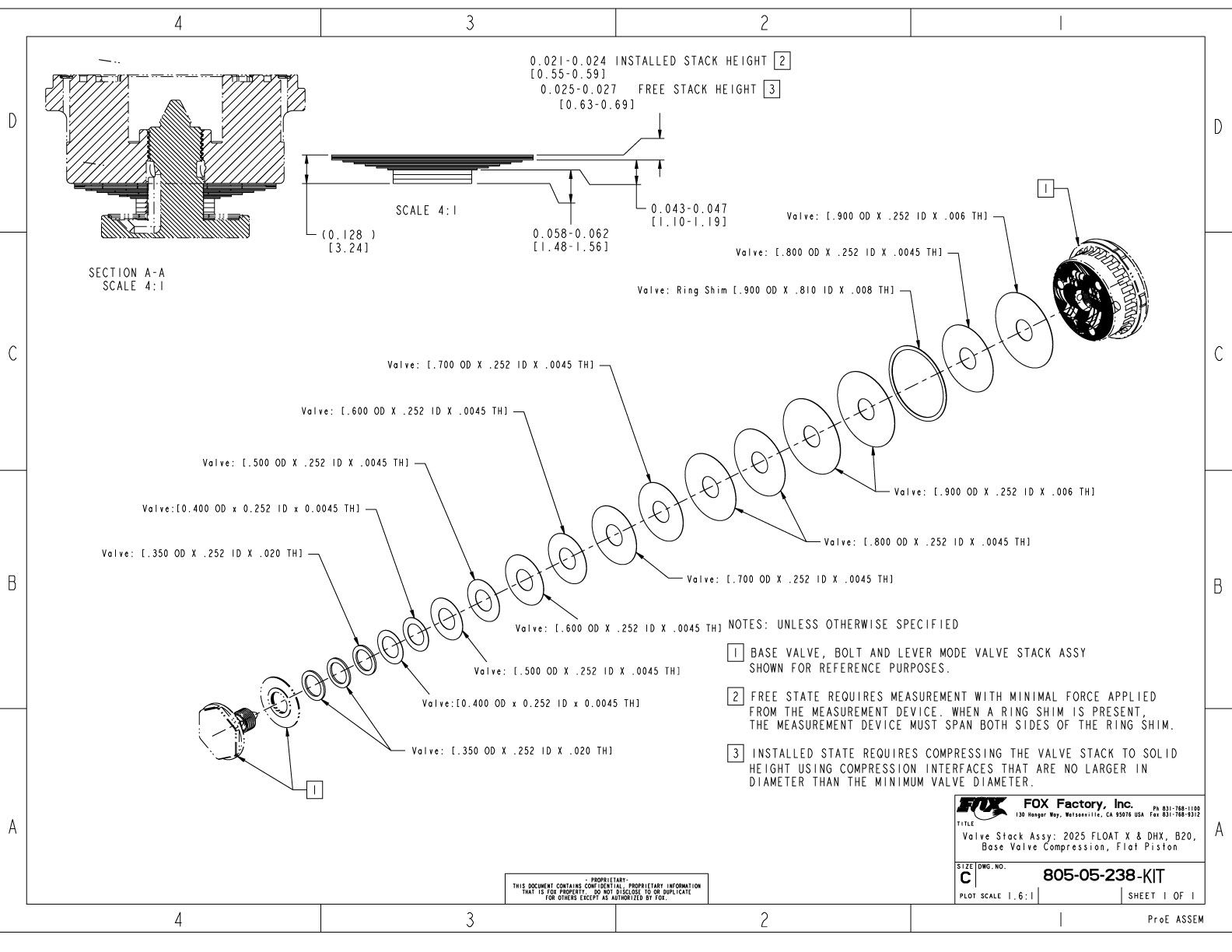

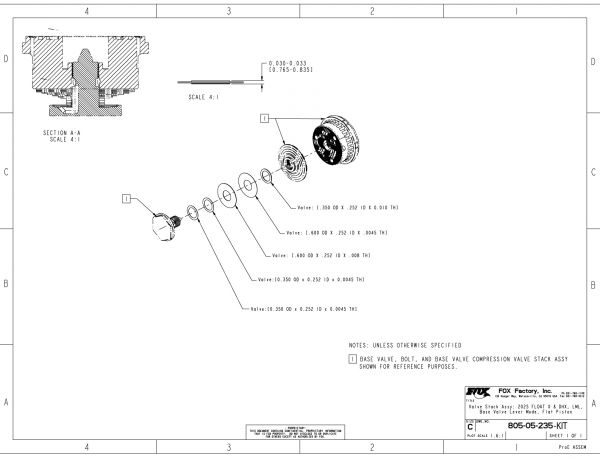

| 805-05-533-KIT | Service Set: Valve Stack Assy: 2022 FLOAT X & DHX, Compression, CL+SS, .054 NMT |
| 805-05-707-KIT | Valve Stack Assy: 2022 FLOAT X & DHX, Rebound, CPR, .057 NMT |
| 805-05-202-KIT | Service Set: Valve Stack Assy: 2022 FLOAT X & DHX, Base Valve, Lever Mode Medium, LM |
Reservoir Assemblies:
| 813-00-290-KIT | Service Set: Reservoir End Cap Assy: 2022 FLOAT X & DHX, G2 |
| 805-00-130-KIT | Service Set: Piston Assembly: 2022 FLOAT X & DHX, IFP, Floating w/ Bleed & Glide Band [1.070 Bore] |
Bearing Assemblies:
| 812-06-119-KIT | Service Set: Bearing Housing Assy: 2025 FLOAT X GENIE |
Decals:
| 024-13-675 | Decal: 2025, FLOAT X GENIE, F-S, Air Sleeve |
| 024-13-676 | Decal: 2025, FLOAT X GENIE, P-Se, Air Sleeve |
| 024-13-677 | Decal: 2025, FLOAT X GENIE,P-S, Air Sleeve |
| 024-13-569 | Decal: 2025, F-S, FLOAT X GENIE, Reservoir |
| 024-13-572 | Decal: 2025, P-Se, FLOAT X GENIE, Reservoir |
| 024-13-575 | Decal: 2025, P-S, FLOAT X GENIE, Reservoir |
| 024-12-202 | Decal: 350 PSI Max Eyelet Decal, with Warning |
| 024-13-570 | Decal: 2025, F-S, FLOAT X GENIE, EVOL Shock Band |
| 024-13-573 | Decal: 2025, P-Se, FLOAT X GENIE, EVOL Shock Band |
| 024-13-576 | Decal: 2025, P-S, FLOAT X GENIE, EVOL Shock Band |
2025 FLOAT X Genie
- 2025 FLOAT X Genie .
- 808-17-677-KIT Eyelet Assy: 2026 FLOAT X GENIE, NO BV, Standard, LSC, 2-pos Lever
- 812-06-119-KIT Bearing Housing Assy: 2025 FLOAT X GENIE
- 808-17-475-KIT Eyelet Sub Assy: Base Valve, 2022 FLOAT X & DHX
- 808-17-472-KIT Eyelet Sub Assy: Lever, 2pos, 2022 FLOAT X & DHX
- 808-17-470-KIT Eyelet Sub Assy: LSC, 2022 FLOAT X & DHX
- 807-06-317-KIT Valving Assy: 2022 FLOAT X, Main Piston Parts
- 805-05-707-KIT Valve Stack Assy: 2022 FLOAT X & DHX, Rebound, CPR, .057 NMT
- 805-05-533-KIT Valve Stack Assy: 2022 FLOAT X & DHX, Compression, CL+SS, .054 NMT
- 805-05-202-KIT Valve Stack Assy: 2022 FLOAT X & DHX, Base Valve, Lever Mode Medium, LM
