PARTS & DRAWINGS
Transfer Part Information
All new seatpost for 2025
Oil Information:
| 025-03-035 | Oil: AM, FOX 1.5wt Synthetic Oil [16 oz.], Clear |
**This seatpost can be rebuilt with common workshop tools, however, while not required, FOX has developed specific tooling for this seatpost.**
Maintenance Information
| 803-04-122 | Seal Kit: 2025 Transfer Seatpost, 30.9/31.6, Intermediate Service |
| 803-04-123 | Seal Kit: 2025 Transfer Seatpost, 34.9, Intermediate Service |
| 803-04-124 | Seal Kit: 2025 Transfer Seatpost, 30.9/31.6, Full Rebuild with Sealhead and Piston Assembly |
| 803-04-125 | Seal Kit: 2025 Transfer Seatpost, 34.9, Full Rebuild with Sealhead and Piston Assembly |
| 803-04-120 | Seal Kit: 2025 Transfer Seatpost, 30.9/31.6, Full Rebuild |
| 803-04-121 | Seal Kit: 2025 Transfer Seatpost, 34.9, Full Rebuild |
| 398-00-740 | Service Tool: Push Rod, Delrin, Transfer |
| 803-04-042 | Kit: Tooling: 2025 Transfer, IFP Depth Tool Set |
| 398-00-966 | Tooling: Bullet, Transfer, 7.5mm Shaft |
| 398-01-137 | Tooling: IFP Spacer, MY25 Transfer, 30.9/31.6 |
| 398-01-138 | Tooling: IFP Spacer, MY25 Transfer, 34.9 |
| 398-01-162 | Tooling: 2025, Transfer, Open Valve Thumb Screw |
| 398-01-163 | Tooling: 2025, Transfer, Wiper Install Tool, 30.9, 31.6 |
| 398-01-164 | Tooling: 2025, Transfer, Wiper Install Tool, 34.9 |
| 398-01-165 | Tooling: 2025, Transfer, Vacuum Bleed Fitting |
Common Parts:
| 803-04-119 | Kit: 2025 Transfer/Transfer Neo Saddle Clamp Hardware: Bolt & Nut, Pair |
| 225-00-667 | Saddle Clamp, Upper, Convex |
| 225-00-791 | 2025, Transfer, Lower Saddle Clamp, V2 |
| 803-04-094 | Service Set: 2025 Transfer/Transfer Neo Air Valve Cap |
| 825-03-021-KIT | Service Set: 2025 Transfer, Top Seal Head |
| 825-00-189-KIT | Service Set: 2025 Transfer, Piston Assy, Spool Valve |
Index Pin Bulk Kits:
| 803-01-957 | Kit: Pin: Index, 31mm Long, .0762 Diameter, Quantity 6, (Ref: 221-00-039) |
| 803-01-958 | Kit: Pin: Index, 31mm Long, .0767 Diameter, Quantity 6, (Ref: 221-00-038) |
| 803-01-959 | Kit: Pin: Index, 31mm Long, .0772 Diameter, Quantity 6, (Ref: 221-00-037) |
| 803-01-960 | Kit: Pin: Index, 31mm Long, .0777 Diameter, Quantity 6, (Ref: 221-00-036) |
| 803-01-961 | Kit: Pin: Index, 31mm Long, .0782 Diameter, Quantity 6, (Ref: 221-00-035) |
| 803-01-962 | Kit: Pin: Index, 31mm Long, .0787 Diameter, Quantity 6, (Ref: 221-00-034) |
| 803-01-963 | Kit: Pin: Index, 31mm Long, .0792 Diameter, Quantity 6, (Ref: 221-00-033) |
| 803-01-964 | Kit: Pin: Index, 31mm Long, .0797 Diameter, Quantity 6, (Ref: 221-00-032) |
| 803-01-965 | Kit: Pin: Index, 31mm Long, .0802 Diameter, Quantity 6, (Ref: 221-00-031) |
Diameter Specific Parts:
| Diameter | 30.9/31.6 | 34.9 |
| Top Cap Retaining Ring | 038-00-134 | 038-00-223 |
| Top Cap Assy | 825-00-187-KIT | 825-00-188-KIT |
| IFP Assy | 825-00-163-KIT | 825-00-179-KIT |
| Base Lug | 225-00-710 | 225-00-711 |
| Base Lug Retaining Ring | 038-00-225 | 038-00-226 |
| Bottom Seal Head | 825-03-019-KIT | 825-03-020-KIT |
| Actuator Assy | 825-07-004-KIT | 825-07-005-KIT |
| Travel Spacers | 233-00-570 | 233-00-571 |
| Travel Adjust Keys | 225-00-720 | 225-00-721 |
| Travel Adjust Ring | 225-00-830 | 225-00-831 |
Length Specific Parts:
| Series | Finish | Diameter | Travel | Pressure Tube Assy | Shaft Assy | Upper Post | Lower Post |
| F-S | K | 30.9 | 120mm | 825-00-168-KIT | 825-00-164-KIT | 225-03-338 | 225-04-250 |
| F-S | K | 30.9 | 150mm | 825-00-169-KIT | 825-00-165-KIT | 225-03-339 | 225-04-251 |
| F-S | K | 30.9 | 180mm | 825-00-170-KIT | 825-00-166-KIT | 225-03-340 | 225-04-252 |
| F-S | K | 30.9 | 210mm | 825-00-171-KIT | 825-00-167-KIT | 225-03-341 | 225-04-253 |
| F-S | K | 31.6 | 120mm | 825-00-168-KIT | 825-00-164-KIT | 225-03-338 | 225-04-254 |
| F-S | K | 31.6 | 150mm | 825-00-169-KIT | 825-00-165-KIT | 225-03-339 | 225-04-255 |
| F-S | K | 31.6 | 180mm | 825-00-170-KIT | 825-00-166-KIT | 225-03-340 | 225-04-256 |
| F-S | K | 31.6 | 210mm | 825-00-171-KIT | 825-00-167-KIT | 225-03-341 | 225-04-257 |
| F-S | K | 31.6 | 240mm | 825-00-180-KIT | 825-00-178-KIT | 225-03-344 | 225-04-258 |
| F-S | K | 34.9 | 120mm | 825-00-181-KIT | 825-00-164-KIT | 225-03-358 | 225-04-260 |
| F-S | K | 34.9 | 150mm | 825-00-182-KIT | 825-00-165-KIT | 225-03-359 | 225-04-261 |
| F-S | K | 34.9 | 180mm | 825-00-183-KIT | 825-00-166-KIT | 225-03-360 | 225-04-262 |
| F-S | K | 34.9 | 210mm | 825-00-184-KIT | 825-00-167-KIT | 225-03-361 | 225-04-263 |
| F-S | K | 34.9 | 240mm | 825-00-185-KIT | 825-00-178-KIT | 225-03-364 | 225-04-264 |
| P-SE | A | 30.9 | 120mm | 825-00-168-KIT | 825-00-164-KIT | 225-03-330 | 225-04-250 |
| P-SE | A | 30.9 | 150mm | 825-00-169-KIT | 825-00-165-KIT | 225-03-331 | 225-04-251 |
| P-SE | A | 30.9 | 180mm | 825-00-170-KIT | 825-00-166-KIT | 225-03-332 | 225-04-252 |
| P-SE | A | 30.9 | 210mm | 825-00-171-KIT | 825-00-167-KIT | 225-03-333 | 225-04-253 |
| P-SE | A | 31.6 | 120mm | 825-00-168-KIT | 825-00-164-KIT | 225-03-330 | 225-04-254 |
| P-SE | A | 31.6 | 150mm | 825-00-169-KIT | 825-00-165-KIT | 225-03-331 | 225-04-255 |
| P-SE | A | 31.6 | 180mm | 825-00-170-KIT | 825-00-166-KIT | 225-03-332 | 225-04-256 |
| P-SE | A | 31.6 | 210mm | 825-00-171-KIT | 825-00-167-KIT | 225-03-333 | 225-04-257 |
| P-SE | A | 31.6 | 240mm | 825-00-180-KIT | 825-00-178-KIT | 225-03-342 | 225-04-258 |
| P-SE | A | 34.9 | 120mm | 825-00-181-KIT | 825-00-164-KIT | 225-03-350 | 225-04-260 |
| P-SE | A | 34.9 | 150mm | 825-00-182-KIT | 825-00-165-KIT | 225-03-351 | 225-04-261 |
| P-SE | A | 34.9 | 180mm | 825-00-183-KIT | 825-00-166-KIT | 225-03-352 | 225-04-262 |
| P-SE | A | 34.9 | 210mm | 825-00-184-KIT | 825-00-167-KIT | 225-03-353 | 225-04-263 |
| P-SE | A | 34.9 | 240mm | 825-00-185-KIT | 825-00-178-KIT | 225-03-362 | 225-04-264 |
Assembly Drawing
Common Parts

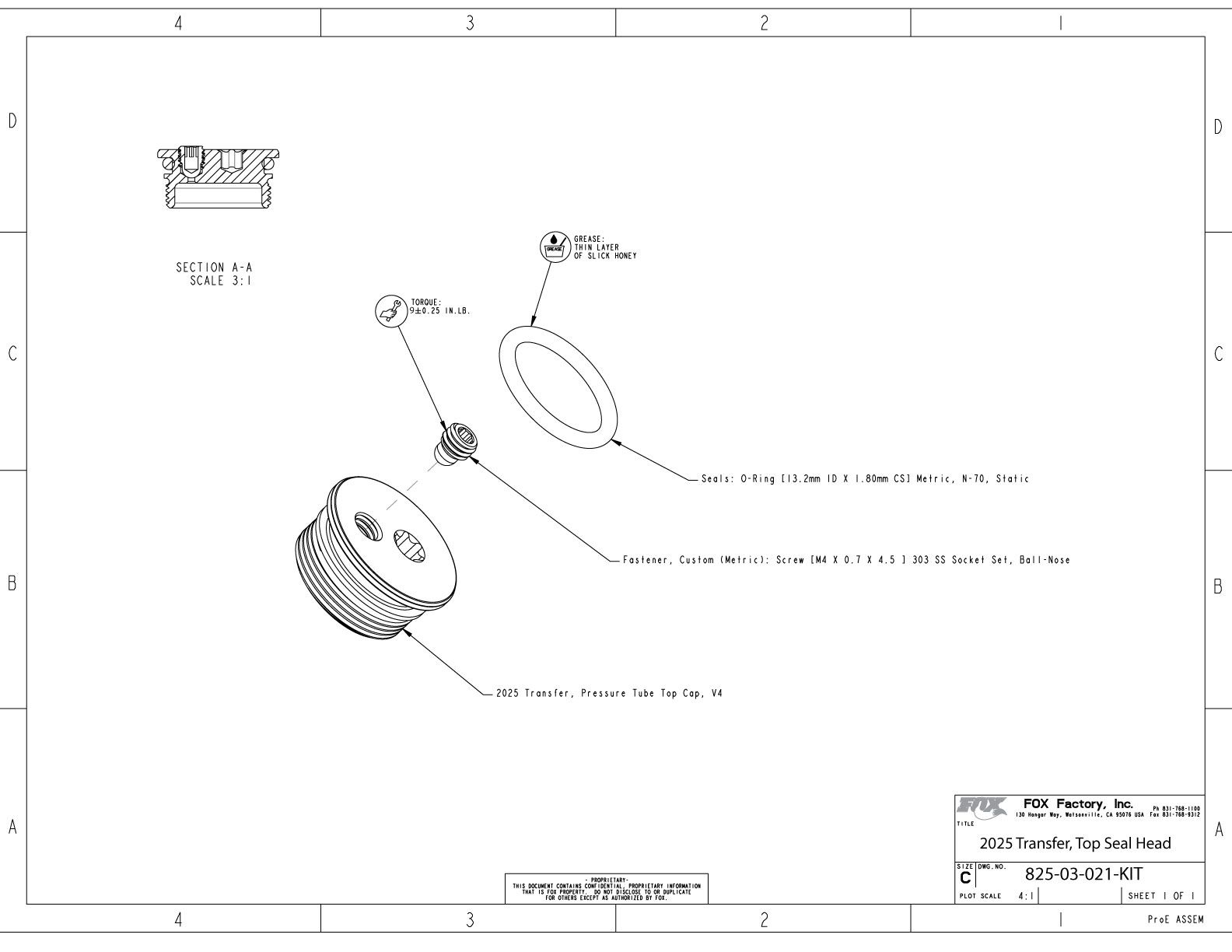

- 825-03-021-KIT 2025 Transfer Top Seal Head Assy
- 825-00-189-KIT 2025 Transfer Piston Assy, Spool Valve
