PARTS & DRAWINGS
FLOAT SL Part Information
New for MY25:
| New Eyelet Assembly | Large Volume eyelet is now added to the line up. |
| New Decal | Air sleeve decal on a F-S shock is now Kashima/grey. |
Maintenance Information:
| Service Interval | Full Service 125 hours |
| 803-00-816 | Seal Kit: Float SL, DPS, CTD Boost Valve and Dish Shock Rebuild |
| 803-00-142 | Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring |
| 398-00-637 | Tooling: Custom Socket, 5/8", 2016 Float DPS, Piston Bolt |
| 398-00-638 | Tooling: Custom Spanner Socket, 3 pin, Float DPS, Lockout Piston (Rev B is drilled to clear new pin on remote pistons) |
| 398-00-730 | Tooling: Roll pin press guide for DPS remote (new for 2017) |
| 803-00-806 | Kit: Tooling, iCD/CTD Dish Shock Dial Indicator Attachment for Plate Lift Measurement |
| 803-00-805 | Kit: Shaft Clamps, Shocks, CTD 9mm, 3/8in, 1/2in, 5/8in |
| 802-01-000-KIT | Air Valve Assembly: Nitrogen Safety Needle Assembly w/Manual, Complete w/out Gauge |
| 398-00-280 | Tooling: Eyelet Torque Tool |
| 398-00-099 | Tooling: Torque Fixture, 54mm Trunnion Eyelet |
| 803-01-351 | Kit: Tooling: Clamps, DPS, DPX2, Piston Band Sizer |
Air Volume Tuning Information:
| 803-01-250 | Kit: FLOAT SL/CTD/DPS (9mm Shaft) Air Volume Tuning Kit |
Remote Interface Parts Kits (Requires full shock service for installation of kits below):
| 803-01-158 | 2017 FLOAT DPS Remote Interface Parts Kit: SV Down |
| 803-01-159 | 2017 FLOAT DPS Remote Interface Parts Kit: SV/LV Up |
| 803-01-160 | 2017 FLOAT DPS Remote Interface Parts Kit: LV Down |
Oil Information:
| Damper Oil | 025-03-061 | Oil: Suspension Fluid, 4 WT, 202 Liter Drum, [FRS UOM = 1.0 Gallon / FTW UOM = 1.0 Liter] |
| 025-03-064 | Oil: Suspension Fluid, 4 WT, 23L | |
| 025-03-063 | Oil: Suspension Fluid, 4 WT, 1.0 Liter Bottle | |
| Air Chamber | 025-03-071 | Oil: FOX 20 WT Gold, T22238, 55 Gallon Drum, [FRS UOM = 1.00 Gallon / FTW UOM = 1.00 Liter] |
| 025-03-073 | Oil: AM, FOX 20 WT Gold, T22238, 23L | |
| 025-03-072 | Oil: AM, FOX 20 WT Gold, T22238, 32 oz |
IFP Information:
| IFP Pressure: | 500psi |
| Size | IFP Height (all measurements +/- .020in) |
| 165(T) x 45 | 2.100in/ 53.34mm |
| 190 x 45 | 2.100in/ 53.34mm |
| 185(T) x 55 | 2.420in/ 61.47mm |
| 210 x 55 | 2.420in/ 61.47mm |
2025 FLOAT SL Part Information:
Size Specific Parts:
| Shock Size | Metering Rod | Shaft | Compression Rod | Ano Body | Kashima Body |
| 165 x 40 mm | 210-84-011 | 229-72-011 | 210-26-431 | 204-54-231 | 207-50-031 |
| 165 x 42.5 mm | 210-84-011 | 229-72-011 | 210-26-431 | 204-54-231 | 207-50-031 |
| 165 x 45 mm | 210-84-011 | 229-72-011 | 210-26-431 | 204-54-231 | 207-50-031 |
| 185 x 50 mm | 210-84-012 | 229-72-012 | 210-26-432 | 204-54-232 | 207-50-032 |
| 185 x 52.5 mm | 210-84-012 | 229-72-012 | 210-26-432 | 204-54-232 | 207-50-032 |
| 185 x 55 mm | 210-84-012 | 229-72-012 | 210-26-432 | 204-54-232 | 207-50-032 |
| 190 x 40 mm | 210-84-011 | 229-72-011 | 210-26-431 | 204-54-236 | 207-50-036 |
| 190 X 42.5 mm | 210-84-011 | 229-72-011 | 210-26-431 | 204-54-236 | 207-50-036 |
| 190 x 45 mm | 210-84-011 | 229-72-011 | 210-26-431 | 204-54-236 | 207-50-036 |
| 210 x 50 mm | 210-84-012 | 229-72-012 | 210-26-432 | 204-54-237 | 207-50-037 |
| 210 x 52.5 mm | 210-84-012 | 229-72-012 | 210-26-432 | 204-54-237 | 207-50-037 |
| 210 x 55 mm | 210-84-012 | 229-72-012 | 210-26-432 | 204-54-237 | 207-50-037 |
Eyelet Assemblies:
| 808-17-506-KIT | Service Set: Eyelet Assy: 2024, Float SL, 3-Pos-Adj |
| 808-17-507-KIT | Service Set: Eyelet Assy: 2024, Float SL, 3-Pos |
| 808-17-508-KIT | Service Set: Eyelet Assy: 2024, Float SL, 3-Pos-Adj, Trunnion |
| 808-17-509-KIT | Service Set: Eyelet Assy: 2024, Float SL, 3-Pos, Trunnion |
| 808-17-332-KIT | Service Set: Eyelet Assy: 2018 FLOAT DPS Remote Up, SV |
| 808-17-336-KIT | Service Set: Eyelet Assy: 2018 FLOAT DPS Remote up, Trunnion SV |
| 808-17-420-KIT | Service Set: Eyelet Assy: 2022, Float DPS Remote Up, 3 Position, SV |
| 808-17-422-KIT | Service Set: Eyelet Assy: 2022, Float DPS Remote Up, 3 Position, LV |
| 808-17-424-KIT | Service Set: Eyelet Assy: 2022, FLOAT DPS Remote up, 3 Position, Trunnion, SV |
| 808-17-425-KIT | Service Set: Eyelet Assy: 2022, Float DPS Remote Down, 3 Position, Trunnion, SV |
| 808-17-426-KIT | Service Set: Eyelet Assy: 2022, FLOAT DPS Remote up, 3 Position, Trunnion, LV |
| 808-17-600-KIT | Service Set: Eyelet Assy: 2025, Float SL LV, 3-pos-adj |
| 808-17-601-KIT | Service Set: Eyelet Assy: 2025, Float SL LV, 3-pos-adj, Trunnion |
Valving Assemblies:
| 807-06-412-KIT | Service Set: Valving Assy: 2024 Float SL, [.940 Bore] |
Valve Stack Assemblies:
| 805-05-200-KIT | Service Set: Valve Stack Assy: 2018 Float DPS, Lockout Light, CML |
| 805-05-201-KIT | Service Set: Valve Stack Assy: 2018 Float DPS, Lockout Firm, CMF |
| 805-05-587-KIT | Service Set: Valve Stack Assy: 2024 Float SL [.940 Bore], Comp Light, CL |
| 805-05-564-KIT | Service Set: Valve Stack Assy: 2024 Float SL [.940 Bore], Comp Med, CM |
| 805-05-588-KIT | Service Set: Valve Stack Assy: 2024 Float SL [.940 Bore], Comp Firm, CF |
| 805-05-668-KIT | Service Set: Valve Stack Assy: 2024 Float SL [.940 Bore], Compression, CDL01 |
| 805-05-589-KIT | Service Set: Valve Stack Assy: 2024 Float SL [.940 Bore], Reb Light, RL |
| 805-05-565-KIT | Service Set: Valve Stack Assy: 2024 Float SL [.940 Bore], Reb Med, RM |
| 805-05-590-KIT | Service Set: Valve Stack Assy: 2024 Float SL [.940 Bore], Reb Med Plus, RM+ |
| 805-05-591-KIT | Service Set: Valve Stack Assy: 2024 Float SL [.940 Bore], RebFirm, RF |
Piston Assemblies:
| 805-02-316-KIT | Service Set: Piston Assy: Damping, 2024 Float SL [Ø.940 Bore] |
| 805-00-133-KIT | Service Set: Piston Assembly: Floating, Slotted [0.940 Bore, 0.440 TLG] |
Kashima Air Sleeve Assemblies:
| 806-29-630-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, SV, EVOL, Kashima, 165 X 40/45 |
| 806-29-590-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Kashima, 165 X 40/45 |
| 806-29-631-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, SV, EVOL, Kashima, 185 X 50/55 |
| 806-29-591-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Kashima, 185 X 50/55 |
| 806-29-650-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, SV-Metric, EVOL, Kashima, 190 X 40/45 |
| 806-29-610-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, LV-Metric, EVOL, Kashima, 190 X 40/45 |
| 806-29-651-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, SV-Metric, EVOL, Kashima, 210 X 50/55 |
| 806-29-611-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, LV-Metric, EVOL, Kashima, 210 X 50/55 |
Black Ano Air Sleeve Assemblies:
| 806-29-620-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, SV, EVOL, Black Ano, 165 X 40/45 |
| 806-29-580-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Black Ano, 165 X 40/45 |
| 806-29-621-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, SV, EVOL, Black Ano, 185 X 50/55 |
| 806-29-581-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, LV, EVOL, Black Ano, 185 X 50/55 |
| 806-29-640-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, SV-Metric, EVOL, Black Ano, 190 X 40/45 |
| 806-29-600-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, LV-Metric, EVOL, Black Ano, 190 X 40/45 |
| 806-29-601-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, LV-Metric, EVOL, Black Ano, 210 X 50/55 |
| 806-29-641-KIT | Service Set: Sleeve Assembly: 2018, 1.500 Bore, SV-Metric, EVOL, Black Ano, 210 X 50/55 |
Negative Volume Spacers:
| 233-00-330 | Volume Spacer: Negative, 2018, EVOL, PLASTIC, .08 c.i. |
| 233-00-320 | Volume Spacer: Negative, 2018, FLOAT, EVOL, .08 c.i., Black |
| 233-00-321 | Volume Spacer: Negative, 2018, FLOAT, EVOL, .12 c.i., Light Red |
| 233-00-322 | Volume Spacer: Negative, 2018, FLOAT, EVOL, .16 c.i., Green |
| 233-00-323 | Volume Spacer: Negative, 2018, FLOAT, EVOL, .41 c.i., Blue |
Travel Spacers:
| 233-00-261 | Spacer: Metric Travel [.360 ID X .550 OD X 5.0mm TLG] 6061, Black Ano |
| 233-00-260 | Spacer: Metric Travel [.360 ID X .550 OD X 2.5mm TLG] 6061, Black Ano |
Bearing Assembly:
| 812-06-112-KIT | Service Set: Bearing Assy: Float SL, 2024, Short [.940 Bore, 1.500 Bore, 9mm Shaft], 20Wt Gold |
Decals:
| 024-13-246 | Decal: 350 PSI Max Eyelet Decal |
| 024-13-039 | Decal: 2021 EVOL, Shock Band |
| 024-13-583 | Decal: 2024 F-S, FLOAT SL, SV, Adj, Orange, Short, (35mm) |
| 024-13-584 | Decal: 2025 F-S, FLOAT SV, Adj, Short, (35mm) PMS872 Kashima/PMS10392 Metallic Grey |
| 024-13-594 | Decal: 2025 F-S, FLOAT SV, Adj, Long, (45-55mm) PMS872 Kashima/PMS10392 Metallic Grey |
| 024-13-593 | Decal: 2025 F-S, FLOAT SV, Remote, Long, (45-55mm) PMS872 Kashima/PMS10392 Metallic Grey |
| 024-13-367 | Decal: 2024 F-S, FLOAT SV, Adj, OE Neutral, Long, (45-55mm) |
| 024-13-369 | Decal: 2024 F-S, FLOAT SV, Remote, OE Neutral, Long, (45-55mm) |
Assembly Drawing
Eyelet Assemblies
- 808-17-506-KIT and 808-17-508-KIT Eyelet Assemblies: 2024 FLOAT SL, 3-Pos-Adj
- 808-17-507-KIT and 808-17-509-KIT Eyelet Assemblies: 2024 FLOAT SL, 3-Pos
- 808-17-332-KIT and 808-17-336-KIT Eyelet Assemblies: 2018 FLOAT DPS Remote Up, SV
- 808-17-420-KIT and 808-17-424-KIT Eyelet Assemblies: 2022 FLOAT DPS Remote Up, 3 position, SV
- 808-17-425-KIT Eyelet Assy: 2022, Float DPS Remote Down, 3 Position, Trunnion, SV
- 808-17-549-KIT Eyelet Assy: 2024 Float SL, PTL, Remote Up, Reb Reverse
- 808-17-600-KIT Eyelet Assy: 2025, Float SL LV, 3-pos-adj
Valving Assembly
- 807-06-412-KIT Valving Assy: 2024 Float SL, [.940 Bore]

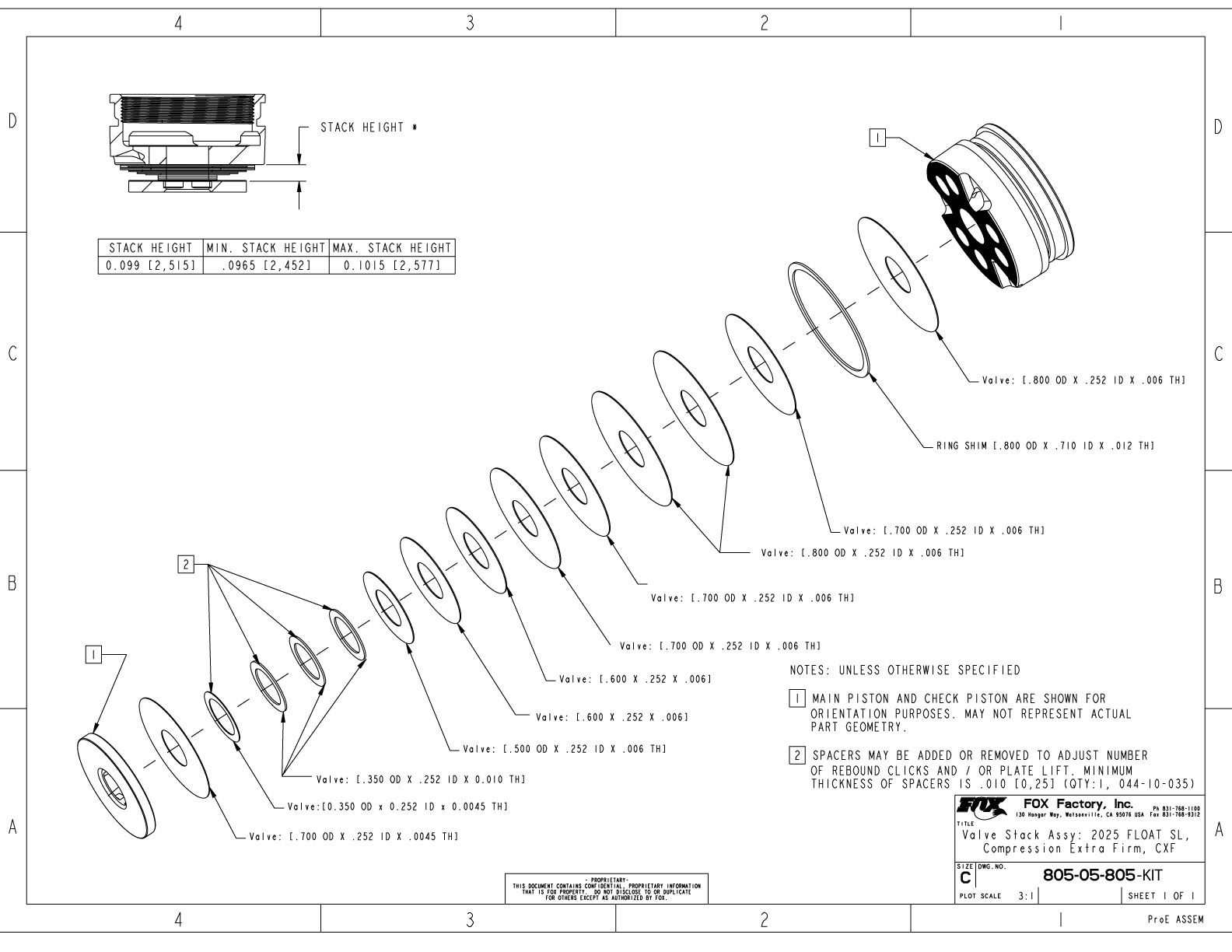

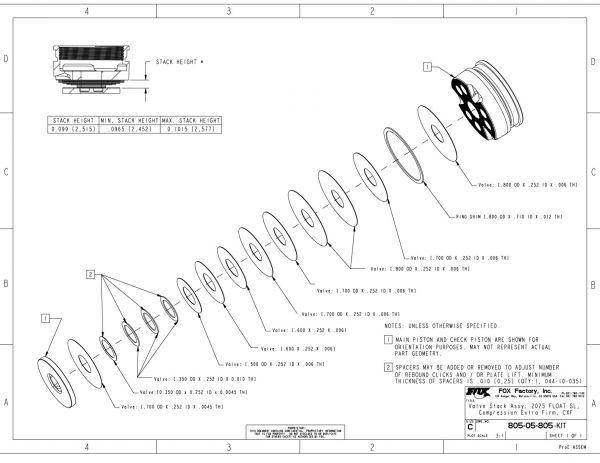

Valve Stack Assemblies
- 805-05-200-KIT Valve Stack Assy: 2018 Float DPS, Lockout Light, CML
- 805-05-201-KIT Valve Stack Assy: 2018 Float DPS, Lockout Firm, CMF
- 805-05-587-KIT Valve Stack Assy: 2024 Float SL [.940 Bore], Comp Light, CL
- 805-05-564-KIT Valve Stack Assy: 2024 Float SL [.940 Bore], Comp Med, CM
- 805-05-588-KIT Valve Stack Assy: 2024 Float SL [.940 Bore], Comp Firm, CF
- 805-05-668-KIT Valve Stack Assy: 2024 Float SL [.940 Bore], Compression, CDL01
- 805-05-589-KIT Valve Stack Assy: 2024 Float SL [.940 Bore], Reb Light, RL
- 805-05-565-KIT Valve Stack Assy: 2024 Float SL [.940 Bore], Reb Med, RM
- 805-05-590-KIT Valve Stack Assy: 2024 Float SL [.940 Bore], Reb Med Plus, RM+
- 805-05-591-KIT Valve Stack Assy: 2024 Float SL [.940 Bore], RebFirm, RF
Piston Assemblies
- 805-02-316-KIT Piston Assy: Damping, 2024 Float SL [Ø.940 Bore]
- 805-00-133-KIT Piston Assembly: Floating, Slotted [0.940 Bore, 0.440 TLG]
Bearing Assembly
- 812-03-112-KIT Bearing Assy: Float SL, 2024, Short [.940 Bore, 1.500 Bore, 9mm Shaft], 20Wt Gold
Assembly Drawing
Eyelet Assemblies
808-17-420-KIT and 808-17-424-KIT Eyelet Assemblies: 2022 FLOAT DPS Remote Up, 3 position, SV
Valving Assembly
Valve Stack Assemblies
Piston Assemblies
Bearing Assembly
