PARTS & DRAWINGS

34mm Step-Cast Part Information

New for 2025:

New Grip SL Damper	Grip SL damper is extremely lightweight with no compromise to performance. Replaces FIT4 and utilizes wrench flats.
New Grip Damper	Now using 4wt. oil. No other changes at this travel.
New Lower Assembly	New lower leg bushings installed in lowers. Same chassis as before.
New Kabolt SL Axle	Lighter than previous Kabolt Axle, only offered in 15 x 110 sizing.
New Decals	New Sag/Air/Rebound Chart for Grip SL damper as well as Kashima/Grey decals for F-S shiny black fork. P-S decal kits are unchanged

Maintenance Information:

Service Interval	Full Service 125 hours
803-00-945	Kit: Dust Wiper, Forx, 34mm, Low Friction, No Flange
803-01-320	Seal Kit: MY19+ 32, 34, 36, 38, 40 GRIP Cartridge Rebuild
803-04-090	Seal Kit: 2025 Grip SL (32 TC, 32 SC, 34 SC)
803-00-963	Seal Kit: 34 FLOAT NA2 Rebuild
803-04-051	Kit: 2025, 34/34 SC, Lower Leg Bushings
398-00-771	Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 34
398-00-681	32 Damper-side and ALL 32-34-38-40 Spring-side Removal Tool
398-00-682	34-36-38-40 Damper-side Removal Tool
803-01-324	Kit: Tooling: 2019 Clamps, Grip Damper, Body and Shaft
398-00-763	Tooling: DPX2, Base Valve Driver

Air Spring Tuning Information:

803-01-667	Kit: Volume Spacer, FLOAT NA 2, 34, 1.214 Bore, Green, Quantity 5, (Ref: 234-04-953)
234-04-953	Volume Spacer, FLOAT NA 2, 34, 1.214 Bore, Green

Oil Information:

Application	Description	Part
All Grip SL and GRIP Dampers and Damper Bath Oil	Oil: Suspension Fluid, 4 WT, 1.0 Liter Bottle	025-03-063
All Grip SL and GRIP Dampers and Damper Bath Oil	Oil: Suspension Fluid, 4 WT, 23L	025-03-064
FLOAT NA2 Air Chamber and Bath Oil	Oil: AM, FOX 20 WT Gold, T22238, 32 oz	025-03-072
FLOAT NA2 Air Chamber and Bath Oil	Oil: AM, FOX 20 WT Gold, T22238, 23L	025-03-073

Oil Application	Oil Volume
Grip SL Damper Side Bath	15cc (4 WT)
GRIP Damper Side Bath	30cc (4 WT)
Air Side Bath	10cc (FOX 20 WT Gold)
Air Chamber	3cc Slickoleum (Slick Honey)/3cc (FOX 20 WT Gold)

CSU Assemblies:

820-12-393-KIT	Service Set: 2022 34 SC 120 Max 15x110QR Kashima, Matte Black, 44 Rake, 1.5 Taper, CSU
820-12-395-KIT	Service Set: 2022 34 SC 120 Max 15x110QR Kashima, Shiny Black, 44 Rake, 1.5 Taper, CSU
820-12-398-KIT	Service Set: 2022 34 SC 120 Max 15x110QR Black Ano, Shiny Black, 51 Rake, 1.5 Taper, CSU
820-12-399-KIT	Service Set: 2022 34 SC 120 Max 15x110QR Black Ano, Matte Black, 44 Rake, 1.5 Taper, CSU
820-12-401-KIT	Service Set: 2022 34 SC 120 Max 15x110QR Black Ano, Shiny Black, 44 Rake, 1.5 Taper, CSU

Lower Leg Assemblies:

820-20-355-KIT	Service Set: 2025 34 SC 29in 120 MAX 15x110 Kabolt, Fox Matte Black, F-S P-SE, Lower Leg Assy
820-20-356-KIT	Service Set: 2025 34 SC 29in 120 MAX 15x110 Kabolt, Fox Shiny Black, F-S P-SE, Lower Leg Assy
820-20-357-KIT	Service Set: 2025 34 SC 29in 120 MAX 15x110 Kabolt, Fox Shiny Orange, F-S P-SE, Lower Leg Assy
820-20-340-KIT	Service Set: 2022 34 SC 29in 120 15x110 Kabolt, Blk, Podium Gold, F-S, Lower Leg Assy

Axle Assemblies:

820-09-013-KIT	Service Set: Axle Assembly, 2016 15QRx110, Factory and Performance, Black Ano
229-19-561	Shaft: Axle, 15 X 110mm Kabolt SL, Small Flange, Black Ano (T)

Lower Leg Small Parts:

803-00-370	Service Set: 15QR Hardware (Contains: Axle nut, hold down, and set screw)
820-00-202-KIT	Service Set: Light Disc Brake Hose Guide Parts

Decal Kits:

803-04-066	Decal Kit: 2025, 34 SC, F-S, Kashima/Grey Logo, Shiny Black Fork
803-04-067	Decal Kit: 2025, 34 SC, F-S, Black Logo, Shiny Orange Fork
803-04-068	Decal Kit: 2025, 34 SC, F-S, Black Logo, Podium Gold Fork
803-04-069	Decal Kit: 2025, 34 SC, P-SE, Gray Logo, Matte Black Fork
803-01-720	Decal Kit: 2022, 34 SC, P-S, Gray Logo, Matte Black Fork

Complete Cartridges:

820-18-504-KIT	Service Set: 2025 34 SC 120, GRIP SL, 3 Pos Adj, Cart Assy Complete
820-18-512-KIT	Service Set: 2025 34 SC 120, GRIP SL, Push-Lock Remote Cart Assy Complete
820-18-515-KIT	Service Set: 2025 34 SC 120, GRIP SL, PTU Remote Cart Assy Complete
820-18-570-KIT	Service Set: 2025 34 SC 120 Max, Grip Cart Assy Complete
820-18-572-KIT	Service Set: 2025 34 SC 120 Max, Grip PTL Remote Cart Assy Complete

Cartridge Topcap Assemblies:

820-05-735-KIT	Service Set: 2025 34 SC, GRIP SL, Topcap Assy, 3 Pos Adj
820-05-741-KIT	Service Set: 2025 34 SC, GRIP SL, Remote, Topcap Assy
820-05-683-KIT	Service Set: 2022 34 SC 120 Max Grip Damper, Topcap Assy
820-05-684-KIT	Service Set: 2022 34 SC 120 Max Grip Remote, Topcap Assy

Damper Topcap Interface Parts:

820-05-731-KIT	Service Set: 2025 GRIP-SL Topcap Interface Parts, Blue Ano
820-05-767-KIT	Service Set: 2025 GRIP-SL Topcap Interface Parts, Black Ano
820-05-757-KIT	Service Set: 2025 Grip SL Push-Lock Remote, Topcap Interface Parts
820-05-758-KIT	Service Set: 2025 Grip SL PTU Remote, Topcap Interface Parts
820-05-623-KIT	Service Set: 2020 Grip 34, 36 & 38 P-S Topcap Interface Parts
820-05-611-KIT	Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts

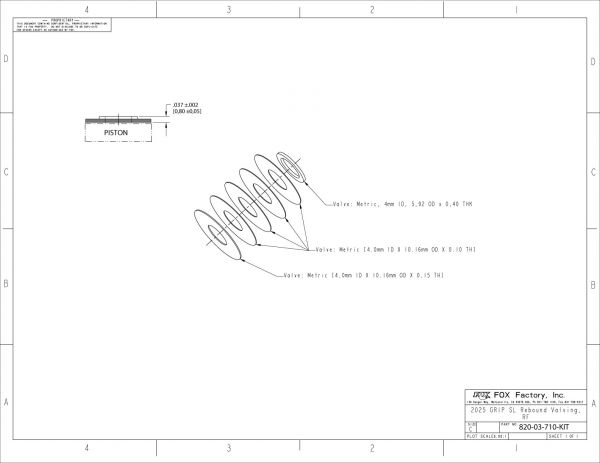

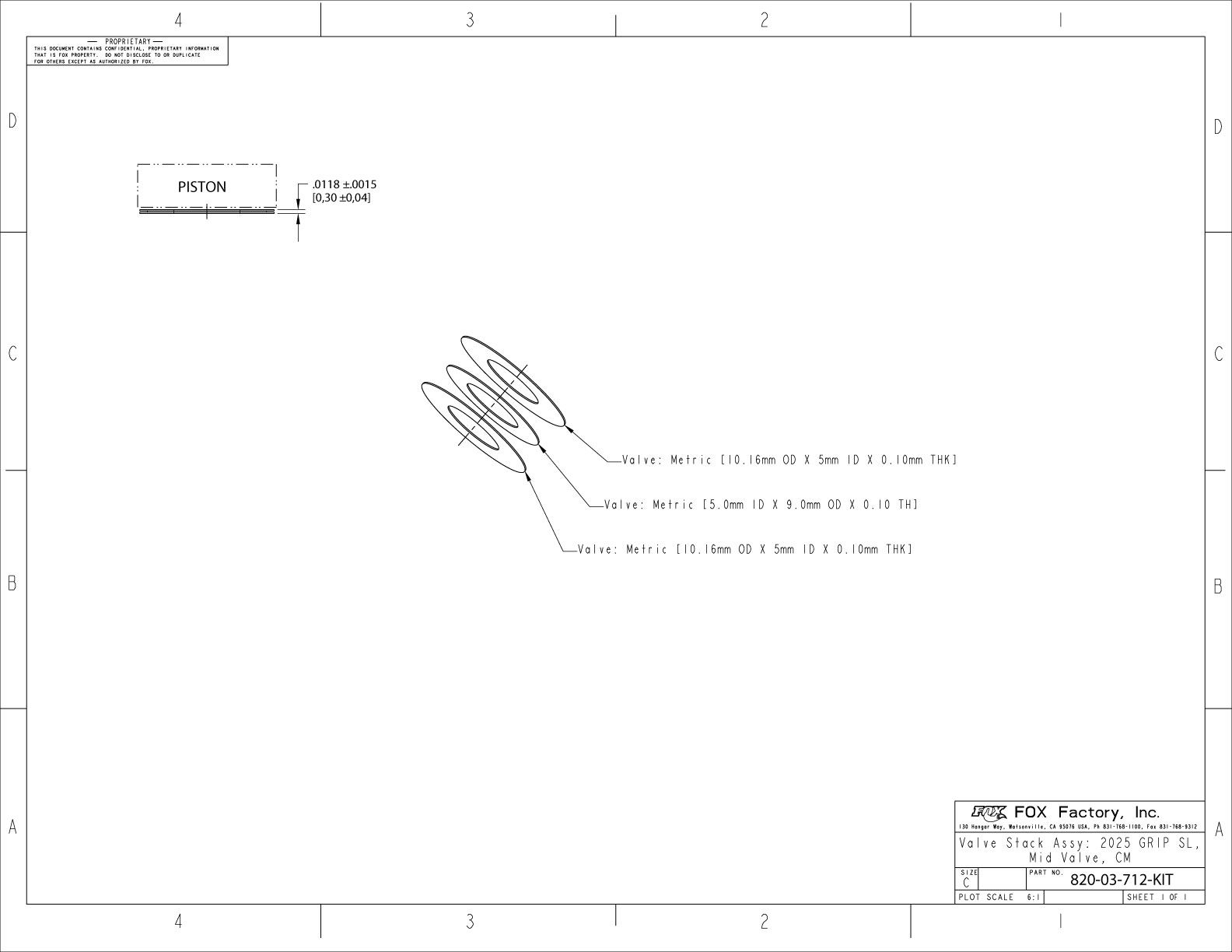

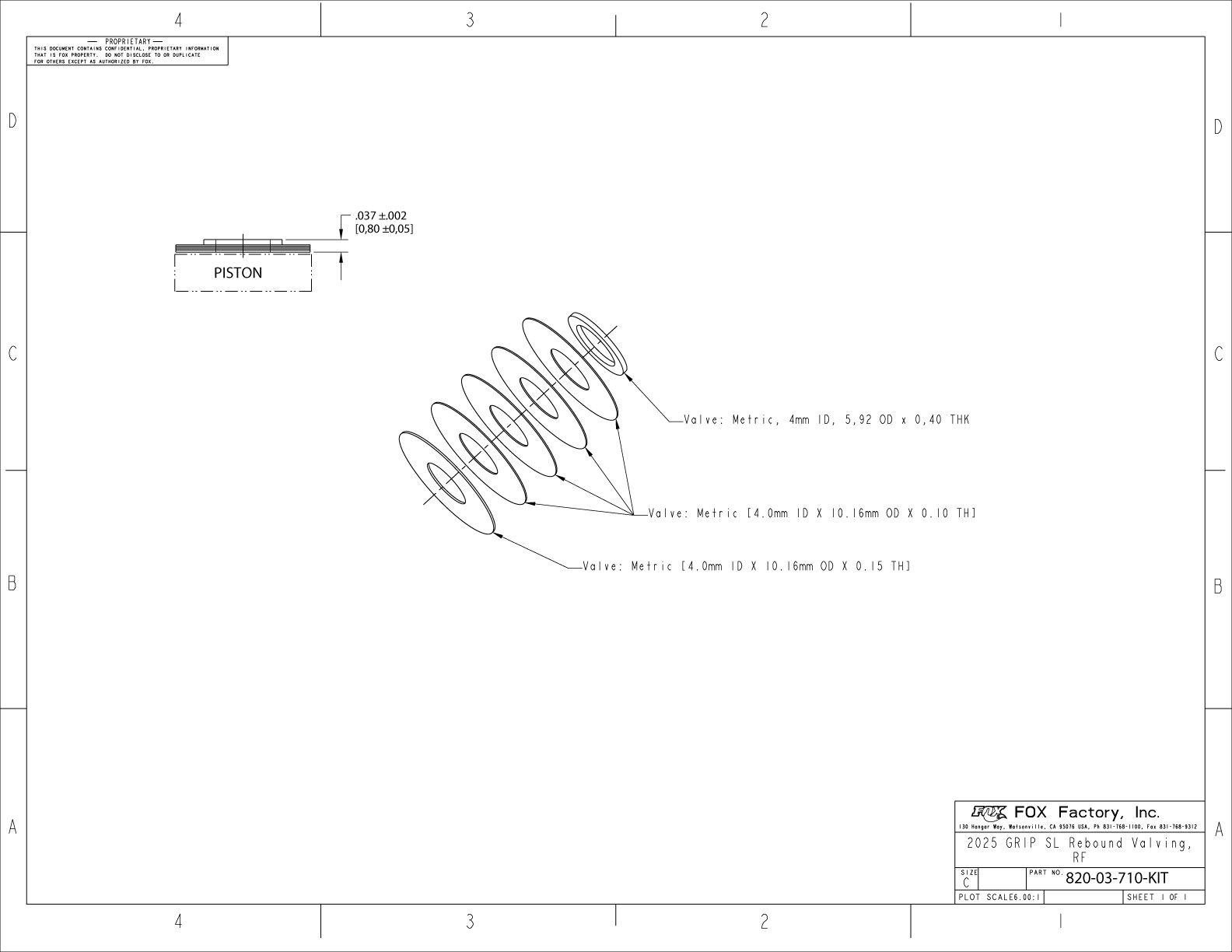

Damper Shaft Assemblies:

820-05-736-KIT	Service Set: 2025 34 SC 120, GRIP SL LSR Damper Shaft Assy
820-03-675-KIT	Service Set: 2019 34 SC 120 Max, Grip Damper Shaft Assy

Remotes and Accessories:

820-07-190	Remote Assembly, 2022 Suspension Remote, 3-POS, 22.2, Dual 0,9mm Cable
820-07-191	Remote Assembly, 2022 Suspension Remote, 2-POS, 22.2, Dual 0,9mm Cable
820-07-129-KIT	Service Set: 2022 I-SPEC-EV Remote Adaptor Assembly for 2022 Forks/Shock Remotes
825-05-006-KIT	Service Set: 22.2 Remote Band Clamp Assy, For: 2022 Fork/Shock Remotes and 2021 1x Transfer Remotes

Damper Bottom Stud Interface Parts:

820-05-734-KIT

Service Set: 2025 GRIP SL Bottom Stud Interface Parts

FLOAT NA2 Air Shaft Assemblies:

820-02-594-KIT	Service Set: Air Shaft Assy, 2022, 34 SC, 120mm, FLOAT LC NA 2, 1.222 Bore
820-02-595-KIT	Service Set: Air Shaft Assy, 2022, 34 SC, 110mm, FLOAT LC NA 2, 1.222 Bore
820-02-596-KIT	Service Set: Air Shaft Assy, 2022, 34 SC, 100mm, FLOAT LC NA 2, 1.222 Bore

FLOAT NA2 Topcap Assemblies:

820-05-500-KIT	Service Set: Topcap Assy, 2019, FLOAT LC NA 2, 34 SC, Black
234-04-884	Air Cap, 2022 Float NA 2, 32 & 34, Blue
234-04-883	Air Cap, 2022 Float NA 2, 32 & 34, Black
