PARTS & DRAWINGS

38mm/38mm E-Bike Part Information



New for 2025:

New Grip X2 Damper All new 4-way adjustable damper. Replaces Grip 2.
New Grip X Damper High and Low Speed compression with Low Speed Rebound. (GRIP X cannot be converted to GRIP X Remote without complete damper swap due to pressure tube length differences).
New Grip Damper New valving improving the performance of the Grip damper.
New Lowers New lower leg bushings installed in lowers. Same chassis as before.
New Decals New Sag/Air/Rebound Chart for Grip X/X2 dampers as well as Kashima/Grey decals for F-S shiny black fork. P-S decal kits are unchanged



Maintenance Information:

Service Interval Full Service 125 Hours
803-01-493 Kit: Dust Wiper, Forx, 38mm, Low Friction, No Flange
803-01-320 Seal Kit: MY19+ 32, 34, 36, 38, 40 GRIP Cartridge Rebuild
803-04-091 Seal Kit: 2025 Grip X (34, 36, 38, Super Z)
803-04-086 Seal Kit: 2025 Grip X2 (34, 36, 38, 40)
803-01-487 Seal Kit: 38 FLOAT NA2 Rebuild
803-01-907 Seal Kit: 38 Rhythm FLOAT NA2 Rebuild
803-04-053 Kit: 2025, 38, Lower Leg Bushings
398-00-774 Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 38
398-00-681 32 Damper-side and ALL 32-34-38-40 Spring-side Removal Tool
398-00-682 34-36-38-40 Damper-side Removal Tool
803-01-324 Kit: Tooling: 2019 Clamps, Grip Damper, Body and Shaft
398-00-981 Tool: Service, VVC, HSR, Grip X2
803-04-095 Service Tool: GripX2, Piston Band Sizer Pusher
398-01-242 Tooling: Bullet Tool, Grip X2 HSR
398-01-168 Service Tool: Grip X2, Piston Stud Socket



Air Spring Tuning Information:

803-01-663 Kit: Volume Spacer, FLOAT NA 2, 2021 38, Quantity 5, (Ref: 234-44-189)
234-44-189 Volume Spacer, FLOAT NA 2, 2021 38



Oil Information:

Application Description Part
Grip/Grip X/Grip X2 Dampers Oil: Suspension Fluid, 4 WT, 1.0 Liter Bottle 025-03-063
Oil: Suspension Fluid, 4 WT, 23L 025-03-064
NA2 Air Chamber/Float Side Bath Oil Oil: AM, FOX 20 WT Gold, T22238, 32 oz 025-03-072
Oil: AM, FOX 20 WT Gold, T22238, 23L 025-03-073
Oil Application Oil Volume
Grip/Grip X2 Damper Side Bath 40cc (FOX 4 WT)
Grip X Damper Side Bath 20cc (FOX 4 WT)
Air Chamber 3cc Slickoleum (Slick Honey)/3cc (FOX 20 WT Gold)
Air Side Bath 20cc (FOX 20 WT Gold)



CSU Assemblies:

820-12-461-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 51 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-463-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 51 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-464-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 44 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-466-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 44 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-467-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 37 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-469-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 37 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-470-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 51 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-472-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 51 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-473-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 44 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-475-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 44 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-476-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 37 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-478-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 37 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-479-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 51 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-481-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 51 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-482-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 44 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-484-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 44 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-485-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 37 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-487-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 37 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-488-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 51 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-490-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 51 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-491-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 44 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-493-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 44 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-494-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 37 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-496-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 37 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-638-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Matte Black, 51 Rake, 1.5 Taper, 58HT, CSU
820-12-640-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Shiny Black, 51 Rake, 1.5 Taper, 58HT, CSU
820-12-641-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Matte Black, 44 Rake, 1.5 Taper, 58HT, CSU
820-12-643-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Shiny Black, 44 Rake, 1.5 Taper, 58HT, CSU
820-12-644-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Matte Black, 37 Rake, 1.5 Taper, 58HT, CSU
820-12-646-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Shiny Black, 37 Rake, 1.5 Taper, 58HT, CSU
820-12-647-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Matte Black, 51 Rake, 1.5 Taper, 68HT, CSU
820-12-649-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Shiny Black, 51 Rake, 1.5 Taper, 68HT, CSU



Lower Leg Assemblies:

820-20-381-KIT Service Set: 2025 38 27.5in 180 MAX, 15x110 Kabolt-X, Fox Matte Black, F-S P-SE, Lower Leg Assy
820-20-382-KIT Service Set: 2025 38 27.5in 180 MAX, 15x110 Kabolt-X, Fox Shiny Black, F-S P-SE, Lower Leg Assy
820-20-383-KIT Service Set: 2025 38 27.5in 180 MAX, 15x110 Kabolt-X, Fox Shiny Orange, F-S P-SE, Lower Leg Assy
820-20-389-KIT Service Set: 2025 38 29in 180 MAX, 15x110 Kabolt-X, Fox Matte Black, F-S P-SE, Lower Leg Assy
820-20-390-KIT Service Set: 2025 38 29in 180 MAX, 15x110 Kabolt-X, Fox Shiny Black, F-S P-SE, Lower Leg Assy
820-20-391-KIT Service Set: 2025 38 29in 180 MAX, 15x110 Kabolt-X, Fox Shiny Orange, F-S P-SE, Lower Leg Assy
820-20-337-KIT Service Set: 2021 38 29in 180 MAX, 15x110 Kabolt, Podium Gold, F-S, Lower Leg Assy



Axle Assemblies:

820-09-071-KIT Service Set: 2021 36-38 15x110 KaboltX Pinch-axle Assembly
820-09-063-KIT Service Set: 2020 FOX-Marzocchi 15x110 QR Adjust Axle Assembly



Lower Leg Small Parts:

803-01-548 Service Set: 2021 36/38 15QR Hardware
803-01-811 Service Set: 2021 36/38 KaboltX Hardware
820-00-202-KIT Service Set: Light Disc Brake Hose Guide Parts
820-09-068-KIT Service Set: 2021 Pressure Release Plug, Lower Leg, P-S
820-09-088-KIT Service Set: 2022 Pressure Release Button, Lower Leg, F-S
803-01-441 Assembly: Mud Guard, MY21 36-38, Black, AM
803-01-751 Assembly: Mud Guard, MY23 36-38, XL, Black, AM



Decal Kits:

803-04-080 Decal Kit: 2025, 38, F-S, Kashima/Gray Logo, Shiny Black Fork
803-04-081 Decal Kit: 2025, 38, F-S, Black Logo, Shiny Orange Fork
803-04-082 Decal Kit: 2025, 38, F-S, Black Logo, Podium Gold Fork
803-04-083 Decal Kit: 2025, 38, PS-E, Gray Logo, Matte Black Fork
803-01-535 Decal Kit: 2021, 38, P-S, Gray Logo, Matte Black Fork
803-01-858 Decal Kit: 2023, 38, Rhythm, Gray Logo, Rhythm Fork



Complete Cartridges:

820-18-522-KIT Service Set: 2025 38 180, GRIP X LSR / HSC / LSC Cart Assy Complete, CFBV, CM, RF, Blue Ano
820-18-528-KIT Service Set: 2025 38 180, GRIP X LSR / HSC / LSC, PTL Remote, Cart Assy Complete, CFBV, CM, RF, Blue Ano
820-18-543-KIT Service Set: 2025 38 180, Grip X2 HSR / LSR / HSC/ LSC Cart Assy, Cart Assy Complete, CFBV, CM, RL, Blue Ano
820-18-567-KIT Service Set: 2025 38 180 MAX, Grip, Complete, Black Ano, 3 Pos



Cartridge Topcap Assemblies:

820-05-747-KIT Service Set: 2025 38 190, GRIP X, Topcap Assy
820-05-760-KIT Service Set: 2025 38 190, GRIP X, Topcap Assy, Remote
820-05-770-KIT Service Set: 2025 38, Grip X2, Topcap Assy
820-05-792-KIT Service Set: 2025 38, 180 MAX, Grip Topcap Assy



Damper Topcap Interface Parts:

820-05-750-KIT Service Set: 2025 Grip X HSC / LSC Topcap Interface Parts, Blue Ano
820-05-751-KIT Service Set: 2025 Grip X HSC / LSC Topcap Interface Parts, Black Ano
820-05-763-KIT Service Set: 2025 Grip X Push-Lock Remote, Topcap Interface Parts, Blue Ano
820-05-724-KIT Service Set: 2025 Grip X2 HSC / LSC Topcap Interface Parts, Blue Ano
820-05-768-KIT Service Set: 2025 Grip X2 HSC / LSC Topcap Interface Parts, Black Ano
820-05-623-KIT Service Set: 2020 Grip 34, 36 & 38  P-S Topcap Interface Parts
820-05-707-KIT Service Set: 2023 Rhythm 38 Grip Sweep Topcap Interface Parts



Compression Base Valve Valving:

820-03-703-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Compression Firm, CF (Standard Tune)
820-03-764-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Compression Light, CL (Standard Tune)



Rebound Piston Assembly:

820-03-730-KIT Service Set: 2025 GRIP X, Rebound Piston Assy, 8mm Shaft
820-03-798-KIT Service Set: 2025 Grip X2 HSR / LSR Rebound Piston Assy, Service Parts (Order Valving Separately)
820-03-750-KIT Service Set: 2025 Grip Rebound Piston Assy



GRIP X2 Mid Valve Compression Valving:

820-03-765-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Mid Valve, CL (Optional Tune)
820-03-702-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Mid Valve, CM (Standard Tune)



GRIP X2 Rebound Valving:

820-03-766-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Rebound Valving, X-LIGHT (Optional Tune)
820-03-743-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Rebound Valving, Light (Optional Tune)
820-03-701-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Rebound Valving, Med (Standard Tune)
820-03-778-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Rebound Valving, MED+ (Optional Tune)
820-03-779-KIT Service Set: Valve Stack Assy: 2025 Grip X2, Rebound Valving, FIRM (Optional Tune)



Damper Shaft Assemblies:

820-05-755-KIT Service Set: 2025 38 180, GRIP X LSR Damper Shaft Assy
820-05-782-KIT Service Set: 2025 38 180, GRIP X LSR Damper Shaft Assy, Remote
820-03-698-KIT Service Set: 2025 Grip X2 HSR / LSR Damper Shaft Assy, 180
820-03-568-KIT Service Set: 2019 36 180 MAX, Grip Damper Shaft Assy



Damper Bottom Stud Interface Parts:

820-05-377-KIT Service Set: 2016 FIT4 Bottom Stud Interface Parts 36, 38 and 40
820-05-518-KIT Service Set: 2019 36 Grip Bottom Stud Interface Parts
820-05-501-KIT Service Set: 2019 Grip2 HSR / LSR Bottom Stud Interface Parts

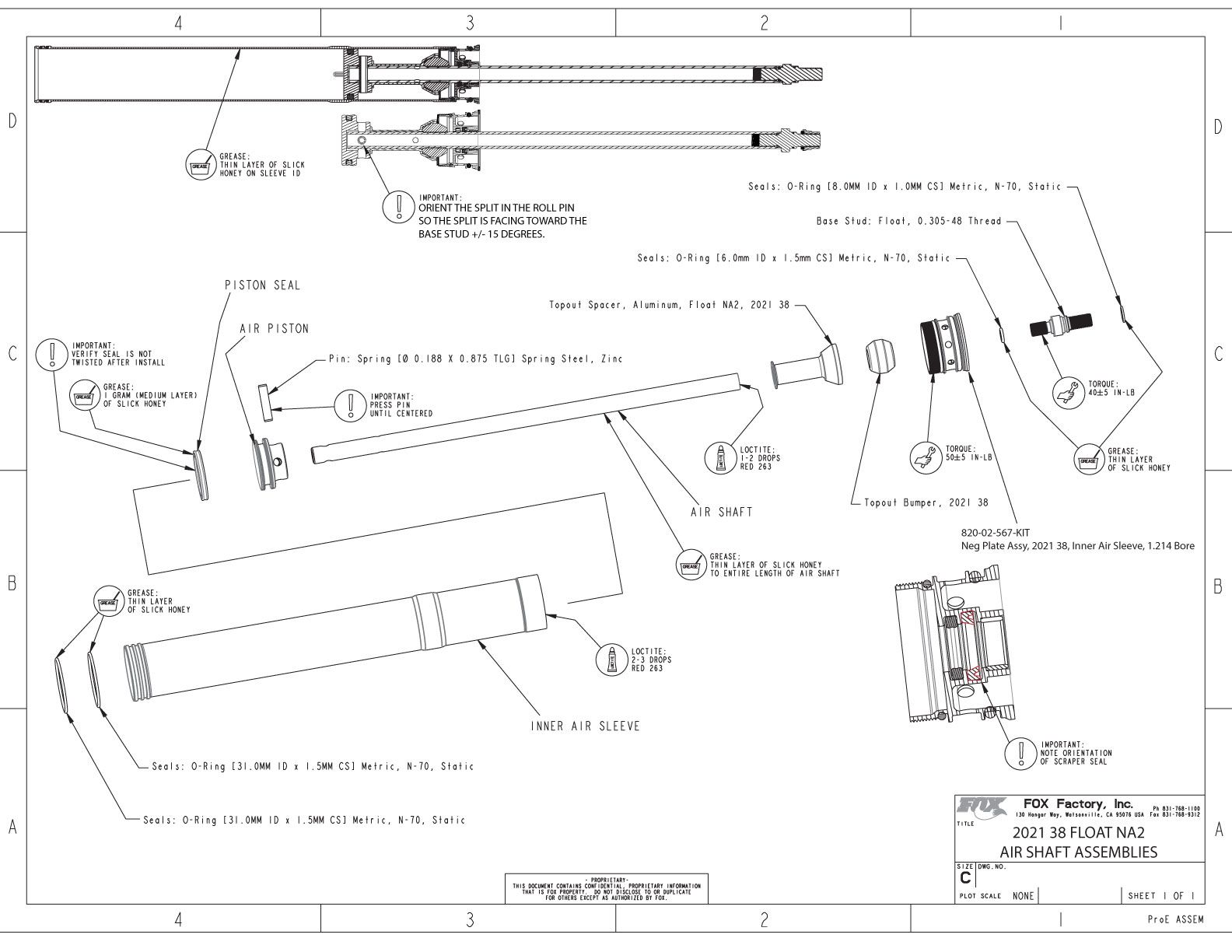

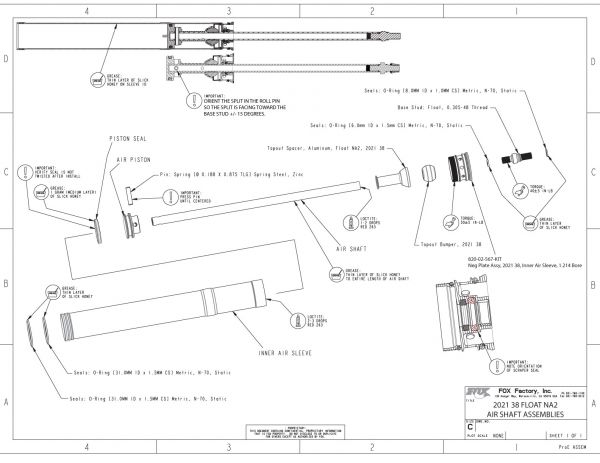

FLOAT NA2 Air Shaft Assemblies:

820-02-568-KIT Service Set: Air Shaft Assy, 2021, 38, 180mm, FLOAT NA 2, Inner Air Sleeve, 1.214 Bore
820-02-569-KIT Service Set: Air Shaft Assy, 2021, 38, 170mm, FLOAT NA 2, Inner Air Sleeve, 1.214 Bore
820-02-570-KIT Service Set: Air Shaft Assy, 2021, 38, 160mm, FLOAT NA 2, Inner Air Sleeve, 1.214 Bore
820-02-589-KIT Service Set: Air Shaft Assy, 2021, 38, 150mm, FLOAT NA 2, Inner Air Sleeve, 1.214 Bore
820-02-629-KIT Service Set: Air Shaft Assy, 2023 Rhythm 38, 180mm, 1.355 Bore
820-02-630-KIT Service Set: Air Shaft Assy, 2023 Rhythm 38, 170mm, 1.355 Bore
820-02-631-KIT Service Set: Air Shaft Assy, 2023 Rhythm 38, 160mm, 1.355 Bore
820-02-632-KIT Service Set: Air Shaft Assy, 2023 Rhythm 38, 150mm, 1.355 Bore



FLOAT NA2 Topcap Assemblies:

820-05-627-KIT Service Set: Topcap Assy, 2021 38, FLOAT NA2, Black
234-04-554 (T) Spring Hardware: 2021 38 FLOAT Air Topcap, Al, Blue Ano
234-04-555 (T) Spring Hardware: 2021 38 FLOAT Air Topcap, Al, Black Ano

2025 38 180, Grip X2

2025 38 180, Grip X

2025 38 180, Grip X Remote

2025 38, 180 MAX, Grip

2025 38 FLOAT NA2

2025 38 RHYTHM FLOAT NA2

2025 38 180, Grip X2

img/help/page2944-NF5W/820-18-543-KIT-m.jpg

820-18-543-KIT 2025 38 180, Grip X2 HSR / LSR / HSC/ LSC Cart Assy, Cart Assy Complete, CFBV, CM, RL, Blue Ano

img/help/page2944-NF5W/820-18-543-KIT.jpg
back to top

img/help/page2944-NF5W/2025-38-180,-Grip-X2-HSR.LSR,HSC.LSC-Cart-Assy,-CFBV,-CM,-RLa-m.jpg

2025 38 180, Grip X2 HSR / LSR / HSC/ LSC Cart Assy, CFBV, CM, RL .

img/help/page2944-NF5W/2025-38-180,-Grip-X2-HSR.LSR,HSC.LSC-Cart-Assy,-CFBV,-CM,-RLa.jpg
back to top

img/help/page2944-NF5W/820-05-770-KIT1-m.jpg

820-05-770-KIT 2025 38, Grip X2, Topcap Assy

img/help/page2944-NF5W/820-05-770-KIT1.jpg
img/help/page2944-NF5W/820-05-770-KIT2.jpg
back to top

img/help/page2944-NF5W/820-03-744-KIT-m.jpg

820-03-744-KIT 2025 Grip X2 HSR / LSR Rebound Piston Assy 38/40

img/help/page2944-NF5W/820-03-744-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-743-KIT-m.jpg

820-03-743-KIT Valve Stack Assy: 2025 Grip X2, Rebound Valving, Light

img/help/page2944-NF5W/820-03-743-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-732-KIT-m.jpg

820-03-732-KIT 2025 Grip X2, Rebound Check Valve Assy

img/help/page2944-NF5W/820-03-732-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-731-KIT-m.jpg

820-03-731-KIT Valve Stack Assy: 2025 Grip X2, Base Valve Refill

img/help/page2944-NF5W/820-03-731-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-703-KIT-m.jpg

820-03-703-KIT Valve Stack Assy: 2025 Grip X2, Compression Firm, CF

img/help/page2944-NF5W/820-03-703-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-702-KIT-m.jpg

820-03-702-KIT Valve Stack Assy: 2025 Grip X2, Mid Valve, CM

img/help/page2944-NF5W/820-03-702-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-699-KIT-m.jpg

820-03-699-KIT 2025 Grip X2, Bearing Housing Assy

img/help/page2944-NF5W/820-03-699-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-698-KIT-m.jpg

820-03-698-KIT 2025 Grip X2 HSR / LSR Damper Shaft Assy, 180

img/help/page2944-NF5W/820-03-698-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-573-KIT-m.jpg

820-03-573-KIT 2019 36 180, Grip2 HSR, 2-Piece Damper Shaft Assy

img/help/page2944-NF5W/820-03-573-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-764-KIT-m.jpg

820-03-764-KIT Valve Stack Assy: 2025 Grip X2, Compression Light, CL (Optional Tune)

img/help/page2944-NF5W/820-03-764-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-798-KIT-m.jpg

820-03-798-KIT 2025 Grip X2 HSR / LSR Rebound Piston Assy, Service Parts (Order Valving Separately)

img/help/page2944-NF5W/820-03-798-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-765-KIT-m.jpg

820-03-765-KIT Valve Stack Assy: 2025 Grip X2, Mid Valve, CL (Optional Tune)

img/help/page2944-NF5W/820-03-765-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-766-KIT-m.jpg

820-03-766-KIT Valve Stack Assy: 2025 Grip X2, Rebound Valving, X-LIGHT (Optional Tune)

img/help/page2944-NF5W/820-03-766-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-778-KIT-m.jpg

820-03-778-KIT Valve Stack Assy: 2025 Grip X2, Rebound Valving, MED+ (Optional Tune)

img/help/page2944-NF5W/820-03-778-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-779-KIT-m.jpg

820-03-779-KIT Valve Stack Assy: 2025 Grip X2, Rebound Valving, FIRM (Optional Tune)

img/help/page2944-NF5W/820-03-779-KIT.jpg
back to top

2025 38 180, Grip X

img/help/page2944-NF5W/820-18-522-KITu-m.jpg

820-18-522-KIT 2025 38 180, GRIP X LSR / HSC / LSC Cart Assy Complete, CFBV, CM, RF, Blue Ano

img/help/page2944-NF5W/820-18-522-KITu.jpg
back to top

img/help/page2944-NF5W/GRIP-X-Topcap-Interface-Part-Information-m.jpg

GRIP X Topcap Interface Part Information .

img/help/page2944-NF5W/GRIP-X-Topcap-Interface-Part-Information.jpg
back to top

img/help/page2944-NF5W/2025-38-180,-GRIP-X,-LSR.HSC.LSC,-Cart-Assy-m.jpg

2025 38 180, GRIP X, LSR / HSC / LSC, Cart Assy .

img/help/page2944-NF5W/2025-38-180,-GRIP-X,-LSR.HSC.LSC,-Cart-Assy.jpg
back to top

img/help/page2944-NF5W/820-05-755-KIT-m.jpg

820-05-755-KIT 2025 38 180, GRIP X LSR Damper Shaft Assy

img/help/page2944-NF5W/820-05-755-KIT.jpg
back to top

img/help/page2944-NF5W/820-05-747-KIT1-m.jpg

820-05-747-KIT 2025 38 190, GRIP X, Topcap Assy

img/help/page2944-NF5W/820-05-747-KIT1.jpg
img/help/page2944-NF5W/820-05-747-KIT2.jpg
back to top

img/help/page2944-NF5W/820-03-730-KIT-m.jpg

820-03-730-KIT 2025 GRIP X, Rebound Piston Assy, 8mm Shaft

img/help/page2944-NF5W/820-03-730-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-729-KIT-m.jpg

820-03-729-KIT 2025 GRIP X, Bearing Housing Assy

img/help/page2944-NF5W/820-03-729-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-728-KIT-m.jpg

820-03-728-KIT Valve Stack Assy: 2025 GRIP X, Compression Medium, CM

img/help/page2944-NF5W/820-03-728-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-727-KIT-m.jpg

820-03-727-KIT 2025 GRIP X Rebound Valving, RF

img/help/page2944-NF5W/820-03-727-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-726-KIT-m.jpg

820-03-726-KIT Valve Stack Assy: 2025 GRIP X, Mid Valve, CM

img/help/page2944-NF5W/820-03-726-KIT.jpg
back to top

2025 38 180, Grip X Remote

img/help/page2944-NF5W/820-18-528-KIT-m.jpg

820-18-528-KIT 2025 38 180, GRIP X LSR / HSC / LSC, PTL Remote, Cart Assy Complete, CFBV, CM, RF, Blue Ano

img/help/page2944-NF5W/820-18-528-KIT.jpg
back to top

img/help/page2944-NF5W/GRIP-X-Remote-Topcap-Interface-Part-Information-m.jpg

GRIP X Remote Topcap Part Installation Information .

img/help/page2944-NF5W/GRIP-X-Remote-Topcap-Interface-Part-Information.jpg
back to top

img/help/page2944-NF5W/2025-38-180,-GRIP-X,-LSR.HSC.LSC,-Remote-Cart-Assy-m.jpg

2025 38 180, GRIP X, LSR / HSC / LSC, Remote Cart Assy .

img/help/page2944-NF5W/2025-38-180,-GRIP-X,-LSR.HSC.LSC,-Remote-Cart-Assy.jpg
back to top

img/help/page2944-NF5W/820-05-782-KIT-m.jpg

820-05-782-KIT 2025 38 180, GRIP X LSR Damper Shaft Assy, Remote

img/help/page2944-NF5W/820-05-782-KIT.jpg
back to top

img/help/page2944-NF5W/820-05-760-KIT1-m.jpg

820-05-760-KIT 2025 38 190, GRIP X, Topcap Assy, Remote

img/help/page2944-NF5W/820-05-760-KIT1.jpg
img/help/page2944-NF5W/820-05-760-KIT2.jpg
back to top

img/help/page2944-NF5W/820-03-730-KITa-m.jpg

820-03-730-KIT 2025 GRIP X, Rebound Piston Assy, 8mm Shaft

img/help/page2944-NF5W/820-03-730-KITa.jpg
back to top

img/help/page2944-NF5W/820-03-729-KITa-m.jpg

820-03-729-KIT 2025 GRIP X, Bearing Housing Assy

img/help/page2944-NF5W/820-03-729-KITa.jpg
back to top

img/help/page2944-NF5W/820-03-728-KITa-m.jpg

820-03-728-KIT Valve Stack Assy: 2025 GRIP X, Compression Medium, CM

img/help/page2944-NF5W/820-03-728-KITa.jpg
back to top

img/help/page2944-NF5W/820-03-727-KITa-m.jpg

820-03-727-KIT 2025 GRIP X Rebound Valving, RF

img/help/page2944-NF5W/820-03-727-KITa.jpg
back to top

img/help/page2944-NF5W/820-03-726-KITa-m.jpg

820-03-726-KIT Valve Stack Assy: 2025 GRIP X, Mid Valve, CM

img/help/page2944-NF5W/820-03-726-KITa.jpg
back to top

2025 38, 180 MAX, Grip

img/help/page2944-NF5W/820-18-567-KIT-m.jpg

820-18-567-KIT 2025 38 180 MAX, Grip, Complete, Black Ano, 3 Pos

img/help/page2944-NF5W/820-18-567-KIT.jpg
back to top

img/help/page2944-NF5W/2025-38,-180-MAX,-Grip-Cart-Assy-m.jpg

2025 38, 180 MAX, Grip Cart Assy .

img/help/page2944-NF5W/2025-38,-180-MAX,-Grip-Cart-Assy.jpg
back to top

img/help/page2944-NF5W/820-05-792-KIT-m.jpg

820-05-792-KIT 2025 38, 180 MAX, Grip Topcap Assy

img/help/page2944-NF5W/820-05-792-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-751-KIT-m.jpg

820-03-751-KIT 2025 36 and 38, 180 MAX, Grip Damper Shaft Assy

img/help/page2944-NF5W/820-03-751-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-750-KIT-m.jpg

820-03-750-KIT 2025 Grip Rebound Piston Assy

img/help/page2944-NF5W/820-03-750-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-747-KIT-m.jpg

820-03-747-KIT 2025 Grip Mid-Valving

img/help/page2944-NF5W/820-03-747-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-746-KIT-m.jpg

820-03-746-KIT 2025 Grip Rebound Valving

img/help/page2944-NF5W/820-03-746-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-745-KIT-m.jpg

820-03-745-KIT 2025 Grip Compression Valving

img/help/page2944-NF5W/820-03-745-KIT.jpg
back to top

img/help/page2944-NF5W/820-03-525-KIT-m.jpg

820-03-525-KIT 2019 Grip, All, Bearing Housing Assy

img/help/page2944-NF5W/820-03-525-KIT.jpg
back to top

2025 38 FLOAT NA2

img/help/page2944-NF5W/2021-38-FLOAT-NA2-AIR-SPRING-ASSEMBLIES-m.jpg

2021 38 FLOAT NA2 AIR SPRING ASSEMBLIES .

img/help/page2944-NF5W/2021-38-FLOAT-NA2-AIR-SPRING-ASSEMBLIES.jpg
back to top

img/help/page2944-NF5W/2021-38-FLOAT-NA2-AIR-SHAFT-ASSEMBLIES-ucup-update-m.jpg

2021 38 FLOAT NA2 AIR SHAFT ASSEMBLIES .

img/help/page2944-NF5W/2021-38-FLOAT-NA2-AIR-SHAFT-ASSEMBLIES-ucup-update.jpg
back to top

img/help/page2944-NF5W/820-05-627-KIT-m.jpg

820-05-627-KIT Topcap Assy, 2021 38, FLOAT NA2, Black

img/help/page2944-NF5W/820-05-627-KIT.jpg
back to top

2025 38 RHYTHM FLOAT NA2

img/help/page2944-NF5W/2023-38mm-Rhythm-Air-Spring-Assys-m.jpg

2023 38mm RHYTHM Air Spring Assys .

img/help/page2944-NF5W/2023-38mm-Rhythm-Air-Spring-Assys.jpg
back to top

img/help/page2944-NF5W/2023-38mm-Rhythm-Air-Shaft-Assys-m.jpg

2023 38mm RHYTHM Air Shaft Assys .

img/help/page2944-NF5W/2023-38mm-Rhythm-Air-Shaft-Assys.jpg
back to top

img/help/page2944-NF5W/820-05-627-KITr-m.jpg

820-05-627-KIT Topcap Assy, 2021 38, FLOAT NA2, Black

img/help/page2944-NF5W/820-05-627-KITr.jpg
back to top
