PARTS & DRAWINGS

38mm Part Information



New for 2023:

T25 Pinch Bolt Exclusive for SCOTT, the pinch bolt is a T25 Torx (compatible with standard M6 bolt).
Rhythm CSU New CSU F-S and P-SE share elliptical steerer tube, P-S is a traditional steerer tube.
Rhythm Air Shaft Optimized NA2 airshaft for 2023 38 rhythm.
Rhythm Damper Optimized for the 38 chassis with 38 rhythm interface parts.
Rhythm Decals Same design as 2021 decals now applied to the 38 rhythm.



Maintenance Information:

Service Interval Full Service 125 Hours
803-01-493 Kit: Dust Wiper, Forx, 38mm, Low Friction, No Flange
803-01-320 Seal Kit: MY19+ 32, 34, 36, 38, 40 GRIP Cartridge Rebuild
803-01-549 Seal Kit: MY21+ ALL 38 8mm Shaft FIT4 Cartridge Rebuild
803-01-494 Seal Kit: 2021 F-S Grip2 VVC 34/36/38/40
803-01-487 Seal Kit: 38 FLOAT NA2 Rebuild
398-00-774 Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 38
398-00-681 32 Damper-side and ALL 32-34-38-40 Spring-side Removal Tool
398-00-682 34-36-38-40 Damper-side Removal Tool
398-00-371 Tooling: Sealhead To Shaft Bullet, 10mm
803-00-147 Kit: Shaft Clamps, FORX, Set #2
803-00-276 Service Kit: Hand Bleed, Syringe and Tube, 2010 32 Fit RL-RLC Cartridge
803-00-830 Service Set: Tooling: 2014 RC2, Shaft Clamps
803-01-209 Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set
398-00-760 Service Tool: Bullet, Selector Shaft, Remote, U-Cup
398-00-320 Tool: 8mm Shaft Bullet, 32 FIT Cartridge
803-01-324 Kit: Tooling: 2019 Clamps, Grip Damper, Body and Shaft



Air Spring Tuning Information:

234-44-189 Volume Spacer, FLOAT NA 2, 2021 38



Oil Information:

Application Description Part
FIT4 and Grip/Grip2 VVC Dampers Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart 025-03-023
All non-GRIP damper bath oil and FLOAT NA2 Air Chamber and bath Oil: AM, FOX 20 WT Gold, T22238, 32 oz 025-03-072
Oil Application Oil Volume
FLOAT NA2 Air Chamber 3cc    (FOX 20wt. Gold Oil)
All Air Side Bath 20cc   (FOX 20wt. Gold Oil)
FIT4 Damper Side Bath 15cc   (FOX 20wt. Gold Oil)
Grip/Grip2 VVC Damper Side Bath 40cc   (5wt. FOX Teflon Infused Oil)



Remote Information:

Remote Conversions available for 2016+ Fit4 Non-remote FIT4 cartridges can be upgraded to remote via the installation of a complete FIT4 Remote U-Cup Topcap Assembly. This ensures the optimized topcap configuration with friction reducing features for the most reliable remote installation possible. FOX recommends PTU remote systems over PTL systems as they are optimized for reliability and reduced lever force. The FIT4 topcap "butterfly" valve must be matched to the appropriate lever/topcap interface parts.
  Installation of FIT4 Remote Topcap Interface Parts on a FIT4 3 Pos or 3 Pos Adj cartridge does not convert the cartridge to the optimized remote configuration even when used with a 3 position remote lever as the standard FIT4 3 Pos or 3 Pos Adj topcap does not contain the U-Cup that optimized remote topcap friction.
820-05-611-KIT Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts
820-05-456-KIT Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock
820-07-168 Remote Assembly, 2022 Suspension Remote, 3-POS, 22.2, Dual Cable
820-07-169 Remote Assembly, 2022 Suspension Remote, 2-POS, 22.2, Dual Cable
820-07-129-KIT Service Set: 2022 I-SPEC-EV Remote Adaptor Assembly for 2022 Forks/Shock Remotes
825-05-006-KIT Service Set: 22.2 Remote Band Clamp Assy, For: 2022 Fork/Shock Remotes and 2021 1x Transfer Remotes




CSU Assemblies:

820-12-461-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 51 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-463-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 51 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-464-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 44 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-466-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 44 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-467-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 37 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-469-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 37 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-470-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 51 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-472-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 51 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-473-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 44 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-475-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 44 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-476-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 37 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-478-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 37 Rake, 1.5 Taper, 58HT, CC, CSU
820-12-479-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 51 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-481-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 51 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-482-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 44 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-484-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 44 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-485-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Matte Black, 37 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-487-KIT Service Set: 2022 38 180 MAX, 15X110, Kashima, Shiny Black, 37 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-488-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 51 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-490-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 51 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-491-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 44 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-493-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 44 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-494-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Matte Black, 37 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-496-KIT Service Set: 2022 38 180 MAX, 15X110, Black Ano, Shiny Black, 37 Rake, 1.5 Taper, 68HT, CC, CSU
820-12-638-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Matte Black, 51 Rake, 1.5 Taper, 58HT, CSU
820-12-640-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Shiny Black, 51 Rake, 1.5 Taper, 58HT, CSU
820-12-641-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Matte Black, 44 Rake, 1.5 Taper, 58HT, CSU
820-12-643-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Shiny Black, 44 Rake, 1.5 Taper, 58HT, CSU
820-12-644-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Matte Black, 37 Rake, 1.5 Taper, 58HT, CSU
820-12-646-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Shiny Black, 37 Rake, 1.5 Taper, 58HT, CSU
820-12-647-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Matte Black, 51 Rake, 1.5 Taper, 68HT, CSU
820-12-649-KIT Service Set: 2023 Rhythm 38, 180 MAX, Black Ano, Shiny Black, 51 Rake, 1.5 Taper, 68HT, CSU



Lower Leg Assemblies:

820-20-028-KIT Service Set: 2021 38 27.5in 180 MAX, 15x110 QR, Fox Matte Black, F-S, Lower Leg Assy
820-20-030-KIT Service Set: 2021 38 27.5in 180 MAX, 15x110 QR, Fox Shiny Black, F-S, Lower Leg Assy
820-20-031-KIT Service Set: 2021 38 27.5in 180 MAX, 15x110 QR, Fox Shiny Orange, F-S, Lower Leg Assy
820-20-021-KIT Service Set: 2021 38 29in 180 MAX, 15x110 QR, Fox Matte Black, F-S, Lower Leg Assy
820-20-023-KIT Service Set: 2021 38 29in 180 MAX, 15x110 QR, Fox Shiny Black, F-S, Lower Leg Assy
820-20-024-KIT Service Set: 2021 38 29in 180 MAX, 15x110 QR, Fox Shiny Orange, F-S, Lower Leg Assy



Axle Assemblies:

820-09-071-KIT Service Set: 2021 36-38 15x110 KaboltX Pinch-axle Assembly
820-09-063-KIT Service Set: 2020 FOX-Marzocchi 15x110 QR Adjust Axle Assembly



Lower Leg Small Parts:

803-01-548 Service Set: 2021 36/38 15QR Hardware
803-01-811 Service Set: 2021 36/38 KaboltX Hardware
820-00-202-KIT Service Set: Light Disc Brake Hose Guide Parts
820-09-068-KIT Service Set: 2021 Pressure Release Plug, Lower Leg, P-S
820-09-088-KIT Service Set: 2022 Pressure Release Button, Lower Leg, F-S
803-01-441 Assembly: Mud Guard, MY21 36-38, Black, AM
803-01-751 Assembly: Mud Guard, MY23 36-38, XL, Black, AM



Decal Kits:

803-01-531 Decal Kit: 2021, 38, F-S, Orange Logo, Shiny Black Fork
803-01-998 Decal Kit: 2021, 38, F-S, Orange Logo, Matte Black Fork
803-01-532 Decal Kit: 2021, 38, F-S, Black Logo, Shiny Orange Fork
803-01-534 Decal Kit: 2021, 38, P-SE, Gray Logo, Matte Black Fork
803-01-535 Decal Kit: 2021, 38, P-S, Gray Logo, Matte Black Fork
803-01-858 Decal Kit: 2023, 38, Rhythm, Gray Logo, Rhythm Fork



Complete Cartridges:

820-18-325-KIT Service Set: 2021 38 180 Max FIT4, Complete, Black Ano, 3 Pos Adj
820-18-326-KIT Service Set: 2021 38 180 Max FIT4, Remote, Complete, Black Ano, PTL 2 Pos Adj
820-18-328-KIT Service Set: 2021 38 180 Max FIT4, Remote, Complete, Black Ano, PTL 3 Pos Adj
820-18-329-KIT Service Set: 2021 38 180 MAX, Grip, Complete, Black Ano, 3 Pos
820-18-331-KIT Service Set: 2021 38 180 MAX, Grip, Remote, Complete, Black Ano, PTL
820-18-336-KIT Service Set: 2021 38 180, Grip2 VVC HSR / LSR / HSC/ LSC Cart Assy Complete
820-18-402-KIT Service Set: 2021 38 180, Grip2 VVC HSR / LSR / HSC/ LSC Cart Assy Complete, Reb Light
820-18-463-KIT Service Set: 2023 Rhythm 38, 180 MAX, Grip, Complete, Black Ano, Sweep



Cartridge Topcap Assemblies:

820-05-628-KIT Service Set: 2021 38 FIT4 Topcap Assy, Black Ano, 3 Pos Adj
820-05-629-KIT Service Set: 2021 38 FIT4 Topcap Assy, Remote, Black Ano, U-Cup, 2 Pos Adj, PTL
820-05-631-KIT Service Set: 2021 38 FIT4 Topcap Assy, Remote, Black Ano, U-Cup, 3 Pos Adj, PTL
820-05-632-KIT Service Set: 2021 38 180 MAX, Grip, Topcap Assy
820-05-633-KIT Service Set: 2021 38 180 MAX, Grip, Remote, Topcap Assy
820-05-665-KIT Service Set: 2021 38 Grip2 VVC TPP Damper, Topcap Assy



Damper Topcap Interface Parts:

820-05-330-KIT Service Set: 2016 FIT4 TopCap Interface Parts F-S
820-05-456-KIT Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock
820-05-623-KIT Service Set: 2020 Grip 34, 36 & 38  P-S Topcap Interface Parts
820-05-611-KIT Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts
820-05-669-KIT Service Set: 2021 Grip2 VVC HSC / LSC Topcap Interface Parts
820-05-670-KIT Service Set: 2021 Grip2 VVC HSC / LSC Topcap Interface Parts, Black Ano
820-05-707-KIT Service Set: 2023 Rhythm 38 Grip Sweep Topcap Interface Parts



Remotes and Accessories:

820-07-168 Remote Assembly, 2022 Suspension Remote, 3-POS, 22.2, Dual Cable
820-07-169 Remote Assembly, 2022 Suspension Remote, 2-POS, 22.2, Dual Cable
820-07-129-KIT Service Set: 2022 I-SPEC-EV Remote Adaptor Assembly for 2022 Forks/Shock Remotes
825-05-006-KIT Service Set: 22.2 Remote Band Clamp Assy, For: 2022 Fork/Shock Remotes and 2021 1x Transfer Remotes



Damper Bottom Stud Interface Parts:

820-05-377-KIT Service Set: 2016 FIT4 Bottom Stud Interface Parts 36, 38 and 40
820-05-518-KIT Service Set: 2019 36 Grip Bottom Stud Interface Parts
820-05-501-KIT Service Set: 2019 Grip2 HSR / LSR Bottom Stud Interface Parts



Damper Shaft Assemblies:

820-03-568-KIT Service Set: 2019 36 180 MAX, Grip Damper Shaft Assy
820-03-573-KIT Service Set: 2019 36 180, Grip2 HSR, 2-Piece Damper Shaft Assy
820-03-606-KIT Service Set: 2020 36 FIT4 8mm Damper Shaft Assy



FLOAT NA2 Air Shaft Assemblies:

820-02-568-KIT Service Set: Air Shaft Assy, 2021, 38, 180mm, FLOAT NA 2, Inner Air Sleeve, 1.214 Bore
820-02-569-KIT Service Set: Air Shaft Assy, 2021, 38, 170mm, FLOAT NA 2, Inner Air Sleeve, 1.214 Bore
820-02-570-KIT Service Set: Air Shaft Assy, 2021, 38, 160mm, FLOAT NA 2, Inner Air Sleeve, 1.214 Bore
820-02-589-KIT Service Set: Air Shaft Assy, 2021, 38, 150mm, FLOAT NA 2, Inner Air Sleeve, 1.214 Bore
820-02-629-KIT Service Set: Air Shaft Assy, 2023 Rhythm 38, 180mm, 1.355 Bore
820-02-630-KIT Service Set: Air Shaft Assy, 2023 Rhythm 38, 170mm, 1.355 Bore
820-02-631-KIT Service Set: Air Shaft Assy, 2023 Rhythm 38, 160mm, 1.355 Bore
820-02-632-KIT Service Set: Air Shaft Assy, 2023 Rhythm 38, 150mm, 1.355 Bore



FLOAT NA2 Topcap Assemblies:

820-05-627-KIT Service Set: Topcap Assy, 2021 38, FLOAT NA2, Black
234-04-554 (T) Spring Hardware: 2021 38 FLOAT Air Topcap, Al, Blue Ano
234-04-555 (T) Spring Hardware: 2021 38 FLOAT Air Topcap, Al, Black Ano



FLOAT NA2 Neg Plate Subassemblies:

820-02-567-KIT Service Set: Neg Plate Assy, 2021 38, Inner Air Sleeve, 1.214 Bore
820-02-617-KIT Service Set: Neg Plate Subassembly, 2023 Rhythm 38, 1.355 Bore

2022 38 FIT4

2022 38 FIT4 REMOTE

2022 38 GRIP

2022 38 GRIP REMOTE

2022 38 GRIP2

2022 38 FLOAT NA2

2023 38 RHYTHM FLOAT NA2

2022 38 FIT4

img/help/page2804-UAY3/820-18-325-KITu-m.jpg

820-18-325-KIT 2021 38 180 Max FIT4, Complete, Black Ano, 3 Pos Adj

img/help/page2804-UAY3/820-18-325-KITu.jpg
back to top

img/help/page2804-UAY3/2021-38-180-MAX-FIT4-CART-ASSY-BLACK-ANO-3-POS-ADJ-m.jpg

2021 38 180 MAX FIT4 CART ASSY BLACK ANO 3POS ADJ .

img/help/page2804-UAY3/2021-38-180-MAX-FIT4-CART-ASSY-BLACK-ANO-3-POS-ADJ.jpg
back to top

img/help/page2804-UAY3/820-05-628-KIT-m.jpg

820-05-628-KIT 2021 38 FIT4 Topcap Assy, Black Ano, 3 Pos Adj

img/help/page2804-UAY3/820-05-628-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-627-KIT-m.jpg

820-03-627-KIT 2021 38 FIT4 8mm, Bladder Assy

img/help/page2804-UAY3/820-03-627-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-613-KIT-m.jpg

820-03-613-KIT 2020 FIT4 Compression Valving Assy, 8mm Shaft

img/help/page2804-UAY3/820-03-613-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-610-KIT-m.jpg

820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft

img/help/page2804-UAY3/820-03-610-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-606-KIT-m.jpg

820-03-606-KIT 2020 36 FIT4 8mm Damper Shaft Assy

img/help/page2804-UAY3/820-03-606-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-258-KIT-m.jpg

820-03-258-KIT 2017 FIT4 Lightweight Top Cap Parts

img/help/page2804-UAY3/820-03-258-KIT.jpg
back to top

2022 38 FIT4 REMOTE

img/help/page2804-UAY3/2021-38-FIT4-REMOTE-CARTRIDGE-ASSEMBLIES-COMPLETEu-m.jpg

2021 38 FIT4 REMOTE CARTRIDGE ASSEMBLIES COMPLETE .

img/help/page2804-UAY3/2021-38-FIT4-REMOTE-CARTRIDGE-ASSEMBLIES-COMPLETEu.jpg
back to top

img/help/page2804-UAY3/2021-38-FIT4-REMOTE-CARTRIDGE-ASSEMBLIES-m.jpg

2021 38 FIT4 REMOTE CARTRIDGE ASSEMBLIES .

img/help/page2804-UAY3/2021-38-FIT4-REMOTE-CARTRIDGE-ASSEMBLIES.jpg
back to top

img/help/page2804-UAY3/2021-38-FIT4-REMOTE-TOPCAP-PARTS-m.jpg

2021 38 FIT4 REMOTE TOPCAP PARTS .

img/help/page2804-UAY3/2021-38-FIT4-REMOTE-TOPCAP-PARTS.jpg
back to top

img/help/page2804-UAY3/2021-38-FIT4-REMOTE-TOPCAP-ASSEMBLIES-m.jpg

2021 38 FIT4 REMOTE TOPCAP ASSEMBLIES .

img/help/page2804-UAY3/2021-38-FIT4-REMOTE-TOPCAP-ASSEMBLIES.jpg
back to top

img/help/page2804-UAY3/820-03-627-KIT1-m.jpg

820-03-627-KIT 2021 38 FIT4 8mm, Bladder Assy

img/help/page2804-UAY3/820-03-627-KIT1.jpg
back to top

img/help/page2804-UAY3/820-03-613-KIT1-m.jpg

820-03-613-KIT 2020 FIT4 Compression Valving Assy, 8mm Shaft

img/help/page2804-UAY3/820-03-613-KIT1.jpg
back to top

img/help/page2804-UAY3/820-03-610-KIT1-m.jpg

820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft

img/help/page2804-UAY3/820-03-610-KIT1.jpg
back to top

img/help/page2804-UAY3/820-03-606-KIT1-m.jpg

820-03-606-KIT 2020 36 FIT4 8mm Damper Shaft Assy

img/help/page2804-UAY3/820-03-606-KIT1.jpg
back to top

2022 38 GRIP

img/help/page2804-UAY3/820-18-329-KIT-m.jpg

820-18-329-KIT 2021 38 180 MAX, Grip, Complete, Black Ano, 3 Pos

img/help/page2804-UAY3/820-18-329-KIT.jpg
back to top

img/help/page2804-UAY3/2021-38-180-MAX-GRIP-CART-ASSY-m.jpg

2021 38 180 MAX GRIP CART ASSY .

img/help/page2804-UAY3/2021-38-180-MAX-GRIP-CART-ASSY.jpg
back to top

img/help/page2804-UAY3/820-05-632-KIT-m.jpg

820-05-632-KIT 2021 38 180 MAX, Grip, Topcap Assy

img/help/page2804-UAY3/820-05-632-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-568-KIT-m.jpg

820-03-568-KIT 2019 36 180 MAX, Grip Damper Shaft Assy

img/help/page2804-UAY3/820-03-568-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-457-KIT3-m.jpg

820-03-457-KIT 2017 Grip Rebound Valving, Long Travel

img/help/page2804-UAY3/820-03-457-KIT3.jpg
back to top

img/help/page2804-UAY3/820-03-331-KIT-m.jpg

820-03-331-KIT 2017 Grip Compression Valving

img/help/page2804-UAY3/820-03-331-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-330-KIT3-m.jpg

820-03-330-KIT 2017 Grip Rebound Piston Assy

img/help/page2804-UAY3/820-03-330-KIT3.jpg
back to top

2022 38 GRIP REMOTE

img/help/page2804-UAY3/820-18-331-KIT-m.jpg

820-18-331-KIT 2021 38 180 MAX, Grip, Remote, Complete, Black Ano, PTL

img/help/page2804-UAY3/820-18-331-KIT.jpg
back to top

img/help/page2804-UAY3/2021-38-180-MAX-GRIP-REMOTE-CART-ASSY-m.jpg

2021 38 180 MAX GRIP REMOTE CART ASSY .

img/help/page2804-UAY3/2021-38-180-MAX-GRIP-REMOTE-CART-ASSY.jpg
back to top

img/help/page2804-UAY3/820-05-633-KIT4-m.jpg

820-05-633-KIT 2021 38 180 MAX, Grip, Remote, Topcap Assy

img/help/page2804-UAY3/820-05-633-KIT4.jpg
back to top

img/help/page2804-UAY3/820-03-616-KIT-m.jpg

820-03-616-KIT 2020 Grip Remote Compression Valving

img/help/page2804-UAY3/820-03-616-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-568-KIT4-m.jpg

820-03-568-KIT 2019 36 180 MAX, Grip Damper Shaft Assy

img/help/page2804-UAY3/820-03-568-KIT4.jpg
back to top

img/help/page2804-UAY3/820-03-457-KIT4-m.jpg

820-03-457-KIT 2017 Grip Rebound Valving, Long Travel

img/help/page2804-UAY3/820-03-457-KIT4.jpg
back to top

img/help/page2804-UAY3/820-03-330-KIT4-m.jpg

820-03-330-KIT 2017 Grip Rebound Piston Assy

img/help/page2804-UAY3/820-03-330-KIT4.jpg
back to top

2022 38 GRIP2

img/help/page2804-UAY3/2021-38-180-GRIP2-VVC-HSR-LSR-HSC-LSC-Cart-Assys-Completeu-m.jpg

2021 38 180 GRIP2 VVC HSR/LSR/HSC/LSC CART ASSYS COMPLETE .

img/help/page2804-UAY3/2021-38-180-GRIP2-VVC-HSR-LSR-HSC-LSC-Cart-Assys-Completeu.jpg
back to top

img/help/page2804-UAY3/2021-38-180-GRIP2-VVC-HSR&LSR&HSC&LSC-CART-ASSYs-m.jpg

2021 38 180 GRIP2 VVC HSR/LSR/HSC/LSC CART ASSY .

img/help/page2804-UAY3/2021-38-180-GRIP2-VVC-HSR&LSR&HSC&LSC-CART-ASSYs.jpg
back to top

img/help/page2804-UAY3/2021-GRIP2-VVC-HSR&LSR-Rebound-Piston-Assemblies-m.jpg

2021 GRIP2 VVC HSR/LSR REBOUND PISTON ASSEMBLIES .

img/help/page2804-UAY3/2021-GRIP2-VVC-HSR&LSR-Rebound-Piston-Assemblies.jpg
back to top

img/help/page2804-UAY3/2021-36-VVC-HSR&LSR-DAMPER-SHAFT-ASSEMBLIES-m.jpg

2021 36 VVC HSR/LSR DAMPER SHAFT ASSEMBLIES .

img/help/page2804-UAY3/2021-36-VVC-HSR&LSR-DAMPER-SHAFT-ASSEMBLIES.jpg
back to top

img/help/page2804-UAY3/820-05-665-KIT-1-m.jpg

820-05-665-KIT 2021 38 Grip2 VVC TPP Damper, Topcap Assy

img/help/page2804-UAY3/820-05-665-KIT-1.jpg
img/help/page2804-UAY3/820-05-665-KIT-2.jpg
img/help/page2804-UAY3/820-05-665-KIT-3.jpg
back to top

img/help/page2804-UAY3/820-03-660-KIT-m.jpg

820-03-660-KIT 2021 Grip2 VVC TTP Compression Valving

img/help/page2804-UAY3/820-03-660-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-642-KIT-m.jpg

820-03-642-KIT 2020 Grip2 Rebound Valving, Light

img/help/page2804-UAY3/820-03-642-KIT.jpg
back to top

img/help/page2804-UAY3/820-03-526-KIT-m.jpg

820-03-526-KIT 2019 Grip2 Rebound Valving, Long Travel

img/help/page2804-UAY3/820-03-526-KIT.jpg
back to top

2022 38 FLOAT NA2

img/help/page2804-UAY3/2021-38-FLOAT-NA2-AIR-SPRING-ASSEMBLIES-m.jpg

2021 38 FLOAT NA2 AIR SPRING ASSEMBLIES .

img/help/page2804-UAY3/2021-38-FLOAT-NA2-AIR-SPRING-ASSEMBLIES.jpg
back to top

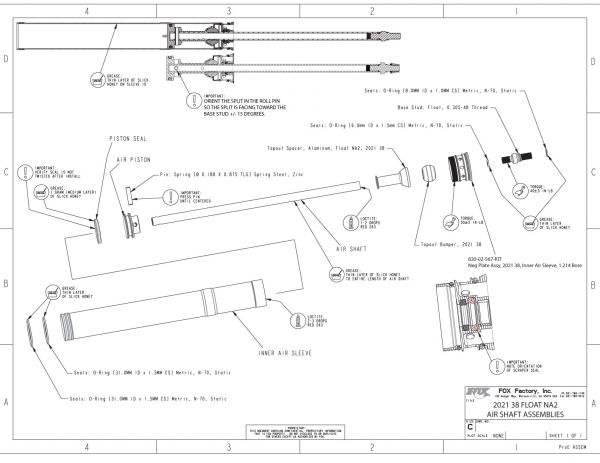

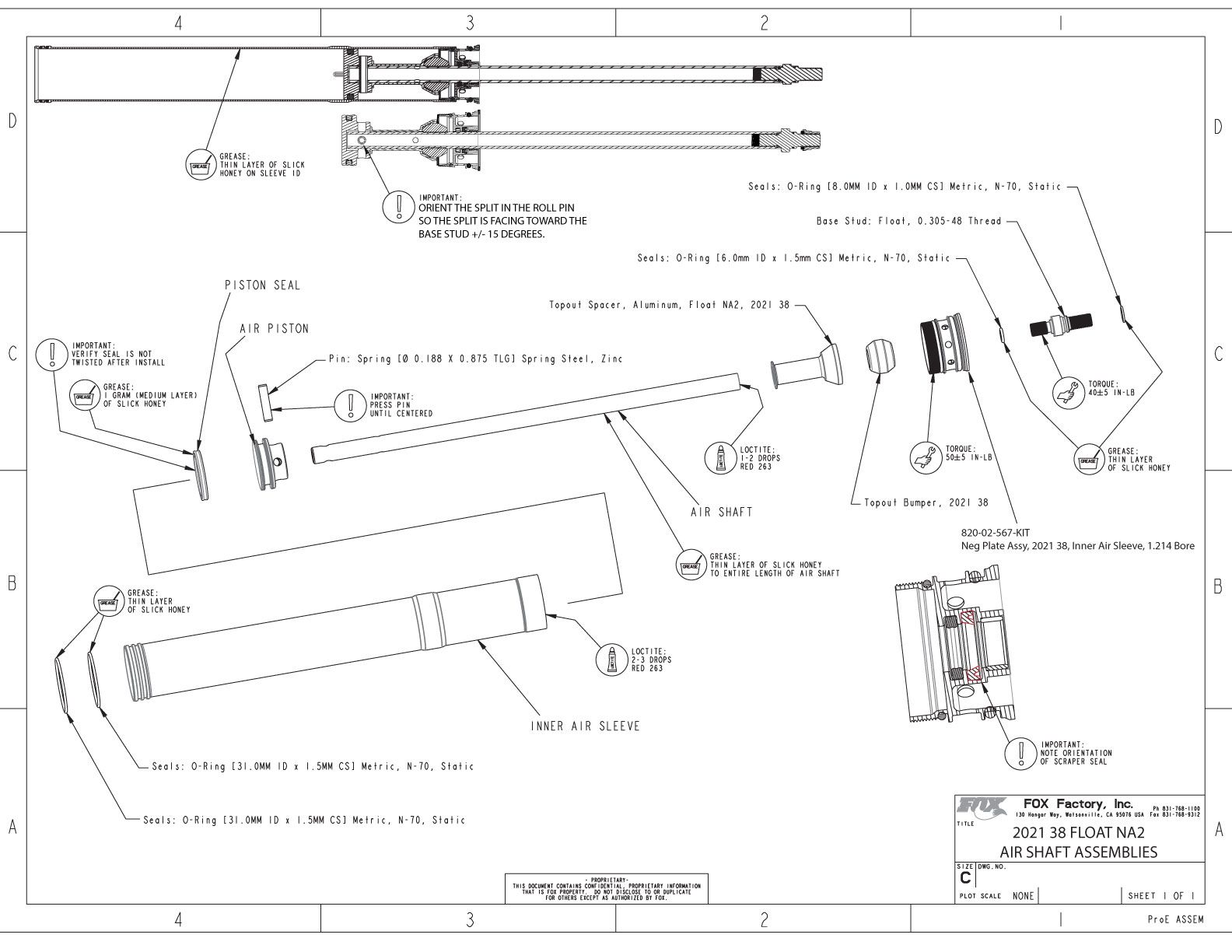

img/help/page2804-UAY3/2021-38-FLOAT-NA2-AIR-SHAFT-ASSEMBLIES-m.jpg

2021 38 FLOAT NA2 AIR SHAFT ASSEMBLIES .

img/help/page2804-UAY3/2021-38-FLOAT-NA2-AIR-SHAFT-ASSEMBLIES.jpg
back to top

img/help/page2804-UAY3/820-05-627-KIT-m.jpg

820-05-627-KIT Topcap Assy, 2021 38, FLOAT NA2, Black

img/help/page2804-UAY3/820-05-627-KIT.jpg
back to top

img/help/page2804-UAY3/820-02-567-KIT-m.jpg

820-02-567-KIT Neg Plate Assy, 2021 38, Inner Air Sleeve, 1.214 Bore

img/help/page2804-UAY3/820-02-567-KIT.jpg
back to top

2023 38 RHYTHM FLOAT NA2

img/help/page2804-UAY3/2023-38mm-Rhythm-Air-Spring-Assys-m.jpg

2023 38mm RHYTHM Air Spring Assys .

img/help/page2804-UAY3/2023-38mm-Rhythm-Air-Spring-Assys.jpg
back to top

img/help/page2804-UAY3/2023-38mm-Rhythm-Air-Shaft-Assys-m.jpg

2023 38mm RHYTHM Air Shaft Assys .

img/help/page2804-UAY3/2023-38mm-Rhythm-Air-Shaft-Assys.jpg
back to top

img/help/page2804-UAY3/820-02-617-KIT-m.jpg

820-02-617-KIT Neg Plate Subassembly, 2023 Rhythm 38, 1.355 Bore

img/help/page2804-UAY3/820-02-617-KIT.jpg
back to top

img/help/page2804-UAY3/820-05-627-KITr-m.jpg

820-05-627-KIT Topcap Assy, 2021 38, FLOAT NA2, Black

img/help/page2804-UAY3/820-05-627-KITr.jpg
back to top
