PARTS & DRAWINGS
FLOAT X CTD
Size Specific Parts
| Size | Shaft | Reservoir Body | Rebound Rod | Bearing Assm. | Hard Ano Body | Kashima Body | Hard Ano Air Sleeve Assm. | Kashima Air Sleeve Assm. |
| 9.500 x 3.000 | 229-44-004 | 227-09-026 | 210-90-004 | 812-06-046-KIT | 204-54-014 | 207-50-014 | 806-29-207-KIT | 806-29-177-KIT |
| 8.750 x 2.500 | 229-44-002 | 227-09-026 | 210-90-002 | 812-06-046-KIT | 204-54-012 | 207-50-012 | 806-29-206-KIT | 806-29-176-KIT |
| 8.500 x 2.500 | 229-44-002 | 227-09-026 | 210-90-002 | 812-06-046-KIT | 204-54-013 | 207-50-013 | 806-29-206-KIT | 806-29-176-KIT |
| 7.875 x 2.250 | 229-44-001 | 227-09-026 | 210-90-001 | 812-06-046-KIT | 204-54-006 | 207-50-006 | 806-29-205-KIT | 806-29-175-KIT |
| 7.875 x 2.000 | 229-44-001 | 227-09-026 | 210-90-001 | 812-06-047-KIT | 204-54-006 | 207-50-006 | 806-29-205-KIT | 806-29-175-KIT |
| 7.500 x 2.000 | 229-44-000 | 227-09-026 | 210-90-000 | 812-06-046-KIT | 204-54-011 | 207-50-011 | 806-29-204-KIT | 806-29-174-KIT |
| Tools & Tuning | |
| 803-00-823 | Tooling: Shaft Clamps Float X Adj. Cartridge |
| 803-00-826 | Seal Kit: Float X Shock Rebuild |
| 803-00-827 | KIT: Float X, Air Spring Volume Tuning Kit |
| 803-00-472 | KIT: Fill Machine Adapter, FLOAT X, Pre 2007 Remote IV/Brain Fade |
| Eyelet Assm. | |
| 808-17-160-KIT | Eyelet Assy: 2014 Float X CTD-Adj |
| 808-17-161-KIT | Eyelet Assy: 2014 Float X CTD Remote |
| Valving Assm. | |
| 807-72-150-KIT | Valving Assy: 2014 Float X CTD, CM, RTM |
| 807-72-151-KIT | Valving Assy: 2014 Float X CTD, CM, RTL |
| 807-72-152-KIT | Valving Assy: 2014 Float X CTD, CF, RTM |
| 807-72-200-KIT | Valving Assy: 2014 Float X CTD, ECFXCF, RTM |
| Air Volume Spacer | |
| 233-00-197 | Volume Spacer: 2014 Float X LV 1.02in^3 Plastic |
| 233-00-193 | Volume Spacer: 2014 Float X LV 0.2in^3 Plastic |
| 233-00-194 | Volume Spacer: 2014 Float X LV 0.4in^3 Plastic |
| 233-00-195 | Volume Spacer: 2014 Float X LV 0.6in^3 Plastic |
| 233-00-196 | Volume Spacer: 2014 Float X LV 0.86in^3 Plastic |
| Decal | |
| 024-02-496 | Decal: 2014 Float X CTD, LV, (No Gold) |
| 024-02-495 | Decal: 2014 Float X CTD, LV, Gold |
| 024-02-494 | Decal: 2014 Float X CTD, Reservoir |
| 024-02-493 | Decal: 2014 Float X CTD, Reservoir, Remote |
| IFP | |
| IFP Pressure | 150psi |
| IFP Height | 1.35in |
Assembly Drawing: 2014 FLOAT X CTD
Eyelet Assy: 2014 FLOAT X CTD
- 808-17-160-KIT Eyelet Assy: 2014 FLOAT X CTD-Adj

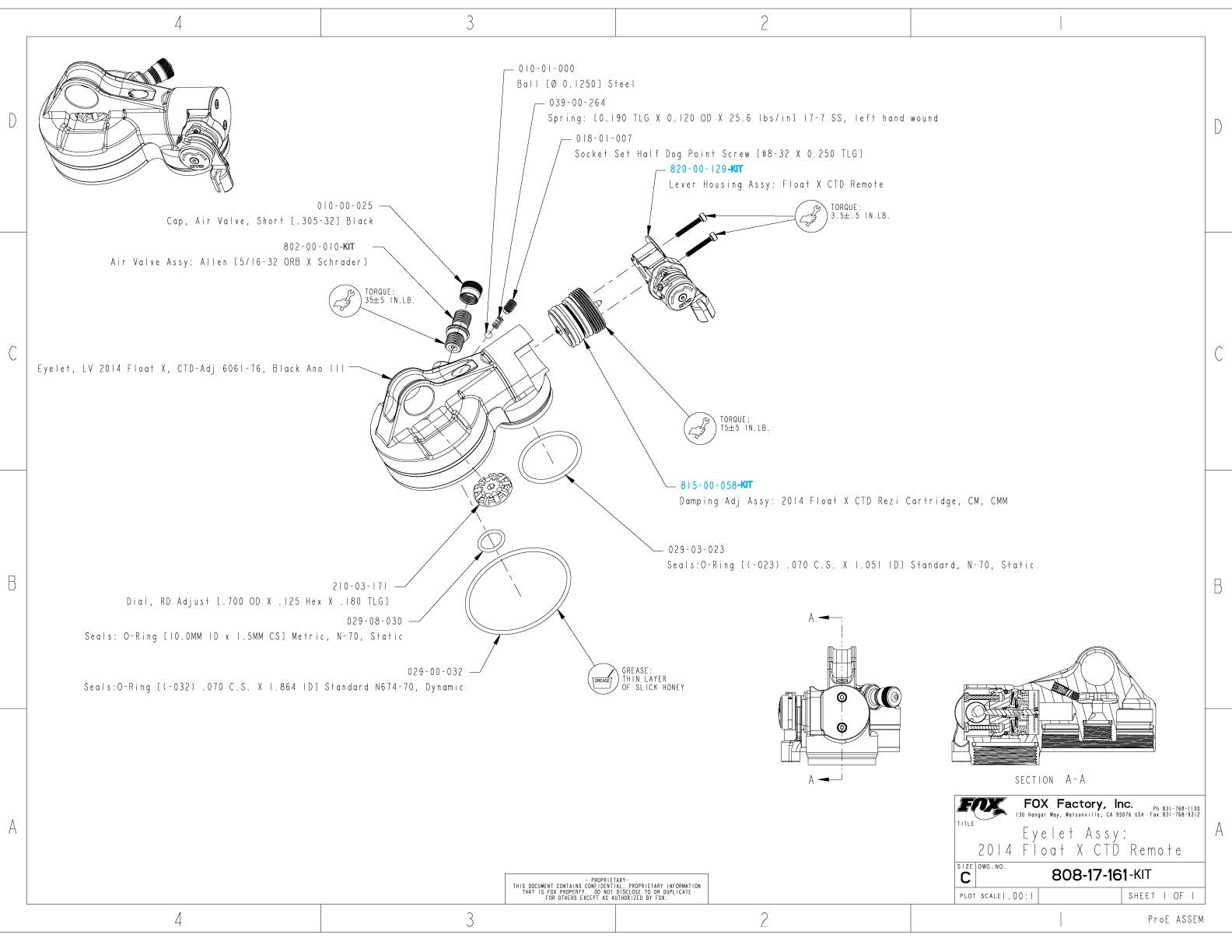

- 808-17-161-KIT Eyelet Assy: 2014 FLOAT X CTD Remote
Lever Housing Assy: 2014 FLOAT X CTD
- 820-00-129-KIT Lever Housing Assy: 2014 FLOAT X CTD Remote
- 820-00-289-KIT Lever housing Assy: 2014 FLOAT X CTD-Adj
Damping Adj Assy: 2014 FLOAT X CTD Rezi Cartridge
- 815-00-058-KIT Damping Adj Assy: 2014 FLOAT X CTD Rezi Cartridge
Valving Assy: 2014 FLOAT X CTD
- 807-72-150-KIT Valving Assy: 2014 Float X CTD, CM, RTM

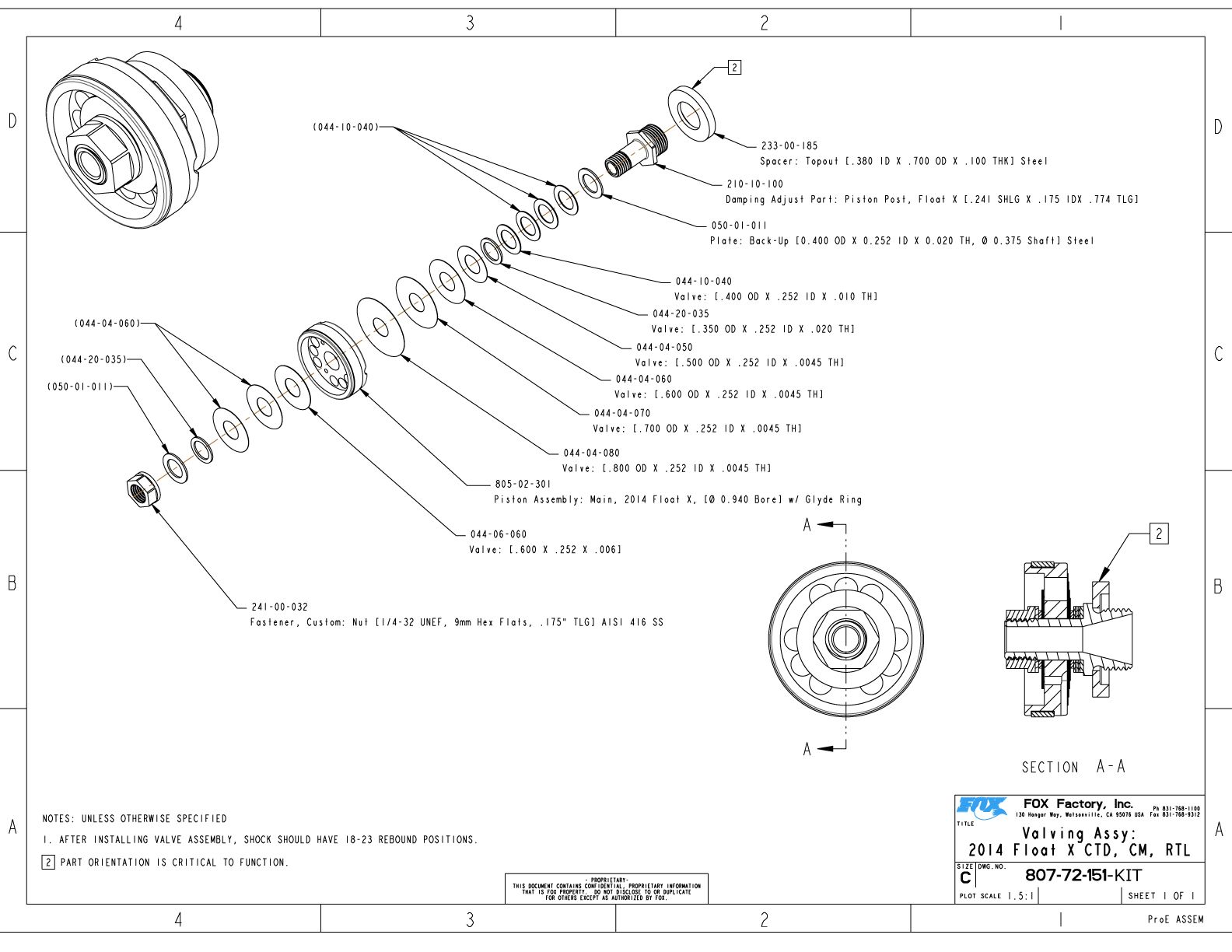

- 807-72-151-KIT Valving Assy: 2014 Float X CTD, CM, RTL

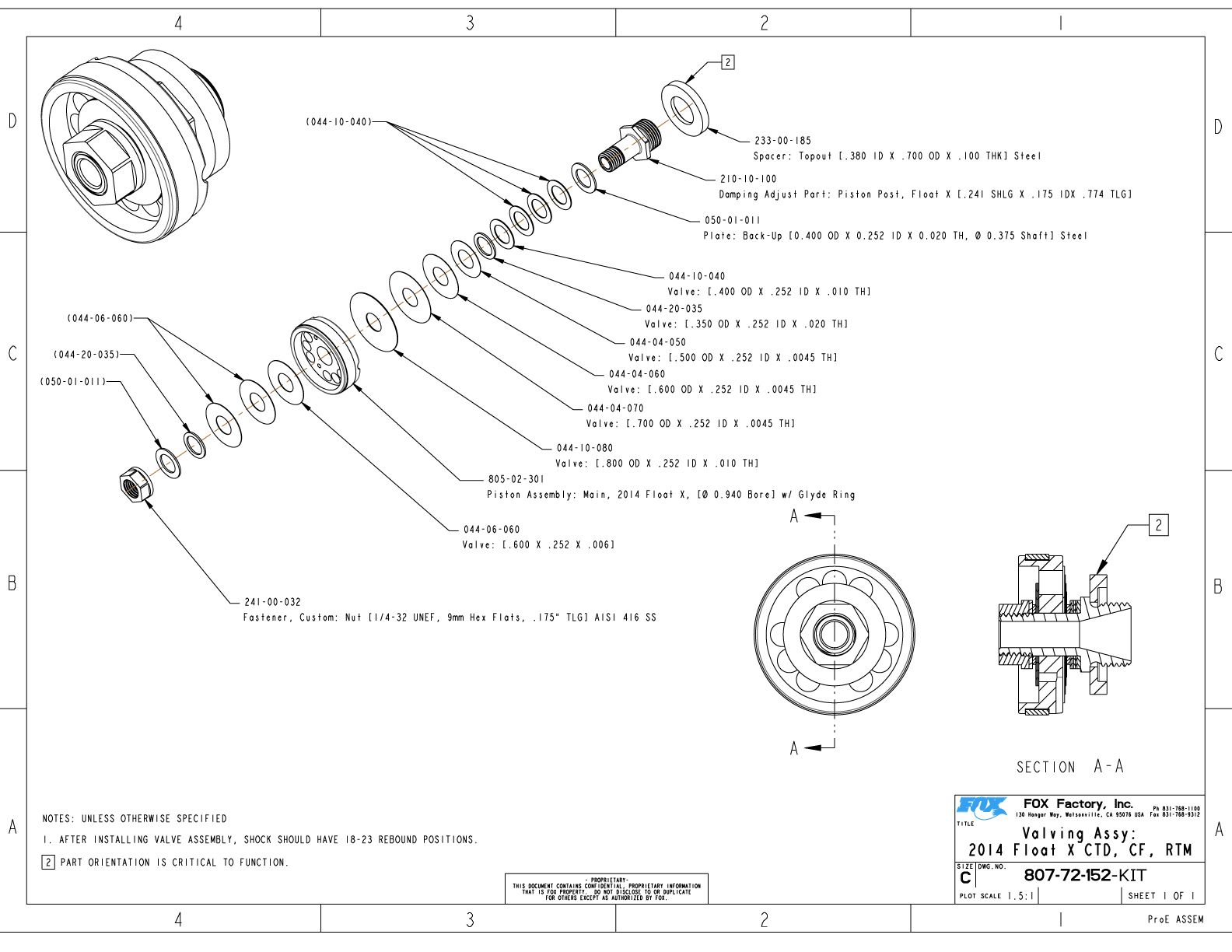

- 807-72-152-KIT Valving Assy: 2014 Float X CTD, CF, RTM

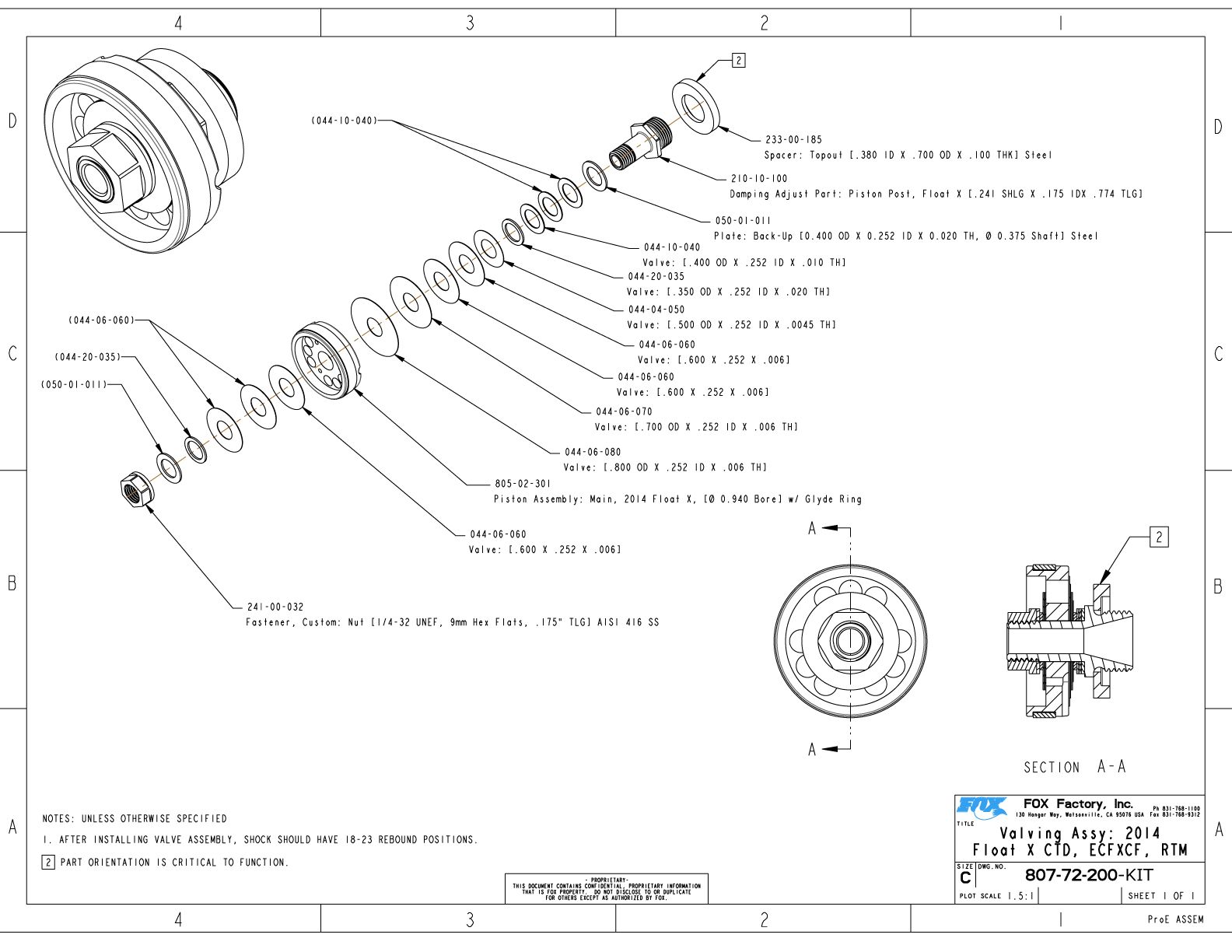

- 807-72-200-KIT Valving Assy: 2014 Float X CTD, ECFXCF, RTM
