PARTS & DRAWINGS

FORK- 2014 36mm 160 TALAS 5

Complete TALAS 5 Assemblies

 Part  Description
 820-01-361-KIT  Service Set: TALAS 5, 36, 160, Cartridge Assembly Complete
 820-01-363-KIT  Service Set: Retrofit, TALAS 5, 36, 160, 2005-2010, Cartridge Assembly Complete

Cartridge Assembly: TALAS 5

Topcap Assembly: TALAS 5

Air Shaft Assembly: TALAS 5

Cartridge Assembly: TALAS 5

img/help/page159-ZH5n8U/36mm-26in.-160-TALAS-5-No-XV-Sleeve-Cartridge-Assembly-Complete-m.jpg
img/help/page159-ZH5n8U/36mm-26in.-160-TALAS-5-No-XV-Sleeve-Cartridge-Assembly-Complete.jpg
back to top

Topcap Assembly: TALAS 5

img/help/page159-ZH5n8U/36-160-topcap-assy-m.jpg

820-05-263-KIT 2014 36mm 160 TALAS 5 Topcap Assembly

img/help/page159-ZH5n8U/36-160-topcap-assy.jpg
back to top

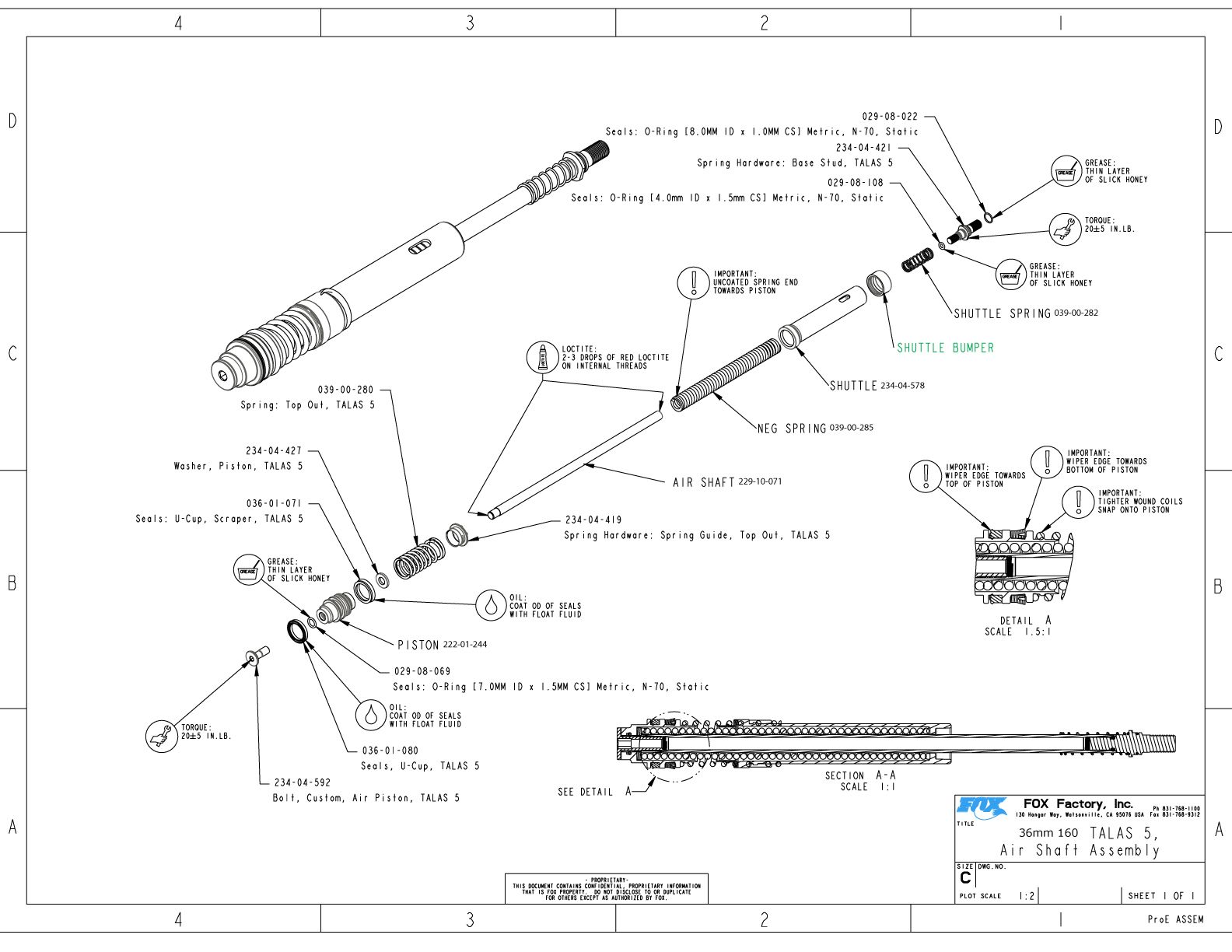

Air Shaft Assembly: TALAS 5

img/help/page159-ZH5n8U/36-160-air-shaft-assy-m.jpg
img/help/page159-ZH5n8U/36-160-air-shaft-assy.jpg
back to top
