PARTS & DRAWINGS

FLOAT DPX2 Part Information

New for 2021:

New Decals New design on all models



Maintenance:

Service Interval Full Service 125 Hours
803-00-142 Kit: Rebuild, FLOAT Line Air Sleeve, Special Q-Ring
803-04-011 Seal Kit: FLOAT DPX2 Rebuild, Gen2
398-00-761 Tooling: DPX2, REB Cap Driver
398-00-763 Tooling: DPX2, Base Valve Driver
398-00-764 Tooling: DPX2, Bullet Tool
398-00-792 Tooling: DPX2 Remote, Compression Cap Driver
803-01-351 Kit: Tooling: Clamps, DPS, DPX2, Piston Band Sizer



Air Spring Tuning:

Part Description
803-01-251 Kit: FLOAT FLOAT X/DPX2 (1/2" Shaft) Air Volume Tuning Kit



Oils:

Damper Oil* 025-06-006 Oil: Suspension Fluid [250 ml. ] R3, 5WT, ISO 15
025-06-007 Oil: Suspension Fluid [1.00 Quart] R3, 5WT, ISO 15
Air Chamber 025-03-002-A Oil: AM, FOX FLOAT Fluid [5 cc], Pillow Pack
025-03-003-A Oil: AM, FOX FLOAT Fluid [8 oz.]

*YT Bikes utilize FOX 10wt. Green oil (PN: 025-03-008) as the damper oil for DPX2 shocks.



IFP Information:

IFP Height 1.500in +/- 0.050in
IFP Pressure 150psi +/- 10psi



Size Specific Parts:

Shock Size Inner Shaft Outer Shaft Ano Sleeve/Low CR Ano Body Kashima Sleeve/Low CR  Kashima Body
7.25 x 1.75 in 210-24-300 229-10-620 806-29-587-KIT 204-54-209 806-29-597-KIT 207-50-009
7.5 x 2.0 in 210-24-300 229-10-620 806-29-585-KIT 204-54-211 806-29-595-KIT 207-50-011
7.875 x 2.0 in 210-24-301 229-10-621 806-29-589-KIT 204-54-206 806-29-599-KIT 207-50-006
7.875 x 2.25 in 210-24-301 229-10-621 806-29-589-KIT 204-54-206 806-29-599-KIT 207-50-006
8.5 x 2.5 in 210-24-302 229-10-622 806-29-583-KIT/806-29-680-KIT 204-54-213 806-29-593-KIT 207-50-013
165 x 42.5 mm 210-24-303 229-10-623 806-29-580-KIT 204-54-231 806-29-590-KIT 207-50-031
165 x 45 mm 210-24-303 229-10-623 806-29-580-KIT 204-54-231 806-29-590-KIT 207-50-031
185 x 50 mm 210-24-304 229-10-624 806-29-581-KIT 204-54-232 806-29-591-KIT 207-50-032
185 x 52.5 mm 210-24-304 229-10-624 806-29-581-KIT 204-54-232 806-29-591-KIT 207-50-032
185 x 55 mm 210-24-304 229-10-624 806-29-581-KIT 204-54-232 806-29-591-KIT 207-50-032
190 x 45 mm 210-24-303 229-10-623 806-29-600-KIT 204-54-236 806-29-610-KIT 207-50-036
205 x 60 mm 210-24-305 229-10-625 806-29-582-KIT 204-54-233 806-29-592-KIT 207-50-033
205 x 62.5 mm 210-24-305 229-10-625 806-29-582-KIT 204-54-233 806-29-592-KIT 207-50-033
205 x 65 mm 210-24-305 229-10-625 806-29-582-KIT 204-54-233 806-29-592-KIT 207-50-033
210 x 50 mm 210-24-304 229-10-624 806-29-601-KIT 204-54-237 806-29-611-KIT/806-29-723-KIT 207-50-037
210 x 52.5 mm 210-24-304 229-10-624 806-29-601-KIT 204-54-237 806-29-611-KIT/806-29-723-KIT 207-50-037
210 x 55 mm 210-24-304 229-10-624 806-29-601-KIT 204-54-237 806-29-611-KIT 207-50-037
230 x 60 mm 210-24-305 229-10-625 806-29-602-KIT/806-29-720-KIT 204-54-214 806-29-612-KIT 207-50-014
230 x 65 mm 210-24-305 229-10-625 806-29-602-KIT 204-54-214 806-29-612-KIT 207-50-014
250 x 70 mm 210-24-309 229-10-628 806-29-604-KIT 204-54-239 806-29-614-KIT 207-50-039
250 x 75 mm 210-24-309 229-10-628 806-29-604-KIT 204-54-239 806-29-614-KIT 207-50-039

*Note: 806-29-680-KIT, 806-29-720-KIT, and 806-29-723-KIT are low compression ratio sleeves and are specific to certain bike models. Please contact your FOX representative for further details.



Eyelet Assemblies:

Part Number  Description
808-17-350-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj
808-17-377-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, F-S, 3pos, Open Mode Adj, Trunnion
808-17-340-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos
808-17-376-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, P-S, 3pos, Trunnion
808-17-375-KIT Service Set: Eyelet Assy: FLOAT DPX2, Remote
808-17-393-KIT Service Set: Eyelet Assy: 2018 FLOAT DPX2, Remote, Trunnion
808-17-402-KIT Service Set: Eyelet Assy: 2019 FLOAT DPX2 Comp Adj, Trunnion

***NOTE: FLOAT DPX2 Eyelet Assemblies come without Base Valve Assemblies so you can choose the Base Valve Tune. Base Valve Assemblies must be ordered separately to assemble a complete eyelet***



Base Valve Assemblies:

Part Number Description
815-02-069-KIT Service Set: Damping Adj Assy: DPX2, Base Valve, F-S, AFF
815-02-084-KIT Service Set: Damping Adj Assy: DPX2, Base Valve, F-S, AFM
815-02-170-KIT Service Set: Damping Adj Assy: DPX2, Base Valve, F-S, AFM+
815-02-171-KIT Service Set: Damping Adj Assy: DPX2, Base Valve, P-S, LFF
815-02-085-KIT Service Set: Damping Adj Assy: DPX2, Base Valve, P-S, MFF
815-02-071-KIT Service Set: Damping Adj Assy: DPX2, Base Valve, P-S, MFM
815-02-182-KIT Service Set: Damping Adj Assy: DPX2, Base Valve, P-S, M+FM+
815-02-172-KIT Service Set: Damping Adj Assy: DPX2, Base Valve, P-S, LFM
815-02-067-KIT Service Set: Damping Adj Assy: DPX2 Remote, Base Valve, Push to Lock, M M+
815-02-174-KIT Service Set: Damping Adj Assy: DPX2 Remote, Base Valve, Push to Unlock, M M+
815-02-183-KIT Service Set: Damping Adj Assy: DPX2 Comp Adj, Base Valve, A M
815-02-177-KIT Service Set: Damping Adj Assy: DPX2 Remote, Base Valve, Push To Unlock, L+ F
815-02-190-KIT Service Set: Damping Adj Assy: 2020 DPX2, Base Valve, F-S, A2L+M+
815-02-191-KIT Service Set: Damping Adj Assy: 2020 DPX2, Base Valve, P-S, M2L+M+
815-02-192-KIT Service Set: Damping Adj Assy: 2020 DPX2, Base Valve, F-S, A2LL
815-02-195-KIT Service Set: Damping Adj Assy: 2020 DPX2, Base Valve, F-S, A2L-M+
815-02-198-KIT Service Set: Damping Adj Assy: 2020 DPX2, Base Valve, P-S, M2+LM+

***NOTE: DPX2 Base Valve Assemblies should be considered non-servicable and should be replaced if needed.***



Bearing Assemblies:

Part Number Description
812-06-090-KIT Service Set: Bearing Assy:  FLOAT, 2018, Tall [.940 Bore, 1.500 Bore, .500in Shaft]
812-06-089-KIT Service Set: Bearing Assy:  FLOAT, 2018, Short [.940 Bore, 1.500 Bore, .500in Shaft]
812-06-046-KIT Service Set: Bearing Assy, Black [.940 Bore, 1.500 Bore, .500 Shaft, .815 TLG]



Valving Assemblies:

Part Number Description
807-72-246-KIT Service Set: Valving Assy: 2019 DPX2, Linear Piston



Rebound Valve Stack Assemblies:

Part Number Description
805-05-350-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Light, DRL
805-05-351-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Medium, DRM
805-05-352-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Xtra-Light, DRXL
805-05-363-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Linear Rebound Firm, LRF
805-05-361-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Linear Rebound Light, LRL
805-05-362-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Linear Rebound Medium, LRM
805-05-360-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Linear Rebound Xtra-Light, LRXL
805-05-367-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, RLA014
805-05-368-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, RLA018
805-05-410-KIT Service Set: Valve Stack Assy: 2019 Float DPX2, RLA019
805-05-452-KIT Service Set: Valve Stack Assy: 2020 Float DPX2, LRM0001



Compression Valve Stack Assemblies:

Part Number Description

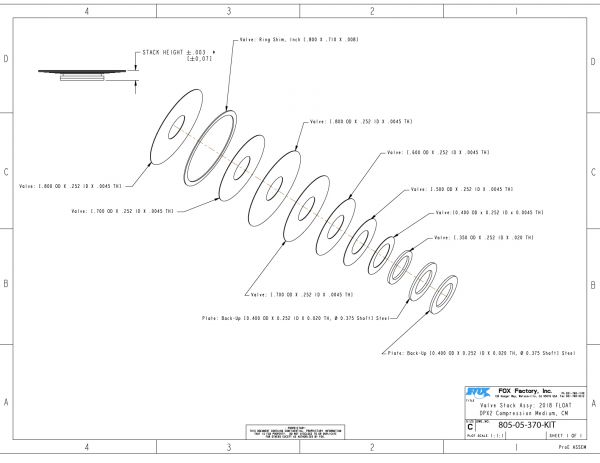

805-05-370-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Compression Medium, CM

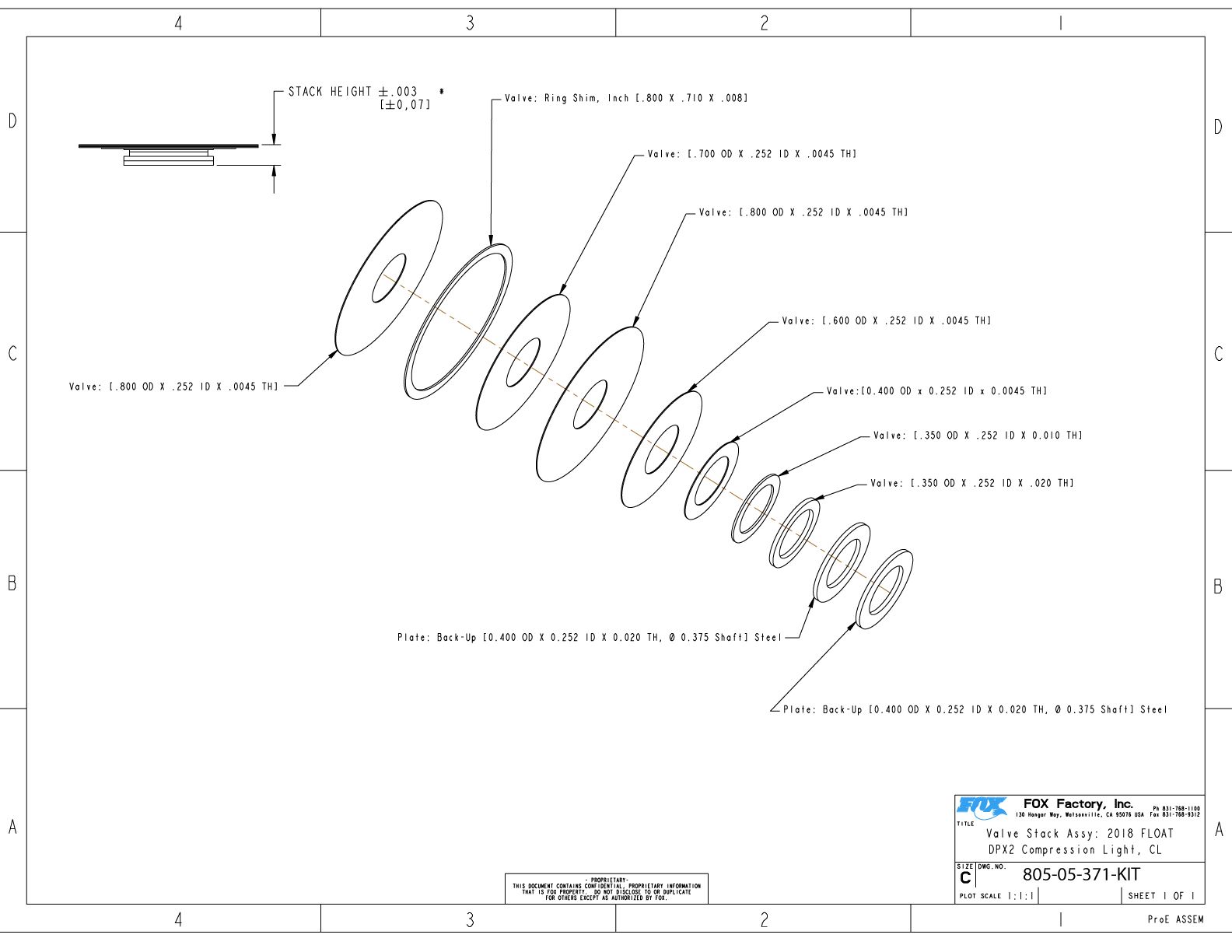

805-05-371-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, Compression Light, CL

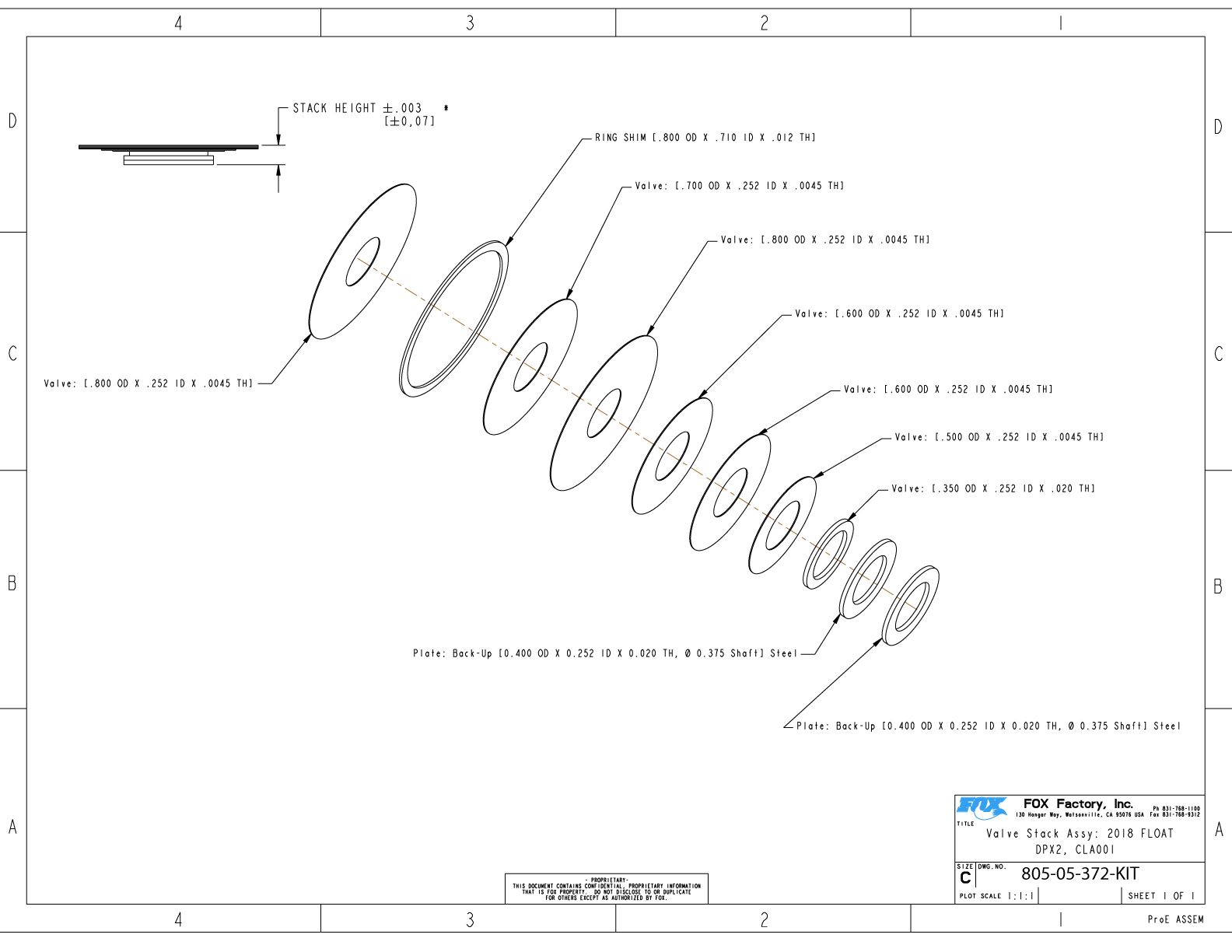

805-05-372-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, CLA001
805-05-373-KIT Service Set: Valve Stack Assy: 2018 Float DPX2, CEC001
805-05-376-KIT Service Set: Valve Stack Assy: 2019 Float DPX2, CDZ002
805-05-411-KIT Service Set: Valve Stack Assy: 2019 Float DPX2, CLA002

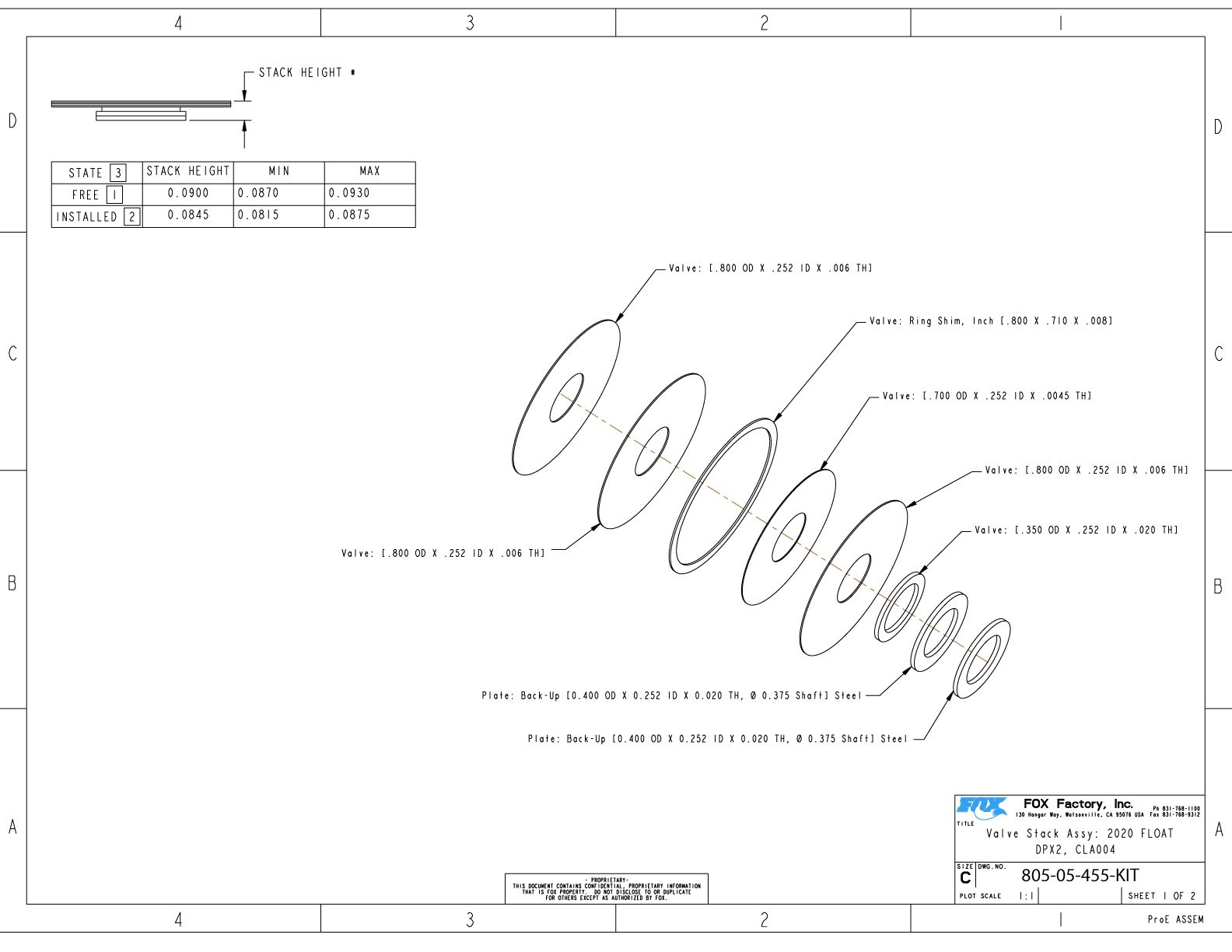

805-05-455-KIT Service Set: Valve Stack Assy: 2020 Float DPX2, CLA004
805-05-471-KIT Service Set: Valve Stack Assy: 2021 Float DPX2, CLH001



Decals:

PN Description
024-13-018 Decal: 2021 F-S, FLOAT DPX2, Airsleeve, Orange, (Evol=7.25+/165-230mm)
024-13-019 Decal: 2021 F-S, FLOAT DPX2, Airsleeve, Orange, Long, (Evol=250mm)
024-13-022 Decal: 2021 P-Elite, FLOAT DPX2, Airsleeve, (Evol=7.25+/165-230mm)
024-13-023 Decal: 2021 P-Elite, FLOAT DPX2, Airsleeve, Long, (Evol=250mm)
024-13-024 Decal: 2021 P-S, FLOAT DPX2, Airsleeve, (Evol=7.25+/165-230mm)
024-13-025 Decal: 2021 P-S, FLOAT DPX2, Airsleeve, Long (Evol=250mm)
024-13-026 Decal: 2021 FLOAT DPX2 Resy
024-12-202 Decal: 350 PSI Max Eyelet Decal, with Warning
024-13-039 Decal: 2021 EVOL, Shock Band



Negative Volume Spacers:

Part Number Description
233-00-321 Volume Spacer: Negative, 2018, FLOAT, EVOL, .12 c.i., Light Red
233-00-322 Volume Spacer: Negative, 2018, FLOAT, EVOL, .16 c.i., Green



Travel Spacers:

Part Number Description
233-00-270 Spacer: Metric Travel, Float X, 2.5mm
233-00-271 Spacer: Metric Travel, Float X, 5.0mm

ASSEMBLY DRAWINGS

EYELET SUBASSEMBLIES

BEARING ASSEMBLIES

  • 812-06-046-KIT Bearing Assembly: Black [.940 Bore, 1.500 Bore, .500 Shaft, .815 TLG]
  • 812-06-089-KIT Bearing Assy: FLOAT, 2018, Short [.940 Bore, 1.500 Bore, .500in Shaft]
  • 812-06-090-KIT Bearing Assy: FLOAT, 2018, Tall [.940 Bore, 1.500 Bore, .500in Shaft]

VALVING ASSEMBLIES

PISTON ASSEMBLIES

  • 805-00-078-KIT Piston Assembly: MY14 Floating w/ Bleed [1.070 Bore] Al 6061, Type III Clear Ano
  • 805-02-303-KIT Piston Assy: Damping, 2018 FLOAT DPX2

REBOUND VALVE STACK ASSEMBLIES

  • 805-05-350-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Light, DRL
  • 805-05-351-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Medium, DRM

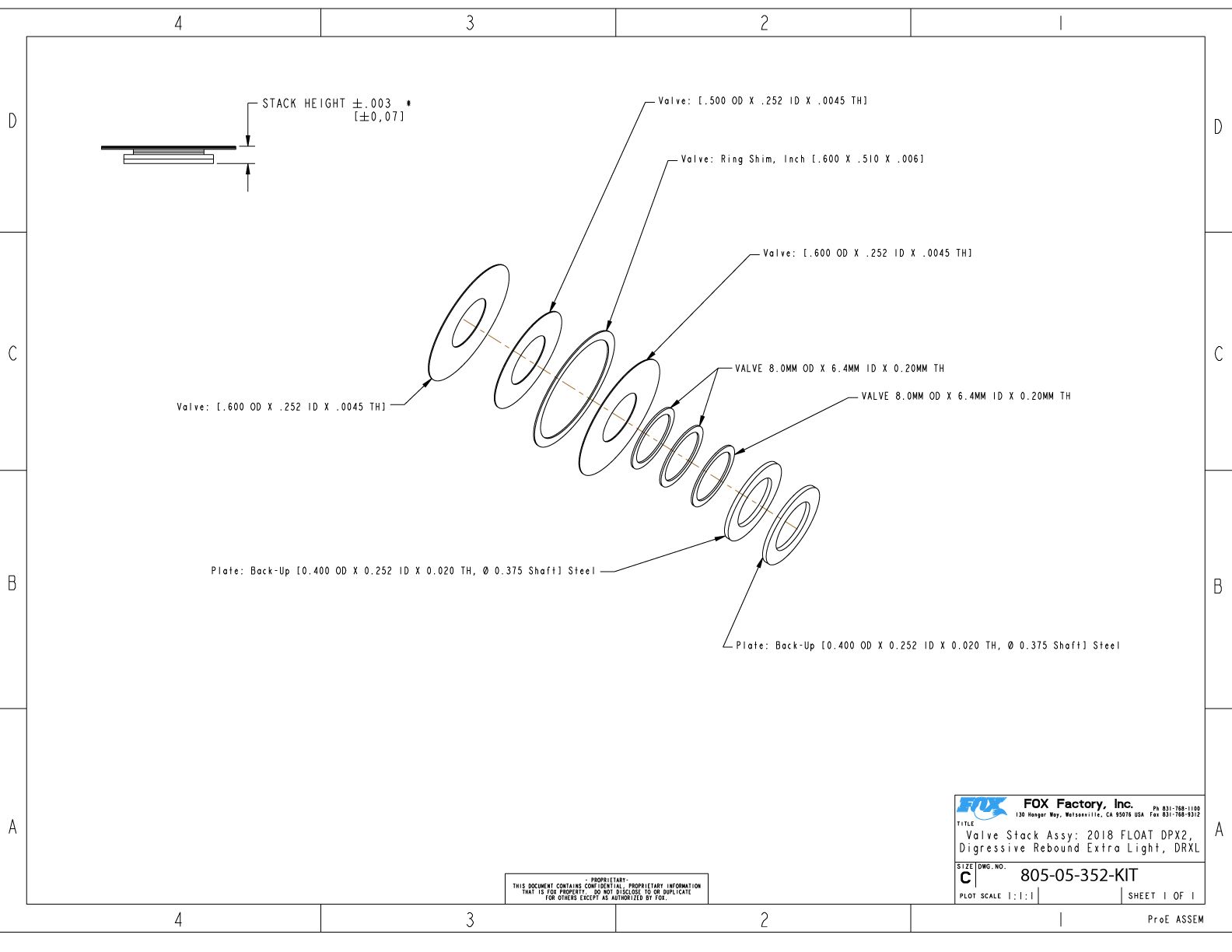

  • 805-05-352-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Xtra-Light, DRXL

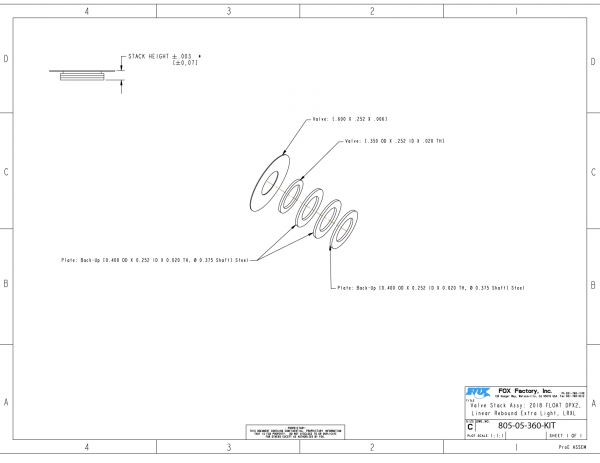

  • 805-05-360-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Xtra-Light, LRXL
  • 805-05-361-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Light, LRL

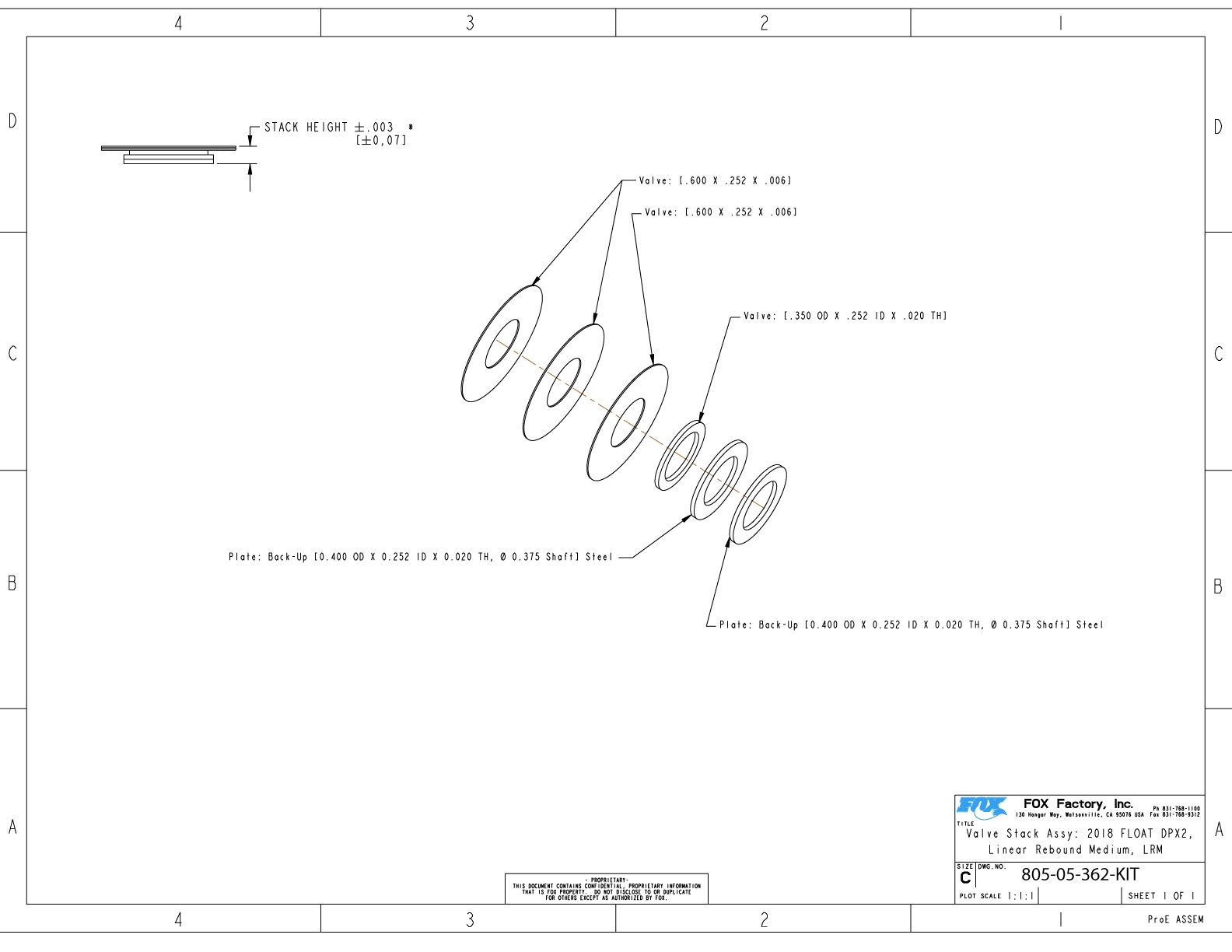

  • 805-05-362-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Medium, LRM

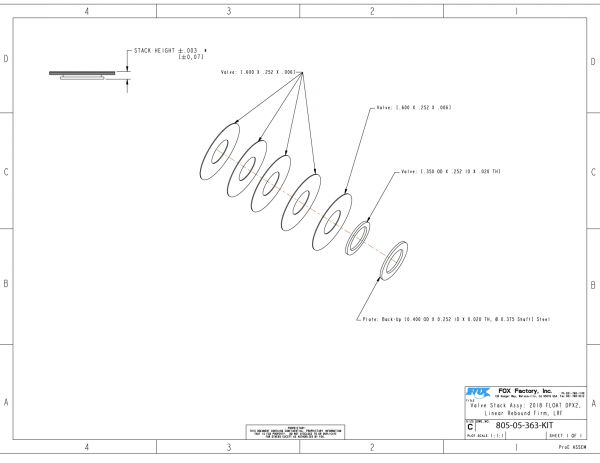

  • 805-05-363-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Firm, LRF
  • 805-05-367-KIT Valve Stack Assy: 2018 Float DPX2, RLA014
  • 805-05-368-KIT Valve Stack Assy: 2018 Float DPX2, RLA018

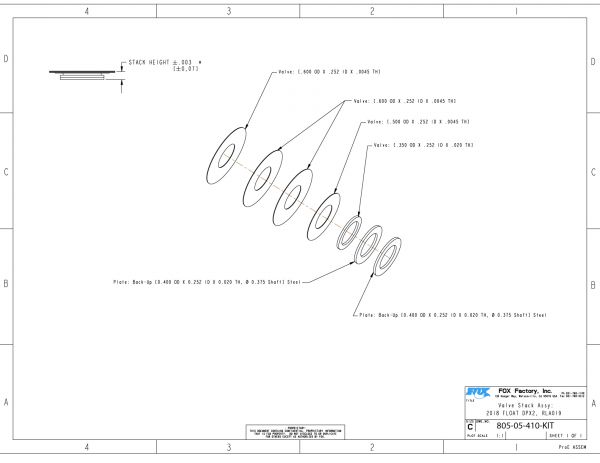

  • 805-05-410-KIT Valve Stack Assy: 2019 Float DPX2, RLA019
  • 805-05-452-KIT Valve Stack Assy: 2020 Float DPX2, LRM0001

COMPRESSION VALVE STACK ASSEMBLIES

NOTE: Parts without part numbers listed are not available individually and must be ordered as part of a complete assembly or "-KIT". Please order the "-KIT" part number listed at the bottom right corner of the drawing in which a desired individual part is shown.

ASSEMBLY DRAWINGS

img/help/page1074-4CAW/2021-FLOAT-DPX2-m.jpg

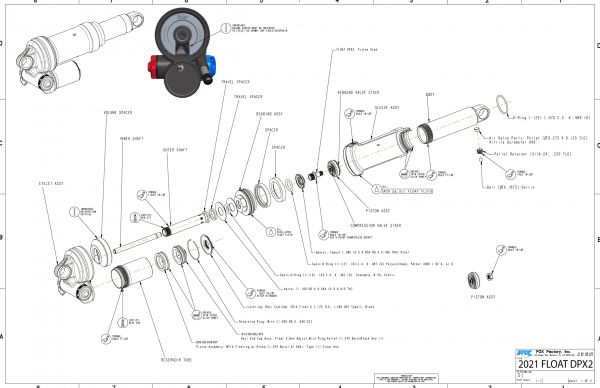

2021 FLOAT DPX2 .

img/help/page1074-4CAW/2021-FLOAT-DPX2.jpg
back to top

EYELET ASSEMBLIES

img/help/page1074-4CAW/2021-FLOAT-DPX2-F-S-3POS-ADJ-EYELETS-m.jpg

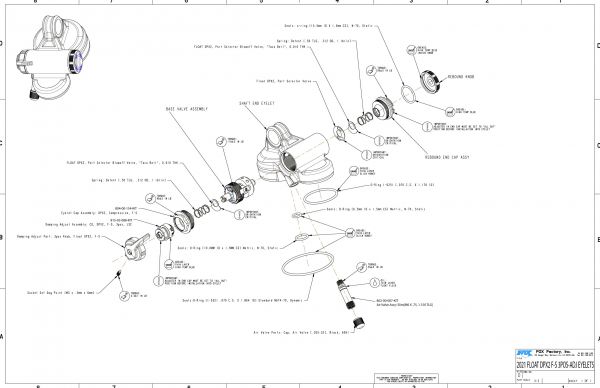

2021 FLOAT DPX2 F-S 3POS-ADJ EYELET ASSEMBLIES .

img/help/page1074-4CAW/2021-FLOAT-DPX2-F-S-3POS-ADJ-EYELETS.jpg
back to top

img/help/page1074-4CAW/2021-FLOAT-DPX2-P-S-3POS-EYELETS-m.jpg

2021 FLOAT DPX2 P-S 3POS EYELET ASSEMBLIES .

img/help/page1074-4CAW/2021-FLOAT-DPX2-P-S-3POS-EYELETS.jpg
back to top

img/help/page1074-4CAW/2021-FLOAT-DPX2-REMOTE-EYELETS-m.jpg

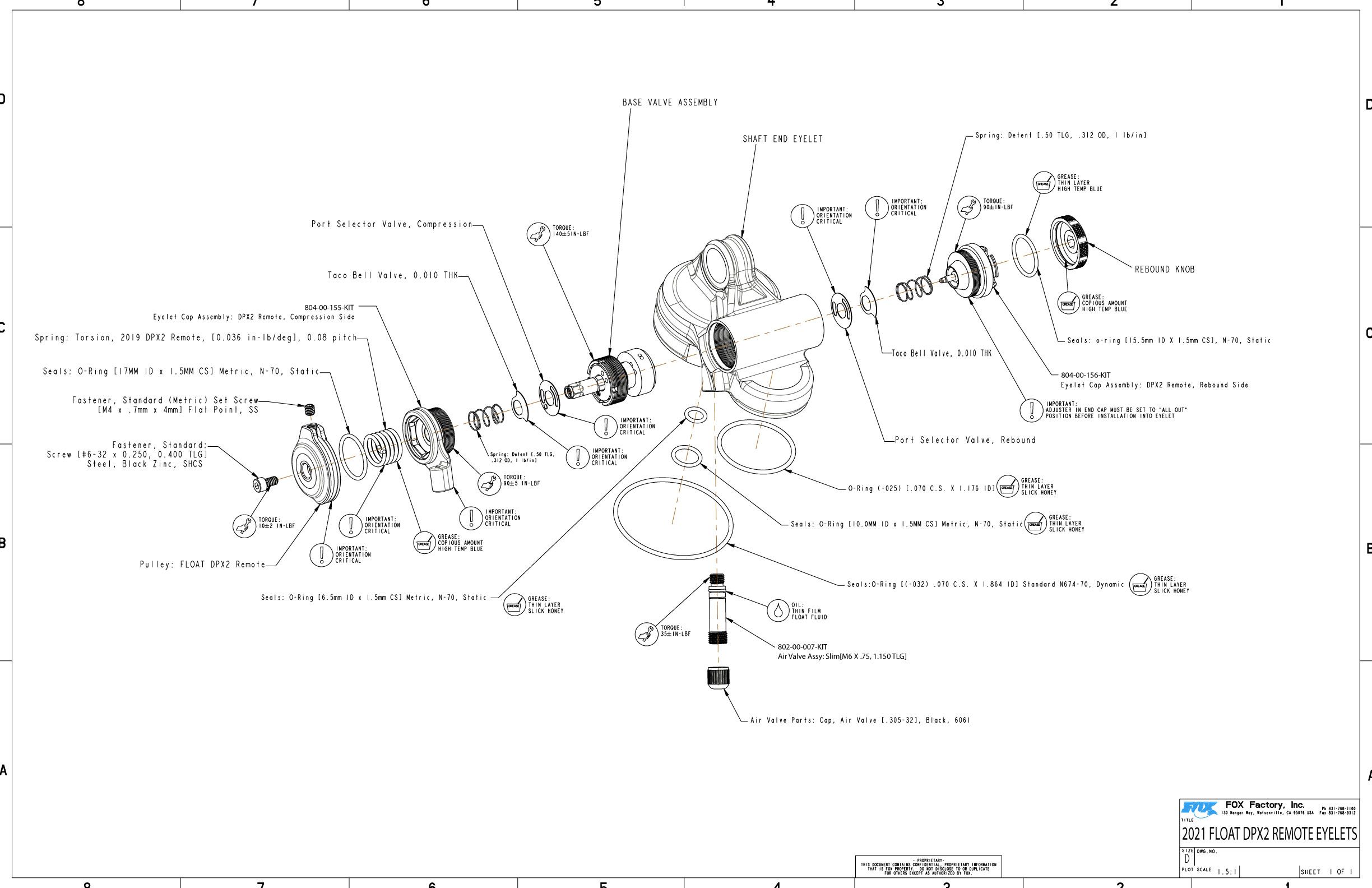

2021 FLOAT DPX2 REMOTE EYELET ASSEMBLIES .

img/help/page1074-4CAW/2021-FLOAT-DPX2-REMOTE-EYELETS.jpg
back to top

img/help/page1074-4CAW/808-17-402-KIT-m.jpg

808-17-402-KIT Eyelet Assy: 2019 FLOAT DPX2 Comp Adj, Trunnion

img/help/page1074-4CAW/808-17-402-KIT.jpg
back to top

EYELET SUBASSEMBLIES

img/help/page1074-4CAW/804-00-152-KIT-m.jpg

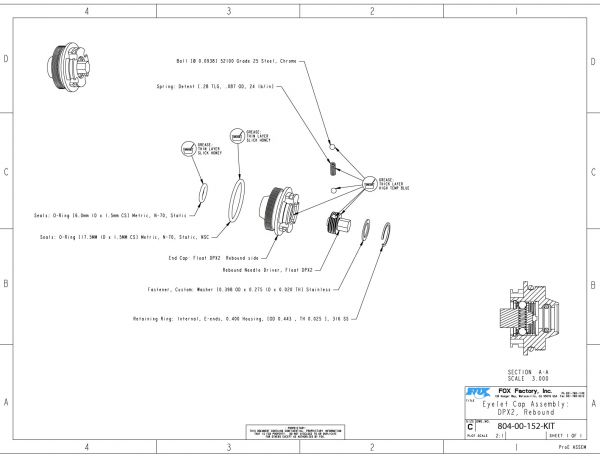

804-00-152-KIT Eyelet Cap Assembly: DPX2, Rebound

img/help/page1074-4CAW/804-00-152-KIT.jpg
back to top

img/help/page1074-4CAW/804-00-153-KIT-m.jpg

804-00-153-KIT Eyelet Cap Assembly: DPX2, Compression, P-S

img/help/page1074-4CAW/804-00-153-KIT.jpg
back to top

img/help/page1074-4CAW/804-00-154-KIT-m.jpg

804-00-154-KIT Eyelet Cap Assembly: DPX2, Compression, F-S

img/help/page1074-4CAW/804-00-154-KIT.jpg
back to top

img/help/page1074-4CAW/804-00-156-KIT-m.jpg

804-00-156-KIT Eyelet Cap Assembly: DPX2 Remote, Rebound Side

img/help/page1074-4CAW/804-00-156-KIT.jpg
back to top

img/help/page1074-4CAW/815-02-088-KIT-m.jpg

815-02-088-KIT Damping Adjust Assembly: CD, DPX2, F-S, Open Mode Adj

img/help/page1074-4CAW/815-02-088-KIT.jpg
back to top

img/help/page1074-4CAW/813-00-082-KIT-m.jpg

813-00-082-KIT Rezi End Cap Assy: Float X, Non Adjust, Wire Ring, Pellet [1.070 Bore, ] Black Ano III

img/help/page1074-4CAW/813-00-082-KIT.jpg
back to top

BEARING ASSEMBLIES

img/help/page1074-4CAW/812-06-046-KIT-m.jpg

812-06-046-KIT Bearing Assembly: Black [.940 Bore, 1.500 Bore, .500 Shaft, .815 TLG]

img/help/page1074-4CAW/812-06-046-KIT.jpg
back to top

img/help/page1074-4CAW/812-06-089-KIT-m.jpg

812-06-089-KIT Bearing Assy: FLOAT, 2018, Short [.940 Bore, 1.500 Bore, .500in Shaft]

img/help/page1074-4CAW/812-06-089-KIT.jpg
back to top

img/help/page1074-4CAW/812-06-090-KIT-m.jpg

812-06-090-KIT Bearing Assy: FLOAT, 2018, Tall [.940 Bore, 1.500 Bore, .500in Shaft]

img/help/page1074-4CAW/812-06-090-KIT.jpg
back to top

VALVING ASSEMBLIES

img/help/page1074-4CAW/807-72-246-KIT-m.jpg

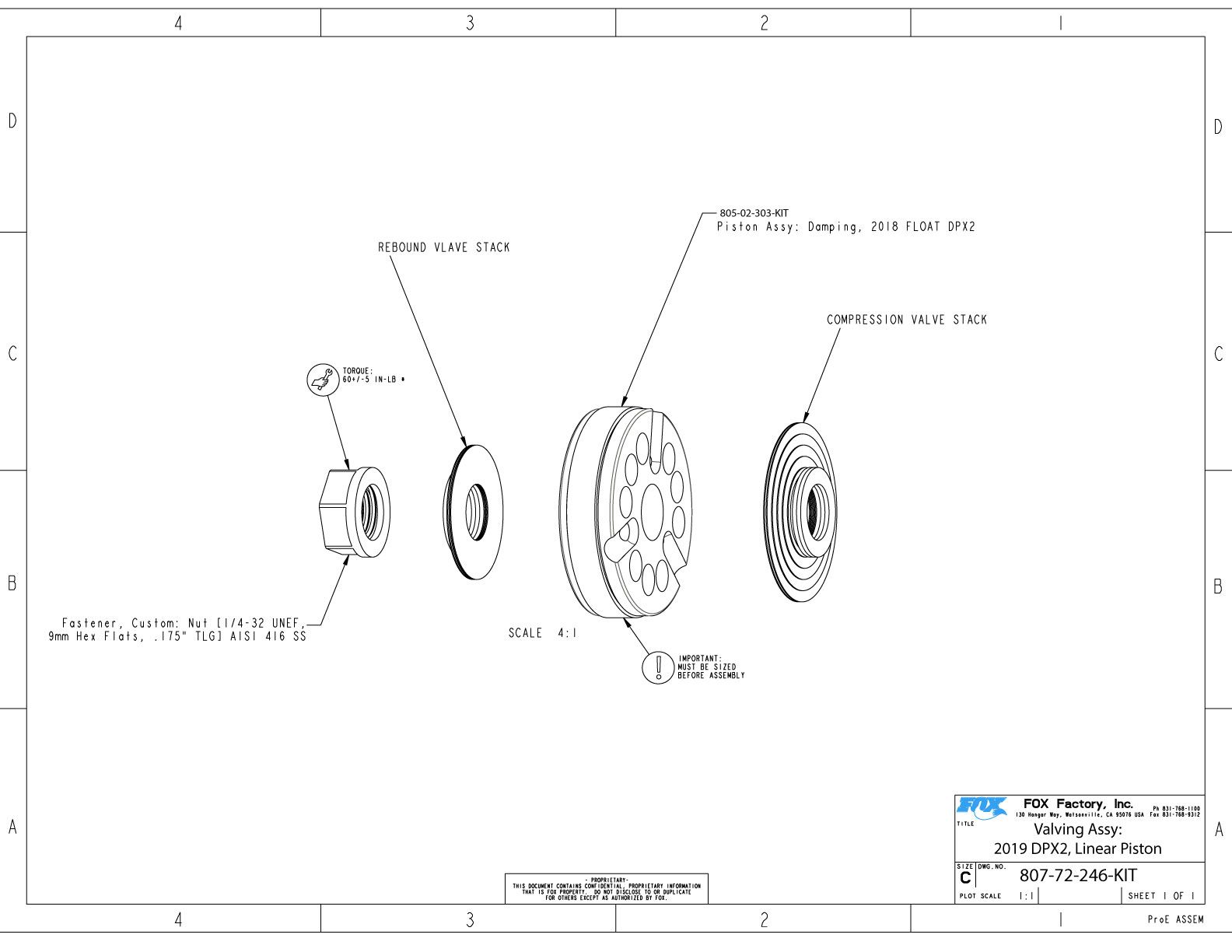

807-72-246-KIT Valving Assy: 2019 DPX2, Linear Piston

img/help/page1074-4CAW/807-72-246-KIT.jpg
back to top

PISTON ASSEMBLIES

img/help/page1074-4CAW/805-00-078-KIT-m.jpg

805-00-078-KIT Piston Assembly: MY14 Floating w/ Bleed [1.070 Bore] Al 6061, Type III Clear Ano

img/help/page1074-4CAW/805-00-078-KIT.jpg
back to top

img/help/page1074-4CAW/805-02-303-KIT-m.jpg

805-02-303-KIT Piston Assy: Damping, 2018 FLOAT DPX2

img/help/page1074-4CAW/805-02-303-KIT.jpg
back to top

REBOUND VALVE STACK ASSEMBLIES

img/help/page1074-4CAW/805-05-350-KIT-m.jpg

805-05-350-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Light, DRL

img/help/page1074-4CAW/805-05-350-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-351-KIT-m.jpg

805-05-351-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Medium, DRM

img/help/page1074-4CAW/805-05-351-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-352-KIT-m.jpg

805-05-352-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Rebound Xtra-Light, DRXL

img/help/page1074-4CAW/805-05-352-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-360-KIT-m.jpg

805-05-360-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Xtra-Light, LRXL

img/help/page1074-4CAW/805-05-360-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-361-KIT-m.jpg

805-05-361-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Light, LRL

img/help/page1074-4CAW/805-05-361-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-362-KIT-m.jpg

805-05-362-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Medium, LRM

img/help/page1074-4CAW/805-05-362-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-363-KIT-m.jpg

805-05-363-KIT Valve Stack Assy: 2018 Float DPX2, Linear Rebound Firm, LRF

img/help/page1074-4CAW/805-05-363-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-367-KIT-m.jpg

805-05-367-KIT Valve Stack Assy: 2018 Float DPX2, RLA014

img/help/page1074-4CAW/805-05-367-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-368-KIT-m.jpg

805-05-368-KIT Valve Stack Assy: 2018 Float DPX2, RLA018

img/help/page1074-4CAW/805-05-368-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-410-KIT-m.jpg

805-05-410-KIT Valve Stack Assy: 2019 Float DPX2, RLA019

img/help/page1074-4CAW/805-05-410-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-452-KIT-m.jpg

805-05-452-KIT Valve Stack Assy: 2020 Float DPX2, LRM0001

img/help/page1074-4CAW/805-05-452-KIT.jpg
back to top

COMPRESSION VALVE STACK ASSEMBLIES

img/help/page1074-4CAW/805-05-370-KIT-m.jpg

805-05-370-KIT Valve Stack Assy: 2018 Float DPX2, Compression Medium, CM

img/help/page1074-4CAW/805-05-370-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-371-KIT-m.jpg

805-05-371-KIT Valve Stack Assy: 2018 Float DPX2, Compression Light, CL

img/help/page1074-4CAW/805-05-371-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-372-KIT-m.jpg

805-05-372-KIT Valve Stack Assy: 2018 Float DPX2, CLA001

img/help/page1074-4CAW/805-05-372-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-373-KIT-m.jpg

805-05-373-KIT Valve Stack Assy: 2018 Float DPX2, CEC001

img/help/page1074-4CAW/805-05-373-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-376-KIT-m.jpg

805-05-376-KIT Valve Stack Assy: 2019 Float DPX2, CDZ002

img/help/page1074-4CAW/805-05-376-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-411-KIT-m.jpg

805-05-411-KIT Valve Stack Assy: 2019 Float DPX2, CLA002

img/help/page1074-4CAW/805-05-411-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-455-KIT-m.jpg

805-05-455-KIT Valve Stack Assy: 2020 Float DPX2, CLA004

img/help/page1074-4CAW/805-05-455-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-471-KIT-m.jpg

805-05-471-KIT Valve Stack Assy: 2021 Float DPX2, CLH001

img/help/page1074-4CAW/805-05-471-KIT.jpg
back to top

img/help/page1074-4CAW/805-05-354-KIT-m.jpg

805-05-354-KIT Valve Stack Assy: 2018 Float DPX2, Digressive Compression X-Light, DCXL

img/help/page1074-4CAW/805-05-354-KIT.jpg
back to top
