PARTS & DRAWINGS
FLOAT X2 Part Information
New for 2021:
| New Desgin | Completely new shock for 2021 |
| New HSR Design | HSR has improved with Variable Valve Control (VVC). HSR is now found in the shaft eyelet assembly. |
| HSC and HSR Adjustments | HSC and HSR match the 8 clicks of Grip2 forks. |
| New Spring Collar | Spring collar now has detents to prevent loosening under light preload conditions. |
| New Outer and Inner Body | Steel outer body and finned inner body for structural integrity and reduce heat. |
| New Piston | High flow main piston. |
| New Reservoir | Shorter length in order to fit more frames. |
| New Bumper | Increased bottom out control. |
| New Oil | Oil: Suspension Fluid, 4 WT |
Maintenance:
| Service Interval | Full Service 125 Hours | |
| 803-01-489 | Seal Kit: 2021 FLOAT X2 Spring and Damper Rebuild | if onhand, must use with 812-06-118-KIT |
| 803-01-921 | Seal Kit: 2023 FLOAT X2 Spring and Damper Rebuild | if onhand, must use with 812-06-118-KIT |
| 803-01-922 | Service Set: 2021 FLOAT X2 Supplemental Seal Kit (Use with 803-01-489) | if onhand, must use with 812-06-118-KIT |
| 803-01-952 | Seal Kit: 2024 FLOAT X2 Spring and Damper Rebuild | services 812-06-118-KIT |
| 803-04-259 | Seal Kit: 2024 FLOAT X2 Spring and Damper Rebuild, Gen2 | Services 812-06-118-KIT and 812-06-125-KIT |
| 398-00-853 | Tooling: Rear Shock, Rezi End, Air Fill Adaptor, MY 2021 | |
| 398-01-174 | Tooling: Custom Spanner Socket, 4-Lobe, 2021 DHX2 / FX2, Comp Base Valve | |
| 398-00-882 | Tooling: Custom Spanner Socket, 4-Pin, 2021 DHX2 / FX2, Reb Base Valve | |
| 398-00-887 | Tooling: 2021 Float X2, Bearing Housing Driver | |
| 803-01-545 | Kit: Tooling: Clamps, 2021 DHX2 / Float X2, Rezi Body | |
| 803-01-495 | Kit: Tooling: Shaft Clamps, 2021 FLOAT X2, .375 Shaft | |
| 803-01-578 | Kit: Service Tool, 2021 DHX2 / Float X2, VVC Set, Assembly | |
| 398-00-280 | Tooling: Eyelet Torque Tool | |
| 398-00-419 | Tooling: 2016 Float X2, Negative Air Seal | |
| 803-00-566 | Kit: Bike IFP Depth Setting Tool Set | |
| 803-00-969 | Kit: Tooling: Clamps, FLOAT X2, Body------------------(Only needed if replacing the outer body) | |
| 803-01-318 | Kit: Tooling: Clamps, 2019 FLOAT X2, Air Sleeve | |
| 398-00-797 | Tooling: Float X2 Steel Shaft, Bullet Tool | |
| 398-00-951 | Tooling: Torque Fixture, 54mm Trunnion Eyelet, Tall |
Air Spring Tuning:
| Part | Description |
| 803-01-139 | Kit: Volume Spacers, 3 Pairs: Float X2, Clip-in, Plastic, 0.25in^3 |
Air Volume Spacer Information:
| Shock Size | Maximum Spacer Quantity |
| 7.50, 2.000 | 1 |
| 7.875, 2.000 | 1 |
| 8.500, 2.500 | 2 |
| 9.500, 3.000 | 3 |
| 10.500, 3.500 | 4 |
| 185, 50 | 1 |
| 185, 55 | 1 |
| 205, 60 | 2 |
| 205, 62.5 | 2 |
| 205, 65 | 2 |
| 210, 50 | 3 |
| 210, 55 | 3 |
| 225, 70 | 3 |
| 225, 75 | 3 |
| 230, 57.5 | 4 |
| 230, 60 | 4 |
| 230, 65 | 4 |
| 250, 70 | 5 |
| 250, 75 | 5 |
Oils:
| Damper | 025-03-063 | Oil: Suspension Fluid, 4 WT, 1.0 Liter Bottle |
| Air Sleeve | 025-03-072 | Oil: AM, FOX 20 WT Gold, T22238, 32 oz |
IFP Information:
| IFP Pressure | 100 psi +/- 10psi |
| IFP Height (set with 803-00-566) | 1.140" in. +/- .05 in. |
Upgrades:
| Part | Description |
| 815-02-184-KIT | Service Set: Damping Adj Assy: 2021 Shock, 2-Pos Lever |
Size Specific Parts:
| Shock Size | Outer Sleeve Assemblies | Inner Air Sleeve | Damper Shaft | HSR Inner Shaft (F-S, PS-E only) | Kashima Outer Body | Ano Outer Body | Inner Body |
| 7.875 x 2.0 in | 806-29-780-KIT | 231-00-158 | 229-19-390 | 229-19-410 | 204-18-611 | 204-18-280 | 204-18-321 |
| 8.5 x 2.5 in | 806-29-781-KIT | 231-00-150 | 229-19-391 | 229-19-411 | 204-18-602 | 204-18-271 | 204-18-309 |
| 9.5 x 3.0 in | 806-29-782-KIT | 231-00-151 | 229-19-392 | 229-19-412 | 204-18-603 | 204-18-272 | 204-18-310 |
| 10.5 x 3.5 in | 806-29-783-KIT | 231-00-152 | 229-19-393 | 229-19-413 | 204-18-604 | 204-18-273 | 204-18-311 |
| 185 x 50 mm | 806-29-784-KIT | 231-00-153 | 229-19-394 | 229-19-414 | 204-18-608 | 204-18-277 | 204-18-315 |
| 185 x 55 mm | 806-29-784-KIT | 231-00-153 | 229-19-394 | 229-19-414 | 204-18-608 | 204-18-277 | 204-18-315 |
| 205 x 57.5 | 806-29-785-KIT | 231-00-154 | 229-19-395 | 229-19-415 | 204-18-609 | 204-18-278 | 204-18-320 |
| 205 x 60 mm | 806-29-785-KIT | 231-00-154 | 229-19-395 | 229-19-415 | 204-18-609 | 204-18-278 | 204-18-320 |
| 205 x 62.5 mm | 806-29-785-KIT | 231-00-154 | 229-19-395 | 229-19-415 | 204-18-609 | 204-18-278 | 204-18-320 |
| 205 x 65 mm | 806-29-785-KIT | 231-00-154 | 229-19-395 | 229-19-415 | 204-18-609 | 204-18-278 | 204-18-320 |
| 210 x 50 mm | 806-29-785-KIT | 231-00-155 | 229-19-394 | 229-19-414 | 204-18-605 | 204-18-274 | 204-18-312 |
| 210 x 55 mm | 806-29-785-KIT | 231-00-155 | 229-19-394 | 229-19-414 | 204-18-605 | 204-18-274 | 204-18-312 |
| 225 x 70 mm | 806-29-782-KIT | 231-00-151 | 229-19-396 | 229-19-416 | 204-18-606 | 204-18-275 | 204-18-319 |
| 225 x 75 mm | 806-29-782-KIT | 231-00-151 | 229-19-396 | 229-19-416 | 204-18-606 | 204-18-275 | 204-18-319 |
| 230 x 57.5 mm | 806-29-782-KIT | 231-00-156 | 229-19-395 | 229-19-415 | 204-18-610 | 204-18-279 | 204-18-313 |
| 230 x 60 mm | 806-29-782-KIT | 231-00-156 | 229-19-395 | 229-19-415 | 204-18-610 | 204-18-279 | 204-18-313 |
| 230 x 65 in | 806-29-782-KIT | 231-00-156 | 229-19-395 | 229-19-415 | 204-18-610 | 204-18-279 | 204-18-313 |
| 250 x 70 mm | 806-29-786-KIT | 231-00-157 | 229-19-396 | 229-19-416 | 204-18-607 | 204-18-276 | 204-18-314 |
| 250 x 75 mm | 806-29-786-KIT | 231-00-157 | 229-19-396 | 229-19-416 | 204-18-607 | 204-18-276 | 204-18-314 |
Shaft Eyelet Assemblies:
| Part | Description |
| 808-14-073-KIT | Service Set: Eyelet Assy: 2021 FX2, Shaft, HSR Adj [Ø .375 Shaft] |
| 808-14-079-KIT | Service Set: Eyelet Assy: 2021 Shaft-End, FX2, P-S, Ø .375 Shaft |
Body Eyelet Assemblies:
|
808-14-084-KIT |
Service Set: Eyelet Assy: 2021 DHX2 / FX2, F-S, Std Eyelet, No CBV, No 2-Pos |
|
808-14-085-KIT |
Service Set: Eyelet Assy: 2021 DHX2 / FX2, F-S, Trunnion, No CBV, No 2-Pos |
Damping Adjust Assemblies:
| 815-02-184-KIT | Service Set: Damping Adj Assy: 2021 Shock, 2-Pos Lockout |
| 815-02-196-KIT | Service Set: Damping Conversion Assy: 2021 DHX2 / FX2, Non 2-Pos |
| 815-02-188-KIT | Service Set: Damping Adj Assy: 2021 DH Shock, Cartridge, LSR |
| 815-02-187-KIT | Service Set: Damping Adj Assy: 2021 DHX2 / FX2, Comp Base Valve, LSC, HSC |
| 815-02-197-KIT | Service Set: Damping Adj Assy: 2021 DHX2 / FX2, Comp Base Valve, LSC Only |
| 815-02-223-KIT | Service Set: Damping Adj Assy: 2021 DHX2 / FX2, Comp Base Valve, LSC, HSC, CM |
| 815-02-224-KIT | Service Set: Damping Adj Assy: 2021 DHX2 / FX2, Comp Base Valve, LSC, HSC, BV3 |
| 815-02-225-KIT | Service Set: Damping Adj Assy: 2021 DHX2 / FX2, Comp Base Valve, LSC Only, CM |
Compression Valving Assemblies:
| 805-05-440-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CM |
| 805-05-481-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CL |
| 805-05-482-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, ECC011 |
| 805-05-483-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, ECC010 |
| 805-05-486-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, JCC020 |
| 805-05-491-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CL001 |
| 805-05-492-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CL002 |
| 805-05-549-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2 Compression, Main Piston, TC1 |
Rebound Valving Assemblies:
| 805-05-441-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, RM |
| 805-05-444-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, RF |
| 805-05-484-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, ECR010 |
| 805-05-485-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, JCR010 |
| 805-05-487-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, P-S, RL |
| 805-05-488-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, P-S, RM |
| 805-05-489-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, P-S, RF |
| 805-05-490-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, ECR012 |
| 805-05-494-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, JCR011 |
| 805-05-550-KIT | Service Set: Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, TR1 |
Piston Assemblies:
| 805-02-310-KIT | Service Set: Piston Assy: 2021 Shock, Main, HSR Adjust [Ø.940 Bore] |
| 805-02-313-KIT | Service Set: Piston Assy: 2021 Shock, Main, P-S [Ø.940 Bore] |
| 805-00-124-KIT | Service Set: Piston Assembly: Floating [Ø 1.160 Bore, 0.475 TLG], Bleed Screw |
Travel Spacers:
| 803-01-791 | Kit: 2021 Float X2, 2.5mm Travel Spacer, Quantity 10 (5 Pair), (Ref: 233-00-490) |
| 803-01-792 | Kit: 2021 Float X2, 5mm Travel Spacer, Quantity 10 (5 Pair), (Ref: 233-00-491) |
| 803-01-793 | Kit: 2021 Float X2, 7.5mm Travel Spacer, Quantity 10 (5 Pair), (Ref: 233-00-492) |
| 803-01-794 | Kit: 2021 Float X2, M3 x 8mm Fasteners, Quantity 10 (5 Pair), (Ref: 019-01-007-A) |
| 803-01-795 | Kit: 2021 Float X2/DHX2, M3 x 12mm Fasteners, Quantity 10 (5 Pair), (Ref: 019-01-193) |
| 233-00-490 | Spacer: (T) 2021 FX2, Travel, Ø.375 Shaft, 2.5mm |
| 233-00-491 | Spacer: (T) 2021 FX2, Travel, Ø.375 Shaft, 5mm |
| 233-00-492 | Spacer: (T) 2021 FX2, Travel, Ø.375 Shaft, 7.5mm |
| 019-01-007-A | Fastener, Standard (Metric): Screw [M3 x 8mm] Socket Flathead |
| 019-01-193 | Fastener, Standard (Metric): Screw [M3 x 12mm] SS, Socket Flathead |
| 210-24-695 | Cap, Bearing Housing, 2021 FX2 |
Decals:
| Part | Description |
| 024-13-027 | Decal: 2021 FLOAT X2, XV Sleeve, Neutral, Short |
| 024-13-028 | Decal: 2021 FLOAT X2, XV Sleeve, Neutral, Long |
| 024-13-029 | Decal: 2021 FLOAT X2, XV Sleeve, Orange, Short |
| 024-13-030 | Decal: 2021 FLOAT X2, XV Sleeve, OE Orange, Long |
| 024-13-031 | Decal: 2021 F-S FLOAT X2, Resy, Orange |
| 024-13-032 | Decal: 2021 F-S FLOAT X2, Resy, OE Neutral |
| 024-13-033 | Decal: 2021 P-Se FLOAT X2, Resy |
| 024-13-034 | Decal: 2021 P-S FLOAT X2, Resy |
| 024-13-042 | Decal: 2021 FLOAT X2 E-Bike Band |
ASSEMBLY DRAWINGS
EYELET ASSEMBLIES
- 808-14-079-KIT Eyelet Assy: 2021 Shaft-End, FX2, P-S, .375 Shaft

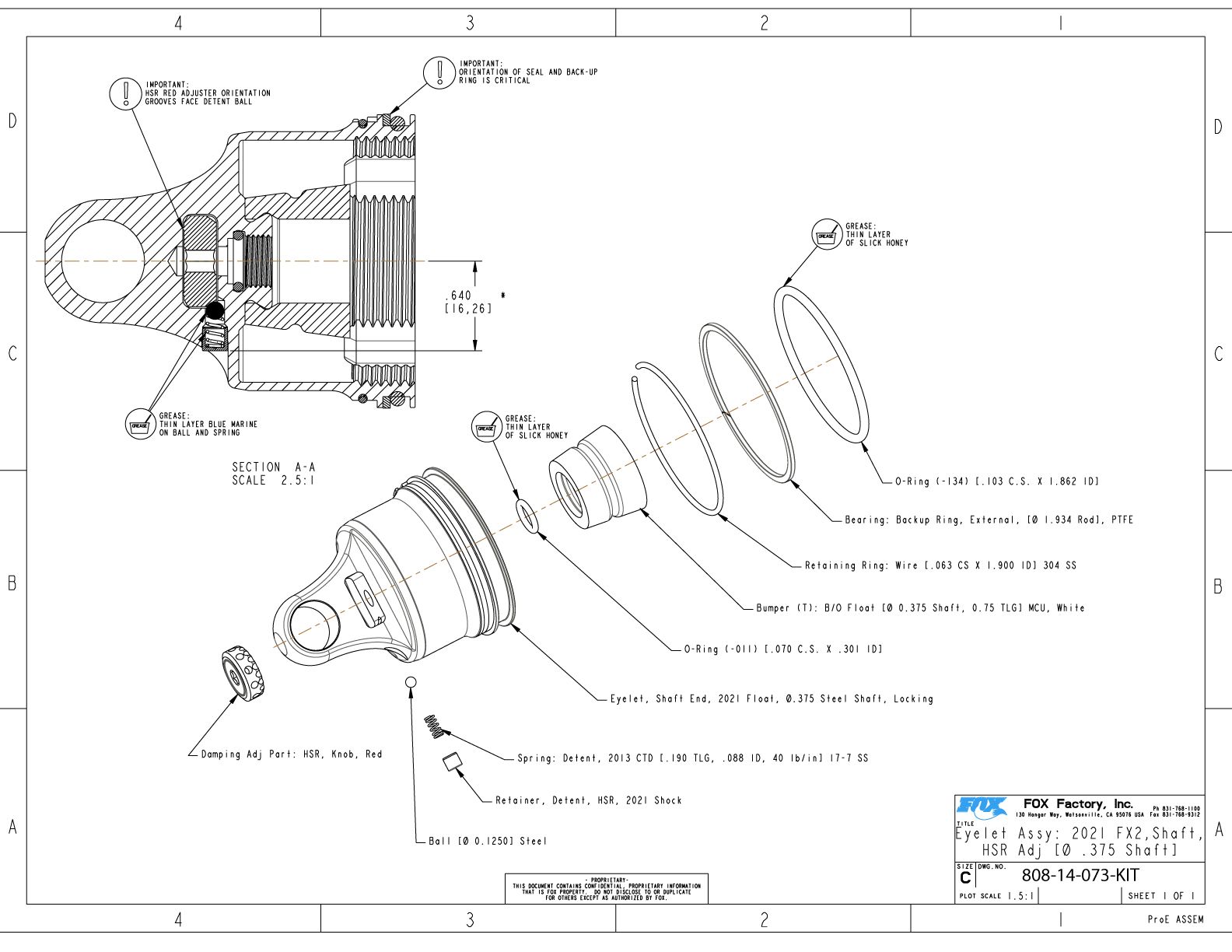

- 808-14-073-KIT Eyelet Assy: 2021 FX2, Shaft, HSR Adj [.375 Shaft]
- 2021 FX2/DHX2 Body Eyelet Assemblies .
Damping Adjust Assemblies

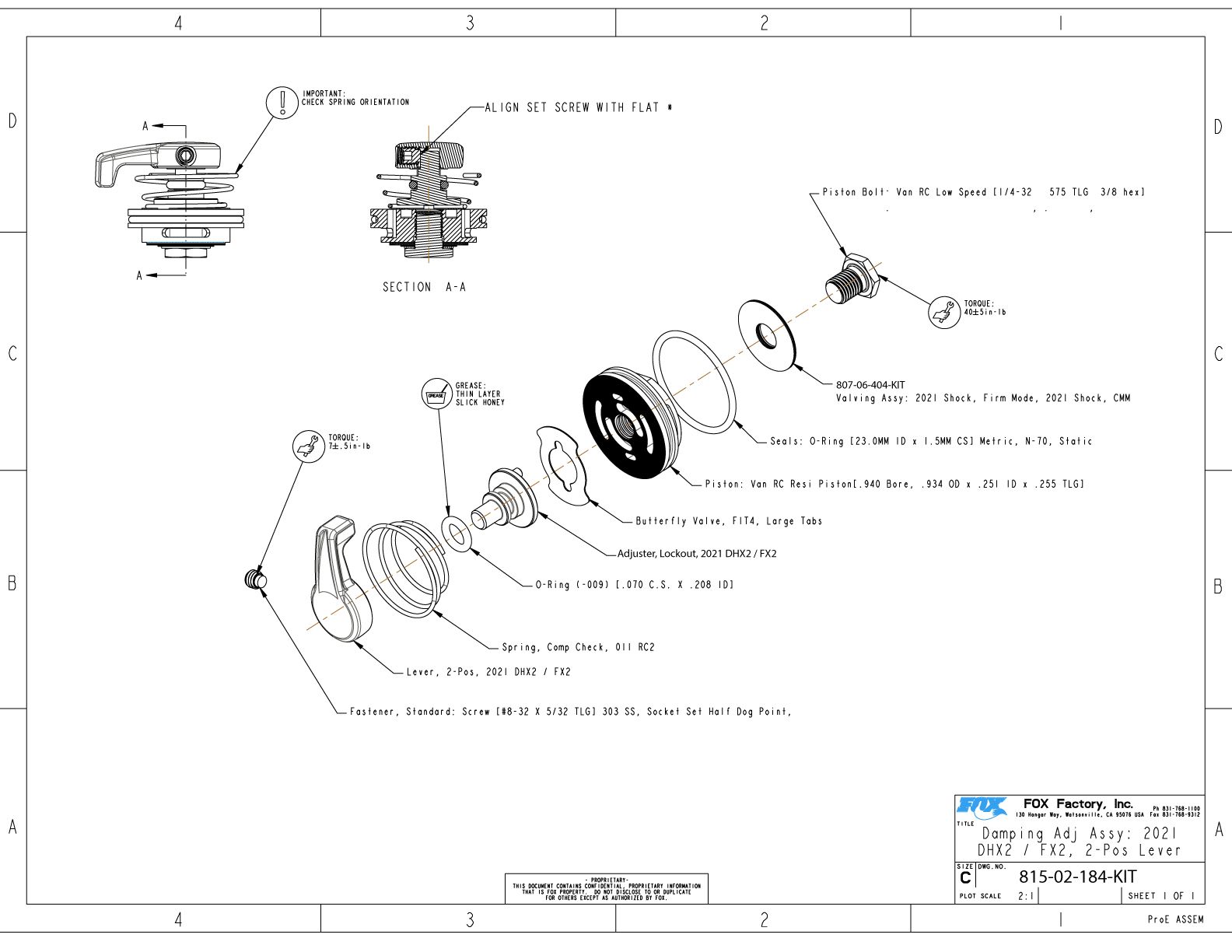

- 815-02-184-KIT Damping Adj Assy: 2021 DHX2 / FX2, 2-Pos Lever

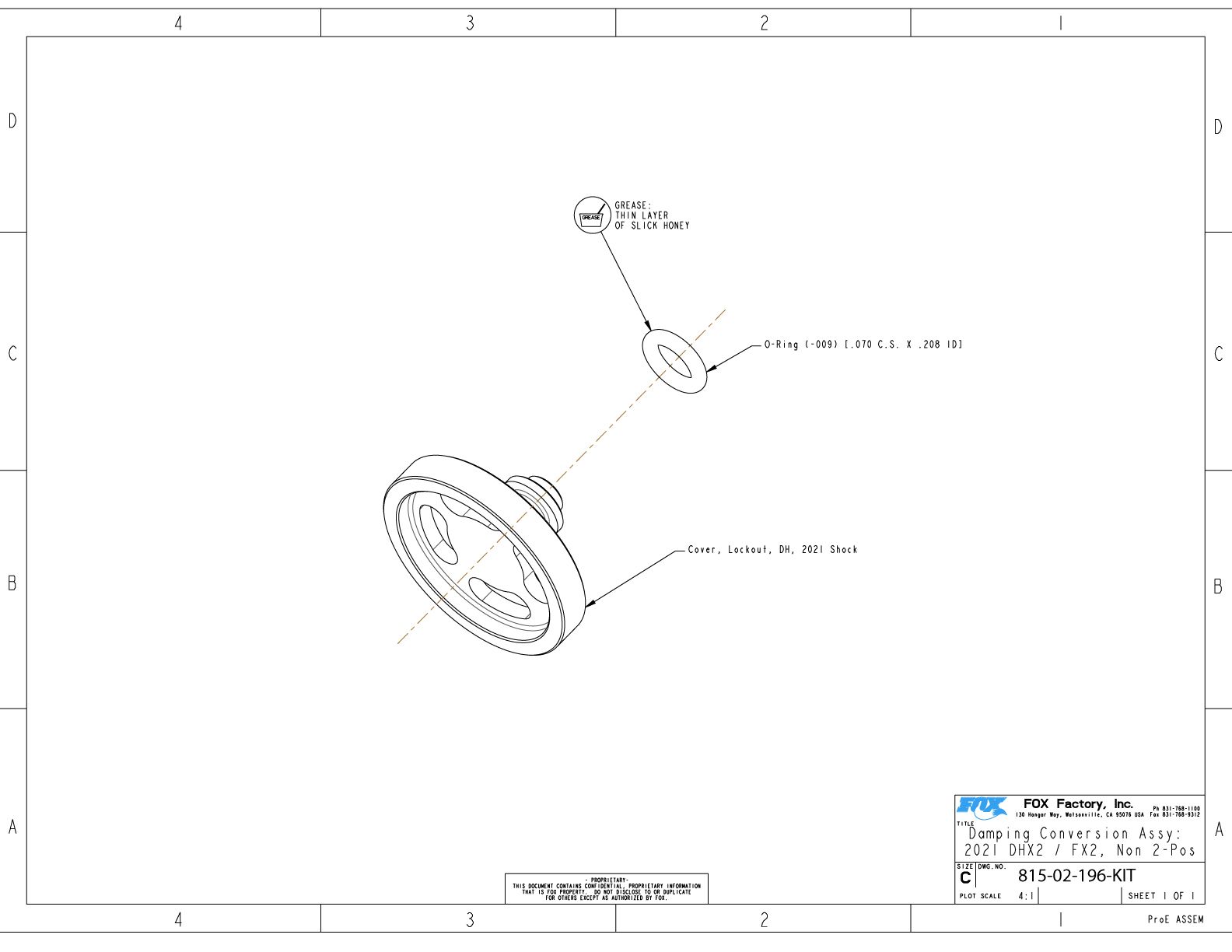

- 815-02-196-KIT Damping Conversion Assy: 2021 DHX2 / FX2, Non 2-Pos
Compression Valving
- 805-05-440-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CM

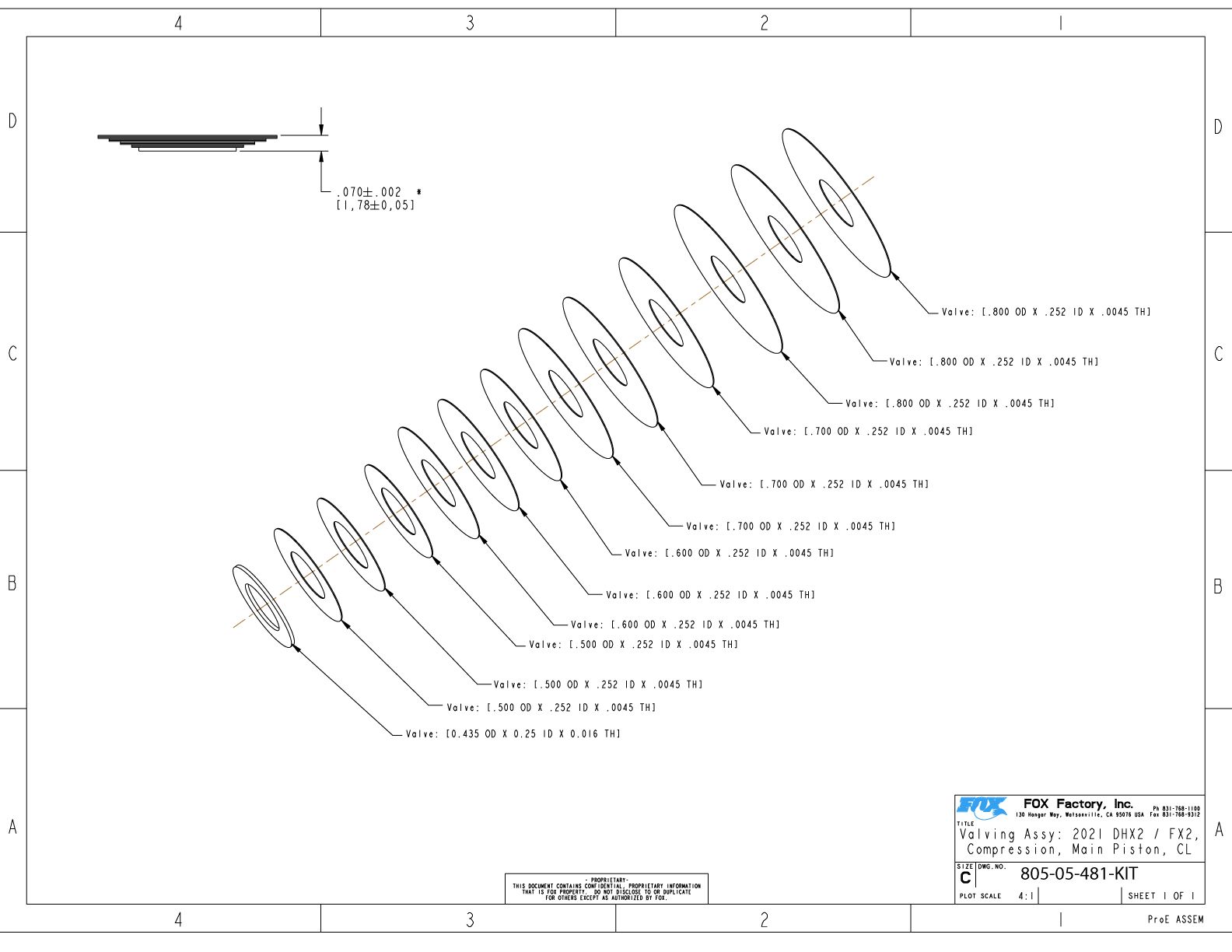

- 805-05-481-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CL
- 805-05-482-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, ECC011

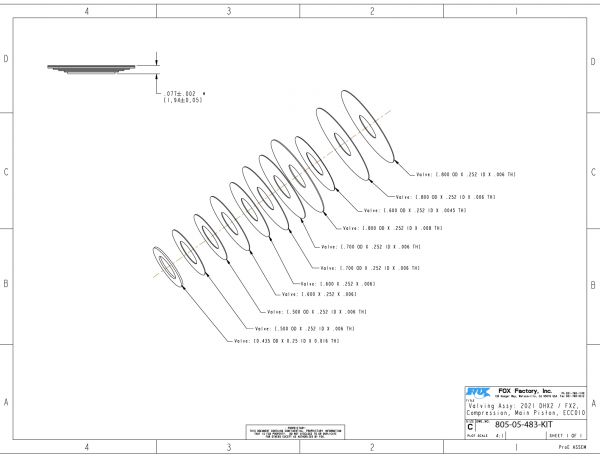

- 805-05-483-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, ECC010

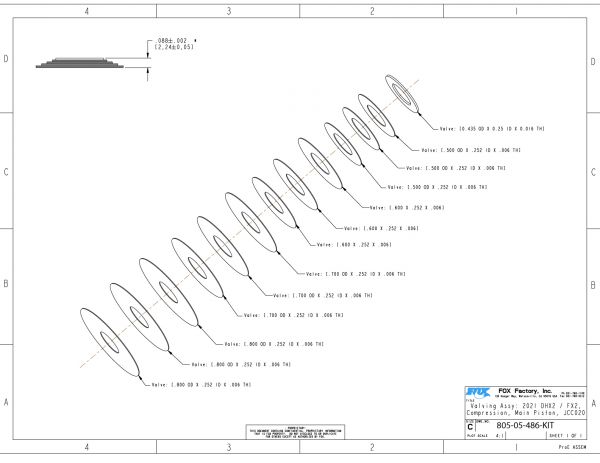

- 805-05-486-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, JCC020
- 805-05-491-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CL001
- 805-05-492-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CL002
- 805-05-549-KIT Service Set: Valving Assy: 2021 DHX2 / FX2 Compression, Main Piston, TC1
REBOUND VALVING

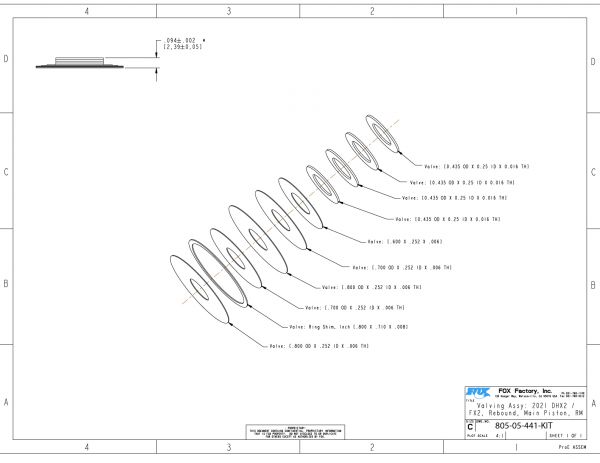

- 805-05-441-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, RM
- 805-05-444-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, RF

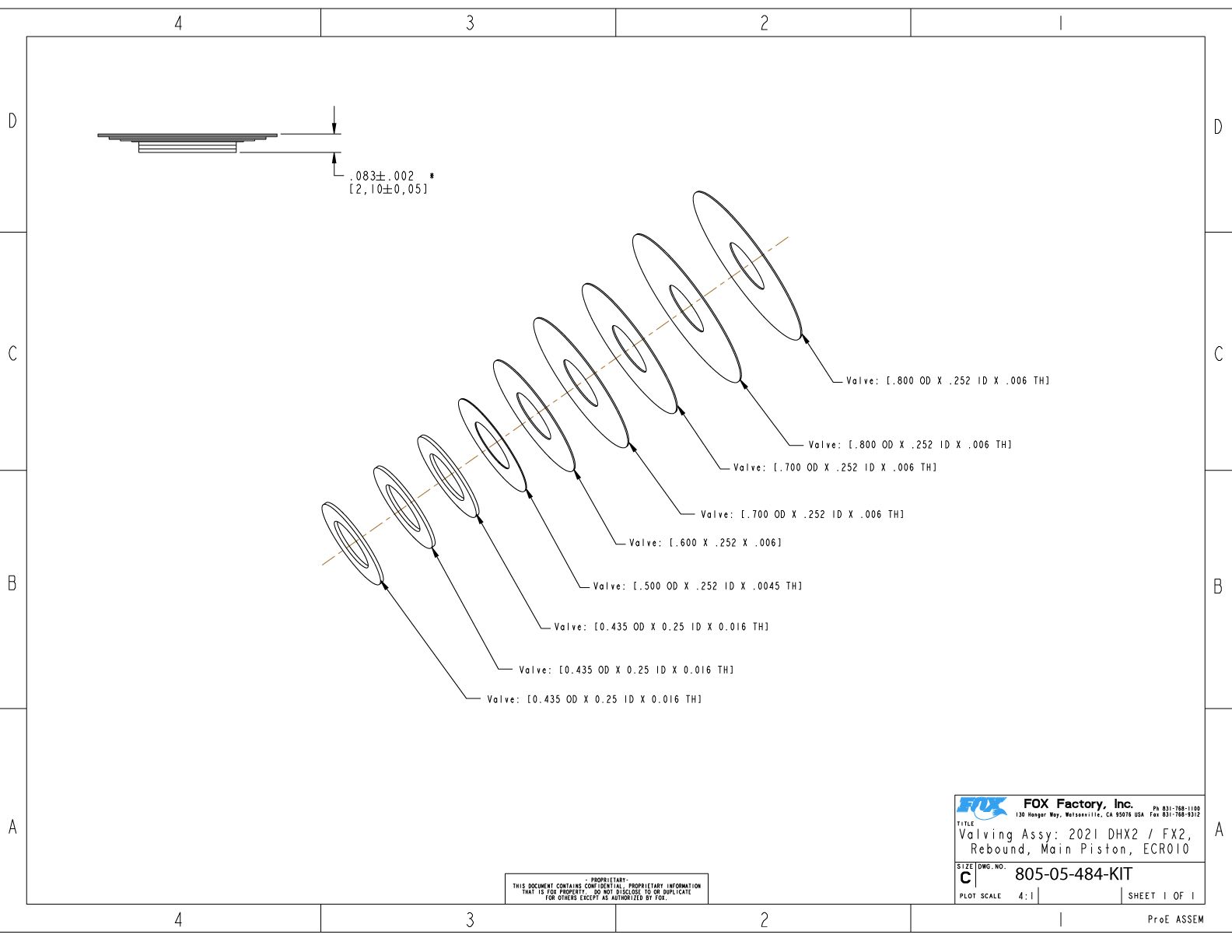

- 805-05-484-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, ECR010
- 805-05-485-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, JCR010
- 805-05-487-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, P-S, RL
- 805-05-488-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, P-S, RM

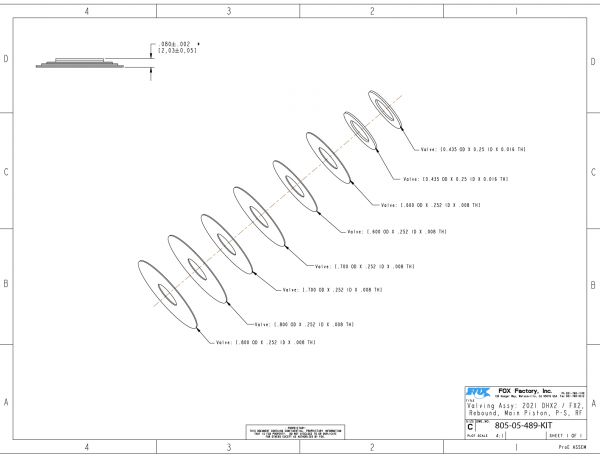

- 805-05-489-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, P-S, RF

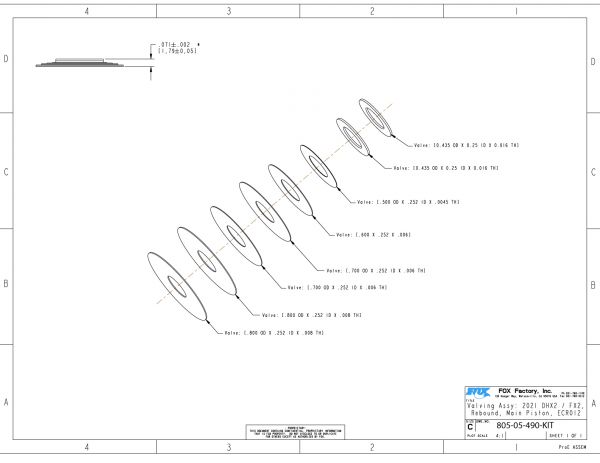

- 805-05-490-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, ECR012
- 805-05-494-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, JCR011

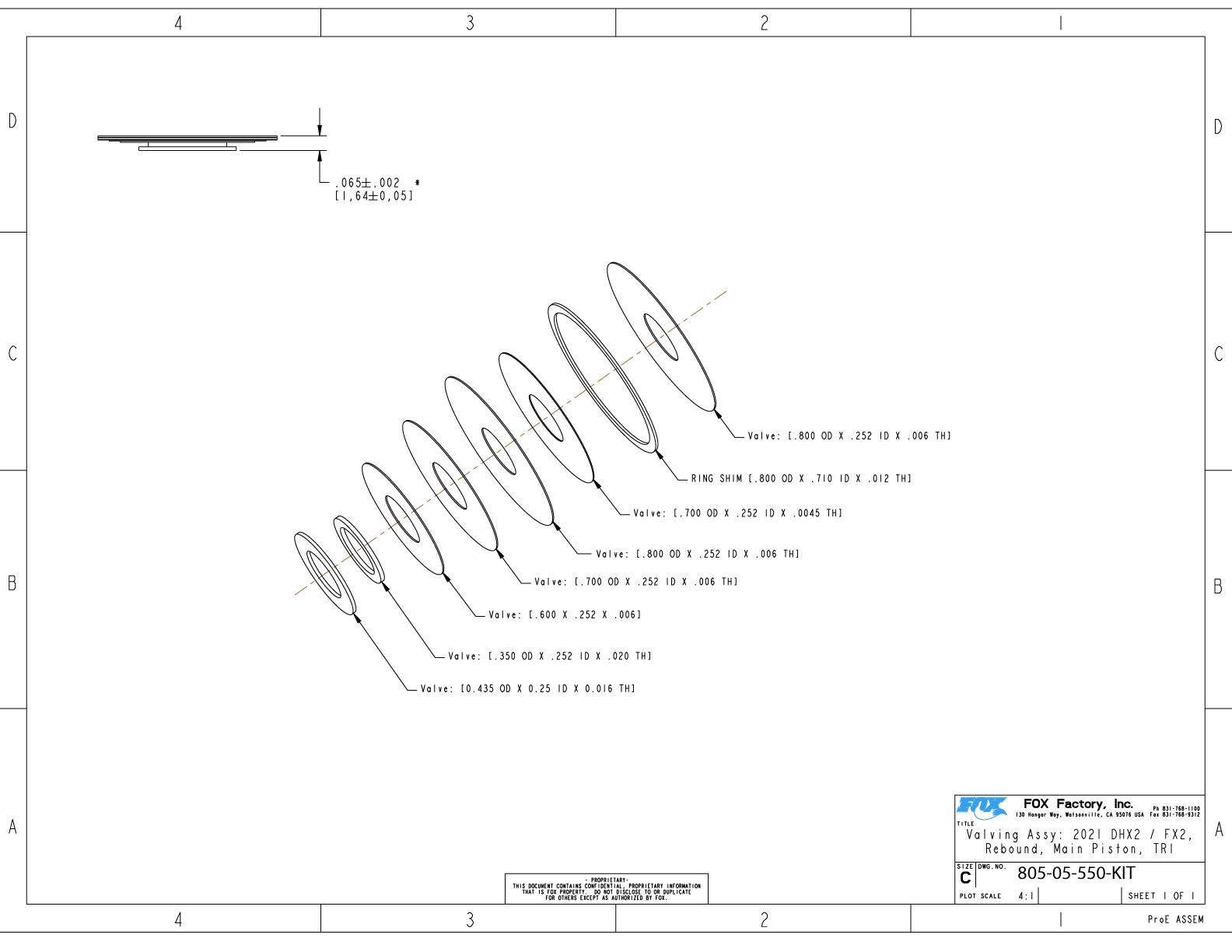

- 805-05-550-KIT Valving Assy: 2021 DHX2 / FX2, Rebound, Main Piston, TR1
PISTON ASSEMBLIES
- 805-00-124-KIT Piston Assembly: Floating [1.160 Bore, 0.475 TLG], Bleed Screw

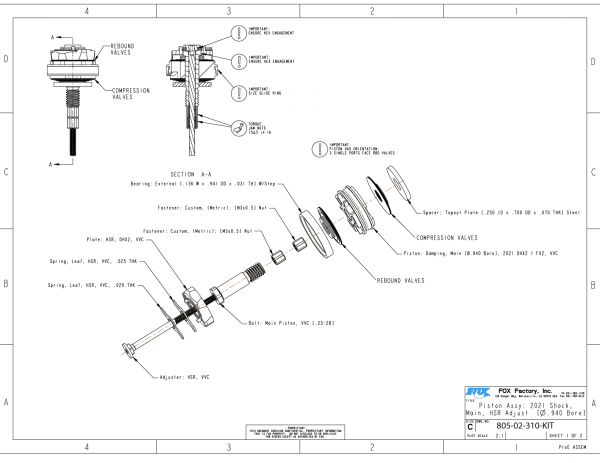

- 805-02-310-KIT Piston Assy: 2021 Shock, Main, HSR Adjust [.940 Bore]
- 805-02-313-KIT Piston Assy: 2021 Shock, Main, P-S [.940 Bore]
DAMPER SUBASSEMBLIES

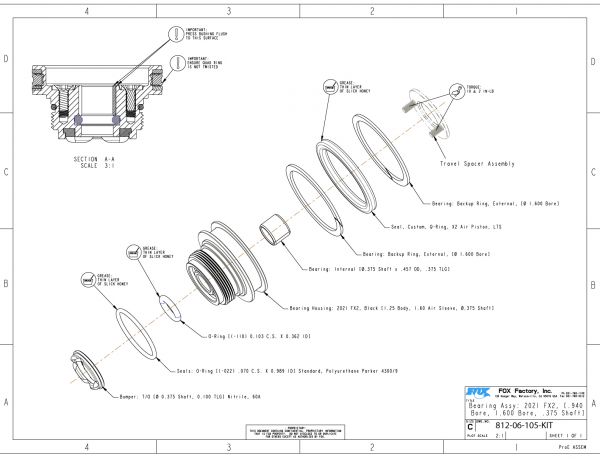

- 812-06-105-KIT Bearing Assy: 2021 FX2, [.940 Bore, 1.600 Bore, .375 Shaft]

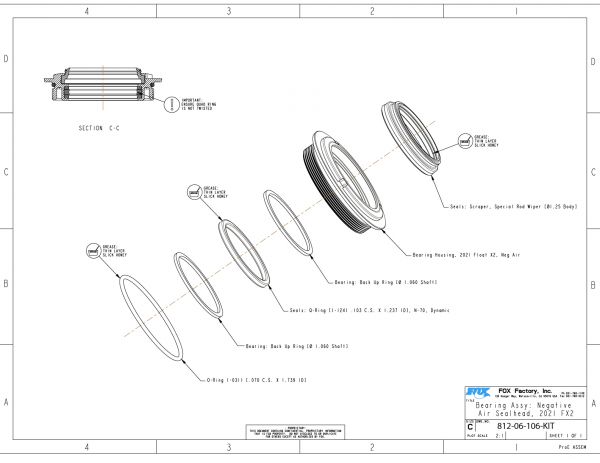

- 812-06-106-KIT Bearing Assy: Negative Air Sealhead, 2021 FX2

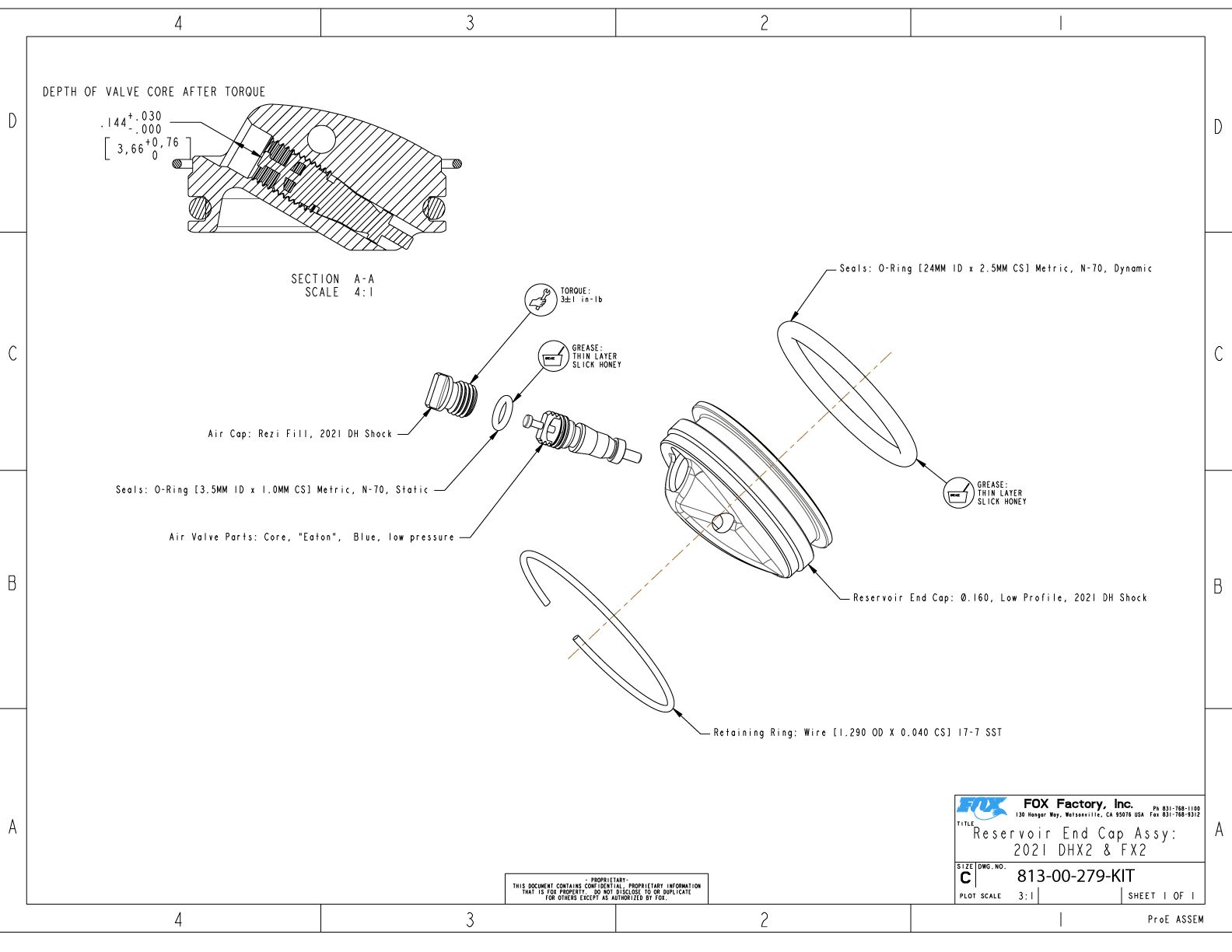

- 813-00-279-KIT Reservoir End Cap Assy: 2021 DHX2 & FX2
2POS FIRM MODE VALVING
- 807-06-404-KIT Valving Assy: 2021 DHX2 / FX2, Firm Mode, 2021 Shock, CMM

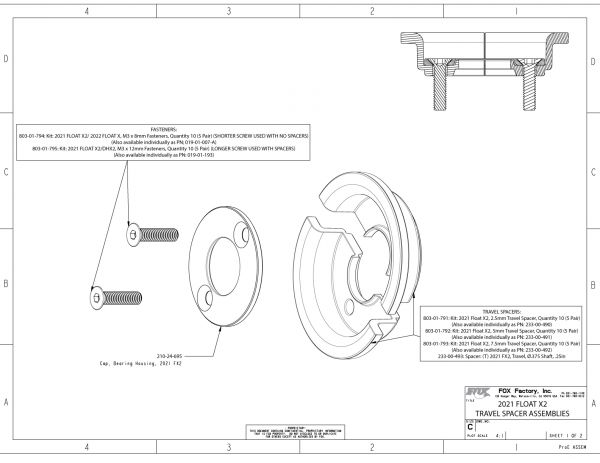

TRAVEL SPACER ASSEMBLIES
NOTE: Parts without part numbers listed are not available individually and must be ordered as part of a complete assembly or "-KIT". Please order the "-KIT" part number listed at the bottom right corner of the drawing in which a desired individual part is shown.
ASSEMBLY DRAWINGS
EYELET ASSEMBLIES
Damping Adjust Assemblies
Compression Valving
805-05-482-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, ECC011
805-05-483-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, ECC010
805-05-486-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, JCC020
805-05-491-KIT Service Set: Valving Assy: 2021 DHX2 / FX2, Compression, Main Piston, CL001
