PARTS & DRAWINGS
36mm E-Bike+ Part Information
New for 2021:
| New Decals | New design on all models. E-Bike specific decals. |
| New Lowers | New Chassis design with axle that utilizes a bushing. **Not backwards compatible** |
| New CSU | 58mm or 68mm Crowns to match head tubes of current e-bikes. In addition, offset stanchion legs. **Not backwards compatible** |
| New QR15 Axle | Axle with 4mm adjuster. This was the only change on the lower assemblies. |
| New Kabolt Axle | KaboltX is specific to the 36/38 lower leg design. **Not backwards compatible** |
| New Damper | Grip2 variable valve control (VVC) on compression and rebound. |
| New Grip2 E-bike comp tune | Lighter than the standard tune for longer distance comfort. |
| New Air Shaft | Updated air shaft that creates a larger negative air spring. **Not backwards compatible** |
| New Mud Guard | Mud guard was designed specifically to match the new lower assembly (not backwards compatible with previous 36 models). |
| Damper Topcap Assemblies | MY21 Damper Topcap Assemblies do not include Topcap Interface Parts. Please order the appropriate Interface Parts Kit separately. |
Maintenance:
| Service Interval | Full Service 125 Hours |
| 803-00-933 | Kit: Dust Wiper, Forx, 36mm, Low Friction, No Flange |
| 803-01-320 | Seal Kit: MY19+ 32, 34, 36, 38, 40 GRIP Cartridge Rebuild |
| 803-01-432 | Seal Kit: MY20+ ALL 36 8mm Shaft FIT4 Cartridge Rebuild |
| 803-01-494 | Seal Kit: 2021 F-S Grip2 VVC 34/36/38/40 |
| 803-01-226 | Seal Kit: 36 FLOAT NA2 Rebuild |
| 398-00-772 | Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 36 |
| 398-00-681 | 32 Damper-side and ALL 32-34-36-38-40 Spring-side Removal Tool |
| 398-00-682 | 34-36-38-40 Damper-side Removal Tool |
| 398-00-371 | Tooling: Sealhead To Shaft Bullet, 10mm |
| 803-00-147 | Kit: Shaft Clamps, FORX, Set #2 |
| 803-00-276 | Service Kit: Hand Bleed, Syringe and Tube, 2010 32 Fit RL-RLC Cartridge |
| 803-00-830 | Service Set: Tooling: 2014 RC2, Shaft Clamps |
| 803-01-209 | Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set |
| 398-00-760 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
| 398-00-320 | Tool: 8mm Shaft Bullet, 32 FIT Cartridge |
| 803-01-324 | Kit: Tooling: 2019 Clamps, Grip Damper, Body and Shaft |
Air Spring Tuning:
| 234-04-953 | Volume Spacer, FLOAT NA 2, 34, 1.214 Bore, Green |
| 234-44-079 | Volume Spacer, FLOAT NA 2, 36 Rhythm and Bomber Z1 |
Oils:
| Application | Description | Part |
| FIT4 and Grip/Grip2 VVC Dampers | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart | 025-03-023 |
| FIT4 Damper Bath Oil | Oil: AM, FOX 20 WT Gold, T22238, 32 oz | 025-03-072 |
| NA2 Air Chamber/Float Side Bath Oil | Oil: AM, FOX 20 WT Gold, T22238, 32 oz | 025-03-072 |
| Bath Oil Application | Bath Oil Volume |
| FLOAT NA2 Air Chamber | 3cc (FOX 20wt. Gold Oil) |
| All Air Side Bath | 10cc (FOX 20wt. Gold Oil) |
| FIT4 Damper Side Bath | 15cc (FOX 20wt. Gold Oil) |
| Grip/Grip2 VVC Damper Side Bath | 40cc (5wt. FOX Teflon Infused Oil) |
Remotes:
| 820-05-611-KIT | Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-07-150 | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Dual Pull |
| 820-07-151 | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Single Pull |
CSUs:
| Part Number | Description |
| 820-12-290-KIT | Service Set: 2021 36 27.5in and 29in 170 15x110 Kashima Matte Black 1.5T 2mm OS (37 Rake) CSU |
| 820-12-308-KIT | Service Set: 2021 36 E-bike+ 27.5in 160 15x110 Kashima Matte Black 1.5T 2mm OS (37 Rake) 58mm Str Boss OD CSU |
| 820-12-310-KIT | Service Set: 2021 36 E-bike+ 27.5in 160 15x110 Kashima Shiny Black 1.5T 2mm OS (37 Rake) 58mm Str Boss OD CSU |
| 820-12-311-KIT | Service Set: 2021 36 E-bike+ 27.5in and 29in 160 15x110 Kashima Matte Black 1.5T 9mm OS (44 Rake) 58mm Str Boss OD CSU |
| 820-12-313-KIT | Service Set: 2021 36 E-bike+ 27.5in and 29in 160 15x110 Kashima Shiny Black 1.5T 9mm OS (44 Rake) 58mm Str Boss OD CSU |
| 820-12-314-KIT | Service Set: 2021 36 E-bike+ 29in 160 15x110 Kashima Matte Black 1.5T 16mm OS (51 Rake) 58mm Str Boss OD CSU |
| 820-12-316-KIT | Service Set: 2021 36 E-bike+ 29in 160 15x110 Kashima Shiny Black 1.5T 16mm OS (51 Rake) 58mm Str Boss OD CSU |
| 820-12-317-KIT | Service Set: 2021 36 E-bike+ 27.5in 160 15x110 Black Ano Matte Black 1.5T 2mm OS (37 Rake) 58mm Str Boss OD CSU |
| 820-12-319-KIT | Service Set: 2021 36 E-bike+ 27.5in 160 15x110 Black Ano Shiny Black 1.5T 2mm OS (37 Rake) 58mm Str Boss OD CSU |
| 820-12-320-KIT | Service Set: 2021 36 E-bike+ 27.5in and 29in 160 15x110 Black Ano Matte Black 1.5T 9mm OS (44 Rake) 58mm Str Boss OD CSU |
| 820-12-322-KIT | Service Set: 2021 36 E-bike+ 27.5in and 29in 160 15x110 Black Ano Shiny Black 1.5T 9mm OS (44 Rake) 58mm Str Boss OD CSU |
| 820-12-323-KIT | Service Set: 2021 36 E-bike+ 29in 160 15x110 Black Ano Matte Black 1.5T 16mm OS (51 Rake) 58mm Str Boss OD CSU |
| 820-12-325-KIT | Service Set: 2021 36 E-bike+ 29in 160 15x110 Black Ano Shiny Black 1.5T 16mm OS (51 Rake) 58mm Str Boss OD CSU |
Lower Legs:
| Part Number | Description |
| 820-20-055-KIT | Service Set: 2021 Fox 36 27.5in 130-170, 15x110 QR, F-S PE-S, Matte Black, Lower Leg Assy |
| 820-20-057-KIT | Service Set: 2021 Fox 36 27.5in 130-170, 15x110 QR, F-S PE-S, Shiny Black, Lower Leg Assy |
| 820-20-058-KIT | Service Set: 2021 Fox 36 27.5in 130-170, 15x110 QR, F-S PE-S, Shiny Orange, Lower Leg Assy |
| 820-20-136-KIT | Service Set: 2021 36 27.5in 180 15x110 QR, Fox Matte Black, Rhythm, Lower Leg Assy |
| 820-20-138-KIT | Service Set: 2021 36 27.5in 180 15x110 QR, Fox Shiny Black, Rhythm, Lower Leg Assy |
| 820-20-035-KIT | Service Set: 2021 Fox 36 29in 130-170, 15x110 QR, F-S PE-S, Matte Black, Lower Leg Assy |
| 820-20-037-KIT | Service Set: 2021 Fox 36 29in 130-170, 15x110 QR, F-S PE-S, Shiny Black, Lower Leg Assy |
| 820-20-038-KIT | Service Set: 2021 Fox 36 29in 130-170, 15x110 QR, F-S PE-S, Shiny Orange, Lower Leg Assy |
| 820-20-134-KIT | Service Set: 2021 36 29in 170 15x110 QR Fox Shiny Black Lower Leg Assy, Rhythm |
| 820-20-135-KIT | Service Set: 2021 36 29in 170 15x110 QR Fox Matte Black Lower Leg Assy, Rhythm |
Axles:
| Part | Description |
| 820-09-071-KIT | Service Set: 2021 36-38 15x110 KaboltX Pinch-axle Assembly |
| 820-09-063-KIT | Service Set: 2020 FOX-Marzocchi 15x110 QR Adjust Axle Assembly |
Lower Leg Small Parts:
| Part | Description |
| 803-01-548 | Service Set: 2021 36/38 15QR Hardware |
| 803-01-811 | Service Set: 2021 36/38 KaboltX Hardware |
| 820-00-202-KIT | Service Set: Light Disc Brake Hose Guide Parts |
| 820-09-067-KIT | Service Set: 2021 Pressure Release Button, Lower Leg, F-S |
| 803-01-441 | Assembly: Mud Guard, MY21 36-38, Black, AM |
Decals:
| Part | Description |
| 803-01-528 | Decal Kit: 2021, 36, F-S, E-Bike+, Orange Logo, Shiny Black Fork |
| 803-01-529 | Decal Kit: 2021, 36, P-SE, E-Bike+, Gray Logo, Matte Black Fork |
| 803-01-530 | Decal Kit: 2021, 36, P-S, E-Bike+, Gray Logo, Matte Black Fork |
| 803-01-527 | Decal Kit: 2021, 36, Rhythm, Gray Logo, Matte Black Fork |
Complete Cartridges:
| Part Number | Description |
| 820-18-138-KIT | Service Set: 2019 36 27.5 & 29 180 MAX, Grip E-Bike Cart Assy Complete |
| 820-18-139-KIT | Service Set: 2019 36 Rhythm, 180 MAX, Grip E-Bike Cart Assy Complete |
| 820-18-278-KIT | Service Set: 2020 36 180 MAX, Grip E-Bike+ Push-Lock Remote Cart Assy Complete |
| 820-18-250-KIT | Service Set: 2020 36, 120-180, FIT4 F-S, CL Tune, 3 Pos Adj Cart Assy Complete |
| 820-18-251-KIT | Service Set: 2020 36, 120-180, FIT4 F-S, CL Tune, Remote, 2 Pos Adj, Push-Lock Cart Assy Complete |
| 820-18-253-KIT | Service Set: 2020 36,120-180, FIT4 F-S, CL Tune, Remote, 3 Pos Adj Cart Assy Complete |
| 820-18-335-KIT | Service Set: 2021 36 180, Grip2 VVC HSR / LSR / HSC/ LSC Cart Assy Complete |
Cartridge Topcap Assemblies:
| Part Number | Description |
| 820-05-535-KIT | Service Set: 2019 36 180 MAX, Grip E-Bike Damper, Topcap Assy |
| 820-05-609-KIT | Service Set: 2020 36, Grip E-Bike+ Remote, Push-Lock, Topcap Assy |
| 820-05-664-KIT | Service Set: 2021 36 Grip2 VVC TPP Damper, Topcap Assy |
| 820-05-599-KIT | Service Set: 2020 36 FIT4 F-S Topcap Assy, CL Tune, Black Ano |
| 820-05-602-KIT | Service Set: 2020 36 FIT4 F-S Topcap Assy, CL Tune, Remote, U-Cup, 3 Position |
| 820-05-600-KIT | Service Set: 2020 36 FIT4 F-S Topcap Assy, CL Tune, Remote, U-Cup, 2 Position, Push-Lock |
Topcap Interface Parts:
| Part | Description |
| 820-05-330-KIT | Service Set: 2016 FIT4 TopCap Interface Parts F-S |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-611-KIT | Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts |
| 820-05-623-KIT | Service Set: 2020 Grip 34 & 36 P-S Topcap Interface Parts |
| 820-05-669-KIT | Service Set: 2021 Grip2 VVC HSC / LSC Topcap Interface Parts |
Bottom Stud Interface Parts:
| Part | Description |
| 820-05-377-KIT | Service Set: 2016 FIT4 Bottom Stud Interface Parts 36, 38 and 40 |
| 820-05-501-KIT | Service Set: 2019 Grip2 HSR / LSR Bottom Stud Interface Parts |
| 820-05-518-KIT | Service Set: 2019 36 Grip Bottom Stud Interface Parts |
FLOAT NA2 Air Shaft Assemblies:
| Part | Description |
| 820-02-576-KIT | Service Set: Air Shaft Assy, 2021 36 130mm Float NA2, E-Bike+ (1.214 Bore) |
| 820-02-577-KIT | Service Set: Air Shaft Assy, 2021 36 140mm Float NA2, E-Bike+ (1.214 Bore) |
| 820-02-578-KIT | Service Set: Air Shaft Assy, 2021 36 150mm Float NA2, E-Bike+ (1.214 Bore) |
| 820-02-579-KIT | Service Set: Air Shaft Assy, 2021 36 160mm Float NA2, E-Bike+ (1.214 Bore) |
FLOAT NA2 Topcap Assemblies:
| Part | Description |
| 820-05-533-KIT | Topcap Assy, 2018 FLOAT LC NA2, 36, Better VS Fit, Black |
| 234-04-550 | (T) Spring Hardware: 2014 36 FLOAT Air Topcap, Al, Blue Ano |
| 234-04-553 | (T) Spring Hardware: 2014 36 FLOAT Air Topcap, Al, Black Ano |
FLOAT NA2 Neg Plate Subassemblies:
| Part | Description |
| 820-02-588-KIT | Neg Plate Subassembly, 2019 36 E-Bike+ Float NA2, All Travels, 1.214" Bore, Aluminum |
2021 36 E-BIKE+ FIT4 3POS ADJ

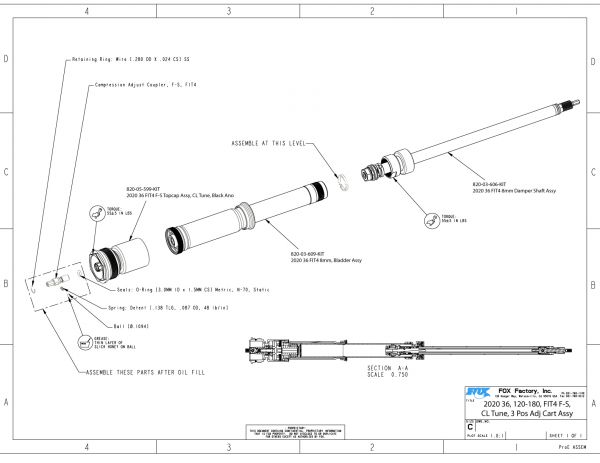

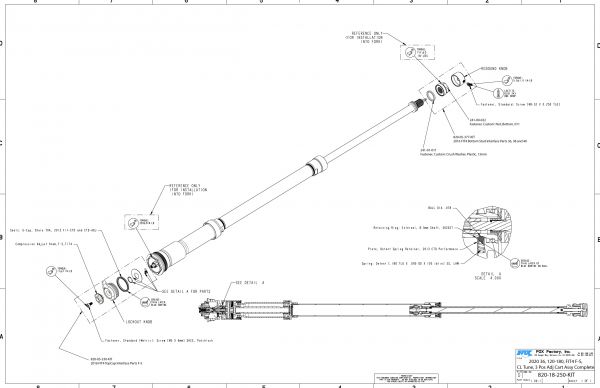

- 820-18-250-KIT 2020 36 120-180 FIT4 F-S CL TUNE 3POS ADJ CART ASSY COMPLETE
- 2020 36 120-180 FIT4 F-S CL TUNE 3POS ADJ CART ASSY .
- 820-03-258-KIT 2017 FIT4 Lightweight Topcap Parts

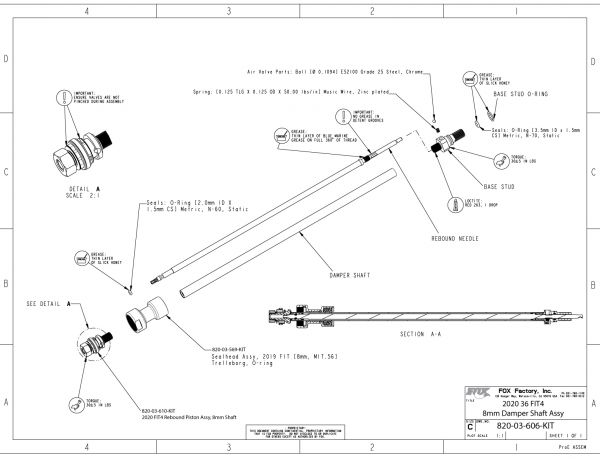

- 820-03-606-KIT 2020 36 FIT4 8MM DAMPER SHAFT ASSY
- 820-03-609-KIT 2020 36 FIT4 8MM BLADDER ASSY

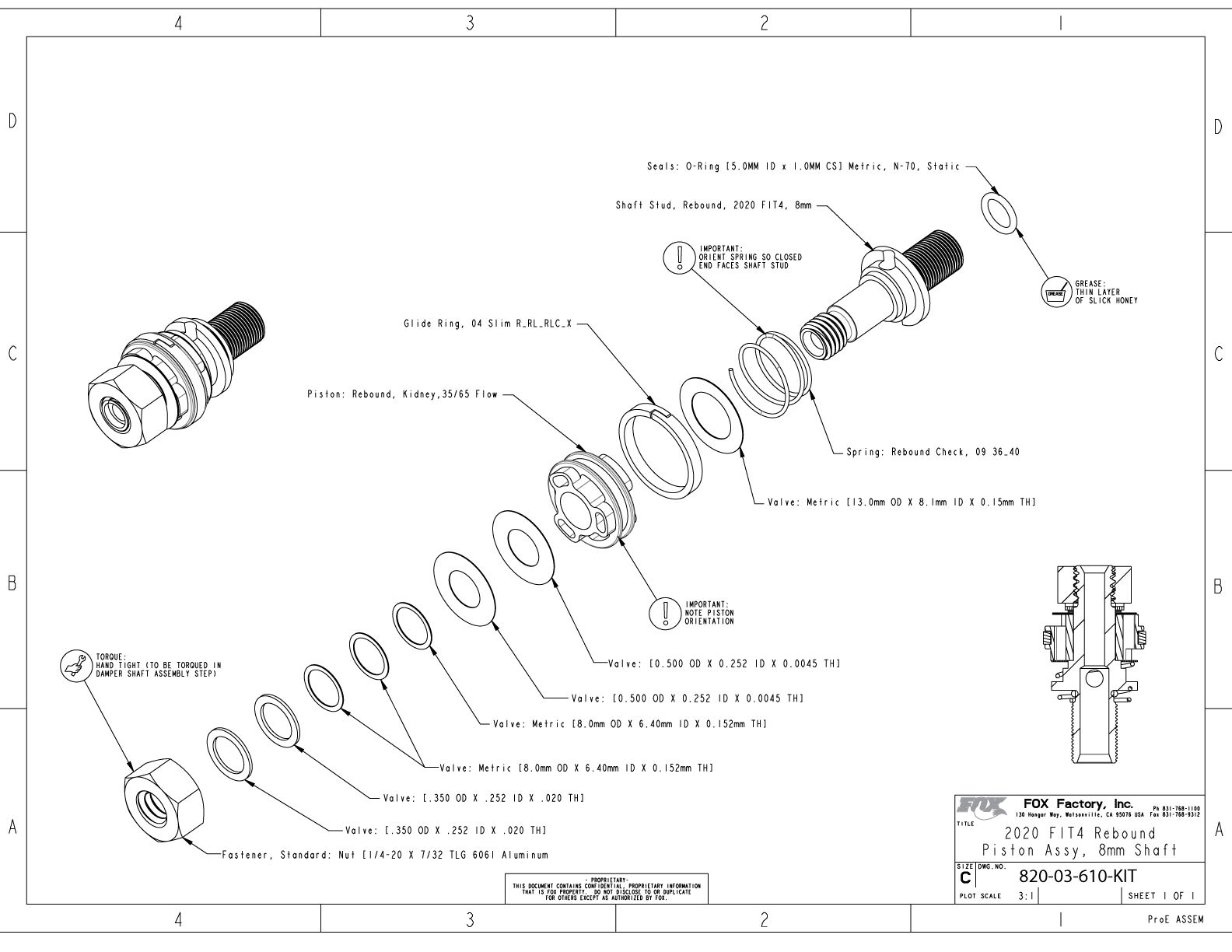

- 820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft
- 820-03-624-KIT 2020 FIT4 Compression Valving Assy, CL tune, 8mm Shaft

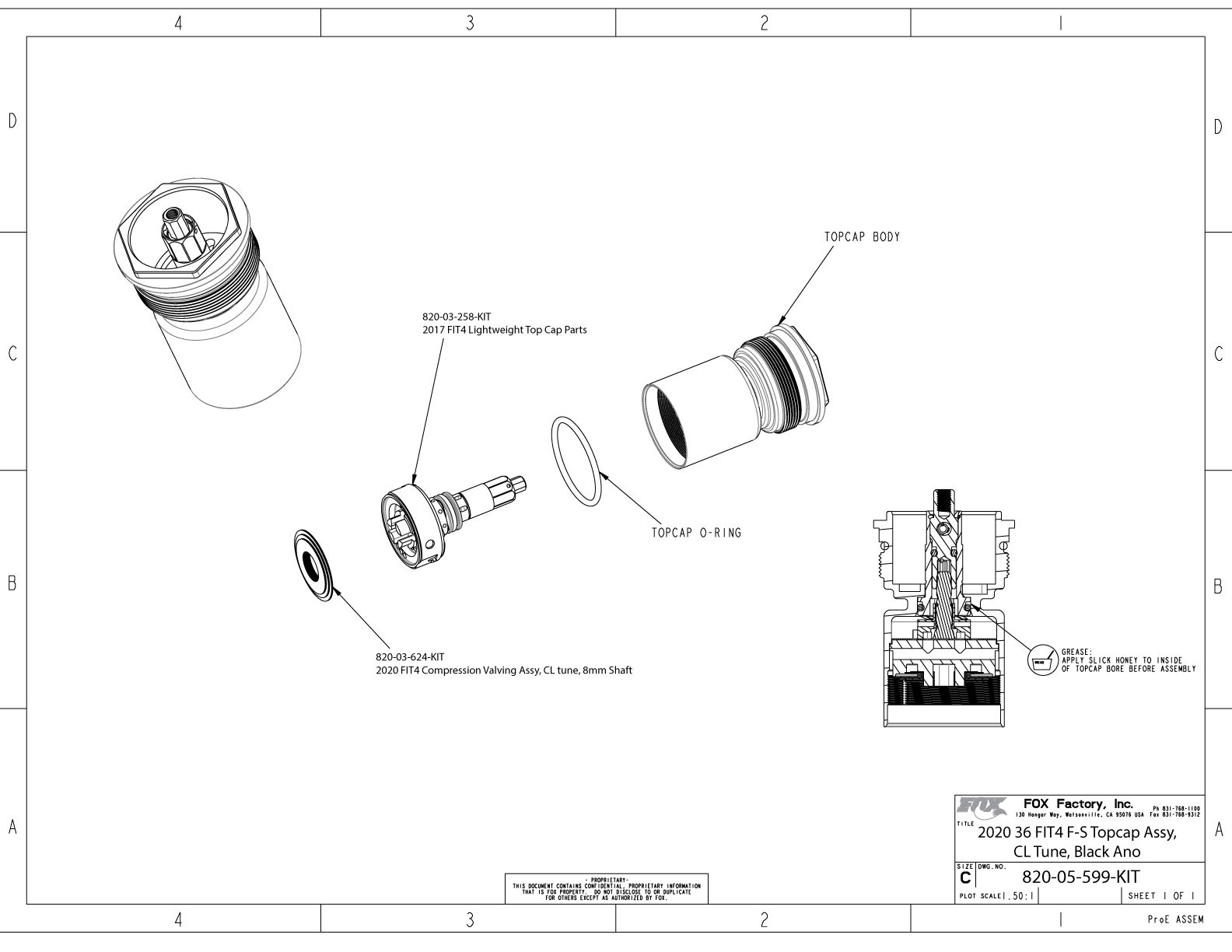

- 820-05-599-KIT 2020 36 FIT4 TOPCAP ASSY, CL TUNE, BLACK ANO
2021 36 E-BIKE+ FIT4 REMOTE

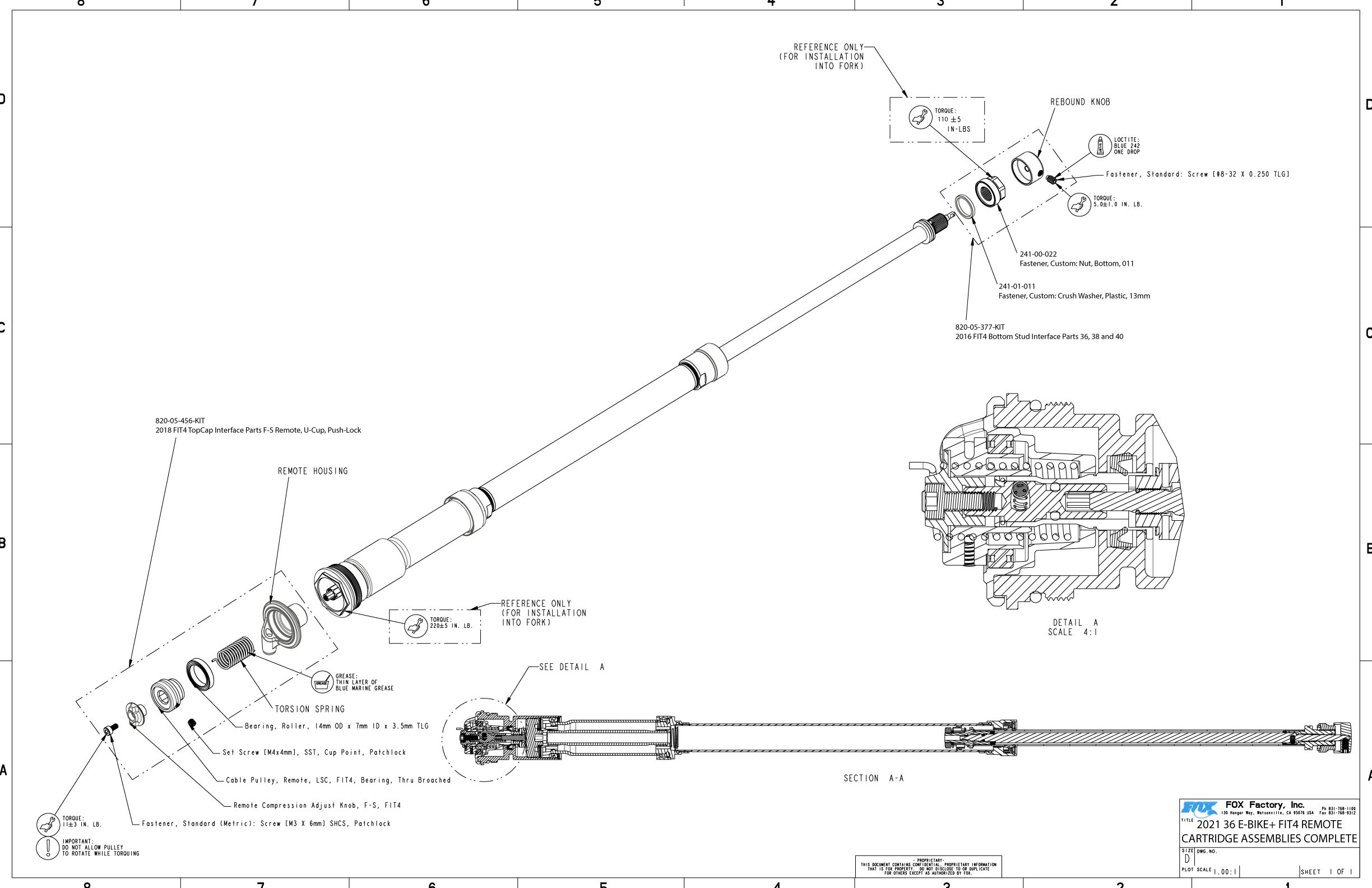

- 2021 36 E-BIKE+ FIT4 REMOTE CARTRIDGE ASSEMBLIES COMPLETE .
- 2021 36 E-BIKE+ FIT4 REMOTE CARTRIDGE ASSEMBLIES .

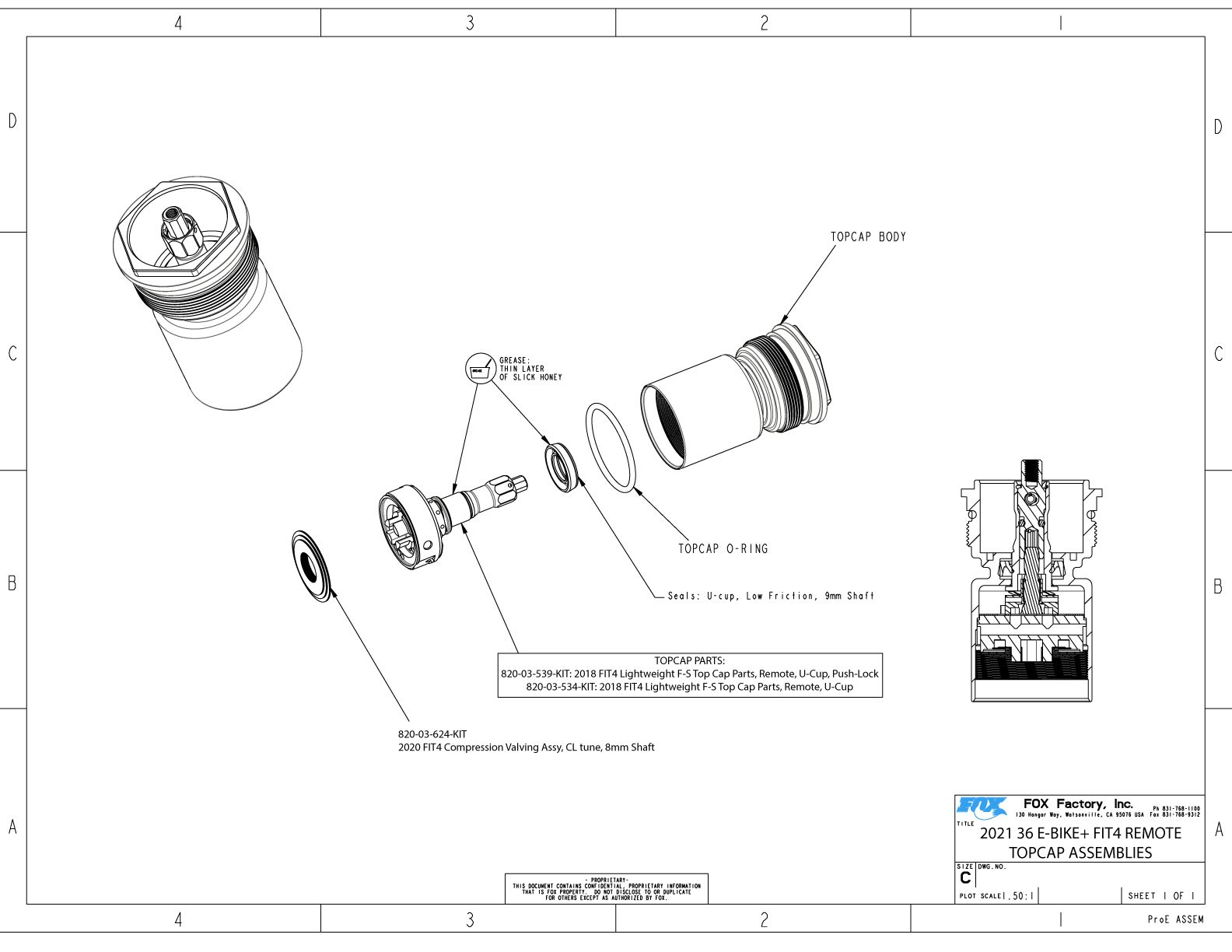

- 2021 36 E-BIKE+ FIT4 REMOTE TOPCAP ASSEMBLIES .

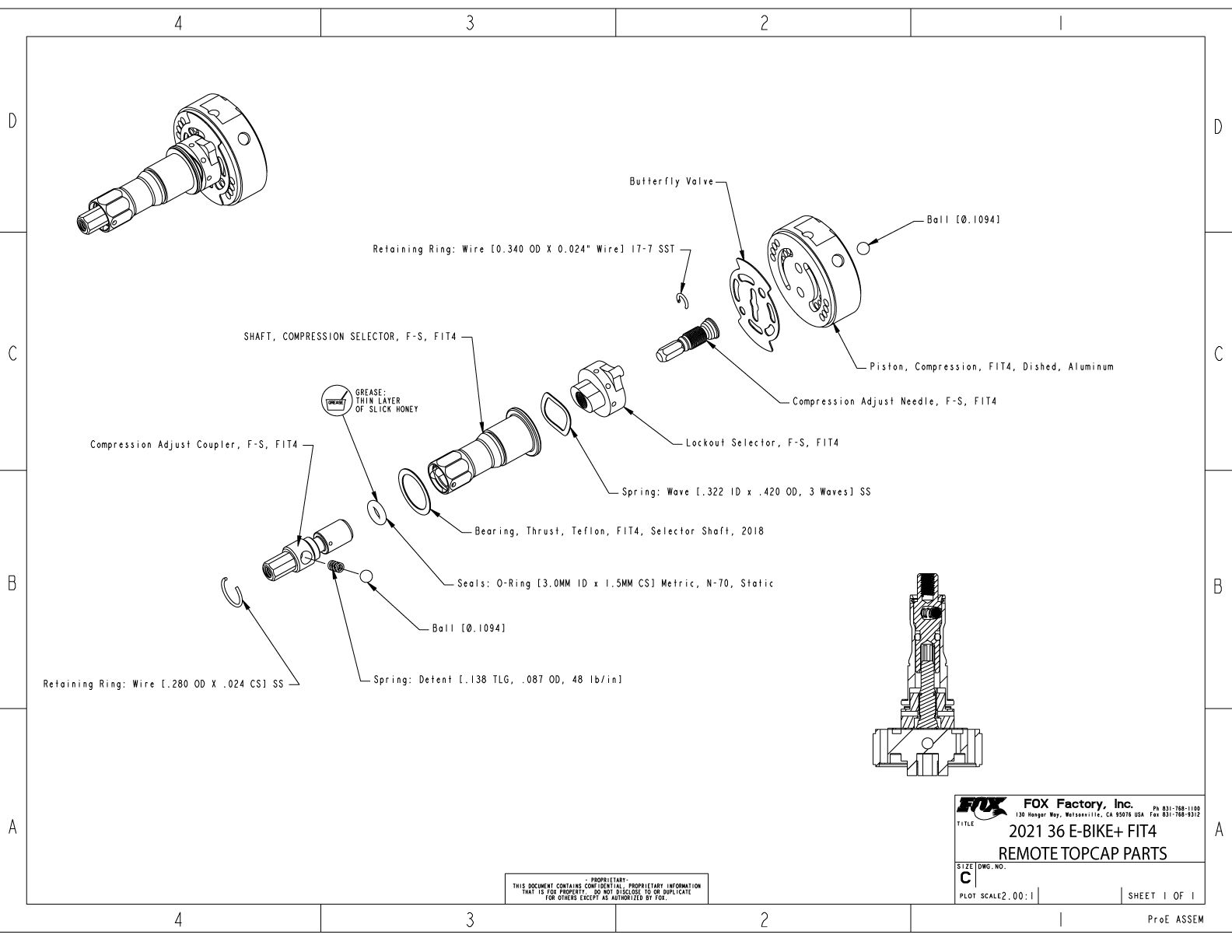

- 2021 36 E-BIKE+ FIT4 REMOTE TOPCAP PARTS .
- 820-03-606-KIT 2020 36 FIT4 8MM DAMPER SHAFT ASSY
- 820-03-609-KIT 2020 36 FIT4 8MM BLADDER ASSY
- 820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft
- 820-03-624-KIT 2020 FIT4 Compression Valving Assy, CL tune, 8mm Shaft
2021 36 E-BIKE+ GRIP2
- 820-18-335-KIT 2021 36 180 GRIP2 VVC HSR/LSR/HSC/LSC CART ASSY COMPLETE
- 2021 36 180 GRIP2 VVC HSR/LSR/HSC/LSC CART ASSY .

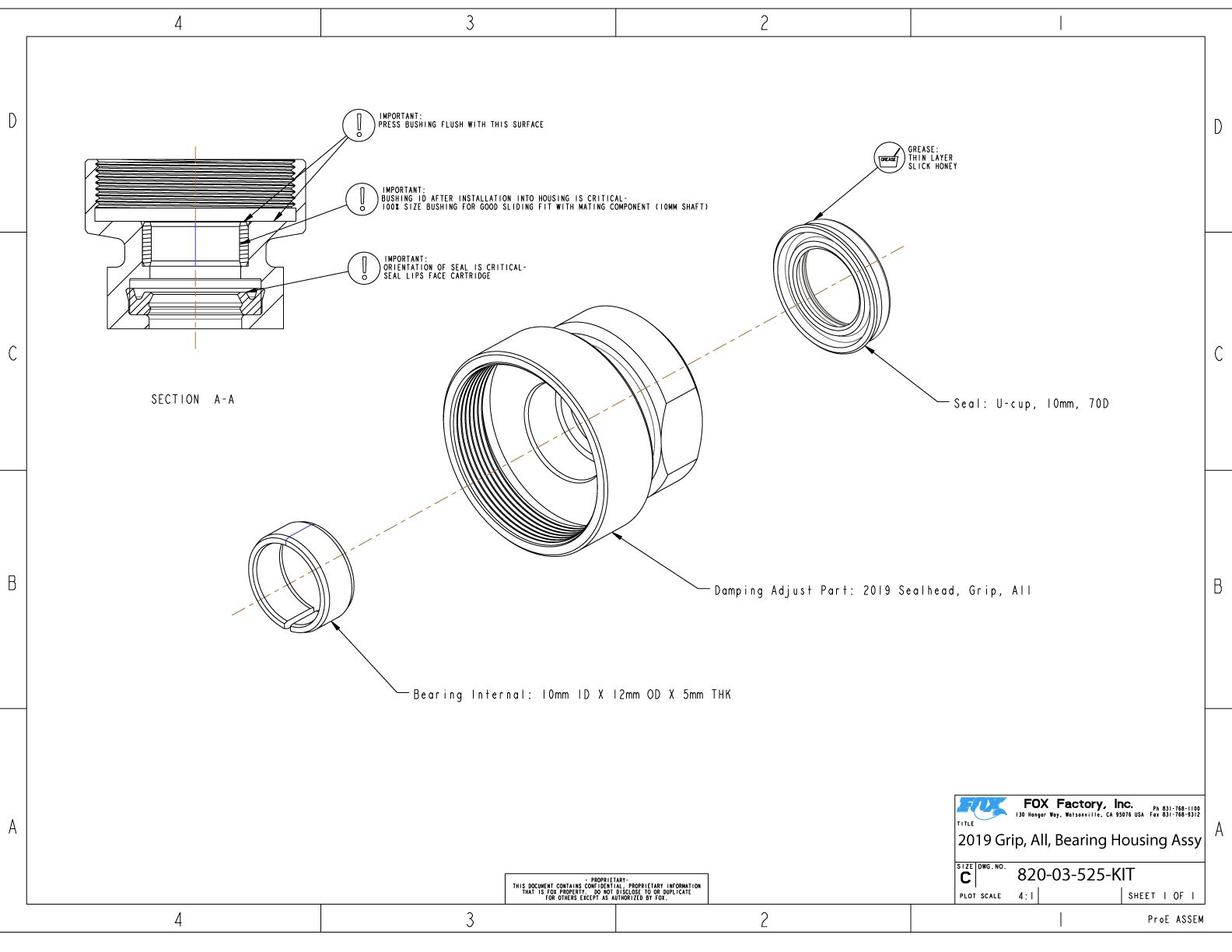

- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-526-KIT 2019 GRIP2 REBOUND VALVING, LONG TRAVEL
- 820-03-654-KIT 2021 GRIP2 VVC MID VALVING

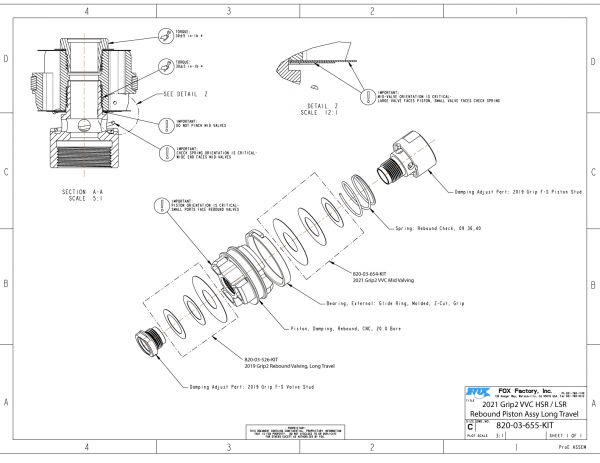

- 820-03-655-KIT 2021 GRIP2 VVC HSR/LSR REBOUND PISTON ASSY LONG TRAVEL
- 820-03-660-KIT 2021 GRIP2 VVC TPP COMPRESSION VALVING
- 820-03-677-KIT 2021 Grip2 VVC TTP E-Bike tune Compression Valving
- 820-03-662-KIT 2021 36 180 GRIP2 VVC HSR/LSR DAMPER SHAFT ASSY
- 820-05-664-KIT 2021 36 GRIP2 VVC TPP DAMPER TOPCAP ASSY
2021 36 E-BIKE+ GRIP
- 820-18-138-KIT 2019 36 27.5 & 29 180 MAX GRIP E-BIKE+ CART ASSY COMPLETE
- 2019 36 RHYTHM 180 MAX GRIP E-BIKE+ CART ASSY .
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-589-KIT 2019 Grip E-Bike Compression Valving
- 820-03-590-KIT 2019 GRIP E-BIKE REBOUND VALVING

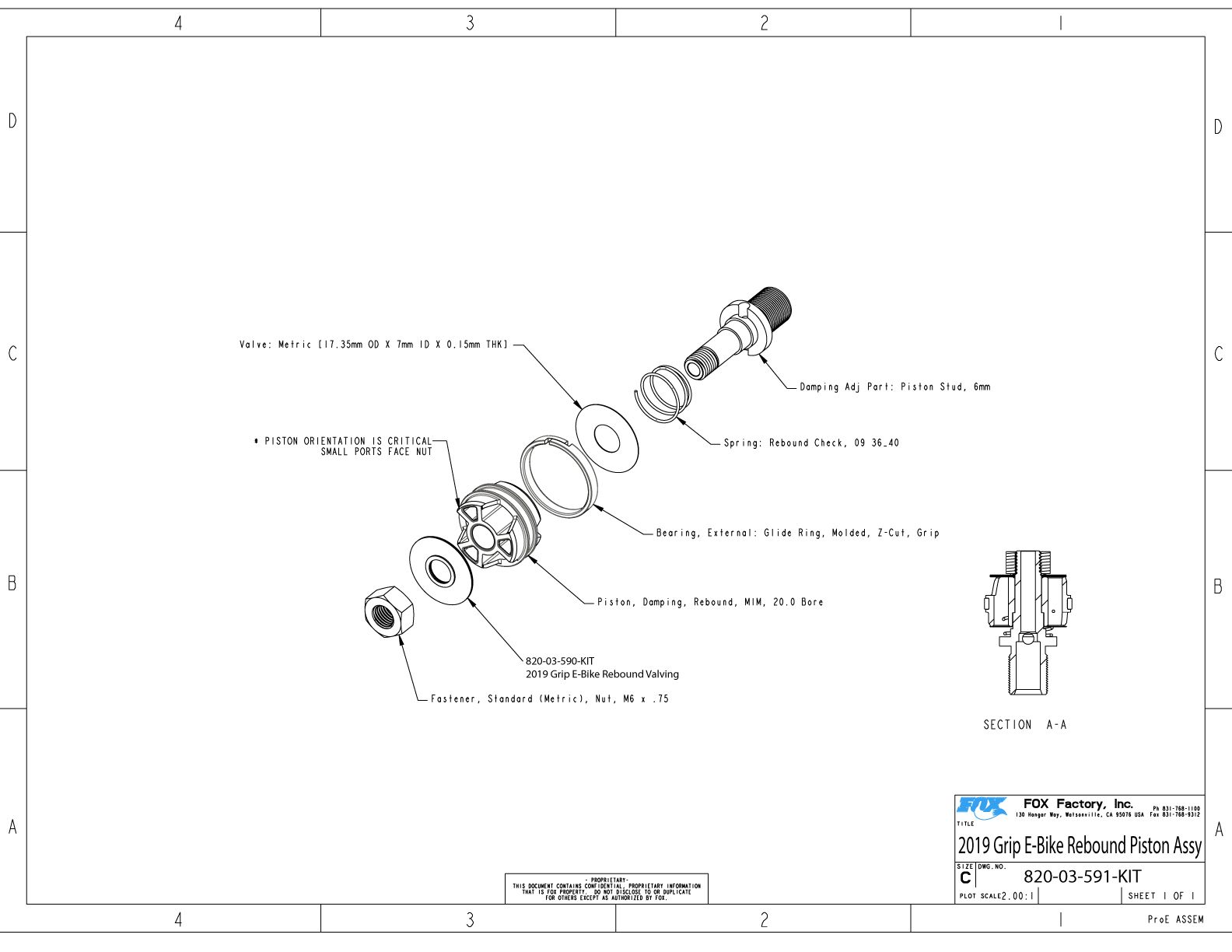

- 820-03-591-KIT 2019 GRIP E-BIKE REBOUND PISTON ASSY

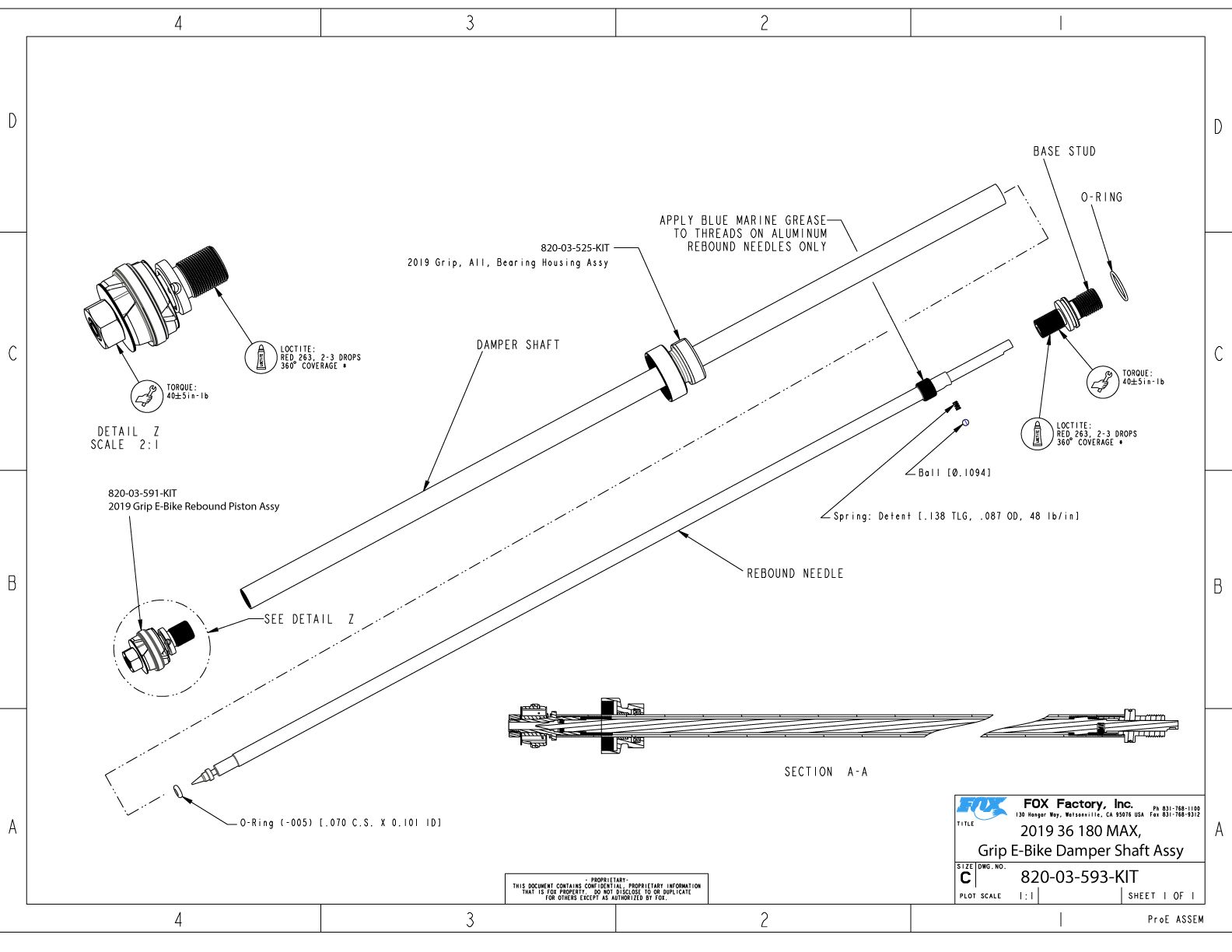

- 820-03-593-KIT 2019 36 180 MAX GRIP E-BIKE DAMPER SHAFT ASSY

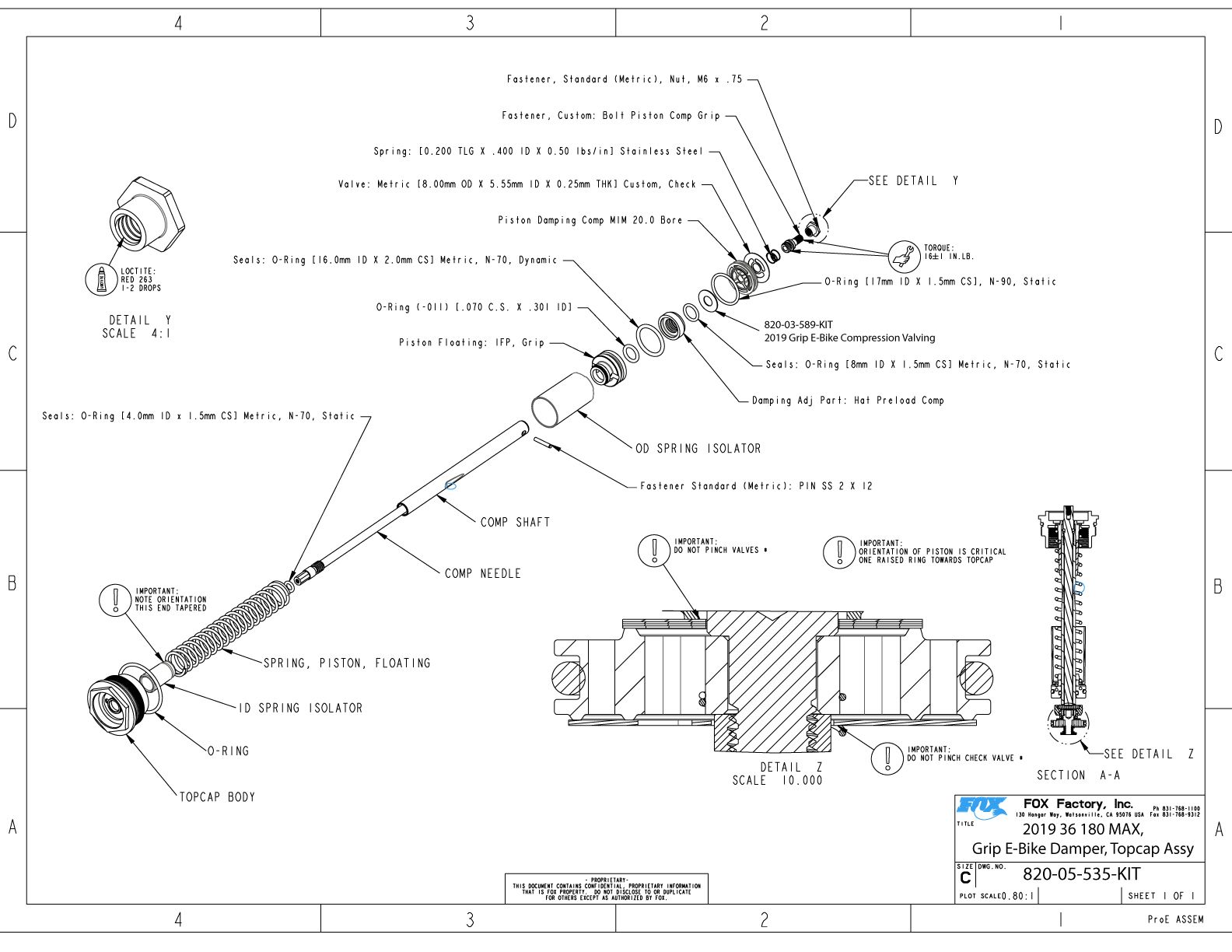

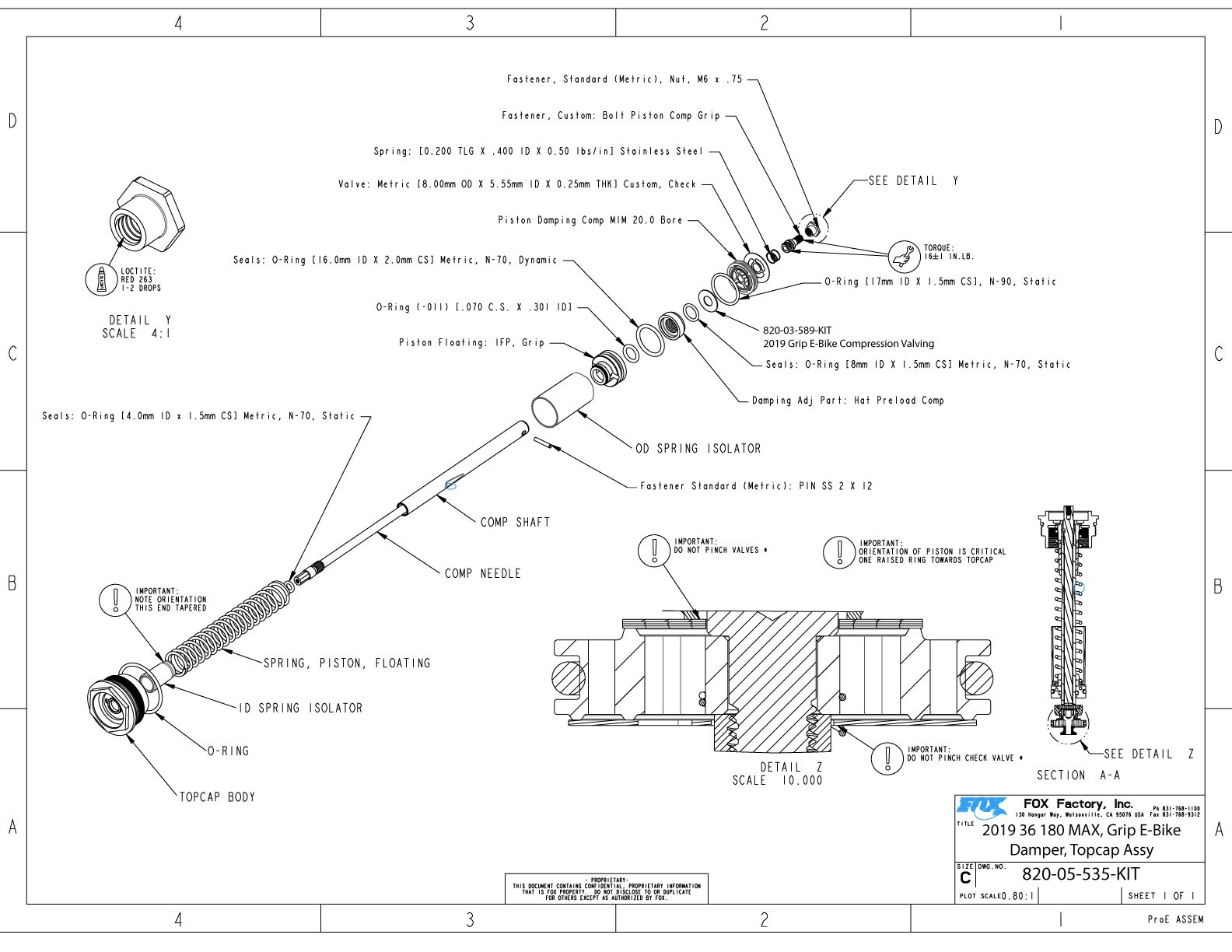

- 820-05-535-KIT 2019 36 180 MAX GRIP E-BIKE DAMPER TOPCAP ASSY
2021 36 E-BIKE+ GRIP REMOTE
- 820-18-278-KIT 2020 36 180 MAX GRIP E-BIKE+ PUSH-LOCK REMOTE CART ASSY COMPLETE
- 2020 36 180 MAX GRIP E-BIKE+ REMOTE CART ASSY .
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-590-KIT 2019 GRIP E-BIKE REBOUND VALVING
- 820-03-591-KIT 2019 GRIP E-BIKE REBOUND PISTON ASSY
- 820-03-593-KIT 2019 36 180 MAX GRIP E-BIKE DAMPER SHAFT ASSY

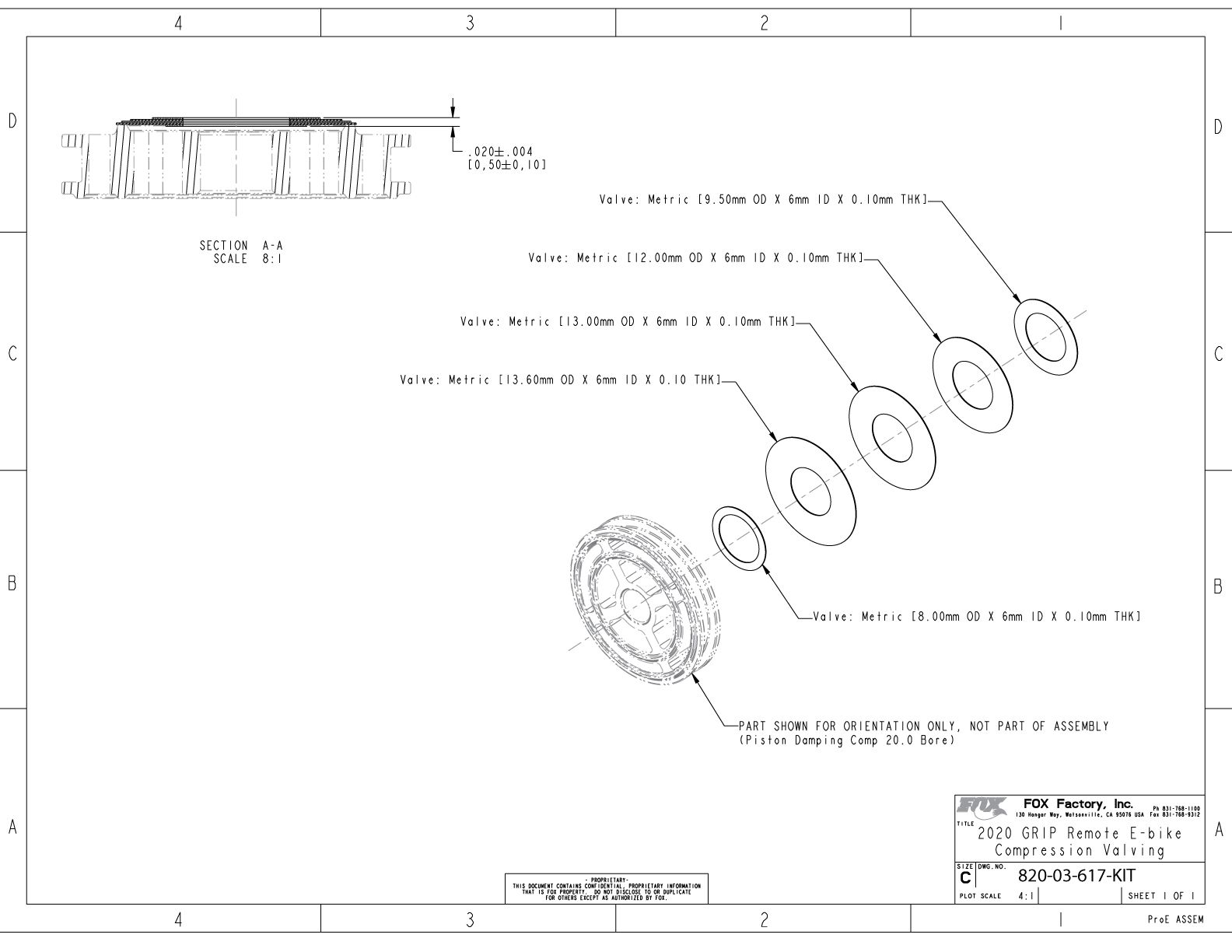

- 820-03-617-KIT 2020 GRIP REMOTE E-BIKE COMPRESSION VALVING
- 820-05-609-KIT 2020 36 GRIP E-BIKE+ REMOTE TOPCAP ASSY
2021 36 E-BIKE+ RHYTHM GRIP

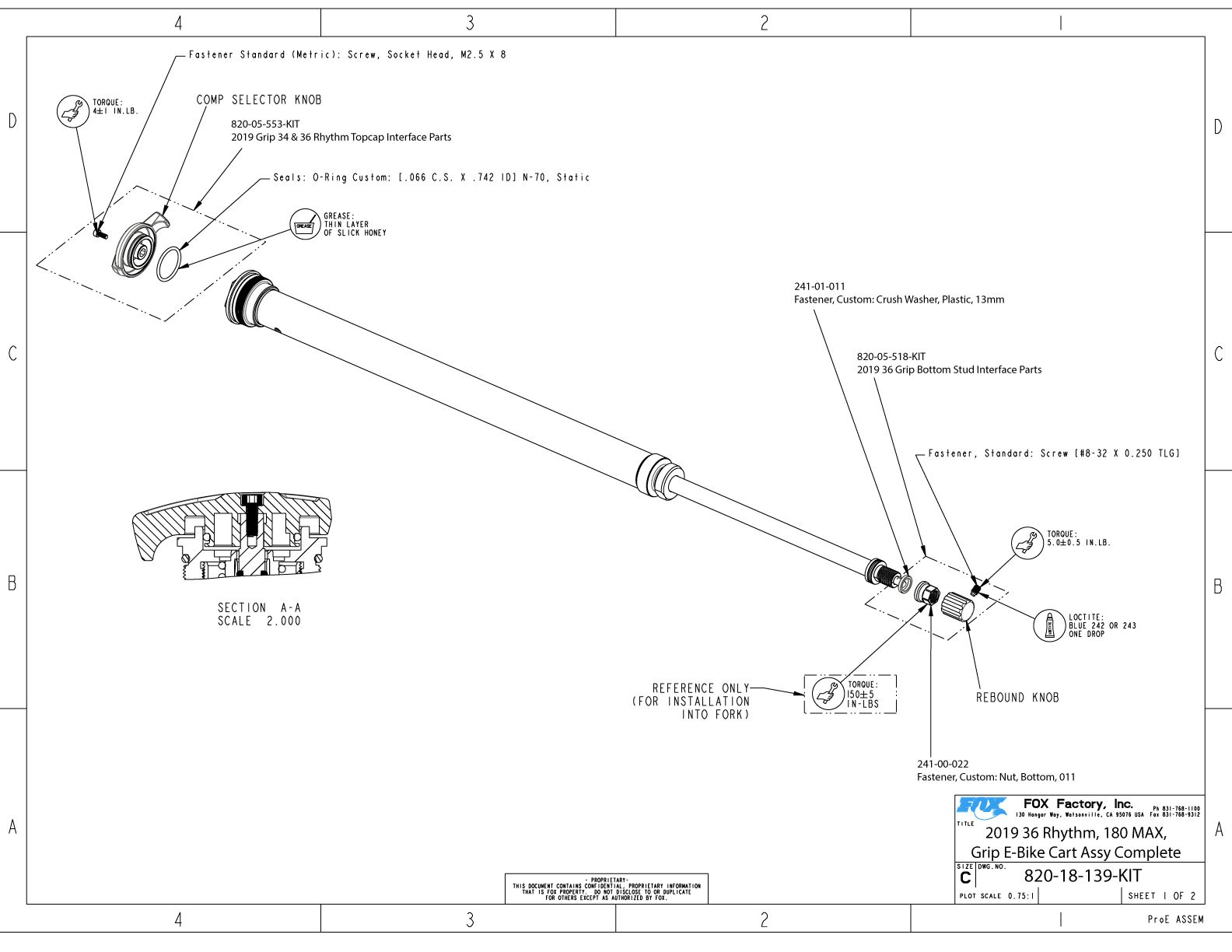

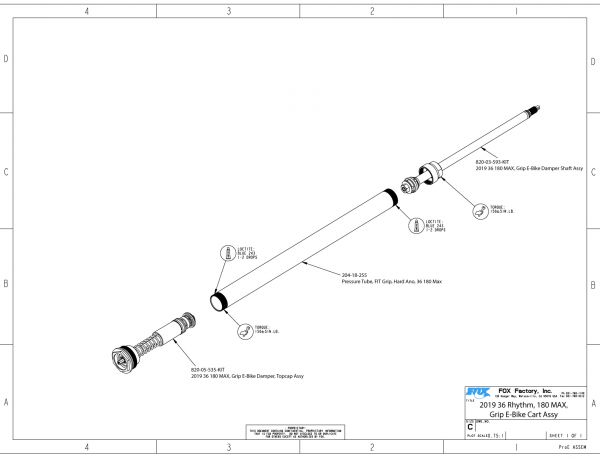

- 820-18-139-KIT 2019 36 RHYTHM 180 MAX GRIP E-BIKE CART ASSY COMPLETE
- 2019 36 RHYTHM 180 MAX GRIP E-BIKE CART ASSY .
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-589-KIT 2019 Grip E-Bike Compression Valving
- 820-03-590-KIT 2019 GRIP E-BIKE REBOUND VALVING
- 820-03-591-KIT 2019 GRIP E-BIKE REBOUND PISTON ASSY
- 820-03-593-KIT 2019 36 180 MAX GRIP E-BIKE DAMPER SHAFT ASSY
- 820-05-535-KIT 2019 36 180 MAX GRIP E-BIKE DAMPER TOPCAP ASSY
2021 36 E-BIKE+ FLOAT NA2
- 2021 36 E-BIKE+ FLOAT NA2 AIR SPRING ASSEMBLIES .
- 2021 36 E-BIKE+ FLOAT NA2 AIR SHAFT ASSEMBLIES .
- 820-02-588-KIT Neg Plate Subassembly, 2019 36 E-Bike+ Float NA2, All Travels, 1.214
- 820-05-533-KIT Topcap Assy, 2018 FLOAT LC NA2, 36, Better VS Fit, Black
NOTE: Parts without part numbers listed are not available individually and must be ordered as part of a complete assembly or "-KIT". Please order the "-KIT" part number listed at the bottom right corner of the drawing in which a desired individual part is shown.
