PARTS & DRAWINGS
34mm E-Bike+ Part Information
New for 2021:
| New Decals | New design on all models |
| New CSU/Lowers | Shiny Black CSU/Lowers and Shiny Orange Lowers on F-S is new for 2021 |
| New Axle | Axle with 4mm adjuster. This was the only change on the lower assemblies. |
| New Damper | Grip2 variable valve control (VVC) on compression and rebound. Now offered in 34 chassis. |
| Grip2 E-Bike Tune Comp Valving | Lighter than the standard tune for longer distance comfort. |
| Damper Topcap Assemblies | MY21 Damper Topcap Assemblies do not include Topcap Interface Parts. Please order the appropriate Interface Parts Kit separately. |
Maintenance:
| Service Interval | Full Service 125 Hours |
| 803-00-945 | Kit: Dust Wiper, Forx, 34mm, Low Friction, No Flange |
| 803-01-320 | Seal Kit: MY19+ 32, 34, 36, 38, 40 GRIP Cartridge Rebuild |
| 803-01-431 | Seal Kit: MY20+ ALL 32/34 Non-SC 8mm Shaft FIT4 Cartridge Rebuild |
| 803-01-494 | Seal Kit: 2021 F-S Grip2 VVC 34/36/38/40 |
| 803-00-962 | Seal Kit: 32 FLOAT NA2 Rebuild |
| 398-00-771 | Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 34 |
| 398-00-681 | 32 Damper-side and ALL 32-34-36-38-40 Spring-side Removal Tool |
| 398-00-682 | 34-36-38-40 Damper-side Removal Tool |
| 803-00-147 | Kit: Shaft Clamps, 07 FORX, Set #2 (32 X Body, 36, 40 Forx) |
| 803-00-276 | Service Kit: Hand Bleed, Syringe and Tube, 2010 32 Fit RL-RLC Cartridge |
| 803-01-209 | Kit: Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set |
| 398-00-760 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
| 803-01-324 | Kit: Tooling: 2019 Clamps, Grip Damper, Body and Shaft |
Air Spring Tuning:
| 234-04-811 | Volume Spacer, FLOAT NA 2, 32 |
| 234-04-735 | Volume Spacer, FLOAT, 2018 32 Rhythm |
Oils:
| Application | Description | Part |
| All FIT4 and Grip/Grip2 VVC Dampers | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart | 025-03-023 |
| FIT4 Damper Bath Oil and NA2 Air Chamber/Float Side Bath Oil | Oil: AM, FOX 20 WT Gold, T22238, 32 oz | 025-03-072 |
| Bath Oil Application | Bath Oil Volume |
| NA2 Air Side Bath | 10cc (FOX 20wt. Gold Oil) |
| Air Chamber | 3cc (FOX 20wt. Gold Oil) |
| FIT4 Damper Side Bath | 15cc (FOX 20wt. Gold Oil) |
| Grip/Grip2 VVC Damper Side Bath | 40cc (5wt. FOX Teflon Infused Oil) |
Remotes:
| 820-05-611-KIT | Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-07-150-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Dual Pull |
| 820-07-151-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Single Pull |
CSUs:
| Part Number | Description |
| 820-11-854-KIT | Service Set: 2017 34 27.5 160 & 29in 140 15x110QR SPD-PED-ELEC Black Ano Matte Black 44 Rake 1.5 Taper CSU |
| 820-11-856-KIT | Service Set: 2017 34 27.5 160 & 29in 140 15x110QR SPD-PED-ELEC Black Ano Shiny Black 44 Rake 1.5 Taper CSU |
| 820-11-857-KIT | Service Set: 2017 34 27.5 160 & 29in 140 15x110QR SPD-PED-ELEC Kashima Matte Black 44 Rake 1.5 Taper CSU |
| 820-11-859-KIT | Service Set: 2017 34 27.5 160 & 29in 140 15x110QR SPD-PED-ELEC Kashima Shiny Black 44 Rake 1.5 Taper CSU |
| 820-11-866-KIT | Service Set: 2017-018 34 29in 150 15x110QR SPD-PED-ELEC Black Ano Matte Black 51 Rake 1.5 Taper CSU |
| 820-11-868-KIT | Service Set: 2017-018 34 29in 15x110QR 150 SPD-PED-ELEC Black Ano Shiny Black 51 Rake 1.5 Taper CSU |
| 820-11-871-KIT | Service Set: 2017 34 29in 15x110QR 140 SPD-PED-ELEC Kashima Shiny Black 51 Rake 1.5 Taper CSU |
| 820-12-265-KIT | Service Set: 2020 34 Z2 and Rhythm E-Bike+ 29in 140 15x110QR Shiny Black 1.5T 20mm OS CSU |
| 820-12-122-KIT | Service Set: 2019 34 Rhythm SPD-PED-ELEC, 15x110QR, Black Ano UT, 13mm OS, Matte Black, CSU |
| 820-12-125-KIT | Service Set: 2019 34 Rhythm SPD-PED-ELEC, 15x110QR, Black Ano UT, 20mm OS, Matte Black, CSU |
| 820-12-260-KIT | Service Set: 2020 34 Z2 and Rhythm E-Bike+ 27.5in 150 and 29in 140 15x110QR Matte Black 1.5T 13mm OS CSU |
| 820-12-262-KIT | Service Set: 2020 34 Z2 and Rhythm E-Bike+ 27.5in 150 and 29in 140 15x110QR Shiny Black 1.5T 13mm OS CSU |
| 820-12-263-KIT | Service Set: 2020 34 Z2 and Rhythm E-Bike+ 29in 140 15x110QR Matte Black 1.5T 20mm OS CSU |
Lower Legs:
| Part Number | Description |
| 820-20-097-KIT | Service Set: 2021 34 27.5in 160 15x110 QR, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-20-099-KIT | Service Set: 2021 34 27.5in 160 15x110 QR, Fox Shiny Black, F-S PE-S, Lower Leg Assy |
| 820-20-112-KIT | Service Set: 2021 Rhythm 34 27.5in 160mm 15x110QR, Matte Black Lower Leg Assy |
| 820-20-113-KIT | Service Set: 2021 Rhythm 34 27.5in 160mm 15x110QR, Shiny Black Lower Leg Assy |
| 820-10-311-KIT | Service Set: 2017 34 29in 140 15QR Shiny Black Lower Leg Assy |
| 820-10-319-KIT | Service Set: 2017 34 29in 140 15QR Matte Black Lower Leg Assy |
| 820-20-101-KIT | Service Set: 2021 Rhythm 34 29in 15x110QR Shiny Black Lower Leg Assy |
| 820-20-102-KIT | Service Set: 2021 Rhythm 34 29in 15x110QR Matte Black Lower Leg Assy |
| 820-20-106-KIT | Service Set: 2021 34 29in 150 15x110, QR, Fox Matte Black, F-S P-SE, Lower Leg Assy |
| 820-20-108-KIT | Service Set: 2021 34 29in 150 15x110, QR, Fox Shiny Black, F-S P-SE, Lower Leg Assy |
| 820-20-149-KIT | Service Set: 2021 34 29in 150 15x110, QR, Fox Shiny Orange, F-S P-SE, Lower Leg Assy |
Axles:
| Part | Description |
| 820-09-063-KIT | Service Set: 2020 FOX-Marzocchi 15x110 QR Adjust Axle Assembly |
| 820-09-014-KIT | Service Set: Axle Assembly, 2016 15 x 100 QR, Factory and Performance, Black Ano |
| 820-09-018-KIT | Service Set: Axle Assembly: 15 X 100mm Kabolt, Black Ano |
| 820-09-019-KIT | Service Set: Axle Assembly: 15 X 110mm Kabolt, Black Ano |
| 820-09-022-KIT | Service Set: Axle Assembly: 15 X 100mm Kabolt, Orange Ano |
| 820-09-023-KIT | Service Set: Axle Assembly: 15 X 110mm Kabolt, Orange Ano |
Lower Leg Small Parts:
| Part | Description |
| 803-00-370 | Service Set: 15QR Hardware (Contains: Axle nut, hold down, and set screw) |
| 820-00-202-KIT | Service Set: Light Disc Brake Hose Guide Parts |
Decals:
| Part | Description |
| 803-01-513 | Decal Kit: 2021, 34, E-BIKE+, F-S, Orange Logo, Shiny Black Fork |
| 803-01-514 | Decal Kit: 2021, 34, E-BIKE+, P-S, Gray Logo, Matte Black Background |
| 803-01-515 | Decal Kit: 2021, 34, E-BIKE+, P-SE, Gray Logo, Matte Black Fork |
| 803-01-516 | Decal Kit: 2021, 34, E-BIKE+, Rhythm, Gray Logo, Matte Black Fork |
Complete Cartridges:
| Part Number | Description |
| 820-18-135-KIT | Service Set: 2019 34 27.5 & 29, Grip E-Bike Cart Assy Complete |
| 820-18-136-KIT | Service Set: 2019 34 Rhythm 27.5 150 MAX, Grip E-Bike Cart Assy Complete |
| 820-18-137-KIT | Service Set: 2019 34 Rhythm 29 150 MAX, Grip E-Bike Cart Assy Complete |
| 820-18-270-KIT | Service Set: 2020 34 160 MAX, Grip E-Bike+ Push-Lock Remote Cart Assy Complete |
| 820-18-275-KIT | Service Set: 2020 34 Rhythm 27.5 150 MAX, Grip E-Bike+ Push-Lock Remote Cart Assy Complete |
| 820-18-276-KIT | Service Set: 2020 34 Rhythm 29 150 MAX, Grip E-Bike+ Push-Lock Remote Cart Assy Complete |
| 820-18-230-KIT | Service Set: 2020 34, 110-160, FIT4 F-S, CL Tune, 3 Pos Adj Cart Assy Complete |
| 820-18-231-KIT | Service Set: 2020 34, 110-160, FIT4 F-S, CL Tune, Remote, 2 Pos Adj, Push-Lock Cart Assy Complete |
| 820-18-334-KIT | Service Set: 2021 34 150, Grip2 VVC HSR / LSR / HSC/ LSC Cart Assy Complete |
| 820-18-400-KIT | Service Set: 2021 34 150, Grip2 VVC HSR / LSR / HSC/ LSC Cart Assy Complete, Reb Light |
Cartridge Topcaps:
| Part Number | Description |
| 820-05-534-KIT | Service Set: 2019 34 Grip E-Bike Damper, Topcap Assy |
| 820-05-581-KIT | Service Set: 2020 34 FIT4 F-S Topcap Assy, CL Tune, Black Ano |
| 820-05-582-KIT | Service Set: 2020 34 FIT4 F-S Topcap Assy, CL Tune, Remote, U-Cup, 2 Position, Push-Lock |
| 820-05-607-KIT | Service Set: 2020 34, Grip E-Bike+ Remote, Topcap Assy |
| 820-05-663-KIT | Service Set: 2021 34 Grip2 VVC TPP Damper, Topcap Assy |
Topcap Interface Parts:
| Part | Description |
| 820-05-330-KIT | Service Set: 2016 FIT4 TopCap Interface Parts F-S |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-611-KIT | Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts |
| 820-05-623-KIT | Service Set: 2020 Grip 34 & 36 P-S Topcap Interface Parts |
| 820-05-669-KIT | Service Set: 2021 Grip2 VVC HSC / LSC Topcap Interface Parts |
Bottom Stud Interface Parts:
| Part | Description |
| 820-05-328-KIT | Service Set: 2017 34 27.5 and 29in Grip Bottom Stud Interface Parts |
| 820-05-335-KIT | Service Set: 2016 FIT4 Bottom Stud Interface Parts 34 and 36 |
| 820-05-374-KIT | Service Set: 2017 Grip Bottom Stud Interface Parts |
| 820-05-501-KIT | Service Set: 2019 Grip2 HSR / LSR Bottom Stud Interface Parts |

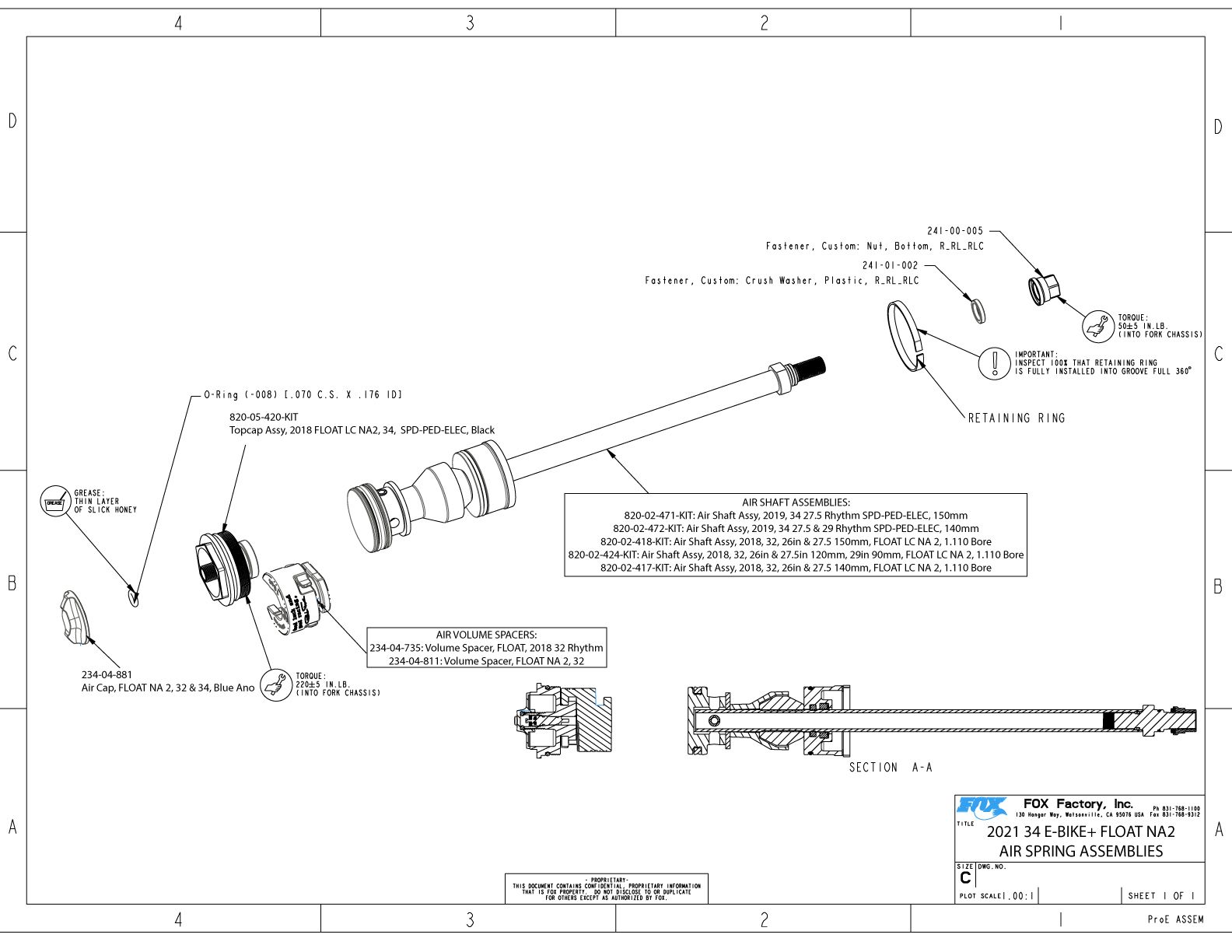

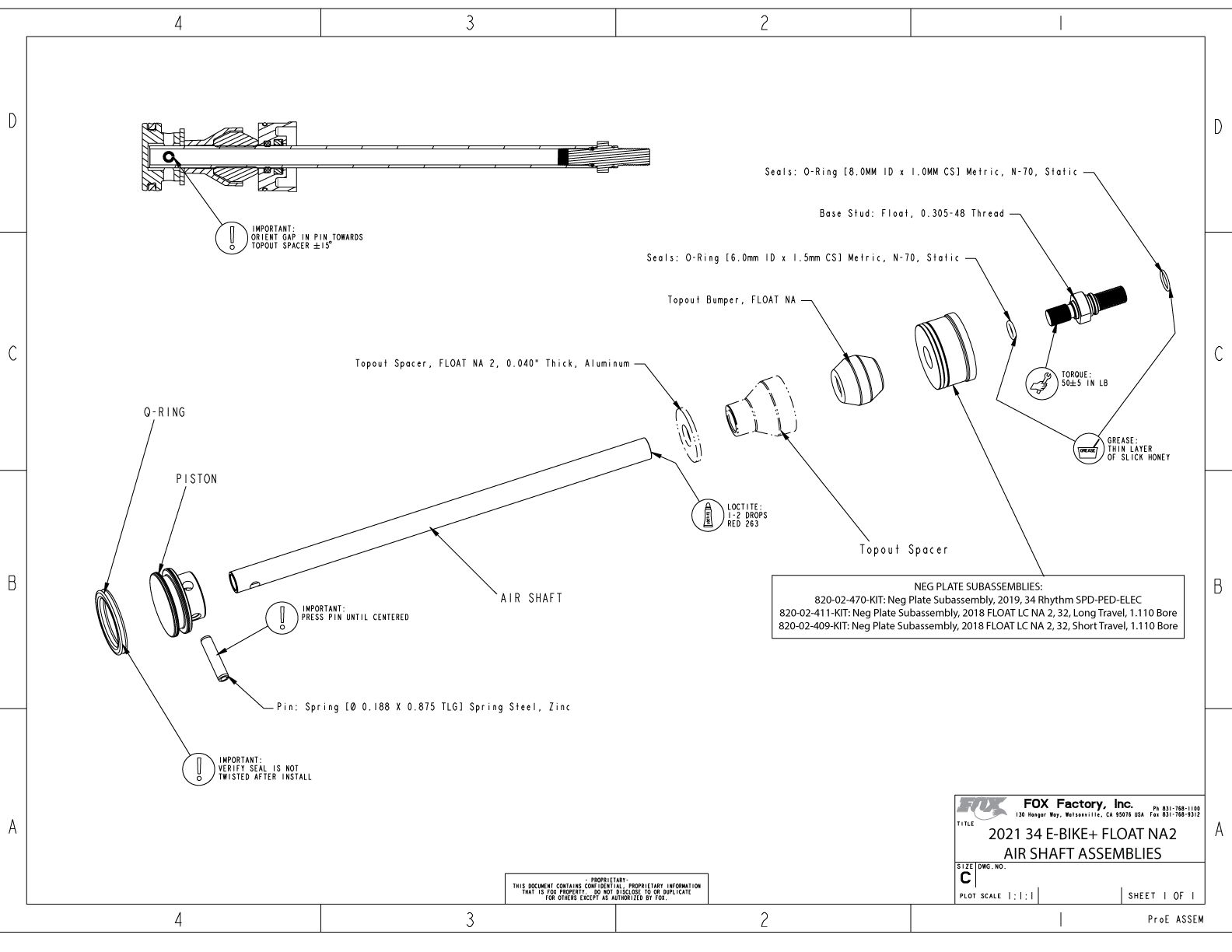

FLOAT NA2 Air Shaft Assemblies:
| Part | Description |
| 820-02-471-KIT | Service Set: Air Shaft Assy, 2019, 34 27.5 Rhythm SPD-PED-ELEC, 150mm |
| 820-02-472-KIT | Service Set: Air Shaft Assy, 2019, 34 27.5 & 29 Rhythm SPD-PED-ELEC, 140mm |
| 820-02-475-KIT | Service Set: Air Shaft Assy, 2019, 34 29 Rhythm SPD-PED-ELEC, 130mm |
| 820-02-476-KIT | Service Set: Air Shaft Assy, 2019, 34 27.5 & 29 Rhythm SPD-PED-ELEC, 120mm |
| 820-02-477-KIT | Service Set: Air Shaft Assy, 2019, 34 29 Rhythm SPD-PED-ELEC, 110mm |
| 820-02-418-KIT | Service Set: Air Shaft Assy, 2018, 32, 26in & 27.5 150mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-424-KIT | Service Set: Air Shaft Assy, 2018, 32, 26in & 27.5in 120mm, 29in 90mm, FLOAT LC NA 2, 1.110 Bore |
| 820-02-417-KIT | Service Set: Air Shaft Assy, 2018, 32, 26in & 27.5 140mm, FLOAT LC NA 2, 1.110 Bore |
***Note: Some 34mm E-Bike+ forks utilize 32mm Air Shaft Assemblies***
FLOAT NA2 Topcap Assemblies:
| Part | Description |
| 820-05-420-KIT | Service Set: Topcap Assy, 2018 FLOAT LC NA2, 34, SPD-PED-ELEC, Black |

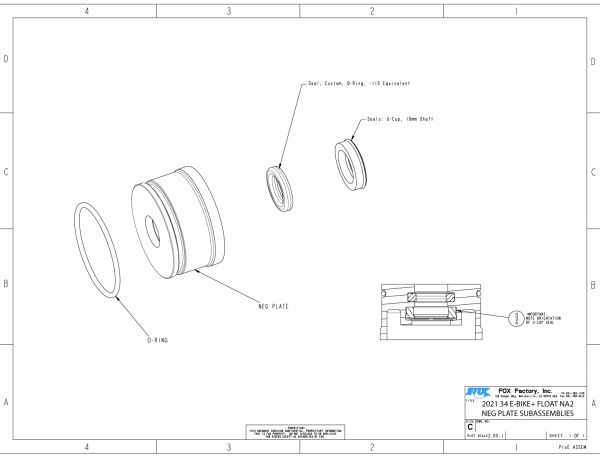

FLOAT NA2 Neg Plate Subassemblies:
| Part | Description |
| 820-02-409-KIT | Service Set: Neg Plate Subassembly, 2018 FLOAT LC NA 2, 32, Short Travel, 1.110 Bore |
| 820-02-411-KIT | Service Set: Neg Plate Subassembly, 2018 FLOAT LC NA 2, 32, Long Travel, 1.110 Bore |

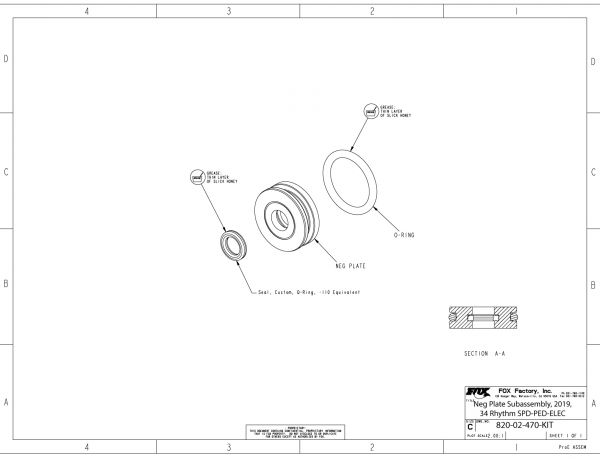

| 820-02-470-KIT | Service Set: Neg Plate Subassembly, 2019, 34 Rhythm SPD-PED-ELEC |
2021 34 E-BIKE+ FIT4 3POS ADJ

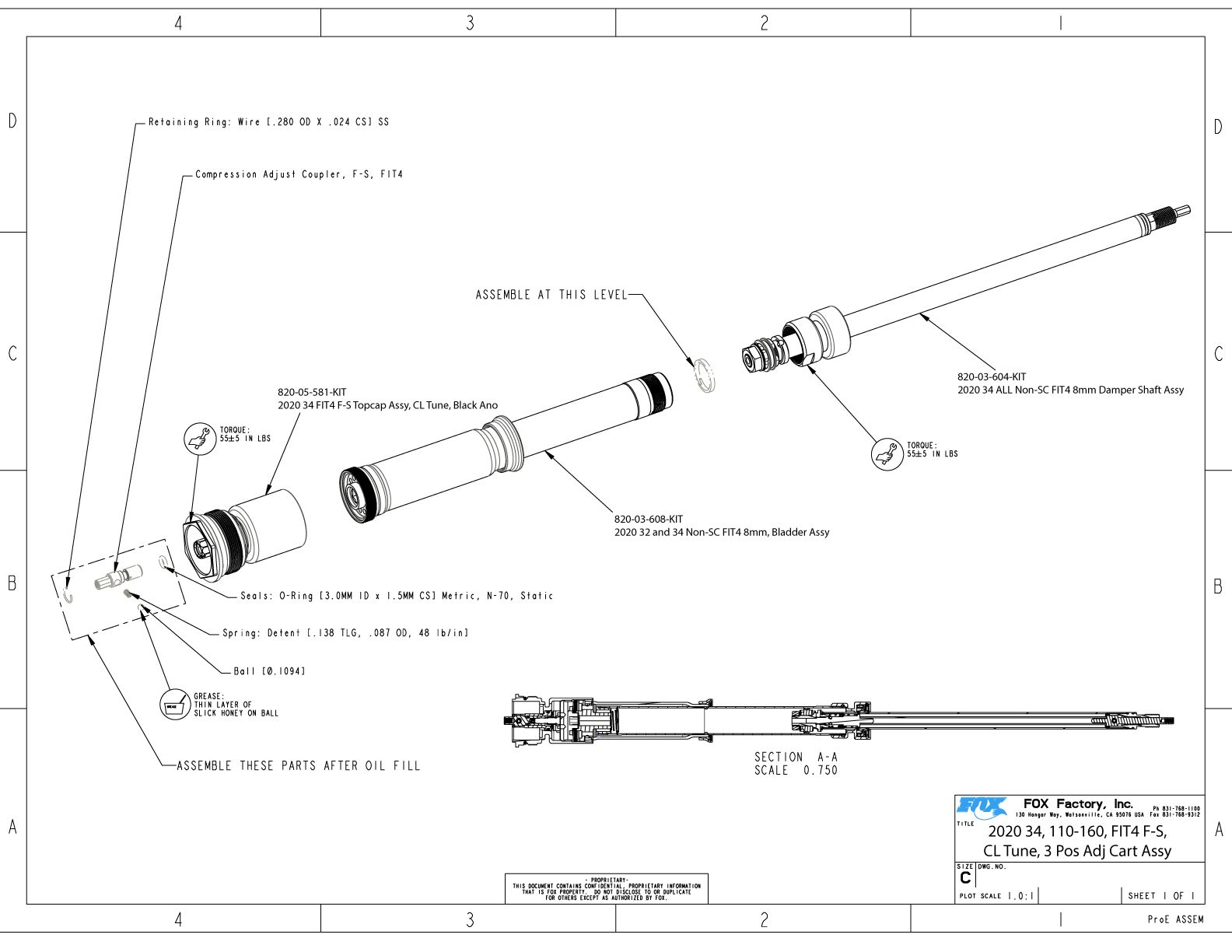

- 820-18-230-KIT 2020 34 110-160 FIT4 F-S CL TUNE 3POS ADJ CART ASSY COMPLETE
- 2020 34 110-160 FIT4 F-S CL TUNE 3POS ADJ CART ASSY .
- 820-05-581-KIT 2020 34 FIT4 F-S TOPCAP ASSY CL TUNE BLACK ANO
- 820-03-624-KIT 2020 FIT4 Compression Valving Assy, CL tune, 8mm Shaft

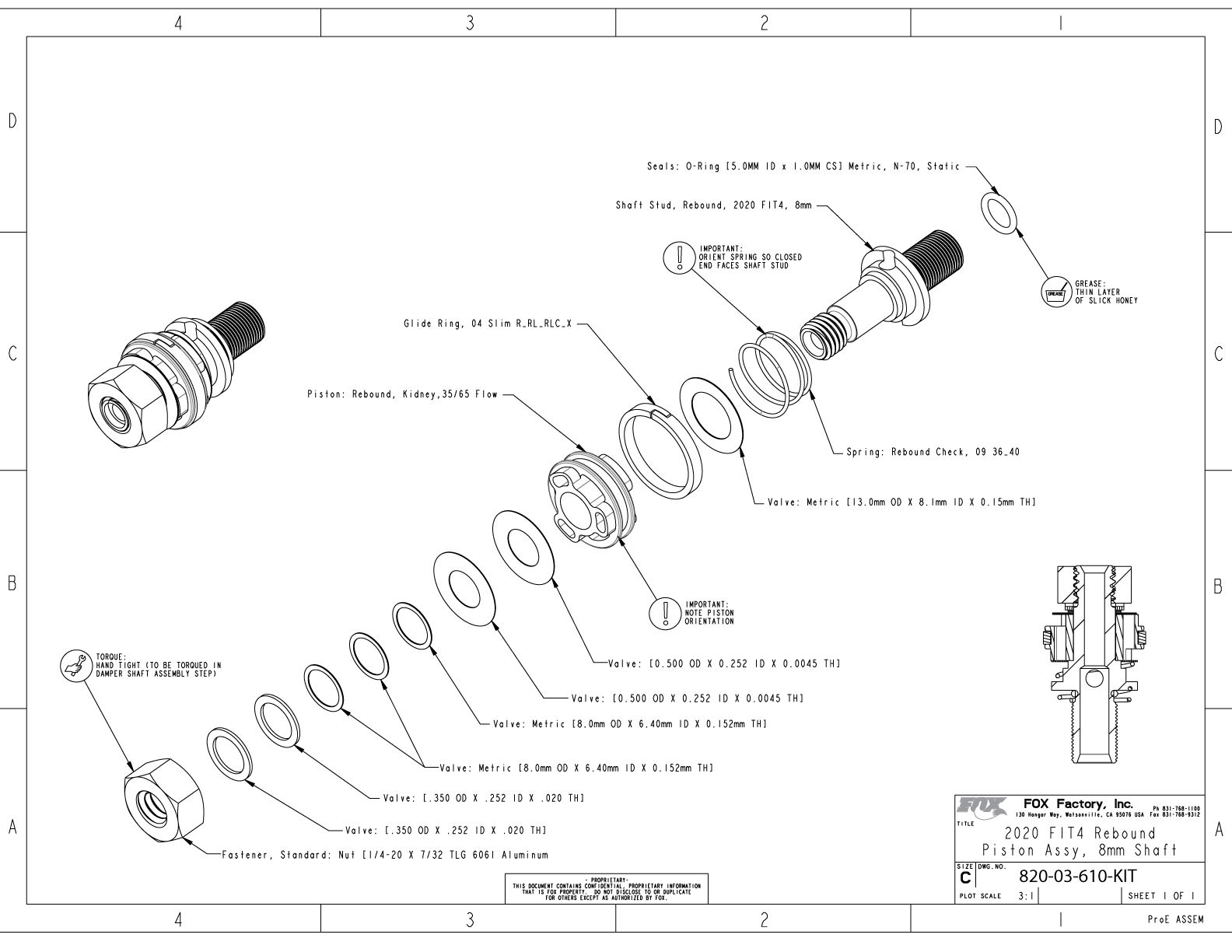

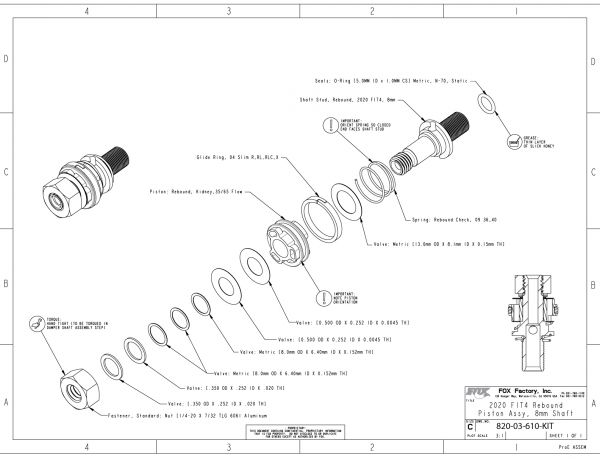

- 820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft

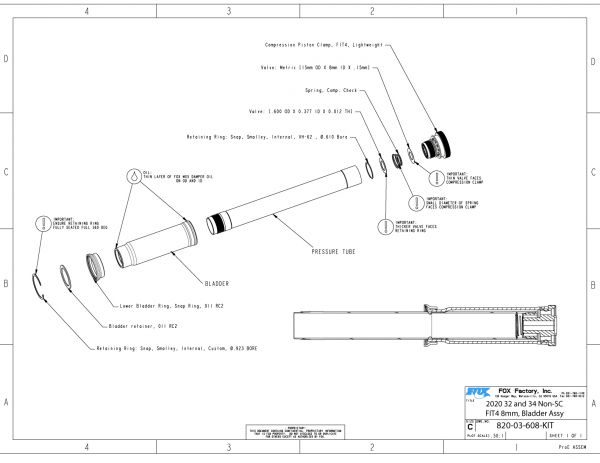

- 820-03-608-KIT 2020 32 and 34 Non-SC FIT4 8mm, Bladder Assy

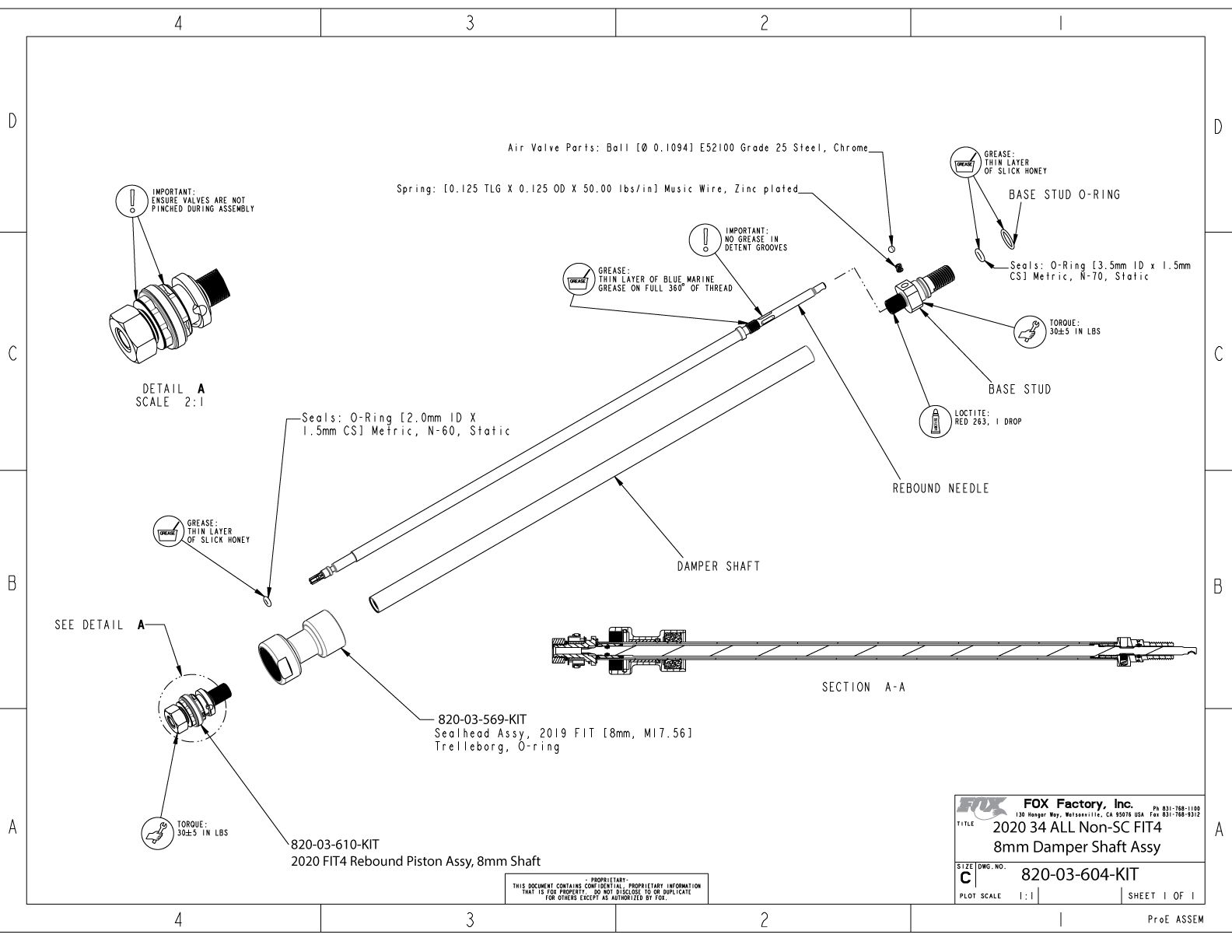

- 820-03-604-KIT 2020 34 ALL NON-SC FIT4 8MM DAMPER SHAFT ASSY

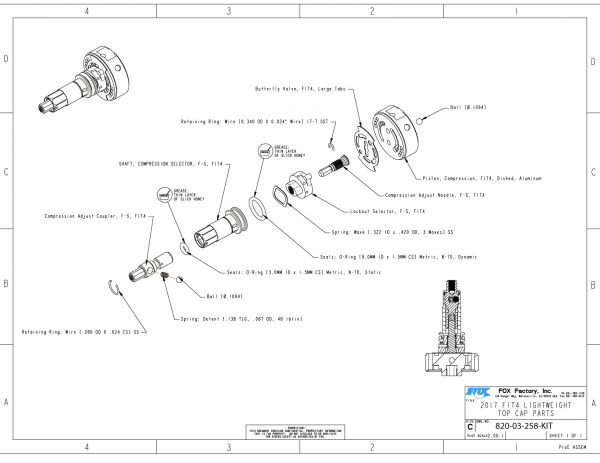

- 820-03-258-KIT 2017 FIT4 Lightweight Topcap Parts
2021 34 E-BIKE+ FIT4 REMOTE
- 820-18-231-KIT 2020 34 110-160 FIT4 F-S CL TUNE REMOTE 2POS ADJ PUSH-LOCK CART ASSY COMPLETE
- 2020 34 110-160 FIT4 F-S CL TUNE REMOTE 2POS ADJ PUSH-LOCK CART ASSY .
- 820-05-582-KIT 2020 34 FIT4 F-S TOPCAP ASSY CL TUNE REMOTE U-CUP 2 POSITION PUSH-LOCK
- 820-03-624-KIT 2020 FIT4 Compression Valving Assy, CL tune, 8mm Shaft
- 820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft
- 820-03-608-KIT 2020 32 and 34 Non-SC FIT4 8mm, Bladder Assy
- 820-03-604-KIT 2020 34 ALL NON-SC FIT4 8MM DAMPER SHAFT ASSY
- 820-03-539-KIT 2018 FIT4 LIGHTWEIGHT F-S TOPCAP PARTS REMOTE U-CUP PUSH-LOCK
2021 34 E-BIKE+ GRIP2

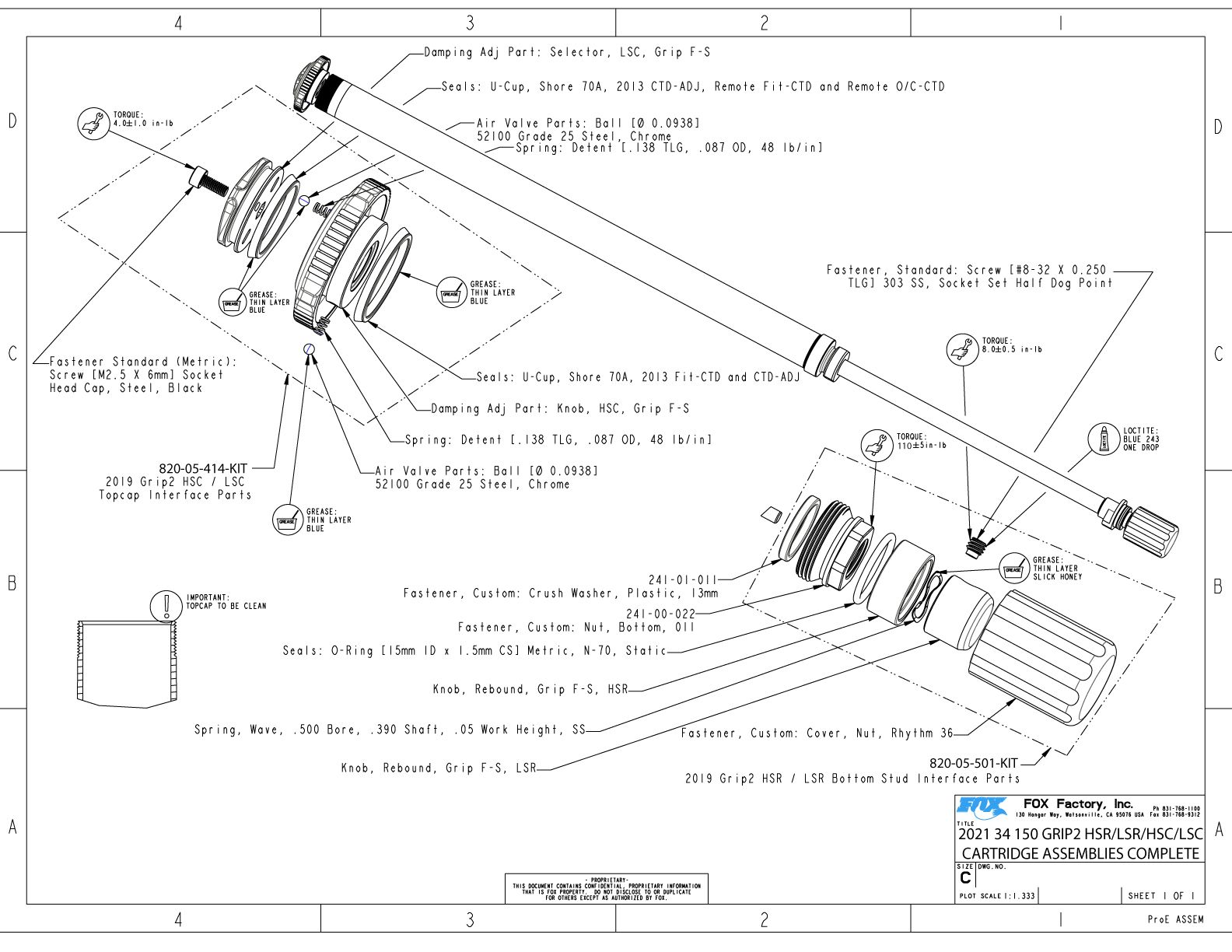

- 2021 34 150 GRIP2 HSR/LSR/HSC/LSC CARTRIDGE ASSEMBLIES COMPLETE .
- 2021 34 150 GRIP2 VVC CARTRIDGE ASSEMBLIES .
- 2021 34 150 VVC HSR/LSR DAMPER SHAFT ASSEMBLIES .

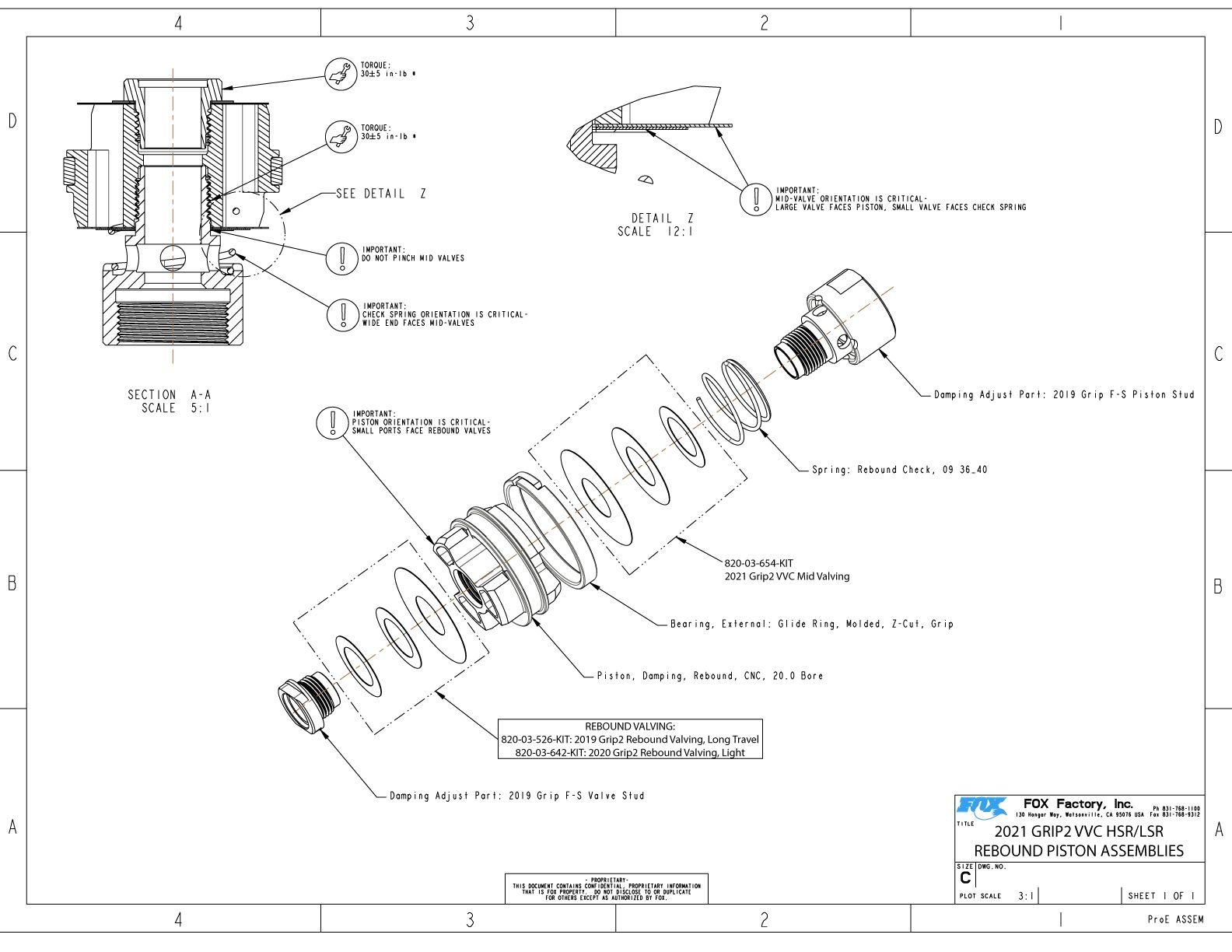

- 2021 GRIP2 VVC HSR/LSR REBOUND PISTON ASSEMBLIES .
- 820-05-663-KIT 2021 34 GRIP2 VVC DAMPER TOPCAP ASSEMBLY

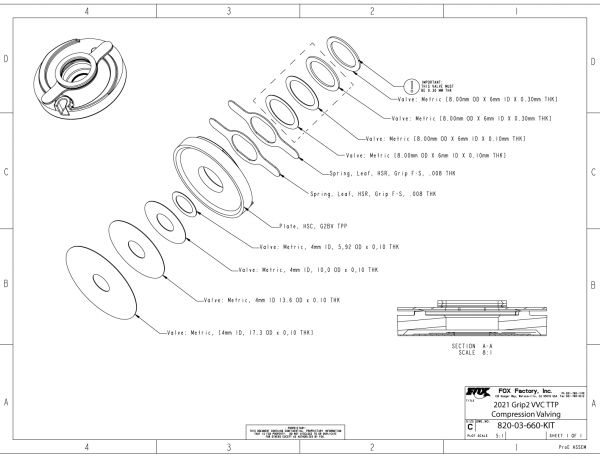

- 820-03-660-KIT 2021 GRIP2 VVC TPP COMPRESSION VALVING

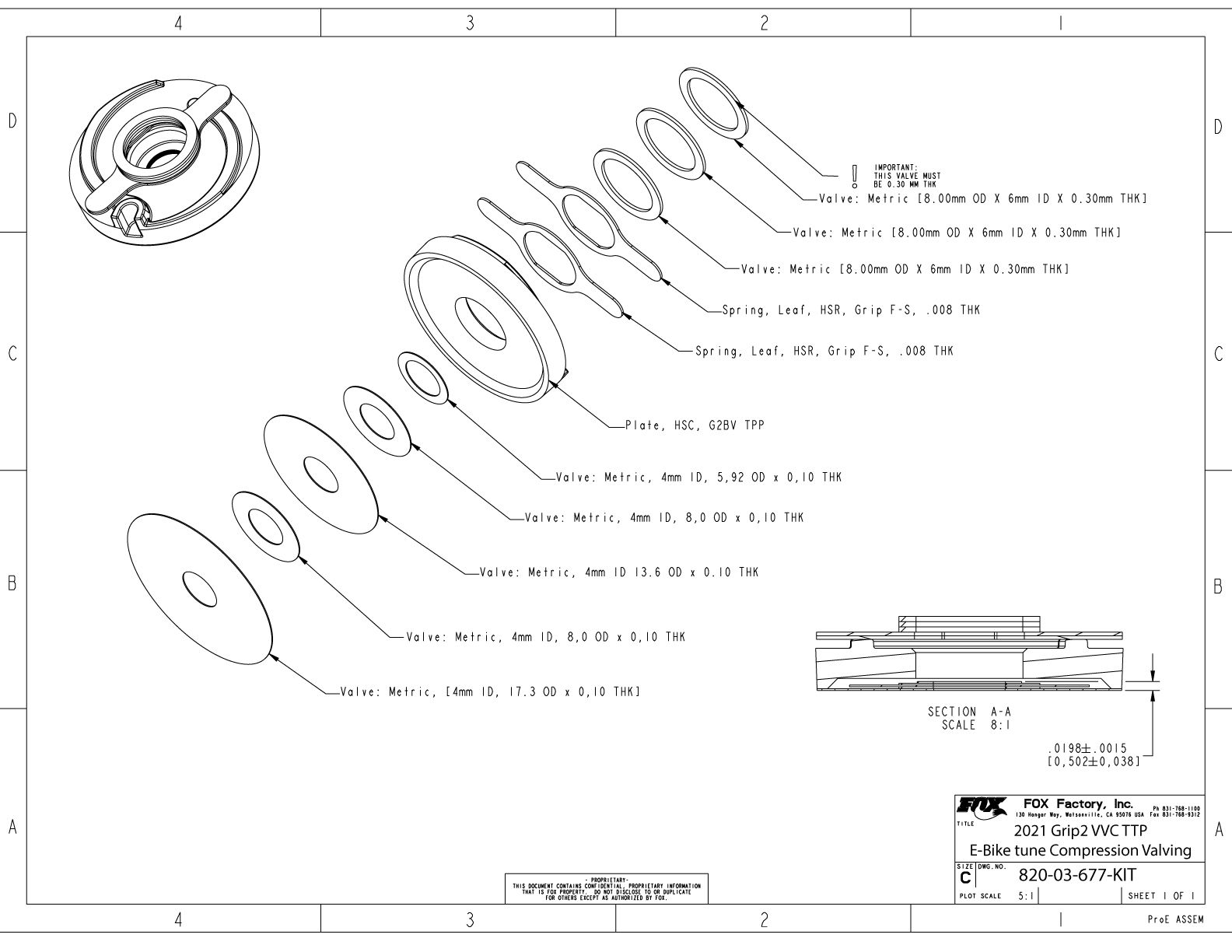

- 820-03-677-KIT 2021 Grip2 VVC TTP E-Bike tune Compression Valving
- 820-03-654-KIT 2021 GRIP2 VVC MID VALVING

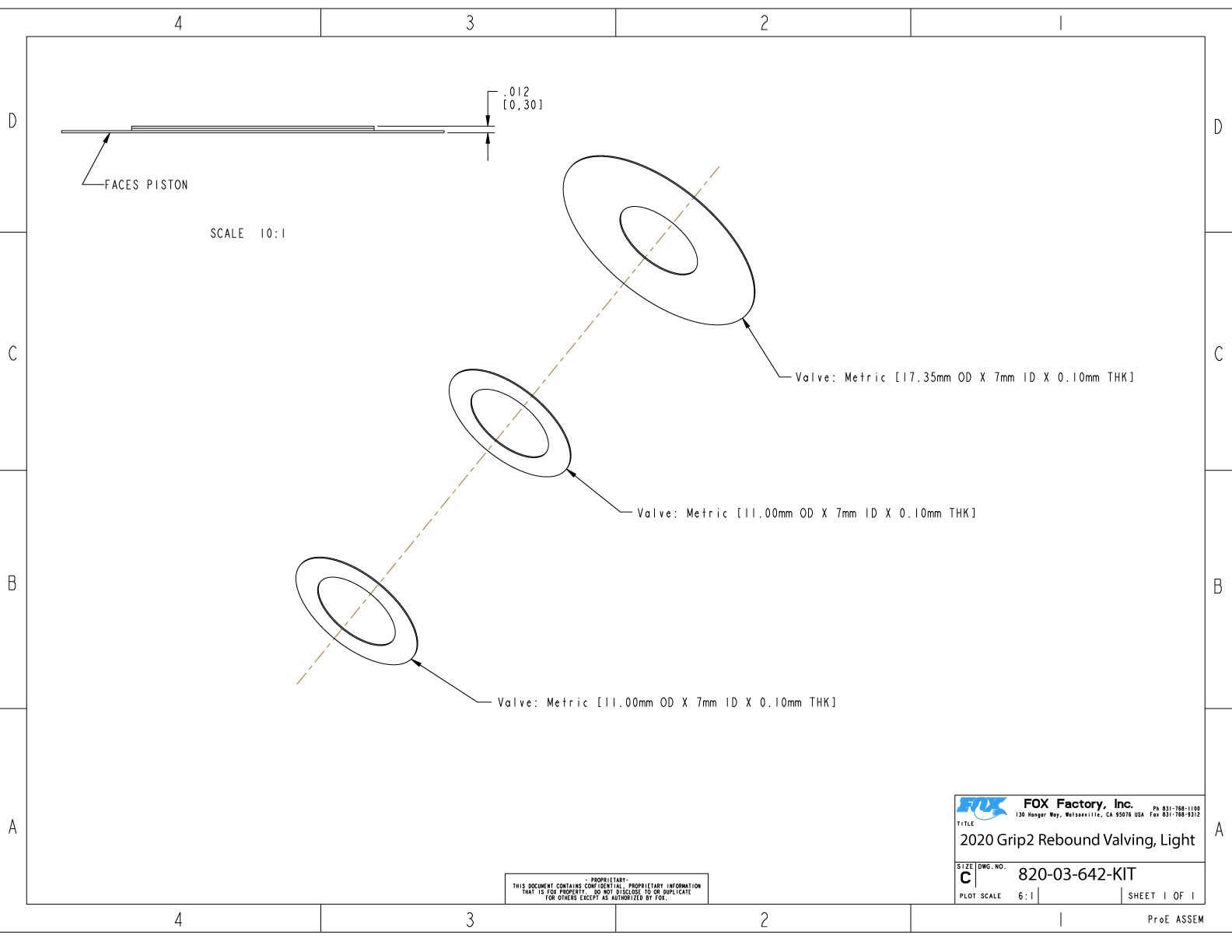

- 820-03-642-KIT 2020 GRIP2 REBOUND VALVING, LIGHT
- 820-03-526-KIT 2019 GRIP2 REBOUND VALVING, LONG TRAVEL

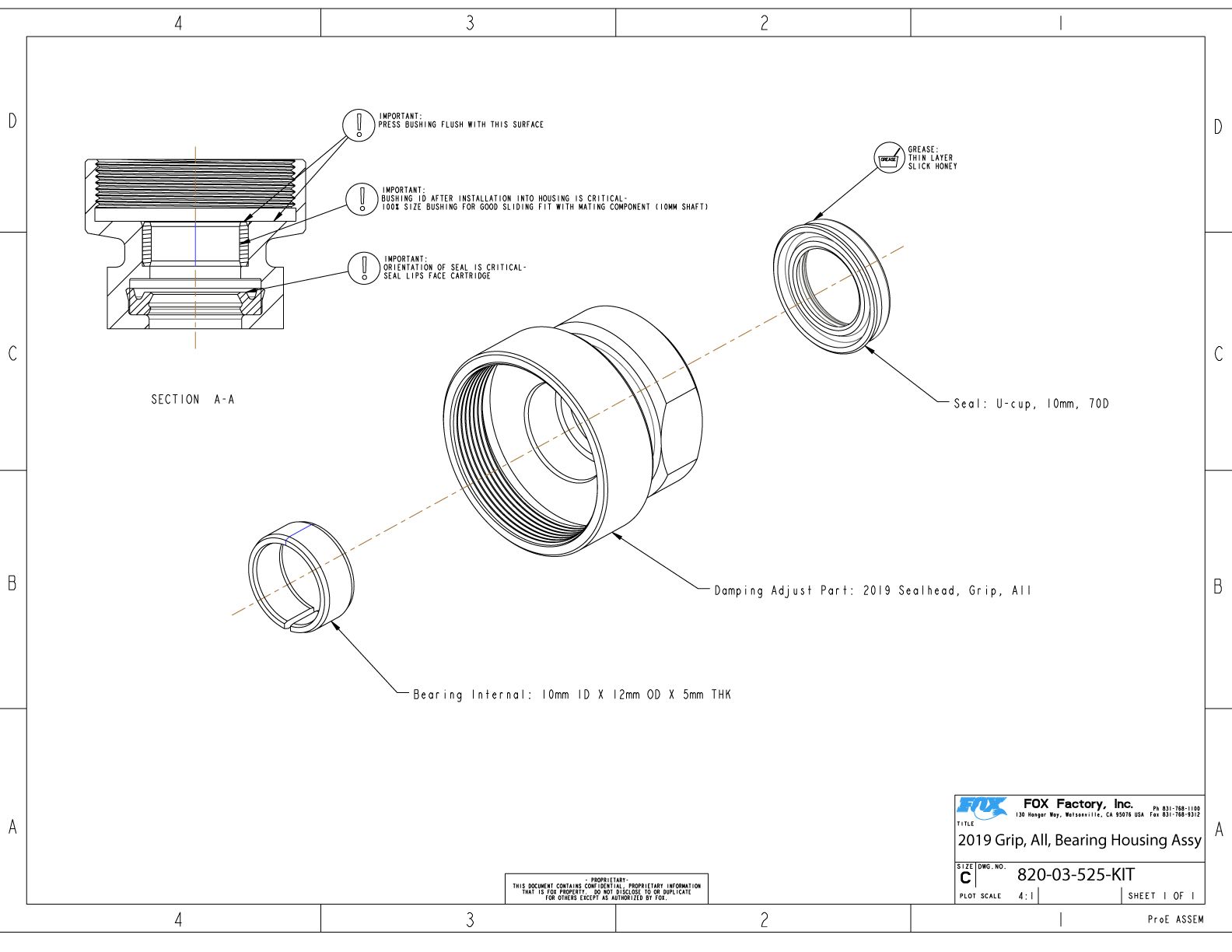

- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
2021 34 E-BIKE+ GRIP

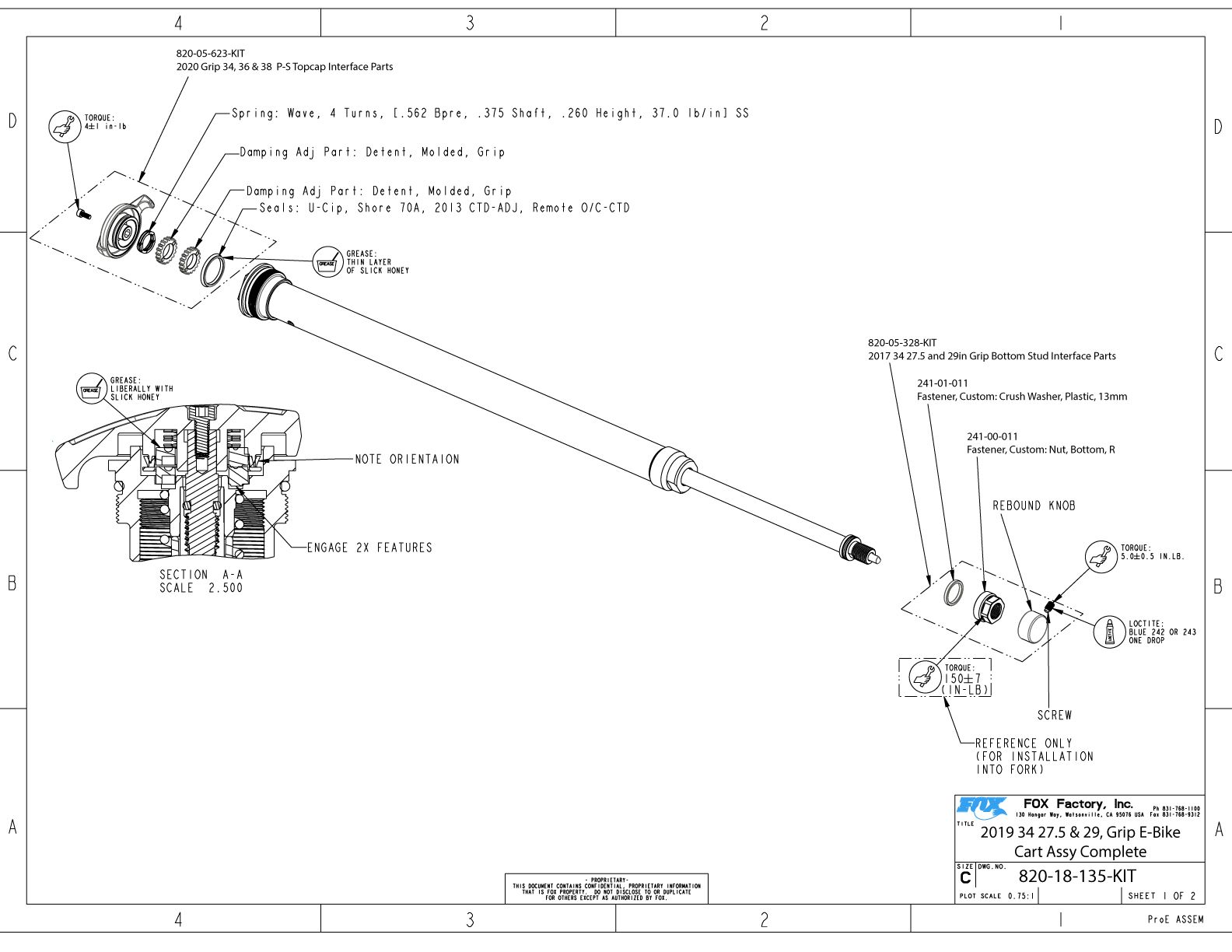

- 820-18-135-KIT 2019 34 27.5 & 29 GRIP E-BIKE+ CART ASSY COMPLETE
- 2019 34 27.5 GRIP E-BIKE CART ASSY .
- 820-05-534-KIT 2019 34 GRIP E-BIKE DAMPER TOPCAP ASSY

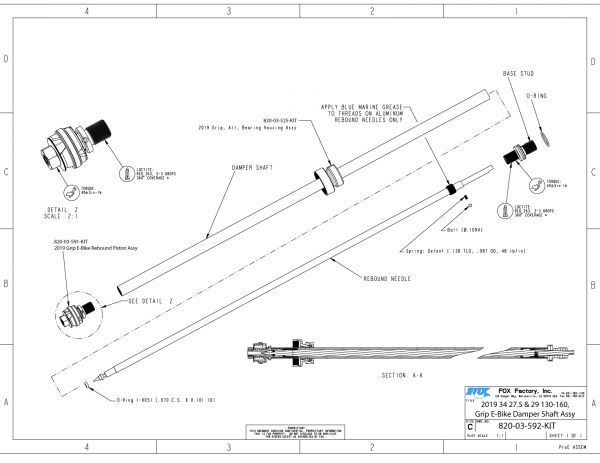

- 820-03-592-KIT 2019 34 27.5 & 29 130-160 GRIP E-BIKE DAMPER SHAFT ASSY

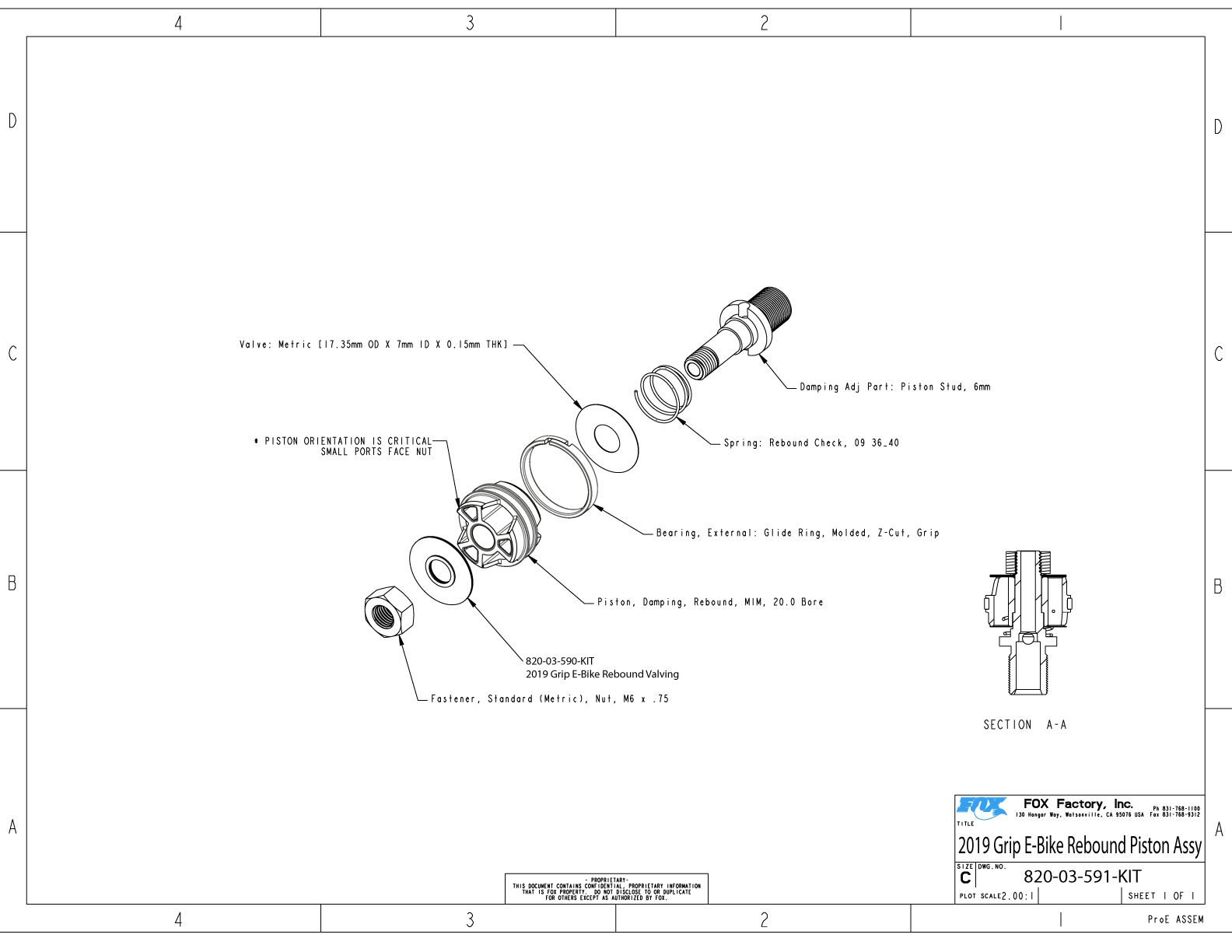

- 820-03-591-KIT 2019 GRIP E-BIKE REBOUND PISTON ASSY

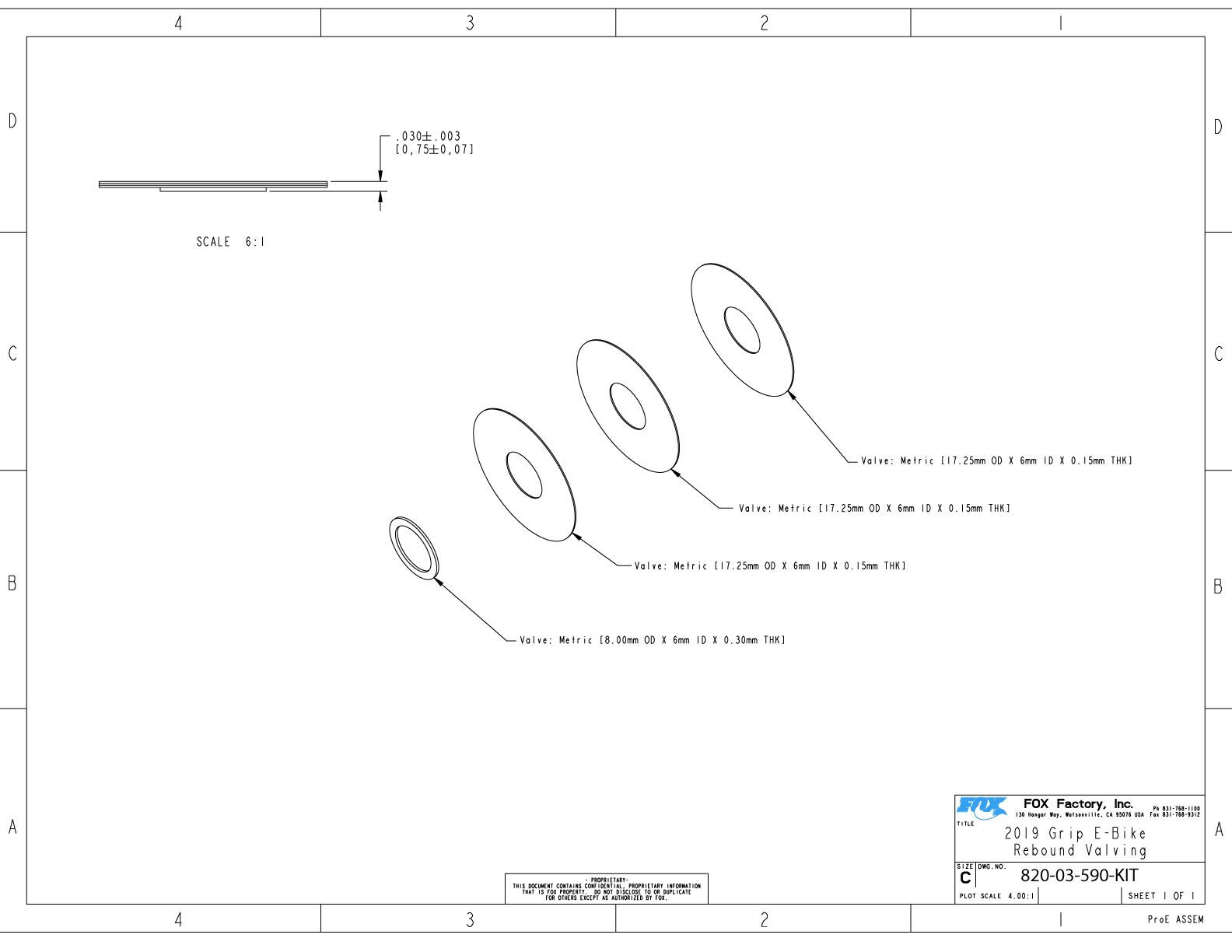

- 820-03-590-KIT 2019 GRIP E-BIKE REBOUND VALVING

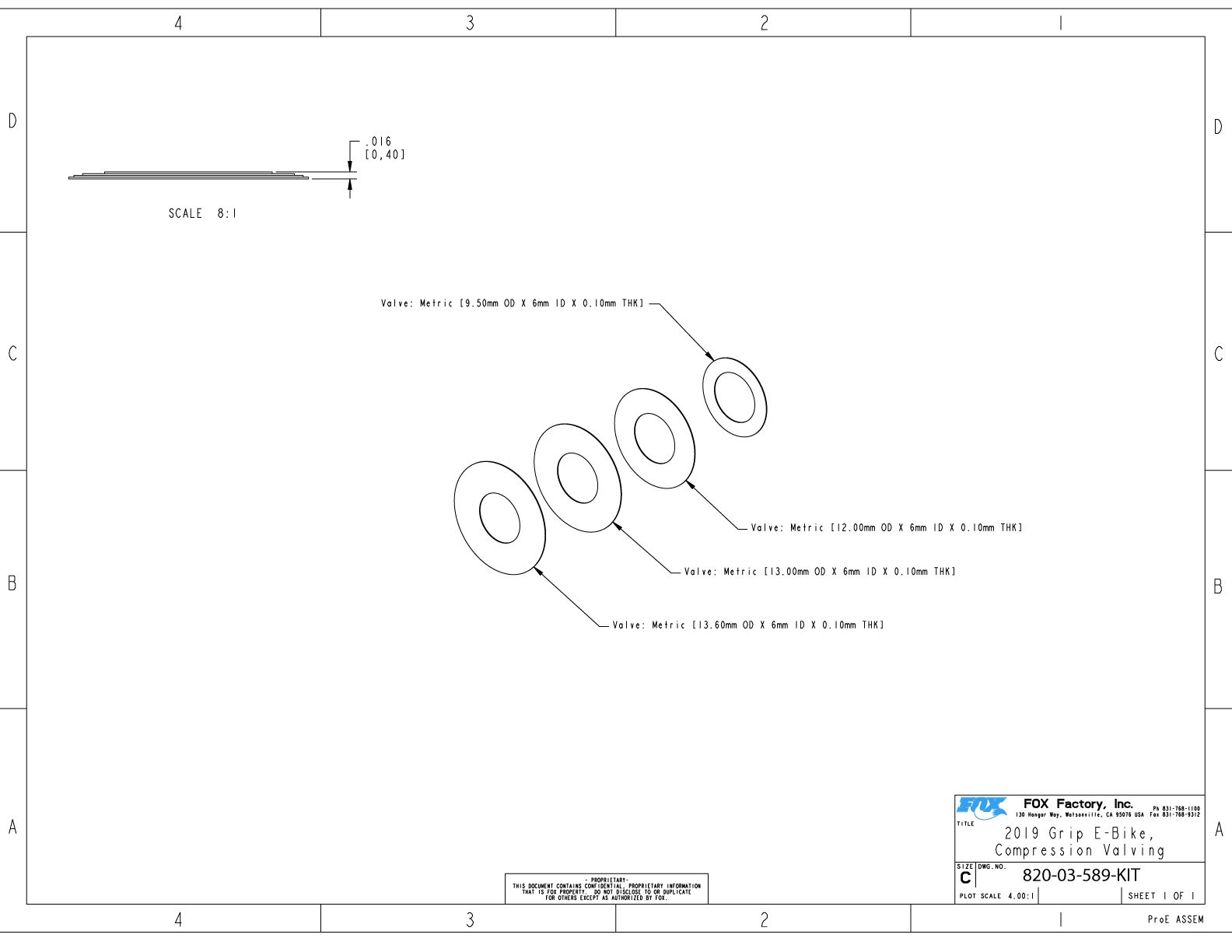

- 820-03-589-KIT 2019 Grip E-Bike Compression Valving
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
2021 34 E-BIKE+ GRIP REMOTE

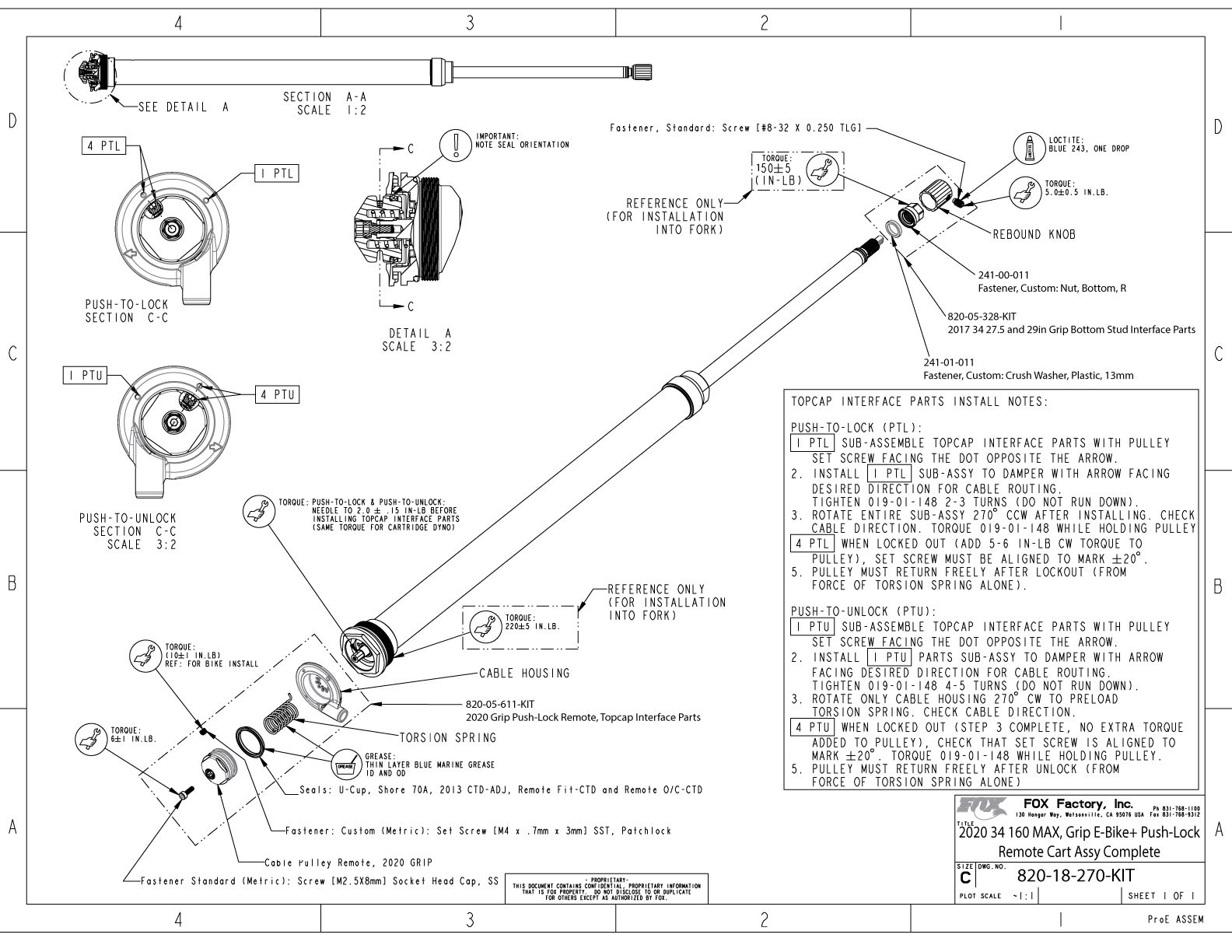

- 820-18-270-KIT 2020 34 160 MAX GRIP E-BIKE+ PUSH-LOCK REMOTE CART ASSY COMPLETE
- 2020 34 27.5 & 29 160 MAX GRIP E-BIKE+ REMOTE CART ASSY .
- 820-05-607-KIT 2020 34 GRIP E-BIKE+ REMOTE TOPCAP ASSY
- 820-03-617-KIT 2020 GRIP REMOTE E-BIKE COMPRESSION VALVING
- 820-03-592-KIT 2019 34 27.5 & 29 130-160 GRIP E-BIKE DAMPER SHAFT ASSY
- 820-03-591-KIT 2019 GRIP E-BIKE REBOUND PISTON ASSY
- 820-03-590-KIT 2019 GRIP E-BIKE REBOUND VALVING
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
2021 34 E-BIKE+ RHYTHM GRIP
- 2021 34 E-BIKE+ RHYTHM GRIP CARTRIDGE ASSEMBLIES COMPLETE .
- 2019 34 RHYTHM 150 MAX GRIP E-BIKE CART ASSY .
- 820-05-534-KIT 2019 34 GRIP E-BIKE DAMPER TOPCAP ASSY
- 820-03-594-KIT 2019 RHYTHM 34 27.5 & 29 150 MAX GRIP E-BIKE DAMPER SHAFT ASSY
- 820-03-591-KIT 2019 GRIP E-BIKE REBOUND PISTON ASSY
- 820-03-590-KIT 2019 GRIP E-BIKE REBOUND VALVING
- 820-03-589-KIT 2019 Grip E-Bike Compression Valving
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
2021 34 E-BIKE+ RHYTHM GRIP REMOTE
- 2021 34 RHYTHM E-BIKE+ GRIP REMOTE CARTRIDGE ASSEMBLIES COMPLETE .

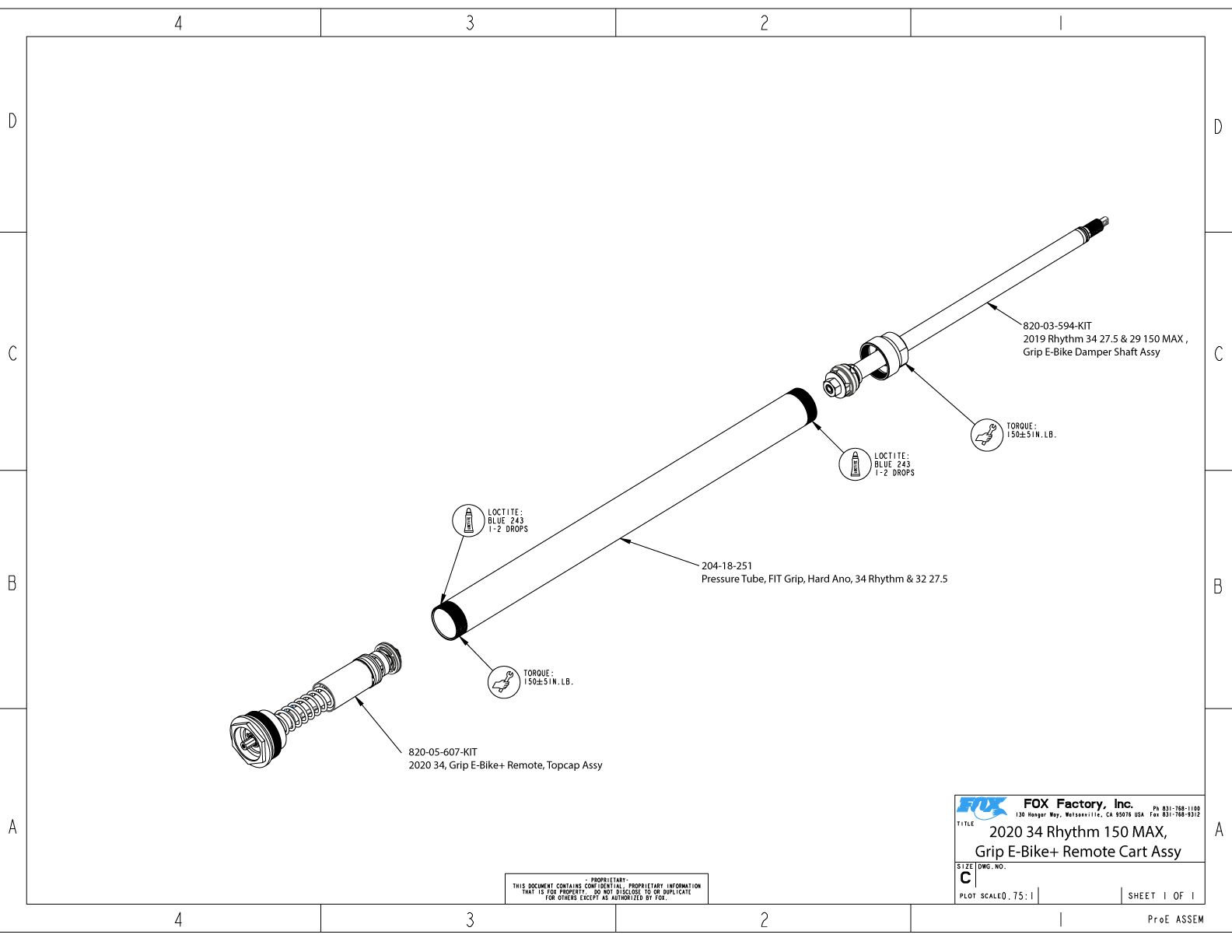

- 2020 34 RHYTHM 150 MAX GRIP E-BIKE+ REMOTE CART ASSY .
- 820-05-607-KIT 2020 34 GRIP E-BIKE+ REMOTE TOPCAP ASSY
- 820-03-617-KIT 2020 GRIP REMOTE E-BIKE COMPRESSION VALVING
- 820-03-594-KIT 2019 RHYTHM 34 27.5 & 29 150 MAX GRIP E-BIKE DAMPER SHAFT ASSY
- 820-03-591-KIT 2019 GRIP E-BIKE REBOUND PISTON ASSY
- 820-03-590-KIT 2019 GRIP E-BIKE REBOUND VALVING
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
2021 34 E-BIKE+ FLOAT NA2
- 2021 34 E-BIKE+ FLOAT NA2 AIR SPRING ASSEMBLIES .
- 2021 34 E-BIKE+ FLOAT NA2 AIR SHAFT ASSEMBLIES .
- 2021 34 E-BIKE+ FLOAT NA2 NEG PLATE SUBASSEMBLIES .
- 820-02-470-KIT Neg Plate Subassembly, 2019, 34 Rhythm SPD-PED-ELEC
- 820-05-420-KIT Topcap Assy, 2018 FLOAT LC NA2, 34, SPD-PED-ELEC, Black
NOTE: Parts without part numbers listed are not available individually and must be ordered as part of a complete assembly or "-KIT". Please order the "-KIT" part number listed at the bottom right corner of the drawing in which a desired individual part is shown.
2021 34 E-BIKE+ FIT4 3POS ADJ
2021 34 E-BIKE+ FIT4 REMOTE
