PARTS & DRAWINGS
34mm Step-Cast Part Information
New for 2021:
| New Decals | New design on all models |
| New CSU/Lowers | Shiny Black CSU/Lowers on F-S is new for 2021 |
| Damper Topcap Assemblies | MY21 Damper Topcap Assemblies do not include Topcap Interface Parts. Please order the appropriate Interface Parts Kit separately. |
Maintenance:
| Service Interval | Full Service 125 hours |
| 803-00-945 | Kit: Dust Wiper, Forx, 34mm, Low Friction, No Flange |
| 803-01-320 | Seal Kit: MY19+ 32, 34, 36, 38, 40 GRIP Cartridge Rebuild |
| 803-01-323 | Seal Kit: MY19+ 32/34 SC 8mm shaft FIT4 Cartridge Rebuild |
| 803-00-963 | Seal Kit: 34 FLOAT NA2 Rebuild |
| 398-00-771 | Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 34 |
| 398-00-681 | 32 Damper-side and ALL 32-34-36-38-40 Spring-side Removal Tool |
| 398-00-682 | 34-36-38-40 Damper-side Removal Tool |
| 803-00-147 | Kit: Shaft Clamps, 07 FORX, Set #2 (32 X Body, 36, 40 Forx) |
| 803-00-276 | Service Kit: Hand Bleed, Syringe and Tube, 2010 32 Fit RL-RLC Cartridge |
| 398-00-320 | Tool: 8mm Shaft Bullet, 32 FIT Cartridge |
| 803-01-209 | Kit: Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set |
| 398-00-760 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
| 803-01-324 | Kit: Tooling: 2019 Clamps, Grip Damper, Body and Shaft |
Air Spring Tuning Information:
| 234-04-953 | Volume Spacer, FLOAT NA 2, 34, 1.214 Bore, Green |
Oils:
| Application | Description | Part |
| All FIT4 and GRIP Dampers | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart | 025-03-023 |
| All non-GRIP damper bath oil and FLOAT NA2 Air Chamber and bath | Oil: AM, FOX 20 WT Gold, T22238, 32 oz | 025-03-072 |
| Bath Oil Application | Bath Oil Volume |
| All 34mm SC 100-120 Air-Side Bath | 10cc (FOX 20wt. Gold Oil) |
| All FLOAT NA2 Air Chamber | 3cc (FOX 20wt. Gold Oil) |
| All 34mm FIT4 Damper-Side Bath | 15cc (FOX 20wt. Gold Oil) |
| 34mm SC Grip Damper-Side Bath | 30cc (FOX 5wt. Teflon Infused Oil) |
Remotes:
| Part | Description |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-07-150-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Dual Pull |
| 820-07-151-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Single Pull |
| 820-05-560-KIT | Service Set: 2020 Grip PTU Remote, Topcap Interface Parts |
| 820-05-611-KIT | Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts |
CSUs:
| Part Number | Description |
| 820-12-101-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Matte Black, 51 Rake, 1.5 Taper, CSU |
| 820-12-103-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Shiny Black, 51 Rake, 1.5 Taper, CSU |
| 820-12-104-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Matte Black, 51 Rake, 1.5 Taper, CSU |
| 820-12-106-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Shiny Black, 51 Rake, 1.5 Taper, CSU |
| 820-12-107-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Matte Black, 44 Rake, 1.5 Taper, CSU |
| 820-12-109-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Shiny Black, 44 Rake, 1.5 Taper, CSU |
| 820-12-110-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Matte Black, 44 Rake, 1.5 Taper, CSU |
| 820-12-112-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Shiny Black, 44 Rake, 1.5 Taper, CSU |
| 820-12-210-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Matte Black, 37 Rake, 1.5 Taper, CSU |
| 820-12-212-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Kashima, Shiny Black, 37 Rake, 1.5 Taper, CSU |
| 820-12-213-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Matte Black, 37 Rake, 1.5 Taper, CSU |
| 820-12-215-KIT | Service Set: 2019 34 SC 120 Max 15x110QR Black Ano, Shiny Black, 37 Rake, 1.5 Taper, CSU |
Lower Legs:
| Part Number | Description |
| 820-10-871-KIT | Service Set: 2019 34 SC 29in 120 15x110 Kabolt, Blk, Fox Matte Black, F-S, Lower Leg Assy |
| 820-10-873-KIT | Service Set: 2019 34 SC 29in 120 15x110 Kabolt, Blk, Fox Shiny Black, F-S, Lower Leg Assy |
| 820-10-874-KIT | Service Set: 2019 34 SC 29in 120 15x110 Kabolt, Blk, Fox Shiny Orange, F-S, Lower Leg Assy |
| 820-10-875-KIT | Service Set: 2019 34 SC 27.5in 120 15x110 Kabolt, Blk, Fox Matte Black, F-S, Lower Leg Assy |
| 820-10-877-KIT | Service Set: 2019 34 SC 27.5in 120 15x110 Kabolt, Blk, Fox Shiny Black, F-S, Lower Leg Assy |
| 820-10-878-KIT | Service Set: 2019 34 SC 27.5in 120 15x110 Kabolt, Blk, Fox Shiny Orange, F-S, Lower Leg Assy |
Axles:
| Part | Description |
| 820-09-013-KIT | Service Set: Axle Assembly, 2016 15QRx110, Factory and Performance, Black Ano |
| 820-09-019-KIT | Service Set: Axle Assembly: 15 X 110mm Kabolt, Black Ano |
| 820-09-023-KIT | Service Set: Axle Assembly: 15 X 110mm Kabolt, Orange Ano |
Lower Leg Small Parts:
| Part | Description |
| 803-00-370 | Service Set: 15QR Hardware |
| 820-00-202-KIT | Service Set: Light Disc Brake Hose Guide Parts |
Decals:
| Part | Description |
| 803-01-517 | Decal Kit: 2021, 34 SC, F-S, Orange/Black Logo, Shiny Black Fork |
| 803-01-518 | Decal Kit: 2021, 34 SC, F-S, Black Logo, Shiny Orange Fork |
| 803-01-519 | Decal Kit: 2021, 34 SC, P-SE, Gray Logo, Matte Black Fork |
| 803-01-520 | Decal Kit: 2021, 34 SC, P-S, Gray Logo, Matte Black Fork |
Complete Cartridges:
| Part Number | Description |
| 820-18-039-KIT | Service Set: 2019 34 SC 27.5 120 Max, Grip Cart Assy Complete |
| 820-18-283-KIT | Service Set: 2020 34 SC 27.5in 120 Max FIT4, Black Ano, 3 Pos Adj, Cart Assy Complete |
| 820-18-285-KIT | Service Set: 2020 34 SC 27.5in 120 Max FIT4, Remote, Black Ano, Push to Unlock, U-Cup, 2 Pos Adj, Cart Assy Complete |
| 820-18-287-KIT | Service Set: 2020 34 SC 27.5in 120 Max FIT4, Remote, Black Ano, Push to Lock, U-Cup, 2 Pos Adj, Cart Assy Complete |
| 820-18-038-KIT | Service Set: 2019 34 SC 29 120 Max, Grip Cart Assy Complete |
| 820-18-324-KIT | Service Set: 2020 34 SC 29 120 Max, Grip Push-Lock Remote Cart Assy Complete, Light Tune |
| 820-18-161-KIT | Service Set: 2020 34 SC 29 120 Max, Grip PTU Remote Cart Assy Complete |
| 820-18-266-KIT | Service Set: 2020 34 SC 27.5 120 Max, Grip Push-Lock Remote Cart Assy Complete |
| 820-18-267-KIT | Service Set: 2020 34 SC 29 120 Max, Grip Push-Lock Remote Cart Assy Complete |
| 820-18-282-KIT | Service Set: 2020 34 SC 29in 120 Max FIT4, Black Ano, 3 Pos Adj, Cart Assy Complete |
| 820-18-284-KIT | Service Set: 2020 34 SC 29in 120 Max FIT4, Remote, Black Ano, Push to Unlock, U-Cup, 2 Pos Adj, Cart Assy Complete |
| 820-18-286-KIT | Service Set: 2020 34 SC 29in 120 Max FIT4, Remote, Black Ano, Push to Lock, U-Cup, 2 Pos Adj, Cart Assy Complete |
| 820-18-288-KIT | Service Set: 2020 34 SC 29in 120 Max FIT4, Remote, Black Ano, Push to Lock, U-Cup, 3 Pos Adj, Cart Assy Complete |
| 820-18-380-KIT | Service Set: 2021 34 SC 29in 120 Max FIT4, CL Tune, Remote, Black Ano, Push to Lock, U-Cup, 3 Pos Adj, Cart Assy Complete |
Cartridge Topcap Assemblies:
| Part | Description |
| 820-05-519-KIT | Service Set: 2019 34 Grip Damper, Topcap Assy |
| 820-05-606-KIT | Service Set: 2020 34, All, Grip Remote, Topcap Assy |
| 820-05-619-KIT | Service Set: 2020 34 SC FIT4 Topcap Assy, 3 Pos Adj |
| 820-05-620-KIT | Service Set: 2020 34 SC FIT4 Topcap Assy, Remote U-Cup, 2 Pos Adj, Push-Unlock |
| 820-05-621-KIT | Service Set: 2020 34 SC FIT4 Topcap Assy, Remote U-Cup, 2 Pos Adj, Push-Lock |
Topcap Interface Parts:
| Part | Description |
| 820-05-330-KIT | Service Set: 2016 FIT4 TopCap Interface Parts F-S |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-560-KIT | Service Set: 2020 Grip PTU Remote, Topcap Interface Parts |
| 820-05-611-KIT | Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts |
Bottom Stud Interface Parts:
| Part | Description |
| 820-05-507-KIT | Service Set: 2019 34 SC Bottom Stud Interface Parts, 27.5in Fork |
| 820-05-506-KIT | Service Set: 2019 34 SC Bottom Stud Interface Parts, 29in Fork |
FLOAT NA2 Air Shaft Assemblies:
| Part | Description |
| 820-02-541-KIT | Service Set: Air Shaft Assy, 2019, 34 SC, 120mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-542-KIT | Service Set: Air Shaft Assy, 2019, 34 SC, 110mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-543-KIT | Service Set: Air Shaft Assy, 2019, 34 SC, 100mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
FLOAT NA2 Topcap Assemblies:
| Part | Description |
| 820-05-500-KIT | Service Set: Topcap Assy, 2019, FLOAT LC NA 2, 34 SC, Black |
FLOAT NA2 Neg Plate Subassemblies:
| Part | Description |
| 820-02-540-KIT | Service Set: Neg Plate Subassembly, 2019 FLOAT LC NA 2, 34 SC, 1.214 Bore, Aluminum |
2021 34 SC FIT4 3POS ADJ
- 2021 34 SC FIT4 3POS ADJ CARTRIDGE ASSEMBLIES COMPLETE .
- 2020 34 SC 27.5in AND 29in 120 MAX FIT4 3POS ADJ CART ASSY .
- 820-05-619-KIT 2020 34 SC FIT4 TOPCAP ASSY 3POS ADJ

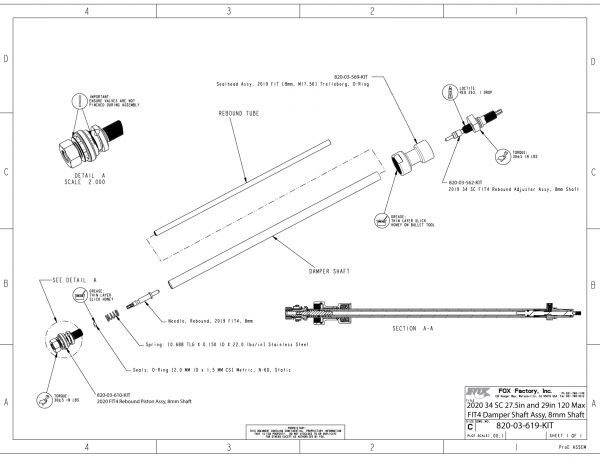

- 820-03-619-KIT 2020 34 SC 27.5in AND 29in 120 MAX FIT4 DAMPER SHAFT ASSY, 8MM SHAFT

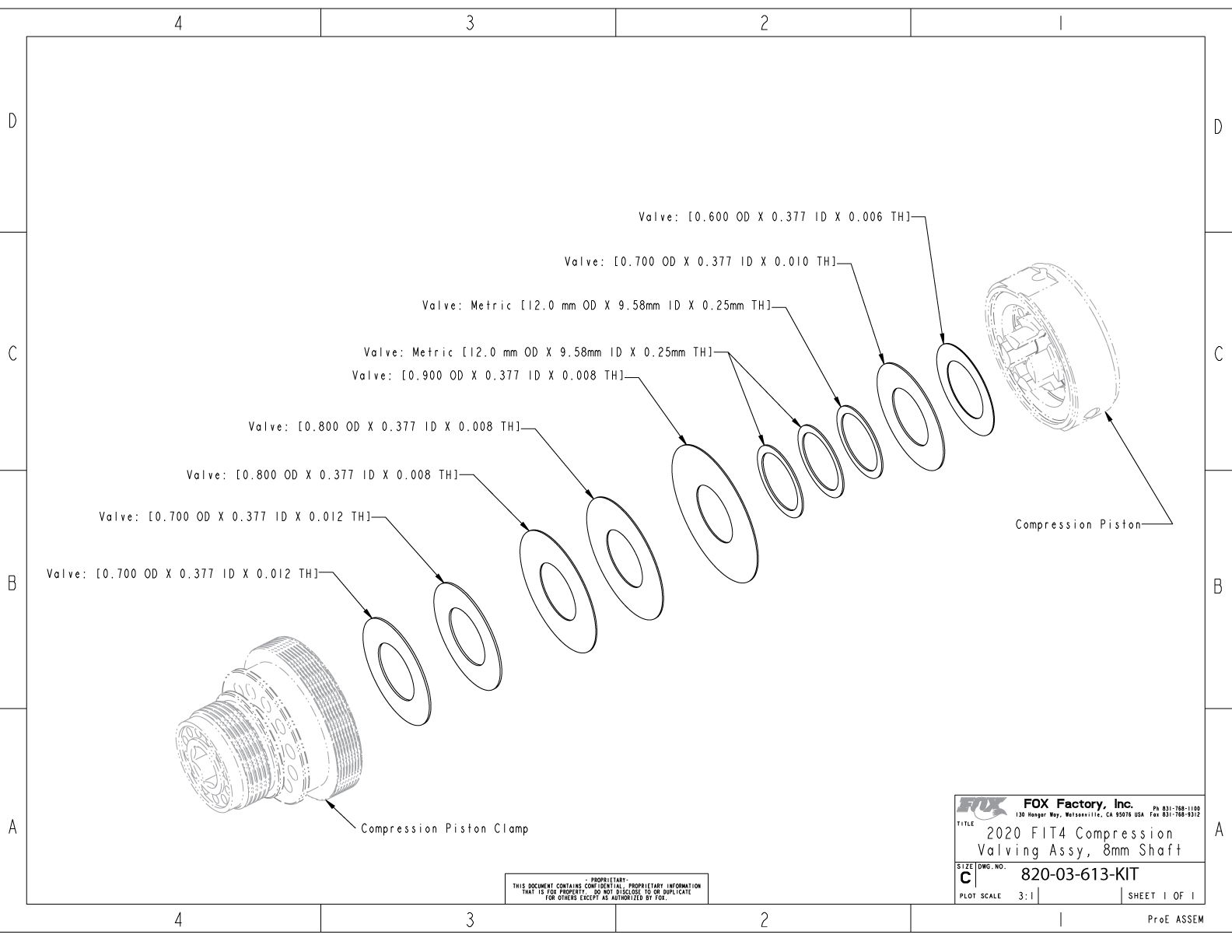

- 820-03-613-KIT 2020 FIT4 Compression Valving Assy, 8mm Shaft

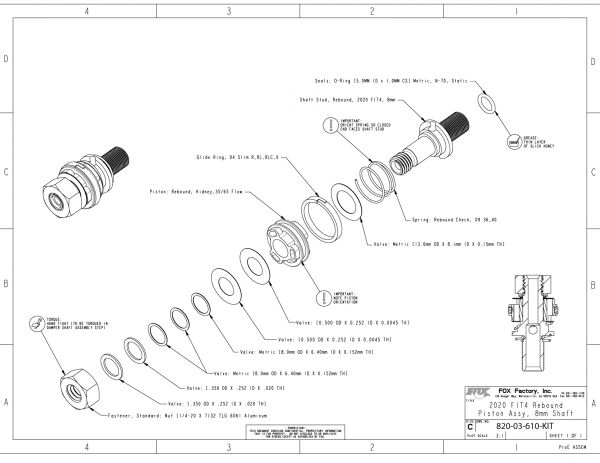

- 820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft
- 820-03-565-KIT 2019 34 SC 27.5in AND 29in 120 MAX FIT4 BLADDER ASSY

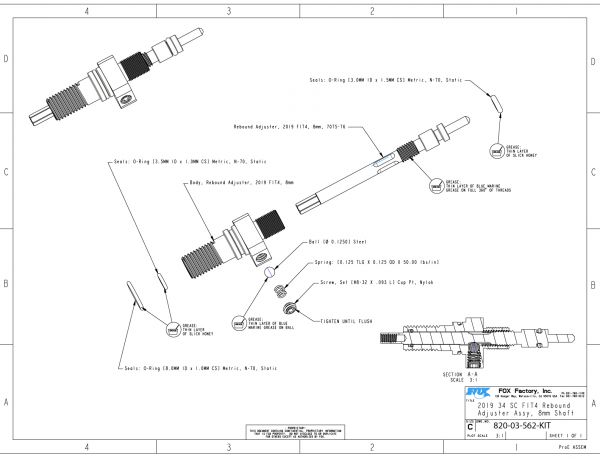

- 820-03-562-KIT 2019 32/34 SC FIT4 Rebound Adjuster Assy 8mm Shaft
- 820-03-258-KIT 2017 FIT4 Lightweight Topcap Parts
2021 34 SC FIT4 REMOTE

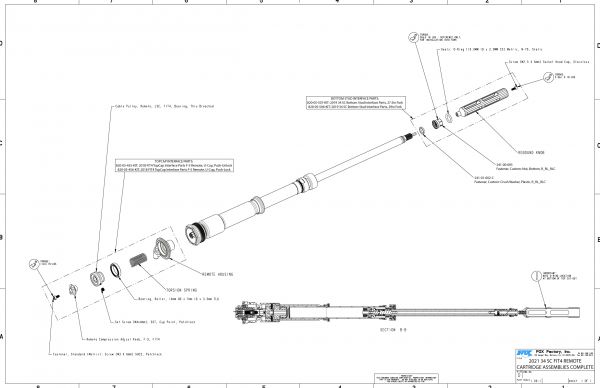

- 2021 34 SC FIT4 REMOTE CARTRIDGE ASSEMBLIES COMPLETE .

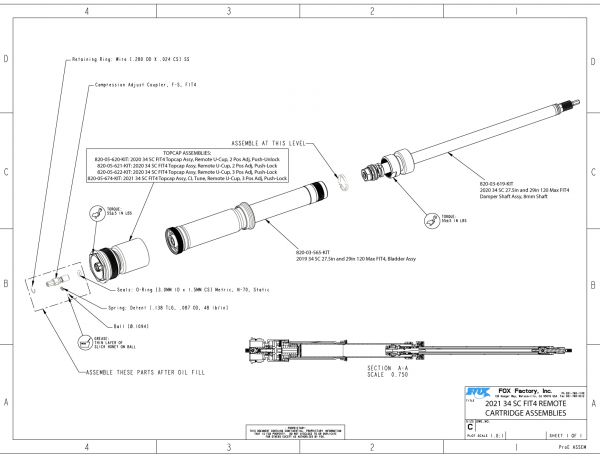

- 2021 34 SC FIT4 REMOTE CARTRIDGE ASSEMBLIES .
- 2021 34 SC FIT4 REMOTE TOPCAP ASSEMBLIES .
- 2021 34 SC FIT4 REMOTE TOPCAP PARTS .
- 820-03-624-KIT 2020 FIT4 Compression Valving Assy, CL tune, 8mm Shaft
- 820-03-619-KIT 2020 34 SC 27.5in AND 29in 120 MAX FIT4 DAMPER SHAFT ASSY, 8MM SHAFT
- 820-03-613-KIT 2020 FIT4 Compression Valving Assy, 8mm Shaft
- 820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft
- 820-03-565-KIT 2019 34 SC 27.5in AND 29in 120 MAX FIT4 BLADDER ASSY
- 820-03-562-KIT 2019 32/34 SC FIT4 Rebound Adjuster Assy 8mm Shaft
2021 34 SC GRIP
- 2021 34 SC GRIP CARTRIDGE ASSEMBLIES COMPLETE .
- 2019 34 SC 27.5 & 29 120 MAX GRIP CART ASSY .
- 820-05-519-KIT 2019 34 Grip Damper Topcap Assy

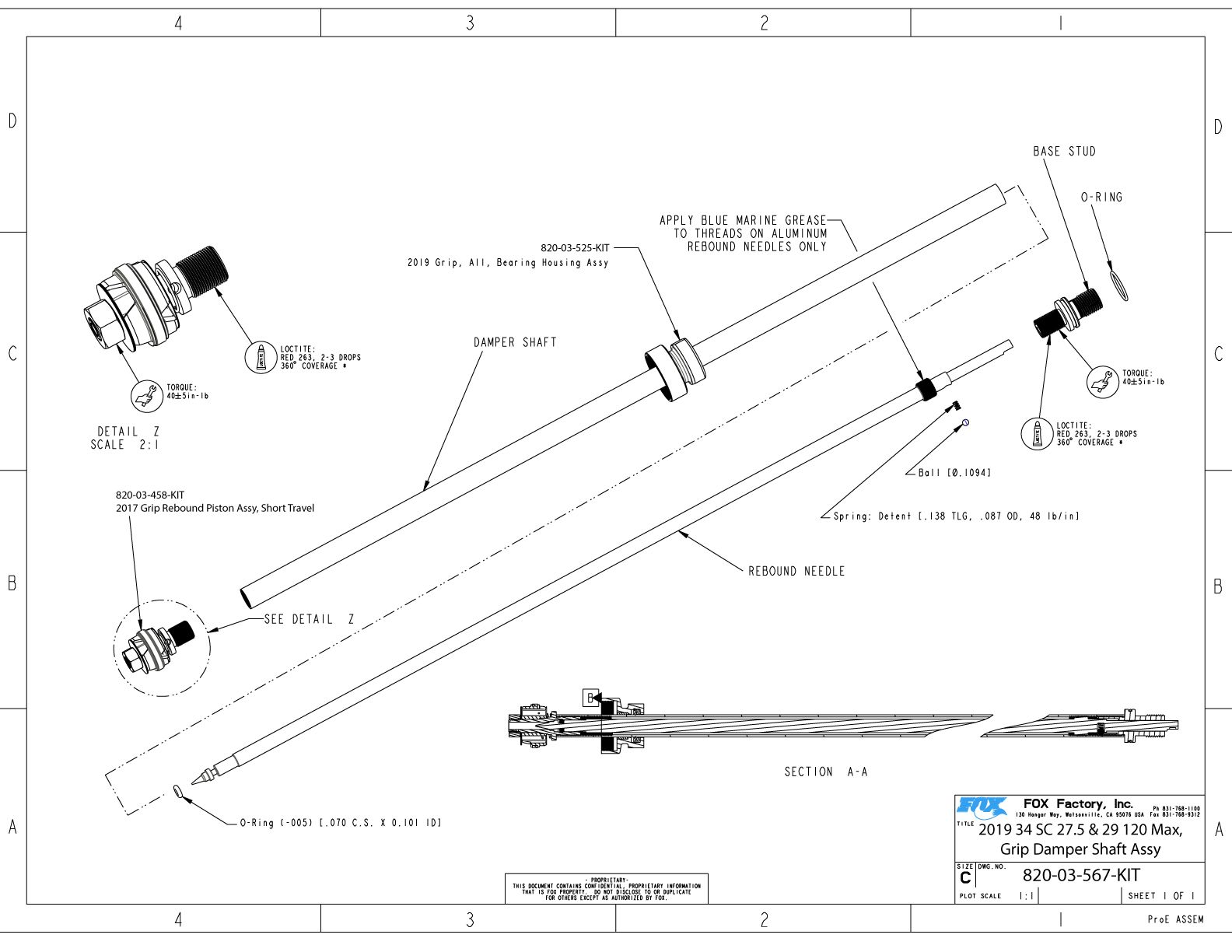

- 820-03-567-KIT 2019 34 SC 27.5 & 29 120 MAX GRIP DAMPER SHAFT ASSY

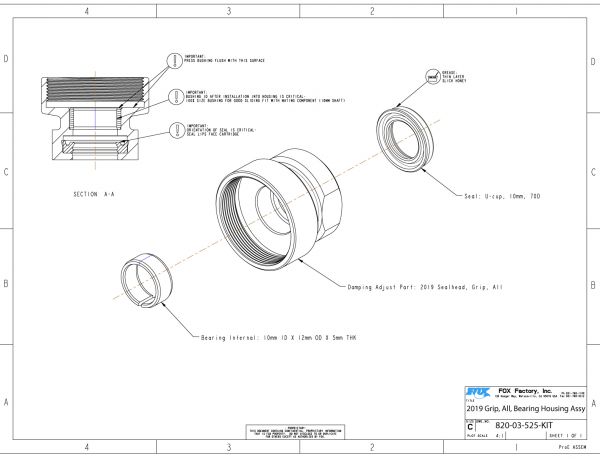

- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-458-KIT 2017 Grip Rebound Piston Assy, Short Travel

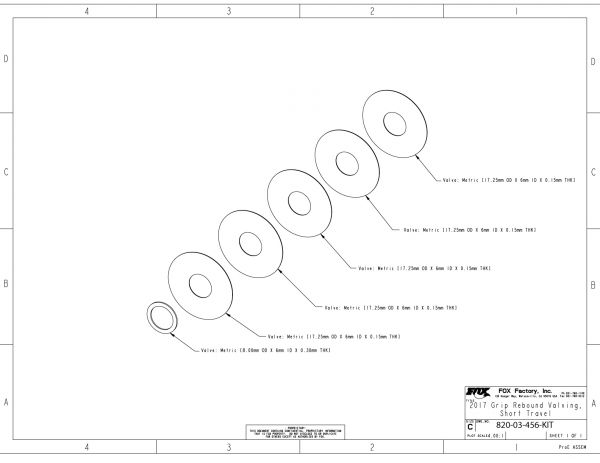

- 820-03-456-KIT 2017 Grip Rebound Valving, Short Travel

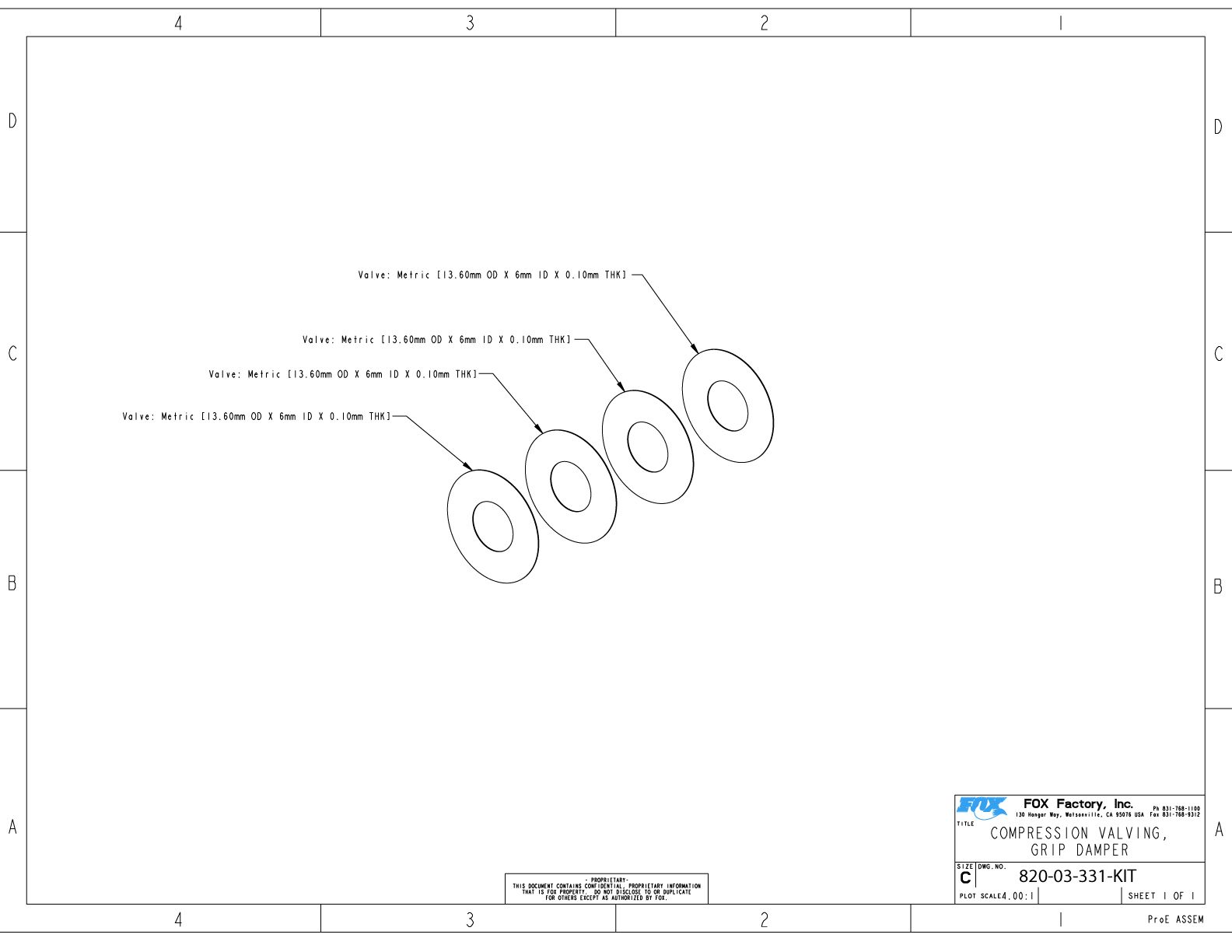

- 820-03-331-KIT Compression Valving, Grip Damper
2021 34 SC GRIP REMOTE
- 2021 34 SC GRIP REMOTE CARTRIDGE ASSEMBLIES COMPLETE .
- 2021 34 SC GRIP REMOTE CARTRIDGE ASSEMBLIES .

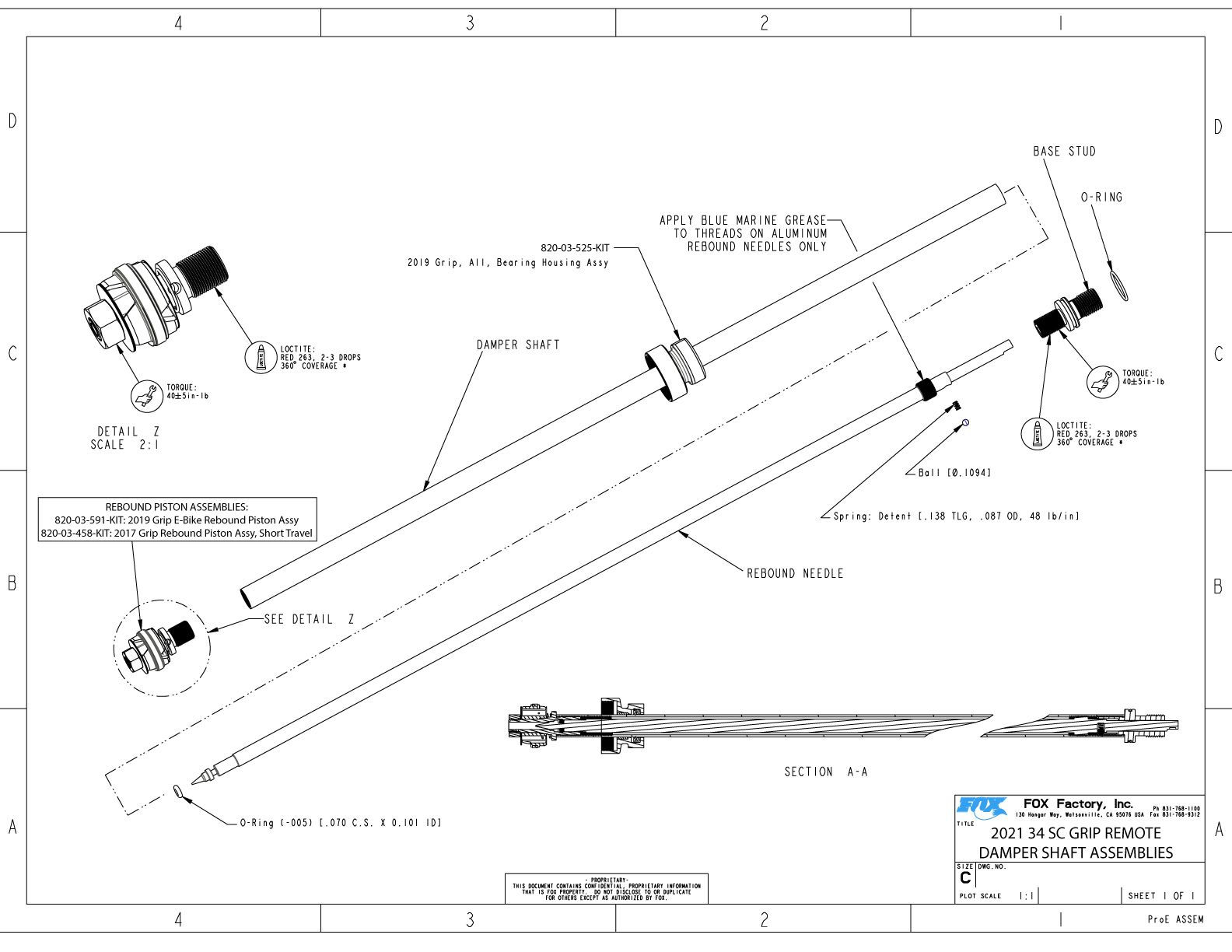

- 2021 34 SC GRIP REMOTE DAMPER SHAFT ASSEMBLIES .
- 2021 34 SC GRIP REMOTE REBOUND PISTON ASSEMBLIES .

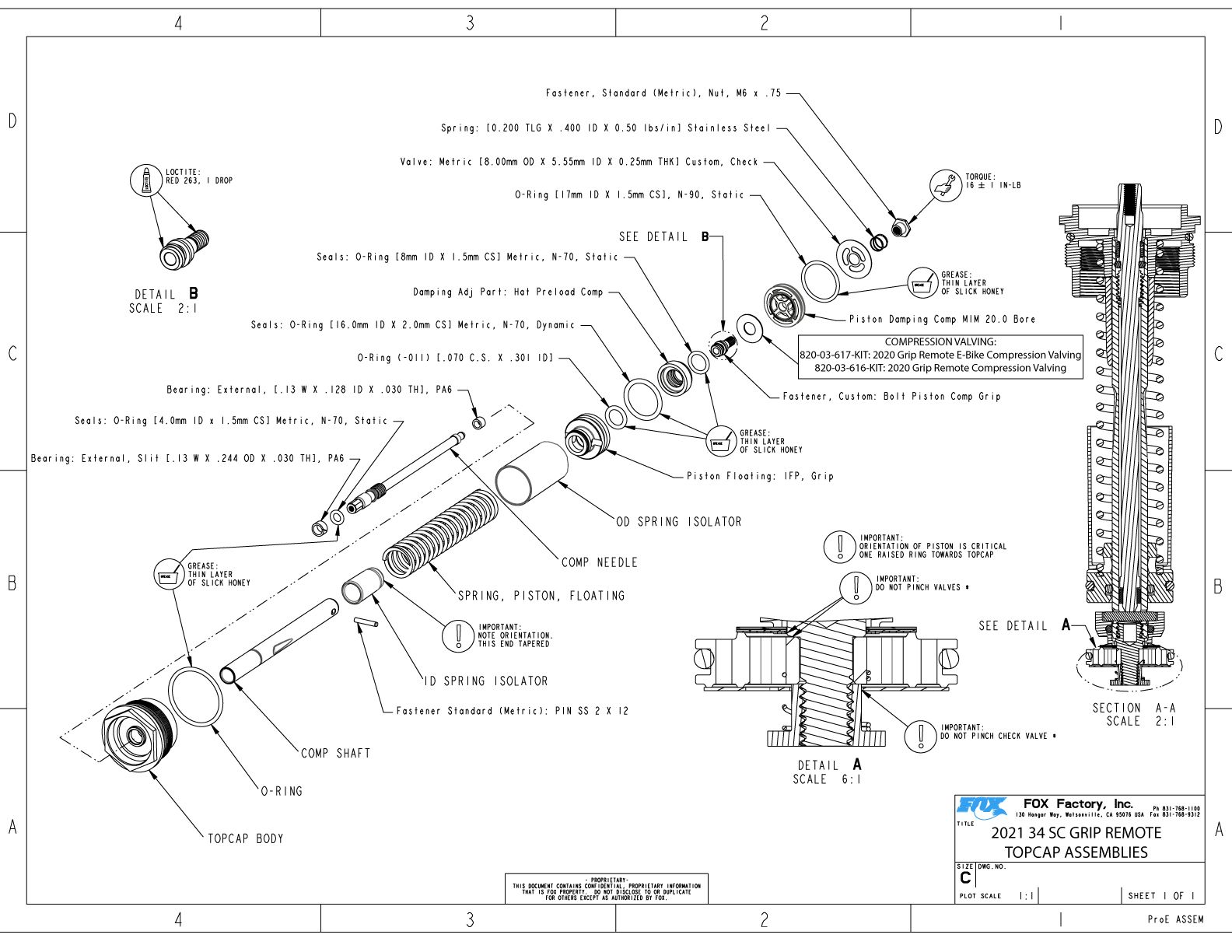

- 2021 34 SC GRIP REMOTE TOPCAP ASSEMBLIES .
- 820-03-617-KIT 2020 GRIP REMOTE E-BIKE COMPRESSION VALVING
- 820-03-616-KIT 2020 Grip Remote Compression Valving
- 820-03-590-KIT 2019 GRIP E-BIKE REBOUND VALVING
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
- 820-03-456-KIT 2017 Grip Rebound Valving, Short Travel
2021 34 SC FLOAT NA2
- 2021 34 SC FLOAT NA2 AIR SPRING ASSEMBLIES .

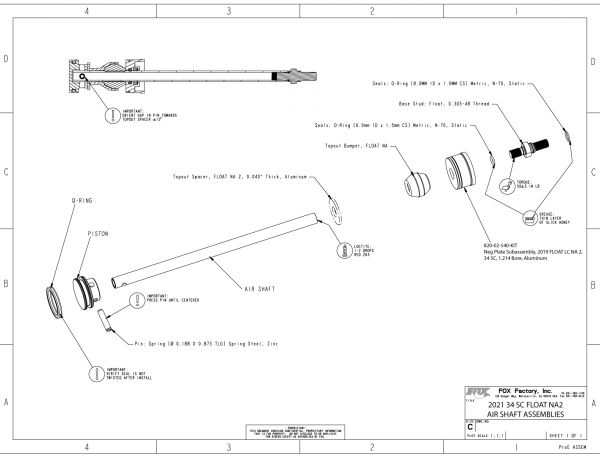

- 2021 34 SC FLOAT NA2 AIR SHAFT ASSEMBLIES .
- 820-05-500-KIT TOPCAP ASSY, 2019, FLOAT LC NA2 34 SC BLACK
- 820-02-540-KIT NEG PLATE SUBASSEMBLY 2019 FLOAT LC NA2 34 SC 1.214 BORE ALUMINUM
NOTE: Parts without part numbers listed are not available individually and must be ordered as part of a complete assembly or "-KIT". Please order the "-KIT" part number listed at the bottom right corner of the drawing in which a desired individual part is shown.
