PARTS & DRAWINGS
TREK Shock part information
2020 TREK Thru-Shaft 9mm Part Information
- 2020 TREK 9mm Thru Shaft .

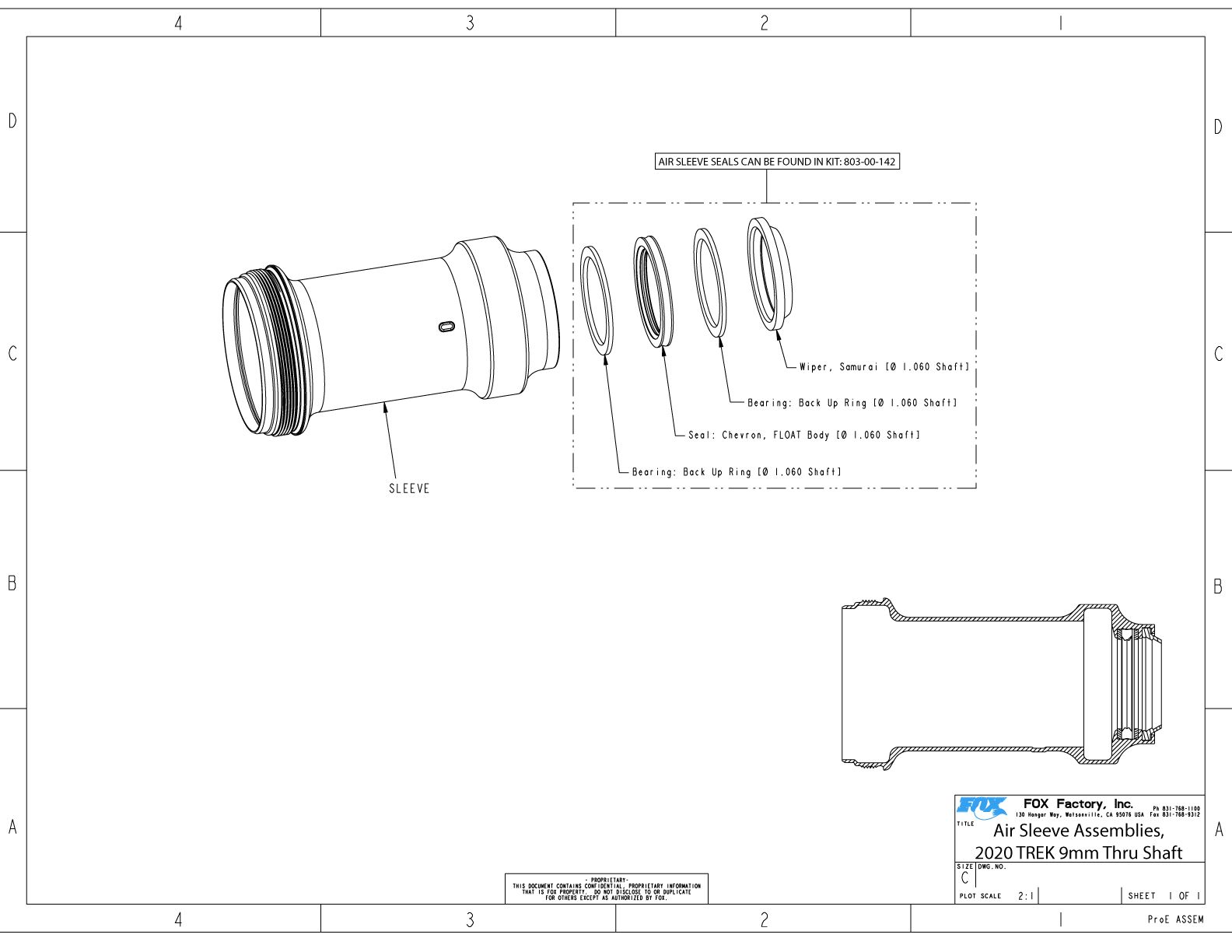

- Air Sleeve Assemblies, 2020 TREK 9mm Thru Shaft .
- Body Assemblies, 9mm Thru Shaft .
- 805-00-117-KIT Piston Assembly: Floating, With Bleed, [Ø 0.625 Bore], 9mm Thru Shaft

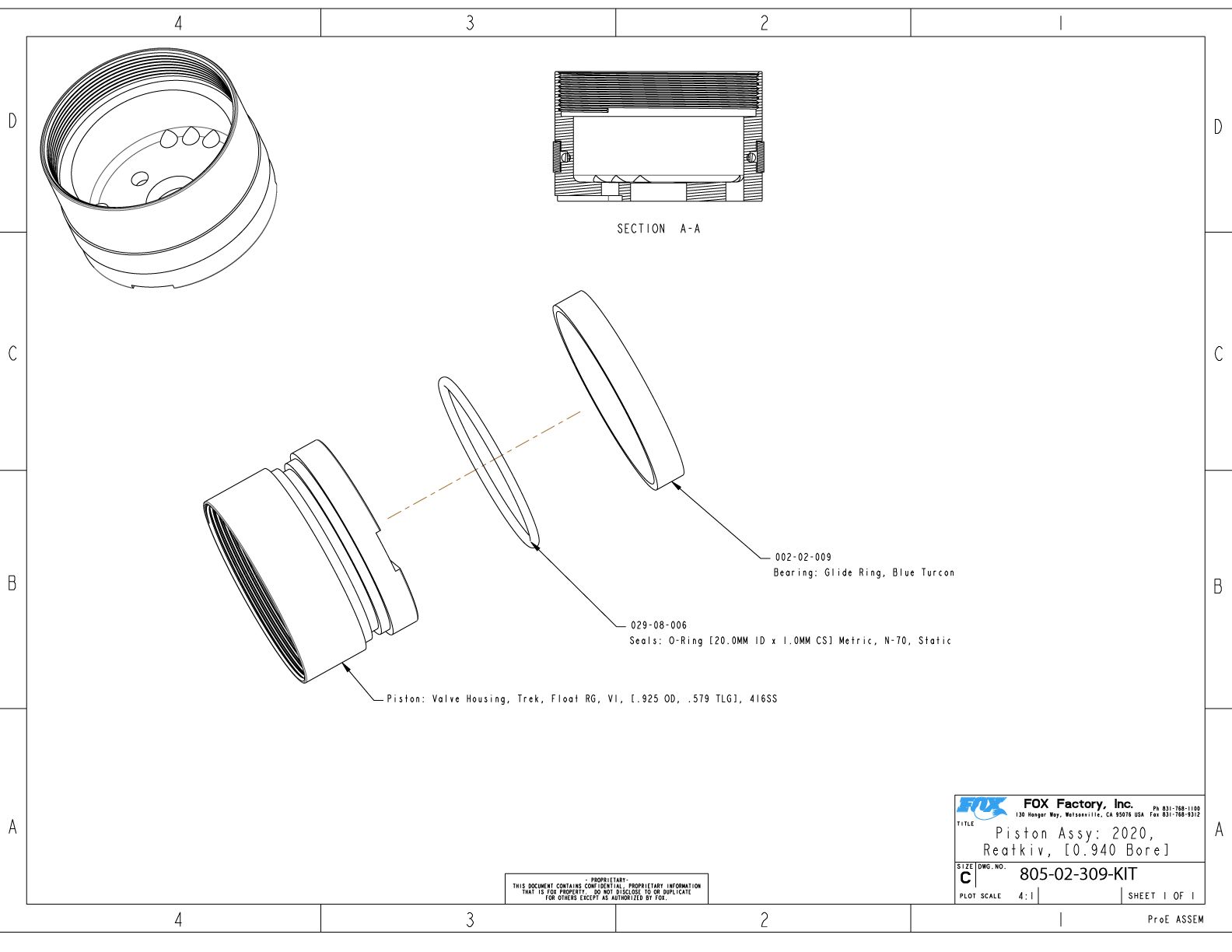

- 805-02-309-KIT Piston Assy: 2020, Reatkiv, [0.940 Bore]
- 805-05-120-KIT Valving Stack Assy: 2020 Reaktiv, Compression Medium, CM

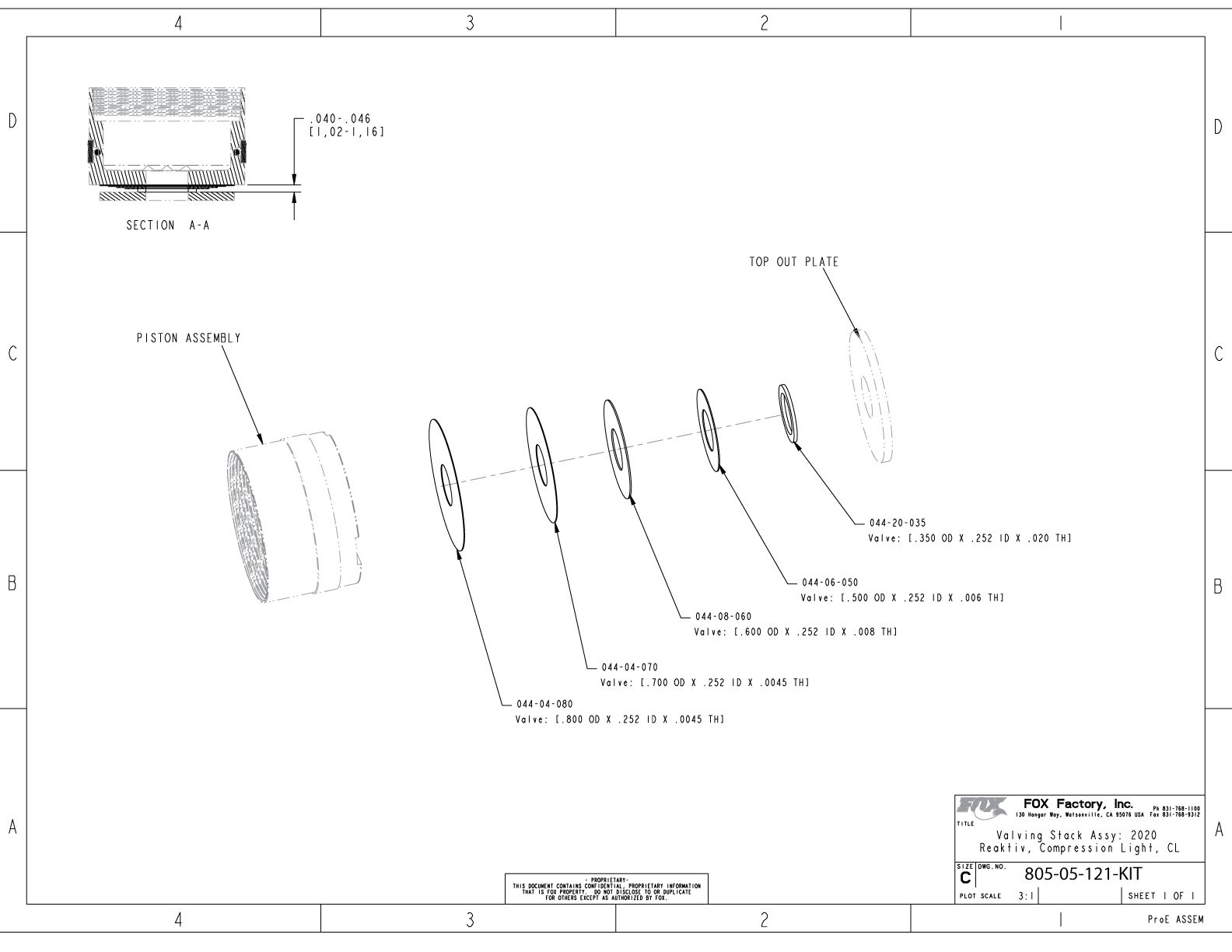

- 805-05-121-KIT Valving Stack Assy: 2020 Reaktiv, Compression Light, CL
- 805-05-122-KIT Valving Stack Assy: 2020 Reaktiv, Compression Firm, CF
- 805-05-380-KIT Valving Stack Assy: 2020 Reaktiv, Rebound Medium, RM
- 807-72-260-KIT Valving Assy: 2020, Reatkiv RaM
- 808-17-401-KIT Eyelet Assy: 2020, Trek 9mm Thru Shaft, Reaktiv, LV, Trunnion

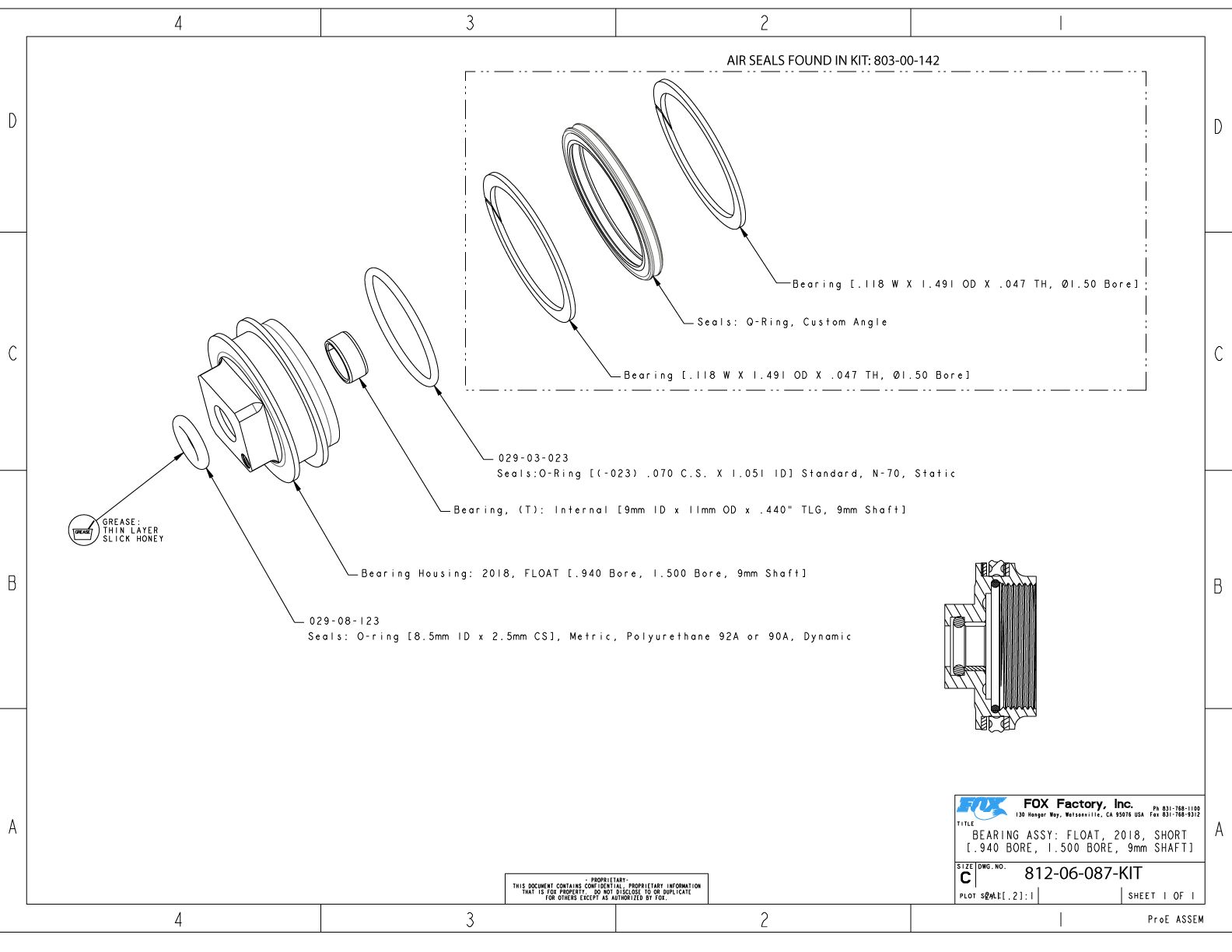

- 812-06-087-KIT Bearing Assy: FLOAT, 2018, Short [.940 Bore, 1.500 Bore, 9mm Shaft]

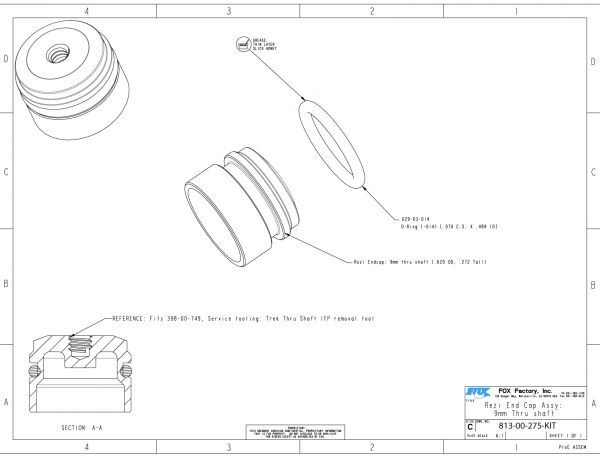

- 813-00-275-KIT Rezi End Cap Assy: 9mm Thru shaft
- 815-72-007-KIT Valving Sub Assy: Trek Reaktiv Valve Housing Cap, No fastener
2020 TREK IsoStrut Part Information
- 2020 IsoStrut, Trek SuperCaliber .
- Sleeve Assemblies, Stanchion, 2020, 32.5mm Travel .
- 805-00-116-KIT Piston Assembly: Floating, IFP, 2020 SuperStrut
- 805-02-307-KIT Piston Assy, Main, 2020 SuperStrut

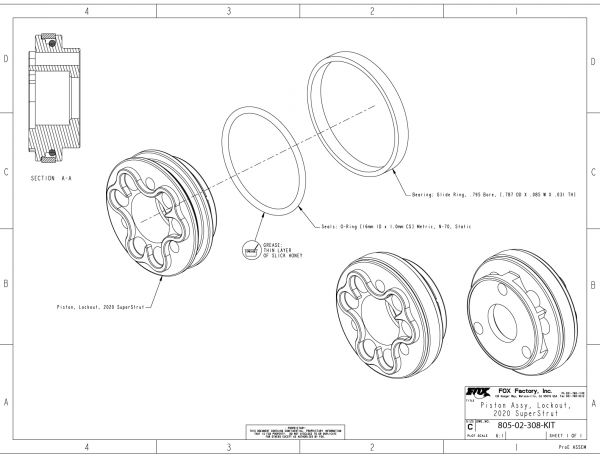

- 805-02-308-KIT Piston Assy, Lockout, 2020 SuperStrut
- 805-05-110-KIT Valve Stack Assy, 2020 SuperStrut, Compression
- 805-05-210-KIT Valve Stack Assy, 2020 SuperStrut, Lockout

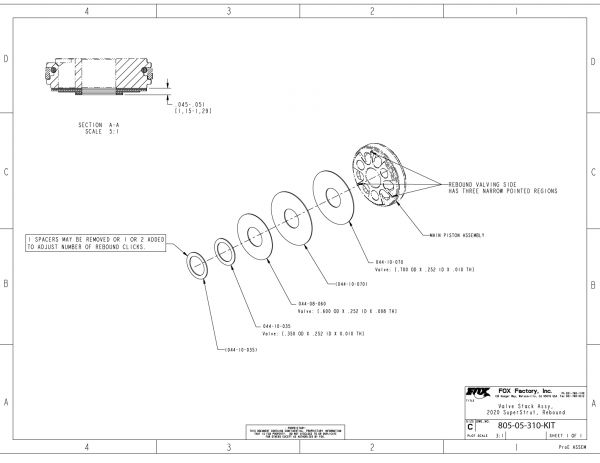

- 805-05-310-KIT Valve Stack Assy, 2020 SuperStrut, Rebound

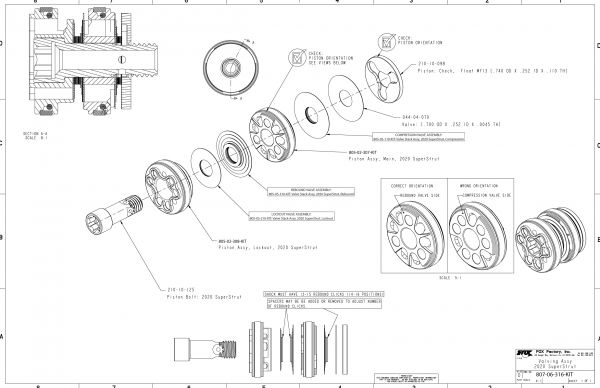

- 807-06-316-KIT Valving Assy, 2020 SuperStrut
- 808-17-398-KIT Eyelet Assy, 2020 SuperStrut, Remote
- 808-17-399-KIT Eyelet Assy, 2020 SuperStrut, Lever
- 812-06-095-KIT Bearing Assy, 2020 SuperStrut

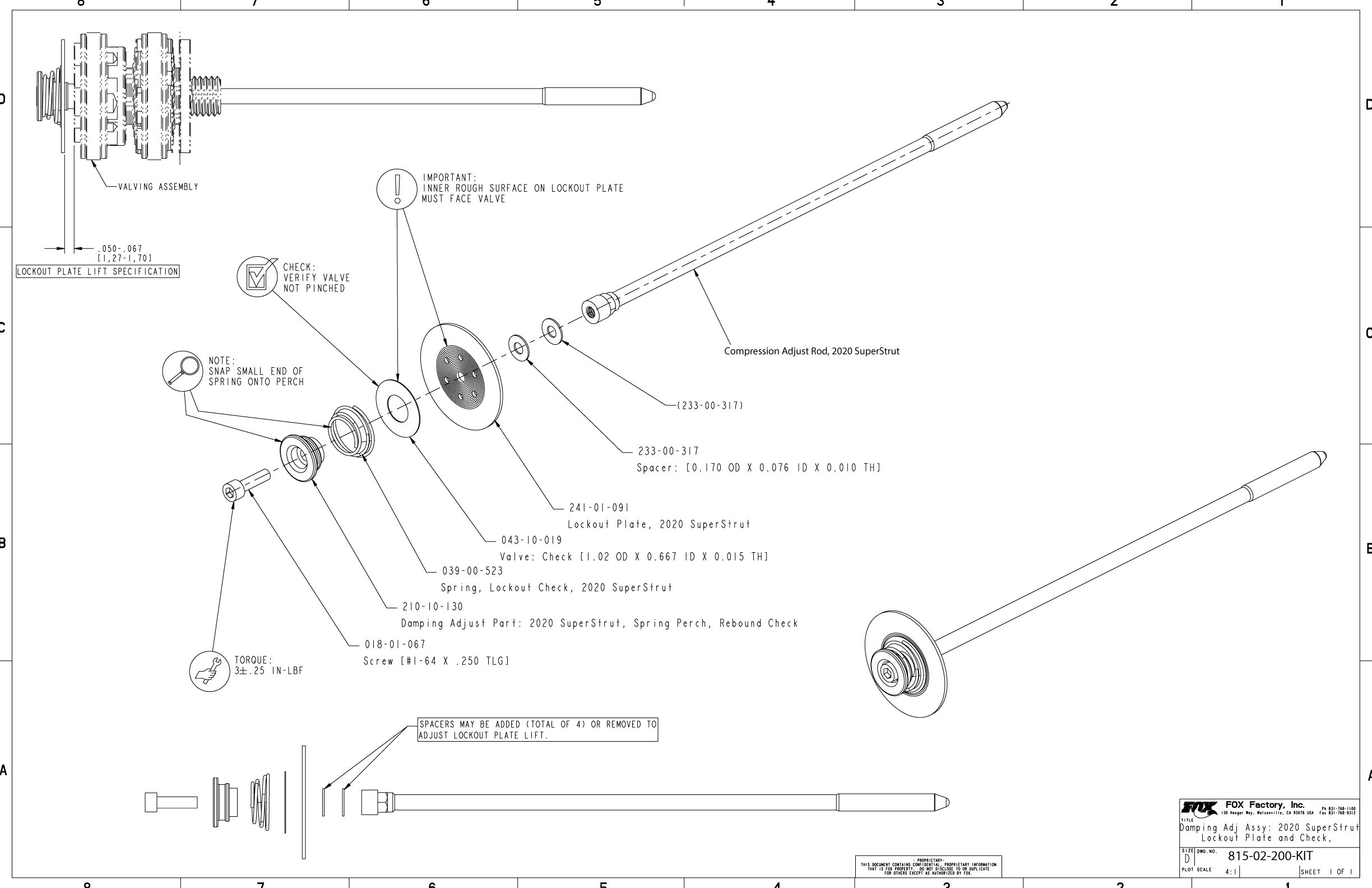

- 815-02-200-KIT Damping Adj Assy: 2020 SuperStrut Lockout Plate and Check

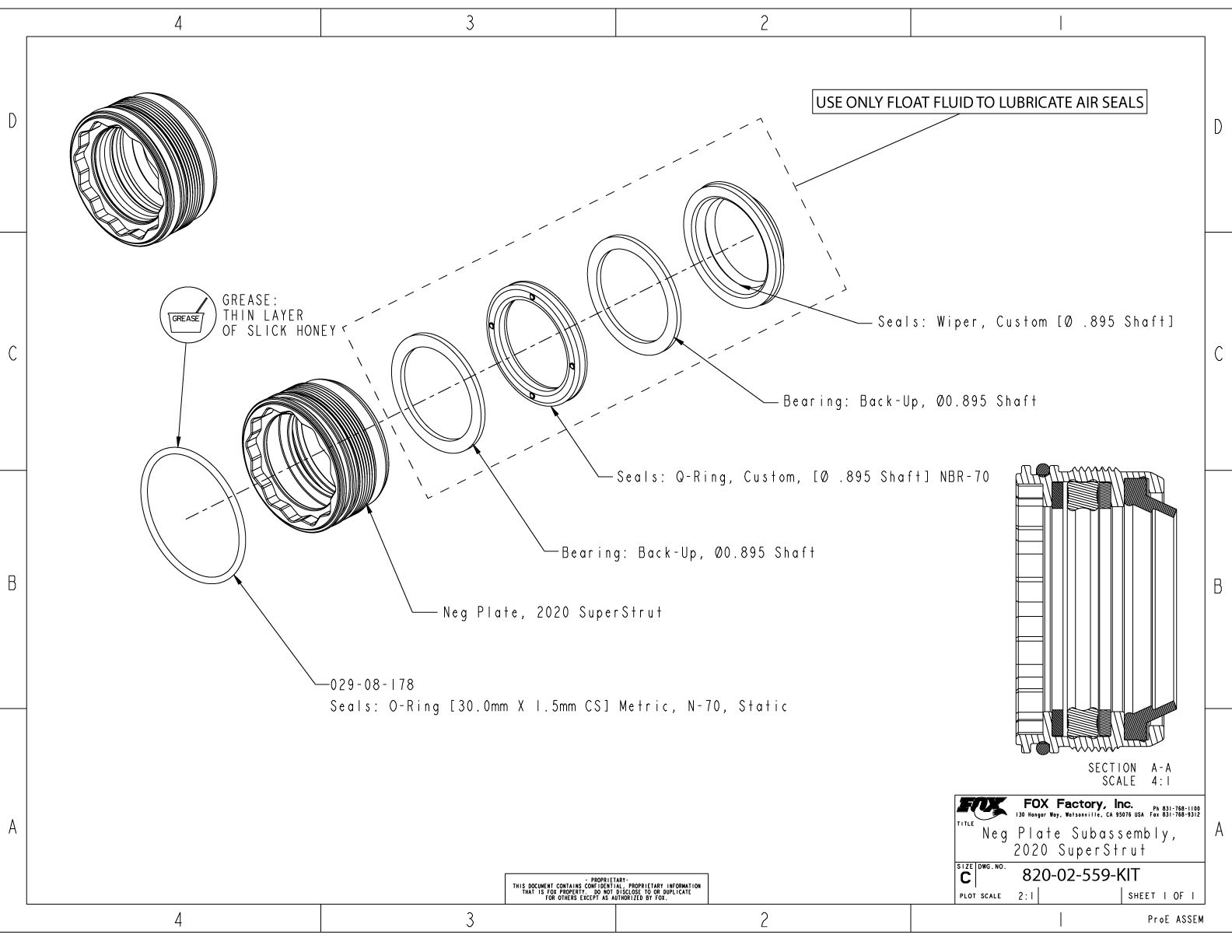

- 820-02-559-KIT Neg Plate Subassembly, 2020 SuperStrut
