PARTS & DRAWINGS
Transfer Seatpost Part Information
New for 2020:
| New Length | 175mm option in both internal and collar routing options |
| New Upper Post | 175mm transfer gets new upper post due to bending fatigue |
| New Hoopster Ring | New Hoopster ring is used in upper post. Not needed to replace in service. |
| New Piston Assy | 175mm upper post redesign required a different piston |
| IFP Tool | The 150mm IFP tool can be used on 175mm Transfer |
| New Upper Bushing Tool | Rod Extension for the Bushing Removal Tool to work on 175mm dropper posts |
| Seal Kit | 175mm specific seal kit due to new piston. Previous seal Kit still used on 100-150mm Transfers |
| New Tool to Support Gas Fill | New tool specific for 175mm stabilizes the gas fill assembly against the shaft to prevent damage (PN: 398-00-827) |
| External pulley kit | External Cable Interface Parts now available as a kit. |
Oil Information:
| 025-03-035 | Oil: AM, FOX 1.5wt Synthetic Oil [16 oz.], Clear |
Maintenance Info:
| 803-01-255 | Seal Kit: MY18+ 100-150mm Transfer Seatpost, Rebuild (Continue to use until inventory is exhausted) |
| 803-01-382 | Seal Kit: MY20 175mm Transfer Seatpost, Rebuild (Continue to use until inventory is exhausted) |
| 803-04-249 | Seal Kit: 2018-2020 Transfer Seatpost, 100-175mm, Rebuild (Contains updated IFP seal) |
| 398-00-758 | Service Tool: Support, Gas Fill |
| 803-01-384 | Service Tool: Gas Fill, 100-175mm Transfer, Assy |
| 803-01-200 | Kit: Service Tool, 2018 Transfer, Upper Bushing and Seal Installer |
| 803-01-127 | Service Tooling: Upper Bushing Removal, Transfer |
| 398-00-700 | Service Tool: Internal Spool valve Compressor Knob, Transfer |
| 398-00-701 | Service Tool: External Spool valve Compressor Knob, Transfer |
| 398-00-735 | Service Tool: Open Valve, Nitrogen Fill, Transfer |
| 398-00-737 | Service Tool: Funnel, Spool valve, Transfer |
| 398-00-738 | Service Tool: Bullet, 8mm Shaft, Transfer |
| 398-00-739 | Service Tool: Cap Removal, Transfer |
| 398-00-740 | Service Tool: Push Rod, Delrin, Transfer |
| 398-00-690 | Service Tool: IFP Height, 1.870 (150mm travel) |
| 398-00-691 | Service Tool: IFP Height, 1.990 (100/125mm travel) |
| 398-00-544 | *NEW* Service Tool: Rod Extension, Upper Bushing Removal, Transfer |
For instructions to help you decide which length Transfer Seatpost will best fit your application, please click: Determine Which Transfer Seatpost Will Fit Your Bike »
You can find the Owner's Manual for the FOX Transfer Seatpost by clicking: Transfer Seatpost »
Transfer Seatpost

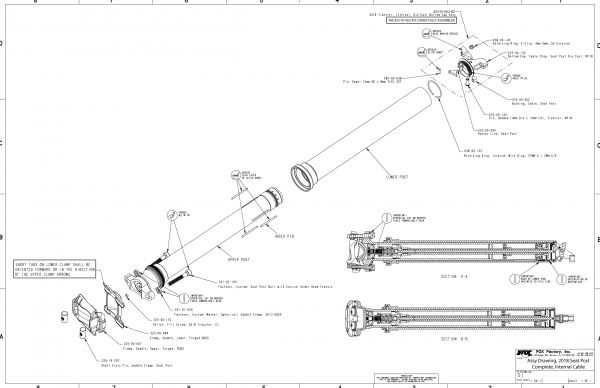

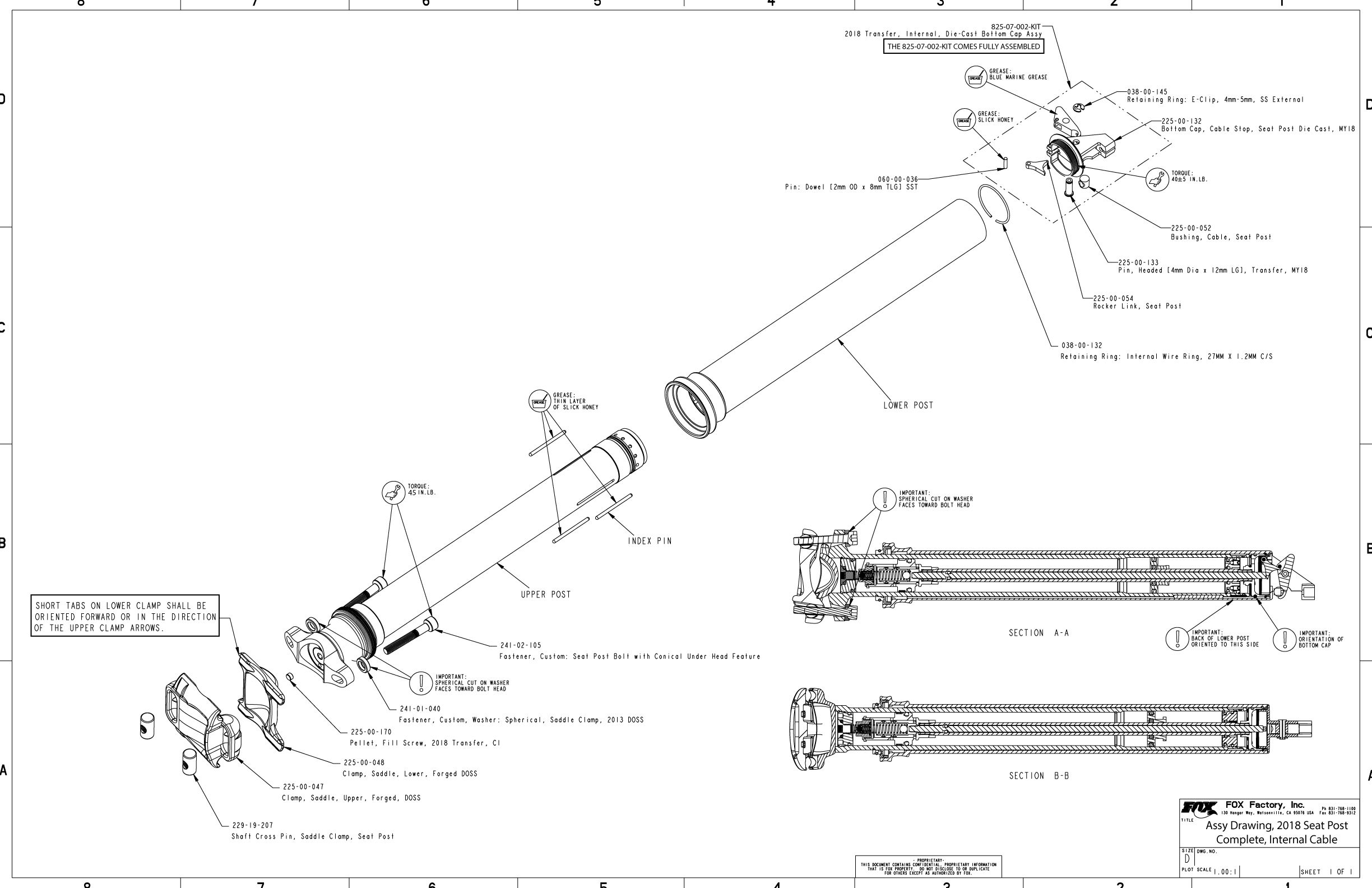

- Assembly Drawing, 2018 Seat Post Complete, Internal Cable .
- Assembly Drawing, 2018 Seat Post Complete, External Cable .
- Assembly Drawing, Upper Post, 2018+ Transfer .

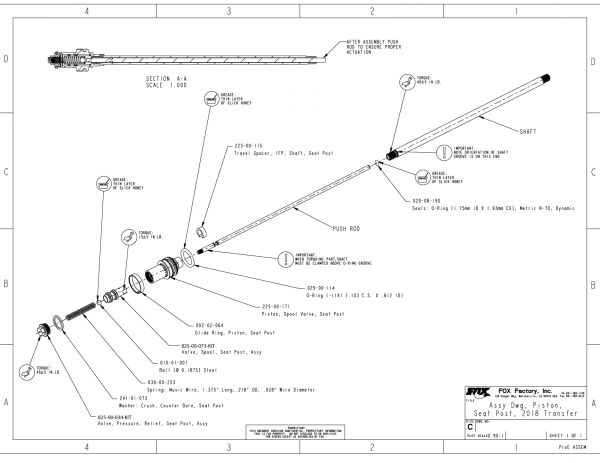

- Assembly Drawing, Piston, Seat Post, 2018 Transfer .
- 825-03-006-KIT Seal Head, Seat Post, Assy
- 825-03-007-KIT Seal Head, Seat Post, CI
- 825-00-196-KIT Service Set: MY18-20 Transfer, IFP Assy, Chevron
- 825-00-035-KIT Cap, Spool Valve, Seat Post, Assy
- 825-00-034-KIT Valve, Pressure Relief, Seat Post
- 803-01-281 Kit: Transfer Saddle Clamp Hardware: Bolt, Pin & Washer, Pair
2020 Transfer Seatpost Part Information
| Series | Finish | Diameter | Routing | Travel | Upper Post Assy | Piston Assy | Shaft | Push Rod | Upper Post | Shaft Lug | Lower Post | Connector Linkage |
| F-S | K | 30.9 | Internal | 100mm | 825-01-036-KIT | 825-00-078-KIT | 225-06-052 | 225-00-162 | 225-03-040 | 225-00-173 | 225-04-033 | |
| F-S | K | 30.9 | External | 100mm | 825-01-033-KIT | 825-00-079-KIT | 225-06-052 | 225-00-152 | 225-03-040 | 225-00-172 | 225-00-093 | 225-00-122 |
| F-S | K | 30.9 | Internal | 125mm | 825-01-028-KIT | 825-00-074-KIT | 225-06-053 | 225-00-163 | 225-03-041 | 225-00-173 | 225-04-035 | |
| F-S | K | 30.9 | External | 125mm | 825-01-025-KIT | 825-00-075-KIT | 225-06-053 | 225-00-153 | 225-03-041 | 225-00-172 | 225-00-095 | 225-00-123 |
| F-S | K | 30.9 | Internal | 150mm | 825-01-032-KIT | 825-00-076-KIT | 225-06-051 | 225-00-161 | 225-03-042 | 225-00-173 | 225-04-037 | |
| F-S | K | 30.9 | External | 150mm | 825-01-029-KIT | 825-00-077-KIT | 225-06-051 | 225-00-151 | 225-03-042 | 225-00-172 | 225-00-097 | 225-00-121 |
| F-S | K | 30.9 | Internal | 175mm | 825-01-040-KIT | 825-00-080-KIT | 225-06-054 | 225-00-164 | 225-03-064 | 225-00-173 | 225-04-038 | |
| F-S | K | 30.9 | External | 175mm | 825-01-037-KIT | 825-00-081-KIT | 225-06-054 | 225-00-154 | 225-03-064 | 225-00-172 | 225-00-098 | 225-00-124 |
| F-S | K | 31.6 | Internal | 100mm | 825-01-036-KIT | 825-00-078-KIT | 225-06-052 | 225-00-162 | 225-03-040 | 225-00-173 | 225-04-034 | |
| F-S | K | 31.6 | External | 100mm | 825-01-033-KIT | 825-00-079-KIT | 225-06-052 | 225-00-152 | 225-03-040 | 225-00-172 | 225-00-094 | 225-00-122 |
| F-S | K | 31.6 | Internal | 125mm | 825-01-028-KIT | 825-00-074-KIT | 225-06-053 | 225-00-163 | 225-03-041 | 225-00-173 | 225-04-036 | |
| F-S | K | 31.6 | External | 125mm | 825-01-025-KIT | 825-00-075-KIT | 225-06-053 | 225-00-153 | 225-03-041 | 225-00-172 | 225-00-096 | 225-00-123 |
| F-S | K | 31.6 | Internal | 150mm | 825-01-032-KIT | 825-00-076-KIT | 225-06-051 | 225-00-161 | 225-03-042 | 225-00-173 | 225-04-032 | |
| F-S | K | 31.6 | External | 150mm | 825-01-029-KIT | 825-00-077-KIT | 225-06-051 | 225-00-151 | 225-03-042 | 225-00-172 | 225-00-092 | 225-00-121 |
| F-S | K | 31.6 | Internal | 175mm | 825-01-040-KIT | 825-00-080-KIT | 225-06-054 | 225-00-164 | 225-03-064 | 225-00-173 | 225-04-039 | |
| F-S | K | 31.6 | External | 175mm | 825-01-037-KIT | 825-00-081-KIT | 225-06-054 | 225-00-154 | 225-03-064 | 225-00-172 | 225-00-099 | 225-00-124 |
| P-S | A | 30.9 | Internal | 100mm | 825-01-035-KIT | 825-00-078-KIT | 225-06-052 | 225-00-162 | 225-03-050 | 225-00-173 | 225-04-033 | |
| P-S | A | 30.9 | External | 100mm | 825-01-034-KIT | 825-00-079-KIT | 225-06-052 | 225-00-152 | 225-03-050 | 225-00-172 | 225-00-093 | 225-00-122 |
| P-S | A | 30.9 | Internal | 125mm | 825-01-027-KIT | 825-00-074-KIT | 225-06-053 | 225-00-163 | 225-03-051 | 225-00-173 | 225-04-035 | |
| P-S | A | 30.9 | External | 125mm | 825-01-026-KIT | 825-00-075-KIT | 225-06-053 | 225-00-153 | 225-03-051 | 225-00-172 | 225-00-095 | 225-00-123 |
| P-S | A | 30.9 | Internal | 150mm | 825-01-031-KIT | 825-00-076-KIT | 225-06-051 | 225-00-161 | 225-03-052 | 225-00-173 | 225-04-037 | |
| P-S | A | 30.9 | External | 150mm | 825-01-030-KIT | 825-00-077-KIT | 225-06-051 | 225-00-151 | 225-03-052 | 225-00-172 | 225-00-097 | 225-00-121 |
| P-S | A | 30.9 | Internal | 175mm | 825-01-039-KIT | 825-00-080-KIT | 225-06-054 | 225-00-164 | 225-03-061 | 225-00-173 | 225-04-038 | |
| P-S | A | 30.9 | External | 175mm | 825-01-038-KIT | 825-00-081-KIT | 225-06-054 | 225-00-154 | 225-03-061 | 225-00-172 | 225-00-098 | 225-00-124 |
| P-S | A | 31.6 | Internal | 100mm | 825-01-035-KIT | 825-00-078-KIT | 225-06-052 | 225-00-162 | 225-03-050 | 225-00-173 | 225-04-034 | |
| P-S | A | 31.6 | External | 100mm | 825-01-034-KIT | 825-00-079-KIT | 225-06-052 | 225-00-152 | 225-03-050 | 225-00-172 | 225-00-094 | 225-00-122 |
| P-S | A | 31.6 | Internal | 125mm | 825-01-027-KIT | 825-00-074-KIT | 225-06-053 | 225-00-163 | 225-03-051 | 225-00-173 | 225-04-036 | |
| P-S | A | 31.6 | External | 125mm | 825-01-026-KIT | 825-00-075-KIT | 225-06-053 | 225-00-153 | 225-03-051 | 225-00-172 | 225-00-096 | 225-00-123 |
| P-S | A | 31.6 | Internal | 150mm | 825-01-031-KIT | 825-00-076-KIT | 225-06-051 | 225-00-161 | 225-03-052 | 225-00-173 | 225-04-032 | |
| P-S | A | 31.6 | External | 150mm | 825-01-030-KIT | 825-00-077-KIT | 225-06-051 | 225-00-151 | 225-03-052 | 225-00-172 | 225-00-092 | 225-00-121 |
| P-S | A | 31.6 | Internal | 175mm | 825-01-039-KIT | 825-00-080-KIT | 225-06-054 | 225-00-164 | 225-03-061 | 225-00-173 | 225-04-039 | |
| P-S | A | 31.6 | External | 175mm | 825-01-038-KIT | 825-00-081-KIT | 225-06-054 | 225-00-154 | 225-03-061 | 225-00-172 | 225-00-099 | 225-00-124 |
