PARTS & DRAWINGS
36mm E-Bike+ Part Information
New for 2020:
| New Grip Remote | New compression needle and shaft |
| New Grip remote Topcap Interface Parts for 2020 | Interfaces with push to lock and push to unlock (not backwards compatible) |
| New Grip Damper Seal Kit | Grip Dampers have new sealhead and new IFP o-ring |
| New 8mm Shaft | FIT4 Rebound Shaft Assembly |
| New Sealhead | 8mm Seal head |
| New FIT4 Compression and Rebound Tunes | New Valving Stacks |
Continuing Technologies:
| RC2 Dampers | Old RC2 Dampers still supported |
| Talas 5 | Talas 5 Systems still supported |
| FIT4 Damper Tunes | Old FIT4 tune still supported |
| FIT4 Remote Conversion |
Non-remote FIT4 cartridges can be upgraded to remote via the installation of a complete FIT4 Remote U-Cup Topcap Assembly. This ensures the optimized topcap configuration with friction reducing features for the most reliable remote installation possible. FOX recommends PTU remote systems over PTL systems as they are optimized for reliability and reduced lever force. The FIT4 topcap "butterfly" valve must be matched to the appropriate lever/topcap interface parts. Installation of FIT4 Remote Topcap Interface Parts on a FIT4 3 Pos or 3 Pos Adj cartridge does not convert the cartridge to the optimized remote configuration even when used with a 3 position remote lever as the standard FIT4 3 Pos or 3 Pos Adj topcap does not contain the U-Cup that optimized remote topcap friction. |
Maintenance Information:
| Service Interval | Full Service 125 Hours |
| 398-00-371 | Tooling: Sealhead To Shaft Bullet, 10mm |
| 803-00-084 | Kit: Shaft Clamps, FORX, Set #1 (32mm Forx) |
| 803-00-147 | Kit: Shaft Clamps, FORX, Set #2 |
| 803-00-276 | Service Kit: Hand Bleed, Syringe and Tube, 2010 32 Fit RL-RLC Cartridge |
| 803-00-501 | Service Set: Seal Kit, 2011 36 & 40 Inverted RC2 Cartridge |
| 803-01-226 | Seal Kit: 36 FLOAT NA2 Rebuild |
| 803-00-830 | Service Set: Tooling: 2014 RC2, Shaft Clamps |
| 803-01-432 | Seal Kit: MY20+ ALL 36 8mm Shaft FIT4 Cartridge Rebuild |
| 398-00-681 | 2002-017 32 Damper-side and ALL 32-34-36-40 Spring-side Removal Tool |
| 398-00-682 | 2005-017 34-36-40 Damper-side Removal Tool |
| 803-00-933 | Kit: Dust Wiper, Forx, 36mm, Low Friction, No Flange |
| 803-01-150 | Kit: Tooling: Clamps, Grip Damper, Body and Shaft |
| 803-01-320 | Seal Kit: MY19+ 32, 34, 36, 40 GRIP Cartridge Rebuild |
| 803-01-209 | Tooling: 2018 FIT4 Remote Topcap Interface Part Installation Set |
| 398-00-760 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
| 803-01-324 | Tooling: 2019 Clamps, Grip Damper, Body and Shaft |
| 398-00-772 | Tooling: Guided Fork Seal Driver, One Piece Seal/Wiper, 36 |
| 803-01-316 | Seal Kit: F-S GRIP2 36 & 40 |
| 398-00-320 | Service Tool: Bullet, Selector Shaft, Remote, U-Cup |
Oil Information:
| Application | Description | Part |
| Grip/Grip2 Damper Bath Oil | Oil: Suspension Fluid, 5wt, Teflon Infused, 1.0 US Quart | 025-03-023 |
| FIT4 Damper Bath Oil and NA2 Air Chamber/Float Side Bath Oil | Oil: AM, FOX Bath Oil [250 ml.], 20 WT Gold | 025-03-015 |
| Oil: AM, FOX Bath Oil [32 oz.], 20 WT Gold | 025-03-010 |
| Bath Oil Application | Bath Oil Volume |
| All Air Side Bath | 10cc (FOX 20wt. Gold Oil) |
| FIT4 Damper Side Bath | 40cc (FOX 20wt. Gold Oil) |
| E-Bike+ FIT4 Damper Side Bath | 15cc (FOX 20wt. Gold Oil) |
| Grip/Grip2 Damper Side Bath | 40cc (5wt. FOX Teflon Infused Oil) |
Remote Information:
| Remote Conversions available for 2016+ Fit4 |
Non-remote FIT4 cartridges can be upgraded to remote via the installation of a complete FIT4 Remote U-Cup Topcap Assembly. This ensures the optimized topcap configuration with friction reducing features for the most reliable remote installation possible. FOX recommends PTU remote systems over PTL systems as they are optimized for reliability and reduced lever force. The FIT4 topcap "butterfly" valve must be matched to the appropriate lever/topcap interface parts. Installation of FIT4 Remote Topcap Interface Parts on a FIT4 3 Pos or 3 Pos Adj cartridge does not convert the cartridge to the optimized remote configuration even when used with a 3 position remote lever as the standard FIT4 3 Pos or 3 Pos Adj topcap does not contain the U-Cup that optimized remote topcap friction. |
| 820-05-611-KIT | Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-07-150-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Dual Pull |
| 820-07-151-KIT | Lever Housing Assy: 2018 Remote Lockout, 2 Position, Single Pull |
36mm E-Bike+ Part Information
CSU Assemblies:
| Part Number | Description |
| 820-11-878-KIT | Service Set: 2017 36 27.5 180 & 29in 160 15x110QR SPD-PED-ELEC Black Ano Matte Black 44 Rake 1.5 Taper CSU |
| 820-11-881-KIT | Service Set: 2017 36 27.5 180 & 29in 15x110QR 160 SPD-PED-ELEC Kashima Matte Black 44 Rake 1.5 Taper CSU |
| 820-11-890-KIT | Service Set: 2017 36 29in 15x110QR 160 SPD-PED-ELEC Black Ano Matte Black 51 Rake 1.5 Taper CSU |
| 820-11-893-KIT | Service Set: 2017 36 29in 160 15x110QR SPD-PED-ELEC Kashima Matte Black 51 Rake 1.5 Taper CSU |
Lower Leg Assemblies:
| Part Number | Description |
| 820-10-303-KIT | Service Set: 2017 36 27.5in 180 15QR Fox Matte Black Lower Leg Assy |
| 820-10-258-KIT | Service Set: 2017 36 27.5in 180 15x110 QR Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-903-KIT | Service Set: 2018 36 27.5in 180 15x110 QR Fox Shiny Orange, F-S PE-S, Lower Leg Assy |
| 820-10-562-KIT | Service Set: 2017 36 27.5in 180 15x110 Kabolt, Blk, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-737-KIT | Service Set: 2018 36 27.5in 180 15x110 QR, Fox Matte Black, P-S, Lower Leg Assy |
| 820-10-779-KIT | Service Set: 2018 36 27.5in 180 15x110 Kabolt, Blk, Fox Matte Black, P-S, Lower Leg Assy |
| 820-10-809-KIT | Service Set: 2018 36 29in 170 15x110 QR, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-905-KIT | Service Set: 2018 36 29in 170 15x110 QR, Fox Shiny Orange, F-S PE-S, Lower Leg Assy |
| 820-10-816-KIT | Service Set: 2018 36 29in 170 15x110 Kabolt, Blk, Fox Matte Black, F-S PE-S, Lower Leg Assy |
| 820-10-682-KIT | Service Set: 2018 36 29in 170 15x110 QR Fox Matte Black Lower Leg Assy, P-S |
| 820-10-782-KIT | Service Set: 2018 36 29in 170 15x110 Kabolt, Blk, Fox Matte Black Lower Leg Assy, P-S |
Axle Assemblies:
| Part | Description |
| 820-09-019-KIT | Axle Assembly: 15 X 110mm Kabolt, Black Ano |
| 820-09-023-KIT | Axle Assembly: 15 X 110mm Kabolt, Orange Ano |
| 820-09-013-KIT | Axle Assembly, 2016 15x110 QR, Factory and Performance, Black Ano |
Lower Leg Small Parts Kit:
| Part | Description |
| 803-00-370 | Service Set: 15QR Hardware (Contains: Axle nut, hold down, and set screw) |
Decal Kits:
| Part | Description |
| 803-01-273 | Decal Kit: 2018, 36, F-S, Orange Logo, Matte Black Background |
| 803-01-284 | Decal Kit: 2018, 36, Factory, Blk/Ylw |
| 803-01-274 | Decal Kit: 2018, 36, P-Se, Gray Logo, Matte Black Background |
| 803-01-275 | Decal Kit: 2018, 36, P-S, Gray Logo, Matte Black Background |
| 803-01-321 | Decal Kit: E-Bike Supplemental Decal Kit (Must add chassis appropriate F-S, P-SE or P-S decal kit) |
Complete E-Bike+ Cartridges:
| Part Number | Description |
| 820-18-138-KIT | Service Set: 2019 36 27.5 & 29 180 MAX, Grip E-Bike Cart Assy Complete |
| 820-08-379-KIT | Service Set: 2019 36 180, Grip F-S HSR / LSR / HSC / LSC Cart Assy Complete |
| 820-18-278-KIT | Service Set: 2020 36 180 MAX, Grip E-Bike+ Push-Lock Remote Cart Assy Complete |
| 820-18-250-KIT | Service Set: 2020 36, 120-180, FIT4 F-S, CL Tune, 3 Pos Adj Cart Assy Complete |
| 820-18-251-KIT | Service Set: 2020 36, 120-180, FIT4 F-S, CL Tune, Remote, 2 Pos Adj, Push-Lock Cart Assy Complete |
| 820-18-252-KIT | Service Set: 2020 36, 120-180, FIT4 F-S, CL Tune, Remote, 2 Pos Adj, Push-Unlock Cart Assy Complete |
| 820-18-253-KIT | Service Set: 2020 36,120-180, FIT4 F-S, CL Tune, Remote, 3 Pos Adj Cart Assy Complete |
Cartridge Topcap Assemblies:
| Part Number | Description |
| 820-05-535-KIT | Service Set: 2019 36 180 MAX, Grip E-Bike Damper, Topcap Assy |
| 820-05-609-KIT | Service Set: 2020 36, Grip E-Bike+ Remote, Push-Lock, Topcap Assy |
| 820-05-415-KIT | Service Set: 2019 36 Grip F-S Damper, Topcap Assy |
| 820-05-599-KIT | Service Set: 2020 36 FIT4 F-S Topcap Assy, CL Tune, Black Ano |
| 820-05-602-KIT | Service Set: 2020 36 FIT4 F-S Topcap Assy, CL Tune, Remote, U-Cup, 3 Position |
| 820-05-601-KIT | Service Set: 2020 36 FIT4 F-S Topcap Assy, CL Tune, Remote, U-Cup, 2 Position, Push-Unlock |
| 820-05-600-KIT | Service Set: 2020 36 FIT4 F-S Topcap Assy, CL Tune, Remote, U-Cup, 2 Position, Push-Lock |
Damper Topcap Interface Parts:
| Part | Description |
| 820-05-330-KIT | Service Set: 2016 FIT4 TopCap Interface Parts F-S |
| 820-05-455-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Unlock |
| 820-05-456-KIT | Service Set: 2018 FIT4 TopCap Interface Parts F-S Remote, U-Cup, Push-Lock |
| 820-05-611-KIT | Service Set: 2020 Grip Push-Lock Remote, Topcap Interface Parts |
| 820-05-623-KIT | Service Set: 2020 Grip 34 & 36 P-S Topcap Interface Parts |
| 820-05-414-KIT | Service Set: 2019 Grip2 HSC / LSC Topcap Interface Parts |
Damper Bottom Stud Interface Parts:
| Part | Description |
| 820-05-377-KIT | 2016 FIT4 Bottom Stud Interface Parts 36 and 40 |
| 820-05-501-KIT | Service Set: 2019 Grip2 HSR / LSR Bottom Stud Interface Parts |
| 820-05-518-KIT | Service Set: 2019 36 Grip Bottom Stud Interface Parts |
FLOAT NA2 Air Shaft Assemblies:
| Part | Description |
| 820-02-525-KIT | Service Set: Air Shaft Assy, 2019, 34, 110mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-526-KIT | Service Set: Air Shaft Assy, 2019, 34, 120mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-527-KIT | Service Set: Air Shaft Assy, 2019, 34, 130mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-529-KIT | Service Set: Air Shaft Assy, 2019, 34, 150mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| 820-02-530-KIT | Service Set: Air Shaft Assy, 2019, 34, 160mm, FLOAT LC NA 2, 1.214 Bore, Al NP |
| ***Note: 36mm E-Bike+ forks utilize 34mm Air Shaft Assemblies*** | |
FLOAT NA2 Topcap Assemblies:
| Part | Description |
| 820-05-419-KIT | Topcap Assy, 2018 FLOAT LC NA2, 36, Black |
FLOAT NA2 Neg Plate Subassemblies:
| Part | Description |
| 820-02-413-KIT | Neg Plate Subassembly, 2018 FLOAT LC NA 2, 34, Long Travel, 1.214 Bore |
| ***Note: 36mm E-Bike+ forks utilize 34mm Air Shaft Assemblies*** | |
2020 36 F-S GRIP2 Cartridge Assembly Complete
- 820-08-379-KIT 2019 36 180 Grip2 HSR/LSR HSC/LSC Cartridge Assembly Complete
- 2019 36 180 Grip2 HSR/LSR HSC/LSC Cartridge Assembly .
- 820-05-415-KIT 2019 36 Grip2 Damper Topcap Assy
- 820-03-529-KIT 2019 36 180 Grip2 HSR/LSR Damper Shaft Assy
- 820-03-528-KIT 2019 Grip2 HSR/LSR Rebound Piston Assy Long Travel
- 820-03-527-KIT 2019 Grip2 Mid Valving
- 820-03-526-KIT 2019 Grip2 Rebound Valving, Long Travel

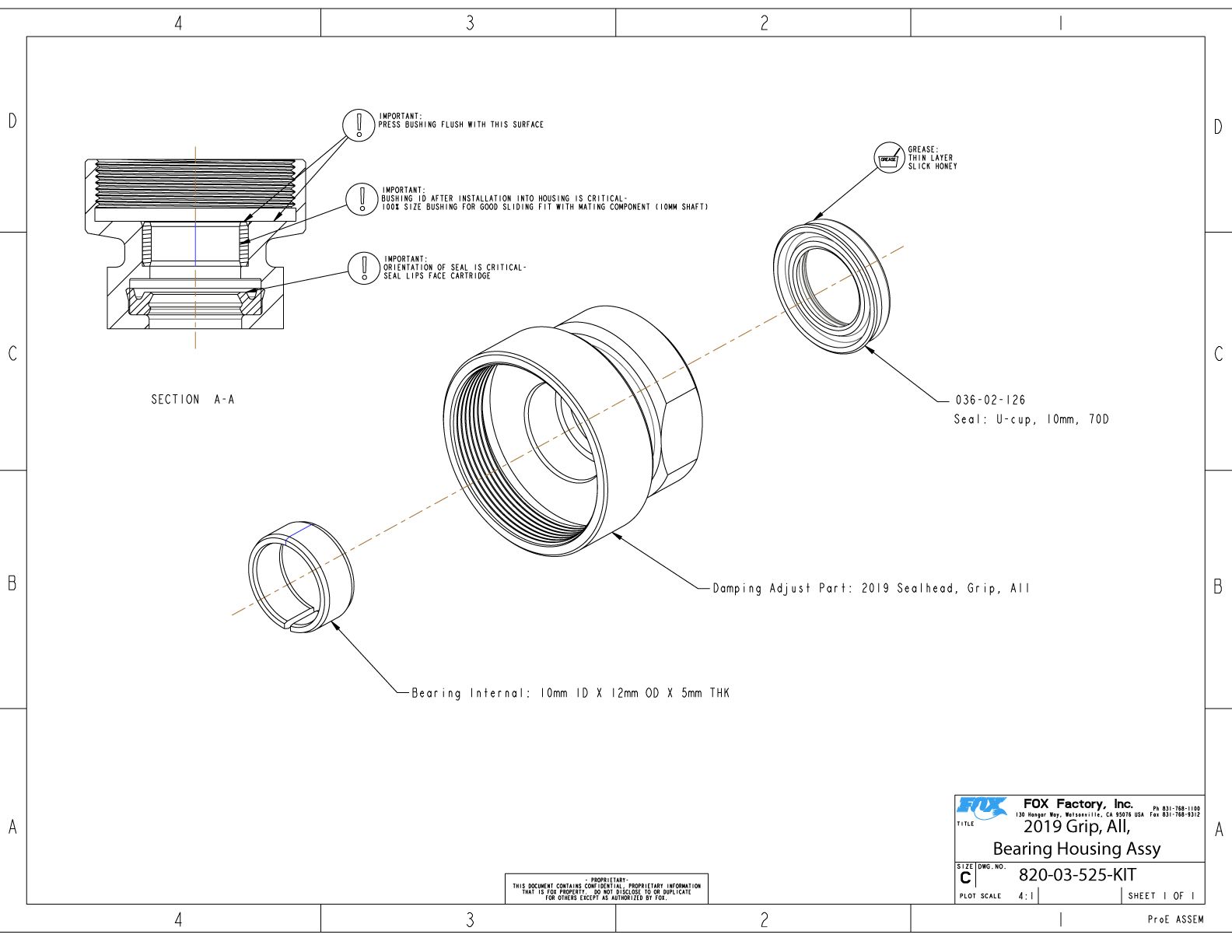

- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
2020 36 F-S E-Bike+ FIT4 3 Pos Adj Cartridge Assembly Complete

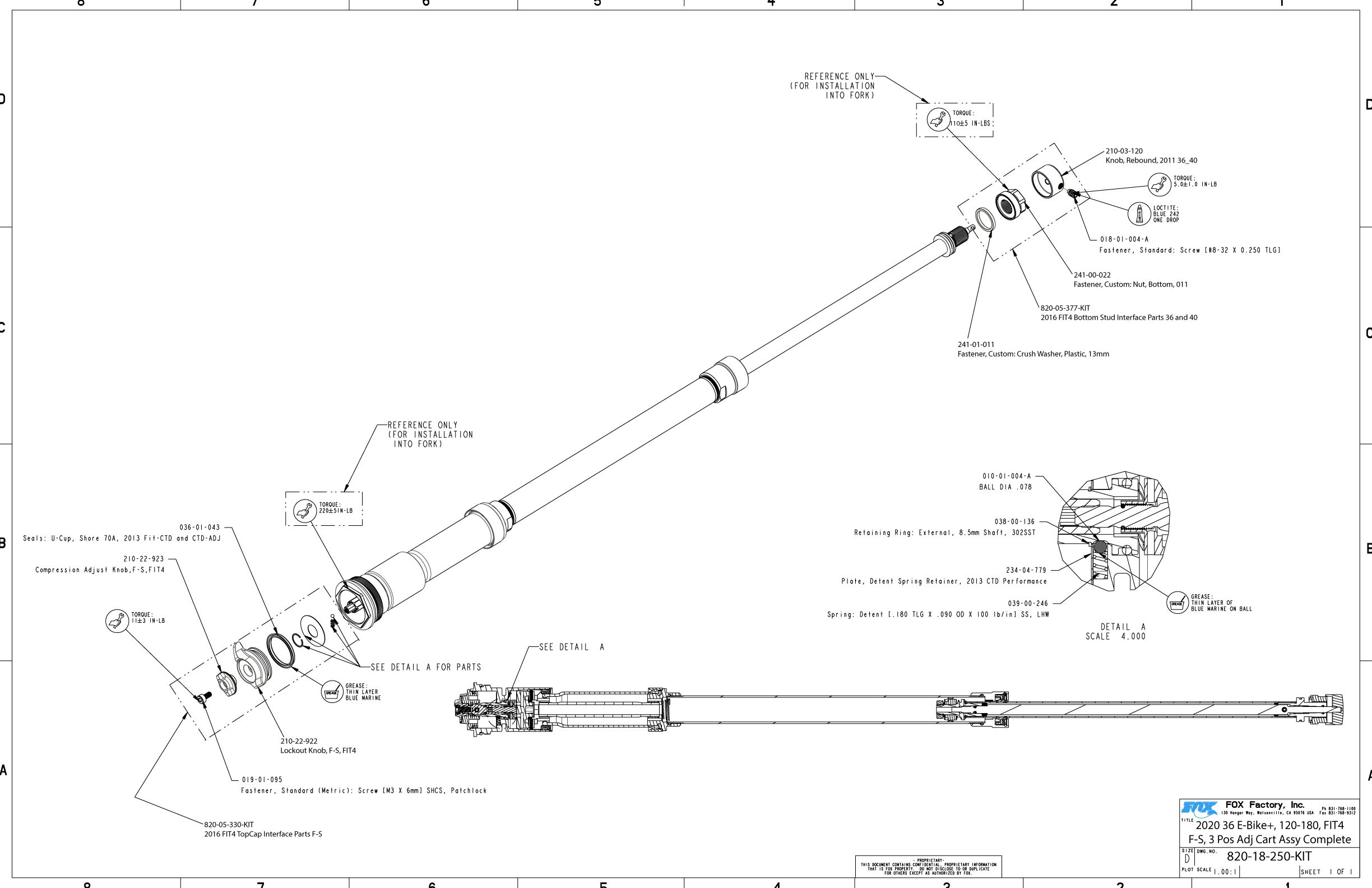

- 820-18-250-KIT 2020 36 E-Bike+, 120-180, FIT4 F-S, 3 Pos Adj Cart Assy Complete
- 2020 36 E-Bike+, 120-180, FIT4 F-S, 3 Pos Adj Cart Assy .
- 820-05-599-KIT 2020 36 E-Bike+ FIT4 F-S Topcap Assy, Black Ano

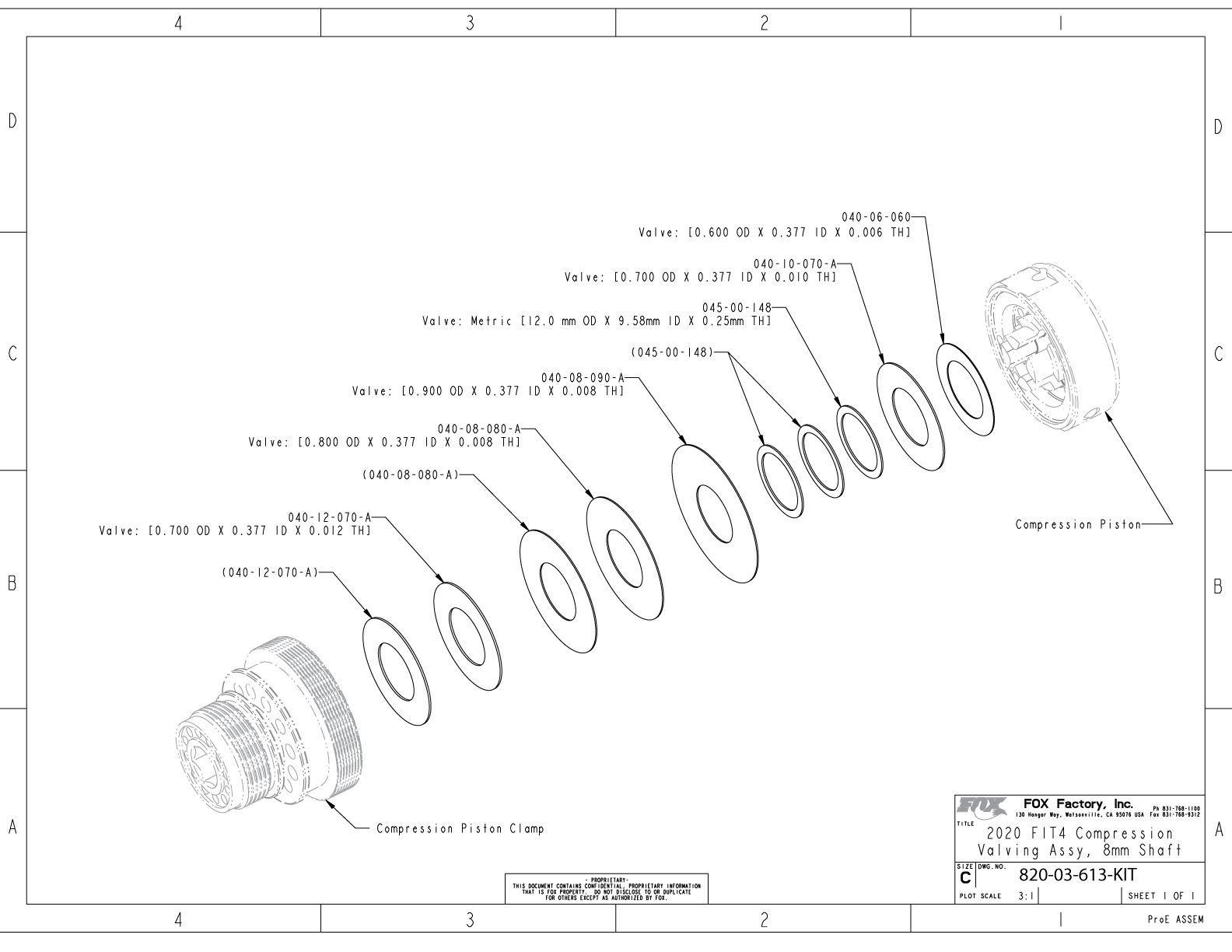

- 820-03-613-KIT 2020 FIT4 Compression Valving Assy, 8mm Shaft
- 820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft

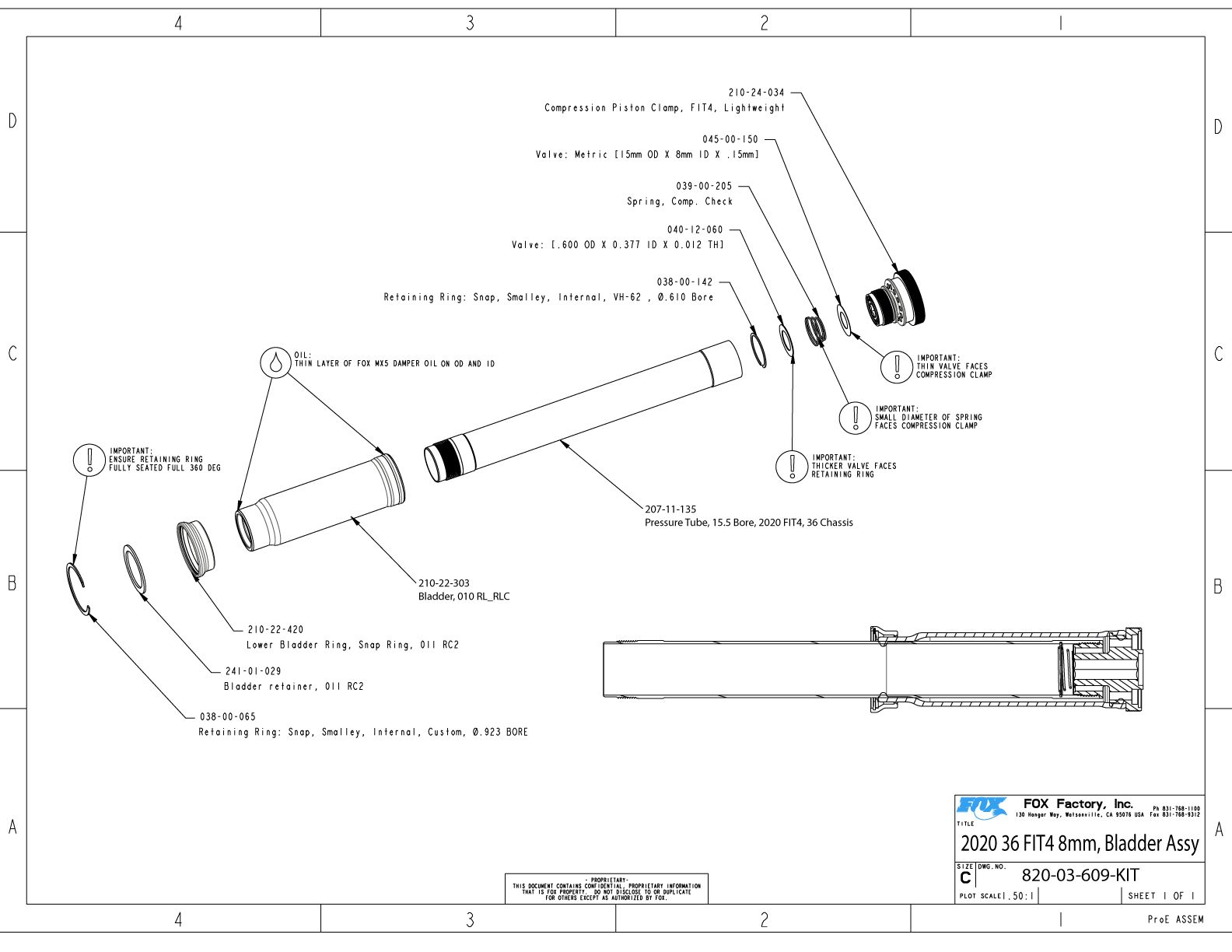

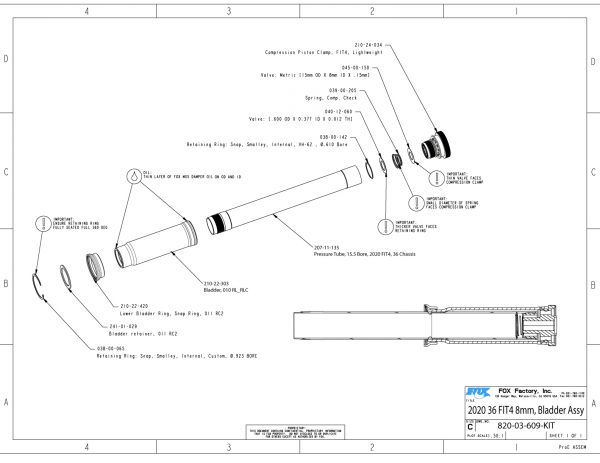

- 820-03-609-KIT 2020 36 FIT4 8mm, Bladder Assy

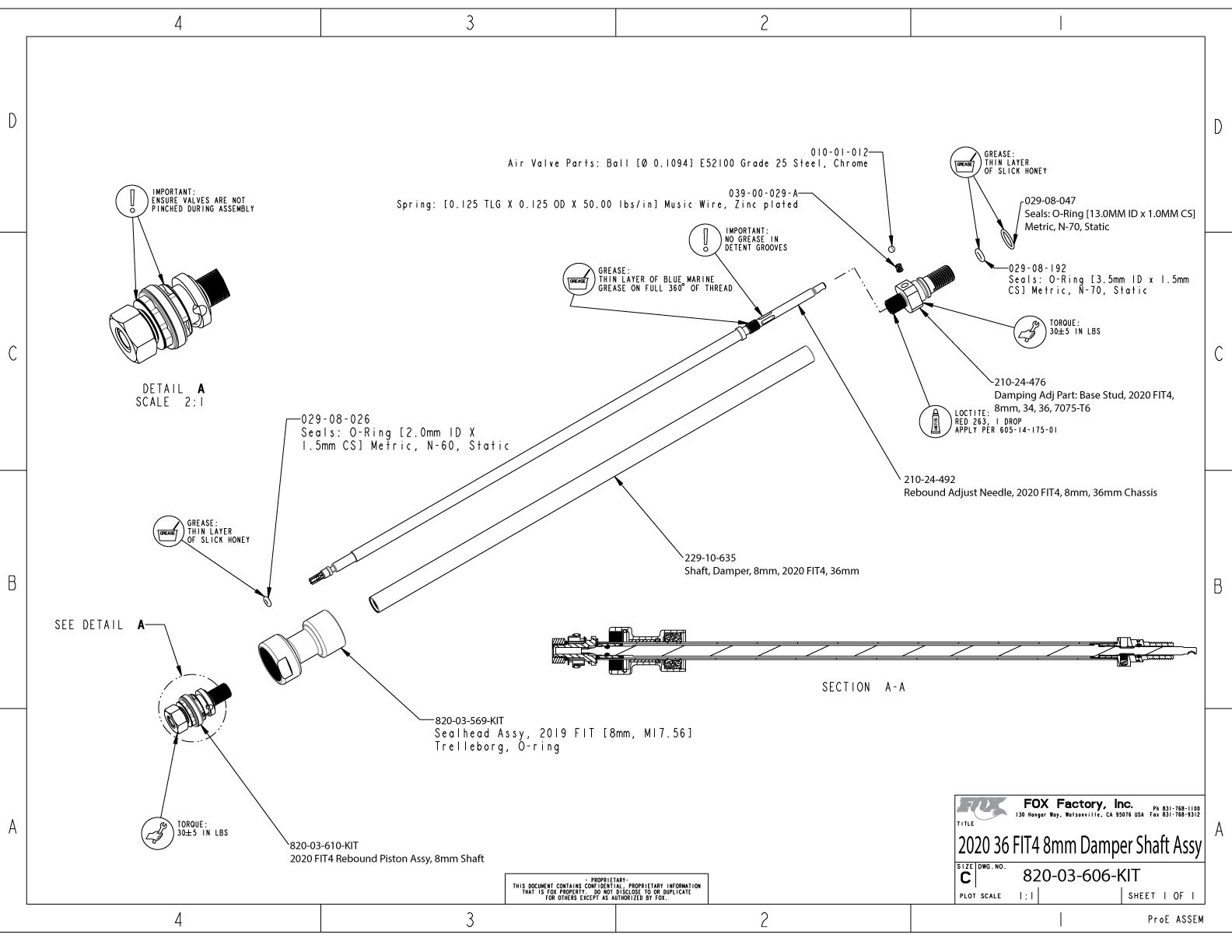

- 820-03-606-KIT 2020 36 FIT4 8mm Damper Shaft Assy

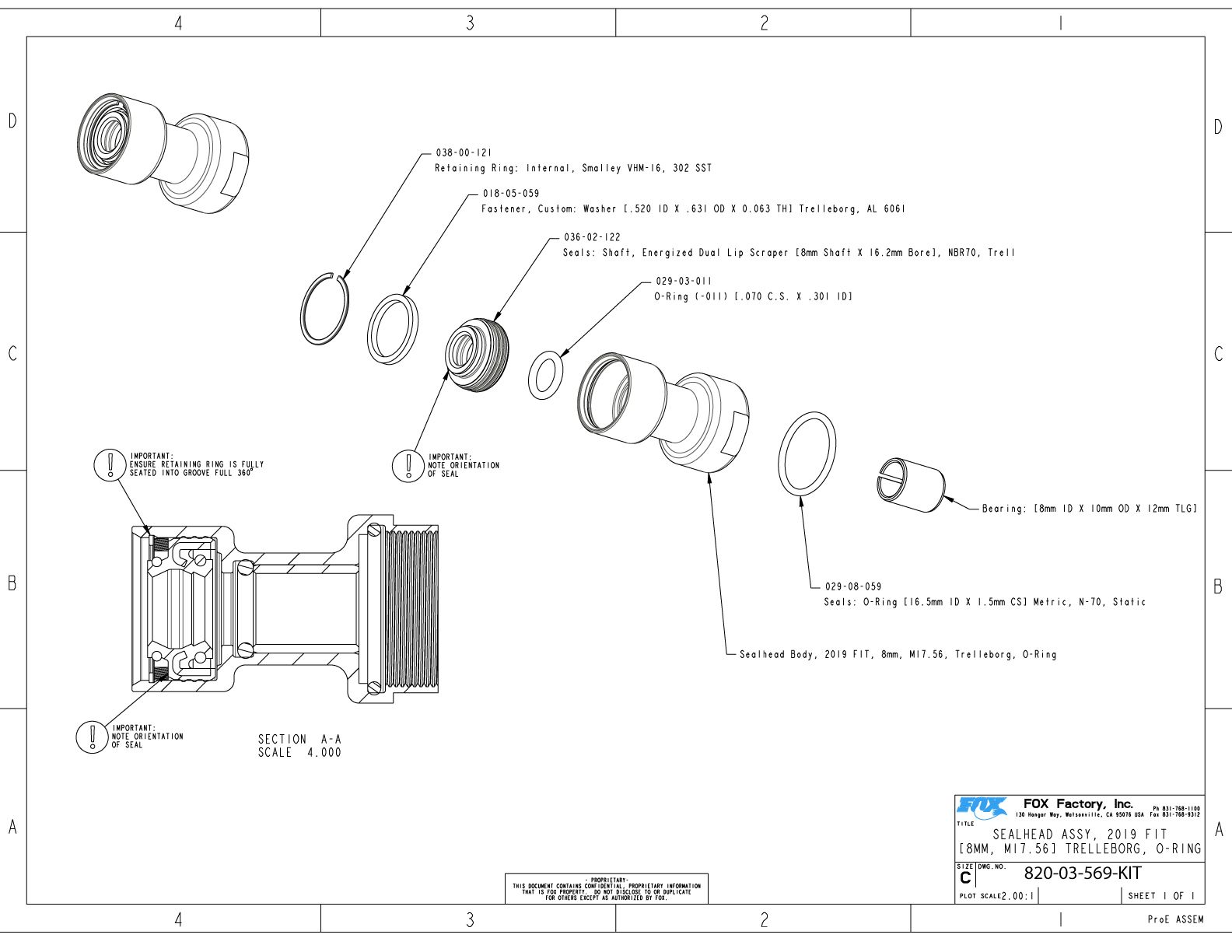

- 820-03-569-KIT Sealhead Assy, 2019 FIT [8mm, M17.56] Trelleborg, O-Ring
- 820-03-258-KIT 2017 FIT4 Lightweight Top Cap Parts
2020 36 F-S E-Bike+ FIT4 Remote Cartridge Assemblies Complete
- 2020 36 E-Bike+ FIT4 F-S Remote Cartridge Assemblies Complete .
- 2020 36 E-Bike+ FIT4 F-S Remote Cartridge Assemblies .

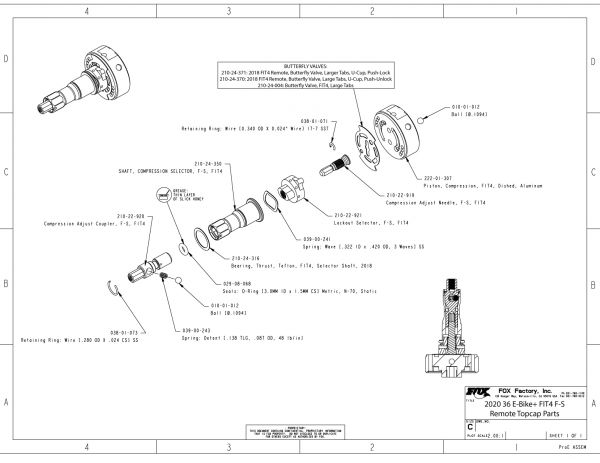

- 2020 36 E-Bike+ FIT4 F-S Remote Topcap Assemblies .
- 2020 36 E-Bike+ FIT4 F-S Remote Topcap Parts .
- 820-03-610-KIT 2020 FIT4 Rebound Piston Assy, 8mm Shaft
- 820-03-609-KIT 2020 36 FIT4 8mm, Bladder Assy
- 820-03-606-KIT 2020 36 FIT4 8mm Damper Shaft Assy
- 820-03-569-KIT Sealhead Assy 2019 FIT [8mm, M17.56] Trelleborg O-Ring
2020 36 GRIP E-Bike+ 180 MAX Cartridge Assembly Complete
- 820-18-138-KIT 2019 36 27.5 & 29 180 MAX, Grip E-Bike Cart Assy Complete
- 2019 36 E-Bike+ Grip Cartridge Assembly .

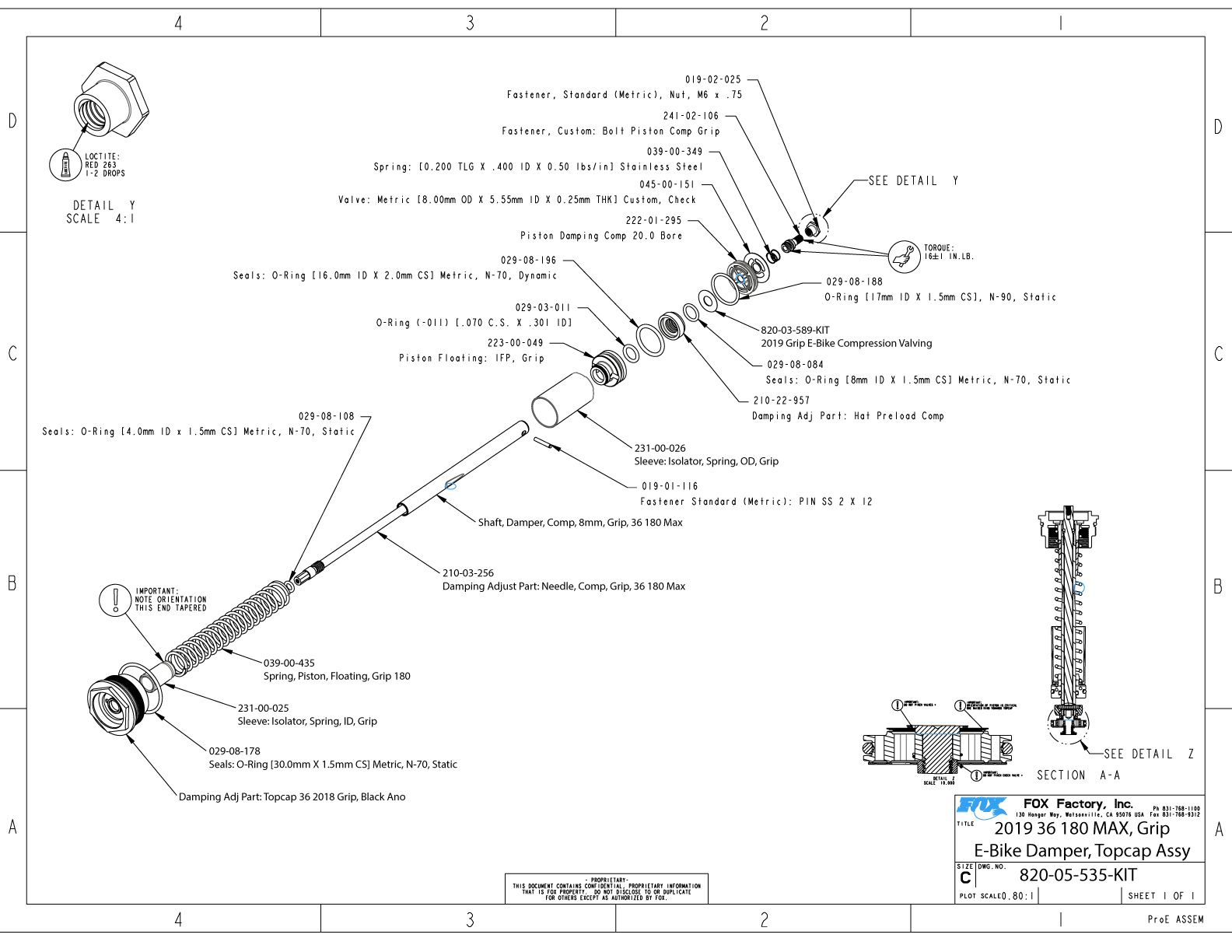

- 820-05-535-KIT 2019 36 180 MAX, Grip E-Bike Damper, Topcap Assy
- 820-03-593-KIT 2019 36 180 MAX, Grip E-Bike Damper Shaft Assy

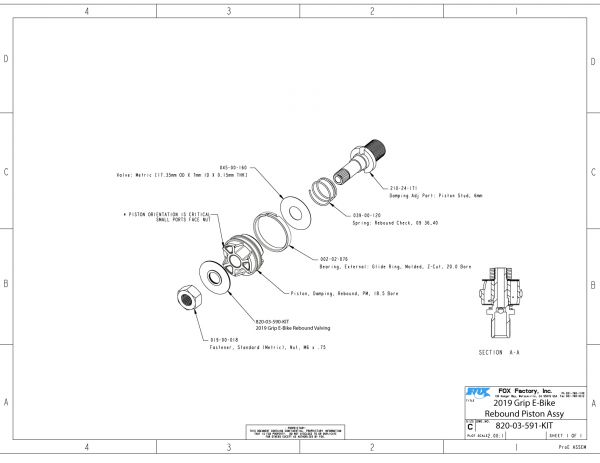

- 820-03-591-KIT 2019 Grip E-Bike Rebound Piston Assy

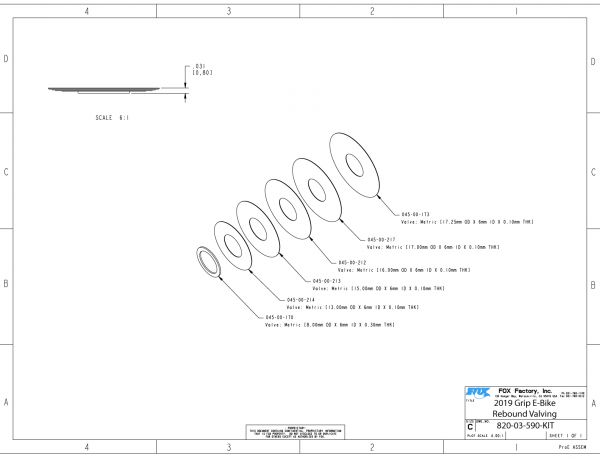

- 820-03-590-KIT 2019 Grip E-Bike Rebound Valving

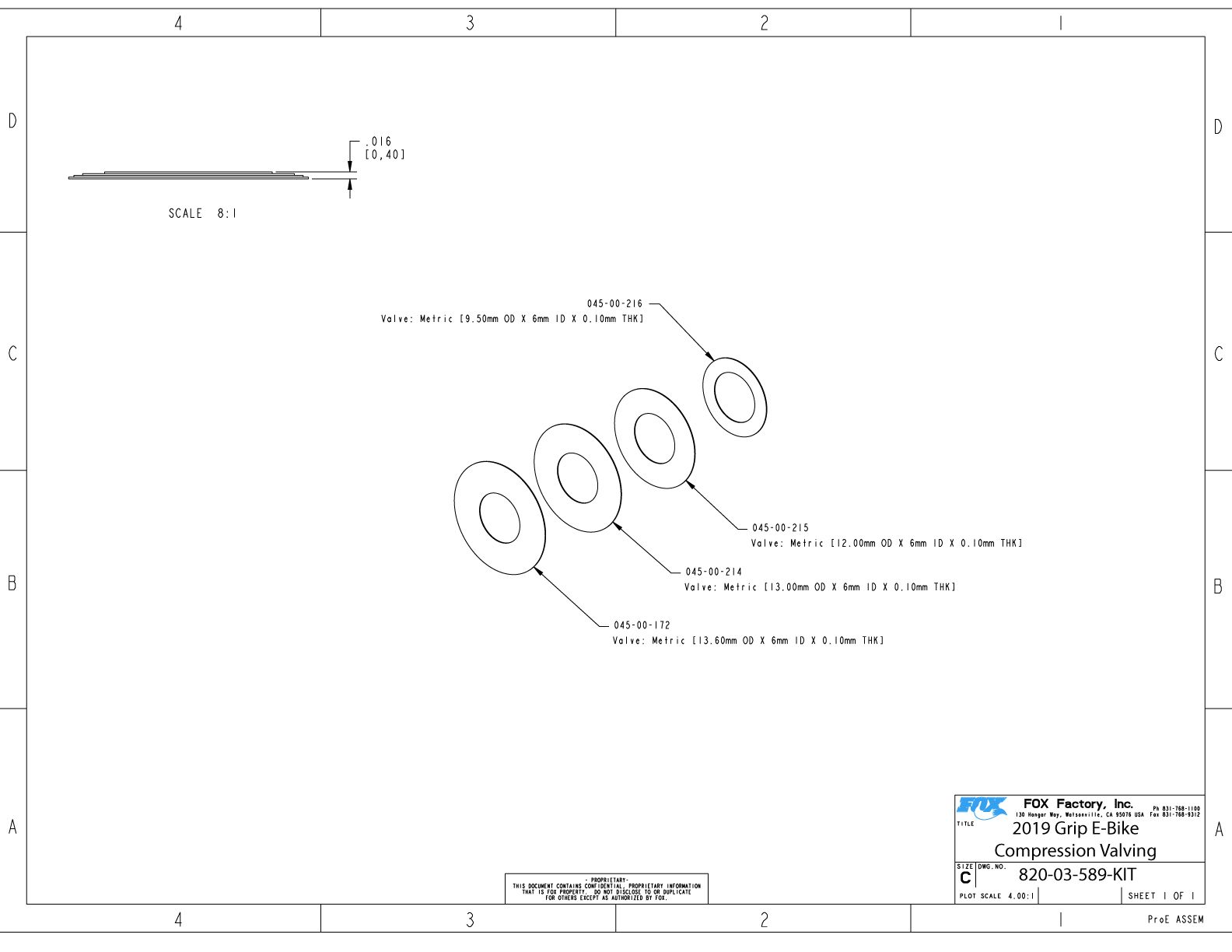

- 820-03-589-KIT 2019 Grip E-Bike Compression Valving
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
2020 36 GRIP E-Bike+ 180 MAX Remote Cartridge Assembly Complete
- 820-18-278-KIT 2020 36 180 MAX, Grip E-Bike+ Push-Lock Remote Cart Assy Complete
- 2020 36 180 MAX, Grip E-Bike+ Remote Cartridge Assembly .
- 820-05-609-KIT 2020 36 Grip E-Bike+ Remote Topcap Assembly
- 820-03-617-KIT 2020 Grip Remote E-Bike+ Compression Valving
- 820-03-593-KIT 2019 36 180 MAX, Grip E-Bike Damper Shaft Assy
- 820-03-591-KIT 2019 Grip E-Bike Rebound Piston Assy
- 820-03-525-KIT 2019 Grip, All, Bearing Housing Assy
2020 36 FLOAT NA2 Air Spring Assemblies
- 2019 36 E-Bike+ FLOAT NA2 Air Spring Assemblies .
- 2019 36 E-Bike+ FLOAT NA2 Air Shaft Assemblies .
- 820-05-419-KIT Topcap Assy, 2018 FLOAT LC NA2, 36, Black

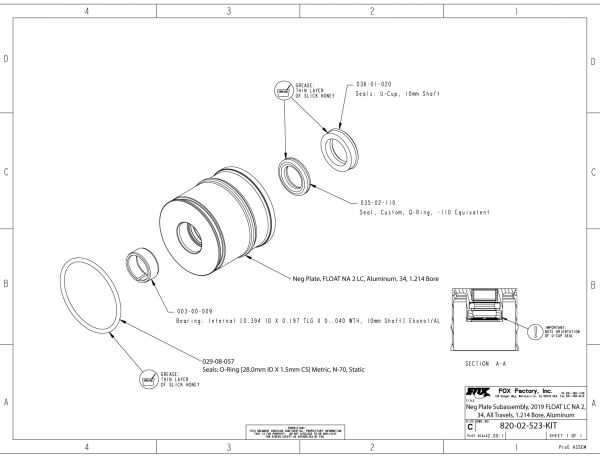

- 820-02-523-KIT Neg Plate Subassembly, 2019 FLOAT LC NA 2, 34, All Travels, 1.214 Bore, Aluminum
2020 36 F-S GRIP2 Cartridge Assembly Complete
2020 36 F-S E-Bike+ FIT4 3 Pos Adj Cartridge Assembly Complete
2020 36 F-S E-Bike+ FIT4 Remote Cartridge Assemblies Complete
2020 36 GRIP E-Bike+ 180 MAX Cartridge Assembly Complete
2020 36 GRIP E-Bike+ 180 MAX Remote Cartridge Assembly Complete
2020 36 FLOAT NA2 Air Spring Assemblies
