PARTS & DRAWINGS

DHX2 Part Information



New for MY26:

All new shock Monotube shock utilizing HSC/LSC and HSR/LSR. First of its kind.
Transverse Eyelet Transverse rezi provides smaller packaging to fit more frames. Parallel rezi only found on the 250 x 75 chassis.
Tuning Utilizes benefits of pressure balance for more tuning flexibilty and range.
New shaft Half inch shaft instead of 9mm. Much more durable and stronger. 2026 FLOAT X2 and DHX2 shafts look identical externally but have significant internal differences. Do not use 2026 FLOAT X2 shafts on 2026 DHX2 shocks.
Climb Lever Two styles of the lever to meet the needs of the rider and/or the bicycle



Maintenance Information:

Service Interval Full Service 125 Hours
803-04-366 Seal Kit: 2026 DHX2 Damper Rebuild
803-04-354 Kit: Tooling: Clamps, 2026, Float X2/DHX2, Inner Air Sleeve
803-04-355 Kit: Tooling: Clamps, 2026, Float X2/DHX2, Damper Body
803-04-356 Kit: Tooling: 2026, Float X2/DHX2, Base Piston Band Sizer
803-04-357 Kit: Tooling: Rear Shock, Air Fill Adaptor, IFP, 2026
398-01-287 Tooling: VVC Nut Torque Setting Tool, 2026 FLOAT X2 & DHX2
398-01-253 Tooling: Bullet, Shaft, .500 in (12.7mm), 2026 FLOAT X2 & DHX2
398-01-195 Tooling: Bearing Housing Torque, 2026 DHX2
398-01-194 Tooling: Custom Torque Spanner Socket, 12-Pin, 2026 DHX2 & FLOAT X2, DSC Endcap
398-01-190 Tooling: Firm Mode Piston, 2026 FLOAT X2 & DHX2



Oil Information:

Damper Oil 025-03-063 Oil: Suspension Fluid, 4 WT, 1.0 Liter Bottle
024-03-064 Oil: Suspension Fluid, 4 WT, 23L



IFP Information:

IFP Height Transverse Reservoir 39 ± 1.25mm [1.535 ± .050 in]
  Parallel Reservoir 45 +/- 1.25mm (1.772 +/- .050in.)
IFP Pressure 150psi +/- 10psi (same pressure on all 2022 Float X shocks)



Upgrade Information:

808-17-614-KIT Service Set: Eyelet Sub Assy: Lever, 2pos, 2026 FLOAT X2 & DHX2

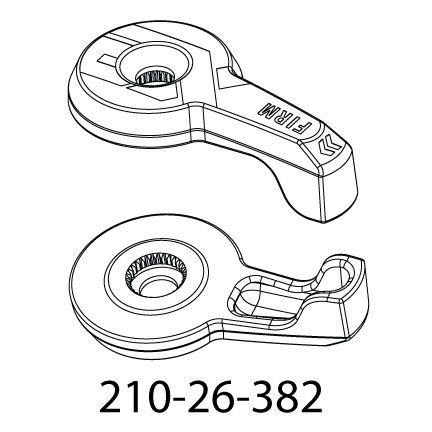

210-26-382 Damping Adjust Part: Firm Mode Adjust Lever, V1, 2026 FLOAT X2 & DHX2 210-26-382.jpg

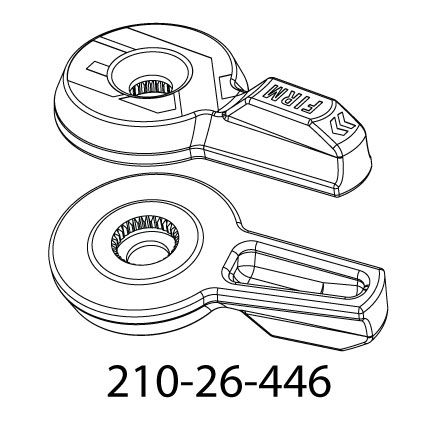

210-26-446 Damping Adjust Part: Firm Mode Adjust Lever, V2, 2026 FLOAT X2 & DHX2 210-26-446.jpg



Size Specific Parts:

Shock Size Shaft Rebound Rod Body
185 x 50 mm 230-45-702 210-84-182 212-00-202
185 x 52.5 mm 230-45-702 210-84-182 212-00-202
185 x 55 mm 230-45-702 210-84-182 212-00-202
205 x 60 mm 230-45-703 210-84-183 212-00-203
205 x 62.5 mm 230-45-703 210-84-183 212-00-203
205 x 65 mm 230-45-703 210-84-183 212-00-203
210 x 50 mm 230-45-702 210-84-182 212-00-202
210 x 52.5 mm 230-45-702 210-84-182 212-00-202
210 x 55 mm 230-45-702 210-84-182 212-00-202
225 x 75 mm 230-45-704 210-84-184 212-00-204
230 x 57.5 mm 230-45-703 210-84-183 212-00-203
230 x 60 mm 230-45-703 210-84-183 212-00-203
230 x 62.5 mm 230-45-703 210-84-183 212-00-203
230 x 65 mm 230-45-703 210-84-183 212-00-203
250 x 75 mm 230-45-704 210-84-184 212-00-204



Body Eyelet Assemblies:

808-17-665-KIT Service Set: Eyelet Assy: 2026 FLOAT X2 & DHX2, Standard, 2-Pos Lever, Transverse, Body End
808-17-666-KIT Service Set: Eyelet Assy: 2026 FLOAT X2 & DHX2, Trunnion, 2-Pos Lever, Transverse, Body End
808-17-669-KIT Service Set: Eyelet Assy: 2026 FLOAT X2 & DHX2, Standard, No Lever, Parallel Rezi, Body End
808-17-671-KIT Service Set: Eyelet Assy: 2026 FLOAT X2 & DHX2, Trunnion, No Lever, Transverse Rezi, Body End



Shaft Eyelet Assemblies:

808-17-613-KIT Service Set: Eyelet Assy: 2026 DHX2, HSR & LSR, Shaft End
808-17-617-KIT Service Set: Eyelet Assy: 2026 DHX2, LSR, Shaft End



Eyelet Subassemblies:

808-17-614-KIT Service Set: Eyelet Sub Assy: Lever, 2pos, 2026 FLOAT X2 & DHX2
808-17-615-KIT Service Set: Eyelet Sub Assy: No Lever, 2026 FLOAT X2 & DHX2
815-02-238-KIT Service Set: Damping Adj Assy: DSC Cartridge, 2026 FLOAT X2 & DHX2



Bearing Assembly:

812-06-124-KIT Service Set: Bearing Housing Assy: 2026 DHX2



Valving Assembly:

807-06-416-KIT Service Set: Valving Assy: 2026 FLOAT X2 & DHX2, HSR & LSR, VVC, Main Piston Parts



Base Valve Valve Stack Assemblies:

805-05-748-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B80, Base Valve Compression, .083 THK
805-05-782-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B60, Base Valve Compression, .085 THK
805-05-752-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, LMM, Base Valve Lever Mode Medium



Rebound Valve Stack Assemblies:

805-05-778-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL50, VVC Rebound Linear, .084 THK
805-05-779-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL60, VVC Rebound Linear, .084 THK
805-05-731-KIT Service Set: Valve Stack Assy: 2026 X2, HSR, Medium, Leaf
805-05-750-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL70, VVC Rebound Linear, .084 THK



Compression Valve Stack Assemblies:

805-05-770-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS50, Comp Split Stack, .060 NMT
805-05-772-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS70, Comp Split Stack, .070 NMT
805-05-749-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CSM, Compression
805-05-791-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL70, Comp Linear, .058 NMT



Reservoir Assemblies:

813-00-290-KIT Service Set: Reservoir End Cap Assy: 2022 FLOAT X & DHX, G2 (parallel reservoir)
805-00-130-KIT Service Set: Piston Assembly: 2022 FLOAT X & DHX, IFP, Floating w/ Bleed & Glide Band [1.070 Bore] (parallel reservoir)
227-09-074 Reservoir: 2024 Live Valve Neo, Shock, 75mm Travel, TLG 58.3
813-00-294-KIT Service Set: Reservoir End Cap Assy: 31.75 mm Bore, 2026 FLOAT X2 & DHX2 (transverse reservoir)
805-00-146-KIT Service Set: Piston Assembly: 2026 FLOAT X2 & DHX2, IFP, Floating w/ Bleed & Glide Band, 31.75 mm Bore (transverse reservoir)



Decals:

024-13-710 Decal: 2026, DHX2, P-Se, Transverse Reservoir, Neutral, PMS10390 Steel/PMS877 Mercury/PMS10392 Granite, 024-13-704 Template
024-13-712 Decal: 2026, DHX2, F-S, Parallel Reservoir, Neutral, PMS872 Gold/PMS10347 Light Gold/PMS10392 Granite, 024-13-706 Template
024-13-713 Decal: 2026, DHX2, P-Se, Parallel Reservoir, Neutral, PMS10390 Steel/PMS877 Mercury/PMS10392 Granite, 024-13-707 Template
024-13-709 Decal: 2026, DHX2, F-S, Transverse Reservoir, Neutral, PMS872 Gold/PMS10347 Light Gold/PMS10392 Granite, 024-13-703 Template



Travel Spacers:

803-01-800 Kit: 2022 DHX, 2.5mm Travel Spacer, Quantity 10 (5 Pair), (Ref: 233-00-445)
803-01-799 Kit: 2022 Float X/DHX, M3 x 12mm Fasteners, Quantity 10 (5 Pair), (Ref: 019-01-201)
803-01-802 Kit: 2022 DHX, M3 x 10mm Fasteners, Quantity 10 (5 Pair), (Ref: 019-01-208)
803-01-803 Kit: 2022 DHX, M3 x 8mm Fasteners, Quantity 10 (5 Pair), (Ref: 019-01-209)
803-01-804 Kit: 2022 DHX, M3 x 6mm Fasteners, Quantity 10 (5 Pair), (Ref: 019-01-210)
233-00-445 Spacer: Travel, 2.5mm, 2022 DHX
019-01-201 Fastener, Standard (Metric): Screw [M3 x 12mm] Black, Socket Flathead
019-01-208 Fastener, Standard (Metric): Screw [M3 x 10mm] Black, Socket Flathead
019-01-209 Fastener, Standard (Metric): Screw [M3 x 8mm] Black, Socket Flathead
019-01-210 Fastener, Standard (Metric): Screw [M3 x 6mm] Black, Socket Flathead



Decal:

024-13-592 Decal: 2025 F-S DHX2, Resy, PMS872 Kashima/PMS10392 Metallic Grey

2026 DHX2

Valving Assemblies

  • 805-05-748-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B80, Base Valve Compression, .083 THK
  • 805-05-782-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B60, Base Valve Compression, .085 THK
  • 805-05-752-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, LMM, Base Valve Lever Mode Medium
  • 805-05-778-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL50, VVC Rebound Linear, .084 THK
  • 805-05-779-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL60, VVC Rebound Linear, .084 THK
  • 805-05-731-KIT Service Set: Valve Stack Assy: 2026 X2, HSR, Medium, Leaf
  • 805-05-750-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL70, VVC Rebound Linear, .084 THK
  • 805-05-770-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS50, Comp Split Stack, .060 NMT
  • 805-05-772-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS70, Comp Split Stack, .070 NMT
  • 805-05-749-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CSM, Compression
  • 805-05-791-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL70, Comp Linear, .058 NMT

2026 DHX2

img/help/page3056-LPCJ/2026-DHX2-Transverse-Rezi-m.jpg

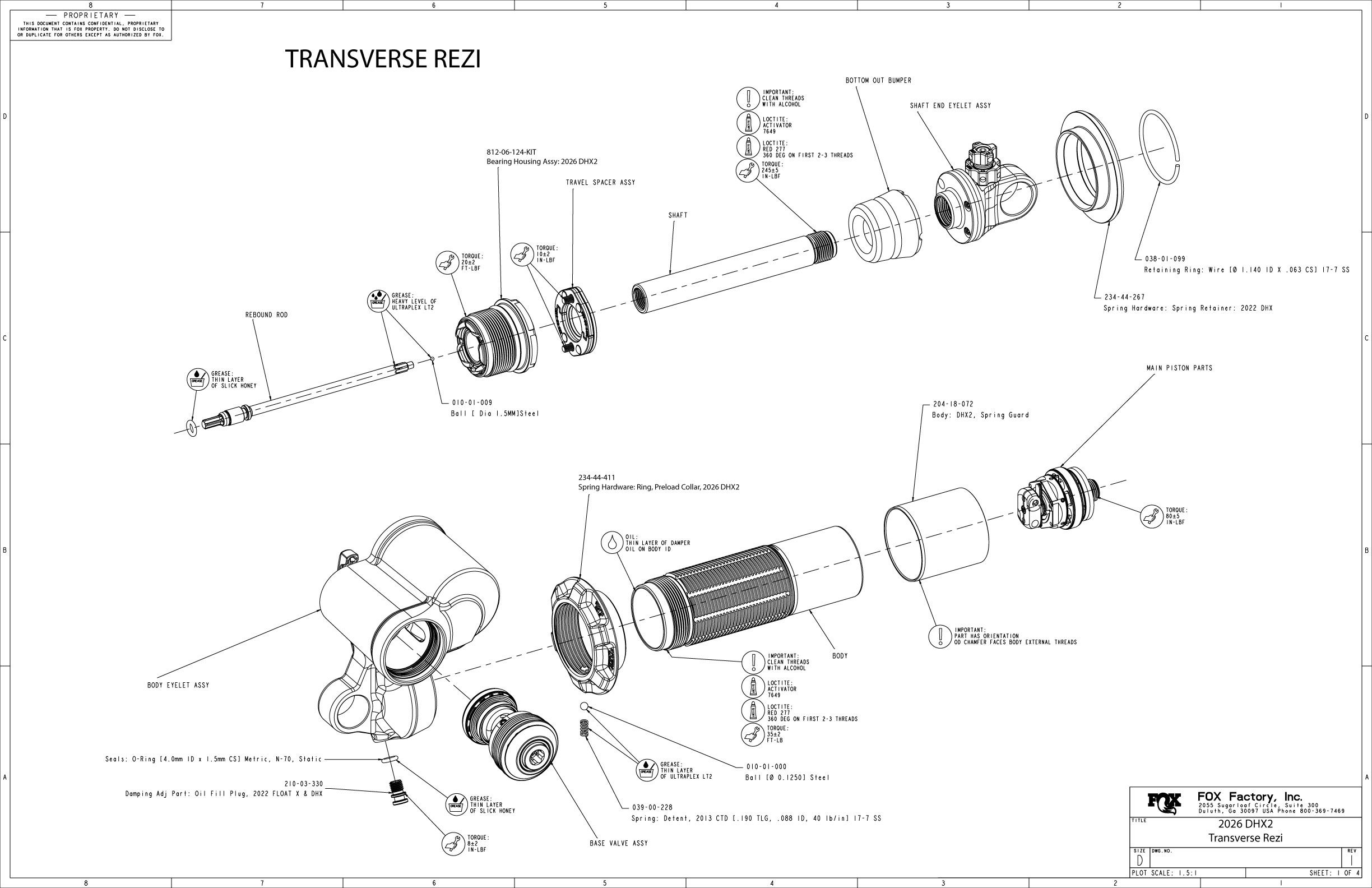

2026 DHX2 .

img/help/page3056-LPCJ/2026-DHX2-Transverse-Rezi.jpg
img/help/page3056-LPCJ/2026-DHX2-Parallel-Rezi.jpg
back to top

img/help/page3056-LPCJ/815-02-238-KIT-m.jpg

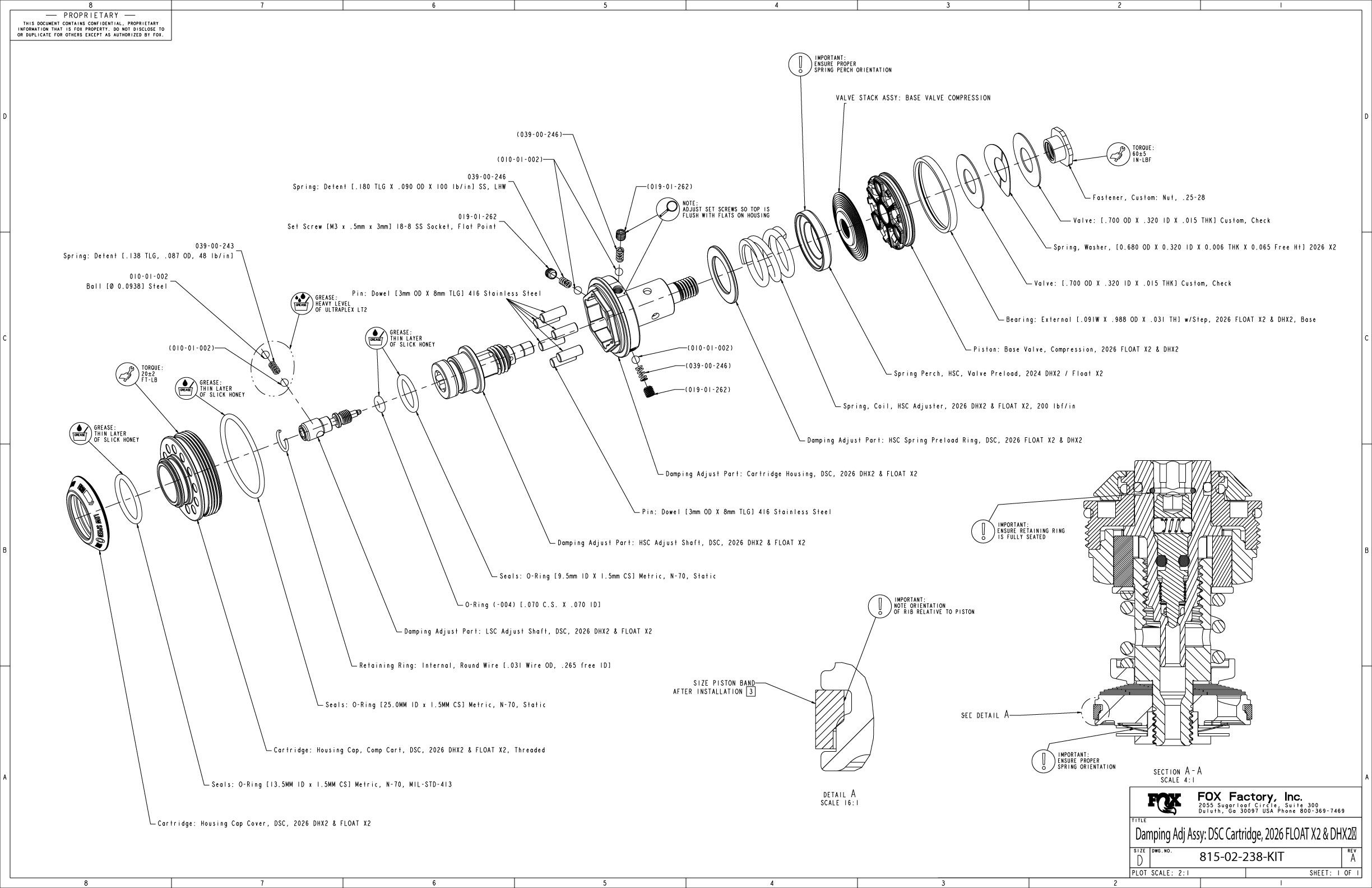

815-02-238-KIT Damping Adj Assy: DSC Cartridge, 2026 FLOAT X2 and DHX2

img/help/page3056-LPCJ/815-02-238-KIT.jpg
back to top

img/help/page3056-LPCJ/813-00-294-KIT-m.jpg

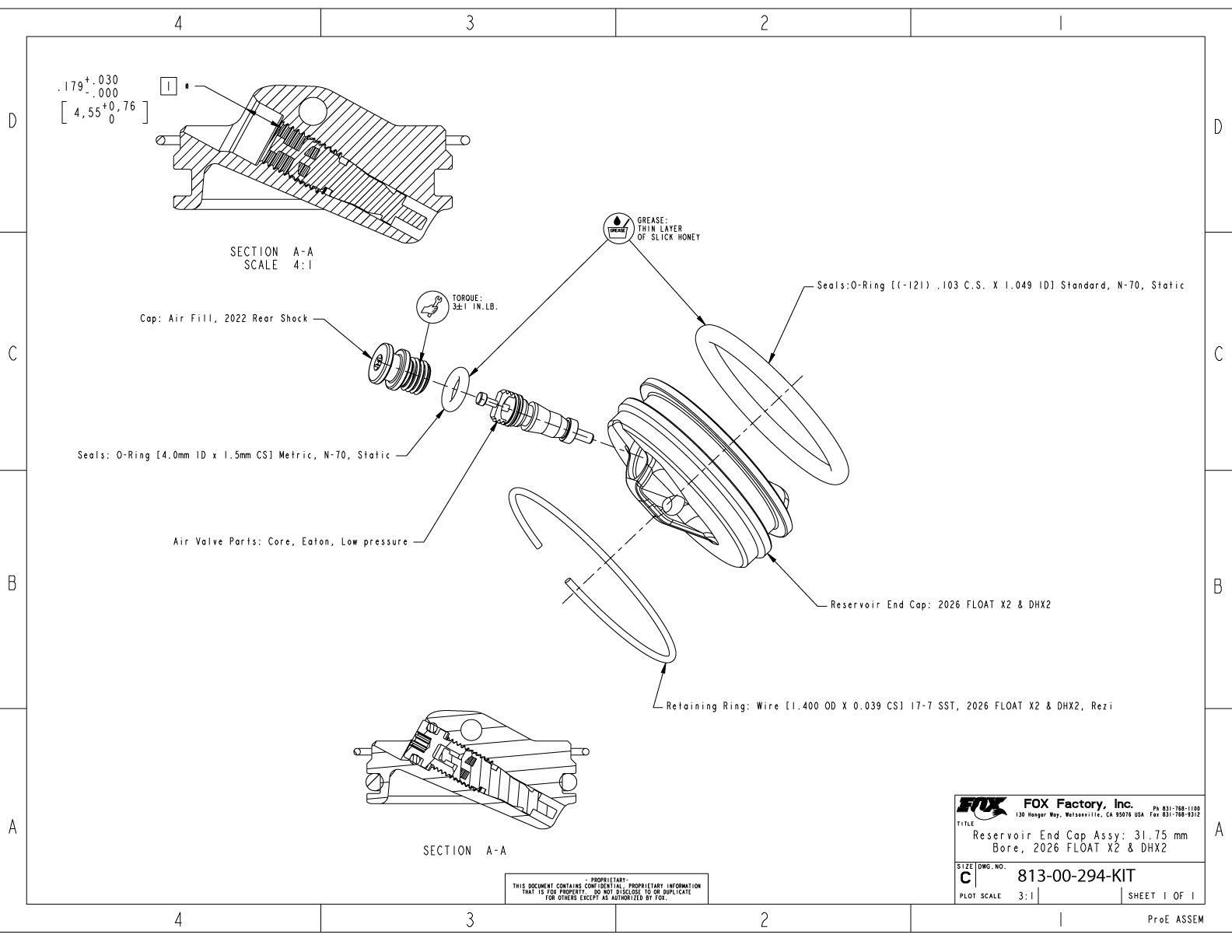

813-00-294-KIT Reservoir End Cap Assy: 31.75mm Bore, 2026 FLOAT X2 and DHX2

img/help/page3056-LPCJ/813-00-294-KIT.jpg
back to top

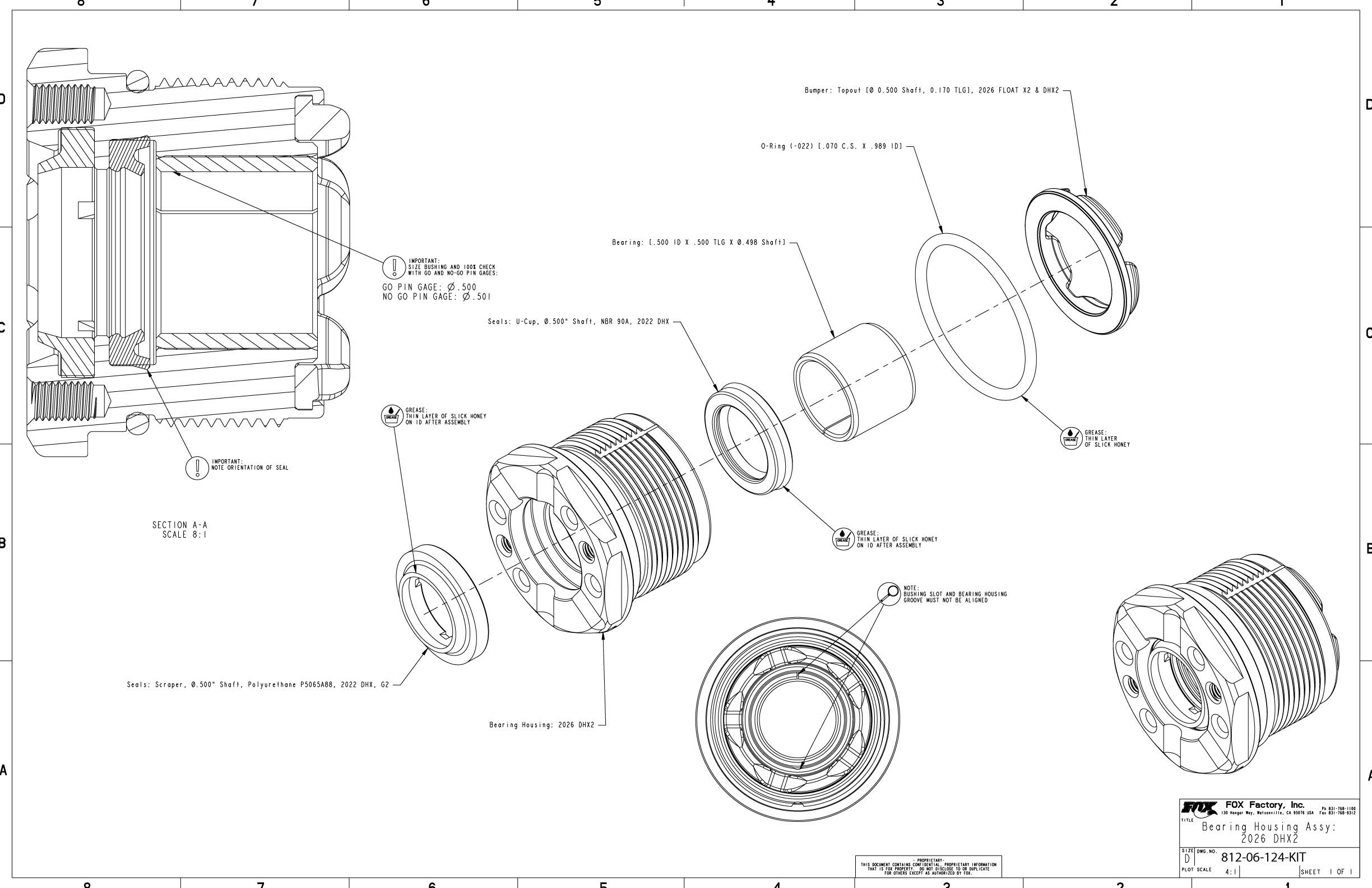

img/help/page3056-LPCJ/812-06-124-KIT-m.jpg

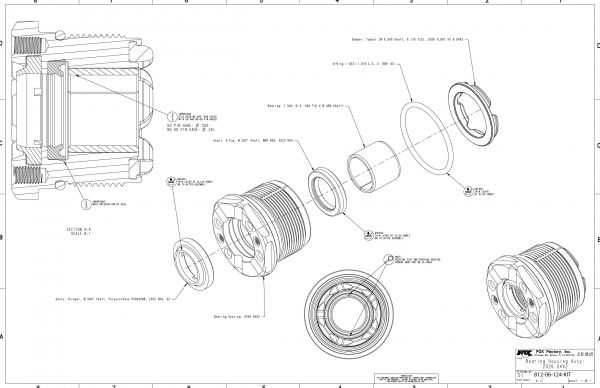

812-06-124-KIT Bearing Housing Assy: 2026 DHX2

img/help/page3056-LPCJ/812-06-124-KIT.jpg
back to top

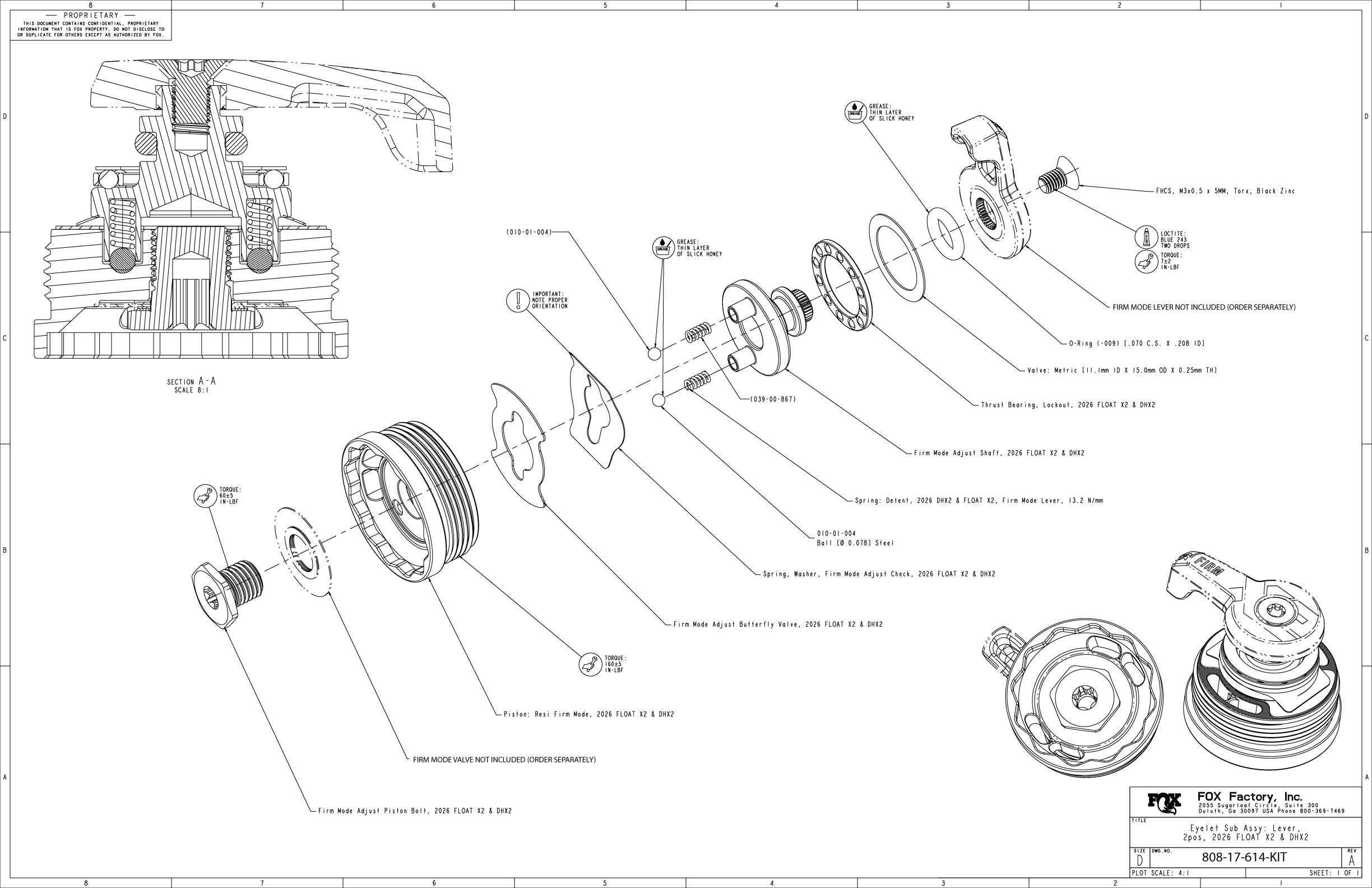

img/help/page3056-LPCJ/808-17-614-KIT-m.jpg

808-17-614-KIT Eyelet Sub Assy: Lever 2Pos, 2026 FLOAT X2 and DHX2

img/help/page3056-LPCJ/808-17-614-KIT.jpg
back to top

img/help/page3056-LPCJ/808-17-613-KIT-m.jpg

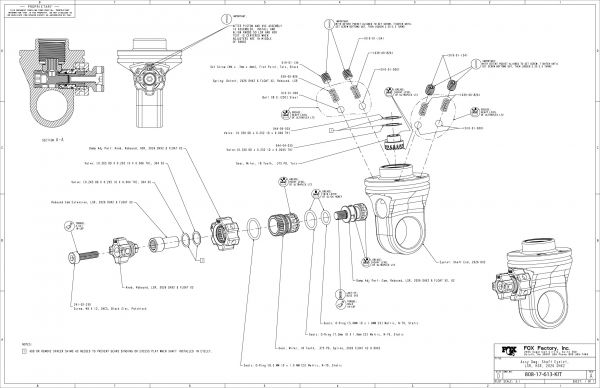

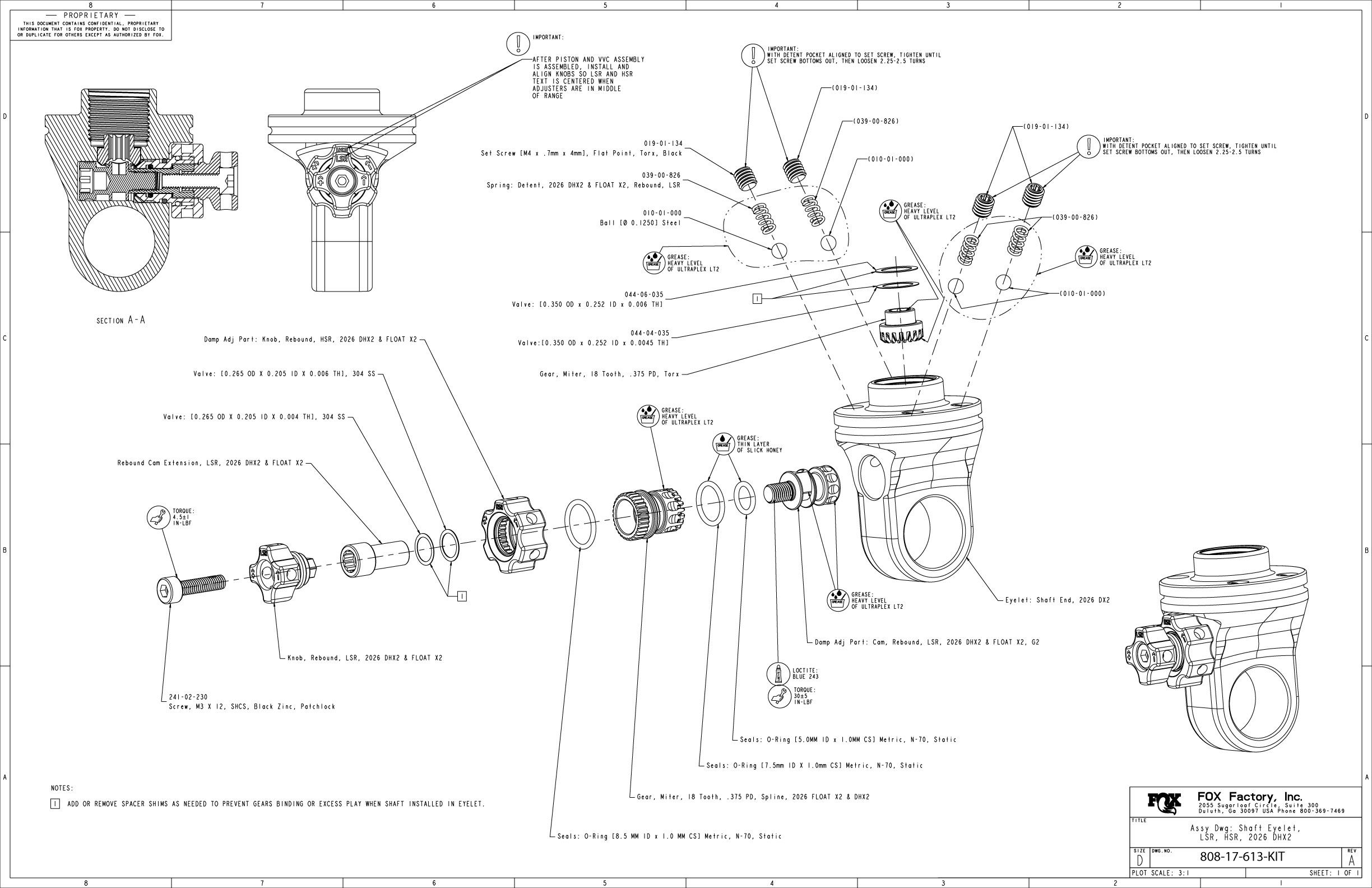

808-17-613-KIT Shaft Eyelet, LSR, HSR, 2026 DHX2

img/help/page3056-LPCJ/808-17-613-KIT.jpg
back to top

img/help/page3056-LPCJ/807-06-416-KITB-m.jpg

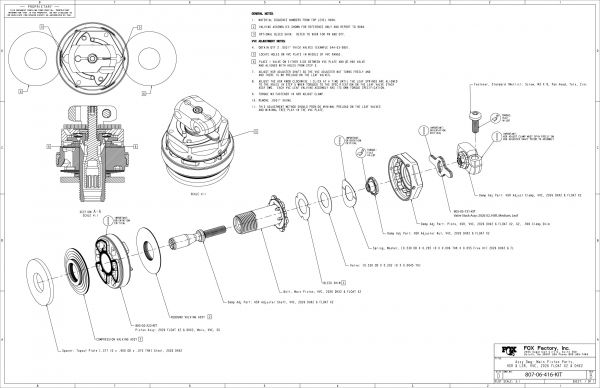

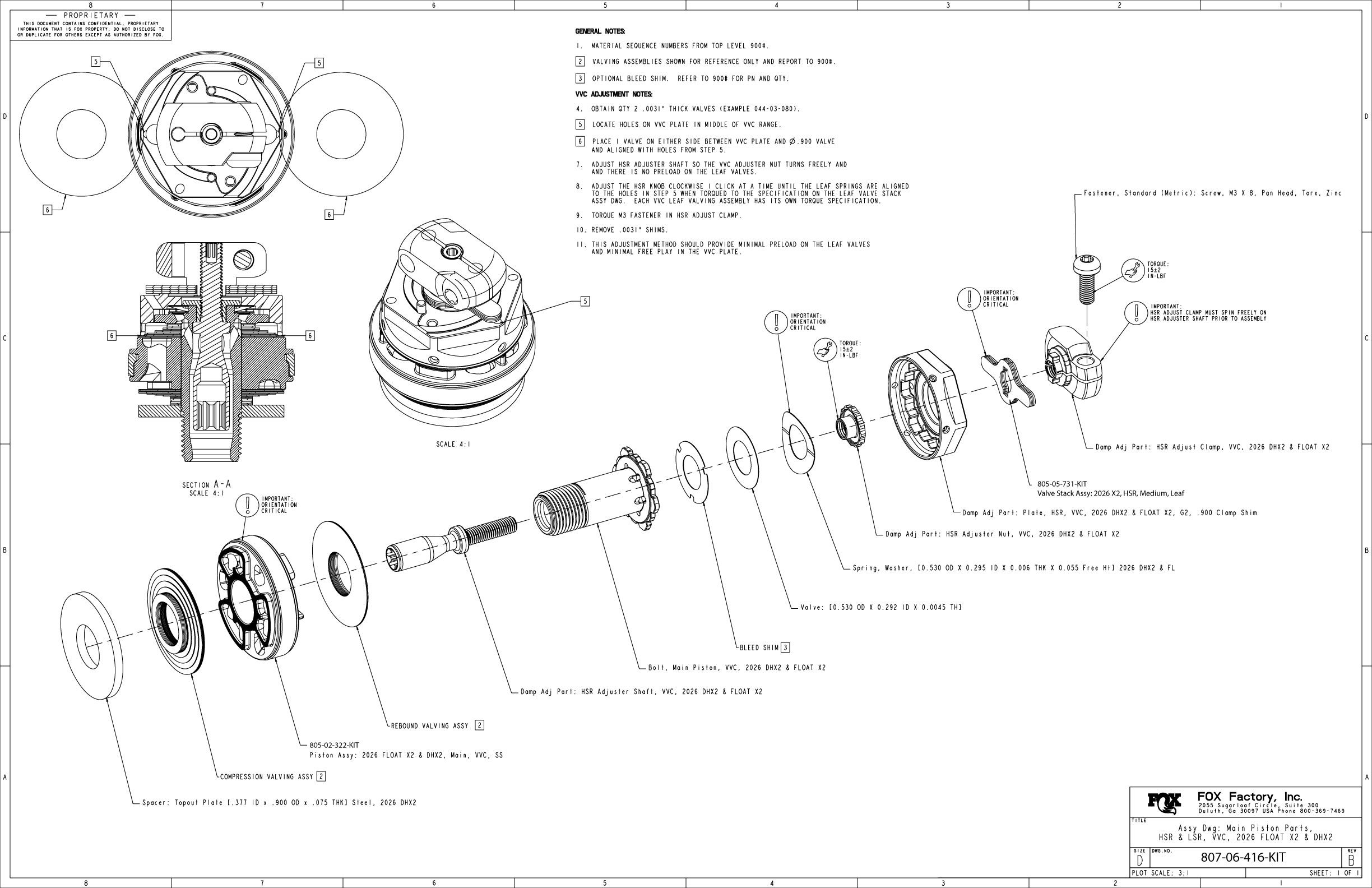

807-06-416-KIT Main Piston Parts, HSR and LSR, VVC, 2026 FLOAT X2 and DHX2

img/help/page3056-LPCJ/807-06-416-KITB.jpg
back to top

img/help/page3056-LPCJ/805-00-146-KIT-m.jpg

805-00-146-KIT Piston Assembly: 2026 FLOAT X2 and DHX2, IFP, Floating w/ bleed and Glide Band, 31.75mm Bore

img/help/page3056-LPCJ/805-00-146-KIT.jpg
back to top

img/help/page3056-LPCJ/2022-DHX-Travel-Spacers-3.29.21-m.jpg

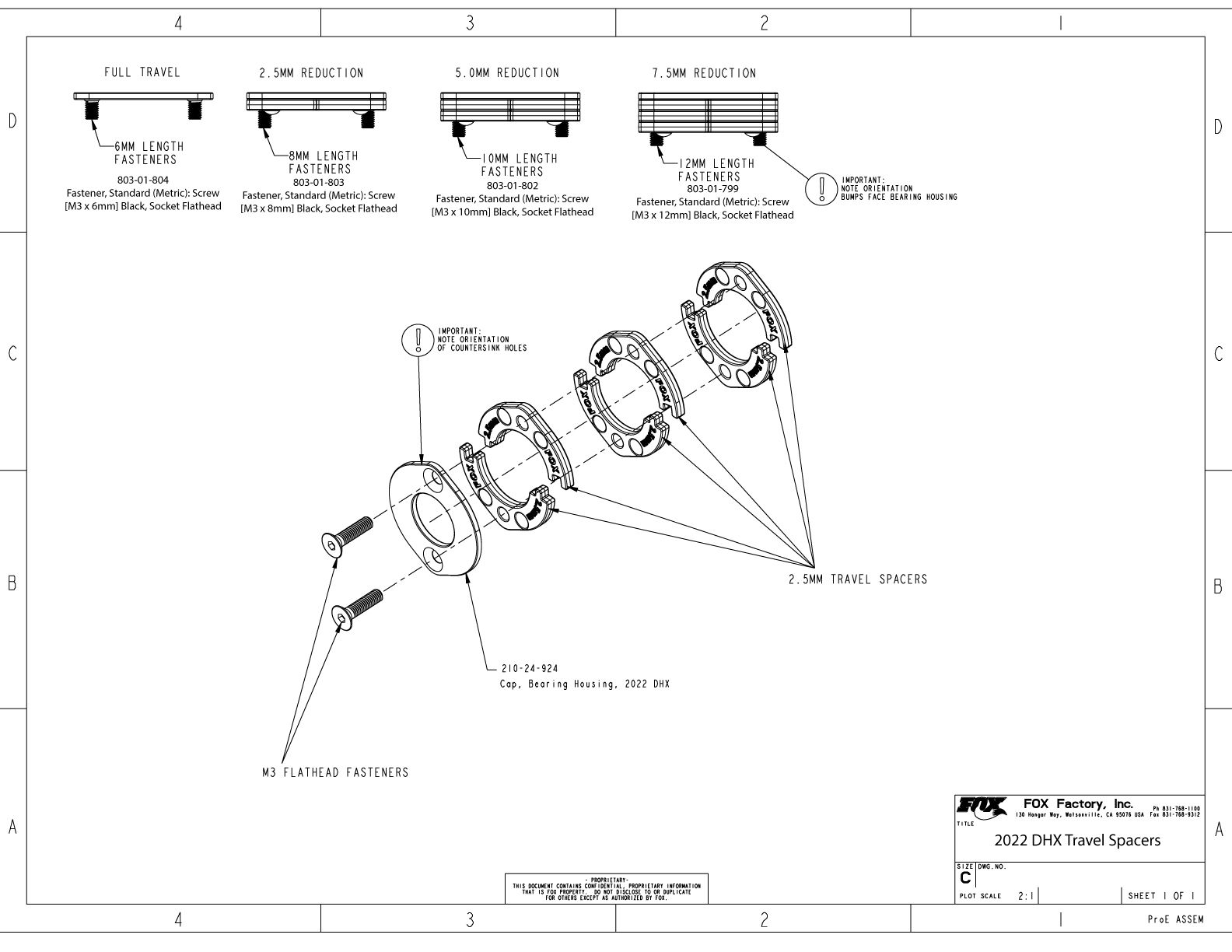

2022 DHX Travel Spacers .

img/help/page3056-LPCJ/2022-DHX-Travel-Spacers-3.29.21.jpg
back to top

Valving Assemblies

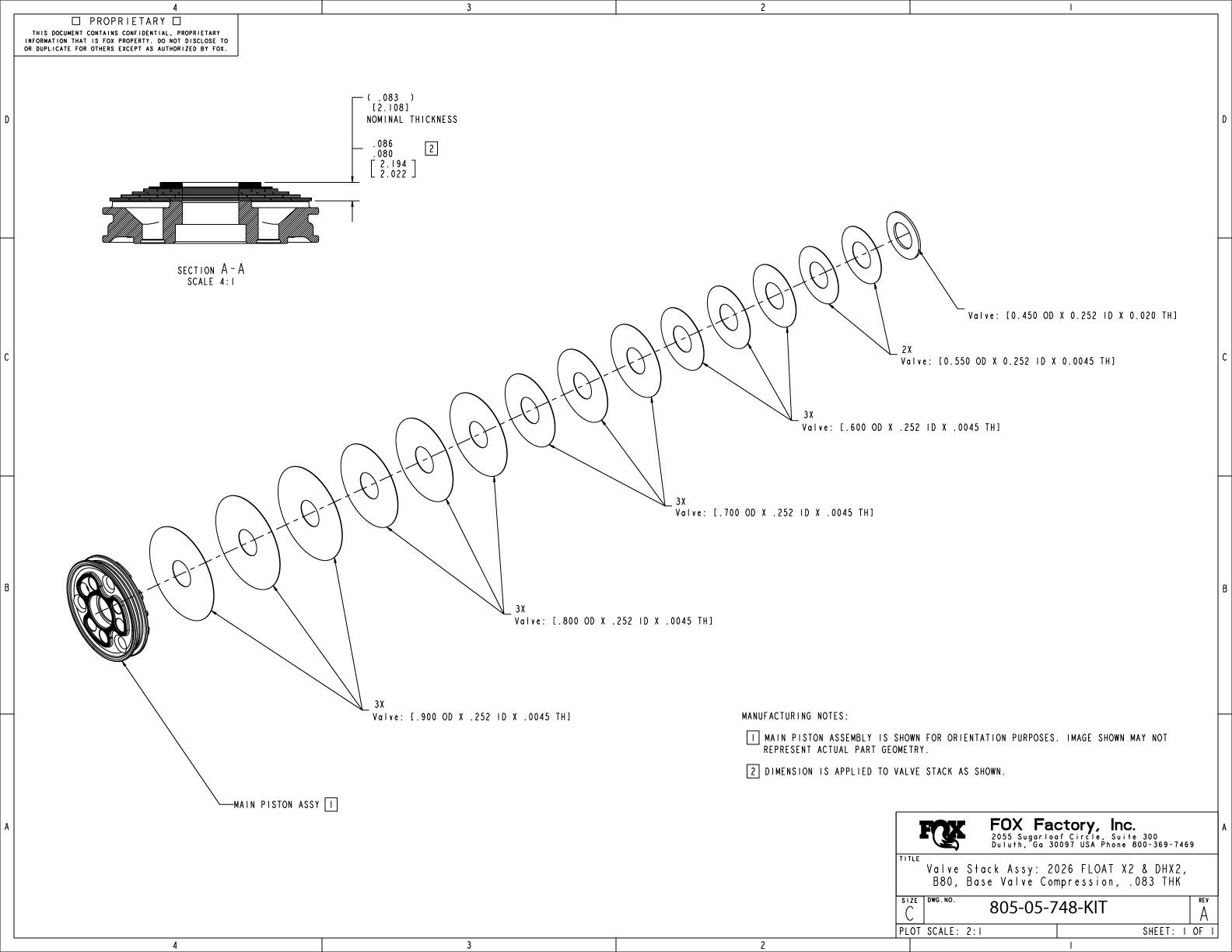

img/help/page3056-LPCJ/805-05-748-KIT-m.jpg

805-05-748-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B80, Base Valve Compression, .083 THK

img/help/page3056-LPCJ/805-05-748-KIT.jpg
back to top

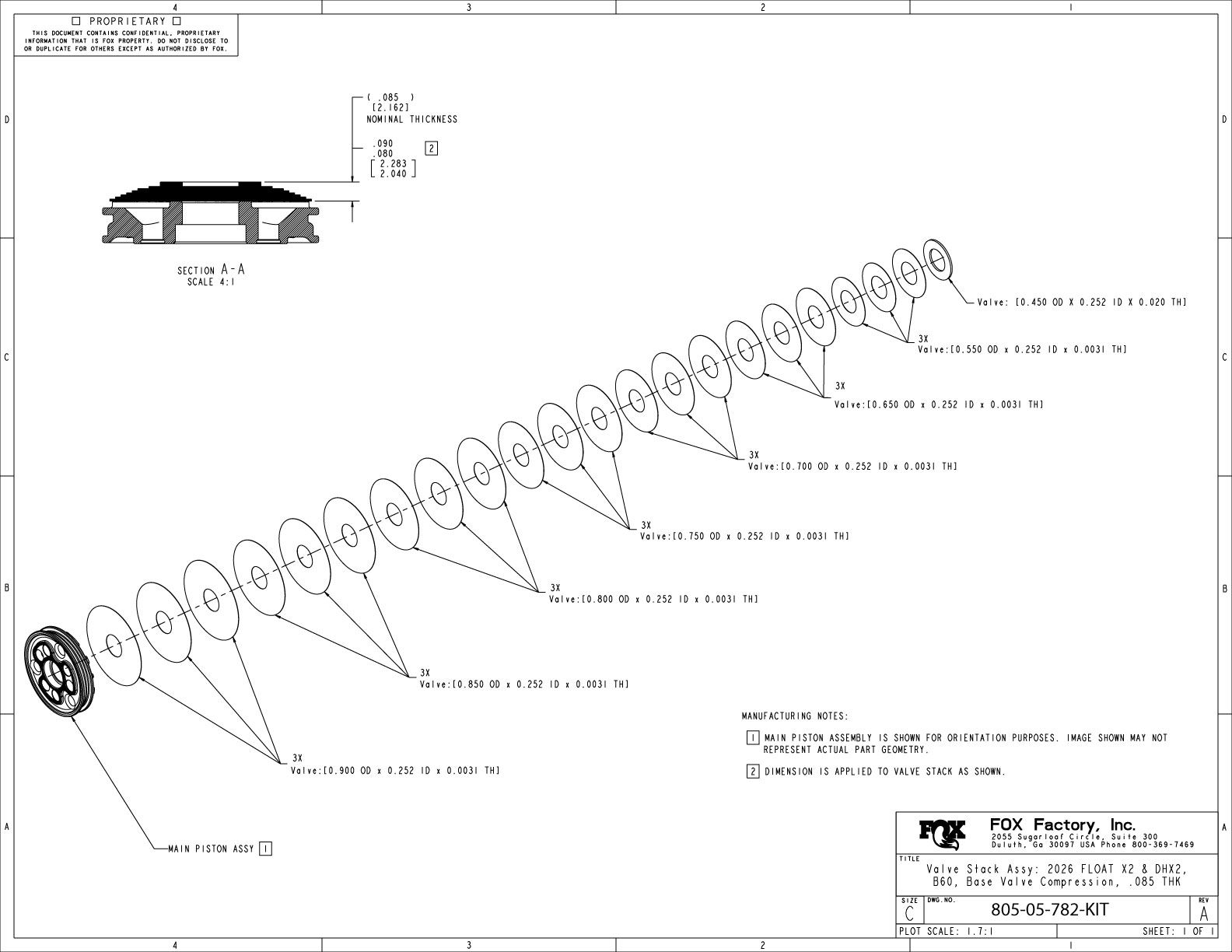

img/help/page3056-LPCJ/805-05-782-KIT-m.jpg

805-05-782-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B60, Base Valve Compression, .085 THK

img/help/page3056-LPCJ/805-05-782-KIT.jpg
back to top

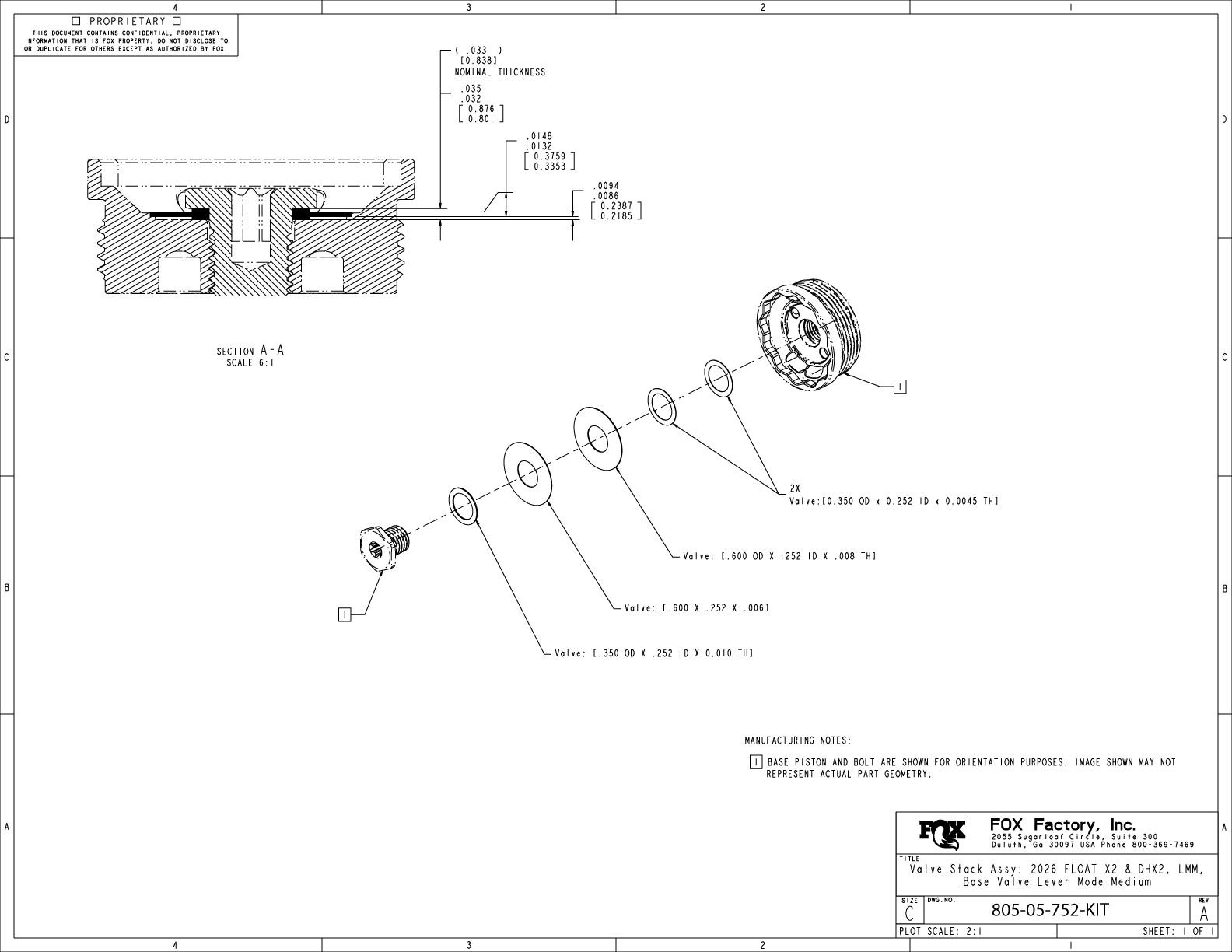

img/help/page3056-LPCJ/805-05-752-KIT-m.jpg

805-05-752-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, LMM, Base Valve Lever Mode Medium

img/help/page3056-LPCJ/805-05-752-KIT.jpg
back to top

img/help/page3056-LPCJ/805-05-778-KIT-m.jpg

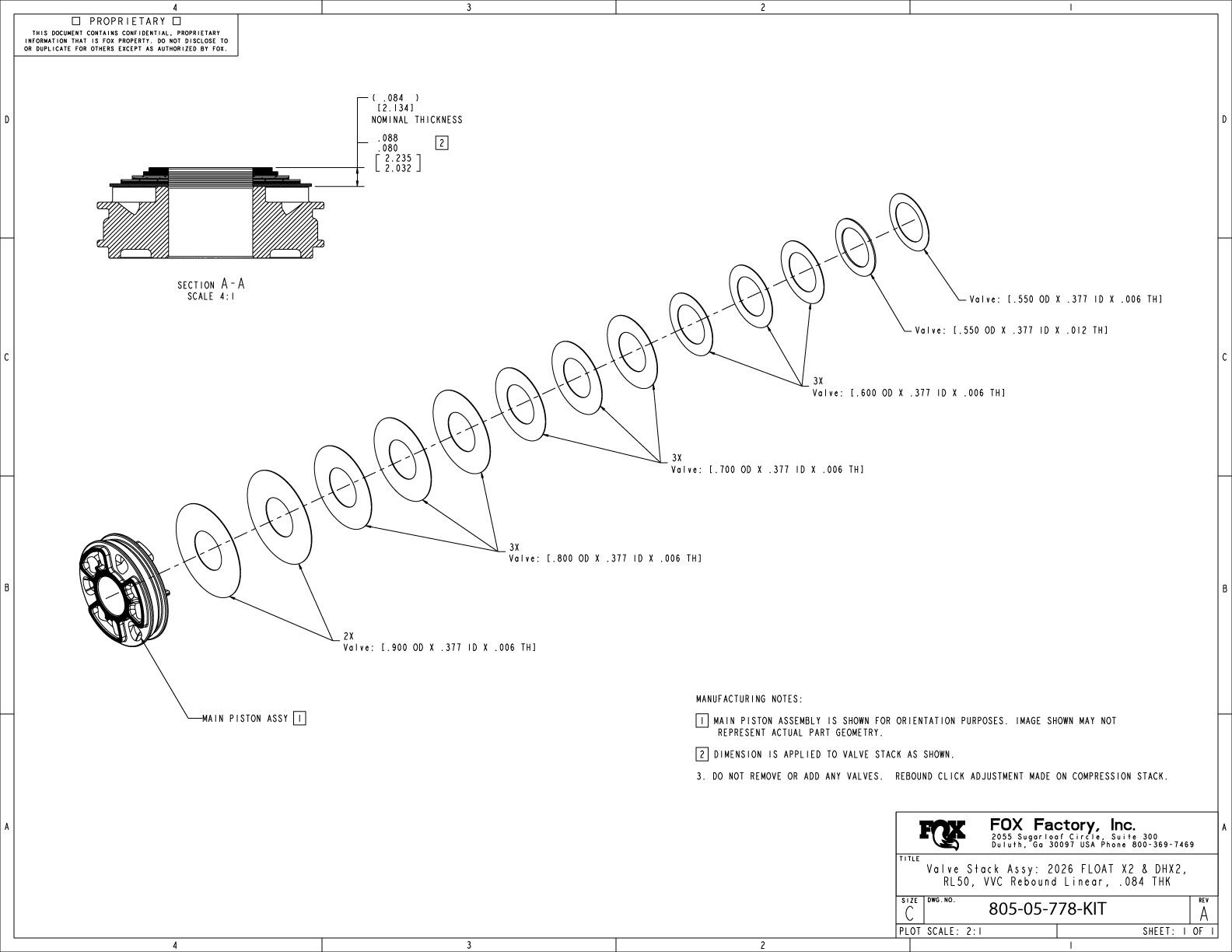

805-05-778-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL50, VVC Rebound Linear, .084 THK

img/help/page3056-LPCJ/805-05-778-KIT.jpg
back to top

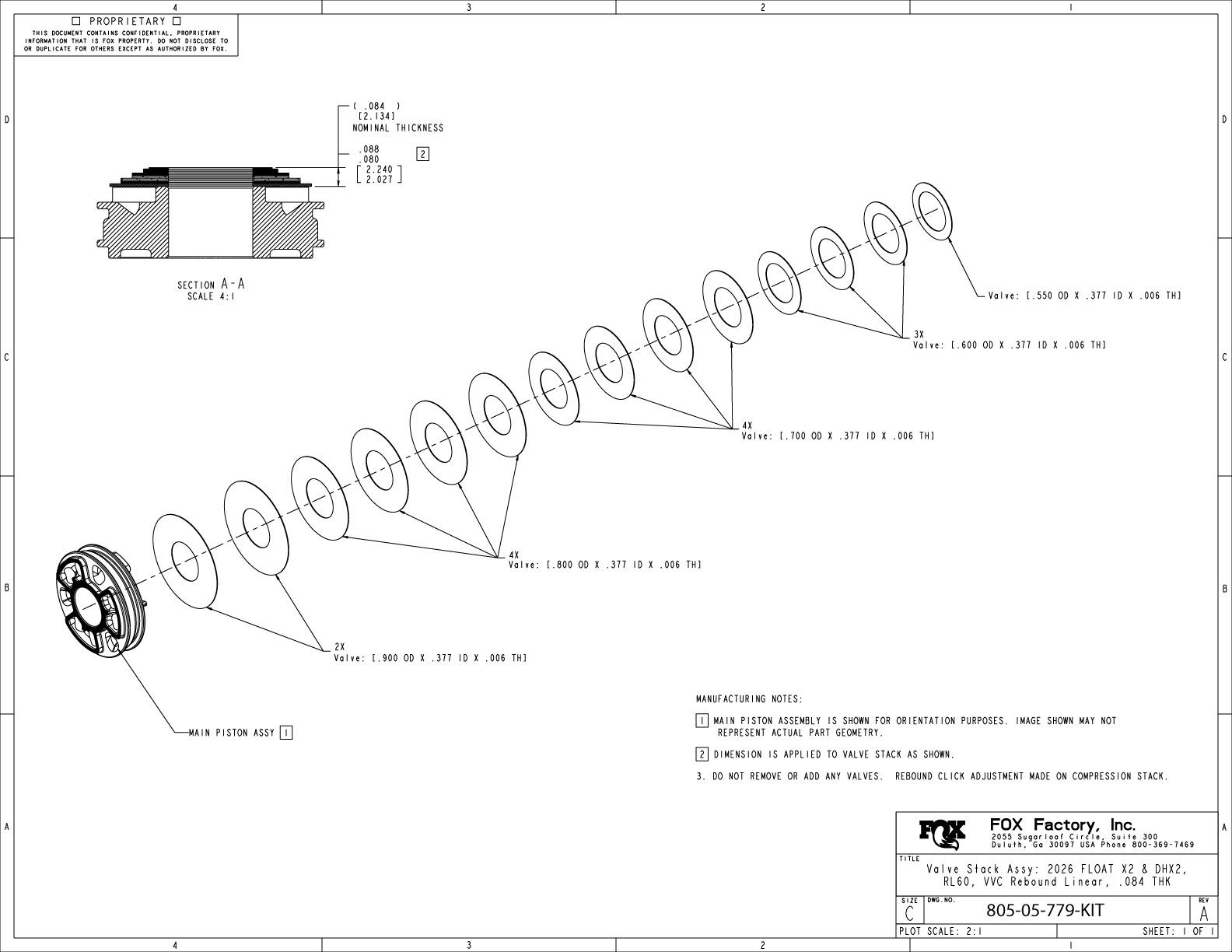

img/help/page3056-LPCJ/805-05-779-KIT-m.jpg

805-05-779-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL60, VVC Rebound Linear, .084 THK

img/help/page3056-LPCJ/805-05-779-KIT.jpg
back to top

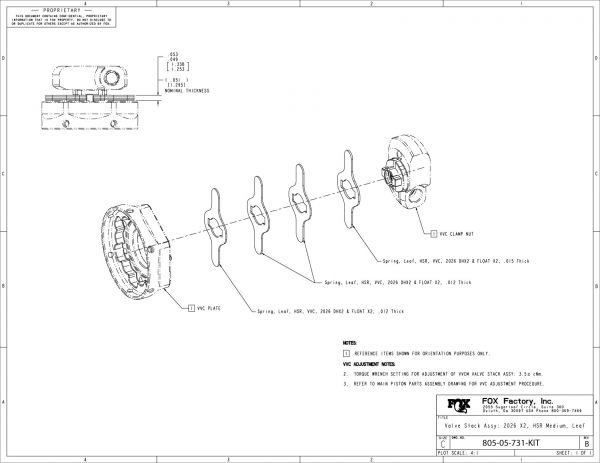

img/help/page3056-LPCJ/805-05-731-KITB-m.jpg

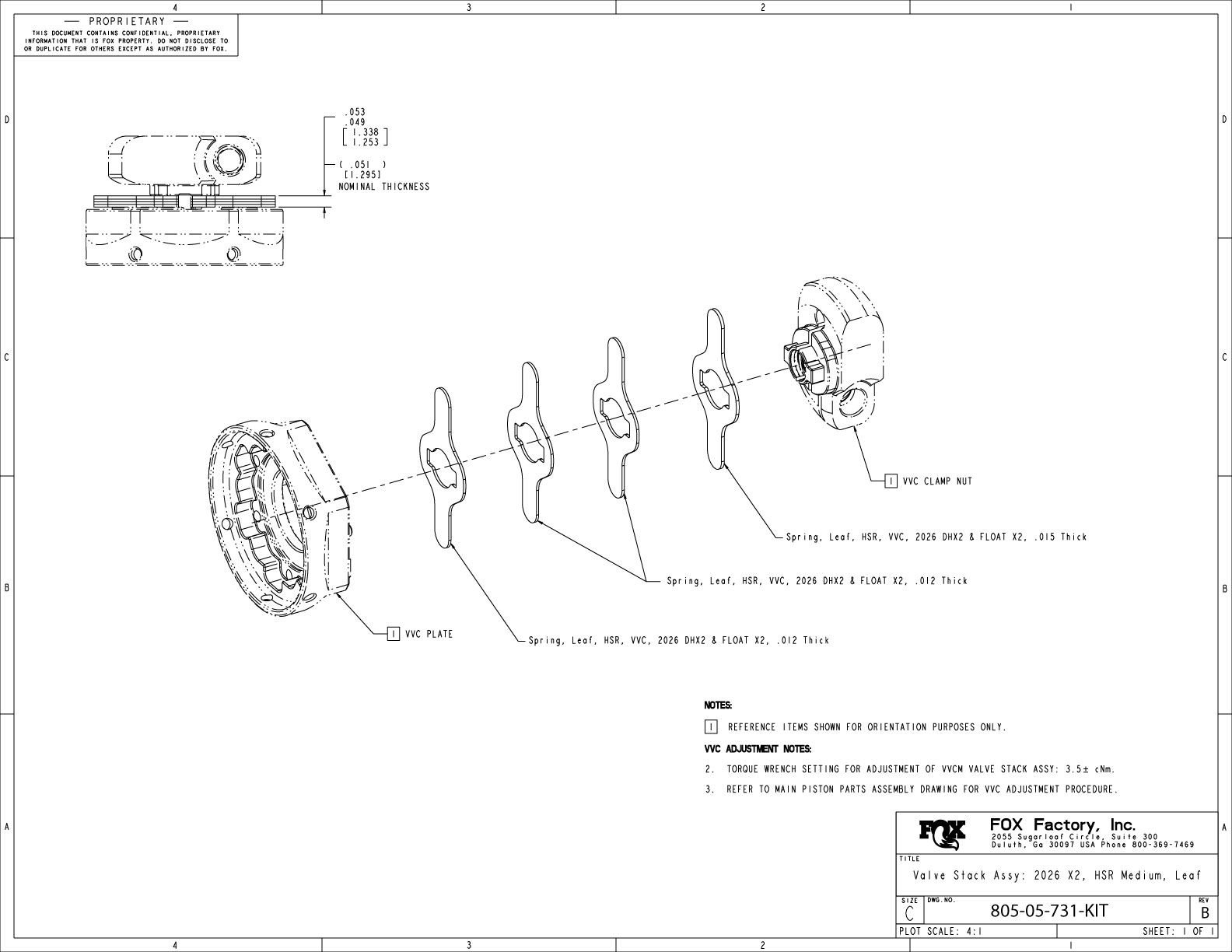

805-05-731-KIT Service Set: Valve Stack Assy: 2026 X2, HSR, Medium, Leaf

img/help/page3056-LPCJ/805-05-731-KITB.jpg
back to top

img/help/page3056-LPCJ/805-05-750-KIT-m.jpg

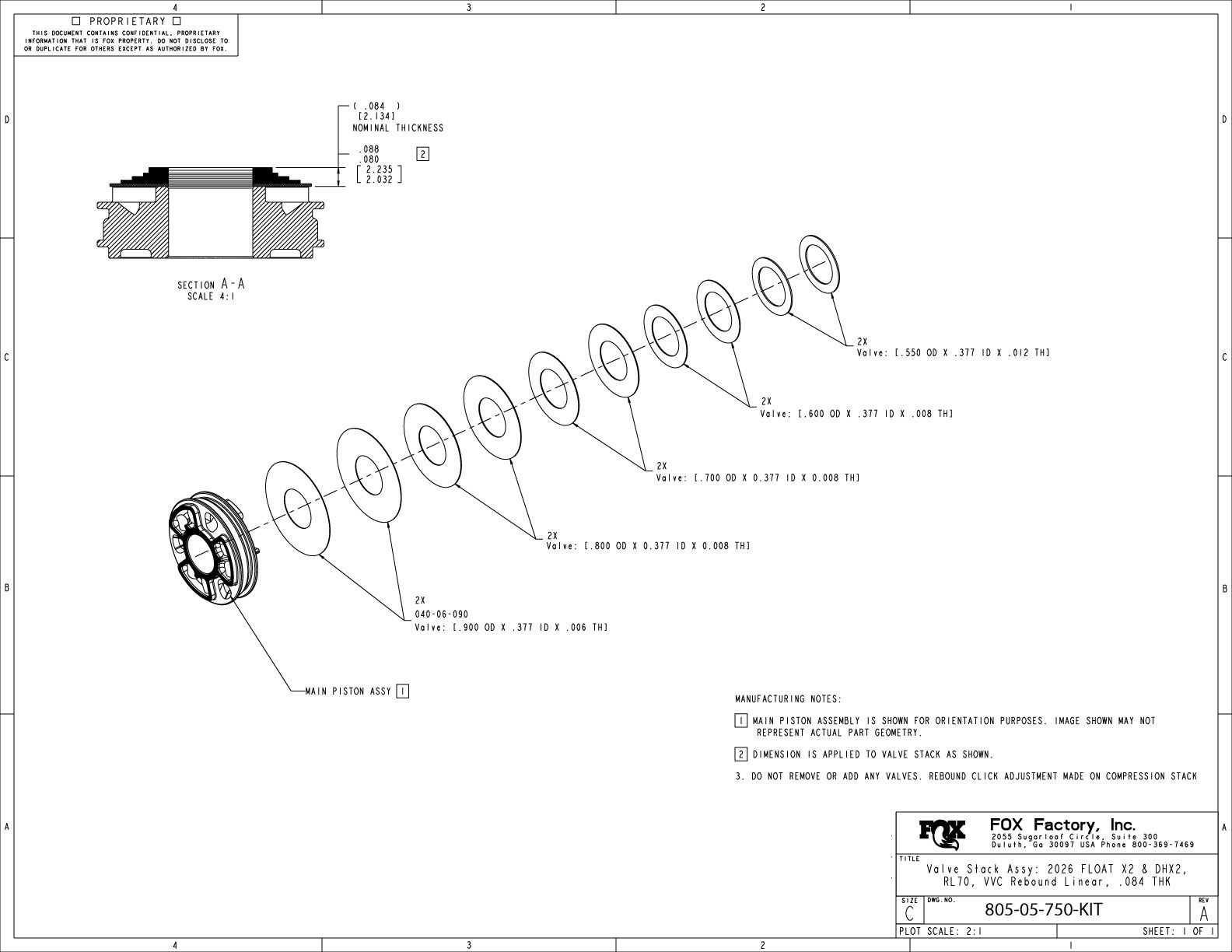

805-05-750-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL70, VVC Rebound Linear, .084 THK

img/help/page3056-LPCJ/805-05-750-KIT.jpg
back to top

img/help/page3056-LPCJ/805-05-770-KIT-m.jpg

805-05-770-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS50, Comp Split Stack, .060 NMT

img/help/page3056-LPCJ/805-05-770-KIT.jpg
back to top

img/help/page3056-LPCJ/805-05-772-KIT-m.jpg

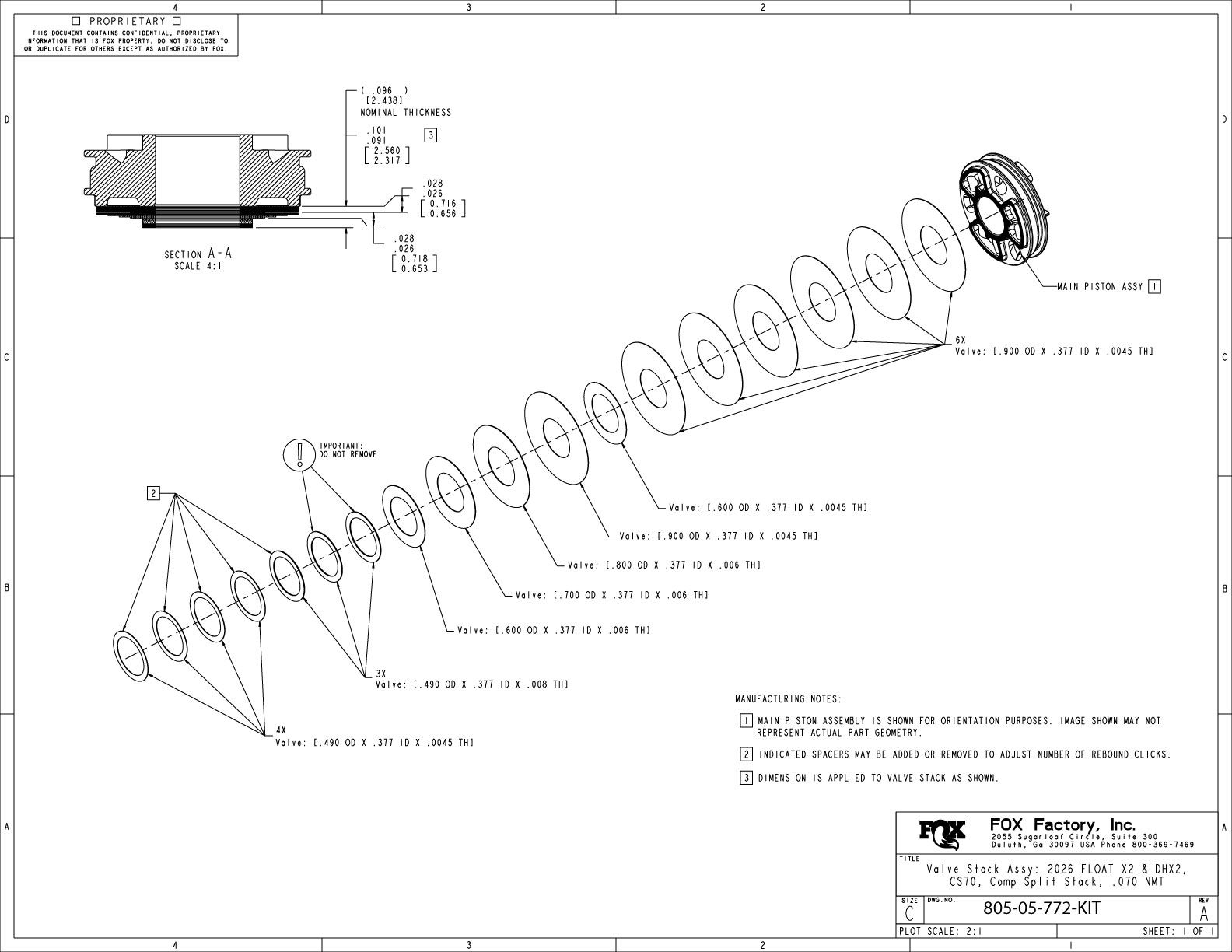

805-05-772-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS70, Comp Split Stack, .070 NMT

img/help/page3056-LPCJ/805-05-772-KIT.jpg
back to top

img/help/page3056-LPCJ/805-05-749-KIT-m.jpg

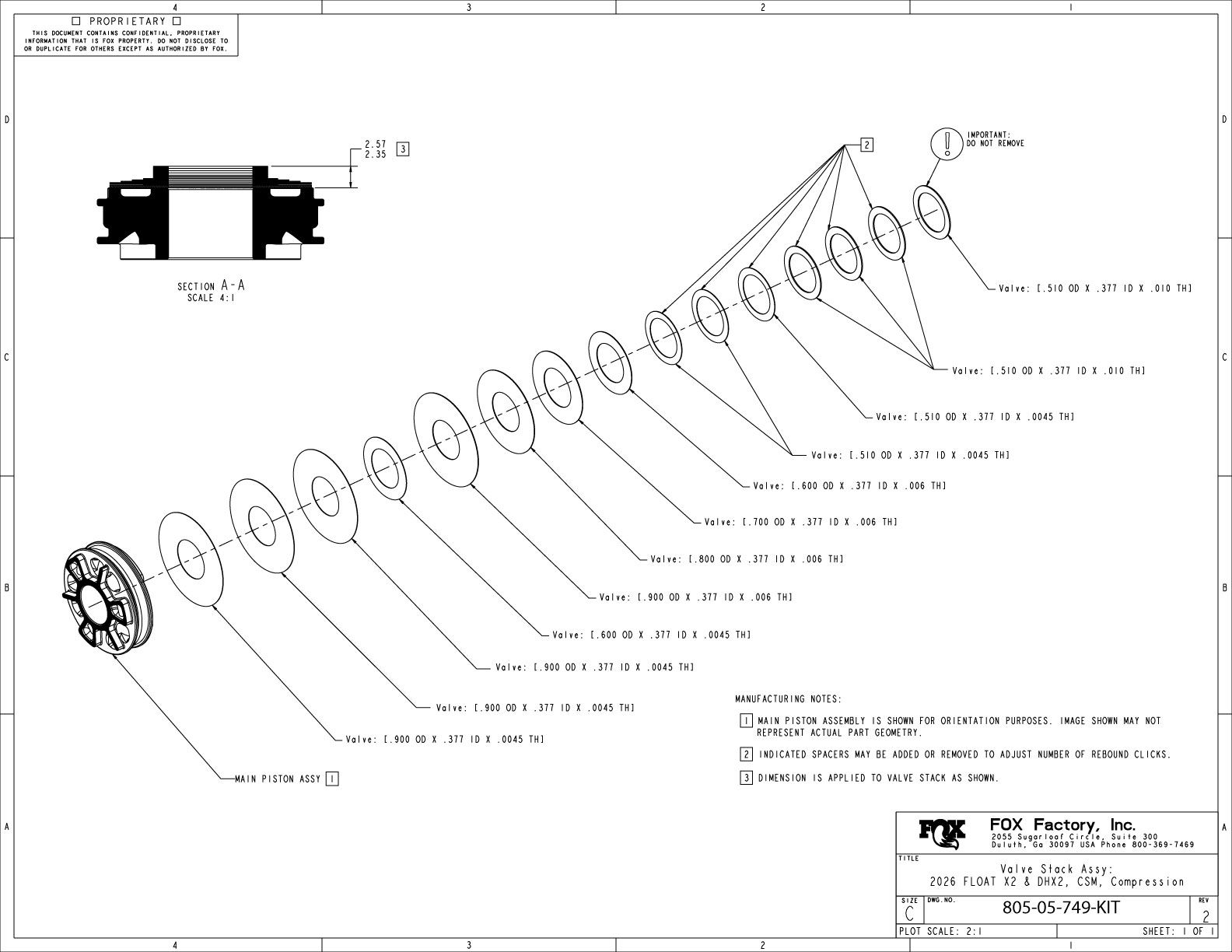

805-05-749-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CSM, Compression

img/help/page3056-LPCJ/805-05-749-KIT.jpg
back to top

img/help/page3056-LPCJ/805-05-791-KIT-m.jpg

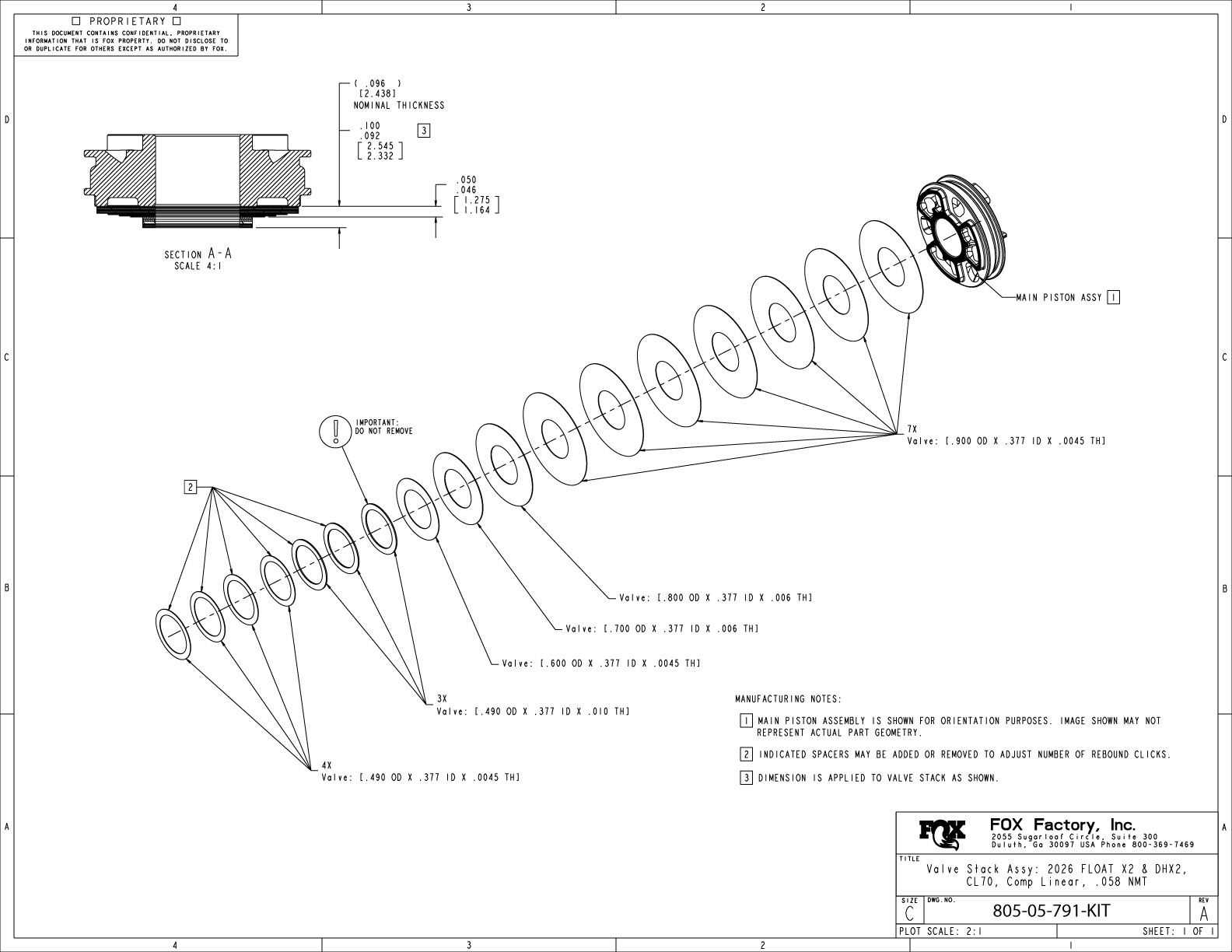

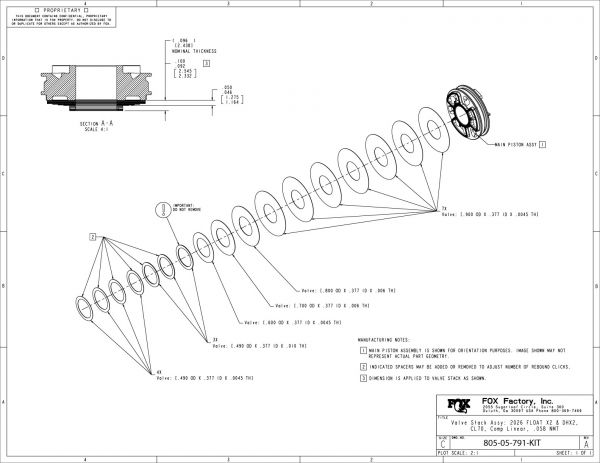

805-05-791-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL70, Comp Linear, .058 NMT
