PARTS & DRAWINGS
FLOAT X2 Part Information
New for MY26:
| All new shock | Monotube shock utilizing HSC/LSC and HSR/LSR. First of its kind. |
| Transverse Eyelet | Transverse rezi provides smaller packaging to fit more frames. Parallel rezi only found on the 250 x 75 chassis. |
| MCU Bottom Out Bumper | There are three options to tune bottom out performance by changing the durometer of the bottom out bumper. Long or short, or just the o-ring. All options are included with rebuild kit. |
| Tuning | Utilizes benefits of pressure balance for more tuning flexibilty and range. Tune philosophy is to rely on damper eliminating the need or benefit of hydraulic bottom out. |
| Climb Lever | Two styles of the lever to meet the needs of the rider and/or the bicycle |
| New Shaft | Half inch shaft instead of 9mm. Much more durable and stronger. 2026 FLOAT X2 and DHX2 shafts look identical externally but have significant internal differences. Do not use 2026 DHX2 shafts on 2026 FLOAT X2 shocks. |
Maintenance Information:
| Service Interval | Full Service 125 Hours |
| 803-04-365 | Seal Kit: 2026 FLOAT X2 Air Spring and Damper Rebuild |
| 803-04-354 | Kit: Tooling: Clamps, 2026, Float X2/DHX2, Inner Air Sleeve |
| 803-04-355 | Kit: Tooling: Clamps, 2026, Float X2/DHX2, Damper Body |
| 803-04-356 | Kit: Tooling: 2026, Float X2/DHX2, Base Piston Band Sizer |
| 803-04-357 | Kit: Tooling: Rear Shock, Air Fill Adaptor, IFP, 2026 |
| 398-01-287 | Tooling: VVC Nut Torque Setting Tool, 2026 FLOAT X2 & DHX2 |
| 398-01-253 | Tooling: Bullet, Shaft, .500 in (12.7mm), 2026 FLOAT X2 & DHX2 |
| 398-01-252 | Tooling: Bullet, Damper Body, 2026 FLOAT X2 |
| 398-01-194 | Tooling: Custom Torque Spanner Socket, 12-Pin, 2026 DHX2 & FLOAT X2, DSC Endcap |
| 398-01-191 | Tooling: Bearing Housing Torque, 2026 FLOAT X2 |
| 398-01-190 | Tooling: Firm Mode Piston, 2026 FLOAT X2 & DHX2 |
Air Spring Tuning Information:
| 233-00-603 | Volume Spacer: 2026 FLOAT X2, XV, 1cc, Green |
| 233-00-604 | Volume Spacer: 2026 FLOAT X2, XV, 2cc, Blue |
Oil Information:
| Damper Oil | 025-03-061 | Oil: Suspension Fluid, 4 WT, 202 Liter Drum, [FRS UOM = 1.0 Gallon / FTW UOM = 1.0 Liter] |
| 025-03-063 | Oil: Suspension Fluid, 4 WT, 1.0 Liter Bottle | |
| Air Chamber | 025-03-071 | Oil: FOX 20 WT Gold, T22238, 55 Gallon Drum, [FRS UOM = 1.00 Gallon / FTW UOM = 1.00 Liter] |
| 025-03-072 | Oil: AM, FOX 20 WT Gold, T22238, 32 oz |
IFP Information:
| IFP Height | Transverse Reservoir | 39 ± 1.25mm [1.535 ± .050 in] |
| Parallel Reservoir | 45 +/- 1.25mm (1.772 +/- .050in.) | |
| IFP Pressure | 150psi +/- 10psi |
Upgrade Information:
| 808-17-614-KIT | Service Set: Eyelet Sub Assy: Lever, 2pos, 2026 FLOAT X2 & DHX2 | |

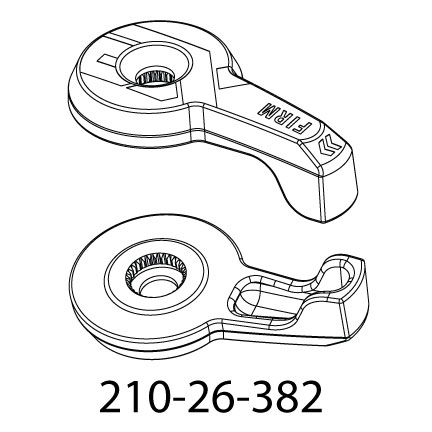

| 210-26-382 | Damping Adjust Part: Firm Mode Adjust Lever, V1, 2026 FLOAT X2 & DHX2 |  |

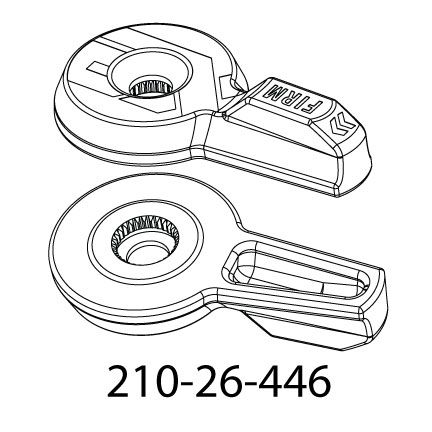

| 210-26-446 | Damping Adjust Part: Firm Mode Adjust Lever, V2, 2026 FLOAT X2 & DHX2 |  |
Size Specific Parts:
| Shock Size | Shaft | Rebound Rod | Kashima Body | Ano Body | Inner Sleeve | Outer Sleeve Assy |
| 185 x 50 mm | 230-45-712 | 210-84-182 | 212-00-112 | 212-00-102 | 231-00-452 | 806-29-834-KIT |
| 185 x 52.5 mm | 230-45-712 | 210-84-182 | 212-00-112 | 212-00-102 | 231-00-452 | 806-29-834-KIT |
| 185 x 55 mm | 230-45-712 | 210-84-182 | 212-00-112 | 212-00-102 | 231-00-452 | 806-29-834-KIT |
| 205 x 57.5 mm | 230-45-713 | 210-84-183 | 212-00-113 | 212-00-103 | 231-00-453 | 806-29-835-KIT |
| 205 x 60 mm | 230-45-713 | 210-84-183 | 212-00-113 | 212-00-103 | 231-00-453 | 806-29-835-KIT |
| 205 x 62.5 mm | 230-45-713 | 210-84-183 | 212-00-113 | 212-00-103 | 231-00-453 | 806-29-835-KIT |
| 205 x 65 mm | 230-45-713 | 210-84-183 | 212-00-113 | 212-00-103 | 231-00-453 | 806-29-835-KIT |
| 210 x 50 mm | 230-45-712 | 210-84-182 | 212-00-112 | 212-00-102 | 231-00-452 | 806-29-834-KIT |
| 210 x 52.5 mm | 230-45-712 | 210-84-182 | 212-00-112 | 212-00-102 | 231-00-452 | 806-29-834-KIT |
| 210 x 55 mm | 230-45-712 | 210-84-182 | 212-00-112 | 212-00-102 | 231-00-452 | 806-29-834-KIT |
| 225 x 75 mm | 230-45-714 | 210-84-184 | 212-00-114 | 212-00-104 | 231-00-454 | 806-29-836-KIT |
| 230 x 57.5 mm | 230-45-713 | 210-84-183 | 212-00-113 | 212-00-103 | 231-00-453 | 806-29-835-KIT |
| 230 x 60 mm | 230-45-713 | 210-84-183 | 212-00-113 | 212-00-103 | 231-00-453 | 806-29-835-KIT |
| 230 x 62.5 mm | 230-45-713 | 210-84-183 | 212-00-113 | 212-00-103 | 231-00-453 | 806-29-835-KIT |
| 230 x 65 mm | 230-45-713 | 210-84-183 | 212-00-113 | 212-00-103 | 231-00-453 | 806-29-835-KIT |
| 250 x 75 mm | 230-45-714 | 210-84-184 | 212-00-114 | 212-00-104 | 231-00-454 | 806-29-836-KIT |
Body Eyelet Assemblies:
| 808-17-665-KIT | Service Set: Eyelet Assy: 2026 FLOAT X2 & DHX2, Standard, 2-Pos Lever, Transverse, Body End |
| 808-17-666-KIT | Service Set: Eyelet Assy: 2026 FLOAT X2 & DHX2, Trunnion, 2-Pos Lever, Transverse, Body End |
| 808-17-669-KIT | Service Set: Eyelet Assy: 2026 FLOAT X2 & DHX2, Standard, No Lever, Parallel Rezi, Body End |
| 808-17-671-KIT | Service Set: Eyelet Assy: 2026 FLOAT X2 & DHX2, Trunnion, No Lever, Transverse Rezi, Body End |
Shaft Eyelet Assemblies:

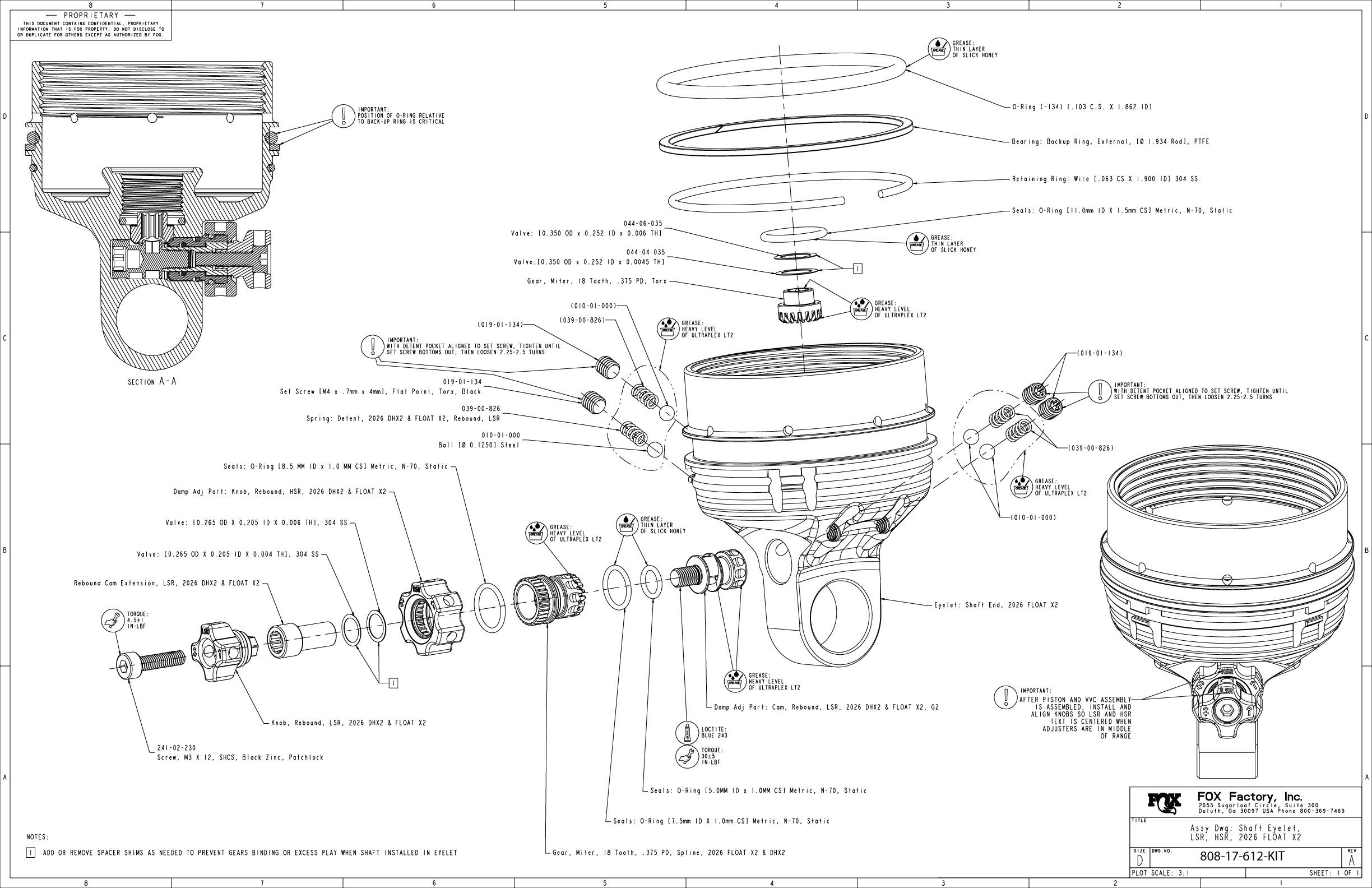

| 808-17-612-KIT | Service Set: Eyelet Assy: 2026 FLOAT X2, HSR & LSR, Shaft End |
| 808-17-616-KIT | Service Set: Eyelet Assy: 2026 FLOAT X2, LSR, Shaft End |
Eyelet Subassemblies:

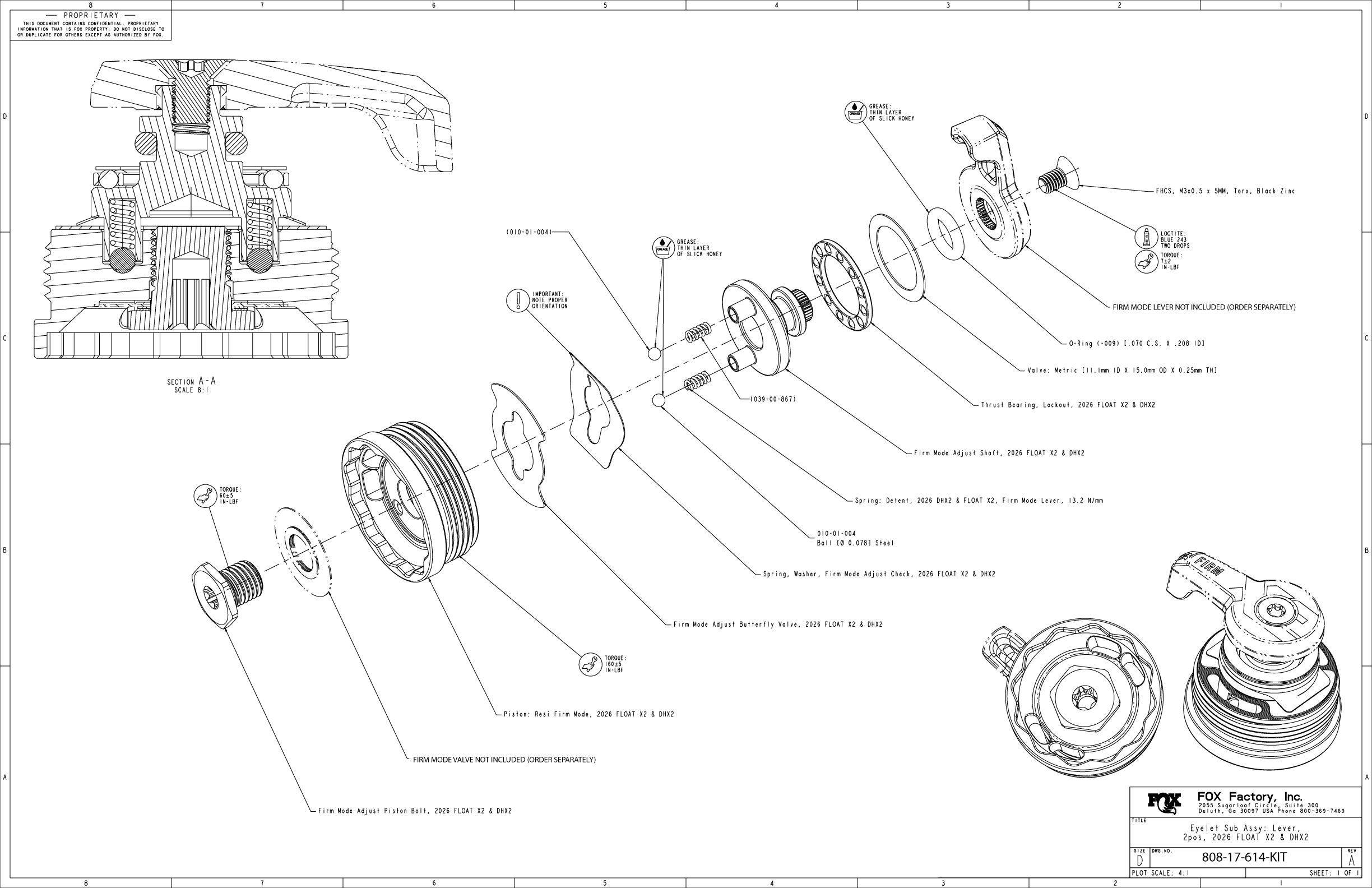

| 808-17-614-KIT | Service Set: Eyelet Sub Assy: Lever, 2pos, 2026 FLOAT X2 & DHX2 |
| 808-17-615-KIT | Service Set: Eyelet Sub Assy: No Lever, 2026 FLOAT X2 & DHX2 |
| 815-02-238-KIT | Service Set: Damping Adj Assy: DSC Cartridge, 2026 FLOAT X2 & DHX2 |
Bearing Assemblies:

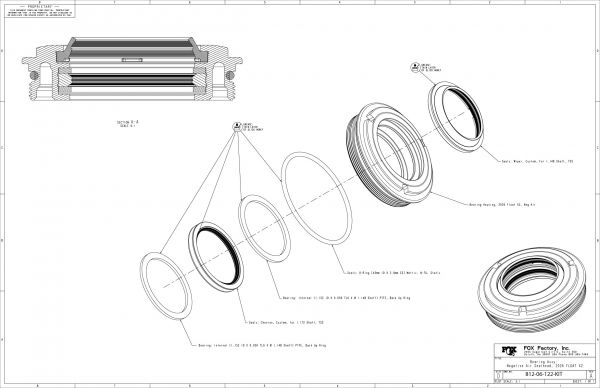

| 812-06-122-KIT | Service Set: Bearing Assy: Negative Air Sealhead, 2026 FLOAT X2 |
| 812-06-123-KIT | Service Set: Bearing Housing Assy: 2026 FLOAT X2 |
Valving Assembly:

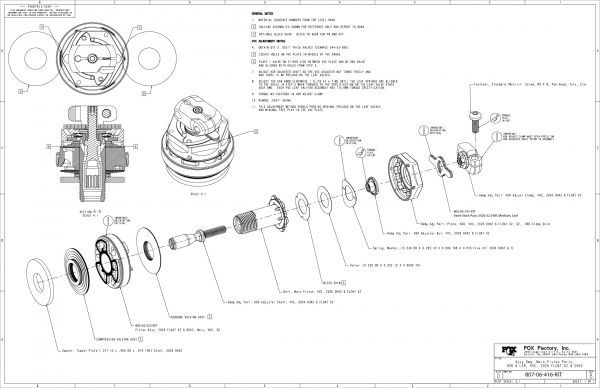

| 807-06-416-KIT | Service Set: Valving Assy: 2026 FLOAT X2 & DHX2, HSR & LSR, VVC, Main Piston Parts |
Base Valve Valve Stack Assemblies:
| 805-05-751-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, LML, Base Valve Lever Mode Light |
| 805-05-752-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, LMM, Base Valve Lever Mode Medium |
| 805-05-753-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, LMF, Base Valve Lever Mode Firm |
| 805-05-780-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B20, Base Valve Compression, .070 THK |
| 805-05-781-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B40, Base Valve Compression, .085 THK |
| 805-05-782-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B60, Base Valve Compression, .085 THK |
| 805-05-748-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B80, Base Valve Compression, .083 THK |
| 805-05-783-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B100, Base Valve Compression, .092 THK |
| 805-05-808-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B120, Base Valve Compression, .086 THK |
Factory Series Rebound Valve Stack Assemblies:

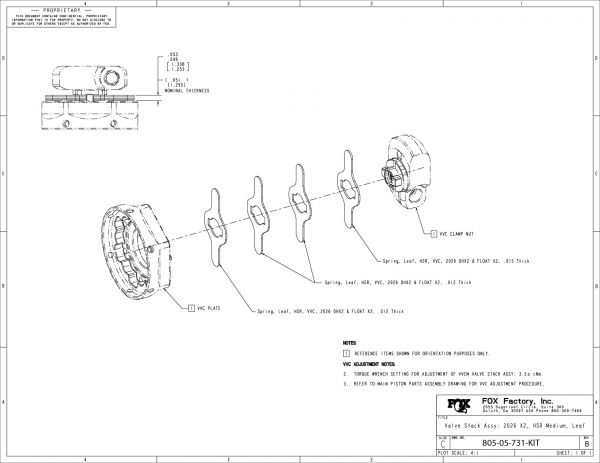

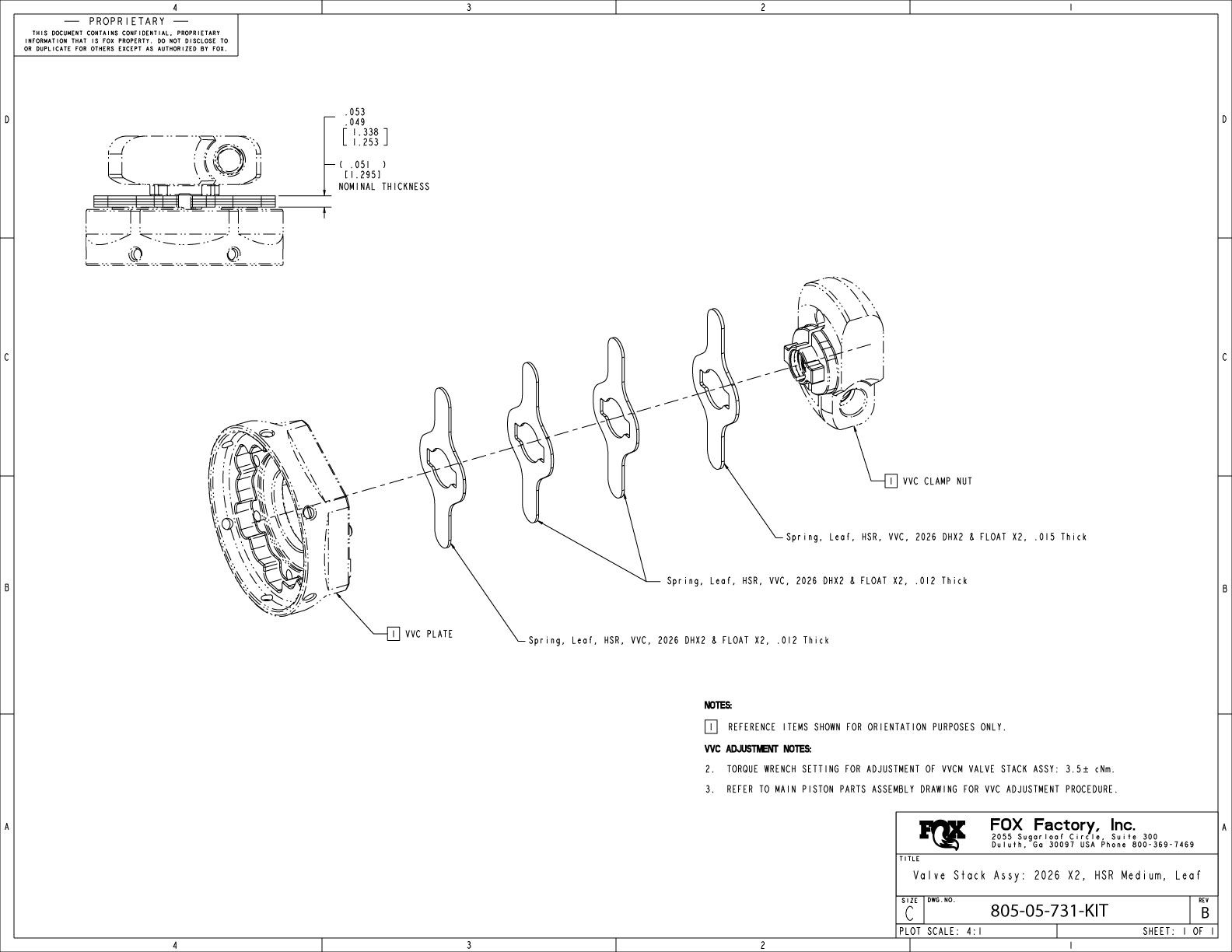

| 805-05-731-KIT | Service Set: Valve Stack Assy: 2026 X2, HSR, Medium, Leaf |
| 805-05-776-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL30, VVC Rebound Linear, .084 THK |
| 805-05-777-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL40, VVC Rebound Linear, .084 THK |

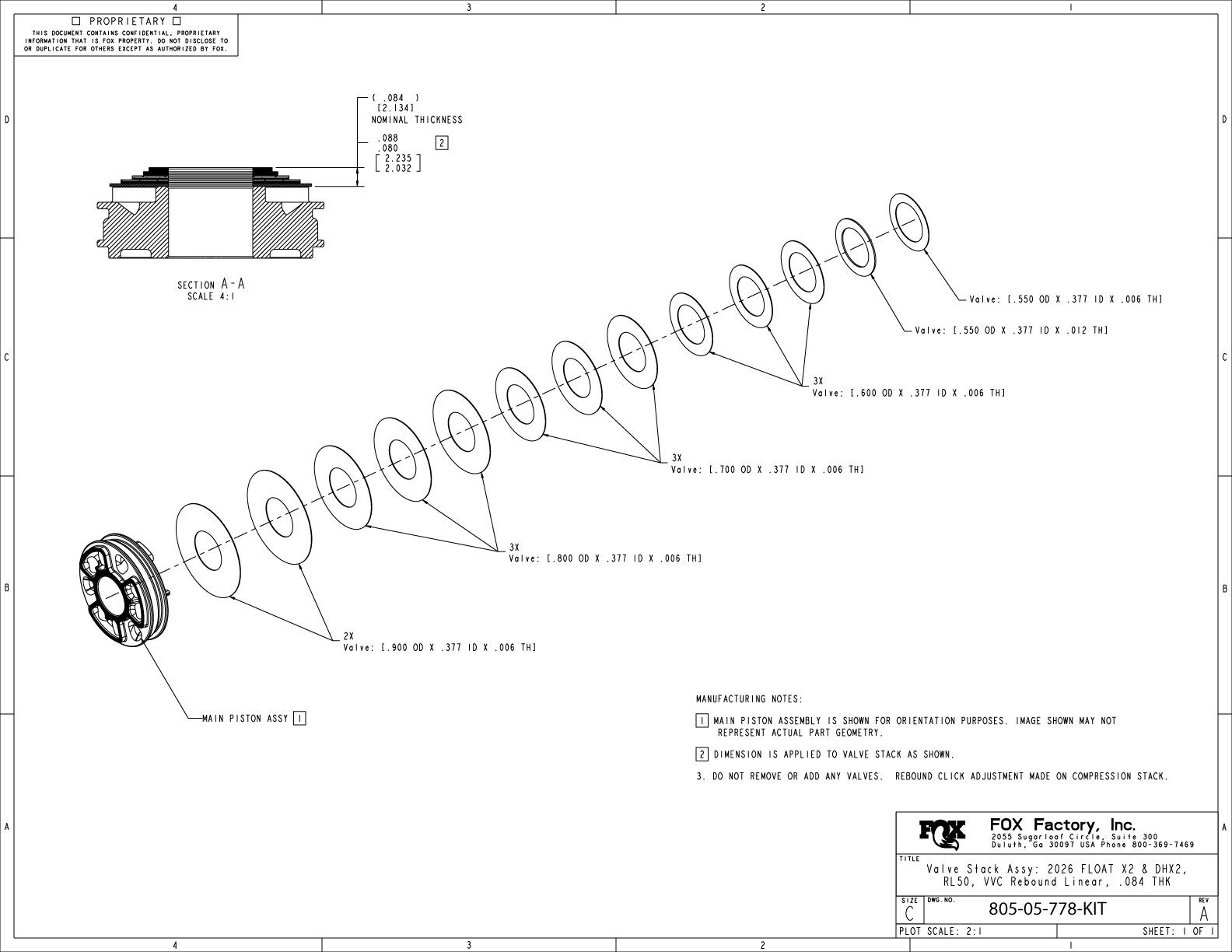

| 805-05-778-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL50, VVC Rebound Linear, .084 THK |

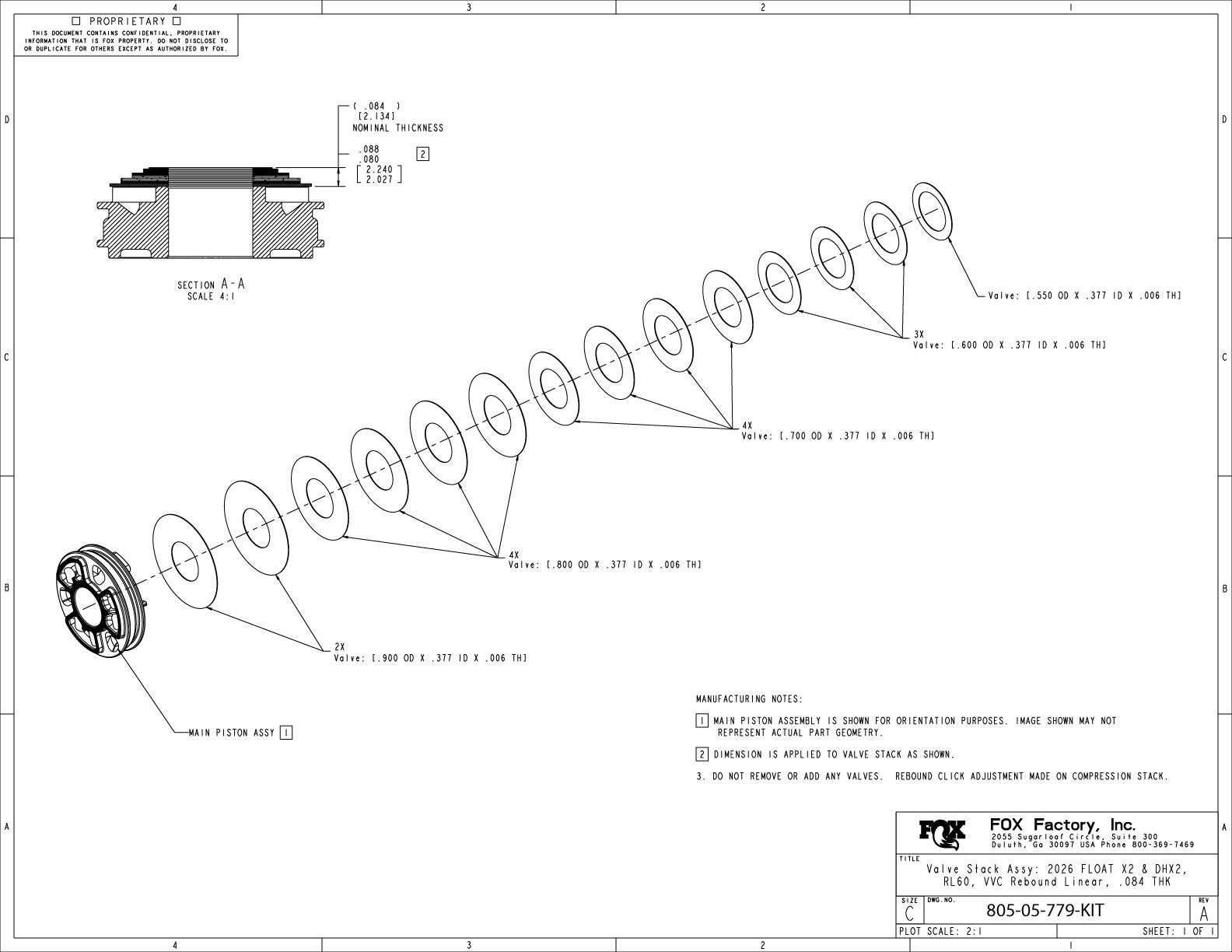

| 805-05-779-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL60, VVC Rebound Linear, .084 THK |
| 805-05-750-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL70, VVC Rebound Linear, .084 THK |
| 805-05-815-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RS20, VVC Rebound Split, .084 THK |
| 805-05-814-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RS30, VVC Rebound Split, .084 THK |
| 805-05-813-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RS40, VVC Rebound Split, .084 THK |
| 805-05-806-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RS50, VVC Rebound Split, .086 THK |
| 805-05-810-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RS60, VVC Rebound Split, .086 THK |
Performance Series Rebound Valve Stack Assemblies:
| 805-05-797-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL40, LSR Rebound Linear, .082 THK, .052 NMT |
| 805-05-798-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL50, LSR Rebound Linear, .082 THK, .052 NMT |
| 805-05-799-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL60, LSR Rebound Linear, .082 THK, .052 NMT |
| 805-05-800-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL70, LSR Rebound Linear, .084 THK, .064 NMT |
Bleed Shims:
| 048-00-331 | Valve: Bleed, 0.5mm Equiv [0.530 OD X 0.292 ID X 0.0045 TH] 2026 DHX2 & FLOAT X2 |
| 048-00-333 | Valve: Bleed, 0.7mm Equiv [0.530 OD X 0.292 ID X 0.0045 TH] 2026 DHX2 & FLOAT X2 |
| 048-00-335 | Valve: Bleed, 0.9mm Equiv [0.530 OD X 0.292 ID X 0.0045 TH] 2026 DHX2 & FLOAT X2 |
| 048-00-336 | Valve: Bleed, 1.1mm Equiv [0.530 OD X 0.292 ID X 0.0045 TH] 2026 DHX2 & FLOAT X2 |
| 048-00-337 | Valve: Bleed, 1.3mm Equiv [0.530 OD X 0.292 ID X 0.0045 TH] 2026 DHX2 & FLOAT X2 |
| 048-00-338 | Valve: Bleed, 1.5mm Equiv [0.530 OD X 0.292 ID X 0.0045 TH] 2026 DHX2 & FLOAT X2 |
Compression Valve Stack Assemblies:
| 805-05-766-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS10, Comp Split Stack, .053 NMT |
| 805-05-767-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS20, Comp Split Stack, .057 NMT |
| 805-05-768-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS30, Comp Split Stack, .063 NMT |
| 805-05-769-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS40, Comp Split Stack, .063 NMT |
| 805-05-770-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS50, Comp Split Stack, .060 NMT |
| 805-05-771-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS60, Comp Split Stack, .060 NMT |
| 805-05-772-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS70, Comp Split Stack, .070 NMT |
| 805-05-773-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS80, Comp Split Stack, .070 NMT |
| 805-05-812-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS93, Comp Split, .075 NMT |
| 805-05-784-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL10, Comp Linear, .047 NMT |
| 805-05-785-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL20, Comp Linear, .047 NMT |
| 805-05-786-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL30, Comp Linear, .046 NMT |
| 805-05-787-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL40, Comp Linear, .046 NMT |
| 805-05-789-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL50, Comp Linear, .054 NMT |
| 805-05-790-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL60, Comp Linear, .054 NMT |
| 805-05-791-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL70, Comp Linear, .058 NMT |
| 805-05-792-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL80, Comp Linear, .058 NMT |
| 805-05-793-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL90, Comp Linear, .067 NMT |
| 805-05-816-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL97, Comp Linear, .059 NMT |
| 805-05-794-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL100, Comp Linear, .070 NMT |
| 805-05-809-KIT | Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL110, Comp Linear, .071 NMT |
Reservoir Assemblies:
| 813-00-290-KIT | Service Set: Reservoir End Cap Assy: 2022 FLOAT X & DHX, G2 (parallel reservoir) |
| 805-00-130-KIT | Service Set: Piston Assembly: 2022 FLOAT X & DHX, IFP, Floating w/ Bleed & Glide Band [1.070 Bore] (parallel reservoir) |
| 227-09-074 | Reservoir: 2024 Live Valve Neo, Shock, 75mm Travel, TLG 58.3 |

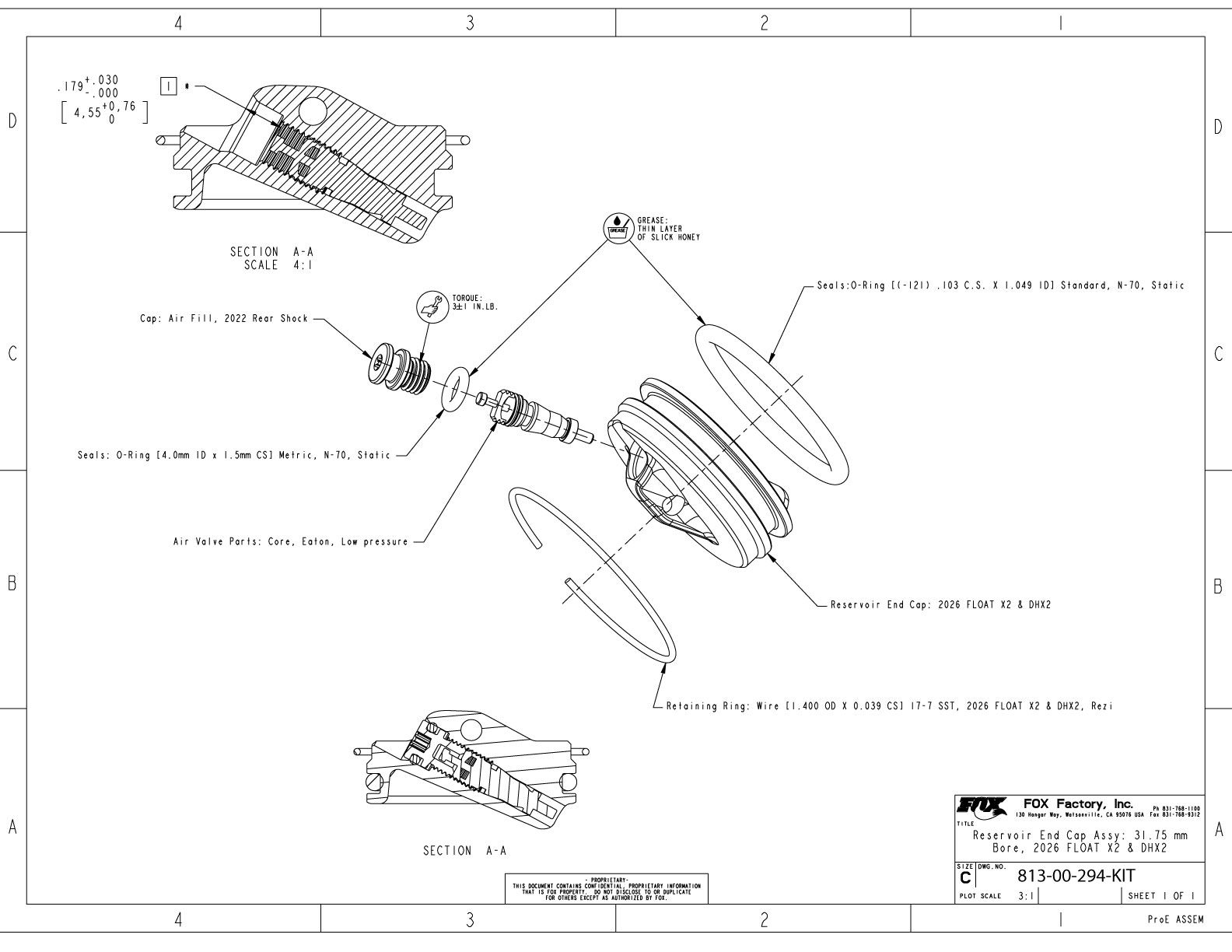

| 813-00-294-KIT | Service Set: Reservoir End Cap Assy: 31.75 mm Bore, 2026 FLOAT X2 & DHX2 (transverse reservoir) |
| 805-00-146-KIT | Service Set: Piston Assembly: 2026 FLOAT X2 & DHX2, IFP, Floating w/ Bleed & Glide Band, 31.75 mm Bore (transverse reservoir) |
Decals:
| 024-13-721 | Decal: 2026, Float X2, F-S, Transverse Reservoir, Neutral, PMS872 Gold/PMS10347 Light Gold/PMS10392 Granite, 024-13-693 Template |
| 024-13-722 | Decal: 2026, Float X2, P-SE, Transverse Reservoir, Neutral, PMS10390 Steel/PMS877 Mercury/PMS10392 Granite, 024-13-694 Template |
| 024-13-724 | Decal: 2026, Float X2, F-S, Parallel Reservoir (75mm), Neutral, PMS872 Gold /PMS10392 Granite, 024-13-696 Template |
| 024-13-715 | Decal: 2026, Float X2, F-S, Airsleeve (55mm), Neutral, PMS872 Gold/PMS10392 Granite, 024-13-689 Template |
| 024-13-716 | Decal: 2026, Float X2, F-S, Airsleeve (65-75mm), Neutral, PMS872 Gold/PMS10392 Granite, 024-13-690 Template |
| 024-13-717 | Decal: 2026, Float X2, P-SE, Airsleeve (55mm), Neutral, PMS10390 Steel/PMS10392 Granite, 024-13-689 Template |
| 024-13-718 | Decal: 2026, Float X2, P-SE, Airsleeve (65-75mm), Neutral, PMS10390 Steel/PMS10392 Granite, 024-13-690 Template |
| 024-13-246 | Decal: 350 PSI Max Eyelet Decal |
Negative Volume Spacers:
| 233-00-605 | Volume Spacer, 2026 FLOAT X2, Neg, 3.6cc, Orange |
| 233-00-606 | Volume Spacer, 2026 FLOAT X2, Neg, 1.8cc, Yellow |
Travel Spacers:
| 233-00-670 | Spacer, Travel: 2026 FLOAT X2, 2.5mm, Yellow |
| 233-00-671 | Spacer, Travel: 2026 FLOAT X2, 5mm, Orange |
| 233-00-672 | Spacer, Travel: 2026 FLOAT X2, 7.5mm, Red |
| 803-01-794 | Kit: 2021 Float X2, M3 x 8mm Fasteners, Quantity 10 (5 Pair), (Ref: 019-01-007-A) |
| 803-01-799 | Kit: 2022 Float X/DHX, M3 x 12mm Fasteners, Quantity 10 (5 Pair), (Ref: 019-01-201) |
| 019-01-007-A | Fastener, Standard (Metric): Screw [M3 x 8mm] Socket Flathead |
| 019-01-201 | Fastener, Standard (Metric): Screw [M3 x 12mm] Black, Socket Flathead |
| 210-26-385 | Cap, Bearing Housing, 2026 FLOAT X2 |
2026 FLOAT X2

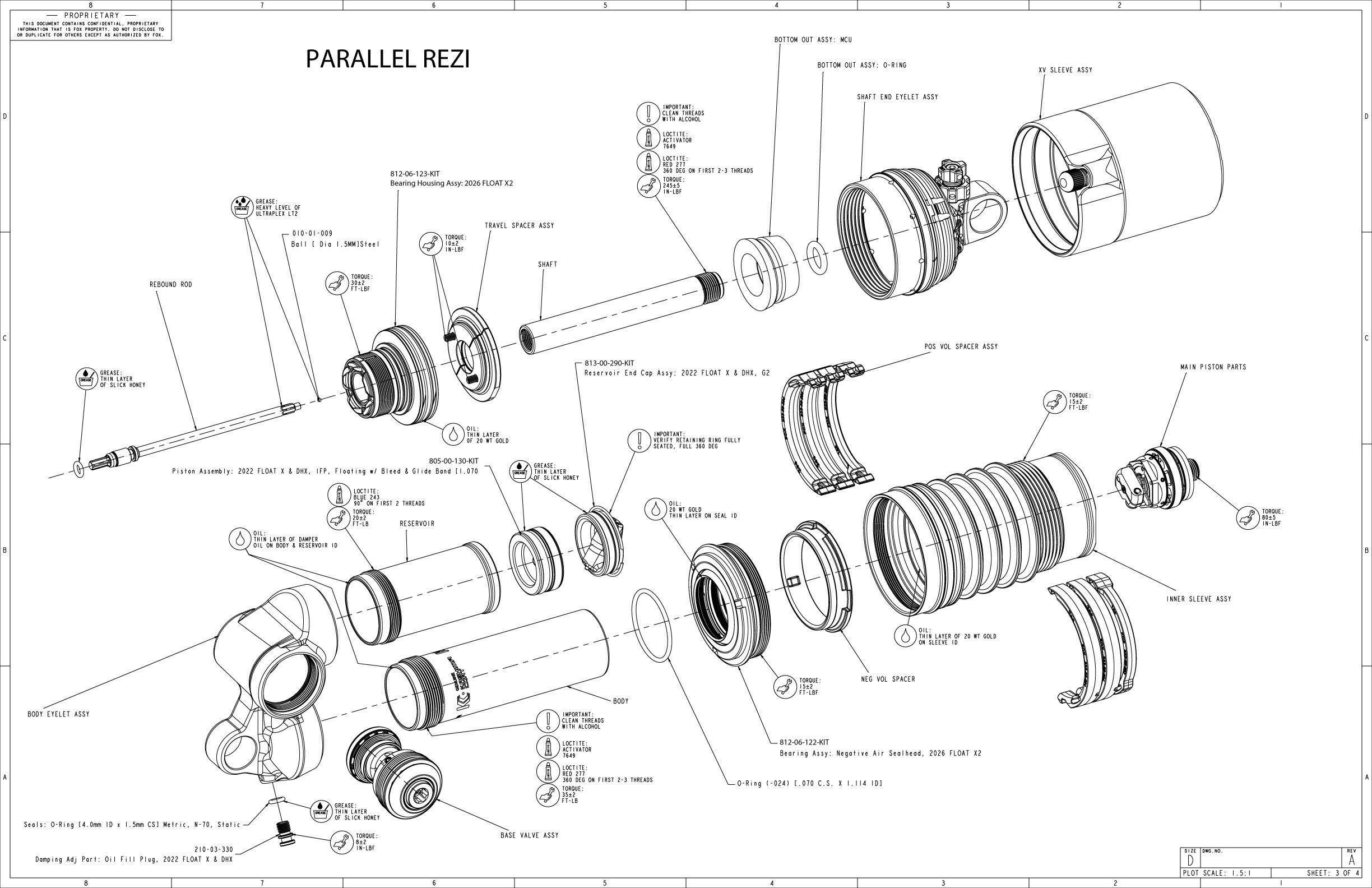

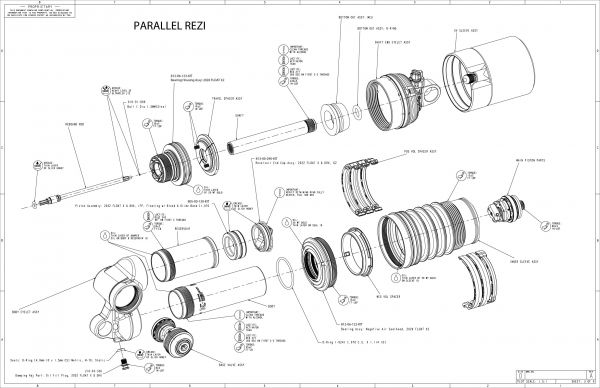

- 2026 FLOAT X2 .

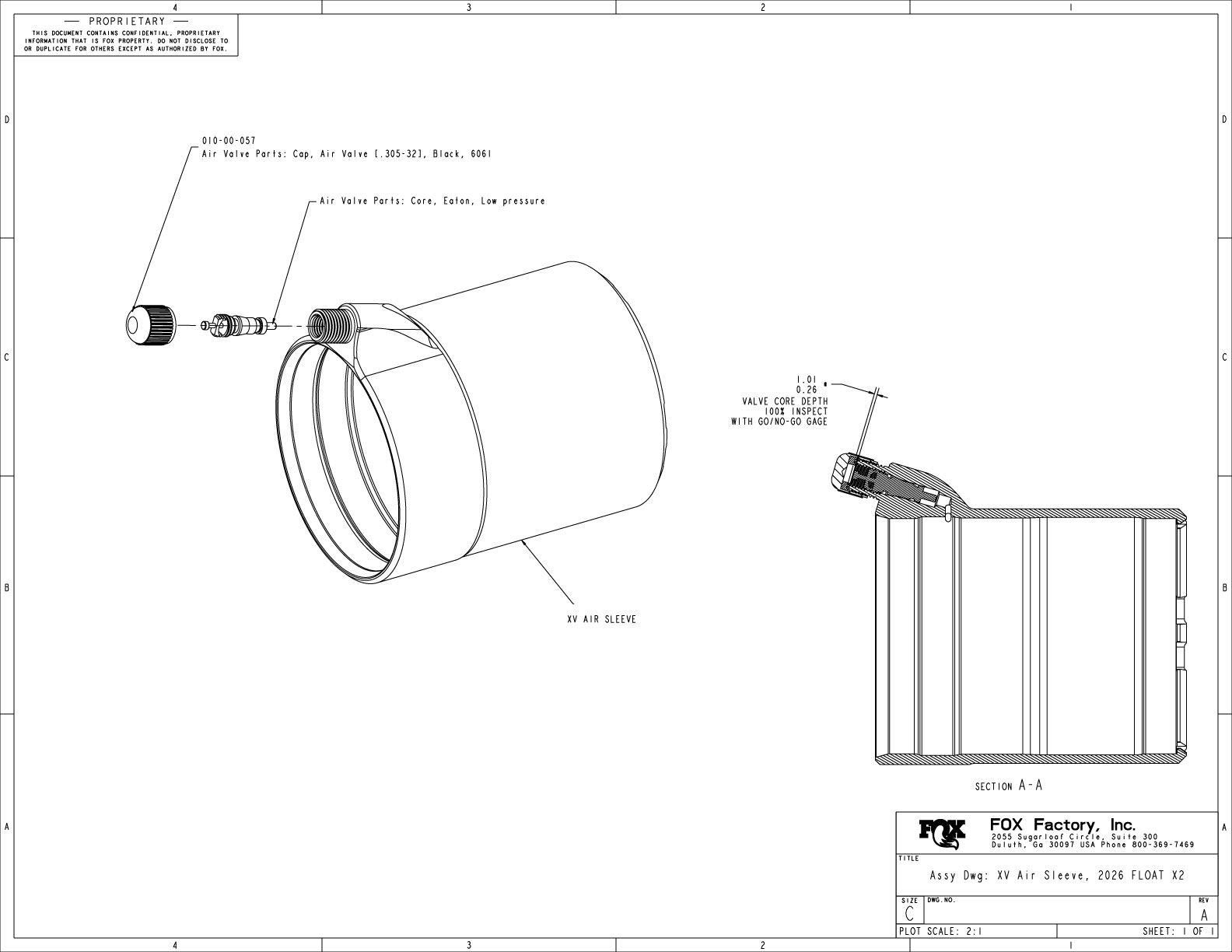

- XV Air Sleeves, 2026 FLOAT X2 .

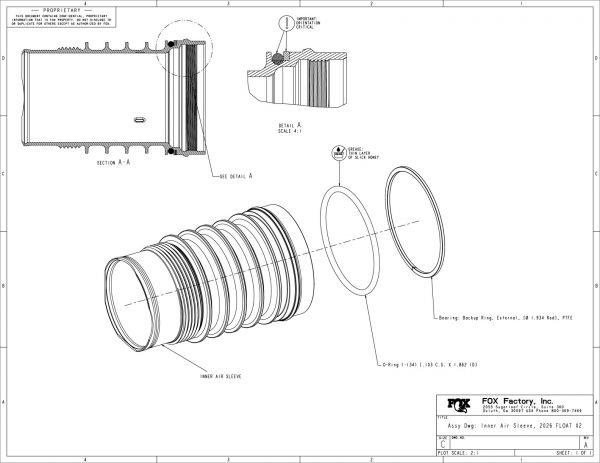

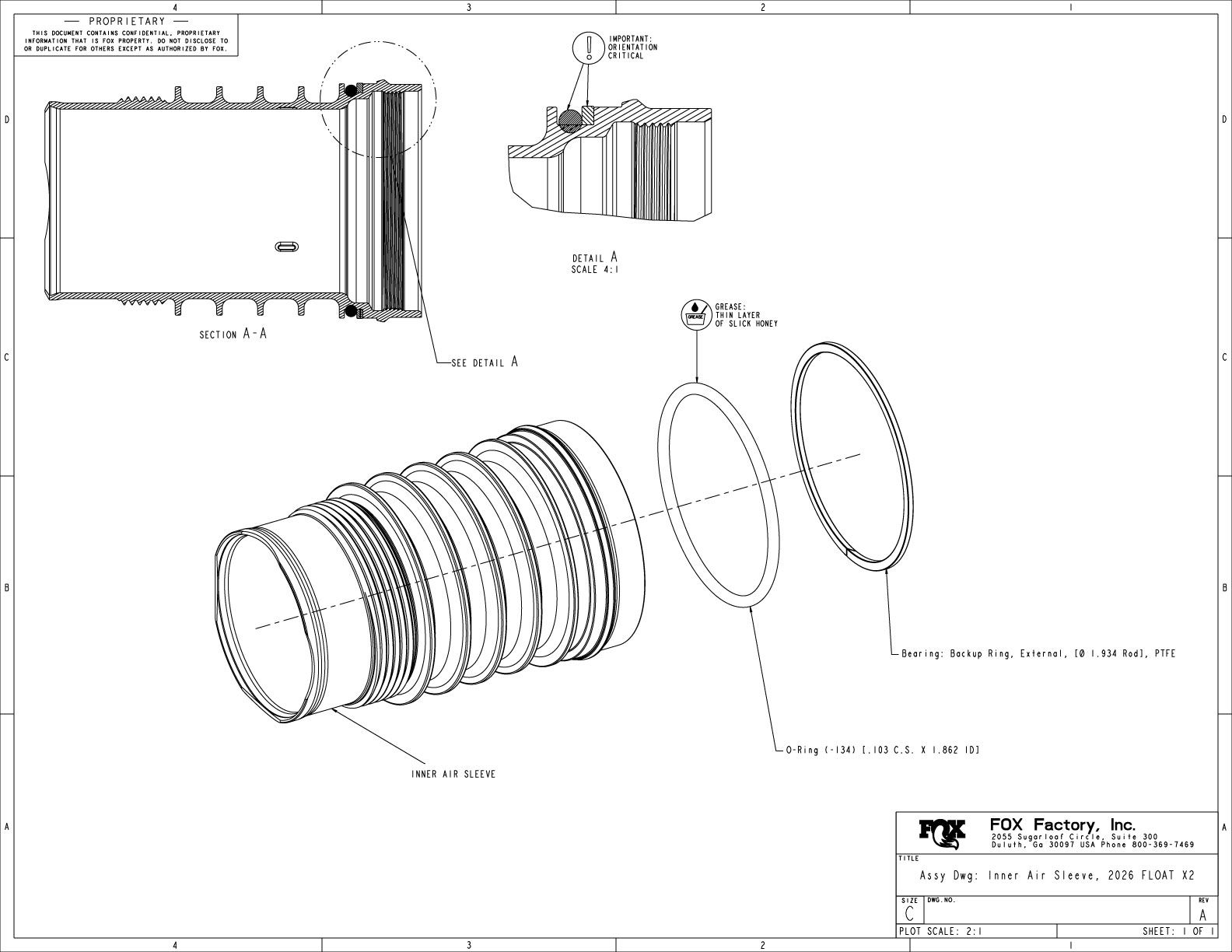

- Inner Air Sleeves, 2026 FLOAT X2 .

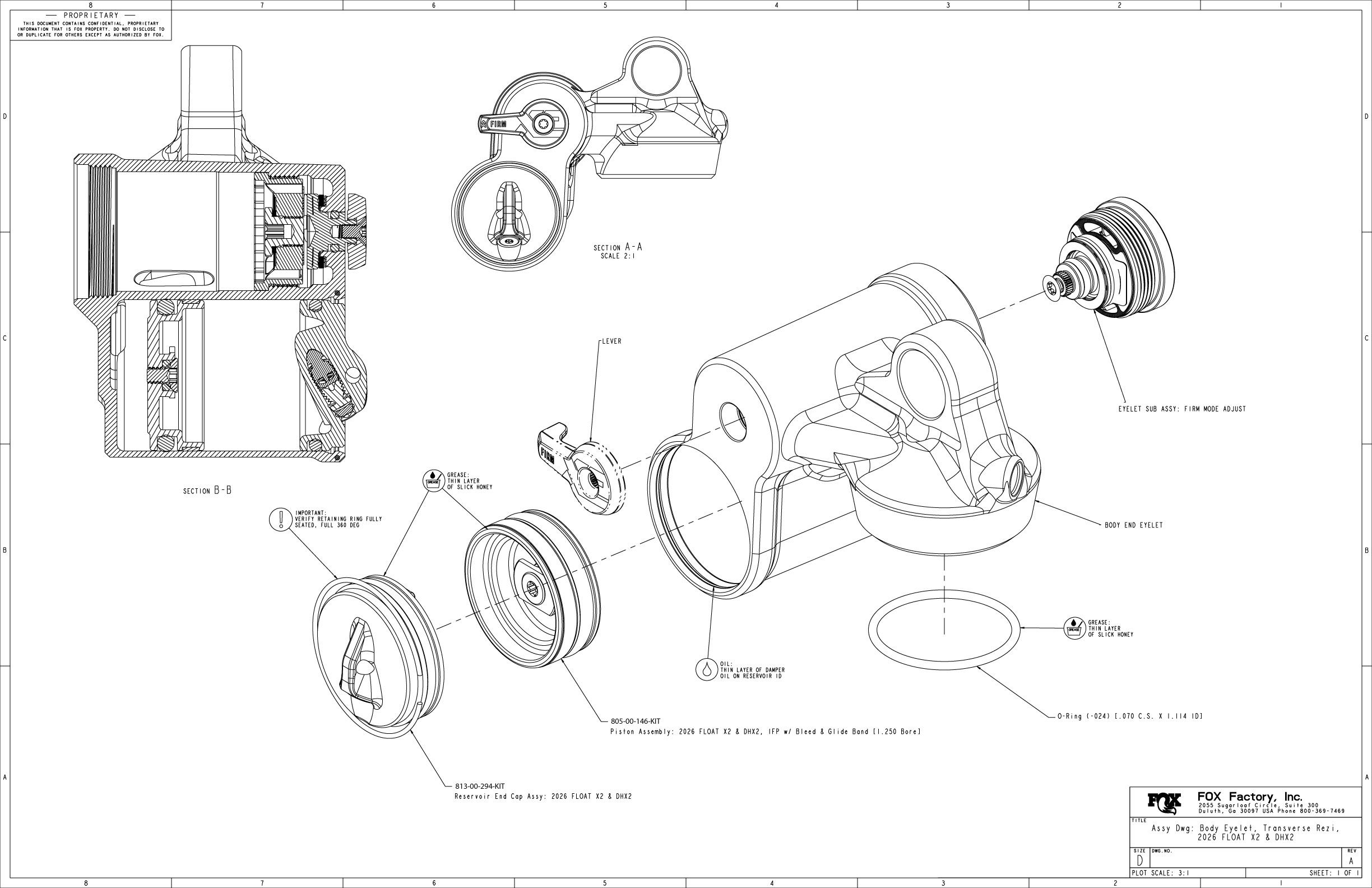

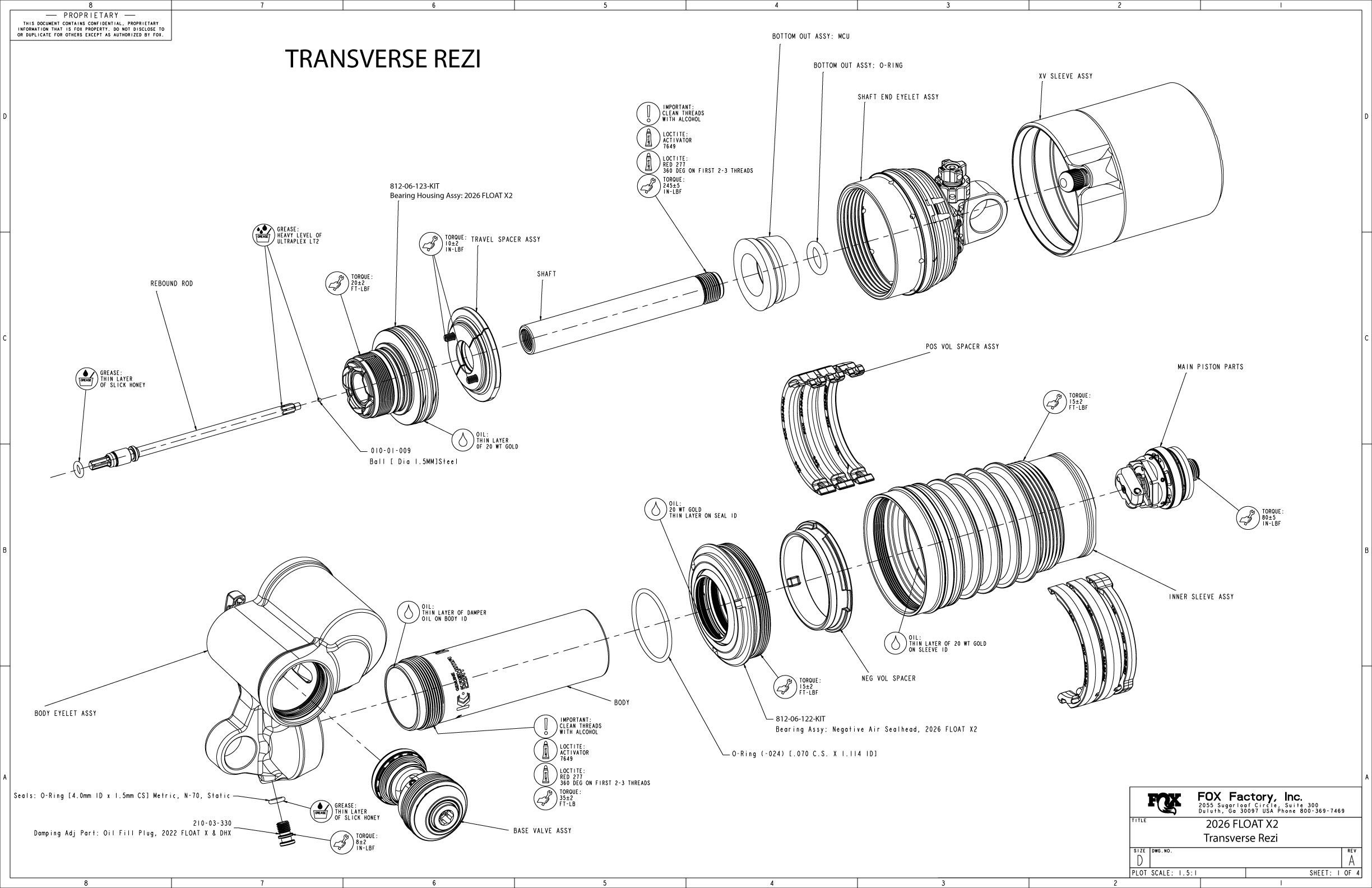

- Body Eyelet, Tranverse Rezi, 2026 FLOAT X2 and DHX2 .

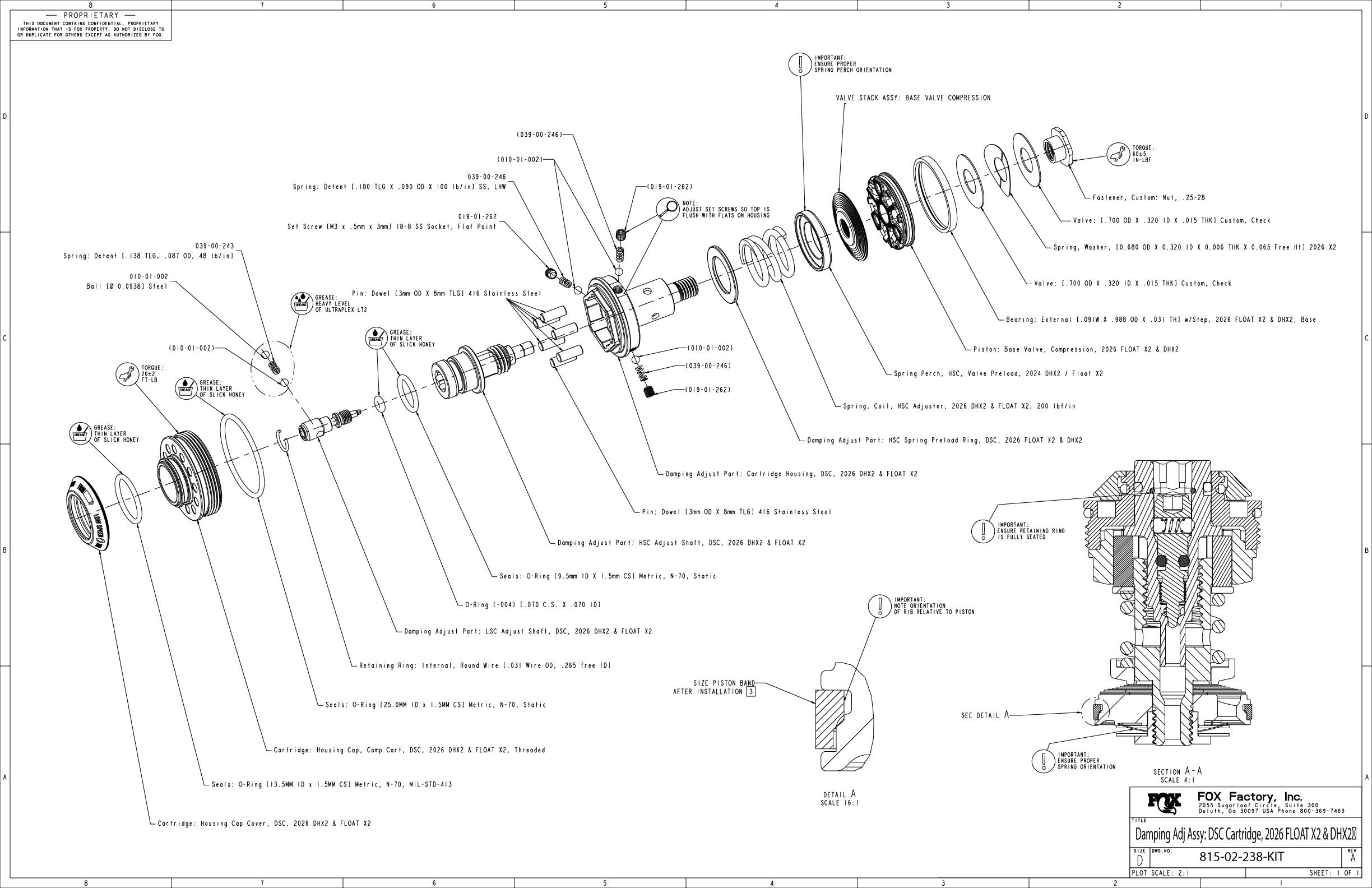

- 815-02-238-KIT Damping Adj Assy: DSC Cartridge, 2026 FLOAT X2 and DHX2
- 813-00-294-KIT Reservoir End Cap Assy: 31.75mm Bore, 2026 FLOAT X2 and DHX2

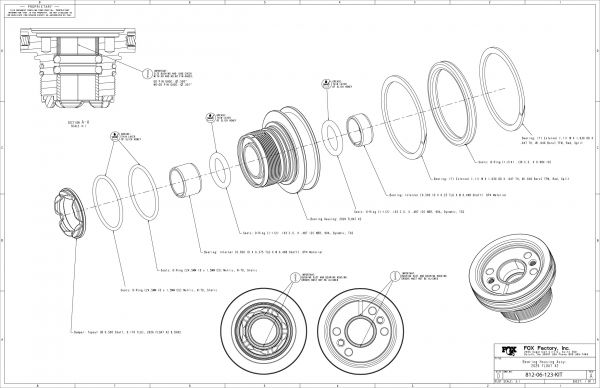

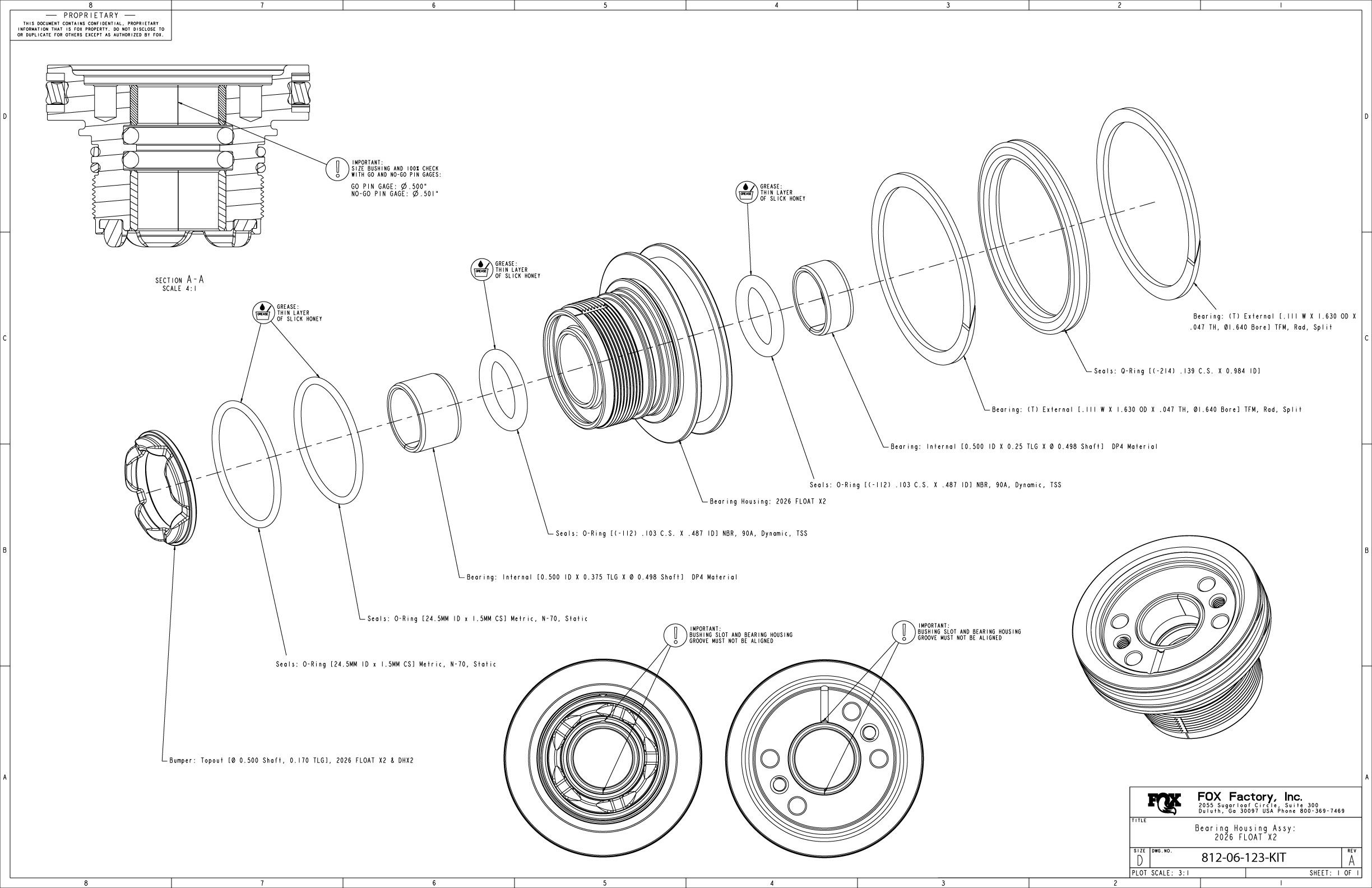

- 812-06-123-KIT Bearing Housing Assy 2026 FLOAT X2
- 812-06-122-KIT Bearing Assy: Negative Air Sealhead, 2026 FLOAT X2
- 808-17-614-KIT Eyelet Sub Assy: Lever 2Pos, 2026 FLOAT X2 and DHX2
- 808-17-612-KIT Shaft Eyelet, LSR, HSR, 2026 FLOAT X2

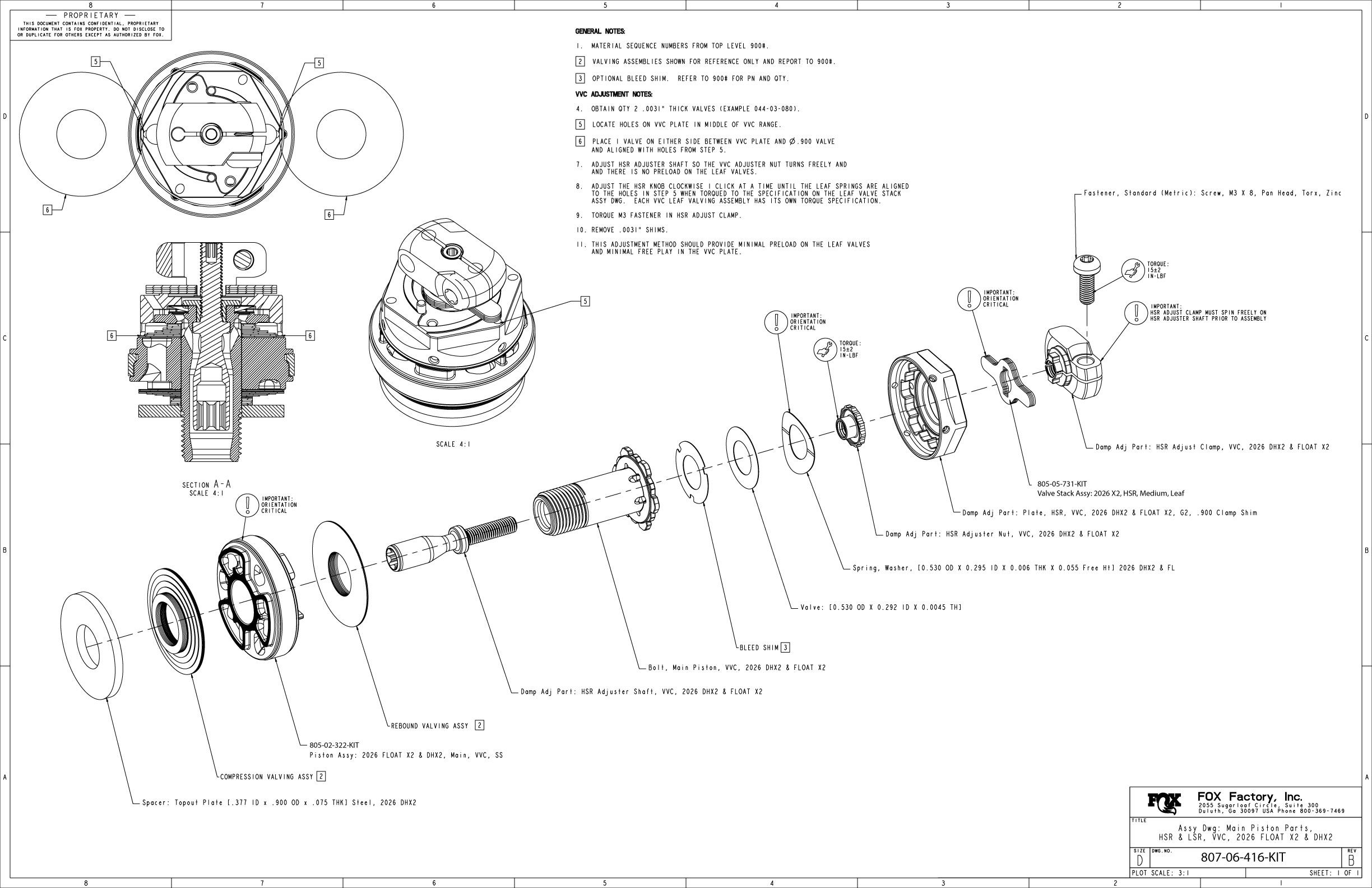

- 807-06-416-KIT Main Piston Parts, HSR and LSR, VVC, 2026 FLOAT X2 and DHX2

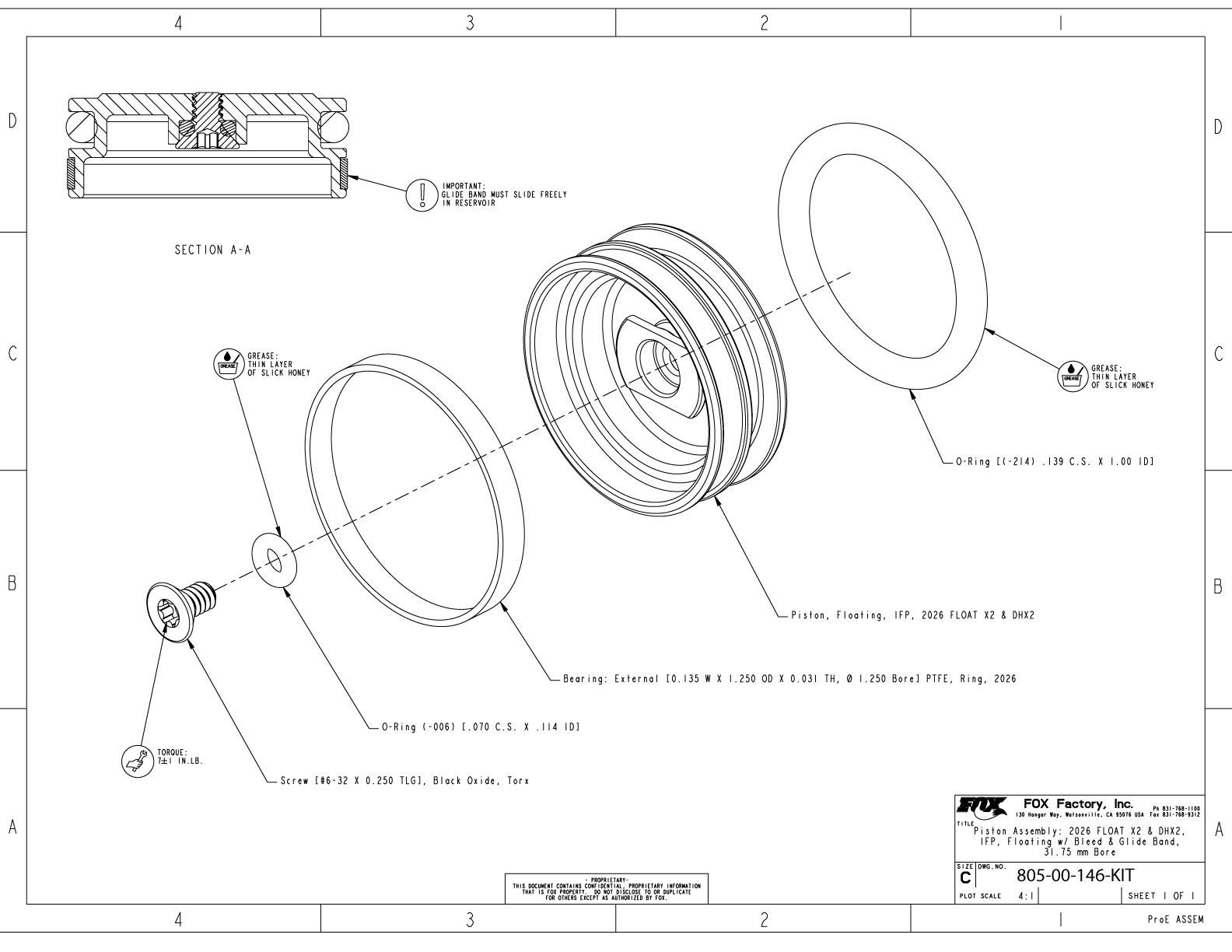

- 805-00-146-KIT Piston Assembly: 2026 FLOAT X2 and DHX2, IFP, Floating w/ bleed and Glide Band, 31.75mm Bore

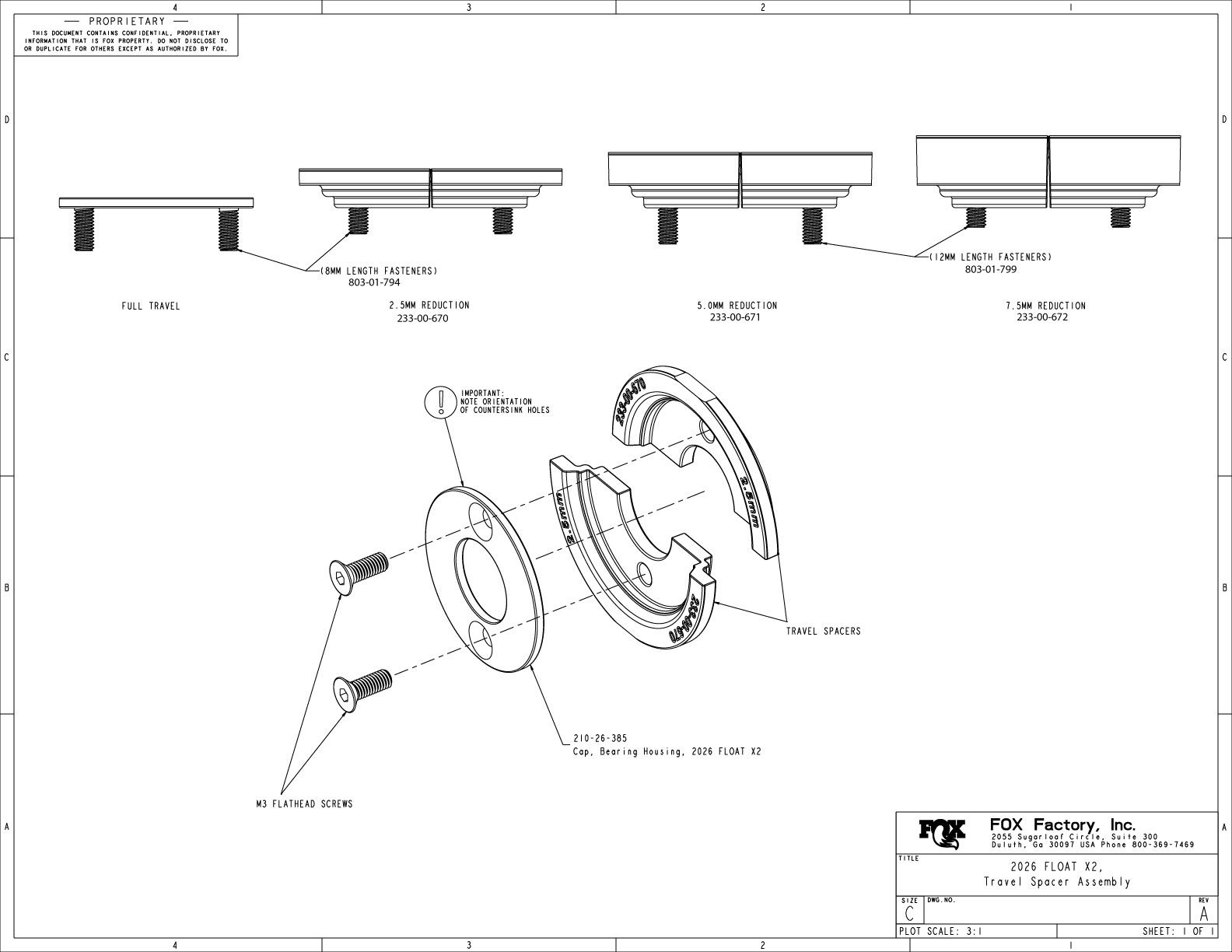

- 2026 FLOAT X2 Travel Spacers .
Valving Assemblies

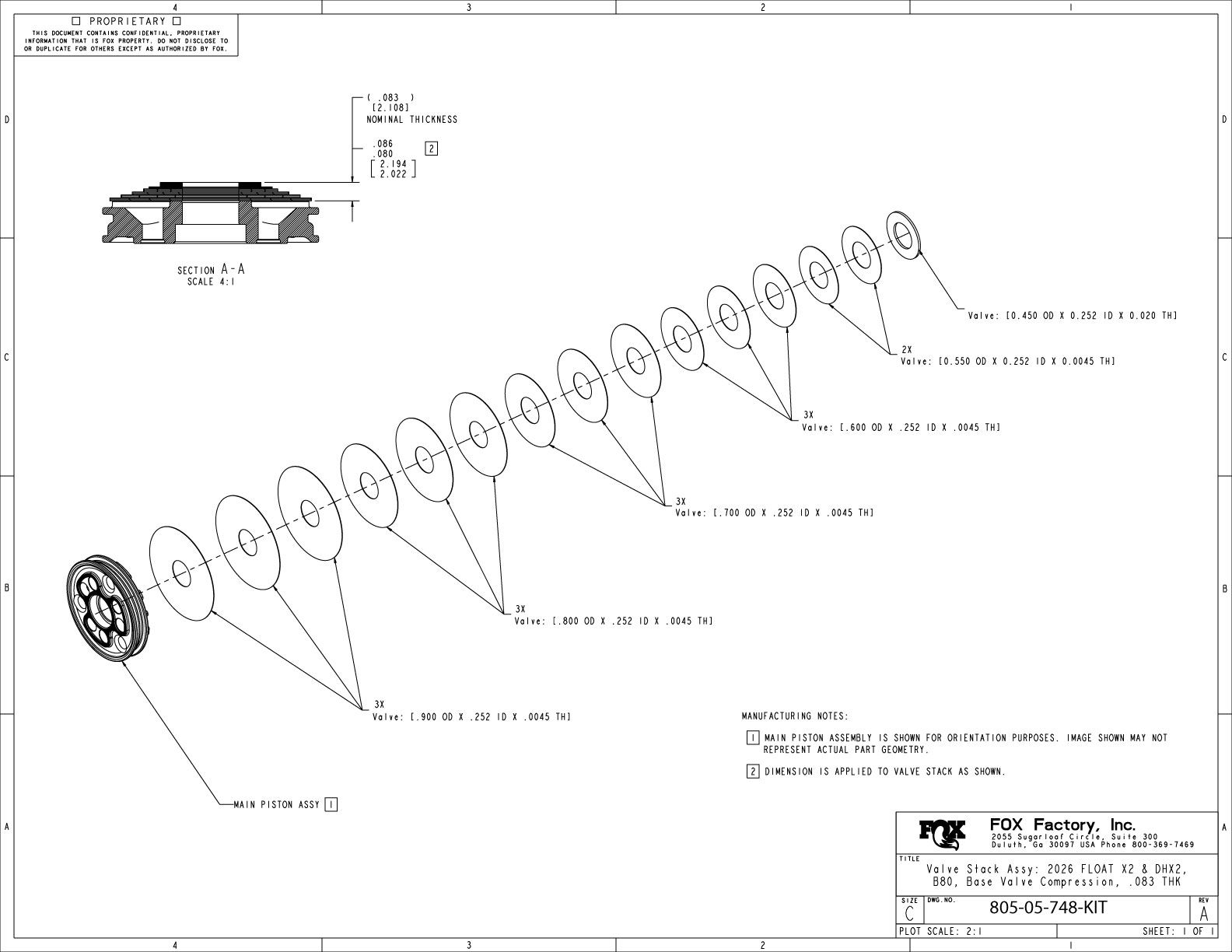

- 805-05-748-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B80, Base Valve Compression, .083 THK

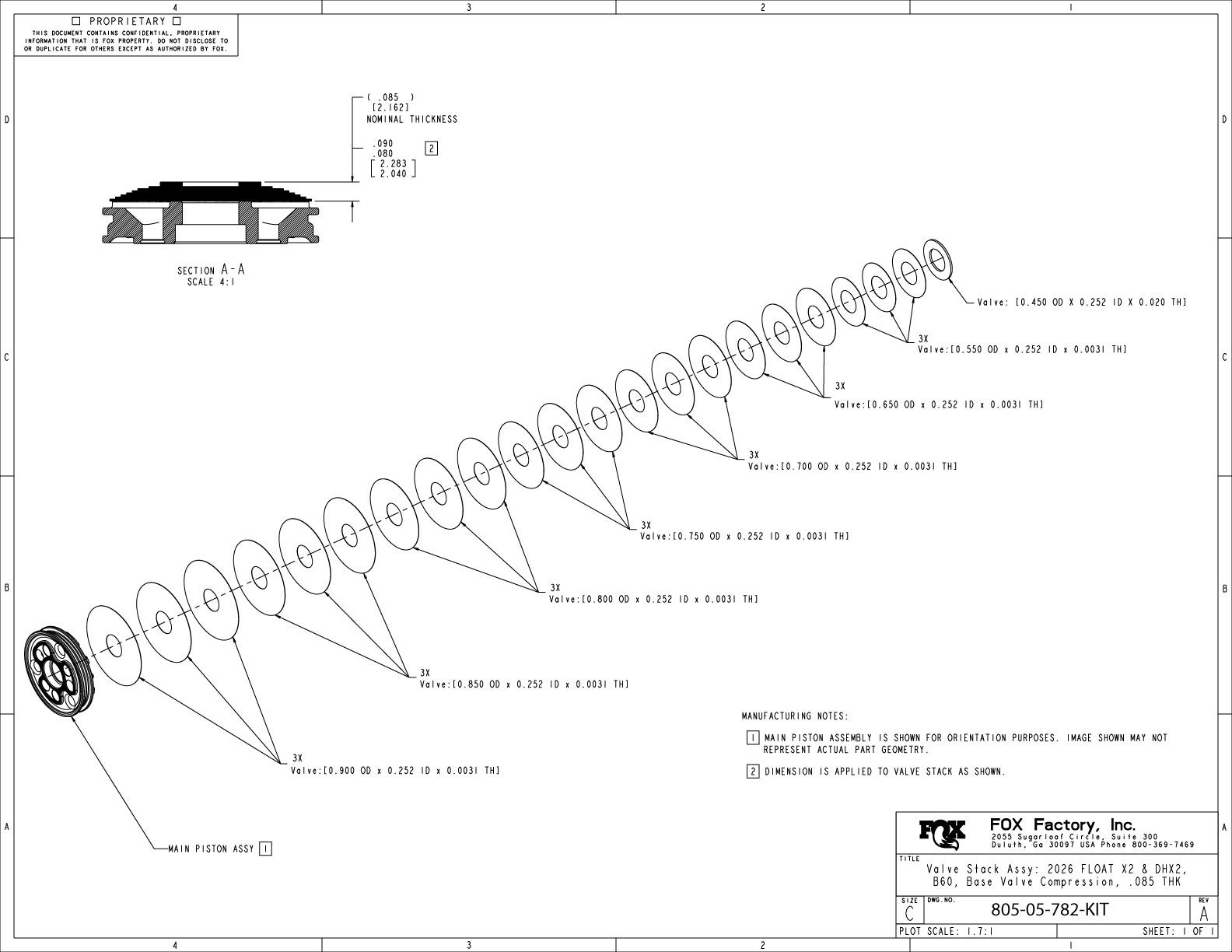

- 805-05-782-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B60, Base Valve Compression, .085 THK

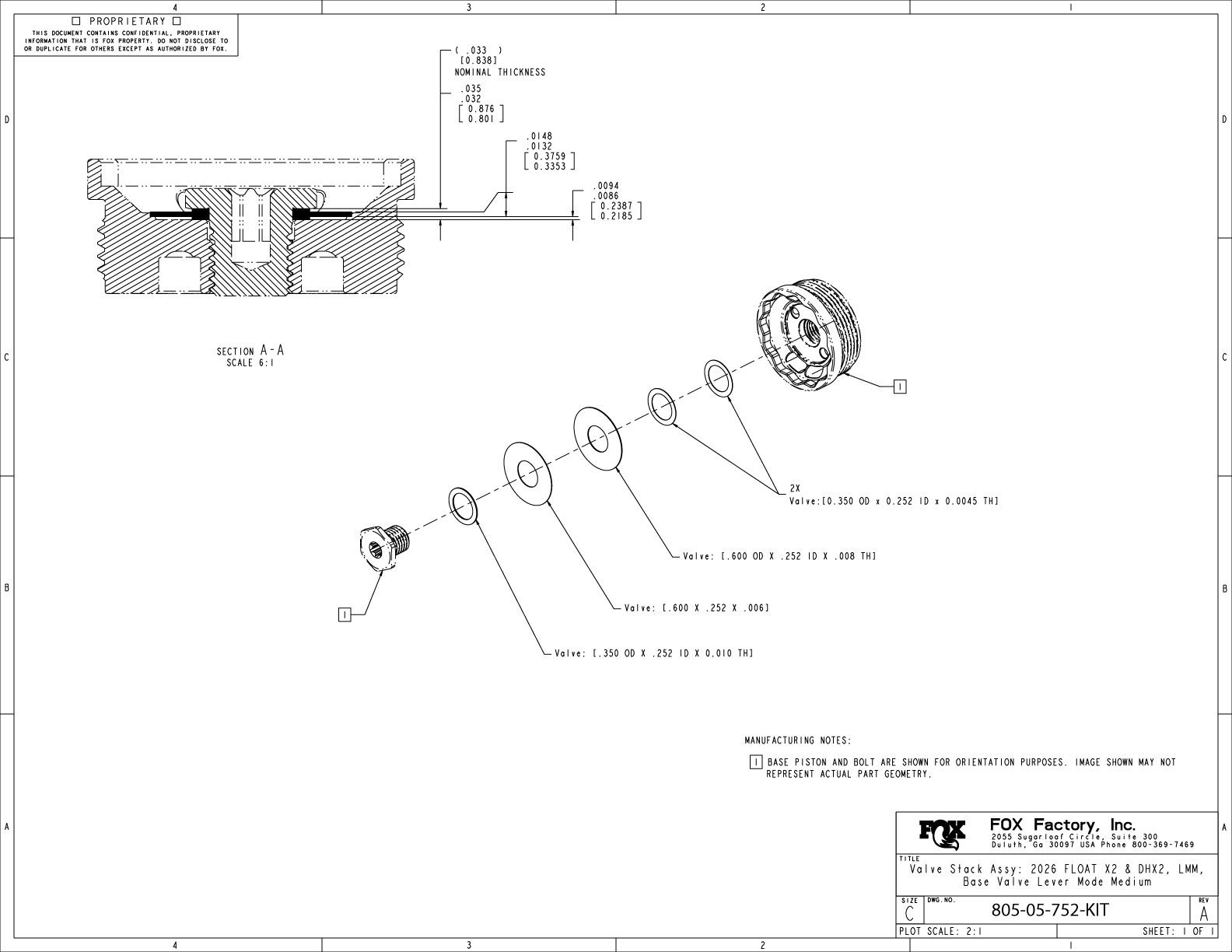

- 805-05-752-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, LMM, Base Valve Lever Mode Medium
- 805-05-778-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL50, VVC Rebound Linear, .084 THK
- 805-05-779-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL60, VVC Rebound Linear, .084 THK
- 805-05-731-KIT Service Set: Valve Stack Assy: 2026 X2, HSR, Medium, Leaf

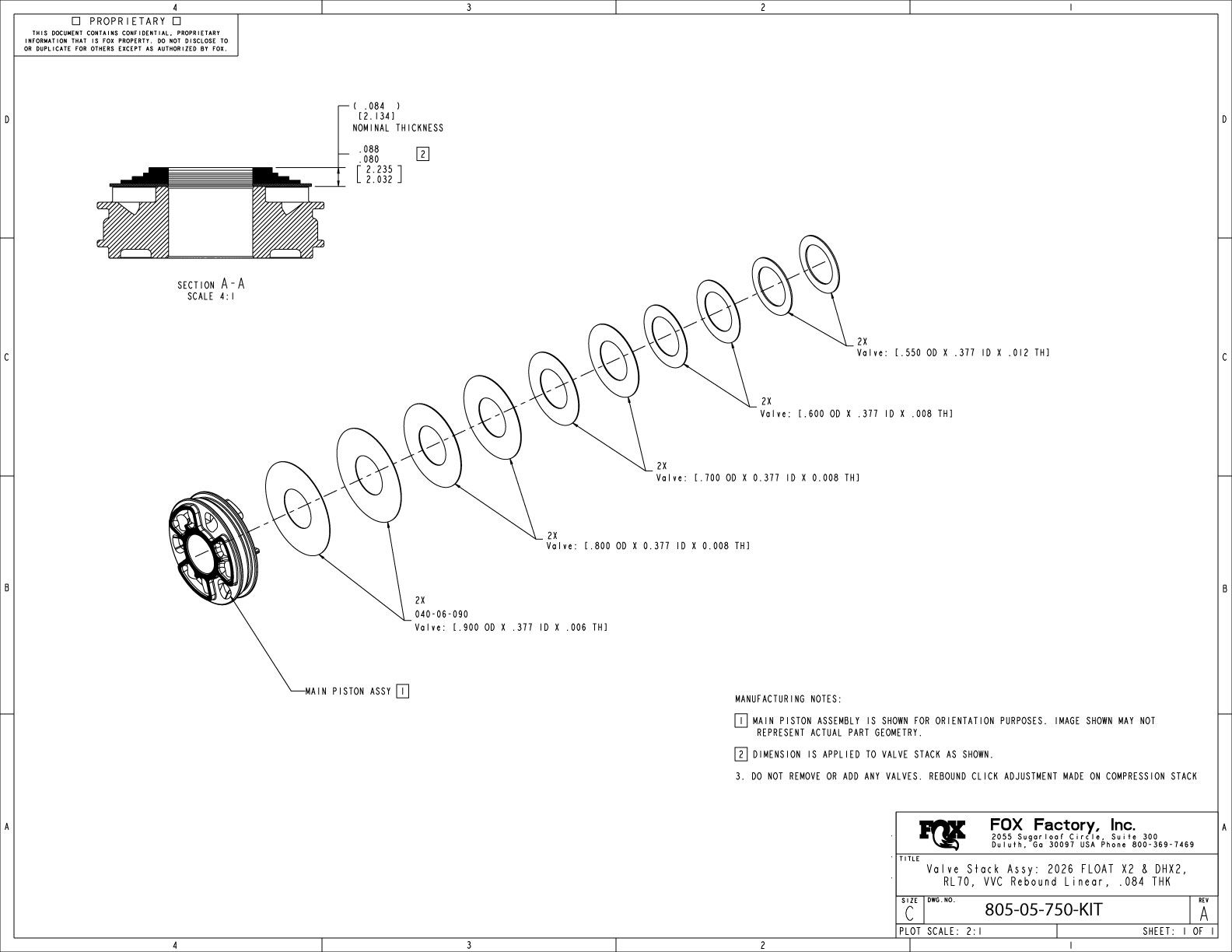

- 805-05-750-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL70, VVC Rebound Linear, .084 THK
- 805-05-770-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS50, Comp Split Stack, .060 NMT

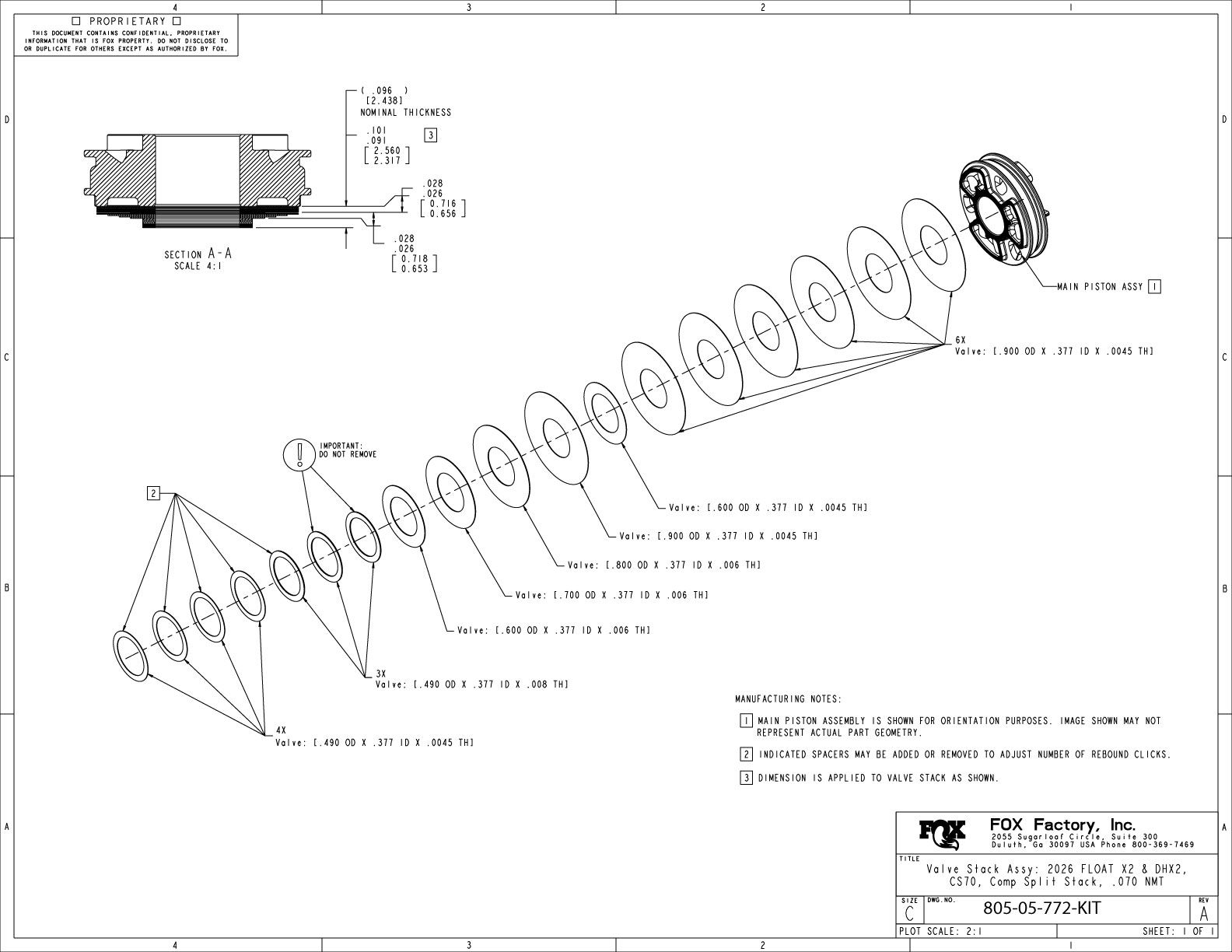

- 805-05-772-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS70, Comp Split Stack, .070 NMT

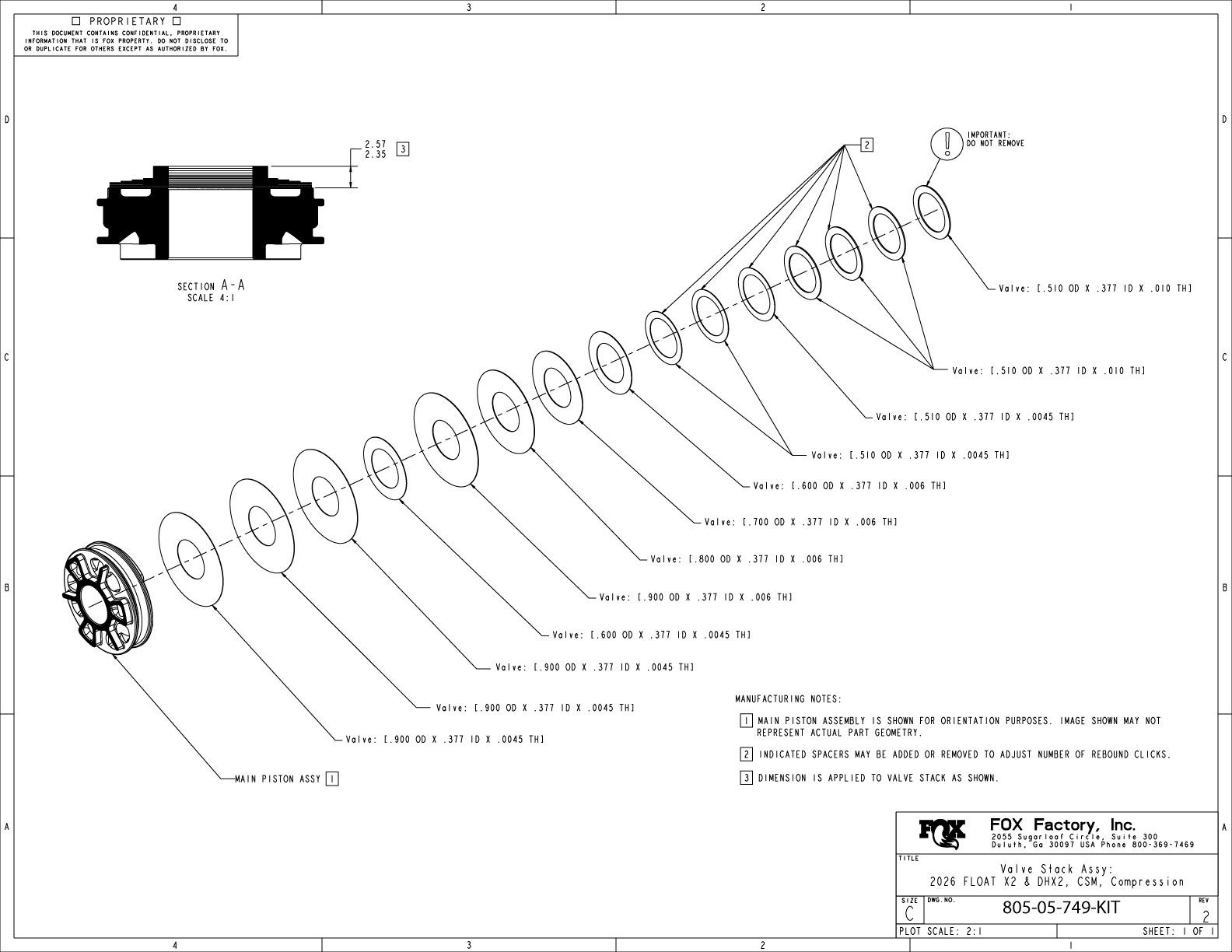

- 805-05-749-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CSM, Compression

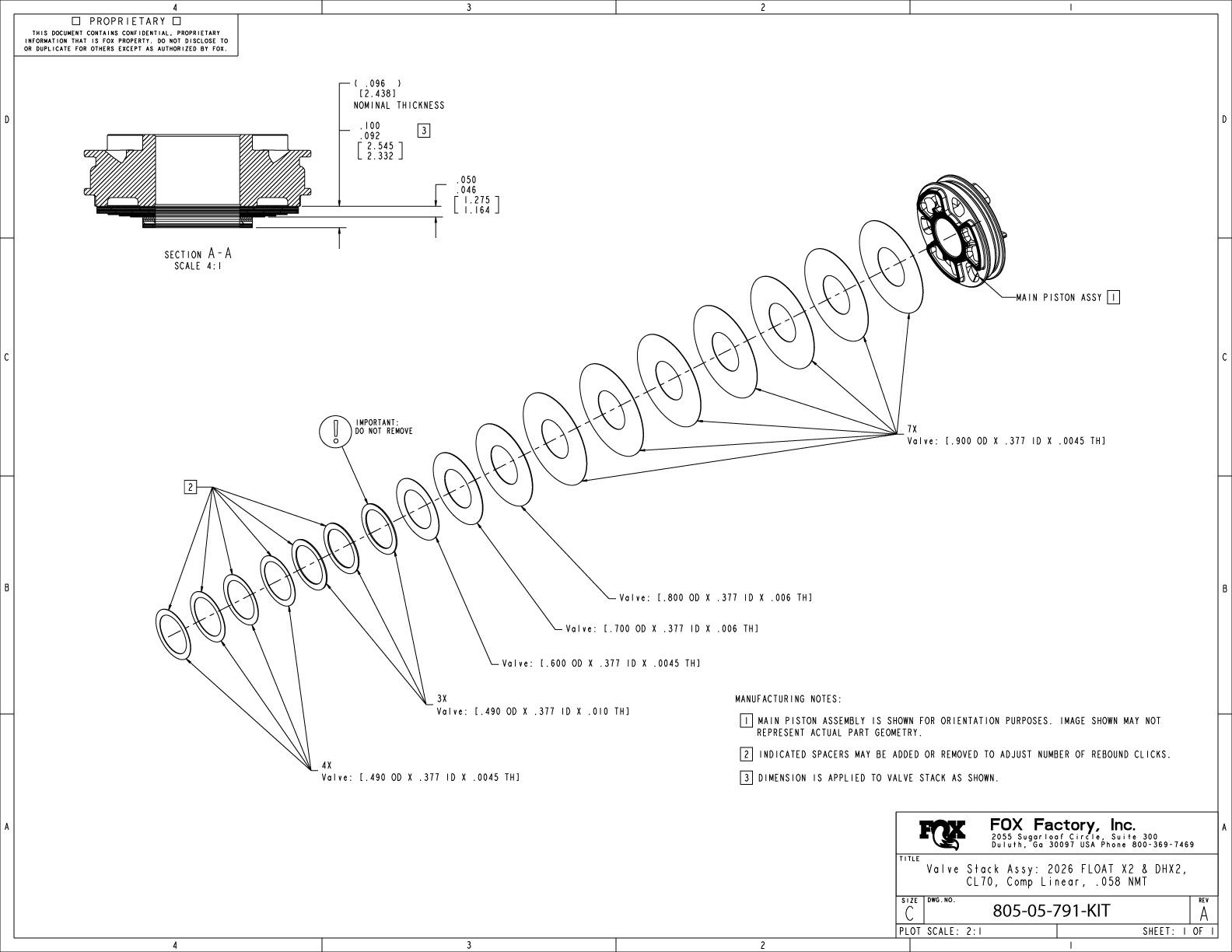

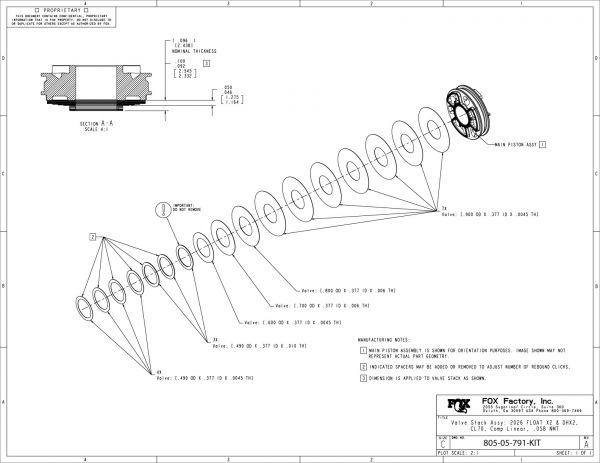

- 805-05-791-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CL70, Comp Linear, .058 NMT
2026 FLOAT X2
805-00-146-KIT Piston Assembly: 2026 FLOAT X2 and DHX2, IFP, Floating w/ bleed and Glide Band, 31.75mm Bore
Valving Assemblies
805-05-748-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B80, Base Valve Compression, .083 THK
805-05-782-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, B60, Base Valve Compression, .085 THK
805-05-752-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, LMM, Base Valve Lever Mode Medium
805-05-778-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL50, VVC Rebound Linear, .084 THK
805-05-779-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL60, VVC Rebound Linear, .084 THK
805-05-750-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, RL70, VVC Rebound Linear, .084 THK
805-05-770-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS50, Comp Split Stack, .060 NMT
805-05-772-KIT Service Set: Valve Stack Assy: 2026 FLOAT X2 & DHX2, CS70, Comp Split Stack, .070 NMT
