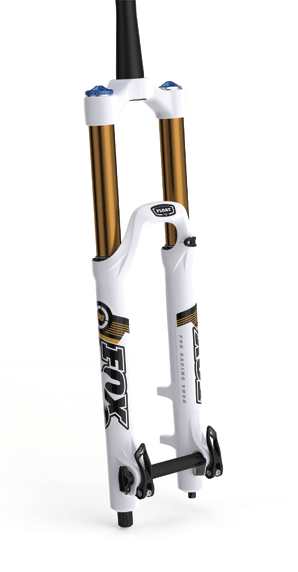

36 FLOAT 180

Installing Your Fork | Before You Ride | Setting Sag | Adjusting Rebound | Adjusting High-Speed Compression | Adjusting Low-Speed Compression | Changing Travel | Service Intervals | Important Safety Information


travel

  • 7.1 in./180 mm

model features, adjustments

Factory FIT RC2; 180: Kashima coated upper tubes, 1.5" tapered steerer, 1 1/8" steerer, low-speed compression, lever actuated lockout, lockout force adjust, air spring pressure, rebound. Travel is adjustable in 10 mm increments, down to 100 mm.

Performance O/B R; 180: Hard anodized upper tubes, 1.5" tapered steerer, 1 1/8" steerer, air spring pressure, rebound. Travel is adjustable in 10 mm increments, down to 100 mm.

lower leg

20QR thru axle system, post style disc brake mounting

spring

air

riding style

AM, FR, DH

NOTE:  This fork is designed to use the downhill brake system only. The disc brake caliper mounts directly to the fork leg and is positioned specifically for the use of 200-225 mm rotors.

Installing Your Fork

Be sure your fork is properly installed before proceeding. If your fork came pre-installed on your bicycle, continue to the next section.

Before You Ride

  1. Check that your 20 mm axle pinch bolts and crown pinch bolts are properly adjusted and tightened.
  2. Clean the outside of your fork with only mild soap and water, and wipe dry with a soft dry rag.

    NOTE:  Do not use any solvents or de-greasers, as these products can cause serious damage to paint and anodized parts (upper tubes, knobs, steerers).

    Do not spray water directly on the seal/upper tube junction. Do not use a high pressure washer on your fork.

  3. Inspect the entire exterior of your fork. The fork should not be used if any of the exterior parts appear to be damaged. Contact your local dealer or FOX Racing Shox for further inspection and repair.
  4. Check your headset adjustment. If loose, adjust it accordingly to your bicycle manufacturer's recommendations.
  5. Check that all brake cables or hoses are properly fastened.
  6. Test the proper operation of your front and rear brakes on level ground.

Setting Sag

You can also view a Flash video on Setting Sag.

To get the best performance from your fork, it is necessary to set and adjust sag. Generally, sag should be set to 15 – 25% of total fork travel.

  1. Unscrew the center blue aircap on top of the left fork leg to expose the Schrader valve.
  2. Attach a FOX Racing Shox High Pressure Pump to the Schrader valve.
  3. Pump your fork to the appropriate setting from the Suggested Air Spring Pressure Settings table below, then remove the pump.
  4. Unless your fork already has a sag setting o-ring on an upper tube, install a zip tie to an upper tube. Slide the o-ring or the zip tie down against the scraper lip of the fork dust seal.
  5. Dressed to ride, position your bike next to a wall or table to support yourself. Without bouncing, mount your bicycle. Assume a normal riding position for at least 30 seconds, allowing the suspension to fully settle.
  6. Dismount your bike without bouncing downward, without further moving the o-ring or zip tie. Measure the distance between the seal and the zip tie. This measurement is your sag value.
  7. Compare your actual sag value to your target sag value in the Sag Setup table below.

    If your sag measurement value is less than the Sag Setup table value
    , screw on the pump fitting, note the current air pressure setting and depress the black bleed-valve to reduce the gauge pressure by 5 psi. Measure sag again and repeat this adjustment, if necessary.

    If your sag measurement value is greater than the Sag Setup table value
    , screw on the pump fitting, note the current air pressure setting and pump to increase the gauge pressure by 5 psi. Measure sag again and repeat this adjustment if necessary.
  8. Screw the blue aircap back on, and go ride.

    Rider
    Weight
    lbs.

    Suggested Air Spring Pressure Settings
    PSI

    180 mm

    ≤125

    45

    125 - 135

    48

    135 - 145

    50

    145 - 155

    53

    155 - 170

    55

    170 - 185

    60

    185 - 200

    70

    200 - 215

    80

    215 - 230

    90

    230 - ≥250

    100


    Sag Setup

    Travel

    All-Mountain

    Freeride/DH

    170 mm (6.70")

    25 mm (1.00")

    42 mm (1.65")

    180 mm (7.09")

    27 mm (1.06")

    45 mm (1.77")


    Sag Troubleshooting

    Symptom

    Remedy

    Too much sag

    (+) air pressure in 5 psi increments

    Too little sag

    (-) air pressure in 5 psi increments

    Excessive bottoming

    (+) air pressure in 5 psi increments

    Harsh ride; full travel not utilized

    (-) air pressure in 5 psi increments

Adjusting Rebound

The rebound knob is located on the bottom of the right fork leg, and has 18 clicks of adjustment. Rebound controls the speed at which the fork extends after compressing. Turning the knob clockwise slows down rebound; turning the knob counter-clockwise speeds up rebound. As a starting point, turn the rebound adjuster knob all the way clockwise (full in) until it stops, then turn counter-clockwise (out) 9 clicks.

The rebound knob is protected by a black protective cap. Never ride your FOX 36 without this black protective cap.

Knob Setting
(clicks counter-clockwise OUT from fully clockwise IN)

Setting Description

Tuning Tips

Setup Tips

1

Slow Rebound

Too slow and your fork will pack down and ride harsh.

If you increase your spring rate or air pressure, you will need to slow down your rebound

9

(Factory setting)

Average Rebound

18

Fast Rebound

Too fast and you will experience poor traction and wheel hop.

If you decrease your spring rate or air pressure, you will need to speed up your rebound setting.

Adjusting High-Speed Compression

High-speed compression damping controls the force it takes to move the fork through its travel and how the wheel reacts to a bump. This adjuster rotates to stops at each end and has 24 clicks of adjustment. It is set from the factory at 12 clicks out from the full closed (clockwise) position.

Knob Setting
(clicks counter-clockwise OUT from fully clockwise IN)

Setting Description

Tuning Tips

1

Soft Compression

Maximum wheel traction and bump compliance. If setting is too soft, you may bottom often on square-edged hits and G-outs.

12

(Factory setting)

Average Compression

24

Firm Compression

Reduces bottom-out and provides maximum bump absorption. If setting is too firm, you may experience a harsh ride with bad traction and use too little available travel.

Adjusting Low-Speed Compression

Low-speed compression damping controls the influence of the rider’s weight shifts and bike attitude under braking. This adjuster rotates to stops at each end and has 24 clicks of adjustment. It is set from the factory at 12 clicks out from the full closed (clockwise) position.

Knob Setting
(clicks counter-clockwise OUT from fully clockwise IN)

Setting Description

Tuning Tips

1

Soft Compression

Maximum wheel traction and bump compliance. Too soft and you maybe have excessive brake dive and wallowy feel.

12

(Factory setting)

Average Compression

24

Firm Compression

Resists brake dive and keeps the fork up in the travel. Too firm and you may have poor traction in loose conditions.

Changing Travel

Travel on your 36 FLOAT FIT RC2 170 or 180 mm fork can be changed, by adding or removing air spring travel spacers. After changing travel, check the fork for proper operation before riding. If there is noticeable play in the fork or if it makes strange noises, disassemble the air spring leg of the fork and recheck your travel spacer configuration.

NOTE:  36 FLOAT FIT RC2 170 and 180 mm forks can be reduced in travel, but they cannot be increased beyond 180 mm.

Tools Required for Travel Change
Supplies Required for Travel Change
Learn how to use the FOX High Pressure Pump

Supplies Required

Quantity

Part Number

Part Name

1

025-02-003

1 qt. bottle of FOX Suspension Fluid (10 wt.)

1

025-03-002-A

5 cc Pillow Pack of FOX FLOAT Fluid

2

241-01-002-C

Crush washer

1

803-00-078

FLOAT Forx Air Piston Seal Kit (optional)


  1. Remove the blue air cap from the top of the left fork leg. Let the air out of the fork. Remove the left top cap with a 32 mm (or 1.25") 6-point socket wrench.
  2. Loosen the bottom nut 3-4 turns with a 10 mm wrench. With a plastic mallet, gently tap the bottom of the shaft to disengage it from the lower leg. Allow oil to drain into a bucket. Remove the bottom nut and crush washer.
  3. Compress the fork as much as possible. The air piston will be visible about one inch below the top of the upper tube. Push the bottom of the air shaft upwards to push the air piston out of the top of the upper tube. Use a long, thin shaft screwdriver to push the bottom of the air shaft up through the hole in the bottom of the lower leg.
  4. Pull the air shaft assembly from the fork. Refer to the Travel Spacer Orientation image below, and add or remove a 10 mm spacer to decrease or increase your travel length.

    NOTE:  Spacers snap onto the air shaft between the negative spring guide and topout plate, as shown in the travel spacer orientation drawing below.

  5. Lubricate the U-cup seal on the air piston with FOX FLOAT Fluid and re-install the air shaft assembly into the upper tube. Be sure to orient the U-cup seal as shown in the Seal Orientation drawing below.
  6. Push the shaft until it approaches the bottom hole of the fork. Do not push the shaft all the way through the bottom hole.
  7. Turn the fork upside down. Measure and pour 40 cc of FOX Suspension Fluid through the bottom hole.
  8. Push the air shaft assembly up until the shaft comes through the bottom hole. Install the crush washer and bottom nut. Torque to 50 in-lb.
  9. Turn the fork right side up. Pour 5 cc of FOX FLOAT Fluid on top of the air piston.
  10. Lubricate the o-ring on the air topcap with FOX FLOAT Fluid.
  11. Re-install the topcap and tighten to 220 in-lb torque.
  12. Pump up the fork to the desired pressure and cycle it several times to check for proper operation.
  13. Re-install the blue air cap.
  14. You’re done. Go ride.

Travel Spacer Orientation

Seal Orientation
